Lawn Star LS 3317 CS Engine 33cc Engine IPL

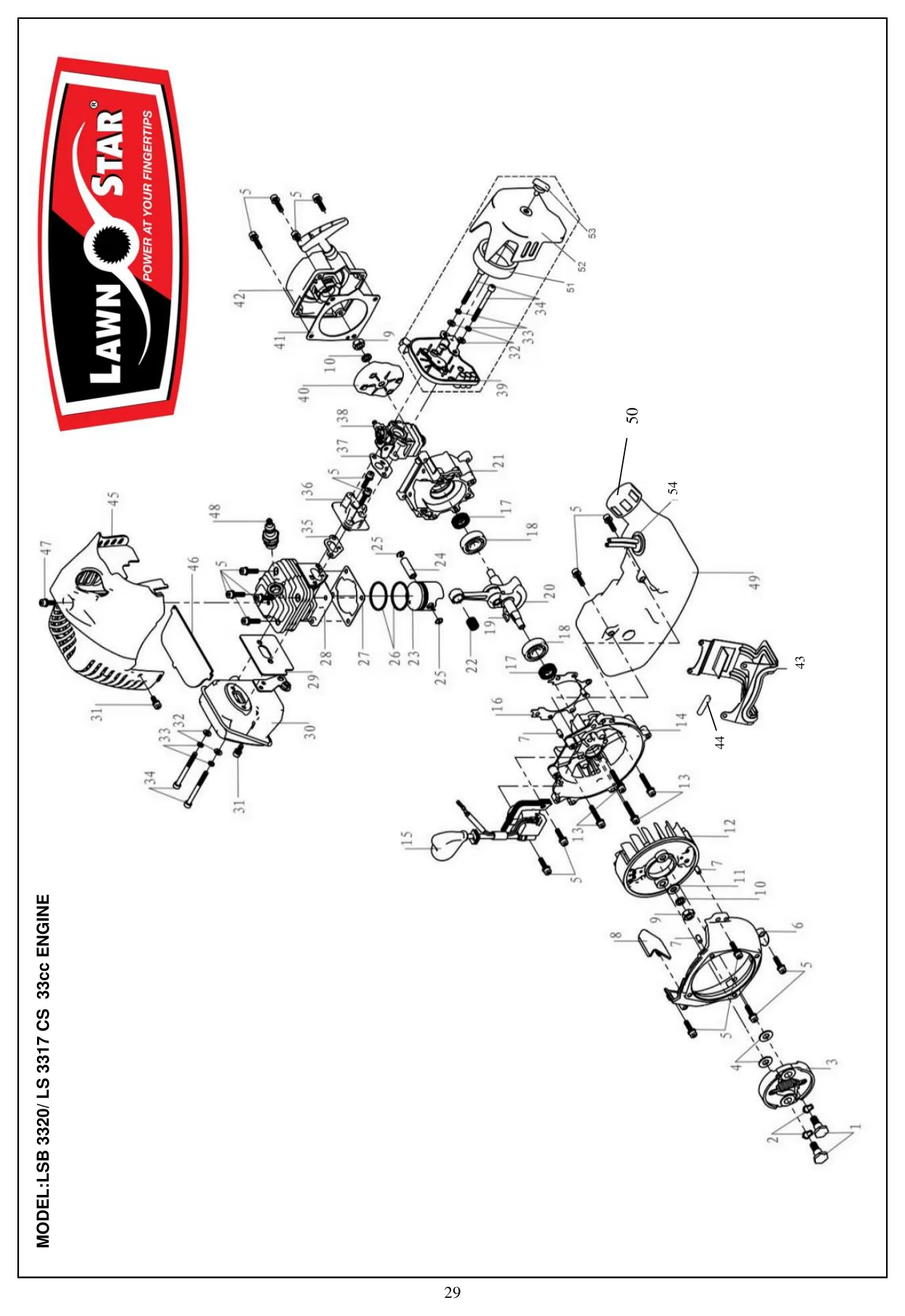

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Bolt clutch pad M10 | P-330-01 | P-330-01-Online | 2 |
| 2 | Washer wavy M10 | P-330-02 | P-330-02-Online | 2 |
| 3 | Clutch Shoe set with spring | P-520-32 | P-520-32-Online | 1 |
| 4 | Washer M10 | P-330-04 | P-330-04-Online | 2 |
| 5 | Screw M5 X 20 | T-113-00 | T-113-00-Online | 18 |
| 6 | Housing, clutch(6,7,8) | P-330-06 | P-330-06-Online | 1 |
| 7 | Pin, locating Dia5X10 | Refer to 6 Resolves to: P-330-06 | P-330-06-Online | 4 |
| 8 | Plate Baffle | Refer to 6 Resolves to: P-330-06 | P-330-06-Online | 1 |
| 9 | Nut M8 | M-113-00 | M-113-00-Online | 2 |
| 10 | Washer, spring M8 | M-103-08 | M-103-08-Online | 2 |
| 11 | Washer M8 | 1 | ||
| 12 | Flywheel | P-330-12 | P-330-12-Online | 1 |
| 13 | Screw M5 X 30 | 4 | ||
| 14 | Crank case assembly(14,16,17,18,19,29,21) | P-330-14 | P-330-14-Online | 1 |
| 15 | Ignition coil assembly | P-330-15 | P-330-15-Online | 1 |
| 16 | Gasket, crank case | Refer to 14,27 Resolves to: P-330-14, PA-330-27 | P-330-14-Online PA-330-27-Online | 1 |
| 17 | Seal, crankcase | Refer to 14 Resolves to: P-330-14 | P-330-14-Online | 2 |
| 18 | Bearing, main | Refer to 14 Resolves to: P-330-14 | P-330-14-Online | 2 |
| 19 | Key, flywheel | Refer to 14 Resolves to: P-330-14 | P-330-14-Online | 1 |
| 20 | Crankshaft assembly | Refer to 14 Resolves to: P-330-14 | P-330-14-Online | 1 |
| 21 | Crankcase assembly rear | Refer to 14 Resolves to: P-330-14 | P-330-14-Online | 1 |
| 22 | Bearing, small end | P-330-22 | P-330-22-Online | 1 |
| 23 | Piston 33cc | P-330-23 | P-330-23-Online | 1 |
| 24 | Gudgeon-pin | P-330-24 | P-330-24-Online | 1 |
| 25 | Snap ring gudgeon-pin | P-330-25 | P-330-25-Online | 2 |
| 26 | Piston ring 33cc | P-330-26 | P-330-26-Online | 2 |
| 27 | Gasket, kit 33cc(16,27,29,35,37) | PA-330-27 | PA-330-27-Online | 1 |
| 28 | Cylinder head | P-330-28 | P-330-28-Online | 1 |
| 29 | Gasket, exhaust | Refer to 27 Resolves to: PA-330-27 | PA-330-27-Online | 1 |
| 30 | Exhaust | P-330-30 | P-330-30-Online | 1 |
| 31 | Screw M5x12 | 2 | ||
| 32 | Washer M5 | M-112-10 | M-112-10-Online | 4 |
| 33 | Washer, spring M5 | 4 | ||
| 34 | Screw M5 x 55 | 4 | ||
| 35 | Gasket, Inlet adaptor | Refer to 27 Resolves to: PA-330-27 | PA-330-27-Online | 1 |
| 36 | Inlet adaptor housing | P-330-36 | P-330-36-Online | 1 |
| 37 | Gasket, carburettor | Refer to 27 Resolves to: PA-330-27 | PA-330-27-Online | 1 |
| 38 | Carburettor | P-330-38 | P-330-38-Online | 1 |
| 39 | Air filter housing assembly | P-330-39 | P-330-39-Online | 1 |
| 40 | Starter bowl | Refer to 42 Resolves to: P-330-42 | P-330-42-Online | 1 |
| 41 | Gasket, starter | Refer to 42 Resolves to: P-330-42 | P-330-42-Online | 1 |
| 42 | Easy-start Pull chord starter assembly(40,41,42) | P-330-42 | P-330-42-Online | 1 |
| 43 | Tank protector, steel(43,44) | P-330-43 | P-330-43-Online | 1 |
| 44 | Grommet, tank protector | Refer to 43 Resolves to: P-330-43 | P-330-43-Online | 1 |
| 45 | Engine cover, main | P-330-45 | P-330-45-Online | 1 |
| 46 | Baffle engine cover | P-330-46 | P-330-46-Online | 1 |
| 47 | Screw M5x16 | 1 | ||
| 48 | Spark Plug(BM6A) | P-260-55 | P-260-55-Online | 1 |
| 49 | Fuel tank assembly(49,54,50) | P-330-49 | P-330-49-Online | 1 |
| 50 | Fuel cap assembly | P-330-50 | P-330-50-Online | 1 |
| 51 | Air filter | P-2022820 | P-2022820-Online | 1 |
| 52 | Air filter housing cover | P-330-52 | P-330-52-Online | 1 |
| 53 | Air filter cover screw | P-330-53 | P-330-53-Online | 1 |
| 54 | Fuel hose assembly (Filter, 2x hoses and rubber grommet) | P-340-61 | P-340-61-Online | 1 |
