Lawn Star LS 3317 CS Petrol Trimmer IPL

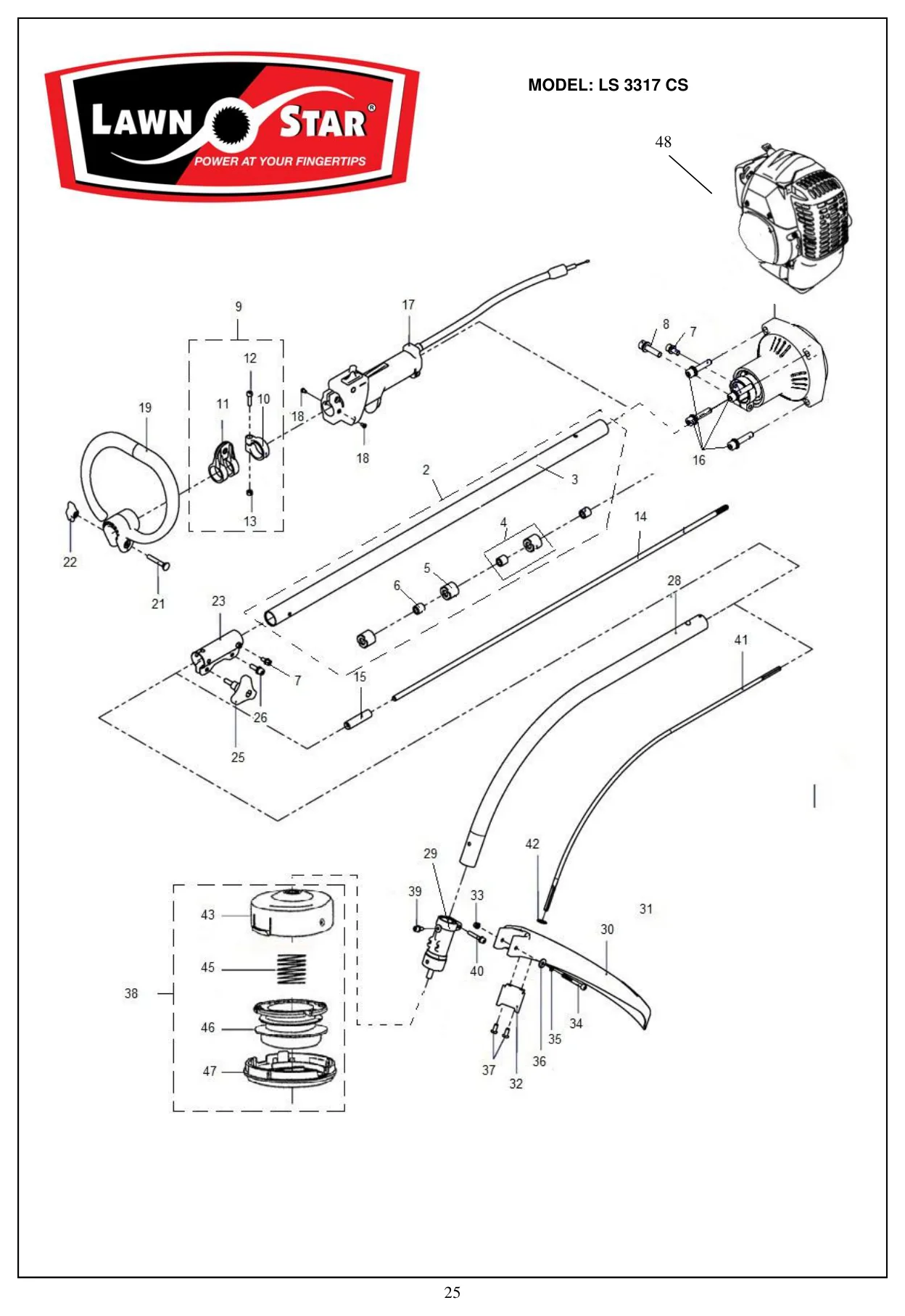

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Housing, bearing assembly | P-331-01 | P-331-01-Online | 1 |
| 2 | Tube upper assembly (3,4,5,6,14,15) | PA-262-54 | PA-262-54-Online | 1 |
| 3 | Tube upper | Refer to 2 Resolves to: PA-262-54 | PA-262-54-Online | 1 |
| 4 | Bearing assembly | Refer to 2 Resolves to: PA-262-54 | PA-262-54-Online | 3 |
| 5 | Bearing outer | Refer to 2 Resolves to: PA-262-54 | PA-262-54-Online | 1 |
| 6 | Bearing inner | Refer to 2 Resolves to: PA-262-54 | PA-262-54-Online | 1 |
| 7 | M5x12 screw | TA-112-12 | TA-112-12-Online | 2 |
| 8 | M5x25 screw | TA-112-25 | TA-112-25-Online | 2 |
| 9 | Attachment assembly shoulder harness(10,11,12,13) | PA-262-59 | PA-262-59-Online | 1 |
| 10 | Attachment securing clamp | Refer to 9 Resolves to: PA-262-59 | PA-262-59-Online | 1 |
| 11 | Belt Connecter | Refer to 9 Resolves to: PA-262-59 | PA-262-59-Online | 1 |
| 12 | M5x20 screw | Refer to 9 Resolves to: PA-262-59 | PA-262-59-Online | 1 |
| 13 | Nut M5 | Refer to 9 Resolves to: PA-262-59 | PA-262-59-Online | 1 |
| 14 | Drive shaft upper assembly dia 8.0 x 762mm (14, 15) | Refer to 2 Resolves to: PA-262-54 | PA-262-54-Online | 1 |
| 15 | Adaptor drive shaft | Refer to 14 | 1 | |
| 16 | M6x20 screw | M-116-20 | M-116-20-Online | 4 |
| 17 | Throttle Handle Assy( 17,18) | PA-262-67 | PA-262-67-Online | 1 |
| 18 | ST3.8x6-H-F | Refer to 17 Resolves to: PA-262-67 | PA-262-67-Online | 2 |
| 19 | Assist handle TM standard | T-313-00 | T-313-00-Online | 1 |
| 21 | M6x50mm Hex head bolt | T-110-10 | T-110-10-Online | 1 |
| 22 | Knob universal | T-321-00 | T-321-00-Online | 1 |
| 23 | Coupling assy | T-251-00 | T-251-00-Online | 1 |
| 25 | Knob | T-320-00 | T-320-00-Online | 1 |
| 26 | M6x20_hex screw | P-262-76 | P-262-76-Online | 1 |
| 27 | P-262-77 | P-262-77-Online | 1 | |
| 28 | Lower tube assemmbly shaft φ26.0 x 630 mm set (28,41,42) | P-262-78 | P-262-78-Online | 1 |
| 29 | Bearing & Drive shaft assembly(29,39,40) | P-262-79 | P-262-79-Online | 1 |
| 30 | Guard assembly(31,32,33,34,35,36,37) | P-262-80 | P-262-80-Online | 1 |
| 31 | Guard | Refer to 30 Resolves to: P-262-80 | P-262-80-Online | 1 |
| 32 | Blade | Refer to 30 Resolves to: P-262-80 | P-262-80-Online | 1 |
| 33 | M5_lock nut | Refer to 30 Resolves to: P-262-80 | P-262-80-Online | 1 |
| 34 | M5x45 screw | Refer to 30 Resolves to: P-262-80 | P-262-80-Online | 2 |
| 35 | Spring washer 5 | Refer to 30 Resolves to: P-262-80 | P-262-80-Online | 1 |
| 36 | Flat washer 5.5x15x1 | Refer to 30 Resolves to: P-262-80 | P-262-80-Online | 1 |
| 37 | ST4.8x12-H-F | Refer to 30 Resolves to: P-262-80 | P-262-80-Online | 1 |
| 38 | Complete Cutting head to suit petrol trimmer type2 (43,44,45,46,47) | PA-262-88 | PA-262-88-Online | 1 |
| 39 | M5x12 hex screw | Refer to 29 Resolves to: P-262-79 | P-262-79-Online | 1 |
| 40 | M5x30 hex screw | Refer to 29 Resolves to: P-262-79 | P-262-79-Online | 1 |
| 41 | Drive shaft lower 630mm | Refer to 28 Resolves to: P-262-78 | P-262-78-Online | 1 |
| 42 | Retaining ring | Refer to 28 Resolves to: P-262-78 | P-262-78-Online | 1 |
| 43 | Spool housing type 2 | P-262-93 | P-262-93-Online | 1 |
| 45 | Spring cutting head type 2 | P-262-95 | P-262-95-Online | 1 |
| 46 | Spool type 2 | P-262-96 | P-262-96-Online | 1 |
| 47 | Cap type type 2 | P-262-97 | P-262-97-Online | 1 |
| 48 | 33cc Engine | Refer to page 28 |
