Lawn Star LSQ 4548 L Mower IPL

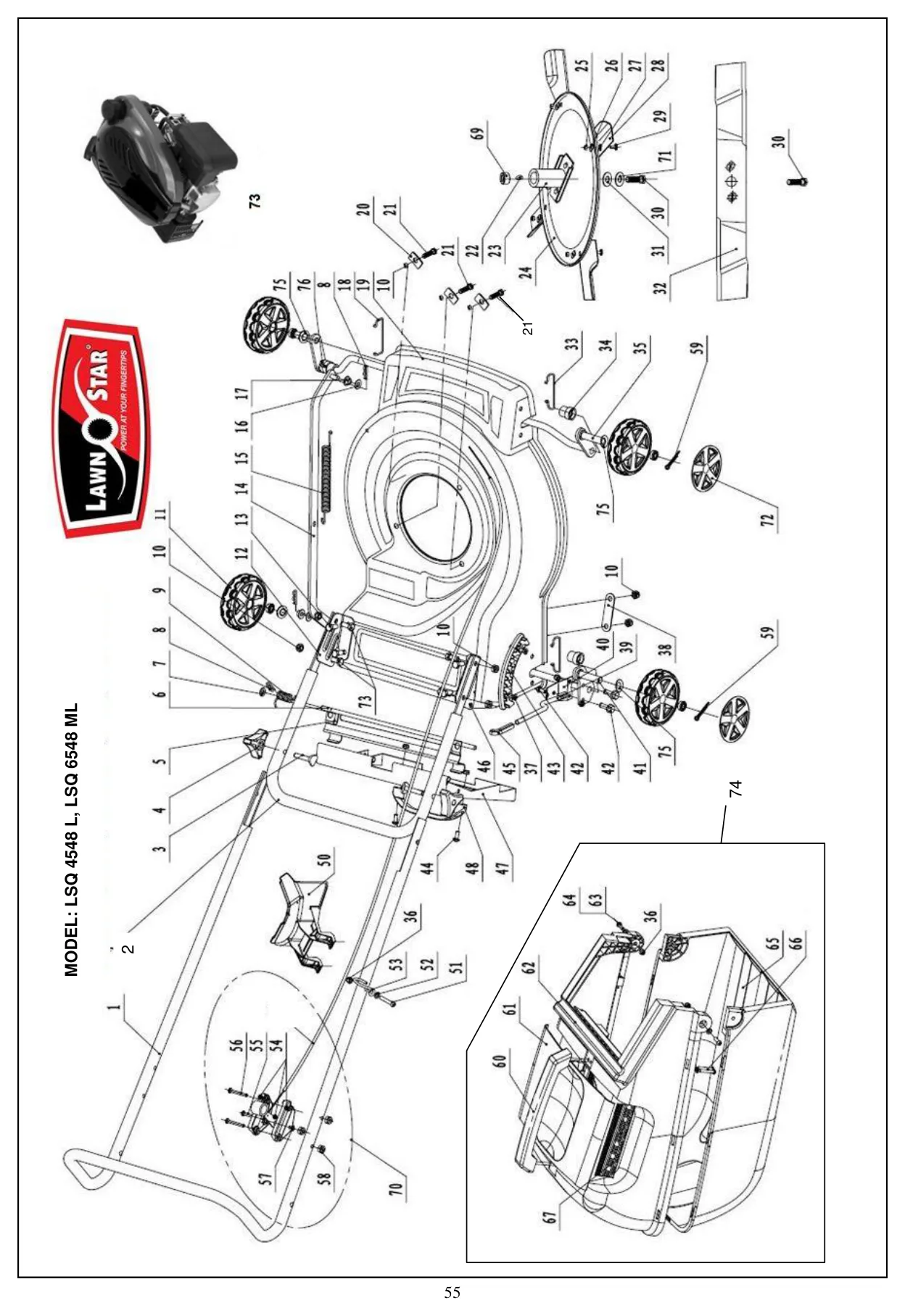

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Upper handle | M-215-48 | M-215-48-Online | 1 |
| 41 | Axle assembly, rear LSQ 48 | M-204-47 | M-204-47-Online | 1 |
| 2 | Handle, lower | M-211-48 | M-211-48-Online | 1 |
| 42 | Bolt M6x16 | T-110-20 | T-110-20-Online | 3 |
| 3 | Coach bolt, M8X46 | M-120-00 | M-120-00-Online | 2 |
| 43 | Bracket, height adjuster | M-221-47 | M-221-47-Online | 1 |
| 4 | Knob, handle complete with nut | M-326-00 | M-326-00-Online | 2 |
| 44 | M6x16 pan head screw | M-116-16 | M-116-16-Online | 2 |
| 5 | Hook, grass catcher | M-205-48 | M-205-48-Online | 1 |
| 45 | Knob, height adjuster | Refer to 39 Resolves to: M-220-47 | M-220-47-Online | 1 |
| 6 | Rod, flap | M-116-48 | M-116-48-Online | 1 |
| 46 | Bracket, right - lower handle | M-222-48 | M-222-48-Online | 1 |
| 7 | Washer, M8 | M-125-00 | M-125-00-Online | 3 |
| 47 | Flap, steel | M-208-48 | M-208-48-Online | 1 |
| 8 | Split-pin | M-115-53 | M-115-53-Online | 3 |
| 48 | Handle, steel flap | M-315-48 | M-315-48-Online | 1 |
| 9 | Spring, flap | M-210-48 | M-210-48-Online | 1 |
| 50 | Mulch plug | M-350-48 | M-350-48-Online | 1 |
| 10 | Nut M8, nyloc | M-113-00 | M-113-00-Online | 11 |
| 51 | Bolt M6x35 | M-116-35 | M-116-35-Online | 1 |
| 11 | Wheel 7" LSQ 48 with dual ball bear- ings (11,72,76) | M-360-70 | M-360-70-Online | 4 |
| 52 | Washer M6 | T-131-00 | T-131-00-Online | 1 |
| 12 | Bracket, left - lower handle | M-223-48 | M-223-48-Online | 1 |
| 53 | Guide, pull starter cord | M-213-48 | M-213-48-Online | 1 |
| 13 | Bolt, M8 lower handle | M-119-53 | M-119-53-Online | 8 |
| 54 | Throttle control | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 1 |
| 14 | Height adjuster bar | M-206-48 | M-206-48-Online | 1 |
| 55 | M5 Bolt x 30.0 ,threaded 10.0 , Pan Head Posi | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 1 |
| 15 | Spring, counterbalance | M-207-48 | M-207-48-Online | 1 |
| 56 | Pan head screw M5X35 | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 2 |
| 16 | Nylon washer | M-329-00 | M-329-00-Online | 2 |
| 57 | Washer M5 | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 5 |
| 17 | Nylon bush | M-329-10 | M-329-10-Online | 2 |
| 58 | M5 Nyloc Nut | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 3 |
| 18 | Clip, LSQ 48 axle, left | M-201-47 | M-201-47-Online | 2 |
| 59 | Split pin, LSQ wheel axle | M-110-47 | M-110-47-Online | 4 |
| 19 | Mower deck 48 cm 1.5mm thick - col- our red RAL 3001 | MA-200-15 | MA-200-15-Online | 1 |
| 60 | Handle, grass catcher | M-306-48 | M-306-48-Online | 1 |
| 20 | Washer | M-112-53 | M-112-53-Online | 3 |
| 61 | Cover, grass catcher | M-307-48 | M-307-48-Online | 1 |
| 21 | Bolt M8x40 | M-111-00 | M-111-00-Online | 3 |
| 62 | Grass catcher, upper | M-307-47 | M-307-47-Online | 1 |
| 22 | Woodruff Key, B&S and Honda petrol engine | M-251-53 | M-251-53-Online | 1 |
| 63 | Screw M6 x 20 | M-116-20 | M-116-20-Online | 2 |
| 23 | Coupling,Steel,shaft No 2,48/33mm | M-250-48 | M-250-48-Online | 1 |
| 64 | Washer, M6 | T-131-00 | T-131-00-Online | 2 |
| 24 | Disc | M-252-00 | M-252-00-Online | 1 |
| 65 | Grass catcher, lower | M-307-46 | M-307-46-Online | 1 |
| 25 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 4 |
| 66 | Screw ST4.8x50 | M-131-50 | M-131-50-Online | 4 |
| 26 | Washer, swing blade bolt | M-104-00 | M-104-00-Online | 4 |
| 67 | Filter, grass | M-307-45 | M-307-45-Online | 1 |
| 27 | Spring Washer, swing blade bolt | M-103-00 | M-103-00-Online | 4 |
| 69 | Spacer coupling 12mm | Refer to 23 Resolves to: M-250-48 | M-250-48-Online | 1 |
| 28 | Swing blade(M-254-00) | 80-02544 | 80-02544-Online | 4 |
| 70 | Throttle control assembly, to suit B&S 850IC | M-402-00 | M-402-00-Online | 1 |
| 29 | Bolt, swing blade M10x20 | M-102-00 | M-102-00-Online | 4 |
| 71 | Washer, spring | M-100-00 | M-100-00-Online | 1 |
| 30 | Bolt, blade 3/8"UNF x 50mm | M-101-50 | M-101-50-Online | 1 |
| 72 | Hub cap , LSQ 48 -7", Silver RAL 9022 | M-321-70 | M-321-70-Online | 4 |
| 31 | Washer, Quadrablade disc bolt | M-253-00 | M-253-00-Online | 1 |
| 73 | Bolt coach, M8x20 | M-119-00 | M-119-00-Online | 4 |
| 32 | Mulch blade 46cm(M-255-10 | 80-02551 | 80-02551-Online | |
| 74 | Grass catcher assembly (36,60,61,62,63,64,65,66,67) | MA-307-47 | MA-307-47-Online | 1 |
| 33 | Clip, LSQ 48 axle, right | M-202-47 | M-202-47-Online | 2 |
| 75 | Bush, axle | M-320-53 | M-320-53-Online | 4 |
| 34 | Bush, axle | M-320-53 | M-320-53-Online | 4 |
| 76 | Bearing wheel | M-150-00 | M-150-00-Online | 8 |
| 35 | Axle assembly, front LSQ 48 | M-203-47 | M-203-47-Online | 1 |
| 77 | Petrol Engine, Lawn Star 140cc OHV | M-671-40 | M-671-40-Online | 1 |
| 36 | Nut M6, nylock | T-111-00 | T-111-00-Online | 9 |
| 77 | LS 200 Petrol OHV 196cc 4-Stroke engine | M-672-00 | M-672-00-Online | 1 |
| 37 | M6 x 16 Countersink CSK | M-106-16 | M-106-16-Online | 2 |
| 38 | Support plate, handle bracket | M-226-00 | M-226-00-Online | 2 |
| 39 | Height adjuster lever LSQ 48 (39,40,45) | M-220-47 | M-220-47-Online | 1 |
| 40 | Spring, height adjuster lever LSQ 48 | Refer to 39 Resolves to: M-220-47 | M-220-47-Online | 1 |
