Lawn Star LSQ 6548 ML Mower IPL

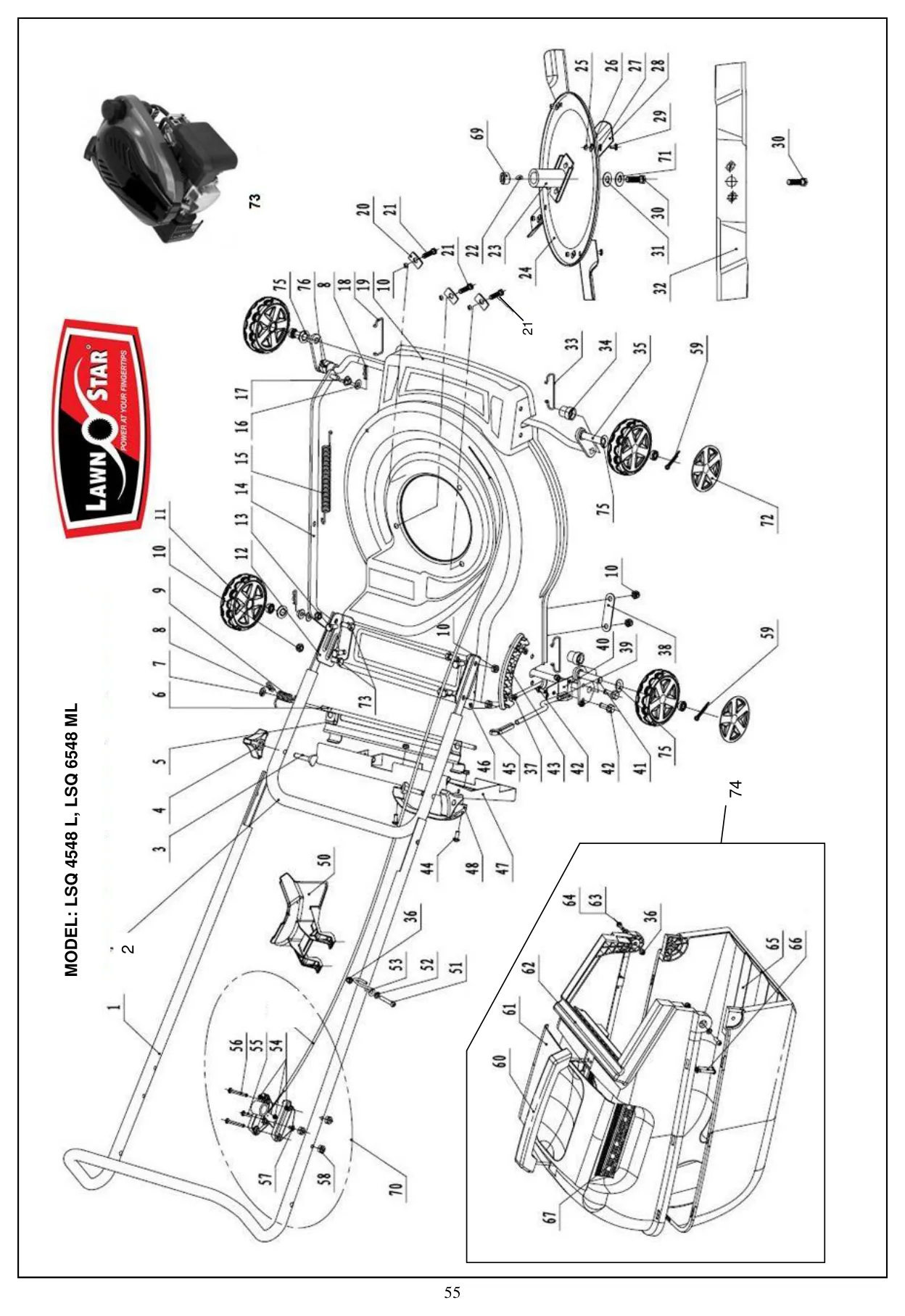

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Upper handle | M-215-48 | M-215-48-Online | 1 |
| 41 | Axle assembly, rear LSQ 48 | M-204-47 | M-204-47-Online | 1 |
| 2 | Handle, lower | M-211-48 | M-211-48-Online | 1 |
| 42 | Bolt M6x16 | T-110-20 | T-110-20-Online | 3 |
| 3 | Coach bolt, M8X46 | M-120-00 | M-120-00-Online | 2 |
| 43 | Bracket, height adjuster | M-221-47 | M-221-47-Online | 1 |
| 4 | Knob, handle complete with nut | M-326-00 | M-326-00-Online | 2 |
| 44 | M6x16 pan head screw | M-116-16 | M-116-16-Online | 2 |
| 5 | Hook, grass catcher | M-205-48 | M-205-48-Online | 1 |
| 45 | Knob, height adjuster | Refer to 39 Resolves to: M-220-47 | M-220-47-Online | 1 |
| 6 | Rod, flap | M-116-48 | M-116-48-Online | 1 |
| 46 | Bracket, right - lower handle | M-222-48 | M-222-48-Online | 1 |
| 7 | Washer, M8 | M-125-00 | M-125-00-Online | 3 |
| 47 | Flap, steel | M-208-48 | M-208-48-Online | 1 |
| 8 | Split-pin | M-115-53 | M-115-53-Online | 3 |
| 48 | Handle, steel flap | M-315-48 | M-315-48-Online | 1 |
| 9 | Spring, flap | M-210-48 | M-210-48-Online | 1 |
| 50 | Mulch plug | M-350-48 | M-350-48-Online | 1 |
| 10 | Nut M8, nyloc | M-113-00 | M-113-00-Online | 11 |
| 51 | Bolt M6x35 | M-116-35 | M-116-35-Online | 1 |
| 11 | Wheel 7" LSQ 48 with dual ball bear- ings (11,72,76) | M-360-70 | M-360-70-Online | 4 |
| 52 | Washer M6 | T-131-00 | T-131-00-Online | 1 |
| 12 | Bracket, left - lower handle | M-223-48 | M-223-48-Online | 1 |
| 53 | Guide, pull starter cord | M-213-48 | M-213-48-Online | 1 |
| 13 | Bolt, M8 lower handle | M-119-53 | M-119-53-Online | 8 |
| 54 | Throttle control | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 1 |
| 14 | Height adjuster bar | M-206-48 | M-206-48-Online | 1 |
| 55 | M5 Bolt x 30.0 ,threaded 10.0 , Pan Head Posi | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 1 |
| 15 | Spring, counterbalance | M-207-48 | M-207-48-Online | 1 |
| 56 | Pan head screw M5X35 | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 2 |
| 16 | Nylon washer | M-329-00 | M-329-00-Online | 2 |
| 57 | Washer M5 | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 5 |
| 17 | Nylon bush | M-329-10 | M-329-10-Online | 2 |
| 58 | M5 Nyloc Nut | Refer to 70 Resolves to: M-402-00 | M-402-00-Online | 3 |
| 18 | Clip, LSQ 48 axle, left | M-201-47 | M-201-47-Online | 2 |
| 59 | Split pin, LSQ wheel axle | M-110-47 | M-110-47-Online | 4 |
| 19 | Mower deck 48 cm 1.5mm thick - col- our red RAL 3001 | MA-200-15 | MA-200-15-Online | 1 |
| 60 | Handle, grass catcher | M-306-48 | M-306-48-Online | 1 |
| 20 | Washer | M-112-53 | M-112-53-Online | 3 |
| 61 | Cover, grass catcher | M-307-48 | M-307-48-Online | 1 |
| 21 | Bolt M8x40 | M-111-00 | M-111-00-Online | 3 |
| 62 | Grass catcher, upper | M-307-47 | M-307-47-Online | 1 |
| 22 | Woodruff Key, B&S and Honda petrol engine | M-251-53 | M-251-53-Online | 1 |
| 63 | Screw M6 x 20 | M-116-20 | M-116-20-Online | 2 |
| 23 | Coupling,Steel,shaft No 2,48/33mm | M-250-48 | M-250-48-Online | 1 |
| 64 | Washer, M6 | T-131-00 | T-131-00-Online | 2 |
| 24 | Disc | M-252-00 | M-252-00-Online | 1 |
| 65 | Grass catcher, lower | M-307-46 | M-307-46-Online | 1 |
| 25 | Nyloc Nut M10 | M-105-00 | M-105-00-Online | 4 |
| 66 | Screw ST4.8x50 | M-131-50 | M-131-50-Online | 4 |
| 26 | Washer, swing blade bolt | M-104-00 | M-104-00-Online | 4 |
| 67 | Filter, grass | M-307-45 | M-307-45-Online | 1 |
| 27 | Spring Washer, swing blade bolt | M-103-00 | M-103-00-Online | 4 |
| 69 | Spacer coupling 12mm | Refer to 23 Resolves to: M-250-48 | M-250-48-Online | 1 |
| 28 | Swing blade(M-254-00) | 80-02544 | 80-02544-Online | 4 |
| 70 | Throttle control assembly, to suit B&S 850IC | M-402-00 | M-402-00-Online | 1 |
| 29 | Bolt, swing blade M10x20 | M-102-00 | M-102-00-Online | 4 |
| 71 | Washer, spring | M-100-00 | M-100-00-Online | 1 |
| 30 | Bolt, blade 3/8"UNF x 50mm | M-101-50 | M-101-50-Online | 1 |
| 72 | Hub cap , LSQ 48 -7", Silver RAL 9022 | M-321-70 | M-321-70-Online | 4 |
| 31 | Washer, Quadrablade disc bolt | M-253-00 | M-253-00-Online | 1 |
| 73 | Bolt coach, M8x20 | M-119-00 | M-119-00-Online | 4 |
| 32 | Mulch blade 46cm(M-255-10 | 80-02551 | 80-02551-Online | |
| 74 | Grass catcher assembly (36,60,61,62,63,64,65,66,67) | MA-307-47 | MA-307-47-Online | 1 |
| 33 | Clip, LSQ 48 axle, right | M-202-47 | M-202-47-Online | 2 |
| 75 | Bush, axle | M-320-53 | M-320-53-Online | 4 |
| 34 | Bush, axle | M-320-53 | M-320-53-Online | 4 |
| 76 | Bearing wheel | M-150-00 | M-150-00-Online | 8 |
| 35 | Axle assembly, front LSQ 48 | M-203-47 | M-203-47-Online | 1 |
| 77 | Petrol Engine, Lawn Star 140cc OHV | M-671-40 | M-671-40-Online | 1 |
| 36 | Nut M6, nylock | T-111-00 | T-111-00-Online | 9 |
| 77 | LS 200 Petrol OHV 196cc 4-Stroke engine | M-672-00 | M-672-00-Online | 1 |
| 37 | M6 x 16 Countersink CSK | M-106-16 | M-106-16-Online | 2 |
| 38 | Support plate, handle bracket | M-226-00 | M-226-00-Online | 2 |
| 39 | Height adjuster lever LSQ 48 (39,40,45) | M-220-47 | M-220-47-Online | 1 |
| 40 | Spring, height adjuster lever LSQ 48 | Refer to 39 Resolves to: M-220-47 | M-220-47-Online | 1 |
