Titantec CS598 IPL Parts Diagram

Titantec CS598 IPL Parts Diagram

Titantec CS598 IPL Parts Diagram

Machine SKU: TT-CS598-Online

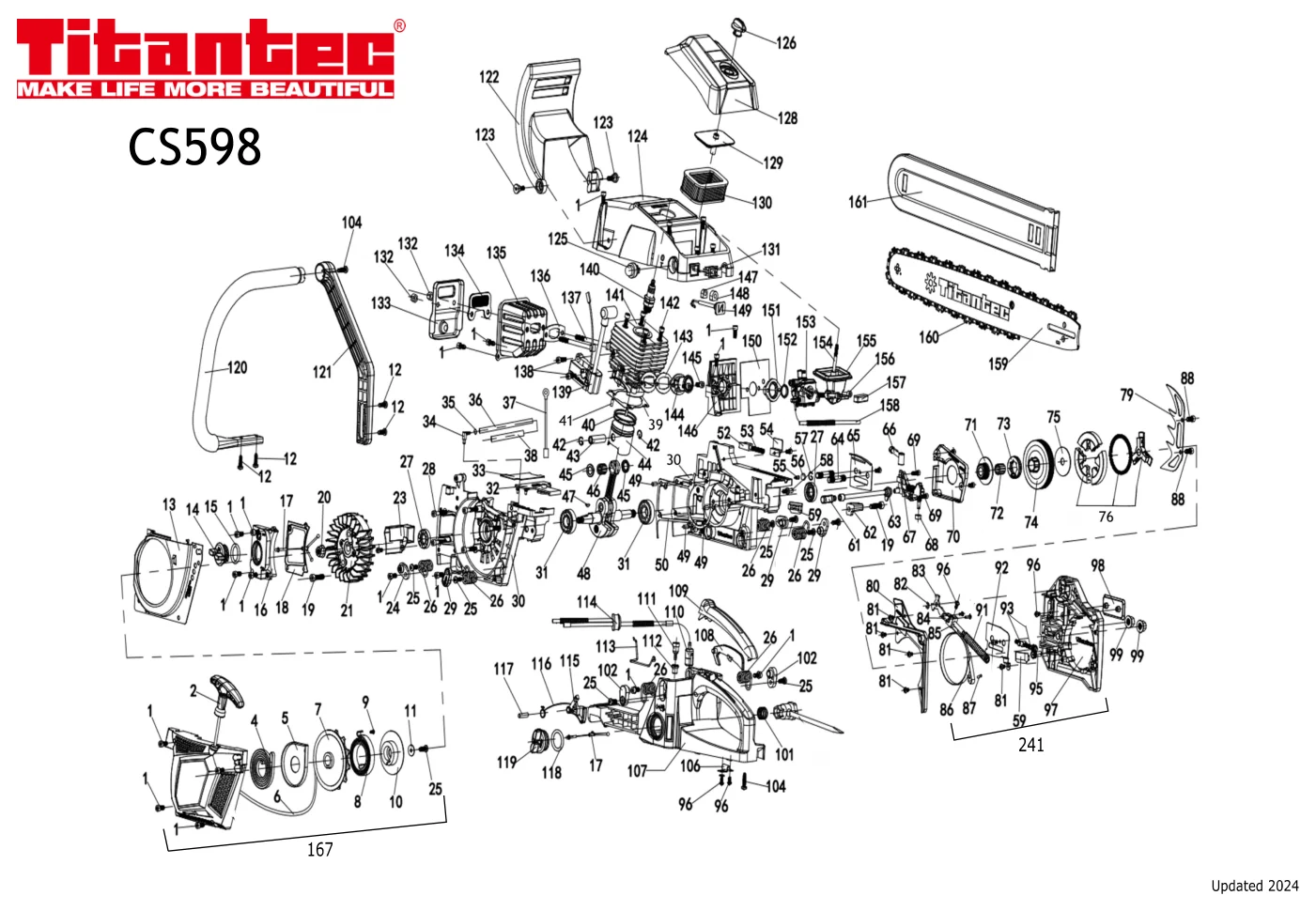

Titantec CS598 IPL exploded view 1

CS598 parts list

RefDescriptionPart numberCutsmart SKU
1Bolt M5x14TT00101TT-00101-Online
2starter KnobTT00203TT-00203-Online
3starter coverTT00303TT-00303-Online
4SpringTT00403TT-00403-Online
5Spring boxTT00501TT-00501-Online
6RopeTT00601TT-00601-Online
7ReelTT00703TT-00703-Online
8Torsion SpringTT00804TT-00804-Online
9Bolt ST3x8TT00901TT-00901-Online
10RatchetTT01003TT-01003-Online
11WasherTT01101TT-01101-Online
12Bolt ST5x16TT01201TT-01201-Online
13ShroudTT01301TT-01301-Online
14Oil capTT01401TT-01401-Online
15Seal oil capTT01501TT-01501-Online
16Side cover oil tankTT01601TT-01601-Online
17Palm oil CapTT01701TT-01701-Online
18Gasket side coverTT01801TT-01801-Online
19Bolt M6x25TT01901TT-01901-Online
20Flange nut M8TT02001TT-02001-Online
21FlywheelTT02106TT-02106-Online
23Draft tubeTT02301TT-02301-Online
24AL plate anti vibrationTT02401TT-02401-Online
25Bolt STx14TT02501TT-02501-Online
26anti vibration springTT02601TT-02601-Online
27oil seal 15x28x7TT02703TT-02703-Online
29Plate anti vibration springTT02901TT-02901-Online
30Left & Right CrankcaseTT03005TT-03005-Online
31Bearing 6202TT03101TT-03101-Online
32Dustproof plateTT03201TT-03201-Online
33Gasket bottom plateTT03301TT-03301-Online
34Negative pressure nozzleTT03401TT-03401-Online
35Spring nozzleTT03501TT-03501-Online
36Negative pressure tubeTT03601TT-03601-Online
37Ground wireTT03701TT-03701-Online
38anti scald tubeTT03801TT-03801-Online
39Gasket, CylinderTT03906TT-03906-Online
40Piston RingTT04006TT-04006-Online
41PinTT04101TT-04101-Online
42Snap Ring, Piston PinTT04203TT-04203-Online
43Piston PinTT04306TT-04306-Online
44PistonTT04406TT-04406-Online
45elastic ring needle bearingTT04501TT-04501-Online
46Needle bearingTT04606TT-04606-Online
47Key 3x10TT04701TT-04701-Online
48CrankshaftTT04806TT-04806-Online
49Pin 5x10TT04901TT-04901-Online
50Gasket, CrankcaseTT05006TT-05006-Online
52Limit ejectorTT05201TT-05201-Online
53spring limit ejectorTT05301TT-05301-Online
54Plate springTT05401TT-05401-Online
55ventTT05501TT-05501-Online
56sponge ventTT05601TT-05601-Online
57Circlip ventTT05701TT-05701-Online
58Bolt M5x10TT05801TT-05801-Online
59Guide chain blockTT05901TT-05901-Online
61oil filterTT06101TT-06101-Online
62Stop chain blockTT06201TT-06201-Online
63oil tubeTT06301TT-06301-Online
64Bolt M8x42TT06401TT-06401-Online
65Plate injectorTT06501TT-06501-Online
66injectorTT06601TT-06601-Online
67oil pumpTT06701TT-06701-Online
68sponge oil pumpTT06801TT-06801-Online
69Bolt M4x14TT06901TT-06901-Online
70plate oil pumpTT07001TT-07001-Online
71wormTT07101TT-07101-Online
72needle bearing 12x15x14.5TT07201TT-07201-Online
73sprocketTT07301TT-07301-Online
74DrumTT07401TT-07401-Online
75Spacer clutchTT07501TT-07501-Online
76ClutchTT07604TT-07604-Online
79Wooden teethTT07901TT-07901-Online
80Plate braker springTT08001TT-08001-Online
81Bolt M4x8TT08101TT-08101-Online
82Snap ring 5TT08201TT-08201-Online
83Braker leverTT08301TT-08301-Online
84Braker lever connecting pieceTT08401TT-08401-Online
85Brake band connectin rodTT08501TT-08501-Online
86Brake bandTT08601TT-08601-Online
87Positioning pinTT08701TT-08701-Online
88Bolt M5x10TT08801TT-08801-Online
91main spring brakerTT09101TT-09101-Online
92Tension coverTT09201TT-09201-Online
93Adjusting screw pinTT09301TT-09301-Online
95adjusting screw gearTT09501TT-09501-Online
96Bolt ST4x8TT09601TT-09601-Online
97Braker coverTT09701TT-09701-Online
98Plate brakerTT09801TT-09801-Online
99lange nut M8x1.25TT09901TT-09901-Online
101Spring socketTT10101TT-10101-Online
102plate anti viraton springTT10201TT-10201-Online
104Bolt ST5x20TT10401TT-10401-Online
106Spacer socketTT10601TT-10601-Online
107Fuel tankTT10704TT-10704-Online
108Trigger control armTT10801TT-10801-Online
109rear handle coverTT10901TT-10901-Online
110Fuel FilterTT11004TT-11004-Online
111BalancerTT11101TT-11101-Online
112Balancer seatTT11201TT-11201-Online
113Throttle push rodTT11301TT-11301-Online
114Pipe SeatTT11404TT-11404-Online
115Throttle triggerTT11501TT-11501-Online
116Torsion spring triggerTT11601TT-11601-Online
117Pin 6x25TT11701TT-11701-Online
118Seal fuel capTT11801TT-11801-Online
119Cap fuel filterTT11904TT-11904-Online
120HandleTT12001TT-12001-Online
121Handle standTT12101TT-12101-Online
122Top CoverTT12203TT-12203-Online
123Bolt M5x12TT12301TT-12301-Online
124Cover, CylinderTT12404TT-12404-Online
125bubbleTT12501TT-12501-Online
126KnobTT12603TT-12603-Online
128Cover FilterTT12804TT-12804-Online
129Plate air filterTT12901TT-12901-Online
130elementTT13003TT-13003-Online
131on/off switchTT13101TT-13101-Online
132nut M6TT13201TT-13201-Online
133Muffler Heat ShieldTT13305TT-13305-Online
134netTT13401TT-13401-Online
135mufflerTT13503TT-13503-Online
136gasket mufflerTT13601TT-13601-Online
137bolt M6x86TT13701TT-13701-Online
138Bolt M5x16TT13801TT-13801-Online
139coilTT13906TT-13906-Online
140spark plug BM6ATT14001TT-14001-Online
141cylinderTT14106TT-14106-Online
142Bolt M5x20TT14201TT-14201-Online
143gasket inlet pipeTT14303TT-14303-Online
144inlet pipeTT14404TT-14404-Online
145Bolt M5x10TT14501TT-14501-Online
146Carb bracketTT14601TT-14601-Online
147Small damper rodTT14701TT-14701-Online
148Big damper rodTT14801TT-14801-Online
149Choke rodTT14901TT-14901-Online
150Carb braket padTT15001TT-15001-Online
151intake flangeTT15101TT-15101-Online
152circleTT15201TT-15201-Online
153carbTT15306TT-15306-Online
154Bolt M5x32TT15401TT-15401-Online
155intake elbowTT15501TT-15501-Online
156Bolt M5x50TT15601TT-15601-Online
157Damper intake elbowTT15701TT-15701-Online
158inlet pipeTT15801TT-15801-Online
159Guide bar 18"TT15901TT-15901-Online
159Guide bar 16"TT15904TT-15904-Online
160Chain 18"TT16001TT-16001-Online
160Chain 16"TT16004TT-16004-Online
161Cover guide bar 18"TT16101TT-16101-Online
167Recoil starterTT16711TT-16711-Online
241Breaker assyTT24105TT-24105-Online
