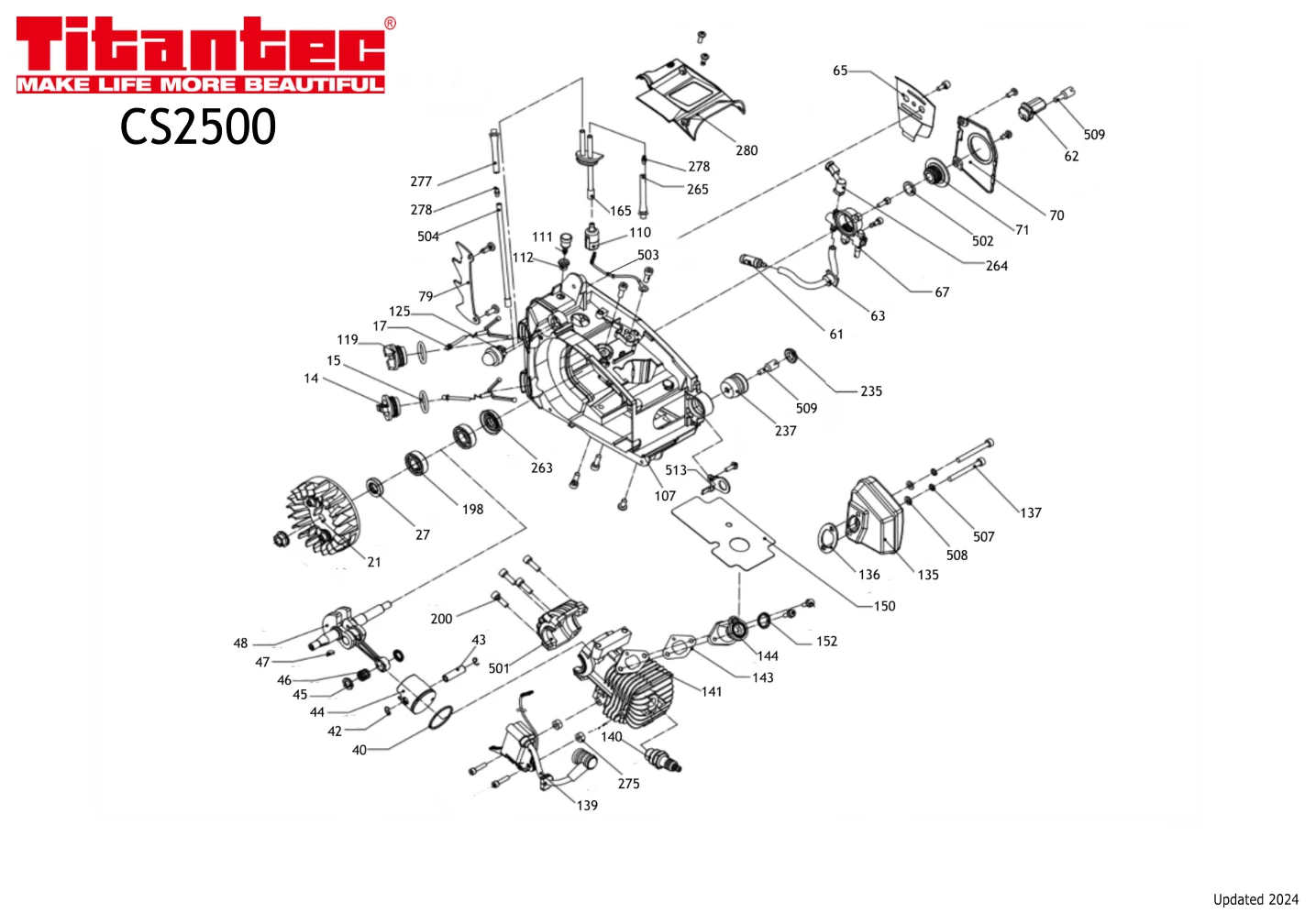

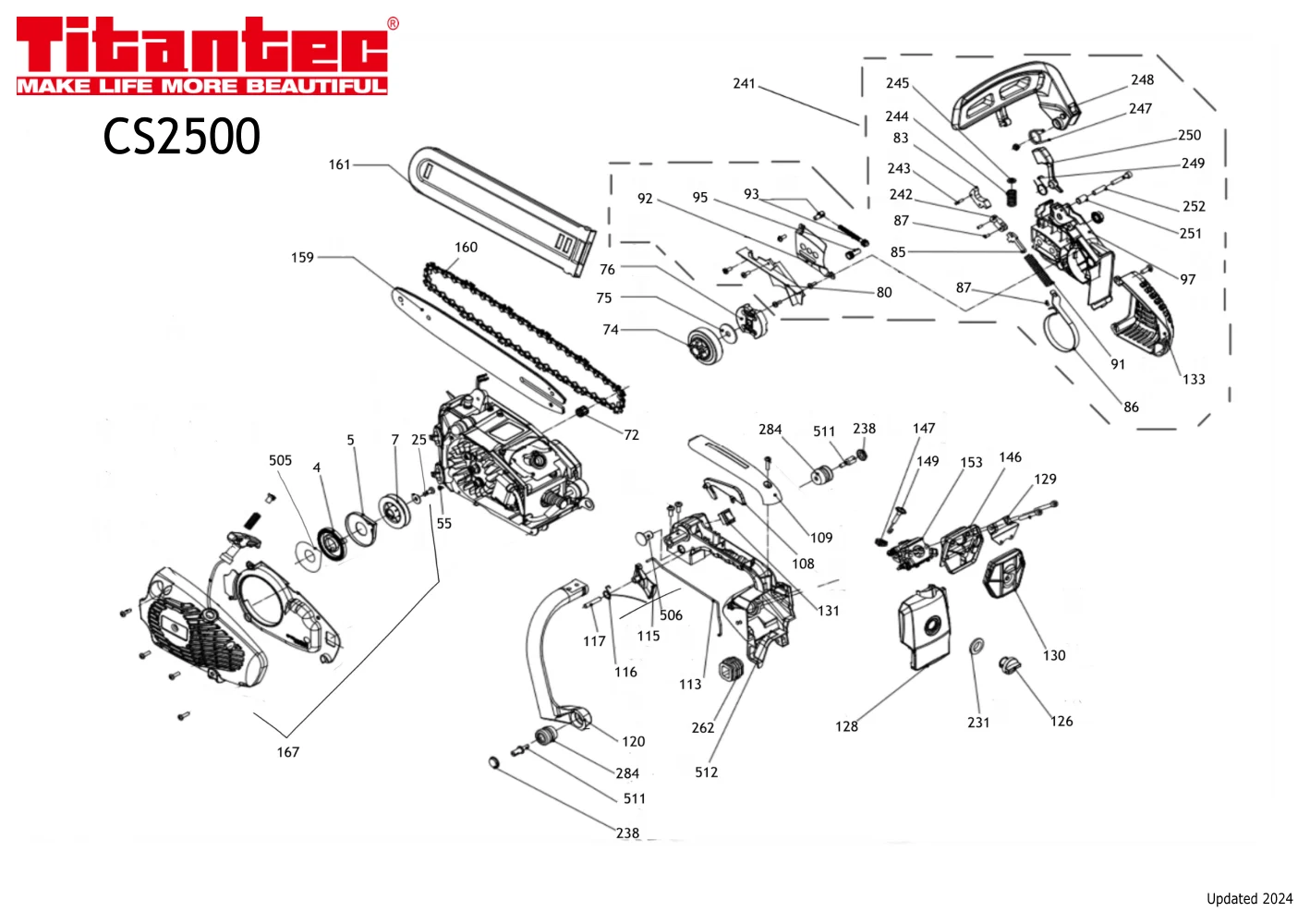

Titantec CS2500 IPL Parts Diagram

CS2500 parts list

Ref	Description	Part number	Cutsmart SKU
4	Spring	TT00409	TT-00409-Online
5	Spring box	TT00505	TT-00505-Online
7	Reel	TT00707	TT-00707-Online
14	Oil cap	TT01403	TT-01403-Online
15	Seal oil cap	TT01502	TT-01502-Online
17	Palm oil Cap	TT01703	TT-01703-Online
21	Flywheel	TT02112	TT-02112-Online
25	Bolt STx14	TT02501	TT-02501-Online
27	oil seal 12x22x5	TT02702	TT-02702-Online
40	Piston Ring	TT04012	TT-04012-Online
42	Snap Ring, Piston Pin	TT04205	TT-04205-Online
43	Piston Pin	TT04312	TT-04312-Online
44	Piston	TT04412	TT-04412-Online
45	elastic ring needle bearing	TT04506	TT-04506-Online
46	Needle bearing	TT04612	TT-04612-Online
47	Key 3x10	TT04701	TT-04701-Online
48	Crankshaft	TT04812	TT-04812-Online
55	vent	TT05502	TT-05502-Online
61	oil filter	TT06103	TT-06103-Online
62	Chain catcher	TT06202	TT-06202-Online
63	oil tube	TT06303	TT-06303-Online
65	Plate injector	TT06504	TT-06504-Online
67	oil pump	TT06704	TT-06704-Online
70	plate oil pump	TT07004	TT-07004-Online
71	worm	TT07102	TT-07102-Online
72	needle bearing	TT07204	TT-07204-Online
74	Drum	TT07404	TT-07404-Online
75	Spacer clutch	TT07503	TT-07503-Online
76	Clutch	TT07607	TT-07607-Online
79	Wooden teeth	TT07903	TT-07903-Online
80	Plate braker spring	TT08004	TT-08004-Online
83	Braker lever	TT08304	TT-08304-Online
85	Brake band connectin rod	TT08503	TT-08503-Online
86	Brake band	TT08604	TT-08604-Online
87	Positioning pin	TT08702	TT-08702-Online
91	main spring braker	TT09102	TT-09102-Online
92	Tension cover	TT09204	TT-09204-Online
93	Adjusting screw pin	TT09304	TT-09304-Online
95	adjusting screw gear	TT09502	TT-09502-Online
97	Braker cover	TT09704	TT-09704-Online
107	Fuel tank & body	TT10711	TT-10711-Online
108	Trigger control arm	TT10805	TT-10805-Online
109	rear handle cover	TT10904	TT-10904-Online
110	Fuel Filter	TT11001	TT-11001-Online
111	Balancer	TT11101	TT-11101-Online
112	Balancer seat	TT11201	TT-11201-Online
113	Rod	TT11303	TT-11303-Online
115	Throttle trigger	TT11506	TT-11506-Online
116	Torsion spring trigger	TT11603	TT-11603-Online
117	pin 5x30	TT11702	TT-11702-Online
119	Cap fuel filter	TT11909	TT-11909-Online
120	Handle	TT12005	TT-12005-Online
125	Bubble	TT12501	TT-12501-Online
126	Knob	TT12603	TT-12603-Online
128	Cover Filter	TT12809	TT-12809-Online
129	air filter pressure plate	TT12902	TT-12902-Online
130	element	TT13010	TT-13010-Online
131	on/off switch	TT13101	TT-13101-Online
133	muffler cover	TT13307	TT-13307-Online
135	muffler	TT13509	TT-13509-Online
136	gasket muffler	TT13602	TT-13602-Online
137	bolt M5x445	TT13702	TT-13702-Online
139	coil	TT13912	TT-13912-Online
140	spark plug L7T	TT14002	TT-14002-Online
141	cylinder	TT14112	TT-14112-Online
143	gasket inlet pipe	TT14309	TT-14309-Online
144	inlet pipe	TT14410	TT-14410-Online
146	air filter seat	TT14603	TT-14603-Online
147	damper rod	TT14704	TT-14704-Online
149	Choke rod	TT14905	TT-14905-Online
150	Insulation gasket	TT15002	TT-15002-Online
152	Retaining Ring	TT15202	TT-15202-Online
153	carb	TT15312	TT-15312-Online
159	Guide bar 12"	TT15906	TT-15906-Online
160	chain 12"	TT16006	TT-16006-Online
161	cover guid bar 12"	TT16106	TT-16106-Online
165	fuel pipe	TT16505	TT-16505-Online
167	starter assy	TT16709	TT-16709-Online
198	bearing 6001	TT19801	TT-19801-Online
200	Cylinder bolt M5x20	TT20002	TT-20002-Online
231	Locknut seal	TT23102	TT-23102-Online
235	Dustproof cover	TT23502	TT-23502-Online
237	Damper	TT23702	TT-23702-Online
238	dustproof cover	TT23803	TT-23803-Online
241	Braker assy	TT24103	TT-24103-Online
242	Sub Lever	TT24201	TT-24201-Online
243	pin 3x10	TT24302	TT-24302-Online
244	spring front guard	TT24401	TT-24401-Online
245	spring seat	TT24501	TT-24501-Online
247	Torsion spring braker	TT24702	TT-24702-Online
248	front guard	TT24805	TT-24805-Online
249	torsion spring hammer	TT24902	TT-24902-Online
250	hammer	TT25001	TT-25001-Online
251	Casing hammer	TT25101	TT-25101-Online
252	Casing front guard	TT25202	TT-25202-Online
262	intake seat	TT26202	TT-26202-Online
263	oil seal 12x28x6	TT26302	TT-26302-Online
264	Oil outer pipe	TT26402	TT-26402-Online
265	oil inter pipe	TT26502	TT-26502-Online
275	spacer	TT27502	TT-27502-Online
277	Outlet oil pipe	TT27702	TT-27702-Online
278	nozzle joint	TT27802	TT-27802-Online
280	fuel tank cover	TT28002	TT-28002-Online
284	damping seat	TT28402	TT-28402-Online
501	Cylinder cover	TT50101	TT-50101-Online
502	washer	TT50201	TT-50201-Online
503	cord	TT50301	TT-50301-Online
504	fuel pipe	TT50401	TT-50401-Online
505	stater washer	TT50501	TT-50501-Online
506	Handle pad	TT50601	TT-50601-Online
507	washer	TT50701	TT-50701-Online
508	washer 5x10	TT50801	TT-50801-Online
509	bolt st4.8s16F	TT50901	TT-50901-Online
511	block chain srews	TT51101	TT-51101-Online
512	rear handle	TT51201	TT-51201-Online
513	hanger	TT51301	TT-51301-Online
