Titantec CS3800 IPL Parts Diagram

Titantec CS3800 IPL Parts Diagram

Titantec CS3800 IPL Parts Diagram

Machine SKU: TT-CS3800-Online

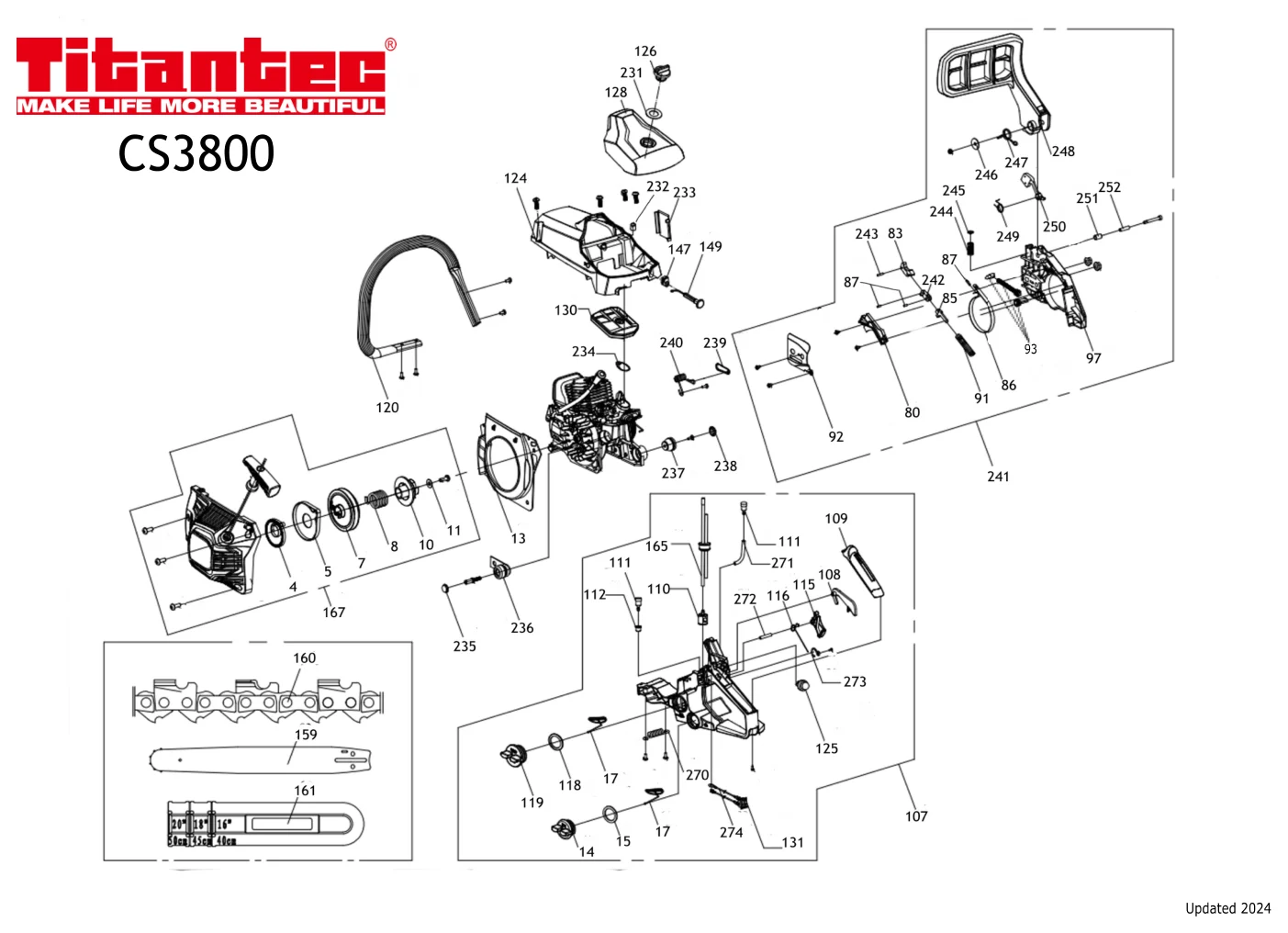

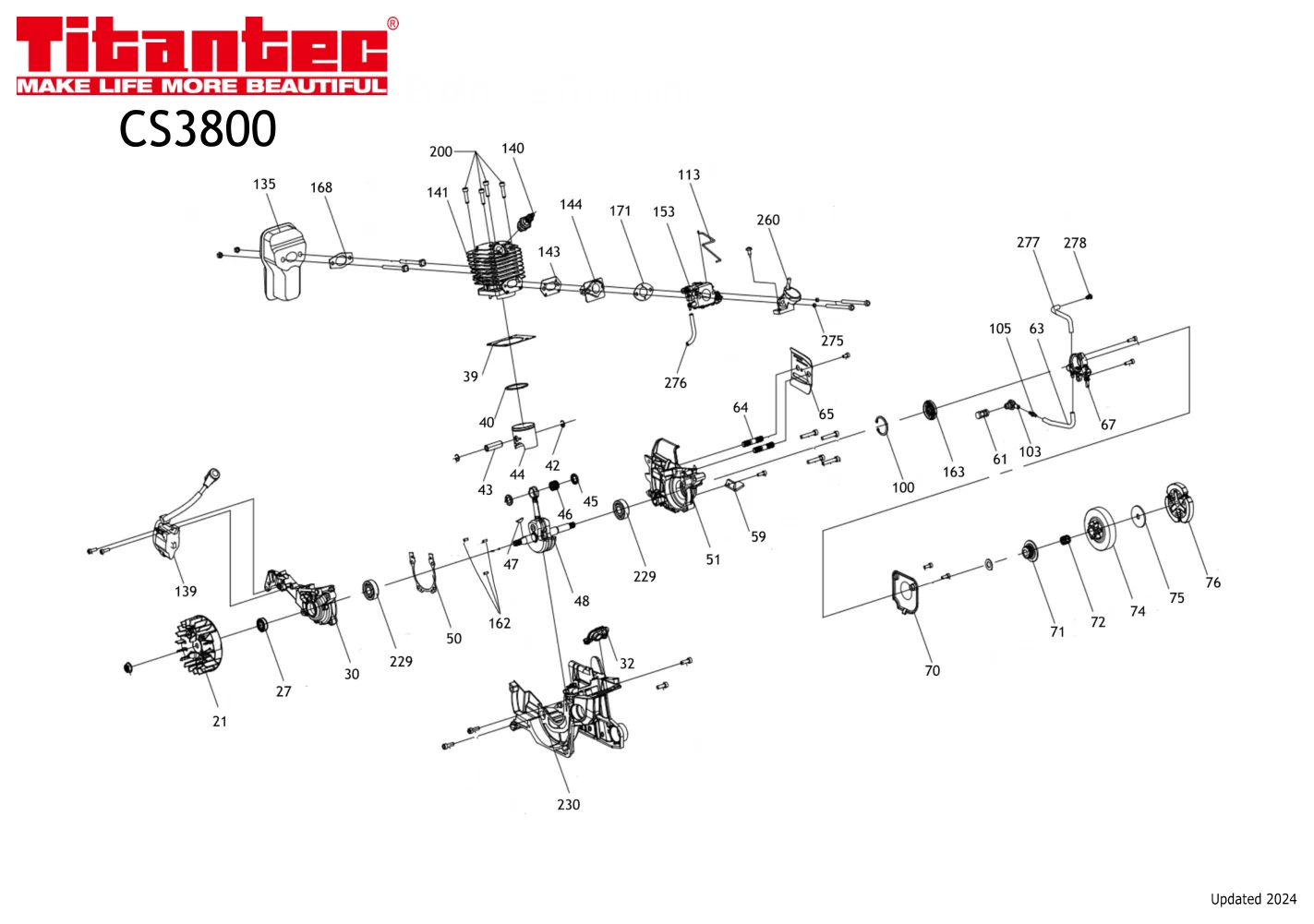

Titantec CS3800 IPL exploded view 1 Titantec CS3800 IPL exploded view 2

CS3800 parts list

RefDescriptionPart numberCutsmart SKU
4SpringTT00405TT-00405-Online
5Spring boxTT00502TT-00502-Online
7ReelTT00705TT-00705-Online
8Torsion SpringTT00806TT-00806-Online
10RatchetTT01004TT-01004-Online
11WasherTT01102TT-01102-Online
13ShroudTT01302TT-01302-Online
14Oil capTT01402TT-01402-Online
15Seal oil capTT01501TT-01501-Online
17Palm oil CapTT01702TT-01702-Online
21FlywheelTT02108TT-02108-Online
27oil seal 12x22x7TT02701TT-02701-Online
30Left CrankcaseTT03007TT-03007-Online
32Dustproof plateTT03202TT-03202-Online
39Gasket, CylinderTT03908TT-03908-Online
40Piston RingTT04008TT-04008-Online
42Snap Ring, Piston PinTT04201TT-04201-Online
43Piston PinTT04308TT-04308-Online
44PistonTT04408TT-04408-Online
45elastic ring needle bearingTT04502TT-04502-Online
46Needle bearingTT04608TT-04608-Online
47Key 3x10TT04701TT-04701-Online
48CrankshaftTT04808TT-04808-Online
50Gasket, CrankcaseTT05008TT-05008-Online
51Right CrankcaseTT05107TT-05107-Online
59Guide chain blockTT05901TT-05901-Online
61oil filterTT06102TT-06102-Online
63oil tubeTT06302TT-06302-Online
64Main spirng brakerTT06402TT-06402-Online
65Plate injectorTT06502TT-06502-Online
67oil pumpTT06702TT-06702-Online
70plate oil pumpTT07002TT-07002-Online
71wormTT07102TT-07102-Online
72needle bearingTT07202TT-07202-Online
74DrumTT07402TT-07402-Online
75Spacer clutchTT07502TT-07502-Online
76ClutchTT07606TT-07606-Online
80Plate braker springTT08003TT-08003-Online
83Braker leverTT08302TT-08302-Online
85Brake band connectin rodTT08502TT-08502-Online
86Brake bandTT08603TT-08603-Online
87Positioning pinTT08702TT-08702-Online
91main spring brakerTT09102TT-09102-Online
93Adjusting screwTT09303TT-09303-Online
92Tension coverTT09202TT-09202-Online
97Braker coverTT09703TT-09703-Online
100snap ring 32TT10002TT-10002-Online
103oil filter seatTT10301TT-10301-Online
105hose connectorTT10501TT-10501-Online
107Fuel tankTT10706TT-10706-Online
108Trigger control armTT10803TT-10803-Online
109rear handle coverTT10902TT-10902-Online
110Fuel FilterTT11001TT-11001-Online
111BalancerTT11104TT-11104-Online
112Balancer seatTT11201TT-11201-Online
113Throttle push rodTT11302TT-11302-Online
115Throttle triggerTT11503TT-11503-Online
116Torsion spring triggerTT11602TT-11602-Online
118Seal fuel capTT11801TT-11801-Online
119Cap fuel filterTT11901TT-11901-Online
120HandleTT12003TT-12003-Online
124Cover, CylinderTT12406TT-12406-Online
125bubbleTT12501TT-12501-Online
126KnobTT12605TT-12605-Online
128Cover FilterTT12806TT-12806-Online
130elementTT13005TT-13005-Online
131on/off switchTT13103TT-13103-Online
135mufflerTT13505TT-13505-Online
139coilTT13908TT-13908-Online
140spark plug L7TTT14002TT-14002-Online
141cylinderTT14108TT-14108-Online
143gasket inlet pipeTT14305TT-14305-Online
144inlet pipeTT14406TT-14406-Online
147Small damper rodTT14702TT-14702-Online
149Choke rodTT14902TT-14902-Online
153carbTT15308TT-15308-Online
159Guide bar 16"TT15902TT-15902-Online
160chain16"TT16002TT-16002-Online
161Cover guide bar 16"TT16103TT-16103-Online
162Pin 3x8TT16202TT-16202-Online
163oil seal 12x32x5.5TT16302TT-16302-Online
165fuel pipeTT16503TT-16503-Online
167starter assyTT16705TT-16705-Online
168gasket mufflerTT16804TT-16804-Online
171gasket carburetorTT17107TT-17107-Online
200Cylinder bolt M5x20TT20002TT-20002-Online
229Bearing 6201TT22901TT-22901-Online
230supporterTT23001TT-23001-Online
231Locknut sealTT23101TT-23101-Online
232damper air filterTT23201TT-23201-Online
233anti freeze boardTT23301TT-23301-Online
234Ring air filterTT23401TT-23401-Online
235Dustproof coverTT23501TT-23501-Online
236Left DamperTT23601TT-23601-Online
237Right DamperTT23701TT-23701-Online
238Big Dustproof coverTT23801TT-23801-Online
239Spring plate HandleTT23901TT-23901-Online
240Spring handleTT24001TT-24001-Online
241Braker assyTT24101TT-24101-Online
242Sub LeverTT24201TT-24201-Online
243pin 3x14TT24301TT-24301-Online
244spring front guardTT24401TT-24401-Online
245spring seatTT24501TT-24501-Online
246Gasket front guardTT24601TT-24601-Online
247Torsion spring brakerTT24701TT-24701-Online
248front guardTT24801TT-24801-Online
249torsion spring hammerTT24901TT-24901-Online
250hammerTT25001TT-25001-Online
251Casing hammerTT25101TT-25101-Online
252Casing front guardTT25201TT-25201-Online
260Intake pipeTT26001TT-26001-Online
270tension springTT27002TT-27002-Online
271Pipe, balancerTT27101TT-27101-Online
272Pin 5x25TT27201TT-27201-Online
273Spring oil filter seatTT27301TT-27301-Online
274CoilTT27401TT-27401-Online
275Spacer 5x7x7TT27501TT-27501-Online
276Fuel inlet pipeTT27601TT-27601-Online
277Outlet oil pipeTT27701TT-27701-Online
278Oil nozzleTT27801TT-27801-Online
