Titantec CS5200 IPL Parts Diagram

Titantec CS5200 IPL Parts Diagram

Titantec CS5200 IPL Parts Diagram

Machine SKU: TT-CS5200-Online

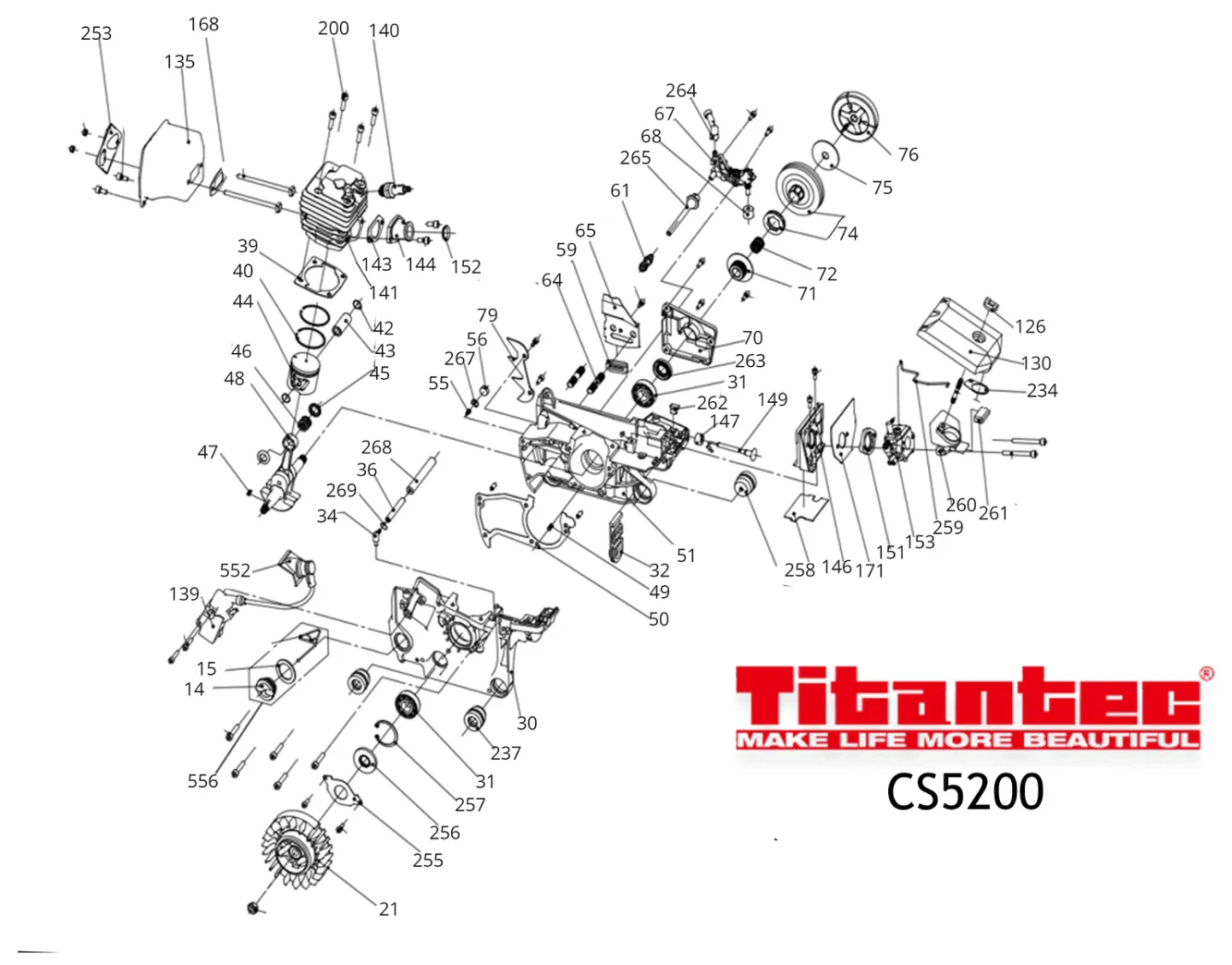

Titantec CS5200 IPL exploded view 1 Titantec CS5200 IPL exploded view 2

CS5200 parts list

RefDescriptionPart numberCutsmart SKU
2Starter HandleTT00203TT-00203-Online
4SpringTT00406TT-00406-Online
5Spring boxTT00503TT-00503-Online
6RopeTT00602TT-00602-Online
7ReelTT00703TT-00703-Online
8Torsion SpringTT00804TT-00804-Online
10RatchetTT01008TT-01008-Online
13ShroudTT01304TT-01304-Online
14Oil capTT01402TT-01402-Online
15Seal oil capTT01501TT-01501-Online
21FlywheelTT02109TT-02109-Online
30Left CrankcaseTT03013TT-03013-Online
31Bearing 6202TT03101TT-03101-Online
32Dustproof plateTT03203TT-03203-Online
34Negative pressure nozzleTT03401TT-03401-Online
36Negative pressure tubeTT03601TT-03601-Online
39Gasket, CylinderTT03909TT-03909-Online
40Piston RingTT04014TT-04014-Online
42Snap Ring, Piston PinTT04201TT-04201-Online
43Piston PinTT04314TT-04314-Online
44PistonTT04414TT-04414-Online
45elastic ring needle bearingTT04501TT-04501-Online
46Needle bearingTT04614TT-04614-Online
47Key 3x10TT04701TT-04701-Online
48CrankshaftTT04814TT-04814-Online
49Pin 5x10TT04901TT-04901-Online
50Gasket, CrankcaseTT05012TT-05012-Online
51Right CrankcaseTT05113TT-05113-Online
55ventTT05502TT-05502-Online
56sponge ventTT05601TT-05601-Online
59Guide chain blockTT05901TT-05901-Online
61oil filterTT06101TT-06101-Online
64Bolt M8x42TT06403TT-06403-Online
65Plate injectorTT06503TT-06503-Online
67oil pumpTT06701TT-06701-Online
68sponge oil pumpTT06802TT-06802-Online
70plate oil pumpTT07003TT-07003-Online
71wormTT07101TT-07101-Online
72needle bearingTT07214TT-07214-Online
74Drum & sproketTT07414TT-07414-Online
75Spacer clutchTT07501TT-07501-Online
76ClutchTT07602TT-07602-Online
79Wooden teethTT07902TT-07902-Online
80Plate braker springTT08005TT-08005-Online
83Braker leverTT08304TT-08304-Online
85Brake band connectin rodTT08502TT-08502-Online
86Brake bandTT08605TT-08605-Online
87Positioning pin 3x9TT08702TT-08702-Online
91main spring brakerTT09101TT-09101-Online
92Tension coverTT09203TT-09203-Online
93Adjusting screw pinTT09304TT-09304-Online
97Braker coverTT09705TT-09705-Online
107Fuel tankTT10707TT-10707-Online
108Trigger control armTT10804TT-10804-Online
109rear handle coverTT10905TT-10905-Online
110Fuel FilterTT11001TT-11001-Online
111BalancerTT11101TT-11101-Online
112Balancer seatTT11201TT-11201-Online
114Fuel pipe and seatTT11404TT-11404-Online
115Throttle triggerTT11504TT-11504-Online
116Torsion spring triggerTT11605TT-11605-Online
118Seal fuel capTT11802TT-11802-Online
119Cap fuel filterTT11906TT-11906-Online
120HandleTT12007TT-12007-Online
124Cover, CylinderTT12410TT-12410-Online
125PrimerTT12501TT-12501-Online
126LocknutTT12608TT-12608-Online
128Cover FilterTT12811TT-12811-Online
130elementTT13006TT-13006-Online
131on/off switchTT13104TT-13104-Online
135mufflerTT13506TT-13506-Online
139coilTT13909TT-13909-Online
140spark plug L7TTT14002TT-14002-Online
141cylinderTT14114TT-14114-Online
143gasket inlet pipeTT14306TT-14306-Online
144inlet pipeTT14407TT-14407-Online
146carb supporterTT14604TT-14604-Online
147damper rodTT14703TT-14703-Online
149Choke rodTT14904TT-14904-Online
151intake flangeTT15101TT-15101-Online
152circleTT15201TT-15201-Online
153carbTT15314TT-15314-Online
158Fuel pipeTT15801TT-15801-Online
159Guide bar 16"TT15902TT-15902-Online
160Chain 16"TT16002TT-16002-Online
161Cover guide bar 16"TT16103TT-16103-Online
167starter assyTT16710TT-16710-Online
168gasket mufflerTT16814TT-16814-Online
171gasket carburetorTT17108TT-17108-Online
200Cylinder bolt M5x20TT20002TT-20002-Online
234Ring air filterTT23402TT-23402-Online
235Dustproof coverTT23501TT-23501-Online
237Short Damping seatTT23703TT-23703-Online
238Big Dustproof coverTT23802TT-23802-Online
241Braker assyTT24104TT-24104-Online
242LeverTT24201TT-24201-Online
243Pin 3x14TT24301TT-24301-Online
244Spring seatTT24401TT-24401-Online
245SpringTT24501TT-24501-Online
246Gasket washerTT24602TT-24602-Online
247Torsion spring brakeTT24701TT-24701-Online
248front guardTT24804TT-24804-Online
249Torsion springTT24902TT-24902-Online
250HammerTT25001TT-25001-Online
251Hammer casingTT25101TT-25101-Online
252Casing front guardTT25201TT-25201-Online
253Muffler LapTT25301TT-25301-Online
255oil seal clampTT25501TT-25501-Online
256oil seal 15x35x7TT25601TT-25601-Online
257circlip 35TT25701TT-25701-Online
258Dustproof GasketTT25801TT-25801-Online
259Throwout leverTT25902TT-25902-Online
260intake pipeTT26002TT-26002-Online
261intake pipe damperTT26102TT-26102-Online
262Choker rod seatTT26203TT-26203-Online
263oil seal 15x28x5TT26301TT-26301-Online
264Oil outer pipeTT26401TT-26401-Online
265oil inter pipeTT26501TT-26501-Online
267elastic ringTT26703TT-26703-Online
268anti scald tubeTT26803TT-26803-Online
269shrink springTT26902TT-26902-Online
272pin 6x28TT27202TT-27202-Online
279snap for air filterTT27901TT-27901-Online
280Gas deflectorTT28003TT-28003-Online
281conical pressure springTT28102TT-28102-Online
282conical spring seatTT28202TT-28202-Online
283chain blockerTT28302TT-28302-Online
284long damping seatTT28401TT-28401-Online
285double pinTT28501TT-28501-Online
295chain guiderTT29501TT-29501-Online
552Ignition capTT55201TT-55201-Online
553Braker cover plateTT55301TT-55301-Online
554Dustproof PlateTT55401TT-55401-Online
556Oil cap assyTT55601TT-55601-Online
