Titantec BC260AT IPL Parts Diagram

Titantec BC260AT IPL Parts Diagram

Titantec BC260AT IPL Parts Diagram

Machine SKU: TT-BC260AT-Online

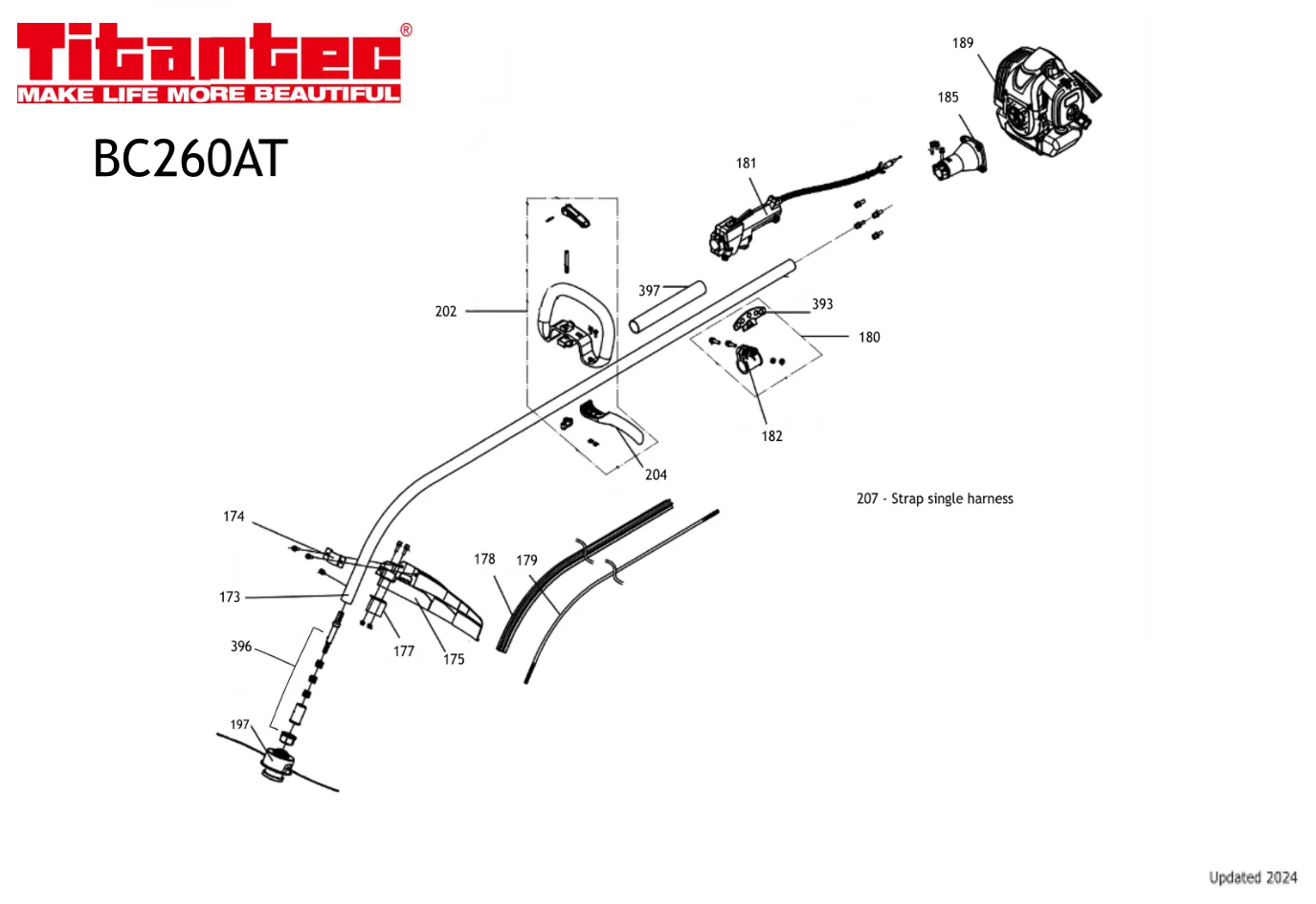

Titantec BC260AT IPL exploded view 1 Titantec BC260AT IPL exploded view 2

BC260AT parts list

RefDescriptionPart numberCutsmart SKU
4SpringTT00408TT-00408-Online
153CarbTT15305TT-15305-Online
7ReelTT00706TT-00706-Online
162Pin 3x8TT16202TT-16202-Online
8Torsion SpringTT00803TT-00803-Online
164Air Filter SupporterTT16404TT-16404-Online
10RatchetTT01006TT-01006-Online
166Bracket, TankTT16603TT-16603-Online
21FlywheelTT02105TT-02105-Online
167Starter assyTT16703TT-16703-Online
27Oil seal 12x22x7TT02701TT-02701-Online
168Gasket mufflerTT16803TT-16803-Online
30Left CrankcaseTT03011TT-03011-Online
171Gasket carburetorTT17105TT-17105-Online
39Gasket, CylinderTT03905TT-03905-Online
173Bend PipeTT17304TT-17304-Online
40Piston RingTT04005TT-04005-Online
174Guard BracketTT17402TT-17402-Online
42Snap Ring, Piston PinTT04205TT-04205-Online
175GuardTT17504TT-17504-Online
43Piston PinTT04305TT-04305-Online
177Small BladeTT17702TT-17702-Online
44PistonTT04405TT-04405-Online
178Flexible shaft linerTT17804TT-17804-Online
46Needle bearingTT04605TT-04605-Online
179Drive ShaftTT17904TT-17904-Online
47Key 3x10TT04701TT-04701-Online
180Handle Bracket AssyTT18002TT-18002-Online
48CrankshaftTT04805TT-04805-Online
181Throttle AssyTT18103TT-18103-Online
50Gasket, CrankcaseTT05005TT-05005-Online
182Harness HangerTT18202TT-18202-Online
51Right CrankcaseTT05110TT-05110-Online
185Housing AssyTT18505TT-18505-Online
76ClutchTT07603TT-07603-Online
189EngineTT18905TT-18905-Online
107Fuel tankTT10703TT-10703-Online
192PulleyTT19203TT-19203-Online
110Fuel FilterTT11001TT-11001-Online
194BadgeTT19403TT-19403-Online
114Pipe SeatTT11403TT-11403-Online
195Side coverTT19504TT-19504-Online
119Cap fuel filterTT11902TT-11902-Online
196PlateTT19603TT-19603-Online
124Cover, CylinderTT12403TT-12403-Online
197Nylon headTT19702TT-19702-Online
126KnobTT12601TT-12601-Online
198Bearing 6001TT19801TT-19801-Online
128Cover FilterTT12803TT-12803-Online
199DeflectorTT19901TT-19901-Online
130ElementTT13001TT-13001-Online
200Cylinder bolt M5x20TT20002TT-20002-Online
135MufflerTT13502TT-13502-Online
201Wind shieldTT20101TT-20101-Online
139CoilTT13905TT-13905-Online
202P type handleTT20202TT-20202-Online
140Spark plug BM6ATT14001TT-14001-Online
204LeverTT20401TT-20401-Online
141CylinderTT14105TT-14105-Online
207Strap single beltTT20702TT-20702-Online
143Gasket inlet pipeTT14302TT-14302-Online
393Hanger bracketTT39301TT-39301-Online
144Inlet pipeTT14403TT-14403-Online
396Spline Shaft assyTT39601TT-39601-Online
397SpongeTT39701TT-39701-Online
