Worx WG157E.9 IPL Parts Diagram & Parts List

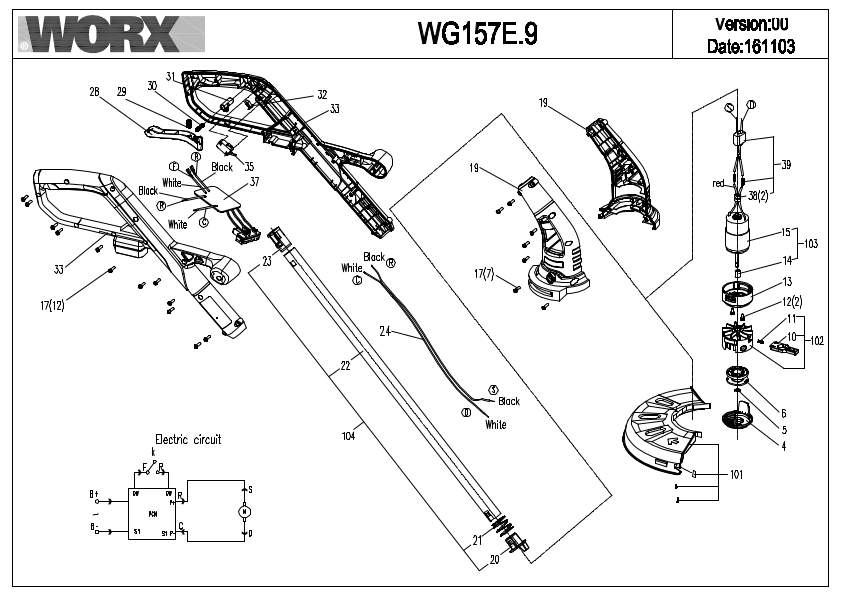

Use the exploded drawing and parts table below to identify Worx WG157E.9 replacement parts.
Click any Cutsmart SKU to open the product lookup page.
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 4 | Cutting head cover for WA0217 | 50006531 | 1 | 50006531-Online |
| 5 | Nut | 50002546 | 1 | 50002546-Online |
| 6 | Spool & Line | 50015034 | 1 | 50015034-Online |
| 10 | Line feeder set | 50024163 | 1 | 50024163-Online |
| 11 | Compression Spring | 50018904 | 1 | 50018904-Online |
| 12 | Screw Washer | 50022575 | 2 | 50022575-Online |
| 13 | Fixing Block | 50025967 | 1 | 50025967-Online |
| 14 | Shaft sheath | 50006505 | 1 | 50006505-Online |
| 15 | Motor | 50033458 | 1 | 50033458-Online |
| 17 | Self tapping screw | 50002914 | 20 | 50002914-Online |
| 19 | Left/Right Housing | 50032193 | 1 | 50032193-Online |
| 20 | Shaft Cover | 50026009 | 1 | 50026009-Online |
| 21 | Compression Spring | 50024563 | 1 | 50024563-Online |
| 22 | Steel Tube | 50026135 | 1 | 50026135-Online |
| 23 | Inner gasket | 50026011 | 1 | 50026011-Online |
| 24 | Inner Wiring | 50026136 | 1 | 50026136-Online |
| 28 | Trigger | 50032191 | 1 | 50032191-Online |
| 29 | Compression Spring | 50019933 | 1 | 50019933-Online |
| 30 | Compression spring | 50000616 | 1 | 50000616-Online |
| 31 | Button | 50024068 | 1 | 50024068-Online |
| 32 | Linkage | 50017862 | 1 | 50017862-Online |
| 33 | Left/Right Handle | 50032190 | 1 | 50032190-Online |
| 35 | Switch | 50018793 | 1 | 50018793-Online |
| 37 | Power Supply Board | 50034560 | 1 | 50034560-Online |
| 39 | Inner Wire Assembly | 50032187 | 1 | 50032187-Online |
| 101 | Guard Assembly | 50032192 | 1 | 50032192-Online |
| 102 | Cutting head | 50018883 | 1 | 50018883-Online |
| 103 | Motor set | 50034606 | 1 | 50034606-Online |
| 104 | Tube Assembly | 50026139 | 1 | 50026139-Online |
SKU convention used in this article: Worx part number with WRX- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
Source drawing file(s): WG157E.9(CGT11AG) exploded drawing.pdf
