Worx WG163E.9 IPL Parts Diagram & Parts List

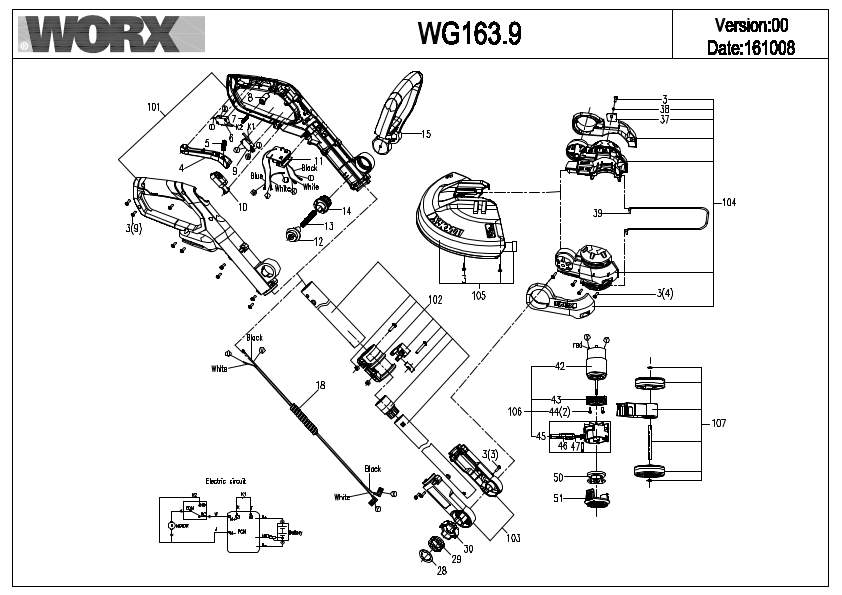

Use the exploded drawing and parts table below to identify Worx WG163E.9 replacement parts.
Click any Cutsmart SKU to open the product lookup page.
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 3 | Self tapping screw | 50002914 | 17 | 50002914-Online |
| 4 | Trigger | 50024067 | 1 | 50024067-Online |
| 5 | Compression Spring | 50019933 | 1 | 50019933-Online |
| 6 | Swith | 50024066 | 1 | 50024066-Online |
| 7 | Compression spring | 50000616 | 1 | 50000616-Online |
| 8 | Button | 50029266 | 1 | 50029266-Online |
| 9 | Swith | 50025229 | 1 | 50025229-Online |
| 10 | Buttom | 50029267 | 1 | 50029267-Online |
| 11 | Power Supply Board | 50031967 | 1 | 50031967-Online |
| 12 | Detent Block | 50029269 | 1 | 50029269-Online |
| 13 | Compression Spring | 50029270 | 1 | 50029270-Online |
| 14 | Lock Off Button | 50029271 | 1 | 50029271-Online |
| 15 | Auxiliary Handle | 50029272 | 1 | 50029272-Online |
| 18 | Coiled Cable | 50031968 | 1 | 50031968-Online |
| 28 | Cover | 50007290 | 1 | 50007290-Online |
| 29 | Spring | 50000688 | 1 | 50000688-Online |
| 30 | Slide Gear | 50007291 | 1 | 50007291-Online |
| 37 | Clamping Plate | 50024091 | 1 | 50024091-Online |
| 38 | Spring washer | 50003059 | 1 | 50003059-Online |
| 39 | Flower Guard Wire | 50029279 | 1 | 50029279-Online |
| 42 | Motor | 50032025 | 1 | 50032025-Online |
| 43 | Fixing Block | 50029284 | 1 | 50029284-Online |
| 44 | Screw Washer | 50022575 | 2 | 50022575-Online |
| 45 | Drum Assembly | 50029285 | 1 | 50029285-Online |
| 50 | Spool & Line | 50015034 | 1 | 50015034-Online |
| 51 | Cutting head cover for WA0217 | 50006531 | 1 | 50006531-Online |
| 101 | Handle Assembly | 50031970 | 1 | 50031970-Online |
| 102 | Telescope Tube Assembly | 50029274 | 1 | 50029274-Online |
| 103 | Left/Right Sheath | 50029275 | 1 | 50029275-Online |
| 104 | Housing Assembly | 50029276 | 1 | 50029276-Online |
| 105 | Guard Assembly | 50029280 | 1 | 50029280-Online |
| 106 | Motor assembly | 50033594 | 1 | 50033594-Online |
| 107 | Roller set WA0043 | 50024097 | 1 | 50024097-Online |
SKU convention used in this article: Worx part number with WRX- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
Source drawing file(s): WG163.9(CGT15A) Exploded Drawing.pdf
