Illustrated Parts List
Hustler® Sport Parts Manual - 930198
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 930198Model: 930206Model: 930206USModel: 930214Model: 930222Model: 930222USModel: 930230Model: 930651Model: 602902Model: 108934+12 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameMiscellaneous DecalsEngine GuardHydraulic SystemPump BeltTransmission Service PartsSteeringSteering Sub-AssemblyPark BrakeWheel & TireDrive Wheel BreakdownFront Wheel BreakdownEngine, Briggs & Stratton 17.5/21 HPFuel System, Briggs & Stratton 17.5/21 HPEngine Service Parts, Briggs & Stratton 17.5 HP/21 HPEngine, Briggs & Stratton 26 HPEngine, Briggs & Stratton 26 HPFuel System, Briggs & Stratton 26 HPEngine Service Parts, Briggs & Stratton 26 HPEngine, Kawasaki FR541V & FR600VFuel System, Kawasaki FR541V & FR600VEngine, Kawasaki FR541V & FR600V (with Carbon Canister)Engine, Kawasaki FR541V & FR600V (with Carbon Canister)Engine, Kawasaki FR651VFuel System, Kawasaki FR651VEngine Service Parts, Kawasaki FR541V, FR600V & FR651VFuel Tank & FenderFuel Tank Service PartsBatteryInstrument Panel, 17 & 21 Briggs & StrattonInstrument Panel, 26 Briggs & StrattonInstrument Panel, Kawasaki42" Service Deck42" Deck Pulleys & Spindles42" Deck48" Service Deck48" Deck Pulleys & Spindles48" Deck54" Service Deck54" Deck Pulleys & Spindles54" DeckDeck LiftSeatROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 42" MOWER FRAME (WITH DECALS & RIVET NUTS) | 550668 | 1 | 550668-Online |
| 2 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 3 | HOT DECAL | 602041 | 1 | 602041-Online |
| 4 | TURF PRODUCTS SERIAL NO. PLATE | N/A | 3 | No SKU |
| 5 | SPORT ID DECAL | 601812 | 1 | 601812-Online |
| 6 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 7 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 8 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 9 | LOWER STEP TREAD | 601986 | 2 | 601986-Online |
| 10 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 11 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 12 | STEERING RS DECAL | 785220 | 1 | 785220-Online |
| 13 | 5/16-18 THREAD RIVET NUT | 808485 | 1 | HT808485-Online |
| 14 | GRIP TAPE | 110063 | 2 | 110063-Online |
| 15 | FOOT LIFT STEP TREAD | 601987 | 1 | 601987-Online |

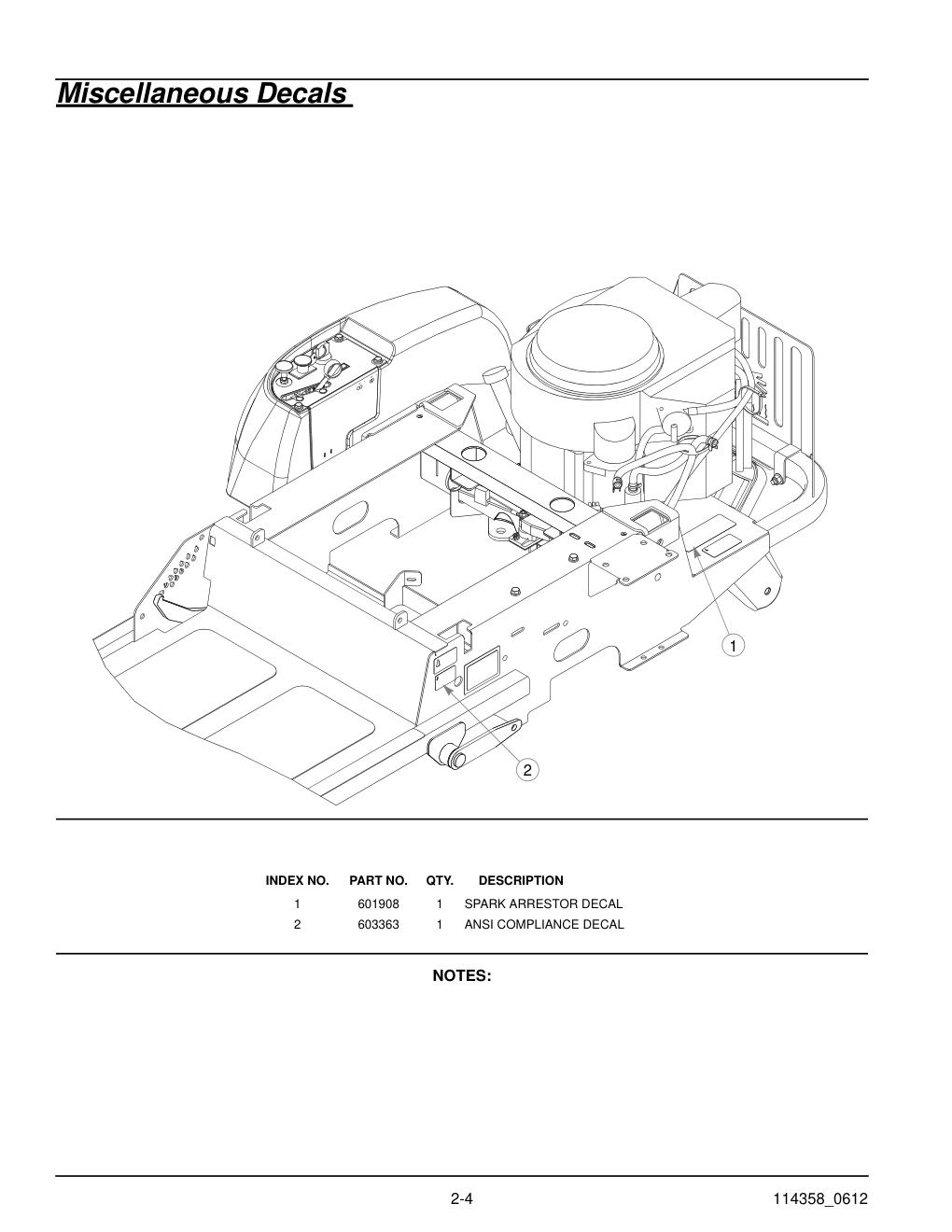

Miscellaneous Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SPARK ARRESTOR DECAL | 601908 | 1 | 601908-Online |
| 2 | ANSI COMPLIANCE DECAL | 603363 | 1 | 603363-Online |

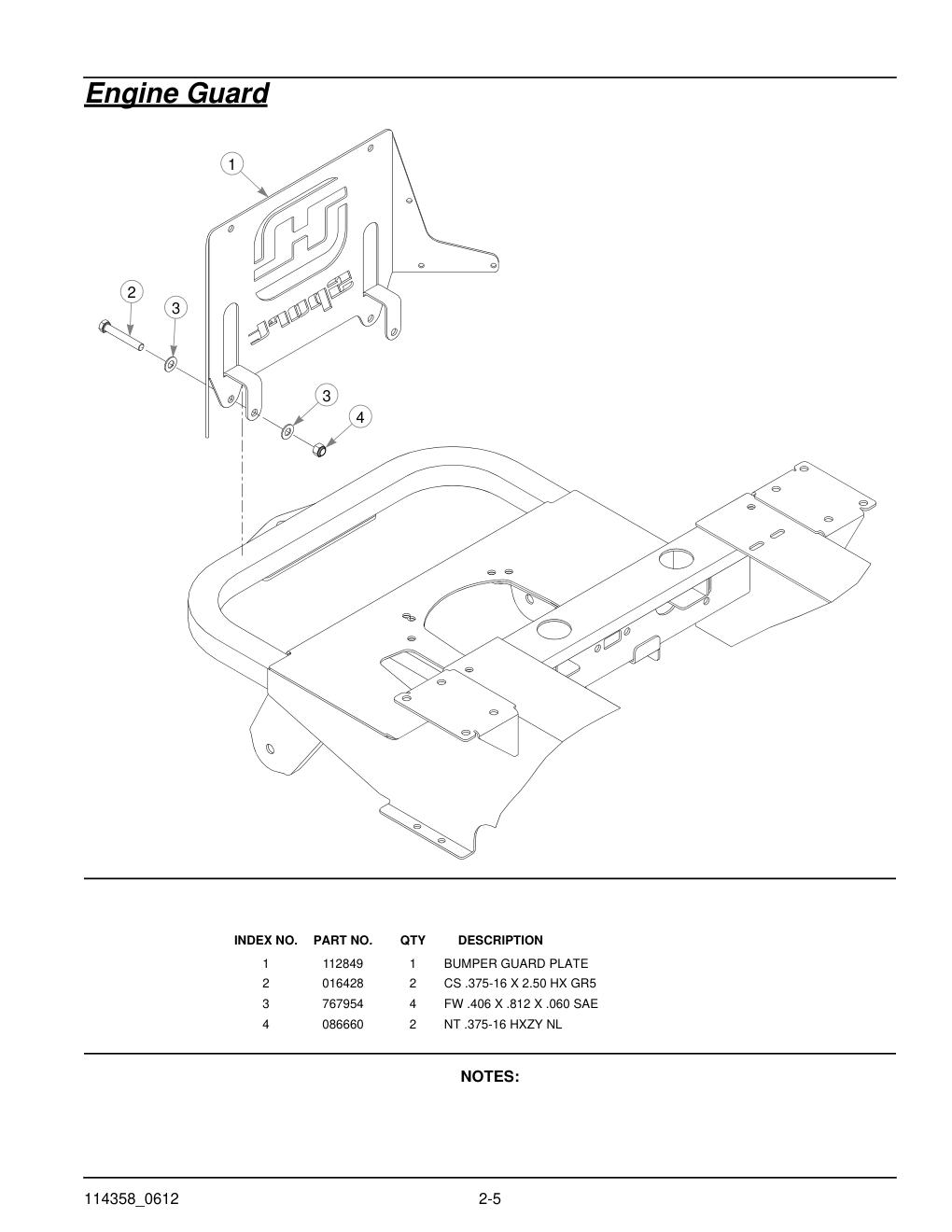

Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BUMPER GUARD PLATE | 112849 | 1 | 112849-Online |
| 2 | CS .375-16 X 2.50 HX GR5 | 016428 | 2 | 016428-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 4 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |

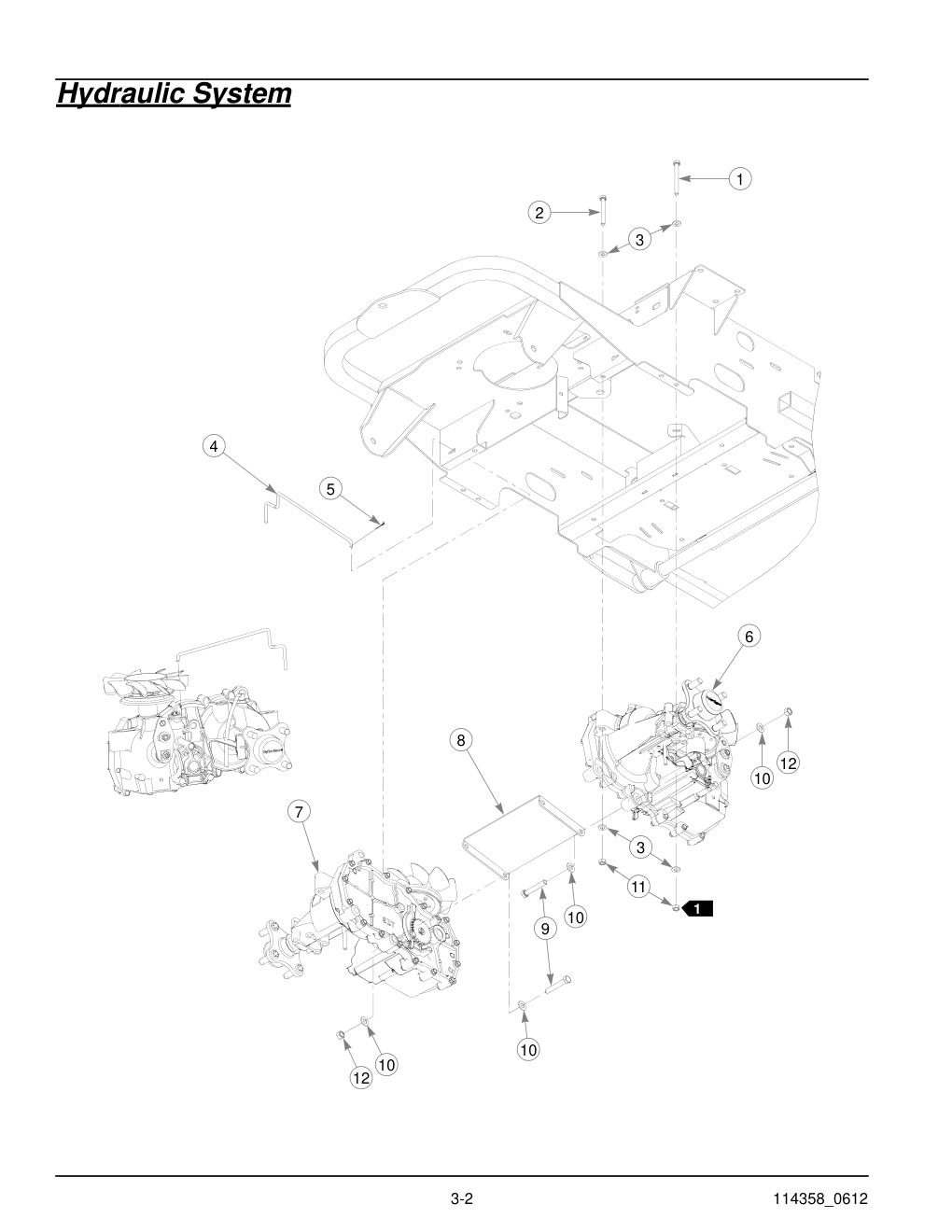

Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 3.00 HX G5 Z | 043067 | 4 | HT043067-Online |
| 2 | CS .312-18 X 2.500 HX G5 | 710087 | 4 | HT710087-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 4 | TOWLINK ROD | 793174 | 2 | HT793174-Online |
| 5 | CP .062D X 1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 6 | RS TRANSMISSION | 603091 | 1 | 603091-Online |
| 7 | LS TRANSMISSION | 603090 | 1 | 603090-Online |
| 8 | HYDROSTAT CROSS BRACE | 110042 | 1 | 110042-Online |
| 9 | CS .375-16 X 2.250 HX G5 ZN | 056036 | 4 | 056036-Online |
| 10 | FW .406 X .812 X .060 SAE HRD ZN | 767954 | 8 | HT767954-Online |
| 11 | NT .312-18 HX G5 ZN | 034272 | 8 | HT034272-Online |
| 12 | NT .375-16 HX G5 ZN | 054502 | 4 | HT054502-Online |

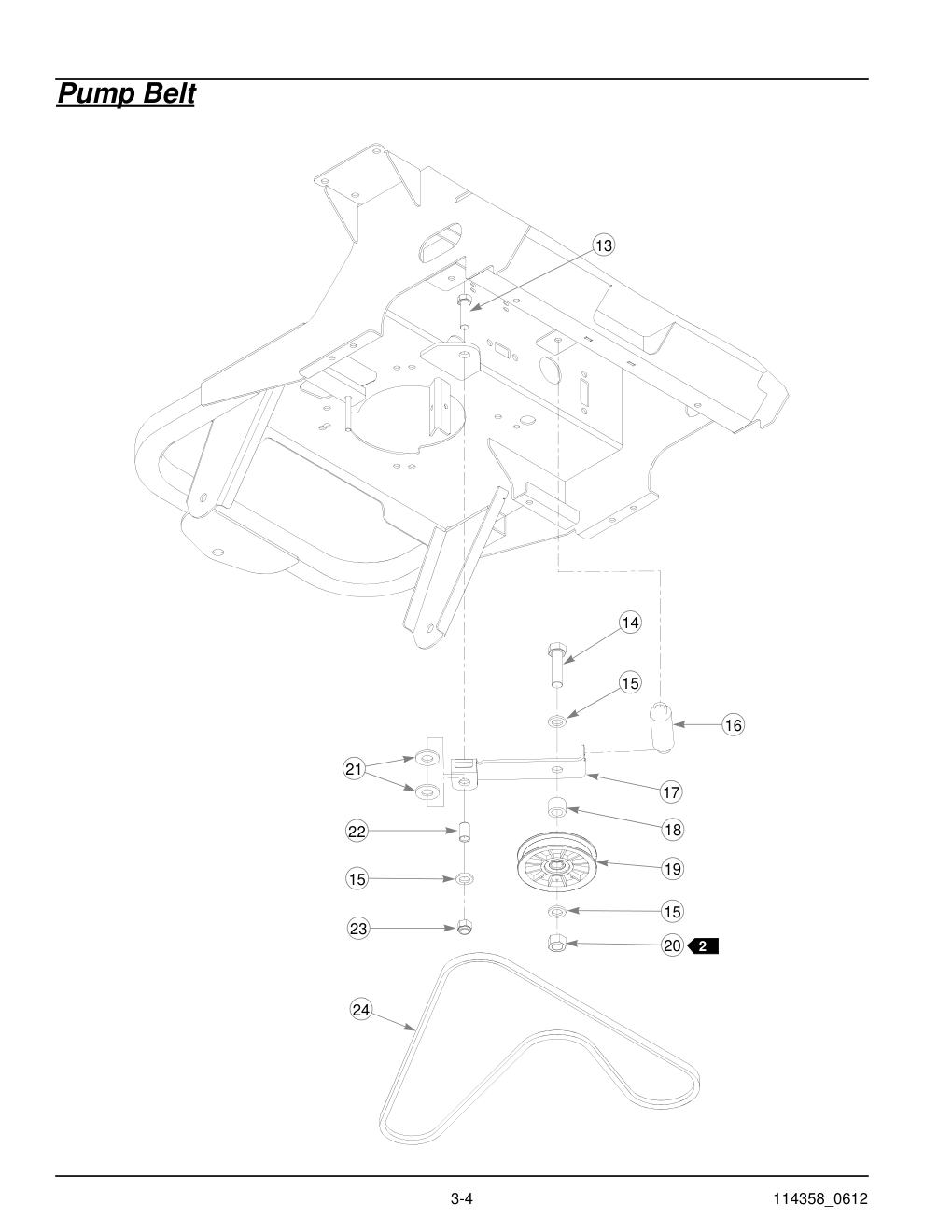

Pump Belt
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 13 | CS .500-13 X 1.75 HX GR5 ZN | 017616 | 1 | HT017616-Online |
| 14 | CS .625-11 X 2.25 HX G5 ZY | 601983 | 1 | 601983-Online |
| 15 | FW .625 X 1.00 X .134 ZNYC | 028118 | 3 | HT028118-Online |
| 16 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 17 | PUMP IDLER, FORMED | 111079 | 1 | 111079-Online |
| 18 | SPACER, PUMP IDLER | 601398 | 1 | 601398-Online |
| 19 | IDLER PULLEY, 4.00"OD | 784827 | 1 | HT784827-Online |
| 20 | NT .625-11 HX G5 ZNYC | 016972 | 1 | HT016972-Online |
| 21 | BEARING DISC | 602026 | 2 | 602026-Online |
| 22 | BUSHING, IGUS .500 I.D. | 602025 | 1 | 602025-Online |
| 23 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 24 | BELT, A 67.24" EL | 769133 | 1 | HT769133-Online |

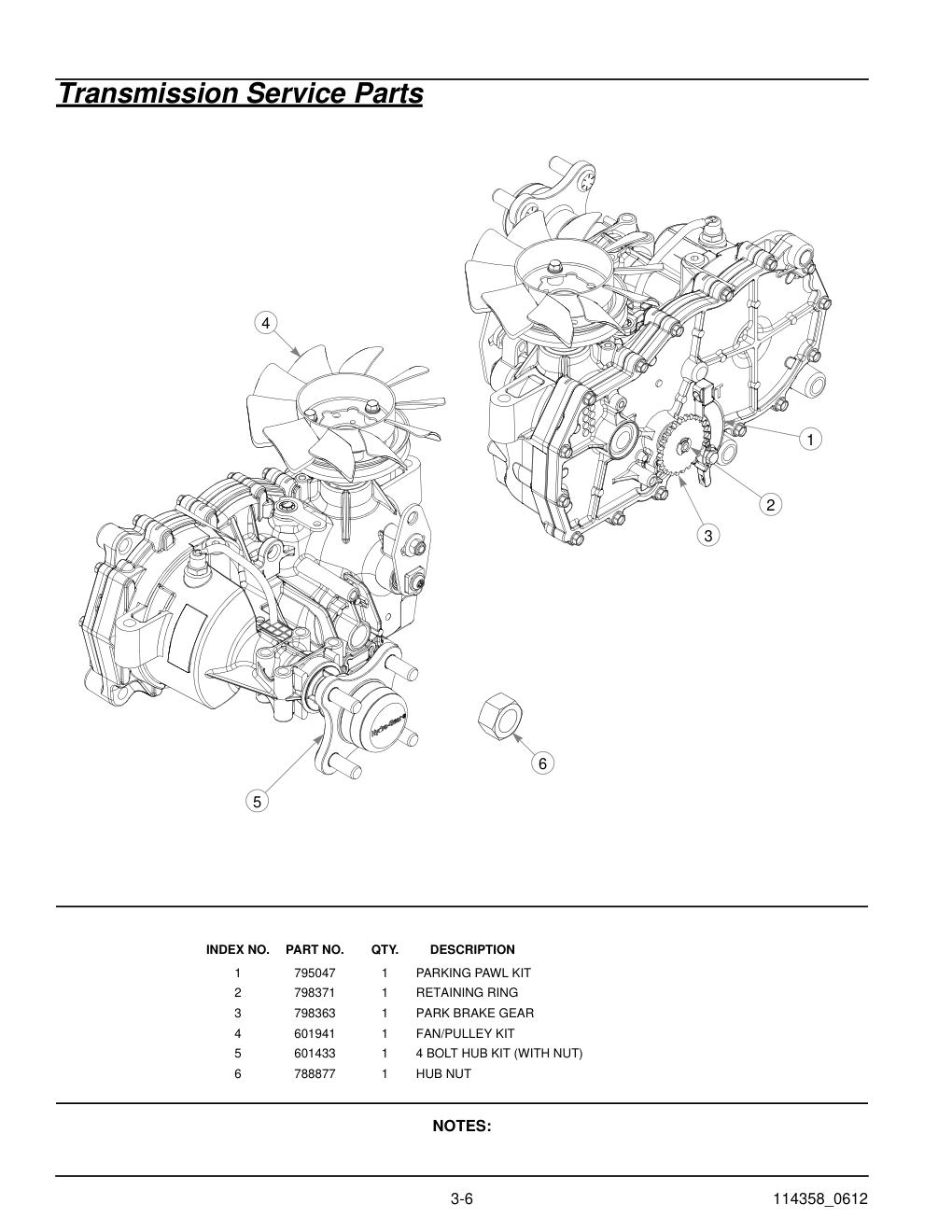

Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PARKING PAWL KIT | 795047 | 1 | HT795047-Online |
| 2 | RETAINING RING | 798371 | 1 | 798371-Online |
| 3 | PARK BRAKE GEAR | 798363 | 1 | HT798363-Online |
| 4 | FAN/PULLEY KIT | 601941 | 1 | 601941-Online |
| 5 | 4 BOLT HUB KIT (WITH NUT) | 601433 | 1 | 601433-Online |
| 6 | HUB NUT | 788877 | 1 | 788877-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING DAMPER | 600221 | 2 | HT600221-Online |
| 2 | BALL STUD | 781922 | 4 | 781922-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 17 | HT768523-Online |
| 4 | NT .312-24 HXZY NL | 023655 | 4 | HT023655-Online |
| 5 | LOCK COLLAR, 0.757 ID | 784439 | 2 | HT784439-Online |
| 6 | PUMP ROD ASSEMBLY | 600981 | 2 | HT600981-Online |
| 7 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 8 | CS .312-18 X .750 HX G5 | 034280 | 1 | HT034280-Online |
| 9 | PIVOT TUBE ASSEMBLY | 110014 | 1 | HT110014-Online |
| 10 | LW .312 INT-EXT TOOTH Z | 029876 | 2 | 029876-Online |
| 11 | CONNECTOR BODY | 601425 | 1 | 601425-Online |
| 12 | CAP LOCK | 601426 | 1 | 601426-Online |

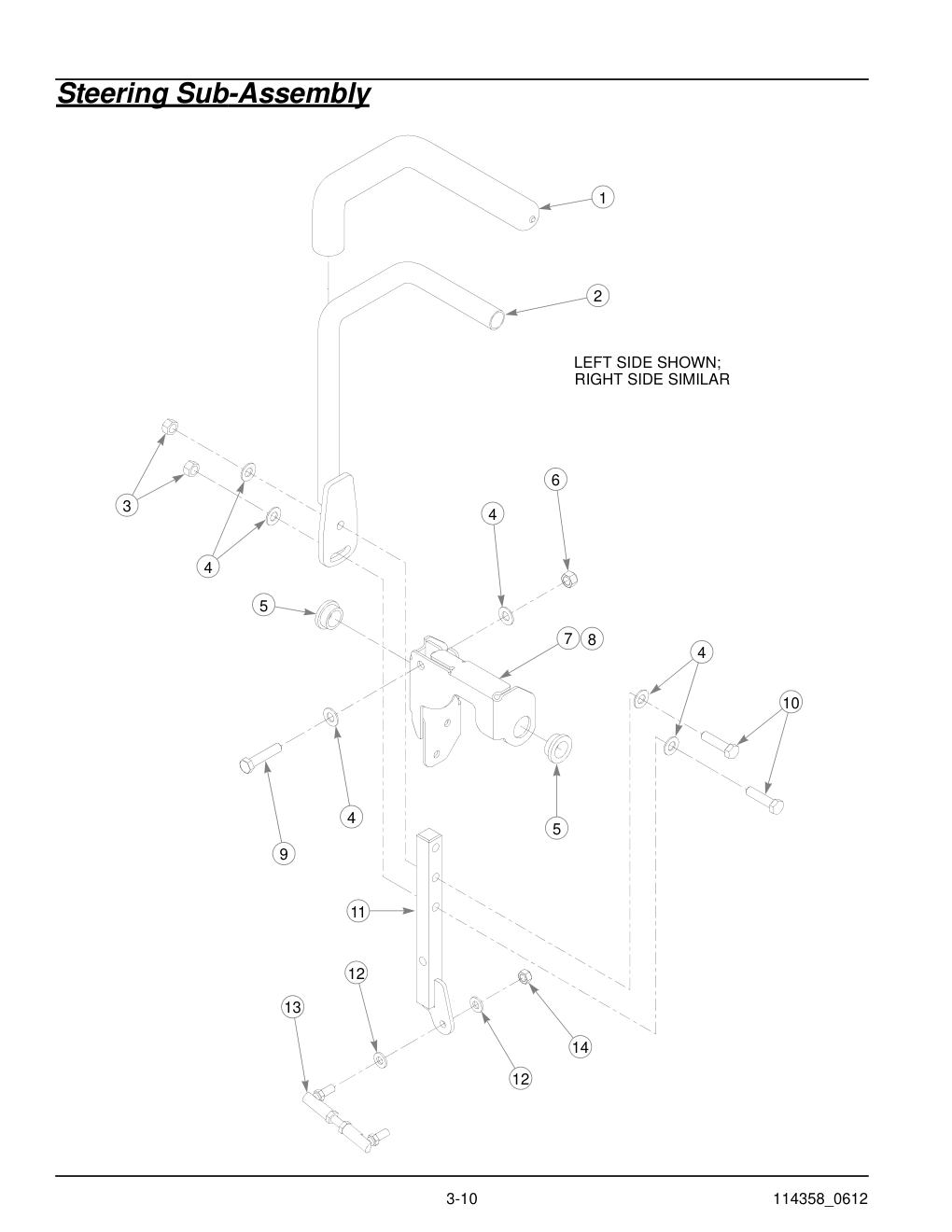

Steering Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BAR GRIP | 781260 | 2 | 781260-Online |
| 2 | STEERING BAR (WITH GRIP) | 110370 | 2 | 110370-Online |
| 3 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 5 | BUSHING | 770867 | 4 | HT770867-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |
| 7 | LS STEERING BOX | 110008 | 1 | 110008-Online |
| 8 | RS STEERING BOX (NOT SHOWN) | 110007 | 1 | 110007-Online |
| 9 | CS .375-16 X 1.750 HX G5 | 705178 | 2 | HT705178-Online |
| 10 | CS .375-16 X 1.500 HX G5 | 080655 | 4 | HT080655-Online |
| 11 | CONTROL LEVER | 110089 | 2 | 110089-Online |
| 12 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 13 | BALL JOINT LINK | 796615 | 2 | HT796615-Online |
| 14 | NT .312-24 HXZY NL | 023655 | 2 | HT023655-Online |

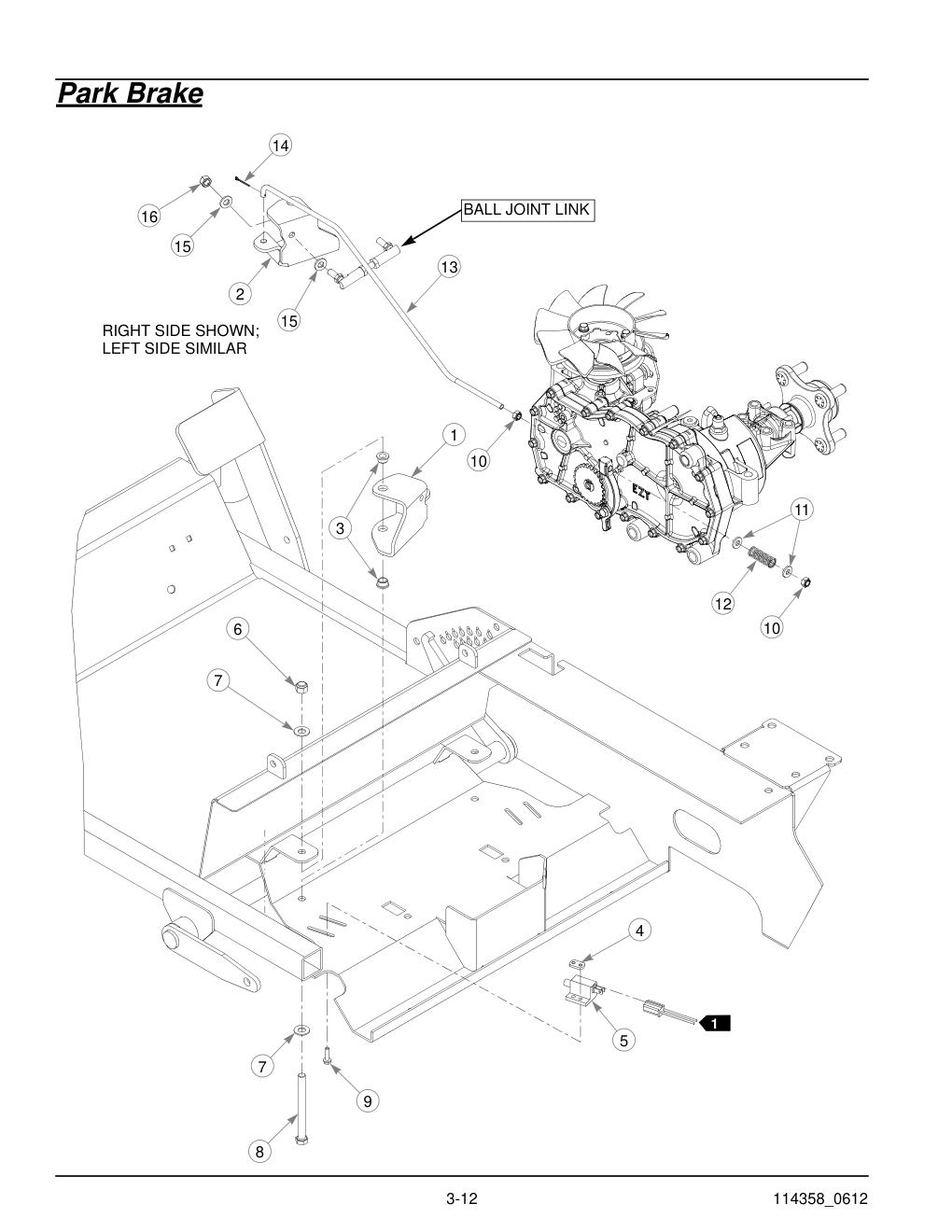

Park Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS BRAKE ACTUATOR | 110001 | 1 | 110001-Online |
| 2 | RS BRAKE ACTUATOR | 110000 | 1 | 110000-Online |
| 3 | BUSHING | 765339 | 4 | HT765339-Online |
| 4 | NUT PLATE, .420 CENTERS | 601822 | 2 | 601822-Online |
| 5 | PUSH BUTTON SWITCH | 781211 | 2 | HT781211-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |
| 7 | FW .406 X .812 X.060 SAE | 767954 | 4 | HT767954-Online |
| 8 | CS .375-16 X 4.00 HX G8 Z | 725796 | 2 | 725796-Online |
| 9 | CS 10-24 X .750 HXFLK ZN | 063198 | 4 | 063198-Online |
| 10 | NT .250-20 HXZY NL | 068551 | 4 | HT068551-Online |
| 11 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 12 | BRAKE ARM RET. SPRING | 601131 | 2 | HT601131-Online |
| 13 | BRAKE ACTUATOR ROD | 110009 | 2 | 110009-Online |
| 14 | CP .062D X 1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 15 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 16 | NT .312-24 HXZY NL | 023655 | 2 | HT023655-Online |

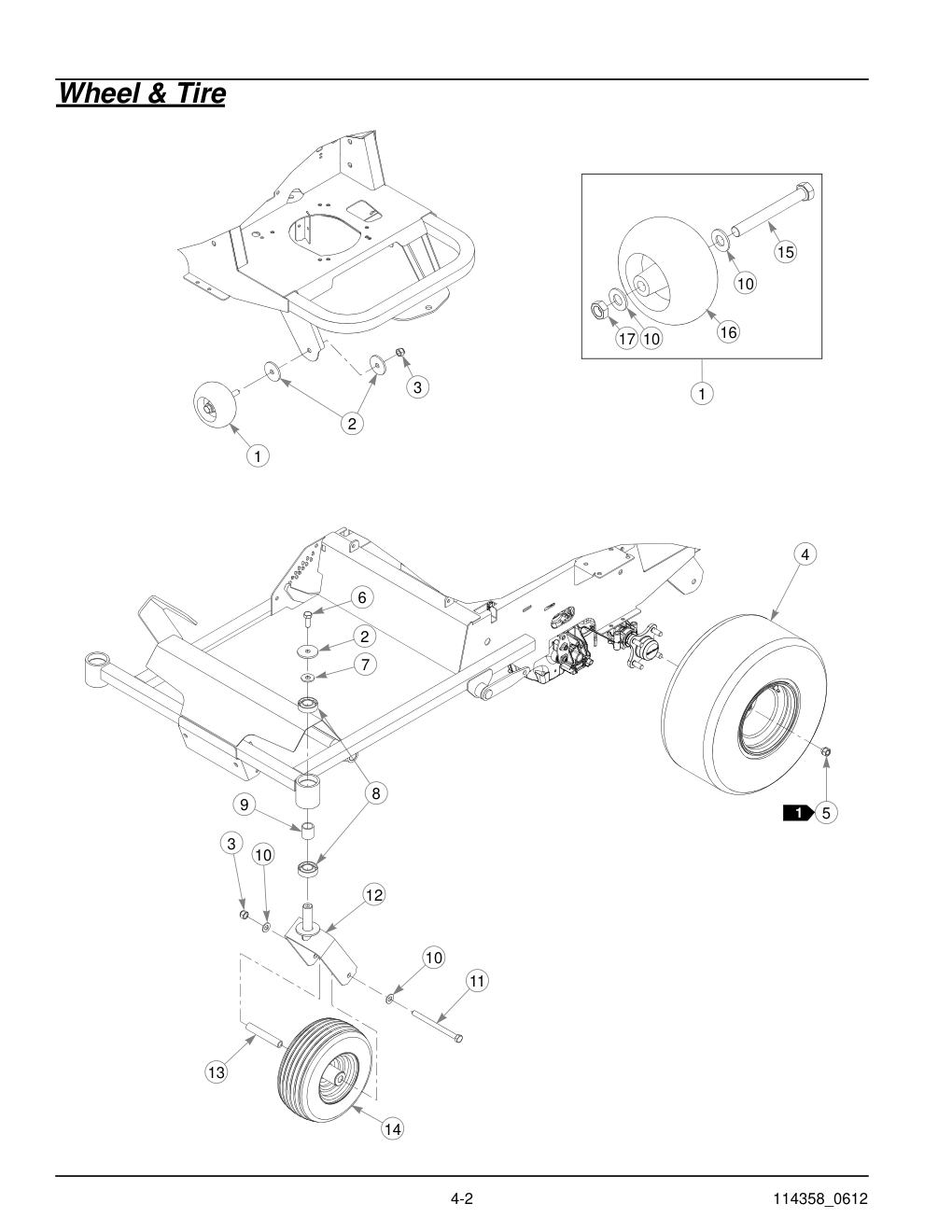

Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PLASTIC WHEEL ASSEMBLY (WITH HARDWARE) | 788166 | 2 | HT788166-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 6 | HT344267-Online |
| 3 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 4 | TIRE/WHEEL 18 X 8.5-8 (42" & 48" MOWERS) | 601810 | 2 | 601810-Online |
| 4 | TIRE/WHEEL 18 X 9.5-8 (54" MOWERS) | 784264 | 2 | 784264-Online |
| 5 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 6 | CS .500-13 X 1.25 HX G5 Z | 705954 | 2 | HT705954-Online |
| 7 | FW .531 X 1.375 X .125 ZNY | 712976 | 2 | HT712976-Online |
| 8 | BEARING | 784223 | 4 | HT784223-Online |
| 9 | SPACER | 784603 | 2 | HT784603-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 11 | CS .500-13 X 6.50 HX G5 Z | 042630 | 2 | HT042630-Online |
| 12 | CASTER FORK | 110116 | 2 | HT110116-Online |
| 13 | GAGE WHEEL SPACER | 306969 | 2 | HT306969-Online |
| 14 | TIRE/WHL 11 X 4-5 RIBBED | 768044 | 2 | 768044-Online |
| 15 | CS .500-13 X 4.250 HX G5 | 781708 | 2 | HT781708-Online |
| 16 | PLASTIC WHEEL | 031997 | 2 | HT031997-Online |
| 17 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |

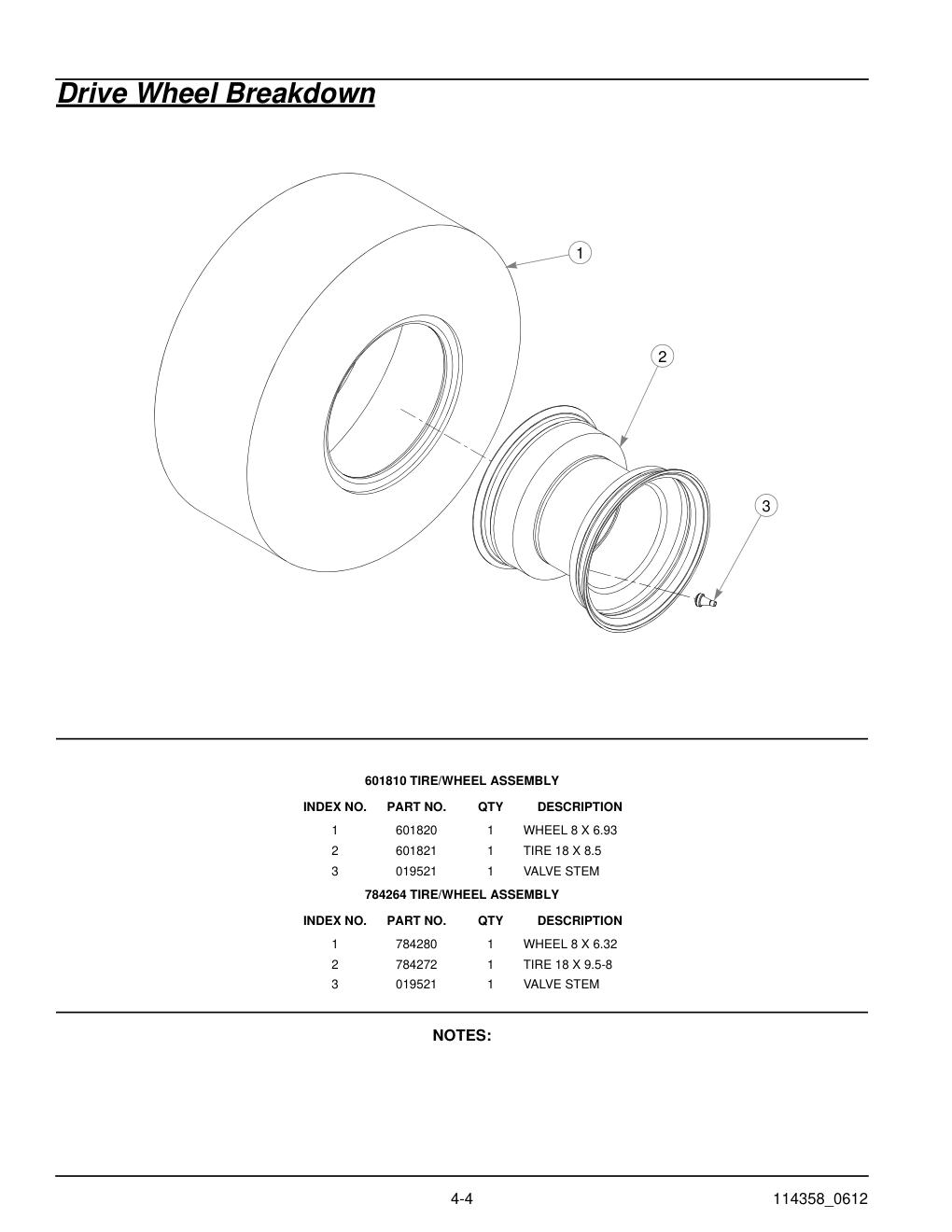

Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL 8 X 6.93 | 601820 | 1 | 601820-Online |
| 2 | TIRE 18 X 8.5 | 601821 | 1 | 601821-Online |
| 3 | VALVE STEM | 019521 | 1 | HT019521-Online |
| 1 | WHEEL 8 X 6.32 | 784280 | 1 | 784280-Online |
| 2 | TIRE 18 X 9.5-8 | 784272 | 1 | HT784272-Online |
| 3 | VALVE STEM | 019521 | 1 | HT019521-Online |

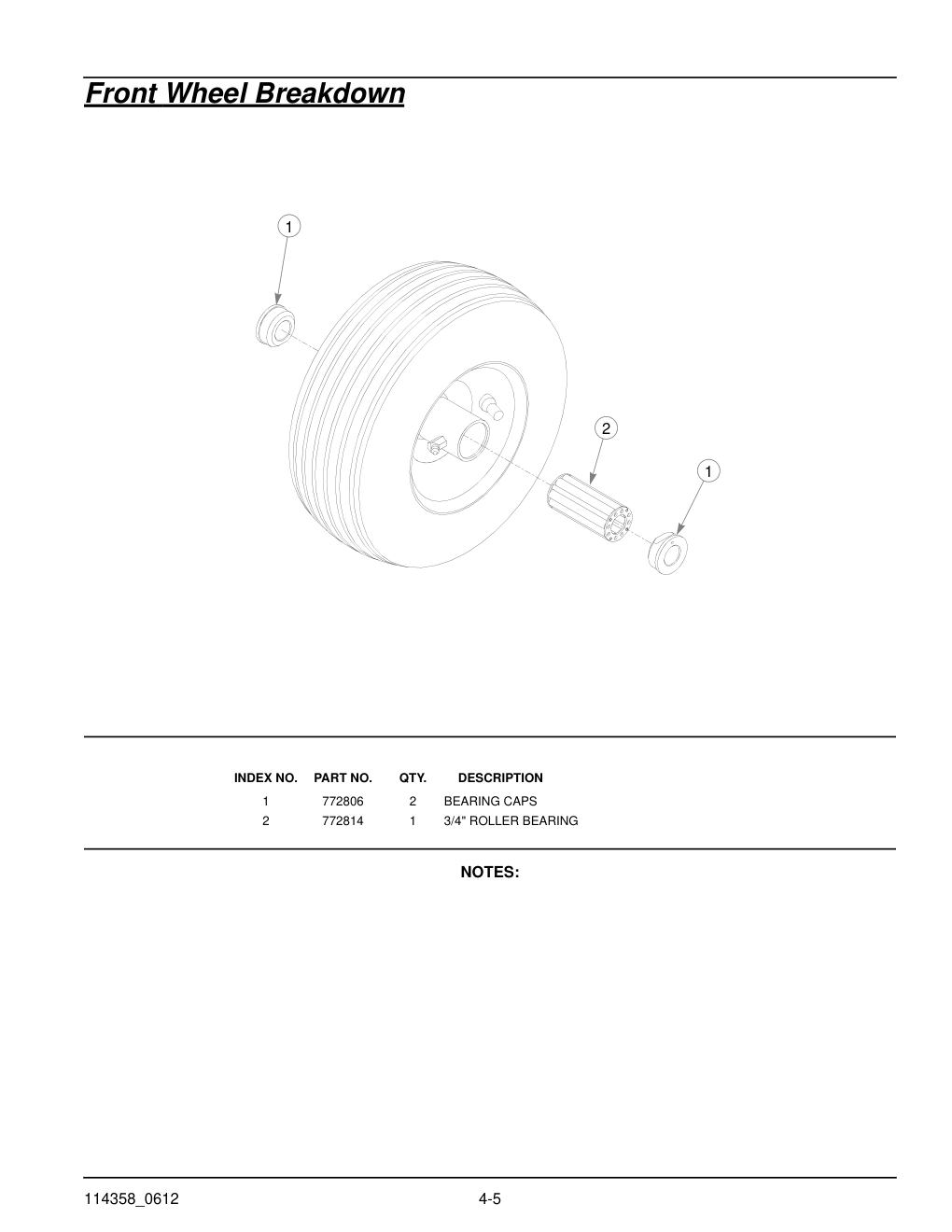

Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BEARING CAPS | 772806 | 2 | HT772806-Online |
| 2 | 3/4" ROLLER BEARING | 772814 | 1 | HT772814-Online |

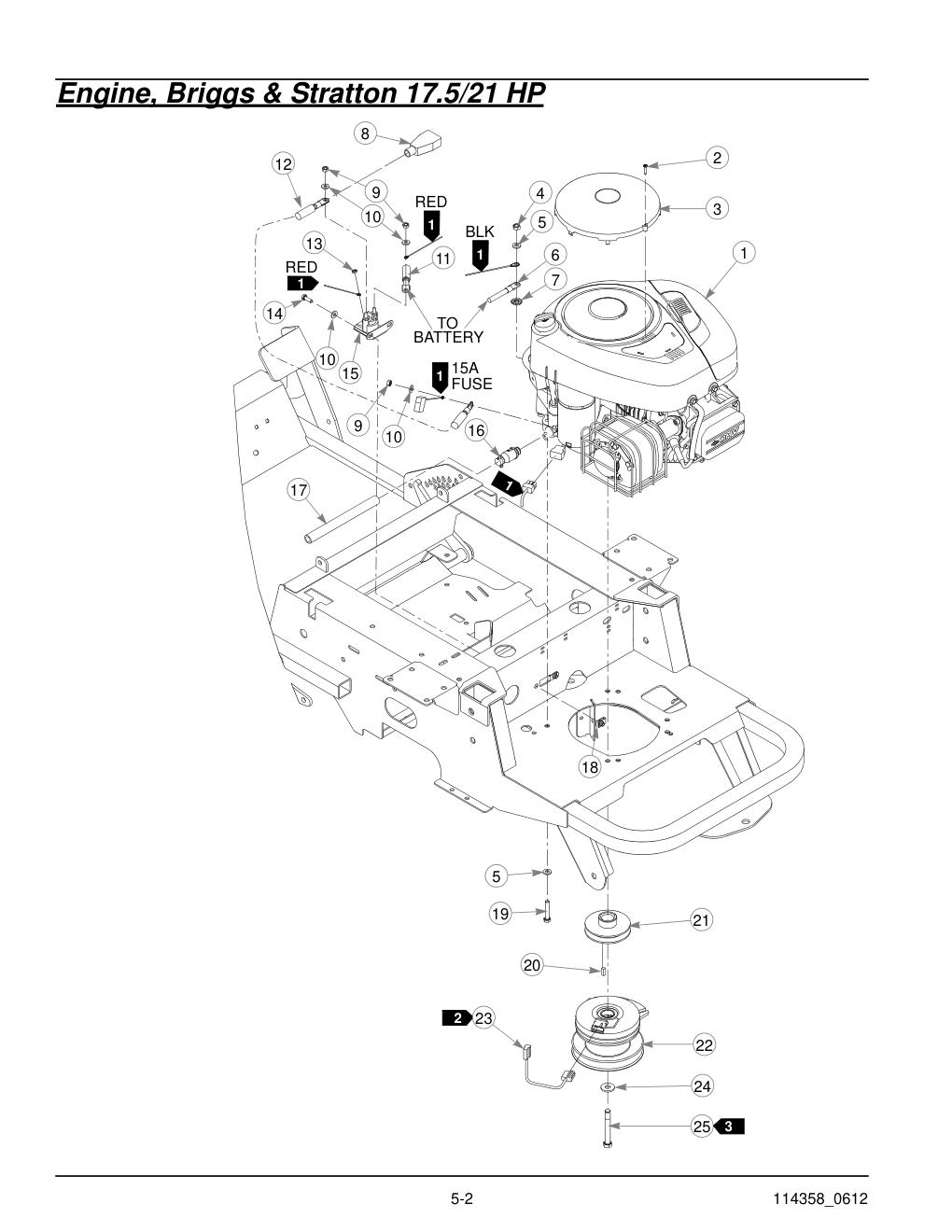

Engine, Briggs & Stratton 17.5/21 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BRIGGS & STRATTON 17.5/21 HP ENGINE | N/A | 1 | No SKU |
| 2 | SC # 8 X 1.00 PHCR BO | 602062 | 1 | 602062-Online |
| 3 | BRIGGS CONTACT COVER | 601844 | 1 | 601844-Online |
| 4 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 6 | NEGATIVE BATTERY CABLE | 601841 | 1 | 601841-Online |
| 7 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 8 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 9 | NT .25-20 HX GR.5 ZNYC | 024927 | 3 | HT024927-Online |
| 10 | FW .281 X .625 X .051/.080H | 768515 | 5 | HT768515-Online |
| 11 | POSITIVE BATTERY CABLE | 601062 | 1 | 601062-Online |
| 12 | POSITIVE BATTERY CABLE | 601840 | 1 | 601840-Online |
| 13 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 14 | CS .25-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 15 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 16 | OIL DRAIN - 3/8-18 NPTF | 601818 | 1 | 601818-Online |
| 17 | OIL DRAIN HOSE | 104786 | 1 | 104786-Online |
| 18 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 19 | CS .312-18 X 1.75 HX G5 | 050161 | 4 | 050161-Online |
| 20 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 21 | ENGINE PULLEY | 793760 | 1 | HT793760-Online |
| 22 | CLUTCH KIT (WITH PIGTAIL) | 601801K | 1 | 601801K-Online |
| 23 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 24 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 25 | CS .437-20 X 3.25 HXG5P85 | 601834 | 1 | 601834-Online |

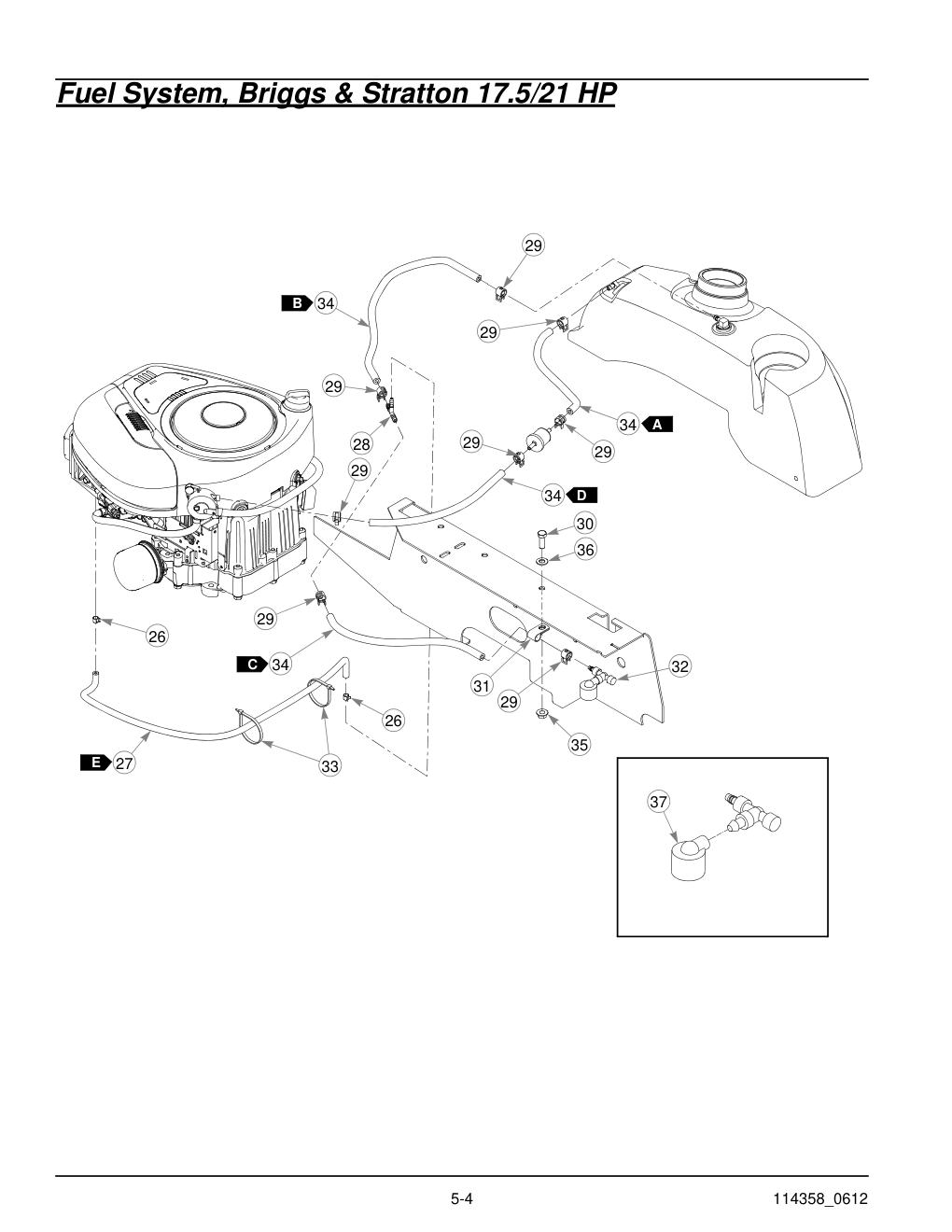

Fuel System, Briggs & Stratton 17.5/21 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 26 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 27 | 3/16" VAPOR LINE | 603326 | 32" | 603326-Online |
| 28 | PLASTIC TEE 1/4" X 1/4" X 3/16" | 603025 | 1 | 603025-Online |
| 29 | HOSE CLAMP | 000323 | 8 | 000323-Online |
| 30 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 31 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 32 | VACUUM BREAKER | 603283 | 1 | 603283-Online |
| 33 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 34 | 1/4" FUEL LINE | 015818 | 56" | HT015818-Online |
| 35 | NT .375-16 HXFLK ZNYC | 016899 | 1 | HT016899-Online |
| 36 | FW .406 X .812 X .060 SAE | 767954 | 1 | HT767954-Online |
| 37 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
Engine Service Parts, Briggs & Stratton 17.5 HP/21 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | IN-LINE FUEL FILTER | 068478 | 1 | 068478-Online |
| 2 | AIR PRECLEANER FILTER, FLAT PANEL (17.5 HP) | 601846 | 1 | 601846-Online |
| 2 | AIR PRECLEANER FILTER (21 HP) | 601848 | 1 | 601848-Online |
| 3 | AIR FILTER, FLAT PANEL (17.5 HP) | 601847 | 1 | 601847-Online |
| 3 | AIR FILTER, CARTRIDGE (21 HP) | 601849 | 1 | 601849-Online |
| 4 | OIL FILTER | 601845 | 1 | 601845-Online |

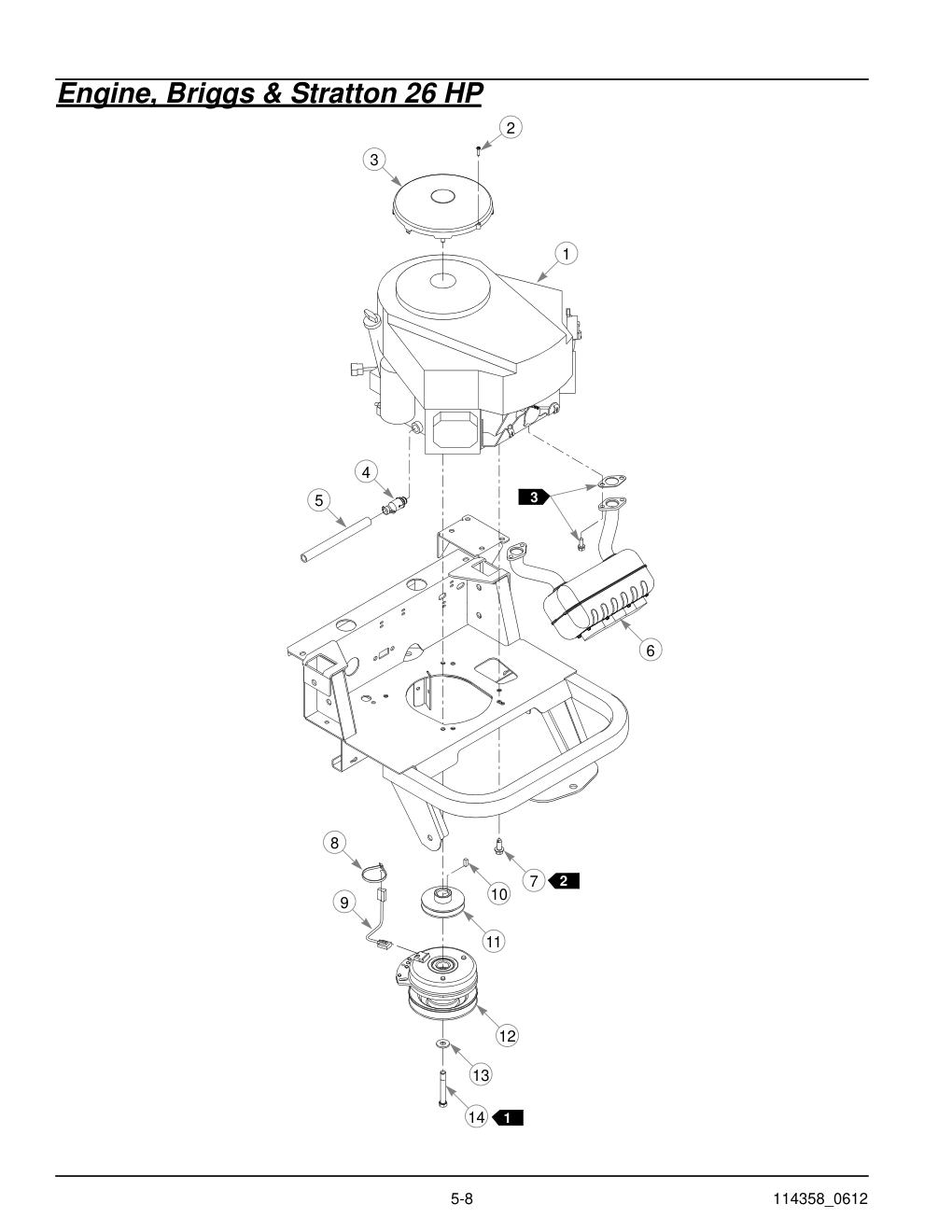

Engine, Briggs & Stratton 26 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BRIGGS & STRATTON 26HP ELS ENGINE | N/A | 1 | No SKU |
| 2 | SC # 8 X 1.00 PHCR BO | 602062 | 1 | 602062-Online |
| 3 | STATIC COVER ASSEMBLY | 602422 | 1 | 602422-Online |
| 4 | OIL DRAIN - 3/8-18 NPTF | 601818 | 1 | 601818-Online |
| 5 | OIL DRAIN HOSE | 104786 | 1 | 104786-Online |
| 6 | MUFFLER | 602389 | 1 | 602389-Online |
| 7 | SC .375-16 X 1.0 HX FL STP | 792788 | 3 | 792788-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |
| 9 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 10 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 11 | ENGINE PULLEY | 793760 | 1 | HT793760-Online |
| 12 | CLUTCH KIT (WITH PIGTAIL) | 601784K | 1 | 601784K-Online |
| 13 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 14 | CS .437-20 X 3.25 HXG5P85 | 601834 | 1 | 601834-Online |
Engine, Briggs & Stratton 26 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 15 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 16 | NT .250-20 HX GR.5 ZNYC | 024927 | 3 | HT024927-Online |
| 17 | FW .281 X .625 X .051/.080H | 768515 | 5 | HT768515-Online |
| 18 | POSITIVE BATTERY CABLE | 601840 | 1 | 601840-Online |
| 19 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 20 | POSITIVE BATTERY CABLE | 601062 | 1 | 601062-Online |
| 21 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 22 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 23 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 24 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 25 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 26 | NEGATIVE BATTERY CABLE | 601841 | 1 | 601841-Online |
| 27 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 28 | CS .312-18 X 1.75 HX G5 | 050161 | 1 | 050161-Online |

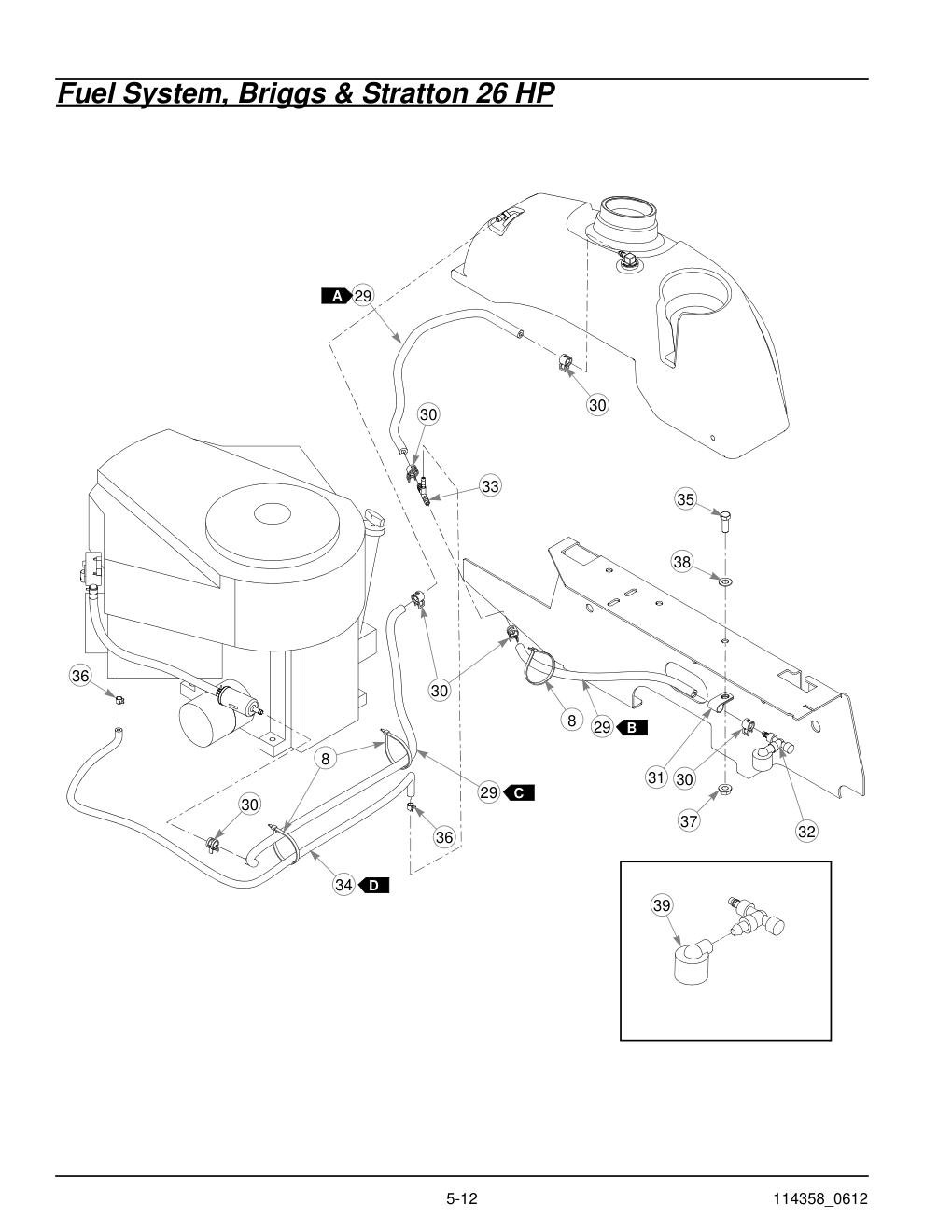

Fuel System, Briggs & Stratton 26 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 29 | 1/4" FUEL LINE | 015818 | 63" | HT015818-Online |
| 30 | HOSE CLAMP | 000323 | 6 | 000323-Online |
| 31 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 32 | VACUUM BREAKER | 603283 | 1 | 603283-Online |
| 33 | PLASTIC TEE 1/4" X 1/4" X 3/16" | 603025 | 1 | 603025-Online |
| 34 | 3/16" VAPOR LINE | 603326 | 40" | 603326-Online |
| 35 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 36 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 37 | NT .375-16 HXFLK ZNYC | 016899 | 1 | HT016899-Online |
| 38 | FW .406 X .812 X .060 SAE | 767954 | 1 | HT767954-Online |
| 39 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

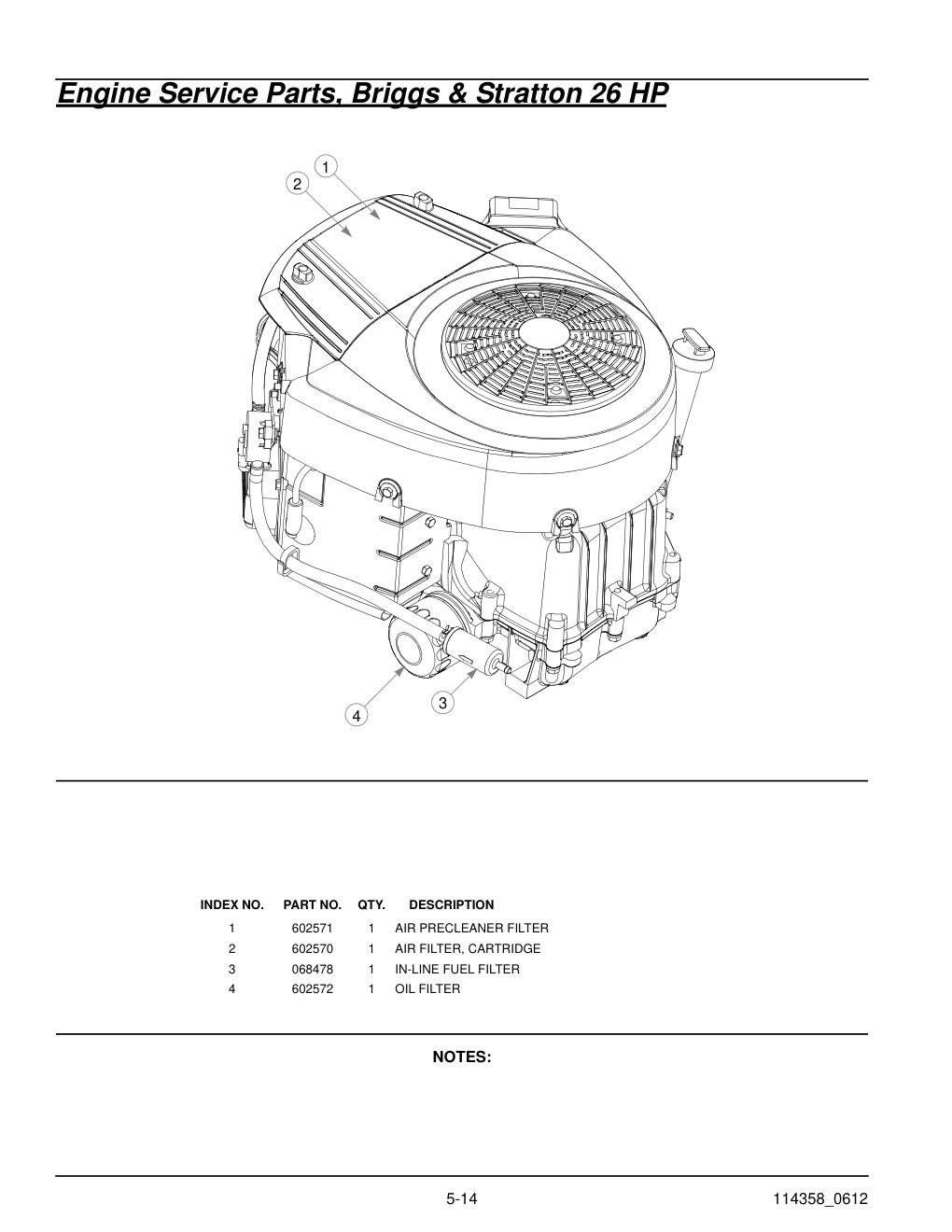

Engine Service Parts, Briggs & Stratton 26 HP
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR PRECLEANER FILTER | 602571 | 1 | 602571-Online |
| 2 | AIR FILTER, CARTRIDGE | 602570 | 1 | 602570-Online |
| 3 | IN-LINE FUEL FILTER | 068478 | 1 | 068478-Online |
| 4 | OIL FILTER | 602572 | 1 | 602572-Online |

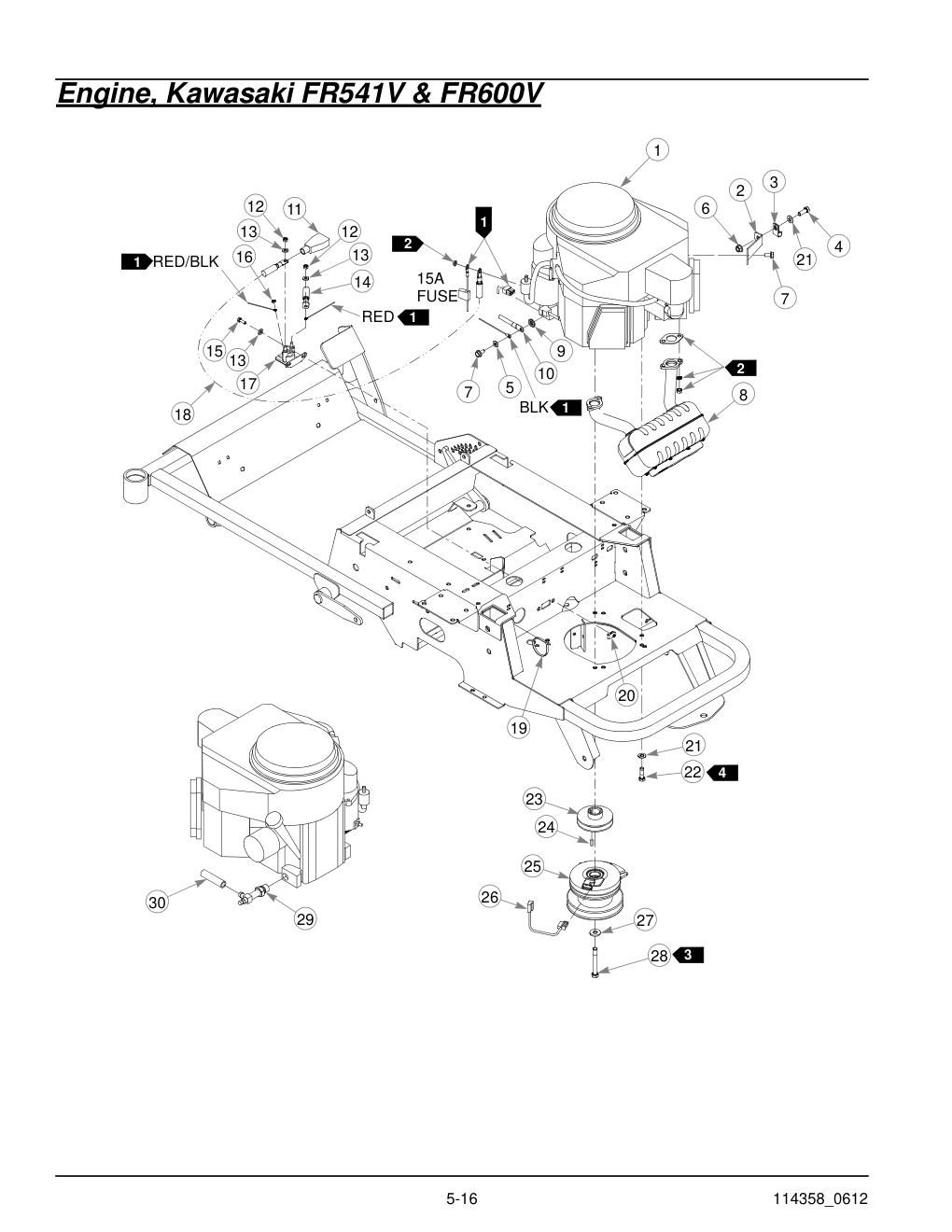

Engine, Kawasaki FR541V & FR600V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR541V & FR600V ENGINE | N/A | 1 | No SKU |
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | LOOP CLAMP | 000398 | 2 | HT000398-Online |
| 4 | CS .375-16X1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 HXFLK ZNYC | 016899 | 2 | HT016899-Online |
| 7 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 8 | MUFFLER | 602999 | 1 | 602999-Online |
| 9 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 10 | NEGATIVE BATTERY CABLE | 601841 | 1 | 601841-Online |
| 11 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 12 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 13 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 14 | POSITIVE BATTERY CABLE | 601062 | 1 | 601062-Online |
| 15 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 16 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | POSITIVE BATTERY CABLE | 792762 | 1 | 792762-Online |
| 19 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 20 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 21 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 22 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 23 | ENGINE PULLEY | 793760 | 1 | HT793760-Online |
| 24 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 25 | CLUTCH KIT (WITH PIGTAIL) | 601801K | 1 | 601801K-Online |
| 26 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 27 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 28 | CS .437-20 X 3.25 HXG5P85 | 601834 | 1 | 601834-Online |
| 29 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 30 | HOSE, 0.50" LOW PRESSURE | 787713 | 3" | HT787713-Online |

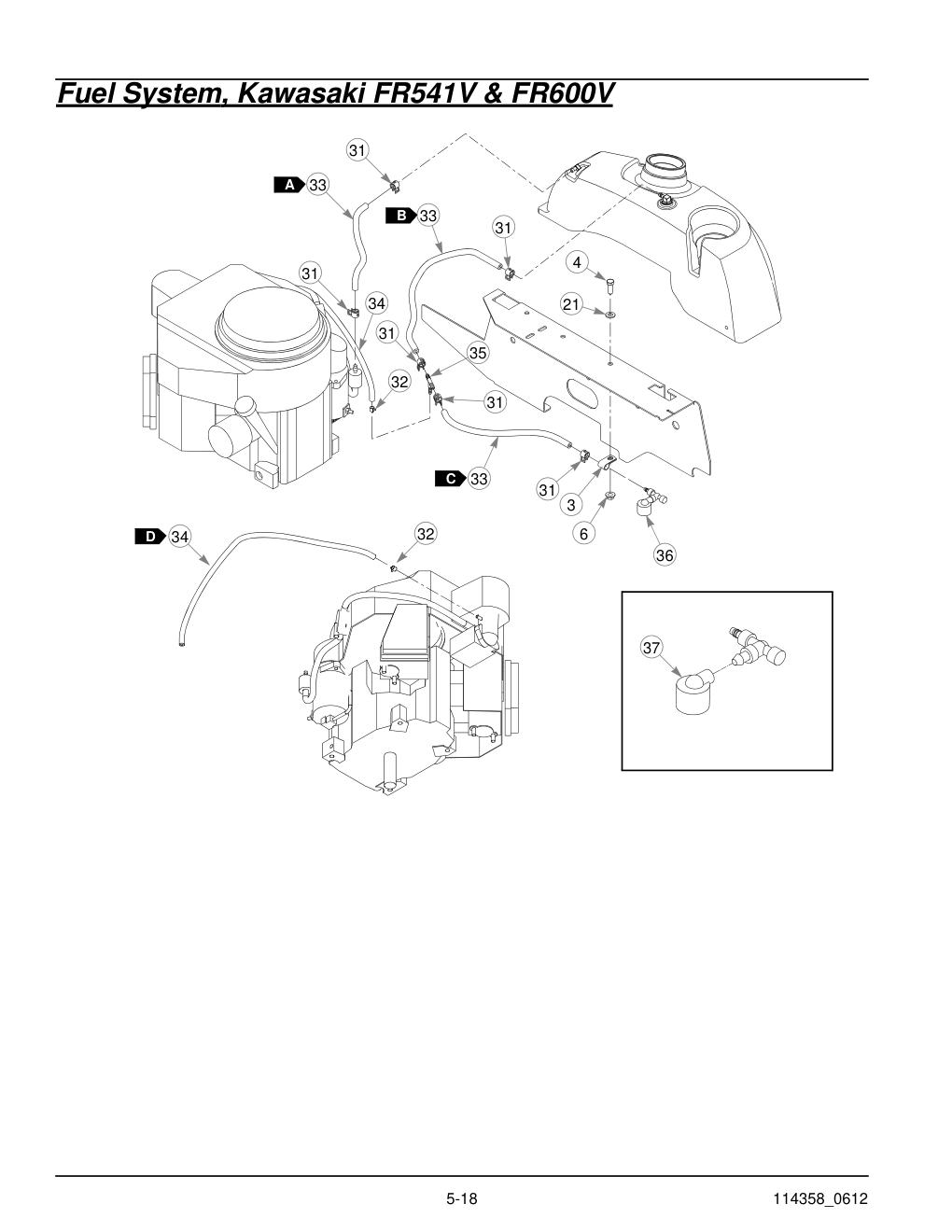

Fuel System, Kawasaki FR541V & FR600V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 31 | HOSE CLAMP | 000323 | 6 | 000323-Online |
| 32 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 33 | 1/4" FUEL LINE | 015818 | 40" | HT015818-Online |
| 34 | 3/16" VAPOR LINE | 603326 | 24" | 603326-Online |
| 35 | PLASTIC TEE 1/4" X 1/4" X 3/16" | 603025 | 1 | 603025-Online |
| 36 | VACUUM BREAKER | 603283 | 1 | 603283-Online |
| 37 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

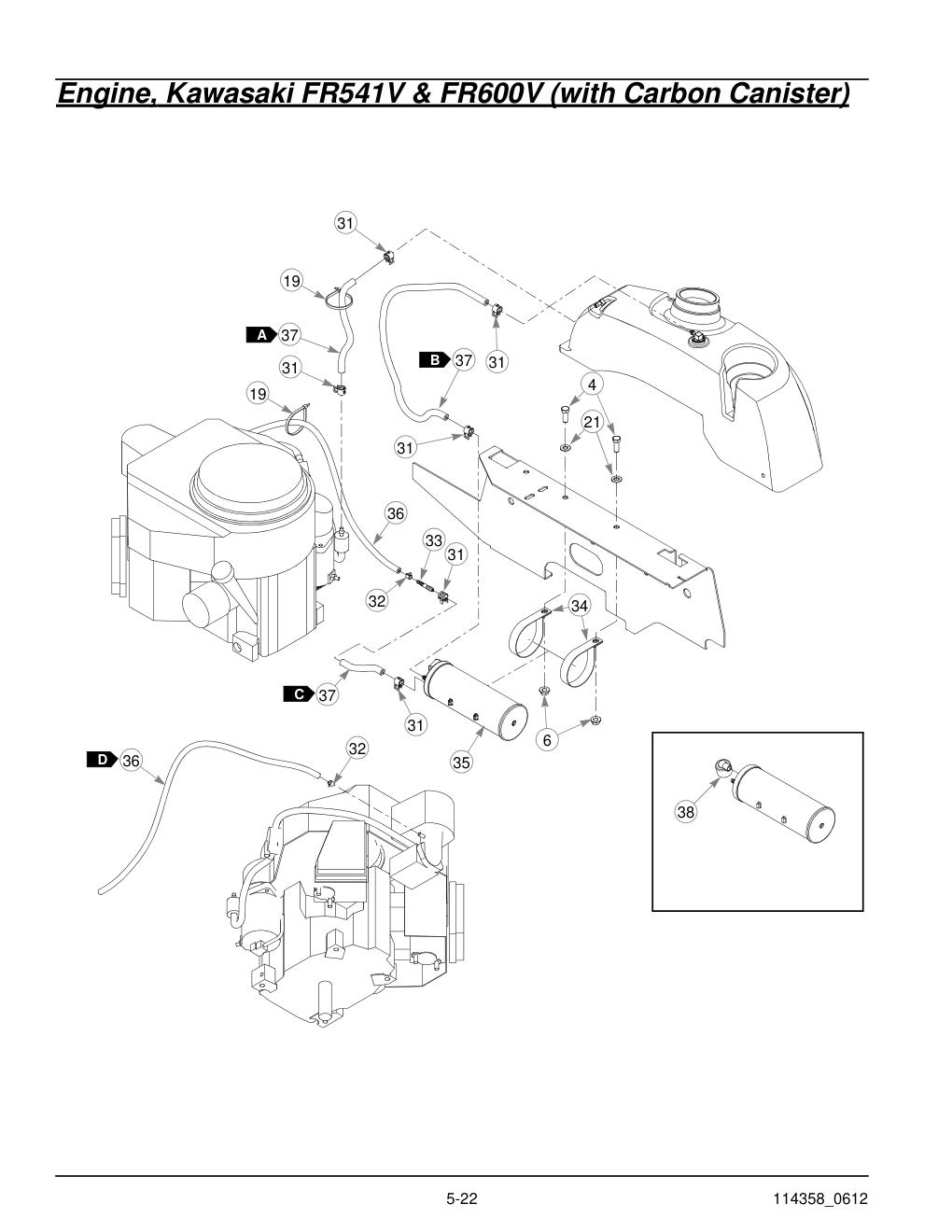

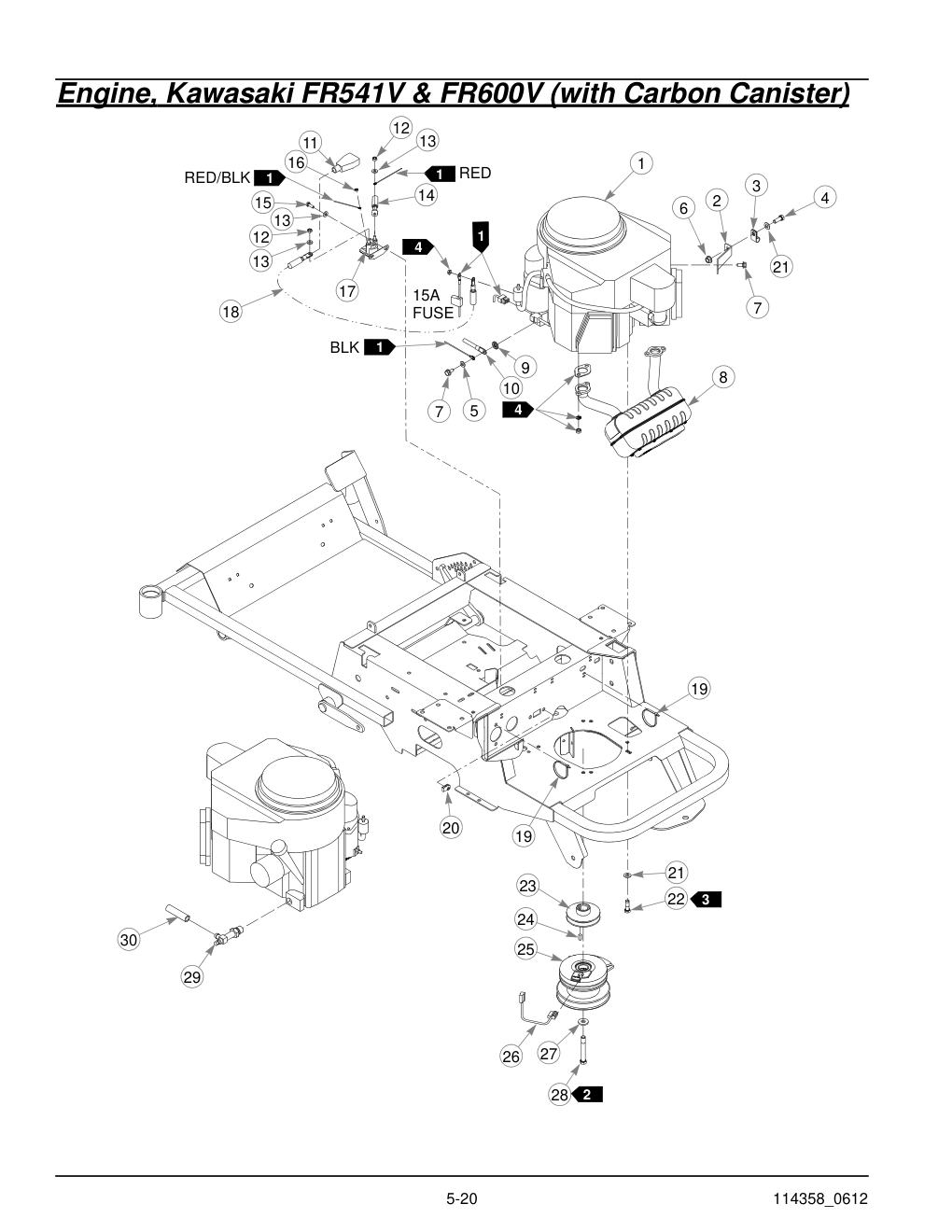

Engine, Kawasaki FR541V & FR600V (with Carbon Canister)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR541V/FR600V ENGINE | N/A | 1 | No SKU |
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 4 | CS .375-16 X 1.00 HX G5 | 036244 | 3 | HT036244-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 HXFLK ZNYC | 016899 | 3 | HT016899-Online |
| 7 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 8 | MUFFLER | 602999 | 1 | 602999-Online |
| 9 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 10 | NEGATIVE BATTERY CABLE | 601841 | 1 | 601841-Online |
| 11 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 12 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 13 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 14 | POSITIVE BATTERY CABLE | 601062 | 1 | 601062-Online |
| 15 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 16 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | POSITIVE BATTERY CABLE | 792762 | 1 | 792762-Online |
| 19 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |
| 20 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 21 | FW .406 X .812 X .060 SAE | 767954 | 7 | HT767954-Online |
| 22 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 23 | ENGINE PULLEY | 793760 | 1 | HT793760-Online |
| 24 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 25 | CLUTCH KIT (WITH PIGTAIL) | 601801K | 1 | 601801K-Online |
| 26 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 27 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 28 | CS .437-20 X 3.25 HXG5P85 | 601834 | 1 | 601834-Online |
| 29 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 30 | HOSE, 0.50" LOW PRESSURE | 787713 | 3" | HT787713-Online |
Engine, Kawasaki FR541V & FR600V (with Carbon Canister)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 31 | HOSE CLAMP | 000323 | 6 | 000323-Online |
| 32 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 33 | FTG, -4 BARB/-3 BARB STR | 603337 | 1 | 603337-Online |
| 34 | 3.0" CUSHIONED CLAMP | 602980 | 2 | 602980-Online |
| 35 | CARBON CANISTER | 602982 | 1 | 602982-Online |
| 36 | 3/16" VAPOR LINE | 603326 | 26" | 603326-Online |
| 37 | 1/4" FUEL LINE | 015818 | 33" | HT015818-Online |
| 38 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

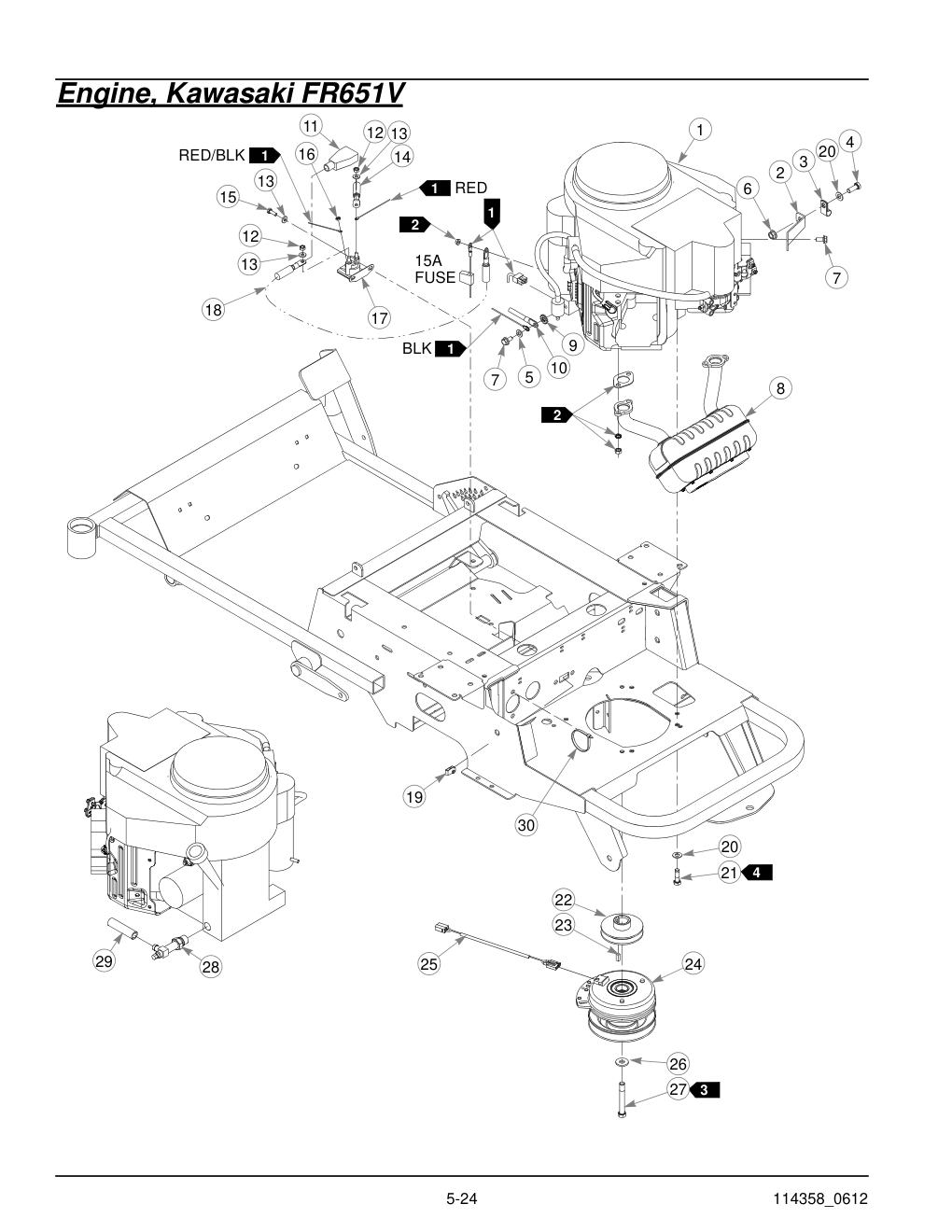

Engine, Kawasaki FR651V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR651V ENGINE | N/A | 1 | No SKU |
| 2 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 3 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 4 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 6 | NT .375-16 HXFLK ZNYC | 016899 | 2 | HT016899-Online |
| 7 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 8 | MUFFLER | 603150 | 1 | 603150-Online |
| 9 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 10 | NEGATIVE BATTERY CABLE | 601841 | 1 | 601841-Online |
| 11 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 12 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 13 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 14 | POSITIVE BATTERY CABLE | 601062 | 1 | 601062-Online |
| 15 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 16 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 17 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 18 | POSITIVE BATTERY CABLE | 792762 | 1 | 792762-Online |
| 19 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
| 20 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 21 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 22 | ENGINE PULLEY | 793760 | 1 | HT793760-Online |
| 23 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 24 | CLUTCH KIT (WITH PIGTAIL) | 601784K | 1 | 601784K-Online |
| 25 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 26 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 27 | CS .437-20 X 3.25 HXG5P85 | 601834 | 1 | 601834-Online |
| 28 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 29 | HOSE, 0.50" LOW PRESSURE | 787713 | 3" | HT787713-Online |
| 30 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |

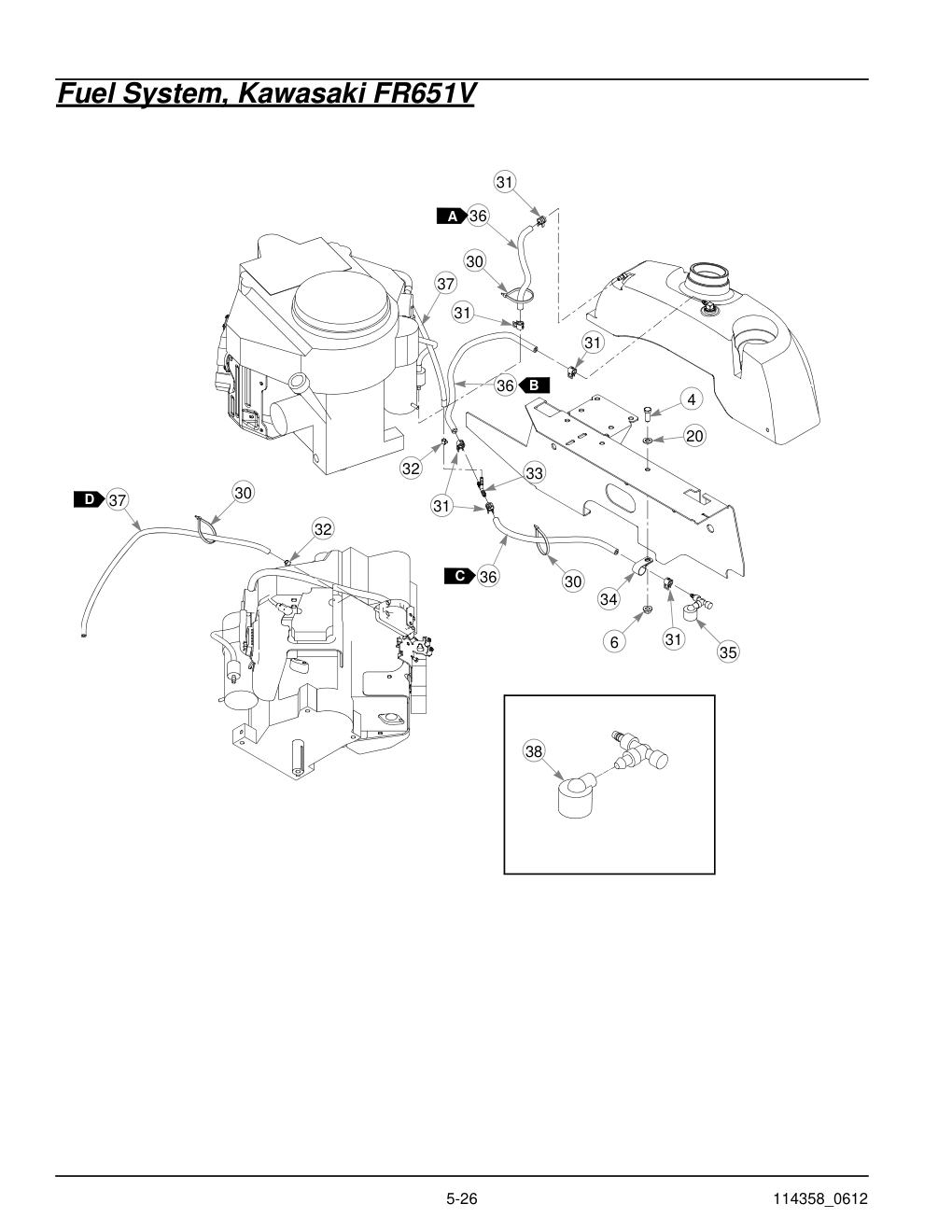

Fuel System, Kawasaki FR651V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 31 | HOSE CLAMP | 000323 | 6 | 000323-Online |
| 32 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 33 | PLASTIC TEE 1/4" X 1/4" X 3/16" | 603025 | 1 | 603025-Online |
| 34 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 35 | VACUUM BREAKER | 603283 | 1 | 603283-Online |
| 36 | 1/4" FUEL LINE | 015818 | 40" | HT015818-Online |
| 37 | 3/16" VAPOR LINE | 603326 | 24" | 603326-Online |
| 38 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |

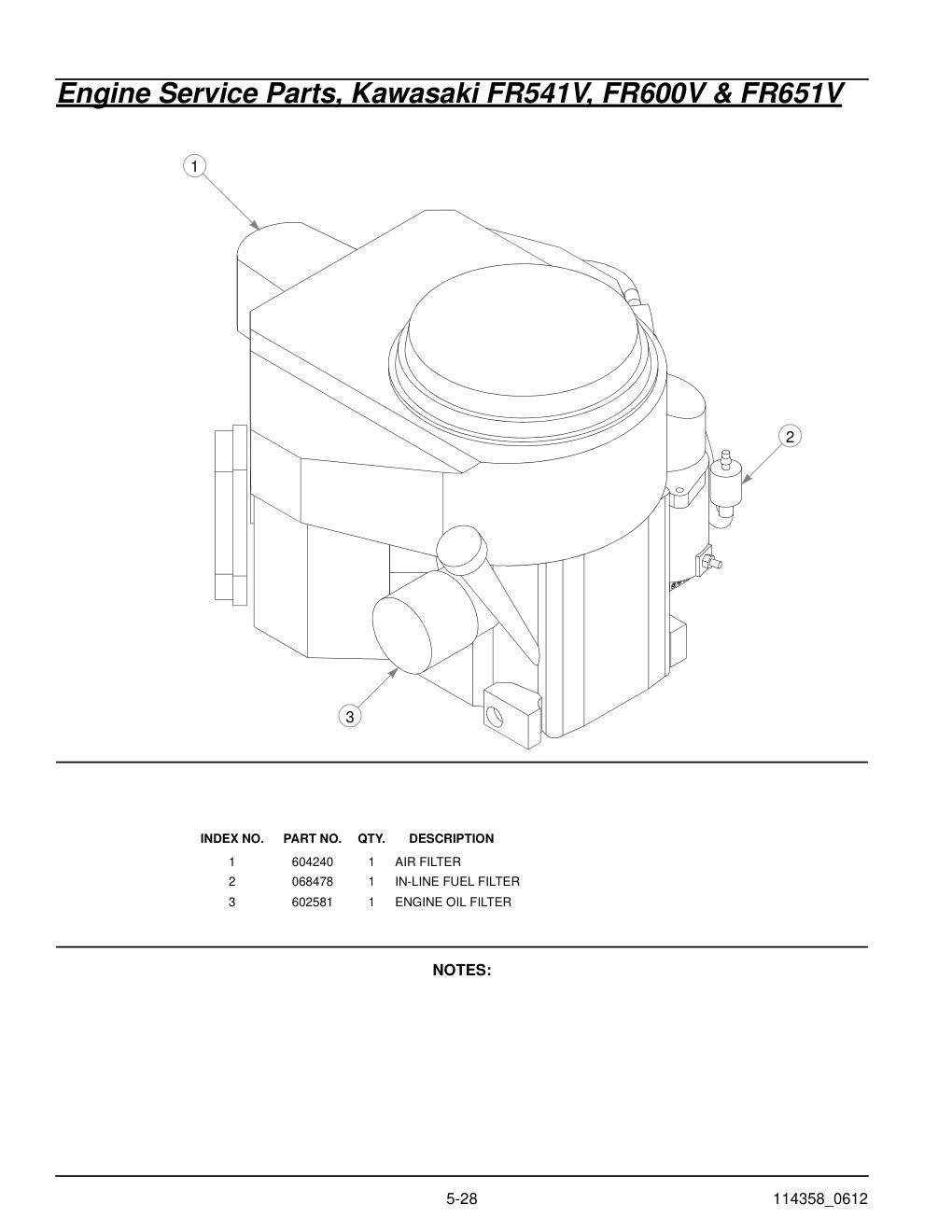

Engine Service Parts, Kawasaki FR541V, FR600V & FR651V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER | 604240 | 1 | 604240-Online |
| 2 | IN-LINE FUEL FILTER | 068478 | 1 | 068478-Online |
| 3 | ENGINE OIL FILTER | 602581 | 1 | 602581-Online |

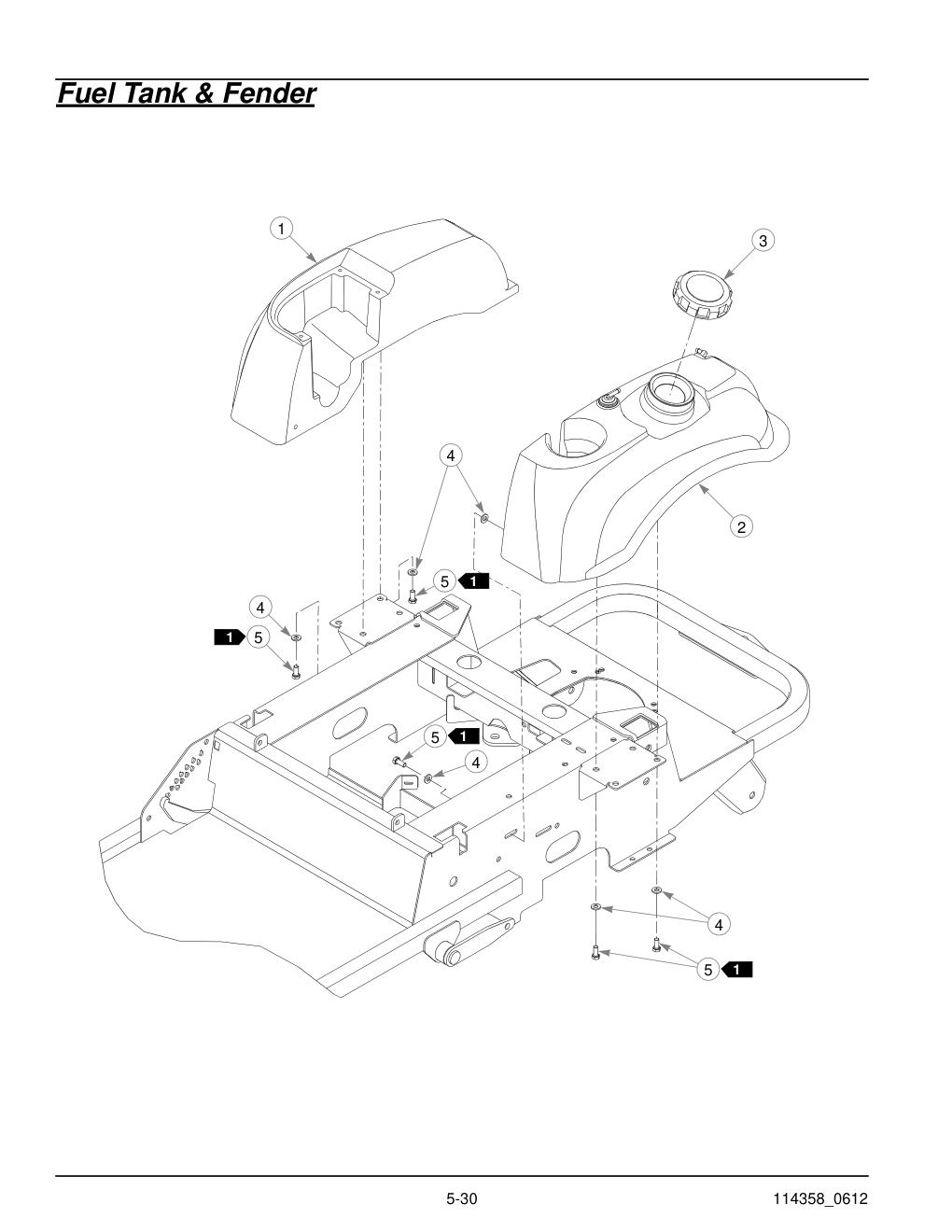

Fuel Tank & Fender
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS FENDER | 110080 | 1 | 110080-Online |
| 2 | LS FENDER FUEL TANK ASSEMBLY | 603502 | 1 | 603502-Online |
| 3 | RATCHETING GAS CAP, 3.5" | 603807 | 1 | 603807-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 5 | CS .312-18 X .750 HX G5 | 034280 | 6 | HT034280-Online |

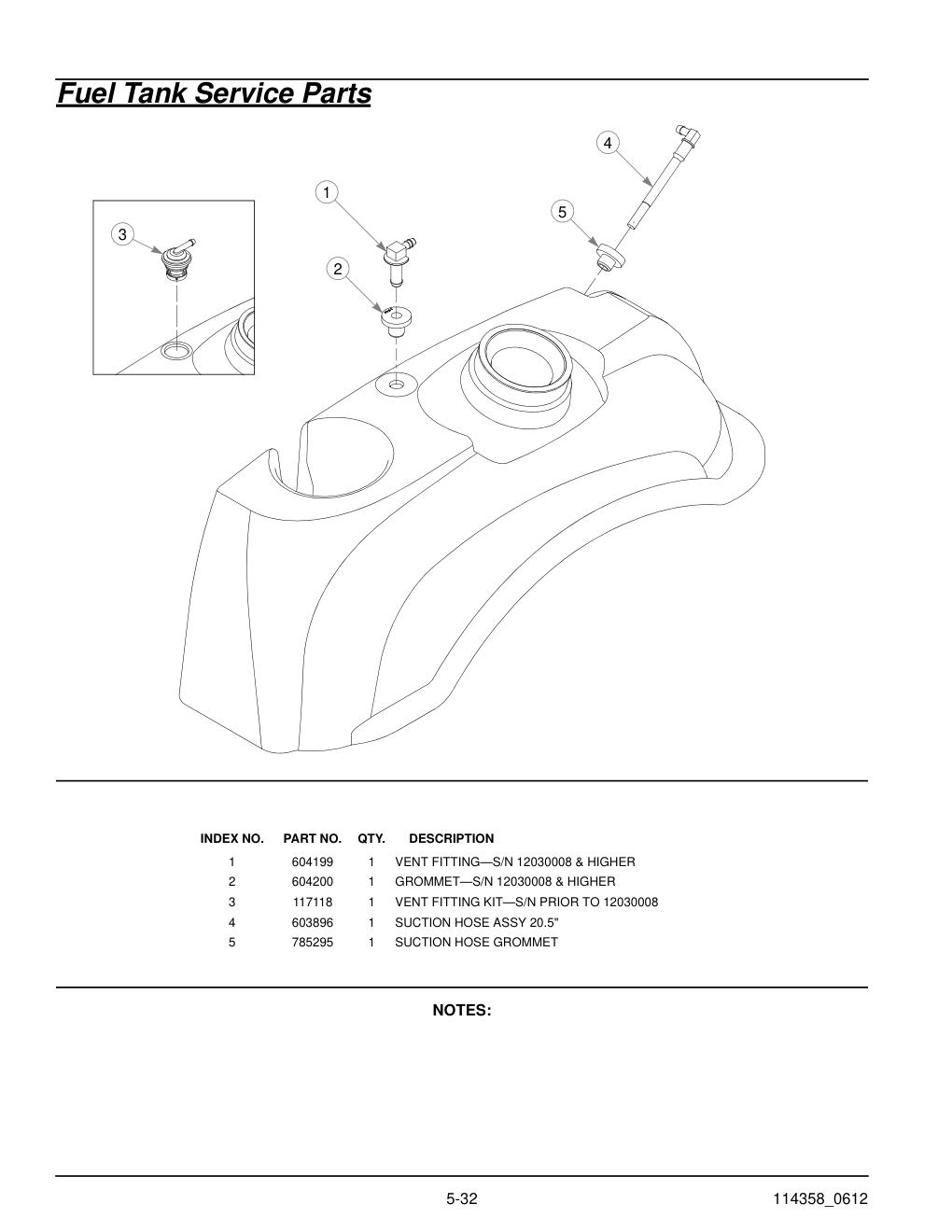

Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING-S/N 12030008 & HIGHER | 604199 | 1 | 604199-Online |
| 2 | GROMMET-S/N 12030008 & HIGHER | 604200 | 1 | 604200-Online |
| 3 | VENT FITTING KIT-S/N PRIOR TO 12030008 | 117118 | 1 | HT117118-Online |
| 4 | SUCTION HOSE ASSY 20.5" | 603896 | 1 | 603896-Online |
| 5 | SUCTION HOSE GROMMET | 785295 | 1 | HT785295-Online |

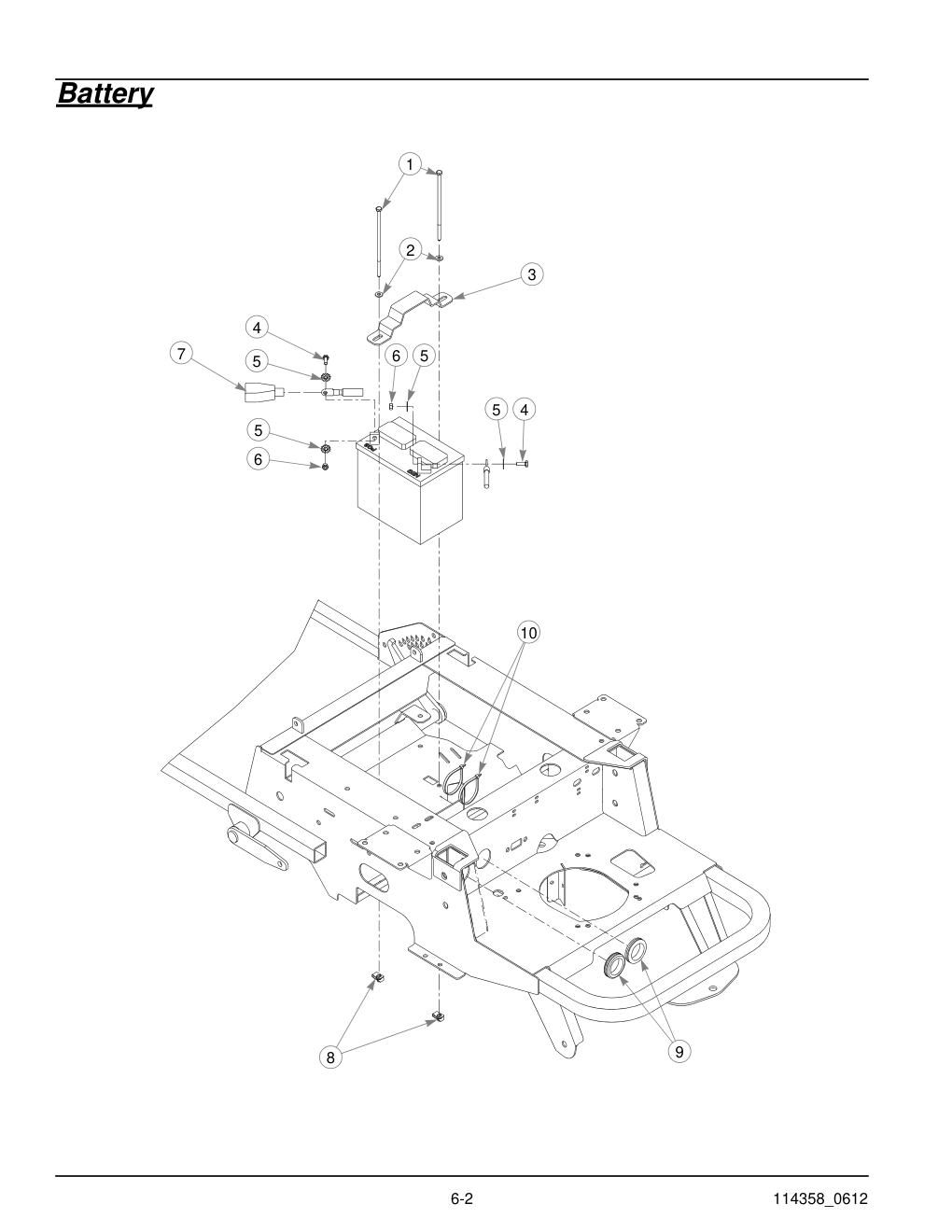

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X 6.50 HX G5 | 601930 | 2 | 601930-Online |
| 2 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 3 | BATTERY CLAMP STRAP | 348417 | 1 | 348417-Online |
| 4 | CS .250-20 X .750 HX G5 ZN | 055939 | 2 | 055939-Online |
| 5 | LW .250 INT-EXT TOOTH ZN | 029868 | 4 | 029868-Online |
| 6 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 7 | BATTERY CBL BOOT-RED | 771428 | 1 | 771428-Online |
| 8 | CN .250-20 X .150 MAX THK | 601982 | 2 | 601982-Online |
| 9 | GM 1.50 X 2.12 X 1.75 | 794644 | 2 | 794644-Online |
| 10 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |

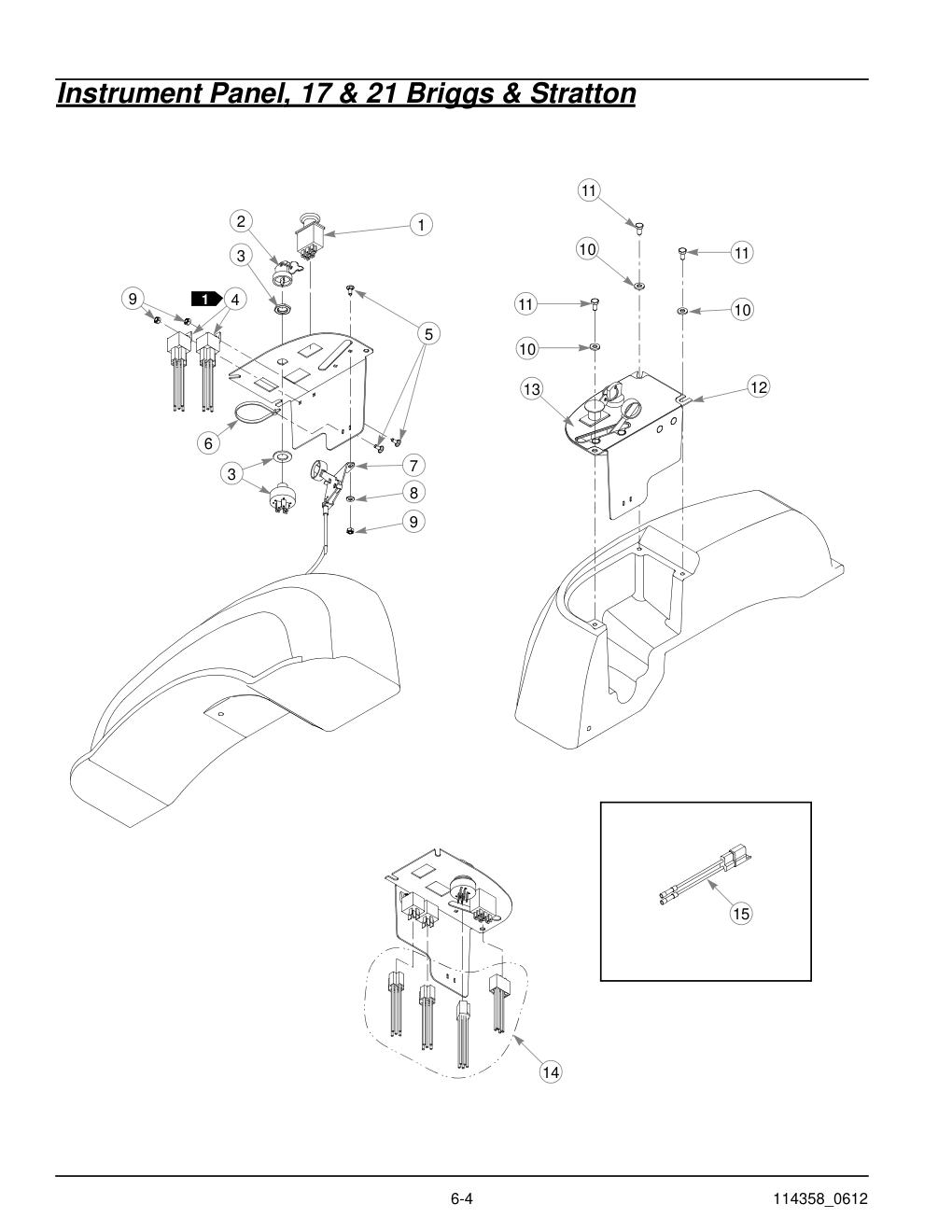

Instrument Panel, 17 & 21 Briggs & Stratton
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGN SWITCH | 045898 | 1 | HT045898-Online |
| 4 | SEALED RELAY (WITH BRACKET) | 601053 | 2 | HT601053-Online |
| 5 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 6 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 7 | THROTTLE/CHOKE CABLE ASSY | 601803 | 1 | 601803-Online |
| 8 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 9 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 10 | FW .281 X .625 X .051/.080H | 768515 | 3 | HT768515-Online |
| 11 | CS .250-20 X .500 HX G5 | 055947 | 3 | 055947-Online |
| 12 | INSTRUMENT PANEL (WITH DECAL) | 550224 | 1 | 550224-Online |
| 13 | DASH DECAL | 601811 | 1 | 601811-Online |
| 14 | WIRING HARNESS | 601676 | 1 | 601676-Online |
| 15 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
Instrument Panel, 26 Briggs & Stratton
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGN SWITCH | 045898 | 1 | HT045898-Online |
| 4 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 5 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 6 | 40" THROTTLE/CHOKE CABLE | 602555 | 1 | 602555-Online |
| 7 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 8 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 9 | FW .281 X .625 X .051/.080H | 768515 | 3 | HT768515-Online |
| 10 | CS .250-20 X .500 HX G5 | 055947 | 3 | 055947-Online |
| 11 | INSTRUMENT PANEL (WITH DECAL) | 550224 | 1 | 550224-Online |
| 12 | DASH DECAL | 601811 | 1 | 601811-Online |
| 13 | WIRING HARNESS | 601676 | 1 | 601676-Online |
| 14 | SEALED RELAY (WITH BRACKET) | 601053 | 2 | HT601053-Online |
| 15 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |

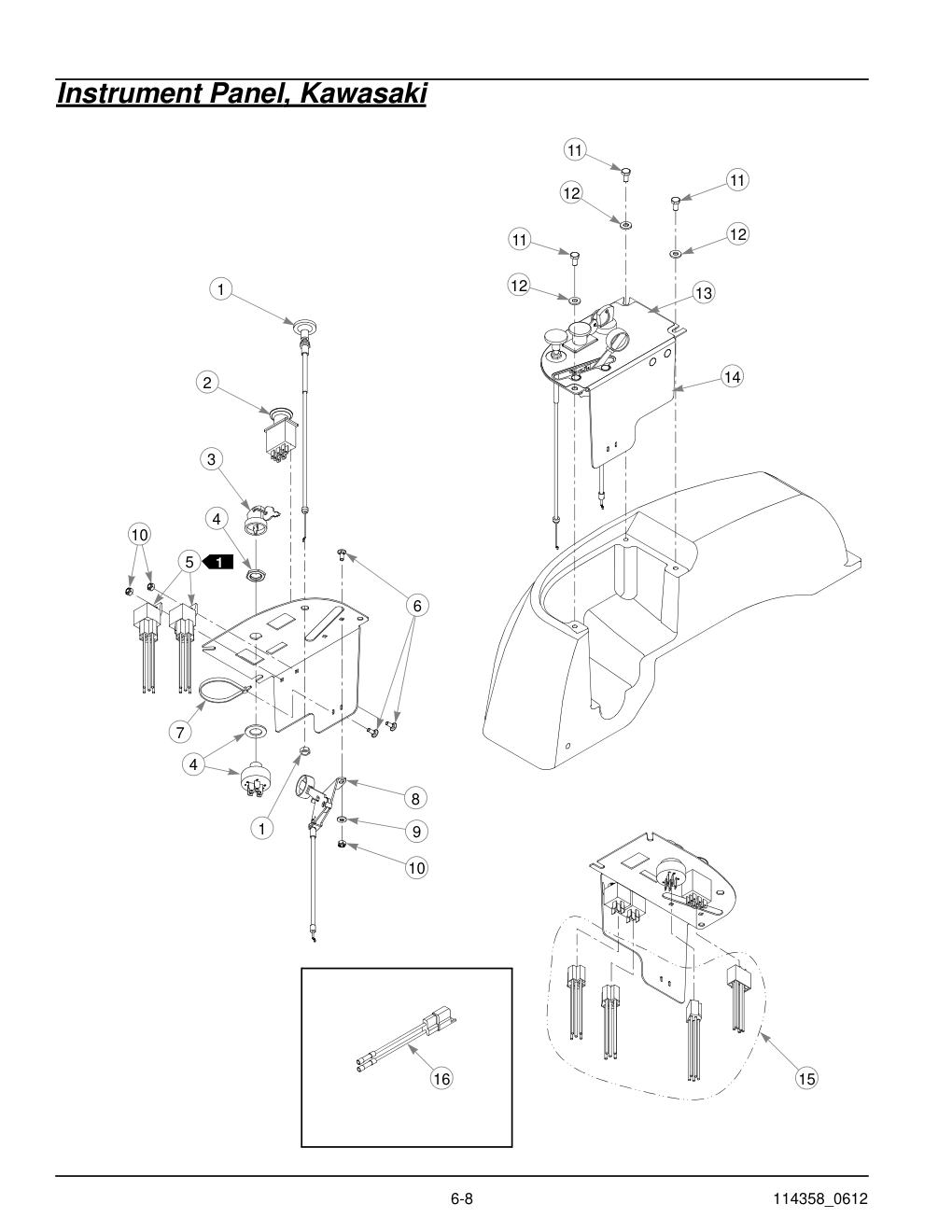

Instrument Panel, Kawasaki
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601097 | 1 | HT601097-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | SEALED RELAY (WITH BRACKET) | 601053 | 2 | HT601053-Online |
| 6 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 7 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 8 | THROTTLE CABLE | 601096 | 1 | 601096-Online |
| 9 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 11 | CS .250-20 X .500 HX G5 | 055947 | 3 | 055947-Online |
| 12 | FW .281 X .625 X .051/.080H | 768515 | 3 | HT768515-Online |
| 13 | INSTRUMENT PANEL DECAL | 603109 | 1 | 603109-Online |
| 14 | INSTRUMENT PANEL (WITH DECAL) | 550903 | 1 | 550903-Online |
| 15 | WIRE HARNESS | 601676 | 1 | 601676-Online |
| 16 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
42" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 42" DECK (WITH HARDWARE & DECALS) | 550592 | 1 | 550592-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 6 | BELT ROUTING DECAL | 602243 | 1 | 602243-Online |
| 7 | STEP TREAD 3 X 6 | 794503 | 1 | 794503-Online |
| 8 | 42" DECK ID DECAL | 793521 | 1 | 793521-Online |

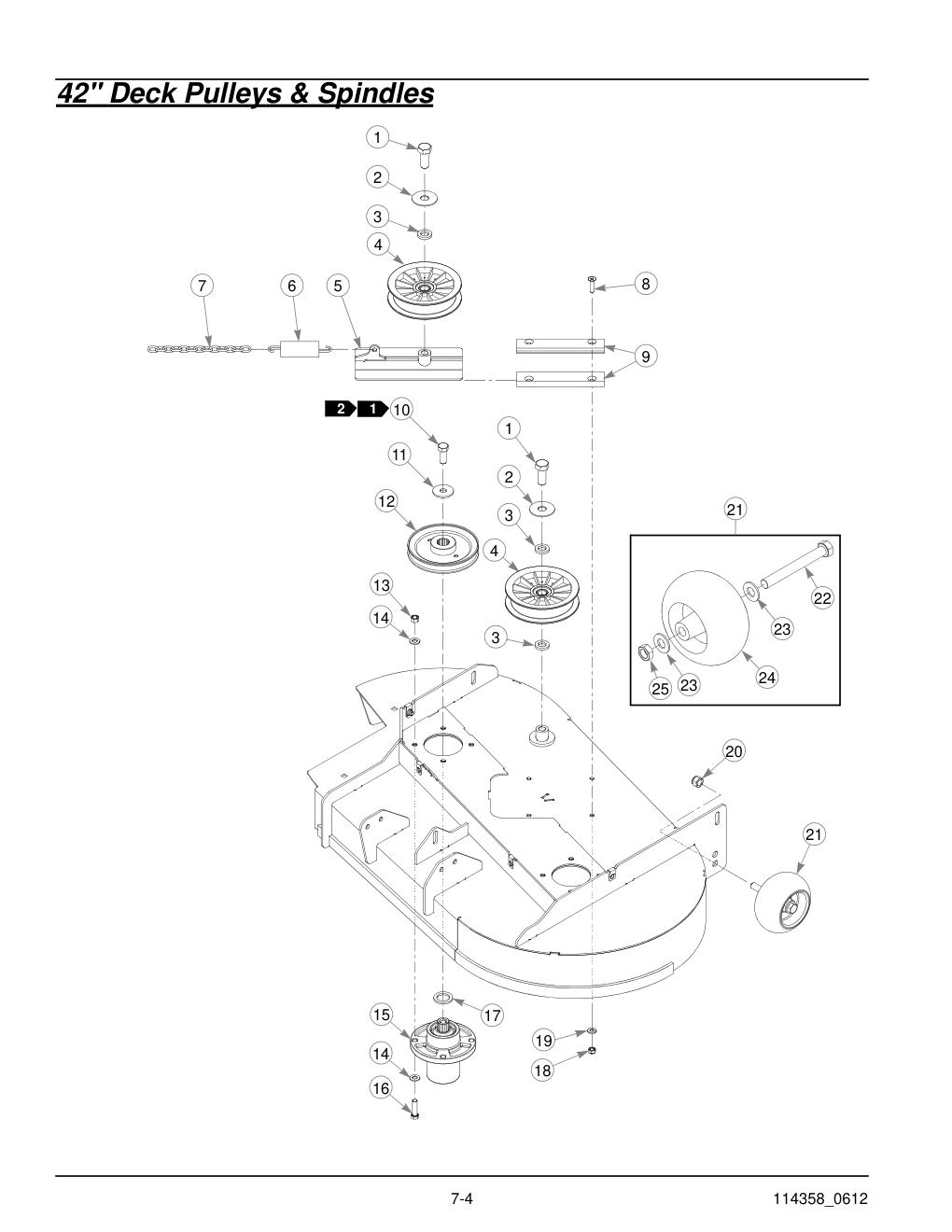

42" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.500 HX G5 ZNYC | 794446 | 2 | HT794446-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 2 | HT046821-Online |
| 3 | FW .650 X 1.125 X .180 ZNYC G5 | 797449 | 3 | 797449-Online |
| 4 | IDLER PULLEY 5.00" | 784504 | 2 | HT784504-Online |
| 5 | IDLER SLIDE | 109770 | 1 | HT109770-Online |
| 6 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 7 | CHAIN DECK LIFT SPRING | 259812 | 1 | HT259812-Online |
| 8 | CS .312-18 X 1.250 FLT SH ZNYC | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 10 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 10 | CS .625-11X1.25 HX G5 Z | 781872 | 2 | HT781872-Online |
| 11 | FW .515 X 1.65 X .125 HD ZN | 798603 | 2 | 798603-Online |
| 11 | CW .631 2.250X .187 PNT | 782474 | 2 | HT782474-Online |
| 12 | DECK SPINDLE PULLEY | 793778 | 2 | 793778-Online |
| 13 | NT .375-16 HX G5 ZN | 054502 | 8 | HT054502-Online |
| 14 | FW .406 X .812 X .060 SAE HRD ZN | 767954 | 16 | HT767954-Online |
| 15 | SPINDLE ASSEMBLY | 601804 | 2 | 601804-Online |
| 15 | SPINDLE ASSEMBLY | 783506 | 2 | 783506-Online |
| 16 | CS .375-16 X 1.375 HX G5 ZN | 005116 | 8 | HT005116-Online |
| 17 | FW 1.030 X 1.500 X .134 ZN | 045765 | 2 | HT045765-Online |
| 18 | NT .312-18 HX NL ZN | 058776 | 4 | HT058776-Online |
| 19 | FW .343 X .687 X .051/.080 HD ZN/YL | 768523 | 4 | HT768523-Online |
| 20 | NT .500-13 HX G8 ZN NY | 781567 | 1 | HT781567-Online |
| 21 | PLASTIC WHEEL ASSEMBLY (WITH HARDWARE) | 788166 | 1 | HT788166-Online |
| 22 | CS .500-13 X 4.250 HX G5 | 781708 | 1 | HT781708-Online |
| 23 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 24 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 25 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

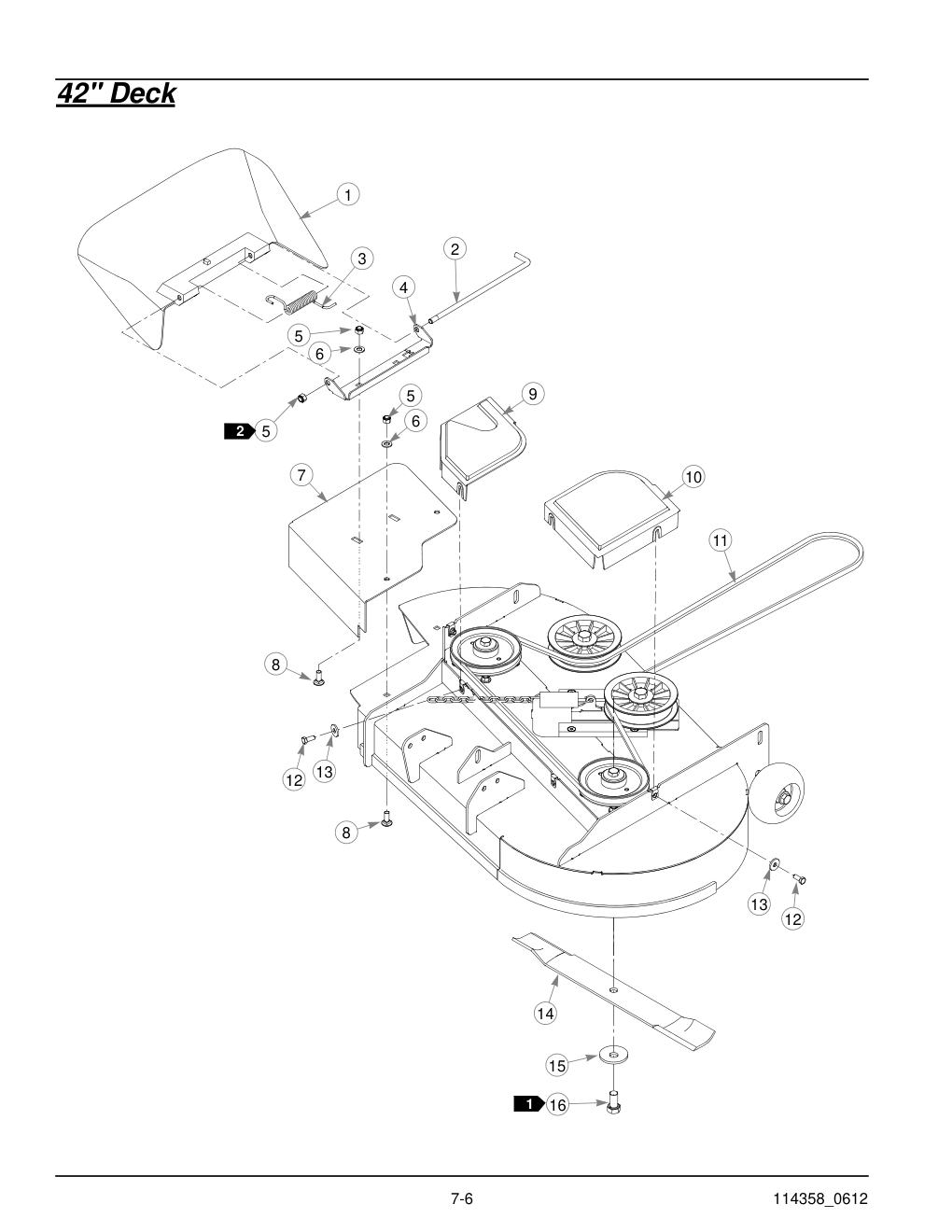

42" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 2 | DISCHARGE CHUTE PIN | 601843 | 1 | 601843-Online |
| 3 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 4 | CHUTE BRACKET | 111067 | 1 | HT111067-Online |
| 5 | NT .375-16 HXZY NL | 086660 | 5 | HT086660-Online |
| 6 | FW .406 X .812 X .060 SAE HRD ZN | 767954 | 4 | HT767954-Online |
| 7 | DISCHARGE CHUTE ADAPTOR | 112429 | 1 | 112429-Online |
| 8 | CB .375-16 X 1.000 STD CD | 025395 | 4 | HT025395-Online |
| 9 | RS PULLEY COVER | 602751 | 1 | 602751-Online |
| 10 | LS PULLEY COVER | 602752 | 1 | 602752-Online |
| 11 | BELT A-SECTION 114.3" | 600726 | 1 | HT600726-Online |
| 12 | CS .312-18 X .750 HX G5 ZN | 034280 | 4 | HT034280-Online |
| 13 | FW .344X 1.00X.12 HRD Z | 712927 | 4 | HT712927-Online |
| 14 | BLADE 20.50"-L-F-CW | 793794 | 2 | HT793794-Online |
| 14 | BLADE, 20.50"-CAT-F-CW | 793935 | 2 | HT793935-Online |
| 14 | BLADE, 20.50" GAT-F-CW | 794230 | 2 | HT794230-Online |
| 14 | BLADE, 20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| 14 | BLADE, F20.50"-L-F-CW | 600901 | 2 | HT600901-Online |
| 14 | BLADE, F20.50"-H-F-CW | 794685 | 2 | HT794685-Online |
| 15 | CW .631 X 2.250 X .187 PNT | 782474 | 2 | HT782474-Online |
| 16 | CS .625-11 X 1.250 HX G5 ZN | 781872 | 2 | HT781872-Online |

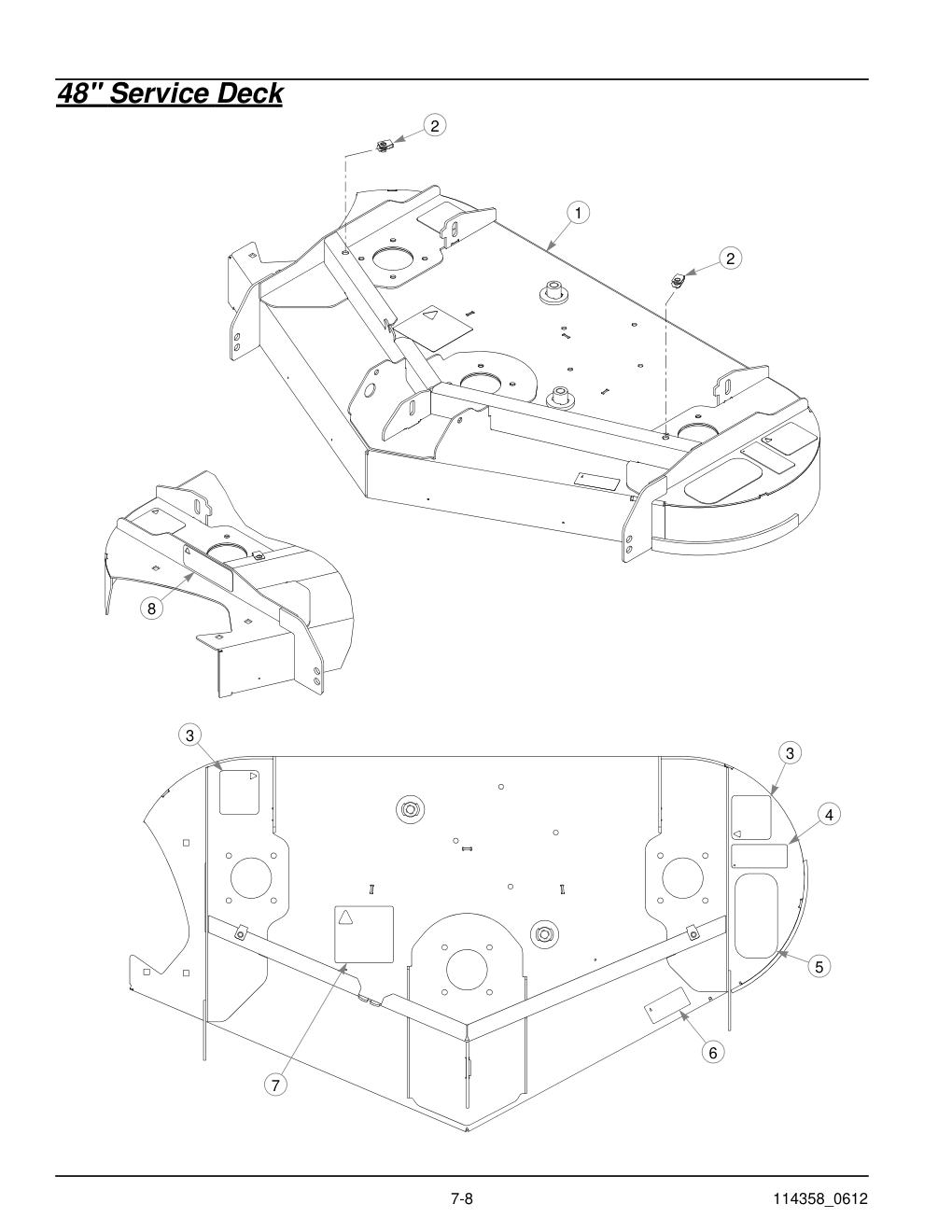

48" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" DECK (WITH HARDWARE & DECALS) | 109754 | 1 | 109754-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 2 | HT601069-Online |
| 3 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 4 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 5 | STEP TREAD | 794503 | 1 | 794503-Online |
| 6 | 48" DECK ID DECAL | 793976 | 1 | 793976-Online |
| 7 | DECK BELT RTG DECAL | 781419 | 1 | 781419-Online |
| 8 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |

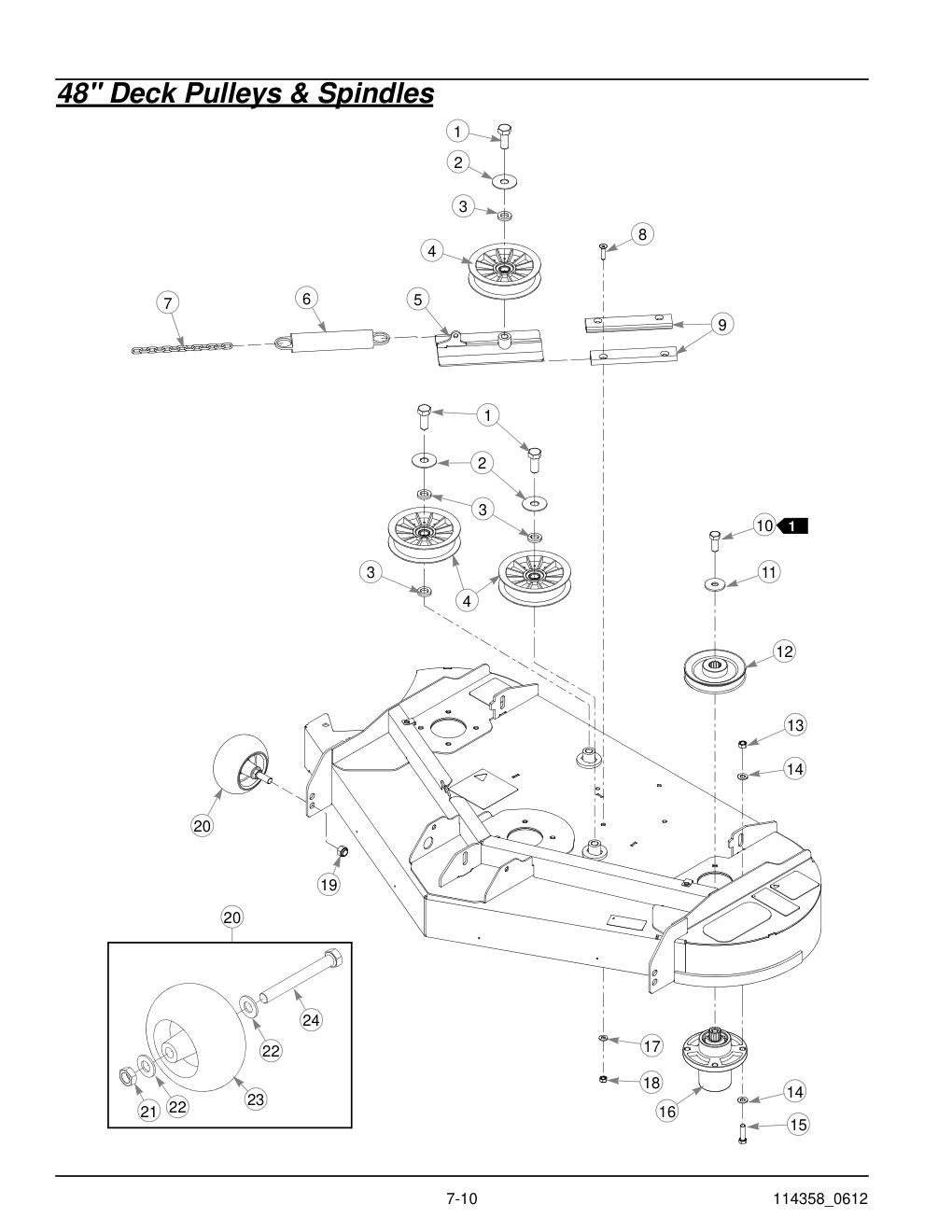

48" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.500 HX G5 | 794446 | 3 | HT794446-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 3 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYCG5 | 797449 | 4 | 797449-Online |
| 4 | IDLER PULLEY, 5.00" OD | 784504 | 3 | HT784504-Online |
| 5 | IDLER SLIDE | 109770 | 1 | HT109770-Online |
| 6 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN DECK LIFT SPRING | 259812 | 1 | HT259812-Online |
| 8 | CS .312-18 X 1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 10 | CS .500-13 X 1.25 HX G5 Z | 705954 | 3 | HT705954-Online |
| 11 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 12 | PULLEY 5.00" OD 80B102 | 792689 | 3 | HT792689-Online |
| 13 | NT .375-16 HX GRD 5 ZNY | 054502 | 12 | HT054502-Online |
| 14 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 15 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 16 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 17 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 18 | NT .312-18 HXZY NL | 058776 | 4 | HT058776-Online |
| 19 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 20 | PLASTIC WHEEL ASSEMBLY (WITH HARDWARE) | 788166 | 2 | HT788166-Online |
| 21 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 4 | HT767962-Online |
| 23 | PLASTIC WHEEL | 031997 | 2 | HT031997-Online |
| 24 | CS .500-13 X 4.250 HX G5 | 781708 | 2 | HT781708-Online |

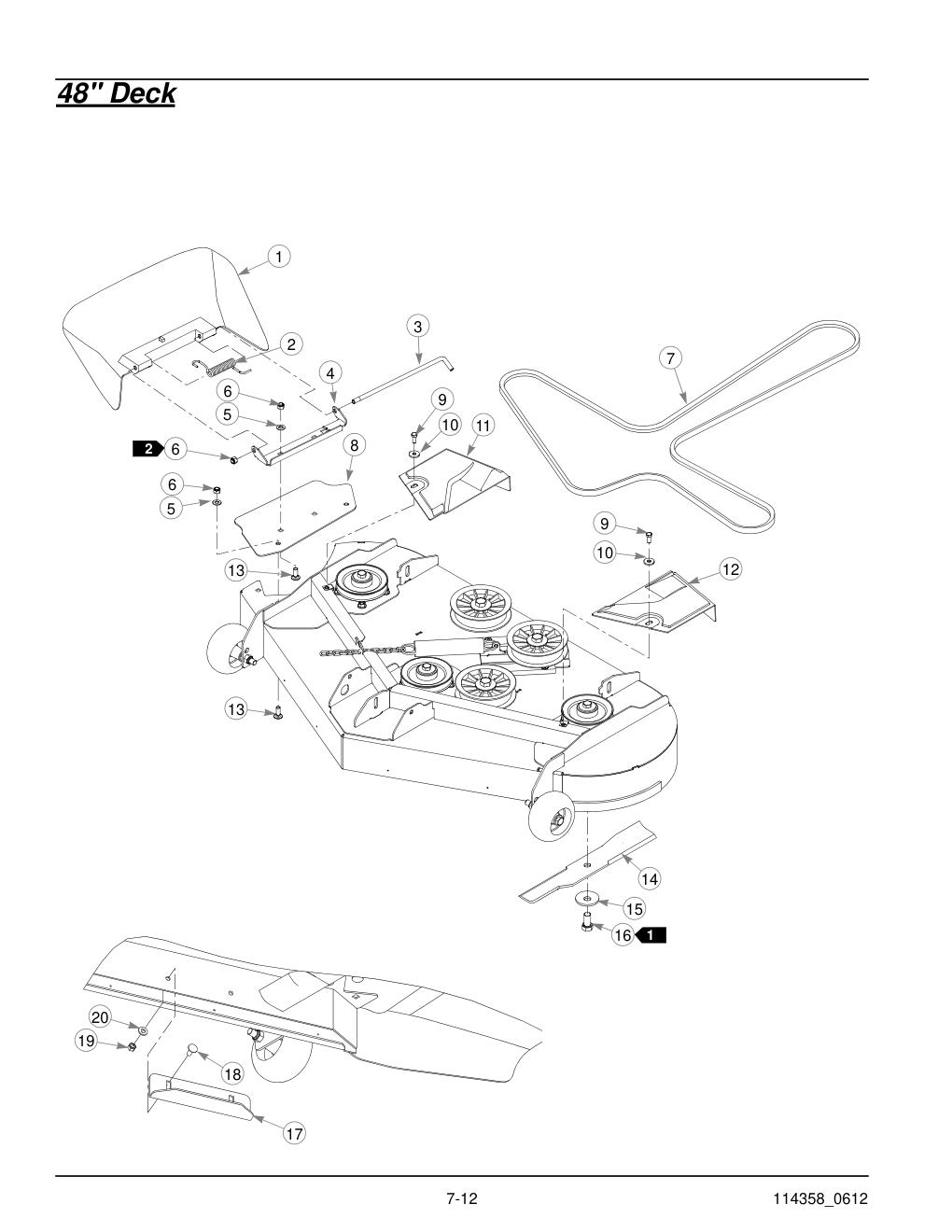

48" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 2 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 3 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 4 | CHUTE BRACKET | 111067 | 1 | HT111067-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 5 | HT086660-Online |
| 7 | BELT, B 134.50" EL | 771634 | 1 | HT771634-Online |
| 8 | CHUTE ADAPTER PLATE 48" | 110821 | 1 | HT110821-Online |
| 9 | CS .312-18 X .750 HX G5 | 034280 | 2 | HT034280-Online |
| 10 | FW .344 X 1.00 X.12 HRD Z | 712927 | 2 | HT712927-Online |
| 11 | RS PULLEY COVER | 601984 | 1 | 601984-Online |
| 12 | LS PULLEY COVER | 601985 | 1 | 601985-Online |
| 13 | CB .375-16 X 1.00 STD CD | 025395 | 4 | HT025395-Online |
| 14 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| 14 | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| 14 | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| 14 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 15 | CW .631 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 17 | “A” BLOWOUT BAFFLE | 111999 | 1 | HT111999-Online |
| 18 | CB .312-18 X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 19 | NT .312-18 HXZY NL | 058776 | 2 | HT058776-Online |
| 20 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
54" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" DECK (WITH HARDWARE & DECALS) | 550533 | 1 | 550533-Online |
| 2 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 3 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 4 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 5 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | STEP TREAD | 794503 | 1 | 794503-Online |
| 8 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |

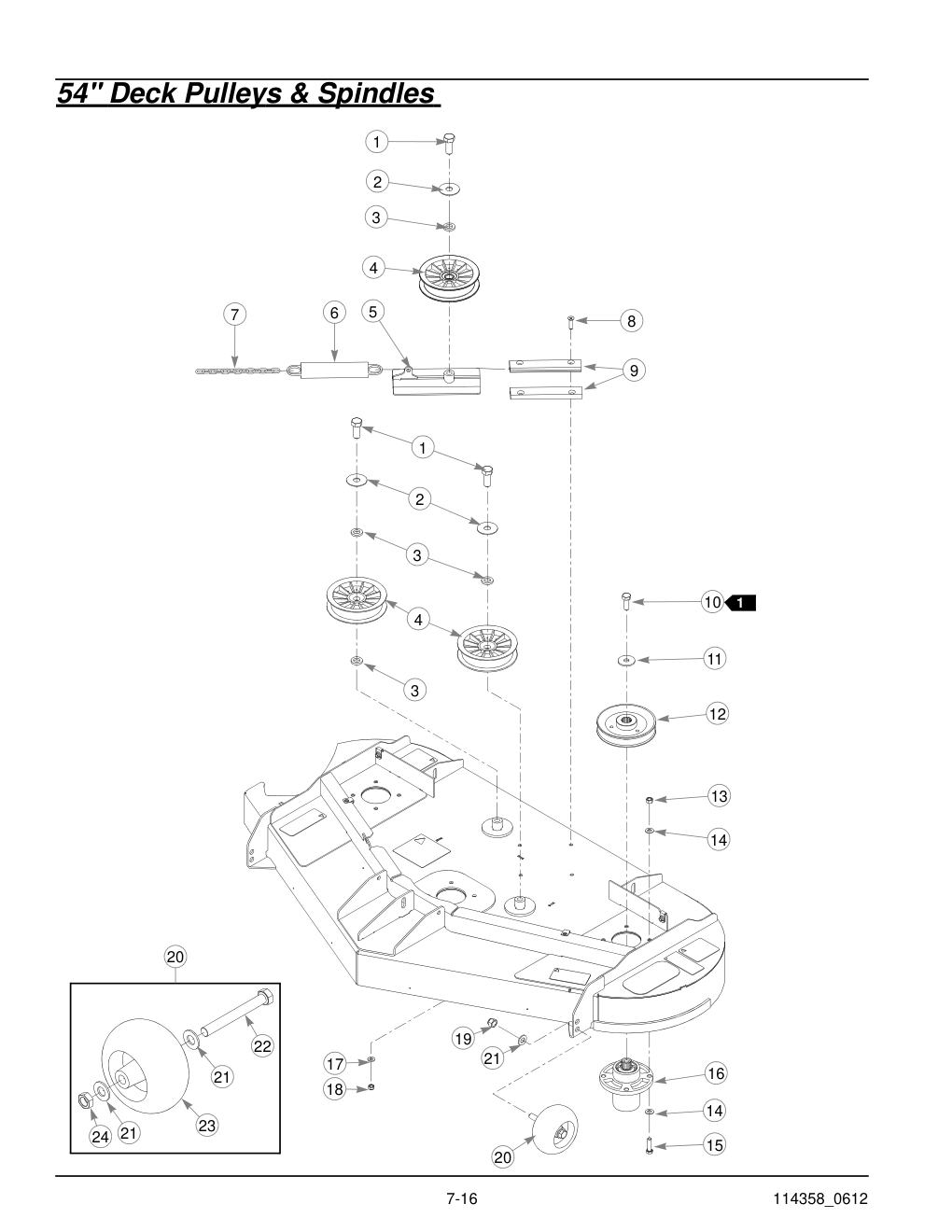

54" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.500 HX G5 | 794446 | 3 | HT794446-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 3 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYCG5 | 797449 | 4 | 797449-Online |
| 4 | PULLEY, IDLER, 5.00"OD | 784504 | 3 | HT784504-Online |
| 5 | IDLER SLIDE W/A | 109770 | 1 | HT109770-Online |
| 6 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN DECK LIFT SPRING | 259812 | 1 | HT259812-Online |
| 8 | CS .312-18 X 1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW | 601619 | 2 | 601619-Online |
| 10 | CS .500-13 X 1.25 HX G5 Z | 705954 | 3 | HT705954-Online |
| 11 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 12 | PULLEY, DECK DRIVE 5.25 | 786889 | 3 | HT786889-Online |
| 13 | NT .375-16 HX GRD 5 ZNY | 054502 | 12 | HT054502-Online |
| 14 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 15 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 16 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 17 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 18 | NT .312-18 HXZY NL | 058776 | 4 | HT058776-Online |
| 19 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 20 | PLASTIC WHEEL ASSEMBLY (WITH HARDWARE) | 788166 | 2 | HT788166-Online |
| 21 | FW .531 X 1.063 X .090 SAE | 767962 | 6 | HT767962-Online |
| 22 | CS .500-13 X 4.250 HX G5 | 781708 | 2 | HT781708-Online |
| 23 | PLASTIC WHEEL | 031997 | 2 | HT031997-Online |
| 24 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BELT, B 145.5" EL | 777185 | 1 | 777185-Online |
| 2 | LS PULLEY COVER | 602749 | 1 | 602749-Online |
| 3 | RS PULLEY COVER | 602748 | 1 | 602748-Online |
| 4 | CS .312-18 X .750 HX G5 | 034280 | 4 | HT034280-Online |
| 5 | FW .344 X 1.00 X.12 HRD Z | 712927 | 4 | HT712927-Online |
| 6 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 7 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 8 | DISCHARGE CHUTE PIN | 601843 | 1 | 601843-Online |
| 9 | CHUTE BRACKET | 111067 | 1 | HT111067-Online |
| 10 | CHUTE ADAPTER PLATE | 110821 | 1 | HT110821-Online |
| 11 | CB .375-16 X 1.00 STD CD | 025395 | 4 | HT025395-Online |
| 12 | NT .375-16 HXZY NL | 086660 | 5 | HT086660-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 14 | BLADE, 18.50"-L-F-CW | 601124 | 3 | HT601124-Online |
| 14 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 14 | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| 14 | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 15 | CW .631 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 17 | NT .312-18 HXZY NL | 058776 | 2 | HT058776-Online |
| 18 | "A" BLOWOUT BAFFLE | 111999 | 1 | HT111999-Online |
| 19 | CB .312-18 X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 20 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |

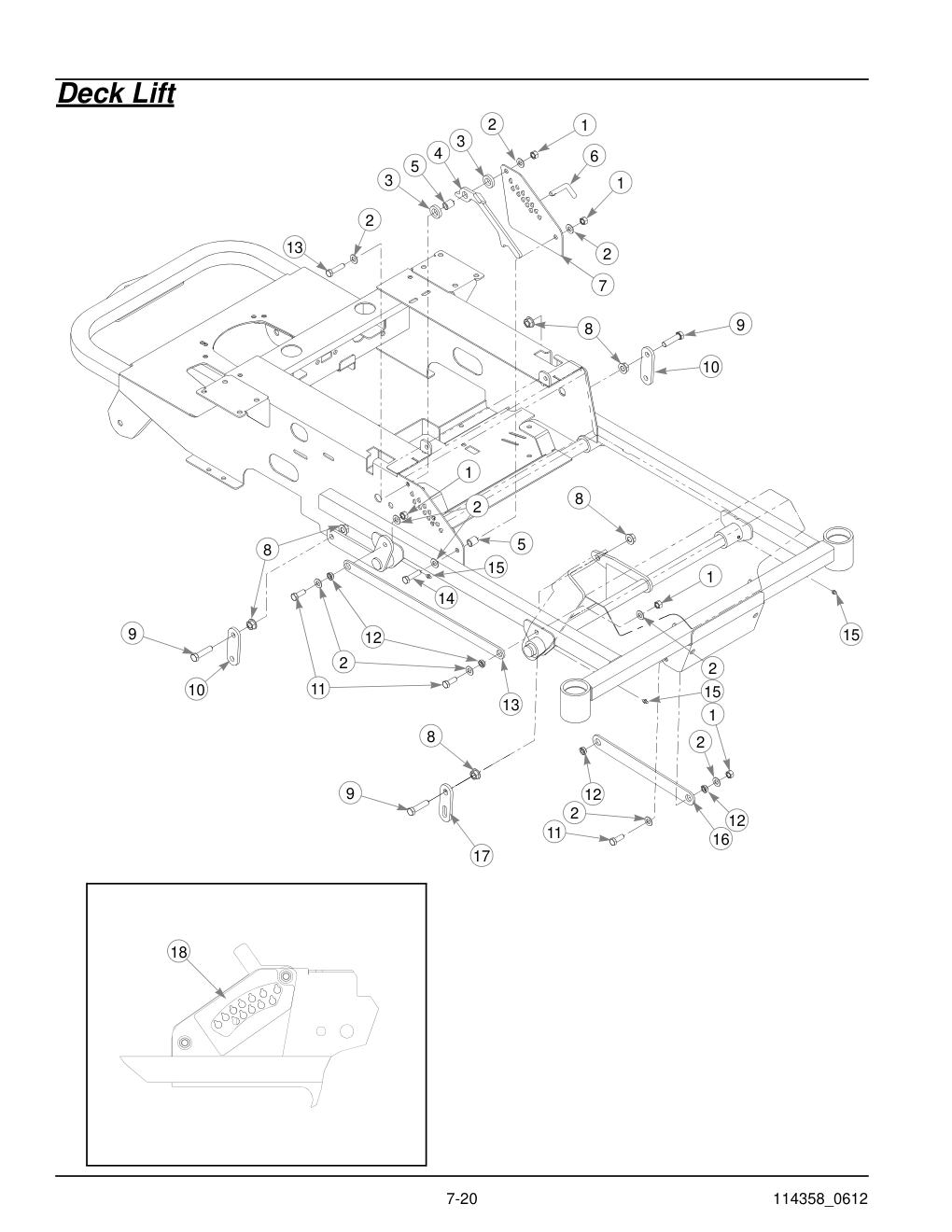

Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HX GRD 5 ZNY | 054502 | 8 | HT054502-Online |
| 2 | FW .406 X .812 X.060 SAE | 767954 | 16 | HT767954-Online |
| 3 | FW .656 X 1.250 X .250 ZNY | 769257 | 2 | HT769257-Online |
| 4 | DECK HEIGHT LOCK HANDLE | 110829 | 1 | HT110829-Online |
| 5 | STEERLEVER BUSHING | 348862 | 2 | HT348862-Online |
| 6 | DECK HEIGHT STOP PIN | 601963 | 1 | 601963-Online |
| 7 | LS DECK ADJUST PLATE (WITH DECAL) | 550216 | 1 | 550216-Online |
| 8 | NT .437-14 HX FLG ZN | 704643 | 12 | HT704643-Online |
| 9 | CS .437-14 X 1.750 HX G5 | 055749 | 6 | HT055749-Online |
| 10 | DECK LIFT LINK, NON-SLOT | 110929 | 2 | HT110929-Online |
| 11 | CS .375-16 X 1.000 HX G5 | 036244 | 6 | HT036244-Online |
| 12 | PIVOT SPACER BUSHING | 601839 | 6 | 601839-Online |
| 13 | LIFT PEDAL LINK | 110884 | 1 | HT110884-Online |
| 14 | CS .375-16 X 1.500 HX G5 | 080655 | 2 | HT080655-Online |
| 15 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 16 | PULLER STRAP | 110879 | 2 | HT110879-Online |
| 17 | DECK LIFT LINK | 110880 | 1 | HT110880-Online |
| 18 | DECK HEIGHT DECAL | 601814 | 1 | 601814-Online |

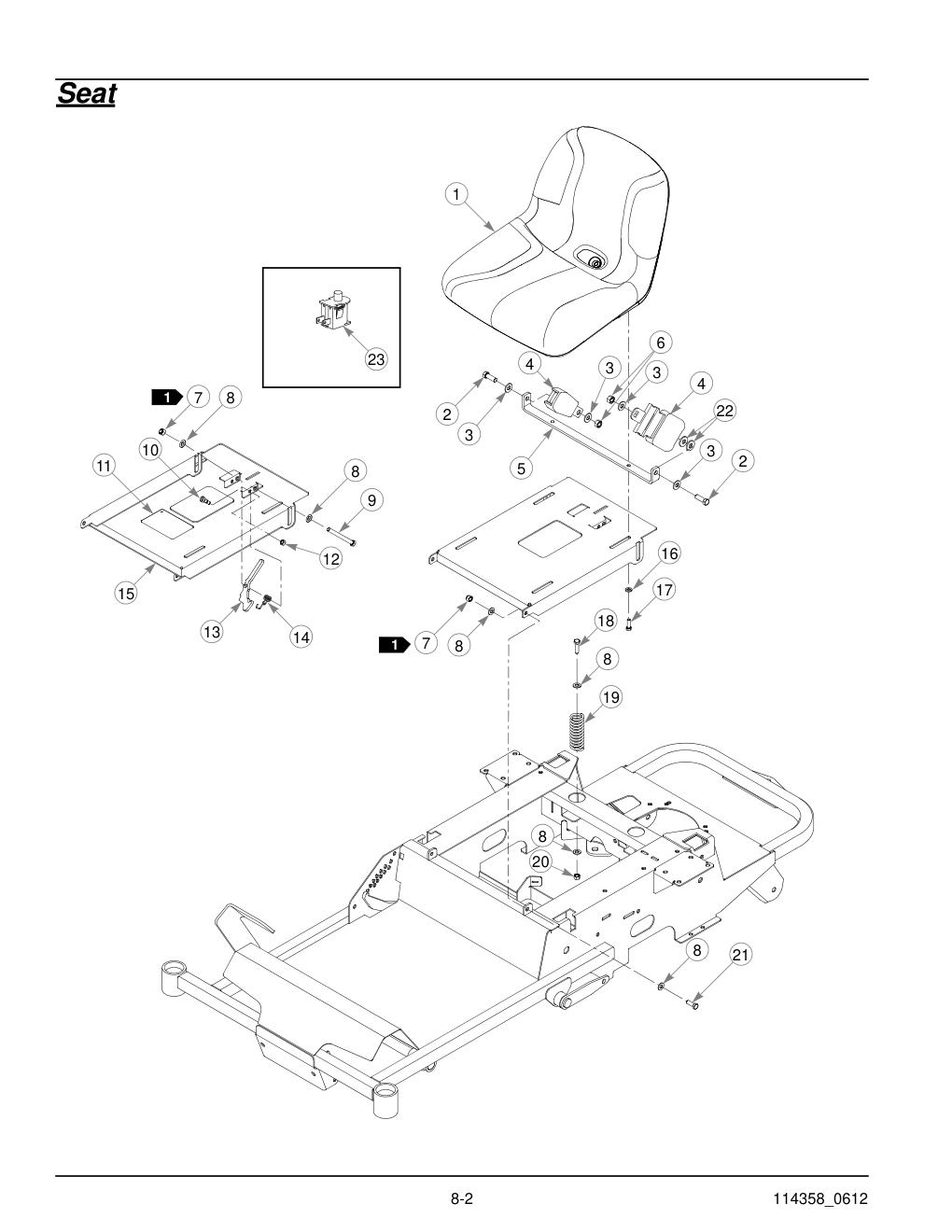

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STANDARD SEAT | 601807 | 1 | 601807-Online |
| 2 | CS .437-20 X 1.250 G5 ZNY | 754101 | 2 | HT754101-Online |
| 3 | FW .440 X 1 X .083 ZNY | 017129 | 4 | 017129-Online |
| 4 | SEAT BELT | 601444 | 1 | 601444-Online |
| 5 | SEAT BELT CROSS BAR | 794610 | 1 | 794610-Online |
| 6 | NT .437-20 HX GR5 ZNYC | 704635 | 2 | 704635-Online |
| 7 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 8 | FW .406 X .812 X .060 SAE | 767954 | 10 | HT767954-Online |
| 9 | CS .375-16 X 3.50 HX G5 Z | 005108 | 1 | HT005108-Online |
| 10 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 11 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 13 | SEAT LATCH | 603101 | 1 | 603101-Online |
| 14 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 15 | SEAT PAN (WITH DECALS) | 550853 | 1 | 550853-Online |
| 16 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 17 | CS .312-18 X 1.25 HX G5 | 079186 | 4 | 079186-Online |
| 18 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 19 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 2 | HT793851-Online |
| 20 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 21 | CS .375-16 X 1 HX G5 | 036244 | 2 | HT036244-Online |
| 22 | FW .453 X 1.12 X .119 HRD ZN | 602680 | 2 | 602680-Online |
| 23 | SEAT SWITCH | 793315 | 1 | 793315-Online |

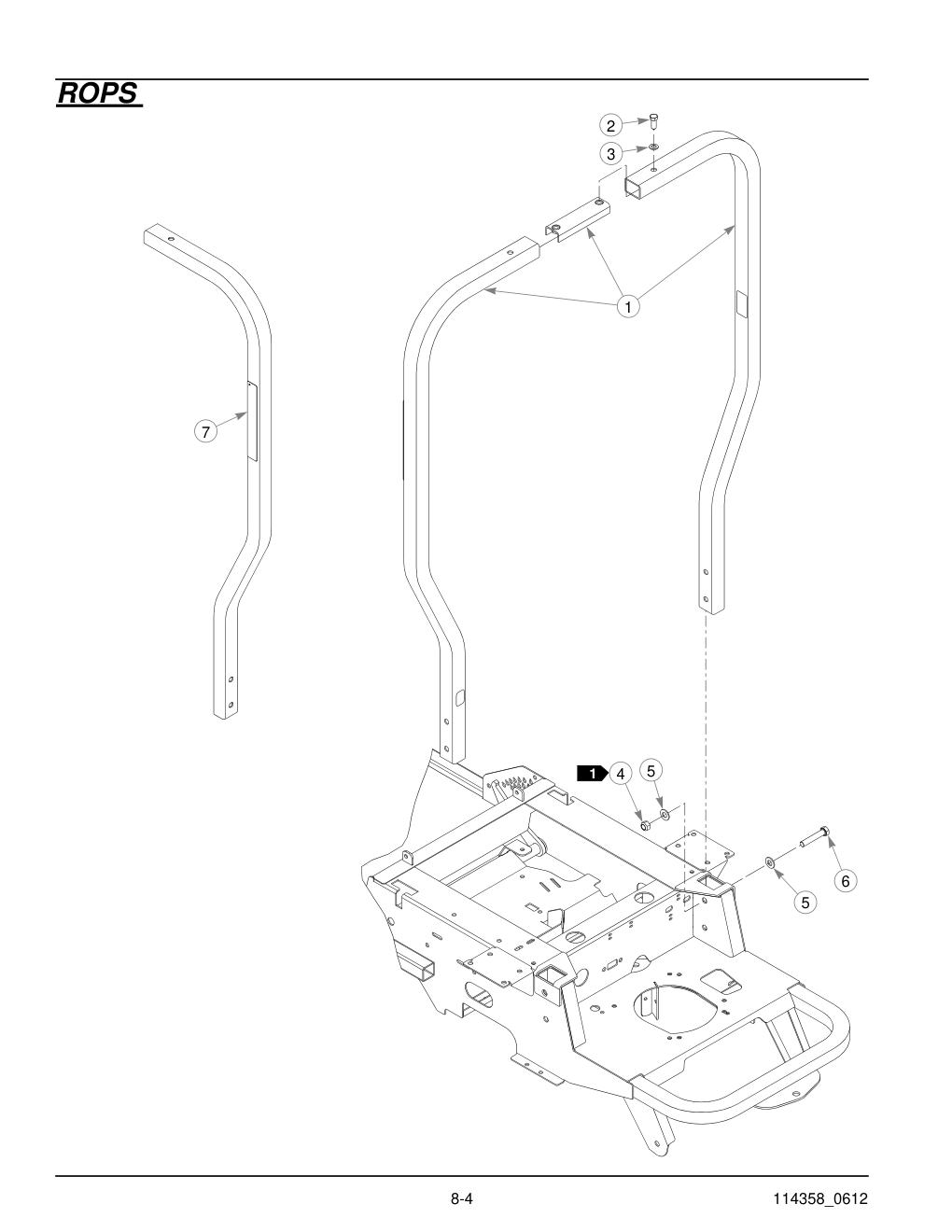

ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT (WITH DECALS, SEATBELT & HARDWARE) | 603279 | 1 | 603279-Online |
| 2 | CS .437-20 X 1.00 HX G8 ZNYC | 047746 | 2 | 047746-Online |
| 3 | FW .453 X .812 X .060 ZNYC | 704742 | 2 | 704742-Online |
| 4 | NT .500-13 UNT LK G8 ZN | 023317 | 4 | 023317-Online |
| 5 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 6 | CS .500-13 X 2.75 HX G5 Z | 721910 | 4 | HT721910-Online |
| 7 | ROPS DECAL | 601979 | 1 | 601979-Online |
