Hustler® Raptor® SD Parts Manual - 932541
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 932541Model: 932558Model: 932566Model: 933101Model: 933119Model: 933127Model: 932541USModel: 932558USModel: 932566USModel: 934521US+19 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

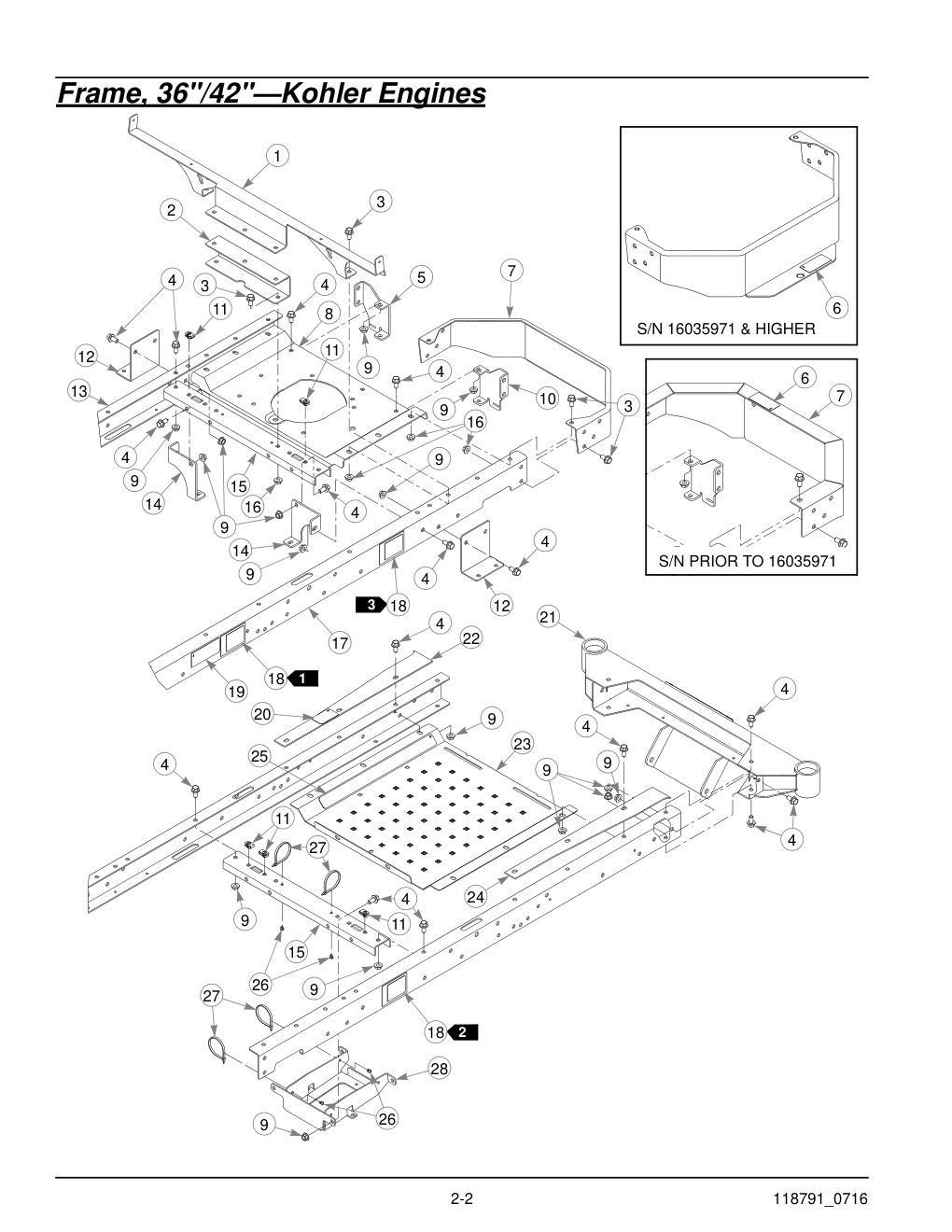

Frame, 36"/42"-Kohler EnginesFrame, 48"/54"/60"-Kohler EnginesFrame, 48"/54"/60"-Kawasaki EnginesEngine Guard-Kawasaki FR730VFenders & Instrument Panel-Kawasaki EnginesFenders & Instrument Panel-Kohler EnginesBatteryHydraulic SystemTransmission AssemblyTransmission Service PartsSteering & Brake-Nonthreaded ArmSteering & Brake-Threaded ArmSteering Cover AssemblySteering Cover AssemblyWheel & Tire-36"/42"Wheel & Tire-48"/54"/60"Front Tire Breakdown-13 X 5Front Tire Breakdown-13 X 6.5Drive Wheel BreakdownEngine, Kaw 36"-54" w/o Carb. Can.-S/N 15021839 & HigherEngine, Kaw 36"-54" w/o Carb. Can.-S/N 15021839 & HigherEngine, Kaw 48"/54" w/o Canist.-S/N 14092401 to 15021838Engine, Kaw 48"/54" w/o Canist.-S/N 14092401 to 15021838Engine, Kaw 48"/54" w/o Canist.-S/N Prior to 14092401Engine, Kaw 48"/54" w/o Canist.-S/N Prior to 14092401Engine, Kaw 48"/54" w/ Carb. Can.-S/N 15021839 & HigherEngine, Kaw 48"/54" w/ Carb. Can.-S/N 15021839 & HigherEngine, Kaw 48"/54" w/ Carb. Can.-S/N 14092401-15021838Engine, Kaw 48"/54" w/ Carb. Can.-S/N 14092401-15021838Engine, Kaw 48"/54" w/ Carb. Can.-S/N Prior to 14092401Engine, Kaw 48"/54" w/ Carb. Can.-S/N Prior to 14092401Engine, Kaw 60" w/o Carb. Can.-S/N 15020616 & HigherEngine, Kaw 60" w/o Carb. Can.-S/N 15020616 & HigherEngine, Kaw 60" w/o Carb. Can.-S/N 14092401 to 15020615Engine, Kaw 60" w/o Carb. Can.-S/N 14092401 to 15020615Engine, Kaw 60" w/o Carb. Can.-S/N Prior to 14092401Engine, Kaw 60" w/o Carb. Can.-S/N Prior to 14092401Engine, Kaw 60" w/ Carb. Can.-S/N 15020616 & HigherEngine, Kaw 60" w/ Carb. Can.-S/N 15020616 & HigherEngine, Kaw 60" w/ Carb. Can.-S/N 14092401-15020615Engine, Kaw 60" w/ Carb. Can.-S/N 14092401-15020615Engine, Kaw 60" w/ Carb. Can.-S/N Prior to 14092401Engine, Kaw 60" w/ Carb. Can.-S/N Prior to 14092401Engine, Kohler KT725-Without Carbon Canister-36"/42"Engine, Kohler KT725-Without Carbon Canister-36"/42"Engine, Koh KT725 & KT740-w/Carb. Can.-36"/42"/48"/54"Engine, Koh KT725 & KT740-w/Carb. Can.-36"/42"/48"/54"Engine, Kohler KT740 & KT745-w/o Carb. Can.-48"/54"/60"Engine, Kohler KT740 & KT745-w/o Carb. Can.-48"/54"/60"Engine, Kohler KT745-With Carbon Canister-60"Engine, Kohler KT745-With Carbon Canister-60"Fuel System-Without Carbon CanisterFuel System, Kawasaki-With Carbon CanisterFuel System, Kohler-With Carbon CanisterFuel System, Kohler-With Carbon Canister36" Deck Pulleys & Spindles36" Deck42" Deck Pulleys & Spindles42" Deck48" Deck Pulleys & Spindles-S/N 15010708 & Higher48" Deck Pulleys & Spindles-S/N 14074266 to 1501070748" Deck Pulleys & Spindles-S/N Prior to 1407426648" Deck54" Deck Pulleys & Spindles-S/N 15010708 & Higher54" Deck Pulleys & Spindles-S/N 14074307 to 1501070754" Deck Pulleys & Spindles-S/N Prior to 1407430754" Deck60" Deck Pulleys & Spindles-S/N 15010708 & Higher60" Deck Pulleys & Spindles-S/N 14074367 to 1501070760" Deck Pulleys & Spindles-S/N Prior to 1407436760" DeckDeck Lift, 36"/42"-Right SideDeck Lift, 48"/54"/60"-Right SideSeat, Seats Inc.-36"/42"/48"/54" MowersSeat, Standard-48"/54" Mowers-S/N 15110000 & HigherSeat, Standard-48"/54" Mowers-S/N Prior to 15110000Seat, Removable Back-60" Mowers-S/N 16010000 & HigherSeat, Removable Back-60" Mowers-S/N Prior to 16010000Seat, Seats Inc. 1110 EVC-60" MowersSeat Service Parts, Seats Inc. 1110 EVC-60" MowersFrame, 36"/42"-Kohler Engines
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT | 118539 | 1 | 118539-Online |
| 2 | SPRING SUPPORT | 118538 | 1 | 118538-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 10 | HT029629-Online |
| 4 | CS .375-16 X .75 HX FLK PLN | 604176 | 30 | 604176-Online |
| 5 | RS REAR BRACKET | 552564 | 1 | 552564-Online |
| 6 | HOT DECAL | 602041 | 1 | 602041-Online |
| 7 | BUMPER (WITH DECAL) (S/N 16035971 & HIGHER) | 553148 | 1 | 553148-Online |
| 7 | BUMPER (WITH DECAL) (S/N PRIOR TO 16035971) | 552217 | 1 | 552217-Online |
| 8 | ENGINE PLATE | 551858 | 1 | 551858-Online |
| 9 | NT .375-16 HX FLK PLN | 604177 | 30 | 604177-Online |
| 10 | LS REAR BRACKET | 552565 | 1 | 552565-Online |
| 11 | CN .250-20 X .15 MAX THK | 601982 | 5 | 601982-Online |
| 12 | HYDRO BRACKET | 552566 | 2 | HT552566-Online |
| 13 | RS FRAME CHANNEL (WITH DECAL) | 551866 | 1 | 551866-Online |
| 14 | RS FRONT BRACKET | 552567 | 2 | 552567-Online |
| 15 | CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | NT .375-16 HX FLK ZNYC | 016899 | 10 | HT016899-Online |
| 17 | LS FRAME CHANNEL (WITH DECALS) | 551868 | 1 | 551868-Online |
| 18 | SERIAL NUMBER / SPEC DECAL | N/A | 3 | No SKU |
| 19 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 20 | LEVEL FUEL FILL DECAL | 605782 | 1 | 605782-Online |
| 21 | FRONT CROSS FRAME | 553217 | 1 | 553217-Online |
| 22 | LS FAIRING (WITH DECAL) | 553401 | 1 | 553401-Online |
| 23 | FOOT PAN (WITH DECAL) | 551865 | 1 | 551865-Online |
| 24 | RS FAIRING | 552569 | 1 | 552569-Online |
| 25 | SAFE OPERATION DECAL | 601981 | 1 | 601981-Online |
| 26 | PUSH BUTTON MOUNT | 604307 | 6 | 604307-Online |
| 27 | WIRE TIE | 000331 | 6 | 000331-Online |
| 28 | BATTERY TRAY | 552570 | 1 | 552570-Online |
Frame, 48"/54"/60"-Kohler Engines
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT | 118539 | 1 | 118539-Online |
| 2 | SPRING SUPPORT | 118538 | 1 | 118538-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 10 | HT029629-Online |
| 4 | CS .375-16 X .75 HX FLK PLN | 604176 | 30 | 604176-Online |
| 5 | RS REAR BRACKET | 552564 | 1 | 552564-Online |
| 6 | HOT DECAL | 602041 | 1 | 602041-Online |
| 7 | BUMPER (WITH DECAL) (S/N 16034000 & HIGHER) | 553148 | 1 | 553148-Online |
| 7 | BUMPER (WITH DECAL) (S/N PRIOR TO 16034000) | 552217 | 1 | 552217-Online |
| 8 | ENGINE PLATE | 117638 | 1 | 117638-Online |
| 9 | NT .375-16 HX FLK PLN | 604177 | 30 | 604177-Online |
| 10 | CN .250-20 X .15 MAX THK | 601982 | 5 | 601982-Online |
| 11 | LS REAR BRACKET | 552565 | 1 | 552565-Online |
| 12 | HYDRO BRACKET | 552566 | 2 | HT552566-Online |
| 13 | RS FRAME CHANNEL (WITH DECAL) | 552407 | 1 | 552407-Online |
| 14 | NT .375-16 FLK G5 | 016899 | 10 | HT016899-Online |
| 15 | CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | RS FRONT BRACKET | 552567 | 2 | 552567-Online |
| 17 | SERIAL NUMBER / SPEC DECAL | N/A | 3 | No SKU |
| 18 | LS FRAME CHANNEL (WITH DECALS) | 552406 | 1 | 552406-Online |
| 19 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 20 | LEVEL FUEL FILL DECAL | 605782 | 1 | 605782-Online |
| 21 | FRONT CROSS FRAME | 552568 | 1 | 552568-Online |
| 22 | LS FAIRING (WITH DECAL) | TBD | 2 | TBD-Online |
| 23 | FOOT PAN (WITH DECAL) | 551865 | 1 | 551865-Online |
| 24 | PUSH BUTTON MOUNT | 604307 | 6 | 604307-Online |
| 25 | SAFE OPERATION DECAL | 601981 | 1 | 601981-Online |
| 26 | WIRE TIE | 000331 | 6 | 000331-Online |
| 27 | FAIRING | 552569 | 1 | 552569-Online |
| 28 | BATTERY TRAY | 552570 | 1 | 552570-Online |
Frame, 48"/54"/60"-Kawasaki Engines
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT | 118539 | 1 | 118539-Online |
| 2 | SPRING SUPPORT | 118538 | 1 | 118538-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 10 | HT029629-Online |
| 4 | CS .375-16 X .75 HX FLK PLN | 604176 | 30 | 604176-Online |
| 5 | RS REAR BRACKET | 552564 | 1 | 552564-Online |
| 6 | HOT DECAL | 602041 | 1 | 602041-Online |
| 7 | BUMPER (WITH DECAL) (S/N 16033155 & HIGHER) | 553148 | 1 | 553148-Online |
| 7 | BUMPER (WITH DECAL) (S/N PRIOR TO 16033155) | 552217 | 1 | 552217-Online |
| 8 | ENGINE PLATE (WITH DECAL) | 551858 | 1 | 551858-Online |
| 9 | NT .375-16 HX FLK PLN | 604177 | 30 | 604177-Online |
| 10 | LS REAR BRACKET | 552565 | 1 | 552565-Online |
| 11 | CN .250-20 X .15 MAX THK | 601982 | 5 | 601982-Online |
| 12 | HYDRO BRACKET | 552566 | 2 | HT552566-Online |
| 13 | RS FRAME CHANNEL (WITH DECAL) | 552407 | 1 | 552407-Online |
| 14 | RS FRONT BRACKET | 552567 | 2 | 552567-Online |
| 15 | CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 17 | NT .375-16 HX FLK G5 | 016899 | 10 | HT016899-Online |
| 18 | LS FRAME CHANNEL (WITH DECALS) | 552406 | 1 | 552406-Online |
| 19 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 20 | SERIAL NUMBER / SPEC DECAL | N/A | 3 | No SKU |
| 21 | FRONT CROSS FRAME | 552568 | 1 | 552568-Online |
| 22 | FAIRING | 552569 | 2 | 552569-Online |
| 23 | FOOT PAN (WITH DECALS) | 551865 | 1 | 551865-Online |
| 24 | SAFE OPERATION DECAL | 601981 | 1 | 601981-Online |
| 25 | LEVEL FUEL FILL DECAL | 605782 | 1 | 605782-Online |
| 26 | PUSH BUTTON MOUNT | 604307 | 6 | 604307-Online |
| 27 | WIRE TIE | 000331 | 6 | 000331-Online |
| 28 | BATTERY TRAY | 552570 | 1 | 552570-Online |

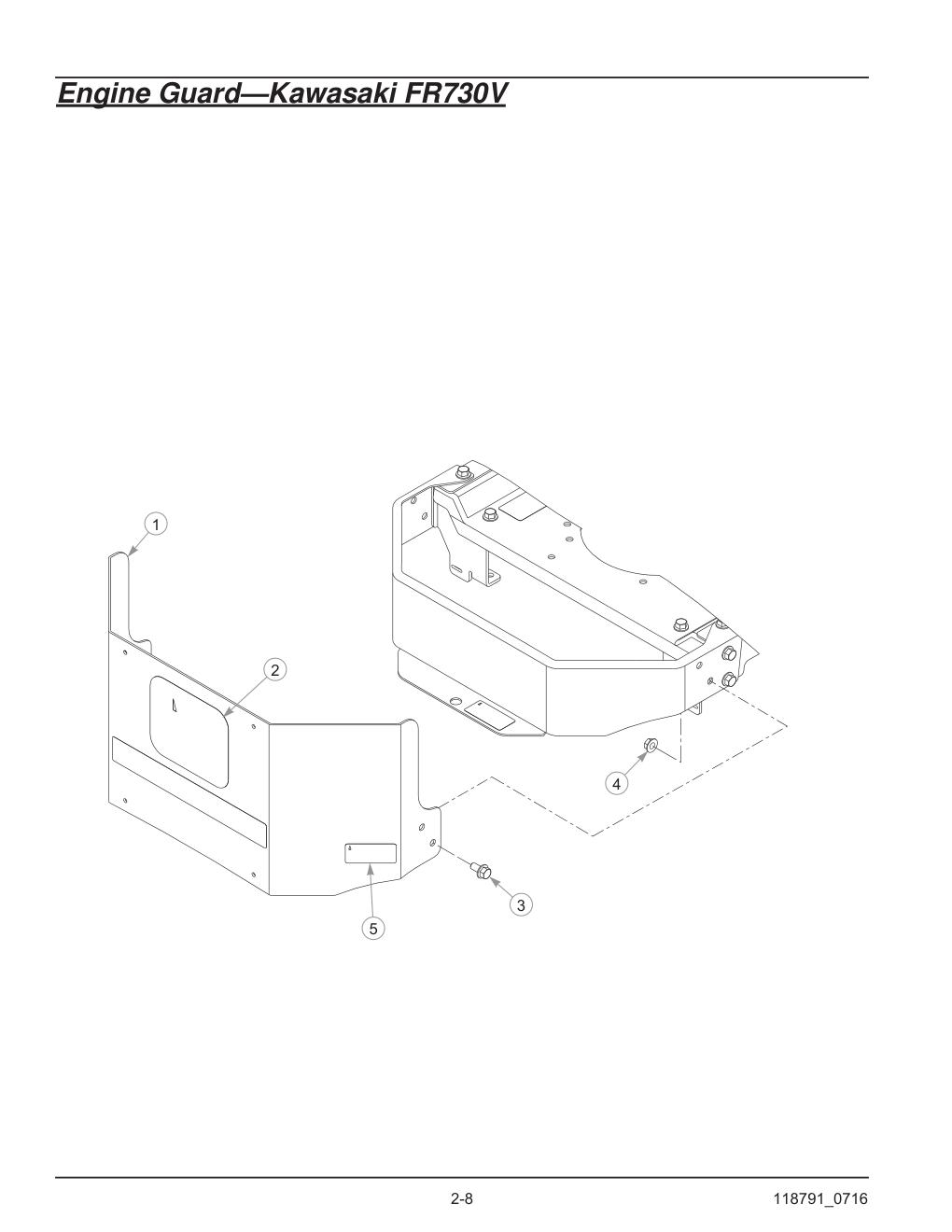

Engine Guard-Kawasaki FR730V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE GUARD KIT (S/N 16033155 & HIGHER) | 122817 | 1 | 122817-Online |
| 1 | ENGINE GUARD KIT (S/N PRIOR TO 16033155) | 119597 | 1 | 119597-Online |
| 2 | H LOGO DECAL | 604745 | 1 | 604745-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 4 | HT029629-Online |
| 4 | NT .375-16 HX FLK G5 | 016899 | 4 | HT016899-Online |
| 5 | HOT DECAL | 602041 | 1 | 602041-Online |
Fenders & Instrument Panel-Kawasaki Engines
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601097 | 1 | HT601097-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 5 | INSTRUMENT PANEL (WITH DECAL) | 552300 | 1 | 552300-Online |
| 6 | INSTRUMENT PANEL DECAL | 604889 | 1 | 604889-Online |
| 7 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 8 | CS .250-20 X .75 HX G5 | 055939 | 1 | 055939-Online |
| 9 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 10 | FW .219 X .50 X .048 | 704932 | 2 | HT704932-Online |
| 11 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 12 | THROTTLE CABLE | 601096 | 1 | 601096-Online |
| 13 | CS .250-20 X .75 HX FLG | 604324 | 8 | 604324-Online |
| 14 | RS FENDER | 604124 | 1 | 604124-Online |
| 15 | LS FENDER | 604125 | 1 | 604125-Online |
| 16 | CN .250-20 X .15 MAX THK | 601982 | 1 | 601982-Online |
| 17 | FOOTREST (WITH DECAL) | 552414 | 1 | 552414-Online |
| 18 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 19 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 20 | NT .375-16 HX G5 FLK | 016899 | 2 | HT016899-Online |
| 21 | WIRE TIE (NOT SHOWN) | 000331 | 2 | 000331-Online |
| 22 | HUSTLER DECAL | 604388 | 2 | 604388-Online |
| 23 | WIRE HARNESS | 604876 | 1 | 604876-Online |
| 24 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
Fenders & Instrument Panel-Kohler Engines
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOUR METER | 769166 | 1 | HT769166-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | INSTRUMENT PANEL (WITH DECAL) | 551898 | 1 | 551898-Online |
| 5 | INSTRUMENT PANEL DECAL | 605996 | 1 | 605996-Online |
| 6 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 1 | 055939-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 9 | FW .219 X .50 X .048 | 704932 | 2 | HT704932-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 11 | THROTTLE CABLE | 768879 | 1 | 768879-Online |
| 12 | CS .250-20 X .75 HX FLG | 604324 | 8 | 604324-Online |
| 13 | RS FENDER (WITH DECAL) | 552809 | 1 | 552809-Online |
| 14 | LS FENDER (WITH DECAL) | 552810 | 1 | 552810-Online |
| 15 | CN .250-20 X .15 MAX THK | 601982 | 1 | 601982-Online |
| 16 | FOOTREST (WITH DECAL) | 552414 | 1 | 552414-Online |
| 17 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 18 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 19 | NT .375-16 HX G5 FLK | 016899 | 2 | HT016899-Online |
| 20 | WIRE TIE (NOT SHOWN) | 000331 | 1 | 000331-Online |
| 21 | RAPTOR DECAL | 604388 | 2 | 604388-Online |
| 22 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 23 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
| 24 | SEALED RELAY (WITH BRACKET) | 601053 | 2 | HT601053-Online |
| 25 | WIRE HARNESS | 605835 | 1 | 605835-Online |

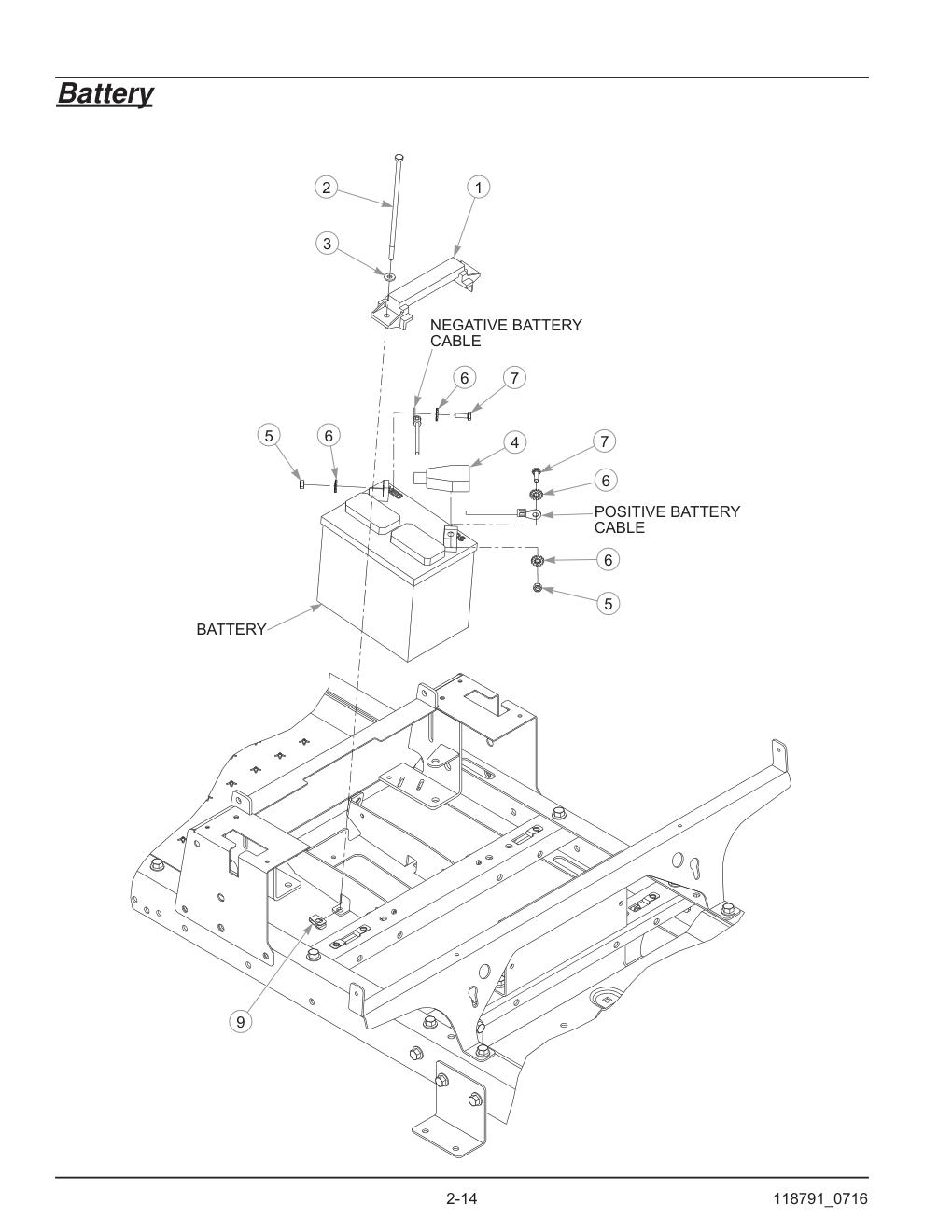

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIE DOWN STRAP | 604178 | 1 | 604178-Online |
| 2 | CS .250-20 X 7.50 HX G5 | 604465 | 2 | 604465-Online |
| 3 | FW .281 X .625 X .066 | 768515 | 2 | HT768515-Online |
| 4 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 5 | NT .250-20 HX G5 | 024927 | 2 | HT024927-Online |
| 6 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 8 | WIRE TIE (NOT SHOWN) | 000331 | 2 | 000331-Online |
| 9 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |
Hydraulic System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 2.50 HX G5 | 710087 | 4 | HT710087-Online |
| 2 | CB .375-16 X 2.75 STD ZN | 601887 | 1 | 601887-Online |
| 3 | CS .312-18 X 3.00 HX G5 Z | 043067 | 4 | HT043067-Online |
| 4 | NT .375-16 HX FLK G5 | 016899 | 3 | HT016899-Online |
| 5 | DRIVE BELT | 603907 | 1 | 603907-Online |
| 6 | IDLER SPACER | 604714 | 1 | 604714-Online |
| 7 | IDLER ARM | 116287 | 1 | HT116287-Online |
| 8 | FW .406 X 1.25 X .12 HRD Z | 712893 | 1 | HT712893-Online |
| 9 | NT .375-16 HX NL G5 | 086660 | 2 | HT086660-Online |
| 10 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 11 | FW .379 X .813 X .063 | 767954 | 2 | HT767954-Online |
| 12 | PULLEY 2.0" IDLER | 604491 | 1 | 604491-Online |
| 13 | NT .375-16 HX G5 ZNY | 054502 | 1 | HT054502-Online |
| 14 | SPRING | 604490 | 1 | 604490-Online |
| 15 | CS .375-16 X 2.5 FULTH | 604487 | 1 | 604487-Online |
| 16 | HP .080D X 1.19 | 706549 | 2 | HT706549-Online |
| 17 | TOW VALVE LINK | 118310 | 2 | HT118310-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 19 | NT .312-18 NL G5 | 058776 | 8 | HT058776-Online |
| 20 | CS .375-16 X .75 HX FLK | 029629 | 1 | HT029629-Online |
| 21 | TRANSMISSION ASSEMBLY | N/A | 1 | No SKU |
Transmission Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18 HX G5 ZY NL | 058776 | 2 | HT058776-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 3 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
| 4 | SPRING | 601131 | 2 | HT601131-Online |
| 5 | ROD BRAKE ACTUATOR | 604667 | 2 | 604667-Online |
| 6 | FITTING, 90 - 9/16 SAE | 601219 | 2 | 601219-Online |
| 7 | LS TRANSMISSION | 604709 | 1 | 604709-Online |
| 8 | CS .375-16 X 2.25 HX G5 | 056036 | 2 | 056036-Online |
| 9 | FW .379 X .813 X .063 | 767954 | 4 | HT767954-Online |
| 10 | SPRING CLAMP | 601001 | 4 | 601001-Online |
| 11 | HOSE 19" | 787713 | 19" | HT787713-Online |
| 12 | HOSE 28" | 787713 | 28" | HT787713-Online |
| 13 | WIRE TIE | 000331 | 2 | 000331-Online |
| 14 | NT .375-16 HX G5 NL | 086660 | 2 | HT086660-Online |
| 15 | CROSS BRACE | 118942 | 1 | 118942-Online |
| 16 | RS TRANSMISSION | 604708 | 1 | 604708-Online |
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 18 | LS BRAKE SPRING LINK | 109203 | 1 | 109203-Online |
| 19 | NT .250-20 HX FL LK ZNY | 016816 | 2 | 016816-Online |
| 20 | RS BRAKE SPRING LINK (NOT SHOWN) | 109202 | 1 | HT109202-Online |
Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| SIDE TRANSMISSION | 604709 | LEFT | 604709-Online | |
| INDEX | DESCRIPTION | NO.PARTNO. | QTY. | NO.PARTNO.-Online |

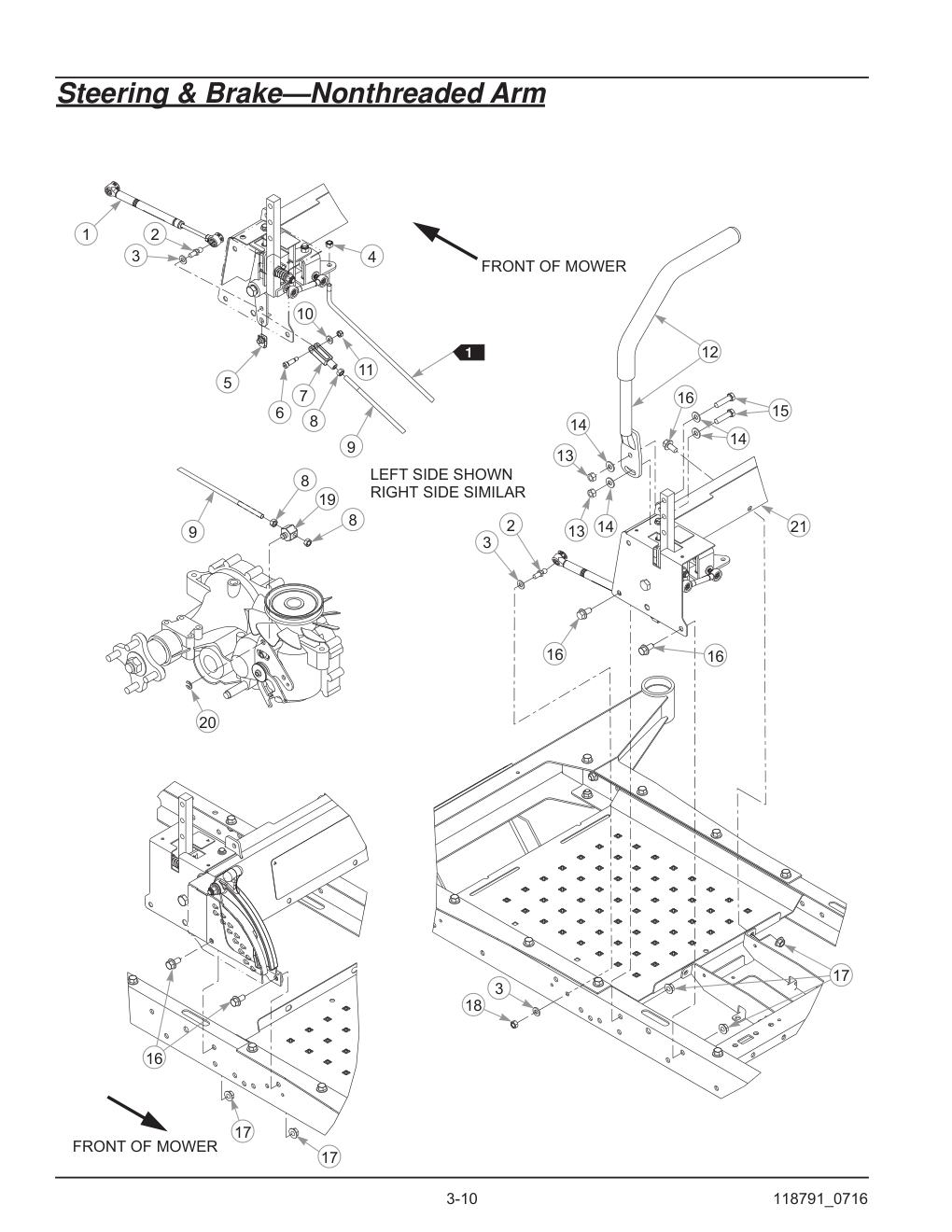

Steering & Brake-Nonthreaded Arm
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DAMPER | 603983 | 2 | 603983-Online |
| 2 | BALL STUD | 781922 | 4 | 781922-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 4 | NT .312-18 HX NL G5 | 058776 | 2 | HT058776-Online |
| 5 | CN .312-18 X .20 MAX THK | 601069 | 2 | HT601069-Online |
| 6 | SB .312 X .75 SH .250-20 | 772483 | 2 | HT772483-Online |
| 7 | YOKE, 5/16-24 | 604173 | 2 | 604173-Online |
| 8 | NT .312-24 HX ZNYC | 041152 | 6 | HT041152-Online |
| 9 | STEERING ROD | 604666 | 2 | 604666-Online |
| 10 | FW .281 X .625 X .066 | 768515 | 2 | HT768515-Online |
| 11 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 12 | STEERING BAR (WITH GRIP) | 110370 | 2 | 110370-Online |
| 12 | STEERING BAR GRIP | 781260 | 1 | 781260-Online |
| 13 | NT .375-16 HX G5 ZNY | 054502 | 4 | HT054502-Online |
| 14 | FW .379 X .813 X .063 | 767954 | 8 | HT767954-Online |
| 15 | CS .375-16 X 1.50 HX G5 | 080655 | 4 | HT080655-Online |
| 16 | CS .375-16 X .75 HX FLK | 029629 | 7 | HT029629-Online |
| 17 | NT .375-16 HX FLK G5 | 016899 | 7 | HT016899-Online |
| 18 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 19 | STEERING BUSHING | 116144 | 2 | HT116144-Online |
| 20 | CLIP | 603332 | 2 | 603332-Online |
| 21 | STEERING COVER ASSEMBLY | N/A | 1 | No SKU |
Steering & Brake-Threaded Arm
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DAMPER | 603983 | 2 | 603983-Online |
| 2 | BALL STUD | 781922 | 4 | 781922-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 4 | NT .312-18 HX G5 ZY NL | 058776 | 2 | HT058776-Online |
| 5 | CN .312-18 X .20 MAX THK | 601069 | 2 | HT601069-Online |
| 6 | SB .312 X .75 SH .250-20 | 772483 | 2 | HT772483-Online |
| 7 | STEERING ROD ASSEMBLY | 606273 | 2 | 606273-Online |
| 8 | FW .281 X .625 X .066 | 768515 | 2 | HT768515-Online |
| 9 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 10 | CLIP | 603332 | 2 | 603332-Online |
| 11 | STEERING BAR (WITH GRIP) | 110370 | 2 | 110370-Online |
| 11 | STEERING BAR GRIP | 781260 | 1 | 781260-Online |
| 12 | FW .379 X .813 X .063 | 767954 | 4 | HT767954-Online |
| 13 | CS .375-16 X 1.00 HX G5 | 036244 | 4 | HT036244-Online |
| 14 | CS .375-16 X .75 HX FLK | 029629 | 7 | HT029629-Online |
| 15 | NT .375-16 HX G5 FLK | 016899 | 7 | HT016899-Online |
| 16 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 17 | STEERING COVER ASSEMBLY | N/A | 1 | No SKU |
| 18 | YOKE, 5/16-24 | 604173 | 2 | 604173-Online |
| 19 | NT .312-24 HX ZNYC | 041152 | 6 | HT041152-Online |
| 20 | STEERING ROD | 604666 | 2 | 604666-Online |
| 21 | STEERING BUSHING | 116144 | 2 | HT116144-Online |

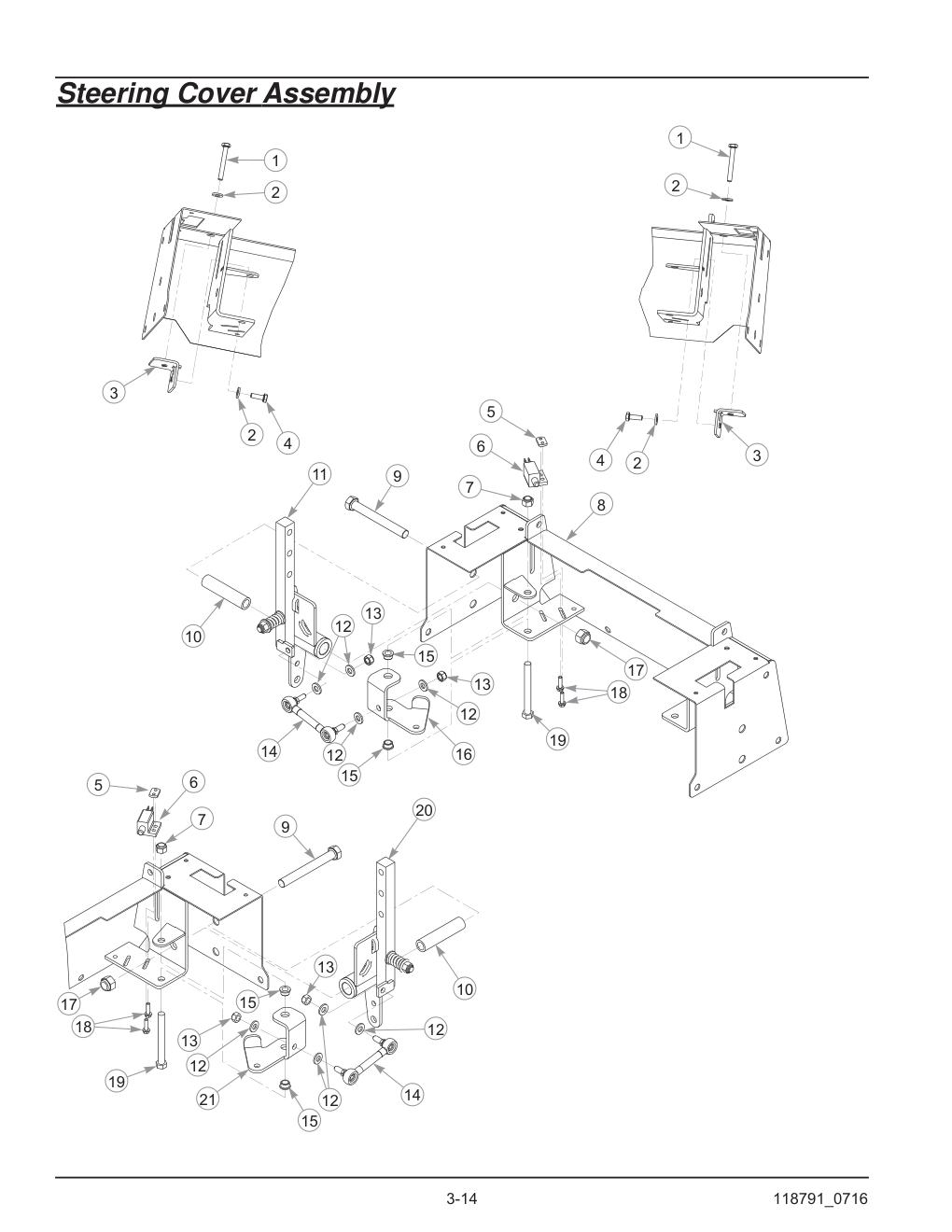

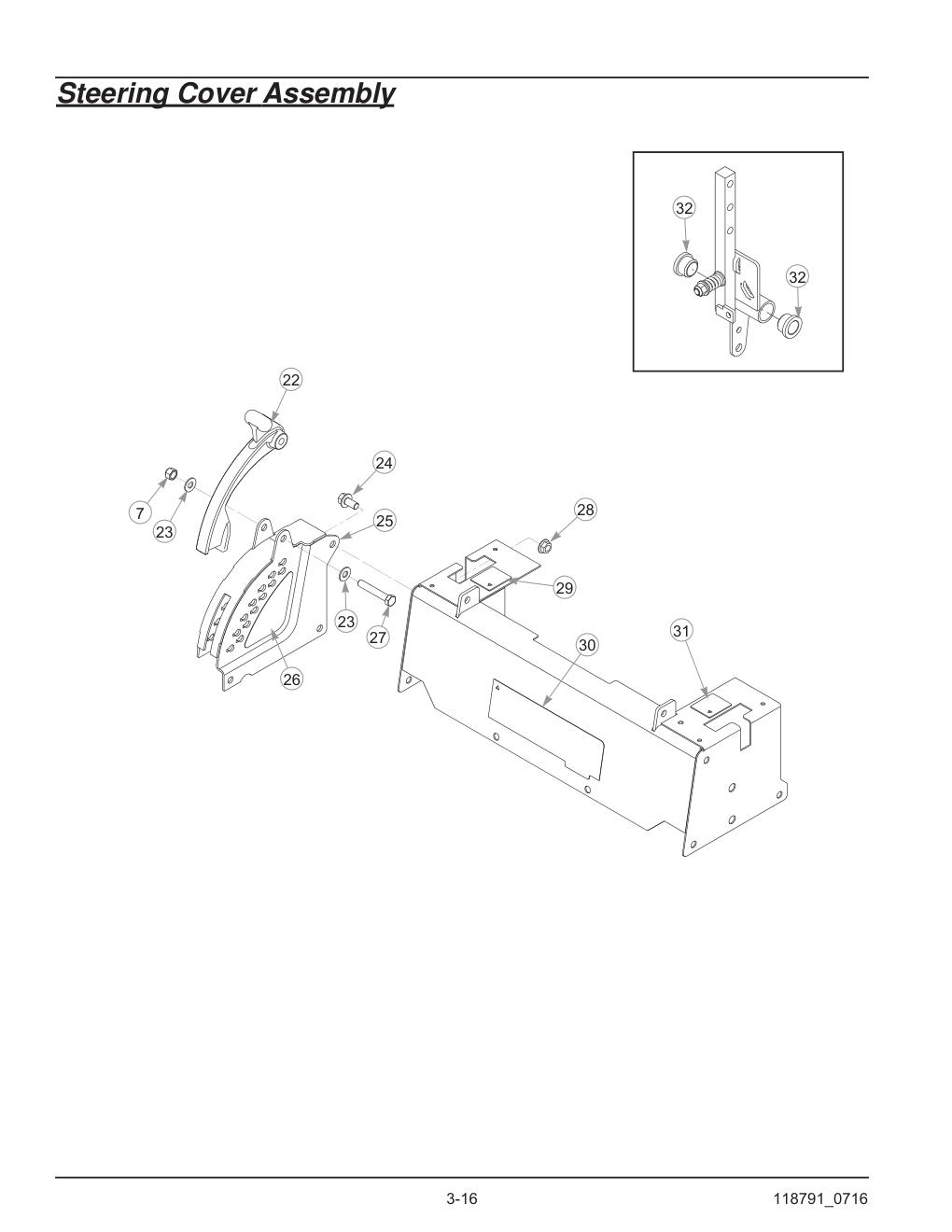

Steering Cover Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X 2.00 HX FLTHD | 604452 | 2 | 604452-Online |
| 2 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 3 | STEERING STOP | 605529 | 2 | 605529-Online |
| 4 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 5 | NUT PLATE .420 CENTERS | 601822 | 2 | 601822-Online |
| 6 | PUSH BUTTON SWITCH | 781211 | 2 | HT781211-Online |
| 7 | NT .375-16 HX G5 NL | 086660 | 3 | HT086660-Online |
| 8 | STEERING COVER (WITH DECALS) | 552415 | 1 | 552415-Online |
| 9 | CS .500-13 X 4.25 HX G5 | 781708 | 2 | HT781708-Online |
| 10 | STEERING SPACER | 604288 | 2 | 604288-Online |
| 11 | LS STEERING BOX (S/N 15100000 & HIGHER) | 606106 | 1 | 606106-Online |
| 11 | LS STEERING BOX (S/N PRIOR TO 15100000) | 604300 | 1 | 604300-Online |
| 12 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 13 | NT .312-18 HX G5 ZY NL | 058776 | 4 | HT058776-Online |
| 14 | BRAKE ROD | 604179 | 2 | 604179-Online |
| 15 | BUSHING | 765339 | 4 | HT765339-Online |
| 16 | LS BRAKE BELLCRANK | 116142 | 1 | 116142-Online |
| 17 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 18 | CS 10-24 X .75 HX FLK ZN | 063198 | 4 | 063198-Online |
| 19 | CS .375-16 X 3.50 HX G5 Z | 005108 | 2 | HT005108-Online |
| 20 | RS STEERING BOX (S/N 15100000 & HIGHER) | 606105 | 1 | 606105-Online |
| 20 | RS STEERING BOX (S/N PRIOR TO 15100000) | 604299 | 1 | 604299-Online |
| 21 | RS BRAKE BELLCRANK | 116141 | 1 | 116141-Online |
Steering Cover Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 22 | TRANSPORT LATCH | 605149 | 1 | 605149-Online |
| 23 | FW .379 X .813 X .063 | 767954 | 2 | HT767954-Online |
| 24 | CS .375-16 X .75 HX FLK | 029629 | 1 | HT029629-Online |
| 25 | INDICATOR (WITH DECAL) | 552177 | 1 | 552177-Online |
| 26 | DECK HEIGHT DECAL | 604819 | 1 | 604819-Online |
| 27 | CS .375-16 X 2.25 HX G5 | 056036 | 1 | 056036-Online |
| 28 | NT .375-16 FLK G5 | 016899 | 1 | HT016899-Online |
| 29 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 30 | ID DECAL | 604840 | 1 | 604840-Online |
| 31 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 32 | BUSHING | 781153 | 4 | HT781153-Online |

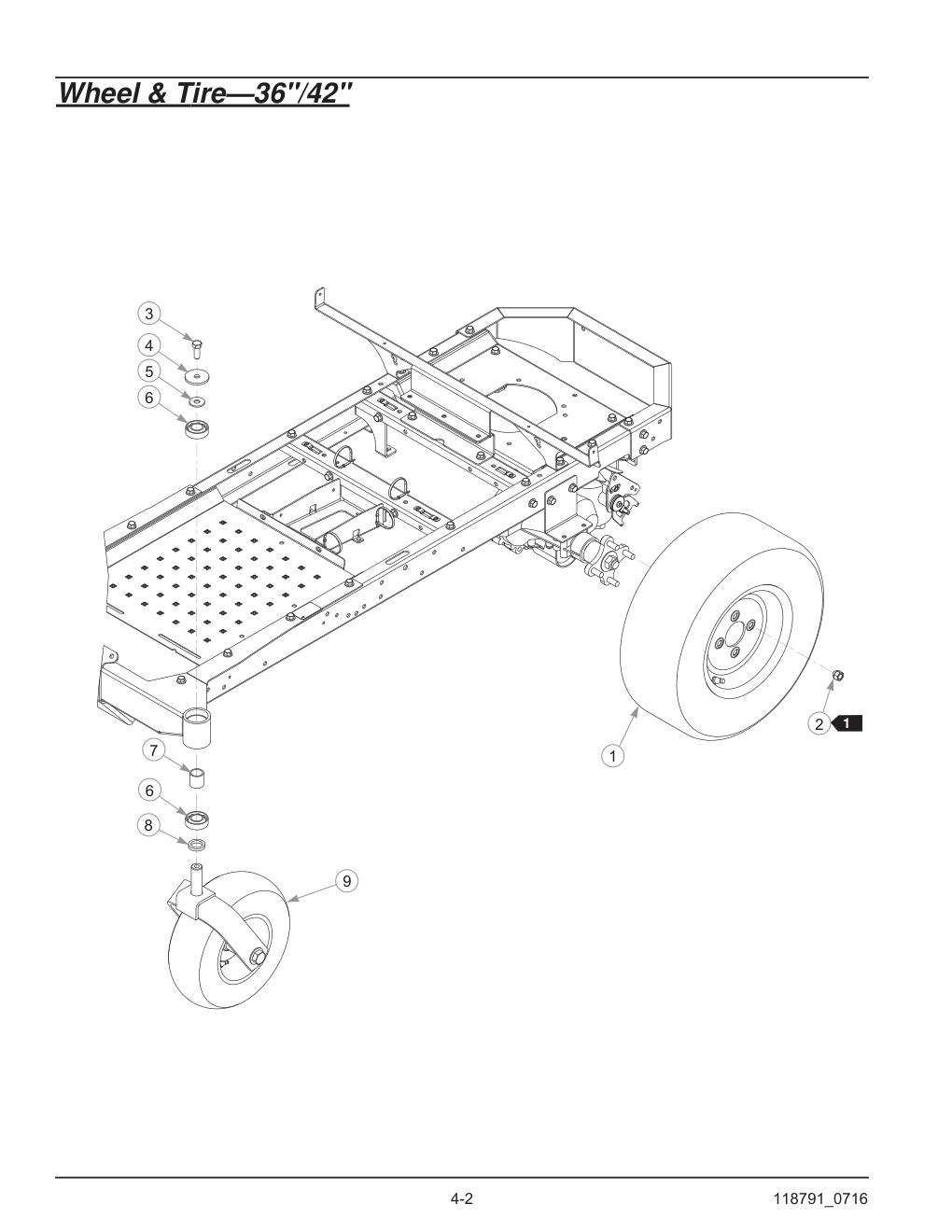

Wheel & Tire-36"/42"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL 20 X 6.5-10 | 606023 | 2 | 606023-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS .500-13 X 1.25 HX G5 | 705954 | 2 | HT705954-Online |
| 4 | FW .510 X 2.15 X .187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW .531 X 1.375 X .125 | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | GAUGE WHEEL SPACER 1/4" | 469924 | 2 | 469924-Online |
| 9 | TIRE/WHEEL ASSEMBLY | N/A | 1 | No SKU |
Wheel & Tire-48"/54"/60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL 20 X 8-10 (48" MOWERS) | 600676 | 2 | 600676-Online |
| 1 | TIRE/WHEEL 20 X 12-10 (54"/60" MOWERS) | 601349 | 2 | 601349-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 4 | FW .510 X 2.15 X .187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW .531 X 1.375 X .125 ZNY | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | TIRE/WHEEL ASSEMBLY | N/A | 1 | No SKU |

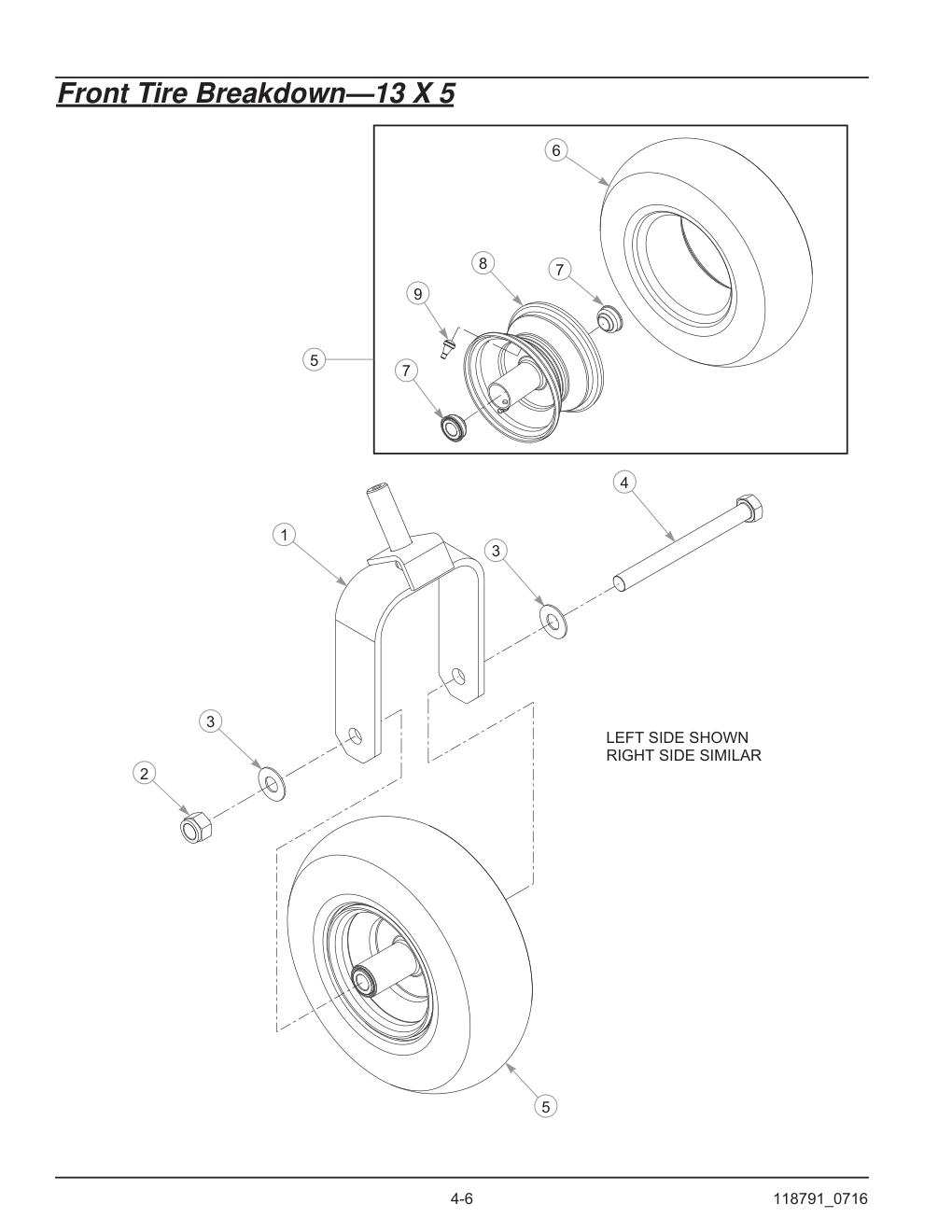

Front Tire Breakdown-13 X 5
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK | 605042 | 1 | 605042-Online |
| 2 | NT .750-10 HX ZY NL | 061101 | 1 | HT061101-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10 X 8.00 HX G5 | 786731 | 1 | HT786731-Online |
| 5 | TIRE/WHEEL ASSEMBLY 13 X 5 | 605038 | 1 | 605038-Online |
| 6 | TIRE 13 X 5 | 605039 | 1 | 605039-Online |
| 7 | WHEEL BEARING | 786103 | 2 | HT786103-Online |
| 8 | WHEEL | 786079 | 1 | HT786079-Online |
| 9 | TIRE VALVE | 019521 | 1 | HT019521-Online |

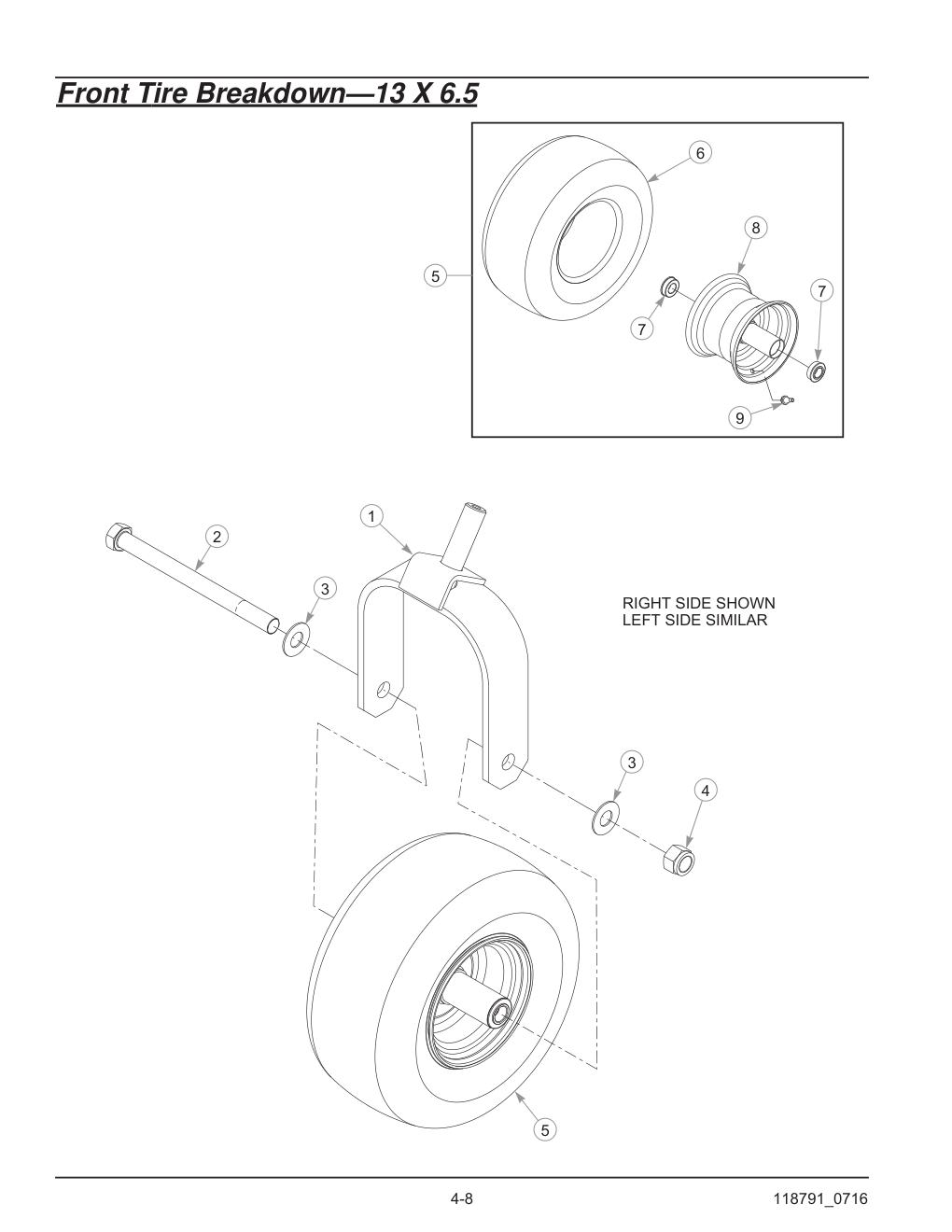

Front Tire Breakdown-13 X 6.5
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK | 604691 | 1 | 604691-Online |
| 2 | CS .750-10 X 9.50 HX ZY | 041475 | 1 | HT041475-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 4 | NT .750-10 HX ZY NL | 061101 | 1 | HT061101-Online |
| 5 | TIRE/WHEEL | 604717 | 1 | 604717-Online |
| 6 | TIRE, 13 X 6.50-6 (SMOOTH) | 604843 | 1 | 604843-Online |
| 6 | TIRE, 13 X 6.50-6 (RIBBED) | 747741 | 1 | 747741-Online |
| 7 | WHEEL BEARING | 604845 | 2 | 604845-Online |
| 8 | WHEEL, 6 X 4.50 | 604844 | 1 | 604844-Online |
| 9 | VALVE STEM | 019521 | 1 | HT019521-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 20 X 6.50-10 | 604503 | 1 | 604503-Online |
| 2 | WHEEL 10 X 6 | 606022 | 1 | 606022-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |

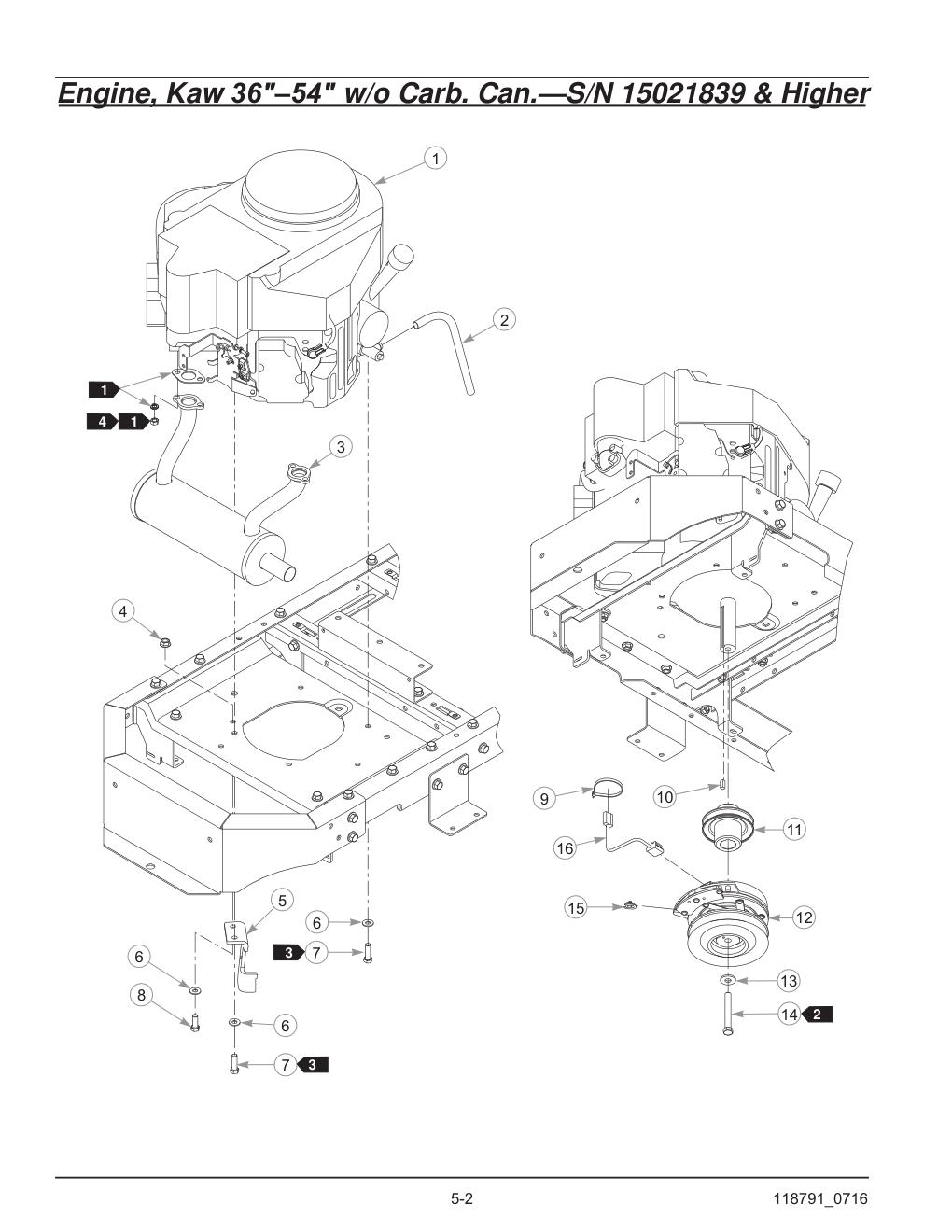

Engine, Kaw 36"-54" w/o Carb. Can.-S/N 15021839 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR691VENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 604016 | 1 | 604016-Online |
| 4 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 7 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 8 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 9 | WIRE TIE | 000331 | 4 | 000331-Online |
| 10 | KEY 1/4 SQ X .66 LG | 712372 | 1 | HT712372-Online |
| 11 | PULLEY | 605675 | 1 | 605675-Online |
| 12 | CLUTCH KIT | 605777K | 1 | 605777K-Online |
| 13 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 14 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
| 15 | CLUTCH BUSHING | 605595 | 1 | 605595-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
Engine, Kaw 36"-54" w/o Carb. Can.-S/N 15021839 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | LW .325 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 18 | CS M8 X 1.25 X 16 HX FL 10.9 | 720516 | 1 | 720516-Online |
| 19 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 20 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 21 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 22 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 23 | NT .250-20 HX G5 | 024927 | 2 | HT024927-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 26 | 3/16" FORMED VAPOR LINE | 604274 | 1 | 604274-Online |

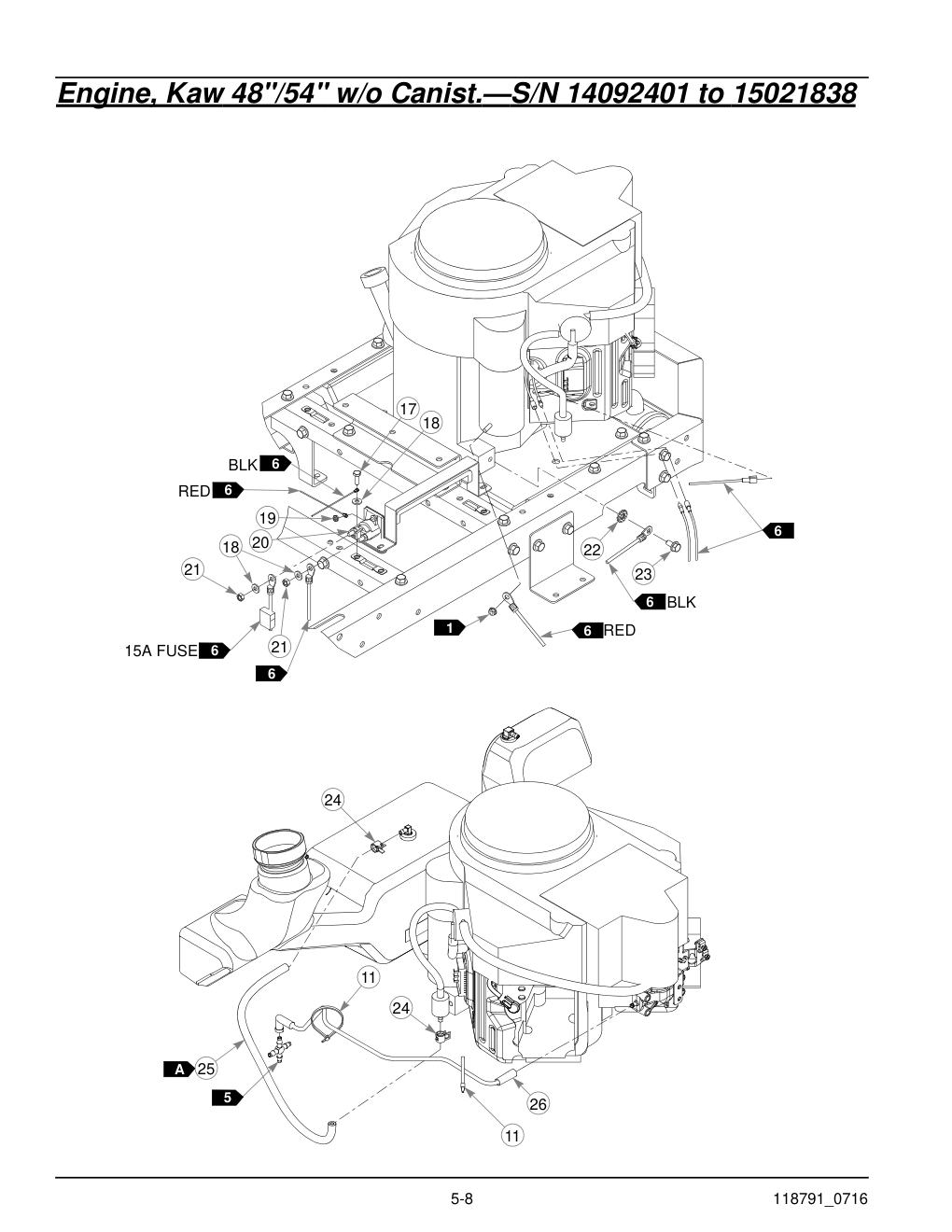

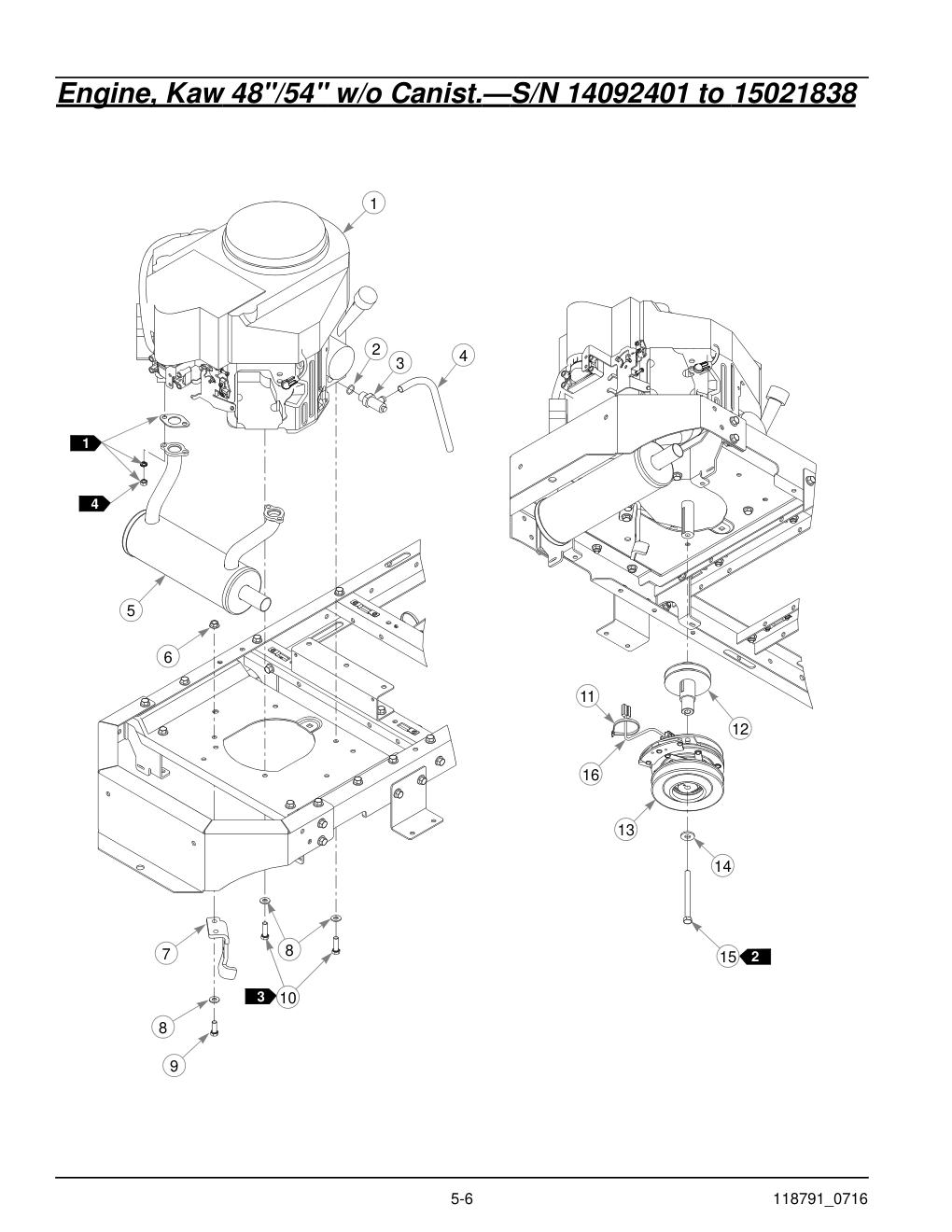

Engine, Kaw 48"/54" w/o Canist.-S/N 14092401 to 15021838
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR691V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 4 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 5 | MUFFLER | 604016 | 1 | 604016-Online |
| 6 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 7 | CLUTCH ANCHOR | 118238 | 1 | 118238-Online |
| 8 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 11 | WIRE TIE | 000331 | 4 | 000331-Online |
| 12 | STUB SHAFT PUMP PULLEY | 604712 | 1 | 604712-Online |
| 13 | CLUTCH KIT | 604713K | 1 | 604713K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 15 | CS .437-20 X 4.75 HX G5 P85 | 605448 | 1 | 605448-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
Engine, Kaw 48"/54" w/o Canist.-S/N 14092401 to 15021838
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 18 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 19 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 20 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 21 | NT .250-20 HX G5 | 024927 | 2 | HT024927-Online |
| 22 | LW .325 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 23 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 26 | 3/16" FORMED VAPOR LINE | 604274 | 1 | 604274-Online |

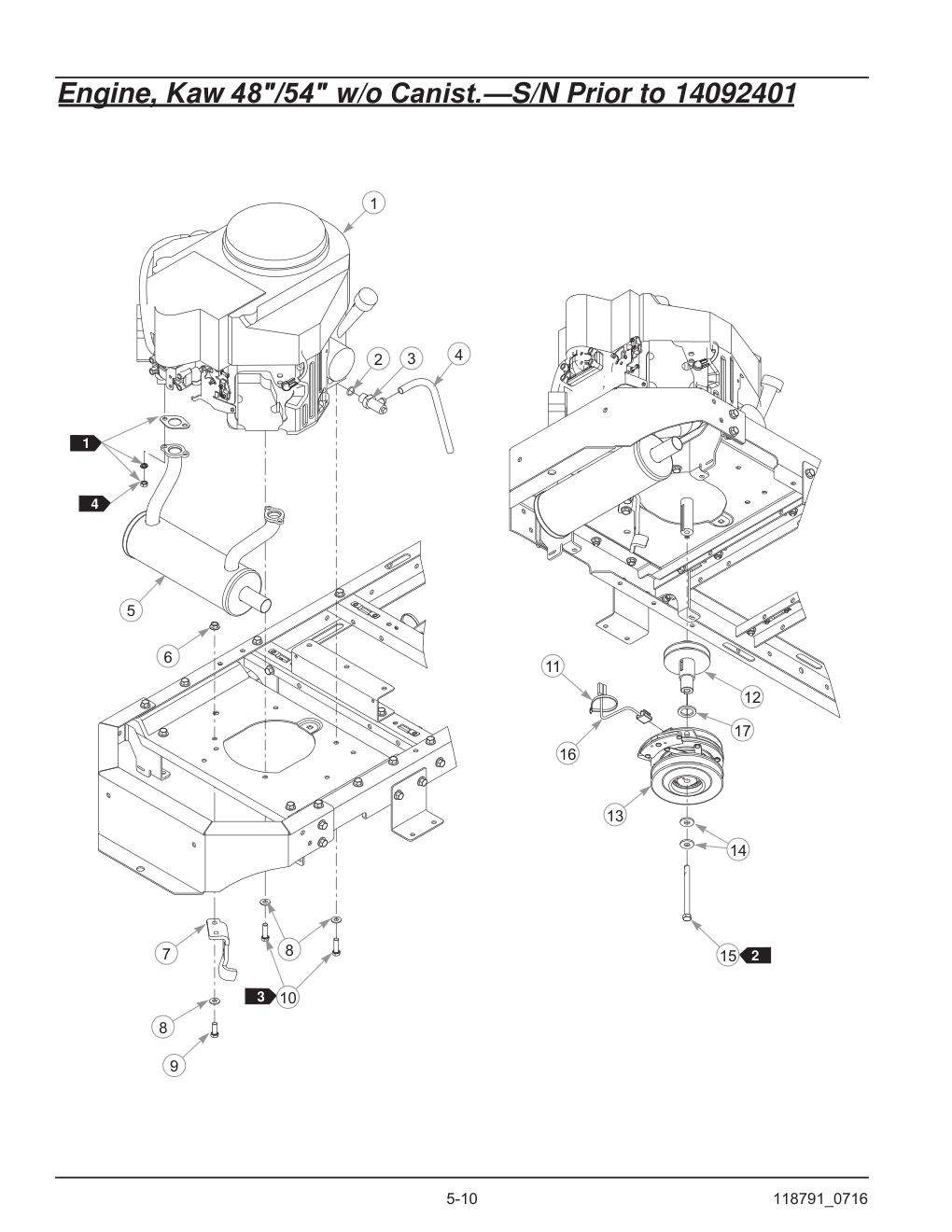

Engine, Kaw 48"/54" w/o Canist.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR691V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 4 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 5 | MUFFLER | 604016 | 1 | 604016-Online |
| 6 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 7 | CLUTCH ANCHOR | 118238 | 1 | 118238-Online |
| 8 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 11 | WIRE TIE | 000331 | 4 | 000331-Online |
| 12 | STUB SHAFT PUMP PULLEY | 604712 | 1 | 604712-Online |
| 13 | CLUTCH KIT | 604713K | 1 | 604713K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 2 | 602680-Online |
| 15 | CS .437-20 X 5.00 HX G5 | 604721 | 1 | 604721-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 17 | FW 1.03 X 1.50 X 0.134 | 045765 | 1 | HT045765-Online |
Engine, Kaw 48"/54" w/o Canist.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 19 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 20 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 21 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 22 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 23 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 24 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 25 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 26 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 27 | 3/16" FORMED VAPOR LINE | 604274 | 1 | 604274-Online |

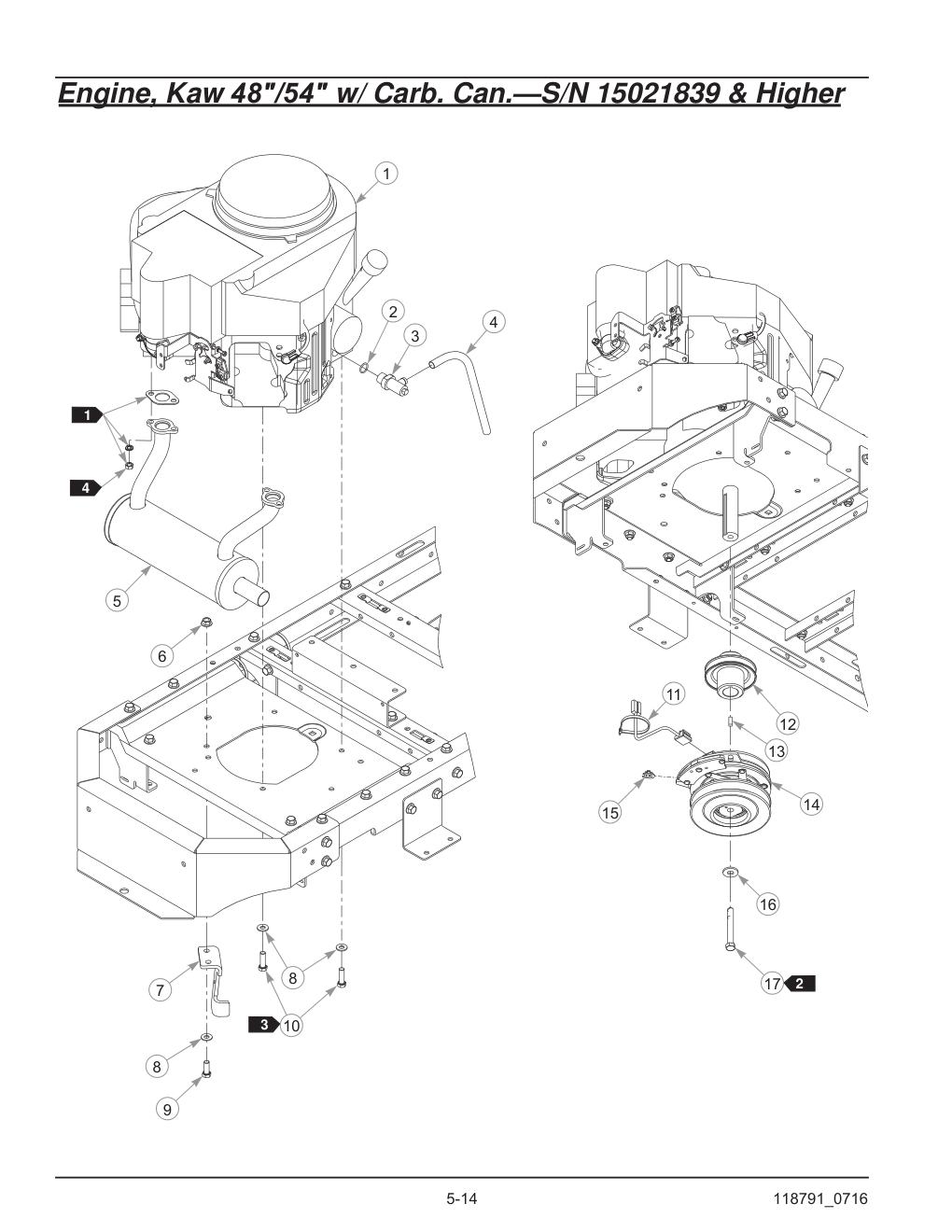

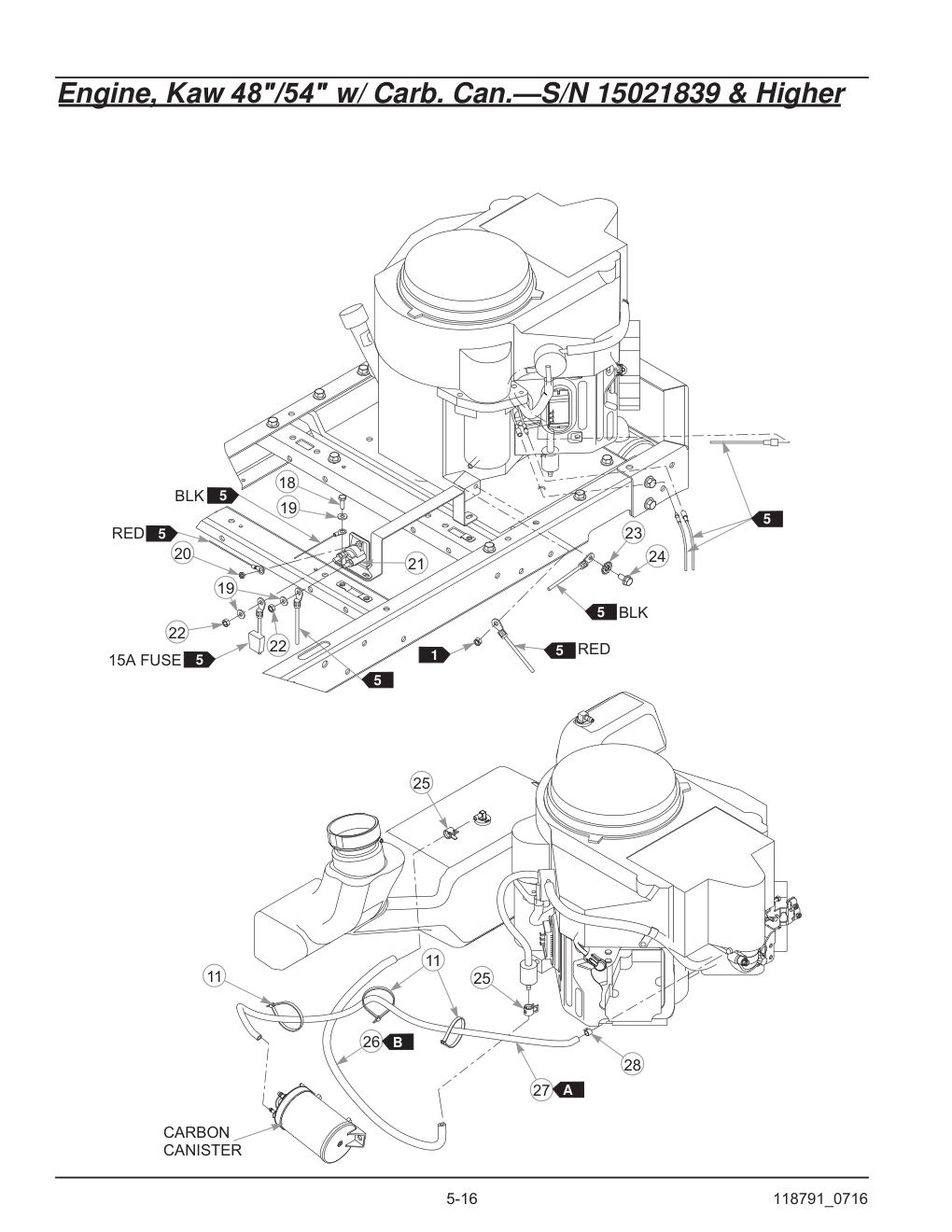

Engine, Kaw 48"/54" w/ Carb. Can.-S/N 15021839 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FR691V ENGINE | N/A | 1 KAWASAKI | No SKU |
| 3 | DRAIN VALVE | 604350 | 1 OIL | 604350-Online |
| 4 | DRAIN HOSE | 60446312" | OIL | No SKU |
| 6 | .375-16 HX FLK G5 | 016899 | 1 NT | HT016899-Online |
| 7 | ANCHOR | 121625 | 1 CLUTCH | 121625-Online |
| 8 | .379 X .813 X .063 | 767954 | 5 FW | HT767954-Online |
| 9 | .375-16 X 1.00 HX G5 | 036244 | 1 CS | HT036244-Online |
| 10 | .375-16 X 1.25 HX G8 P85 | 602580 | 4 CS | 602580-Online |
| 11 | TIE | 000331 | 5 WIRE | 000331-Online |
| 13 | 1/4 SQ X .66 LG | 712372 | 1 KEY | HT712372-Online |
| 13 | HARNESS PIGTAIL | 791251 | 1 CLUTCH | HT791251-Online |
| 15 | BUSHING | 605595 | 1 CLUTCH | 605595-Online |
| 16 | .453 X 1.12 X .119 HRD | 602680 | 1 FW | 602680-Online |
| 17 | .437-20 X 3.25 HX G5 P85 | 601834 | 1 CS | 601834-Online |
Engine, Kaw 48"/54" w/ Carb. Can.-S/N 15021839 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 19 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 20 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 21 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 22 | NT .250-20 HX G5 | 024927 | 2 | HT024927-Online |
| 23 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 24 | CS M8 X 1.25 X 16 HX FL 10.9 | 720516 | 1 | 720516-Online |
| 25 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 26 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 27 | 3/16" VAPOR LINE | 603326 | 38" | 603326-Online |
| 28 | 3/16" HOSE CLAMP | 603112 | 1 | 603112-Online |

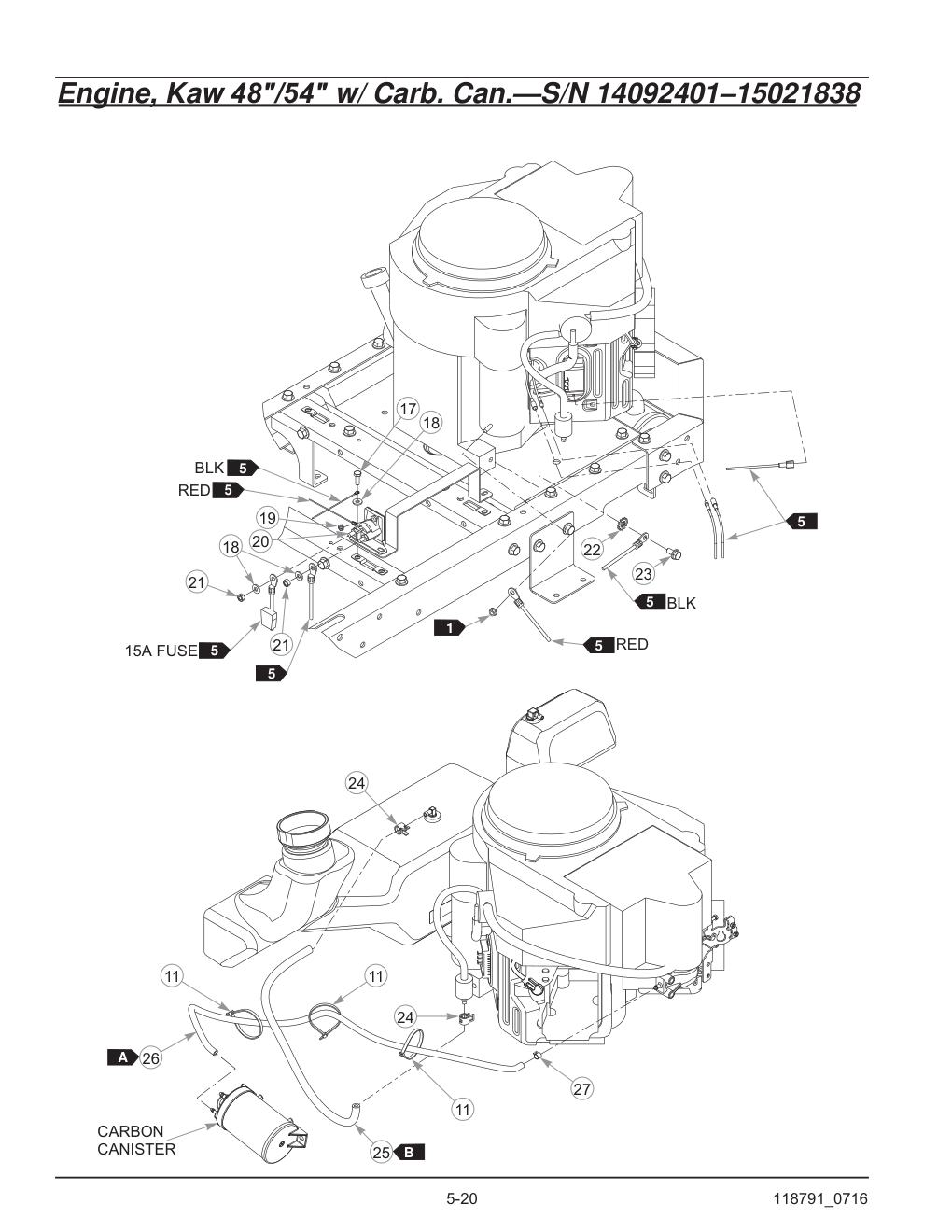

Engine, Kaw 48"/54" w/ Carb. Can.-S/N 14092401-15021838
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FR691V ENGINE | N/A | 1 KAWASAKI | No SKU |
| 3 | DRAIN VALVE | 604350 | 1 OIL | 604350-Online |
| 4 | DRAIN HOSE | 60446312" | OIL | No SKU |
| 6 | .375-16 HX FLK G5 | 016899 | 1 NT | HT016899-Online |
| 7 | ANCHOR | 118238 | 1 CLUTCH | 118238-Online |
| 8 | .379 X .813 X .063 | 767954 | 5 FW | HT767954-Online |
| 9 | .375-16 X 1.00 HX G5 | 036244 | 1 CS | HT036244-Online |
| 10 | .375-16 X 1.25 HX G8 P85 | 602580 | 4 CS | 602580-Online |
| 11 | TIE | 000331 | 5 WIRE | 000331-Online |
| 12 | SHAFT PUMP PULLEY | 604712 | 1 STUB | 604712-Online |
| 14 | .453 X 1.12 X .119 HRD | 602680 | 1 FW | 602680-Online |
| 15 | .437-20 X 4.75 HX G5 P85 | 605448 | 1 CS | 605448-Online |
| 16 | HARNESS PIGTAIL | 791251 | 1 CLUTCH | HT791251-Online |
Engine, Kaw 48"/54" w/ Carb. Can.-S/N 14092401-15021838
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 18 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 19 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 20 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 21 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 22 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 23 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 26 | 3/16" VAPOR LINE | 603326 | 38" | 603326-Online |
| 27 | 3/16" HOSE CLAMP | 603112 | 1 | 603112-Online |

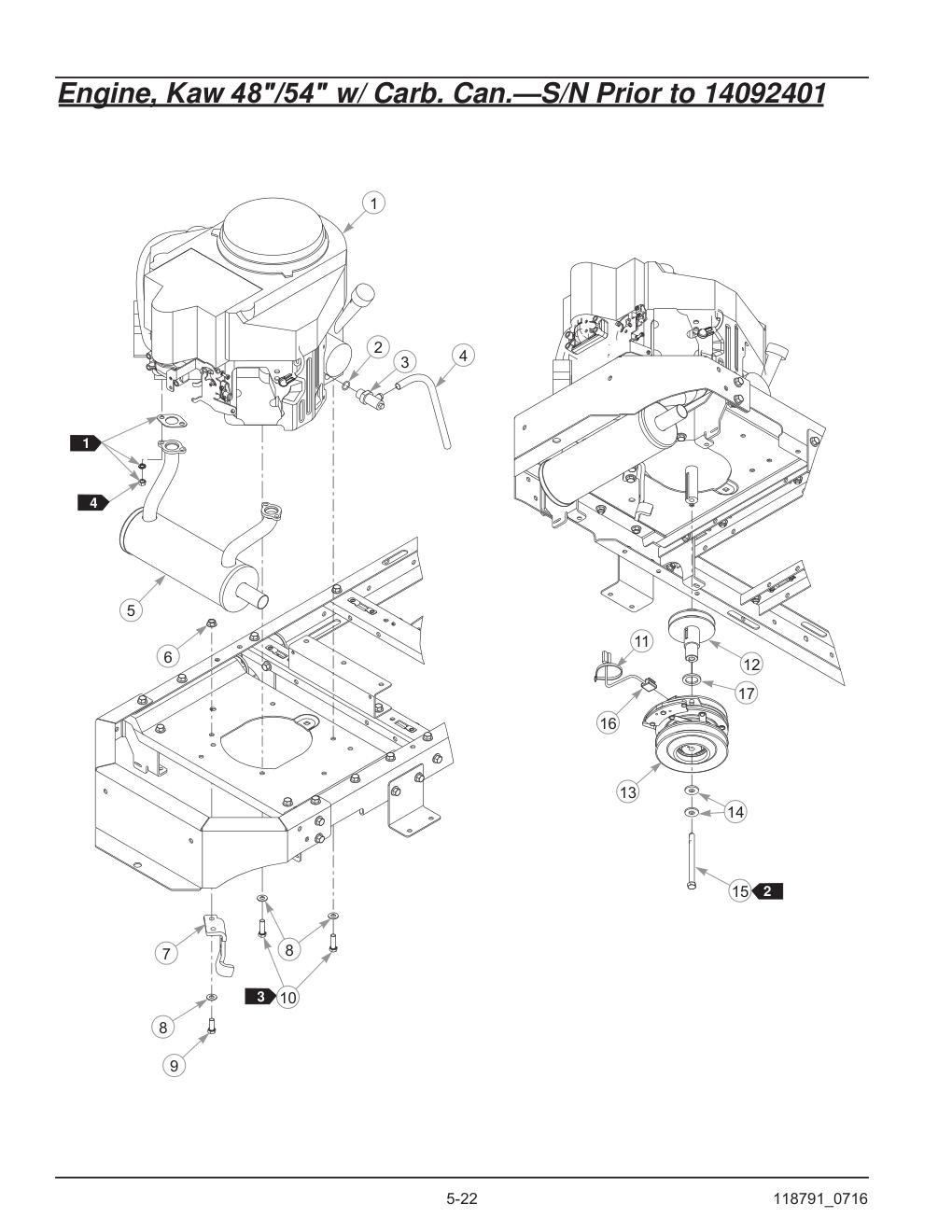

Engine, Kaw 48"/54" w/ Carb. Can.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR691V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 4 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 5 | MUFFLER | 604016 | 1 | 604016-Online |
| 6 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 7 | CLUTCH ANCHOR | 118238 | 1 | 118238-Online |
| 8 | FW ..379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 11 | WIRE TIE | 000331 | 5 | 000331-Online |
| 12 | STUB SHAFT PUMP PULLEY | 604712 | 1 | 604712-Online |
| 13 | CLUTCH KIT | 604713K | 1 | 604713K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 2 | 602680-Online |
| 15 | CS .437-20 X 4.75 HX G5 P85 | 604721 | 1 | 604721-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 17 | FW 1.03 X 1.50 X 0.134 | 045765 | 1 | HT045765-Online |
Engine, Kaw 48"/54" w/ Carb. Can.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 19 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 20 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 21 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 22 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 23 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 24 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 25 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 26 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 27 | 3/16" VAPOR LINE | 603326 | 38" | 603326-Online |
| 28 | 3/16" HOSE CLAMP | 603112 | 1 | 603112-Online |

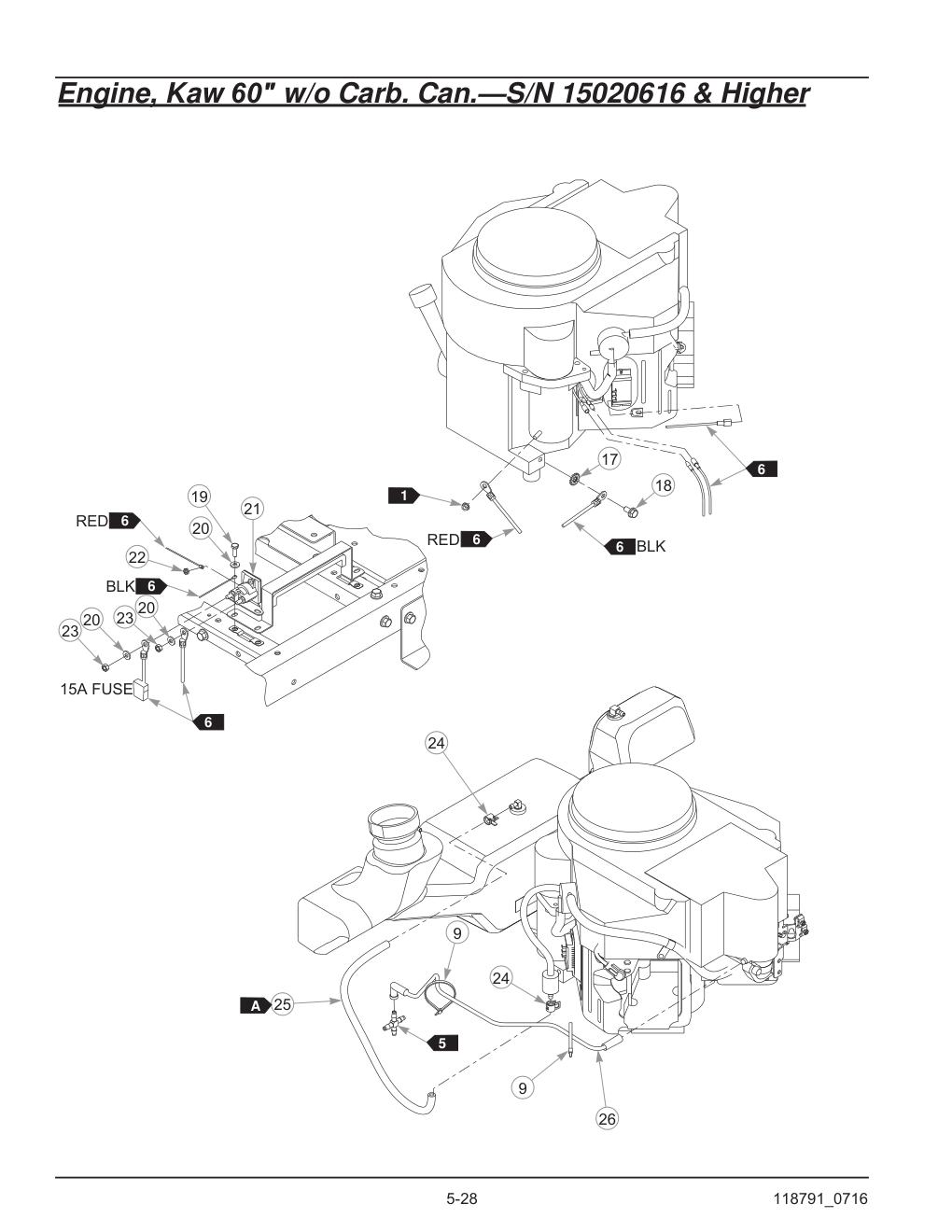

Engine, Kaw 60" w/o Carb. Can.-S/N 15020616 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR730V ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 604016 | 1 | 604016-Online |
| 4 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 7 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 8 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 9 | WIRE TIE | 000331 | 4 | 000331-Online |
| 10 | KEY 1/4 SQ X .66 LG | 712372 | 1 | HT712372-Online |
| 11 | PULLEY | 605675 | 1 | 605675-Online |
| 12 | CLUTCH KIT | 605777K | 1 | 605777K-Online |
| 13 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 14 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
| 15 | CLUTCH BUSHING | 605595 | 1 | 605595-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
Engine, Kaw 60" w/o Carb. Can.-S/N 15020616 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | LW .25 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 18 | CS M8 X 1.25 X 16 HX FL 10.9 | 720516 | 1 | 720516-Online |
| 19 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 20 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 21 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 22 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 23 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 26 | 3/16" FORMED VAPOR LINE | 604274 | 1 | 604274-Online |

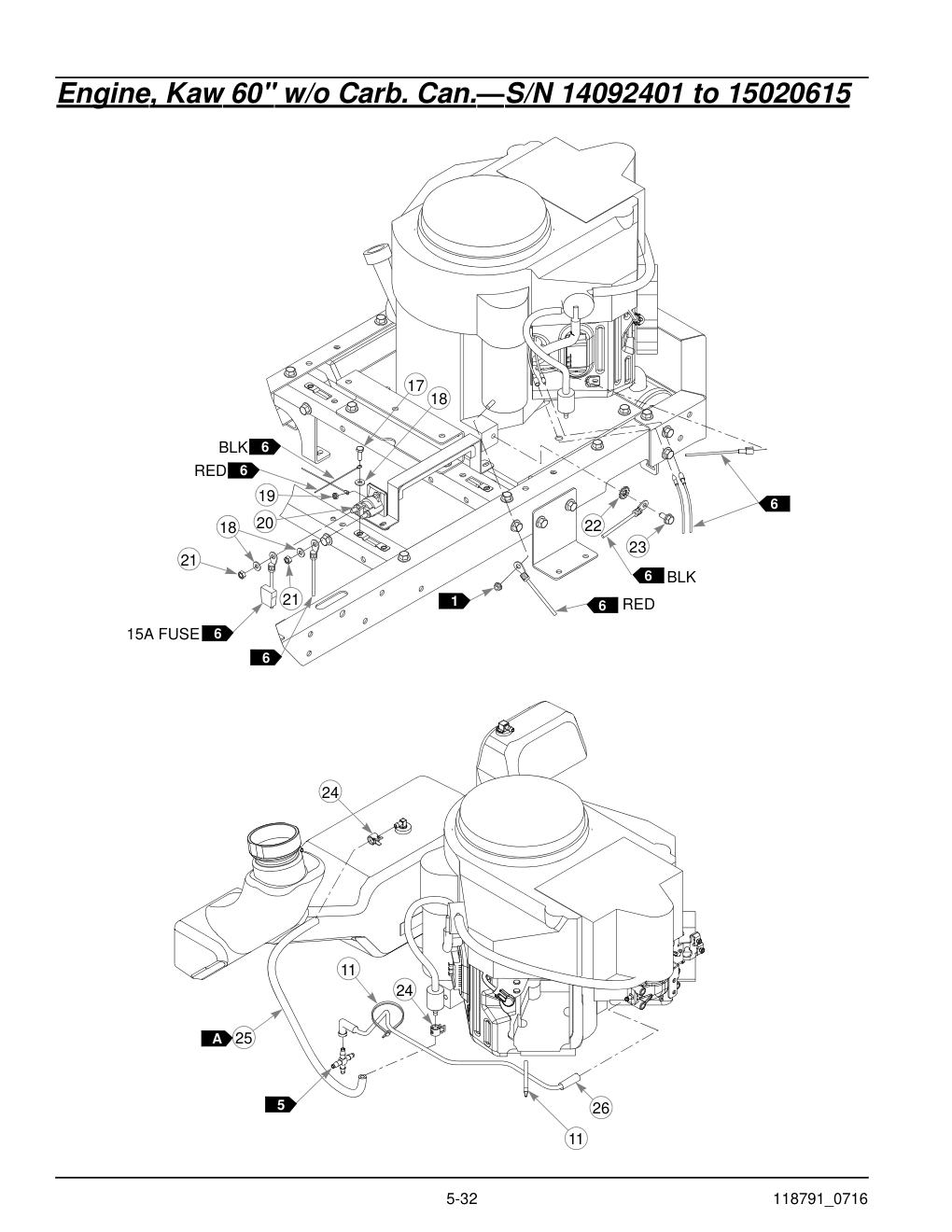

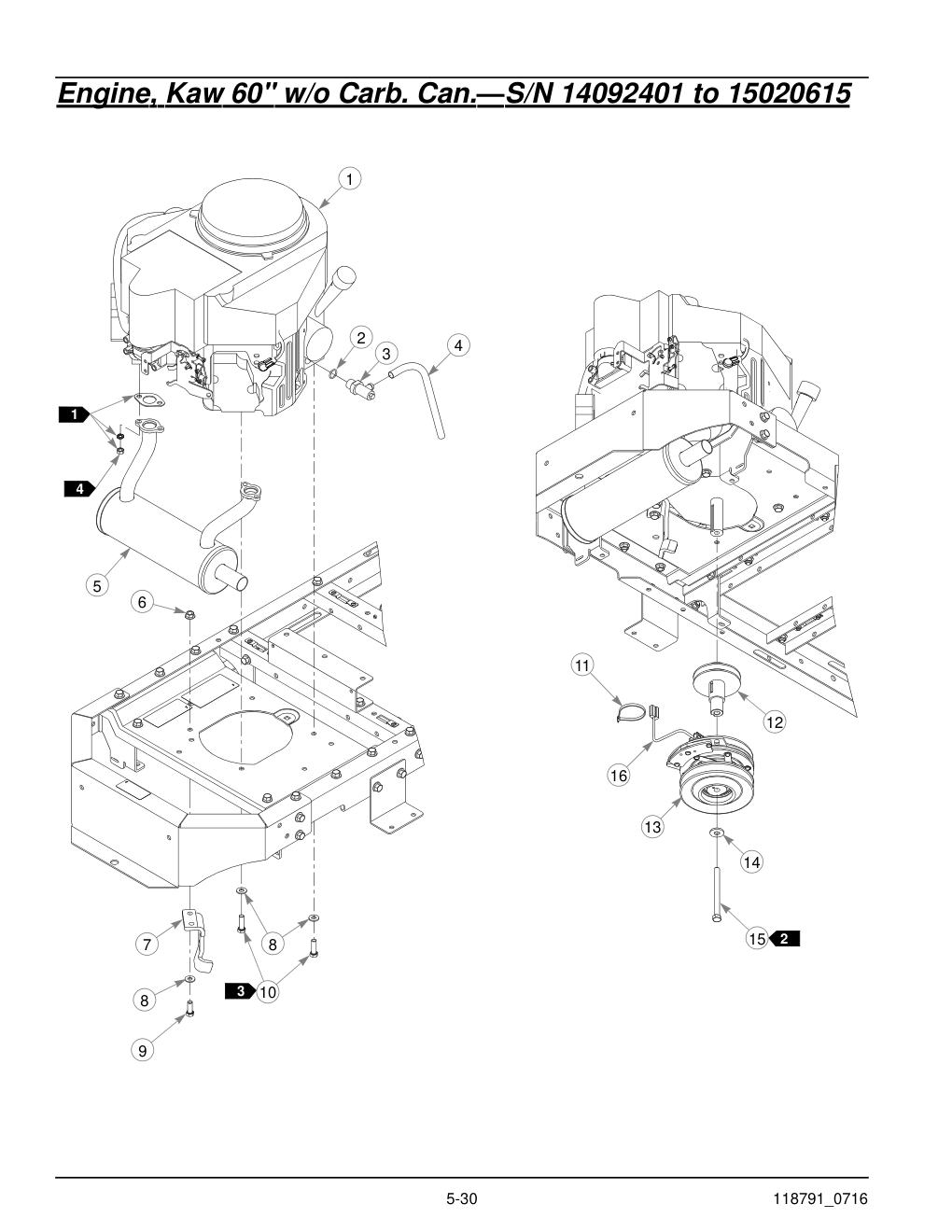

Engine, Kaw 60" w/o Carb. Can.-S/N 14092401 to 15020615
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR730V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 4 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 5 | MUFFLER | 604016 | 1 | 604016-Online |
| 6 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 7 | CLUTCH ANCHOR | 118238 | 1 | 118238-Online |
| 8 | FW ..379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 11 | WIRE TIE | 000331 | 4 | 000331-Online |
| 12 | STUB SHAFT PUMP PULLEY | 604712 | 1 | 604712-Online |
| 13 | CLUTCH KIT | 604713K | 1 | 604713K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 15 | CS .437-20 X 4.75 HX G5 P85 | 605448 | 1 | 605448-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
Engine, Kaw 60" w/o Carb. Can.-S/N 14092401 to 15020615
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 18 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 19 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 20 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 21 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 22 | LW .25 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 23 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 26 | 3/16" FORMED VAPOR LINE | 604274 | 1 | 604274-Online |

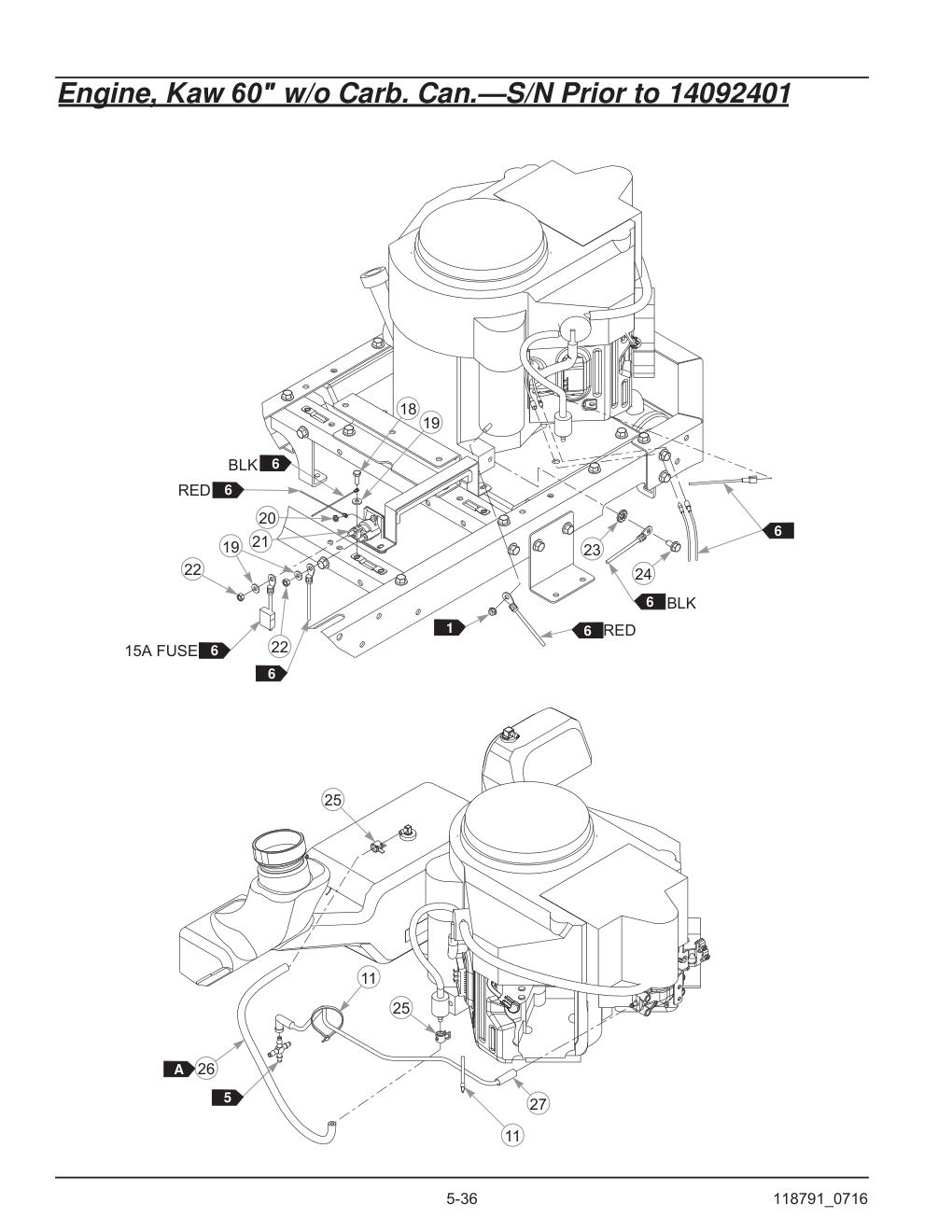

Engine, Kaw 60" w/o Carb. Can.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR730V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 4 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 5 | MUFFLER | 604016 | 1 | 604016-Online |
| 6 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 7 | CLUTCH ANCHOR | 118238 | 1 | 118238-Online |
| 8 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 11 | WIRE TIE | 000331 | 4 | 000331-Online |
| 12 | STUB SHAFT PUMP PULLEY | 604712 | 1 | 604712-Online |
| 13 | CLUTCH KIT | 604713K | 1 | 604713K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 2 | 602680-Online |
| 15 | CS .437-20 X 5.00 HX G5 | 604721 | 1 | 604721-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 17 | FW 1.03 X 1.50 X 0.134 | 045765 | 1 | HT045765-Online |
Engine, Kaw 60" w/o Carb. Can.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 19 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 20 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 21 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 22 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 23 | LW .25 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 24 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 25 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 26 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 27 | 3/16" FORMED VAPOR LINE | 604274 | 1 | 604274-Online |

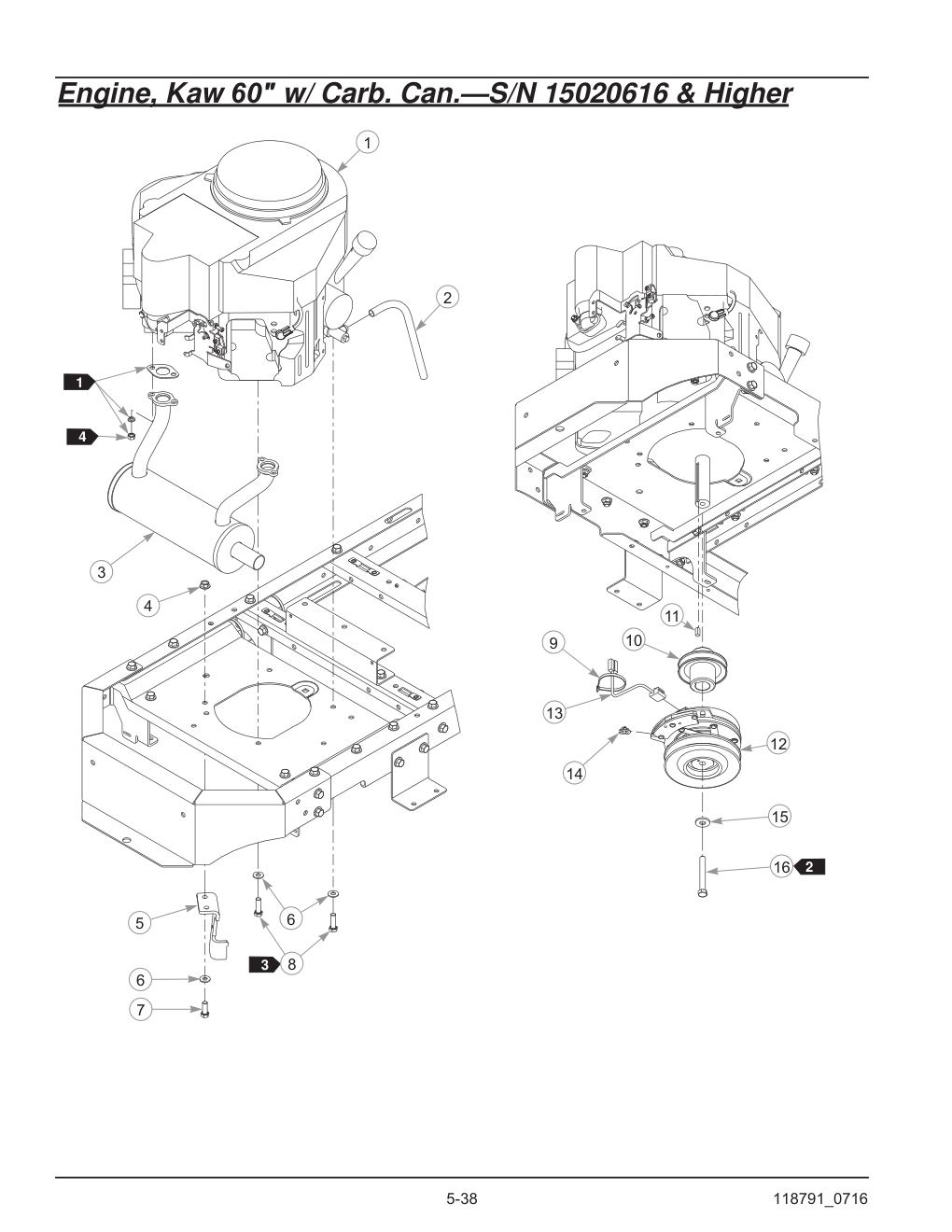

Engine, Kaw 60" w/ Carb. Can.-S/N 15020616 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR730V ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 604016 | 1 | 604016-Online |
| 4 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 8 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 9 | WIRE TIE | 000331 | 5 | 000331-Online |
| 10 | PULLEY | 605675 | 1 | 605675-Online |
| 11 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 12 | CLUTCH KIT | 605777K | 1 | 605777K-Online |
| 13 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 14 | CLUTCH BUSHING | 605595 | 1 | 605595-Online |
| 15 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 16 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
Engine, Kaw 60" w/ Carb. Can.-S/N 15020616 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 18 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 19 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 20 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 21 | NT .250-20 HX G5 | 024927 | 2 | HT024927-Online |
| 22 | LW .325 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 23 | CS M8 X 1.25 X 16 HX FL 10.9 | 720516 | 1 | 720516-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 26 | 3/16" VAPOR LINE | 603326 | 38" | 603326-Online |
| 27 | 3/16" HOSE CLAMP | 603112 | 1 | 603112-Online |

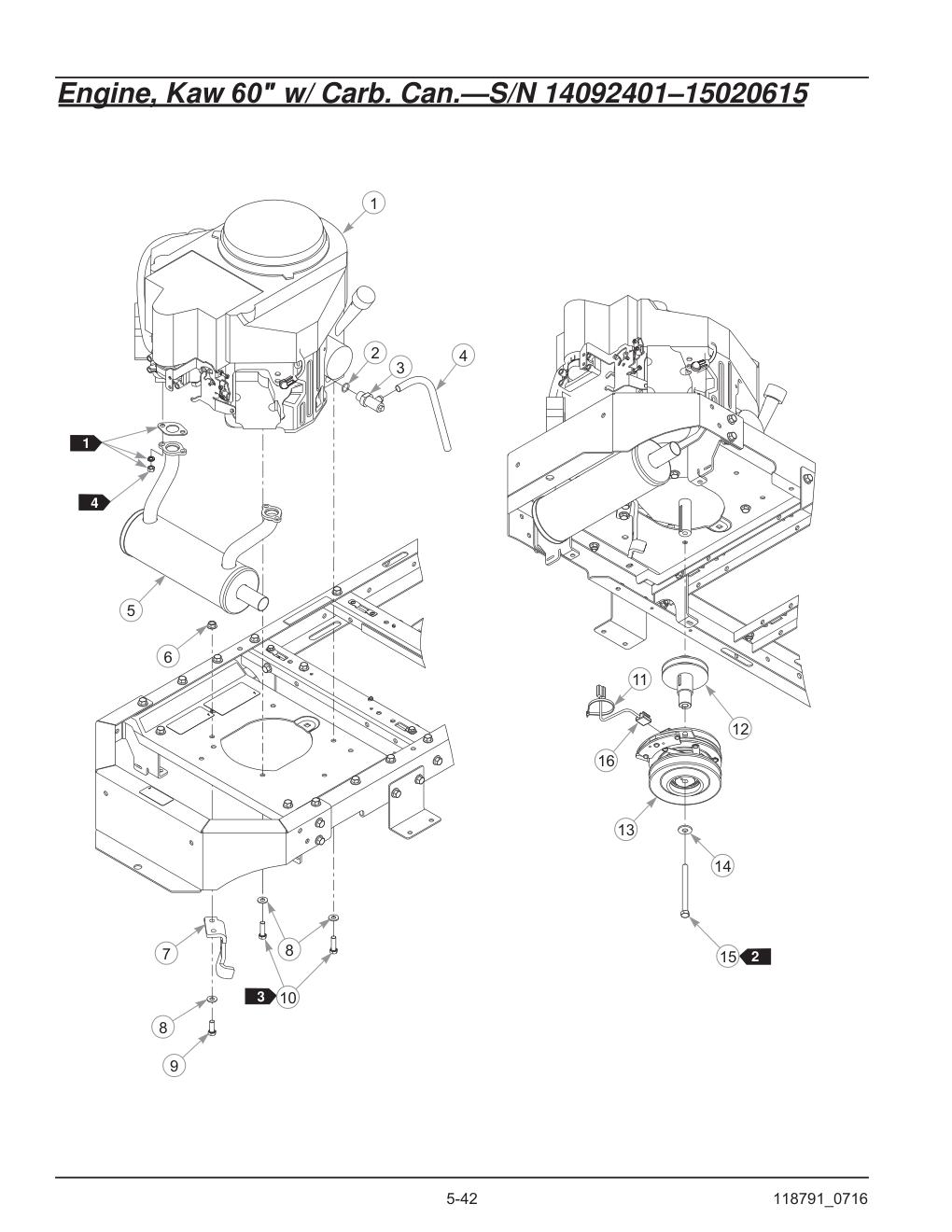

Engine, Kaw 60" w/ Carb. Can.-S/N 14092401-15020615
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR730V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 4 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 5 | MUFFLER | 604016 | 1 | 604016-Online |
| 6 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 7 | CLUTCH ANCHOR | 118238 | 1 | 118238-Online |
| 8 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 11 | WIRE TIE | 000331 | 5 | 000331-Online |
| 12 | STUB SHAFT PUMP PULLEY | 604712 | 1 | 604712-Online |
| 13 | CLUTCH KIT | 604713K | 1 | 604713K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 15 | CS .437-20 X 4.75 HX G5 P85 | 605448 | 1 | 605448-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
Engine, Kaw 60" w/ Carb. Can.-S/N 14092401-15020615
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 18 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 19 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 20 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 21 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 22 | LW .325 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 23 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 24 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 26 | 3/16" VAPOR LINE | 603326 | 38" | 603326-Online |
| 27 | 3/16" HOSE CLAMP | 603112 | 1 | 603112-Online |
Engine, Kaw 60" w/ Carb. Can.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR730V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | OIL DRAIN VALVE | 604350 | 1 | 604350-Online |
| 4 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 5 | MUFFLER | 604016 | 1 | 604016-Online |
| 6 | NT .375-16 HX FLK G5 | 016899 | 1 | HT016899-Online |
| 7 | CLUTCH ANCHOR | 118238 | 1 | 118238-Online |
| 8 | FW .379 X .813 X .063 | 767954 | 5 | HT767954-Online |
| 9 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16 X 1.25 HX G8 P85 | 602580 | 4 | 602580-Online |
| 11 | WIRE TIE | 000331 | 5 | 000331-Online |
| 12 | STUB SHAFT PUMP PULLEY | 604712 | 1 | 604712-Online |
| 13 | CLUTCH KIT | 604713K | 1 | 604713K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 2 | 602680-Online |
| 15 | CS .437-20 X 4.75 HX G5 P85 | 604721 | 1 | 604721-Online |
| 16 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 17 | FW 1.03 X 1.50 X 0.134 | 045765 | 1 | HT045765-Online |
Engine, Kaw 60" w/ Carb. Can.-S/N Prior to 14092401
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 18 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 19 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 20 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 21 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 22 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 23 | LW .325 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 24 | CS M8 X 1.25 X 16 HX FL10.9 | 720516 | 1 | 720516-Online |
| 25 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 26 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |
| 27 | 3/16" VAPOR LINE | 603326 | 38" | 603326-Online |
| 28 | 3/16" HOSE CLAMP | 603112 | 1 | 603112-Online |

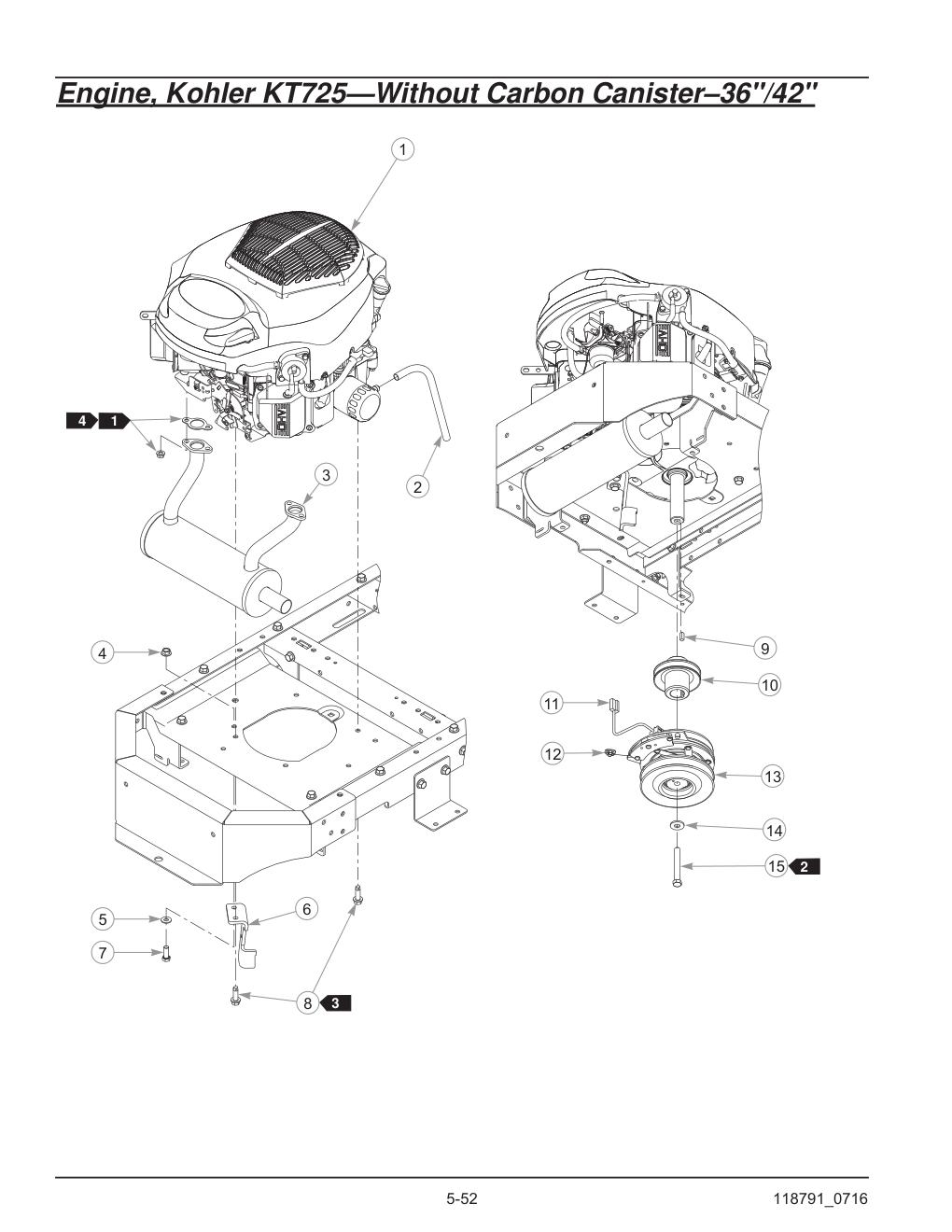

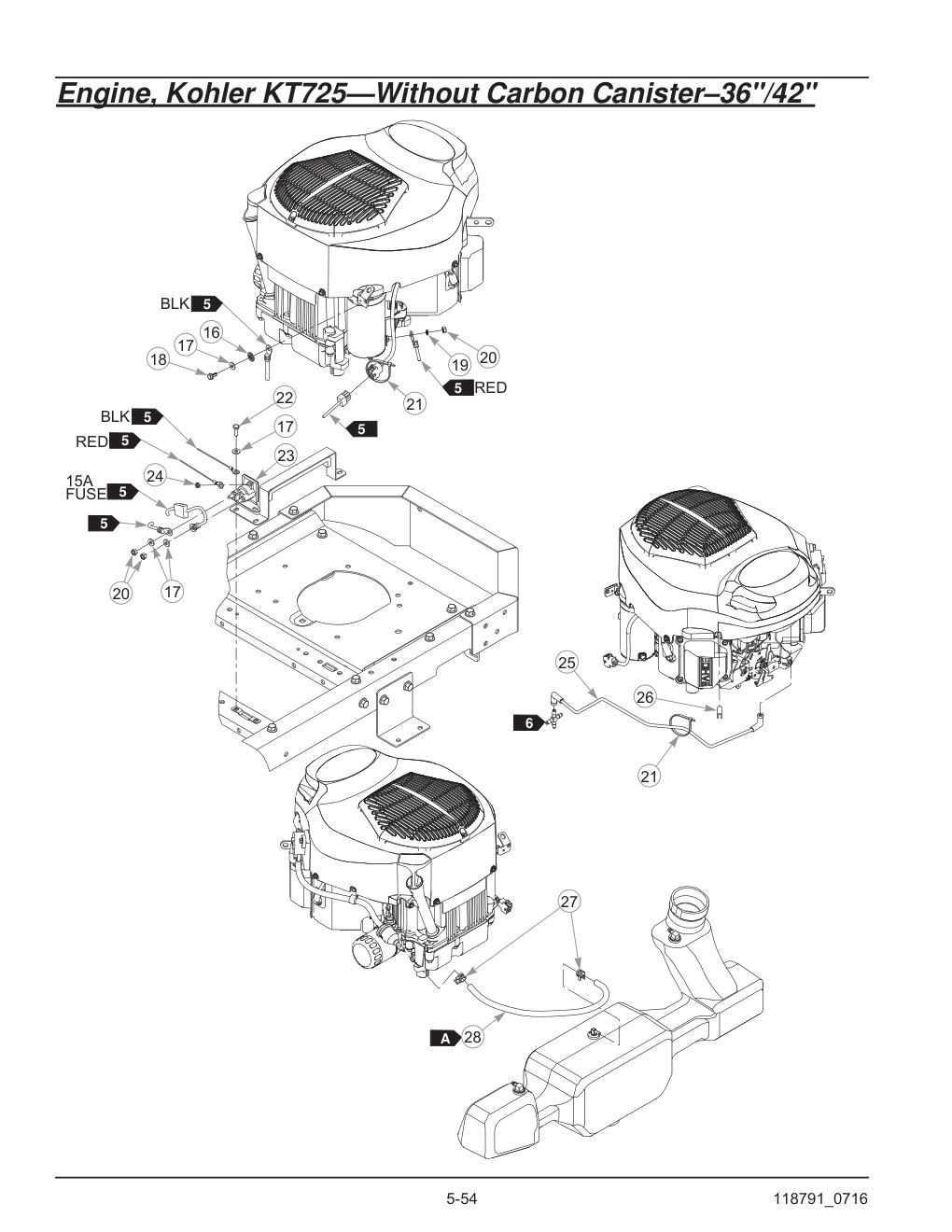

Engine, Kohler KT725-Without Carbon Canister-36"/42"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KOHLER KT725 ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 605793 | 1 | 605793-Online |
| 4 | NT .375-16 HX G5 FLK | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 1 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 8 | SC .375-16 X 1.25 FLG | 605814 | 4 | 605814-Online |
| 9 | KEY 1/4 SQ X .66 LG | 712372 | 1 | HT712372-Online |
| 10 | PULLEY | 605675 | 1 | 605675-Online |
| 11 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 12 | CLUTCH BUSHING | 605595 | 1 | 605595-Online |
| 13 | CLUTCH KIT | 605777K | 1 | 605777K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 15 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
Engine, Kohler KT725-Without Carbon Canister-36"/42"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | LW .250 INT-EXT TOOTH Z | 029868 | 1 | 029868-Online |
| 17 | FW .281 X .625 X .066 | 768515 | 5 | HT768515-Online |
| 18 | SC .250-20 X .50 HX FL STP | 603617 | 1 | 603617-Online |
| 19 | LW .250 MED SPRING ZNYC | 017038 | 1 | 017038-Online |
| 20 | NT .250-20 HX G5 | 024927 | 3 | HT024927-Online |
| 21 | WIRE TIE | 000331 | 2 | 000331-Online |
| 22 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 23 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 24 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 25 | 3/16" FORMED VAPOR LINE | 605894 | 1 | 605894-Online |
| 26 | TRIM LOCK 1.13" | 604966 | 1 | 604966-Online |
| 27 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 28 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |

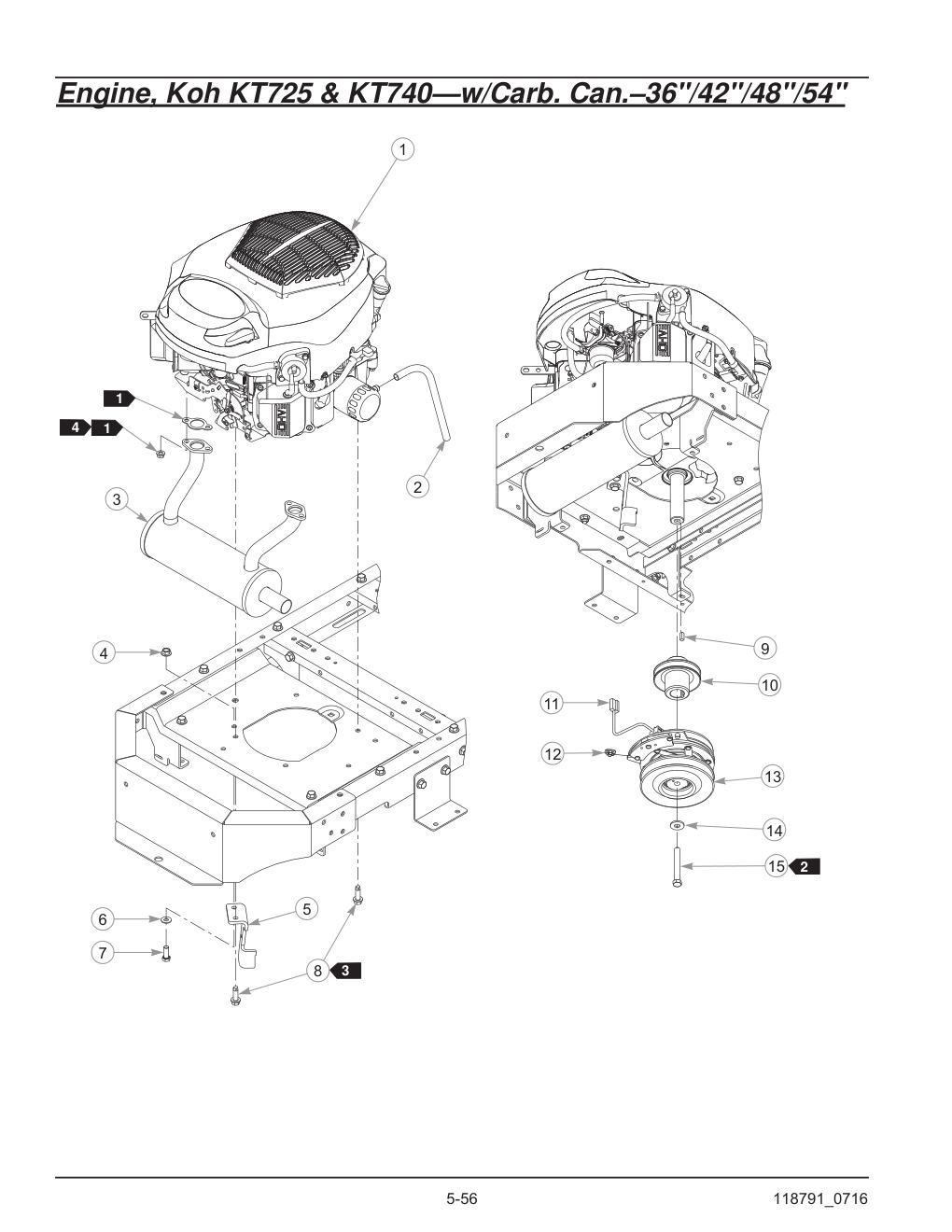

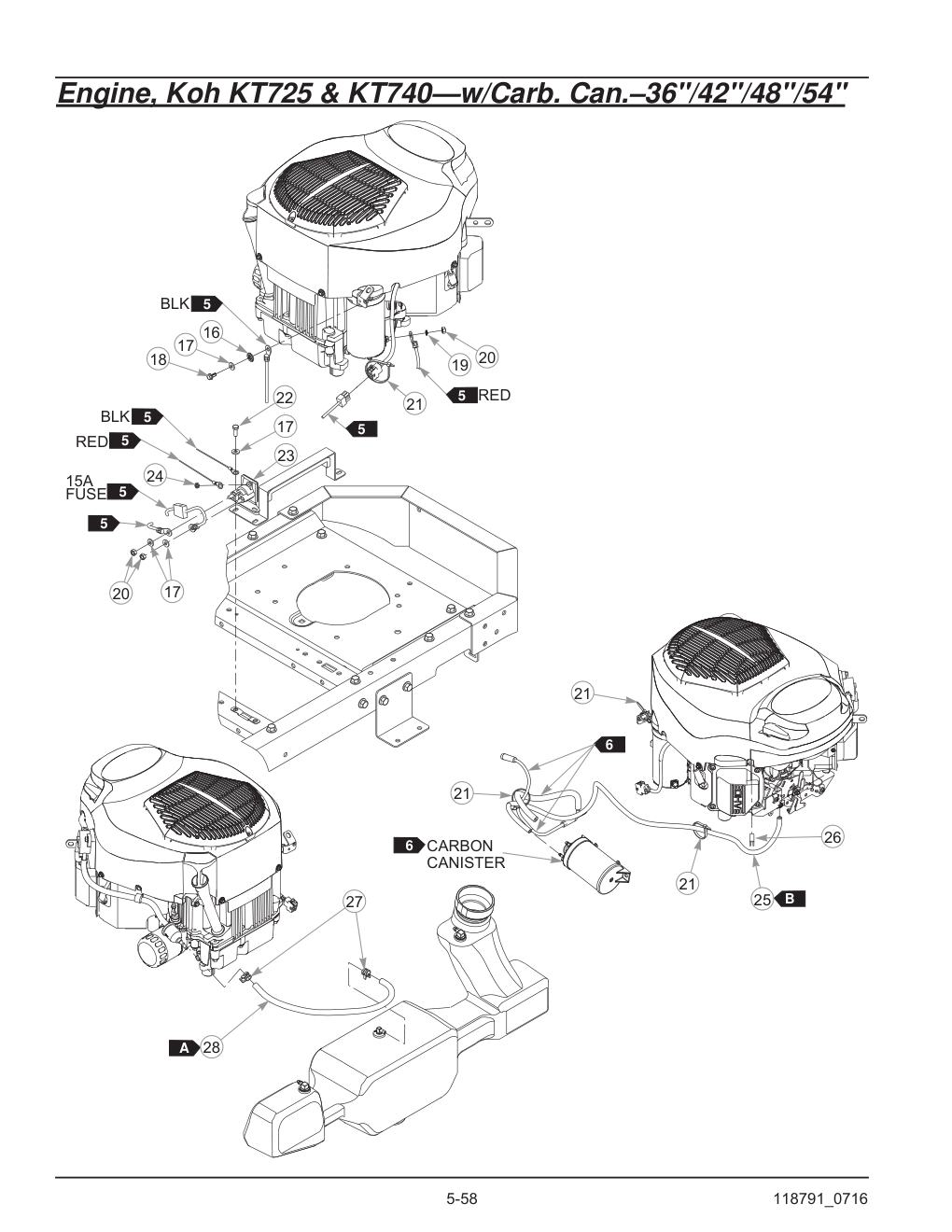

Engine, Koh KT725 & KT740-w/Carb. Can.-36"/42"/48"/54"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KOHLER KT725 & KT740 ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 605793 | 1 | 605793-Online |
| 4 | NT .375-16 HX G5 FLK | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 1 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 8 | SC .375-16 X 1.25 FLG | 605814 | 4 | 605814-Online |
| 9 | KEY 1/4 SQ X .66 LG | 712372 | 1 | HT712372-Online |
| 10 | PULLEY | 605675 | 1 | 605675-Online |
| 11 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 12 | CLUTCH BUSHING | 605595 | 1 | 605595-Online |
| 13 | CLUTCH KIT | 605777K | 1 | 605777K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 15 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
Engine, Koh KT725 & KT740-w/Carb. Can.-36"/42"/48"/54"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | LW .250 INT-EXT TOOTH Z | 029868 | 1 | 029868-Online |
| 17 | FW .281 X .625 X .066 | 768515 | 5 | HT768515-Online |
| 18 | SC .250-20 X .50 HX FL STP | 603617 | 1 | 603617-Online |
| 19 | LW .250 MED SPRING ZNYC | 017038 | 1 | 017038-Online |
| 20 | NT .250-20 HX G5 | 024927 | 3 | HT024927-Online |
| 21 | WIRE TIE | 000331 | 4 | 000331-Online |
| 22 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 23 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 24 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 25 | 3/16" VAPOR LINE | 603326 | 45" | 603326-Online |
| 26 | TRIM LOCK 1.13" | 604966 | 1 | 604966-Online |
| 27 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 28 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |

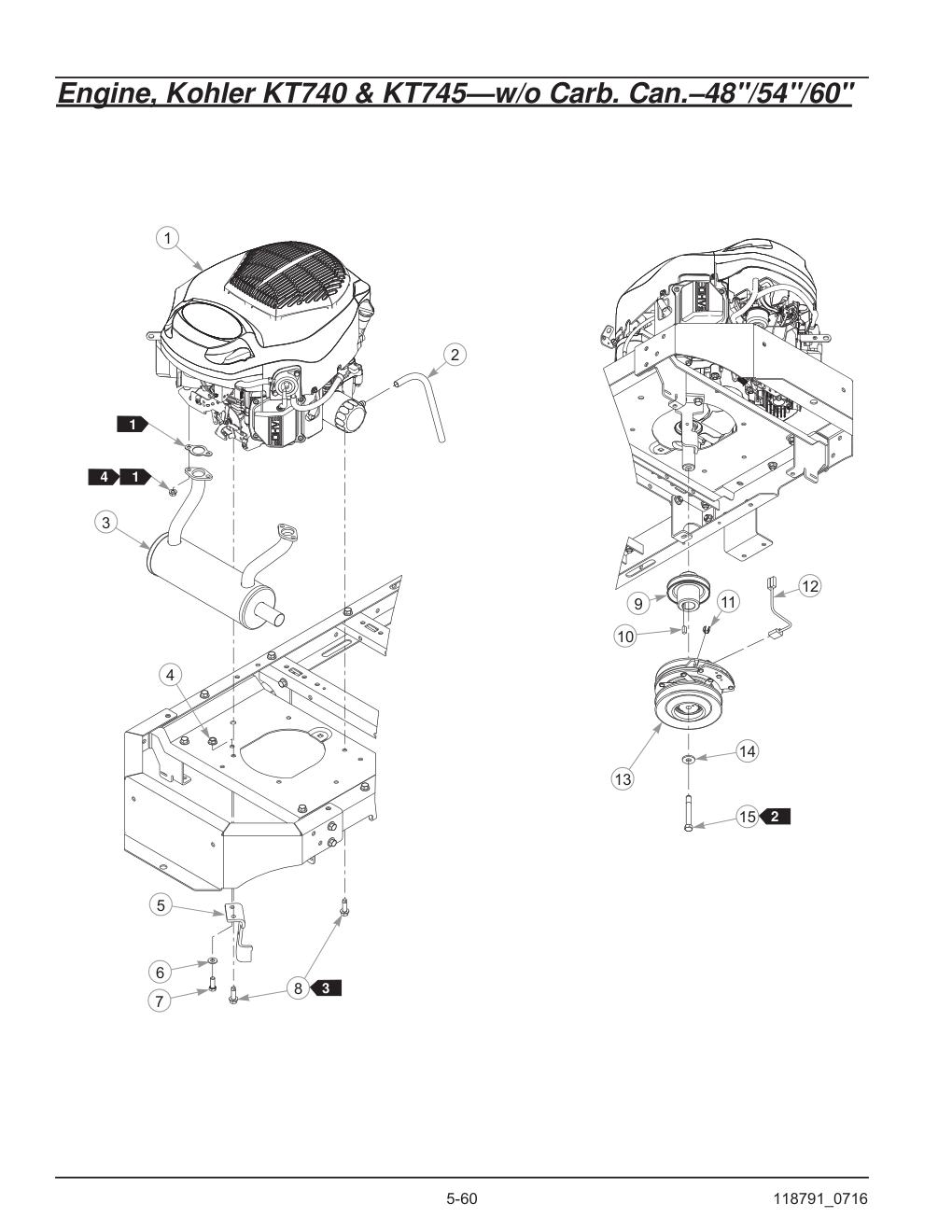

Engine, Kohler KT740 & KT745-w/o Carb. Can.-48"/54"/60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KOHLER KT740 & KT745 ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 605793 | 1 | 605793-Online |
| 4 | NT .375-16 HX G5 FLK | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 1 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 8 | SC .375-16 X 1.25 FLG | 605814 | 4 | 605814-Online |
| 9 | PULLEY | 605675 | 1 | 605675-Online |
| 10 | KEY 1/4 SQ X .66 LG | 712372 | 1 | HT712372-Online |
| 11 | CLUTCH BUSHING | 605595 | 1 | 605595-Online |
| 12 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 13 | CLUTCH KIT | 605777K | 1 | 605777K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 15 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
Engine, Kohler KT740 & KT745-w/o Carb. Can.-48"/54"/60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | LW .250 INT-EXT TOOTH Z | 029868 | 1 | 029868-Online |
| 17 | FW .281 X .625 X .066 | 768515 | 5 | HT768515-Online |
| 18 | SC .250-20 X .50 HX FL STP | 603617 | 1 | 603617-Online |
| 19 | NT .250-20 HX G5 | 024927 | 3 | HT024927-Online |
| 20 | LW .250 MED SPRING ZNYC | 017038 | 1 | 017038-Online |
| 21 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 22 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 23 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 24 | 3/16" FORMED VAPOR LINE | 605894 | 1 | 605894-Online |
| 25 | TRIM LOCK 1.13" | 604966 | 1 | 604966-Online |
| 26 | WIRE TIE | 000331 | 2 | 000331-Online |
| 27 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 28 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |

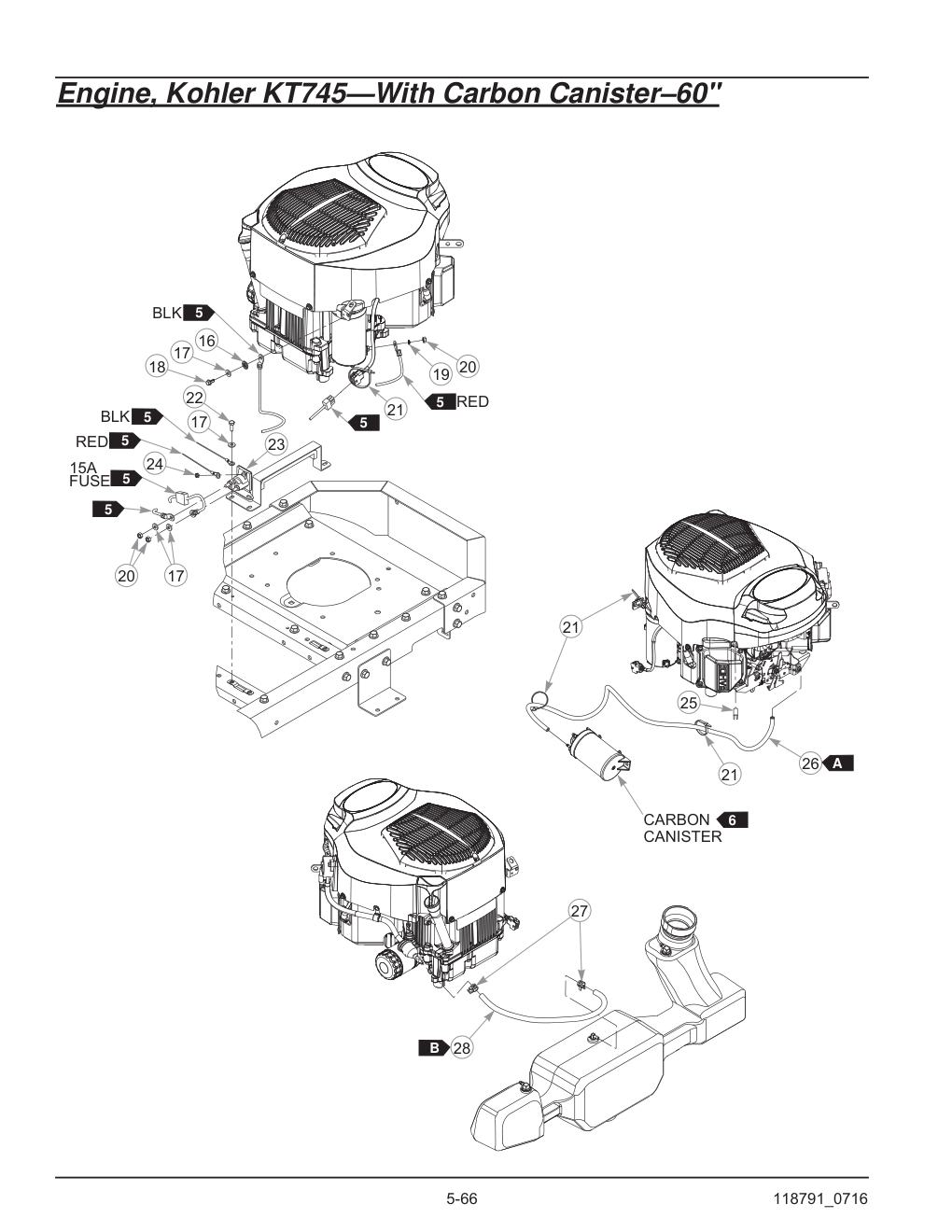

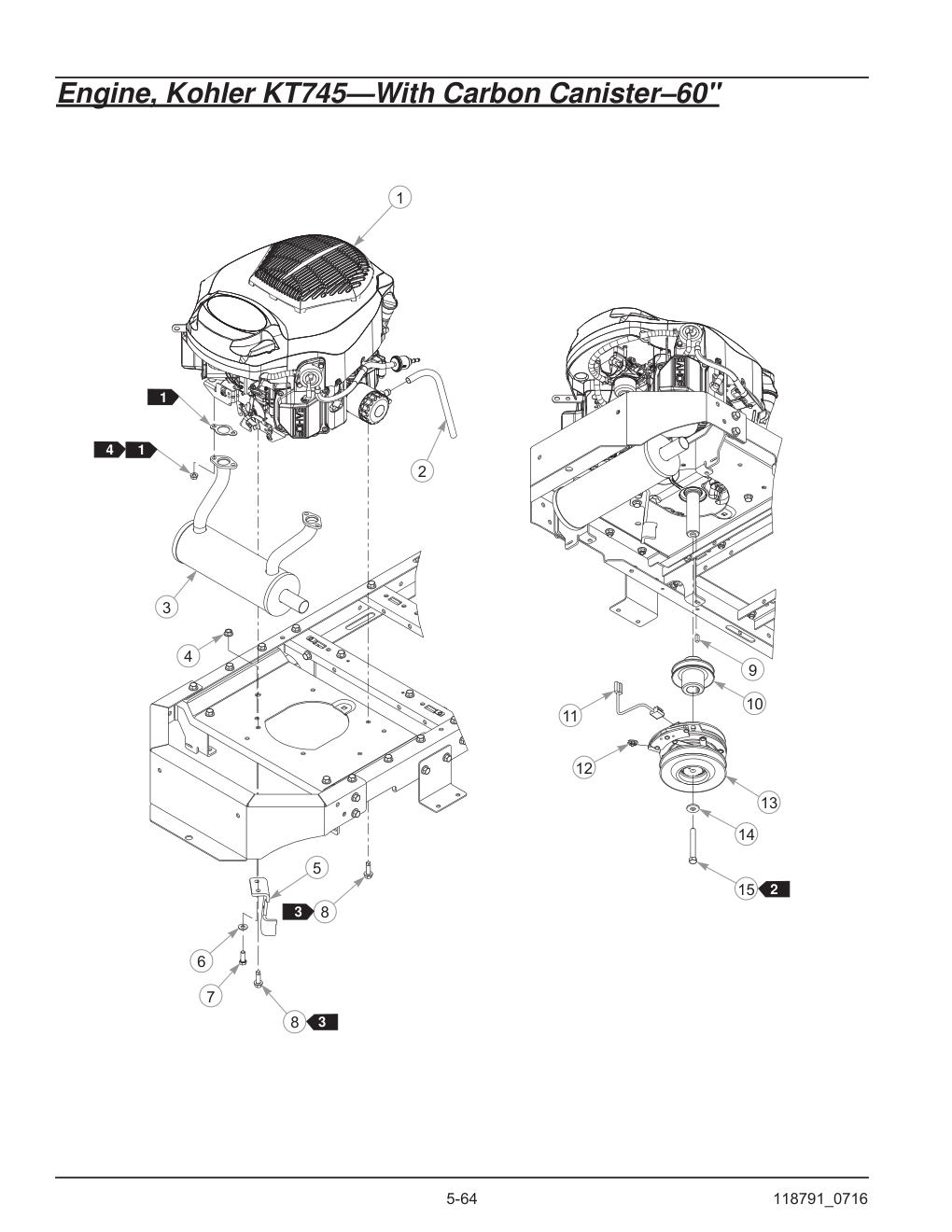

Engine, Kohler KT745-With Carbon Canister-60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KOHLER KT745 ENGINE | N/A | 1 | No SKU |
| 2 | OIL DRAIN HOSE | 604463 | 12" | 604463-Online |
| 3 | MUFFLER | 605793 | 1 | 605793-Online |
| 4 | NT .375-16 HX G5 FLK | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW .379 X .813 X .063 | 767954 | 1 | HT767954-Online |
| 7 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 8 | SC .375-16 X 1.25 FLG | 605814 | 4 | 605814-Online |
| 9 | KEY 1/4 SQ X .66 LG | 712372 | 1 | HT712372-Online |
| 10 | PULLEY | 605675 | 1 | 605675-Online |
| 11 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 12 | CLUTCH BUSHING | 605595 | 1 | 605595-Online |
| 13 | CLUTCH KIT | 605777K | 1 | 605777K-Online |
| 14 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 15 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
Engine, Kohler KT745-With Carbon Canister-60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | LW .250 INT-EXT TOOTH Z | 029868 | 1 | 029868-Online |
| 17 | FW .281 X .625 X .066 | 768515 | 5 | HT768515-Online |
| 18 | SC .250-20 X .50 HX FL STP | 603617 | 1 | 603617-Online |
| 19 | LW .250 MED SPRING ZNYC | 017038 | 1 | 017038-Online |
| 20 | NT .250-20 HX G5 | 024927 | 3 | HT024927-Online |
| 21 | WIRE TIE | 000331 | 4 | 000331-Online |
| 22 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 23 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 24 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 25 | TRIM LOCK 1.13" | 604966 | 1 | 604966-Online |
| 26 | 3/16" VAPOR LINE | 603326 | 45" | 603326-Online |
| 27 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 28 | 1/4" FUEL LINE | 015818 | 18" | HT015818-Online |

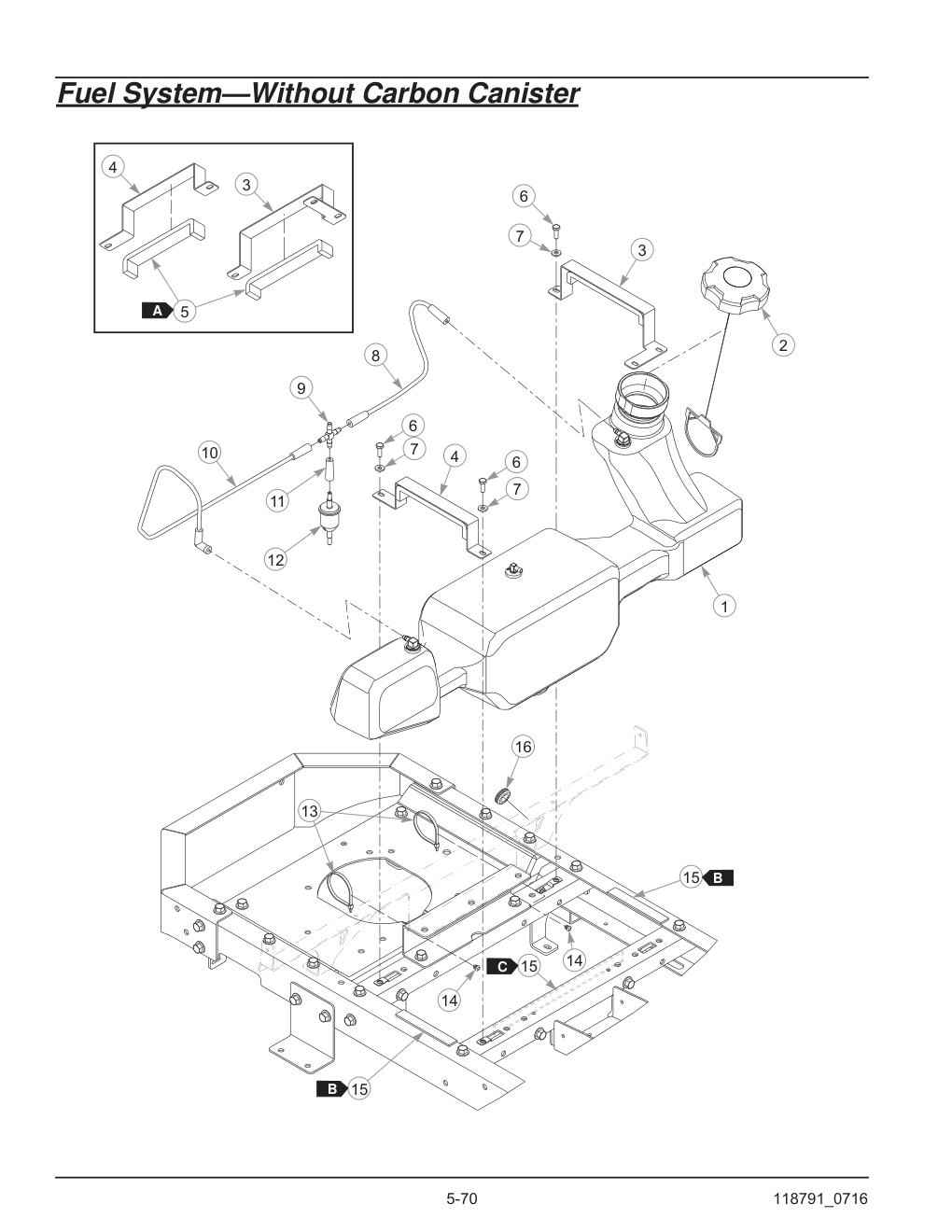

Fuel System-Without Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL TANK (S/N 15077829 & HIGHER) | 605958 | 1 | 605958-Online |
| 1 | FUEL TANK (S/N PRIOR TO 15077829) | 604336 | 1 | 604336-Online |
| 2 | RATCHETING GAS CAP, 3.5" | 603807 | 1 | 603807-Online |
| 3 | LEFT TANK MOUNT | 117059 | 1 | 117059-Online |
| 4 | RIGHT TANK MOUNT | 117060 | 1 | 117060-Online |
| 5 | SEAL 3/8 X 3/4 | 713198 | 18.5" | 713198-Online |
| 6 | CS .250-20 X .75 HX G5 | 055939 | 3 | 055939-Online |
| 7 | FW .281 X .625 X .066 | 768515 | 3 | HT768515-Online |
| 8 | 3/16" FORMED VAPOR LINE | 604279 | 1 | 604279-Online |
| 9 | 1/4" HOSE BARB CROSS | 604322 | 1 | 604322-Online |
| 10 | 3/16" FORMED VAPOR LINE | 604273 | 1 | 604273-Online |
| 11 | BOOT, 3/16" TO 1/4" BARB | 604292 | 1 | 604292-Online |
| 12 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 13 | WIRE TIE | 000331 | 2 | 000331-Online |
| 14 | PUSH BUTTON MOUNT | 604307 | 2 | 604307-Online |
| 15 | WEATHERSTRIP | 033035 | 22" | 033035-Online |
| 16 | GM .63 X 1.13 X .88 X .13 (S/N 15077829 & HIGHER) | 601400 | 1 | 601400-Online |

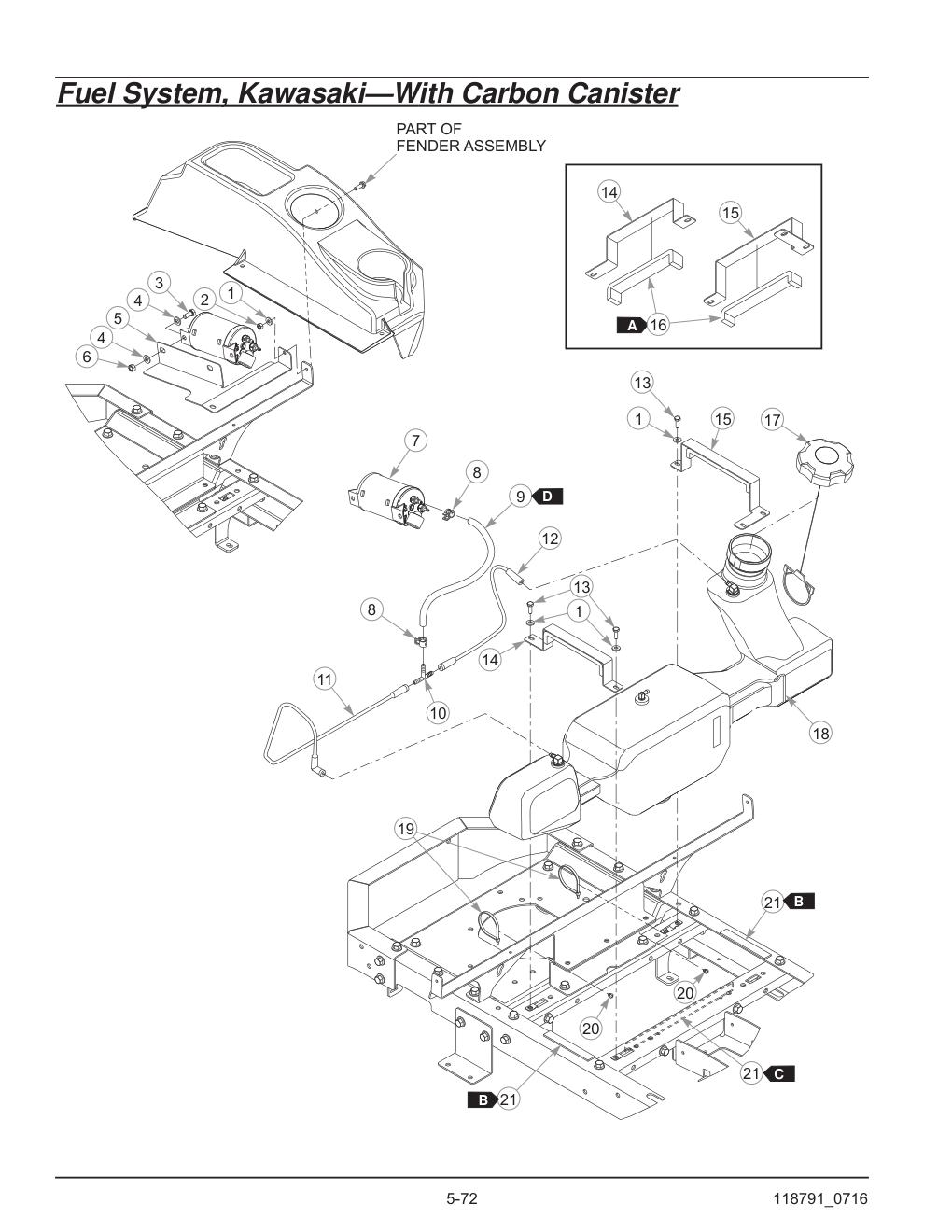

Fuel System, Kawasaki-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 2 | NT .250-20 HX G5 ZNYC | 024927 | 1 | HT024927-Online |
| 3 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CARBON CANISTER MOUNT | 117463 | 1 | 117463-Online |
| 6 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 7 | CARBON CANISTER | 604376 | 1 | 604376-Online |
| 8 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 9 | 1/4" FUEL LINE | 015818 | 13" | HT015818-Online |
| 10 | PLASTIC TEE 1/4" | 603306 | 1 | 603306-Online |
| 11 | 3/16" FORMED VAPOR LINE | 604273 | 1 | 604273-Online |
| 12 | 3/16" FORMED VAPOR LINE | 604279 | 1 | 604279-Online |
| 13 | CS .250-20 X .75 HX G5 | 055939 | 3 | 055939-Online |
| 14 | RIGHT TANK MOUNT | 117060 | 1 | 117060-Online |
| 15 | LEFT TANK MOUNT | 117059 | 1 | 117059-Online |
| 16 | SEAL 3/8 X 3/4 | 713198 | 18.5" | 713198-Online |
| 17 | RATCHETING GAS CAP, 3.5" | 603807 | 1 | 603807-Online |
| 18 | FUEL TANK ASSEMBLY | 604336 | 1 | 604336-Online |
| 19 | WIRE TIE | 000331 | 2 | 000331-Online |
| 20 | PUSH BUTTON MOUNT | 604307 | 2 | 604307-Online |
| 21 | WEATHERSTRIP | 033035 | 22" | 033035-Online |

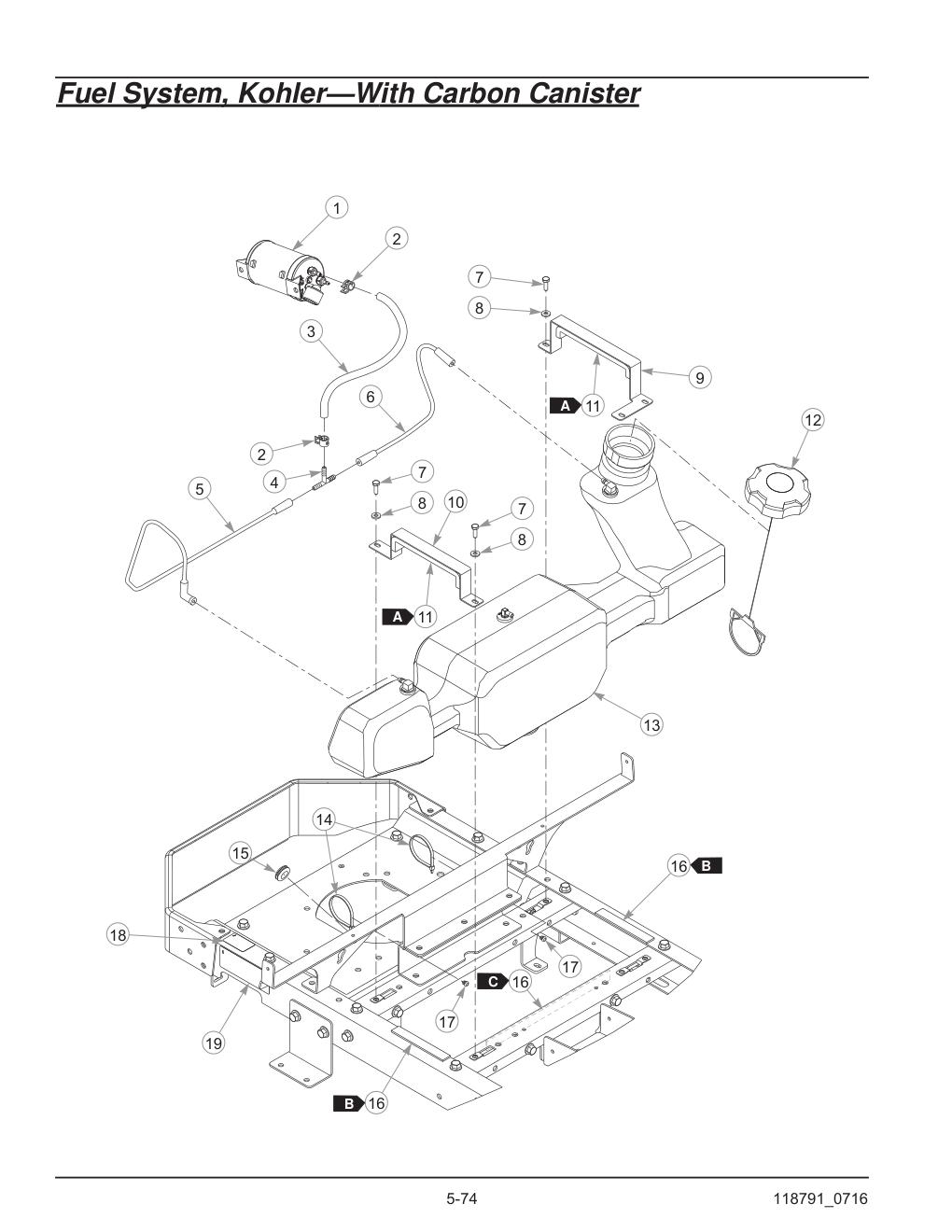

Fuel System, Kohler-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CARBON CANISTER | 604376 | 1 | 604376-Online |
| 2 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 3 | 1/4" FUEL LINE | 015818 | 13" | HT015818-Online |
| 4 | PLASTIC TEE 1/4" | 603306 | 1 | 603306-Online |
| 5 | 3/16" FORMED VAPOR LINE | 604273 | 1 | 604273-Online |
| 6 | 3/16" FORMED VAPOR LINE | 604279 | 1 | 604279-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 3 | 055939-Online |
| 8 | FW .281 X .625 X .066 | 768515 | 4 | HT768515-Online |
| 9 | LEFT TANK MOUNT | 117059 | 1 | 117059-Online |
| 10 | RIGHT TANK MOUNT | 117060 | 1 | 117060-Online |
| 11 | SEAL 3/8 X 3/4 | 713198 | 18.5" | 713198-Online |
| 12 | RATCHETING GAS CAP, 3.5" | 603807 | 1 | 603807-Online |
| 13 | FUEL TANK | 605958 | 1 | 605958-Online |
| 14 | WIRE TIE | 000331 | 2 | 000331-Online |
| 15 | GM .63 X 1.13 X .88 X .13 | 601400 | 1 | 601400-Online |
| 16 | WEATHERSTRIP | 033035 | 22" | 033035-Online |
| 17 | PUSH BUTTON MOUNT | 604307 | 2 | 604307-Online |
| 18 | ANSI COMPLIANCE DECAL | 603363 | 1 | 603363-Online |
| 19 | SPARK ARRESTER DECAL | 601908 | 1 | 601908-Online |
Fuel System, Kohler-With Carbon Canister
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 20 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 21 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 22 | NT .312-18 HX G5 | 034272 | 2 | HT034272-Online |
| 23 | CARBON CANISTER MOUNT | 117463 | 1 | 117463-Online |
| 24 | NT .250-20 HX G5 | 024927 | 1 | HT024927-Online |

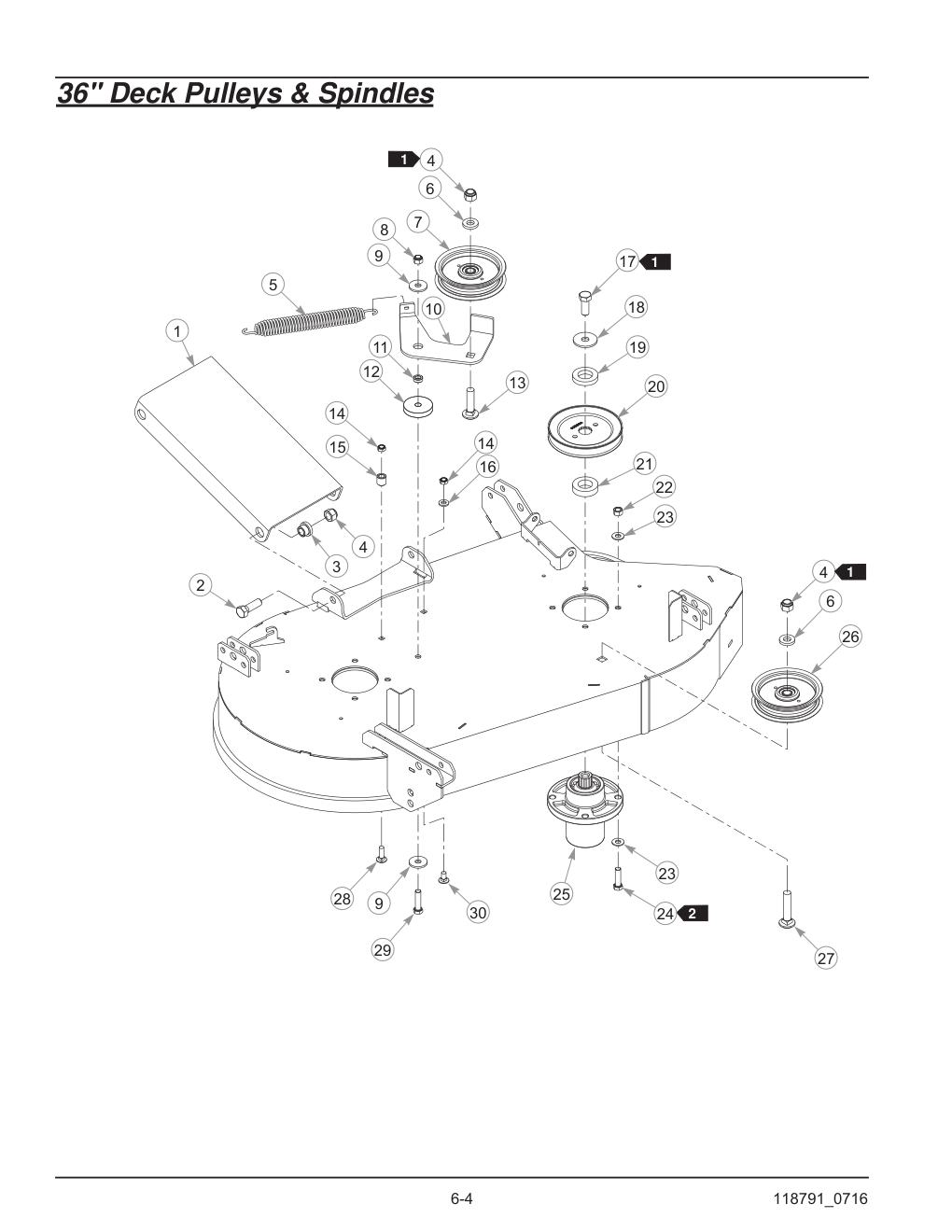

36" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLER | 122027 | 1 | 122027-Online |
| 2 | CS .500-13 X 1.50 HX G5 | 074252 | 2 | HT074252-Online |
| 3 | PIVOT SPACER BUSHING | 606250 | 2 | 606250-Online |
| 4 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 5 | IDLER SPRING | 122388 | 1 | 122388-Online |
| 6 | FW .531 X 1.063 X .175 | 767962 | 2 | HT767962-Online |
| 7 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 8 | NT .375-16 HX G5 NL | 086660 | 1 | HT086660-Online |
| 9 | FW .406 X 1.25 X .12 HRD Z | 712893 | 2 | HT712893-Online |
| 10 | 36" PIVOTING IDLER ARM | 119936 | 1 | 119936-Online |
| 11 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 12 | SPACER | 117539 | 1 | HT117539-Online |
| 13 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 14 | NT .312-18 HX NL JAM G2 ZN | 604251 | 2 | 604251-Online |
| 15 | TENSIONING PULLEY STOP | 122398 | 1 | 122398-Online |
| 16 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 17 | CS .500-13 X 1.25 HX G5 | 705954 | 2 | HT705954-Online |
| 18 | FW .515 X 1.65 X .125 HD ZY | 798603 | 2 | 798603-Online |
| 19 | SPINDLE SPACER | 604777 | 2 | 604777-Online |
| 20 | PULLEY | 605860 | 2 | 605860-Online |
| 21 | PULLEY SPACER | 604661 | 2 | 604661-Online |
| 22 | NT .375-16 HX G5 ZNY | 054502 | 8 | HT054502-Online |
| 23 | FW .379 X .813 X .063 | 767954 | 16 | HT767954-Online |
| 24 | CS .375-16 X 1.375 HX G5 | 005116 | 8 | HT005116-Online |
| 25 | SPINDLE ASSEMBLY | 601804 | 2 | 601804-Online |
| 26 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 27 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 28 | CB .312-18 X 1.00 FULL ZN | 037887 | 1 | HT037887-Online |
| 29 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 30 | CB .312-18 X .620 G5 ZN | 083147 | 1 | 083147-Online |
36" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 605254 | 1 RS | 605254-Online |
| 2 | .250-20 X .75 HX FLG | 604324 | 4 CS | 604324-Online |
| 3 | PULLEY COVER | 604403 | 1 LS | 604403-Online |
| 4 | A-SEC 110.5" EL | 603806 | 1 BELT, | 603806-Online |
| 5 | CHUTE | 604609 | 1 DISCHARGE | 604609-Online |
| 6 | .375-16 HX G5 ZY NL | 086660 | 1 NT | HT086660-Online |
| 7 | SPRING | 604331 | 1 CHUTE | 604331-Online |
| 8 | CHUTE PIN | 604346 | 1 DISCHARGE | 604346-Online |
| 9 | .500-13 HX G8 ZY NL | 781567 | 1 NT | HT781567-Online |
| 10 | .531 X 1.063 X .175 | 767962 | 3 FW | HT767962-Online |
| 11 | WHEEL ASSEMBLY (INCLUDES HARDWARE) | 788166 | 1 PLASTIC | HT788166-Online |
| 12 | 17.86"-L-F-CW | 783753 | 2 BLADE, | 783753-Online |
| 12 | 17.86" -M-F-CW | 603995 | 2 BLADE, | 603995-Online |
| 12 | 17.86"-CAT-F-CW | 603848 | 2 BLADE, | 603848-Online |
| 13 | .631 X 2.25 X .187 PNT | 782474 | 2 CW | HT782474-Online |
| 14 | .625-11 X 1.25 HX G5 Z | 781872 | 2 CS | HT781872-Online |
| 15 | .500-13 X 4.25 HX G5 | 781708 | 1 CS | HT781708-Online |
| 16 | WHEEL | 031997 | 1 PLASTIC | HT031997-Online |
| 17 | .500-13 HX JAM ZNYC | 053199 | 1 NT | HT053199-Online |

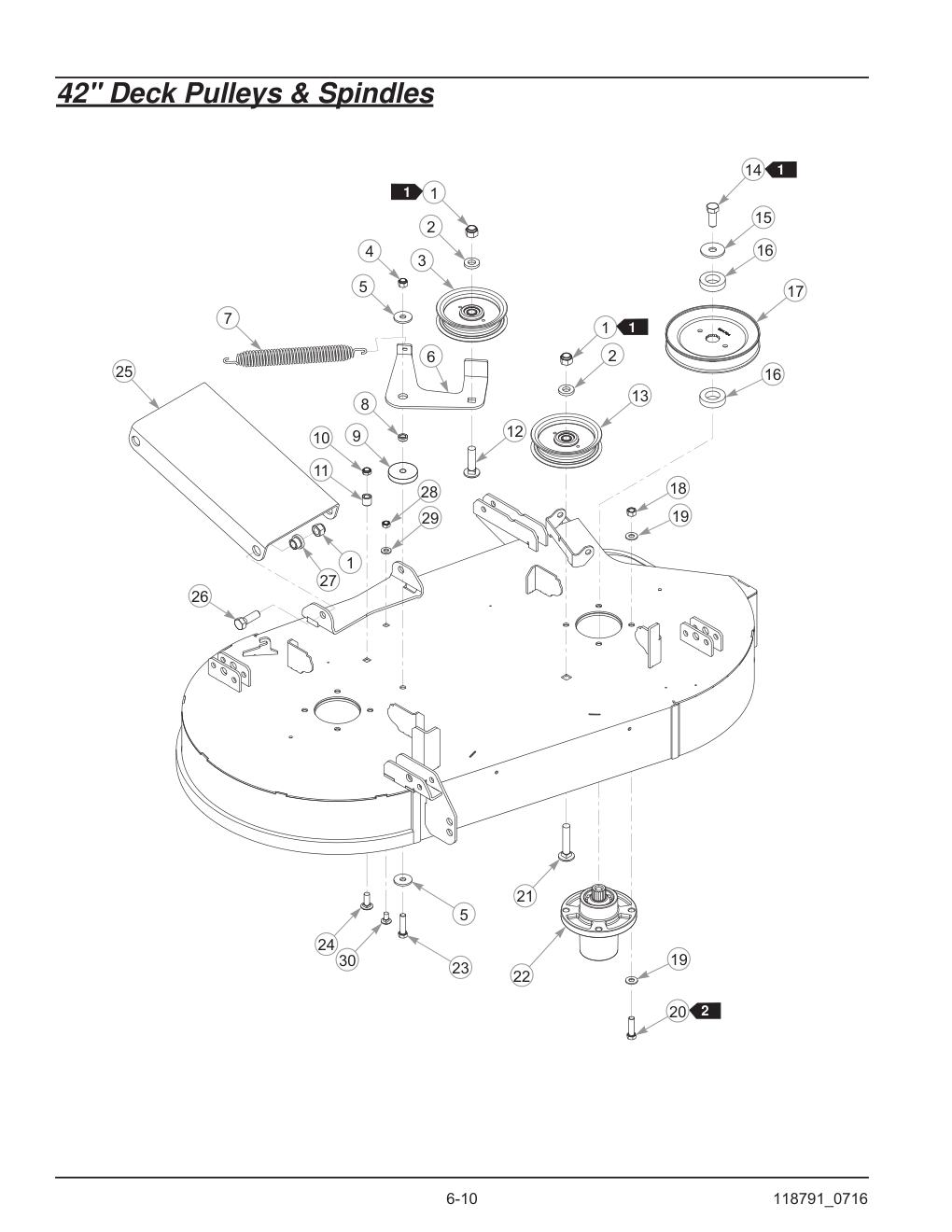

42" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 2 | FW .531 X 1.063 X .175 | 767962 | 2 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT .375-16 HX G5 NL | 086660 | 1 | HT086660-Online |
| 5 | FW .406 X 1.25 X .12 HRD Z | 712893 | 2 | HT712893-Online |
| 6 | IDLER ARM | 117512 | 1 | 117512-Online |
| 7 | IDLER SPRING | 122388 | 1 | 122388-Online |
| 8 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 9 | SPACER | 117539 | 1 | HT117539-Online |
| 10 | NT .375-16 HX NL JAM ZN | 603846 | 1 | 603846-Online |
| 11 | TENSIONING PULLEY STOP | 122398 | 1 | 122398-Online |
| 12 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 13 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 14 | CS .500-13 X 1.25 HX G5 | 705954 | 2 | HT705954-Online |
| 15 | FW .515 X 1.65 X .125 HD ZY | 798603 | 2 | 798603-Online |
| 16 | PULLEY SPACER | 604661 | 4 | 604661-Online |
| 17 | PULLEY | 604704 | 2 | 604704-Online |
| 18 | NT .375-16 HX G5 ZNY | 054502 | 8 | HT054502-Online |
| 19 | FW .379 X .813 X .063 | 767954 | 16 | HT767954-Online |
| 20 | CS .375-16 X 1.375 HX G5 | 005116 | 8 | HT005116-Online |
| 21 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 22 | SPINDLE ASSEMBLY | 601804 | 2 | 601804-Online |
| 23 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 24 | CB .375-16 X 1.00 G5 ZNY | 025395 | 1 | HT025395-Online |
| 25 | PULLER | 122027 | 1 | 122027-Online |
| 26 | CS .500-13 X 1.50 HX G5 | 074252 | 2 | HT074252-Online |
| 27 | PIVOT SPACER BUSHING | 606250 | 2 | 606250-Online |
| 28 | NT .312-18 HX NL JAM G2 ZN | 604251 | 1 | 604251-Online |
| 29 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 30 | CB .312-18 X .620 G5 ZN | 083147 | 1 | 083147-Online |
42" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" DECK PULLEY COVER | 605452 | 2 | 605452-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 2 | 604324-Online |
| 3 | BELT, 121.33" | 606016 | 1 | 606016-Online |
| 4 | DISCHARGE CHUTE | 604609 | 1 | 604609-Online |
| 5 | NT .375-16 HX G5 NL | 086660 | 1 | HT086660-Online |
| 6 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 7 | DISCHARGE CHUTE PIN | 604346 | 1 | 604346-Online |
| 8 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 9 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 10 | PLASTIC WHEEL ASSEMBLY (WITH HARDWARE) | 788166 | 1 | HT788166-Online |
| 11 | BLADE, 20.50"-L-F-CW | 793794 | 2 | HT793794-Online |
| 11 | BLADE, F20.50"-H-F-CW | 794685 | 2 | HT794685-Online |
| 11 | BLADE, 20.50"-CAT-F-CW | 793935 | 2 | HT793935-Online |
| 11 | BLADE, 20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| 11 | BLADE, 20.50"-GAT-F-CW | 794230 | 2 | HT794230-Online |
| 12 | CW .631 X 2.25 X .187 PNT | 782474 | 2 | HT782474-Online |
| 13 | CS .625-11 X 1.25 HX G5 Z | 781872 | 2 | HT781872-Online |
| 14 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 15 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 16 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

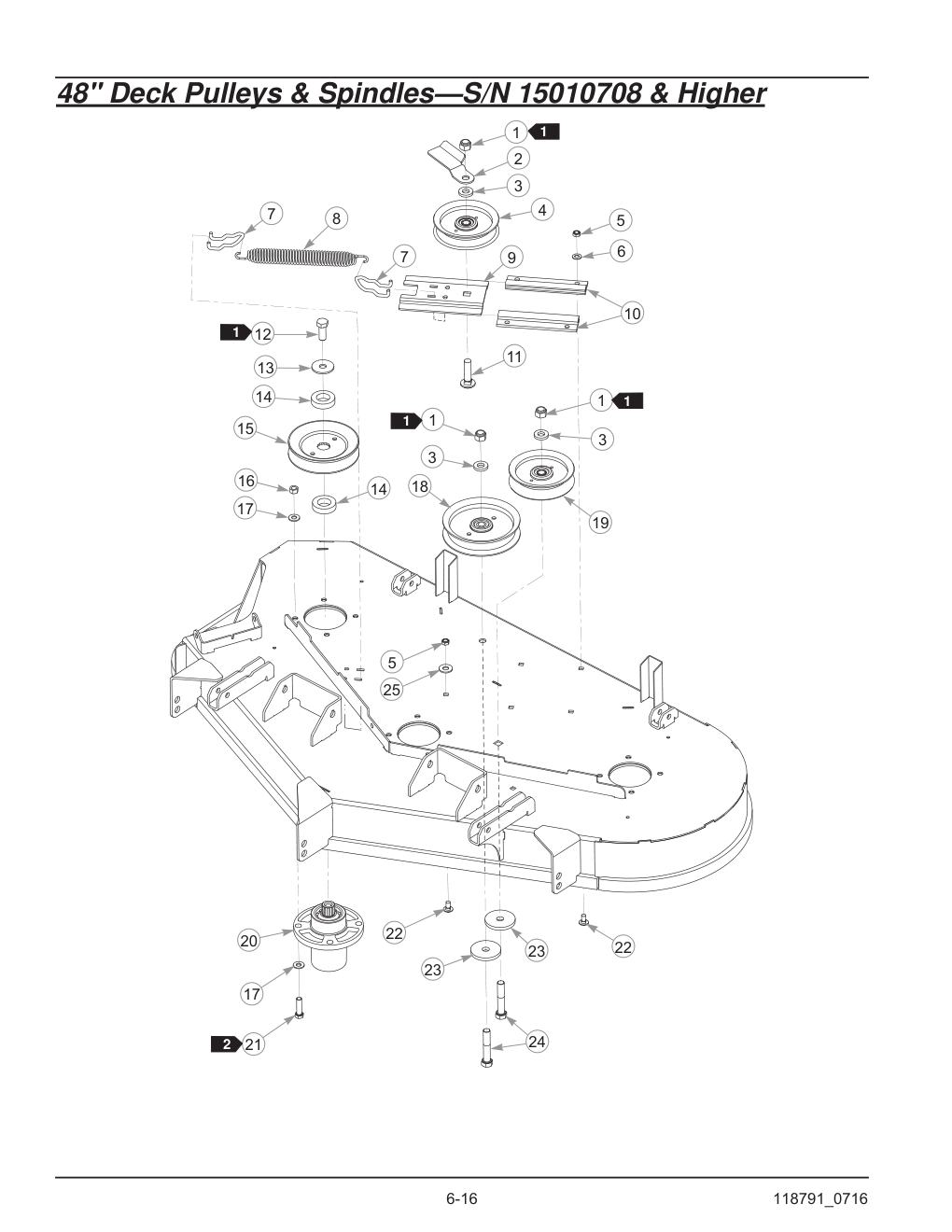

48" Deck Pulleys & Spindles-S/N 15010708 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 2 | BELT GUIDE | 121780 | 1 | HT121780-Online |
| 3 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 4 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 5 | NT .312-18 HX NL JAM G2 ZN | 604251 | 5 | 604251-Online |
| 6 | FW .340 X .675 X .035 ZN | 604252 | 4 | 604252-Online |
| 7 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 8 | IDLER SPRING | 122388 | 1 | 122388-Online |
| 9 | IDLER SLED | 604194 | 1 | 604194-Online |
| 10 | IDLER SLIDE | 604079 | 2 | 604079-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | CS .500-13 X 1.25 HX G5 | 705954 | 3 | HT705954-Online |
| 13 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 14 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 15 | DRIVE PULLEY B-SEC | 604665 | 3 | 604665-Online |
| 16 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 17 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 18 | IDLER PULLEY, 5.00" O.D. | 604231 | 1 | 604231-Online |
| 19 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 20 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 21 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 22 | CB .312-18 X .620 G5 ZN | 083147 | 5 | 083147-Online |
| 23 | FW .531 X 2.00 X .25 | 605516 | 2 | 605516-Online |
| 24 | CS .500-13 X 2.75 HX G5 Z | 721910 | 2 | HT721910-Online |
| 25 | FW .440 X 1.00 X .083 ZNY | 017129 | 1 | 017129-Online |

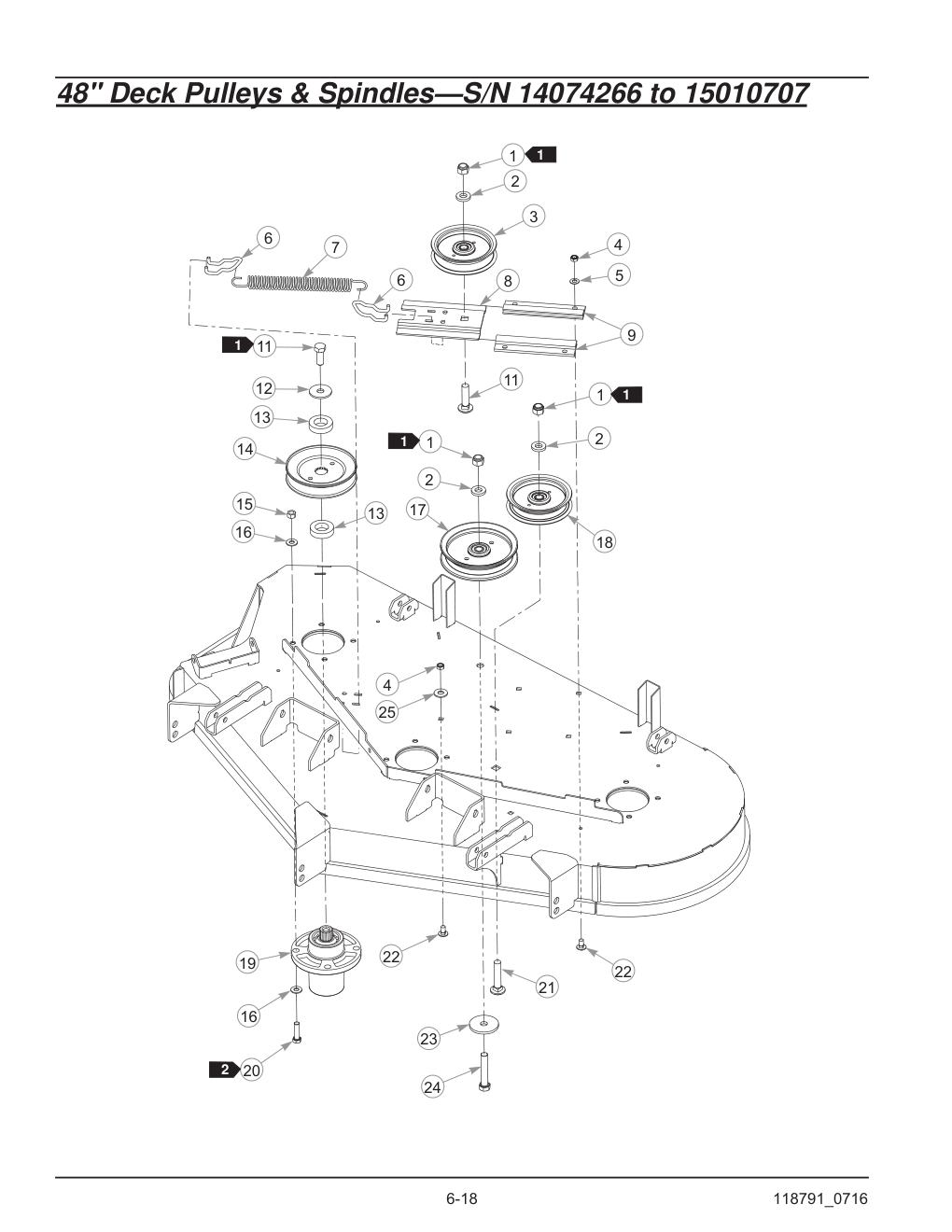

48" Deck Pulleys & Spindles-S/N 14074266 to 15010707
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 2 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT .312-18 HX NL JAM G2 ZN | 604251 | 5 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 4 | 604252-Online |
| 6 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | IDLER SLED | 604194 | 1 | 604194-Online |
| 9 | IDLER SLIDE | 604079 | 2 | 604079-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .500-13 X 1.25 HS G5 | 705954 | 3 | HT705954-Online |
| 12 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 13 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 14 | DRIVE PULLEY B-SEC | 604665 | 3 | 604665-Online |
| 15 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 17 | IDLER PULLEY, 5.00" O.D. | 604231 | 1 | 604231-Online |
| 18 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 19 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 20 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 21 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 22 | CB .312-18 X .620 G5 ZN | 083147 | 5 | 083147-Online |
| 23 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 24 | CS .500-13 X 2.75 HX G5 Z | 721910 | 1 | HT721910-Online |
| 25 | FW .440 X 1.00 X .083 ZNY | 017129 | 1 | 017129-Online |
48" Deck Pulleys & Spindles-S/N Prior to 14074266
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 2 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT .312-18 HX NL JAM G2 ZN | 604251 | 4 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 4 | 604252-Online |
| 6 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | IDLER SLED | 604194 | 1 | 604194-Online |
| 9 | IDLER SLIDE | 604079 | 2 | 604079-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .500-13 X 1.25 HS G5 | 705954 | 3 | HT705954-Online |
| 12 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 13 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 14 | DRIVE PULLEY B-SEC | 604665 | 3 | 604665-Online |
| 15 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 17 | IDLER PULLEY, 5.00" O.D. | 604231 | 1 | 604231-Online |
| 18 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 19 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 20 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 21 | CB .50-13 X 2.50 STD ZN | 604254 | 2 | 604254-Online |
| 22 | CB .312-18 X .620 G5 ZN | 083147 | 4 | 083147-Online |

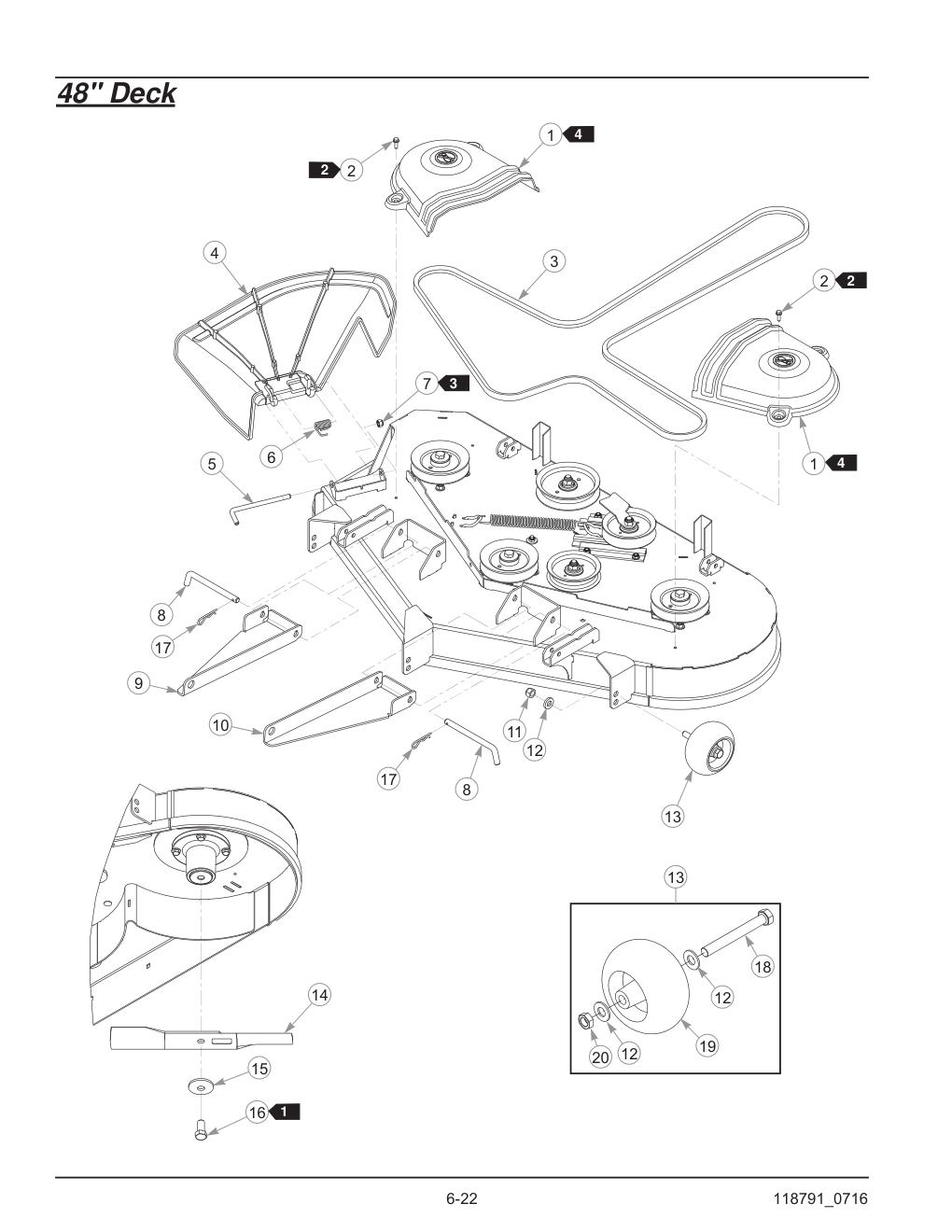

48" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER (S/N 15091572 & HIGHER) | 605867 | 2 | 605867-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT, B-SECTION | 604830 | 1 | 604830-Online |
| 4 | DISCHARGE CHUTE | 604609 | 1 | 604609-Online |
| 5 | DISCHARGE CHUTE PIN | 604346 | 1 | 604346-Online |
| 6 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 7 | NT .375-16 HX G5 NL | 086660 | 1 | HT086660-Online |
| 8 | PULLER PIN | 604658 | 2 | 604658-Online |
| 9 | RS PULLER | 117877 | 1 | HT117877-Online |
| 10 | LS PULLER | 117878 | 1 | HT117878-Online |
| 11 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 12 | FW .531 X 1.063 X .175 | 767962 | 5 | HT767962-Online |
| 13 | PLASTIC WHEEL ASSEMBLY | 788166 | 3 | HT788166-Online |
| 14 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| 14 | BLADE, F16.50"-L-F-CW | 601014 | 3 | 601014-Online |
| 14 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 14 | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| 14 | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| 14 | BLADE, 16.50"-CAT-F-CW | 796649 | 3 | HT796649-Online |
| 15 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 17 | HP .125 X 2.375 ZN | 017301 | 2 | HT017301-Online |
| 18 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 19 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 20 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

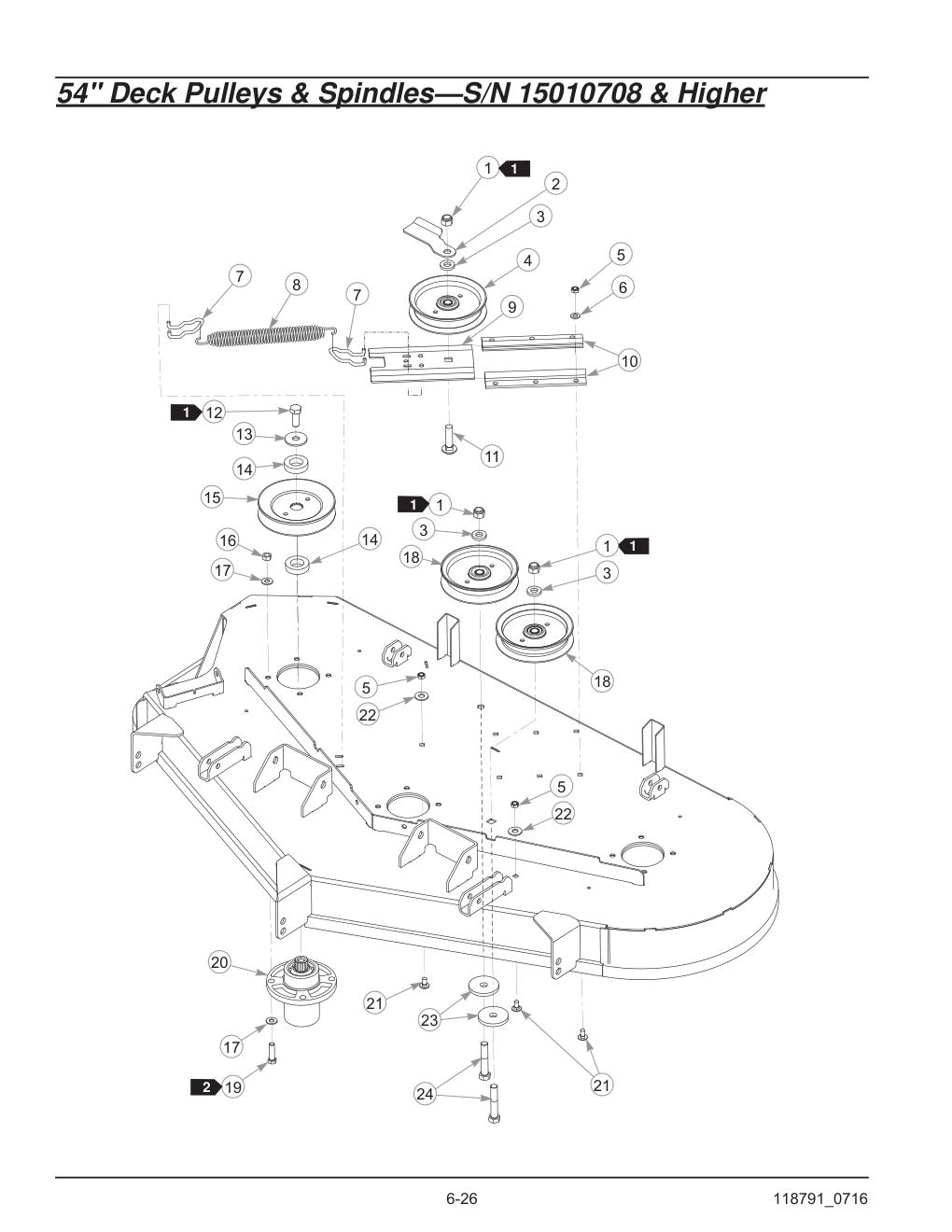

54" Deck Pulleys & Spindles-S/N 15010708 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 2 | BELT GUIDE | 121780 | 1 | HT121780-Online |
| 3 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 4 | IDLER PULLEY, 5.00" O.D. | 604792 | 1 | 604792-Online |
| 5 | NT .312-18 HX NL JAM G2 ZN | 604251 | 8 | 604251-Online |
| 6 | FW .340 X .675 X .035 ZN | 604252 | 6 | 604252-Online |
| 7 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 8 | IDLER SPRING | 122388 | 1 | 122388-Online |
| 9 | IDLER SLED | 604791 | 1 | 604791-Online |
| 10 | IDLER SLIDE | 604790 | 2 | 604790-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | CS .500-13 X 1.25 HX G5 | 705954 | 3 | HT705954-Online |
| 13 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 14 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 15 | PULLEY | 604664 | 3 | 604664-Online |
| 16 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 17 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 18 | IDLER PULLEY, 5.00" O.D. | 604231 | 2 | 604231-Online |
| 19 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 20 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 21 | CB .312-18 X .620 G5 ZN | 083147 | 8 | 083147-Online |
| 22 | FW .440 X 1.00 X .083 ZNY | 017129 | 2 | 017129-Online |
| 23 | FW .531 X 2.00 X .25 | 605516 | 2 | 605516-Online |
| 24 | CS .500-13 X 2.75 HX G5 Z | 721910 | 2 | HT721910-Online |
54" Deck Pulleys & Spindles-S/N 14074307 to 15010707
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 2 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 5.00" O.D. | 604792 | 1 | 604792-Online |
| 4 | NT .312-18 HX NL JAM G2 ZN | 604251 | 8 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 6 | 604252-Online |
| 6 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | IDLER SLED | 604791 | 1 | 604791-Online |
| 9 | IDLER SLIDE | 604790 | 2 | 604790-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .500-13 X 1.25 HS G5 | 705954 | 3 | HT705954-Online |
| 12 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 13 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 14 | PULLEY | 604664 | 3 | 604664-Online |
| 15 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 17 | IDLER PULLEY, 5.00" O.D. | 604231 | 2 | 604231-Online |
| 18 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 19 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 20 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 21 | CB .312-18 X .620 G5 ZN | 083147 | 8 | 083147-Online |
| 22 | FW .440 X 1.00 X .083 ZNY | 017129 | 2 | 017129-Online |
| 23 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 24 | CS .500-13 X 2.75 HX G5 Z | 721910 | 1 | HT721910-Online |

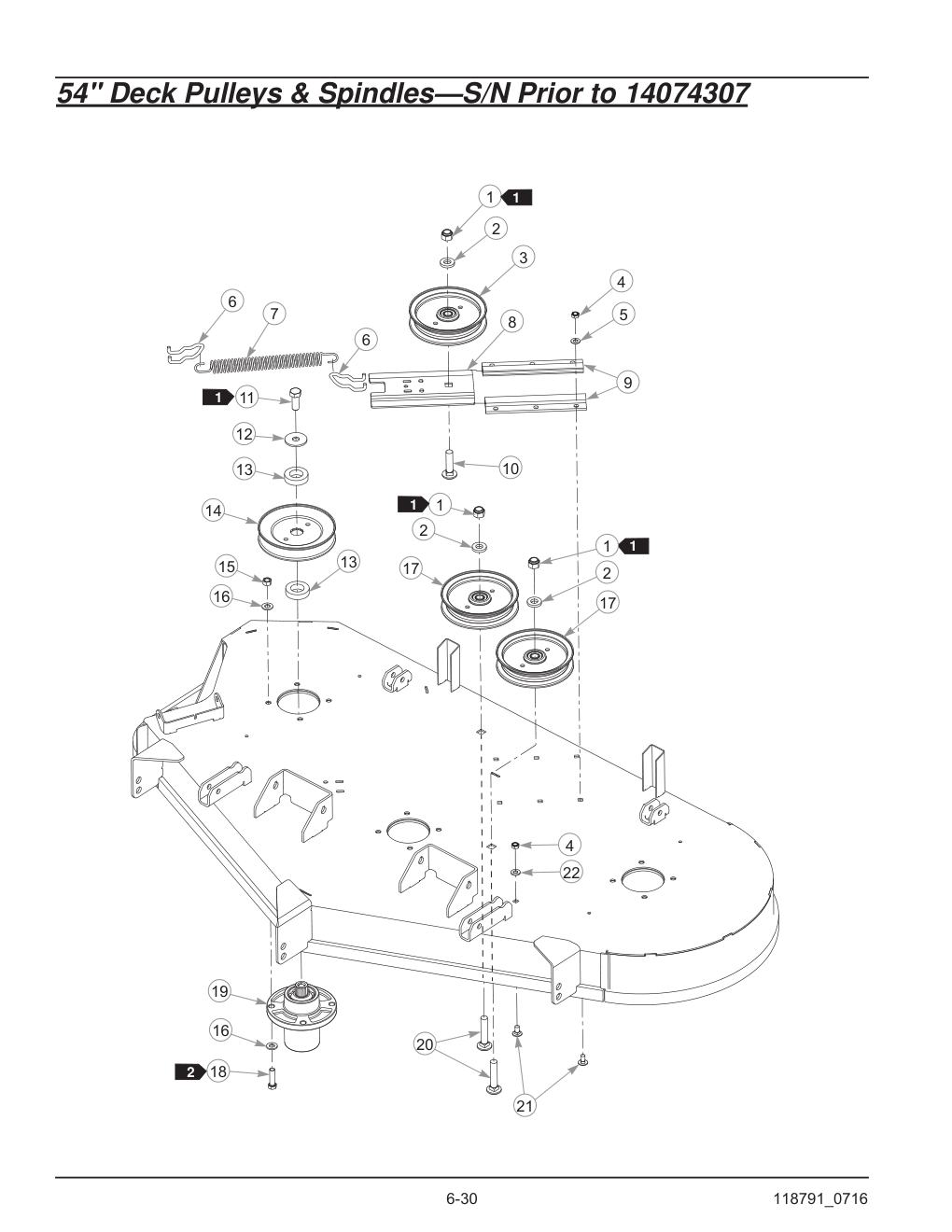

54" Deck Pulleys & Spindles-S/N Prior to 14074307
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 2 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 5.00" O.D. | 604792 | 1 | 604792-Online |
| 4 | NT .312-18 HX NL JAM G2 ZN | 604251 | 8 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 6 | 604252-Online |
| 6 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | IDLER SLED | 604791 | 1 | 604791-Online |
| 9 | IDLER SLIDE | 604790 | 2 | 604790-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .500-13 X 1.25 HS G5 | 705954 | 3 | HT705954-Online |
| 12 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 13 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 14 | PULLEY | 604664 | 3 | 604664-Online |
| 15 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 17 | IDLER PULLEY, 5.00" O.D. | 604231 | 2 | 604231-Online |
| 18 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 19 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 20 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 21 | CB .312-18 X .620 G5 ZN | 083147 | 8 | 083147-Online |
| 22 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |

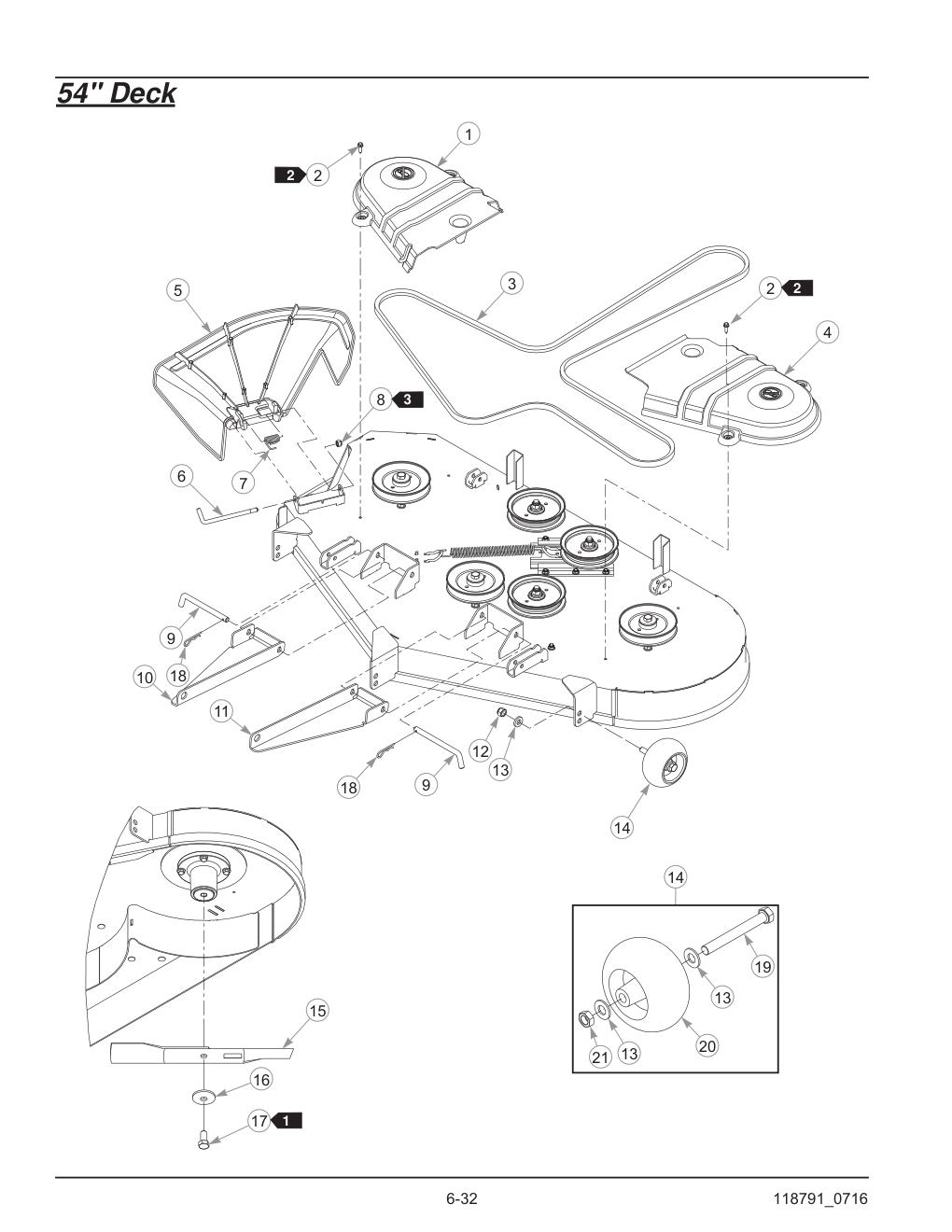

54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 604722 | 1 | 604722-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT, B-SECTION | 604817 | 1 | 604817-Online |
| 4 | LS PULLEY COVER | 604723 | 1 | 604723-Online |
| 5 | DISCHARGE CHUTE | 604609 | 1 | 604609-Online |
| 6 | DISCHARGE CHUTE PIN | 604346 | 1 | 604346-Online |
| 7 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 8 | NT .375-16 NL G5 | 086660 | 1 | HT086660-Online |
| 9 | PULLER PIN | 604658 | 2 | 604658-Online |
| 10 | RS PULLER | 117877 | 1 | HT117877-Online |
| 11 | LS PULLER | 117878 | 1 | HT117878-Online |
| 12 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 13 | FW .531 X 1.063 X .175 | 767962 | 5 | HT767962-Online |
| 14 | PLASTIC WHEEL ASSEMBLY | 788166 | 3 | HT788166-Online |
| 15 | BLADE, 18.50"-L-F-CW | 601124 | 3 | HT601124-Online |
| 15 | BLADE, F18.50"-L-F-CW | 601012 | 3 | 601012-Online |
| 15 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 15 | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| 15 | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 16 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 17 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 18 | HP .125 X 2.375 ZN | 017301 | 2 | HT017301-Online |
| 19 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 20 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 21 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

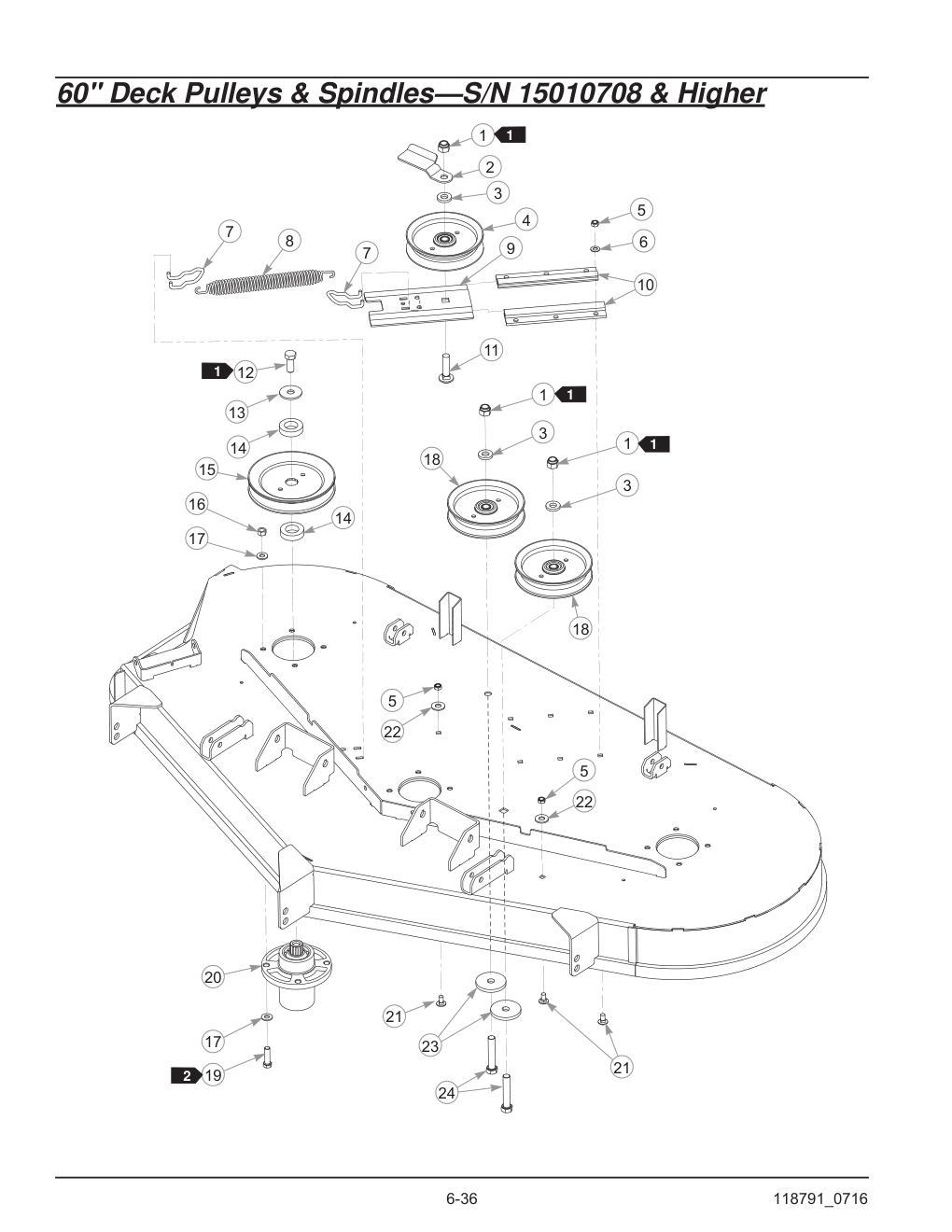

60" Deck Pulleys & Spindles-S/N 15010708 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 2 | BELT GUIDE | 121780 | 1 | HT121780-Online |
| 3 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 4 | IDLER PULLEY, 5.00" O.D. | 604792 | 1 | 604792-Online |
| 5 | NT .312-18 HX NL JAM G2 ZN | 604251 | 8 | 604251-Online |
| 6 | FW .340 X .675 X .035 ZN | 604252 | 6 | 604252-Online |
| 7 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 8 | IDLER SPRING | 122388 | 1 | 122388-Online |
| 9 | IDLER SLED | 604791 | 1 | 604791-Online |
| 10 | IDLER SLIDE | 604790 | 2 | 604790-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | CS .500-13 X 1.25 HX G5 | 705954 | 3 | HT705954-Online |
| 13 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 14 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 15 | PULLEY | 604704 | 3 | 604704-Online |
| 16 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 17 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 18 | IDLER PULLEY, 5.00" O.D. | 604231 | 2 | 604231-Online |
| 19 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 20 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 21 | CB .312-18 X .620 G5 ZN | 083147 | 8 | 083147-Online |
| 22 | FW .440 X 1.00 X .083 ZNY | 017129 | 2 | 017129-Online |
| 23 | FW .531 X 2.00 X .25 | 605516 | 2 | 605516-Online |
| 24 | CS .500-13 X 2.75 HX G5 Z | 721910 | 2 | HT721910-Online |

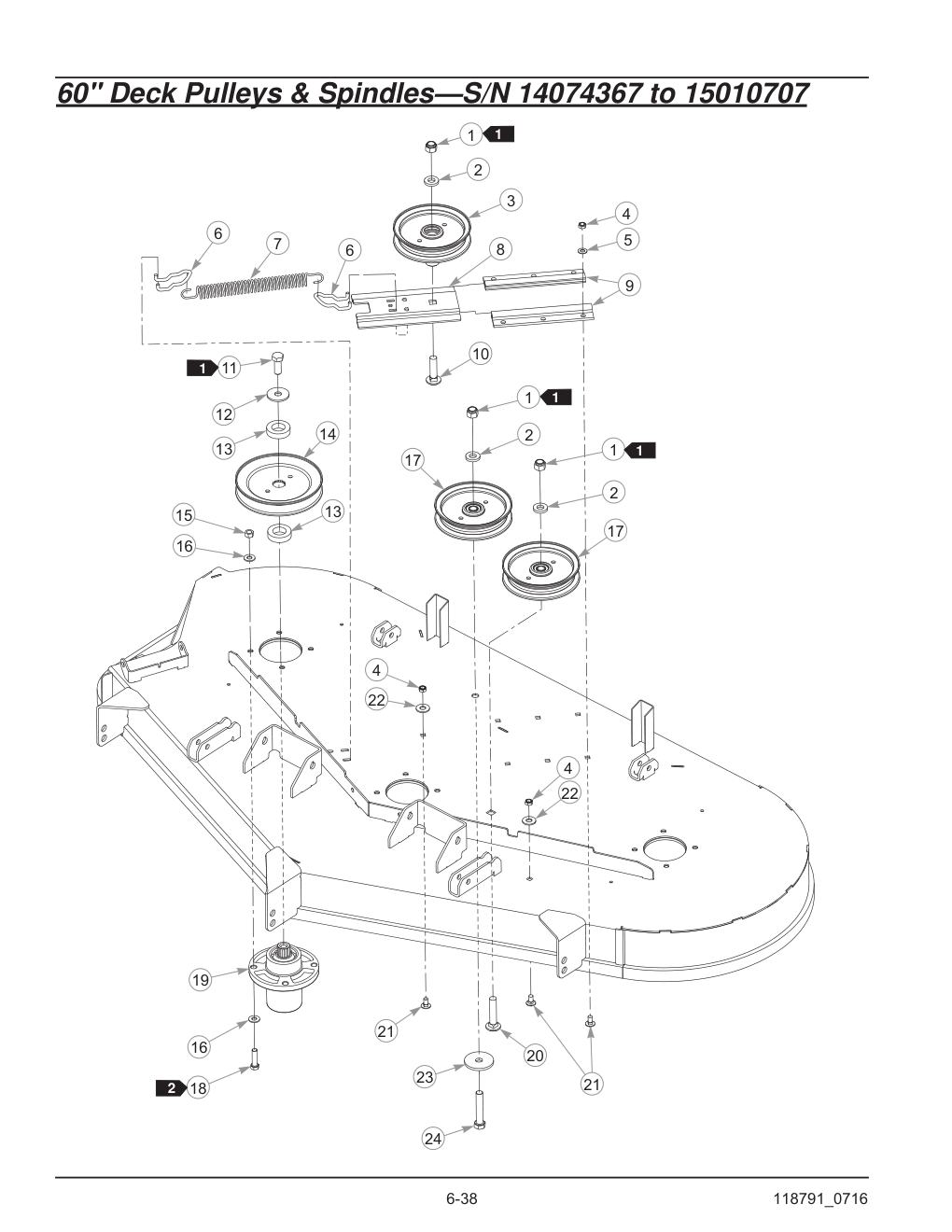

60" Deck Pulleys & Spindles-S/N 14074367 to 15010707
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 2 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 5.00" O.D. | 604792 | 1 | 604792-Online |
| 4 | NT .312-18 HX NL JAM G2 ZN | 604251 | 8 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 6 | 604252-Online |
| 6 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | IDLER SLED | 604791 | 1 | 604791-Online |
| 9 | IDLER SLIDE | 604790 | 2 | 604790-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .500-13 X 1.25 HS G5 | 705954 | 3 | HT705954-Online |
| 12 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 13 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 14 | PULLEY | 604704 | 3 | 604704-Online |
| 15 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 17 | IDLER PULLEY, 5.00" O.D. | 604231 | 2 | 604231-Online |
| 18 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 19 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 20 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 21 | CB .312-18 X .620 G5 ZN | 083147 | 8 | 083147-Online |
| 22 | FW .440 X 1.00 X .083 ZNY | 017129 | 2 | 017129-Online |
| 23 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 24 | CS .500-13 X 2.75 HX G5 Z | 721910 | 1 | HT721910-Online |

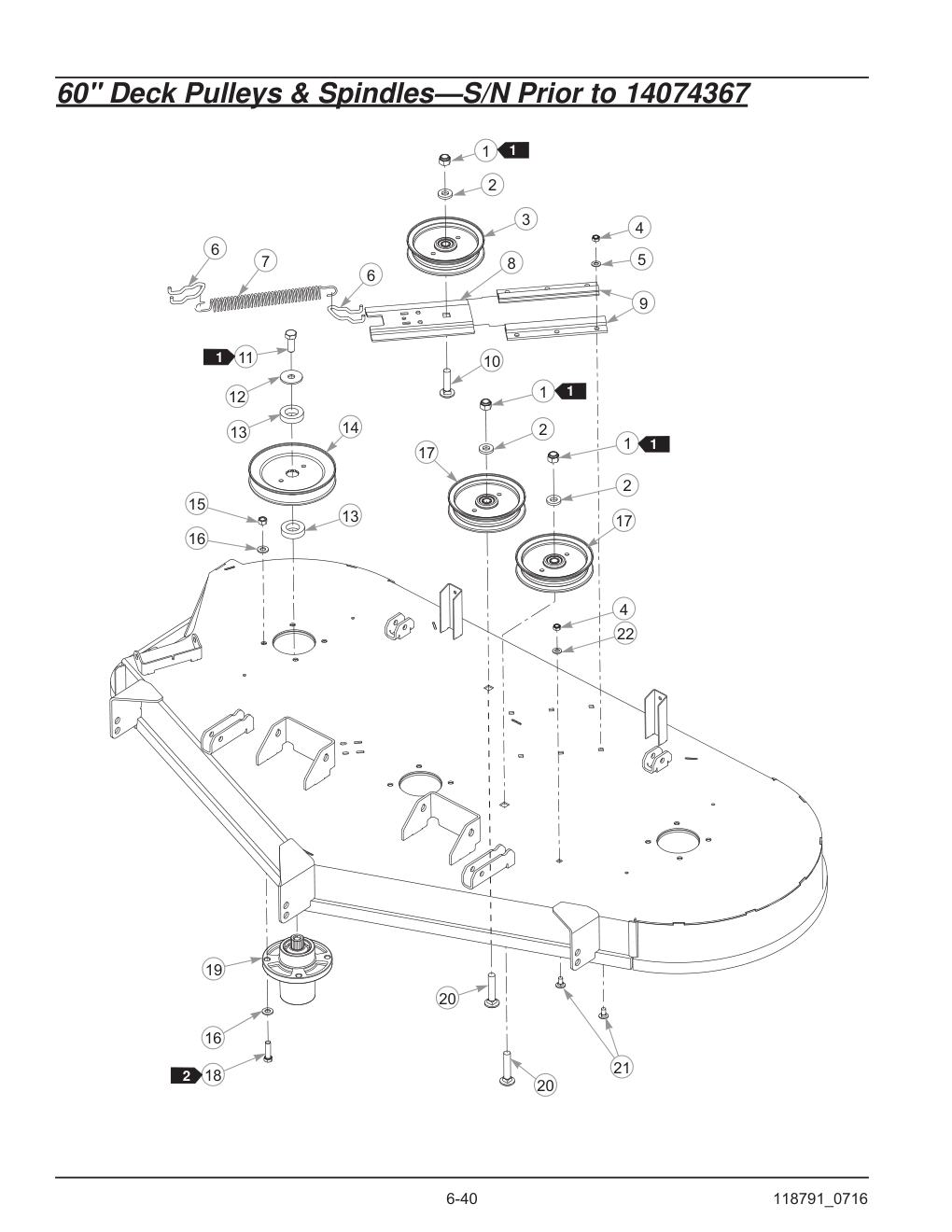

60" Deck Pulleys & Spindles-S/N Prior to 14074367
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 2 | FW .531 X 1.063 X .175 | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 5.00" O.D. | 604792 | 1 | 604792-Online |
| 4 | NT .312-18 HX NL JAM G2 ZN | 604251 | 7 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 6 | 604252-Online |
| 6 | SPRING TENSIONER ANCHOR | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | IDLER SLED | 604791 | 1 | 604791-Online |
| 9 | IDLER SLIDE | 604790 | 2 | 604790-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS .500-13 X 1.25 HS G5 | 705954 | 3 | HT705954-Online |
| 12 | FW .515 X 1.65 X .125 HD ZY | 798603 | 3 | 798603-Online |
| 13 | PULLEY SPACER | 604661 | 6 | 604661-Online |
| 14 | PULLEY | 604704 | 3 | 604704-Online |
| 15 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 16 | FW .379 X .813 X .063 | 767954 | 24 | HT767954-Online |
| 17 | IDLER PULLEY, 5.00" O.D. | 604231 | 2 | 604231-Online |
| 18 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 19 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 20 | CB .50-13 X 2.50 STD ZN | 604254 | 2 | 604254-Online |
| 21 | CB .312-18 X .620 G5 ZN | 083147 | 7 | 083147-Online |
| 22 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |

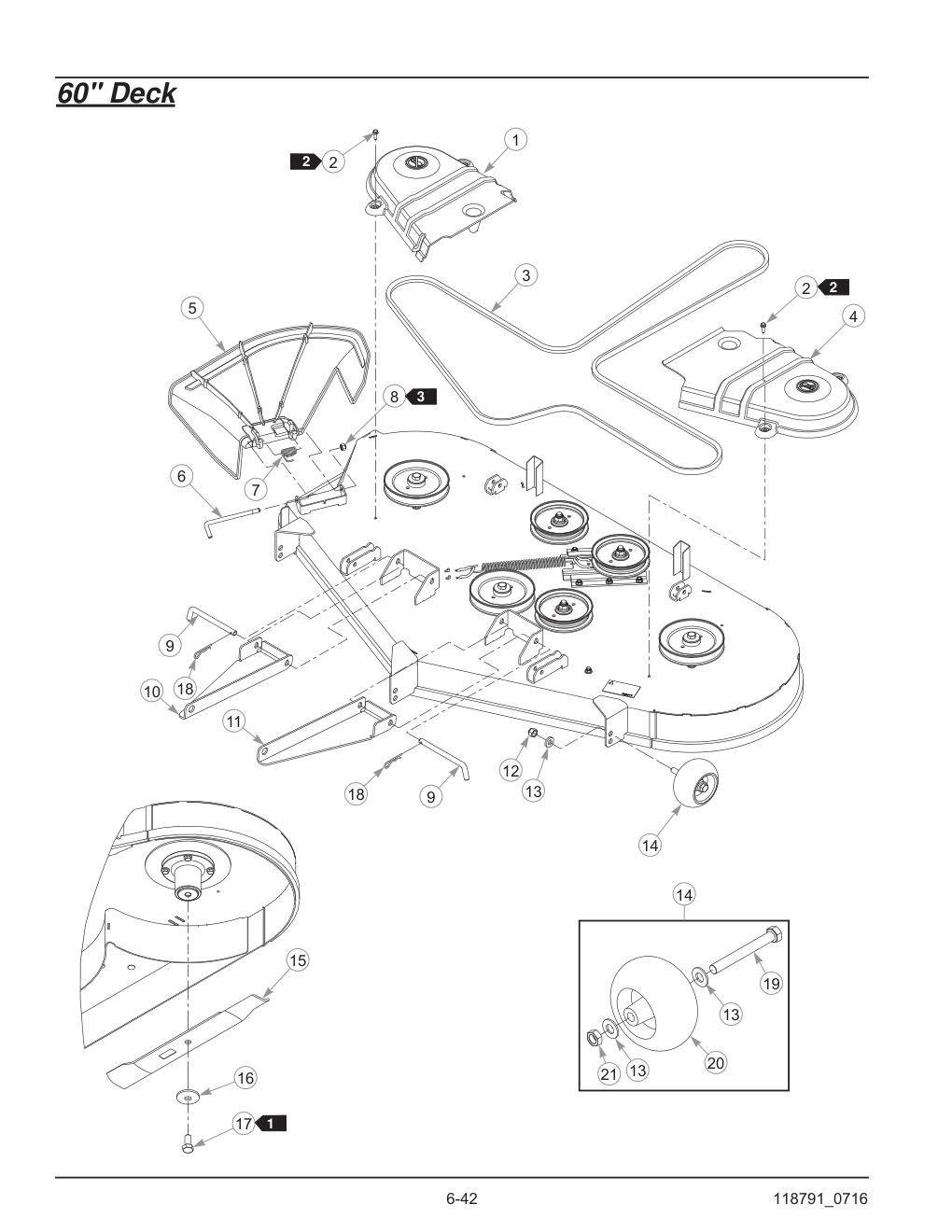

60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 604722 | 1 | 604722-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT, B-SECTION | 604711 | 1 | 604711-Online |
| 4 | LS PULLEY COVER | 604723 | 1 | 604723-Online |
| 5 | DISCHARGE CHUTE | 604609 | 1 | 604609-Online |
| 6 | DISCHARGE CHUTE PIN | 604346 | 1 | 604346-Online |
| 7 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 8 | NT .375-16 NL G5 | 086660 | 1 | HT086660-Online |
| 9 | PULLER PIN | 604658 | 2 | 604658-Online |
| 10 | RS PULLER | 117877 | 1 | HT117877-Online |
| 11 | LS PULLER | 117878 | 1 | HT117878-Online |
| 12 | NT .500-13 NL G5 | 781567 | 3 | HT781567-Online |
| 13 | FW .531 X 1.063 X .175 | 767962 | 5 | HT767962-Online |
| 14 | PLASTIC WHEEL ASSEMBLY | 788166 | 3 | HT788166-Online |
| 15 | BLADE, 20.50"-L-F-CW | 793794 | 3 | HT793794-Online |
| 15 | BLADE, F20.50"-L-F-CW | 600901 | 3 | HT600901-Online |
| 15 | BLADE, 20.50"-CAT-F-CW | 793935 | 3 | HT793935-Online |
| 15 | BLADE, 20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| 15 | BLADE, 20.50"-GAT-F-CW | 794230 | 3 | HT794230-Online |
| 15 | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 16 | CW .631 X 2.25 X .187 PNT | 782474 | 3 | HT782474-Online |
| 17 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 18 | HP .125 X 2.375 ZN | 017301 | 2 | HT017301-Online |
| 19 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 20 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 21 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

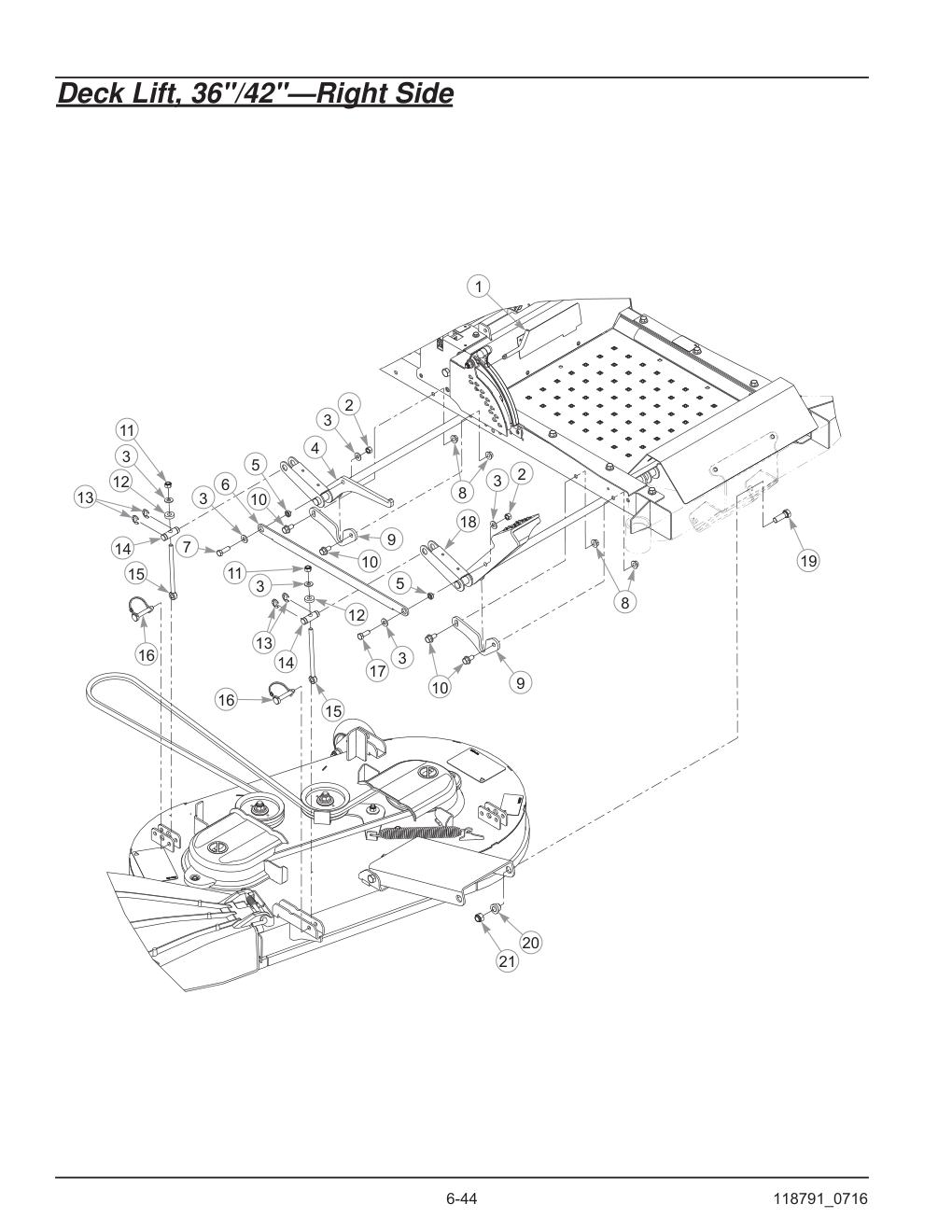

Deck Lift, 36"/42"-Right Side
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | INDICATOR PIN | 118020 | 1 | 118020-Online |
| 2 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 3 | FW .379 X .813 X .063 | 767954 | 8 | HT767954-Online |
| 4 | REAR DECK LIFT BAR | 118085 | 1 | 118085-Online |
| 5 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 6 | LIFT PEDAL LINK | 118016 | 1 | 118016-Online |
| 7 | CS .375-16 X 1.12 HX G5 Z | 005132 | 1 | 005132-Online |
| 8 | NT .375-16 FLK G5 | 016899 | 8 | HT016899-Online |
| 9 | PIVOT BLOCK | 116151 | 4 | HT116151-Online |
| 10 | CS .375-16 X .75 HX FLK | 029629 | 8 | HT029629-Online |
| 11 | NT .375-16 HX G5 NL | 086660 | 4 | HT086660-Online |
| 12 | FW .41 X .94 X .25 UHMW | 605114 | 4 | 605114-Online |
| 13 | E CLIP .625 X .480 X .042 Z | 791673 | 8 | HT791673-Online |
| 14 | PIVOT | 118018 | 4 | HT118018-Online |
| 15 | DECK LIFT LINK | 604579 | 4 | 604579-Online |
| 16 | CE .375 X 2.00 W/BALE | 604803 | 4 | 604803-Online |
| 17 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 18 | FRONT DECK LIFT BAR | 118084 | 1 | HT118084-Online |
| 19 | CS .500-13 X 1.50 HX G5 | 074252 | 2 | HT074252-Online |
| 20 | PIVOT SPACER BUSHING | 606250 | 2 | 606250-Online |
| 21 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |

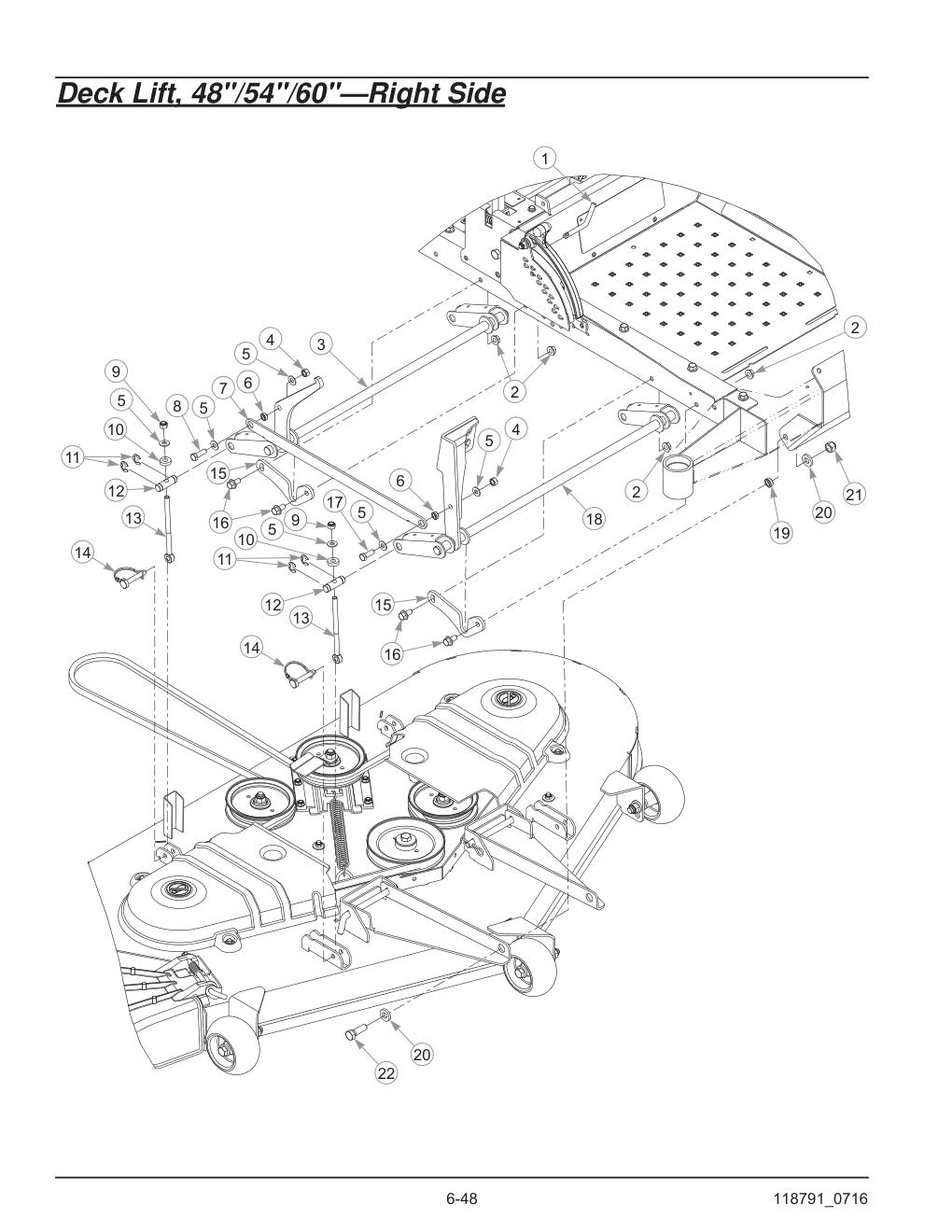

Deck Lift, 48"/54"/60"-Right Side
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | INDICATOR PIN | 118020 | 1 | 118020-Online |
| 2 | NT .375-16 HX FLK G5 | 016899 | 8 | HT016899-Online |
| 3 | REAR DECK LIFT BAR | 118085 | 1 | 118085-Online |
| 4 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 5 | FW .379 X .813 X .063 | 767954 | 8 | HT767954-Online |
| 6 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 7 | LIFT PEDAL LINK | 118016 | 1 | 118016-Online |
| 8 | CS .375-16 X 1.12 HX G5 Z | 005132 | 1 | 005132-Online |
| 9 | NT .375-16 HX ZY NL | 086660 | 4 | HT086660-Online |
| 10 | FW .41 X .94 X .25 UHMW | 605114 | 4 | 605114-Online |
| 11 | E CLIP .625 X .480 X .042 Z | 791673 | 8 | HT791673-Online |
| 12 | PIVOT | 118018 | 4 | HT118018-Online |
| 13 | DECK LIFT LINK | 604579 | 4 | 604579-Online |
| 14 | CE .375 X 2.00 W/BALE | 604803 | 4 | 604803-Online |
| 15 | PIVOT BLOCK | 116151 | 4 | HT116151-Online |
| 16 | CS .375-16 X .75 HX FLK | 029629 | 8 | HT029629-Online |
| 17 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 18 | FRONT DECK LIFT BAR | 118084 | 1 | HT118084-Online |
| 19 | PIVOT SPACER BUSHING | 604656 | 2 | 604656-Online |
| 20 | FW .531 X 1.063 X .175 | 767962 | 4 | HT767962-Online |
| 21 | NT .500-13 HX G8 ZY NL | 781567 | 2 | HT781567-Online |
| 22 | CS .500-13 X 1.50 HX G5 | 074252 | 2 | HT074252-Online |
Seat, Seats Inc.-36"/42"/48"/54" Mowers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 606077 | 1 | 606077-Online |
| 2 | FW .344 X 1.00 X .12 HRD Z | 712927 | 4 | HT712927-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | SEAT PAN (WITH DECALS) | 553403 | 1 | 553403-Online |
| 5 | FW .406 X 1.00 X .12 HRD Z | 712919 | 2 | HT712919-Online |
| 6 | NT .375-16 HX G5 NL | 086660 | 2 | HT086660-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 8 | CAP SCREW | 079186 | 4 | 079186-Online |
| 9 | WIRE TIE | 000331 | 1 | 000331-Online |
| 10 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 11 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 2 | HT793851-Online |
| 12 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 13 | NT .375-16 FLK G5 | 016899 | 2 | HT016899-Online |
| 14 | BELT ROUTING DECAL (36" & 42") | 602243 | 1 | 602243-Online |
| 14 | BELT ROUTING DECAL (48" & 54") | 781419 | 1 | 781419-Online |
| 15 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |

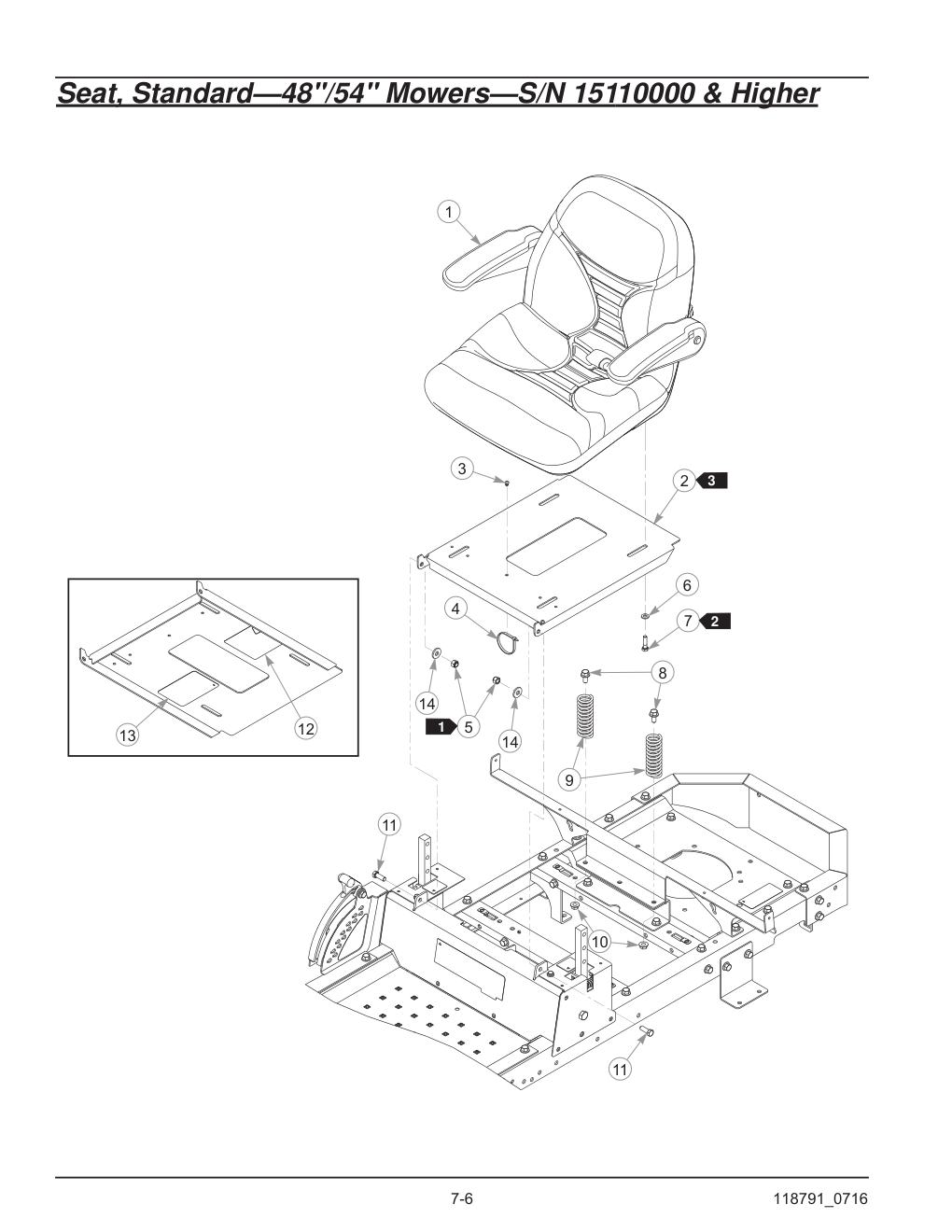

Seat, Standard-48"/54" Mowers-S/N 15110000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STANDARD SEAT | 792226 | 1 | 792226-Online |
| 2 | SEAT PAN (WITH DECALS) | 552751 | 1 | 552751-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | WIRE TIE | 000331 | 1 | 000331-Online |
| 5 | NT .375-16 HX G5 NL | 086660 | 2 | HT086660-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 7 | CS .312-18 X 1.25 HX G5 | 079186 | 4 | 079186-Online |
| 8 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 9 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 2 | HT793851-Online |
| 10 | NT .375-16 HX G5 FLK | 016899 | 2 | HT016899-Online |
| 11 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 12 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 13 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 14 | FW .406 X 1.00 X .12 HRD Z | 712919 | 2 | HT712919-Online |

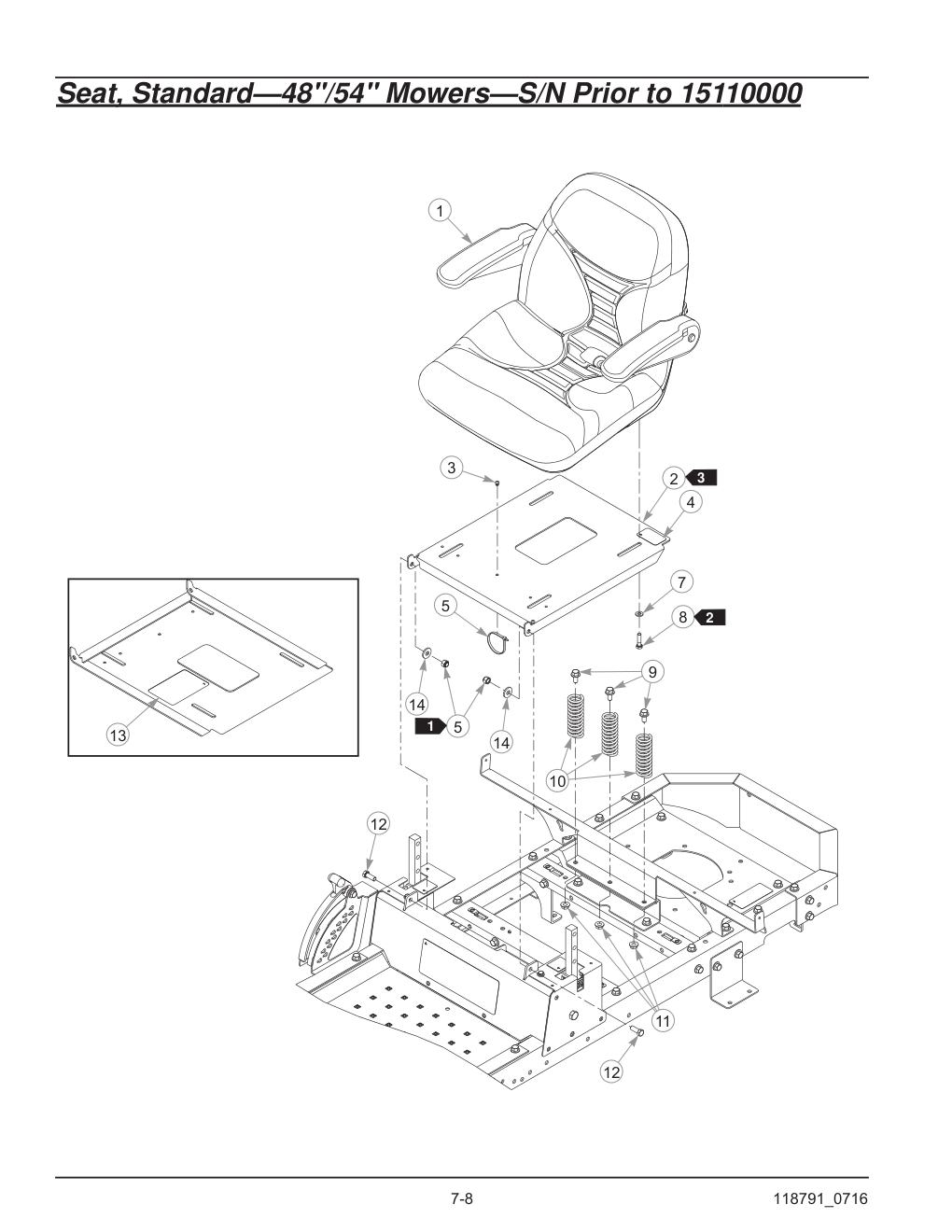

Seat, Standard-48"/54" Mowers-S/N Prior to 15110000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STANDARD SEAT | 792226 | 1 | 792226-Online |
| 2 | SEAT PAN (WITH DECALS) | 552751 | 1 | 552751-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | LEVEL FUEL FILL DECAL | 605782 | 1 | 605782-Online |
| 5 | WIRE TIE | 000331 | 1 | 000331-Online |
| 6 | NT .375-16 HX G5 NL | 086660 | 2 | HT086660-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 8 | CS .312-18 X 1.25 HX G5 | 079186 | 4 | 079186-Online |
| 9 | CS .375-16 X .75 HX FLK | 029629 | 3 | HT029629-Online |
| 10 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 3 | HT793851-Online |
| 11 | NT .375-16 HX G5 FLK | 016899 | 3 | HT016899-Online |
| 12 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 13 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 14 | FW .406 X 1.00 X .12 HRD Z | 712919 | 2 | HT712919-Online |

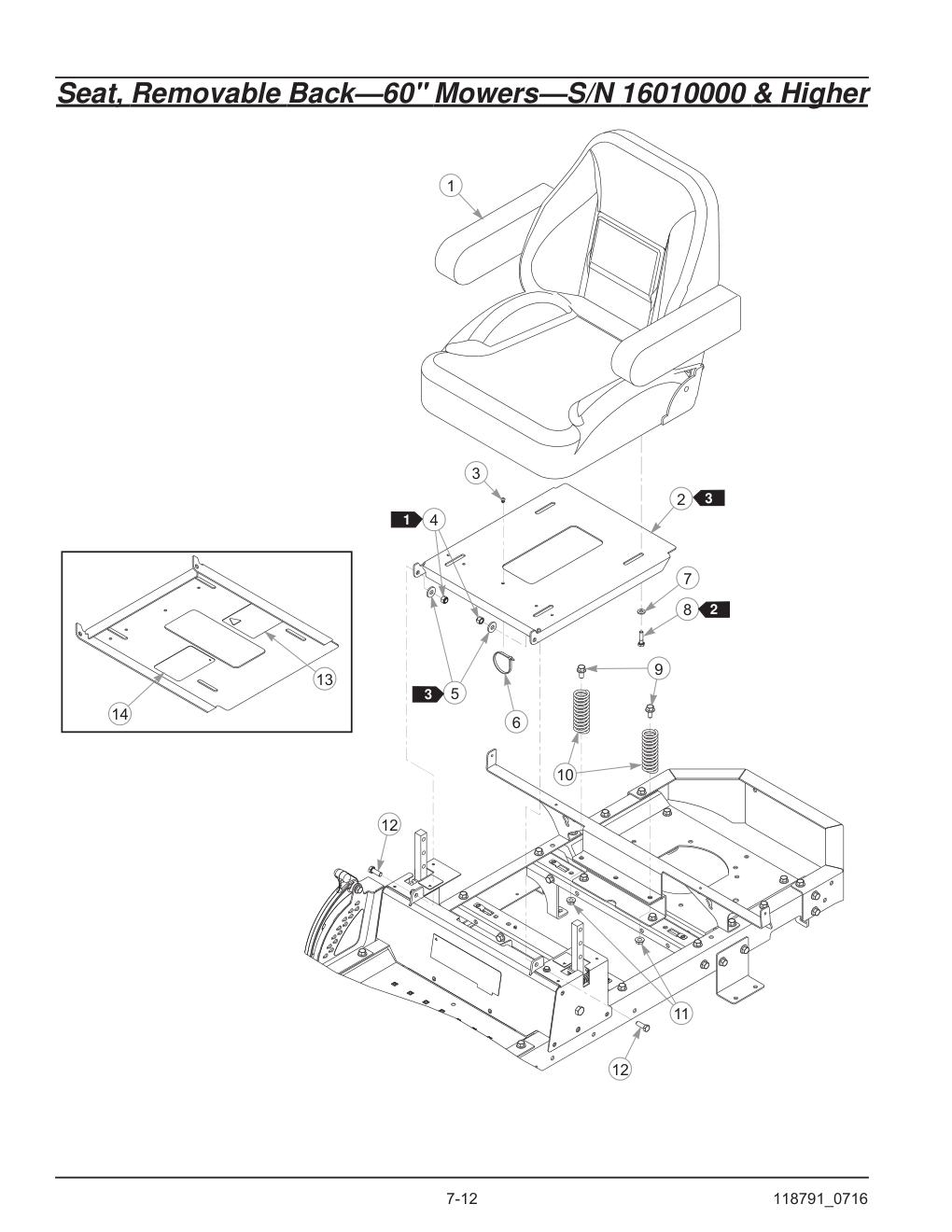

Seat, Removable Back-60" Mowers-S/N 16010000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 604874 | 1 | 604874-Online |
| 2 | SEAT PAN (WITH DECALS) | 552751 | 1 | 552751-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 5 | FW .406 X 1.00 X .12 HRD Z | 712919 | 2 | HT712919-Online |
| 6 | WIRE TIE | 000331 | 1 | 000331-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 8 | CS .312-18 X 1.25 HX G5 | 079186 | 4 | 079186-Online |
| 9 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 10 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 2 | HT793851-Online |
| 11 | NT .375-16 HX FLK G5 | 016899 | 2 | HT016899-Online |
| 12 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 13 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 14 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
Seat, Removable Back-60" Mowers-S/N Prior to 16010000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 604874 | 1 | 604874-Online |
| 2 | SEAT PAN (WITH DECALS) | 552751 | 1 | 552751-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 5 | FW .406 X 1.00 X .12 HRD Z | 712919 | 2 | HT712919-Online |
| 6 | WIRE TIE | 000331 | 1 | 000331-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 8 | CS .312-18 X 1.25 HX G5 | 079186 | 4 | 079186-Online |
| 9 | CS .375-16 X .75 HX FLK | 029629 | 3 | HT029629-Online |
| 10 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 3 | HT793851-Online |
| 11 | NT .375-16 HX FLK G5 | 016899 | 3 | HT016899-Online |
| 12 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 13 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |

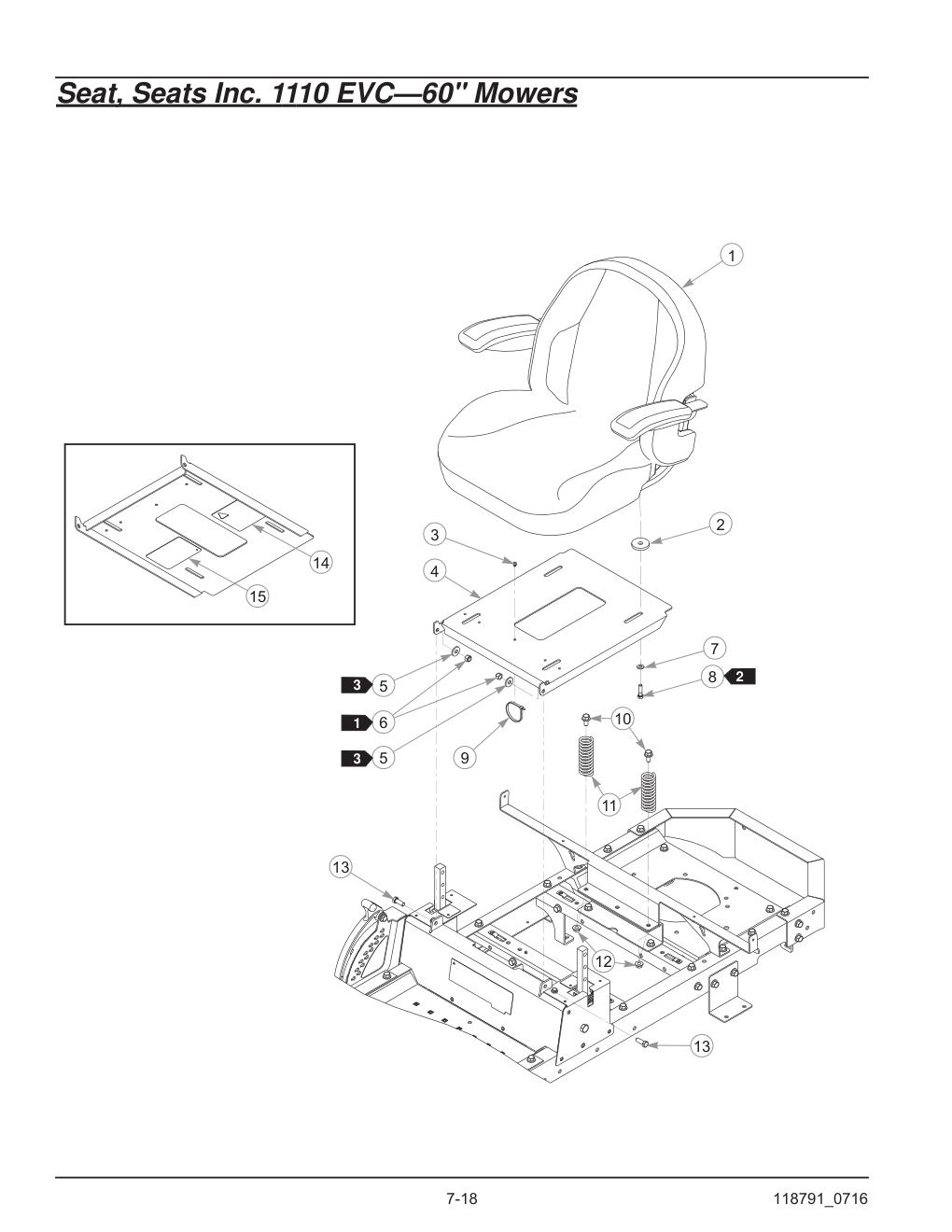

Seat, Seats Inc. 1110 EVC-60" Mowers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT | 606076 | 1 | 606076-Online |
| 2 | SPACER | 783829 | 4 | 783829-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | SEAT PAN (WITH DECALS) | 552751 | 1 | 552751-Online |
| 5 | FW .406 X 1.00 X .12 HRD Z | 712919 | 2 | HT712919-Online |
| 6 | NT .375-16 HX G5 NL | 086660 | 2 | HT086660-Online |
| 7 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 8 | CAP SCREW | 079186 | 4 | 079186-Online |
| 9 | WIRE TIE | 000331 | 1 | 000331-Online |
| 10 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 11 | COMPRESSION SPRING 1.25 X 4.00 X .188 | 793851 | 2 | HT793851-Online |
| 12 | NT .375-16 FLK G5 | 016899 | 2 | HT016899-Online |
| 13 | CS .375-16 X 1.00 HX G5 | 036244 | 2 | HT036244-Online |
| 14 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 15 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
Seat Service Parts, Seats Inc. 1110 EVC-60" Mowers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ARM PADS | 606081 | 1 | 606081-Online |
| 2 | ARM BRACKETS | 606080 | 1 | 606080-Online |
| 3 | SEAT SWITCH | 606082 | 1 | 606082-Online |
| 4 | BACK COVER | 606078 | 1 | 606078-Online |
| 5 | SEAT COVER | 606079 | 1 | 606079-Online |
