Illustrated Parts List
Hustler Raptor Parts Manual - 604127
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 604127Model: 604128Model: 116126Model: 029629Model: 116127Model: 551857Model: 602041Model: 604176Model: 551858Model: 551859+18 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

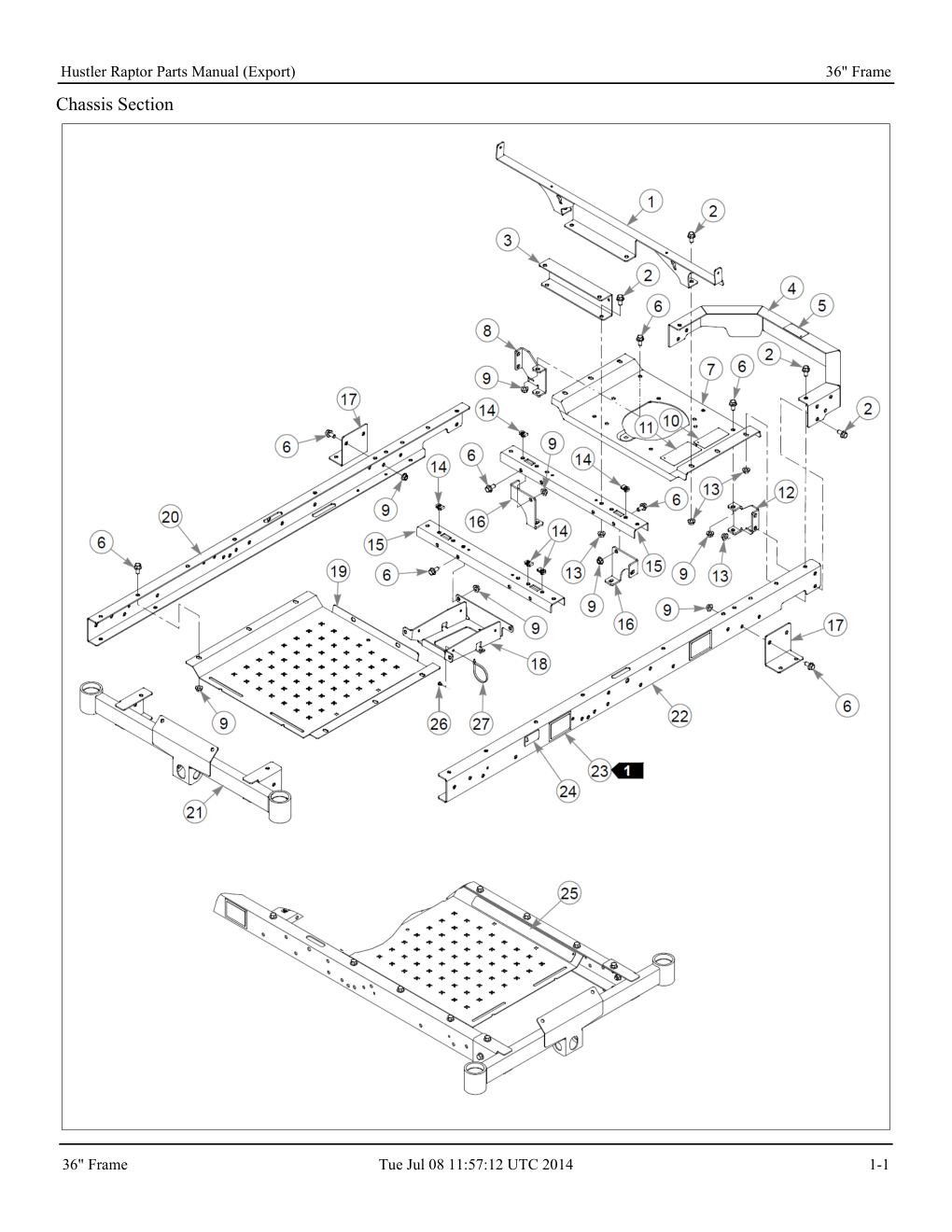

36" Frame42"/52" FrameFenders & Instrument PanelBatteryHydraulic AssemblyTransmission AssemblyTransmission Service Parts 604127 Right Side TransmissionTransmission Service Parts 604128 Left Side TransmissionSteering & BrakeSteering Cover AssemblyWheel & Tire - 36" MowersWheel & Tire - 42"/52" MowersFront Wheel BreakdownDrive Wheel Breakdown--36" MowersDrive Wheel Breakdown - 42"/52" MowersEngine, Kawasaki FR541V (P1 of 2)Engine, Kawasaki FR541V (P2 of 2)Engine, Kawasaki FR600VEngine, Kawasaki FR691V (P1 of 2)Engine, Kawasaki FR691V (P2 of 2)Engine Service Parts, Kawasaki FR541V & FR600VEngine Service Parts, Kawasaki FR691VFuel SystemFuel Tank Service Parts36" Service Deck36" Deck Pulleys & Spindles36" Deck42" Service Deck42" Deck Pulleys & Spindles42" Deck - S/N 14030001 & Higher42" Deck - S/N Prior to 1403000136"/42" Deck Lift52" Service Deck52" Deck Pulleys & Spindles52" Deck - S/N 14030001 & Higher52" Deck - S/N Prior to 1403000152" Deck LiftSeat36" Frame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT | 116126 | 1 | 116126-Online |
| 2 | CS .375-16 X .75 HX FLK | 029629 | 10 | HT029629-Online |
| 3 | SPRING SUPPORT | 116127 | 1 | 116127-Online |
| 4 | SVC, BUMPER | 551857 | 1 | 551857-Online |
| 5 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 6 | CS .375-16x.75 HXFLK PLN | 604176 | 30 | 604176-Online |
| 7 | SVC, ENGINE PLATE | 551858 | 1 | 551858-Online |
| 8 | SVC, RS REAR BRKT | 551859 | 1 | HT551859-Online |
| 9 | NT .375-16 HXFLK PLN | 604177 | 30 | 604177-Online |
| 10 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 11 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 12 | SVC, LS REAR BRKT | 551860 | 1 | HT551860-Online |
| 13 | NT 0.375-1FLKG5 | 016899 | 10 | HT016899-Online |
| 14 | CN .250-20 X .15 MAX THK | 601982 | 5 | 601982-Online |
| 15 | SVC, CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | SVC, FRONT BRKT | 551862 | 2 | HT551862-Online |
| 17 | SVC, HYDRO BRKT | 551863 | 2 | HT551863-Online |
| 18 | SVC, BATTERY TRAY | 551864 | 1 | 551864-Online |
| 19 | SVC, FOOT PAN | 551865 | 1 | 551865-Online |
| 20 | SVC, RS FRAME CHANNEL | 551866 | 1 | 551866-Online |
| 21 | SVC, FRONT CROSS FRAME | 552704 | 1 | 552704-Online |
| 22 | SVC, LS FRAME CHANNEL | 551868 | 1 | 551868-Online |
| 23 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 24 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 25 | DECAL, SAFE OPERATE-GRAY | 601981 | 1 | 601981-Online |
| 26 | PUSH BUTTON MOUNT | 604307 | 6 | 604307-Online |
| 27 | WIRE TIE | 000331 | 6 | 000331-Online |

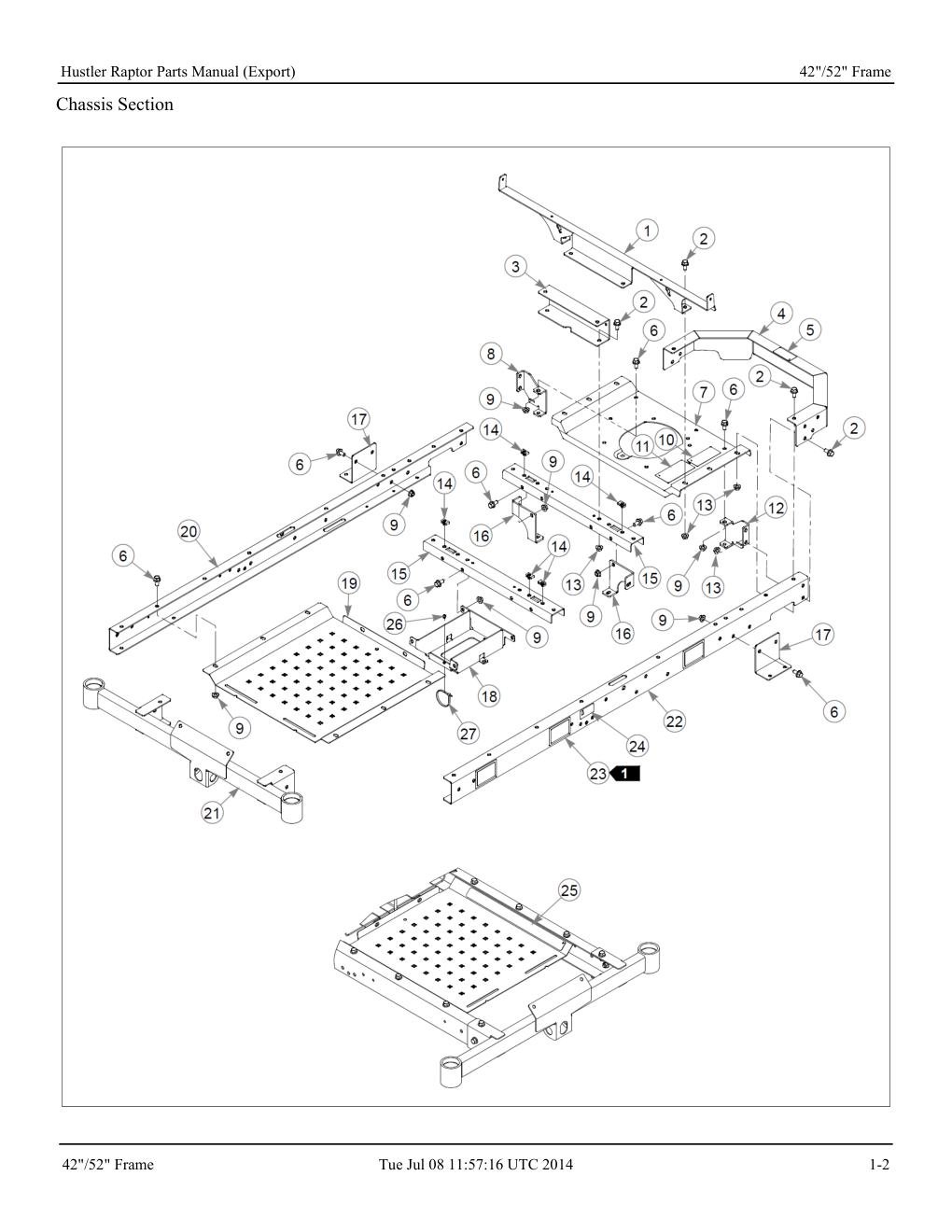

42"/52" Frame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT | 116126 | 1 | 116126-Online |
| 2 | CS .375-16 X .75 HX FLK | 029629 | 10 | HT029629-Online |
| 3 | SPRING SUPPORT | 116127 | 1 | 116127-Online |
| 4 | SVC, BUMPER | 551857 | 1 | 551857-Online |
| 5 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 6 | CS .375-16x.75 HXFLK PLN | 604176 | 30 | 604176-Online |
| 7 | SVC, ENGINE PLATE | 551858 | 1 | 551858-Online |
| 8 | SVC, RS REAR BRKT | 551859 | 1 | HT551859-Online |
| 9 | NT .375-16 HXFLK PLN | 604177 | 30 | 604177-Online |
| 10 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 11 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 12 | SVC, LS REAR BRKT | 551860 | 1 | HT551860-Online |
| 13 | NT 0.375-1FLKG5 | 016899 | 10 | HT016899-Online |
| 14 | CN .250-20 X .15 MAX THK | 601982 | 5 | 601982-Online |
| 15 | SVC, CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | SVC, FRONT BRKT | 551862 | 2 | HT551862-Online |
| 17 | SVC, HYDRO BRKT | 551863 | 2 | HT551863-Online |
| 18 | SVC, BATTERY TRAY | 551864 | 1 | 551864-Online |
| 19 | SVC, FOOT PAN | 551865 | 1 | 551865-Online |
| 20 | SVC, RS FRAME CHANNEL | 551866 | 1 | 551866-Online |
| 21 | SVC, FRONT CROSS FRAME | 551867 | 1 | HT551867-Online |
| 22 | SVC, LS FRAME CHANNEL | 551868 | 1 | 551868-Online |
| 23 | SERIAL NO. / SPEC DECAL | N/A | 1 | No SKU |
| 24 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 25 | DECAL, SAFE OPERATE-GRAY | 601981 | 1 | 601981-Online |
| 26 | PUSH BUTTON MOUNT | 604307 | 6 | 604307-Online |
| 27 | WIRE TIE | 000331 | 6 | 000331-Online |

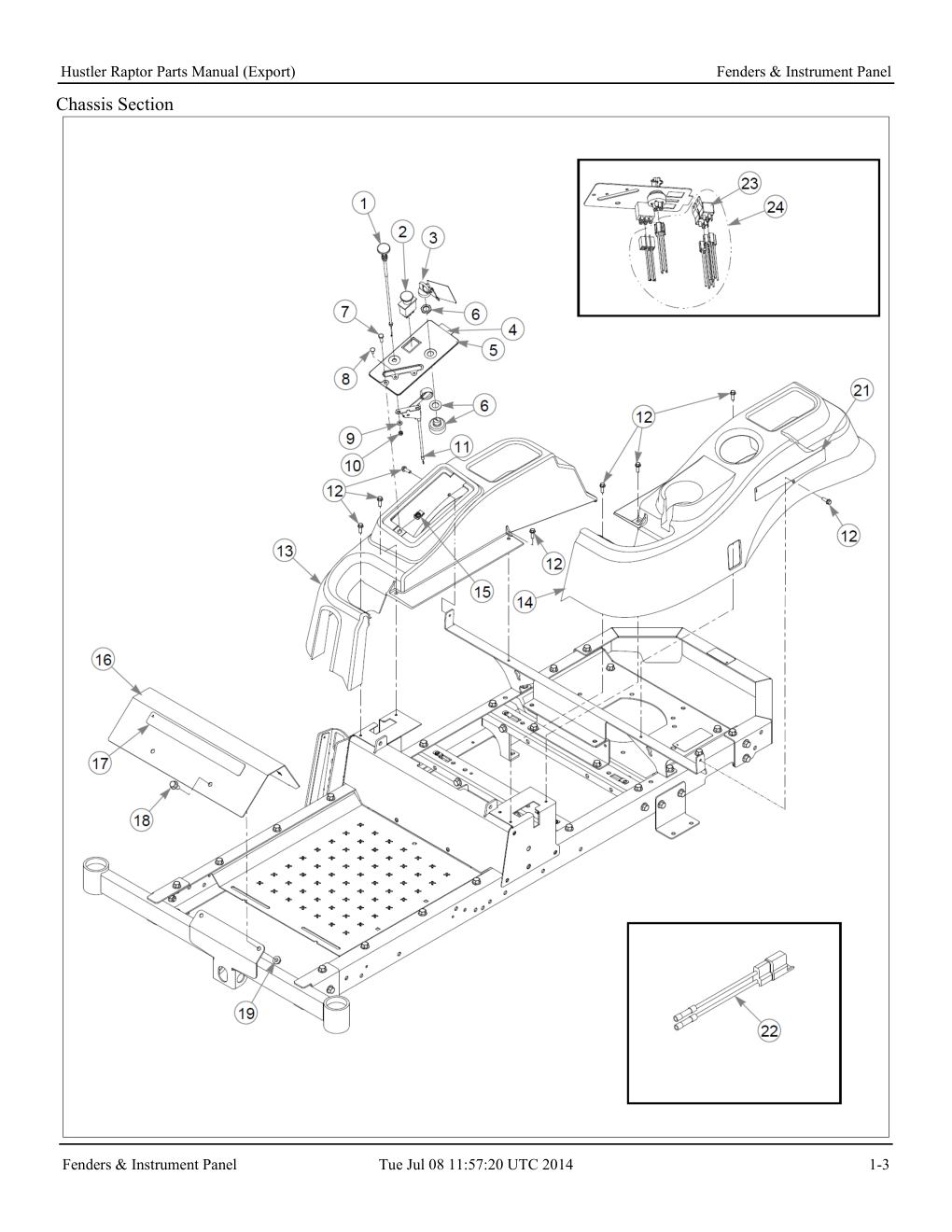

Fenders & Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601097 | 1 | HT601097-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | SERVICE, INSTR PANEL | 551898 | 1 | 551898-Online |
| 5 | DECAL, INST PANEL | 604196 | 1 | 604196-Online |
| 6 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 1 | 055939-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 9 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 11 | THROTTLE CABLE | 601096 | 1 | 601096-Online |
| 12 | CS .250-20 X .75 HX FLG | 604324 | 8 | 604324-Online |
| 13 | RS FENDER | 604124 | 1 | 604124-Online |
| 14 | LS FENDER | 604125 | 1 | 604125-Online |
| 15 | CN .250-20 X .15 MAX THK | 601982 | 1 | 601982-Online |
| 16 | FOOT REST, FRONT | 116162 | 1 | 116162-Online |
| 17 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 18 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 19 | NT 0.375-1FLKG5 | 016899 | 2 | HT016899-Online |
| 20 | WIRE TIE | 000331 | 2 | 000331-Online |
| 21 | DECAL, RAPTOR FENDER | 604388 | 2 | 604388-Online |
| 21 | 114052 | 22 | CLUTCH CONNECTOR REPAIR | 22-Online |
| 23 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 24 | WIRE HARNESS, RSD | 604876 | 1 | 604876-Online |

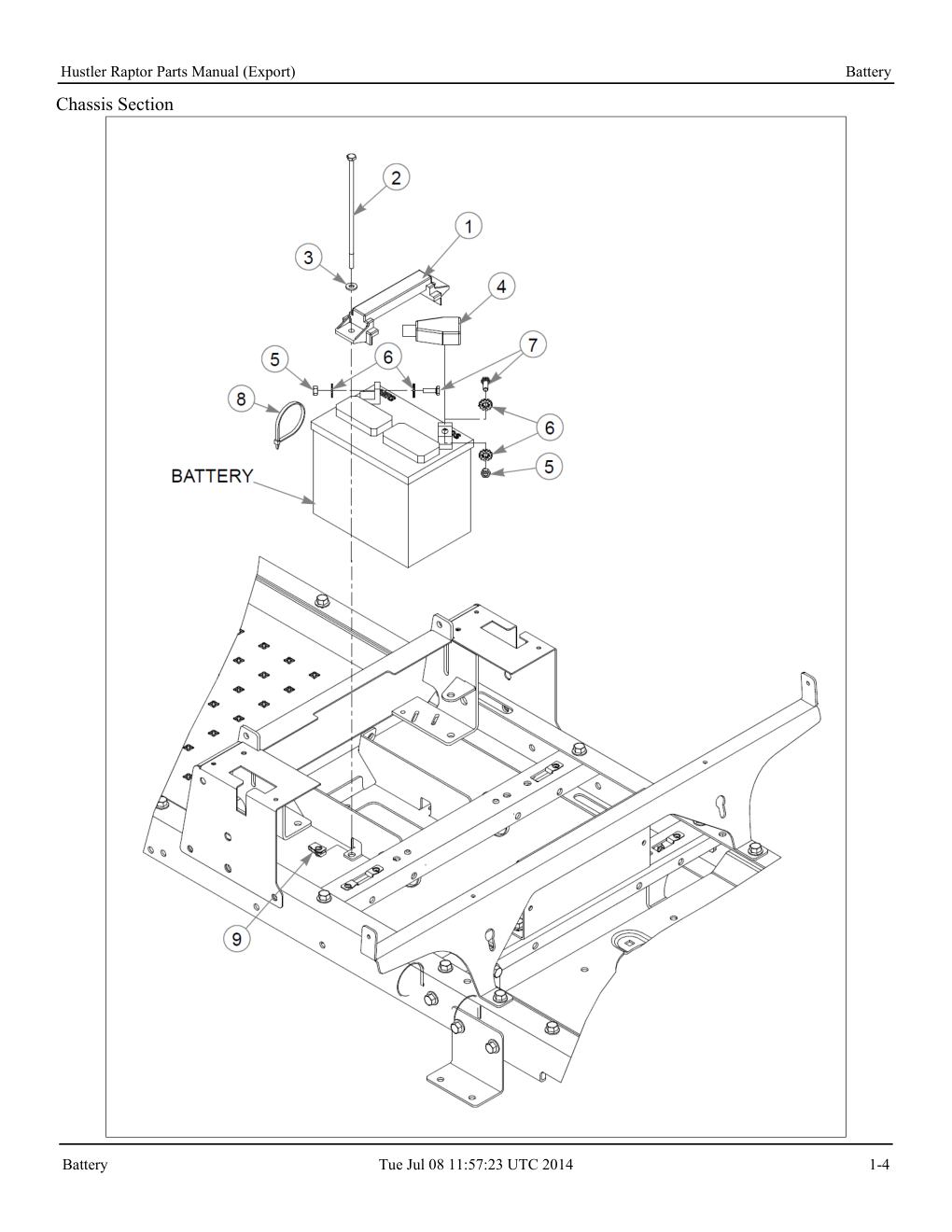

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STRAP, TIE DOWN | 604178 | 1 | 604178-Online |
| 2 | CS 0.250-20 x 7.50 HX G5 | 604465 | 2 | 604465-Online |
| 4 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 5 | NT 0.250-20HXG5 | 024927 | 2 | HT024927-Online |
| 6 | LW0.250INTEXT | 029868 | 4 | 029868-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 8 | WIRE TIE | 000331 | 2 | 000331-Online |
| 9 | CN .250-20 X .15 MAX THK | 601982 | 2 | 601982-Online |

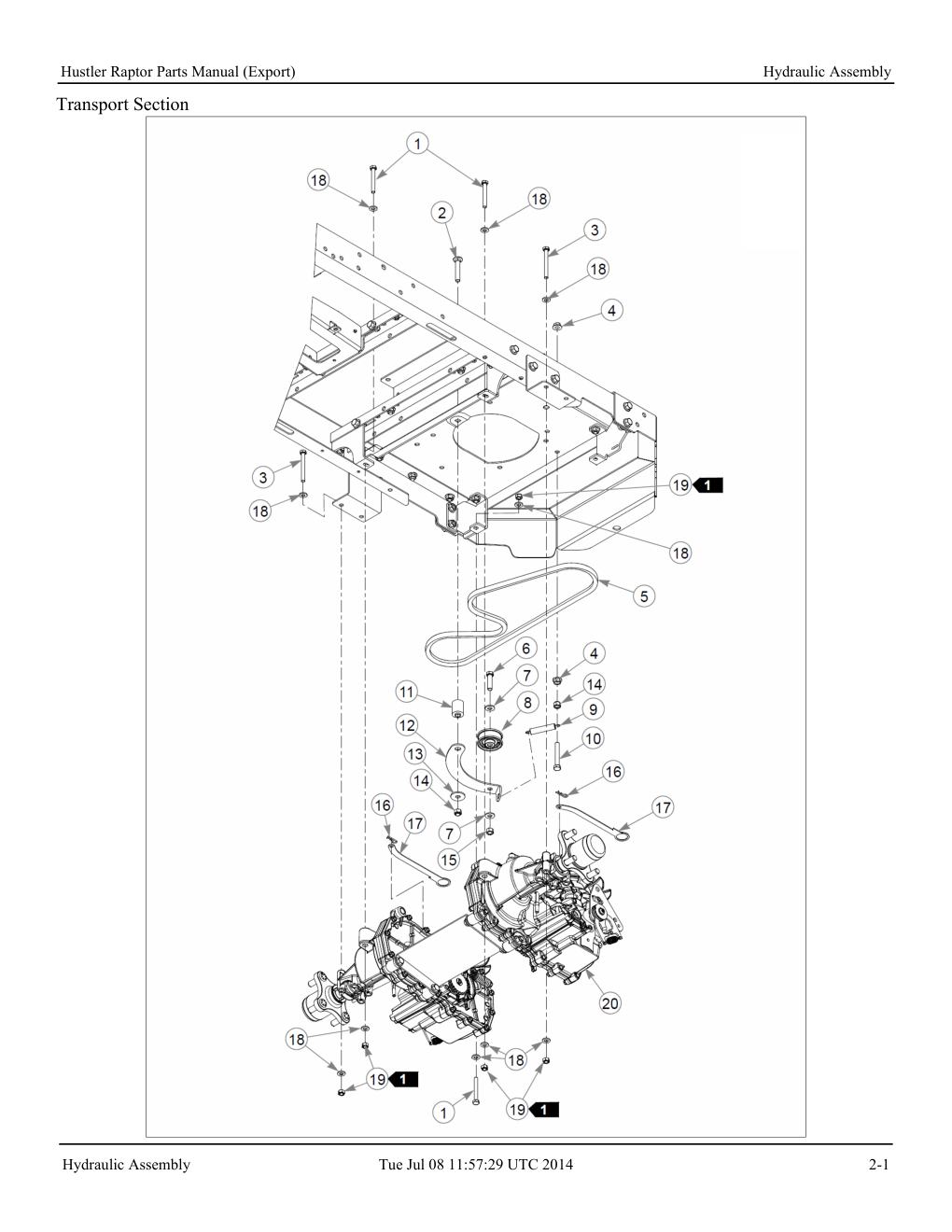

Hydraulic Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS0.312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | CB .375-16 X 2.25 STD ZN | 604343 | 1 | 604343-Online |
| 3 | CS0.312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 4 | NT 0.375-1FLKG5 | 016899 | 2 | HT016899-Online |
| 5 | BELT, RAPTOR | 603907 | 1 | 603907-Online |
| 6 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 7 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 8 | PULLEY, 2.0" IDLER | 604491 | 1 | 604491-Online |
| 9 | SPRING, 3.00 X .50 EXT | 604490 | 1 | 604490-Online |
| 10 | CS .375-16 X 2.50 FULTH | 604487 | 1 | 604487-Online |
| 11 | SPACER, PIVOT IDLER | 116289 | 1 | HT116289-Online |
| 12 | IDLER ARM | 116287 | 1 | HT116287-Online |
| 13 | FW 0.406X1.250X0.120 | 712893 | 1 | HT712893-Online |
| 14 | NT 0.375-16NLG5 | 086660 | 2 | HT086660-Online |
| 15 | NT 0.375-16HXG5 | 054502 | 1 | HT054502-Online |
| 16 | HP0.080X1.190 | 706549 | 2 | HT706549-Online |
| 17 | LINK, TOW VALVE RAPTOR | 116218 | 2 | HT116218-Online |
| 18 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 19 | NT 0.312-18 NL G5 | 058776 | 8 | HT058776-Online |
| 20 | TRANSMISSION ASSEMLBY | N/A | 1 | No SKU |

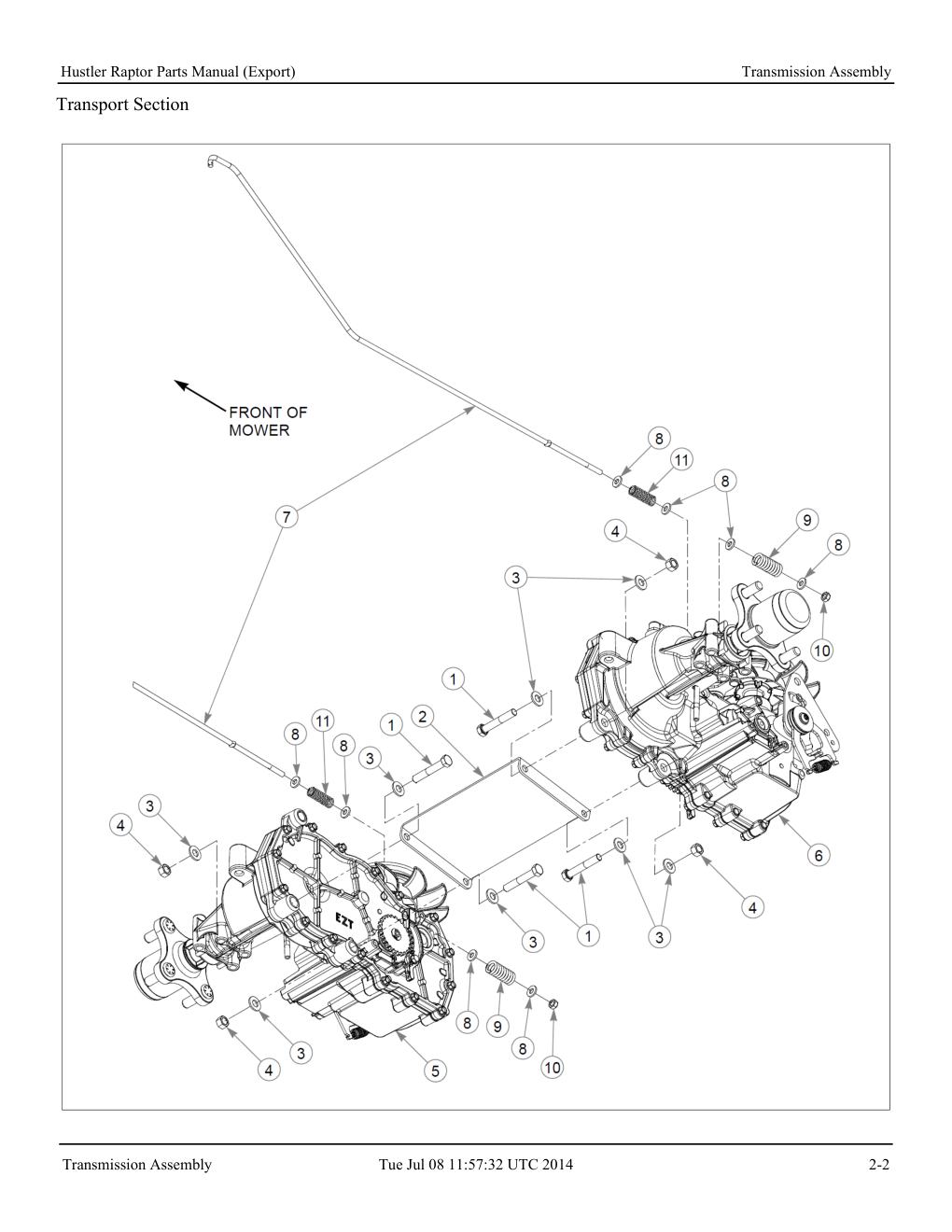

Transmission Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS0.375-16X2.250HXG5 | 056036 | 4 | 056036-Online |
| 2 | HYDROSTAT CROSS BRACE | 110042 | 1 | 110042-Online |
| 3 | FW 0.379 x 0.813 x 0.063 | 767954 | 8 | HT767954-Online |
| 4 | NT 0.375-16HXG5 | 054502 | 4 | HT054502-Online |
| 5 | EZT, 19.2:1 TRANS | 604127 | 1 | 604127-Online |
| 6 | EZT, 19.2:1 TRANS | 604128 | 1 | 604128-Online |
| 7 | ROD, BRAKE ACTUATOR | 116143 | 2 | HT116143-Online |
| 9 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
| 10 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 11 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |

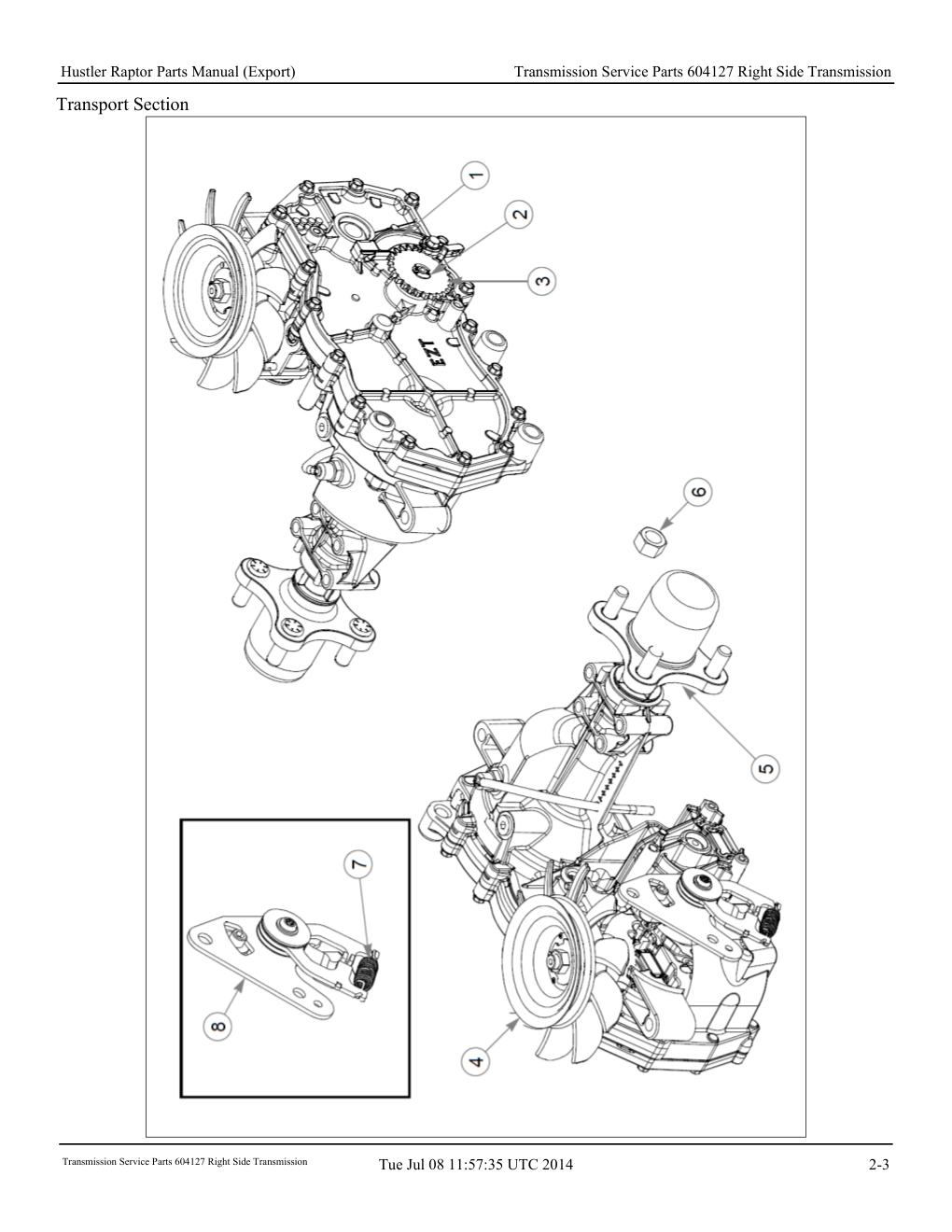

Transmission Service Parts 604127 Right Side Transmission
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PARKING PAWL KIT, EZT | 795047 | 1 | HT795047-Online |
| 2 | RING, RETAINING | 798371 | 1 | 798371-Online |
| 3 | GEAR, PARK BRAKE | 798363 | 1 | HT798363-Online |
| 4 | ZT2800 FAN / PULLEY KIT | 602094 | 1 | 602094-Online |
| 5 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 6 | NUT, H-G ZT HUB | 788877 | 1 | 788877-Online |
| 7 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 8 | HG RTN CW | 604901 | 1 | 604901-Online |
Transmission Service Parts 604128 Left Side Transmission
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PARKING PAWL KIT, EZT | 795047 | 1 | HT795047-Online |
| 2 | RING, RETAINING | 798371 | 1 | 798371-Online |
| 3 | GEAR, PARK BRAKE | 798363 | 1 | HT798363-Online |
| 4 | ZT2800 FAN / PULLEY KIT | 602094 | 1 | 602094-Online |
| 5 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 6 | NUT, H-G ZT HUB | 788877 | 1 | 788877-Online |
| 7 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 8 | HG RTN CCW | 604902 | 1 | 604902-Online |
Steering & Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DAMPER, RAPTOR | 603983 | 2 | 603983-Online |
| 2 | BALL STUD, DAMPER (FS) | 781922 | 4 | 781922-Online |
| 3 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 4 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 5 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 6 | SB0.312X0.750SH0.250-20 | 772483 | 2 | HT772483-Online |
| 7 | YOKE, 5/16-24 | 604173 | 2 | 604173-Online |
| 8 | NT .312-24 HX ZNYC | 041152 | 6 | HT041152-Online |
| 9 | ROD, STEERING | 603905 | 2 | 603905-Online |
| 11 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 12 | STEERING BAR W/ GRIP | 110370 | 2 | 110370-Online |
| 12 | STEERING BAR GRIP | 781260 | 1 | 781260-Online |
| 13 | NT 0.375-16HXG5 | 054502 | 4 | HT054502-Online |
| 14 | FW 0.379 x 0.813 x 0.063 | 767954 | 8 | HT767954-Online |
| 15 | CS .375-16 X 1.50 HX G5 | 080655 | 4 | HT080655-Online |
| 16 | CS .375-16 X .75 HX FLK | 029629 | 5 | HT029629-Online |
| 17 | NT 0.375-1FLKG5 | 016899 | 6 | HT016899-Online |
| 18 | NT 0.312-18HXG5 | 034272 | 2 | HT034272-Online |
| 19 | BLOCK, STEERING CONTROL | 116144 | 2 | HT116144-Online |
| 20 | CLIP E .66 X .303 X .035 | 603332 | 2 | 603332-Online |
| 21 | CS .375-16X1.000 HXFLK | 029751 | 1 | 029751-Online |

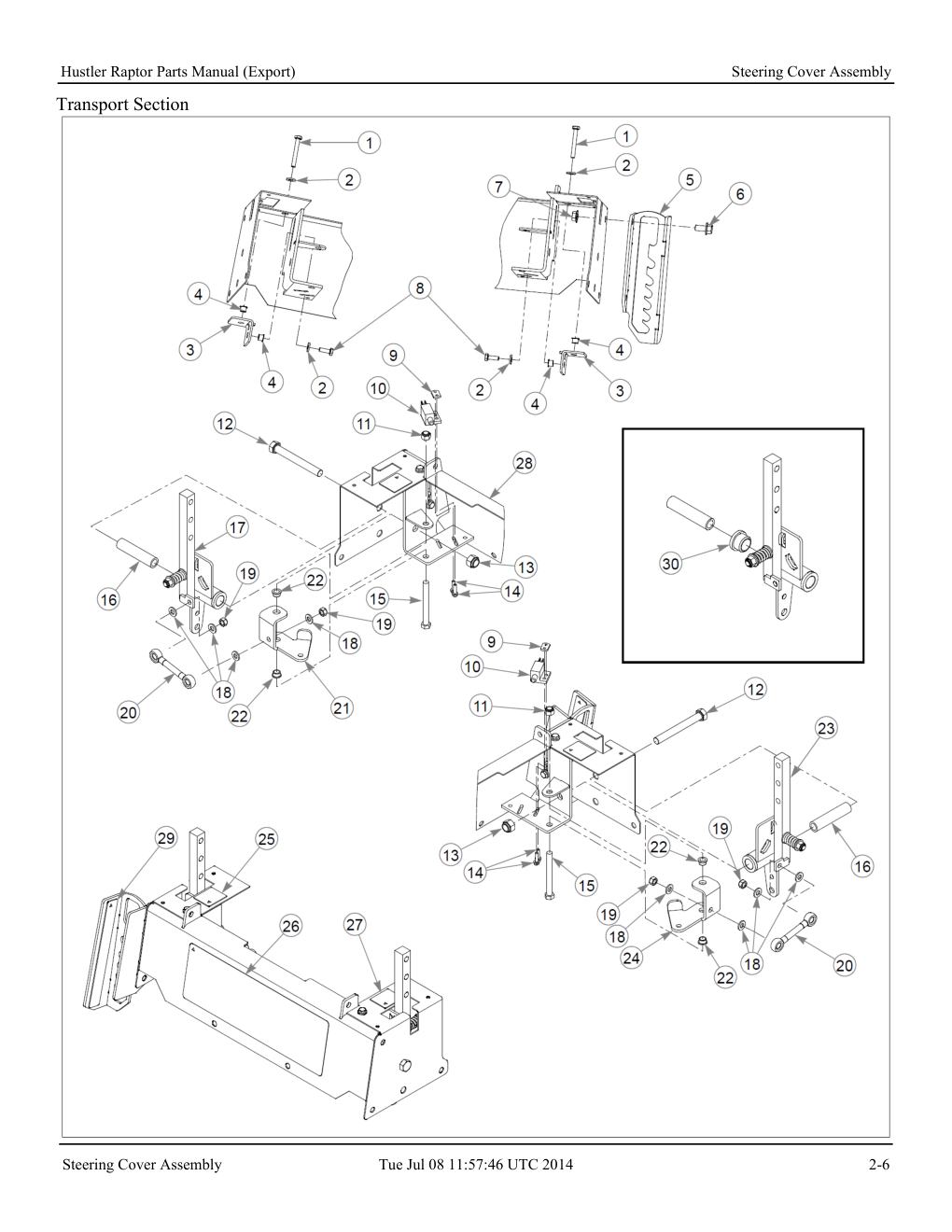

Steering Cover Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS 0.25-20x2.00 HX FLTHD | 604452 | 2 | 604452-Online |
| 3 | STOP RH, DRIVE STRAIGHT | 117540 | 2 | 117540-Online |
| 4 | RIVET NUT, 1/4-20 THREA | 808477 | 4 | 808477-Online |
| 5 | SERVICE, LATCH | 551912 | 1 | HT551912-Online |
| 6 | CS .375-16 X .75 HX FLK | 029629 | 1 | HT029629-Online |
| 7 | NT 0.375-1FLKG5 | 016899 | 1 | HT016899-Online |
| 8 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 9 | NUT PLATE, .420 CENTERS | 601822 | 2 | 601822-Online |
| 10 | SWITCH, PUSH BUTTON(FS) | 781211 | 2 | HT781211-Online |
| 11 | NT 0.375-16NLG5 | 086660 | 2 | HT086660-Online |
| 12 | CS0.500-13X4.250HXG5 | 781708 | 2 | HT781708-Online |
| 13 | NT 0.500-13NLG5 | 781567 | 2 | HT781567-Online |
| 14 | CS#10-24X0.750FLKG5 | 063198 | 4 | 063198-Online |
| 15 | CS0.375-16X3.500HXG5 | 005108 | 2 | HT005108-Online |
| 16 | SPACER, STEERING | 604288 | 2 | 604288-Online |
| 17 | STEERING BOX SUB, LH | 604300 | 1 | 604300-Online |
| 18 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 19 | NT 0.312-18 NL G5 | 058776 | 4 | HT058776-Online |
| 20 | BRAKE LINK | 604179 | 2 | 604179-Online |
| 21 | BRAKE BLCRNK, LH | 116142 | 1 | 116142-Online |
| 22 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 23 | STEERING BOX SUB, RH | 604299 | 1 | 604299-Online |
| 24 | BRAKE BLCRNK, RH | 116141 | 1 | 116141-Online |
| 25 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 26 | DECAL ID, RAPTOR | 604195 | 1 | 604195-Online |
| 27 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 28 | STEERING COVER | 116134 | 1 | 116134-Online |
| 29 | DECAL, DECK HEIGHT | 604275 | 1 | 604275-Online |
| 30 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
Wheel & Tire - 36" Mowers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL ASSY 18X7.0-8 | 605261 | 2 | 605261-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS0.500-13X1.250HSG5 | 705954 | 2 | HT705954-Online |
| 4 | FW .510X 2.15X.187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW 0.531X1.375X0.125 | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | FRONT WHEEL SUB-ASSEMBLY | N/A | 1 | No SKU |

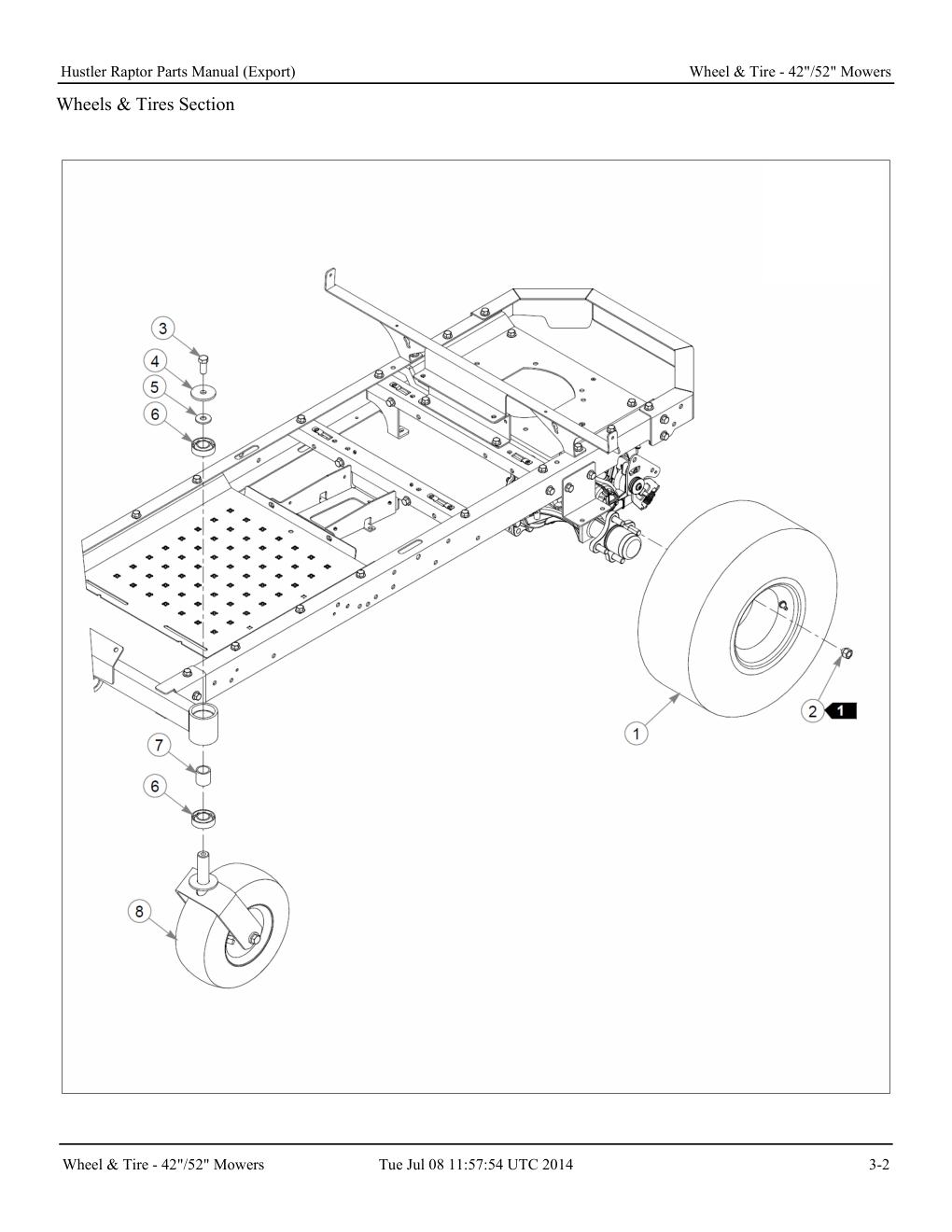

Wheel & Tire - 42"/52" Mowers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE/WHEEL ASSY | 604013 | 2 | 604013-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS0.500-13X1.250HSG5 | 705954 | 2 | HT705954-Online |
| 4 | FW .510X 2.15X.187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW 0.531X1.375X0.125 | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | FRONT WHEEL ASSEMBLY | N/A | 2 | No SKU |

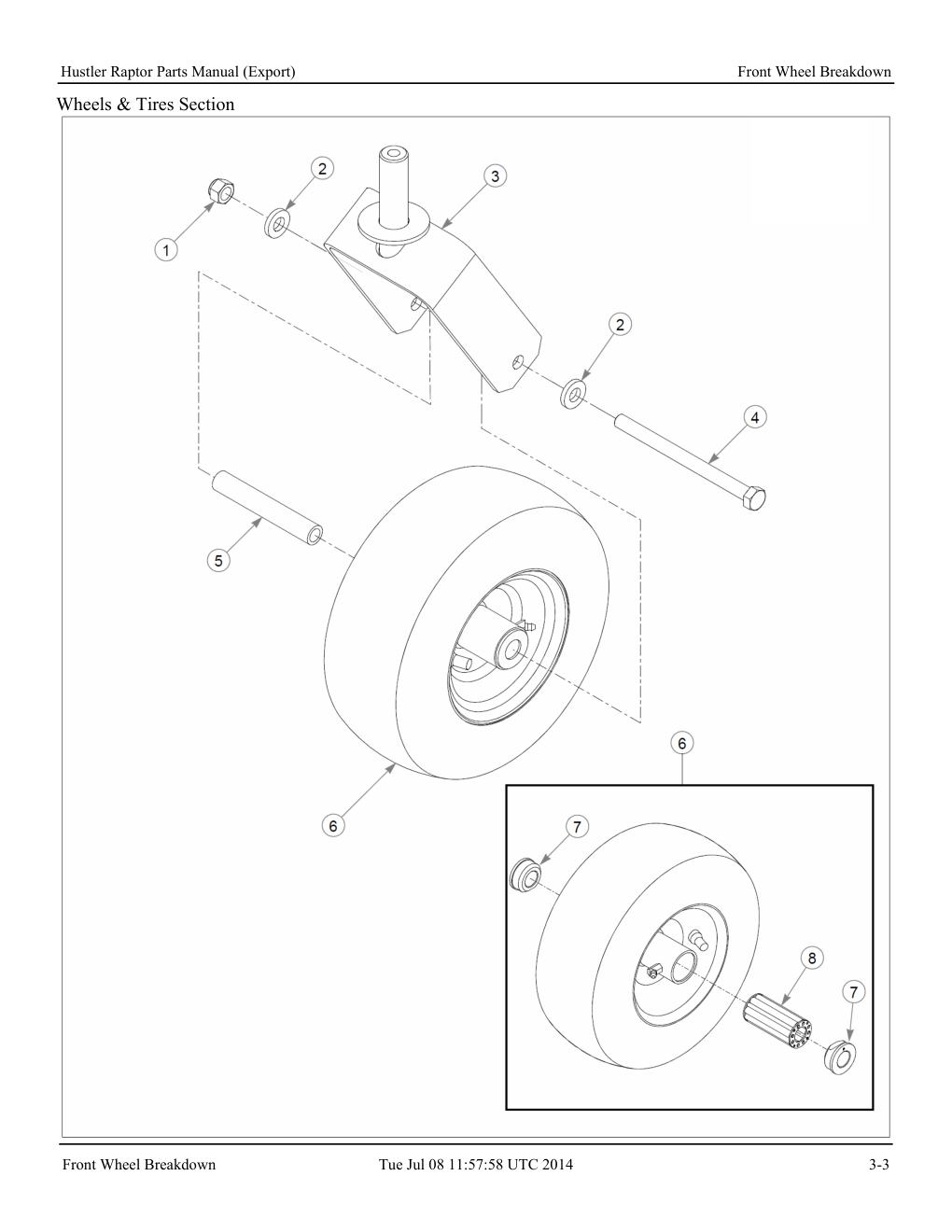

Front Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT 0.500-13NLG5 | 781567 | 1 | HT781567-Online |
| 2 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 3 | CASTER FORK W/A | 110116 | 1 | HT110116-Online |
| 4 | CS0.500-13X6.500HXG5 | 042630 | 1 | HT042630-Online |
| 5 | GAGE WHEEL SPACER | 306969 | 1 | HT306969-Online |
| 6 | TIRE/WHEEL ASSY 11X4 | 605113 | 1 | 605113-Online |
| 7 | BEARING CAP | 772806 | 2 | HT772806-Online |
| 8 | BEARING, 3/4" ROLLER | 772814 | 1 | HT772814-Online |

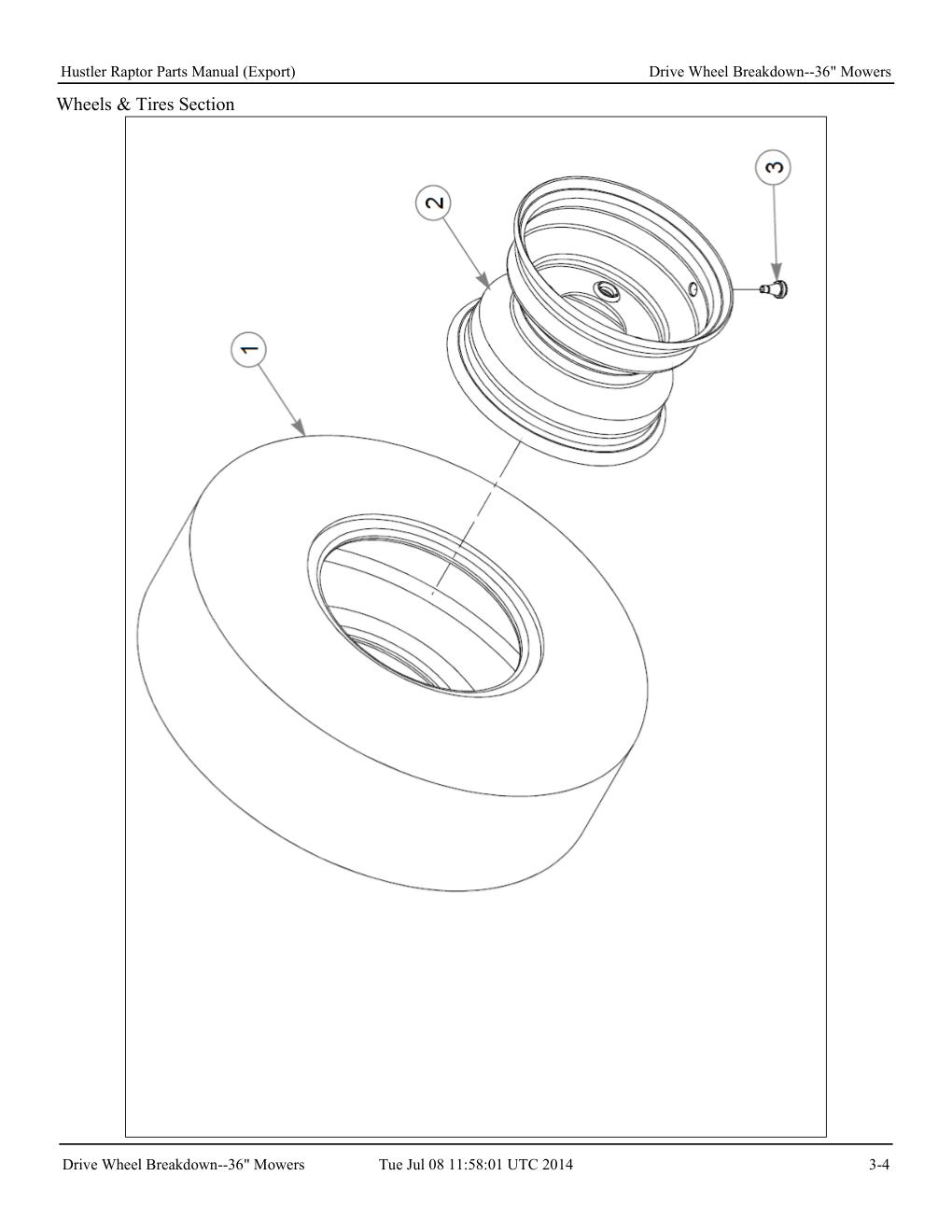

Drive Wheel Breakdown--36" Mowers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL ASSY, 8X6 | 605262 | 1 | 605262-Online |
| 2 | TIRE, 18X7.0-8 | 605433 | 1 | 605433-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |

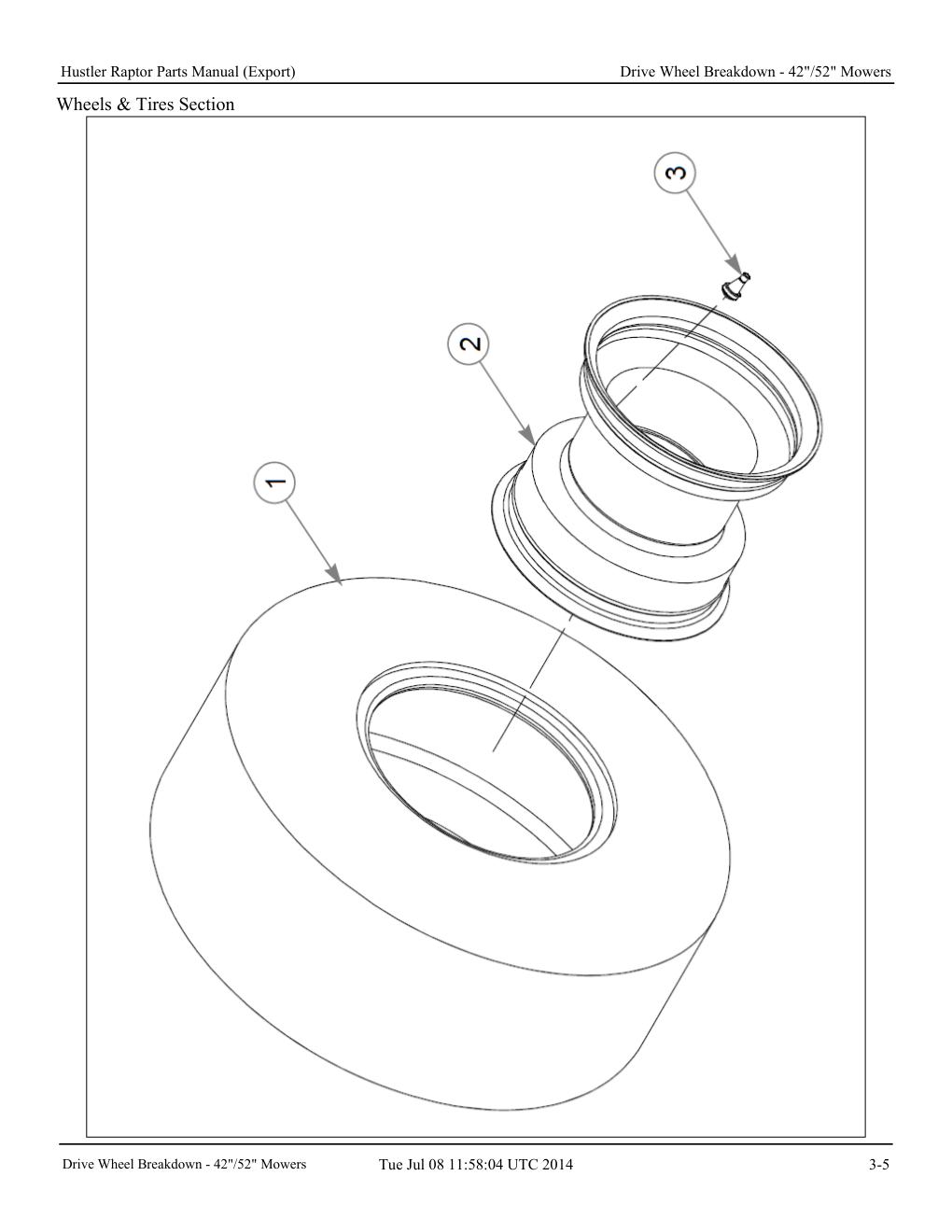

Drive Wheel Breakdown - 42"/52" Mowers
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE, 18X8.5-8 | 604267 | 1 | 604267-Online |
| 2 | WHEEL 8 X 6.93 | 601820 | 1 | 601820-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |

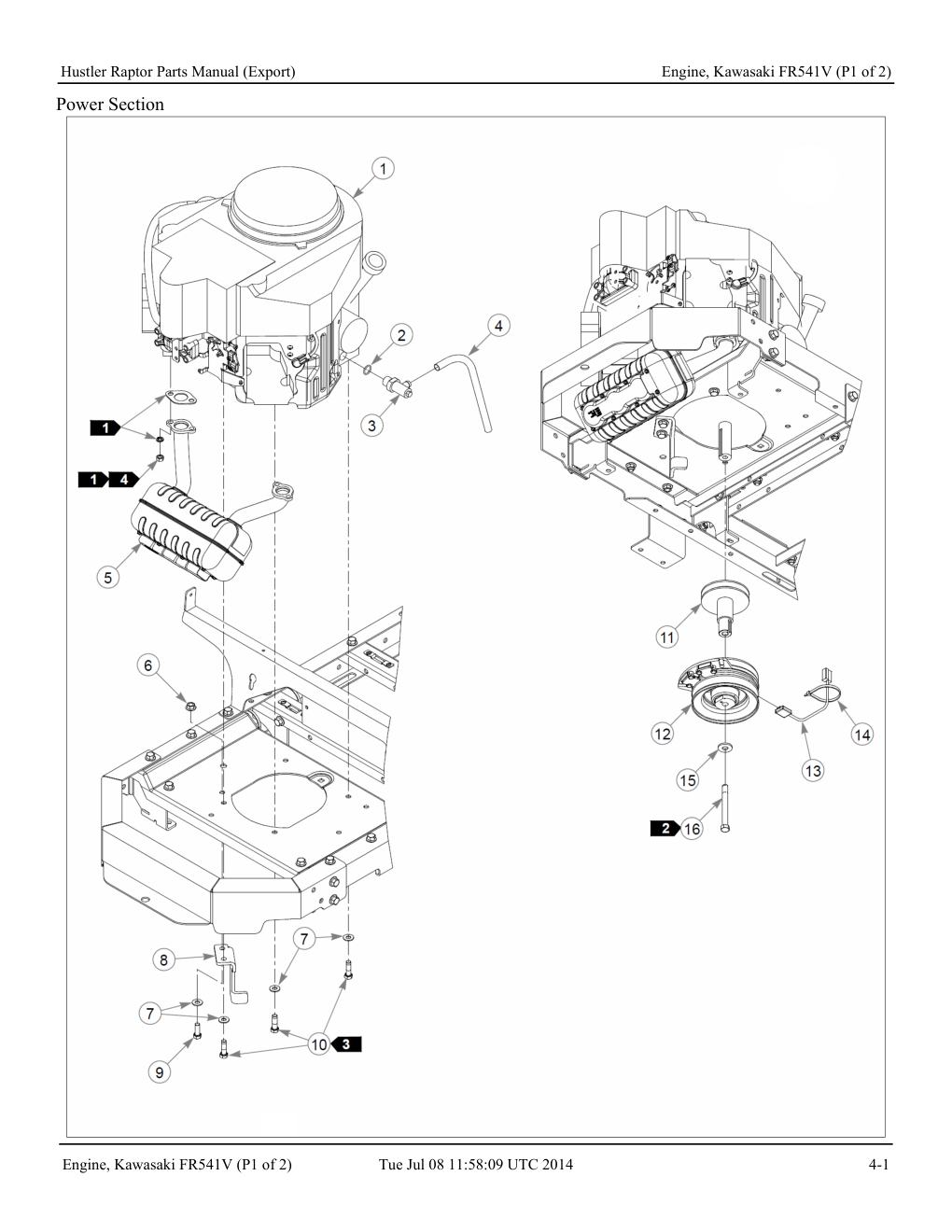

Engine, Kawasaki FR541V (P1 of 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Kawasaki FR541V Engine | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | VALVE, OIL DRAIN | 604350 | 1 | 604350-Online |
| 4 | HOSE, OIL DRAIN | 604463 | 12 | 604463-Online |
| 5 | MUFFLER, FR600V RITEFLO | 602999 | 1 | 602999-Online |
| 6 | NT 0.375-1FLKG5 | 016899 | 1 | HT016899-Online |
| 7 | FW 0.379 x 0.813 x 0.063 | 767954 | 5 | HT767954-Online |
| 8 | CLUTCH ANCHOR | 116290 | 1 | 116290-Online |
| 9 | CS0.375-16X1.000HXG5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16x1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 11 | PULLEY, PUMP STUB SHAFT | 604185 | 1 | 604185-Online |
| 12 | CLUTCH KIT, RAPTOR | 604244K | 1 | 604244K-Online |
| 13 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 14 | WIRE TIE | 000331 | 3 | 000331-Online |
| 15 | FW .453X 1.12X .119 HRD | 602680 | 1 | 602680-Online |
| 16 | CS .437-20X4.00 HXG5 P85 | 604271 | 1 | 604271-Online |

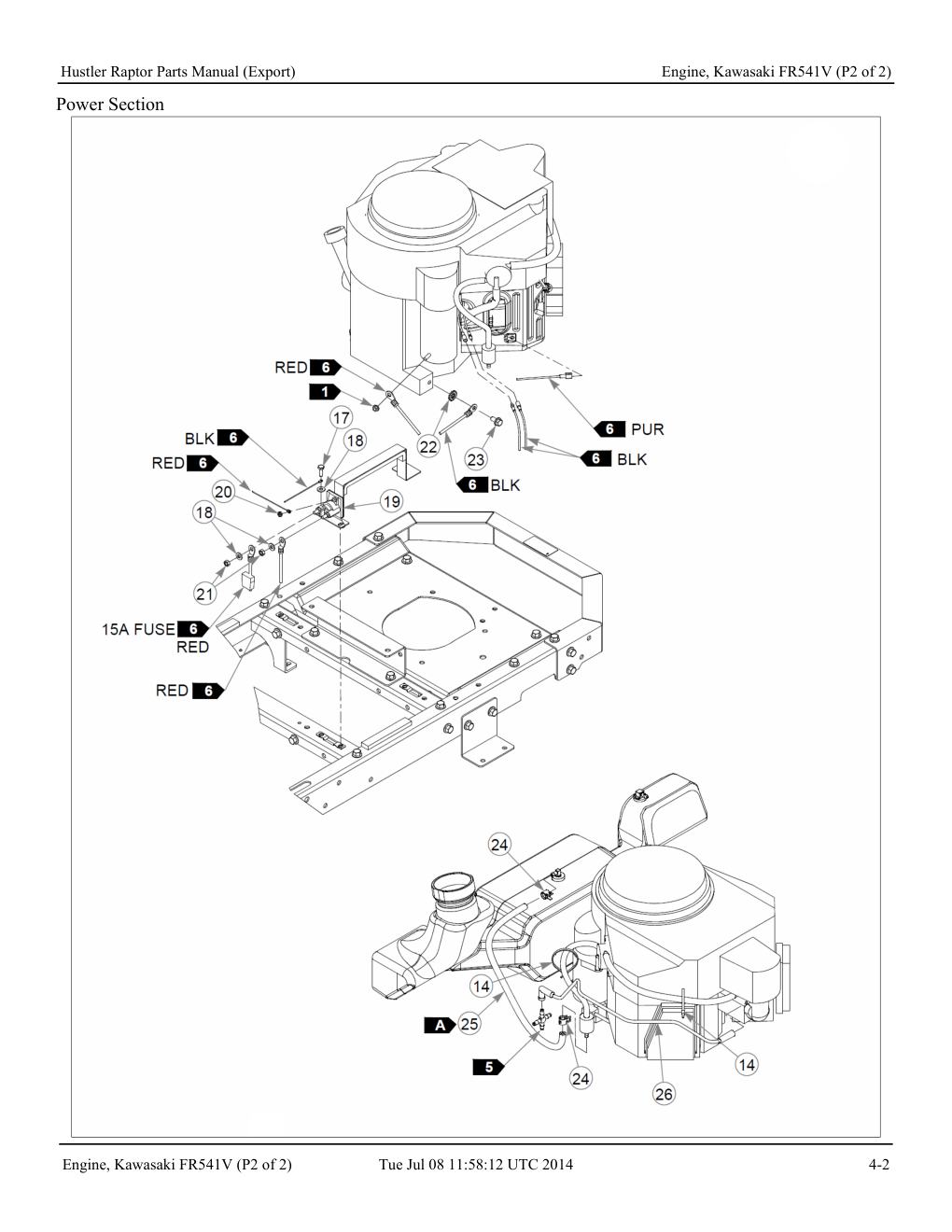

Engine, Kawasaki FR541V (P2 of 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 | WIRE TIE | 000331 | 3 | 000331-Online |
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 19 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 20 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 21 | NT 0.250-20HXG5 | 024927 | 2 | HT024927-Online |
| 22 | LW0.325INTEXT | 029876 | 1 | 029876-Online |
| 23 | CSM8-1.25X16FLG10.9 | 720516 | 1 | 720516-Online |
| 24 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | FUEL LINE, 1/4" | 015818 | 18 | HT015818-Online |
| 26 | VAPOR LINE, 3/16 FORMED | 604274 | 1 | 604274-Online |

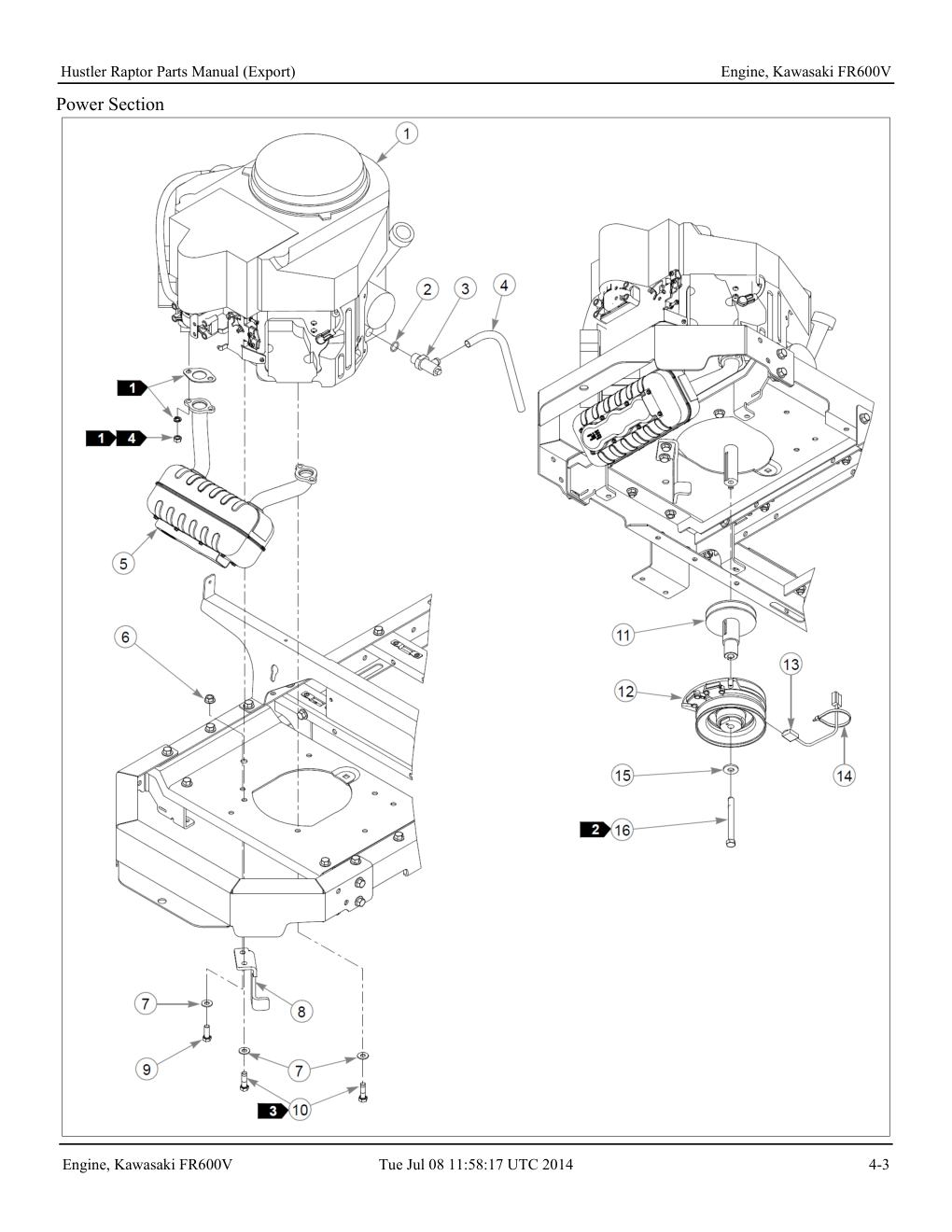

Engine, Kawasaki FR600V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FR600V ENGINE | N/A | 1 | No SKU |
| 2 | O-RING | 604369 | 1 | 604369-Online |
| 3 | VALVE, OIL DRAIN | 604350 | 1 | 604350-Online |
| 4 | HOSE, OIL DRAIN | 604463 | 12" | 604463-Online |
| 5 | MUFFLER, FR600V RITEFLO | 602999 | 1 | 602999-Online |
| 6 | NT 0.375-1FLKG5 | 016899 | 1 | HT016899-Online |
| 7 | FW 0.379 x 0.813 x 0.063 | 767954 | 5 | HT767954-Online |
| 8 | CLUTCH ANCHOR | 116290 | 1 | 116290-Online |
| 9 | CS0.375-16X1.000HXG5 | 036244 | 1 | HT036244-Online |
| 10 | CS .375-16x1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 11 | PULLEY, PUMP STUB SHAFT | 604185 | 1 | 604185-Online |
| 12 | CLUTCH KIT, RAPTOR | 604244K | 1 | 604244K-Online |
| 13 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 14 | WIRE TIE | 000331 | 3 | 000331-Online |
| 15 | FW .453X 1.12X .119 HRD | 602680 | 1 | 602680-Online |
| 16 | CS .437-20X4.00 HXG5 P85 | 604271 | 1 | 604271-Online |
| 17 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 19 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 20 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 21 | NT 0.250-20HXG5 | 024927 | 2 | HT024927-Online |
| 22 | LW0.325INTEXT | 029876 | 1 | 029876-Online |
| 23 | CSM8-1.25X16FLG10.9 | 720516 | 1 | 720516-Online |
| 24 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | FUEL LINE, 1/4" | 015818 | 18" | HT015818-Online |
| 26 | VAPOR LINE, 3/16 FORMED | 604274 | 1 | 604274-Online |

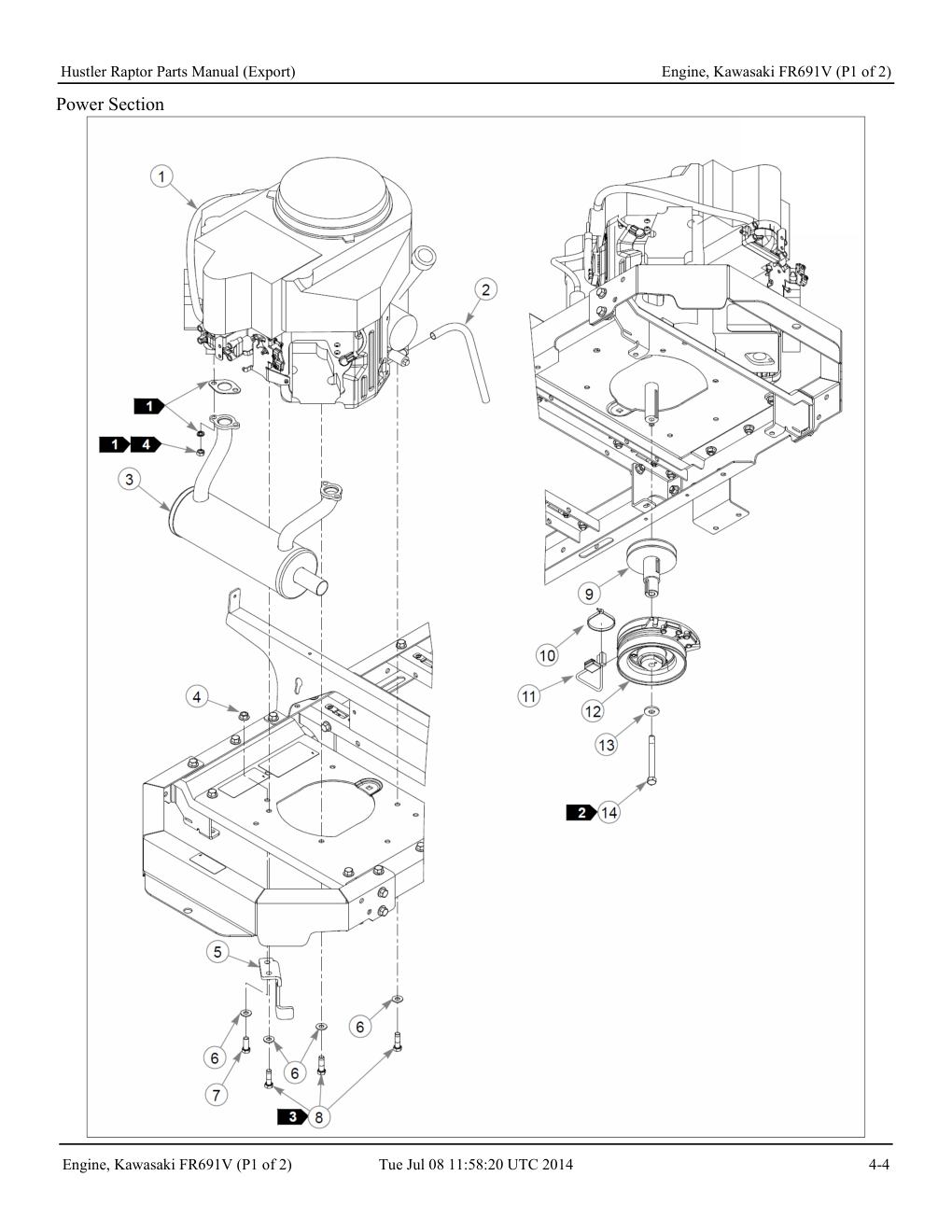

Engine, Kawasaki FR691V (P1 of 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Kawasaki FR691V Engine | N/A | 1 | No SKU |
| 2 | HOSE, OIL DRAIN | 604463 | 12 | 604463-Online |
| 3 | MUFFLER, FR730V | 604016 | 1 | 604016-Online |
| 4 | NT 0.375-1FLKG5 | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 116290 | 1 | 116290-Online |
| 6 | FW 0.379 x 0.813 x 0.063 | 767954 | 5 | HT767954-Online |
| 7 | CS0.375-16X1.000HXG5 | 036244 | 1 | HT036244-Online |
| 8 | CS .375-16x1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 9 | PULLEY, PUMP STUB SHAFT | 604185 | 1 | 604185-Online |
| 10 | WIRE TIE | 000331 | 3 | 000331-Online |
| 11 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 12 | CLUTCH KIT, RAPTOR | 604244K | 1 | 604244K-Online |
| 13 | FW .453X 1.12X .119 HRD | 602680 | 1 | 602680-Online |
| 14 | CS .437-20X4.00 HXG5 P85 | 604271 | 1 | 604271-Online |

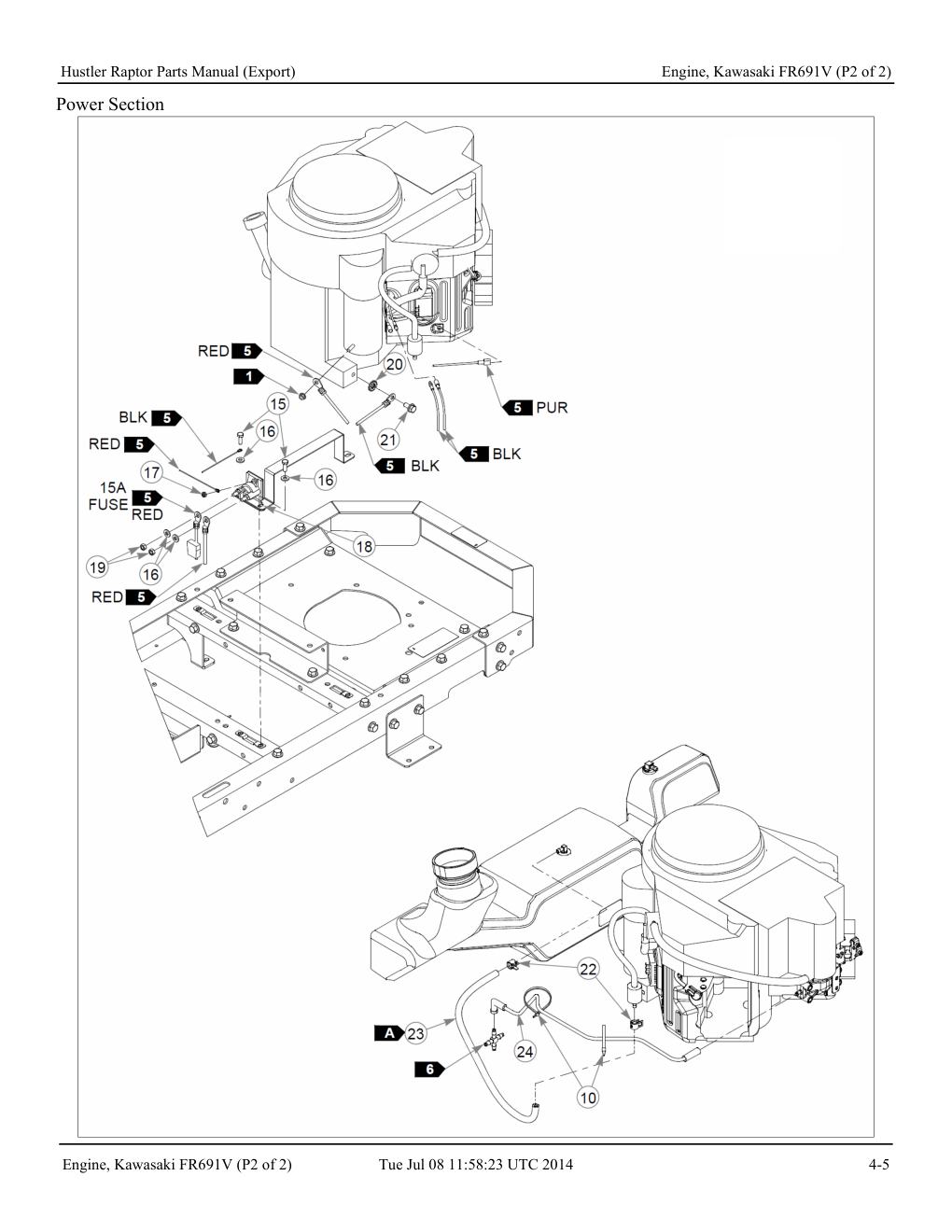

Engine, Kawasaki FR691V (P2 of 2)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 10 | WIRE TIE | 000331 | 3 | 000331-Online |
| 15 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 17 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 18 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 19 | NT 0.250-20HXG5 | 024927 | 2 | HT024927-Online |
| 20 | LW0.325INTEXT | 029876 | 1 | 029876-Online |
| 21 | CSM8-1.25X16FLG10.9 | 720516 | 1 | 720516-Online |
| 22 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 23 | FUEL LINE, 1/4" | 015818 | 18 | HT015818-Online |
| 24 | VAPOR LINE, 3/16 FORMED | 604274 | 1 | 604274-Online |

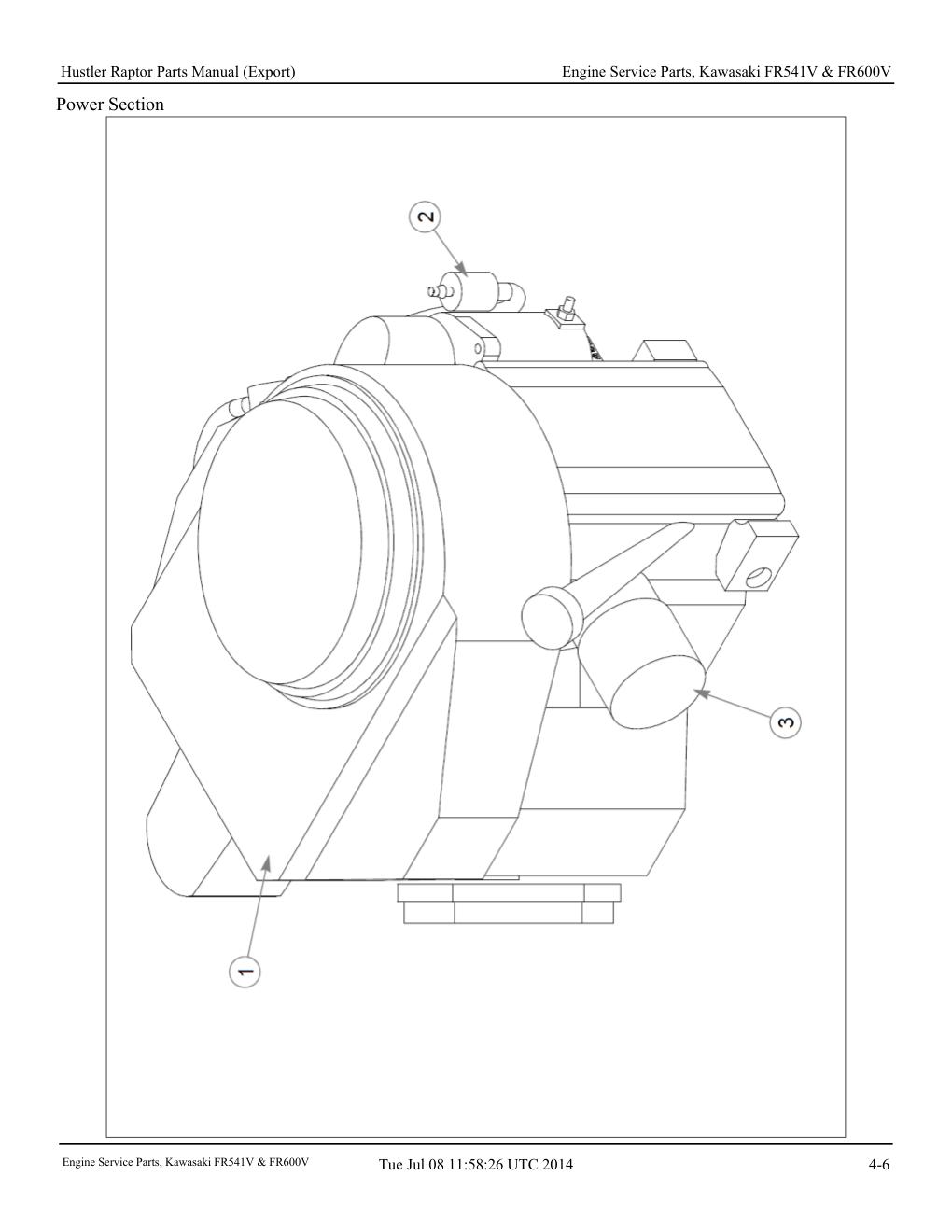

Engine Service Parts, Kawasaki FR541V & FR600V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER, KAW W/CLAMP | 604240 | 1 | 604240-Online |
| 2 | FUEL FILTER IN-LINE | 068478 | 1 | 068478-Online |
| 3 | OIL FILTER, KAW ENG. | 602581 | 1 | 602581-Online |

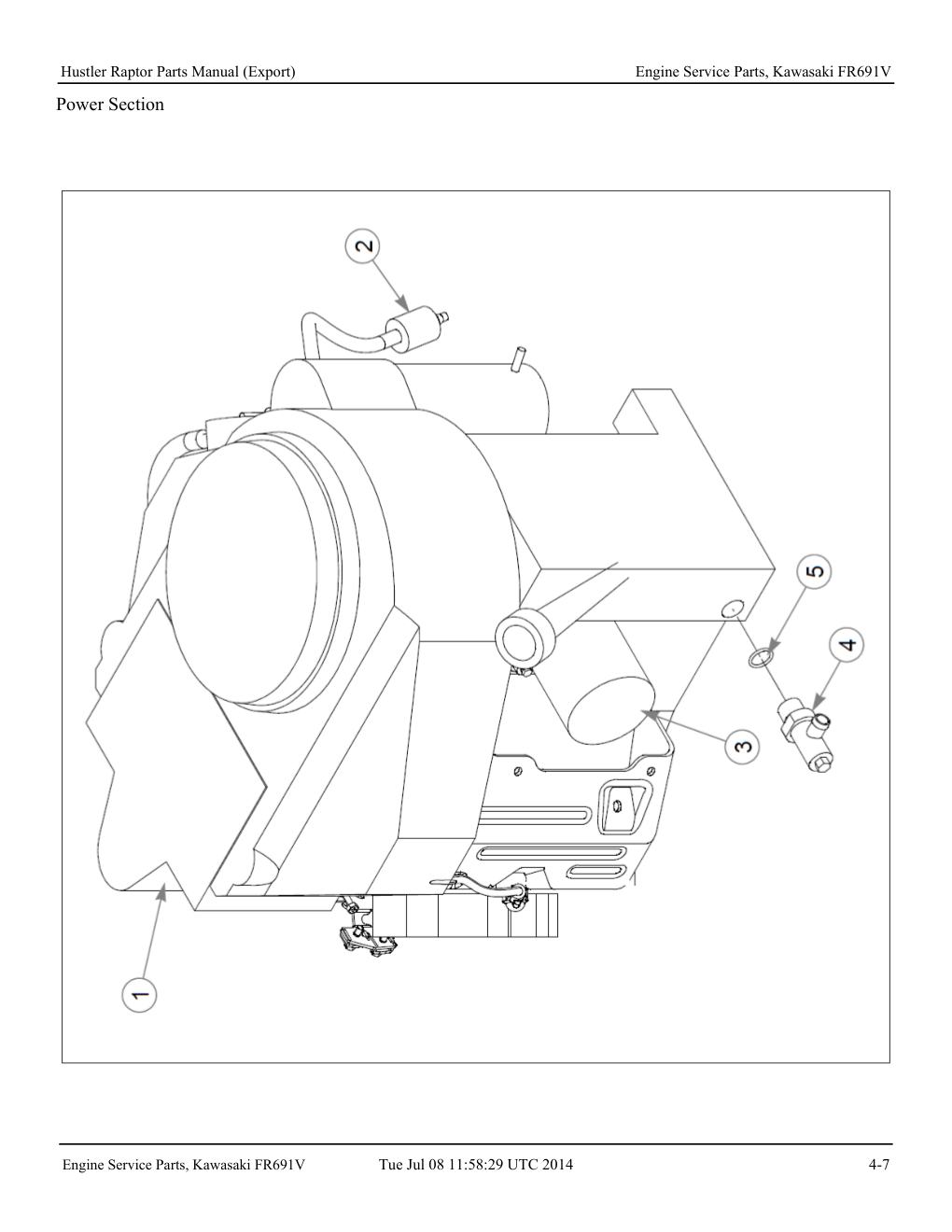

Engine Service Parts, Kawasaki FR691V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER, KAW W/CLAMP | 603059 | 1 | 603059-Online |
| 2 | FUEL FILTER IN-LINE | 068478 | 1 | 068478-Online |
| 3 | OIL FILTER, KAW ENG. | 602581 | 1 | 602581-Online |
| 4 | VALVE, OIL DRAIN | 604350 | 1 | 604350-Online |
| 5 | O-RING | 604369 | 1 | 604369-Online |

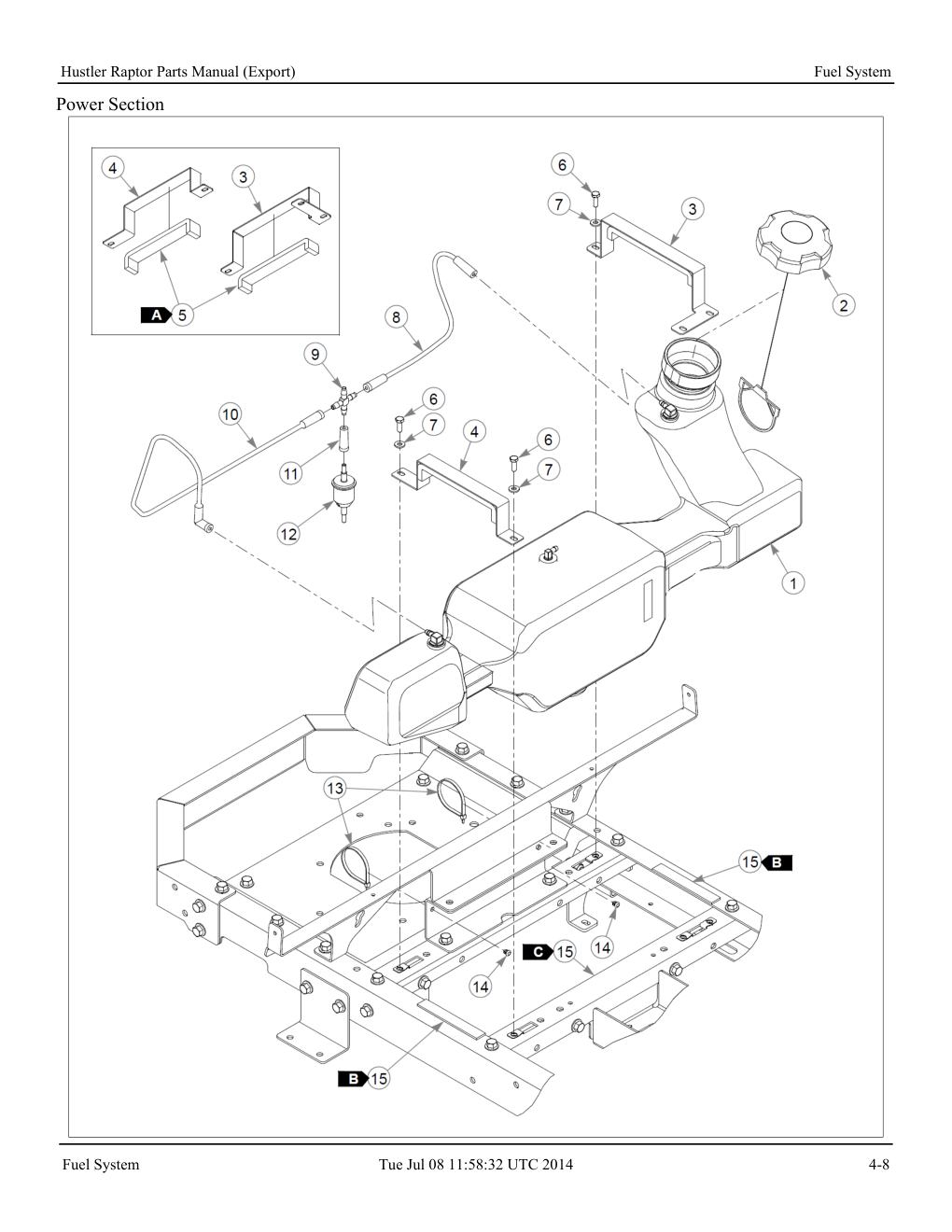

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL TANK ASSEMBLY | 604336 | 1 | 604336-Online |
| 2 | RATCHETING GAS CAP, 3.5" | 603807 | 1 | 603807-Online |
| 3 | LEFT TANK MOUNT | 117059 | 1 | 117059-Online |
| 4 | RIGHT TANK MOUNT | 117060 | 1 | 117060-Online |
| 5 | SEAL 3/8 X 3/4 | 713198 | 18.5 | 713198-Online |
| 6 | CS .250-20 X .75 HX G5 | 055939 | 3 | 055939-Online |
| 8 | 3/16" FORMED VAPOR LINE | 604279 | 1 | 604279-Online |
| 9 | 1/4" HOSE BARB CROSS | 604322 | 1 | 604322-Online |
| 10 | 3/16" FORMED VAPOR LINE | 604273 | 1 | 604273-Online |
| 11 | BOOT, 3/16" TO 1/4" BARB | 604292 | 1 | 604292-Online |
| 12 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 13 | WIRE TIE | 000331 | 2 | 000331-Online |
| 14 | PUSH BUTTON MOUNT | 604307 | 2 | 604307-Online |
| 15 | WEATHERSTRIP | 033035 | 22 | 033035-Online |

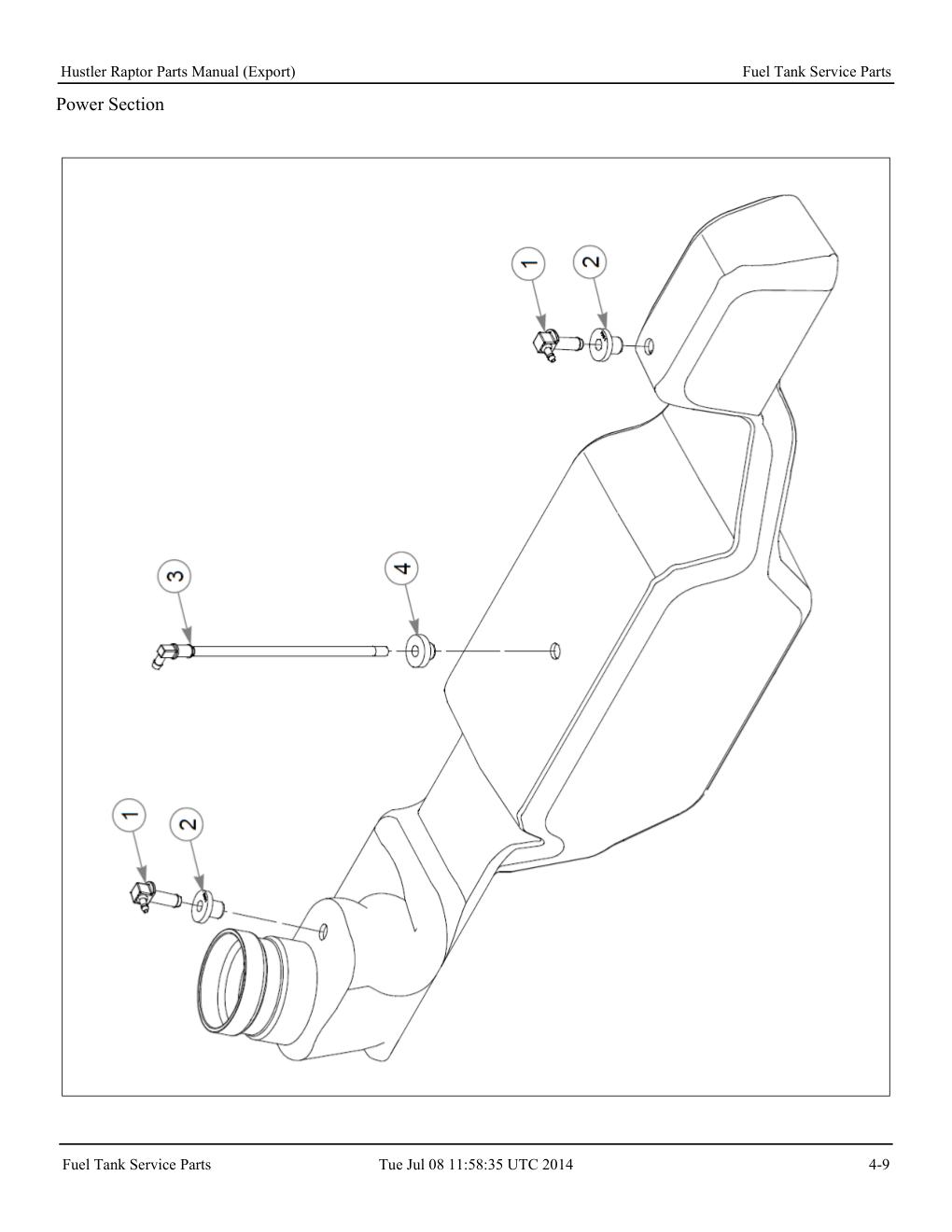

Fuel Tank Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING | 604199 | 2 | 604199-Online |
| 2 | VITON GROMMET | 604200 | 2 | 604200-Online |
| 3 | SUCTION HOSE ASSY, 7.75" | 604340 | 1 | 604340-Online |
| 4 | GROMMET, FUEL SHUTOFF V | 785295 | 1 | HT785295-Online |

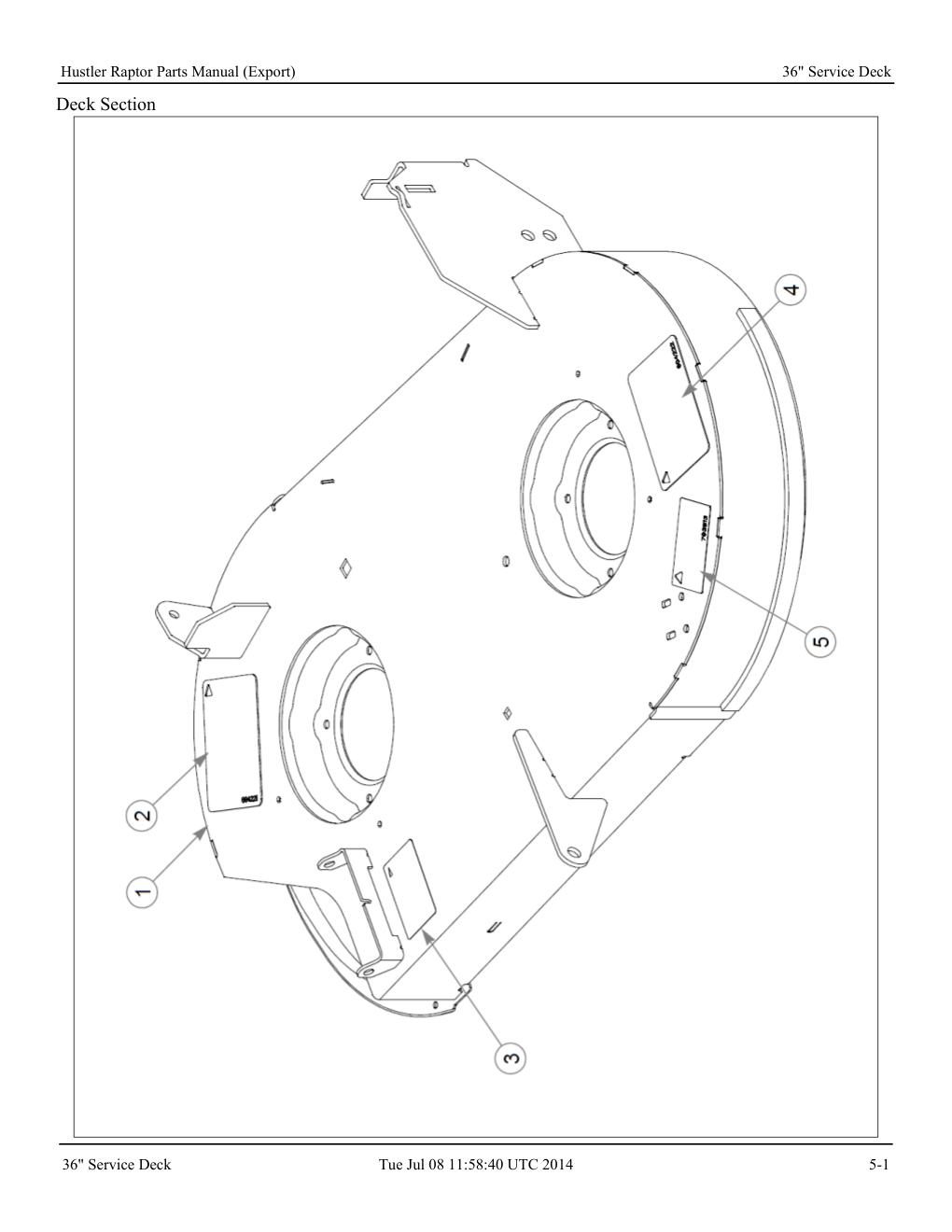

36" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK 36" | 552705 | 1 | 552705-Online |
| 2 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 3 | DECAL, BELT ROUTING | 602243 | 1 | 602243-Online |
| 4 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
| 5 | DECAL,36"DECK ID | 793513 | 1 | 793513-Online |

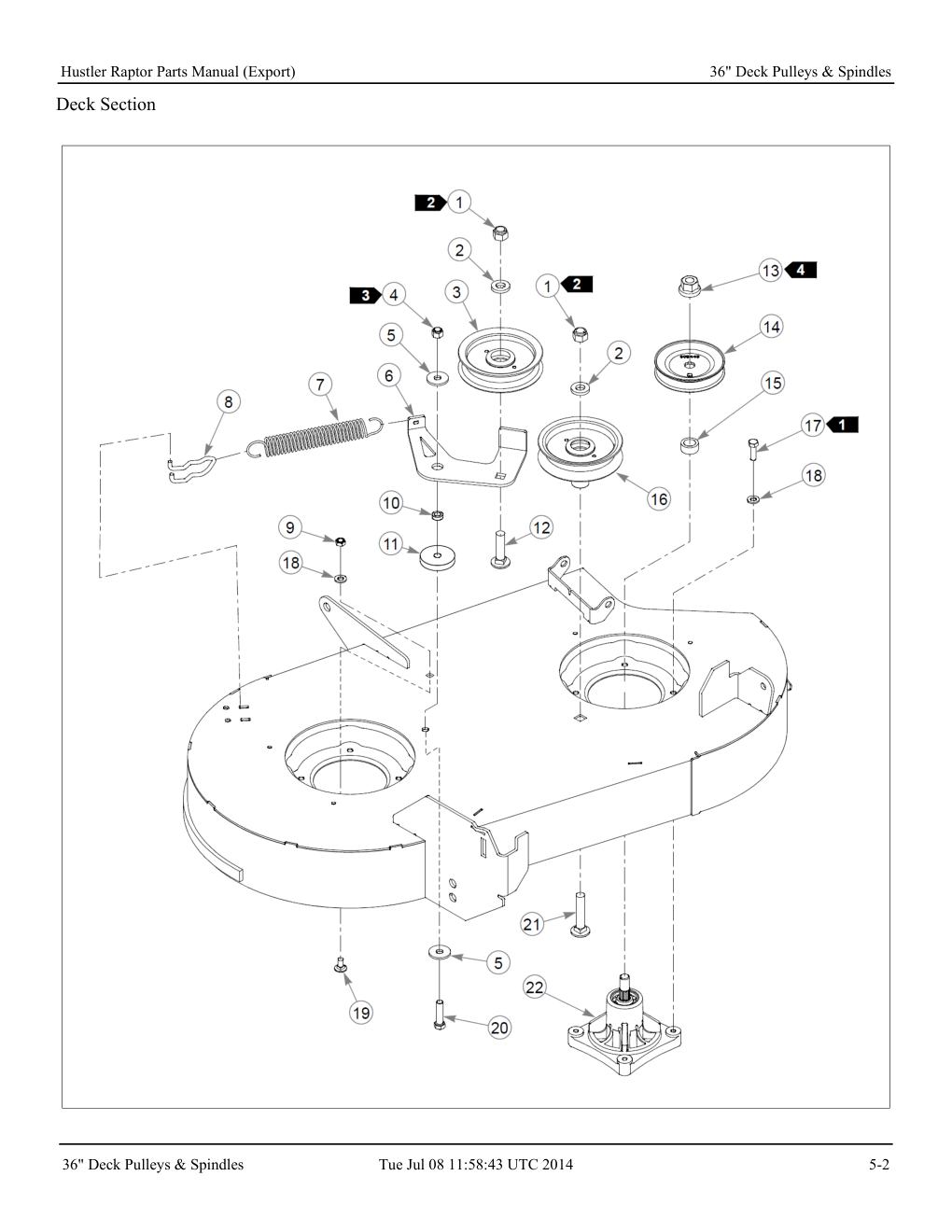

36" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT 0.500-13NLG5 | 781567 | 2 | HT781567-Online |
| 2 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT 0.375-16NLG5 | 086660 | 1 | HT086660-Online |
| 5 | FW 0.406X1.250X0.120 | 712893 | 2 | HT712893-Online |
| 6 | IDLER ARM, PIVOTING 36" | 119932 | 1 | 119932-Online |
| 7 | SPRING, EXTENSION | 605379 | 1 | 605379-Online |
| 8 | ANCHOR, SPRING TENSIONER | 604110 | 1 | 604110-Online |
| 9 | NT .312-18 HXNL JAM G2ZN | 604251 | 1 | 604251-Online |
| 10 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 11 | SPACER, IDLER ARM | 117539 | 1 | HT117539-Online |
| 12 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 13 | NT .562-18 HX G5 ZN | 604172 | 2 | 604172-Online |
| 14 | DRIVE PULLEY-36" | 605443 | 2 | 605443-Online |
| 15 | SPACER, PULLEY | 604123 | 2 | 604123-Online |
| 16 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 17 | CS0.312-18X1.000HXG5 | 036236 | 8 | 036236-Online |
| 18 | FW 0.343SAE | 768523 | 9 | HT768523-Online |
| 19 | CB .312-18X .620 G5 ZN | 083147 | 1 | 083147-Online |
| 20 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 21 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 22 | SPINDLE ASSY, RAPTOR | 604214 | 2 | 604214-Online |

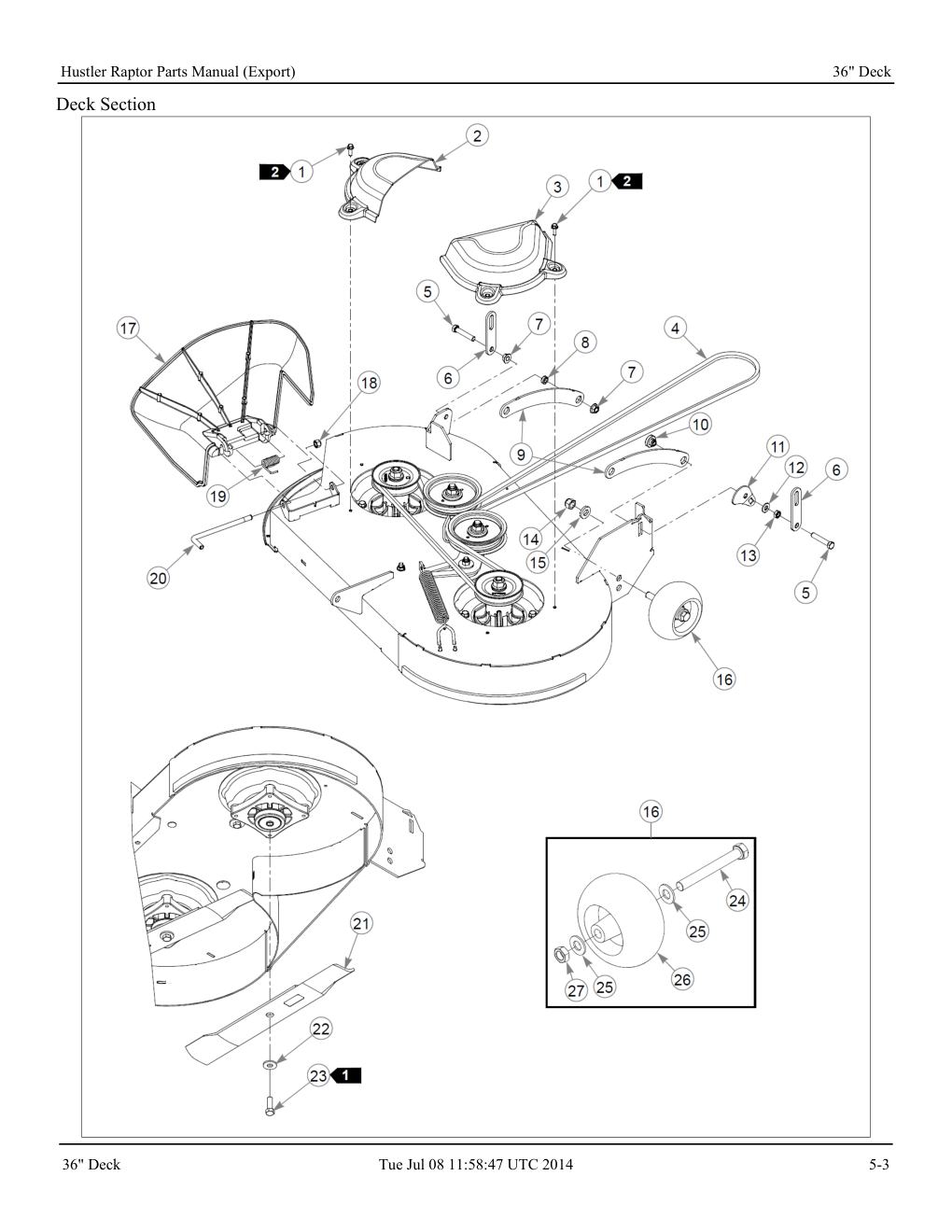

36" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 2 | PULLEY COVER | 605254 | 1 | 605254-Online |
| 3 | PULLEY COVER | 604403 | 1 | 604403-Online |
| 4 | BELT, A 117" EL | 771824 | 1 | 771824-Online |
| 5 | CS0.375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 6 | LINK, DECK LIFT | 117532 | 2 | HT117532-Online |
| 7 | NT 0.375-1FLKG5 | 016899 | 2 | HT016899-Online |
| 8 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 9 | DECK LINK | 116155 | 2 | HT116155-Online |
| 10 | NUT, DECK LEVELING | 605016 | 1 | 605016-Online |
| 11 | CAM, DECK LEVELER | 116911 | 1 | HT116911-Online |
| 12 | FW 0.379 x 0.813 x 0.063 | 767954 | 1 | HT767954-Online |
| 13 | NT 0.375-16JAMG5 | 706168 | 1 | HT706168-Online |
| 14 | NT 0.500-13NLG5 | 781567 | 1 | HT781567-Online |
| 15 | FW 0.531SAE | 767962 | 1 | HT767962-Online |
| 16 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 17 | DISCHARGE CHUTE, 52" | 604268 | 1 | 604268-Online |
| 18 | NT 0.375-16NLG5 | 086660 | 1 | HT086660-Online |
| 19 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 20 | PIN, DISCHARGE CHUTE | 604346 | 1 | 604346-Online |
| 21 | BLADE,17.86"-L-F-CW | 783753 | 2 | 783753-Online |
| Ref | BLADE, 17.86" -M-F-CW | 603995 | 2 | 603995-Online |
| Ref | BLADE,17.86"-GAT-F-CW | 785436 | 2 | 785436-Online |
| Ref | BLADE,17.86"-H-F-CW | 787721 | 2 | HT787721-Online |
| Ref | BLADE,17.86"-MUL-F-CW | 794198 | 2 | HT794198-Online |
| Ref | BLADE, 17.86"-CAT-F-CW | 603848 | 2 | 603848-Online |
| 22 | FW .453X 1.12X .119 HRD | 602680 | 2 | 602680-Online |
| 23 | CS0.437-20X1.250HXG5 | 754101 | 2 | HT754101-Online |
| 24 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 25 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 26 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 27 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |

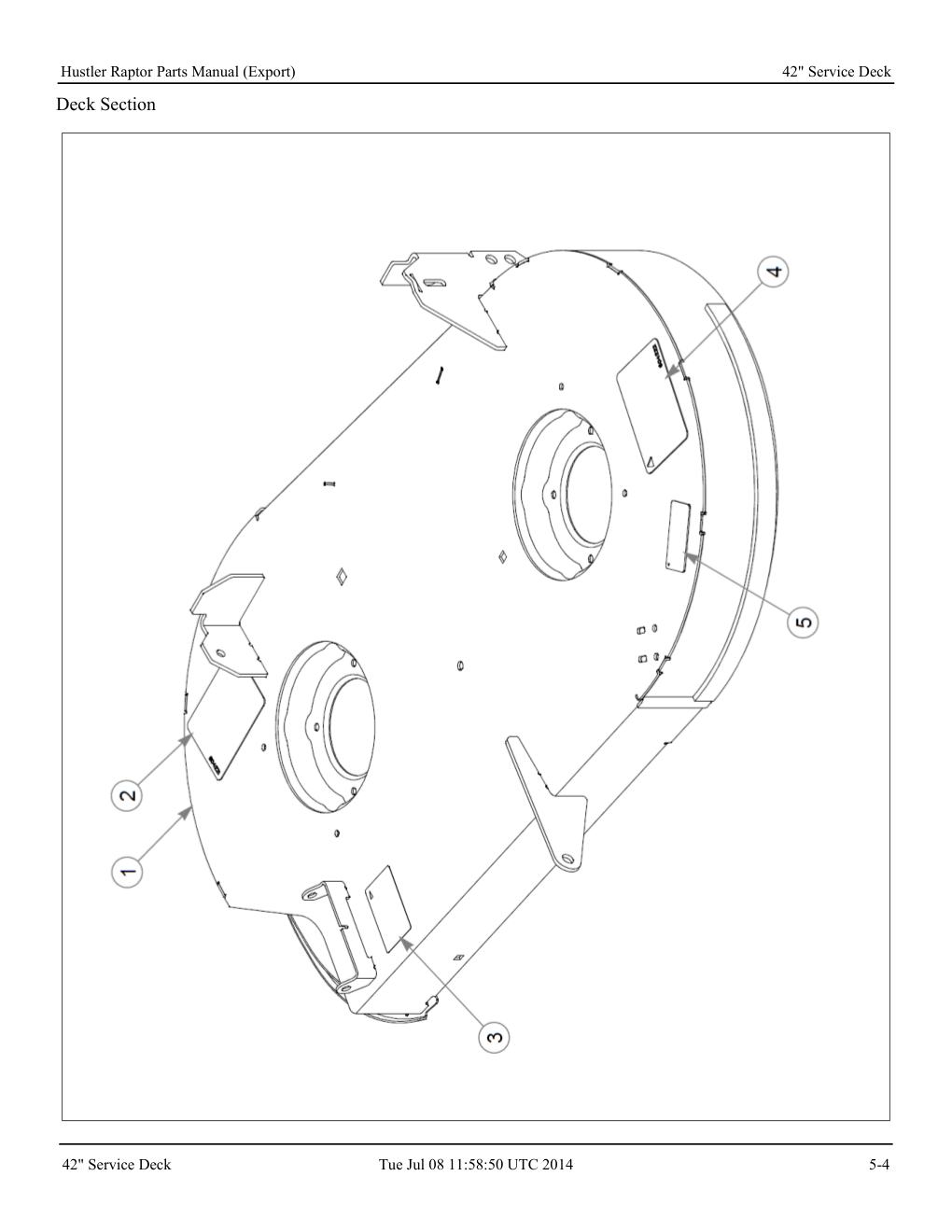

42" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK DECAL ASSY | 551896 | 1 | 551896-Online |
| 2 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 3 | DECAL, BELT ROUTING | 602243 | 1 | 602243-Online |
| 4 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
| 5 | DECAL,42 DECK ID | 793521 | 1 | 793521-Online |

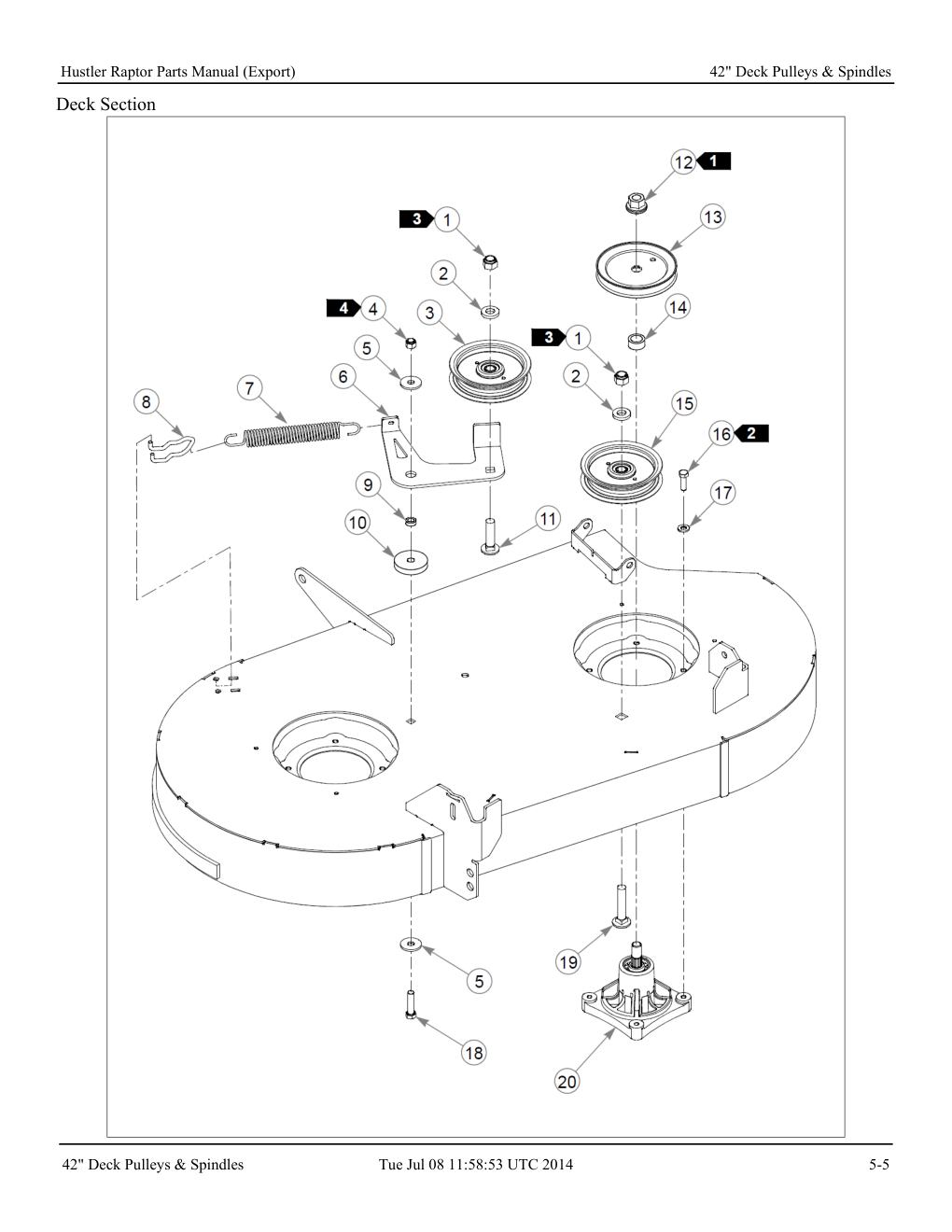

42" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT 0.500-13NLG5 | 781567 | 2 | HT781567-Online |
| 2 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT 0.375-16NLG5 | 086660 | 1 | HT086660-Online |
| 5 | FW 0.406X1.250X0.120 | 712893 | 2 | HT712893-Online |
| 6 | IDLER ARM, PIVOTING | 117596 | 1 | HT117596-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | ANCHOR, SPRING TENSIONER | 604110 | 1 | 604110-Online |
| 9 | PIVOT SPACER BUSHING | 601839 | 1 | 601839-Online |
| 10 | SPACER, IDLER ARM | 117539 | 1 | HT117539-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | NT .562-18 HX G5 ZN | 604172 | 2 | 604172-Online |
| 13 | PULLEY, 12 POINT | 603987 | 2 | 603987-Online |
| 14 | SPACER, PULLEY | 604123 | 2 | 604123-Online |
| 15 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 16 | CS0.312-18X1.000HXG5 | 036236 | 8 | 036236-Online |
| 17 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 18 | CS .375-16 X 1.50 HX G5 | 080655 | 1 | HT080655-Online |
| 19 | CB .50-13 X 2.50 STD ZN | 604254 | 1 | 604254-Online |
| 20 | SPINDLE ASSY, RAPTOR | 604214 | 2 | 604214-Online |
42" Deck - S/N 14030001 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 604403 | 2 | 604403-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT,A 116" EL | 793828 | 1 | HT793828-Online |
| 4 | CS0.375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 5 | LINK, DECK LIFT | 117532 | 2 | HT117532-Online |
| 6 | NT 0.375-1FLKG5 | 016899 | 3 | HT016899-Online |
| 7 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 8 | DECK LINK | 116155 | 2 | HT116155-Online |
| 9 | NUT, DECK LEVELING | 605016 | 1 | 605016-Online |
| 10 | CAM, DECK LEVELER | 116911 | 1 | HT116911-Online |
| 11 | FW 0.379 x 0.813 x 0.063 | 767954 | 1 | HT767954-Online |
| 12 | NT 0.375-16JAMG5 | 706168 | 1 | HT706168-Online |
| 13 | NT 0.500-13NLG5 | 781567 | 1 | HT781567-Online |
| 14 | FW 0.531SAE | 767962 | 1 | HT767962-Online |
| 15 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 16 | DISCHARGE CHUTE, 52" | 604268 | 1 | 604268-Online |
| 17 | NT 0.375-16NLG5 | 086660 | 1 | HT086660-Online |
| 18 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 19 | PIN, DISCHARGE CHUTE | 604346 | 1 | 604346-Online |
| 20 | BLADE,20.50"-L-F-CW | 793794 | 2 | HT793794-Online |
| REF | BLADE, 20.50", -M-F-CW | 603992 | 2 | 603992-Online |
| REF | BLADE, F20.50"-H-F-CW | 794685 | 2 | HT794685-Online |
| REF | BLADE,20.50"-CAT-F-CW | 793935 | 2 | HT793935-Online |
| REF | BLADE,20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| REF | BLADE,20.50"GAT-F-CW | 794230 | 2 | HT794230-Online |
| 21 | FW .453X 1.12X .119 HRD | 602680 | 2 | 602680-Online |
| 22 | CS0.437-20X1.250HXG5 | 754101 | 2 | HT754101-Online |
| 23 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 24 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 25 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 26 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |

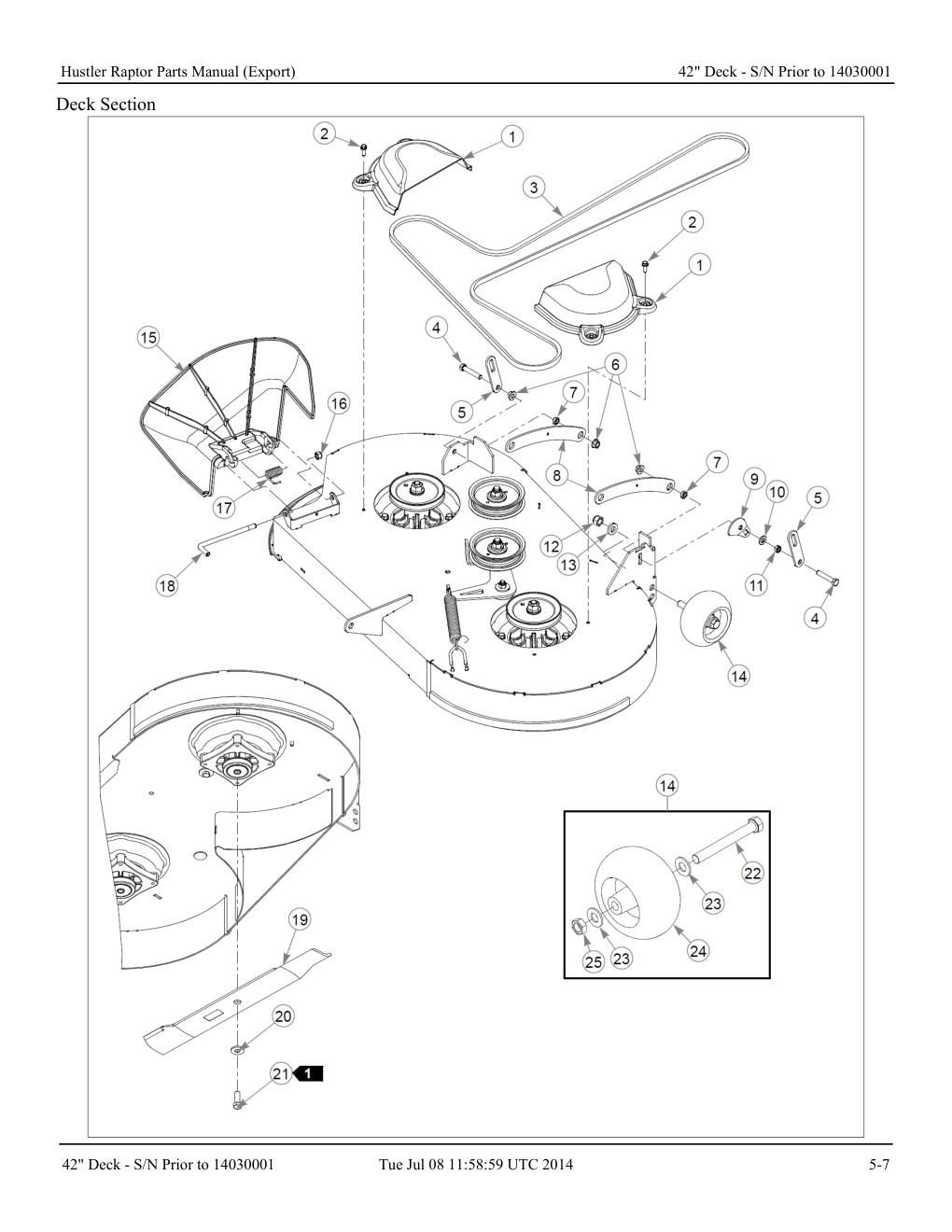

42" Deck - S/N Prior to 14030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER | 604403 | 2 | 604403-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT,A 116" EL | 793828 | 1 | HT793828-Online |
| 4 | CS0.375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 5 | LINK, DECK LIFT | 117532 | 2 | HT117532-Online |
| 6 | NT 0.375-1FLKG5 | 016899 | 3 | HT016899-Online |
| 7 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 8 | DECK LINK | 116155 | 2 | HT116155-Online |
| 9 | CAM, DECK LEVELER | 116911 | 1 | HT116911-Online |
| 10 | FW 0.379 x 0.813 x 0.063 | 767954 | 1 | HT767954-Online |
| 11 | NT 0.375-16JAMG5 | 706168 | 1 | HT706168-Online |
| 12 | NT 0.500-13NLG5 | 781567 | 1 | HT781567-Online |
| 13 | FW 0.531SAE | 767962 | 1 | HT767962-Online |
| 14 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 15 | DISCHARGE CHUTE, 52" | 604268 | 1 | 604268-Online |
| 16 | NT 0.375-16NLG5 | 086660 | 1 | HT086660-Online |
| 17 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 18 | PIN, DISCHARGE CHUTE | 604346 | 1 | 604346-Online |
| 19 | BLADE,20.50"-L-F-CW | 793794 | 2 | HT793794-Online |
| REF | BLADE, 20.50", -M-F-CW | 603992 | 2 | 603992-Online |
| REF | BLADE, F20.50"-H-F-CW | 794685 | 2 | HT794685-Online |
| REF | BLADE,20.50"-CAT-F-CW | 793935 | 2 | HT793935-Online |
| REF | BLADE,20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| REF | BLADE,20.50"GAT-F-CW | 794230 | 2 | HT794230-Online |
| 20 | FW .453X 1.12X .119 HRD | 602680 | 2 | 602680-Online |
| 21 | CS0.437-20X1.250HXG5 | 754101 | 2 | HT754101-Online |
| 22 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 23 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 24 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 25 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |

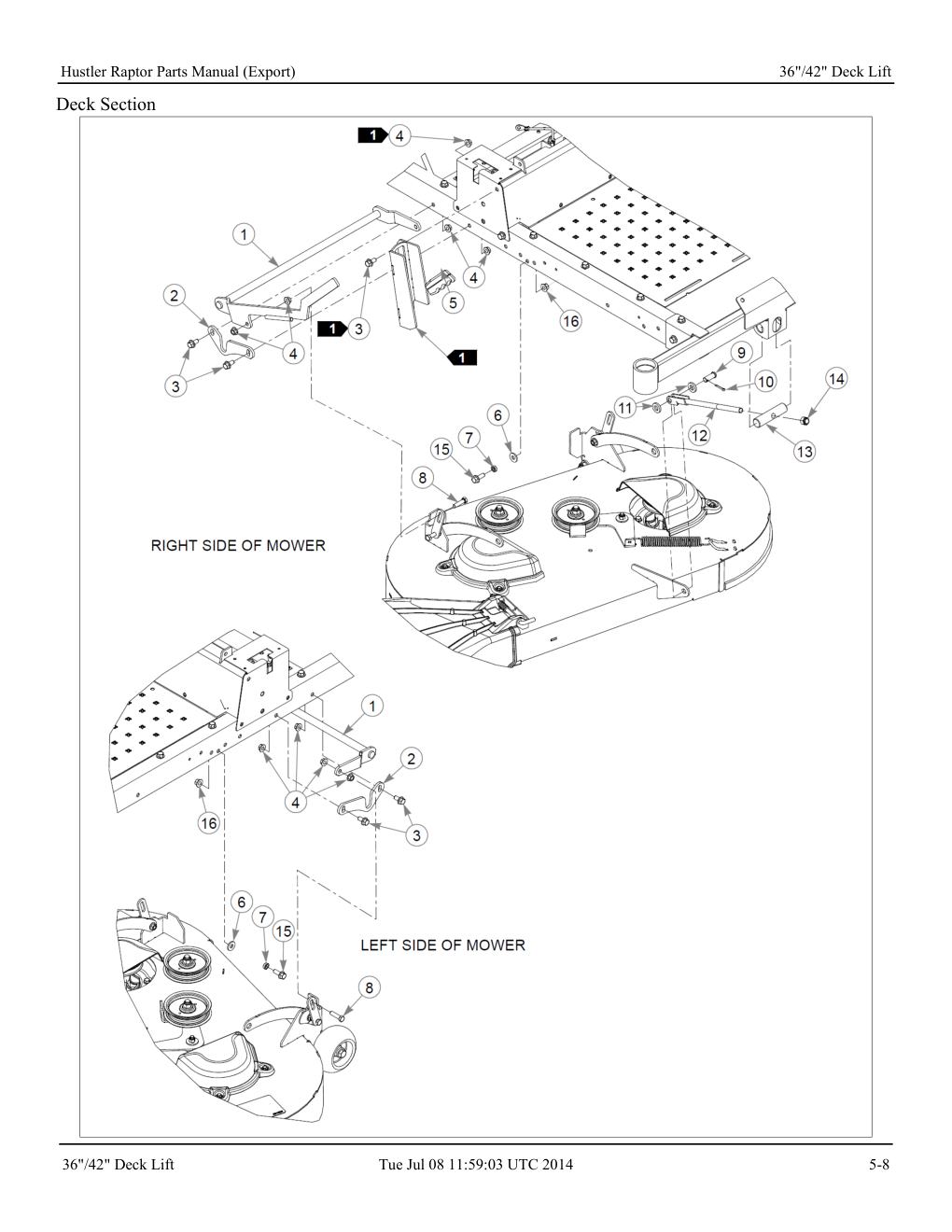

36"/42" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE W/A, DECK LIFT | 116156 | 1 | HT116156-Online |
| 2 | PIVOT BLOCK, DECK LIFT | 116151 | 2 | HT116151-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 4 | HT029629-Online |
| 4 | NT 0.375-1FLKG5 | 016899 | 8 | HT016899-Online |
| 5 | GRIP, 1/4 X 1.000 BLACK | 604377 | 1 | 604377-Online |
| 6 | FW 0.406X1.000X0.120HD | 712919 | 2 | HT712919-Online |
| 7 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 8 | CS0.375-16X1.375 | 005116 | 2 | HT005116-Online |
| 9 | CE0.500X1.250X.156X1.093 | 027714 | 1 | HT027714-Online |
| 10 | CP .156DX1.000 LG HML Z | 017251 | 1 | HT017251-Online |
| 11 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 12 | DECK LIFT ROD | 603918 | 1 | 603918-Online |
| 13 | PIVOT PIN, DECK LIFT | 603920 | 1 | 603920-Online |
| 14 | NT 0.500-13NLG5 | 781567 | 1 | HT781567-Online |
| 15 | CS .375-16X1.000 HXFLK | 029751 | 2 | 029751-Online |
| 16 | NT 0.375-16 FL NY GF | 604515 | 2 | 604515-Online |
52" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK DECAL ASSY | 551770 | 1 | 551770-Online |
| 2 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 3 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 4 | DECAL, 52 FASTRAK DECK | 785535 | 1 | 785535-Online |
| 5 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |

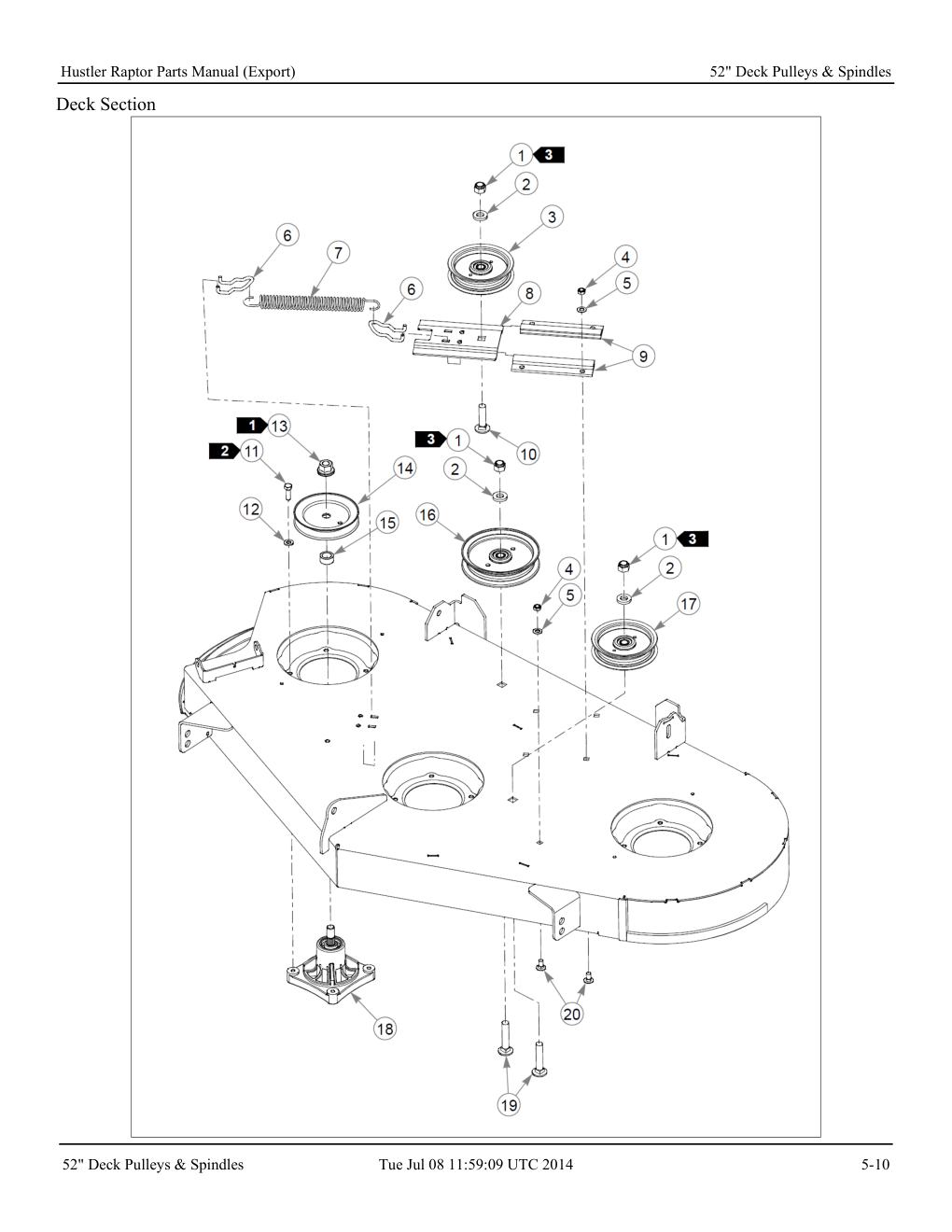

52" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT 0.500-13NLG5 | 781567 | 3 | HT781567-Online |
| 2 | FW 0.531SAE | 767962 | 3 | HT767962-Online |
| 3 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 4 | NT .312-18 HXNL JAM G2ZN | 604251 | 5 | 604251-Online |
| 5 | FW .340 X .675 X .035 ZN | 604252 | 5 | 604252-Online |
| 6 | ANCHOR, SPRING TENSIONER | 604110 | 2 | 604110-Online |
| 7 | IDLER SPRING | 604291 | 1 | 604291-Online |
| 8 | SLED, IDLER | 604194 | 1 | 604194-Online |
| 9 | IDLER SLIDE, EXTRUDED | 604079 | 2 | 604079-Online |
| 10 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 11 | CS0.312-18X1.000HXG5 | 036236 | 12 | 036236-Online |
| 12 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 13 | NT .562-18 HX G5 ZN | 604172 | 3 | 604172-Online |
| 14 | PULLEY, DRIVE "B-SEC" | 603988 | 3 | 603988-Online |
| 15 | SPACER, PULLEY | 604123 | 3 | 604123-Online |
| 16 | PULLEY, IDLER 5.00" O.D. | 604231 | 1 | 604231-Online |
| 17 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 18 | SPINDLE ASSY, RAPTOR | 604214 | 3 | 604214-Online |
| 19 | CB .50-13 X 2.50 STD ZN | 604254 | 2 | 604254-Online |
| 20 | CB .312-18X .620 G5 ZN | 083147 | 5 | 083147-Online |
52" Deck - S/N 14030001 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER 52" RH | 604337 | 1 | 604337-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT,B 140.77" EL | 791988 | 1 | HT791988-Online |
| 4 | PULLEY COVER 52" LH | 604338 | 1 | 604338-Online |
| 5 | DISCHARGE CHUTE, 52" | 604268 | 1 | 604268-Online |
| 6 | PIN, DISCHARGE CHUTE | 604346 | 1 | 604346-Online |
| 7 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 8 | NT 0.375-16NLG5 | 086660 | 1 | HT086660-Online |
| 9 | CS0.375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 10 | LINK, DECK LIFT | 117532 | 2 | HT117532-Online |
| 11 | NT 0.375-1FLKG5 | 016899 | 3 | HT016899-Online |
| 12 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 13 | NUT, DECK LEVELING | 605016 | 1 | 605016-Online |
| 14 | DECK LINK | 116155 | 2 | HT116155-Online |
| 15 | CAM, DECK LEVELER | 116911 | 1 | HT116911-Online |
| 16 | FW 0.379 x 0.813 x 0.063 | 767954 | 1 | HT767954-Online |
| 17 | NT 0.375-16JAMG5 | 706168 | 1 | HT706168-Online |
| 18 | NT 0.500-13NLG5 | 781567 | 2 | HT781567-Online |
| 19 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 20 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 21 | BLADE, 17.86" -M-F-CW | 603995 | 3 | 603995-Online |
| REF | BLADE,17.86"-L-F-CW | 783753 | 3 | 783753-Online |
| REF | BLADE,17.86"-H-F-CW | 787721 | 3 | HT787721-Online |
| REF | BLADE, 17.86"-CAT-F-CW | 603848 | 3 | 603848-Online |
| REF | BLADE,17.86"-MUL-F-CW | 794198 | 3 | HT794198-Online |
| REF | BLADE,17.86"-GAT-F-CW | 785436 | 3 | 785436-Online |
| 22 | FW .453X 1.12X .119 HRD | 602680 | 3 | 602680-Online |
| 23 | CS0.437-20X1.250HXG5 | 754101 | 3 | HT754101-Online |
| 24 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 25 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 26 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 27 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |

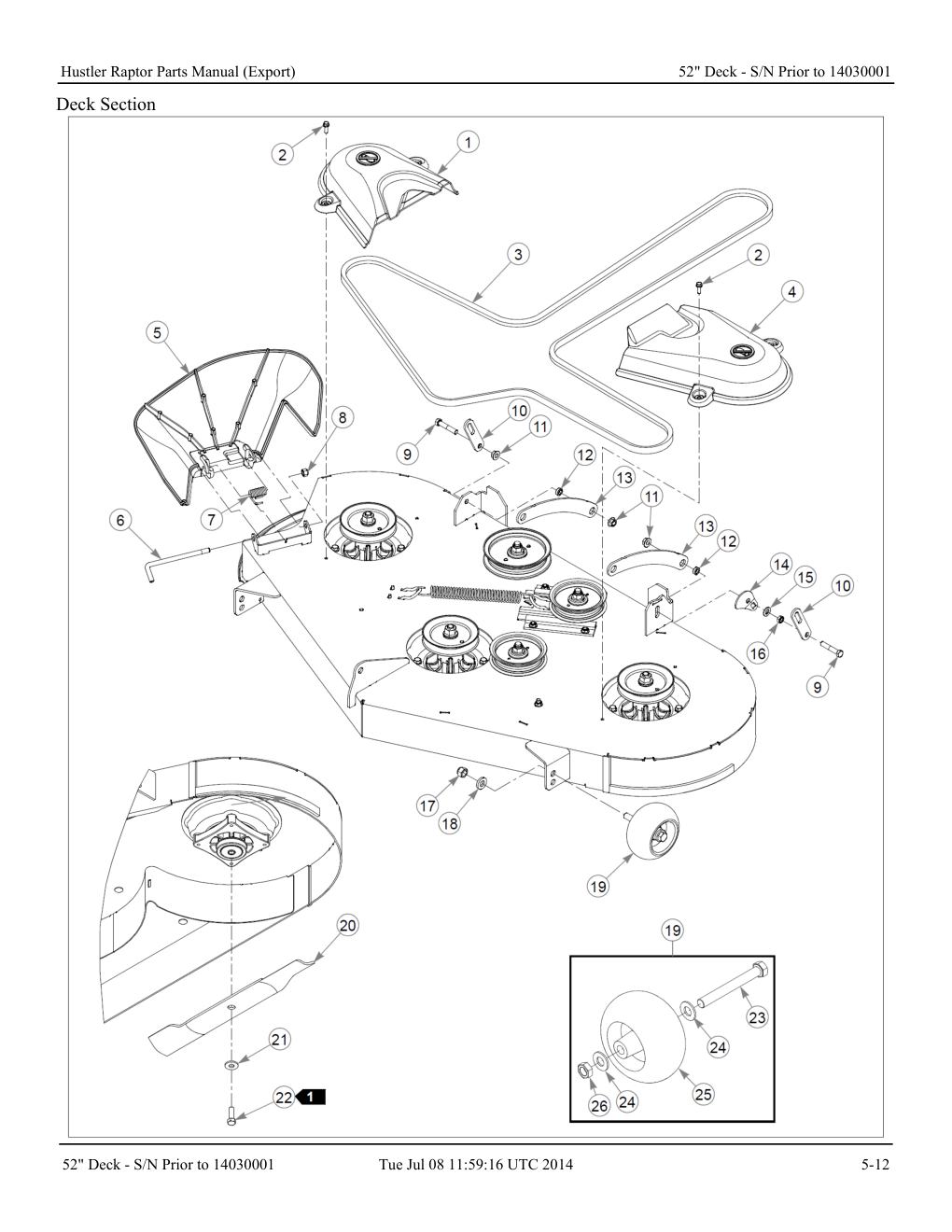

52" Deck - S/N Prior to 14030001
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER 52" RH | 604337 | 1 | 604337-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT,B 140.77" EL | 791988 | 1 | HT791988-Online |
| 4 | PULLEY COVER 52" LH | 604338 | 1 | 604338-Online |
| 5 | DISCHARGE CHUTE, 52" | 604268 | 1 | 604268-Online |
| 6 | PIN, DISCHARGE CHUTE | 604346 | 1 | 604346-Online |
| 7 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 8 | NT 0.375-16NLG5 | 086660 | 1 | HT086660-Online |
| 9 | CS0.375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 10 | LINK, DECK LIFT | 116157 | 2 | HT116157-Online |
| 11 | NT 0.375-1FLKG5 | 016899 | 3 | HT016899-Online |
| 12 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 13 | DECK LINK | 116155 | 2 | HT116155-Online |
| 14 | CAM, DECK LEVELER | 116911 | 1 | HT116911-Online |
| 15 | FW 0.379 x 0.813 x 0.063 | 767954 | 1 | HT767954-Online |
| 16 | NT 0.375-16JAMG5 | 706168 | 1 | HT706168-Online |
| 17 | NT 0.500-13NLG5 | 781567 | 2 | HT781567-Online |
| 18 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 19 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 20 | BLADE, 17.86" -M-F-CW | 603995 | 3 | 603995-Online |
| REF | BLADE,17.86"-L-F-CW | 783753 | 3 | 783753-Online |
| REF | BLADE,17.86"-H-F-CW | 787721 | 3 | HT787721-Online |
| REF | BLADE, 17.86"-CAT-F-CW | 603848 | 3 | 603848-Online |
| REF | BLADE,17.86"-MUL-F-CW | 794198 | 3 | HT794198-Online |
| REF | BLADE,17.86"-GAT-F-CW | 785436 | 3 | 785436-Online |
| 21 | FW .453X 1.12X .119 HRD | 602680 | 3 | 602680-Online |
| 22 | CS0.437-20X1.250HXG5 | 754101 | 3 | HT754101-Online |
| 23 | CS0.500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 24 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 25 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 26 | NT 0.500-13JAMG5 | 053199 | 1 | HT053199-Online |

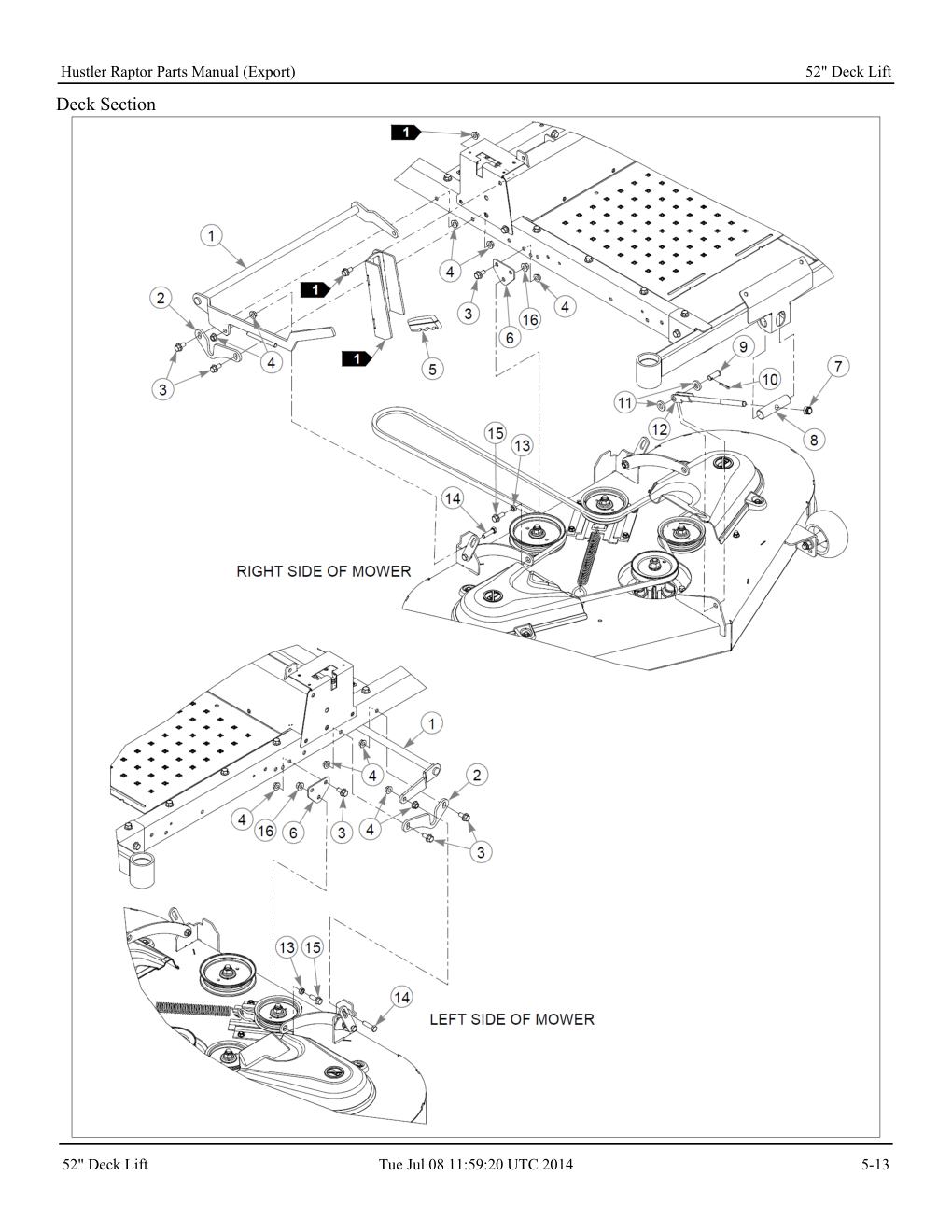

52" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE W/A, DECK LIFT | 116156 | 1 | HT116156-Online |
| 2 | PIVOT BLOCK, DECK LIFT | 116151 | 2 | HT116151-Online |
| 3 | CS .375-16 X .75 HX FLK | 029629 | 8 | HT029629-Online |
| 4 | NT 0.375-1FLKG5 | 016899 | 12 | HT016899-Online |
| 5 | GRIP, 1/4 X 1.000 BLACK | 604377 | 1 | 604377-Online |
| 6 | PLATE, DECK LINK | 116916 | 2 | HT116916-Online |
| 7 | NT 0.500-13NLG5 | 781567 | 1 | HT781567-Online |
| 8 | PIVOT PIN, DECK LIFT | 603920 | 1 | 603920-Online |
| 9 | CE0.500X1.250X.156X1.093 | 027714 | 1 | HT027714-Online |
| 10 | CP .156DX1.000 LG HML Z | 017251 | 1 | HT017251-Online |
| 11 | FW 0.531SAE | 767962 | 2 | HT767962-Online |
| 12 | DECK LIFT ROD | 603918 | 1 | 603918-Online |
| 13 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 14 | CS0.375-16X1.375 | 005116 | 2 | HT005116-Online |
| 15 | CS .375-16X1.000 HXFLK | 029751 | 2 | 029751-Online |
| 16 | NT 0.375-16 FL NY GF | 604515 | 2 | 604515-Online |

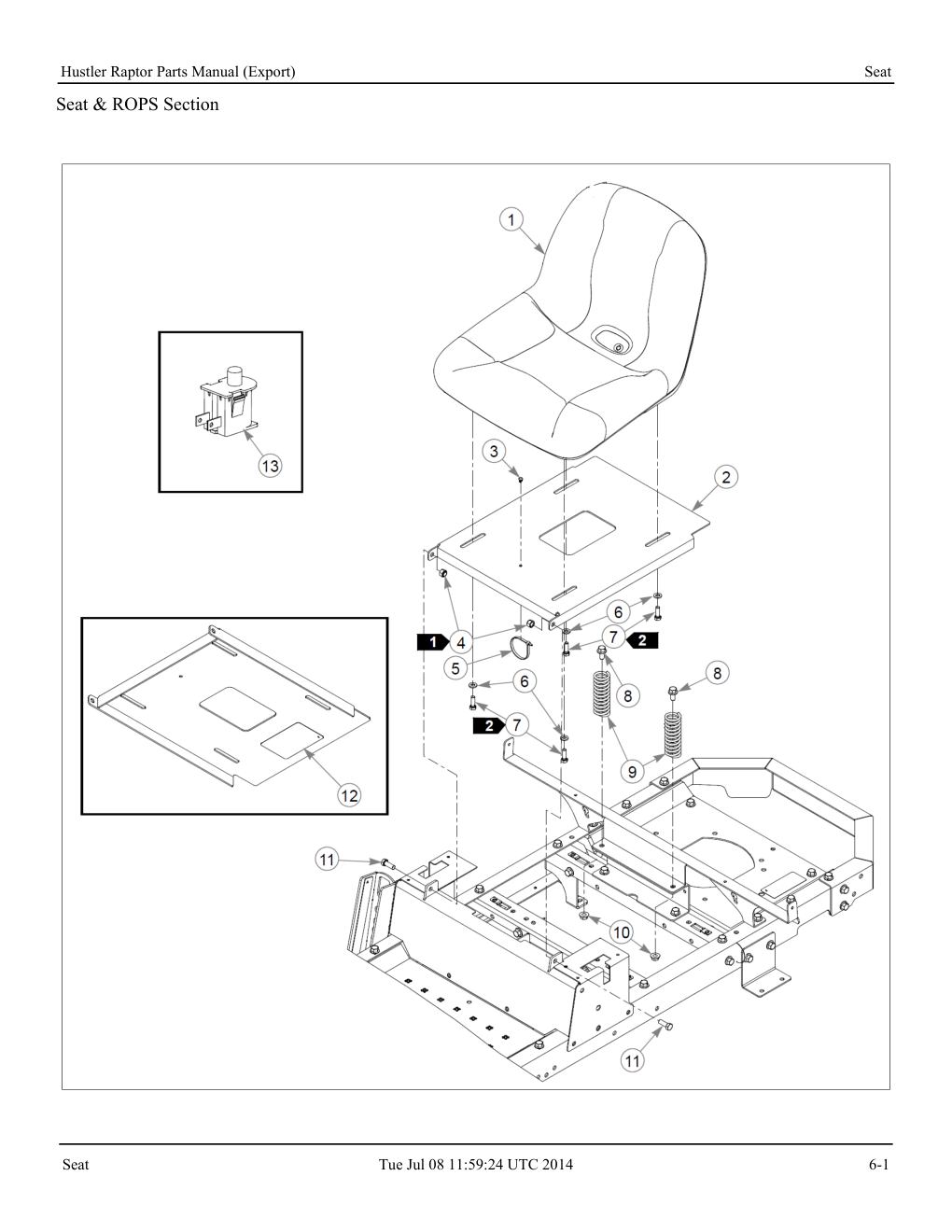

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT (WITHOUT ARMRESTS) | 601807 | 1 | 601807-Online |
| 2 | SERVICE, SEAT PAN | 551897 | 1 | 551897-Online |
| 3 | PUSH BUTTON MOUNT | 604307 | 1 | 604307-Online |
| 4 | NT 0.375-16NLG5 | 086660 | 2 | HT086660-Online |
| 5 | WIRE TIE | 000331 | 1 | 000331-Online |
| 6 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 7 | CS0.312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 8 | CS .375-16 X .75 HX FLK | 029629 | 2 | HT029629-Online |
| 9 | SPRING,COMP 1.25X4.00X. | 793851 | 2 | HT793851-Online |
| 10 | NT 0.375-1FLKG5 | 016899 | 2 | HT016899-Online |
| 11 | CS0.375-16X1.000HXG5 | 036244 | 2 | HT036244-Online |
| 12 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 13 | SWITCH, SEAT | 793315 | 1 | 793315-Online |
