Illustrated Parts List
Hustler Mini FasTrak 36" / 42" Parts Manual - 768044
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 768044Model: 783506SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

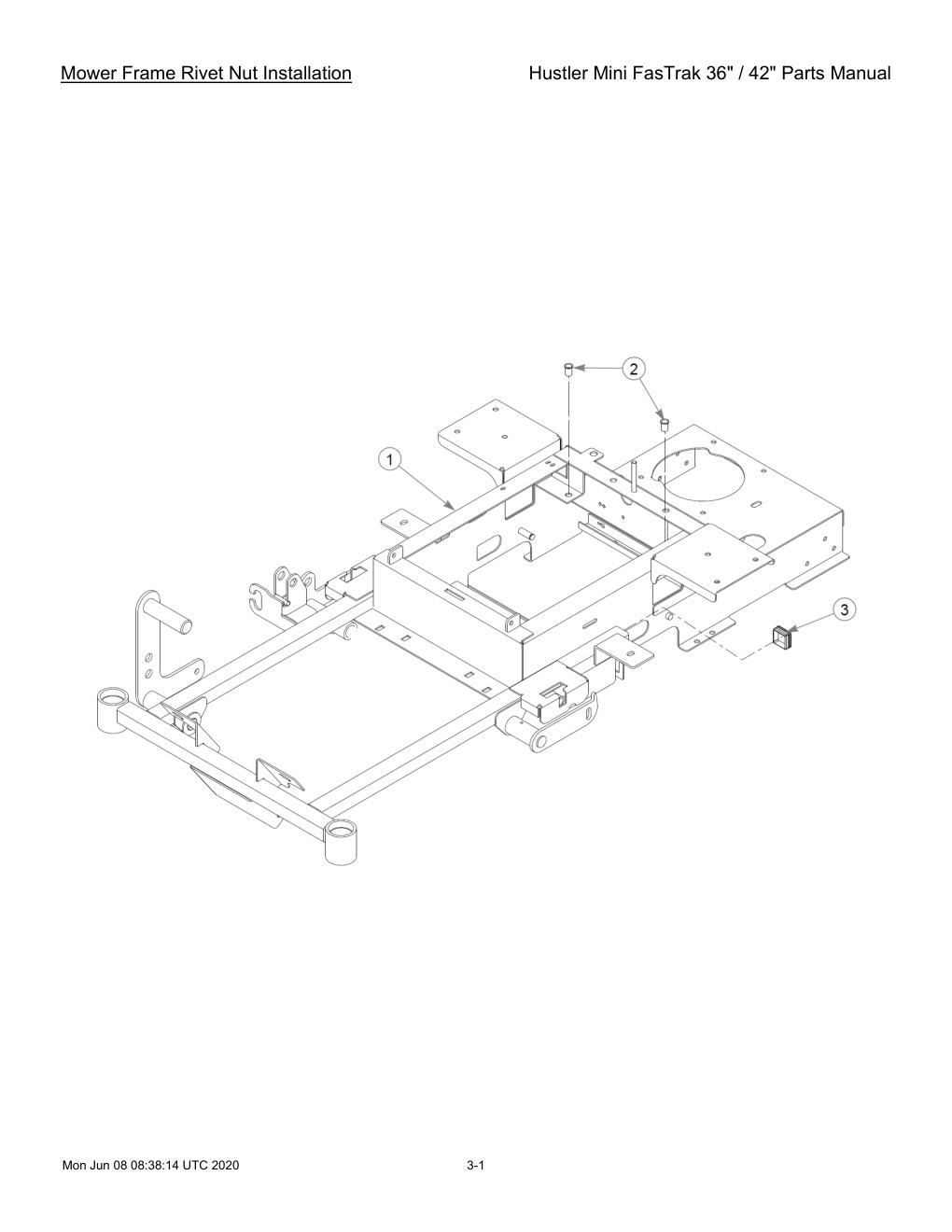

Sections
Mower Frame Rivet Nut InstallationFootrest AssemblyEngine Guard and Anti-rollover Bracket AssembliesTransmission Installation - S/N PRIOR TO 07091558Transmission Installation - S/N HIGHER THAN 07091558Transmission Service PartsSteering and Brake AssemblySteering and Brake AssemblyBatteryHonda 16 HP - S/N PRIOR TO 09010000 - Engine, Wire Harness & ClutchHonda 16 HP - S/N PRIOR TO 09010000 - Engine, Wire Harness & ClutchHonda 16 HP - S/N HIGHER THAN 09010000 - Engine, Wire Harness & ClutchHonda 16 HP - S/N HIGHER THAN 09010000 - Engine, Wire Harness & ClutchKohler 15 & 17 HP Engine InstallationKohler 15 & 17 HP Engine InstallationFuel SystemInstrument Panel InstallationFront Wheel AssemblyFront Wheel Breakdown -76804436" Drive Wheel42" Drive Wheel36" Deck - SN PRIOR TO 10020000 - Deck & Discharge Chute36" Deck - SN HIGHER THAN 10020000 - Deck & Discharge Chute36" Deck - Deck Belt, Pulleys, Pulley Covers & Blades42" Deck - S/N PRIOR TO 10020000 - Deck & Discharge Chute42" Deck - SN HIGHER THAN 10020000 - Deck & Discharge ChuteDeck Pulley Assembly 42"Spindle Service Parts - 78350636" / 42" Deck Installation36" / 42" Deck LiftSeat InstallationMower Decals42" Deck Decals36" Deck DecalsMower Frame Rivet Nut Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FRAME W/A(CRATED) 36" | 546911 | 1 | 546911-Online |
| Not Shown | FRAME W/A(CRATED) 42" | 546895 | 1 | 546895-Online |
| 2 | RIVET NUT, 3/8-16 THREA | 808493 | 2 | 808493-Online |
| 3 | TUBE PLUG,1.5 SQ TUBE,1 | 793869 | 2 | 793869-Online |
Footrest Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .375-16X .750 STD ZN | 011320 | 4 | 011320-Online |
| 2 | STEP TREAD, UPPER 5.00 | 785485 | 2 | 785485-Online |
| 3 | STEP TREAD MINI FST | 793844 | 2 | 793844-Online |
| 4 | PLATE,FLOOR MINI FST 36 | 320267 | 1 | 320267-Online |
| Not Shown | PLATE,FLOOR MINI FST 42 | 316844 | 1 | 316844-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 6 | FW 0.406X1.00X.06 ZN | 076422 | 2 | 076422-Online |
| 7 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |

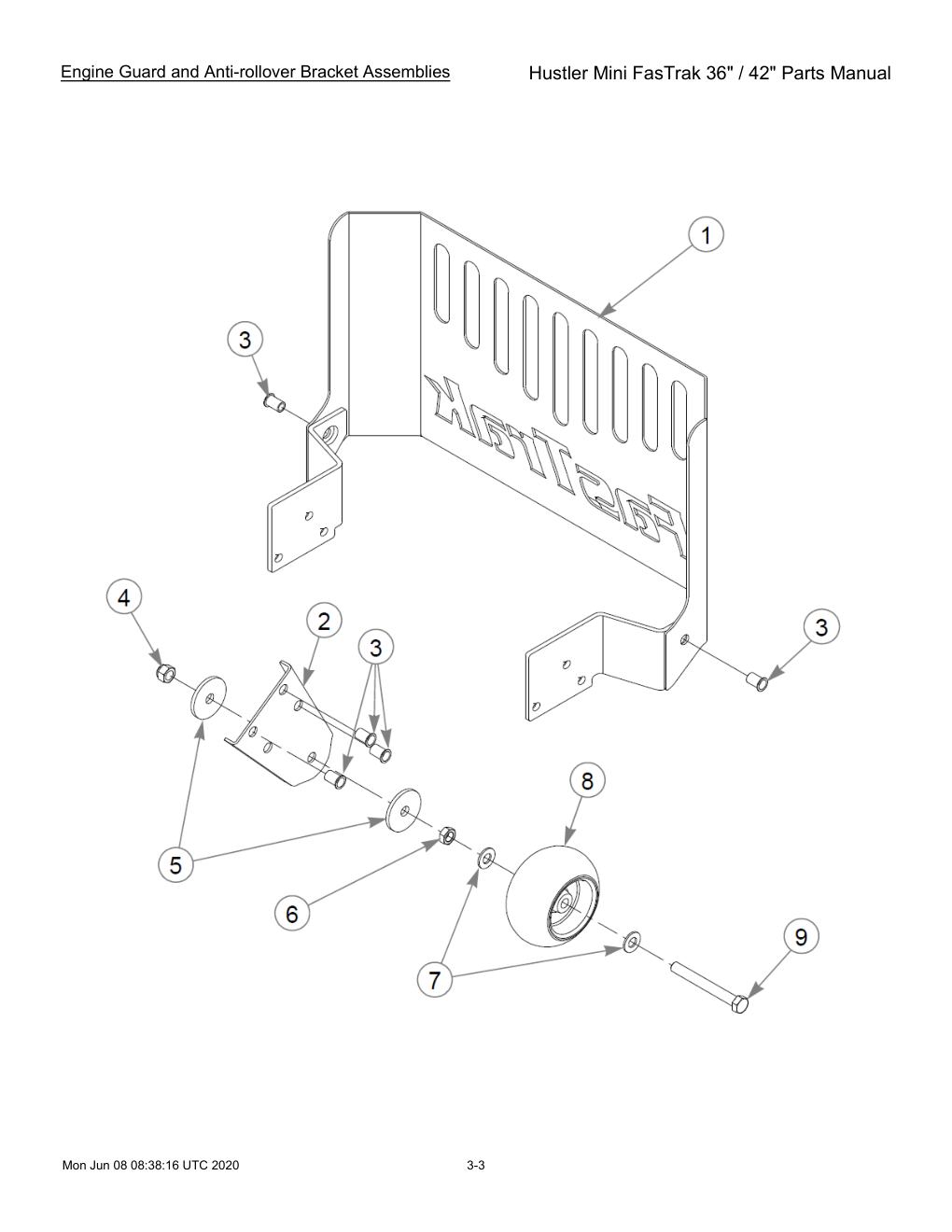

Engine Guard and Anti-rollover Bracket Assemblies
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ENGINE GUARD W/A | 316836 | 1 | 316836-Online |
| 2 | ANTI ROLLOVER BRACKET | 320580 | 2 | 320580-Online |
| 3 | RIVET NUT, 3/8-16 THREA | 808493 | 8 | 808493-Online |
| 4 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 5 | FW .510X2.15X.19 ZN | 344267 | 4 | HT344267-Online |
| 10 | WHEEL ASSY, ANTI SCALP | 788166 | 2 | HT788166-Online |
| 6 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 7 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 8 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 9 | CS .500-13X4.25 HX G5 ZN | 781708 | 2 | HT781708-Online |

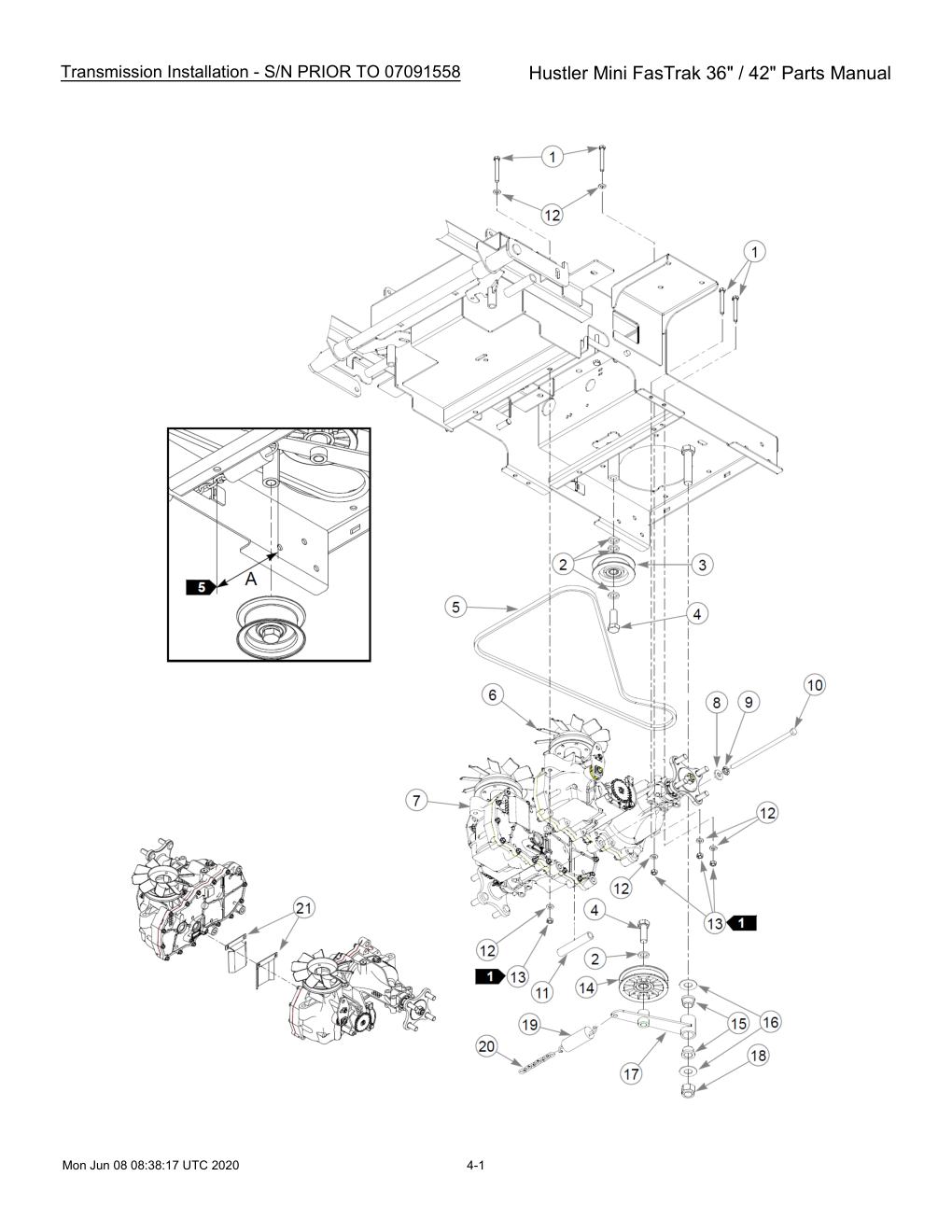

Transmission Installation - S/N PRIOR TO 07091558
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 8 | HT710087-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 2 | HT028118-Online |
| 3 | PULLEY,RETLAW FIP 3120- | 794404 | 1 | HT794404-Online |
| 4 | CS .62511X1.750HXG5 | 025007 | 2 | HT025007-Online |
| 5 | DRIVE BELT | 793836 | 1 | HT793836-Online |
| 6 | EZT, 19.2:1 LEFT TRANS | 603085 | 1 | 603085-Online |
| 7 | EZT, 19.2:1 RIGHT TRANS | 603086 | 1 | 603086-Online |
| 8 | FW .516X.88X.09 ZN | 718288 | 1 | 718288-Online |
| 9 | LW0.437SPLIT | 035238 | 1 | 035238-Online |
| 10 | CS .437-14X6.500HXG5 | 794552 | 1 | 794552-Online |
| 11 | SPACER TUBE-EZT MINI FS | 335695 | 1 | 335695-Online |
| 12 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 13 | NT .312-18HXG5 | 034272 | 8 | HT034272-Online |
| 14 | PULLEY, IDLER, 4.00"OD, | 784827 | 1 | HT784827-Online |
| 15 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 16 | FW .760X1.63X0.08 ZN | 025296 | 2 | HT025296-Online |
| 17 | HYDRO IDLER ARM W/A | 324046 | 1 | HT324046-Online |
| 18 | NT .750-10 HX ZN NL GR B | 061101 | 1 | HT061101-Online |
| 19 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 20 | CHAIN, 7 LINK | 364315 | 1 | HT364315-Online |
| 21 | BELT DEFLECTOR-EZT MINI | 335893 | 2 | 335893-Online |

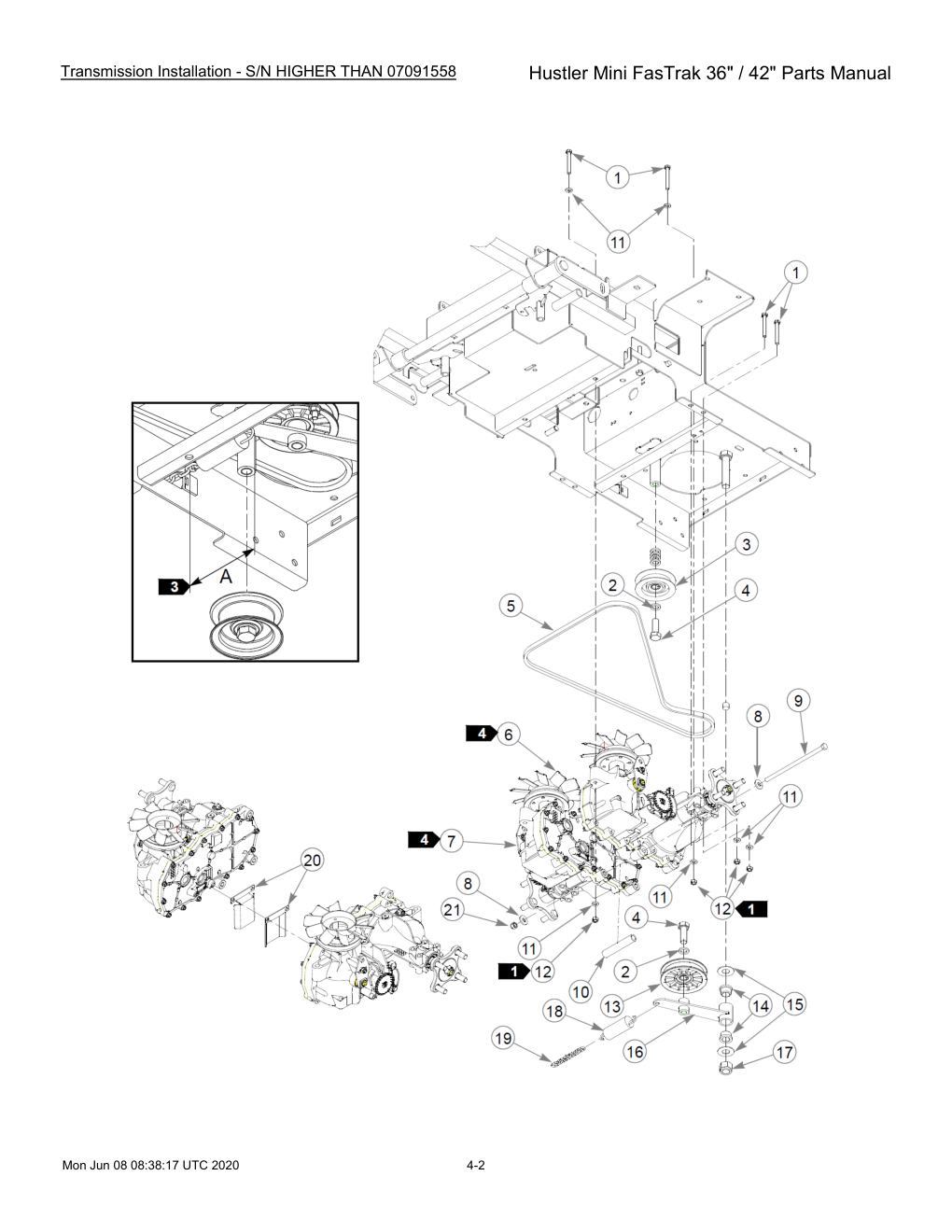

Transmission Installation - S/N HIGHER THAN 07091558
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 8 | HT710087-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 2 | HT028118-Online |
| 3 | PULLEY, IDLER 3.06" STL | 601162 | 1 | 601162-Online |
| 4 | CS .62511X1.750HXG5 | 025007 | 2 | HT025007-Online |
| 5 | DRIVE BELT | 793836 | 1 | HT793836-Online |
| 6 | EZT, 19.2:1 LEFT TRANS | 603085 | 1 | 603085-Online |
| 7 | EZT, 19.2:1 RIGHT TRANS | 603086 | 1 | 603086-Online |
| 8 | FW 0.406X1.00X.12 HD ZN | 712919 | 2 | HT712919-Online |
| 9 | CS .375-16X8.0 HX.GR5 Z | 721134 | 1 | 721134-Online |
| 10 | SPACER TUBE-EZT MINI FS | 335695 | 1 | 335695-Online |
| 11 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 12 | NT .312-18HXG5 | 034272 | 8 | HT034272-Online |
| 13 | PULLEY, IDLER, 4.00"OD, | 784827 | 1 | HT784827-Online |
| 14 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 15 | FW .760X1.63X0.08 ZN | 025296 | 2 | HT025296-Online |
| 16 | HYDRO IDLER ARM W/A | 324046 | 1 | HT324046-Online |
| 17 | NT .750-10 HX ZN NL GR B | 061101 | 1 | HT061101-Online |
| 18 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 19 | CHAIN, 7 LINK | 364315 | 1 | HT364315-Online |
| 20 | BELT DEFLECTOR-EZT MINI | 335893 | 2 | 335893-Online |
| 21 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN/PULLEY KIT | 600973 | 1 | HT600973-Online |
| 2 | FAN - 7.0" (10 BLADE) | 607729 | 1 | 607729-Online |
| 3 | PARKING PAWL KIT, EZT | 795047 | 1 | HT795047-Online |
| 4 | GEAR, PARK BRAKE | 798363 | 1 | HT798363-Online |
| 5 | RING, RETAINING | 798371 | 1 | 798371-Online |
| 6 | KIT, HUB 4 BOLT | 601433 | 1 | 601433-Online |
| 7 | NUT, H-G ZT HUB | 788877 | 1 | 788877-Online |
| 8 | OIL RETENSION KIT, | 606831 | 1 | 606831-Online |
| Not Shown | CAP-VENT ASSY, RIGHT EZ | 795005 | 1 | 795005-Online |
| Not Shown | NUT SPECIAL,EZT | 795013 | 1 | HT795013-Online |
| Not Shown | HUB ASSEMBLY | 795021 | 1 | 795021-Online |
| Not Shown | 90 DEG VENT FITTING, RI | 795054 | 1 | 795054-Online |
| Not Shown | VENT TUBE ASSY, LEFT EZ | 795039 | 1 | 795039-Online |
| Not Shown | FW .530 x 1.63 x.06 SLO | 791723 | 1 | 791723-Online |
| Not Shown | IZT, HUB & NUT ASSEMBLY | 788232 | 1 | 788232-Online |
| Not Shown | VENT HOSE, RIGHT EZT | 795062 | 1 | 795062-Online |

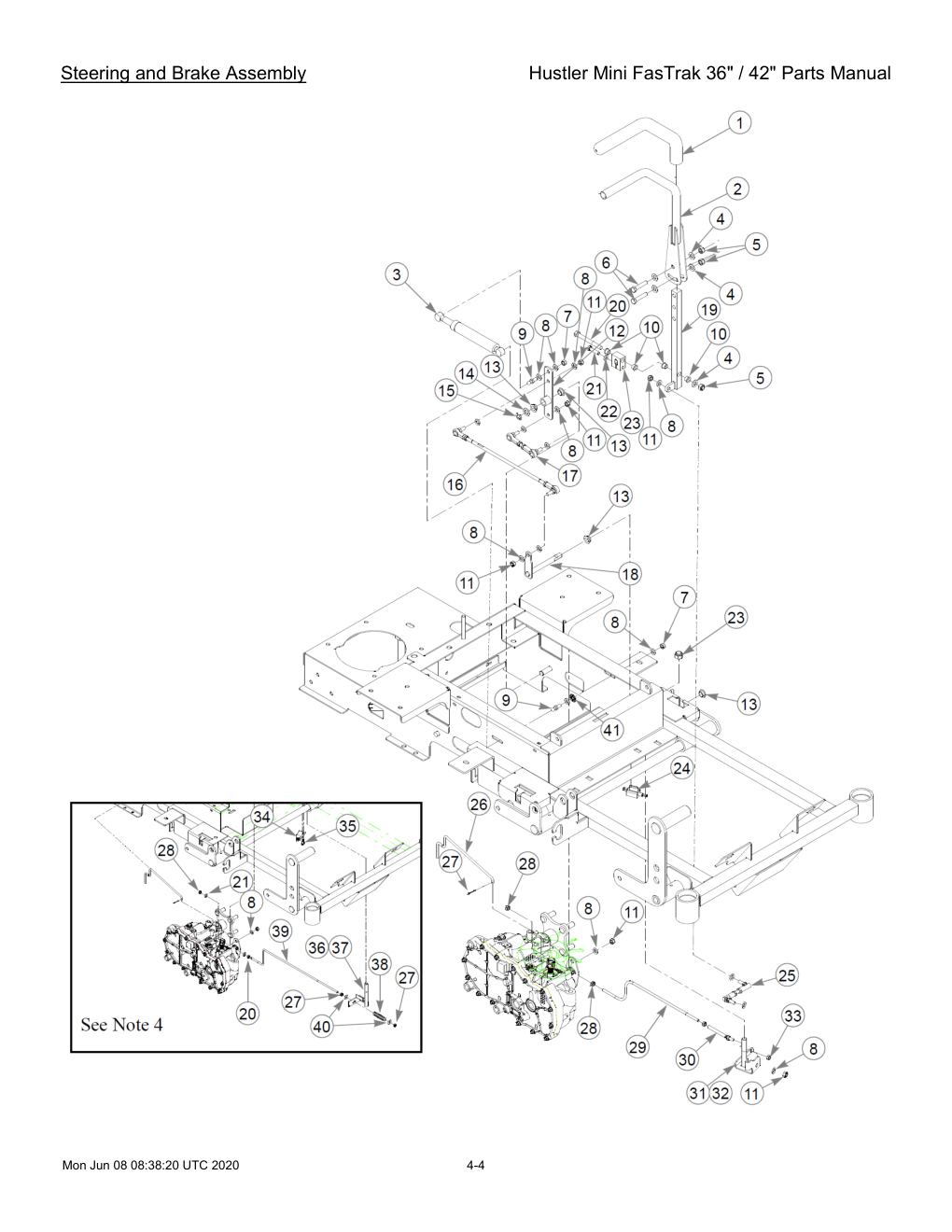

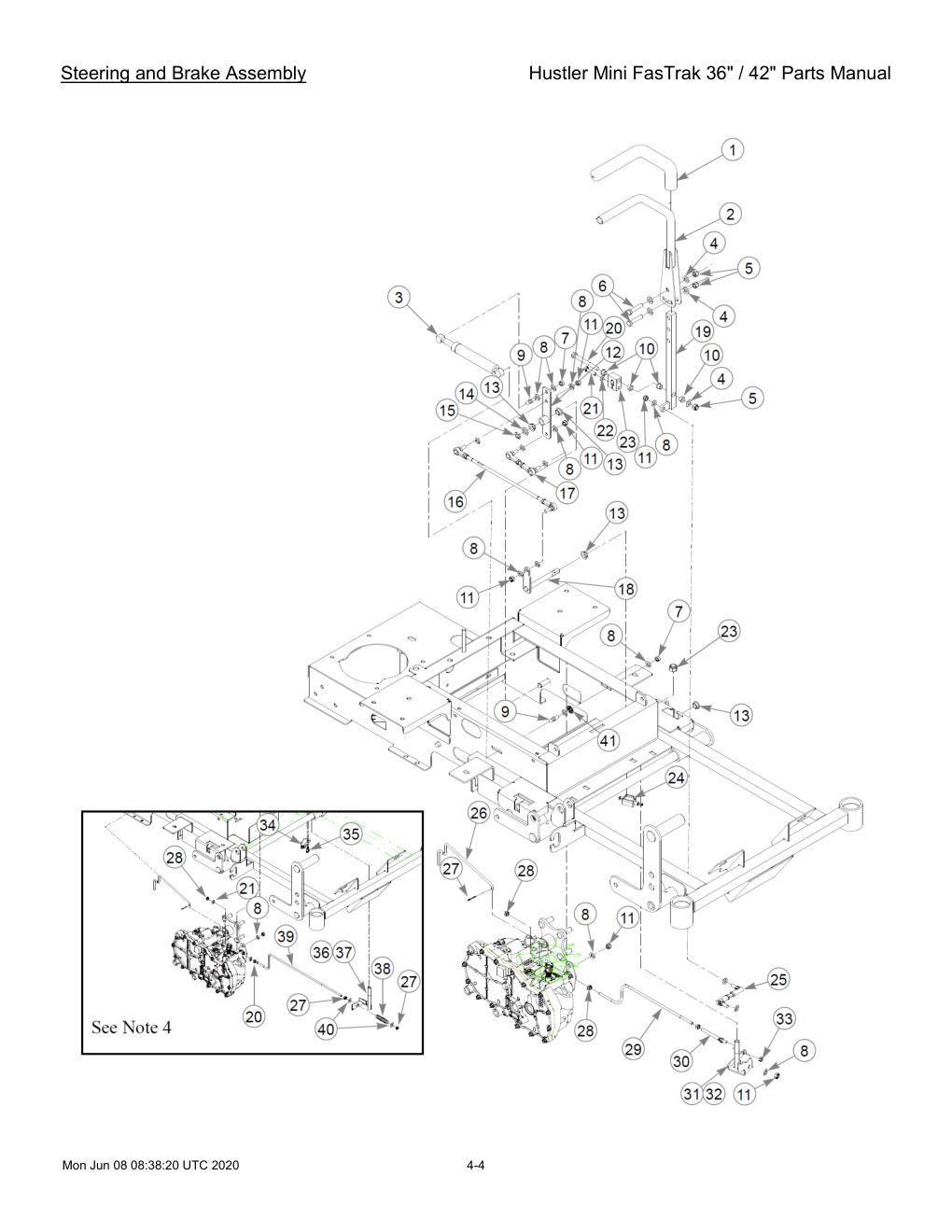

Steering and Brake Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | STEERING BAR W/A | 360487 | 2 | 360487-Online |
| 1 | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 3 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| Not Shown | DAMPER, CENTERING | 783696 | 2 | HT783696-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 10 | HT767954-Online |
| 5 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 6 | CS .375-16X1.750HXG5 | 705178 | 4 | HT705178-Online |
| 7 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 8 | FW 0.343SAE | 768523 | 22 | HT768523-Online |
| 9 | BALL STUD | 781922 | 4 | 781922-Online |
| 10 | BUSHING, IGUS | 797779 | 8 | HT797779-Online |
| 11 | NT 0.312-24 NL G8 | 023655 | 12 | HT023655-Online |
| 12 | STEERING CONTROL ARM W/ | 325464 | 2 | HT325464-Online |
| 13 | BUSHING,IGUS#0810 (FS) | 768259 | 8 | HT768259-Online |
| 14 | FW .516X.88X.09 ZN | 718288 | 2 | 718288-Online |
| 15 | CLIP E,(1/2").80X.396X. | 793059 | 2 | 793059-Online |
| 16 | PUMP ROD ADJUSTER ASSEM | 793646 | 2 | HT793646-Online |
| 17 | STEERING LINK ROD,ASSY | 794396 | 2 | HT794396-Online |
| 18 | STEERING DRIVE ARM | 793612 | 2 | HT793612-Online |
| 19 | STEERING ARM W/A | 797753 | 2 | HT797753-Online |
| 20 | CS .375-16X3.500HXG5 | 005108 | 2 | HT005108-Online |
| 21 | CS .312-18X1.250HXG5 | 079186 | 2 | 079186-Online |
| 22 | STEERING BLOCK | 797761 | 2 | 797761-Online |
| 23 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 24 | SWITCH, PLUNGER | 795625 | 2 | 795625-Online |
| 25 | BALL JOINT LINK | 796615 | 2 | HT796615-Online |
| 26 | TOWLINK ROD | 793174 | 2 | HT793174-Online |
| 27 | CP .062DX1.000 LG HML Z | 048553 | 2 | 048553-Online |
| 28 | NT .250-20 HXZY NL | 068551 | 4 | HT068551-Online |
| 29 | BRAKE ROD ACTUATOR | 797050 | 2 | HT797050-Online |
| 30 | BALL JOINT, INLINE MINI | 795229 | 2 | HT795229-Online |
| 31 | BRAKE PIVOT W/A LH | 352112 | 1 | 352112-Online |
| 32 | BRAKE PIVOT W/A RH PLAT | 352054 | 1 | 352054-Online |
| 33 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 34 | SWITCH, PUSH BUTTON | 781211 | 2 | HT781211-Online |
| 35 | CS 10-24X .500 HXFLK ZN | 060731 | 4 | 060731-Online |
Steering and Brake Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | BRAKE PIVOT ARM LH W/A | 315382 | 1 | HT315382-Online |
| 37 | BRAKE PIVOT ARM RH W/A | 315101 | 1 | HT315101-Online |
| 38 | SPRING COMPRESSION | 794883 | 2 | 794883-Online |
| 39 | BRAKE ACTUATOR ROD | 793182 | 2 | 793182-Online |
| 40 | FW 0.266X.75X.06 ZN | 089789 | 4 | 089789-Online |
| 41 | LW .312 INTEXT ZN | 029876 | 2 | 029876-Online |
| 42 | FW 0.281SAE | 768515 | 2 | HT768515-Online |

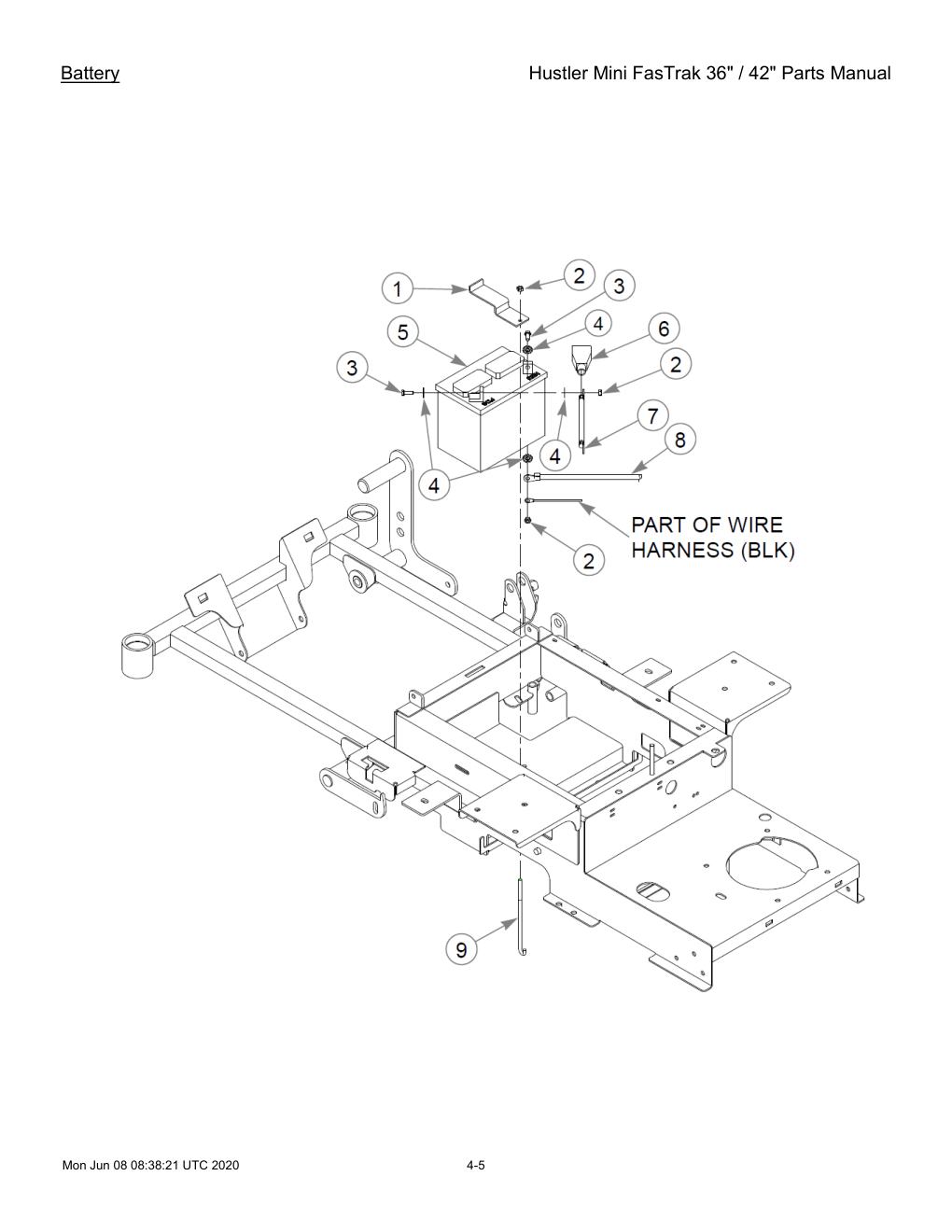

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BATTERY CLAMP STRAP | 314989 | 1 | 314989-Online |
| 2 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 3 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 4 | LW .250 INTEXT ZN | 029868 | 4 | 029868-Online |
| 5 | BATTERY VU1LH-8 | N/A | 1 | No SKU |
| 6 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 7 | BATTERY CABLE, POSITIVE | 785063 | 1 | 785063-Online |
| REF | BATTERY CABLE, POS RED | 786632 | 1 | 786632-Online |
| 8 | BATTERY CABLE, NEGATIVE | 786640 | 1 | 786640-Online |
| 9 | BATTERY CLAMP ROD | 793489 | 1 | 793489-Online |

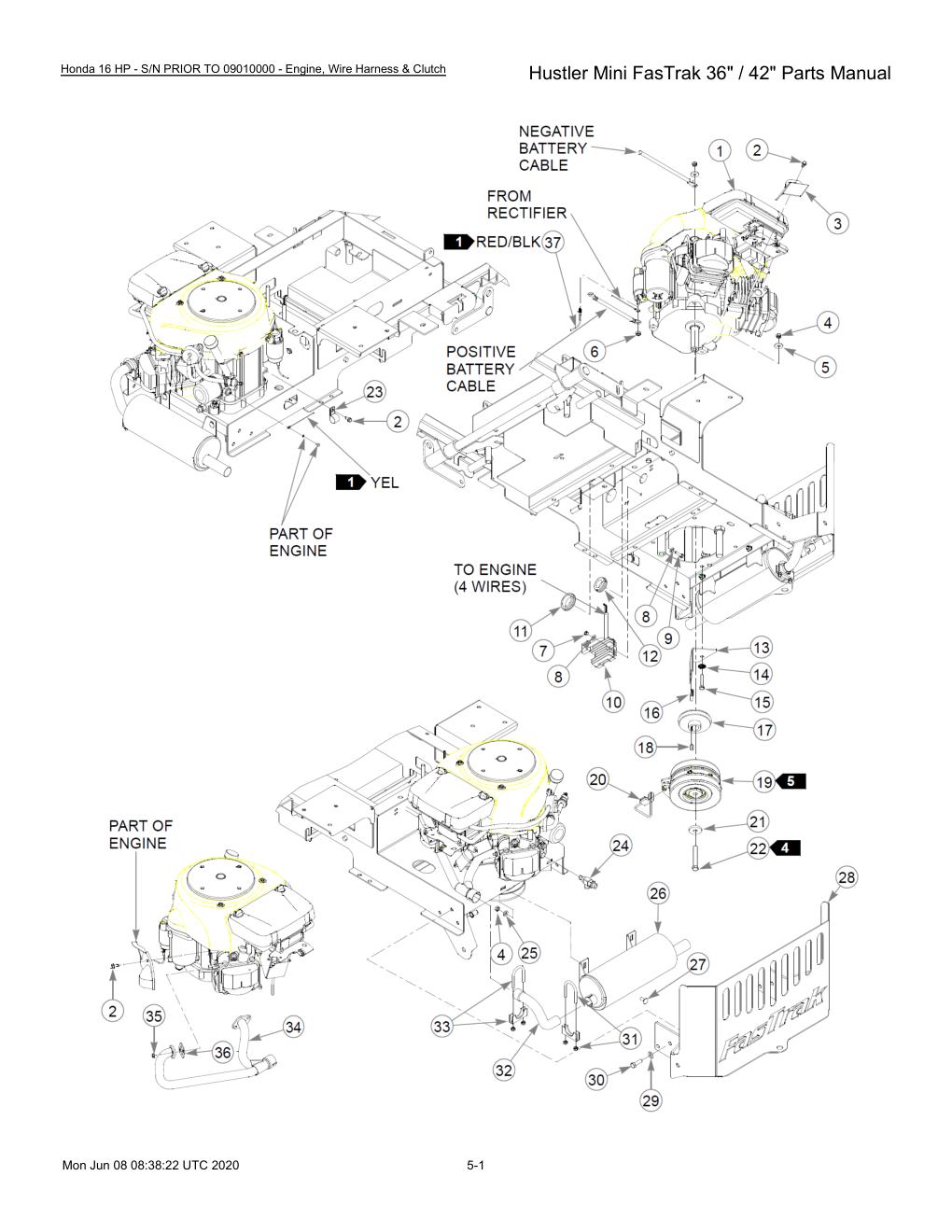

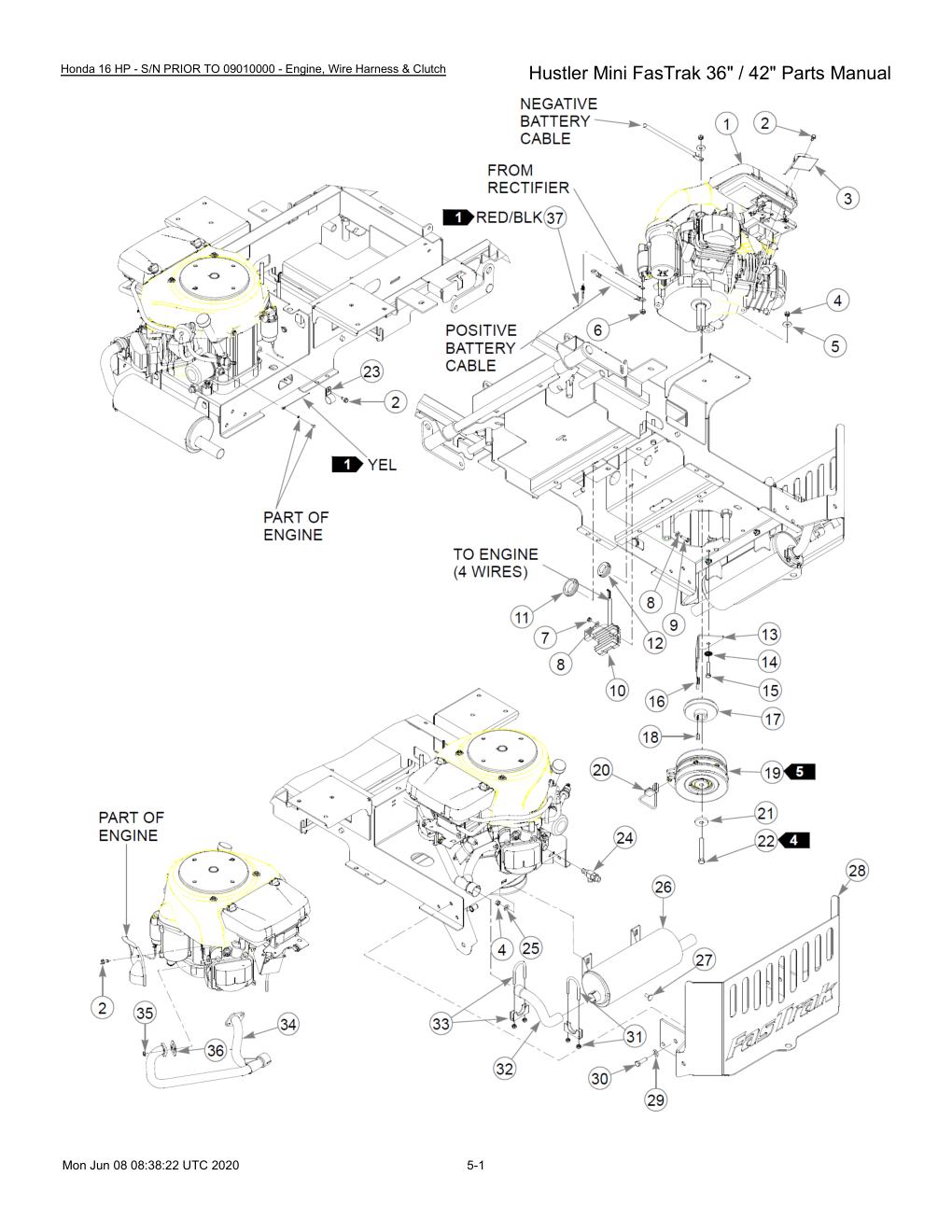

Honda 16 HP - S/N PRIOR TO 09010000 - Engine, Wire Harness & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | CS M6-1.00X12HXG10.9 | 739144 | 3 | 739144-Online |
| 3 | HEAT SHIELD, 16HP EXHAU | 378273 | 1 | 378273-Online |
| 4 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 5 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 6 | NT M8-1.25 HX STAINLESS | 782664 | 1 | 782664-Online |
| 7 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 8 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 9 | CS .250-20X1.000HXG5 | 056077 | 2 | 056077-Online |
| 10 | HONDA RECTIFIER 16AMP | 787267 | 1 | 787267-Online |
| 11 | GM 1.50 X 2.12 X 1.75 | 794644 | 1 | 794644-Online |
| 12 | GM 1.12X1.75X1.37X.12 | 706531 | 1 | 706531-Online |
| 13 | CLUTCH ANCHOR,WARN.(MIN | 330274 | 1 | 330274-Online |
| 14 | LW .312 INTEXT ZN | 029876 | 4 | 029876-Online |
| 15 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 16 | BUMPER, RUBBER | 784918 | 1 | HT784918-Online |
| 17 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 18 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 19 | CLUTCH KIT | 601325K | 1 | 601325K-Online |
| Not Shown | CLUTCH KIT | 784835K | 1 | HT784835K-Online |
| 20 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 21 | FW 0.454X1.50X.25 NF | 763417 | 1 | 763417-Online |
| 22 | CS .437-20X3.00 HXG5 P85 | 785048 | 1 | HT785048-Online |
| 23 | CLIP - HOSE - SINGLE(FS) | 043570 | 1 | 043570-Online |
| 24 | OIL DRAIN, VALVE M16x1.5 | 791608 | 1 | 791608-Online |
| 25 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 26 | MUFFLER15,17 KOHLER & 1 | 793125 | 1 | 793125-Online |
| 27 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 28 | ENGINE GUARD W/A | 316836 | 1 | 316836-Online |
| 29 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 30 | CS .375-16X1.25 HX G5 ZN | 052860 | 6 | HT052860-Online |
| 31 | CLAMP,EXHAUST - 1.125" | 794180 | 1 | HT794180-Online |
| 32 | MID PIPE,EXHAUST 16 HON | 793166 | 1 | 793166-Online |
Honda 16 HP - S/N PRIOR TO 09010000 - Engine, Wire Harness & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 33 | CLAMP,EXHAUST - 1.25" | 794172 | 1 | 794172-Online |
| 34 | MANIFOLD 16 HONDA MINI | 793141 | 1 | 793141-Online |
| 35 | NT M6-1.00FLG | 005231 | 4 | 005231-Online |
| 36 | HONDA (20) GASKET, MUFF | 785543 | 2 | 785543-Online |
| 37 | WIRE HARNESS MINI FST H | 793083 | 1 | 793083-Online |
| 38 | OIL DRAIN HOSE | 104786 | 1 | 104786-Online |

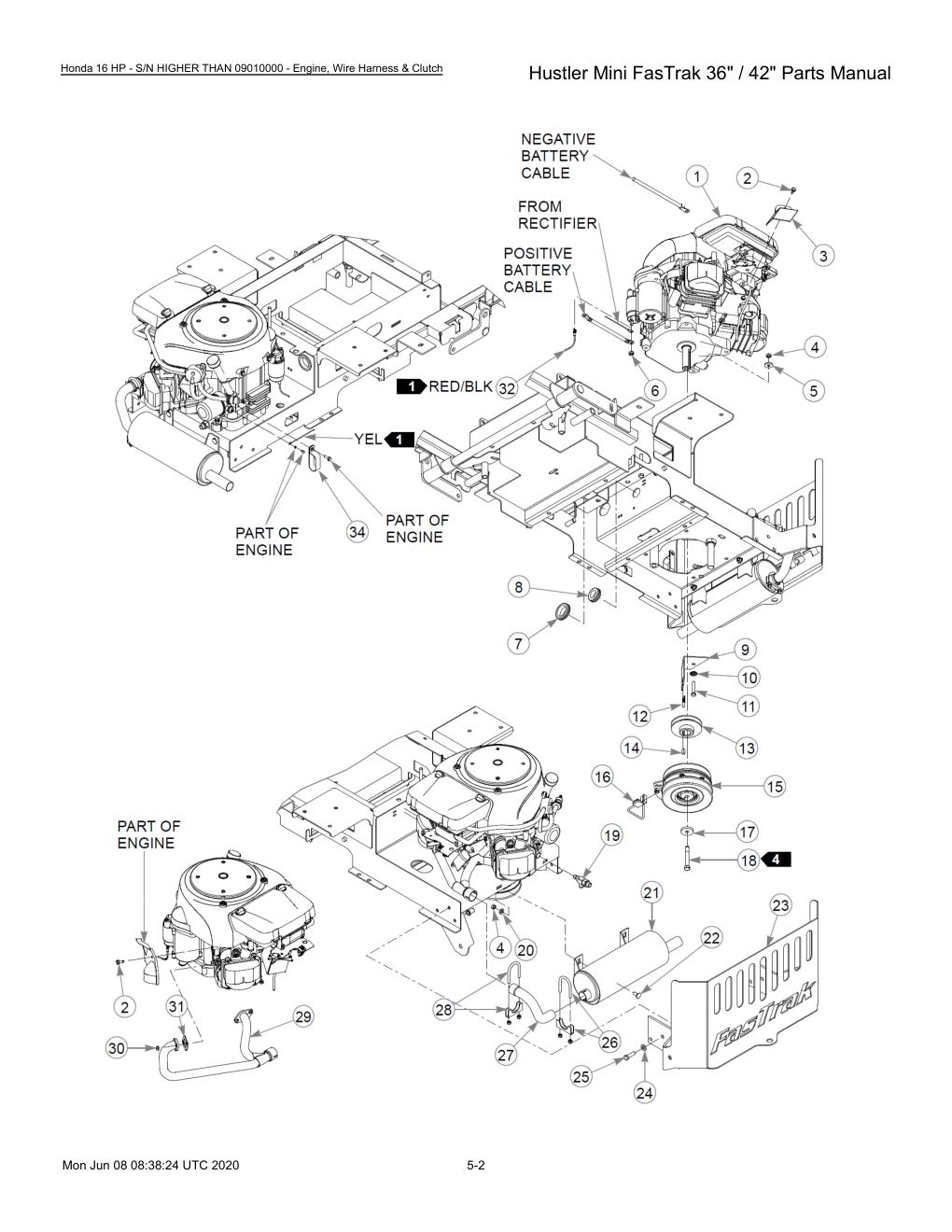

Honda 16 HP - S/N HIGHER THAN 09010000 - Engine, Wire Harness & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | CS M6-1.00X12HXG10.9 | 739144 | 2 | 739144-Online |
| 3 | HEAT SHIELD, 16HP EXHAU | 378273 | 1 | 378273-Online |
| 4 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 5 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 6 | NT M8-1.25 HX STAINLESS | 782664 | 1 | 782664-Online |
| 7 | GM 1.50 X 2.12 X 1.75 | 794644 | 1 | 794644-Online |
| 8 | GM 1.12X1.75X1.37X.12 | 706531 | 1 | 706531-Online |
| 9 | CLUTCH ANCHOR,WARN.(MIN | 330274 | 1 | 330274-Online |
| 10 | LW .312 INTEXT ZN | 029876 | 4 | 029876-Online |
| 11 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 12 | BUMPER, RUBBER | 784918 | 1 | HT784918-Online |
| 13 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 14 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 15 | CLUTCH KIT | 601325K | 1 | 601325K-Online |
| 16 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 17 | FW 0.454X1.50X.25 NF | 763417 | 1 | 763417-Online |
| 18 | CS .437-20X3.00 HXG5 P85 | 785048 | 1 | HT785048-Online |
| 19 | OIL DRAIN, VALVE M16x1.5 | 791608 | 1 | 791608-Online |
| 20 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 21 | MUFFLER15,17 KOHLER & 1 | 793125 | 1 | 793125-Online |
| 22 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 23 | ENGINE GUARD W/A | 316836 | 1 | 316836-Online |
| 24 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 25 | CS .375-16X1.25 HX G5 ZN | 052860 | 6 | HT052860-Online |
| 26 | CLAMP,EXHAUST - 1.125" | 794180 | 1 | HT794180-Online |
| 27 | MID PIPE,EXHAUST 16 HON | 793166 | 1 | 793166-Online |
| 28 | CLAMP,EXHAUST - 1.25" | 794172 | 1 | 794172-Online |
| 29 | MANIFOLD 16 HONDA MINI | 793141 | 1 | 793141-Online |
| 30 | NT M6-1.00FLG | 005231 | 4 | 005231-Online |
| 31 | HONDA (20) GASKET, MUFF | 785543 | 2 | 785543-Online |
| 32 | WIRE HARNESS MINI FST H | 601393 | 1 | 601393-Online |
| 33 | OIL DRAIN HOSE | 104786 | 1 | 104786-Online |

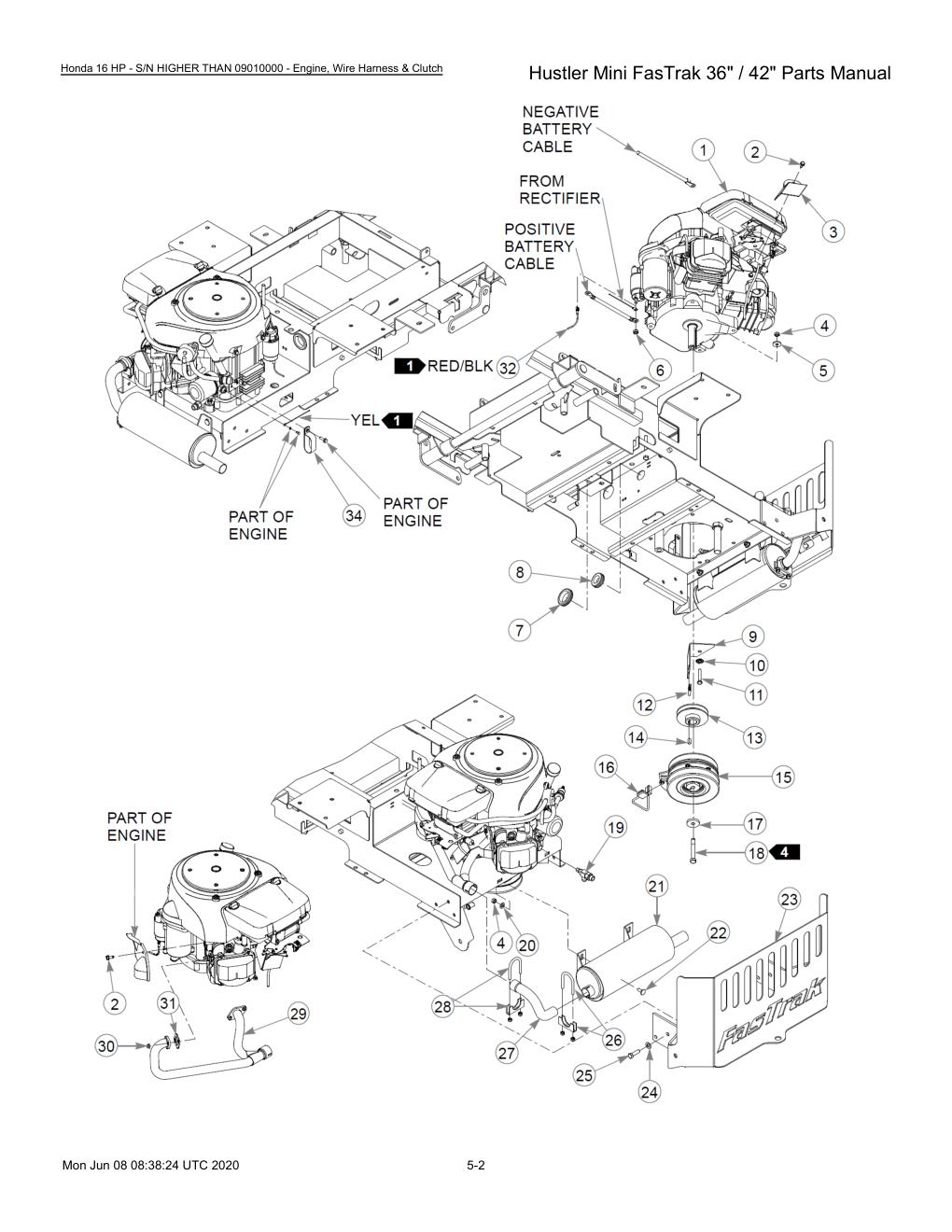

Honda 16 HP - S/N HIGHER THAN 09010000 - Engine, Wire Harness & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | HOSE CLAMP 1" (FS) | 045088 | 2 | 045088-Online |

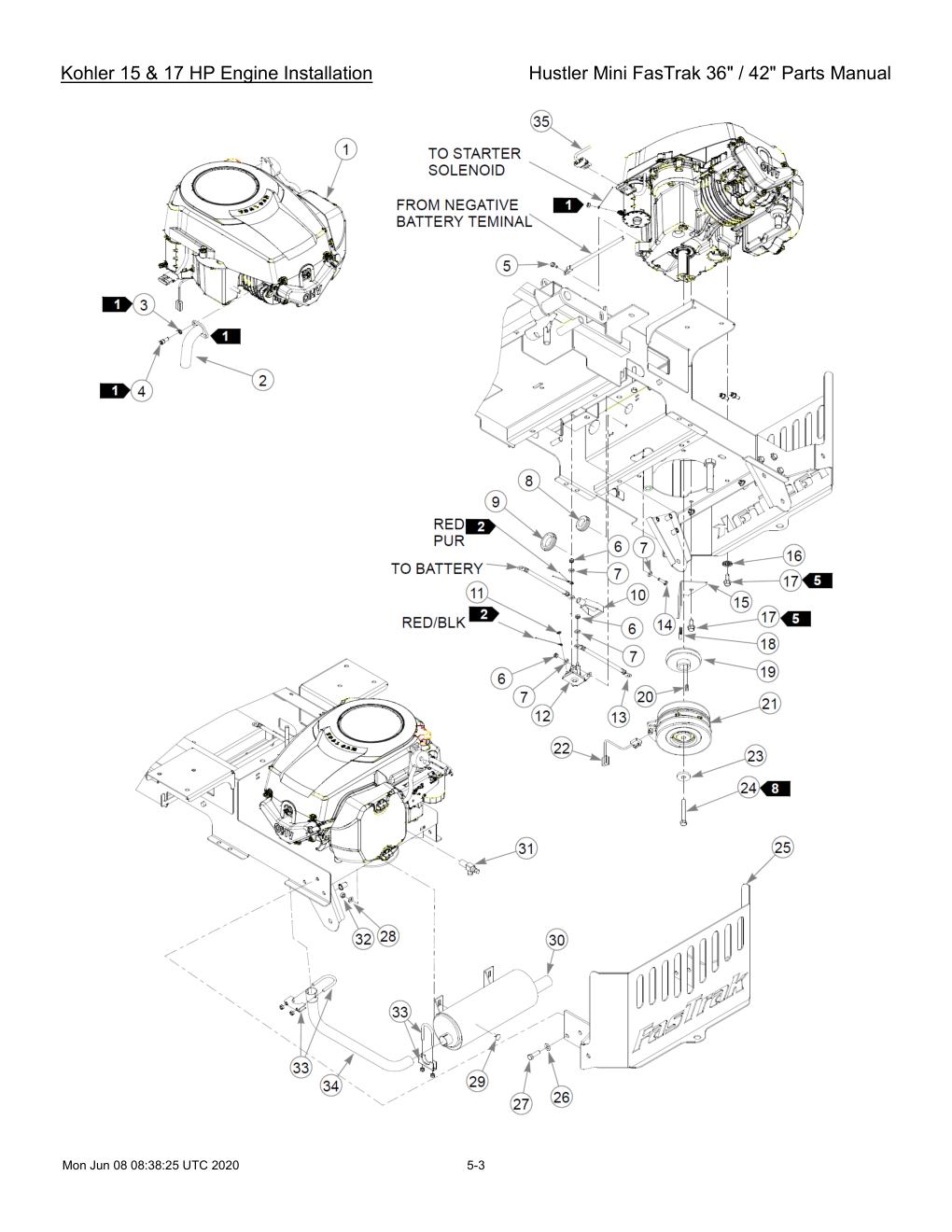

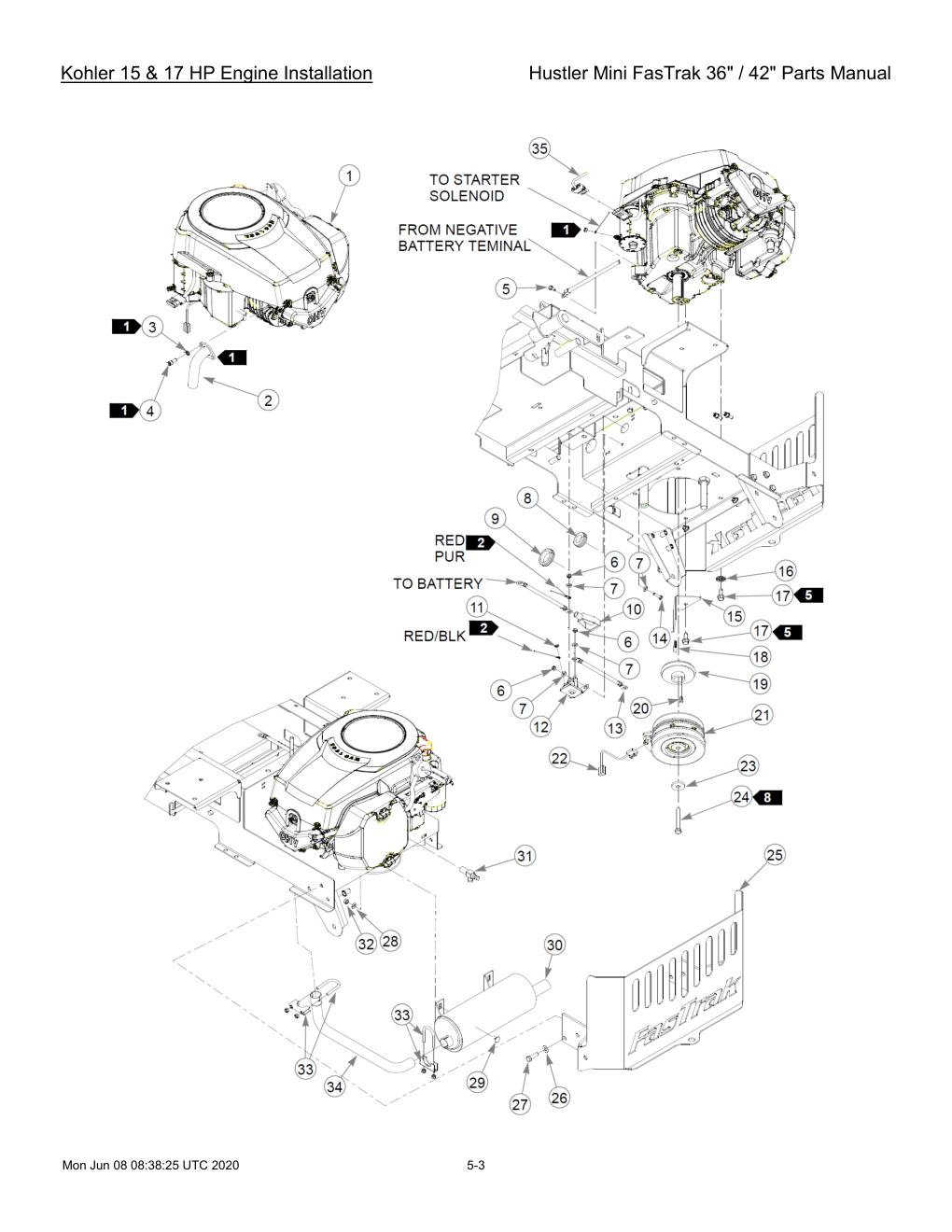

Kohler 15 & 17 HP Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | KOHLER 15 & 17 HP EXHAUST MANIFOLD | 793133 | 1 | 793133-Online |
| 3 | LW0.312SPLIT | 017004 | 2 | 017004-Online |
| 4 | CS .312-18X .75 SKTHD B | 704478 | 2 | 704478-Online |
| 5 | CS M6-1.00X12HXG10.9 | 739144 | 1 | 739144-Online |
| 6 | NT .250-20HXG5 | 024927 | 4 | HT024927-Online |
| 7 | FW 0.281SAE | 768515 | 6 | HT768515-Online |
| 8 | GM 1.12X1.75X1.37X.12 | 706531 | 1 | 706531-Online |
| 9 | GM 1.50 X 2.12 X 1.75 | 794644 | 1 | 794644-Online |
| 10 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 11 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 12 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 13 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 14 | CS .250-20X1.000HXG5 | 056077 | 2 | 056077-Online |
| 15 | CLUTCH ANCHOR,WARN.(MIN | 330274 | 1 | 330274-Online |
| 16 | LW .375 INTEXT ZN | 793885 | 1 | 793885-Online |
| 17 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 18 | BUMPER, RUBBER | 784918 | 1 | HT784918-Online |
| 19 | PULLEY,ENGINE-HYDRO DRI | 793760 | 1 | HT793760-Online |
| 20 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 21 | CLUTCH KIT | 601325K | 1 | 601325K-Online |
| 22 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 23 | FW 0.454X1.50X.25 NF | 763417 | 1 | 763417-Online |
| 24 | CS .437-20X3.00 HXG5 P85 | 785048 | 1 | HT785048-Online |
| 25 | ENGINE GUARD W/A | 316836 | 1 | 316836-Online |
| 26 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 27 | CS .375-16X1.25 HX G5 ZN | 052860 | 6 | HT052860-Online |
| 28 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 29 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 30 | MUFFLER15,17 KOHLER & 1 | 793125 | 1 | 793125-Online |
| 31 | VALVE,OIL DRAIN 3/8-18 | 796516 | 1 | 796516-Online |
| 32 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
Kohler 15 & 17 HP Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 33 | CLAMP,EXHAUST - 1.125" | 794180 | 2 | HT794180-Online |
| 34 | MID PIPE,EXHAUST 15,17 | 793158 | 1 | HT793158-Online |
| Not Shown | WIRE HARNESS, MFST | 601127 | 1 | 601127-Online |
| 35 | WIRE HARNESS MINI FST K | 793117 | 1 | 793117-Online |

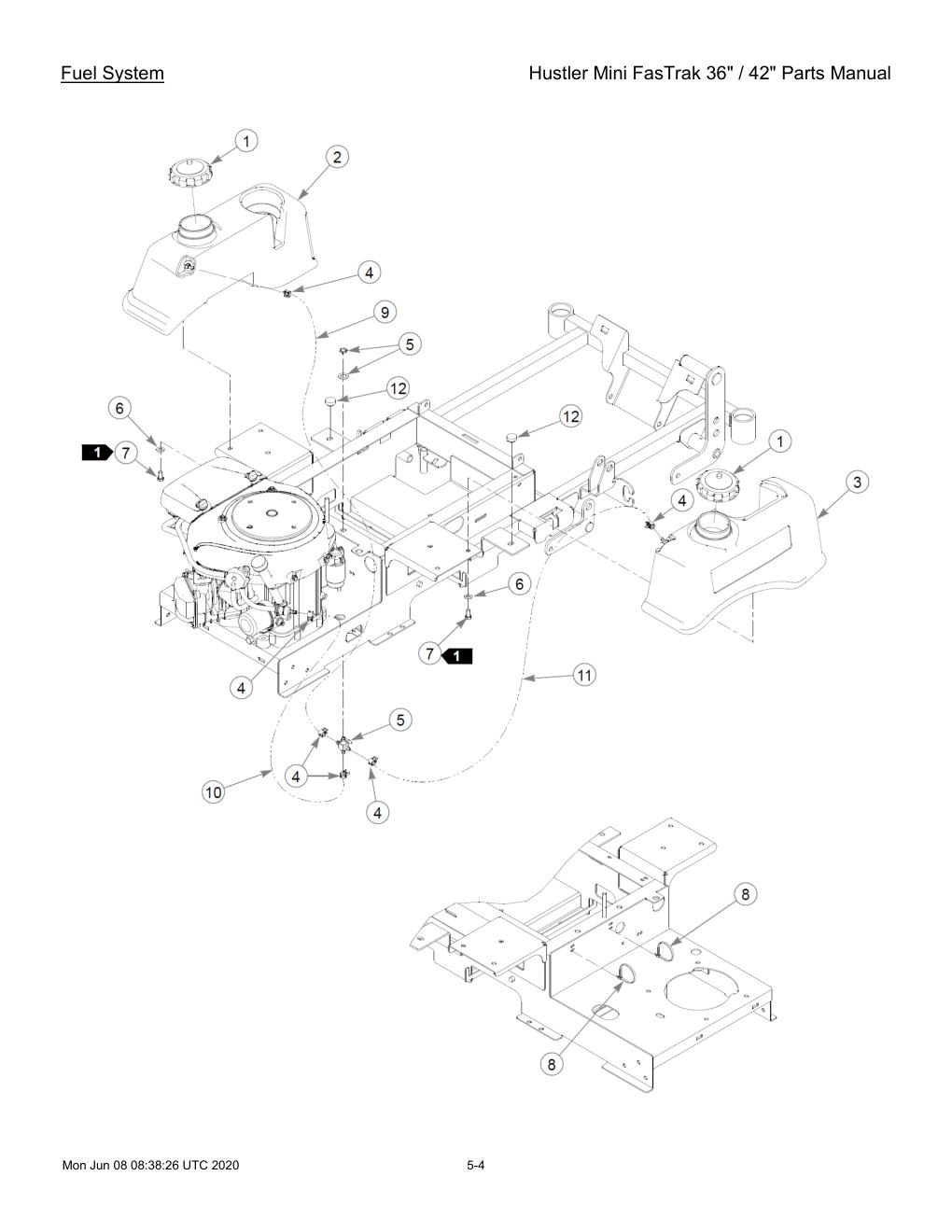

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP,3.5" | 779306 | 2 | HT779306-Online |
| 2 | FUEL TANK LEFT SIDE 36/ | 792978 | 1 | HT792978-Online |
| 3 | FUEL TANK RIGHT SIDE 36 | 792960 | 1 | HT792960-Online |
| 4 | CLIP, HOSE CLAMP | 000323 | 6 | 000323-Online |
| 5 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 10 | HT767954-Online |
| 7 | CS .375-16X0.75 HX G5 ZN | 055822 | 8 | HT055822-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 9 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 10 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 10.1 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 10.2 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 10.3 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 11 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 12 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 12.1 | FUEL FILTER SCREEN | 794081 | AR | 794081-Online |

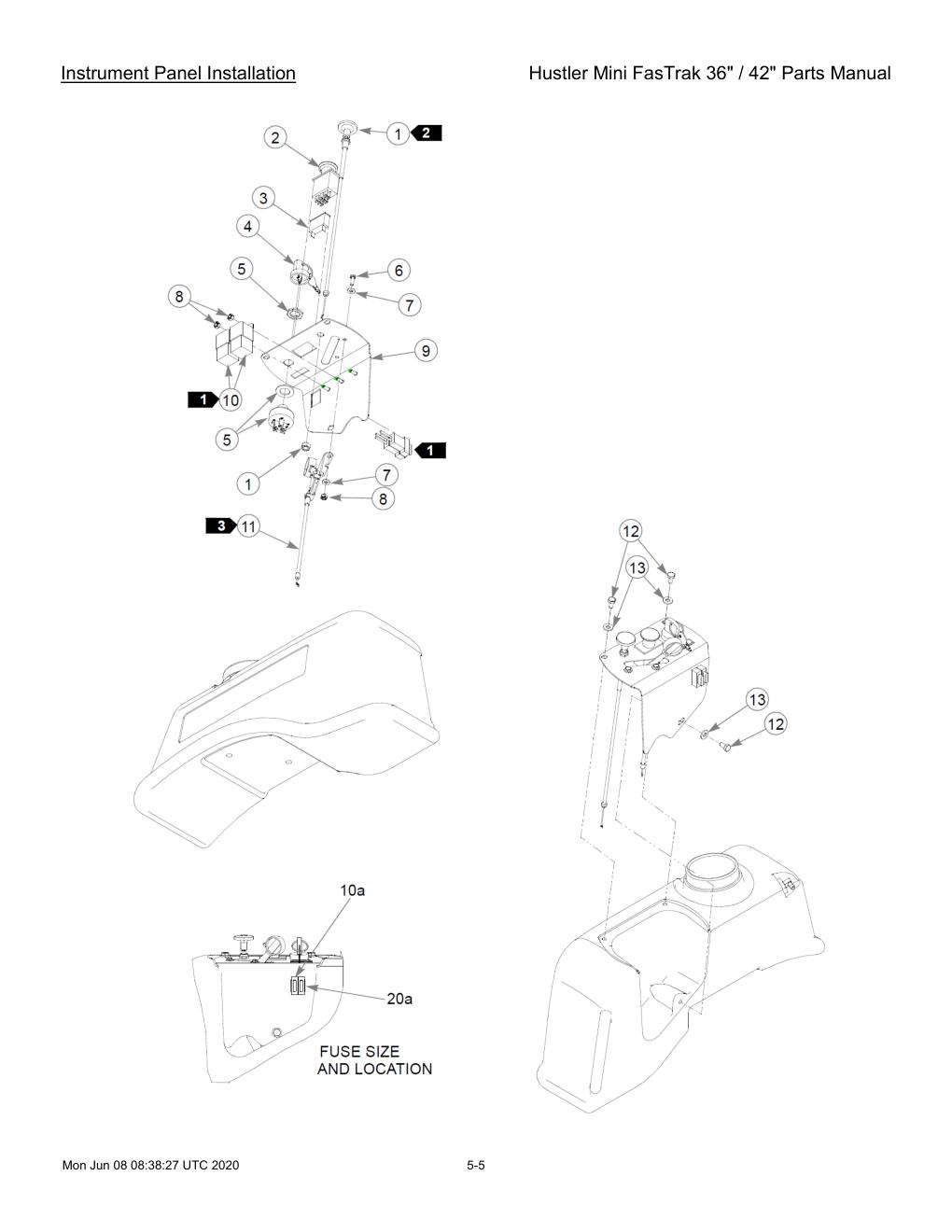

Instrument Panel Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 786657 | 1 | HT786657-Online |
| Not Shown | CABLE, CHOKE | 785030 | 1 | HT785030-Online |
| 2 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 3 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 4 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 5 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 6 | MS#10-24X0.625HX | 714998 | 2 | 714998-Online |
| 7 | FW 0.219X.50X.05 ZN | 704932 | 4 | HT704932-Online |
| 8 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 9 | INSTRUMENT PANEL W/A | 321059 | 1 | 321059-Online |
| 10 | RELAY, SEALED W/BRACKET | 601053 | 2 | HT601053-Online |
| 11 | CABLE, THROTTLE 60"LG | 793810 | 1 | HT793810-Online |
| Not Shown | CABLE, THROTTLE | 778365 | 1 | HT778365-Online |
| 12 | CS .250-20X0.50 HX G5 ZN | 055947 | 3 | 055947-Online |
| 13 | FW 0.281SAE | 768515 | 3 | HT768515-Online |

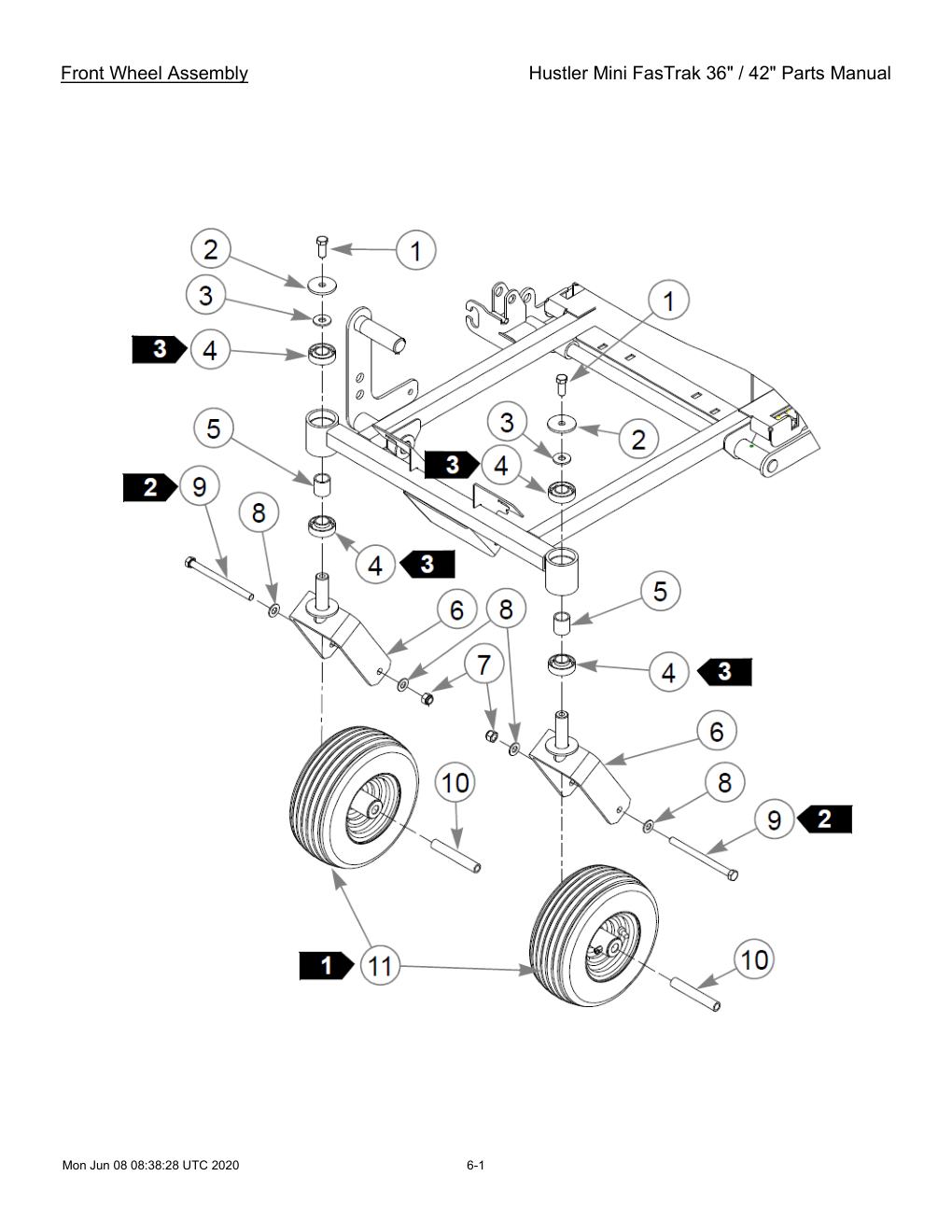

Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 2 | FW .510X2.15X.19 ZN | 344267 | 2 | HT344267-Online |
| 3 | FW 0.531X1.38X.12 ZN | 712976 | 2 | HT712976-Online |
| 4 | BEARING | 784223 | 4 | HT784223-Online |
| 5 | SPACER | 784603 | 2 | HT784603-Online |
| 6 | CASTER FORK W/A, WB/FAS | 339689 | 2 | HT339689-Online |
| 7 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 9 | CS .500-13X6.500HXG5 | 042630 | 2 | HT042630-Online |
| 10 | GAGE WHEEL SPACER | 306969 | 2 | HT306969-Online |
| 11 | T/W 11X4.00-5 RIBBED | 768044 | 2 | 768044-Online |

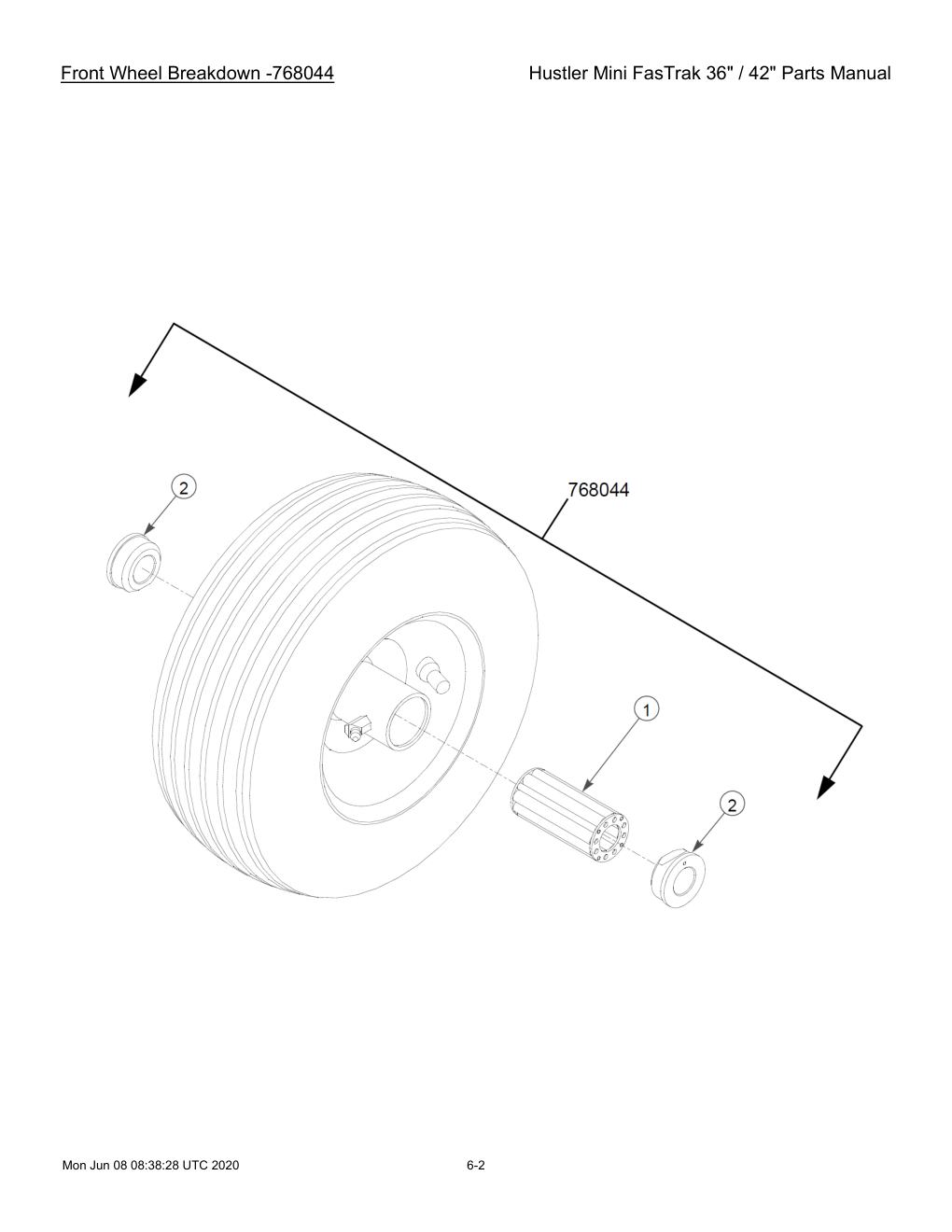

Front Wheel Breakdown -768044
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BEARING, 3/4" ROLLER | 772814 | 1 | HT772814-Online |
| 2 | BEARING CAP | 772806 | 2 | HT772806-Online |

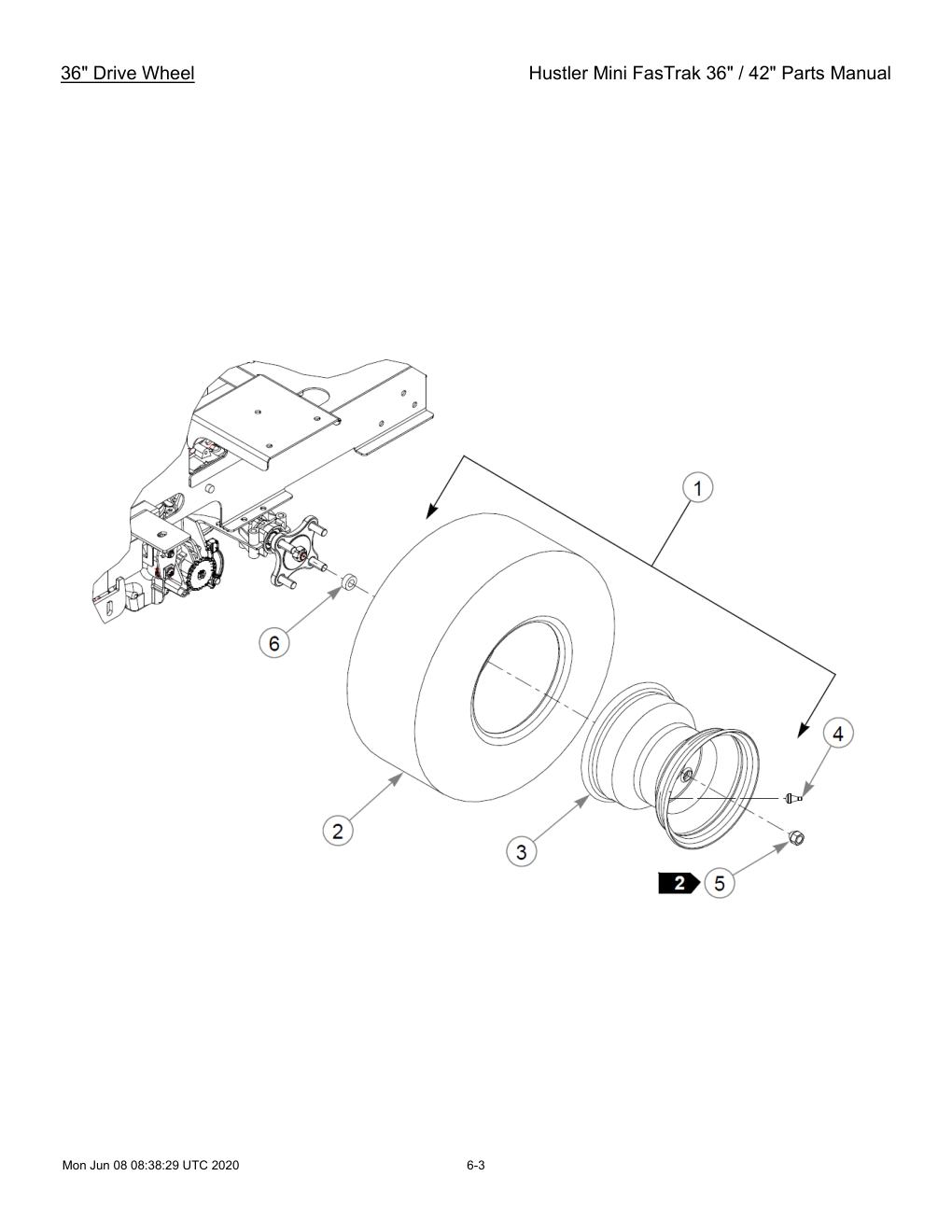

36" Drive Wheel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 18X8.50-8 SLV | 783134 | 2 | 783134-Online |
| 2 | TIRE 18 X 8.5-8 | 783142 | 1 | 783142-Online |
| 3 | WHL 8X7.00 4X4.0 SLV | 783159 | 1 | 783159-Online |
| 4 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 5 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 6 | SPACER,.375TH X.53IDX1. | 793406 | 8 | 793406-Online |
42" Drive Wheel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 18X9.50-8 SLV | 784264 | 2 | 784264-Online |
| 2 | TIRE 18 X 9.5-8 | 784272 | 1 | HT784272-Online |
| 3 | WHL 8X6.19 4X4.0 SLV | 784280 | 1 | 784280-Online |
| 4 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 5 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 6 | Not Used | PNNA | REF | PNNA-Online |

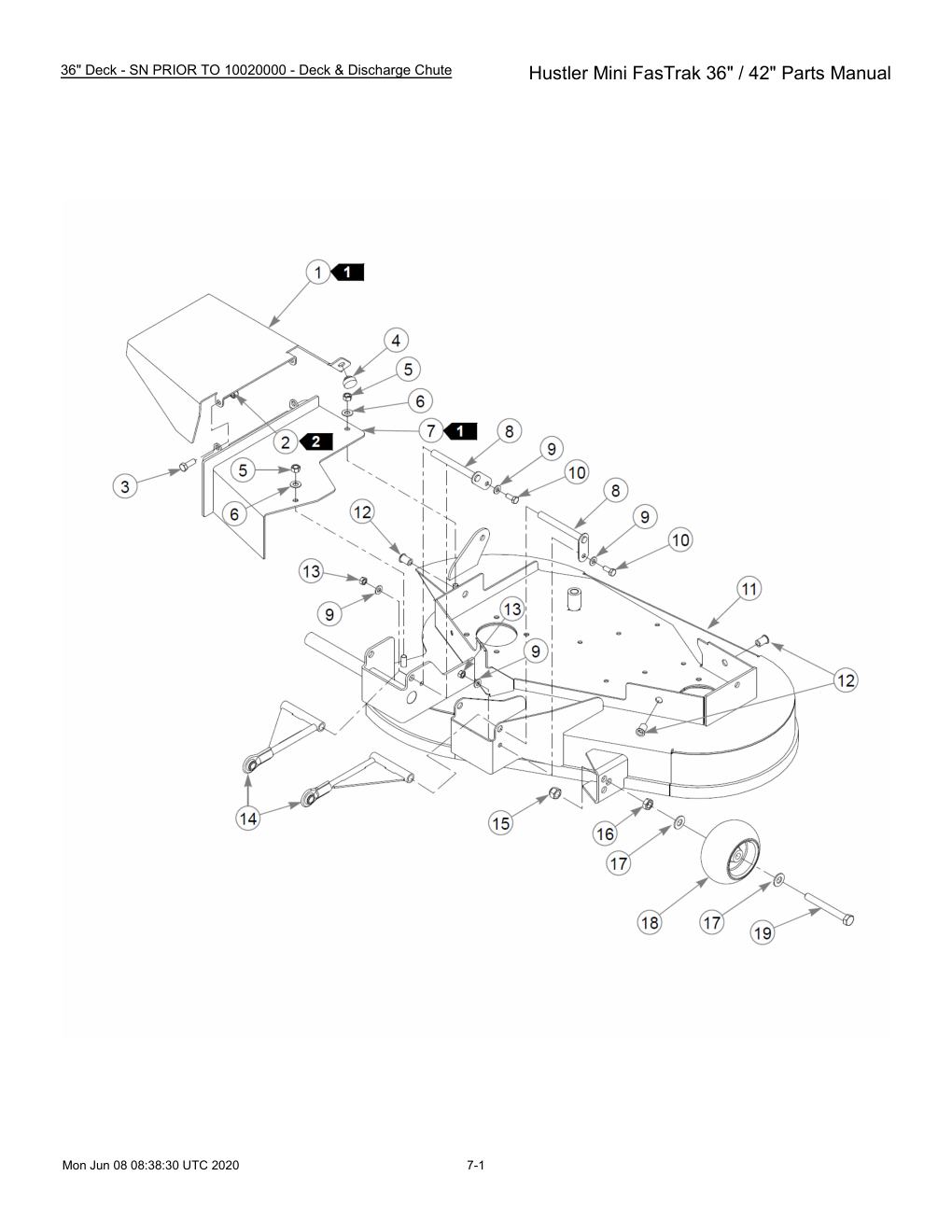

36" Deck - SN PRIOR TO 10020000 - Deck & Discharge Chute
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE COVER W/A | N/A | 1 | No SKU |
| Not Shown | CHUTE ADAPTER KIT | 112904 | AR | 112904-Online |
| 2 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 3 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 4 | BUMPER, .500x 1.00x .31 | 781880 | 1 | HT781880-Online |
| 5 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 7 | DISCHARGE CHUTE BASE | N/A | 1 | No SKU |
| 8 | PULLBAR PIN W/A | 322974 | 2 | HT322974-Online |
| 9 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 10 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 11 | 36" SERVICE DECK | 546937 | 1 | 546937-Online |
| 12 | RIVET NUT, 5/16-18 THRE | 808485 | 3 | HT808485-Online |
| 13 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 14 | PULLBAR W/A | 330225 | 2 | HT330225-Online |
| 15 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| Not Shown | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 16 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 18 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 19 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |

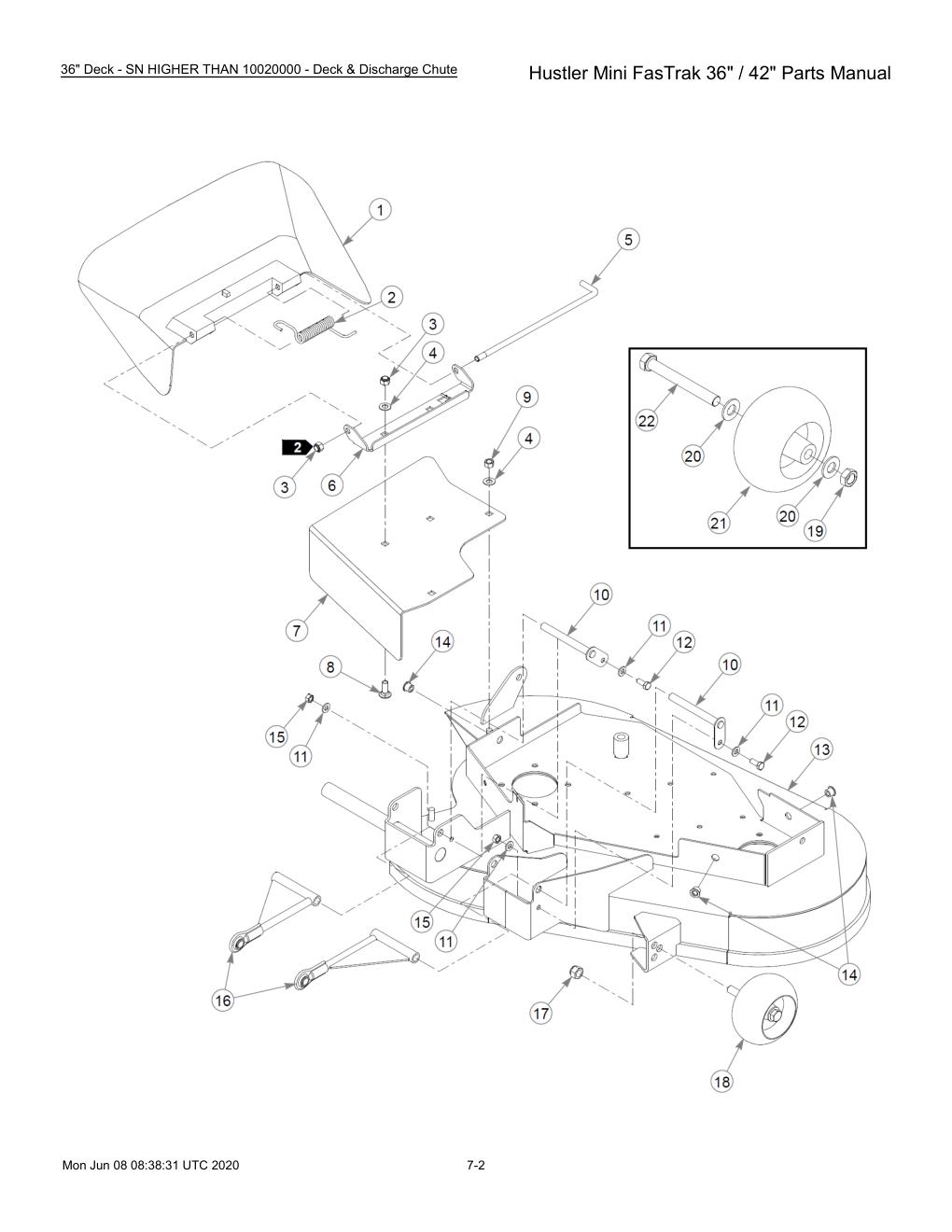

36" Deck - SN HIGHER THAN 10020000 - Deck & Discharge Chute
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 2 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 3 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 5 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 6 | BRACKET, CHUTE | 111067 | 1 | HT111067-Online |
| 7 | ADAPTER, DISCHARGE | 112876 | 1 | HT112876-Online |
| 8 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 9 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 10 | PULLBAR PIN W/A | 322974 | 2 | HT322974-Online |
| 11 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 12 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 13 | 36" SERVICE DECK | 546937 | 1 | 546937-Online |
| 14 | RIVET NUT, 5/16-18 THRE | 808485 | 3 | HT808485-Online |
| 15 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 16 | PULLBAR W/A | 330225 | 2 | HT330225-Online |
| 17 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 18 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 19 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |
| 20 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 21 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 22 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |

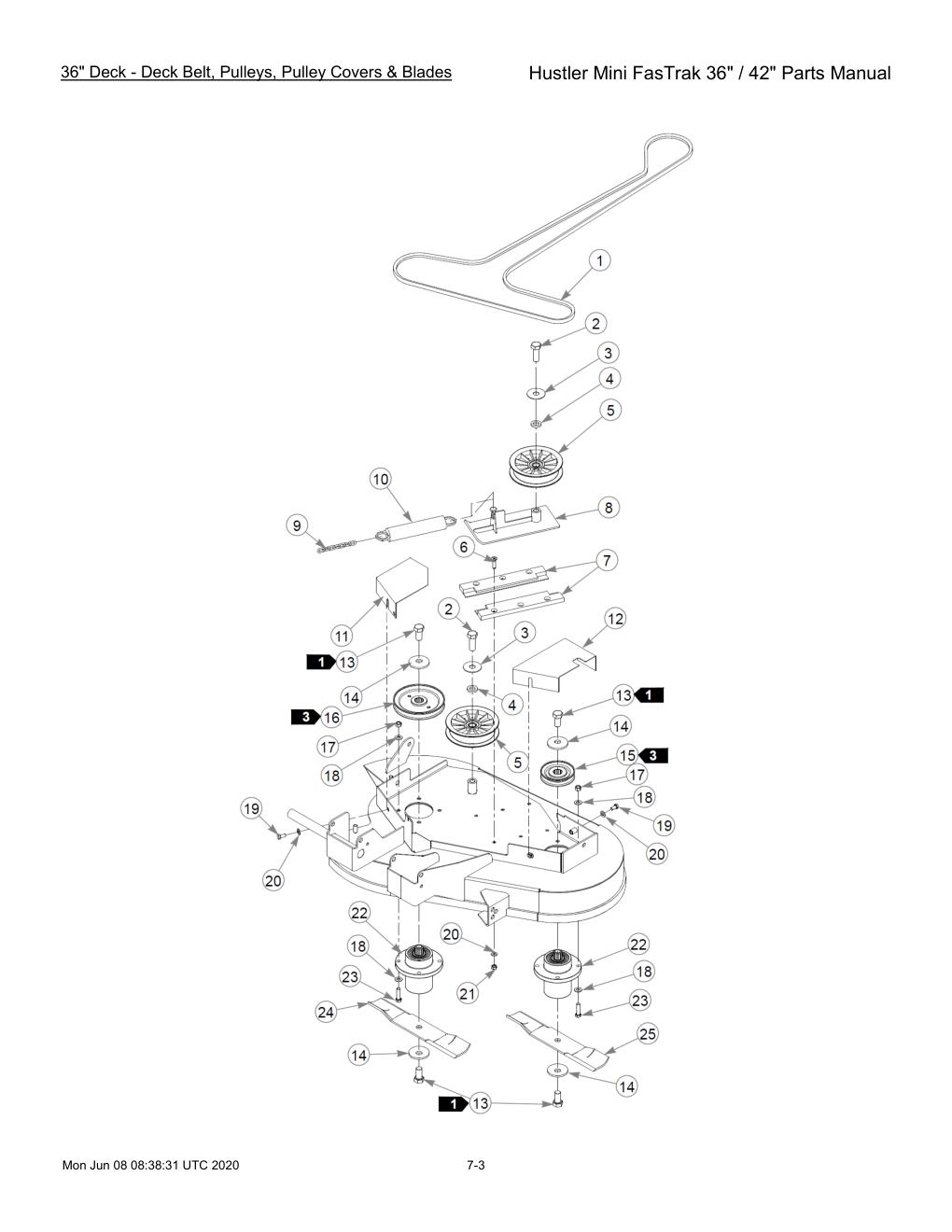

36" Deck - Deck Belt, Pulleys, Pulley Covers & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 793828 | 1 | HT793828-Online |
| 2 | CS .62511X1.750HXG5 | 025007 | 2 | HT025007-Online |
| 3 | FW .656X2.00X.08 ZN | 046821 | 2 | HT046821-Online |
| 4 | FW .630X1.13X.18 ZN | 797449 | 2 | 797449-Online |
| 5 | PULLEY, IDLER, 5.00"OD, | 784504 | 2 | HT784504-Online |
| 6 | CS .312-18X1.250 FLT SH | 784199 | 6 | HT784199-Online |
| 7 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 8 | DECK IDLER,MINI FST W/A | 321877 | 1 | HT321877-Online |
| 9 | CHAIN, 7 LINK | 364315 | 1 | HT364315-Online |
| 10 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 11 | PULLEY COVER RIGHT | 321398 | 1 | HT321398-Online |
| 12 | PULLEY GUARD,LEFT SIDE | 330324 | 1 | HT330324-Online |
| 13 | CS .625-11X1.250HXG5 | 781872 | 4 | HT781872-Online |
| 14 | CW .678 X 2.250 X .187 | 782474 | 4 | HT782474-Online |
| 15 | PULLEY,DECK SPINDLE 36/ | 793786 | 1 | HT793786-Online |
| 16 | PULLEY,DECK SPINDLE 36/ | 793778 | 1 | 793778-Online |
| 17 | NT .375-16HXG5 | 054502 | 8 | HT054502-Online |
| 18 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 19 | CS .312-18X0.625HXG5 | 064006 | 4 | 064006-Online |
| 20 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 21 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 22 | BLADE SPINDLE ASSEMBLY | 783506 | 2 | 783506-Online |
| 23 | CS .375-16X1.38 HX G5 ZN | 005116 | 8 | HT005116-Online |
| 24 | BLADE,20.50"-L-F-CW | 793794 | 1 | HT793794-Online |
| 25 | BLADE,13.75"-L-F-CW | 793802 | 1 | HT793802-Online |
| 28 | CS .312-18X1.250HXG5 | 079186 | 6 | 079186-Online |
| 29 | FW 0.344X1.00X.12 HD ZN | 712927 | 6 | HT712927-Online |
| 30 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 31 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 32 | FW .440X1.00X0.08 ZN | 017129 | 6 | 017129-Online |
42" Deck - S/N PRIOR TO 10020000 - Deck & Discharge Chute
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | N/A | 1 | No SKU |
| 2 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 3 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 4 | BUMPER, .500x 1.00x .31 | 781880 | 1 | HT781880-Online |
| 5 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 7 | DISCHARGE CHUTE | N/A | 1 | No SKU |
| 8 | PULLBAR PIN W/A | 322974 | 2 | HT322974-Online |
| 9 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 10 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 11 | 42" SERVICE DECK | 546929 | 1 | 546929-Online |
| 12 | RIVET NUT, 5/16-18 THRE | 808485 | 3 | HT808485-Online |
| 13 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 14 | PULLBAR W/A | 330225 | 2 | HT330225-Online |
| 15 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| Not Shown | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 16 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 18 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 19 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |
| Not Shown | CHUTE ADAPTER KIT | 112904 | AR | 112904-Online |

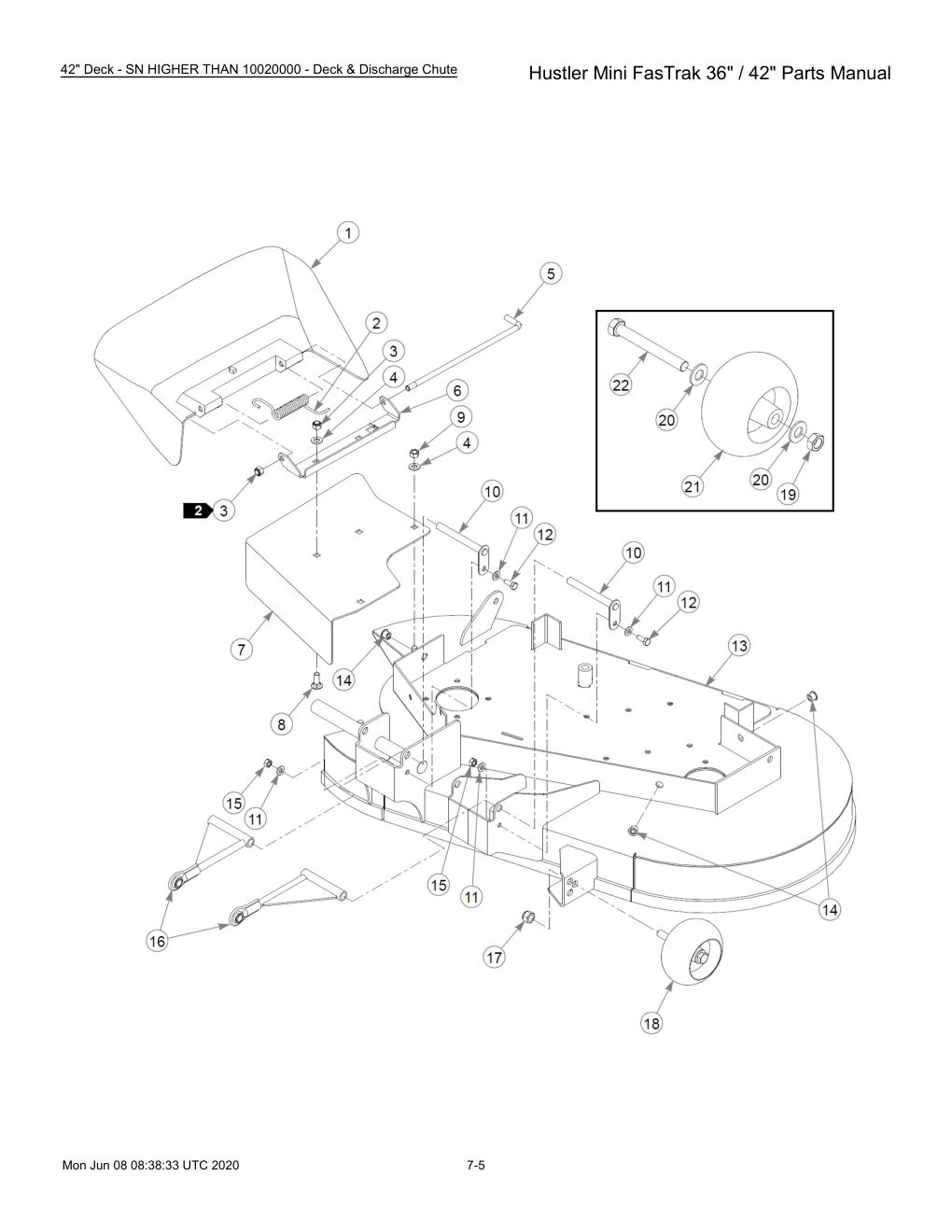

42" Deck - SN HIGHER THAN 10020000 - Deck & Discharge Chute
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 2 | SPRING, TORSION | 601824 | 1 | 601824-Online |
| 3 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 5 | PIN, CHUTE | 601843 | 1 | 601843-Online |
| 6 | BRACKET, CHUTE | 111067 | 1 | HT111067-Online |
| 7 | ADAPTER, DISCHARGE | 112876 | 1 | HT112876-Online |
| 8 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 9 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 10 | PULLBAR PIN W/A | 322974 | 2 | HT322974-Online |
| 11 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 12 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 13 | 42" SERVICE DECK | 546929 | 1 | 546929-Online |
| 14 | RIVET NUT, 5/16-18 THRE | 808485 | 3 | HT808485-Online |
| 15 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 16 | PULLBAR W/A | 330225 | 2 | HT330225-Online |
| 17 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 18 | WHEEL ASSY, ANTI SCALP | 788166 | 1 | HT788166-Online |
| 19 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |
| 20 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |
| 21 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 22 | CS .500-13X4.25 HX G5 ZN | 781708 | 1 | HT781708-Online |

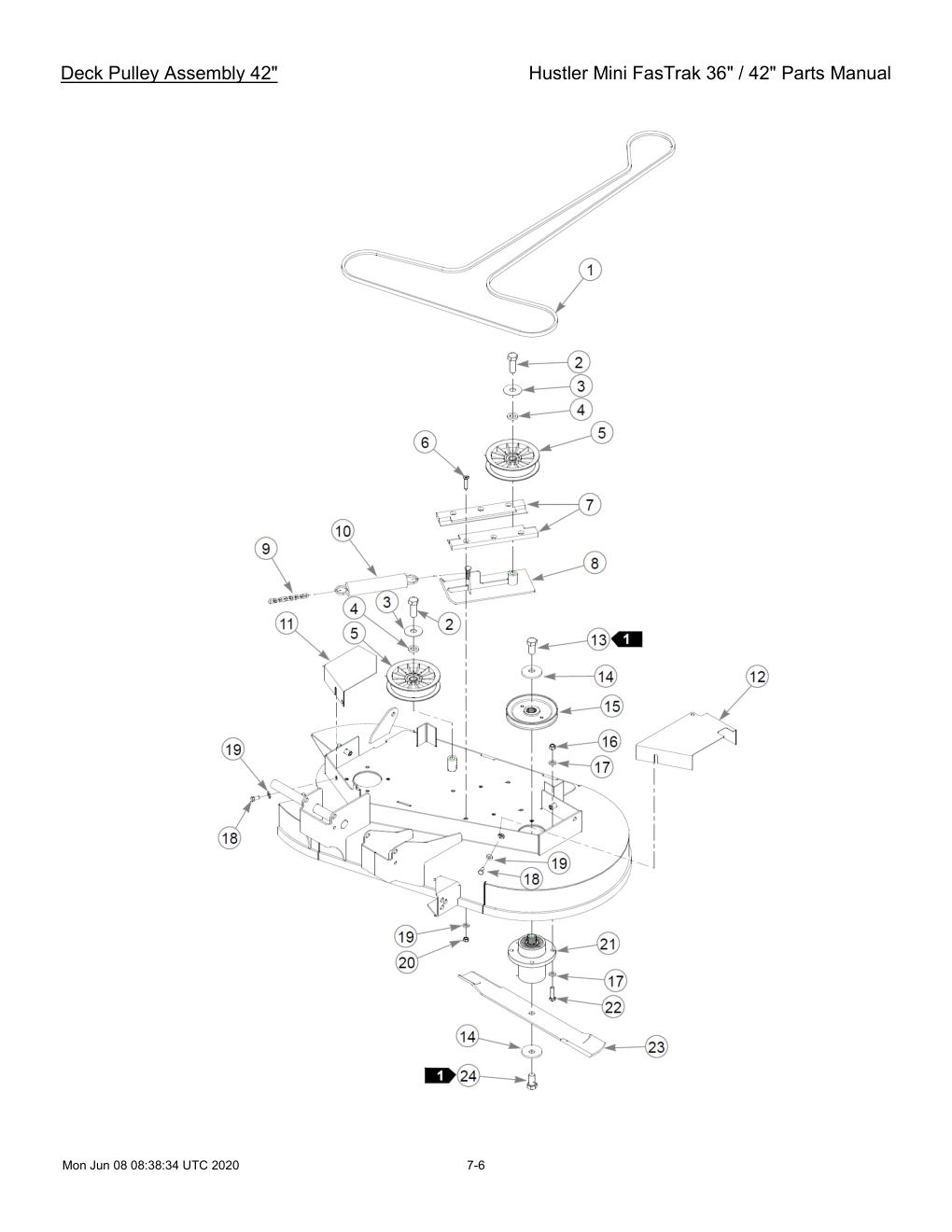

Deck Pulley Assembly 42"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 793893 | 1 | HT793893-Online |
| 2 | CS .62511X1.750HXG5 | 025007 | 2 | HT025007-Online |
| 3 | FW .656X2.00X.08 ZN | 046821 | 2 | HT046821-Online |
| 4 | FW .630X1.13X.18 ZN | 797449 | 2 | 797449-Online |
| 5 | PULLEY, IDLER, 5.00"OD, | 784504 | 2 | HT784504-Online |
| 6 | CS .312-18X1.250 FLT SH | 784199 | 6 | HT784199-Online |
| 7 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 8 | DECK IDLER,MINI FST W/A | 321877 | 1 | HT321877-Online |
| 9 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 10 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 11 | PULLEY COVER RIGHT | 321398 | 1 | HT321398-Online |
| 12 | PULLEY COVER LEFT 42" | 321042 | 1 | HT321042-Online |
| 13 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
| 14 | CW .678 X 2.250 X .187 | 782474 | 4 | HT782474-Online |
| 15 | PULLEY,DECK SPINDLE 36/ | 793778 | 2 | 793778-Online |
| 16 | NT .375-16HXG5 | 054502 | 8 | HT054502-Online |
| 17 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 18 | CS .312-18X0.625HXG5 | 064006 | 4 | 064006-Online |
| 19 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 20 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 21 | BLADE SPINDLE ASSEMBLY | 783506 | 2 | 783506-Online |
| 22 | CS .375-16X1.38 HX G5 ZN | 005116 | 8 | HT005116-Online |
| 23 | BLADE,20.50"-L-F-CW | 793794 | 2 | HT793794-Online |
| 24 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
| 27 | FW 0.344X1.00X.12 HD ZN | 712927 | 6 | HT712927-Online |
| 28 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 29 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 30 | FW .440X1.00X0.08 ZN | 017129 | 6 | 017129-Online |
| 31 | Part Name Not Available | PNNA | AR | PNNA-Online |
Spindle Service Parts - 783506
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RING, BLADE SPINDLE RET | 783548 | 1 | HT783548-Online |
| 2 | BLADE SPINDLE BEARING | 607275 | 2 | 607275-Online |
| 3 | SPACER, BLADE SPINDLE | 783530 | 1 | HT783530-Online |
| 4 | HOUSING, BLADE SPINDLE | 783514 | 1 | HT783514-Online |
| 5 | SHAFT, BLADE SPINDLE | 783522 | 1 | HT783522-Online |

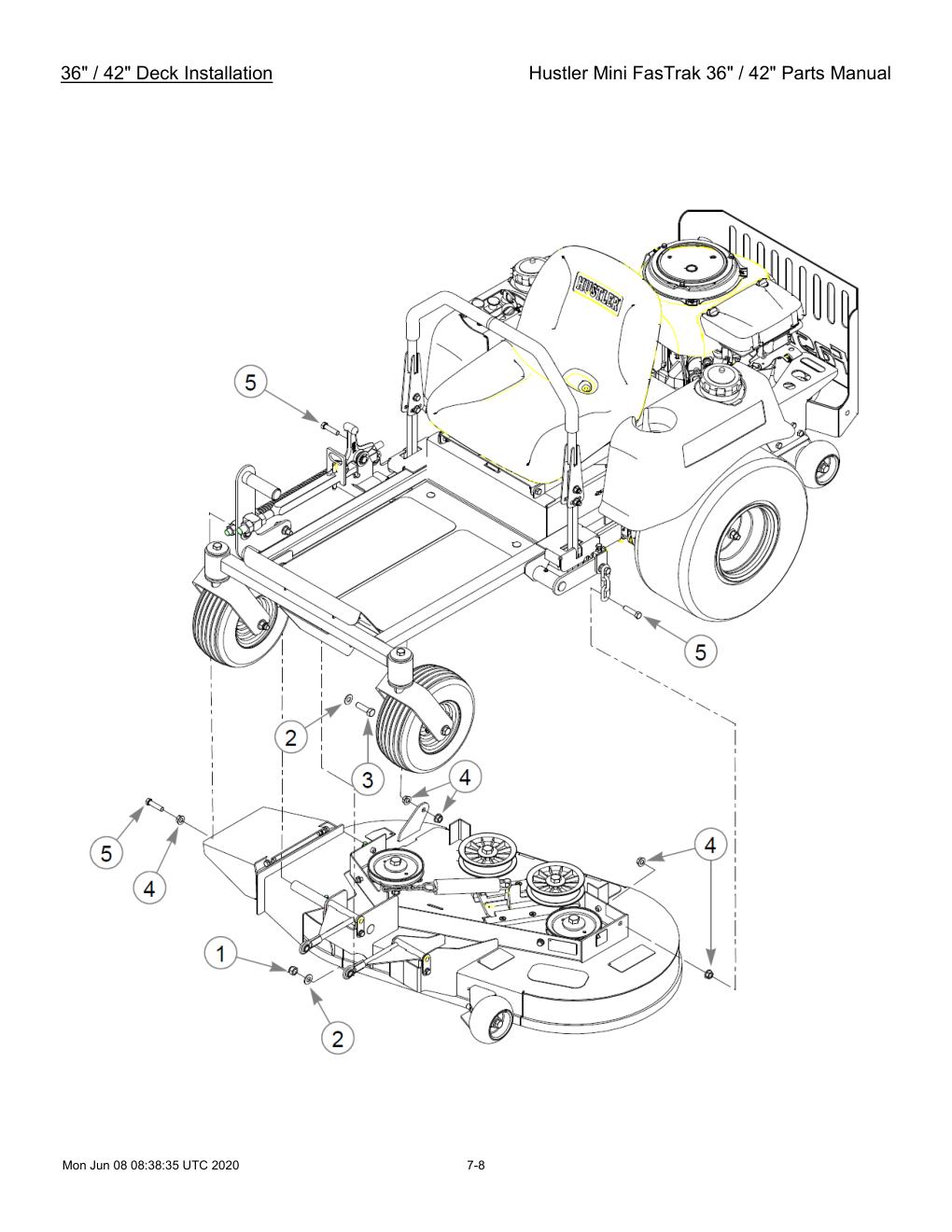

36" / 42" Deck Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 2 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 3 | CS .500-13X1.750HXG5 | 017616 | 2 | HT017616-Online |
| 4 | NT .437-14FLKG5 | 704643 | 5 | HT704643-Online |
| 5 | CS .437-14X1.750HXG5 | 055749 | 3 | HT055749-Online |

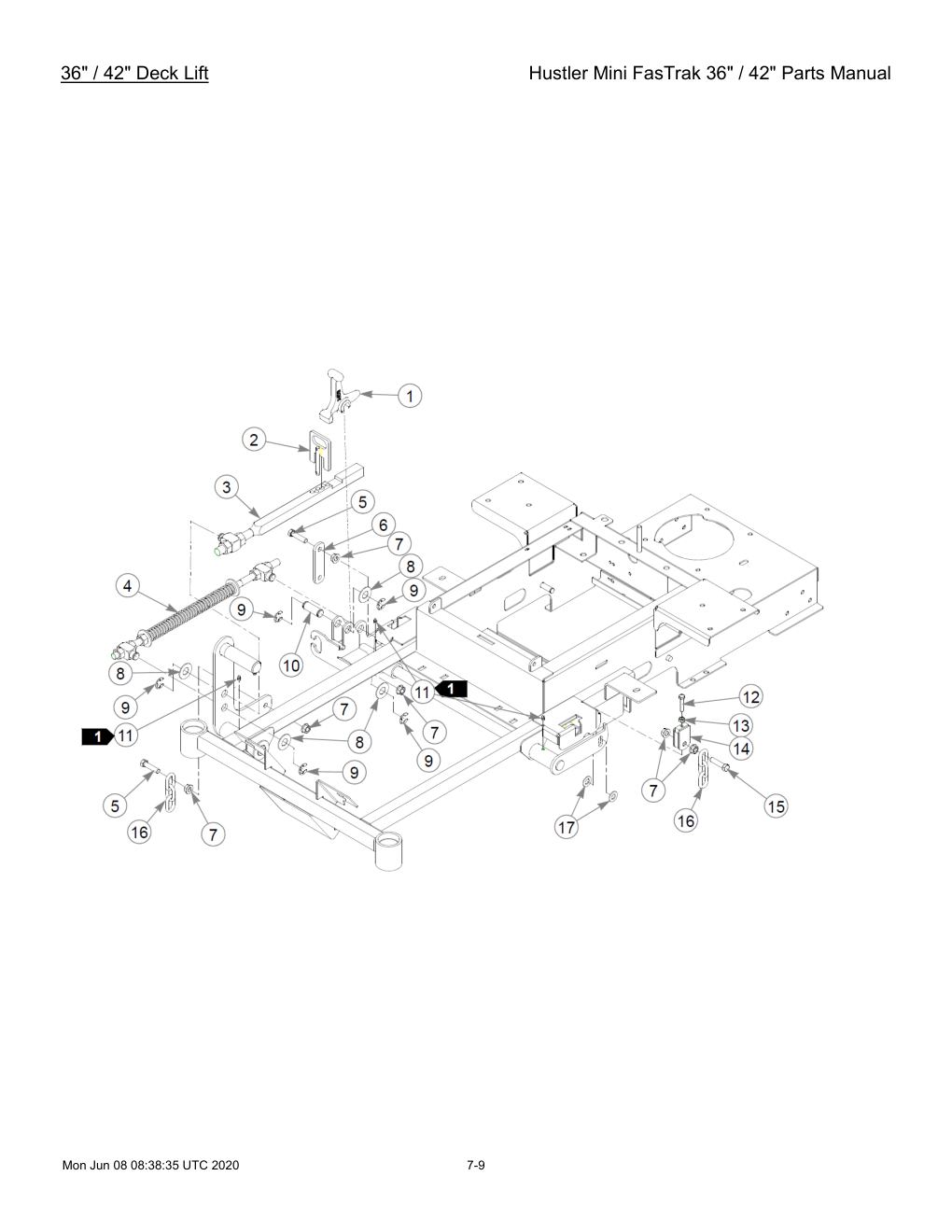

36" / 42" Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE, STOP | 348318 | 1 | HT348318-Online |
| 2 | STOP, HEIGHT ADJ W/A | 348284 | 1 | HT348284-Online |
| 3 | DECK HEIGHT INDICATOR | 793505 | 1 | HT793505-Online |
| 4 | DECK LIFT SPRING S/A | 782995 | 1 | HT782995-Online |
| 5 | CS .437-14X1.750HXG5 | 055749 | 2 | HT055749-Online |
| 6 | DECK LIFT LINK | 334045 | 1 | 334045-Online |
| 7 | NT .437-14FLKG5 | 704643 | 6 | HT704643-Online |
| 8 | FW .760X1.63X0.08 ZN | 025296 | 4 | HT025296-Online |
| 9 | CLIP E, 1.00 X.625X .05 | 781294 | 5 | HT781294-Online |
| 10 | CE .750X2.25 X1.75 HEAD | 781229 | 1 | 781229-Online |
| 11 | GREASE FITTING STRAIGHT | 015495 | 3 | HT015495-Online |
| 12 | CS .312-18X1.500HXG5 | 756270 | 1 | 756270-Online |
| 13 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 14 | YOKE W/A, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 15 | CS .437-14x1.75 FULTHG5 | 781831 | 1 | HT781831-Online |
| 16 | CHAIN, DECK LIFT | 360131 | 2 | HT360131-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 2 | HT767962-Online |

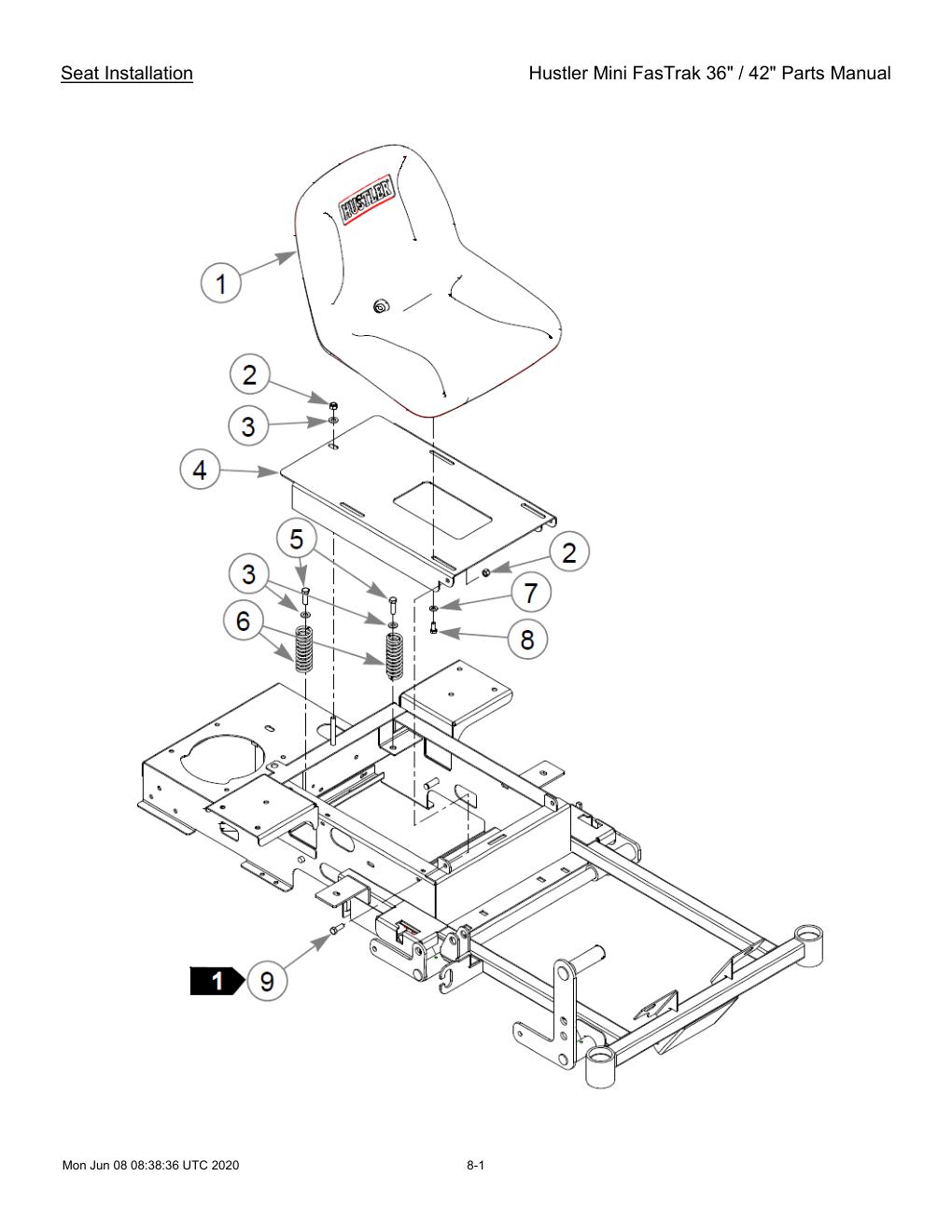

Seat Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, MILSCO | 601807 | 1 | 601807-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 3 | HT767954-Online |
| 4 | SEAT PAN,MINI FST | 320275 | 1 | 320275-Online |
| 5 | CS .375-16X1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 6 | SPRING,COMP 1.25X4.00X. | 793851 | 2 | HT793851-Online |
| 7 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 8 | CS .312-18X0.750HXG5 | 034280 | 4 | HT034280-Online |
| 9 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| Not Shown | ARMREST KIT FST RND | 797456 | AR | 797456-Online |
| Not Shown | SWITCH, SNAP MOUNT | 793315 | AR | 793315-Online |
Mower Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL,DEFLECTOR SHIELD | 794545 | 1 | 794545-Online |
| 3 | DECAL, FASTRAK | 784710 | 1 | 784710-Online |
| 4 | FIRST ZERO TURN DECAL | 782573 | 1 | 782573-Online |
| 5 | DECAL,OPERATION FASTRAK | 793547 | 1 | 793547-Online |
| 6 | HUSTLER NAME PLATE | 793588 | 1 | 793588-Online |
| 7 | DECAL,DECK HEIGHT 36/42 | 794305 | 1 | 794305-Online |
| 8 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 9 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 10 | DECAL,INST.PANEL FASTRA | 793703 | 1 | 793703-Online |
| 11 | DECAL,FUEL VALVE FASTRA | 793554 | 1 | 793554-Online |
| 12 | DECAL, STABILIZER | 771436 | 1 | 771436-Online |
| 13 | DECAL, BATTERY | 727016 | 1 | 727016-Online |
| 14 | DECAL, ENGINE COMPARTME | 788968 | 1 | 788968-Online |
| 15 | DECAL, SERVICE | 785147 | 1 | 785147-Online |
| 16 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 2 | TURF PROD SERIAL NO PLATE | N/A | 1 | No SKU |

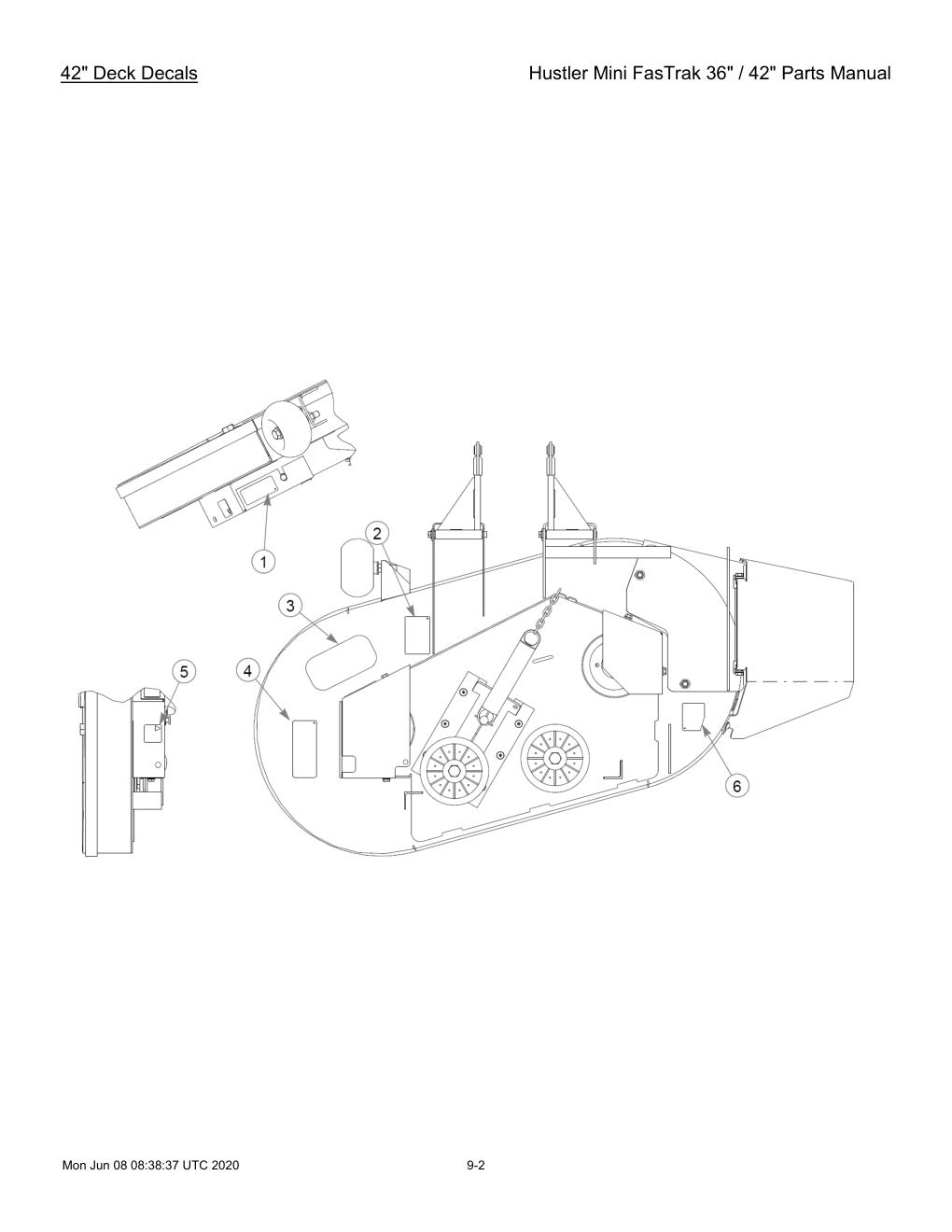

42" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, 42" DECK ID | 793521 | 1 | 793521-Online |
| 2 | DECAL,BELT ROUTING FST | 793687 | 1 | 793687-Online |
| 3 | STEP TREAD MINI FST DEC | 794503 | 1 | 794503-Online |
| 4 | DECAL,DECK WARNING FST | 793570 | 1 | 793570-Online |
| 5 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 6 | DECAL,DISCHARGE CHUTE 3 | 794297 | 1 | 794297-Online |

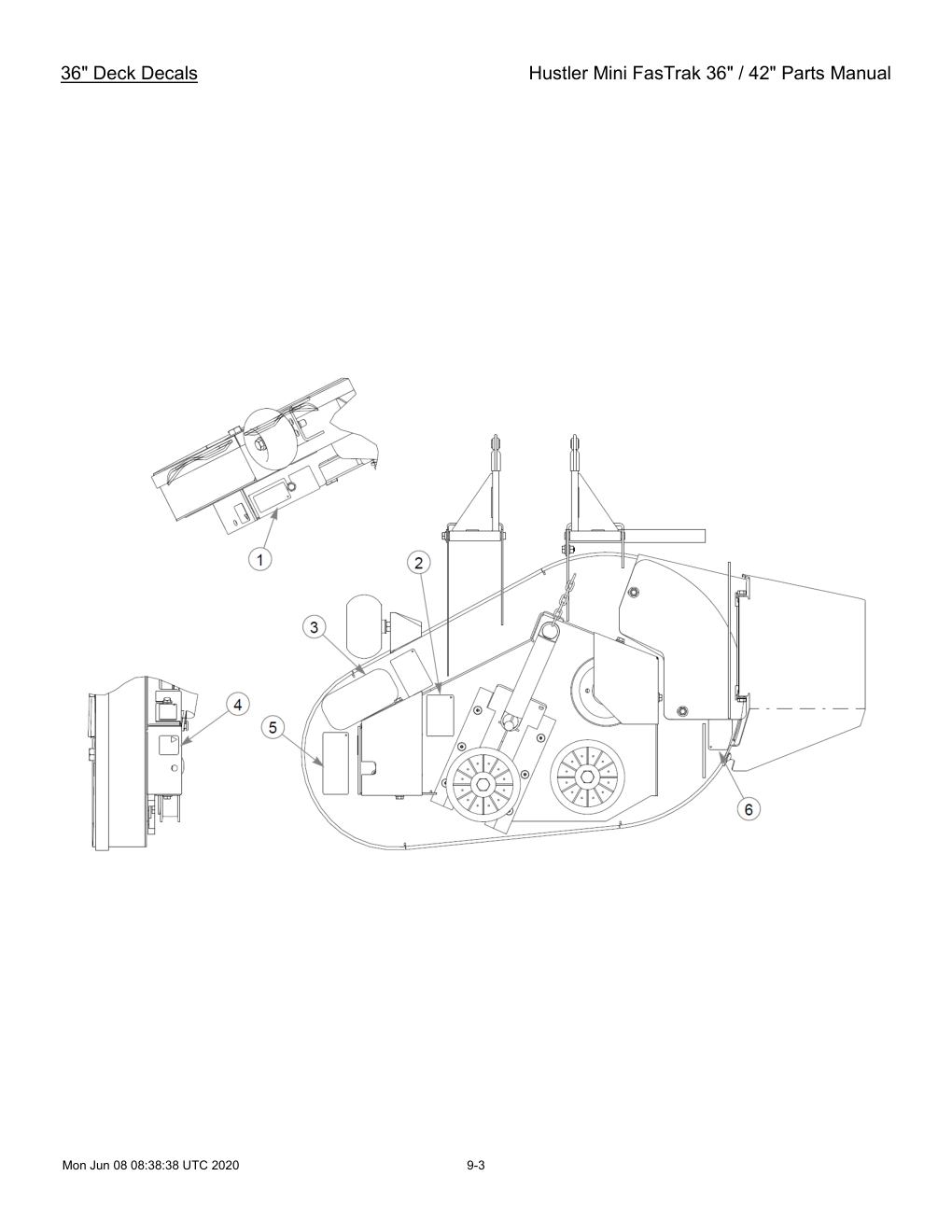

36" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, 36" DECK ID | 793513 | 1 | 793513-Online |
| 2 | DECAL,BELT ROUTING FST | 793687 | 1 | 793687-Online |
| 3 | STEP TREAD MINI FST DEC | 794503 | 1 | 794503-Online |
| 4 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 5 | DECAL,DECK WARNING FST | 793570 | 1 | 793570-Online |
| 6 | DECAL,DISCHARGE CHUTE 3 | 794297 | 1 | 794297-Online |
