48" Raptor SD Parts Manual - - 938399EX

48" Raptor SD Parts Manual - - 938399EX
Illustrated Parts List

48" Raptor SD Parts Manual - - 938399EX

This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.

Model: 938399EXModel: 604708Model: 604709Model: 118539Model: 118538Model: 029629Model: 604176Model: 552564Model: 602041Model: 553148+21 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

Sections

FrameFenders & Instrument PanelEngine GuardBatteryTransmission AssemblyTransmission AssemblyTransmission Service Parts - 604708Transmission Service Parts - 604709Steering & BrakeSteering Cover AssemblyWheel & TireFront Tire BreakdownDrive Wheel BreakdownEngineEngineEngine Service PartsFuel SystemService DeckDeck Pulleys & SpindlesDeckDeck Lift (Multi-Page)SeatSeat Service Parts

Frame

Diagram

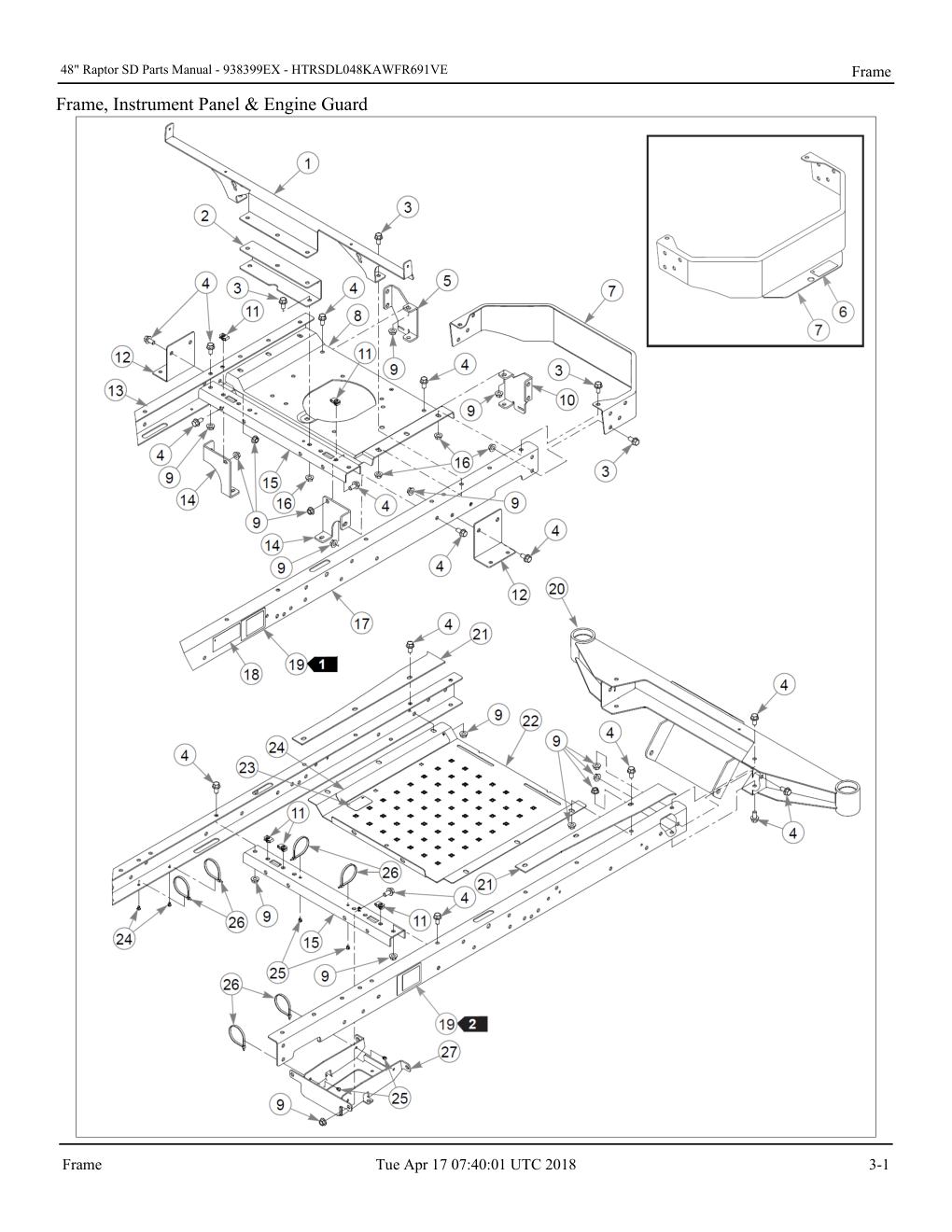

48" Raptor SD Parts Manual - - 938399EX - Frame diagram
Tap/click to enlarge. Source page 4.
RefDescriptionPart numberQtyCutsmart SKU
1SEAT SUPPORT, RSD1185391118539-Online
2SPRING SUPPORT, RSD1185381118538-Online
3CS .375-16X0.750FLK02962910HT029629-Online
4CS .375-16x.75 HXFLK PLN60417630604176-Online
5BRACKET, RS REAR5525641552564-Online
6DECAL, HOT6020411602041-Online
7SERVICE, BUMPER STAMPED5531481553148-Online
7SERVICE, BUMPER5522171552217-Online
8SVC, ENGINE PLATE5518581551858-Online
9NT .375-16 HXFLK PLN60417730604177-Online
10BRACKET, LS REAR5525651552565-Online
11CN .250-20X .150 MAX THK6019825601982-Online
12HYDRO BRACKET5525662HT552566-Online
13SVC, RS FRAME CHANNEL5524071552407-Online
14RS FRONT BRACKET5525672552567-Online
15SVC, CROSS SUPPORT5518612551861-Online
16NT .375-16 FLKG501689910HT016899-Online
17SVC, LS FRM CHNL5524061552406-Online
18DECAL, ENGINE COMPART6019671601967-Online
19SERIAL NUMBER / SPEC DECALN/A2No SKU
20FRONT CROSS FRAME W/A5525681552568-Online
21SVC, FAIRING5525692552569-Online
22SVC, FOOT PAN5518651551865-Online
23DECAL, LEVEL FUEL BLOWM6057821605782-Online
24DECAL, SAFE OPERATE-GRAY6019811601981-Online
25MOUNT, PUSH BUTTON6043076604307-Online
26WIRE TIE, SMALL/SHORT0003316000331-Online
27BATTERY TRAY5525701552570-Online
28DECAL, PUMP BELT WARNING6008991600899-Online

Fenders & Instrument Panel

Diagram

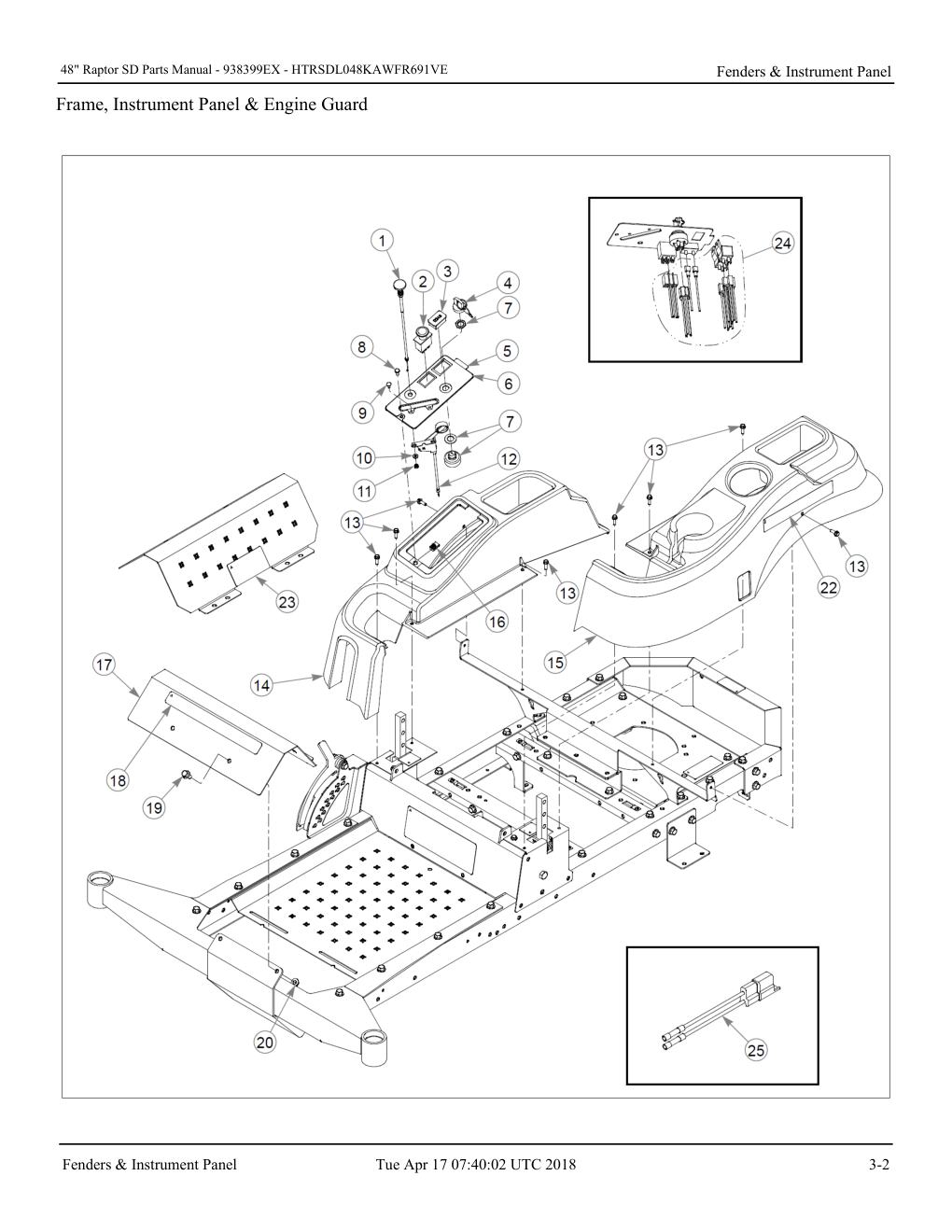

48" Raptor SD Parts Manual - - 938399EX - Fenders & Instrument Panel diagram
Tap/click to enlarge. Source page 6.
RefDescriptionPart numberQtyCutsmart SKU
1CABLE, CHOKE6010971HT601097-Online
2SWITCH, PTO 6201-3217764761HT776476-Online
3HOUR METER7691661HT769166-Online
4KEY ASSEMBLY7858081785808-Online
5SERVICE, INSTR PANEL5523001552300-Online
6DECAL, INSTRUMENT PANEL6048891604889-Online
7IGNITION SWITCH0458981HT045898-Online
8CS .250-20X0.750HXG50559391055939-Online
9CB 10-24 X .500 ZYNC6010982601098-Online
10FW 0.219X0.500X0.0487049322HT704932-Online
11NT #10-24 HX NL ZN0598322059832-Online
12CABLE, THROTTLE6010961601096-Online
13CS .250-20 X .75 HX FLG6043248604324-Online
14SVC, FENDER RS5528091552809-Online
15SVC, FENDER LS5528101552810-Online
16CN .250-20X .150 MAX THK6019821601982-Online
17SVC, FOOTREST5524141552414-Online
18DECAL, HUSTLER ID6024071602407-Online
19CS .375-16X0.750FLK0296292HT029629-Online
20NT .375-16 FLKG50168992HT016899-Online
21WIRE TIE, SMALL/SHORT0003312000331-Online
22DECAL, RAPTOR FENDER6043882604388-Online
23DECAL, PUMP BELT WARNING6008991600899-Online
24WIRE HARNESS6048761604876-Online
25KIT, CLUTCH CONN. REP.1140521HT114052-Online

Engine Guard

Diagram

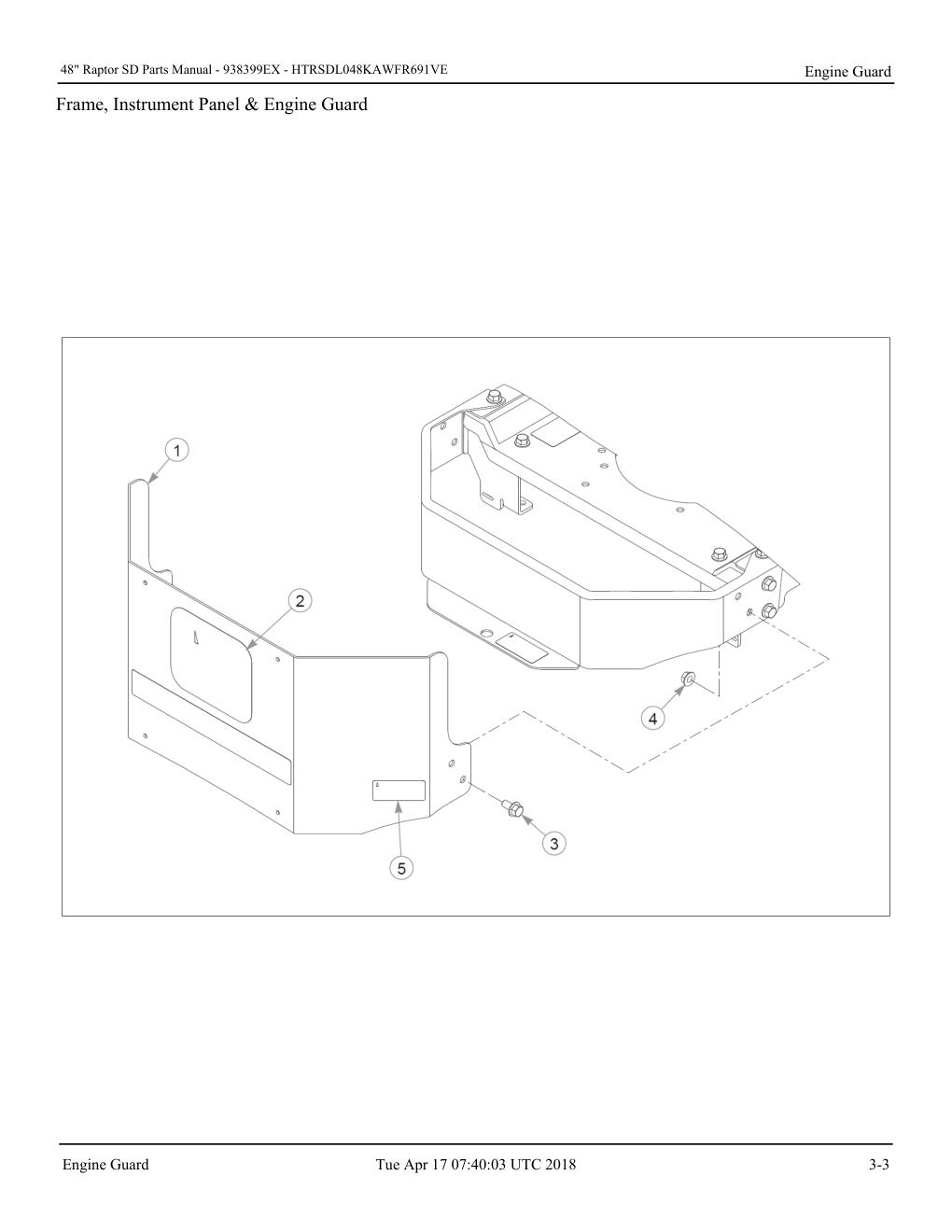

48" Raptor SD Parts Manual - - 938399EX - Engine Guard diagram
Tap/click to enlarge. Source page 8.
RefDescriptionPart numberQtyCutsmart SKU
1KIT, ENGINE GUARD1228171122817-Online
2DECAL, H LOGO, MFSD 36/46047451604745-Online
3CS .375-16X0.750FLK0296294HT029629-Online
4NT .375-16 FLKG50168994HT016899-Online
5DECAL, HOT6020411602041-Online

Battery

Diagram

48" Raptor SD Parts Manual - - 938399EX - Battery diagram
Tap/click to enlarge. Source page 10.
RefDescriptionPart numberQtyCutsmart SKU
1STRAP, TIE DOWN6041781604178-Online
2CS .250-20 x 7.50 HX G56044652604465-Online
3FW 0.281SAE7685152HT768515-Online
4BATTERY CBL BOOT-RED(FS)7714281771428-Online
5NT .250-20HXG50249272HT024927-Online
6LW0.250INTEXT0298684029868-Online
7CS .250-20X0.750HXG50559392055939-Online
8WIRE TIE, SMALL/SHORT0003312000331-Online
9CN .250-20X .150 MAX THK6019822601982-Online

Transmission Assembly

Diagram

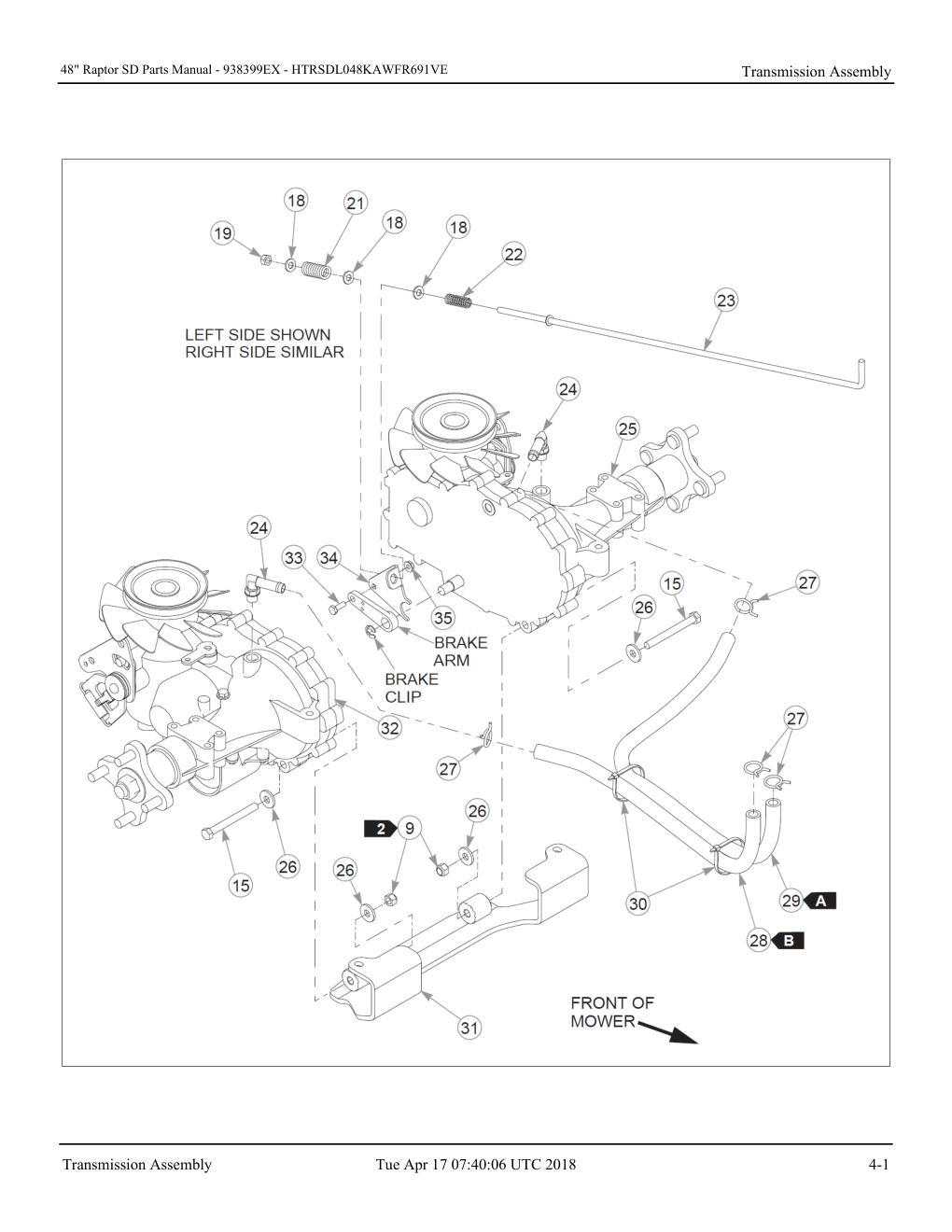

48" Raptor SD Parts Manual - - 938399EX - Transmission Assembly diagram
Tap/click to enlarge. Source page 12.
RefDescriptionPart numberQtyCutsmart SKU
1CS .312-18X2.500HXG57100874HT710087-Online
2CB .375-16 X 2.75 STD ZN6018871601887-Online
3CS .312-18X3.000HXG50430674HT043067-Online
4NT .375-16 FLKG50168993HT016899-Online
5BELT, DRIVE6039071603907-Online
6SPACER, IDLER6047141604714-Online
7IDLER ARM1162871HT116287-Online
8FW 0.406X1.250X0.1207128931HT712893-Online
9NT .375-16NLG80866603HT086660-Online
10CS .375-16X1.500HXG50806551HT080655-Online
11FW 0.379 x 0.813 x 0.0637679542HT767954-Online
12PULLEY, 2.0" IDLER6044911604491-Online
13NT .375-16HXG50545021HT054502-Online
14SPRING, 3.00 X .50 EXT6044901604490-Online
15CS .375-16X3.500HXG50051083HT005108-Online
16HP0.080X1.1907065492HT706549-Online
17LINK, TOW VALVE1183102HT118310-Online
18FW 0.343SAE76852322HT768523-Online
19NT .312-18NLG505877610HT058776-Online
20CS .375-16X0.750FLK0296291HT029629-Online
21OVERTRAVEL SPRING6010512HT601051-Online
22SPRING, BRAKE ARM RET.6011312HT601131-Online
23ROD, BRAKE ACTUATOR6046672604667-Online
24FTG, 90 - 9/16 SAE6012192601219-Online
25ZT2800, 20.69:1 TRANS6047091604709-Online
26FW 0.406X1.000X0.120HD7129194HT712919-Online
27SPRING CLAMP, .75" DIA6010014601001-Online
28HOSE, 1/2" LOW PRESSURE7877131HT787713-Online
29HOSE, 1/2" LOW PRESSURE7877131HT787713-Online

Transmission Assembly

Diagram

48" Raptor SD Parts Manual - - 938399EX - Transmission Assembly diagram
Tap/click to enlarge. Source page 14.
RefDescriptionPart numberQtyCutsmart SKU
30WIRE TIE, SMALL/SHORT0003312000331-Online
31KIT, CROSSBRACE1232921HT123292-Online
32ZT2800, 20.69:1 TRANS6047081604708-Online
33CS .250-20X0.750HXG50559394055939-Online
34BRAKE SPRING LINK, LS1092031109203-Online
35NT .250-20FLKG50168162016816-Online
36BRAKE SPRING LINK, RS1092021HT109202-Online
37NT .250-20 HXZY NL0685512HT068551-Online
38FW 0.281SAE7685154HT768515-Online
39EXPANSION TANK MNT1182841118284-Online
40EXPANSION TANK, ZT28006019961601996-Online
41CAP, OVERFLOW TANK6007671600767-Online

Transmission Service Parts - 604708

Diagram

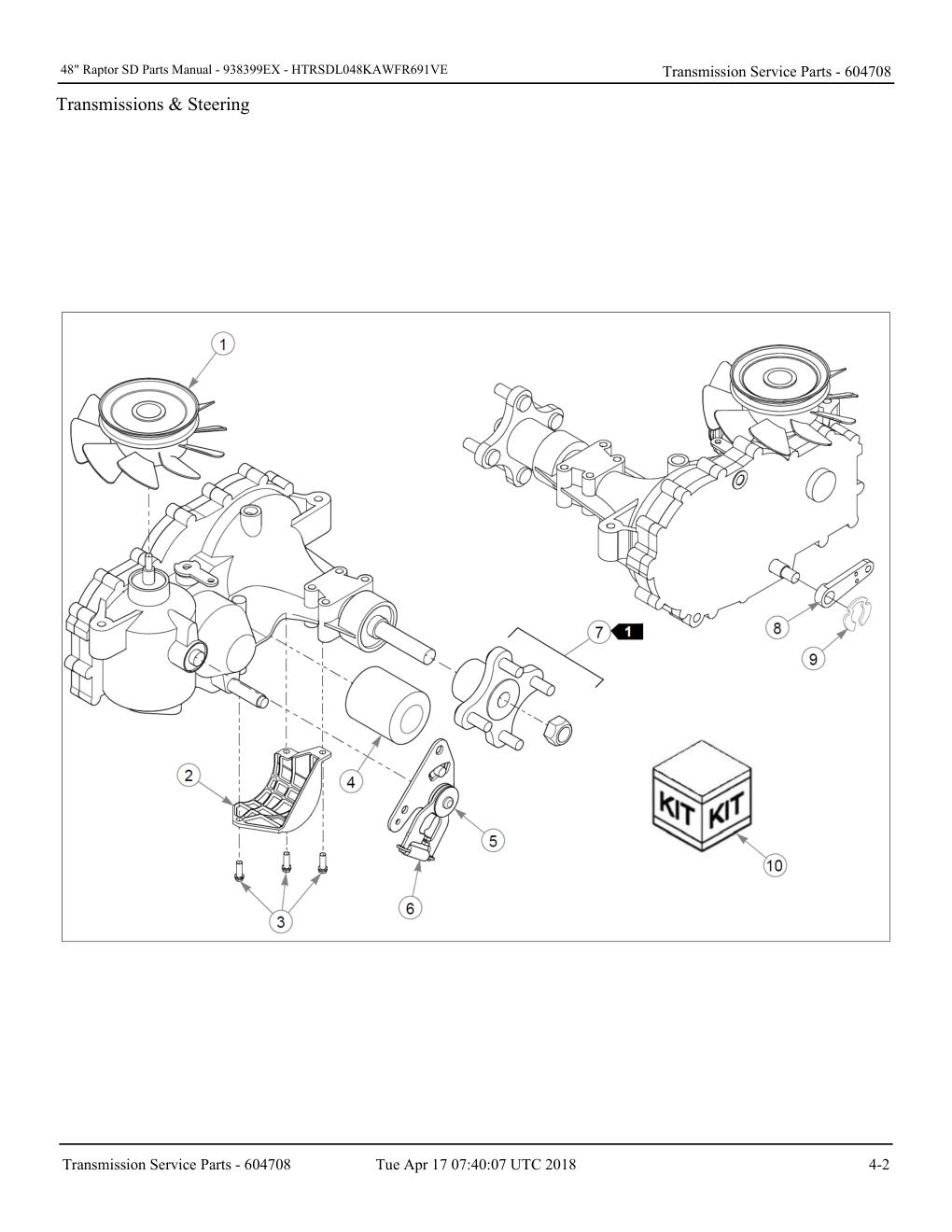

48" Raptor SD Parts Manual - - 938399EX - Transmission Service Parts - 604708 diagram
Tap/click to enlarge. Source page 18.
RefDescriptionPart numberQtyCutsmart SKU
1FAN / PULLEY KIT6020941602094-Online
2LS GUARD, TRANS FILTER6009751HT600975-Online
3CS .250-20 X .75 HX FLG6043243604324-Online
4FILTER, OIL6009761HT600976-Online
5HG RTN CW6049011604901-Online
6HG RTN SPRING6049031604903-Online
7KIT, HUB, 4 BOLT6009701600970-Online
8ZT2800 BRAKE ARM - 20076012211601221-Online
9CLIP, RETAINING6009721HT600972-Online
10OIL RETENTION KIT6068301606830-Online

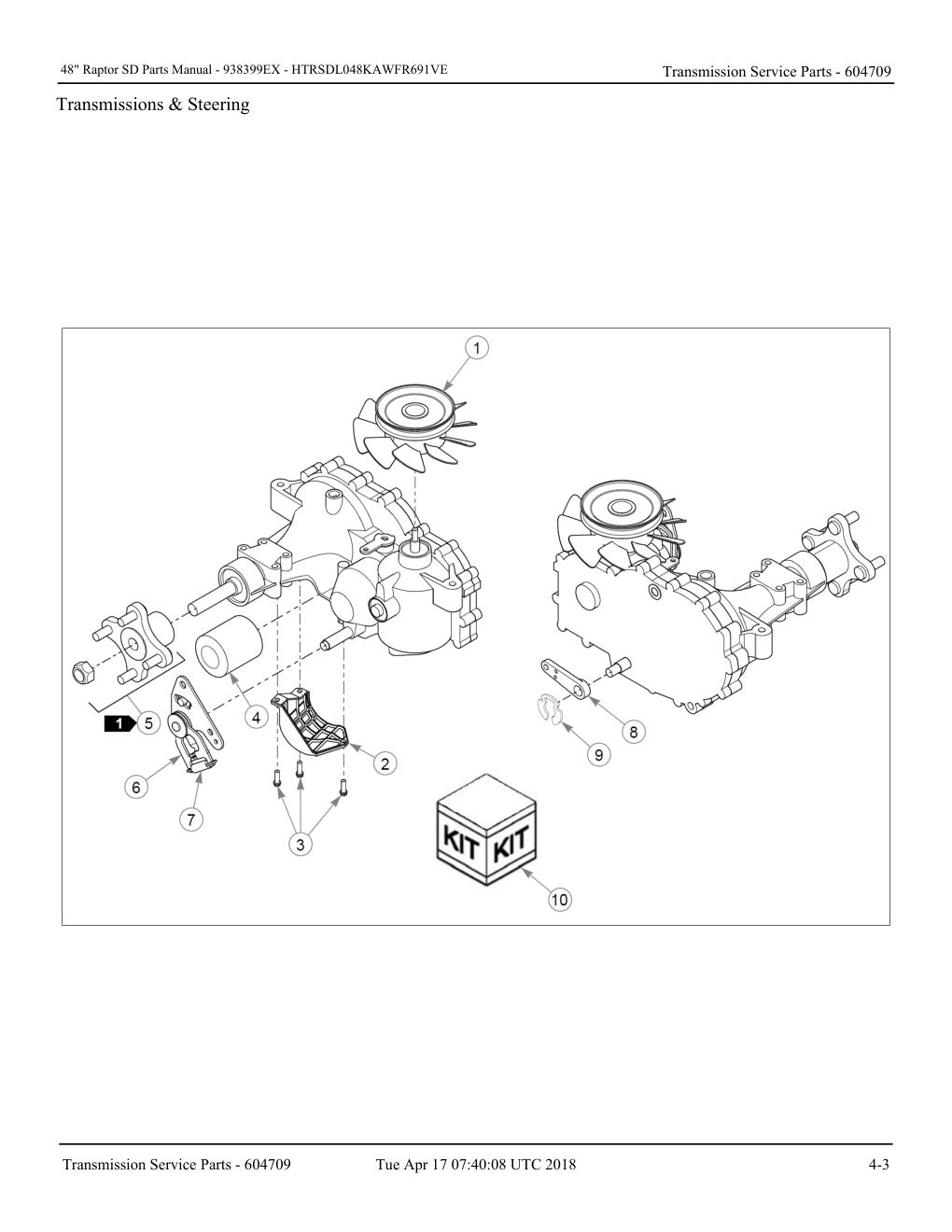

Transmission Service Parts - 604709

Diagram

48" Raptor SD Parts Manual - - 938399EX - Transmission Service Parts - 604709 diagram
Tap/click to enlarge. Source page 20.
RefDescriptionPart numberQtyCutsmart SKU
1FAN / PULLEY KIT6020941602094-Online
2RS GUARD, TRANS FILTER6009741HT600974-Online
3CS .250-20 X .75 HX FLG6043243604324-Online
4FILTER, OIL6009761HT600976-Online
5KIT, HUB, 4 BOLT6009701600970-Online
6HG RTN CCW6049021604902-Online
7HG RTN SPRING6049031604903-Online
8ZT2800 BRAKE ARM - 20076012211601221-Online
9CLIP, RETAINING6009721HT600972-Online
10OIL RETENTION KIT6068301606830-Online

Steering & Brake

Diagram

48" Raptor SD Parts Manual - - 938399EX - Steering & Brake diagram
Tap/click to enlarge. Source page 22.
RefDescriptionPart numberQtyCutsmart SKU
1DAMPER6039832603983-Online
2BALL STUD, DAMPER7819224781922-Online
3FW 0.343SAE7685236HT768523-Online
4NT .312-18NLG50587762HT058776-Online
5CN .312-18x.200 MAX THK6010692HT601069-Online
6SB0.312X0.750SH0.250-207724832HT772483-Online
7STEERING ROD S/A6062732606273-Online
8FW 0.281SAE7685152HT768515-Online
9NT .250-20 HXZY NL0685512HT068551-Online
10NT .312-24NLG50236552HT023655-Online
11CLIP, SAFETY6065752606575-Online
12STEERING BAR W/ GRIP1103702110370-Online
12GRIP, STEERING BAR7812601781260-Online
13FW 0.379 x 0.813 x 0.0637679544HT767954-Online
14CS .375-16X1.000HXG50362444HT036244-Online
15CS .375-16X0.750FLK0296297HT029629-Online
16NT .375-16 FLKG50168997HT016899-Online
17NT .312-18HXG50342722HT034272-Online
18STEERING COVER ASSEMBLYN/A1No SKU
19YOKE, 5/16-246041732604173-Online
20NT .312-24 HX ZNYC0411526HT041152-Online
21ROD, STEERING6046662604666-Online
22BLOCK, STEERING CONTROL1161442HT116144-Online

Steering Cover Assembly

Diagram

48" Raptor SD Parts Manual - - 938399EX - Steering Cover Assembly diagram
Tap/click to enlarge. Source page 24.
RefDescriptionPart numberQtyCutsmart SKU
1CS .250-20x2.00 HX FLTHD6044522604452-Online
2FW 0.281SAE7685154HT768515-Online
3STOP, STEERING6055292605529-Online
4CS .250-20X0.750HXG50559392055939-Online
5NUT PLATE, .420 CENTERS6018222601822-Online
6SWITCH, PUSH BUTTON7812112HT781211-Online
7NT .375-16NLG80866603HT086660-Online
8CS .500-13X4.250HXG57817082HT781708-Online
9NT .500-13NLG57815672HT781567-Online
10CS #10-24X0.750FLKG50631984063198-Online
11CS .375-16X3.500HXG50051082HT005108-Online
12STEERING BOX SUB, LH6061061606106-Online
13SPACER, STEERING6042882604288-Online
14FW 0.343SAE7685238HT768523-Online
15NT .312-18NLG50587764HT058776-Online
16BRAKE LINK6041792604179-Online
17BRAKE BLCRNK, LH1161421116142-Online
18BUSHING,IGUS#0608 (FS)7653394HT765339-Online
19STEERING BOX SUB, RH6061051606105-Online
20BRAKE BLCRNK, RH1161411116141-Online
21FW 0.379 x 0.813 x 0.0637679542HT767954-Online
22TRANSPORT LATCH6051491605149-Online
23INDICATOR W/A1180111118011-Online
24DECAL, DECK HEIGHT6048191604819-Online
25CS .375-16X0.750FLK0296291HT029629-Online
26CS .375-16X2.250HXG50560361056036-Online
27NT .375-16 FLKG50168991HT016899-Online
28DECAL, STEERING R.S.7852201785220-Online
29DECAL, STEERING L.S.7851391785139-Online
30DECAL, ID RSD6048401604840-Online
31STEERING COVER, SERVICE5516981551698-Online
32BUSHING, UHMW7811532HT781153-Online

Wheel & Tire

Diagram

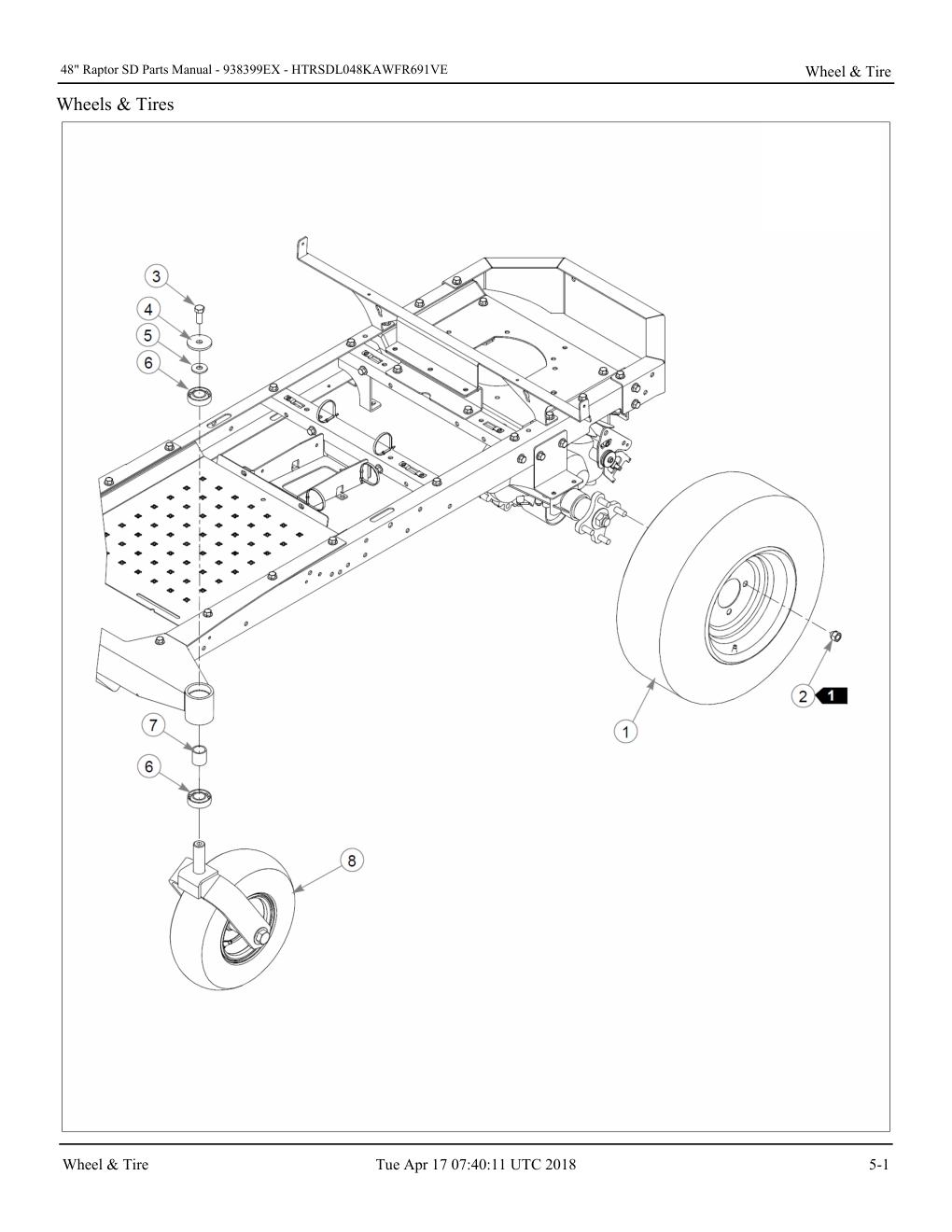

48" Raptor SD Parts Manual - - 938399EX - Wheel & Tire diagram
Tap/click to enlarge. Source page 27.
RefDescriptionPart numberQtyCutsmart SKU
1TIR/WHL 20X8.00-10 SLV6006762600676-Online
2WHEEL NUT0610778HT061077-Online
3CS .500-13X1.250HSG57059542HT705954-Online
4FW .510X 2.15X.187 SPL3442672HT344267-Online
5FW 0.531X1.375X0.1257129762HT712976-Online
6BEARING7842234HT784223-Online
7SPACER7846032HT784603-Online
8TIRE/WHEEL ASSEMBLYN/A1No SKU

Front Tire Breakdown

Diagram

48" Raptor SD Parts Manual - - 938399EX - Front Tire Breakdown diagram
Tap/click to enlarge. Source page 29.
RefDescriptionPart numberQtyCutsmart SKU
1FORK W/A, 13X56050421605042-Online
2CS .750-10X8.000HXG57867311HT786731-Online
3FW .760X1.625X0.0800252962HT025296-Online
4NT .750-10 HX ZY NL GR B0611011HT061101-Online
5TIR/WHL 13X5.00-6 SLV6050381605038-Online
6TIR 13X5.00-6 B4R SMTH6050391605039-Online
7WHEEL BEARING7861032HT786103-Online
8WHL 6X3.25 SLV7860791HT786079-Online
9TIRE VALVE TR-412 GOODY0195211HT019521-Online

Drive Wheel Breakdown

Diagram

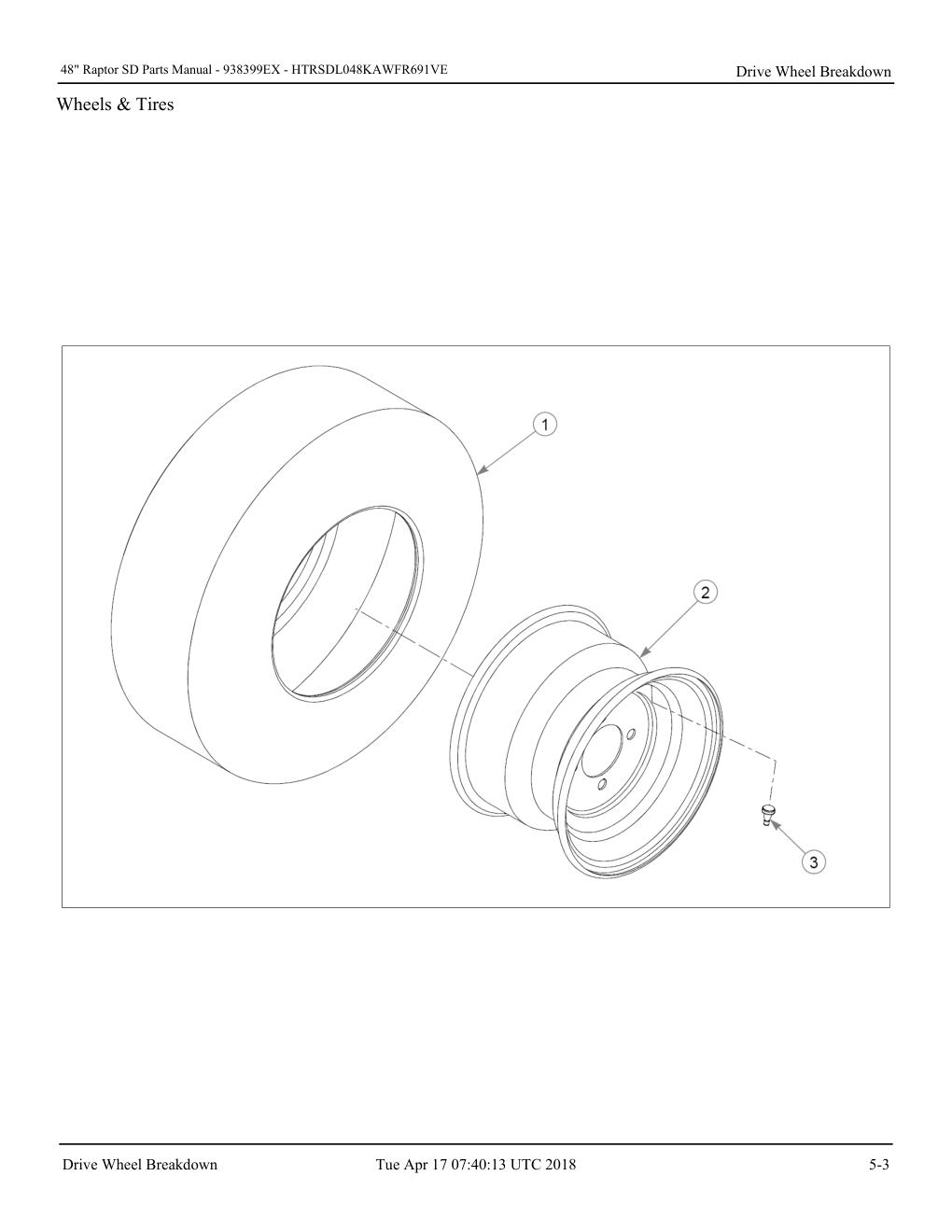

48" Raptor SD Parts Manual - - 938399EX - Drive Wheel Breakdown diagram
Tap/click to enlarge. Source page 31.
RefDescriptionPart numberQtyCutsmart SKU
1TIR 20X8.00-10 B4R GRMR6006921HT600692-Online
2WHL 10X7.00 4X4.0 SLV6007181600718-Online
3TIRE VALVE TR-412 GOODY0195211HT019521-Online

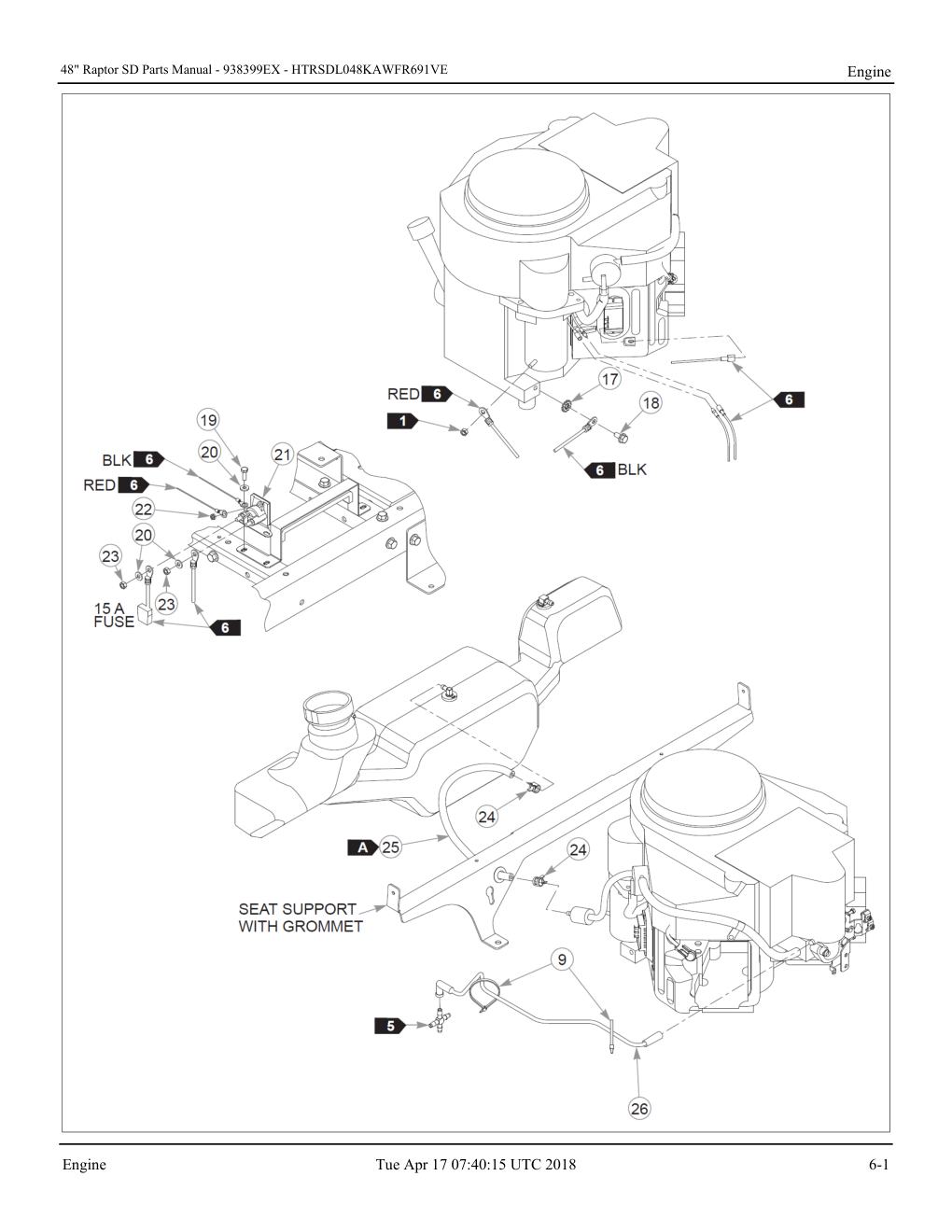

Engine

Diagram

48" Raptor SD Parts Manual - - 938399EX - Engine diagram
Tap/click to enlarge. Source page 33.
RefDescriptionPart numberQtyCutsmart SKU
2HOSE, OIL DRAIN60446312"604463-Online
3MUFFLER, FR730V6040161604016-Online
4NT .375-16 FLKG50168991HT016899-Online
5CLUTCH ANCHOR1216251121625-Online
6FW 0.379 x 0.813 x 0.0637679545HT767954-Online
7CS .375-16x1.25 HXG8 P856025804602580-Online
8CS .375-16X1.000HXG50362441HT036244-Online
9WIRE TIE, SMALL/SHORT0003314000331-Online
10KEY 1/4 SQ X 0.66 LG(FS)7123721HT712372-Online
11PULLEY, ENG 4.118 OP6056751605675-Online
12CLUTCH KIT, 605777605777K1605777K-Online
13FW .453X 1.12X .119 HRD6026801602680-Online
14CS .437-20X3.25 HXG5 P856018341601834-Online
15BUSHING, CLUTCH6055951605595-Online
16HARNESS, CLUTCH PIGTAIL7912511HT791251-Online
17LW 0.312 INT-EXT0298761029876-Online
18CS M8-1.25X16HX FL10.97205161720516-Online
19CS .250-20X0.750HXG50559392055939-Online
20FW 0.281SAE7685154HT768515-Online
21STARTER SOLENOID HW KIT0308171HT030817-Online
22NT #10-32HXG50442551044255-Online
23NT .250-20HXG50249272HT024927-Online
24CLIP, HOSE CLAMP0003232000323-Online
25FUEL LINE, 1/4"01581818"HT015818-Online

Engine

Diagram

48" Raptor SD Parts Manual - - 938399EX - Engine diagram
Tap/click to enlarge. Source page 35.
RefDescriptionPart numberQtyCutsmart SKU
26VAPOR LINE, 3/16 FORMED6042741604274-Online

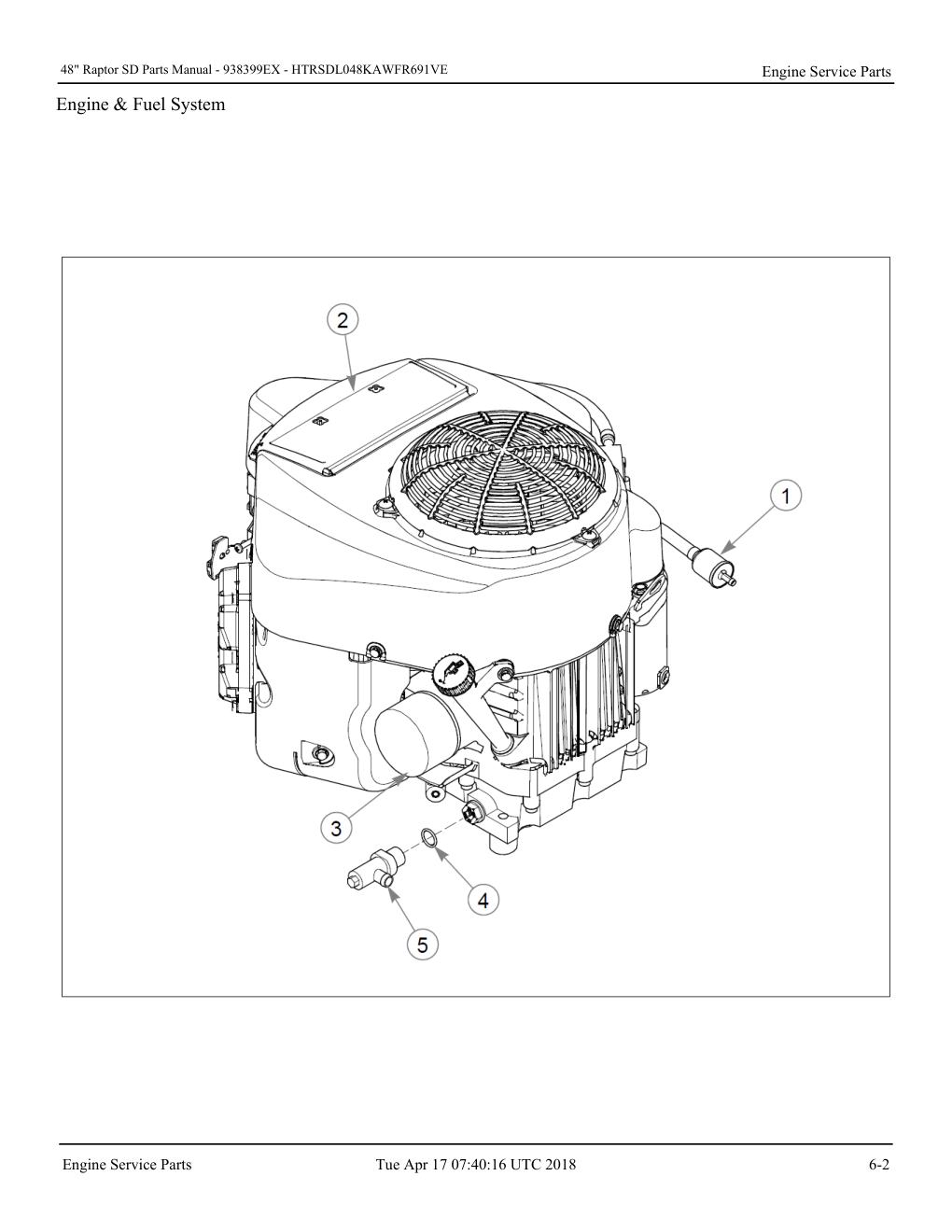

Engine Service Parts

Diagram

48" Raptor SD Parts Manual - - 938399EX - Engine Service Parts diagram
Tap/click to enlarge. Source page 37.
RefDescriptionPart numberQtyCutsmart SKU
1FUEL FILTER IN-LINE0684781068478-Online
2AIR FILTER, KAW6030591603059-Online
3OIL FILTER, KAW ENG.6025811602581-Online
4O-RING6043691604369-Online
5VALVE, OIL DRAIN6043501604350-Online

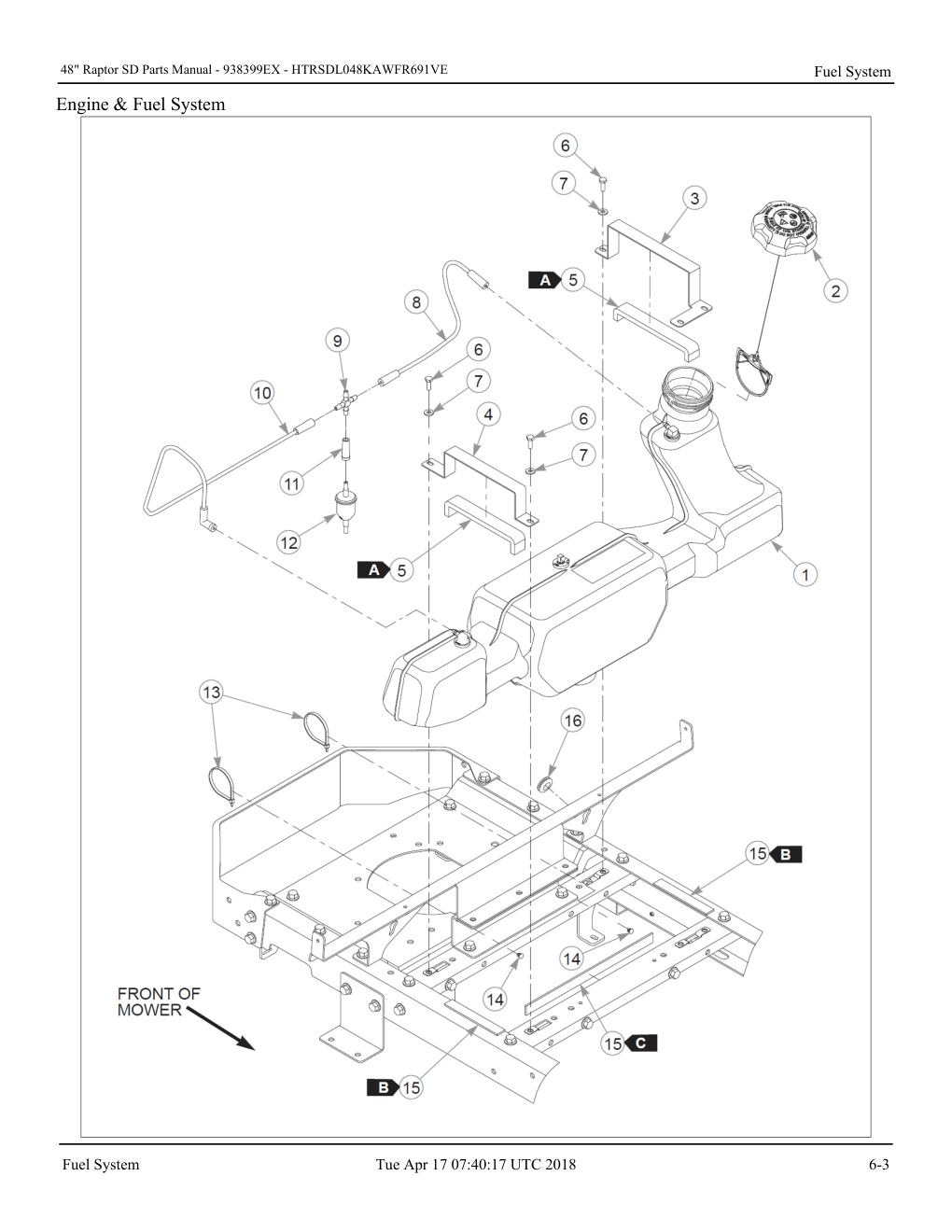

Fuel System

Diagram

48" Raptor SD Parts Manual - - 938399EX - Fuel System diagram
Tap/click to enlarge. Source page 39.
RefDescriptionPart numberQtyCutsmart SKU
1FUEL TANK6064321606432-Online
2CAP, 3.5" RATCHETING GAS6038071603807-Online
3TANK MNT LEFT1170591117059-Online
4TANK MNT RIGHT1170601117060-Online
5SEAL 3/8x3/4 SOLD BY FT71319818.5"713198-Online
6CS .250-20X0.750HXG50559393055939-Online
7FW 0.281SAE7685153HT768515-Online
8VAPOR LINE, 3/16 FORMED6042791604279-Online
91/4" HOSE BARB CROSS6043221604322-Online
10VAPOR LINE, 3/16 FORMED6042731604273-Online
11BOOT, 3/16" TO 1/4" BARB6042921604292-Online
12FILTER, VAPOR SYSTEM6043231604323-Online
13WIRE TIE, SMALL/SHORT0003312000331-Online
14MOUNT, PUSH BUTTON6043072604307-Online
15WEATHERSTRIP .12X.7503303522"033035-Online
16GM .63 x1.13 x.88 x .136014001601400-Online

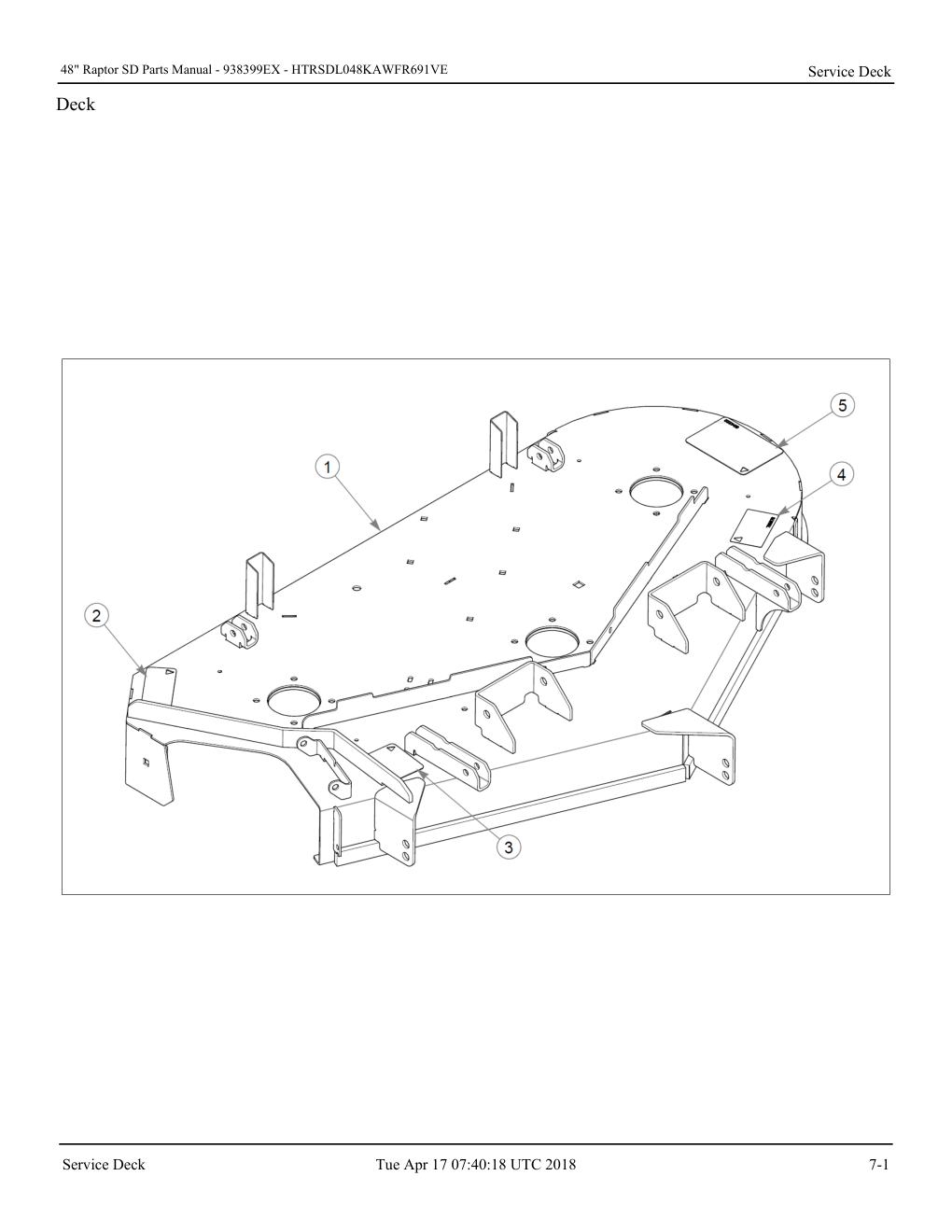

Service Deck

Diagram

48" Raptor SD Parts Manual - - 938399EX - Service Deck diagram
Tap/click to enlarge. Source page 41.
RefDescriptionPart numberQtyCutsmart SKU
1SVC, DECK DECAL ASSY5544491554449-Online
2DECAL, DISCHARGE CHUTE6016241601624-Online
3DECAL, DECK DANGERS6018371601837-Online
4DECAL,48"DECK ID7939761793976-Online
5DECAL, DANGER / OBJECTS6042221604222-Online

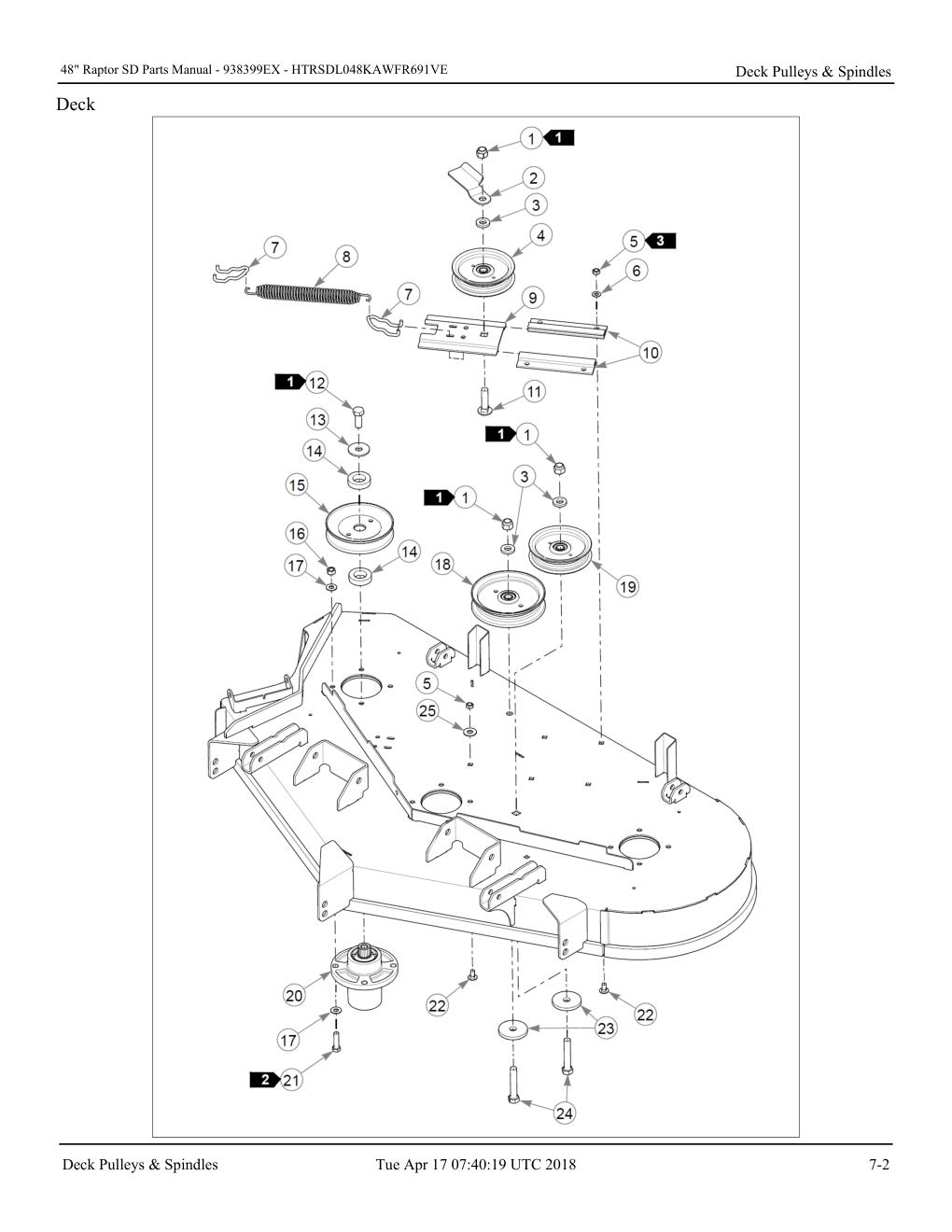

Deck Pulleys & Spindles

Diagram

48" Raptor SD Parts Manual - - 938399EX - Deck Pulleys & Spindles diagram
Tap/click to enlarge. Source page 43.
RefDescriptionPart numberQtyCutsmart SKU
1NT .500-13NLG57815673HT781567-Online
2BELT GUIDE1217801HT121780-Online
3FW .531 x 1.063 x .1757679623HT767962-Online
4IDLER PULLEY, 4.00" FLAT6039861603986-Online
5NT .312-18 HXNL JAM G2ZN6042515604251-Online
6FW .340 X .675 X .035 ZN6042524604252-Online
7ANCHOR, SPRING TENSIONER6041102604110-Online
8SPRING1223881122388-Online
9SLED, IDLER6041941604194-Online
10IDLER SLIDE, EXTRUDED6040792604079-Online
11CB .50-13 X 2.00 STD ZN6042531604253-Online
12CS .500-13X1.250HSG57059543HT705954-Online
13FW .515X1.65X.125 HD ZY7986033798603-Online
14SPACER, SPINDLE PULLEY6046616604661-Online
15PULLEY, DECK DRIVE B-SEC6046653604665-Online
16NT .375-16HXG505450212HT054502-Online
17FW 0.379 x 0.813 x 0.06376795424HT767954-Online
18PULLEY, IDLER 5.00" O.D.6042311604231-Online
19IDLER PULLEY, 4.00" FLAT6042191604219-Online
20SPINDLE ASSEMBLY6018043601804-Online
21CS .375-16X1.37500511612HT005116-Online
22CB .312-18X .620 G5 ZN0831475083147-Online
23FW .531 x 2.25 x .25 ZNY6055162605516-Online
24CS .500-13X2.750HXG57219102HT721910-Online
25FW .440X1.000X0.0830171291017129-Online

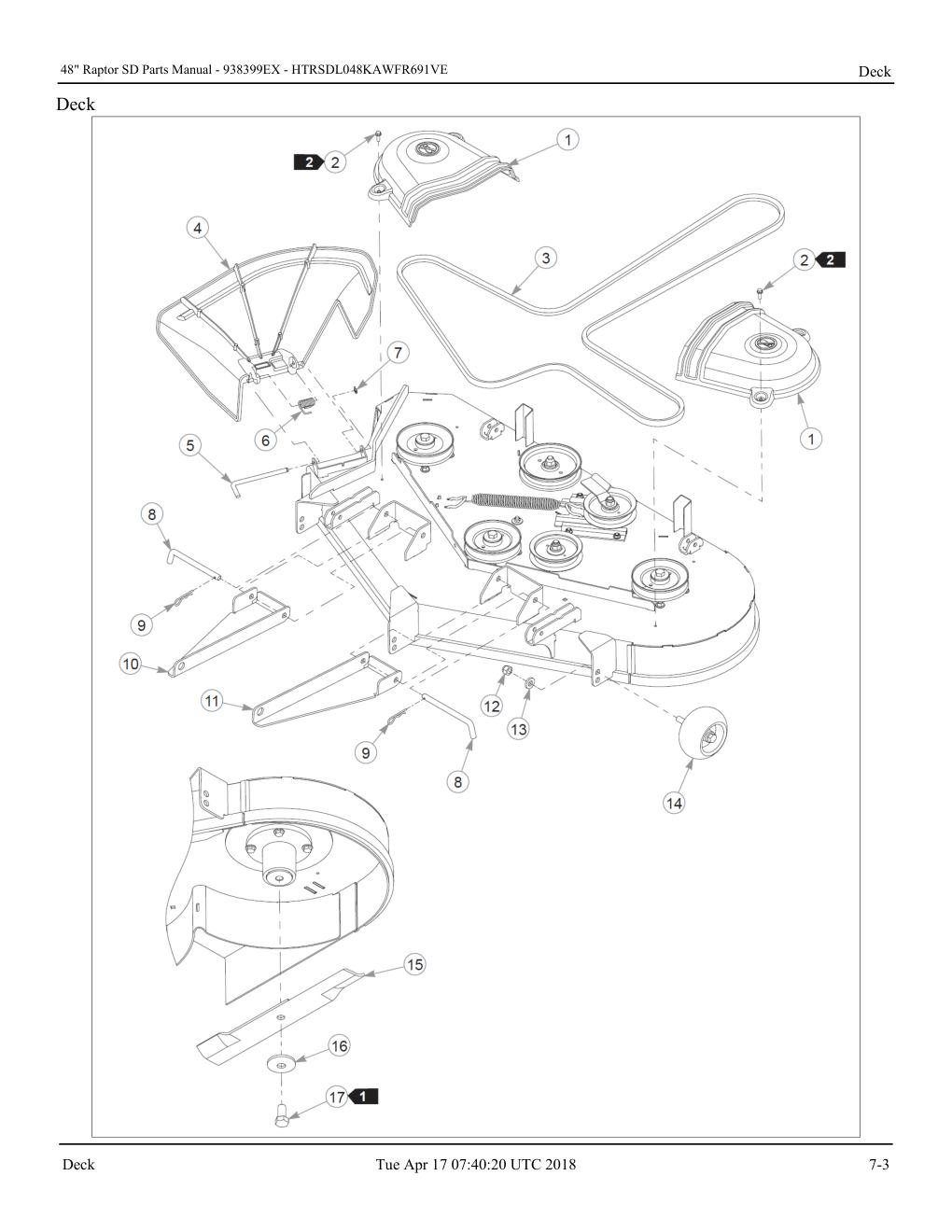

Deck

Diagram

48" Raptor SD Parts Manual - - 938399EX - Deck diagram
Tap/click to enlarge. Source page 45.
RefDescriptionPart numberQtyCutsmart SKU
1PULLEY COVER, UNIVERSAL6058672605867-Online
2CS .250-20 X .75 HX FLG6043244604324-Online
3BELT, B-SECTION6048301604830-Online
4RSD DISCHARGE CHUTE6069301606930-Online
5PIN, CHUTE6069811606981-Online
6CHUTE SPRING6043311604331-Online
7CLIP E .66 X .303 X .0356033321603332-Online
8PIN, PULLER6046582604658-Online
9HP .125 X2.375 ZN0173012HT017301-Online
10PULLER, RS1178771HT117877-Online
11PULLER, LS1178781HT117878-Online
12NT .500-13NLG57815673HT781567-Online
13FW .531 x 1.063 x .1757679623HT767962-Online
14WHEEL ASSY, ANTI SCALP7881663HT788166-Online
15BLADE, 16.50"-L-F-CW6011233HT601123-Online
16CW .678 X 2.250 X .1877824743HT782474-Online
17CS .625-11X1.250HXG57818723HT781872-Online

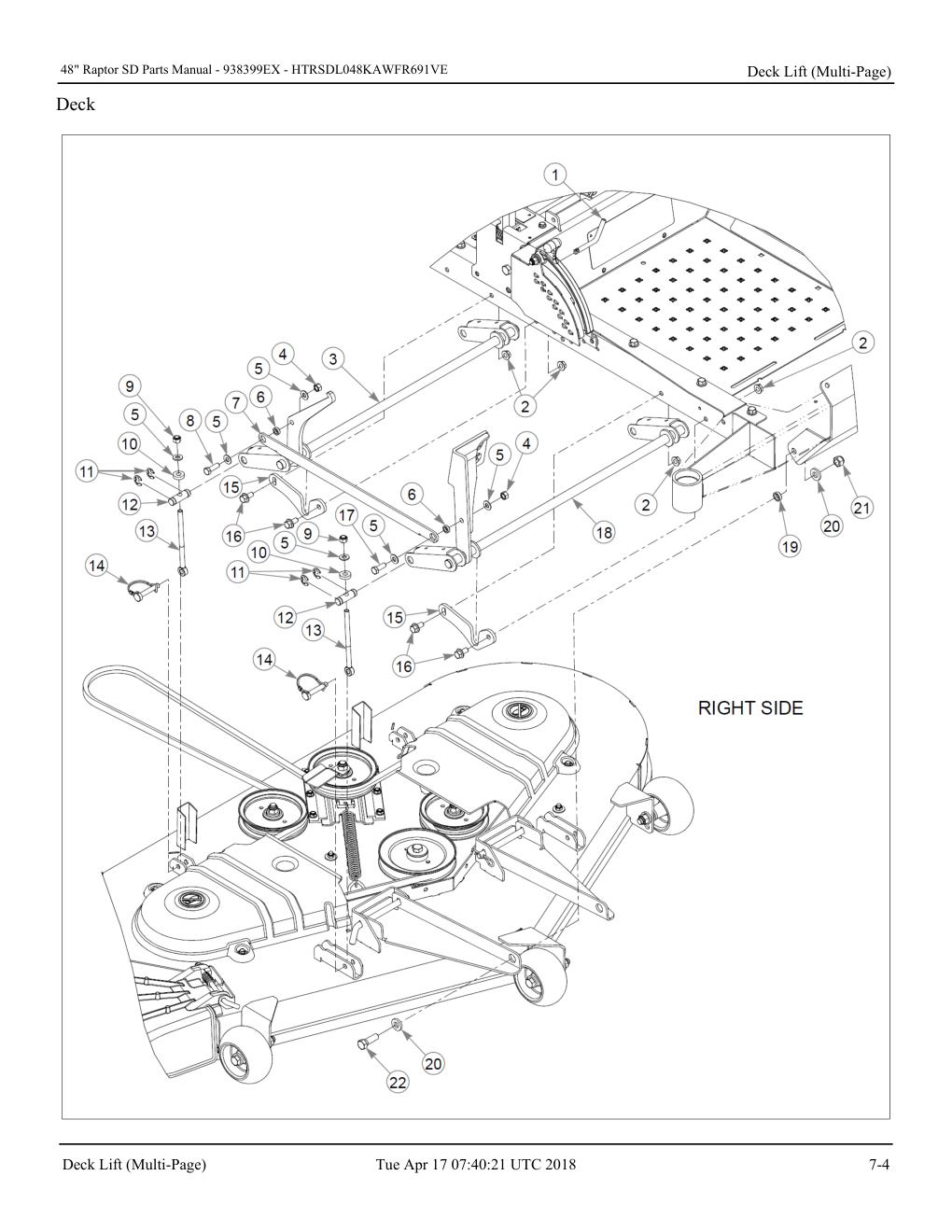

Deck Lift (Multi-Page)

Diagram

48" Raptor SD Parts Manual - - 938399EX - Deck Lift (Multi-Page) diagram
Tap/click to enlarge. Source page 47.
RefDescriptionPart numberQtyCutsmart SKU
1PIN, INDICATOR1180201118020-Online
2NT .375-16 FLKG50168998HT016899-Online
3DECK LIFT W/A, REAR1180851118085-Online
4NT .375-16HXG50545022HT054502-Online
5FW 0.379 x 0.813 x 0.0637679548HT767954-Online
6PIVOT SPACER BUSHING6018392601839-Online
7LIFT PEDAL, LINK1180161118016-Online
8CS .375-16X1.12 HX G5 Z0051321005132-Online
9NT .375-16NLG80866604HT086660-Online
10FW .41X.94X.25 UHMW6051144605114-Online
11CLIP E,.625x.480x.042 Z7916738HT791673-Online
12PIVOT, DECK LIFT1180184HT118018-Online
13LINK, DECK LIFT6045794604579-Online
14CE .375 x 2.00 W/BALE6048034604803-Online
15PIVOT BLOCK, DECK LIFT1161514HT116151-Online
16CS .375-16X0.750FLK0296298HT029629-Online
17CS .375-16X1.000HXG50362441HT036244-Online
18DECK LIFT W/A, FRONT1180841HT118084-Online
19PIVOT SPACER BUSHING6046562604656-Online
20FW .531 x 1.063 x .1757679624HT767962-Online
21NT .500-13NLG57815672HT781567-Online
22CS .500-13X1.500 HX G50742522HT074252-Online

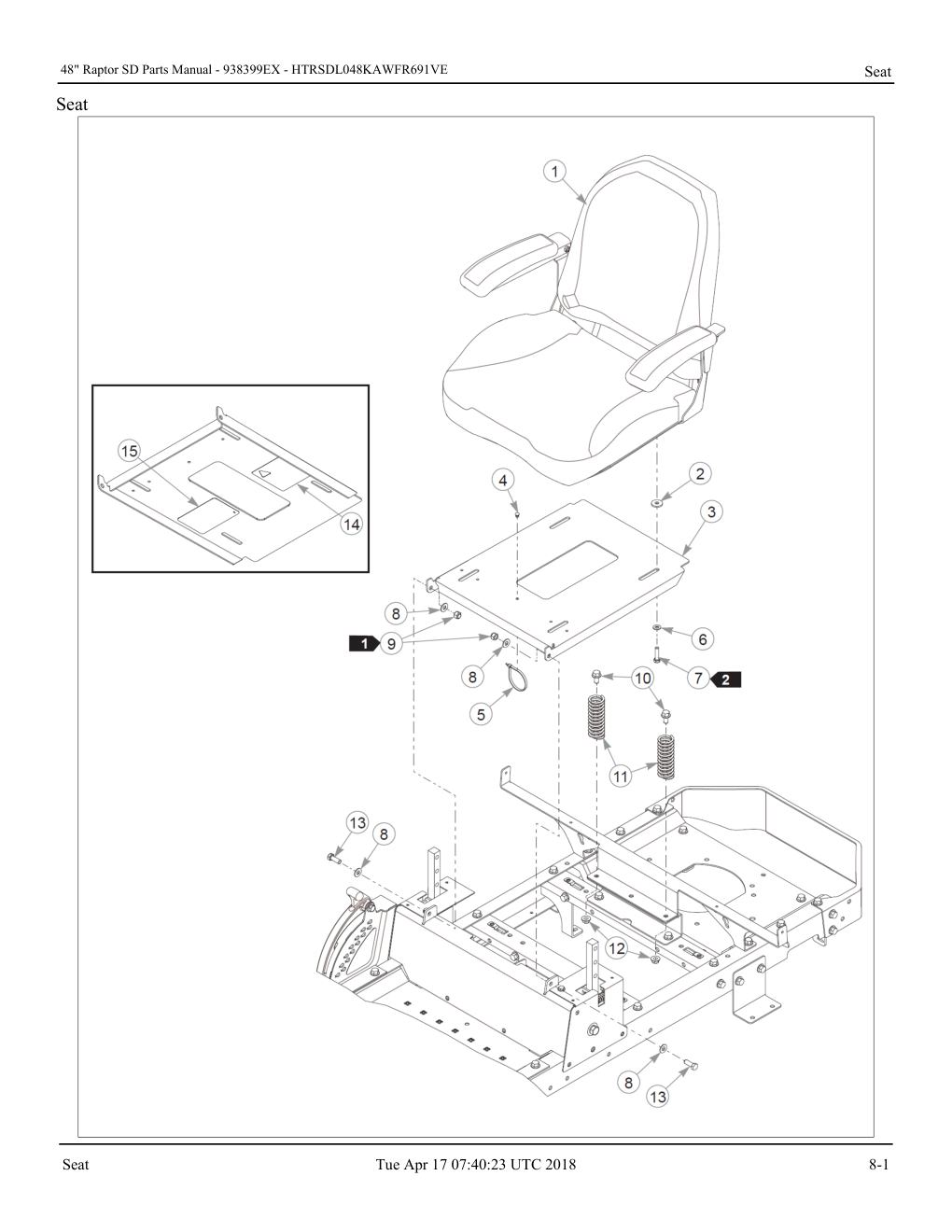

Seat

Diagram

48" Raptor SD Parts Manual - - 938399EX - Seat diagram
Tap/click to enlarge. Source page 50.
RefDescriptionPart numberQtyCutsmart SKU
1SEAT, SEATS INC 9076060771606077-Online
2FW 0.344X1.000X0.120HD7129274HT712927-Online
3SVC, SEAT PAN5527511552751-Online
4MOUNT, PUSH BUTTON6043071604307-Online
5WIRE TIE, SMALL/SHORT0003311000331-Online
6FW 0.343SAE7685234HT768523-Online
7CS .312-18X1.250HXG50791864079186-Online
8FW 0.379 x 0.813 x 0.0637679544HT767954-Online
9NT .375-16NLG80866602HT086660-Online
10CS .375-16X0.750FLK0296292HT029629-Online
11SPRING,COMP 1.25X4.00X.7938512HT793851-Online
12NT .375-16 FLKG50168992HT016899-Online
13CS .375-16X1.000HXG50362442HT036244-Online
14DECAL, BELT ROUTING7814191781419-Online
15DECAL, BATTERY WARNINGS6018151601815-Online

Seat Service Parts

Diagram

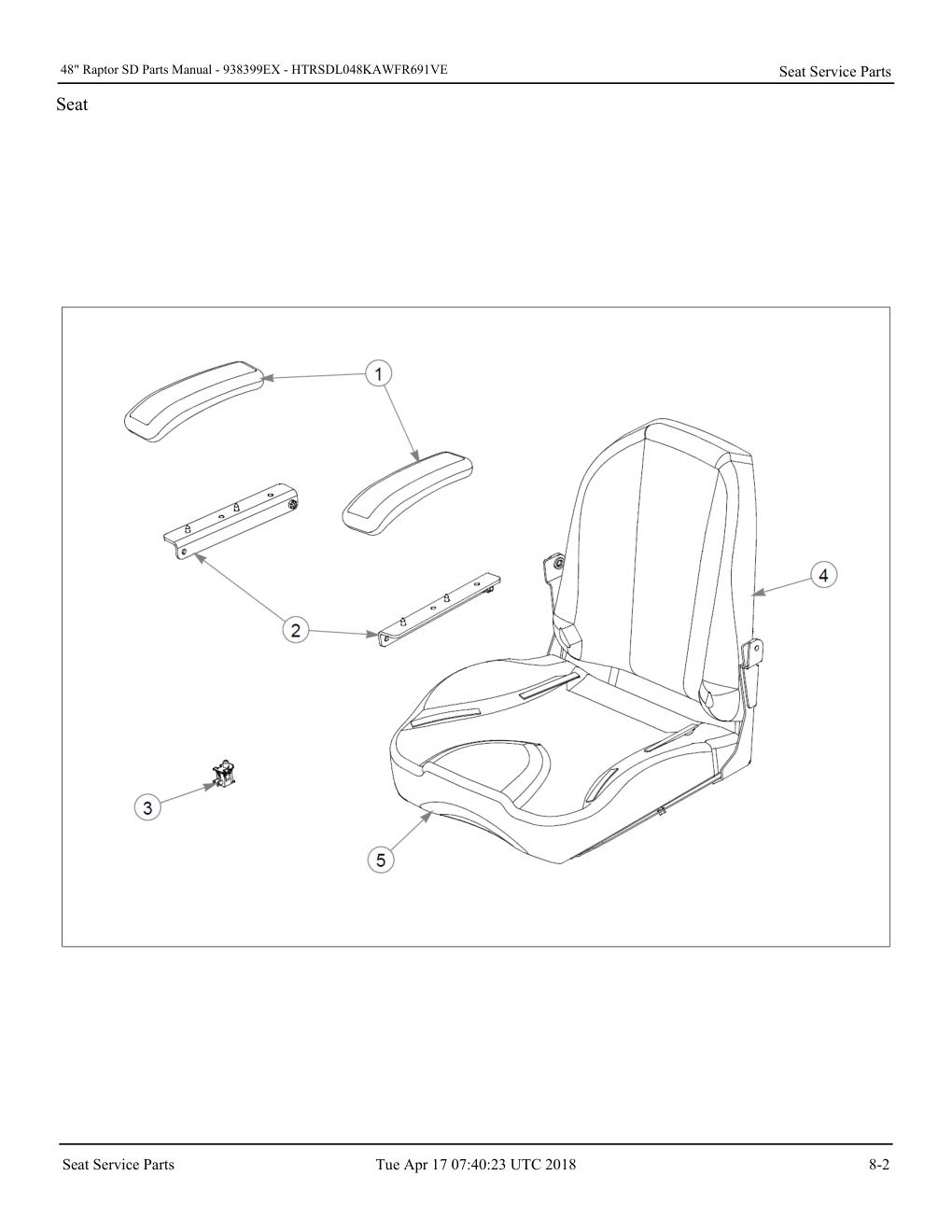

48" Raptor SD Parts Manual - - 938399EX - Seat Service Parts diagram
Tap/click to enlarge. Source page 52.
RefDescriptionPart numberQtyCutsmart SKU
1SVC, ARM PADS6060812606081-Online
2SVC, ARMEST SET6060851606085-Online
3SVC, OPS6060821606082-Online
4SVC, BACK CUSHION6060831606083-Online
5SVC, SEAT CUSHION6060841606084-Online
Source manual: 20180419-121_938399EX.pdf. Extracted rows in this article: 339. Upload the images in this package to /images/ipl/Hustler/.
\n
\n
