Illustrated Parts List
48" Raptor SD EX Parts Manual - - 936542EX
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 936542EXModel: 604708Model: 604709Model: 118539Model: 118538Model: 029629Model: 604176Model: 552564Model: 602041Model: 553148+21 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections

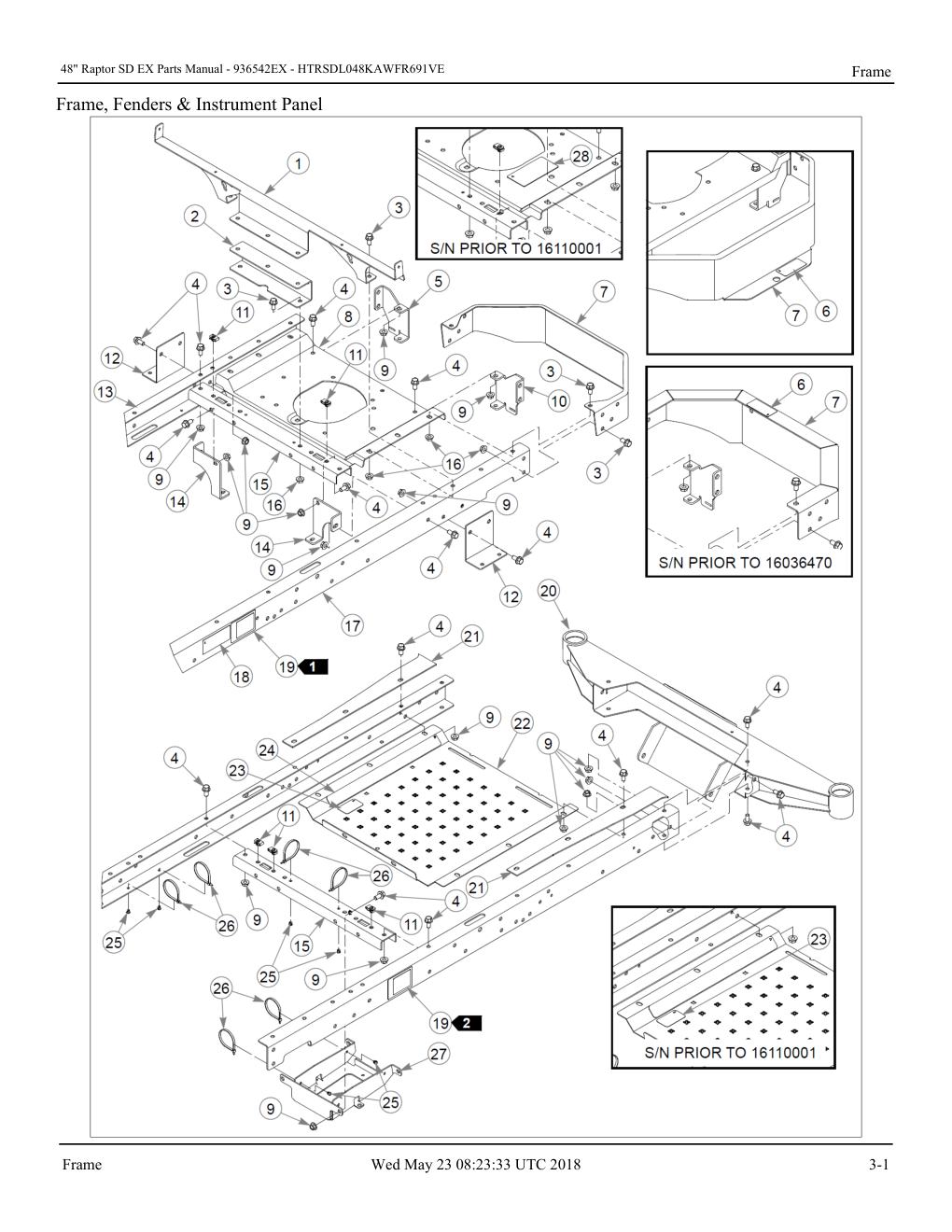

FrameFenders & Instrument PanelBatteryDrive SystemTransmission Assembly (Multi-Page)Transmission Service Parts - 604708Transmission Service Parts - 604709Steering & BrakeSteering Cover Assembly (Multi-Page)Steering Cover Assembly (Multi-Page)Wheel & TireFront Tire BreakdownDrive Wheel BreakdownEngineEngineEngine Service PartsFuel SystemService DeckDeck Pulley & SpindlesDeck - S/N 17019008 & HigherDeck-SN Prior to 17019008Deck Lift (Multi-Page)SeatSeat Service PartsFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT SUPPORT, RSD | 118539 | 1 | 118539-Online |
| 2 | SPRING SUPPORT, RSD | 118538 | 1 | 118538-Online |
| 3 | CS .375-16X0.750FLK | 029629 | 10 | HT029629-Online |
| 4 | CS .375-16x.75 HXFLK PLN | 604176 | 30 | 604176-Online |
| 5 | BRACKET, RS REAR | 552564 | 1 | 552564-Online |
| 6 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 7 | SERVICE, BUMPER STAMPED | 553148 | 1 | 553148-Online |
| 7 | SERVICE, BUMPER | 552217 | 1 | 552217-Online |
| 8 | SVC, ENGINE PLATE | 551858 | 1 | 551858-Online |
| 9 | NT .375-16 HXFLK PLN | 604177 | 30 | 604177-Online |
| 10 | BRACKET, LS REAR | 552565 | 1 | 552565-Online |
| 11 | CN .250-20X .150 MAX THK | 601982 | 5 | 601982-Online |
| 12 | HYDRO BRACKET | 552566 | 2 | HT552566-Online |
| 13 | SVC, RS FRAME CHANNEL | 552407 | 1 | 552407-Online |
| 14 | RS FRONT BRACKET | 552567 | 2 | 552567-Online |
| 15 | SVC, CROSS SUPPORT | 551861 | 2 | 551861-Online |
| 16 | NT .375-16 FLKG5 | 016899 | 10 | HT016899-Online |
| 17 | SVC, LS FRM CHNL | 552406 | 1 | 552406-Online |
| 18 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 19 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 20 | FRONT CROSS FRAME W/A | 552568 | 1 | 552568-Online |
| 21 | SVC, FAIRING | 552569 | 2 | 552569-Online |
| 22 | SVC, FOOT PAN | 551865 | 1 | 551865-Online |
| 23 | DECAL, LEVEL FUEL BLOWM | 605782 | 1 | 605782-Online |
| 24 | DECAL, SAFE OPERATE-GRAY | 601981 | 1 | 601981-Online |
| 25 | MOUNT, PUSH BUTTON | 604307 | 6 | 604307-Online |
| 26 | WIRE TIE, SMALL/SHORT | 000331 | 6 | 000331-Online |
| 27 | BATTERY TRAY | 552570 | 1 | 552570-Online |
| 28 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |

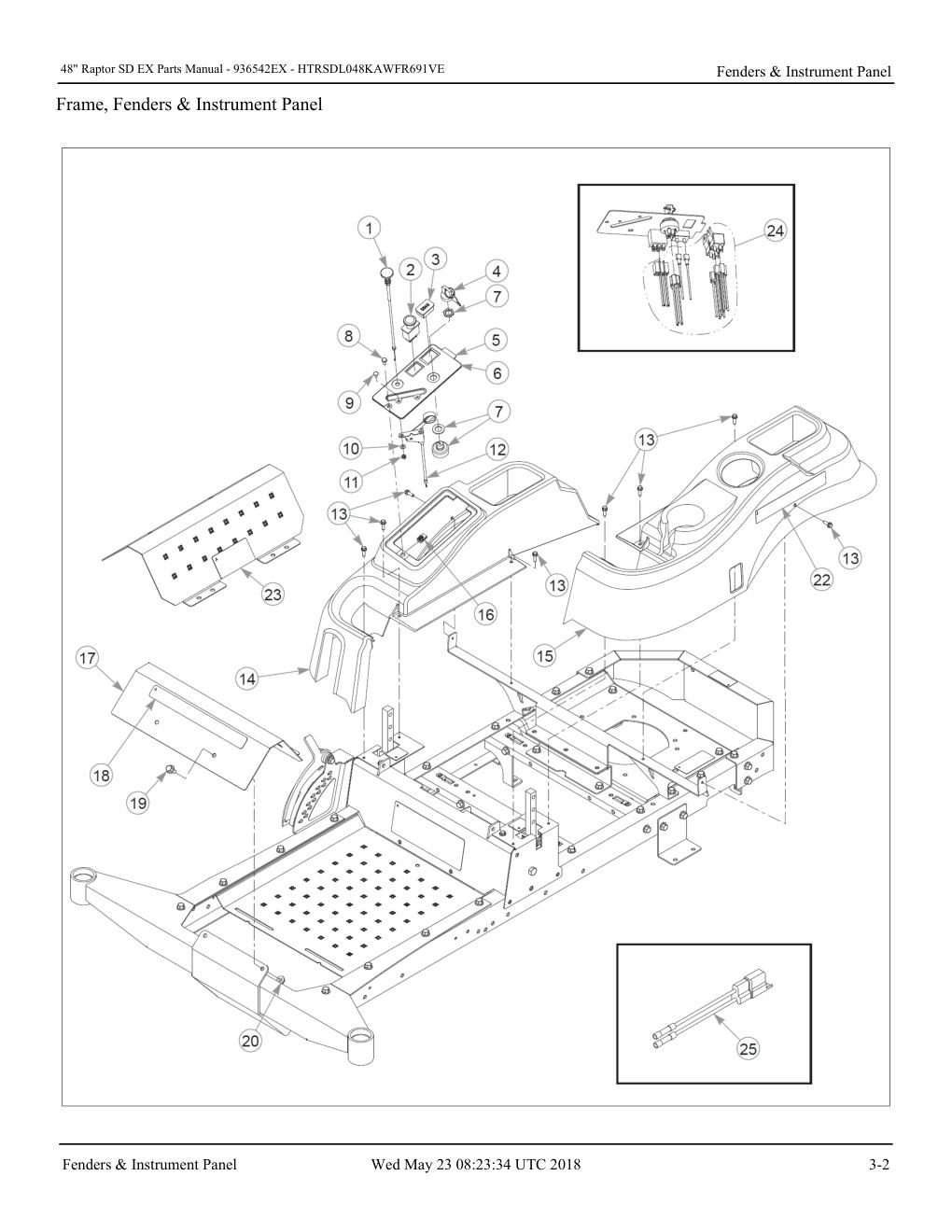

Fenders & Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CABLE, CHOKE | 601097 | 1 | HT601097-Online |
| 2 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 5 | SERVICE, INSTR PANEL | 552300 | 1 | 552300-Online |
| 6 | DECAL, INSTRUMENT PANEL | 604889 | 1 | 604889-Online |
| 7 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 8 | CS .250-20X0.750HXG5 | 055939 | 1 | 055939-Online |
| 9 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 10 | FW 0.219X0.500X0.048 | 704932 | 2 | HT704932-Online |
| 11 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 12 | CABLE, THROTTLE | 601096 | 1 | 601096-Online |
| 13 | CS .250-20 X .75 HX FLG | 604324 | 8 | 604324-Online |
| 14 | SVC, FENDER RS | 552809 | 1 | 552809-Online |
| 15 | SVC, FENDER LS | 552810 | 1 | 552810-Online |
| 16 | CN .250-20X .150 MAX THK | 601982 | 1 | 601982-Online |
| 17 | SVC, FOOTREST | 552414 | 1 | 552414-Online |
| 18 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 19 | CS .375-16X0.750FLK | 029629 | 2 | HT029629-Online |
| 20 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 21 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 22 | DECAL, RAPTOR FENDER | 604388 | 2 | 604388-Online |
| 23 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 24 | WIRE HARNESS | 604876 | 1 | 604876-Online |
| 25 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |

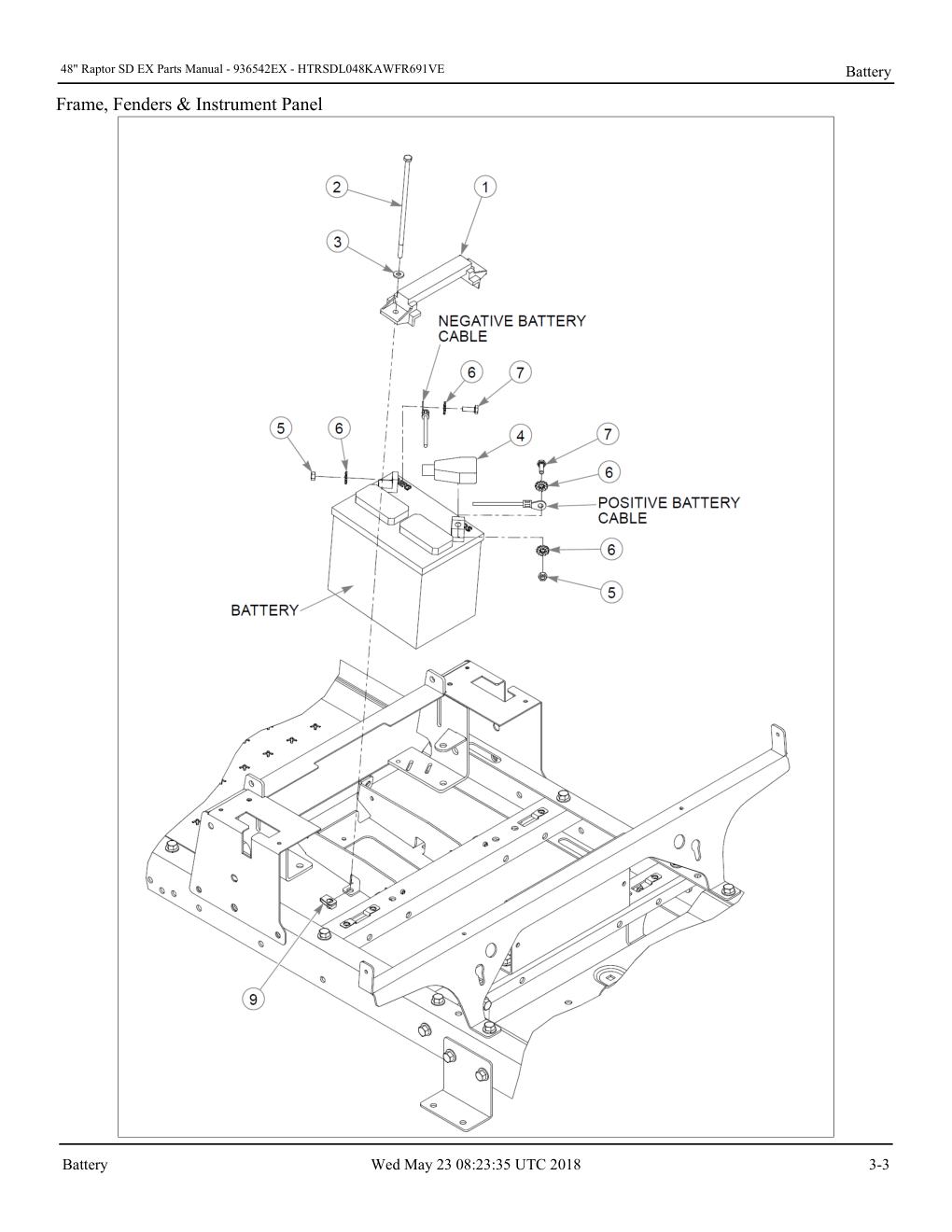

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STRAP, TIE DOWN | 604178 | 1 | 604178-Online |
| 2 | CS .250-20 x 7.50 HX G5 | 604465 | 2 | 604465-Online |
| 3 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 4 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 5 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 6 | LW0.250INTEXT | 029868 | 4 | 029868-Online |
| 7 | CS .250-20X0.750HXG5 | 055939 | 2 | 055939-Online |
| 8 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 9 | CN .250-20X .150 MAX THK | 601982 | 2 | 601982-Online |

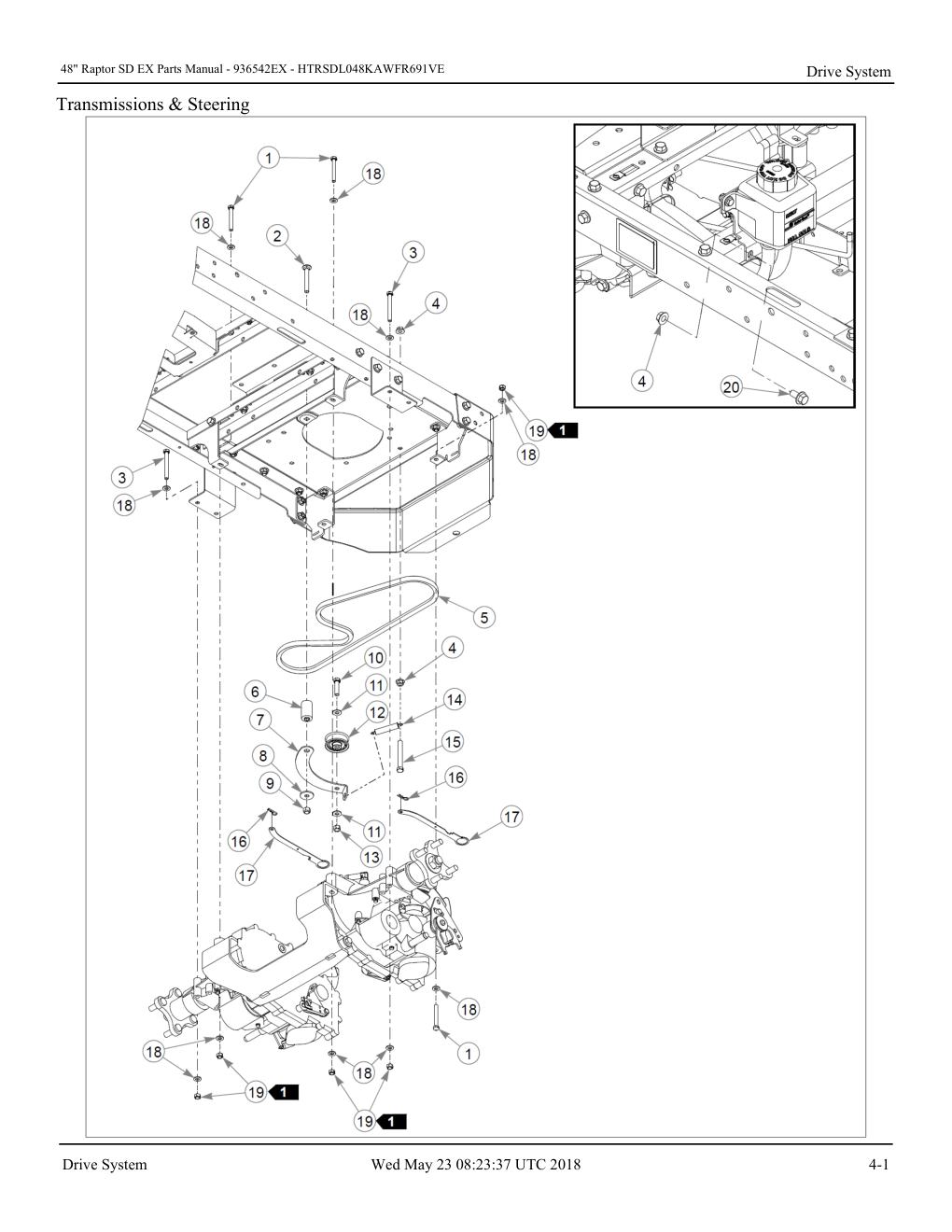

Drive System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X2.500HXG5 | 710087 | 4 | HT710087-Online |
| 2 | CB .375-16 X 2.75 STD ZN | 601887 | 1 | 601887-Online |
| 3 | CS .312-18X3.000HXG5 | 043067 | 4 | HT043067-Online |
| 4 | NT .375-16 FLKG5 | 016899 | 3 | HT016899-Online |
| 5 | BELT, DRIVE | 603907 | 1 | 603907-Online |
| 6 | SPACER, IDLER | 604714 | 1 | 604714-Online |
| 7 | IDLER ARM | 116287 | 1 | HT116287-Online |
| 8 | FW 0.406X1.250X0.120 | 712893 | 1 | HT712893-Online |
| 9 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 10 | CS .375-16X1.500HXG5 | 080655 | 1 | HT080655-Online |
| 11 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 12 | PULLEY, 2.0" IDLER | 604491 | 1 | 604491-Online |
| 13 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 14 | SPRING, 3.00 X .50 EXT | 604490 | 1 | 604490-Online |
| 15 | CS .375-16X3.500HXG5 | 005108 | 1 | HT005108-Online |
| 16 | HP0.080X1.190 | 706549 | 2 | HT706549-Online |
| 17 | LINK, TOW VALVE | 118310 | 2 | HT118310-Online |
| 18 | FW 0.343SAE | 768523 | 16 | HT768523-Online |
| 19 | NT .312-18NLG5 | 058776 | 8 | HT058776-Online |
| 20 | CS .375-16X0.750FLK | 029629 | 1 | HT029629-Online |
| 21 | TRANSMISSION ASSEMBLY | N/A | 1 | No SKU |

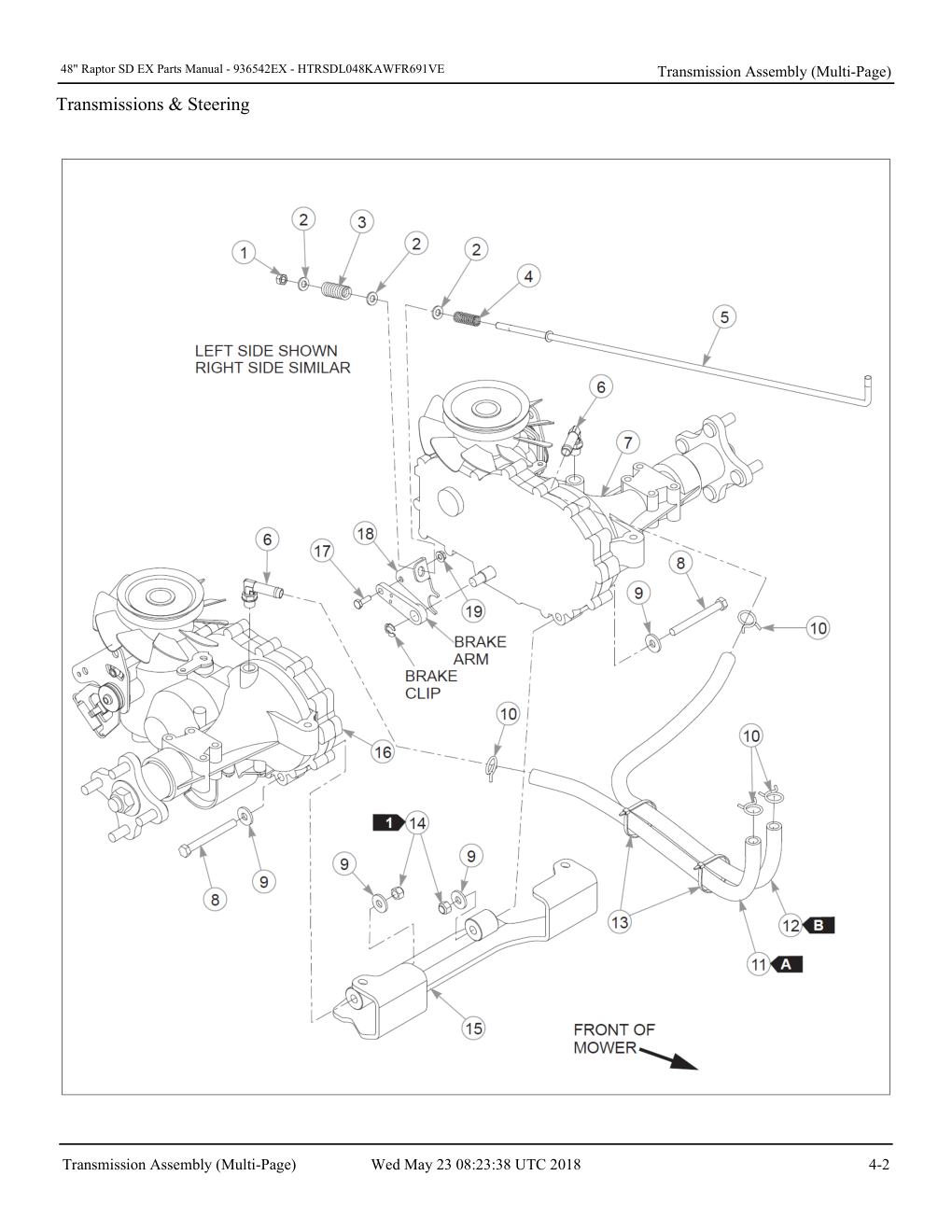

Transmission Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 2 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 3 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |
| 4 | SPRING, BRAKE ARM RET. | 601131 | 2 | HT601131-Online |
| 5 | ROD, BRAKE ACTUATOR | 604667 | 2 | 604667-Online |
| 6 | FTG, 90 - 9/16 SAE | 601219 | 2 | 601219-Online |
| 7 | ZT2800, 20.69:1 TRANS | 604709 | 1 | 604709-Online |
| 8 | CS .375-16X3.500HXG5 | 005108 | 2 | HT005108-Online |
| 9 | FW 0.379 x 0.813 x 0.063 | 767954 | 4 | HT767954-Online |
| 10 | SPRING CLAMP, .75" DIA | 601001 | 4 | 601001-Online |
| 11 | HOSE, 1/2" LOW PRESSURE | 787713 | 19" | HT787713-Online |
| 12 | HOSE, 1/2" LOW PRESSURE | 787713 | 28" | HT787713-Online |
| 13 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 14 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 15 | KIT, CROSSBRACE | 123292 | 1 | HT123292-Online |
| 16 | ZT2800, 20.69:1 TRANS | 604708 | 1 | 604708-Online |
| 17 | CS .250-20X0.750HXG5 | 055939 | 2 | 055939-Online |
| 18 | BRAKE SPRING LINK, LS | 109203 | 1 | 109203-Online |
| 19 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 20 | BRAKE SPRING LINK, RS | 109202 | 1 | HT109202-Online |
| 21 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 22 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 23 | EXPANSION TANK MNT | 118284 | 1 | 118284-Online |
| 24 | EXPANSION TANK, ZT2800 | 601996 | 1 | 601996-Online |
| 25 | CS .250-20X0.750HXG5 | 055939 | 2 | 055939-Online |
| 26 | CAP, OVERFLOW TANK | 600767 | 1 | 600767-Online |

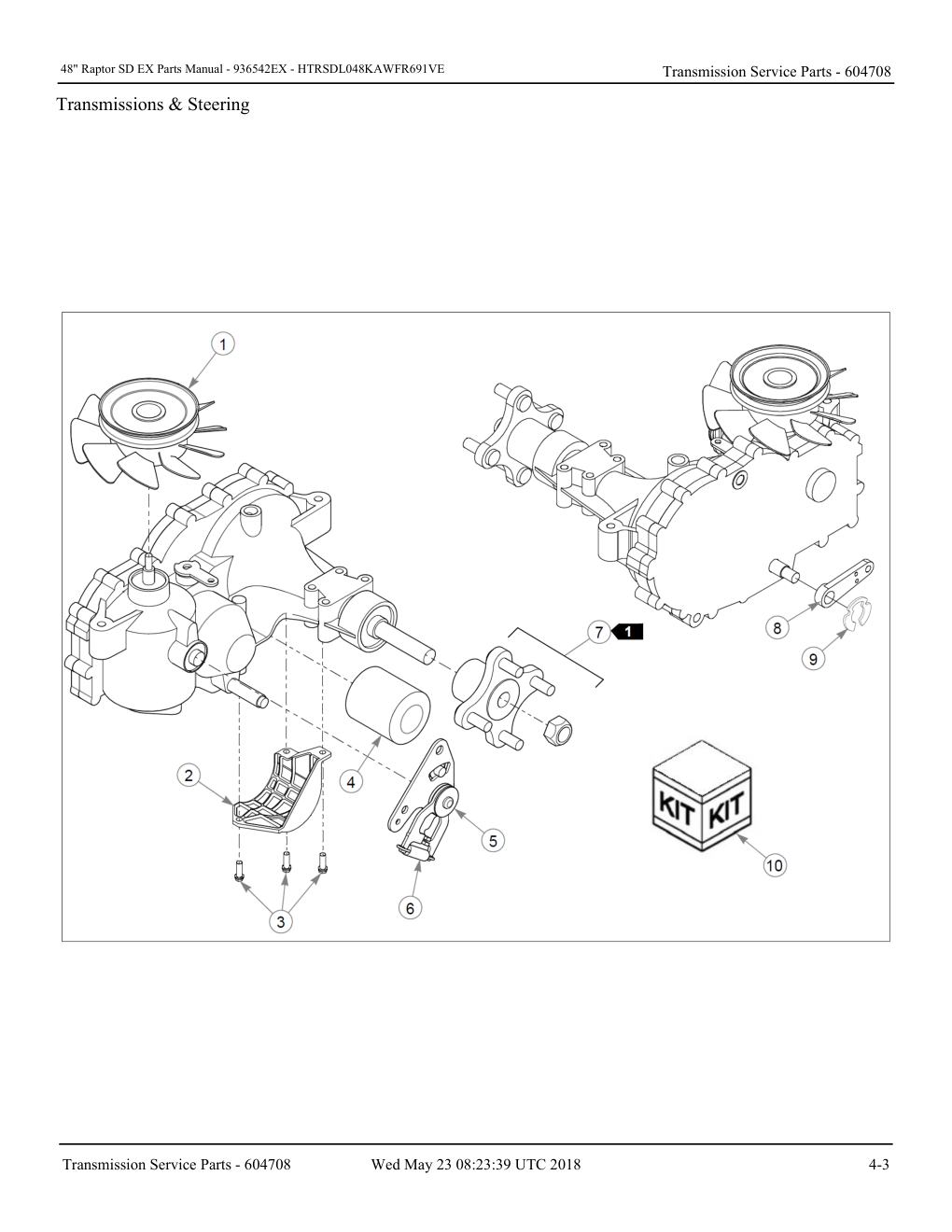

Transmission Service Parts - 604708
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN / PULLEY KIT | 602094 | 1 | 602094-Online |
| 2 | LS GUARD, TRANS FILTER | 600975 | 1 | HT600975-Online |
| 3 | CS .250-20 X .75 HX FLG | 604324 | 3 | 604324-Online |
| 4 | FILTER, OIL | 600976 | 1 | HT600976-Online |
| 5 | HG RTN CW | 604901 | 1 | 604901-Online |
| 6 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 7 | KIT, HUB, 4 BOLT | 600970 | 1 | 600970-Online |
| 8 | ZT2800 BRAKE ARM - 2007 | 601221 | 1 | 601221-Online |
| 9 | CLIP, RETAINING | 600972 | 1 | HT600972-Online |
| 10 | OIL RETENTION KIT | 606830 | 1 | 606830-Online |
Transmission Service Parts - 604709
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN / PULLEY KIT | 602094 | 1 | 602094-Online |
| 2 | RS GUARD, TRANS FILTER | 600974 | 1 | HT600974-Online |
| 3 | CS .250-20 X .75 HX FLG | 604324 | 3 | 604324-Online |
| 4 | FILTER, OIL | 600976 | 1 | HT600976-Online |
| 5 | KIT, HUB, 4 BOLT | 600970 | 1 | 600970-Online |
| 6 | HG RTN CCW | 604902 | 1 | 604902-Online |
| 7 | HG RTN SPRING | 604903 | 1 | 604903-Online |
| 8 | ZT2800 BRAKE ARM - 2007 | 601221 | 1 | 601221-Online |
| 9 | CLIP, RETAINING | 600972 | 1 | HT600972-Online |
| 10 | OIL RETENTION KIT | 606830 | 1 | 606830-Online |

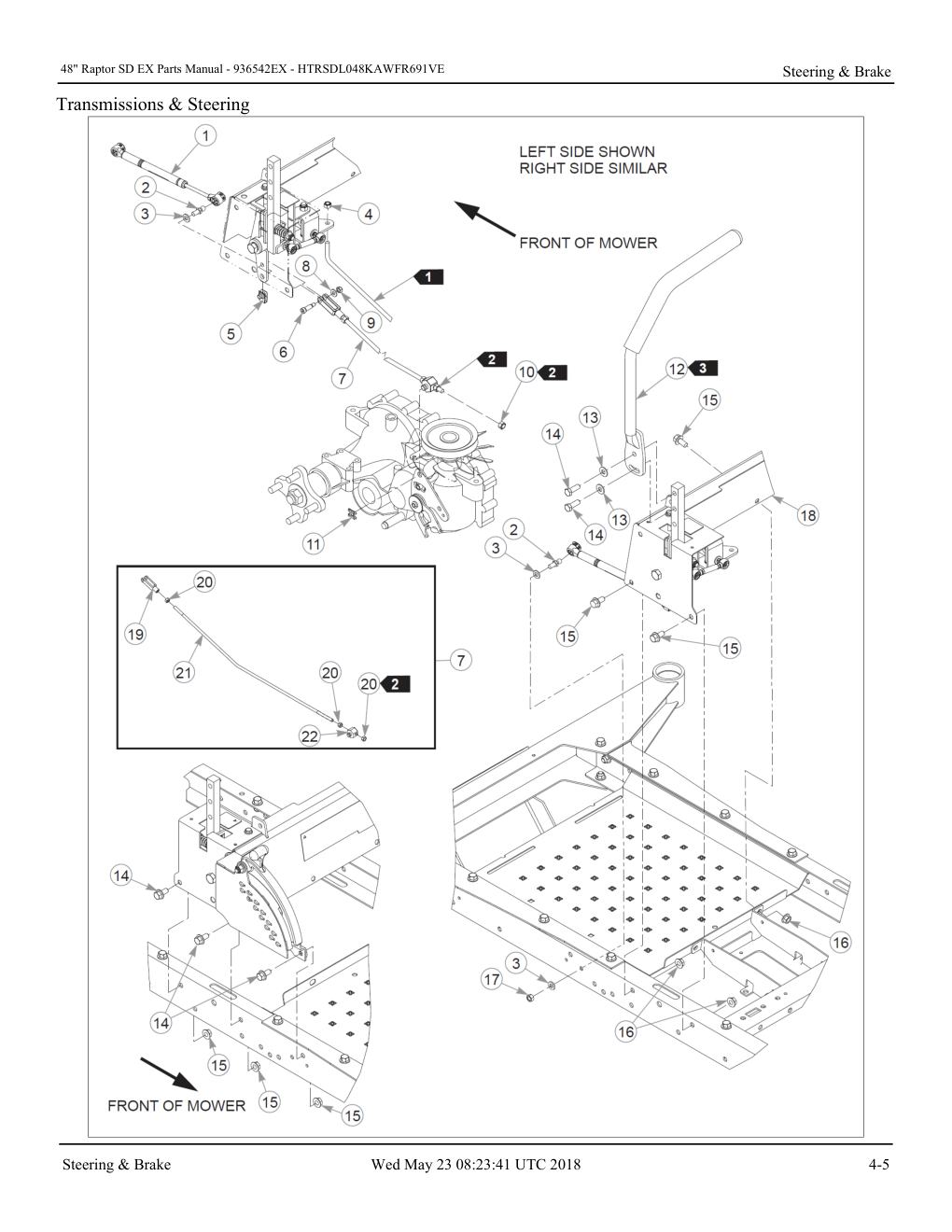

Steering & Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DAMPER | 603983 | 2 | 603983-Online |
| 2 | BALL STUD, DAMPER | 781922 | 4 | 781922-Online |
| 3 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 4 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 5 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 6 | SB0.312X0.750SH0.250-20 | 772483 | 2 | HT772483-Online |
| 7 | STEERING ROD S/A | 606273 | 2 | 606273-Online |
| 8 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 9 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 10 | NT .312-24NLG5 | 023655 | 2 | HT023655-Online |
| 11 | CLIP, SAFETY | 606575 | 2 | 606575-Online |
| 12 | STEERING BAR W/ GRIP | 110370 | 2 | 110370-Online |
| 12 | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 13 | FW 0.379 x 0.813 x 0.063 | 767954 | 4 | HT767954-Online |
| 14 | CS .375-16X1.000HXG5 | 036244 | 4 | HT036244-Online |
| 15 | CS .375-16X0.750FLK | 029629 | 7 | HT029629-Online |
| 16 | NT .375-16 FLKG5 | 016899 | 7 | HT016899-Online |
| 17 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 18 | STEERING COVER ASSEMBLY | N/A | 1 | No SKU |
| 19 | YOKE, 5/16-24 | 604173 | 2 | 604173-Online |
| 20 | NT .312-24 HX ZNYC | 041152 | 6 | HT041152-Online |
| 21 | ROD, STEERING | 604666 | 2 | 604666-Online |
| 22 | BLOCK, STEERING CONTROL | 116144 | 2 | HT116144-Online |

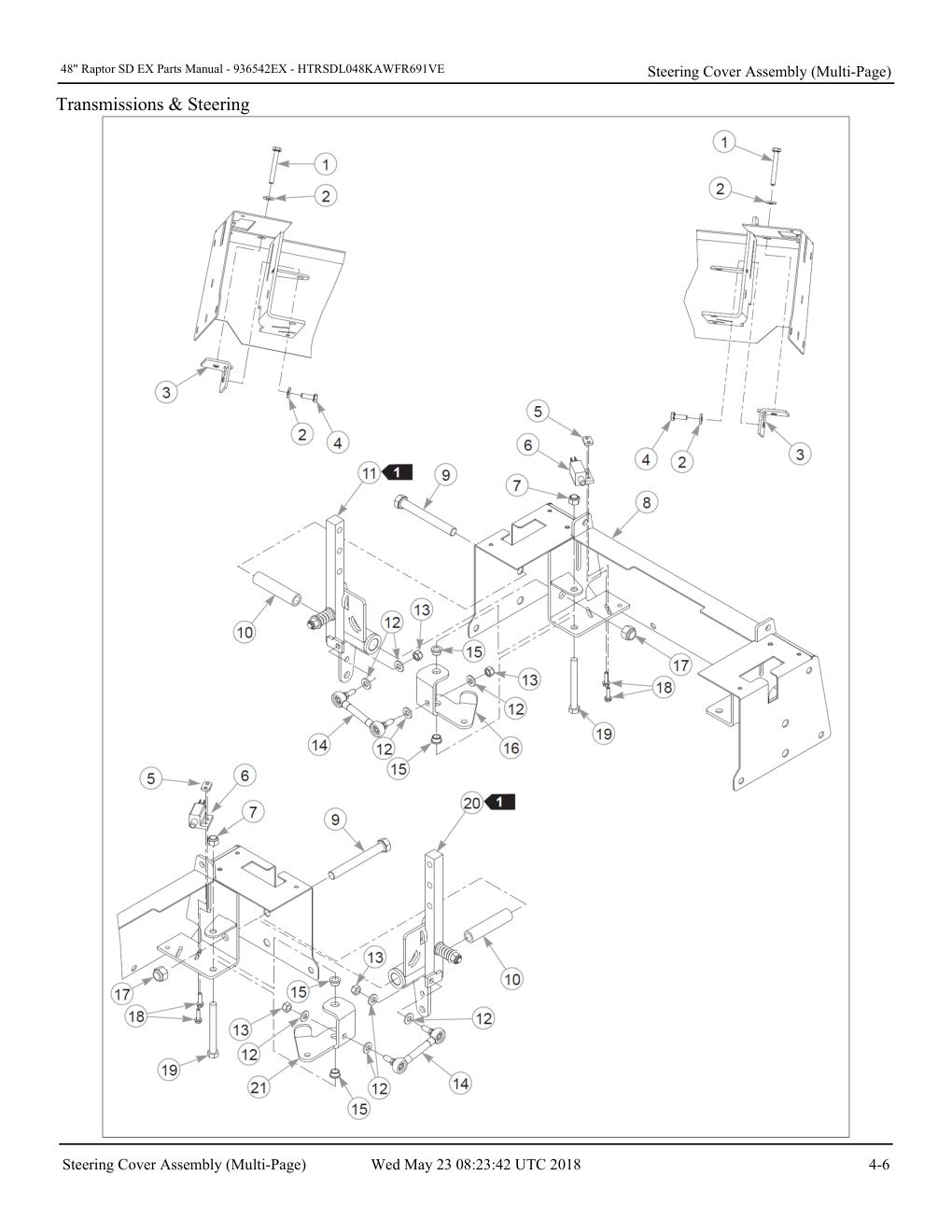

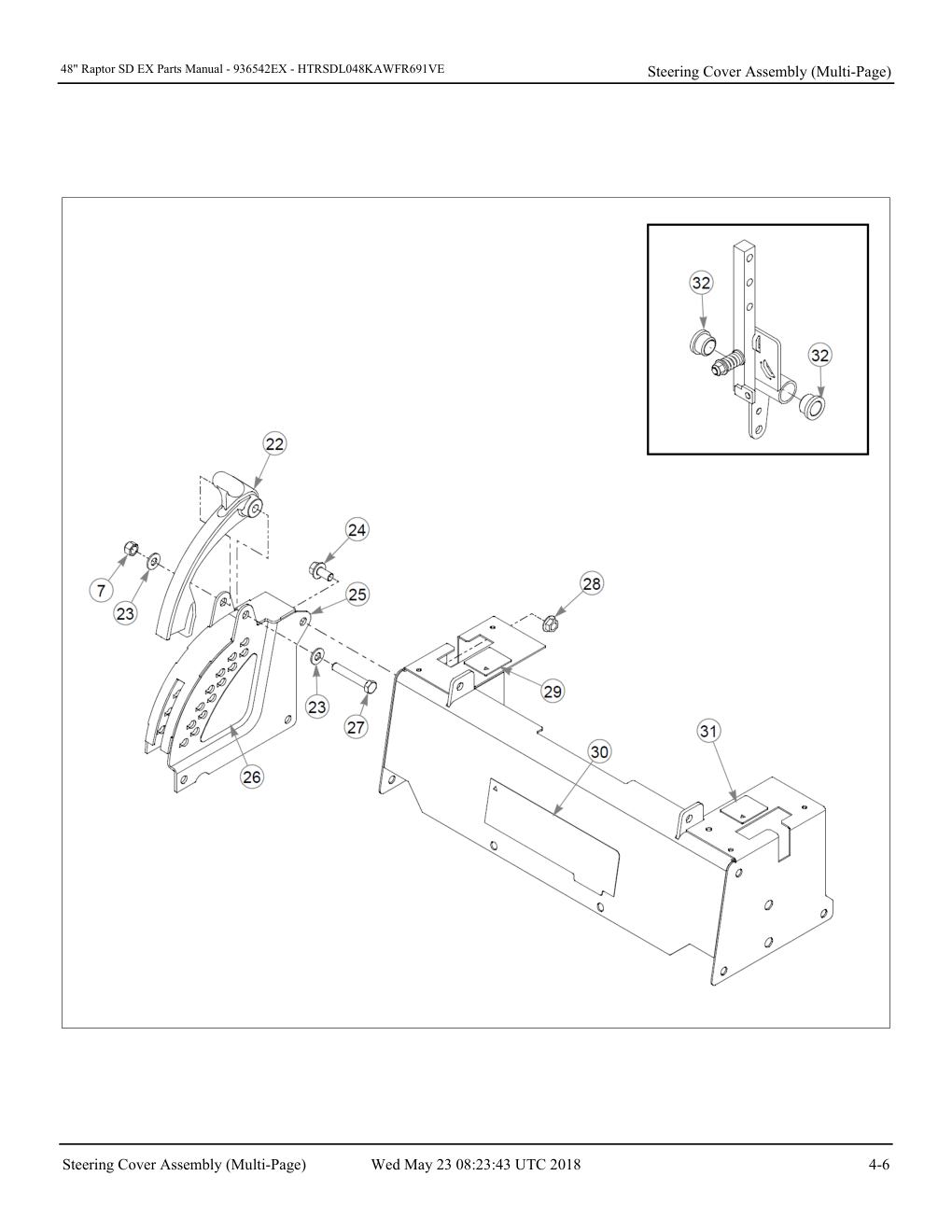

Steering Cover Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .250-20x2.00 HX FLTHD | 604452 | 2 | 604452-Online |
| 2 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 3 | STOP, STEERING | 605529 | 2 | 605529-Online |
| 4 | CS .250-20X0.750HXG5 | 055939 | 2 | 055939-Online |
| 5 | NUT PLATE, .420 CENTERS | 601822 | 2 | 601822-Online |
| 6 | SWITCH, PUSH BUTTON | 781211 | 2 | HT781211-Online |
| 7 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 8 | SVC, STEERING S/A | 552415 | 1 | 552415-Online |
| 9 | CS .500-13X4.250HXG5 | 781708 | 2 | HT781708-Online |
| 10 | SPACER, STEERING | 604288 | 2 | 604288-Online |
| 11 | STEERING BOX SUB, LH | 606106 | 1 | 606106-Online |
| 11 | STEERING BOX SUB, LH | 604300 | 1 | 604300-Online |
| 12 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 13 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 14 | BRAKE LINK | 604179 | 2 | 604179-Online |
| 15 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 16 | BRAKE BLCRNK, LH | 116142 | 1 | 116142-Online |
| 17 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 18 | CS #10-24X0.750FLKG5 | 063198 | 4 | 063198-Online |
| 19 | CS .375-16X3.500HXG5 | 005108 | 2 | HT005108-Online |
| 20 | STEERING BOX SUB, RH | 606105 | 1 | 606105-Online |
| 20 | STEERING BOX SUB, RH | 604299 | 1 | 604299-Online |
| 21 | BRAKE BLCRNK, RH | 116141 | 1 | 116141-Online |
| 22 | TRANSPORT LATCH | 605149 | 1 | 605149-Online |
| 23 | FW 0.379 x 0.813 x 0.063 | 767954 | 2 | HT767954-Online |
| 24 | CS .375-16X0.750FLK | 029629 | 1 | HT029629-Online |
| 25 | SERVICE, INDICATOR PANEL | 552177 | 1 | 552177-Online |
| 26 | DECAL, DECK HEIGHT | 604819 | 1 | 604819-Online |
Steering Cover Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 27 | CS .375-16X2.250HXG5 | 056036 | 1 | 056036-Online |
| 28 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 29 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 30 | DECAL, ID RSD | 604840 | 1 | 604840-Online |
| 31 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 32 | BUSHING, UHMW | 781153 | 4 | HT781153-Online |

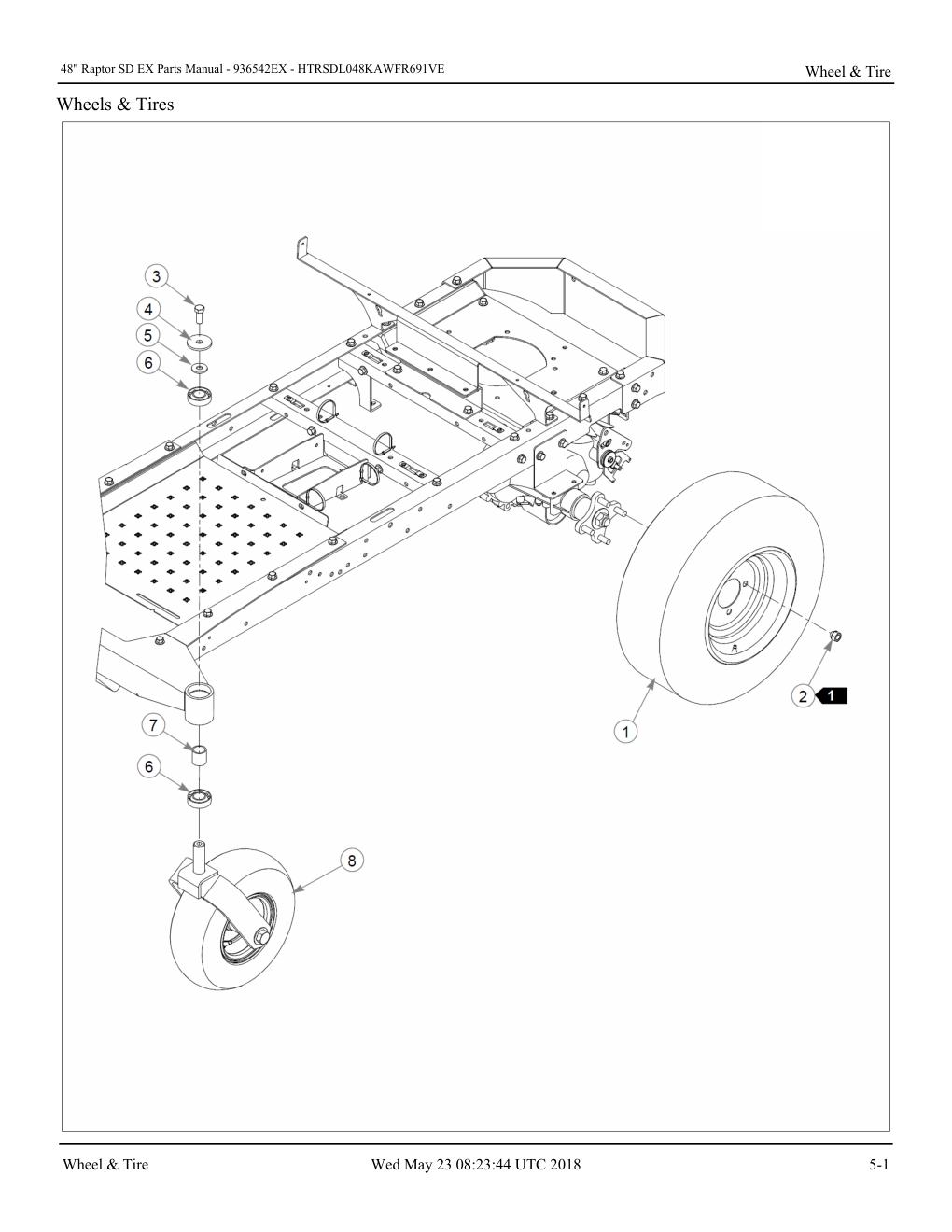

Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 20X8.00-10 SLV | 600676 | 2 | 600676-Online |
| 2 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 3 | CS .500-13X1.250HSG5 | 705954 | 2 | HT705954-Online |
| 4 | FW .510X 2.15X.187 SPL | 344267 | 2 | HT344267-Online |
| 5 | FW 0.531X1.375X0.125 | 712976 | 2 | HT712976-Online |
| 6 | BEARING | 784223 | 4 | HT784223-Online |
| 7 | SPACER | 784603 | 2 | HT784603-Online |
| 8 | TIRE/WHEEL ASSEMBLY | N/A | 1 | No SKU |

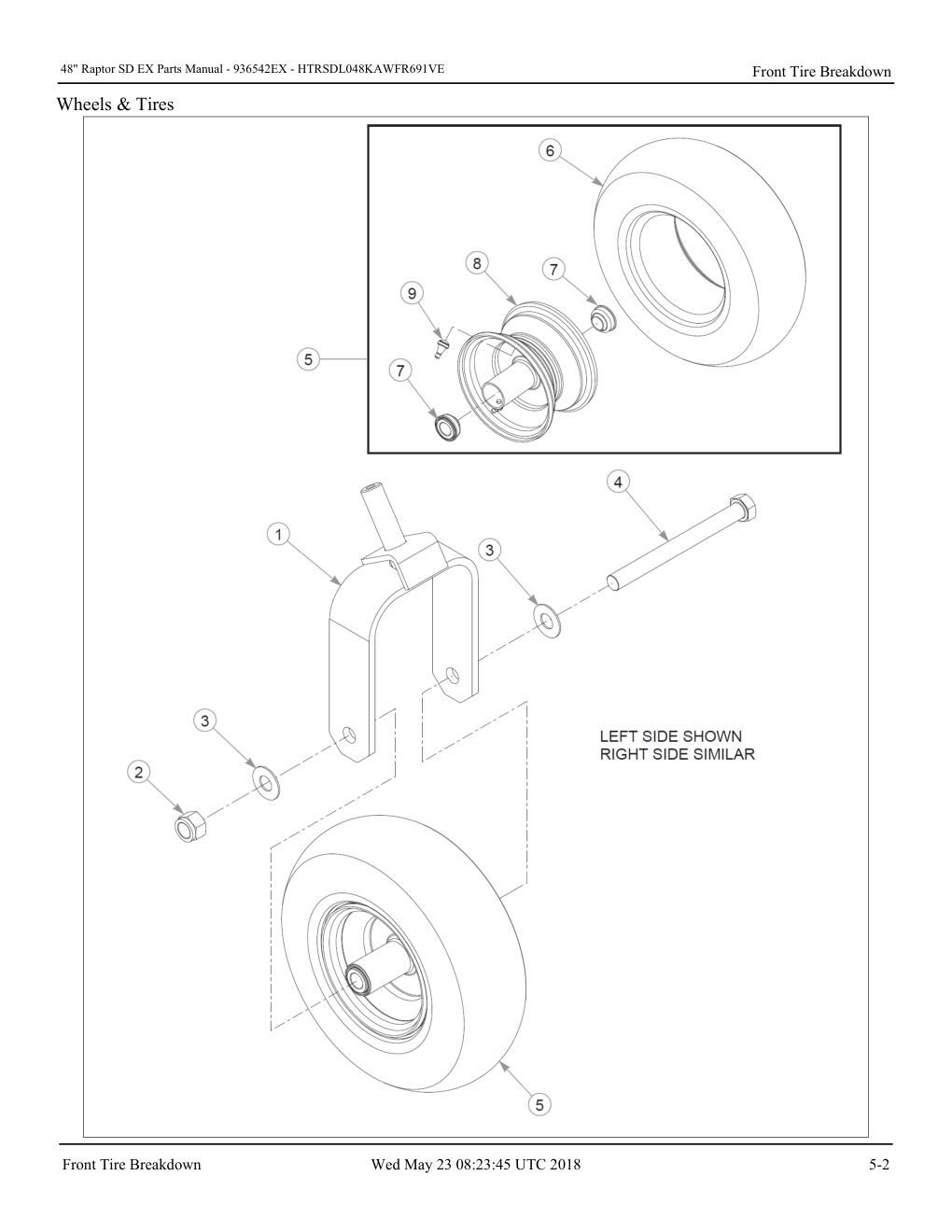

Front Tire Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK W/A, 13X5 | 605042 | 1 | 605042-Online |
| 2 | NT .750-10 HX ZY NL GR B | 061101 | 1 | HT061101-Online |
| 3 | FW .760X1.625X0.080 | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10X8.000HXG5 | 786731 | 1 | HT786731-Online |
| 5 | TIR/WHL 13X5.00-6 SLV | 605038 | 1 | 605038-Online |
| 6 | TIR 13X5.00-6 B4R SMTH | 605039 | 1 | 605039-Online |
| 7 | WHEEL BEARING | 786103 | 2 | HT786103-Online |
| 8 | WHL 6X3.25 SLV | 786079 | 1 | HT786079-Online |
| 9 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

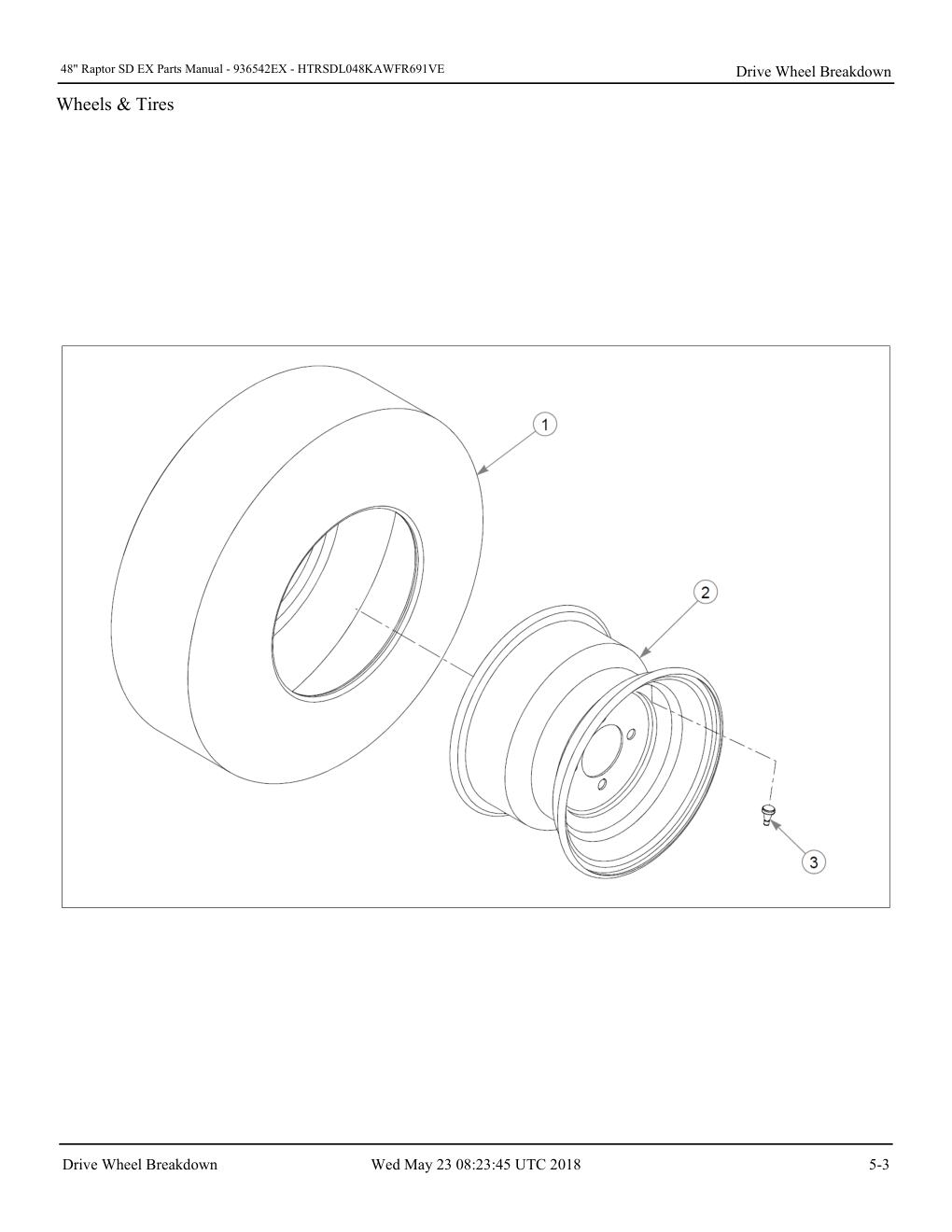

Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 20X8.00-10 B4R GRMR | 600692 | 1 | HT600692-Online |
| 2 | WHL 10X7.00 4X4.0 SLV | 600718 | 1 | 600718-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

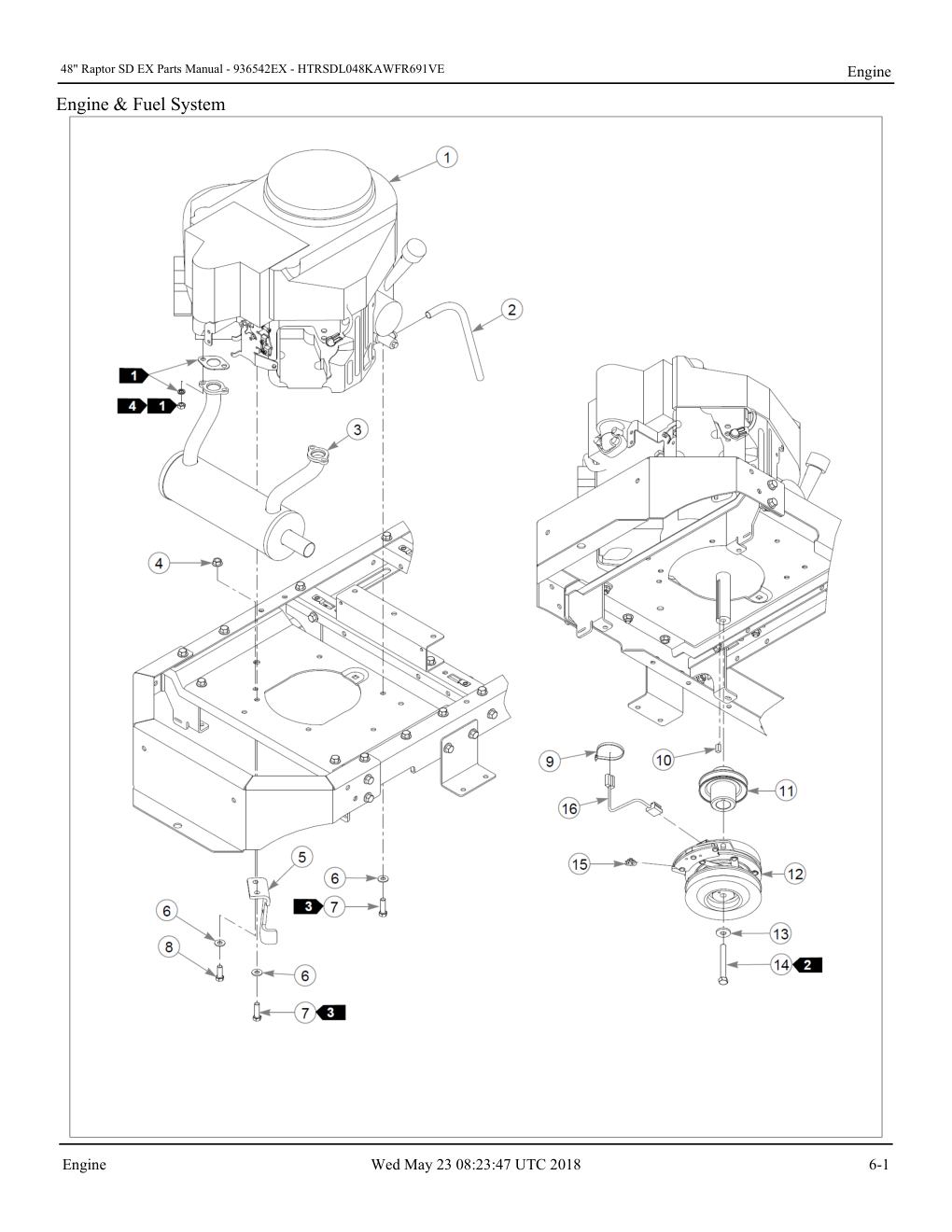

Engine
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | HOSE, OIL DRAIN | 604463 | 12" | 604463-Online |
| 3 | MUFFLER, FR730V | 604016 | 1 | 604016-Online |
| 4 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 5 | CLUTCH ANCHOR | 121625 | 1 | 121625-Online |
| 6 | FW 0.379 x 0.813 x 0.063 | 767954 | 5 | HT767954-Online |
| 7 | CS .375-16x1.25 HXG8 P85 | 602580 | 4 | 602580-Online |
| 8 | CS .375-16X1.000HXG5 | 036244 | 1 | HT036244-Online |
| 9 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |
| 10 | KEY 1/4 SQ X 0.66 LG(FS) | 712372 | 1 | HT712372-Online |
| 11 | PULLEY, ENG 4.118 OP | 605675 | 1 | 605675-Online |
| 12 | CLUTCH KIT, 605777 | 605777K | 1 | 605777K-Online |
| 13 | FW .453X 1.12X .119 HRD | 602680 | 1 | 602680-Online |
| 14 | CS .437-20X3.25 HXG5 P85 | 601834 | 1 | 601834-Online |
| 15 | BUSHING, CLUTCH | 605595 | 1 | 605595-Online |
| 16 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 17 | LW 0.312 INT-EXT | 029876 | 1 | 029876-Online |
| 18 | CS M8-1.25X16HX FL10.9 | 720516 | 1 | 720516-Online |
| 19 | CS .250-20X0.750HXG5 | 055939 | 2 | 055939-Online |
| 20 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 21 | STARTER SOLENOID HW KIT | 030817 | 1 | HT030817-Online |
| 22 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 23 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 24 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 25 | FUEL LINE, 1/4" | 015818 | 18" | HT015818-Online |

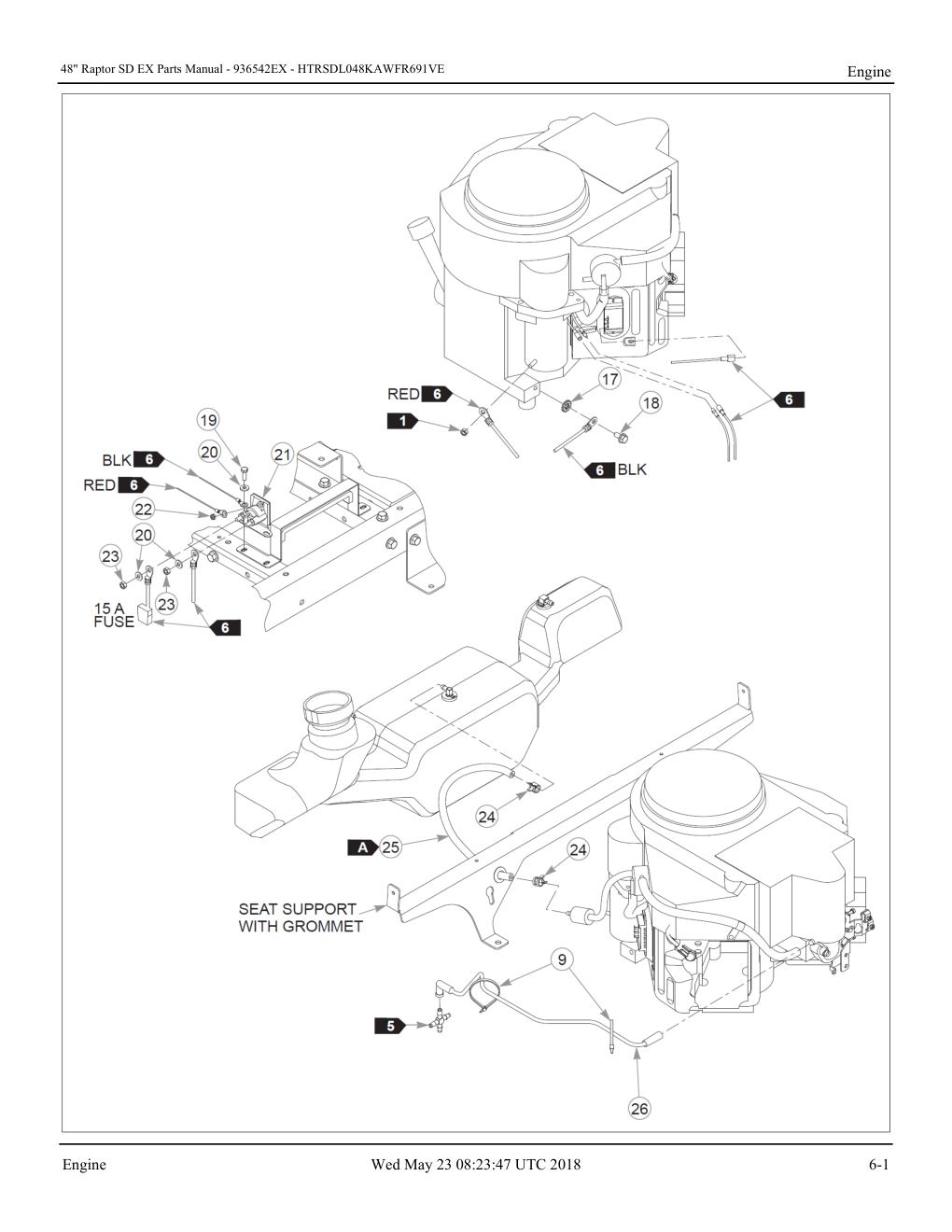

Engine
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 26 | VAPOR LINE, 3/16 FORMED | 604274 | 1 | 604274-Online |

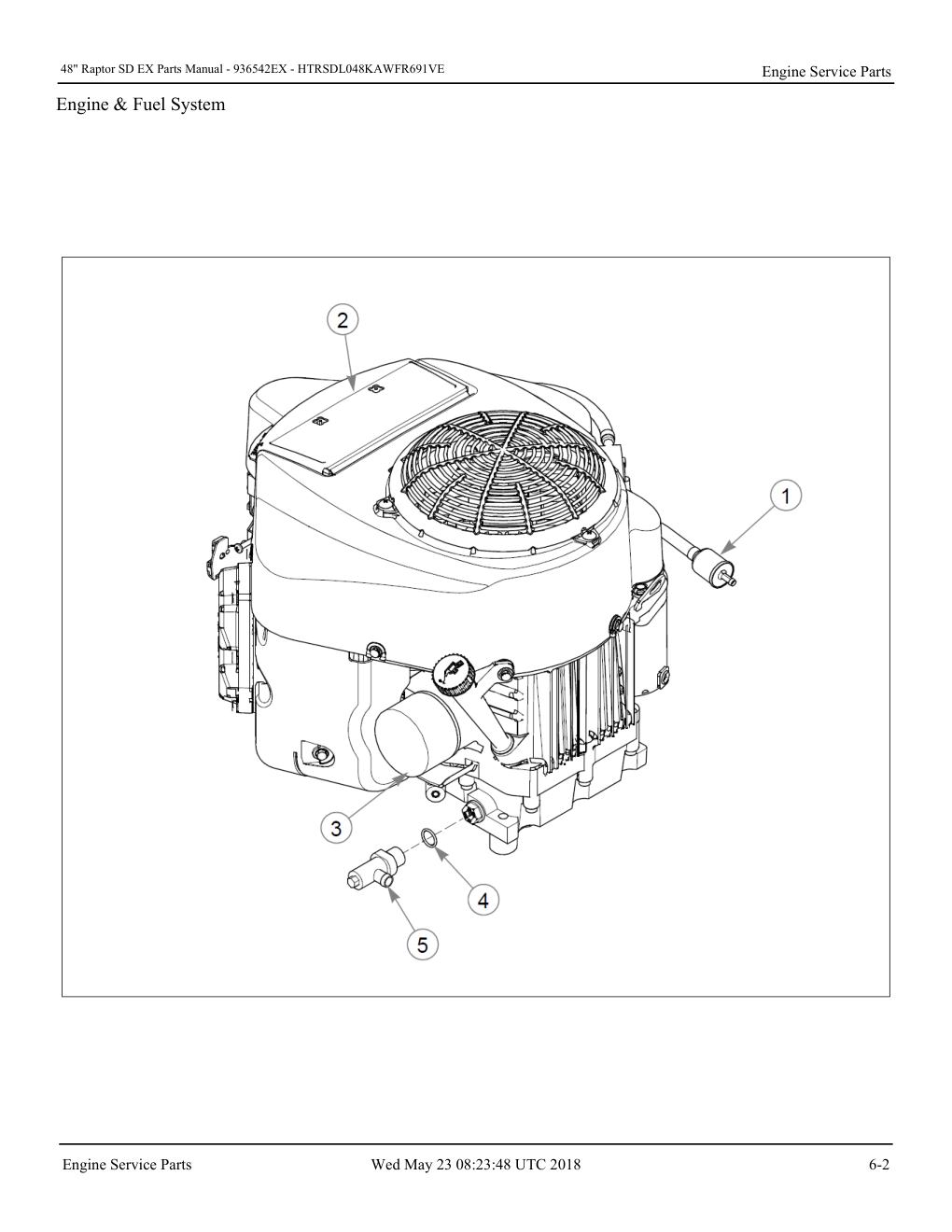

Engine Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL FILTER IN-LINE | 068478 | 1 | 068478-Online |
| 2 | AIR FILTER, KAW | 603059 | 1 | 603059-Online |
| 3 | OIL FILTER, KAW ENG. | 602581 | 1 | 602581-Online |
| 4 | O-RING | 604369 | 1 | 604369-Online |
| 5 | VALVE, OIL DRAIN | 604350 | 1 | 604350-Online |

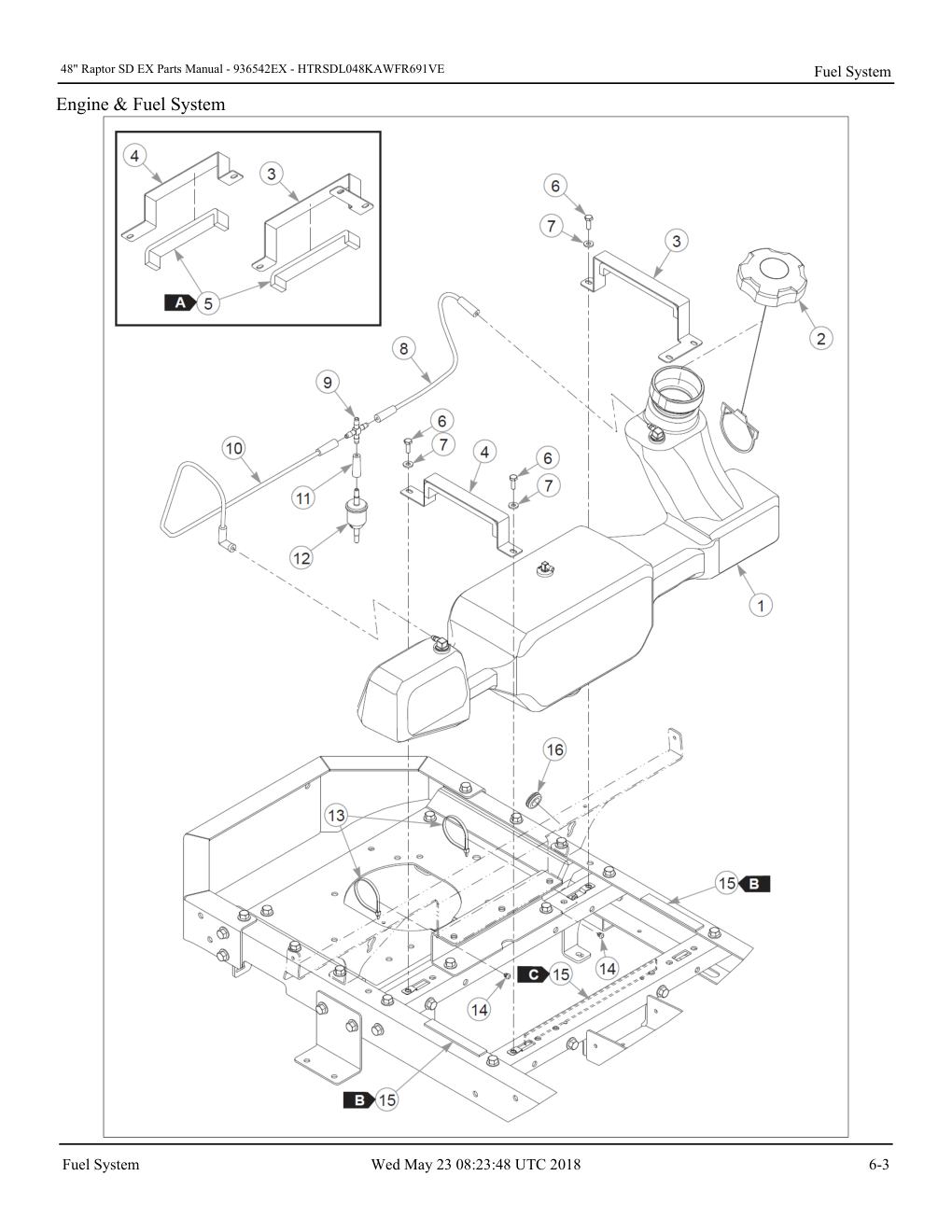

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL TANK | 606432 | 1 | 606432-Online |
| 2 | CAP, 3.5" RATCHETING GAS | 603807 | 1 | 603807-Online |
| 3 | TANK MNT LEFT | 117059 | 1 | 117059-Online |
| 4 | TANK MNT RIGHT | 117060 | 1 | 117060-Online |
| 5 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 18.5" | 713198-Online |
| 6 | CS .250-20X0.750HXG5 | 055939 | 3 | 055939-Online |
| 7 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 8 | VAPOR LINE, 3/16 FORMED | 604279 | 1 | 604279-Online |
| 9 | 1/4" HOSE BARB CROSS | 604322 | 1 | 604322-Online |
| 10 | VAPOR LINE, 3/16 FORMED | 604273 | 1 | 604273-Online |
| 11 | BOOT, 3/16" TO 1/4" BARB | 604292 | 1 | 604292-Online |
| 12 | FILTER, VAPOR SYSTEM | 604323 | 1 | 604323-Online |
| 13 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 14 | MOUNT, PUSH BUTTON | 604307 | 2 | 604307-Online |
| 15 | WEATHERSTRIP .12X.75 | 033035 | 22" | 033035-Online |
| 16 | GM .63 x1.13 x.88 x .13 | 601400 | 1 | 601400-Online |

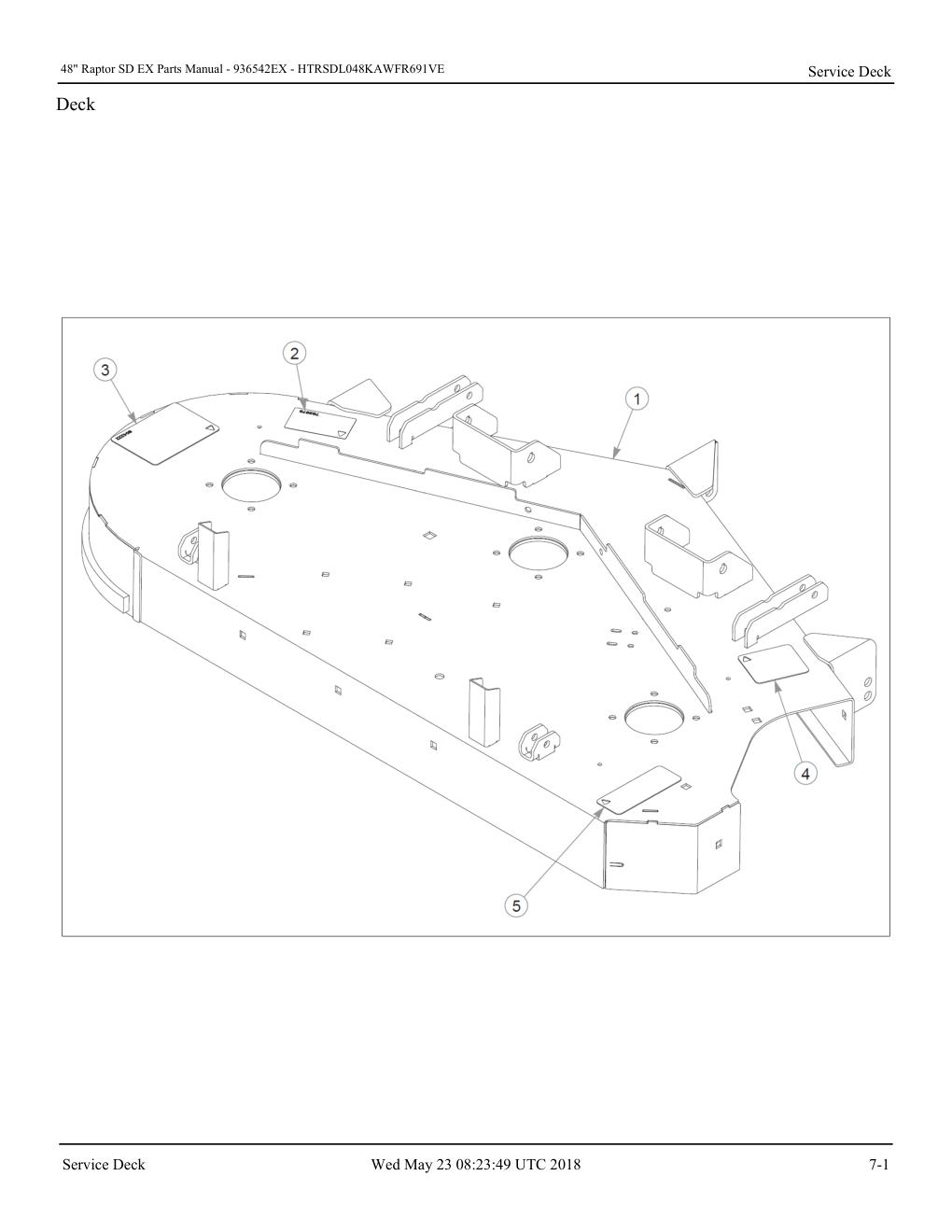

Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE DECK DECAL ASSY | 553912 | 1 | 553912-Online |
| 2 | DECAL,48"DECK ID | 793976 | 1 | 793976-Online |
| 3 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
| 4 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
| 5 | DECAL, DISCHARGE CHUTE | 601624 | 1 | 601624-Online |

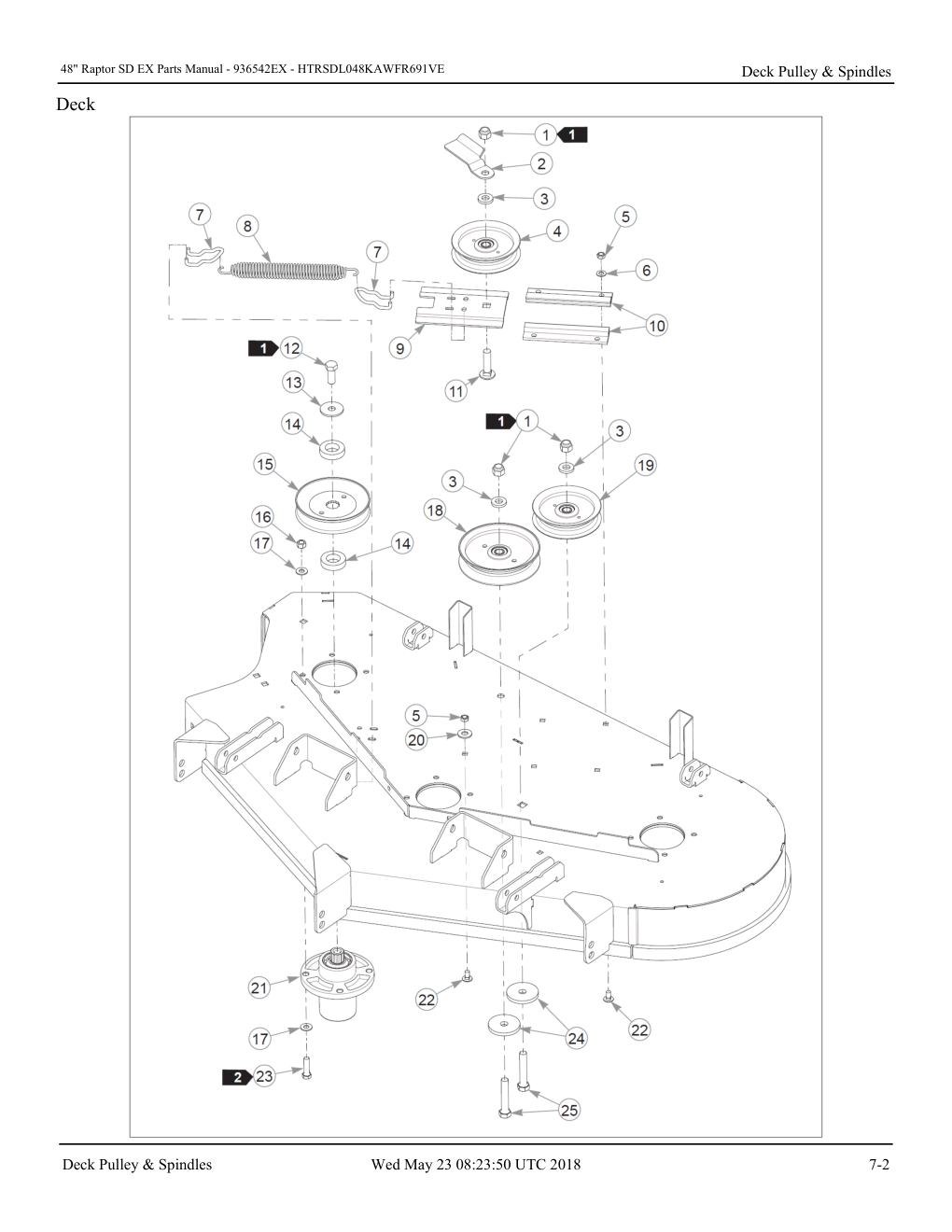

Deck Pulley & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 2 | BELT GUIDE | 121780 | 1 | HT121780-Online |
| 3 | FW .531 x 1.063 x .175 | 767962 | 3 | HT767962-Online |
| 4 | IDLER PULLEY, 4.00" FLAT | 603986 | 1 | 603986-Online |
| 5 | NT .312-18 HXNL JAM G2ZN | 604251 | 5 | 604251-Online |
| 6 | FW .340 X .675 X .035 ZN | 604252 | 4 | 604252-Online |
| 7 | ANCHOR, SPRING TENSIONER | 604110 | 2 | 604110-Online |
| 8 | SPRING | 122388 | 1 | 122388-Online |
| 9 | SLED, IDLER | 604194 | 1 | 604194-Online |
| 10 | IDLER SLIDE, EXTRUDED | 604079 | 2 | 604079-Online |
| 11 | CB .50-13 X 2.00 STD ZN | 604253 | 1 | 604253-Online |
| 12 | CS .500-13X1.250HSG5 | 705954 | 3 | HT705954-Online |
| 13 | FW .515X1.65X.125 HD ZY | 798603 | 3 | 798603-Online |
| 14 | SPACER, SPINDLE PULLEY | 604661 | 6 | 604661-Online |
| 15 | PULLEY, DECK DRIVE B-SEC | 604665 | 3 | 604665-Online |
| 16 | NT .375-16HXG5 | 054502 | 12 | HT054502-Online |
| 17 | FW 0.379 x 0.813 x 0.063 | 767954 | 24 | HT767954-Online |
| 18 | PULLEY, IDLER 5.00" O.D. | 604231 | 1 | 604231-Online |
| 19 | IDLER PULLEY, 4.00" FLAT | 604219 | 1 | 604219-Online |
| 20 | FW .440X1.000X0.083 | 017129 | 1 | 017129-Online |
| 21 | SPINDLE ASSEMBLY | 601804 | 3 | 601804-Online |
| 22 | CB .312-18X .620 G5 ZN | 083147 | 5 | 083147-Online |
| 23 | CS .375-16X1.375 | 005116 | 12 | HT005116-Online |
| 24 | FW .531 x 2.25 x .25 ZNY | 605516 | 2 | 605516-Online |
| 25 | CS .500-13X2.750HXG5 | 721910 | 2 | HT721910-Online |

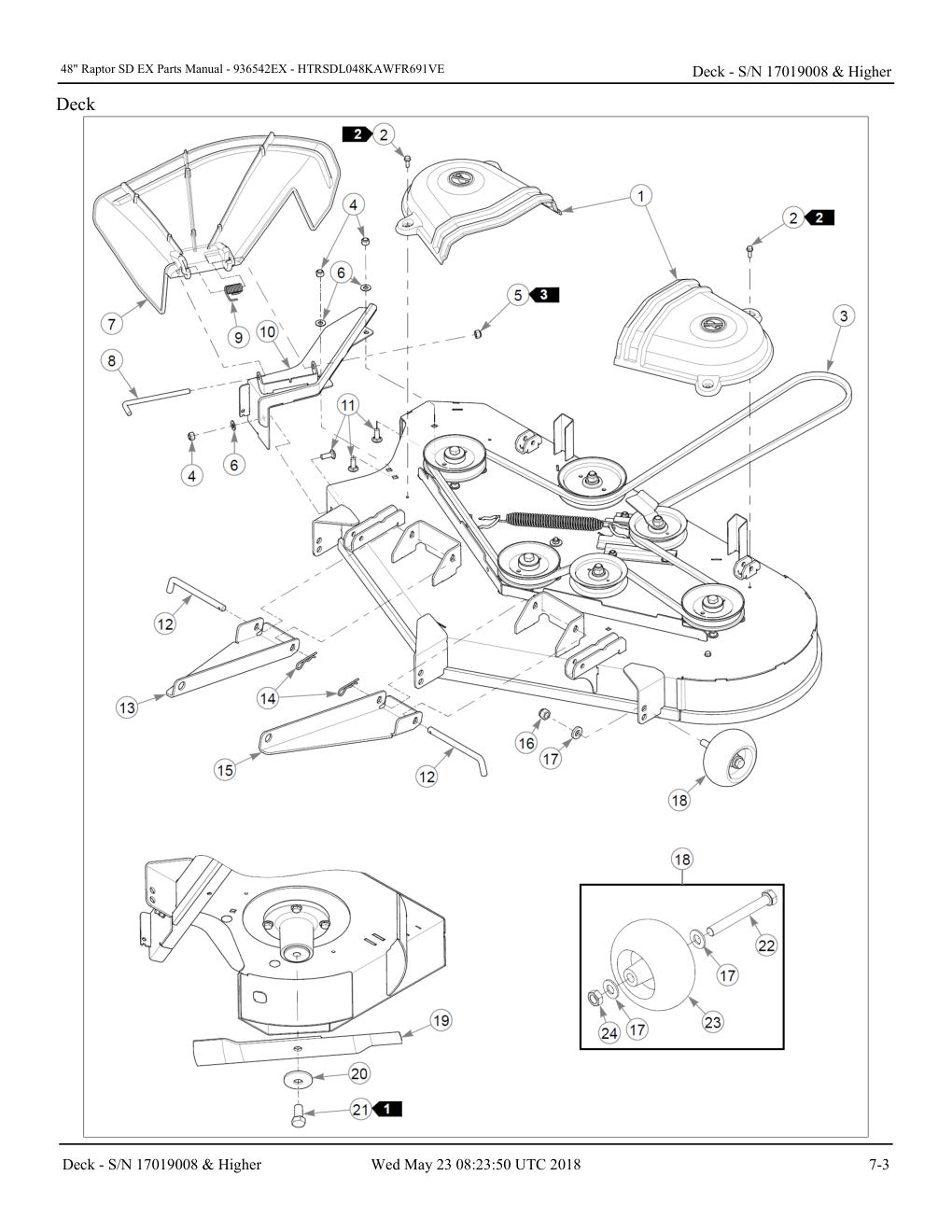

Deck - S/N 17019008 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER, UNIVERSAL | 605867 | 2 | 605867-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT, B-SECTION | 604830 | 1 | 604830-Online |
| 4 | NT .375-16 HX NL JAM ZN | 603846 | 3 | 603846-Online |
| 5 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
| 6 | FW 0.379 x 0.813 x 0.063 | 767954 | 3 | HT767954-Online |
| 7 | DISCHARGE CHUTE | 604609 | 1 | 604609-Online |
| 8 | PIN, DISCHARGE CHUTE | 604346 | 1 | 604346-Online |
| 9 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 10 | DISCHARGE ADAPTER KIT | 123348 | 1 | 123348-Online |
| 11 | CB .375-16X .750 STD ZN | 011320 | 3 | 011320-Online |
| 12 | PIN, PULLER | 604658 | 2 | 604658-Online |
| 13 | PULLER, RS | 117877 | 1 | HT117877-Online |
| 14 | HP .125 X2.375 ZN | 017301 | 2 | HT017301-Online |
| 15 | PULLER, LS | 117878 | 1 | HT117878-Online |
| 16 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 9 | HT767962-Online |
| 18 | WHEEL ASSY, ANTI SCALP | 788166 | 3 | HT788166-Online |
| 19 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| 19 | BLADE, F16.50"-L-F-CW | 601014 | 3 | 601014-Online |
| 19 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 19 | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| 19 | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| 19 | BLADE, 16.50"-CAT-F-CW | 796649 | 3 | HT796649-Online |
| 20 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 21 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 22 | CS .500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 23 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 24 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |

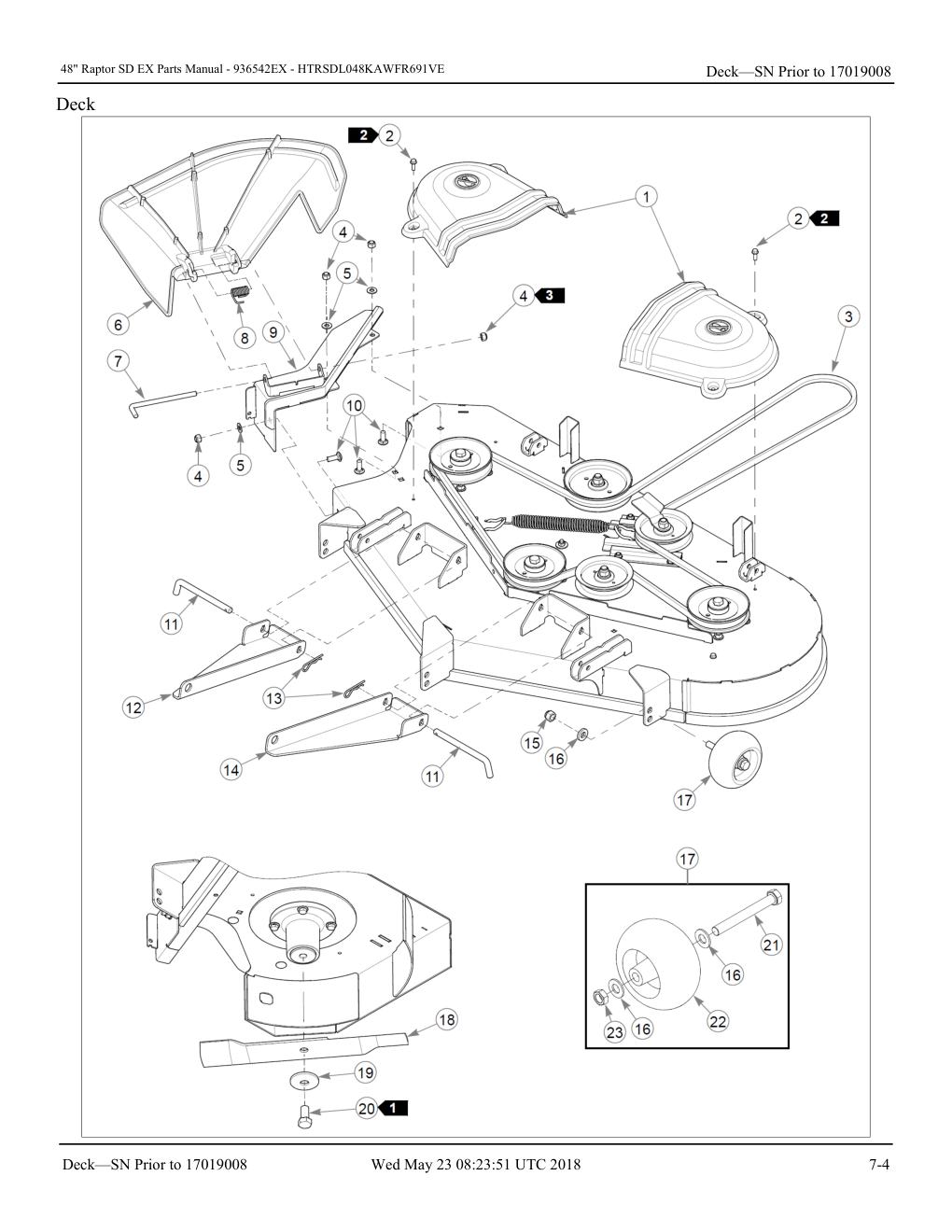

Deck-SN Prior to 17019008
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER, UNIVERSAL | 605867 | 2 | 605867-Online |
| 2 | CS .250-20 X .75 HX FLG | 604324 | 4 | 604324-Online |
| 3 | BELT, B-SECTION | 604830 | 1 | 604830-Online |
| 4 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 5 | FW 0.379 x 0.813 x 0.063 | 767954 | 3 | HT767954-Online |
| 6 | DISCHARGE CHUTE | 604609 | 1 | 604609-Online |
| 7 | PIN, DISCHARGE CHUTE | 604346 | 1 | 604346-Online |
| 8 | CHUTE SPRING | 604331 | 1 | 604331-Online |
| 9 | DISCHARGE ADAPTER KIT | 123348 | 1 | 123348-Online |
| 10 | CB .375-16X 1.00 G5 ZNY | 025395 | 3 | HT025395-Online |
| 11 | PIN, PULLER | 604658 | 2 | 604658-Online |
| 12 | PULLER, RS | 117877 | 1 | HT117877-Online |
| 13 | HP .125 X2.375 ZN | 017301 | 2 | HT017301-Online |
| 14 | PULLER, LS | 117878 | 1 | HT117878-Online |
| 15 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 16 | FW .531 x 1.063 x .175 | 767962 | 9 | HT767962-Online |
| 17 | WHEEL ASSY, ANTI SCALP | 788166 | 3 | HT788166-Online |
| 18 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| 18 | BLADE, F16.50"-L-F-CW | 601014 | 3 | 601014-Online |
| 18 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 18 | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| 18 | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| 18 | BLADE, 16.50"-CAT-F-CW | 796649 | 3 | HT796649-Online |
| 19 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 20 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
| 21 | CS .500-13X4.250HXG5 | 781708 | 1 | HT781708-Online |
| 22 | ANTI-SCALP WHEEL | 031997 | 1 | HT031997-Online |
| 23 | NT .500-13JAMG5 | 053199 | 1 | HT053199-Online |

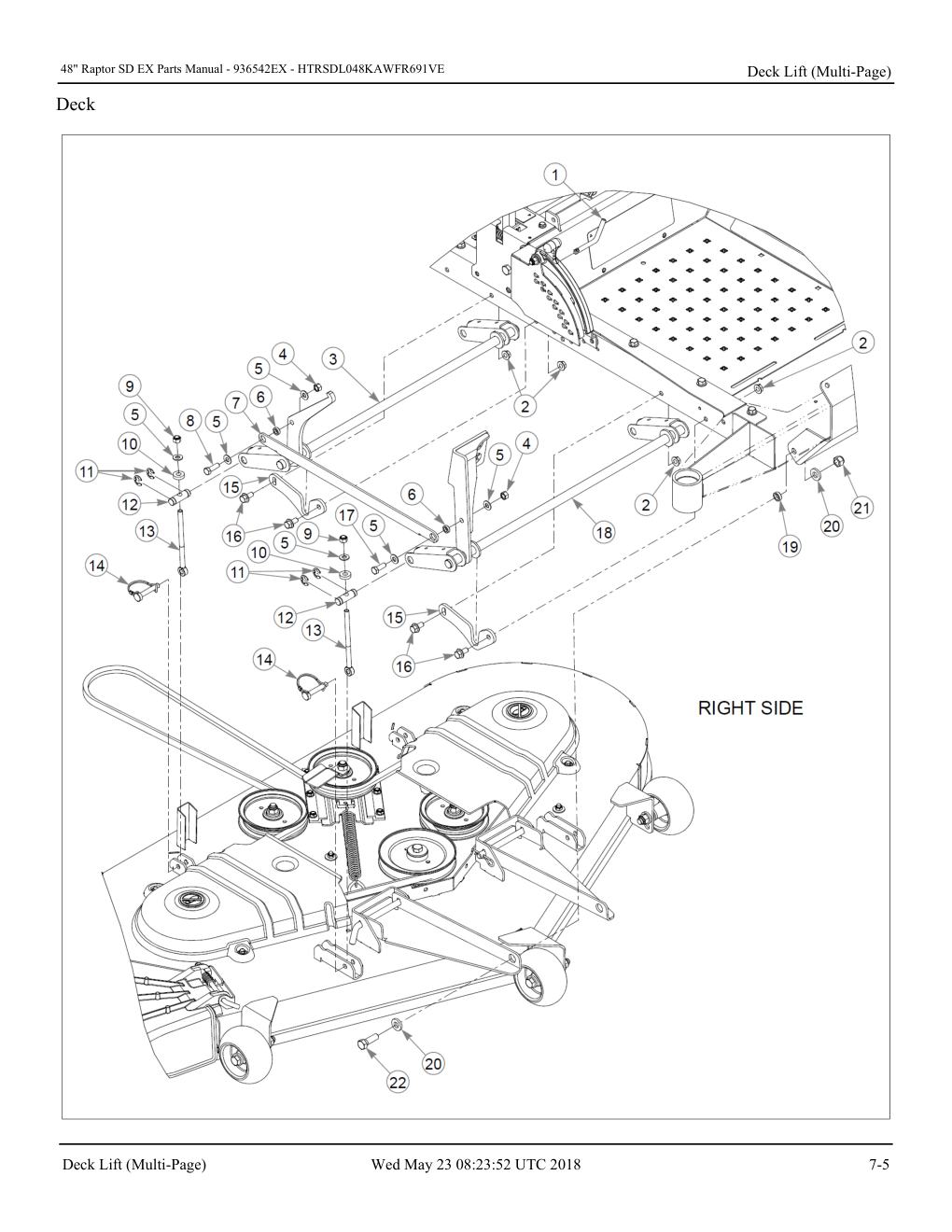

Deck Lift (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PIN, INDICATOR | 118020 | 1 | 118020-Online |
| 2 | NT .375-16 FLKG5 | 016899 | 8 | HT016899-Online |
| 3 | DECK LIFT W/A, REAR | 118085 | 1 | 118085-Online |
| 4 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 5 | FW 0.379 x 0.813 x 0.063 | 767954 | 8 | HT767954-Online |
| 6 | PIVOT SPACER BUSHING | 601839 | 2 | 601839-Online |
| 7 | LIFT PEDAL, LINK | 118016 | 1 | 118016-Online |
| 8 | CS .375-16X1.12 HX G5 Z | 005132 | 1 | 005132-Online |
| 9 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 10 | FW .41X.94X.25 UHMW | 605114 | 4 | 605114-Online |
| 11 | CLIP E,.625x.480x.042 Z | 791673 | 8 | HT791673-Online |
| 12 | PIVOT, DECK LIFT | 118018 | 4 | HT118018-Online |
| 13 | LINK, DECK LIFT | 604579 | 4 | 604579-Online |
| 14 | CE .375 x 2.00 W/BALE | 604803 | 4 | 604803-Online |
| 15 | PIVOT BLOCK, DECK LIFT | 116151 | 4 | HT116151-Online |
| 16 | CS .375-16X0.750FLK | 029629 | 8 | HT029629-Online |
| 17 | CS .375-16X1.000HXG5 | 036244 | 1 | HT036244-Online |
| 18 | DECK LIFT W/A, FRONT | 118084 | 1 | HT118084-Online |
| 19 | PIVOT SPACER BUSHING | 604656 | 2 | 604656-Online |
| 20 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 21 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 22 | CS .500-13X1.500 HX G5 | 074252 | 2 | HT074252-Online |

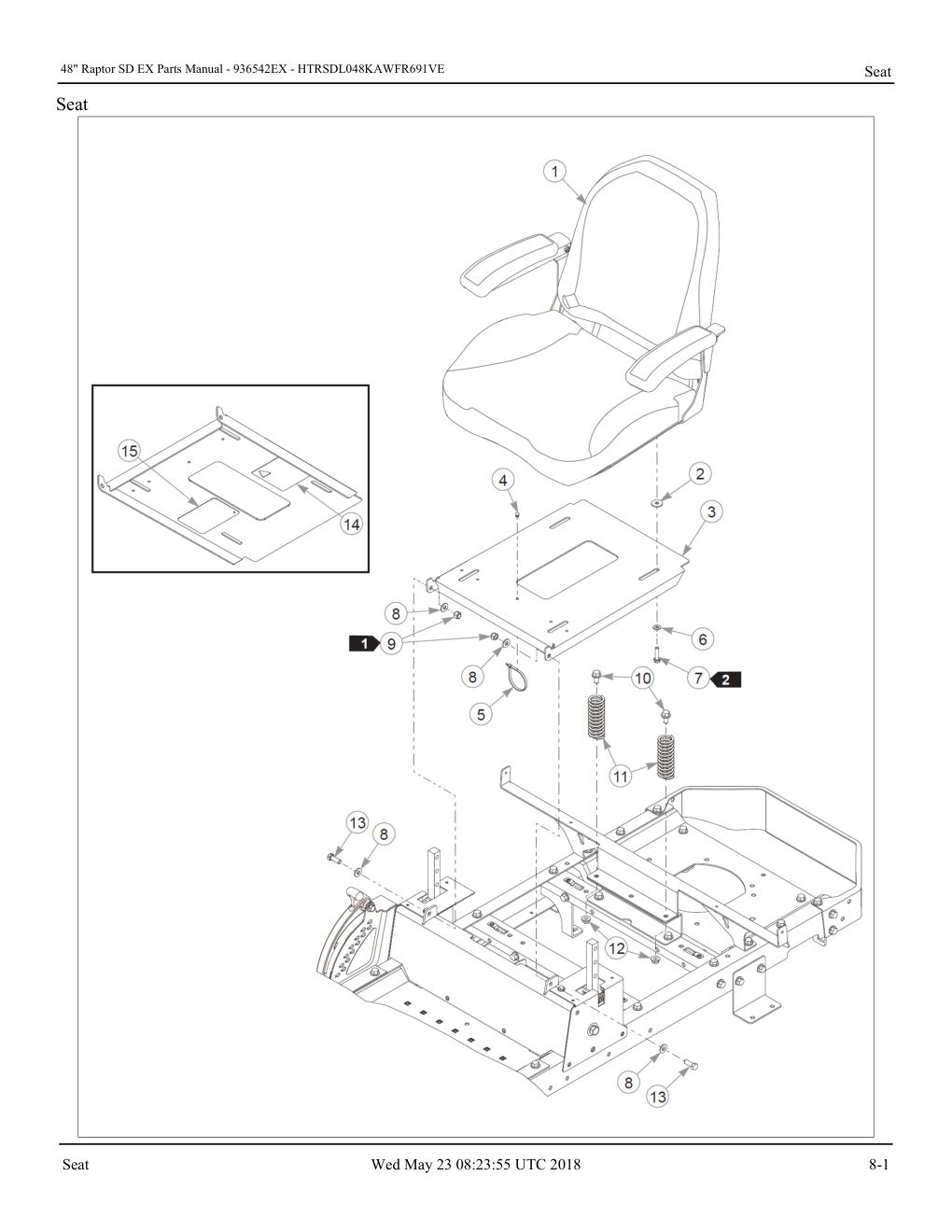

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, SEATS INC 907 | 606077 | 1 | 606077-Online |
| 2 | FW 0.344X1.000X0.120HD | 712927 | 4 | HT712927-Online |
| 3 | SVC, SEAT PAN | 552751 | 1 | 552751-Online |
| 4 | MOUNT, PUSH BUTTON | 604307 | 1 | 604307-Online |
| 5 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 6 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 7 | CS .312-18X1.250HXG5 | 079186 | 4 | 079186-Online |
| 8 | FW 0.379 x 0.813 x 0.063 | 767954 | 4 | HT767954-Online |
| 9 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 10 | CS .375-16X0.750FLK | 029629 | 2 | HT029629-Online |
| 11 | SPRING,COMP 1.25X4.00X. | 793851 | 2 | HT793851-Online |
| 12 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 13 | CS .375-16X1.000HXG5 | 036244 | 2 | HT036244-Online |
| 14 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 15 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
Seat Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, ARM PADS | 606081 | 2 | 606081-Online |
| 2 | SVC, ARMEST SET | 606085 | 1 | 606085-Online |
| 3 | SVC, OPS | 606082 | 1 | 606082-Online |
| 4 | SVC, BACK CUSHION | 606083 | 1 | 606083-Online |
| 5 | SVC, SEAT CUSHION | 606084 | 1 | 606084-Online |
