42" Raptor Parts Manual - - 938332EX

42" Raptor Parts Manual - - 938332EX
Illustrated Parts List

42" Raptor Parts Manual - - 938332EX

This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.

Model: 938332EXModel: 123637Model: 029629Model: 123636Model: 553148Model: 602041Model: 604176Model: 551858Model: 551859Model: 604177+17 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

Sections

FrameFenders & Instrument PanelBatteryEngine GuardTransmission Assembly (Multi-Page)Transmission Service PartsSteering & BrakeSteering Cover AssemblyWheel & TireFront Wheel BreakdownDrive Wheel BreakdownEngine (Multi-Page)Engine (Multi-Page)Engine Service PartsFuel SystemService DeckDeck Pulleys & SpindlesDeckDeck LiftSeatSeat Service Parts

Frame

Diagram

42" Raptor Parts Manual - - 938332EX - Frame diagram
Tap/click to enlarge. Source page 4.
RefDescriptionPart numberQtyCutsmart SKU
1SEAT SUPPORT123637-31123637-3-Online
2CS .375-16X0.750FLK02962910HT029629-Online
3SPRING SUPPORT123636-31123636-3-Online
4SERVICE, BUMPER STAMPED5531481553148-Online
5DECAL, HOT6020411602041-Online
6CS .375-16x.75 HXFLK PLN60417630604176-Online
7SVC, ENGINE PLATE5518581551858-Online
8SVC, RS REAR BRKT5518591HT551859-Online
9NT .375-16 HXFLK PLN60417730604177-Online
10DECAL, PUMP BELT WARNING6008991600899-Online
11SVC, LS REAR BRKT5518601HT551860-Online
12NT .375-16 FLKG501689910HT016899-Online
13CN .250-20X .150 MAX THK6019825601982-Online
14SVC, CROSS SUPPORT5518612551861-Online
15SVC, FRONT BRKT5518622HT551862-Online
16SVC, HYDRO BRKT5518632HT551863-Online
17BATTERY TRAY5525702552570-Online
18SVC, FOOT PAN5518651551865-Online
19SVC, RS FRAME CHANNEL5524071552407-Online
20DECAL, LEVEL FUEL BLOWM6057821605782-Online
21SVC, LS FRAME CHANNEL5518681551868-Online
22SERIAL NUMBER / SPEC DECALN/A2No SKU
23DECAL, ENGINE COMPART6019671601967-Online
24MOUNT, PUSH BUTTON6043076604307-Online
25WIRE TIE, SMALL/SHORT0003316000331-Online
26SVC, FRONT CROSS FRAME5518671HT551867-Online
27DECAL, SAFE OPERATE-GRAY6019811601981-Online

Fenders & Instrument Panel

Diagram

42" Raptor Parts Manual - - 938332EX - Fenders & Instrument Panel diagram
Tap/click to enlarge. Source page 7.
RefDescriptionPart numberQtyCutsmart SKU
1CABLE, CHOKE6010971HT601097-Online
2SWITCH, PTO 6201-3217764761HT776476-Online
3KEY ASSEMBLY7858081785808-Online
4SERVICE, INSTR PANEL5518981551898-Online
5DECAL, INST PANEL6041961604196-Online
6IGNITION SWITCH0458981HT045898-Online
7CS .250-20X0.750HXG50559391055939-Online
8CB 10-24 X .500 ZYNC6010982601098-Online
9FW 0.219X0.500X0.0487049322HT704932-Online
10NT #10-24 HX NL ZN0598322059832-Online
11CABLE, THROTTLE6010961601096-Online
12CS .250-20 X .75 HX FLG6043248604324-Online
13SVC, FENDER RS5528091552809-Online
14SVC, FENDER LS5528101552810-Online
15CN .250-20X .150 MAX THK6019821601982-Online
16SVC, FOOTREST5535051553505-Online
17DECAL, HUSTLER ID6024071602407-Online
18CS .375-16X0.750FLK0296292HT029629-Online
19NT .375-16 FLKG50168992HT016899-Online
20WIRE TIE, SMALL/SHORT0003312000331-Online
21DECAL, RAPTOR FENDER6043882604388-Online
22KIT, CLUTCH CONN. REP.1140521HT114052-Online
23RELAY, SEALED W/BRACKET6010532HT601053-Online
24WIRE HARNESS6048761604876-Online

Battery

Diagram

42" Raptor Parts Manual - - 938332EX - Battery diagram
Tap/click to enlarge. Source page 9.
RefDescriptionPart numberQtyCutsmart SKU
1STRAP, TIE DOWN6041781604178-Online
2CS .250-20 x 7.50 HX G56044652604465-Online
3FW 0.281SAE7685152HT768515-Online
4BATTERY CBL BOOT-RED(FS)7714281771428-Online
5NT .250-20HXG50249272HT024927-Online
6LW0.250INTEXT0298684029868-Online
7CS .250-20X0.750HXG50559392055939-Online
8WIRE TIE, SMALL/SHORT0003312000331-Online
9CN .250-20X .150 MAX THK6019822601982-Online

Engine Guard

Diagram

42" Raptor Parts Manual - - 938332EX - Engine Guard diagram
Tap/click to enlarge. Source page 11.
RefDescriptionPart numberQtyCutsmart SKU
1KIT, ENGINE GUARD1228171122817-Online
2DECAL, H LOGO, MFSD 36/46047451604745-Online
3CS .375-16X0.750FLK0296294HT029629-Online
4NT .375-16 FLKG50168994HT016899-Online
5DECAL, HOT6020411602041-Online

Transmission Assembly (Multi-Page)

Diagram

42" Raptor Parts Manual - - 938332EX - Transmission Assembly (Multi-Page) diagram
Tap/click to enlarge. Source page 13.
RefDescriptionPart numberQtyCutsmart SKU
1CS .312-18X2.500HXG57100874HT710087-Online
2CB .375-16 X 2.25 STD ZN6043431604343-Online
3CS .312-18X3.000HXG50430674HT043067-Online
4NT .375-16 FLKG50168992HT016899-Online
5BELT, DRIVE6039071603907-Online
6CS .375-16X1.500HXG50806551HT080655-Online
7FW 0.379 x 0.813 x 0.06376795410HT767954-Online
8PULLEY, 2.0" IDLER6044911604491-Online
9SPRING, 3.00 X .50 EXT6044901604490-Online
10CS .375-16X3.500HXG50051081HT005108-Online
11SPACER, PIVOT IDLER1162891HT116289-Online
12IDLER ARM1162871HT116287-Online
13FW 0.406X1.250X0.1207128931HT712893-Online
14NT .375-16NLG80866601HT086660-Online
15NT .375-16HXG50545025HT054502-Online
16HP0.080X1.1907065492HT706549-Online
17LINK, TOW VALVE1162182HT116218-Online
18FW 0.343SAE76852316HT768523-Online
19NT .312-18NLG50587768HT058776-Online
20CS .375-16X2.250HXG50560364056036-Online
21CROSS BRACE, HYDROSTAT123634-31123634-3-Online
22EZT, 19.2:1 TRANS6041271604127-Online
23EZT, 19.2:1 TRANS6041281604128-Online
24ROD, BRAKE ACTUATOR1161432HT116143-Online
25FW 0.281SAE7685158HT768515-Online
26OVERTRAVEL SPRING6010512HT601051-Online
27NT .250-20 HXZY NL0685512HT068551-Online
28SPRING, BRAKE ARM RET.6011312HT601131-Online

Transmission Service Parts

Diagram

42" Raptor Parts Manual - - 938332EX - Transmission Service Parts diagram
Tap/click to enlarge. Source page 17.
RefDescriptionPart numberQtyCutsmart SKU
1PARKING PAWL KIT, EZT7950471HT795047-Online
2RING, RETAINING7983711798371-Online
3GEAR, PARK BRAKE7983631HT798363-Online
4FAN / PULLEY KIT6020941602094-Online
5KIT, HUB 4 BOLT6014331601433-Online
6NUT, H-G ZT HUB7888771788877-Online
7HG RTN SPRING6049031604903-Online
8HG RTN CW6049011604901-Online
8HG RTN CCW6049021604902-Online

Steering & Brake

Diagram

42" Raptor Parts Manual - - 938332EX - Steering & Brake diagram
Tap/click to enlarge. Source page 19.
RefDescriptionPart numberQtyCutsmart SKU
1DAMPER6039832603983-Online
2BALL STUD, DAMPER7819224781922-Online
3FW 0.343SAE7685236HT768523-Online
4CN .312-18x.200 MAX THK6010692HT601069-Online
5FW 0.281SAE7685154HT768515-Online
6CP .062DX1.000 LG HML Z0485532048553-Online
7SB0.312X0.750SH0.250-207724832HT772483-Online
8STEERING ROD S/A6052732605273-Online
9NT .250-20 HXZY NL0685512HT068551-Online
10NT .312-24NLG50236552HT023655-Online
11CLIP, SAFETY6065752606575-Online
12STEERING BAR W/ GRIP1103702110370-Online
12GRIP, STEERING BAR7812601781260-Online
13CS .375-16X0.750FLK0296295HT029629-Online
14FW 0.379 x 0.813 x 0.0637679544HT767954-Online
15CS .375-16X1.000HXG536244436244-Online
16NT .375-16 FLKG50168996HT016899-Online
17NT .312-18HXG50342722HT034272-Online
18CS .375-16X1.000 HXFLK0297511029751-Online
19YOKE, 5/16-246041732604173-Online
20NT .312-24 HX ZNYC0411526HT041152-Online
21ROD, STEERING6039052603905-Online
22BLOCK, STEERING CONTROL1161442HT116144-Online

Steering Cover Assembly

Diagram

42" Raptor Parts Manual - - 938332EX - Steering Cover Assembly diagram
Tap/click to enlarge. Source page 21.
RefDescriptionPart numberQtyCutsmart SKU
1CS .250-20x2.00 HX FLTHD6044522604452-Online
2FW 0.281SAE7685154HT768515-Online
3STOP, STEERING6055292605529-Online
4SERVICE, LATCH5519121HT551912-Online
5CS .375-16X0.750FLK0296291HT029629-Online
6NT .375-16 FLKG50168991HT016899-Online
7CS .250-20X0.750HXG50559392055939-Online
8NUT PLATE, .420 CENTERS6018222601822-Online
9SWITCH, PUSH BUTTON7812112HT781211-Online
10NT .375-16NLG80866602HT086660-Online
11CS .500-13X4.250HXG57817082HT781708-Online
12NT .500-13NLG57815672HT781567-Online
13CS #10-24X0.750FLKG50631984063198-Online
14CS .375-16X3.500HXG50051082HT005108-Online
15SPACER, STEERING6042882604288-Online
16STEERING BOX SUB, LH6061061606106-Online
17FW 0.343SAE7685238HT768523-Online
18NT .312-18NLG50587764HT058776-Online
19BRAKE LINK6041792604179-Online
20BRAKE BLCRNK, LH1161421116142-Online
21BUSHING,IGUS#0608 (FS)7653394HT765339-Online
22STEERING BOX SUB, RH6061051606105-Online
23BRAKE BLCRNK, RH1161411116141-Online
24DECAL, STEERING R.S.7852201785220-Online
25DECAL ID, RAPTOR6041951604195-Online
26DECAL, STEERING L.S.7851391785139-Online
27STEERING COVER, SERVICE5516981551698-Online
28DECAL, DECK HEIGHT6042751604275-Online
29BUSHING, UHMW7811532HT781153-Online

Wheel & Tire

Diagram

42" Raptor Parts Manual - - 938332EX - Wheel & Tire diagram
Tap/click to enlarge. Source page 24.
RefDescriptionPart numberQtyCutsmart SKU
1TIR/WHL 18X8.50-8 SLV6040132604013-Online
2WHEEL NUT0610778HT061077-Online
3CS .500-13X1.250HSG57059542HT705954-Online
4FW .510X 2.15X.187 SPL3442672HT344267-Online
5FW 0.531X1.375X0.1257129762HT712976-Online
6BEARING7842234HT784223-Online
7SPACER7846032HT784603-Online
8FRONT WHEEL ASSEMBLYN/A1No SKU

Front Wheel Breakdown

Diagram

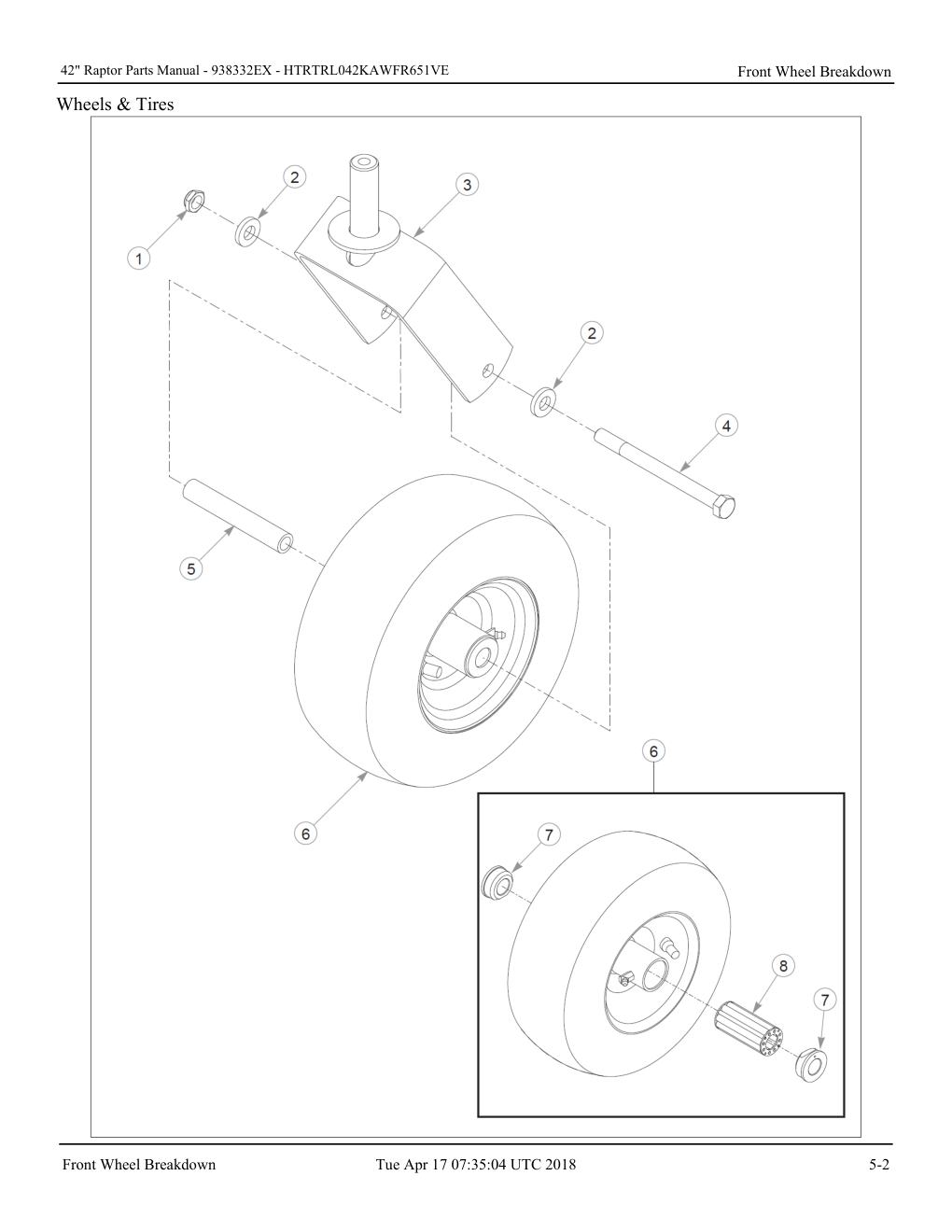

42" Raptor Parts Manual - - 938332EX - Front Wheel Breakdown diagram
Tap/click to enlarge. Source page 26.
RefDescriptionPart numberQtyCutsmart SKU
1NT .500-13 JAM NY LK7073981HT707398-Online
2FW .531 x 1.063 x .1757679622HT767962-Online
3CASTER FORK W/A1101161HT110116-Online
4CS .500-13 X 6.00 HX G56047181604718-Online
5GAGE WHEEL SPACER3069691HT306969-Online
6TIR/WHL 11X4.00-5 SLV6051131605113-Online
6T/W 11X4.00-5 RIBBED7680441768044-Online
7BEARING CAP7728062HT772806-Online
8BEARING, 3/4" ROLLER7728141HT772814-Online

Drive Wheel Breakdown

Diagram

42" Raptor Parts Manual - - 938332EX - Drive Wheel Breakdown diagram
Tap/click to enlarge. Source page 28.
RefDescriptionPart numberQtyCutsmart SKU
1TIR 18X8.50-8 B2R GRMR6042671604267-Online
2WHL 8X6.93 4X4.0 SLV6018201601820-Online
3TIRE VALVE TR-412 GOODY0195211HT019521-Online

Engine (Multi-Page)

Diagram

42" Raptor Parts Manual - - 938332EX - Engine (Multi-Page) diagram
Tap/click to enlarge. Source page 30.
RefDescriptionPart numberQtyCutsmart SKU
2HOSE, OIL DRAIN60446312"604463-Online
3MUFFLER, FR730V6040161604016-Online
4NT .375-16 FLKG50168991HT016899-Online
5CLUTCH ANCHOR1216251121625-Online
6FW 0.379 x 0.813 x 0.0637679545HT767954-Online
7CS .375-16X1.000HXG50362441HT036244-Online
8CS .375-16x1.25 HXG8 P856025804602580-Online
9PULLEY, ENG 4.094OP6055741605574-Online
10KEY 1/4 SQ X 0.66 LG(FS)7123721HT712372-Online
11WIRE TIE, SMALL/SHORT0003313000331-Online
12HARNESS, CLUTCH PIGTAIL7912511HT791251-Online
13BUSHING, CLUTCH6055951605595-Online
14CLUTCH KIT605827K1605827K-Online
15FW .453X 1.12X .119 HRD6026801602680-Online
16CS .437-20X3.00 HXG5 P857850481HT785048-Online
17CS .250-20X0.750HXG50559392055939-Online
18FW 0.281SAE7685154HT768515-Online
19NT #10-32HXG50442551044255-Online
20STARTER SOLENOID HW KIT0308171HT030817-Online
21NT .250-20HXG50249272HT024927-Online
22LW 0.312 INT-EXT0298761029876-Online
23CS M8-1.25X16HX FL10.97205161720516-Online
24CLIP, HOSE CLAMP0003232000323-Online
25FUEL LINE, 1/4"01581818"HT015818-Online

Engine (Multi-Page)

Diagram

42" Raptor Parts Manual - - 938332EX - Engine (Multi-Page) diagram
Tap/click to enlarge. Source page 32.
RefDescriptionPart numberQtyCutsmart SKU
26VAPOR LINE, 3/16 FORMED6042741604274-Online

Engine Service Parts

Diagram

42" Raptor Parts Manual - - 938332EX - Engine Service Parts diagram
Tap/click to enlarge. Source page 34.
RefDescriptionPart numberQtyCutsmart SKU
1AIR FILTER, KAW6030591603059-Online
2FUEL FILTER IN-LINE0684781068478-Online
3OIL FILTER, KAW ENG.6025811602581-Online
4VALVE, OIL DRAIN6043501604350-Online
5O-RING6043691604369-Online

Fuel System

Diagram

42" Raptor Parts Manual - - 938332EX - Fuel System diagram
Tap/click to enlarge. Source page 36.
RefDescriptionPart numberQtyCutsmart SKU
1FUEL TANK6064321606432-Online
2CAP, 3.5" RATCHETING GAS6038071603807-Online
3TANK MNT LEFT1170591117059-Online
4TANK MNT RIGHT1170601117060-Online
5SEAL 3/8x3/4 SOLD BY FT71319818.5"713198-Online
6CS .250-20X0.750HXG50559393055939-Online
7FW 0.281SAE7685153HT768515-Online
8VAPOR LINE, 3/16 FORMED6042791604279-Online
91/4" HOSE BARB CROSS6043221604322-Online
10VAPOR LINE, 3/16 FORMED6042731604273-Online
11BOOT, 3/16" TO 1/4" BARB6042921604292-Online
12FILTER, VAPOR SYSTEM6043231604323-Online
13WIRE TIE, SMALL/SHORT0003312000331-Online
14MOUNT, PUSH BUTTON6043072604307-Online
15WEATHERSTRIP .12X.7503303522"033035-Online
16GM .63 x1.13 x.88 x .136014001601400-Online

Service Deck

Diagram

42" Raptor Parts Manual - - 938332EX - Service Deck diagram
Tap/click to enlarge. Source page 38.
RefDescriptionPart numberQtyCutsmart SKU
1SVC, DECK DECAL ASSY5544451554445-Online
2DECAL, DANGER / OBJECTS6042221604222-Online
3DECAL,42 DECK ID7935211793521-Online
4DECAL, DANGER / CHUTE6042211604221-Online

Deck Pulleys & Spindles

Diagram

42" Raptor Parts Manual - - 938332EX - Deck Pulleys & Spindles diagram
Tap/click to enlarge. Source page 40.
RefDescriptionPart numberQtyCutsmart SKU
1NT .500-13NLG57815672HT781567-Online
2FW .531 x 1.063 x .1757679622HT767962-Online
3IDLER PULLEY, 4.00" FLAT6039861603986-Online
4NT .375-16NLG80866601HT086660-Online
5FW 0.406X1.250X0.1207128932HT712893-Online
6IDLER ARM, PIVOTING1175961HT117596-Online
7SPRING1223881122388-Online
8ANCHOR, SPRING TENSIONER6041101604110-Online
9PIVOT SPACER BUSHING6018391601839-Online
10SPACER, IDLER ARM1175391HT117539-Online
11CB .50-13 X 2.00 STD ZN6042531604253-Online
12IDLER PULLEY, 4.00" FLAT6042191604219-Online
13NT .562-18 HX NLG56069432606943-Online
14PULLEY, 12 POINT6039872603987-Online
15SPACER, PULLEY6041232604123-Online
16CS .312-18X1.000HXG50362368036236-Online
17FW 0.343SAE7685238HT768523-Online
18NT .312-18 HXNL JAM G2ZN6042511604251-Online
19TENSIONING PULLEY STOP1223981122398-Online
20CB .312-18X 1.000 FUL YZ0378871HT037887-Online
21CS .375-16X1.500HXG50806551HT080655-Online
22CB .50-13 X 2.50 STD ZN6042541604254-Online
23SPINDLE ASSY, RAPTOR6042142604214-Online

Deck

Diagram

42" Raptor Parts Manual - - 938332EX - Deck diagram
Tap/click to enlarge. Source page 42.
RefDescriptionPart numberQtyCutsmart SKU
1PULLEY COVER6044032604403-Online
2CS .250-20 X .75 HX FLG6043244604324-Online
3BELT,A 116" EL7938281HT793828-Online
4RAPTOR DISCHARGE CHUTE6069311606931-Online
5PIN, CHUTE6069811606981-Online
6CHUTE SPRING6043311604331-Online
7CLIP E .66 X .303 X .0356033321603332-Online
8CS .375-16x2.00 HXG5 P856065932606593-Online
9LINK, DECK LIFT1175322HT117532-Online
10NT .375-16 FLKG50168992HT016899-Online
11PIVOT SPACER BUSHING6018391601839-Online
12DECK LINK1161552HT116155-Online
13NUT, DECK LEVELING6050161605016-Online
14CAM, DECK LEVELER1169111HT116911-Online
15FW 0.379 x 0.813 x 0.0637679541HT767954-Online
16NT .375-16JAMG57061681HT706168-Online
17WHEEL ASSY, ANTI SCALP7881661HT788166-Online
18NT .500-13NLG57815671HT781567-Online
19FW .531 x 1.063 x .1757679623HT767962-Online
20BLADE,20.50"-L-F-CW7937942HT793794-Online
20BLADE, F20.50"-H-F-CW7946852HT794685-Online
20BLADE, 20.50", -M-F-CW6039922603992-Online
20BLADE, F20.50"-L-F-CW6009012HT600901-Online
20BLADE,20.50"-CAT-F-CW7939352HT793935-Online
20BLADE,20.50"GAT-F-CW7942302HT794230-Online
20BLADE,20.50"-MUL-F-CW7942142HT794214-Online
21FW .453X 1.12X .119 HRD6026802602680-Online
22CS .437-20X1.250HXG57541012HT754101-Online
23CS .500-13X4.250HXG57817081HT781708-Online
24ANTI-SCALP WHEEL0319971HT031997-Online
25NT .500-13JAMG50531991HT053199-Online

Deck Lift

Diagram

42" Raptor Parts Manual - - 938332EX - Deck Lift diagram
Tap/click to enlarge. Source page 45.
RefDescriptionPart numberQtyCutsmart SKU
1HANDLE W/A, DECK LIFT1206771120677-Online
2PIVOT BLOCK, DECK LIFT1161512HT116151-Online
3CS .375-16X0.750FLK0296294HT029629-Online
4NT .375-16 FLKG50168996HT016899-Online
5NT .375-16 FL NY GF6045154604515-Online
6GRIP, 1/4 X 1.000 BLACK6043771604377-Online
7FW 0.406X1.000X0.120HD7129192HT712919-Online
8PIVOT SPACER BUSHING6018392601839-Online
9CS .375-16X1.3750051162HT005116-Online
10CE0.500X1.250X.156X1.0930277141HT027714-Online
11CP .156DX1.000 LG HML Z0172511HT017251-Online
12FW .531 x 1.063 x .1757679621HT767962-Online
13CS .375-16X1.000 HXFLK0297512029751-Online
14KIT, DECK PIVOT1212321121232-Online

Seat

Diagram

42" Raptor Parts Manual - - 938332EX - Seat diagram
Tap/click to enlarge. Source page 47.
RefDescriptionPart numberQtyCutsmart SKU
1SEAT, SEATS INC 9076061461606146-Online
2SERVICE, SEAT PAN5518971551897-Online
3MOUNT, PUSH BUTTON6043071604307-Online
4FW 0.379 x 0.813 x 0.0637679544HT767954-Online
5NT .375-16NLG80866602HT086660-Online
6WIRE TIE, SMALL/SHORT0003311000331-Online
7FW 0.343SAE7685234HT768523-Online
8CS .312-18X1.000HXG50362364036236-Online
9CS .375-16X0.750FLK0296292HT029629-Online
10SPRING,COMP 1.25X4.00X.7938512HT793851-Online
11NT .375-16 FLKG50168992HT016899-Online
12CS .375-16X1.000HXG50362442HT036244-Online
13DECAL, BATTERY WARNINGS6018151601815-Online
14DECAL, BELT ROUTING6022431602243-Online

Seat Service Parts

Diagram

42" Raptor Parts Manual - - 938332EX - Seat Service Parts diagram
Tap/click to enlarge. Source page 49.
RefDescriptionPart numberQtyCutsmart SKU
1SVC, ARM PADS6060812606081-Online
2SVC, ARMEST SET6060852606085-Online
3SVC, OPS6060821606082-Online
4SVC, BACK CUSHION6061471606147-Online
5SVC, SEAT CUSHION6061481606148-Online
Source manual: 20180419-745_938332ex.pdf. Extracted rows in this article: 311. Upload the images in this package to /images/ipl/Hustler/.
\n
\n
