Illustrated Parts List
36" & 42" Decks Parts Manual - 333559
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 333559Model: 601393Model: 793083Model: 601127Model: 793117Model: 768044SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Mower Frame Rivet Nut InstallationEngine Guard and Anti-rollover Bracket AssembliesFootrest AssemblyBattery InstallationDeck Lift AssemblyHydro Transmission Installation S/N Prior To 07091558Hydro Transmission Installation S/N Higher Than 07091558Steering and Brake AssemblyHonda 16 HP Engine Installation-S/N Prior To 09010000Honda 16 HP Engine Installation-S/N Higher Than 09010000Kohler 15 & 17 HP Engine InstallationFuel System InstallationInstrument Panel InstallationFront Wheel AssemblyFront Wheel Breakdown -768044Drive Wheel AssemblyDeck Assembly 36" SN Prior to 10020000Deck Assembly 36" SN Higher Than 10020000Deck Pulley Assembly 36"Deck Assembly 42" SN Prior to 10020000Deck Assembly 42" SN Higher Than 10020000Deck Pulley Assembly 42"Blade Spindle Assembly BreakdownDeck InstallationSeat InstallationMower Decals42" Deck Decals36" Deck DecalsMower Frame Rivet Nut Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 FASTRAK 36 FRAME | 546911 | 315440 | 546911-Online |
| 546895 | FASTRAK 42 FRAME | 320242 | 1 | 320242-Online |
| 2 | 2 3/8-16 THREAD RIVET NUT | 808493 | 808493 | 808493-Online |
| 3 | 2 1.5 SQ TUBE PLUG | 793869 | 793869 | 793869-Online |

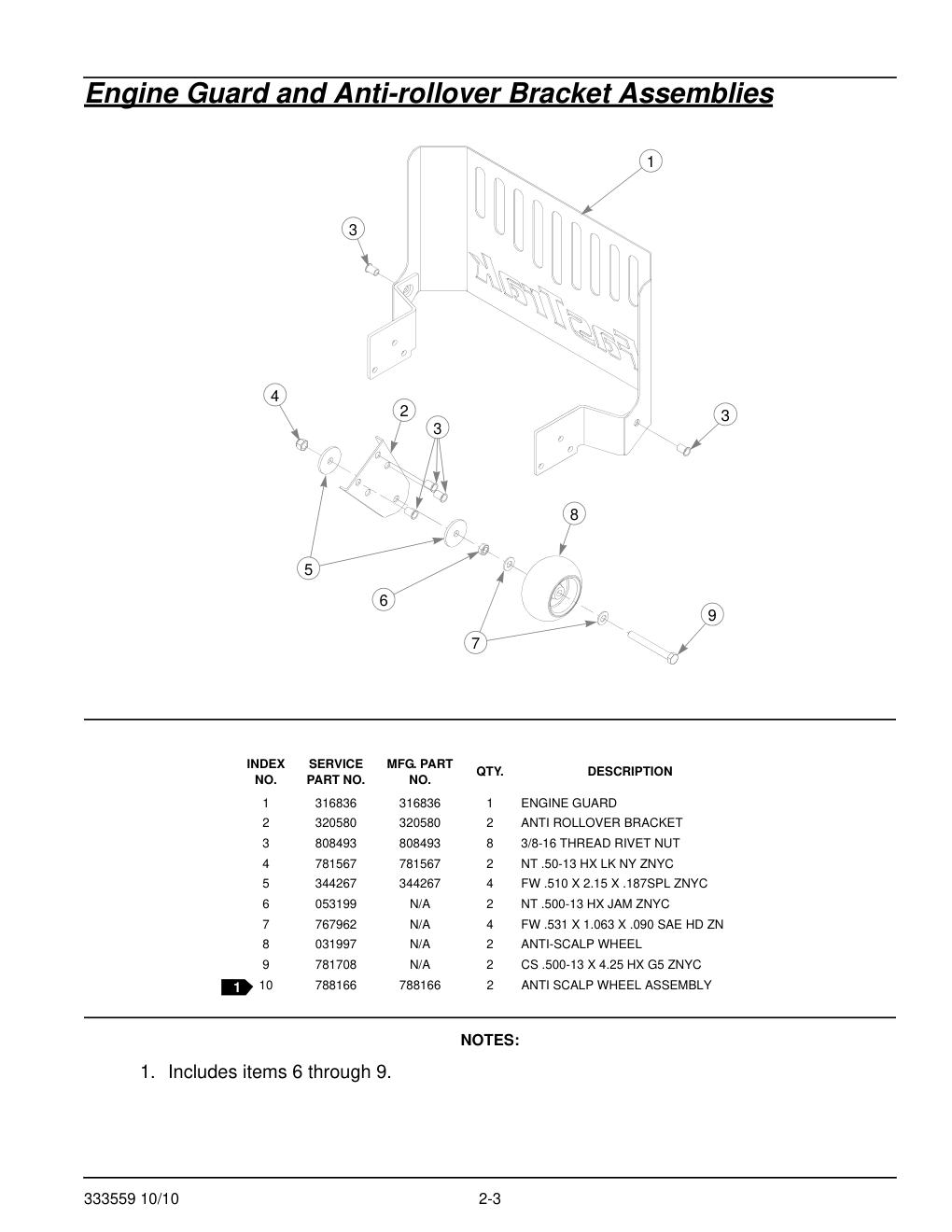

Engine Guard and Anti-rollover Bracket Assemblies
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 ENGINE GUARD | 316836 | 316836 | 316836-Online |
| 2 | 2 ANTI ROLLOVER BRACKET | 320580 | 320580 | 320580-Online |
| 3 | 8 3/8-16 THREAD RIVET NUT | 808493 | 808493 | 808493-Online |
| 4 | 2 NT .50-13 HX LK NY ZNYC | 781567 | 781567 | HT781567-Online |
| 5 | 4 FW .510 X 2.15 X .187SPL ZNYC | 344267 | 344267 | HT344267-Online |
| 6 | 2 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 7 | 4 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 8 | 2 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 9 | 2 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |
| 10 | 2 ANTI SCALP WHEEL ASSEMBLY | 788166 | 788166 | HT788166-Online |

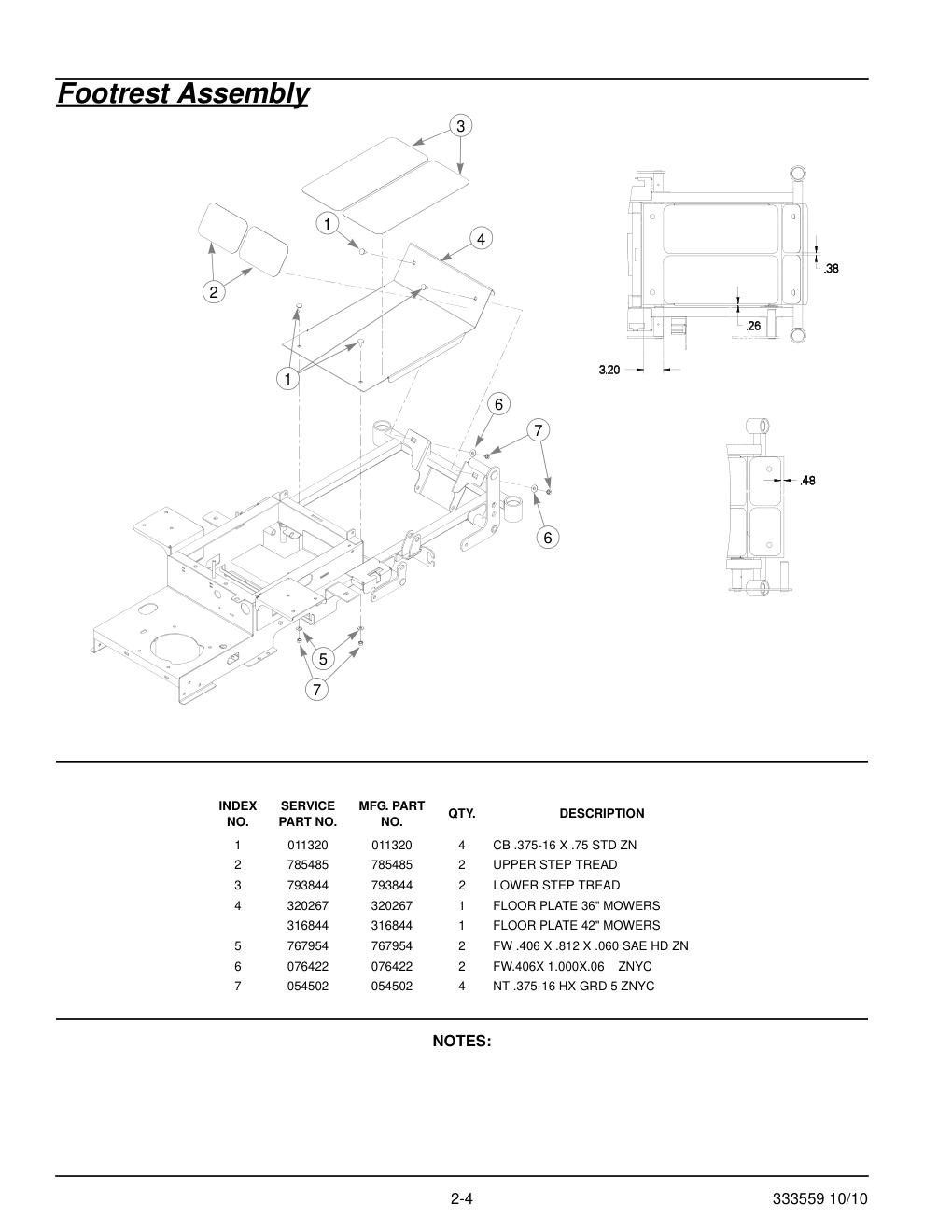

Footrest Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 4 CB .375-16 X .75 STD ZN | 011320 | 011320 | 011320-Online |
| 2 | 2 UPPER STEP TREAD | 785485 | 785485 | 785485-Online |
| 3 | 2 LOWER STEP TREAD | 793844 | 793844 | 793844-Online |
| 4 | 1 FLOOR PLATE 36" MOWERS | 320267 | 320267 | 320267-Online |
| 316844 | FLOOR PLATE 42" MOWERS | 316844 | 1 | 316844-Online |
| 5 | 2 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 6 | 2 FW.406X 1.000X.06 ZNYC | 076422 | 076422 | 076422-Online |
| 7 | 4 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
Battery Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 BATTERY CLAMP STRAP | 314989 | 314989 | 314989-Online |
| 2 | 3 NT .250-20 HX GR.5 ZNYC | 024927 | 024927 | HT024927-Online |
| 3 | 2 CS .250-20 X .75 HX G5 ZNYC | 055939 | 055939 | 055939-Online |
| 4 | 4 LW .250 INT-EXT TOOTH ZNYC | 029868 | 029868 | 029868-Online |
| 5 | 1 BATTERY VU1LH-8 | 740696 | 740696 | 740696-Online |
| 6 | 1 RED BATTERY CABLE BOOT | 771428 | 771428 | 771428-Online |
| 7 | 1 POSITIVE BATTERY CABLE (KOHLER) | 785063 | 785063 | 785063-Online |
| 786632 | POSITIVE BATTERY CABLE (HONDA) | 786632 | 1 | 786632-Online |
| 8 | 1 NEGATIVE BATTERY CABLE | 786640 | 786640 | 786640-Online |
| 9 | 1 BATTERY CLAMP ROD | 793489 | 793489 | 793489-Online |
Deck Lift Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 STOP HANDLE | 348318 | 348318 | HT348318-Online |
| 2 | 1 HEIGHT ADJUSTMENT STOP | 348284 | 348284 | HT348284-Online |
| 3 | 1 DECK HEIGHT INDICATOR | 793505 | 793505 | HT793505-Online |
| 4 | 1 DECK LIFT SPRING | 782995 | 782995 | HT782995-Online |
| 5 | 2 CS .437-14 X 1.75 HX G5 ZNYC | 055749 | 055749 | HT055749-Online |
| 6 | 1 DECK LIFT LINK | 334045 | 334045 | 334045-Online |
| 7 | 6 NT .437-14 HX FLG ZN | 704643 | 704643 | HT704643-Online |
| 8 | 4 FW .760 X 1.625 X .08 ZNYC | 025296 | 025296 | HT025296-Online |
| 9 | 5 E CLIP 1.00 X.625X .050 | 781294 | 781294 | HT781294-Online |
| 10 | 1 CE .750 X 2.25 X 1.75 HEADLESS | 781229 | 781229 | 781229-Online |
| 11 | 3 STRAIGHT GREASE FITTING | 015495 | 015495 | HT015495-Online |
| 12 | 1 CS .312-18 X 1.50 FLTHR GR5 ZNYC | 756270 | 756270 | 756270-Online |
| 13 | 1 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 1 DECK LEVELER YOKE | 348458 | 348458 | HT348458-Online |
| 15 | 1 CS .437-14 X 1.75 FULTH G5 ZNYC | 781831 | 781831 | HT781831-Online |
| 16 | 2 DECK LIFTCHAIN | 360131 | 018846 | HT360131-Online |
| 17 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | 767962 | HT767962-Online |
Hydro Transmission Installation S/N Prior To 07091558
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 8 CS .312-18 X 2.50 HX G5 ZNYC | 710087 | 710087 | HT710087-Online |
| 2 | 2 FW .62 X 1.00 X .134 ZNYC | 028118 | 028118 | HT028118-Online |
| 3 | 1 PULLEY | 794404 | 794404 | HT794404-Online |
| 4 | 2 CS .625-11 X 1.75 HX G5 ZNYC | 025007 | 025007 | HT025007-Online |
| 5 | 1 A-SECTION PUMP BELT | 793836 | 793836 | HT793836-Online |
| 6 | 1 EZT LEFT PUMP/MOTOR COMBO | 792911 | 792911 | 792911-Online |
| 7 | 1 EZT RIGHT PUMP/MOTOR COMBO | 792895 | 792895 | 792895-Online |
| 8 | 1 FW .516 X .875 X .09 ZNYC | 718288 | 718288 | 718288-Online |
| 9 | 1 LW .437 MED SPRING ZYNC | 035238 | 035238 | 035238-Online |
| 10 | 1 NT .375-16 HXZY NL | 794552 | 794552 | 794552-Online |
| 11 | 1 SPACER TUBE-EZT MINI FST | 335695 | 335695 | 335695-Online |
| 12 | 12 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 13 | 8 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 1 4.00"OD, 5/8"ID IDLER PULLEY | 784827 | 784827 | HT784827-Online |
| 15 | 2 UHMW BUSHING | 781153 | 781153 | HT781153-Online |
| 16 | 2 FW .760 X 1.625 X .08 ZNYC | 025296 | 025296 | HT025296-Online |
| 17 | 1 PUMP BELT IDLER ARM | 324046 | 324046 | HT324046-Online |
| 18 | 1 NT .750-10 HX NL ZN | 061101 | 061101 | HT061101-Online |
| 19 | 1 IDLER SPRING | 036384 | 036384 | HT036384-Online |
| 20 | 1 SPRING CHAIN | 364315 | 059931 | HT364315-Online |
| 21 | 2 BELT DEFLECTOR | 335893 | 335893 | 335893-Online |

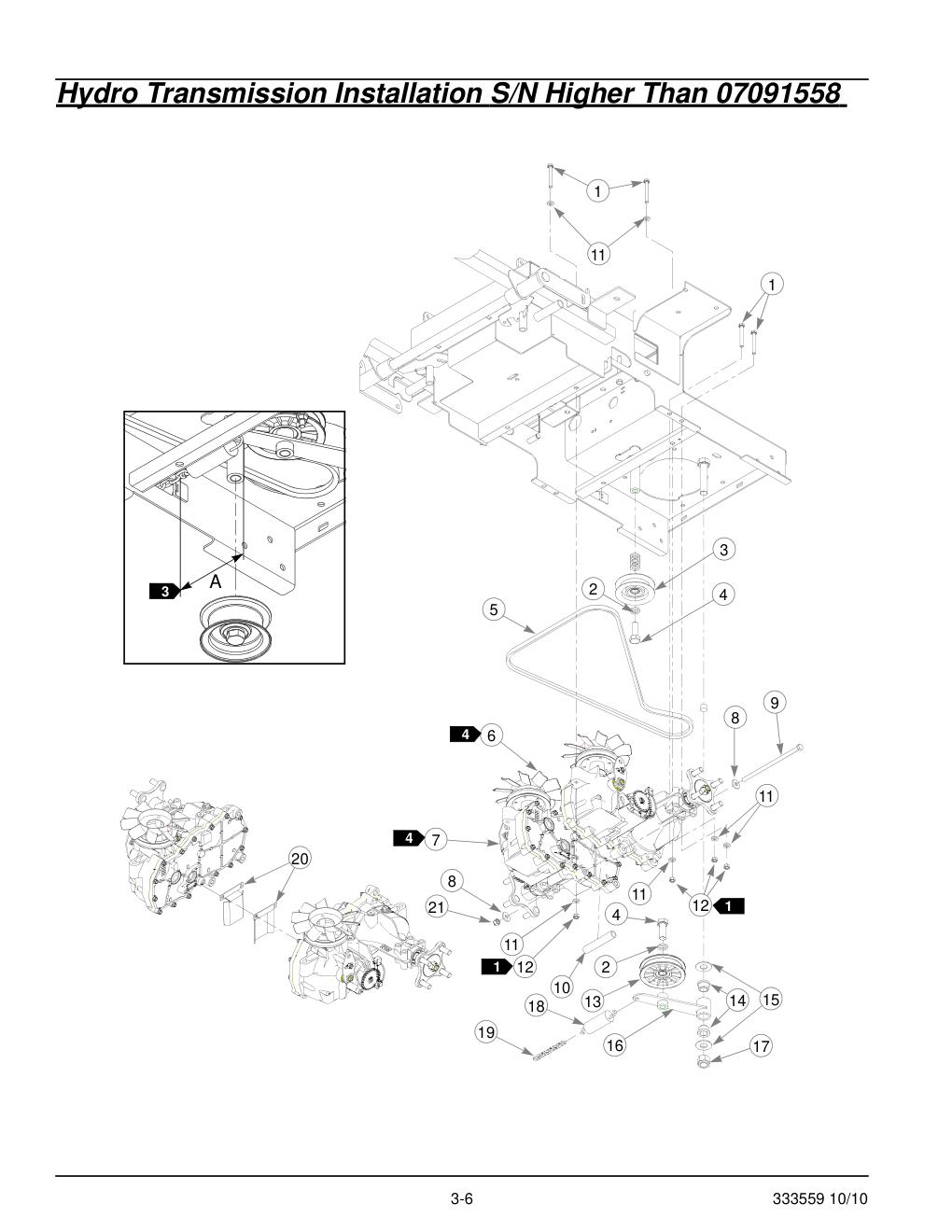

Hydro Transmission Installation S/N Higher Than 07091558
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 8 CS .312-18 X 2.50 HX G5 ZNYC | 710087 | 710087 | HT710087-Online |
| 2 | 2 FW .62 X 1.00 X .134 ZNYC | 028118 | 028118 | HT028118-Online |
| 3 | 1 PULLEY | 601162 | 601162 | 601162-Online |
| 4 | 2 CS .625-11 X 1.75 HX G5 ZNYC | 025007 | 025007 | HT025007-Online |
| 5 | 1 A-SECTION PUMP BELT | 793836 | 793836 | HT793836-Online |
| 6 | 1 EZT LEFT PUMP/MOTOR COMBO | 603085 | 603085 | 603085-Online |
| 7 | 1 EZT RIGHT PUMP/MOTOR COMBO | 603086 | 603086 | 603086-Online |
| 8 | 2 FW .516 X .875 X .09 ZNYC | 712919 | 712919 | HT712919-Online |
| 9 | 1 CS .375-16X8.0 HX.GR5 Z | 721134 | 721134 | 721134-Online |
| 10 | 1 SPACER TUBE-EZT MINI FST | 335695 | 335695 | 335695-Online |
| 11 | 12 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 12 | 8 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 13 | 1 4.00"OD, 5/8"ID IDLER PULLEY | 784827 | 784827 | HT784827-Online |
| 14 | 2 UHMW BUSHING | 781153 | 781153 | HT781153-Online |
| 15 | 2 FW .760 X 1.625 X .08 ZNYC | 025296 | 025296 | HT025296-Online |
| 16 | 1 PUMP BELT IDLER ARM | 324046 | 324046 | HT324046-Online |
| 17 | 1 NT .750-10 HX NL ZN | 061101 | 061101 | HT061101-Online |
| 18 | 1 IDLER SPRING | 036384 | 036384 | HT036384-Online |
| 19 | 1 SPRING CHAIN | 364315 | 059931 | HT364315-Online |
| 20 | 2 BELT DEFLECTOR | 335893 | 335893 | 335893-Online |
| 21 | 1 NT .375-16 HXZY NL | 086660 | 086660 | HT086660-Online |

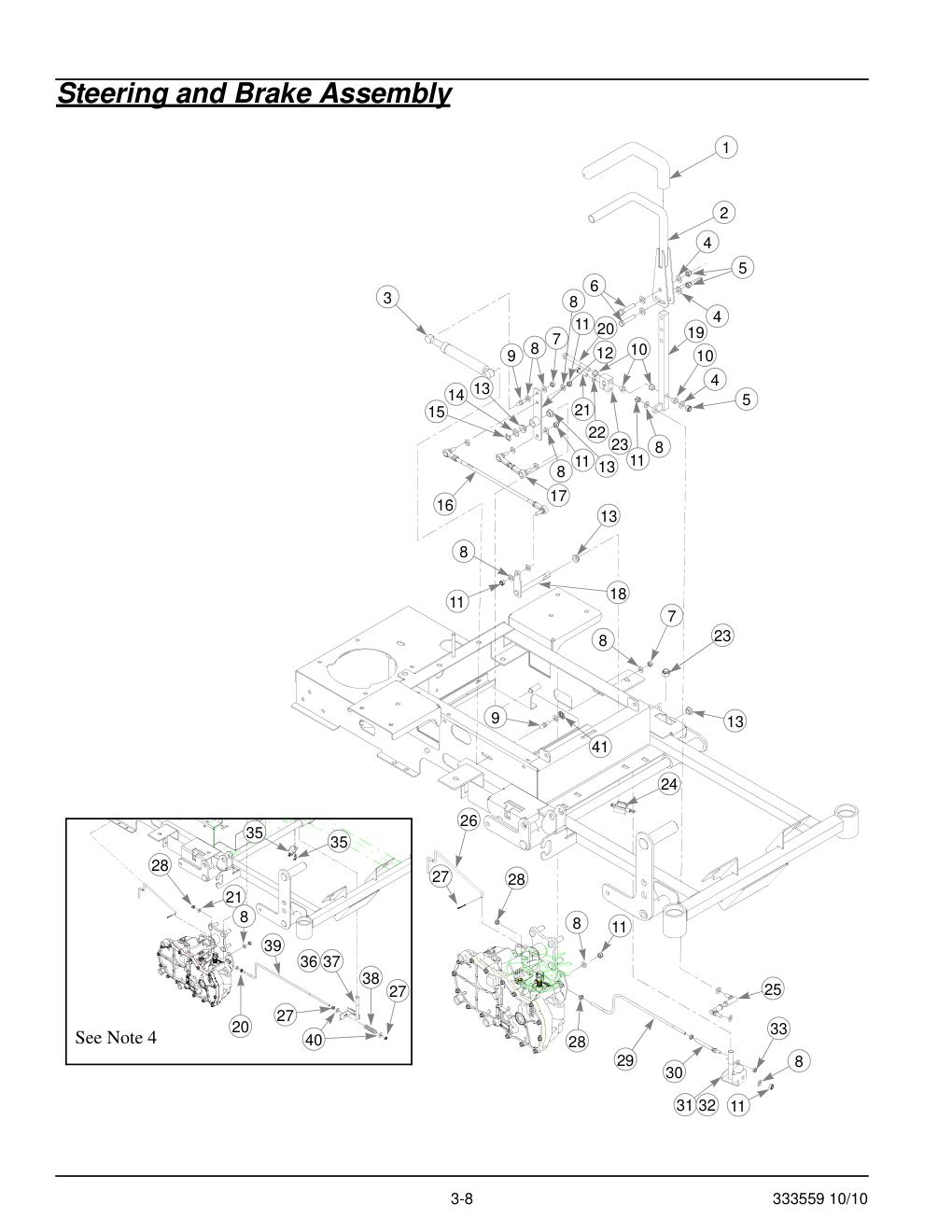

Steering and Brake Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 STEERING BAR GRIP | 781260 | N/A | 781260-Online |
| 2 | 2 STEERING BAR | 360487 | 360487 | 360487-Online |
| 3 | 2 CENTERING DAMPER | 600221 | 600221 | HT600221-Online |
| 783696 | CENTERING DAMPER | 783696 | 2 | HT783696-Online |
| 4 | 10 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 5 | 6 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 6 | 4 CS .375-16 X 1.75 HX G5 ZNYC | 705178 | 705178 | HT705178-Online |
| 7 | 4 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 8 | 22 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 9 | 4 DAMPER BALL STUD | 781922 | 781922 | 781922-Online |
| 10 | 8 IGUS® BUSHING | 797779 | 797779 | HT797779-Online |
| 11 | 12 NT .312-24 HX ZNYC | 023655 | 023655 | HT023655-Online |
| 12 | 2 STEERING CONTROL ARM | 325464 | 325464 | HT325464-Online |
| 13 | 8 IGUS® BUSHING | 768259 | 768259 | HT768259-Online |
| 14 | 2 FW .516 X .875 X .09 ZNYC | 718288 | 718288 | 718288-Online |
| 15 | 2 E CLIP .80X.396X.042 | 793059 | 793059 | 793059-Online |
| 16 | 2 PUMP ROD ADJUSTER ASSEMBLY | 793646 | 793646 | HT793646-Online |
| 17 | 2 STEERING LINK ROD | 794396 | 794396 | HT794396-Online |
| 18 | 2 STEERING DRIVE ARM | 793612 | 793612 | HT793612-Online |
| 19 | 2 STEERING ARM | 797753 | 797753 | HT797753-Online |
| 20 | 2 CS .375-16 X 3.50 HX G5 | 005108 | 005108 | HT005108-Online |
| 21 | 2 CS .312-18 X 1.25 HX G5 ZNYC | 079186 | 079186 | 079186-Online |
| 22 | 2 STEERING BLOCK | 797761 | 797761 | 797761-Online |
| 23 | 2 NT .50-13 HX LK NY ZNYC | 781567 | 781567 | HT781567-Online |
| 24 | 2 SNAP MOUNT PLUNGER SWITCH | 795625 | 795625 | 795625-Online |
| 25 | 2 BALL JOINT LINK | 796615 | 796615 | HT796615-Online |
| 26 | 2 TOWLINK ROD | 793174 | 793174 | HT793174-Online |
| 27 | 2 CP .062D X 1.00 LG HML ZN | 048553 | 048553 | 048553-Online |
| 28 | 4 NT .250-20 HX NL ZNYC | 068551 | 068551 | HT068551-Online |
| 29 | 2 BRAKE ACTUATOR ROD | 797050 | 797050 | HT797050-Online |
| 30 | 2 INLINE BALL JOINT | 795229 | 795229 | HT795229-Online |
| 31 | 1 L. H. BRAKE PIVOT (SHOWN) | 352112 | 352112 | 352112-Online |
| 32 | 1 R. H. BRAKE PIVOT (NOT SHOWN) | 352054 | 352054 | 352054-Online |
| 33 | 2 NT .250-20 HX GR.5 ZNYC | 024927 | 024927 | HT024927-Online |
| 34 | 2 PUSH BUTTON SWITCH, (DELTA) | 781211 | 781211 | HT781211-Online |
| 35 | 4 CS 10-24 X .500 HXFLK ZNYC | 060731 | 060731 | 060731-Online |
| 36 | 1 LEFT BRAKE PIVOT ARM (SHOWN) | 315382 | N/A | HT315382-Online |
| 37 | 1 RIGHT BRAKE PIVOT ARM (NOT SHOWN) | 315101 | N/A | HT315101-Online |
| 38 | 2 COMPRESSION SPRING | 794883 | 794883 | 794883-Online |
| 39 | 2 BRAKE ACTUATOR ROD | 793182 | 793182 | 793182-Online |
| 40 | 4 FW .266 X .750 X .06 ZNYC | 089789 | 089789 | 089789-Online |
| 41 | 2 LW .312 INT-EXT TOOTH Z | 029876 | 029876 | 029876-Online |

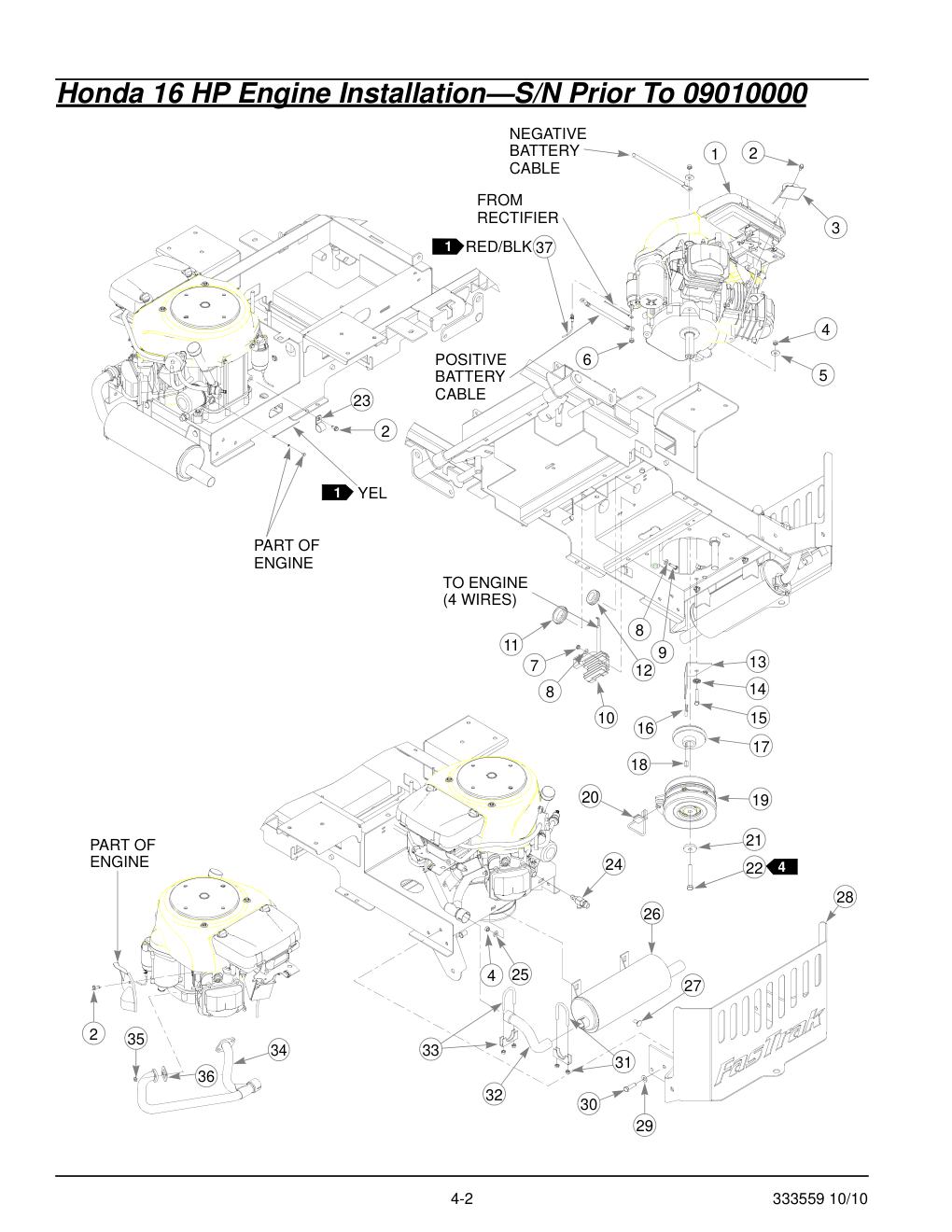

Honda 16 HP Engine Installation-S/N Prior To 09010000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 HONDA 16HP ENGINE (USED ON 927368 & 927376) | N/A | 785394 | No SKU |
| 2 | 3 SC M 6-1.0X15 HX FL STP ZN | 739144 | 792796 | 739144-Online |
| 3 | 1 16HP EXHAUST HEAT SHIELD | 378273 | 378273 | 378273-Online |
| 4 | 6 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 5 | 4 FW .344 X 1.00 X .12 HRD ZNYC | 712927 | 712927 | HT712927-Online |
| 6 | 1 NT M8-1.25 HX STAINLESS STEEL | 782664 | 782664 | 782664-Online |
| 7 | 2 NT .250-20 HX GR.5 ZNYC | 024927 | 024927 | HT024927-Online |
| 8 | 4 FW .281 X .625 X .051/.080 HD ZNYC | 768515 | 768515 | HT768515-Online |
| 9 | 2 CS .250-20 X 1.00 HX G5 ZNYC | 056077 | 056077 | 056077-Online |
| 10 | 1 HONDA 16 AMP RECTIFIER | 787267 | N/A | 787267-Online |
| 11 | 1 GM 1.50 X 2.12 X 1.75 X .12 | 794644 | 794644 | 794644-Online |
| 12 | 1 GM 1.12 X 1.75 X 1.37 X .12 | 706531 | 706531 | 706531-Online |
| 13 | 1 CLUTCH ANCHOR | 330274 | 330274 | 330274-Online |
| 14 | 4 LW .312 INT-EXT TOOTH ZNYC | 029876 | 029876 | 029876-Online |
| 15 | 4 CS .312-18 X 1.75 HX G5 ZNYC | 050161 | 050161 | 050161-Online |
| 16 | 1 RUBBER BUMPER | 784918 | 784918 | HT784918-Online |
| 17 | 1 ENGINE-HYDRO DRIVE PULLEY | 793760 | 793760 | HT793760-Online |
| 18 | 1 KEY 1/4 SQ. X 0.66 LONG | 712372 | 712372 | HT712372-Online |
| 19 | 1 WARNER CLUTCH | 601325 | 601325 | 601325-Online |
| 20 | 1 CLUTCH WIRE HARNESS PIGTAIL | 791251 | N/A | HT791251-Online |
| 21 | 1 FW .454 X 1.50 X.250 | 763417 | 763417 | 763417-Online |
| 22 | 1 CS .437-20 X 3.00 HX G5 ZNYC | 785048 | 785048 | HT785048-Online |
| 23 | 1 SINGLE HOSE CLIP | 043570 | 043570 | 043570-Online |
| 24 | 1 OIL DRAIN VALVE, M16 X 1.5 | 791608 | 791608 | 791608-Online |
| 25 | 2 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 26 | 1 MUFFLER 15,17 KOHLER & 16 HONDA | 793125 | 793125 | 793125-Online |
| 27 | 2 CB .312-18 X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 28 | 1 ENGINE GUARD | 316836 | 316836 | 316836-Online |
| 29 | 6 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 30 | 6 CS .375-16 X 1.25 HX G5 ZNYC | 052860 | 052860 | HT052860-Online |
| 31 | 1 1.125" EXHAUST CLAMP | 794180 | 794180 | HT794180-Online |
| 32 | 1 16 HONDA MID EXHAUST PIPE | 793166 | 793166 | 793166-Online |
| 33 | 1 1.25" EXHAUST CLAMP | 794172 | 794172 | 794172-Online |
| 34 | 1 16 HONDA MANIFOLD | 793141 | 793141 | 793141-Online |
| 35 | 4 NT M6-1.0-10 HX FLG ZN | 005231 | 005231 | 005231-Online |
| 36 | 2 HONDA MUFFLER GASKET | 785543 | N/A | 785543-Online |
| 37 | 1 HONDA WIRE HARNESS | 793083 | 793083 | 793083-Online |
| 38 | 1 OIL DRAIN HOSE (NOT SHOWN) | 104786 | 104786 | 104786-Online |

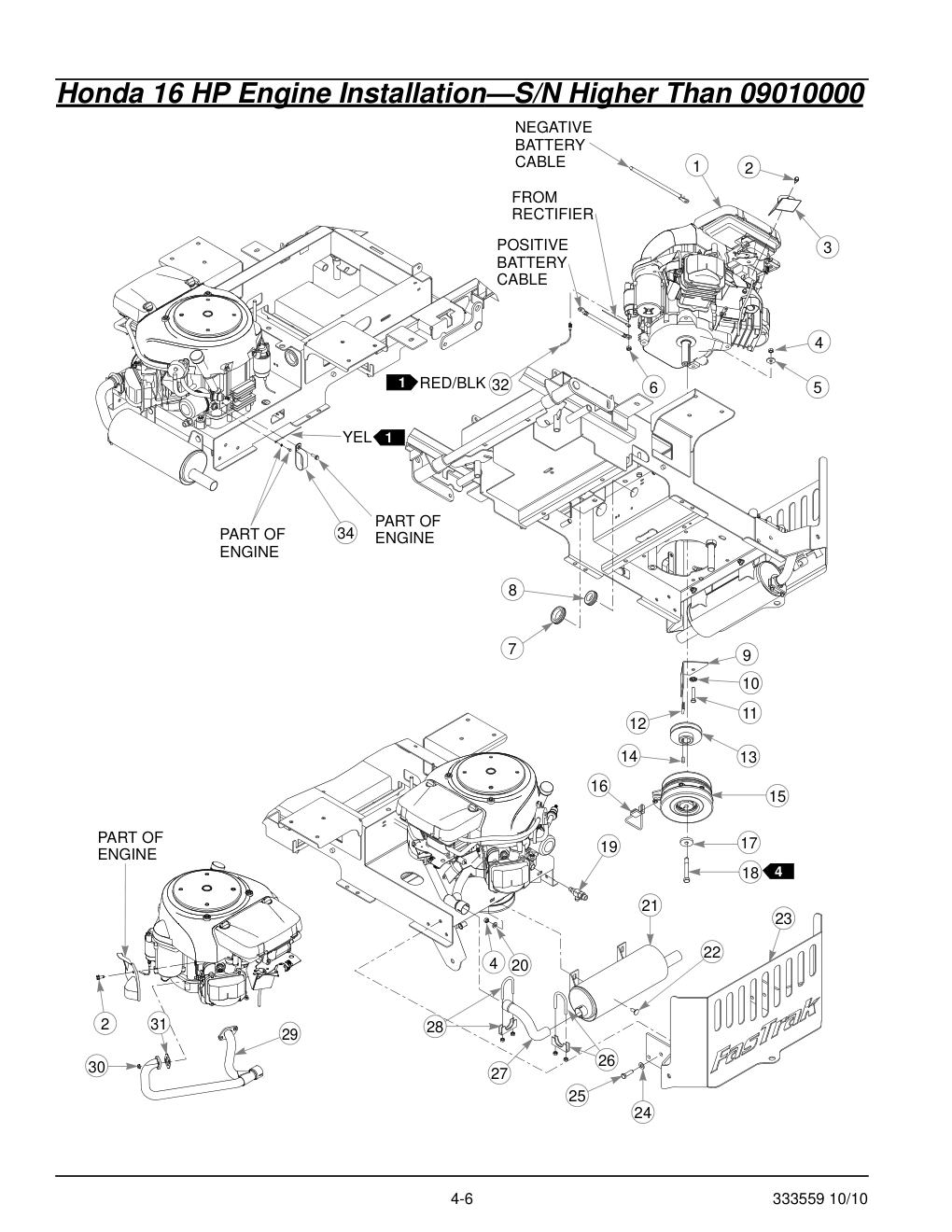

Honda 16 HP Engine Installation-S/N Higher Than 09010000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 HONDA 16HP ENGINE (USED ON 927368 & 927376) | N/A | 785394 | No SKU |
| 2 | 2 SC M 6-1.0X15 HX FL STP ZN | 739144 | 792796 | 739144-Online |
| 3 | 1 16HP EXHAUST HEAT SHIELD | 378273 | 378273 | 378273-Online |
| 4 | 6 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 5 | 4 FW .344 X 1.00 X .12 HRD ZNYC | 712927 | 712927 | HT712927-Online |
| 6 | 1 NT M8-1.25 HX STAINLESS STEEL | 782664 | 782664 | 782664-Online |
| 7 | 1 GM 1.50 X 2.12 X 1.75 X .12 | 794644 | 794644 | 794644-Online |
| 8 | 1 GM 1.12 X 1.75 X 1.37 X .12 | 706531 | 706531 | 706531-Online |
| 9 | 1 CLUTCH ANCHOR | 330274 | 330274 | 330274-Online |
| 10 | 4 LW .312 INT-EXT TOOTH ZNYC | 029876 | 029876 | 029876-Online |
| 11 | 4 CS .312-18 X 1.75 HX G5 ZNYC | 050161 | 050161 | 050161-Online |
| 12 | 1 RUBBER BUMPER | 784918 | 784918 | HT784918-Online |
| 13 | 1 ENGINE-HYDRO DRIVE PULLEY | 793760 | 793760 | HT793760-Online |
| 14 | 1 KEY 1/4 SQ. X 0.66 LONG | 712372 | 712372 | HT712372-Online |
| 15 | 1 WARNER CLUTCH | 601325 | 601325 | 601325-Online |
| 16 | 1 CLUTCH WIRE HARNESS PIGTAIL | 791251 | N/A | HT791251-Online |
| 17 | 1 FW .454 X 1.50 X.250 | 763417 | 763417 | 763417-Online |
| 18 | 1 CS .437-20 X 3.00 HX G5 ZNYC | 785048 | 785048 | HT785048-Online |
| 19 | 1 OIL DRAIN VALVE, M16 X 1.5 | 791608 | 791608 | 791608-Online |
| 20 | 2 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 21 | 1 MUFFLER 15,17 KOHLER & 16 HONDA | 793125 | 793125 | 793125-Online |
| 22 | 2 CB .312-18 X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 23 | 1 ENGINE GUARD | 316836 | 316836 | 316836-Online |
| 24 | 6 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 25 | 6 CS .375-16 X 1.25 HX G5 ZNYC | 052860 | 052860 | HT052860-Online |
| 26 | 1 1.125" EXHAUST CLAMP | 794180 | 794180 | HT794180-Online |
| 27 | 1 16 HONDA MID EXHAUST PIPE | 793166 | 793166 | 793166-Online |
| 28 | 1 1.25" EXHAUST CLAMP | 794172 | 794172 | 794172-Online |
| 29 | 1 16 HONDA MANIFOLD | 793141 | 793141 | 793141-Online |
| 30 | 4 NT M6-1.0-10 HX FLG ZN | 005231 | 005231 | 005231-Online |
| 31 | 2 HONDA MUFFLER GASKET | 785543 | N/A | 785543-Online |
| 32 | 1 HONDA WIRE HARNESS | 601393 | 601393 | 601393-Online |
| 33 | 1 OIL DRAIN HOSE (NOT SHOWN) | 104786 | 104786 | 104786-Online |
| 34 | 2 CLAMP, 1.75"DIA RBR COAT | 045088 | 045088 | 045088-Online |

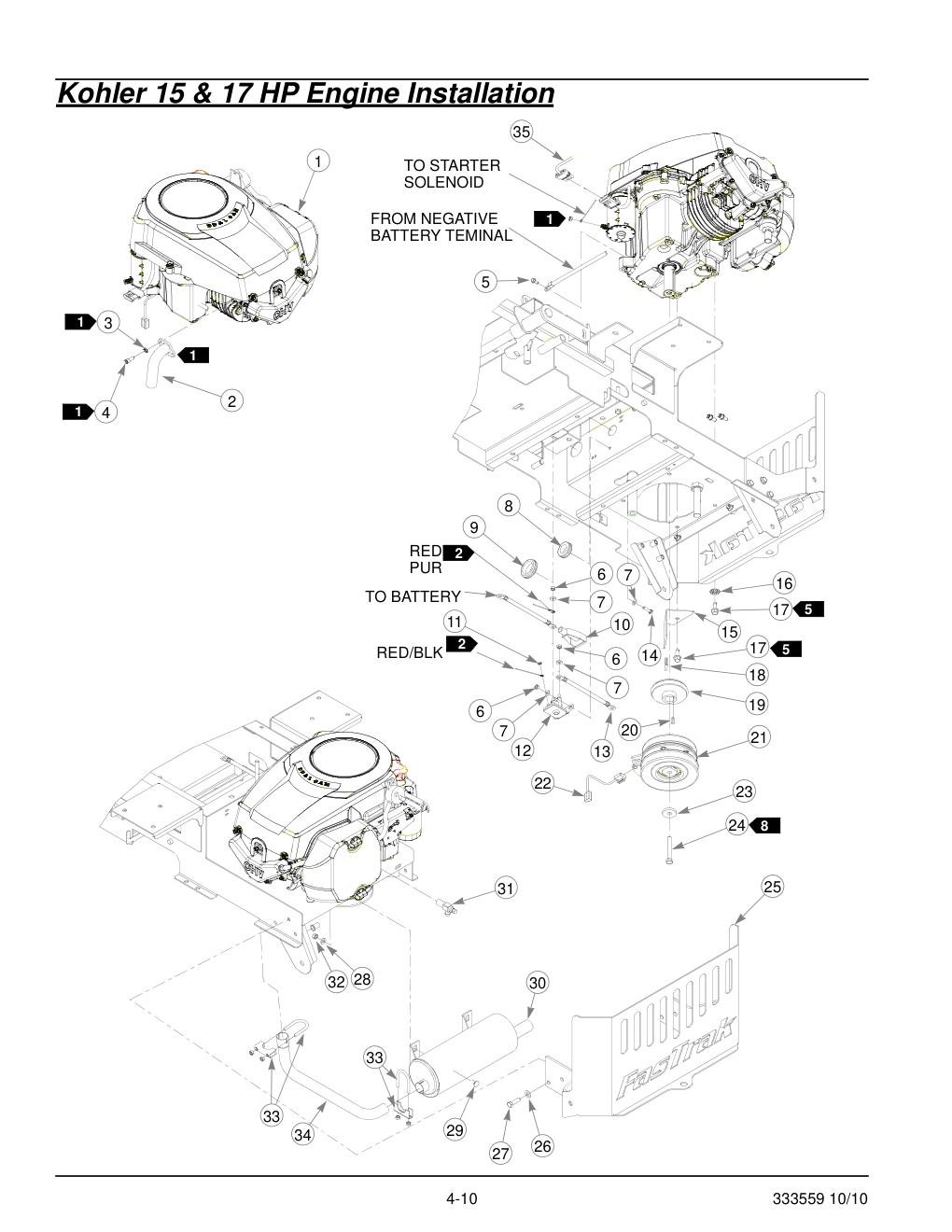

Kohler 15 & 17 HP Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 KOHLER 15 HP ENGINE SV470S | N/A | 792945 | No SKU |
| N/A | KOHLER 17 HP ENGINE SV530S | 792952 | 1 | 792952-Online |
| 2 | 1 KOHLER 15 & 17 HP EXHAUST MANIFOLD | 793133 | 793133 | 793133-Online |
| 3 | 2 LW .312 MED SPRING ZNYC | 017004 | N/A | 017004-Online |
| 4 | 2 CS .312-18 X .75 SKTHD BO | 704478 | N/A | 704478-Online |
| 5 | 1 CS M 6-1.0 X 12 10.9 HX | 739144 | 792796 | 739144-Online |
| 6 | 4 NT .250-20 HX GR 5 ZNYC | 024927 | 024927 | HT024927-Online |
| 7 | 6 FW .281 X .625 X .051/.080 HD ZNYC | 768515 | 768515 | HT768515-Online |
| 8 | 1 GM 1.12 X 1.75 X 1.37 X .12 | 706531 | 706531 | 706531-Online |
| 9 | 1 GM 1.50 X 2.12 X 1.75 X .12 | 794644 | 794644 | 794644-Online |
| 10 | 1 RED BATTERY CABLE BOOT | 771428 | 771428 | 771428-Online |
| 11 | 1 NT #10-32 HX ZN | 044255 | 044255 | 044255-Online |
| 12 | 1 STARTER SOLENOID | 030817 | 030817 | HT030817-Online |
| 13 | 1 BATTERY CABLE | 792762 | 792762 | 792762-Online |
| 14 | 2 CS .250-20 X 1.00 HX G5 ZNYC | 056077 | 056077 | 056077-Online |
| 15 | 1 CLUTCH ANCHOR | 330274 | 330274 | 330274-Online |
| 16 | 1 LW .375 INT-EXT TOOTH | 793885 | 793885 | 793885-Online |
| 17 | 4 CS .375-16X1.000 HX G5 | 036244 | 792788 | HT036244-Online |
| 18 | 1 RUBBER BUMPER | 784918 | 784918 | HT784918-Online |
| 19 | 1 ENGINE-HYDRO DRIVE PULLEY | 793760 | 793760 | HT793760-Online |
| 20 | 1 KEY 1/4 SQ. X 0.66 LONG | 712372 | 712372 | HT712372-Online |
| 21 | 1 WARNER CLUTCH | 601325 | 601325 | 601325-Online |
| 22 | 1 CLUTCH WIRE HARNESS PIGTAIL | 791251 | N/A | HT791251-Online |
| 23 | 1 FW .454 X 1.50 X.250 | 763417 | 763417 | 763417-Online |
| 24 | 1 CS .437-20 X 3.00 HX G5 ZNYC | 785048 | 785048 | HT785048-Online |
| 25 | 1 ENGINE GUARD | 316836 | N/A | 316836-Online |
| 26 | 6 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 27 | 6 CS .375-16 X 1.25 HX G5 ZNYC | 052860 | 052860 | HT052860-Online |
| 28 | 2 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 29 | 2 CB .312-18 X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 30 | 1 MUFFLER 15,17 KOHLER & 16 HONDA | 793125 | 793125 | 793125-Online |
| 31 | 1 3/8-18 OIL DRAIN VALVE | 796516 | 796516 | 796516-Online |
| 32 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 33 | 2 1.125" EXHAUST CLAMP | 794180 | 794180 | HT794180-Online |
| 34 | 1 KOHLER 15 & 17 HP MID EXHAUST PIPE | 793158 | 793158 | HT793158-Online |
| 601127 | KOHLER WIRE HARNESS | 601127 | 1 | 601127-Online |
| 35 | 1 KOHLER WIRE HARNESS 6 | 793117 | 793117 | 793117-Online |
Fuel System Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 3.5" FUEL CAP | 779306 | 779306 | HT779306-Online |
| 2 | 1 36/42 LEFT SIDE FUEL TANK | 792978 | 792978 | HT792978-Online |
| 3 | 1 36/42 RIGHT SIDE FUEL TANK | 792960 | 792960 | HT792960-Online |
| 4 | 6 CLIP | 000323 | 000323 | 000323-Online |
| 5 | 1 3-WAY FUEL VALVE | 745059 | 745059 | HT745059-Online |
| 6 | 10 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 7 | 8 CS .375-16 X .75 HX G5 ZNYC | 055822 | 055822 | HT055822-Online |
| 8 | 2 SMALL, SHORT WIRE TIE | 000331 | 000331 | 000331-Online |
| 9 | 1 FUEL LINE, 21.00" LONG | 015818 | 015818 | HT015818-Online |
| 10 | 1 FUEL LINE, 18.00" LONG (HONDA) | 015818 | 015818 | HT015818-Online |
| 015818 | FUEL LINE, 16.25" LONG (HONDA) | 015818 | 1 | HT015818-Online |
| 015818 | FUEL LINE, 12.00" LONG (KOHLER) | 015818 | 1 | HT015818-Online |
| 015818 | FUEL LINE, 14.00" LONG (KOHLER) | 015818 | 1 | HT015818-Online |
| 11 | 1 FUEL LINE, 8.5" LONG | 015818 | 015818 | HT015818-Online |
| 12 | 2 BUMPER, .500X 1.00X .312 X.188 | 781880 | 781880 | HT781880-Online |

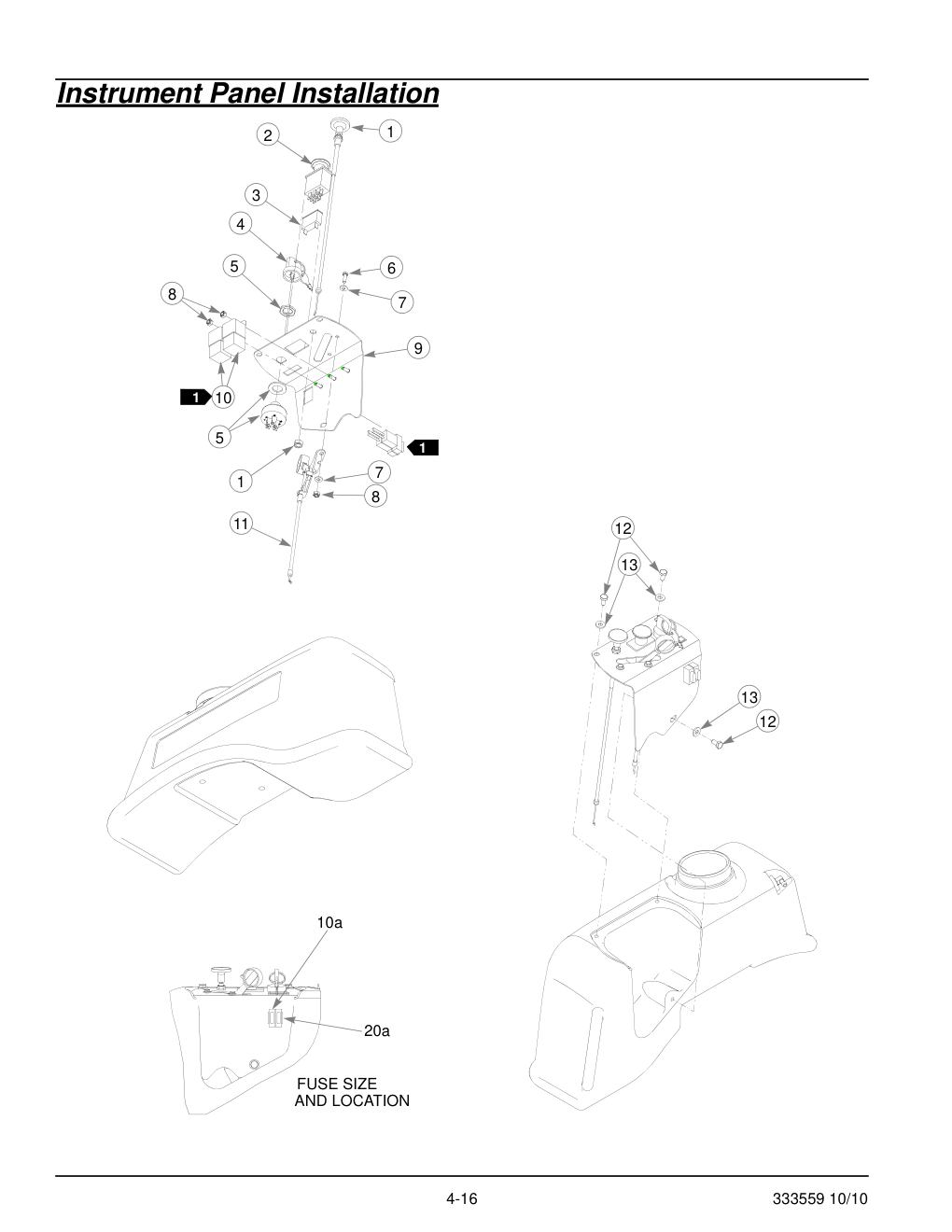

Instrument Panel Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 CHOKE CABLE (KOHLER) | 786657 | 786657 | HT786657-Online |
| 785030 | CHOKE CABLE (HONDA) | 785030 | 1 | HT785030-Online |
| 2 | 1 PTO SWITCH | 776476 | 776476 | HT776476-Online |
| 3 | 1 RED INDICATOR LIGHT | 712257 | 712257 | HT712257-Online |
| 4 | 1 KEY ASSEMBLY | 785808 | 785808 | 785808-Online |
| 5 | 1 KEY SWITCH | 045898 | 045898 | HT045898-Online |
| 6 | 2 MS #10-24 X .625 HX ZN | 714998 | 714998 | 714998-Online |
| 7 | 4 FW .219 X .500 X .048 ZNYC | 704932 | 704932 | HT704932-Online |
| 8 | 4 NT #10-24 HX NL ZN | 059832 | 059832 | 059832-Online |
| 9 | 1 INSTRUMENT PANEL | 321059 | 321059 | 321059-Online |
| 10 | 2 RELAY | 026237 | N/A | 026237-Online |
| 11 | 1 THROTTLE CABLE (HONDA) | 793810 | 793810 | HT793810-Online |
| 778365 | THROTTLE CABLE (KOHLER) | 778365 | 1 | HT778365-Online |
| 12 | 3 CS .250-20X .500 HX G5 ZNYC | 055947 | 055947 | 055947-Online |
| 13 | 3 FW .281 X .625 X .051/.080 HD ZNYC | 768515 | 768515 | HT768515-Online |
Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 CS .500-13 X 1.25 HX G5 ZNYC | 705954 | 705954 | HT705954-Online |
| 2 | 2 FW .510 X 2.15 X .187 SPL ZNYC | 344267 | 344267 | HT344267-Online |
| 3 | 2 FW .531 X 1.375 X .125 ZNYC | 712976 | 712976 | HT712976-Online |
| 4 | 4 BEARING | 784223 | 784223 | HT784223-Online |
| 5 | 2 SPACER | 784603 | 784603 | HT784603-Online |
| 6 | 2 CASTER FORK | 339689 | 339689 | HT339689-Online |
| 7 | 2 NT .50-13 HX LK NY ZNYC | 781567 | 781567 | HT781567-Online |
| 8 | 4 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | 767962 | HT767962-Online |
| 9 | 2 CS .500-13 X 6.50 HX G5 ZNYC | 042630 | 042630 | HT042630-Online |
| 10 | 2 GAGE WHEEL SPACER | 306969 | 306969 | HT306969-Online |
| 11 | 2 TIRE/WHL 11X4-5 RIBBED | 768044 | 768044 | 768044-Online |
Front Wheel Breakdown -768044
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 3/4" ROLLER BEARING | 772814 | N/A | HT772814-Online |
| 2 | 2 BEARING CAP | 772806 | N/A | HT772806-Online |
Drive Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 WHEEL/TIRE ASSEMBLY 18 X 8.50 (PER 36" MOWER) | 783134 | 783134 | 783134-Online |
| 2 | 1 TIRE 18 X 8.5-8 | 783142 | N/A | 783142-Online |
| 3 | 1 WHEEL ASSY 8.00 X 7.00 | 783159 | N/A | 783159-Online |
| 4 | 1 TIRE VALVE | 019521 | N/A | HT019521-Online |
| 5 | 8 WHEEL NUT (PER MOWER) | 061077 | 061077 | HT061077-Online |
| 6 | 8 SPACER, .375TH X .53 ID X 1.0 0D ZN (PER MOWER) | 793406 | 793406 | 793406-Online |
| 1 | 2 WHEEL/TIRE ASSY 18 X 9.50 (PER 42” MOWER) | 784264 | 784264 | 784264-Online |
| 2 | 1 TIRE 18 X 9.5-8 | 784272 | N/A | HT784272-Online |
| 3 | 1 WHEEL ASSY 8.00 X 6.32 | 784280 | N/A | 784280-Online |
| 4 | 1 TIRE VALVE | 019521 | N/A | HT019521-Online |
| 5 | 8 WHEEL NUT (PER MOWER) | 061077 | 061077 | HT061077-Online |
Deck Assembly 36" SN Prior to 10020000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DISCHARGE CHUTE | N/A | N/A | No SKU |
| 2 | 2 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 3 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 036244 | 036244 | HT036244-Online |
| 4 | 1 BUMPER, .500X 1.00X .312 X.188 | 781880 | 781880 | HT781880-Online |
| 5 | 2 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 6 | 2 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 7 | 1 DISCHARGE CHUTE BASE | N/A | N/A | No SKU |
| 8 | 2 PULLBAR PIN | 322974 | 322974 | HT322974-Online |
| 9 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 10 | 2 CS .312-18 X .75 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 11 | 1 36" FASTRAK DECK | 546937 | 315572 | 546937-Online |
| 12 | 3 5/16-18 THREAD RIVET NUT | 808485 | 808485 | HT808485-Online |
| 13 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 2 PULLBAR | 330225 | 330225 | HT330225-Online |
| 15 | 1 NT .50-13 HX LK NY | 781567 | 781567 | HT781567-Online |
| 16 | 1 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 17 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 18 | 1 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 19 | 1 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |
| 788166 | ANTI SCALP WHEEL ASSY | 788166 | 1 | HT788166-Online |
Deck Assembly 36" SN Higher Than 10020000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DISCHARGE CHUTE | 601806 | 601806 | 601806-Online |
| 2 | 1 TORSION SPRING | 601824 | 601824 | 601824-Online |
| 3 | 3 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 4 | 4 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 5 | 1 CHUTE PIN | 601843 | 601843 | 601843-Online |
| 6 | 1 CHUTE BRACKET | 111067 | 111067 | HT111067-Online |
| 7 | 1 DISCHARGE ADAPTER | 112876 | 112876 | HT112876-Online |
| 8 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 025395 | 036244 | HT025395-Online |
| 9 | 2 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 10 | 2 PULLBAR PIN | 322974 | 322974 | HT322974-Online |
| 11 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 12 | 2 CS .312-18 X .75 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 13 | 1 36" FASTRAK DECK | 546937 | 315572 | 546937-Online |
| 14 | 3 5/16-18 THREAD RIVET NUT | 808485 | 808485 | HT808485-Online |
| 15 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 16 | 2 PULLBAR | 330225 | 330225 | HT330225-Online |
| 17 | 1 NT .50-13 HX LK NY | 781567 | 781567 | HT781567-Online |
| 18 | 1 ANTI SCALP WHEEL ASSY | 788166 | 788166 | HT788166-Online |
| 19 | 1 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 20 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 21 | 1 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 22 | 1 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |

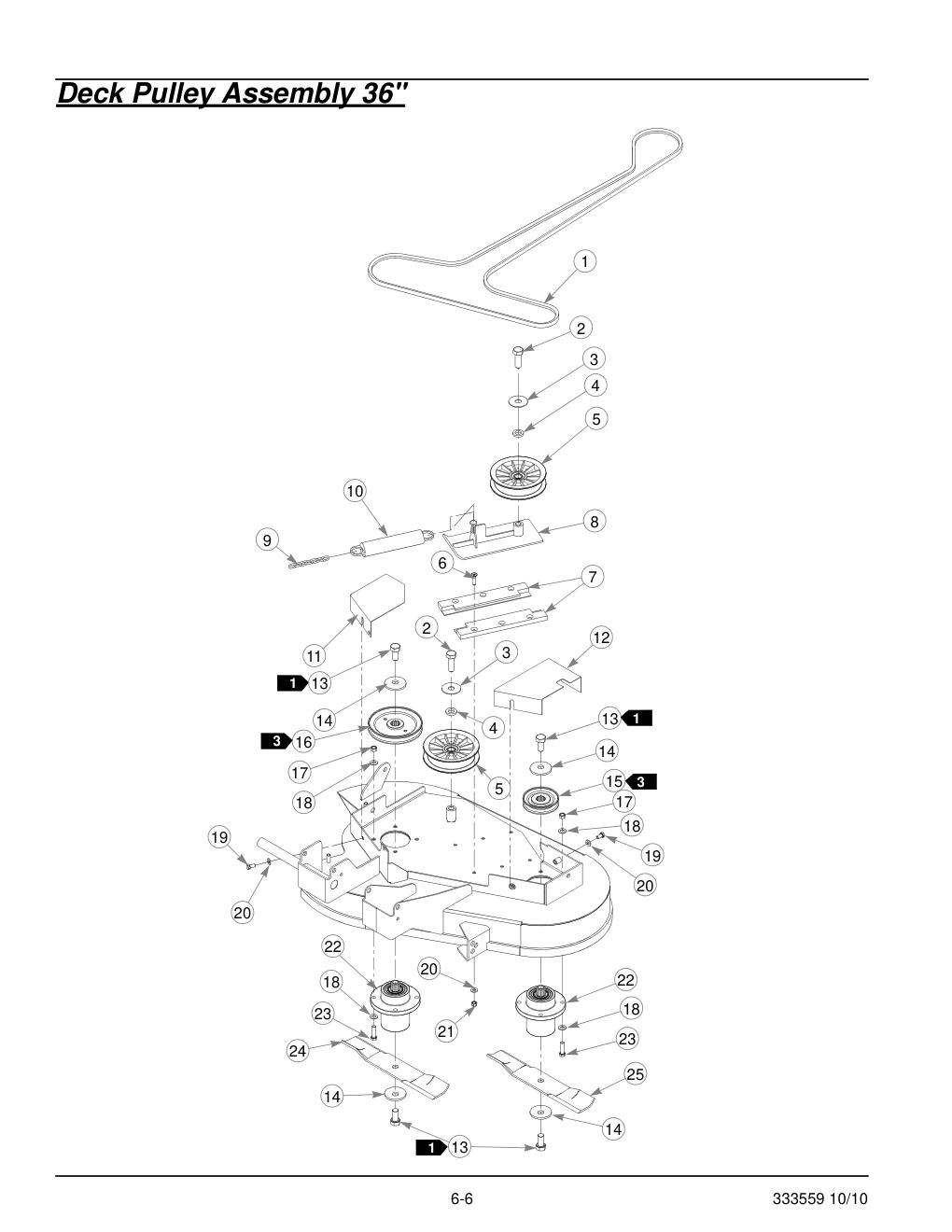

Deck Pulley Assembly 36"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 A-SECTION BELT (FASTRAK 36") | 793828 | 793828 | HT793828-Online |
| 2 | 2 CS .625-11 X 1.75 HX G5 ZNYC | 025007 | 025007 | HT025007-Online |
| 3 | 2 FW .656 X 2.00 X .078 ZNYC | 046821 | 046821 | HT046821-Online |
| 4 | 2 FW .650 X 1.00 X .180 ZNYC G5 | 797449 | 797449 | 797449-Online |
| 5 | 2 IDLER PULLEY, 5.00"OD, 5/8"ID | 784504 | 784504 | HT784504-Online |
| 6 | 6 CS .312-18 X 1.25 FLT SH | 784199 | 784199 | HT784199-Online |
| 7 | 2 UHMW IDLER SLIDE | 601434 | 601434 | 601434-Online |
| 8 | 1 DECK IDLER | 321877 | 321877 | HT321877-Online |
| 9 | 1 SPRING CHAIN | 364315 | 059931 | HT364315-Online |
| 10 | 1 IDLER SPRING | 781302 | 781302 | 781302-Online |
| 11 | 1 RIGHT PULLEY COVER | 321398 | 321398 | HT321398-Online |
| 12 | 1 LEFT PULLEY COVER | 330324 | 330324 | HT330324-Online |
| 13 | 4 CS .625-11 X 1.25 HX G5 ZNYC | 781872 | 781872 | HT781872-Online |
| 14 | 4 CW .631 2.250 X .187 PNT | 782474 | 782474 | HT782474-Online |
| 15 | 1 DECK PULLEY (FASTRAK 36") | 793786 | 793786 | HT793786-Online |
| 16 | 1 DECK PULLEY (FASTRAK 36"/42") | 793778 | 793778 | 793778-Online |
| 17 | 8 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 18 | 16 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 19 | 4 CS .312-18 X .625 HX G5 ZNYC | 064006 | 064006 | 064006-Online |
| 20 | 10 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 21 | 6 NT .312-18 HX NL ZNYC | 058776 | 058776 | HT058776-Online |
| 22 | 2 BLADE SPINDLE ASSEMBLY | 783506 | 783506 | 783506-Online |
| 23 | 8 CS .375-16 X 1.375 HX G5 ZNYC | 005116 | 005116 | HT005116-Online |
| 24 | 1 20.50" 42D X 0.631 CW BLADE | 793794 | 793794 | HT793794-Online |
| 25 | 1 13.75" 42D X 0.631 CW BLADE | 793802 | 793802 | HT793802-Online |
| 28 | 6 CS .312-18 X 1.25 HX G5 | 079186 | N/A | 079186-Online |
| 29 | 6 FW .344 X 1.00 X .12 HRD ZN | 712927 | N/A | HT712927-Online |
| 30 | 2 DECK IDLER UHMW CLAMP | 785832 | N/A | 785832-Online |
| 31 | 2 DECK IDLER UHMW RISER | 787069 | N/A | 787069-Online |
| 32 | 6 FW .440 X 1.000 X .083 ZNYC | 017129 | N/A | 017129-Online |

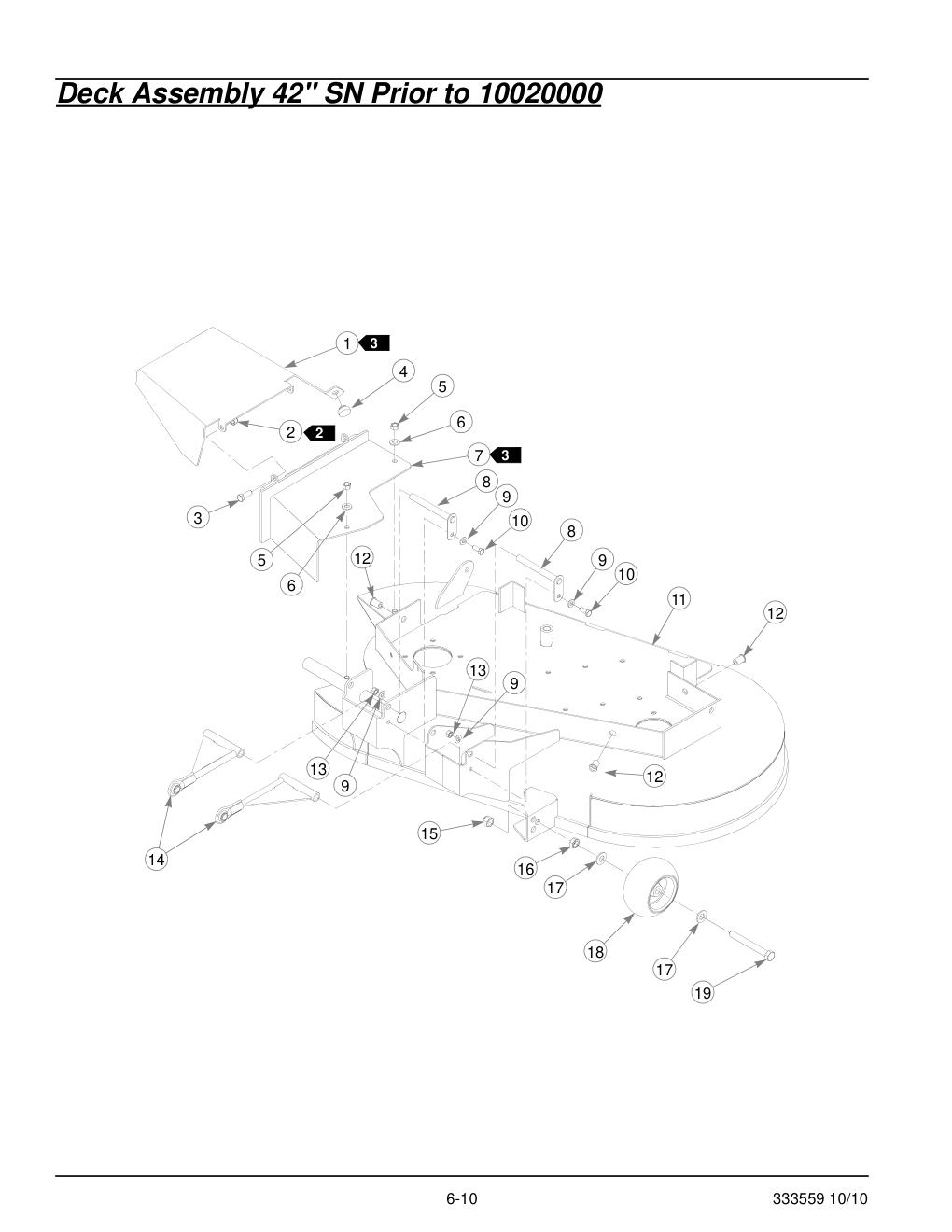

Deck Assembly 42" SN Prior to 10020000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DISCHARGE CHUTE | N/A | N/A | No SKU |
| 2 | 2 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 3 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 036244 | 036244 | HT036244-Online |
| 4 | 1 BUMPER, .500X 1.00X .312 X.188 | 781880 | 781880 | HT781880-Online |
| 5 | 2 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 6 | 2 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 7 | 1 DISCHARGE CHUTE BASE | N/A | N/A | No SKU |
| 8 | 2 PULLBAR PIN | 322974 | 322974 | HT322974-Online |
| 9 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 10 | 2 CS .312-18 X .75 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 11 | 1 42" FASTRAK DECK | 546929 | 316919 | 546929-Online |
| 12 | 3 5/16-18 THREAD RIVET NUT | 808485 | 808485 | HT808485-Online |
| 13 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 2 PULLBAR | 330225 | 330225 | HT330225-Online |
| 15 | 1 NT .50-13 HX LK NY | 781567 | 781567 | HT781567-Online |
| 16 | 1 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 17 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 18 | 1 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 19 | 1 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |
| 788166 | ANTI SCALP WHEEL ASSY | 788166 | 1 | HT788166-Online |

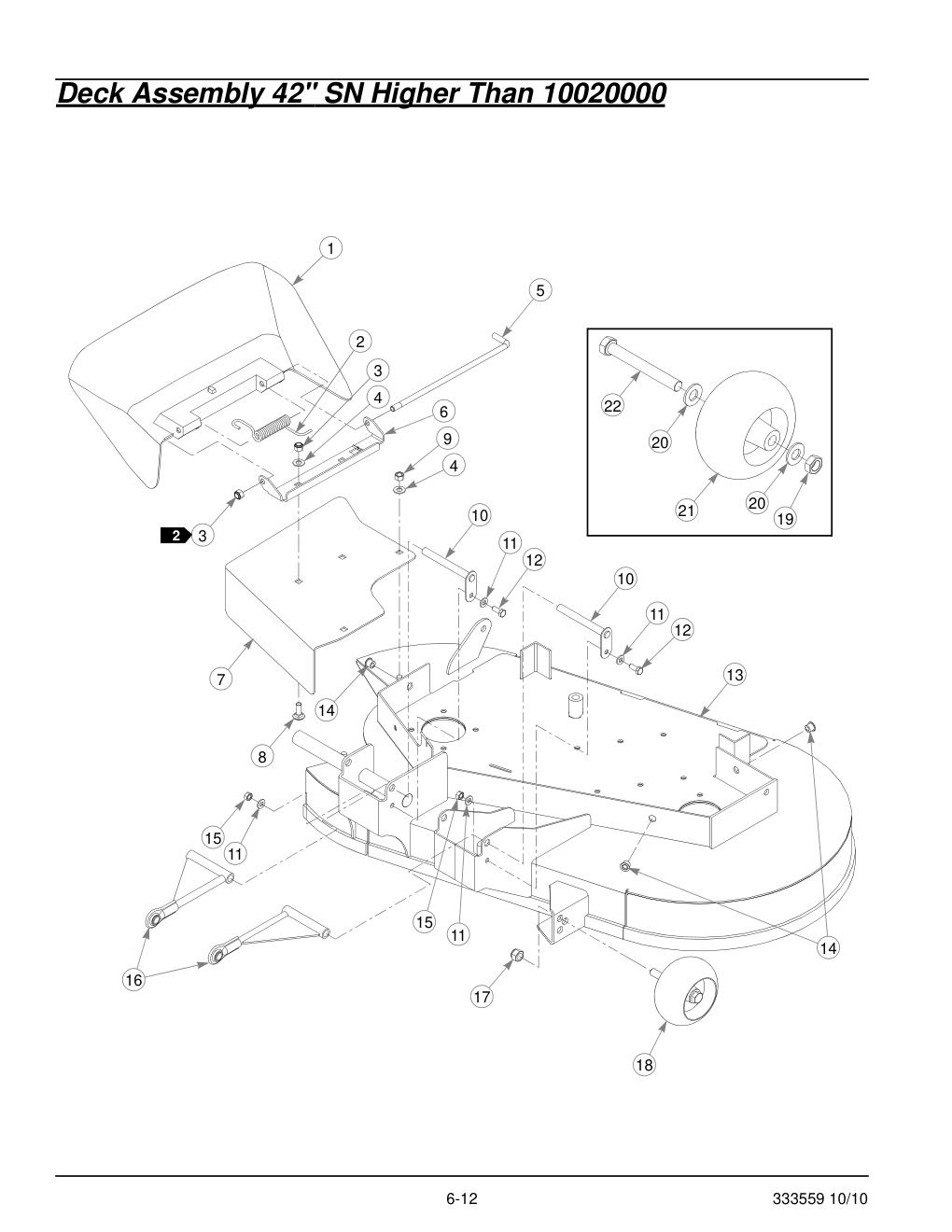

Deck Assembly 42" SN Higher Than 10020000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DISCHARGE CHUTE | 601806 | 601806 | 601806-Online |
| 2 | 1 TORSION SPRING | 601824 | 601824 | 601824-Online |
| 3 | 3 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 4 | 4 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 5 | 1 CHUTE PIN | 601843 | 601843 | 601843-Online |
| 6 | 1 CHUTE BRACKET | 111067 | 111067 | HT111067-Online |
| 7 | 1 DISCHARGE ADAPTER | 112876 | 112876 | HT112876-Online |
| 8 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 025395 | 036244 | HT025395-Online |
| 9 | 2 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 10 | 2 PULLBAR PIN | 322974 | 322974 | HT322974-Online |
| 11 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 12 | 2 CS .312-18 X .75 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 14 | 3 5/16-18 THREAD RIVET NUT | 808485 | 808485 | HT808485-Online |
| 15 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 16 | 2 PULLBAR | 330225 | 330225 | HT330225-Online |
| 17 | 1 NT .50-13 HX LK NY | 781567 | 781567 | HT781567-Online |
| 18 | 1 ANTI SCALP WHEEL ASSY | 788166 | 788166 | HT788166-Online |
| 19 | 1 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 20 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 21 | 1 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 22 | 1 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |

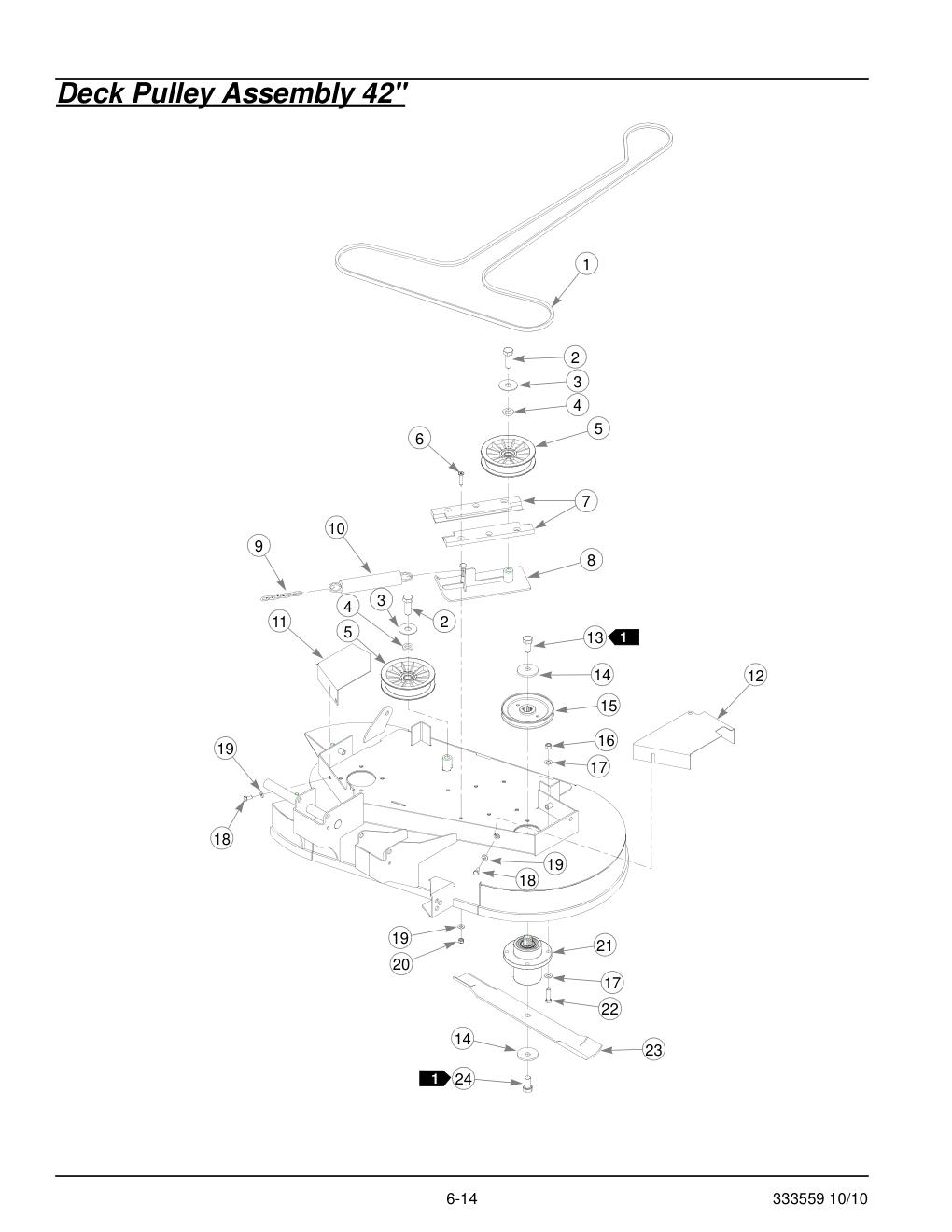

Deck Pulley Assembly 42"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 A-SECTION BELT (FASTRAK 42") | 793893 | 793893 | HT793893-Online |
| 2 | 2 CS .625-11 X 1.75 HX G5 ZNYC | 025007 | 025007 | HT025007-Online |
| 3 | 2 FW .656 X 2.00 X .078 ZNYC | 046821 | 046821 | HT046821-Online |
| 4 | 2 FW .650 X 1.00 X .180 ZNYC G5 | 797449 | 797449 | 797449-Online |
| 5 | 2 IDLER PULLEY, 5.00"OD, 5/8"ID | 784504 | 784504 | HT784504-Online |
| 6 | 6 CS .312-18 X 1.25 FLT SH ZY | 784199 | 784199 | HT784199-Online |
| 7 | 2 UHMW IDLER SLIDE | 601434 | 601434 | 601434-Online |
| 8 | 1 DECK IDLER | 321877 | 321877 | HT321877-Online |
| 9 | 1 SPRING CHAIN | 259812 | 059931 | HT259812-Online |
| 10 | 1 IDLER SPRING | 781302 | 781302 | 781302-Online |
| 11 | 1 RIGHT PULLEY COVER | 321398 | 321398 | HT321398-Online |
| 12 | 1 LEFT PULLEY COVER | 321042 | 321042 | HT321042-Online |
| 13 | 2 CS .625-11 X 1.25 HX G5 ZNYC | 781872 | 781872 | HT781872-Online |
| 14 | 4 CW .631 2.250 X .187 PNT | 782474 | 782474 | HT782474-Online |
| 15 | 2 DECK PULLEY (FASTRAK 36"/42") | 793778 | 793778 | 793778-Online |
| 16 | 8 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 17 | 16 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 18 | 4 CS .312-18 X .625 HX G5 ZNYC | 064006 | 064006 | 064006-Online |
| 19 | 10 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 20 | 6 NT .312-18 HX NL ZNYC | 058776 | 058776 | HT058776-Online |
| 21 | 2 BLADE SPINDLE ASSEMBLY | 783506 | 783506 | 783506-Online |
| 22 | 8 CS .375-16 X 1.375 HX G5 ZNYC | 005116 | 005116 | HT005116-Online |
| 23 | 2 20.50" 42D X 0.631 CW BLADE | 793794 | 793794 | HT793794-Online |
| 24 | 2 CS .625-11 X 1.25 HX G5 ZNYC | 781872 | 781872 | HT781872-Online |
| 27 | 6 FW .344 X 1.00 X .12 HRD ZN | 712927 | N/A | HT712927-Online |
| 28 | 2 DECK IDLER UHMW CLAMP | 785832 | N/A | 785832-Online |
| 29 | 2 DECK IDLER UHMW RISER | 787069 | N/A | 787069-Online |
| 30 | 6 FW .440 X 1.000 X .083 ZNYC | 017129 | N/A | 017129-Online |
Blade Spindle Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 BLADE SPINDLE RETAINING RING | 783548 | N/A | HT783548-Online |
| 2 | 2 BLADE SPINDLE BEARING | 783555 | N/A | 783555-Online |
| 3 | 1 BLADE SPINDLE SPACER | 783530 | N/A | HT783530-Online |
| 4 | 1 BLADE SPINDLE HOUSING | 783514 | N/A | HT783514-Online |
| 5 | 1 BLADE SPINDLE SHAFT | 783522 | N/A | HT783522-Online |

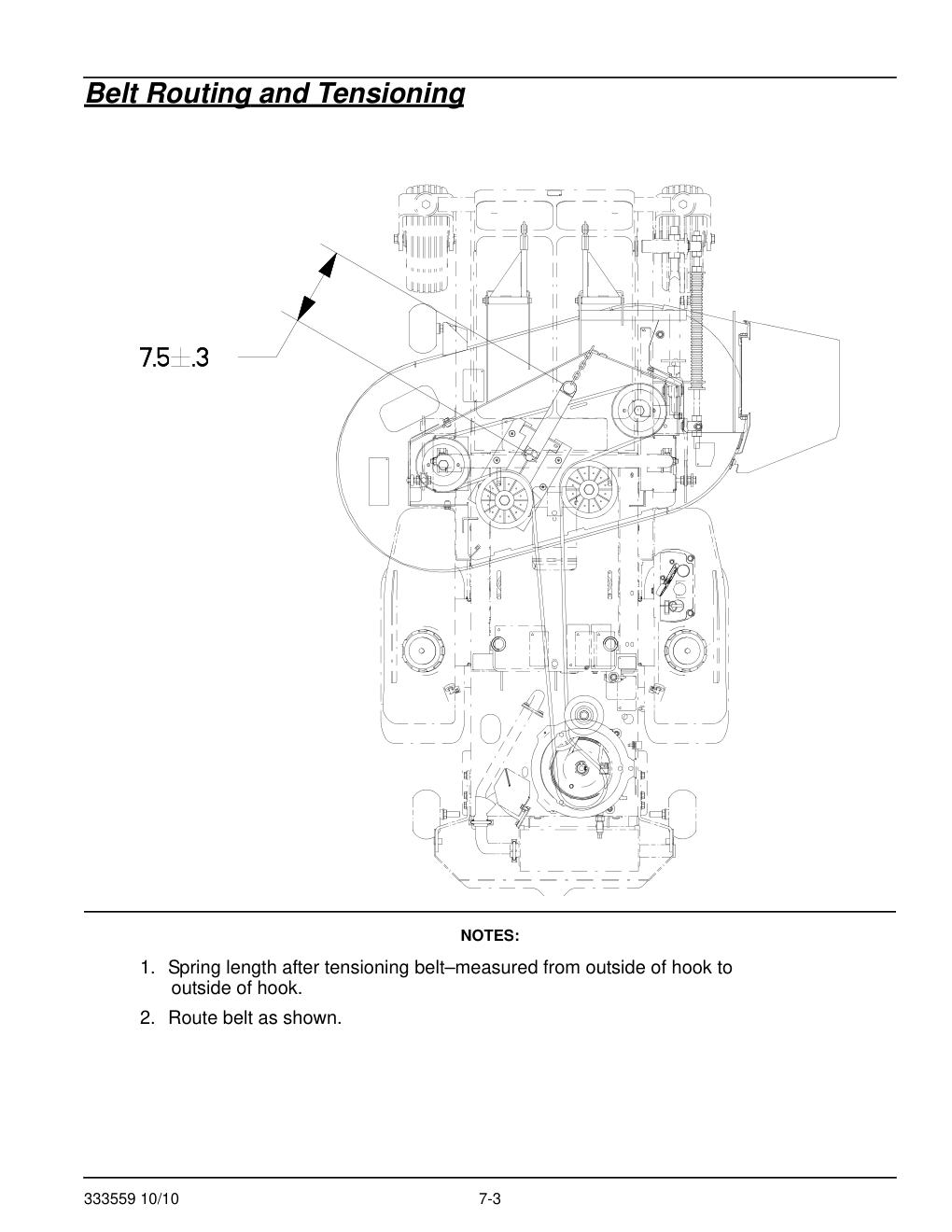

Deck Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 NT .500-13 HX GR 8 ZY NL | 781567 | 781567 | HT781567-Online |
| 2 | 4 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | 767962 | HT767962-Online |
| 3 | 2 CS .500-13 X 1.75 HX G5 ZNYC | 017616 | 017616 | HT017616-Online |
| 4 | 5 NT .437-14 HX FLG ZN | 704643 | 704643 | HT704643-Online |
| 5 | 3 CS .437-14 X 1.75 HX G5 ZNYC | 055749 | 055749 | HT055749-Online |
Seat Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 STANDARD MICHIGAN SEAT | 793679 | 793679 | 793679-Online |
| 2 | 3 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 3 | 3 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 4 | 1 SEAT PAN | 320275 | 320275 | 320275-Online |
| 5 | 2 CS .375-16 X 1.25 HX G5 ZNYC | 052860 | 052860 | HT052860-Online |
| 6 | 2 COMPRESSION SPRING, 1.25X4.00X.188 | 793851 | 793851 | HT793851-Online |
| 7 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 8 | 4 CS .312-18 X .750 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 9 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 036244 | 036244 | HT036244-Online |

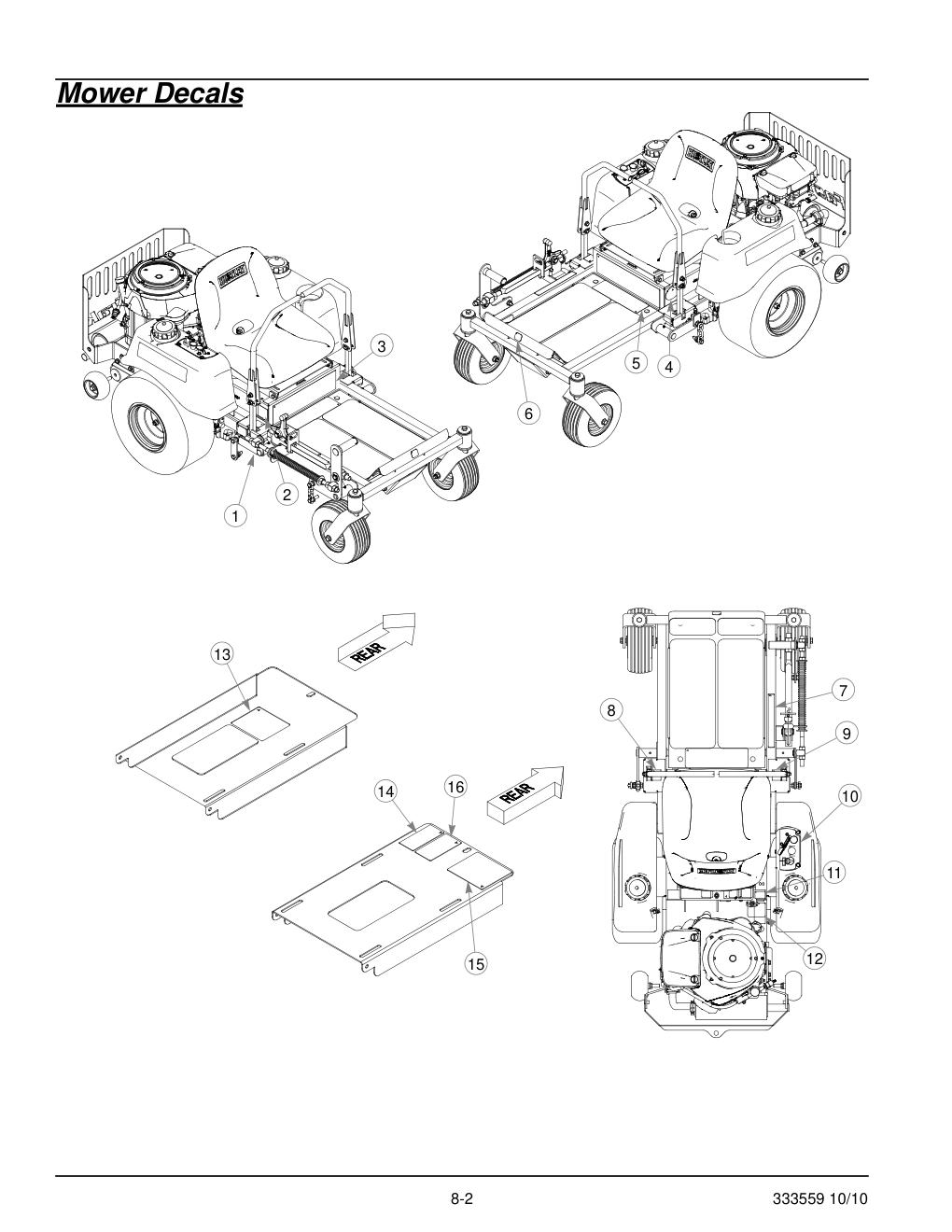

Mower Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DEFLECTOR SHIELD DECAL | 794545 | 794545 | 794545-Online |
| 2 | 1 TURF PROD SERIAL NO PLATE | N/A | 083279 | No SKU |
| 3 | 1 FASTRAK DECAL | 784710 | 784710 | 784710-Online |
| 4 | 1 FIRST ZERO TURN DECAL | 782573 | 782573 | 782573-Online |
| 5 | 1 FASTRAK OPERATION DECAL | 793547 | 793547 | 793547-Online |
| 6 | 1 HUSTLER NAME PLATE | 793588 | 793588 | 793588-Online |
| 7 | 1 DECK HEIGHT DECAL | 794305 | 794305 | 794305-Online |
| 8 | 1 FASTRAK LEFT SIDE STEERING DECAL | 785139 | 785139 | 785139-Online |
| 9 | 1 FASTRAK RIGHT SIDE STEERING DECAL | 785220 | 785220 | 785220-Online |
| 10 | 1 INSTRUMENT PANEL DECAL | 793703 | 793703 | 793703-Online |
| 11 | 1 FASTRAK 36/42 FUEL VALVE DECAL | 793554 | 793554 | 793554-Online |
| 12 | 1 STABILIZER DECAL | 771436 | 771436 | 771436-Online |
| 13 | 1 BATTERY DECAL | 727016 | 727016 | 727016-Online |
| 14 | 1 ENGINE COMPARTMENT DECAL | 788968 | 788968 | 788968-Online |
| 15 | 1 SERVICE DECAL | 785147 | 785147 | 785147-Online |
| 16 | 1 PUMP BELT WARNING DECAL | 600899 | 600899 | 600899-Online |

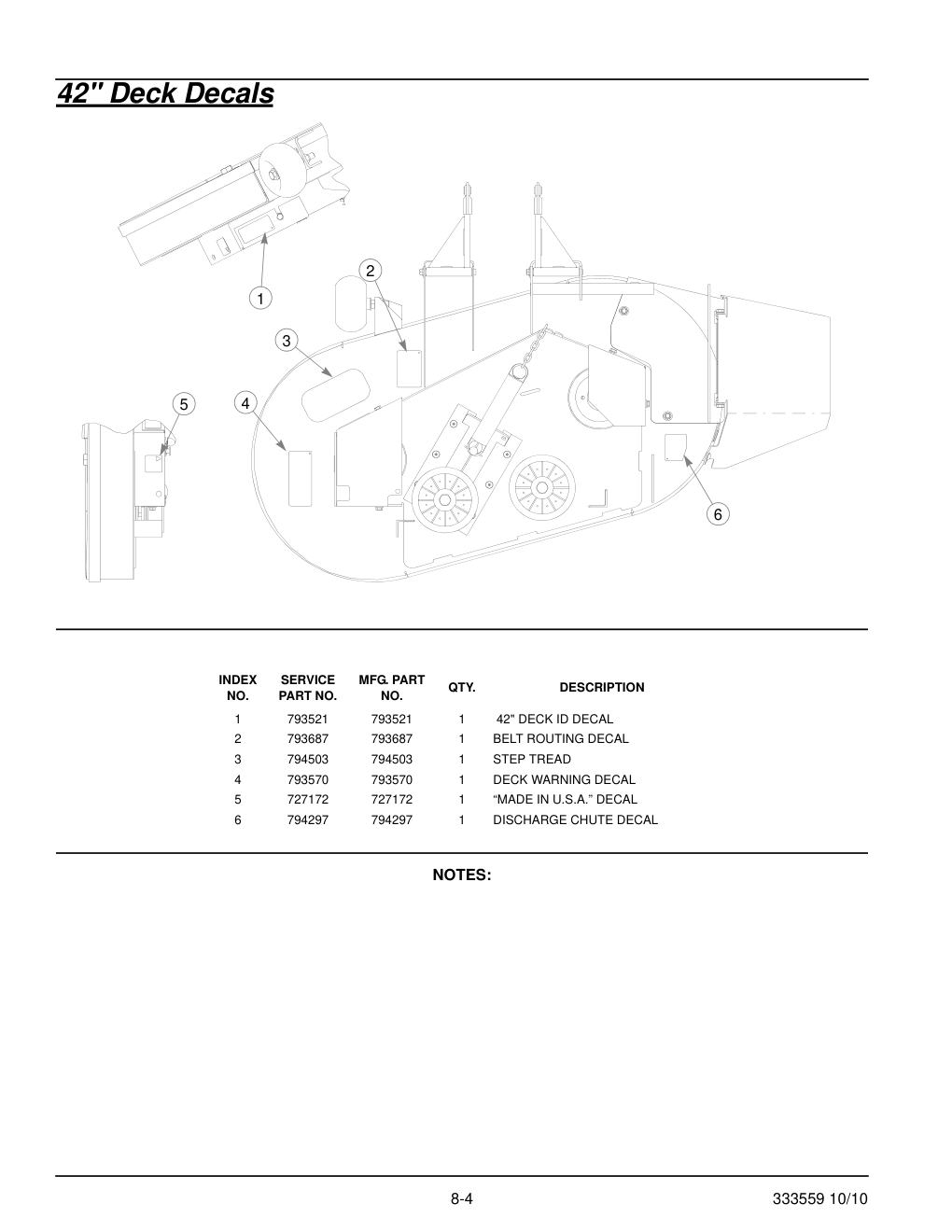

42" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 42" DECK ID DECAL | 793521 | 793521 | 793521-Online |
| 2 | 1 BELT ROUTING DECAL | 793687 | 793687 | 793687-Online |
| 3 | 1 STEP TREAD | 794503 | 794503 | 794503-Online |
| 4 | 1 DECK WARNING DECAL | 793570 | 793570 | 793570-Online |
| 5 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 6 | 1 DISCHARGE CHUTE DECAL | 794297 | 794297 | 794297-Online |

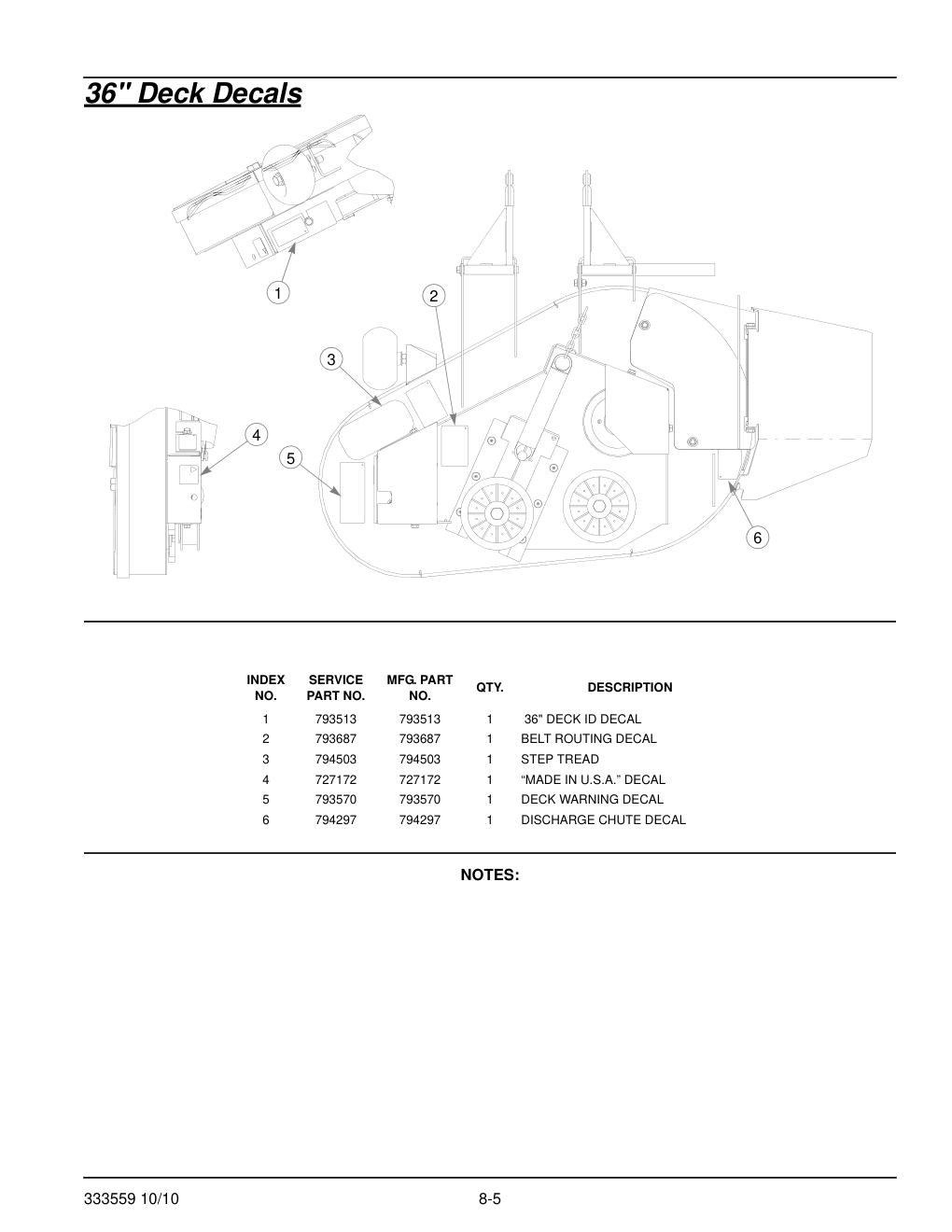

36" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 36" DECK ID DECAL | 793513 | 793513 | 793513-Online |
| 2 | 1 BELT ROUTING DECAL | 793687 | 793687 | 793687-Online |
| 3 | 1 STEP TREAD | 794503 | 794503 | 794503-Online |
| 4 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 5 | 1 DECK WARNING DECAL | 793570 | 793570 | 793570-Online |
| 6 | 1 DISCHARGE CHUTE DECAL | 794297 | 794297 | 794297-Online |
