Illustrated Parts List
36" & 42" Decks Parts Manual - 333559
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 333559Model: 927343Model: 793083Model: 793117Model: 768044Model: 927350Model: 927368Model: 927376Model: 793836Model: 793828+14 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Tractor Frame Rivet Nut InstallationEngine Guard and Anti-rollover Bracket AssembliesFootrest AssemblyBattery InstallationDeck Lift AssemblyHydro Transmission InstallationSteering and Brake AssemblyHonda 16 HP Engine InstallationKohler 15 & 17 HP Engine InstallationFuel System InstallationInstrument Panel InstallationFront Wheel AssemblyFront Wheel Breakdown -768044Drive Wheel AssemblyDeck Assembly 36"Deck Pulley Assembly 36"Deck Assembly 42"Deck Pulley Assembly 42"Blade Spindle Assembly BreakdownDeck InstallationSeat InstallationTractor Decals42" Deck Decals36" Deck DecalsTractor Frame Rivet Nut Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 FASTRAK 36 FRAME | 546911 | 315440 | 546911-Online |
| 546895 | FASTRAK 42 FRAME | 320242 | 1 | 320242-Online |
| 2 | 2 3/8-16 THREAD RIVET NUT | 808493 | 808493 | 808493-Online |
| 3 | 2 1.5 SQ TUBE PLUG | 793869 | 793869 | 793869-Online |
Engine Guard and Anti-rollover Bracket Assemblies
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 ENGINE GUARD | 316836 | 316836 | 316836-Online |
| 2 | 2 ANTI ROLLOVER BRACKET | 320580 | 320580 | 320580-Online |
| 3 | 8 3/8-16 THREAD RIVET NUT | 808493 | 808493 | 808493-Online |
| 4 | 2 NT .50-13 HX LK NY ZNYC | 781567 | 781567 | HT781567-Online |
| 5 | 4 FW .510 X 2.15 X .187SPL ZNYC | 344267 | 344267 | HT344267-Online |
| 6 | 2 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 7 | 4 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 8 | 2 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 9 | 2 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |
| 10 | 2 ANTI SCALP WHEEL ASSEMBLY | 788166 | 788166 | HT788166-Online |

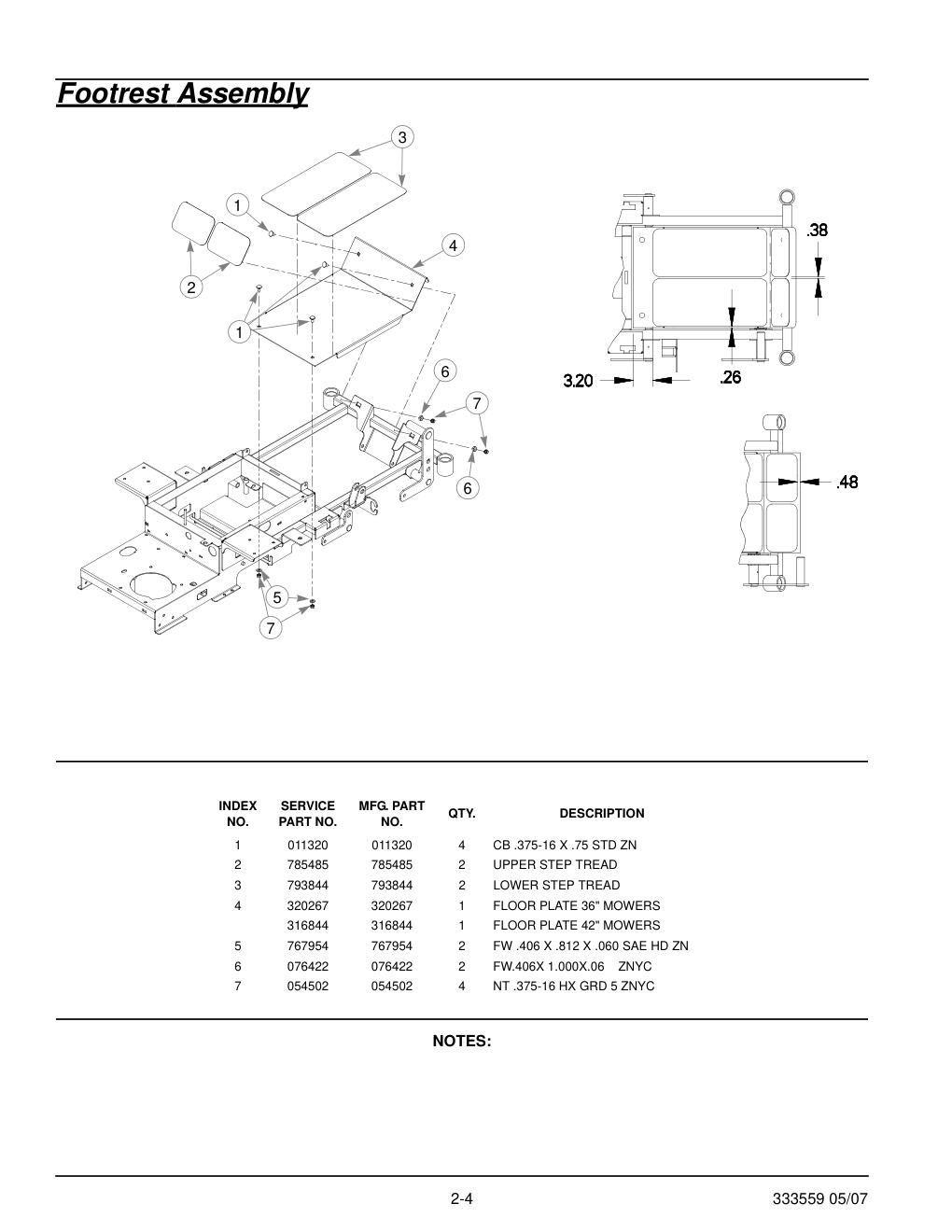

Footrest Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 4 CB .375-16 X .75 STD ZN | 011320 | 011320 | 011320-Online |
| 2 | 2 UPPER STEP TREAD | 785485 | 785485 | 785485-Online |
| 3 | 2 LOWER STEP TREAD | 793844 | 793844 | 793844-Online |
| 4 | 1 FLOOR PLATE 36" MOWERS | 320267 | 320267 | 320267-Online |
| 316844 | FLOOR PLATE 42" MOWERS | 316844 | 1 | 316844-Online |
| 5 | 2 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 6 | 2 FW.406X 1.000X.06 ZNYC | 076422 | 076422 | 076422-Online |
| 7 | 4 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
Battery Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 BATTERY CLAMP STRAP | 314989 | 314989 | 314989-Online |
| 2 | 3 NT .250-20 HX GR.5 ZNYC | 024927 | 024927 | HT024927-Online |
| 3 | 2 CS .250-20 X .75 HX G5 ZNYC | 055939 | 055939 | 055939-Online |
| 4 | 4 LW .250 INT-EXT TOOTH ZNYC | 029868 | 029868 | 029868-Online |
| 5 | 1 BATTERY VU1LH-8 | 740696 | 740696 | 740696-Online |
| 6 | 1 RED BATTERY CABLE BOOT | 771428 | 771428 | 771428-Online |
| 7 | 1 POSITIVE BATTERY CABLE (KOHLER) | 785063 | 785063 | 785063-Online |
| 786632 | POSITIVE BATTERY CABLE (HONDA) | 786632 | 1 | 786632-Online |
| 8 | 1 NEGATIVE BATTERY CABLE | 786640 | 786640 | 786640-Online |
| 9 | 1 BATTERY CLAMP ROD | 793489 | 793489 | 793489-Online |

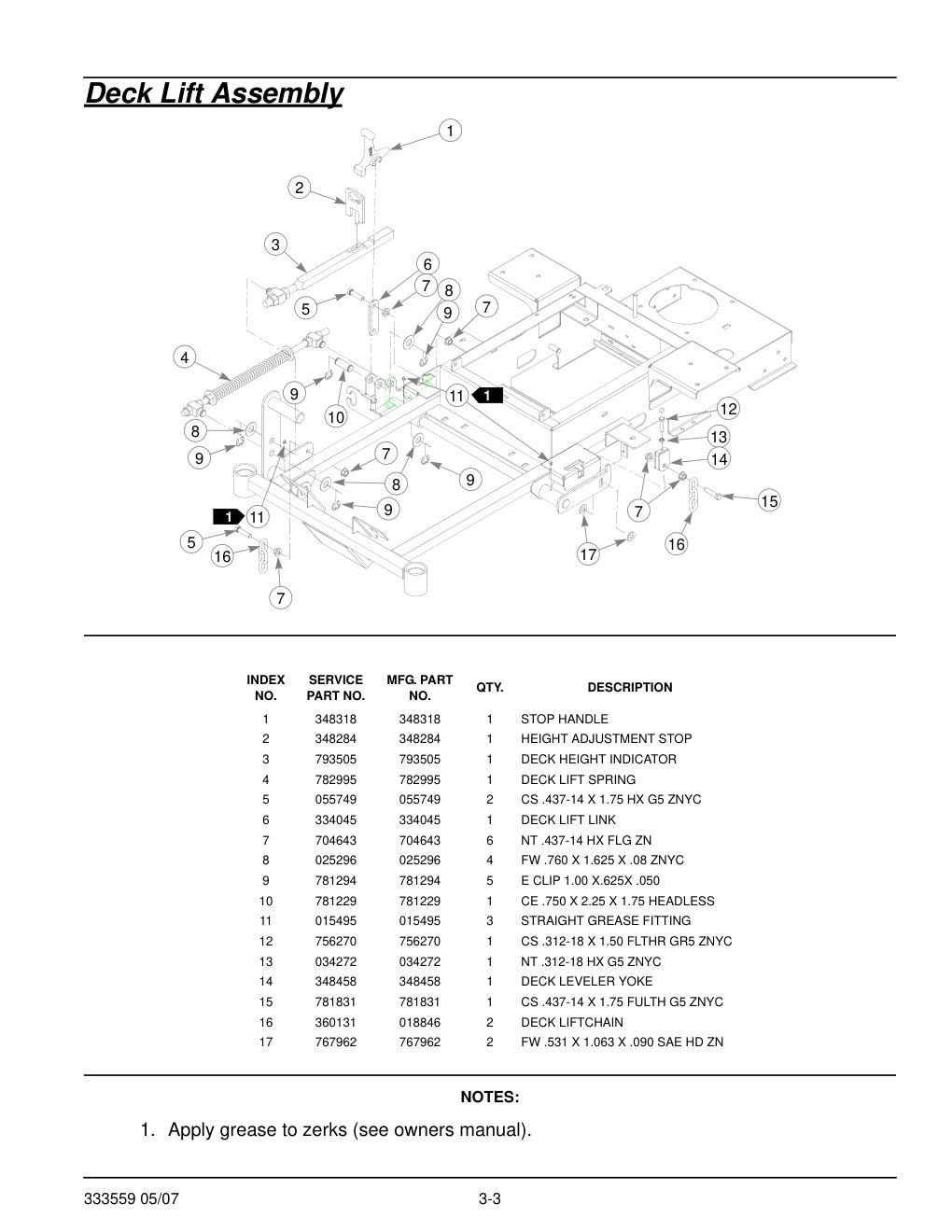

Deck Lift Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 STOP HANDLE | 348318 | 348318 | HT348318-Online |
| 2 | 1 HEIGHT ADJUSTMENT STOP | 348284 | 348284 | HT348284-Online |
| 3 | 1 DECK HEIGHT INDICATOR | 793505 | 793505 | HT793505-Online |
| 4 | 1 DECK LIFT SPRING | 782995 | 782995 | HT782995-Online |
| 5 | 2 CS .437-14 X 1.75 HX G5 ZNYC | 055749 | 055749 | HT055749-Online |
| 6 | 1 DECK LIFT LINK | 334045 | 334045 | 334045-Online |
| 7 | 6 NT .437-14 HX FLG ZN | 704643 | 704643 | HT704643-Online |
| 8 | 4 FW .760 X 1.625 X .08 ZNYC | 025296 | 025296 | HT025296-Online |
| 9 | 5 E CLIP 1.00 X.625X .050 | 781294 | 781294 | HT781294-Online |
| 10 | 1 CE .750 X 2.25 X 1.75 HEADLESS | 781229 | 781229 | 781229-Online |
| 11 | 3 STRAIGHT GREASE FITTING | 015495 | 015495 | HT015495-Online |
| 12 | 1 CS .312-18 X 1.50 FLTHR GR5 ZNYC | 756270 | 756270 | 756270-Online |
| 13 | 1 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 1 DECK LEVELER YOKE | 348458 | 348458 | HT348458-Online |
| 15 | 1 CS .437-14 X 1.75 FULTH G5 ZNYC | 781831 | 781831 | HT781831-Online |
| 16 | 2 DECK LIFTCHAIN | 360131 | 018846 | HT360131-Online |
| 17 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | 767962 | HT767962-Online |
Hydro Transmission Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 8 CS .312-18 X 2.50 HX G5 ZNYC | 710087 | 710087 | HT710087-Online |
| 2 | 4 FW .62 X 1.00 X .134 ZNYC | 028118 | 028118 | HT028118-Online |
| 3 | 1 PULLEY | 794404 | 794404 | HT794404-Online |
| 4 | 2 CS .625-11 X 1.75 HX G5 ZNYC | 025007 | 025007 | HT025007-Online |
| 5 | 1 A-SECTION PUMP BELT | 793836 | 793836 | HT793836-Online |
| 6 | 1 EZT LEFT PUMP/MOTOR COMBO | 792911 | 792911 | 792911-Online |
| 7 | 1 EZT RIGHT PUMP/MOTOR COMBO | 792895 | 792895 | 792895-Online |
| 8 | 1 FW .516 X .875 X .09 ZNYC | 718288 | 718288 | 718288-Online |
| 9 | 1 LW .437 MED SPRING ZNYC | 035238 | 035238 | 035238-Online |
| 10 | 1 CS .438-14 X 6.5 HX ZN G5 | 794552 | 794552 | 794552-Online |
| 11 | 1 SPACER TUBE-EZT MINI FST | 335695 | 335695 | 335695-Online |
| 12 | 12 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 13 | 8 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 1 4.00"OD, 5/8"ID IDLER PULLEY | 784827 | 784827 | HT784827-Online |
| 15 | 2 UHMW BUSHING | 781153 | 781153 | HT781153-Online |
| 16 | 2 FW .760 X 1.625 X .08 ZNYC | 025296 | 025296 | HT025296-Online |
| 17 | 1 PUMP BELT IDLER ARM | 324046 | 324046 | HT324046-Online |
| 18 | 1 NT .750-10 HX NL ZN | 061101 | 061101 | HT061101-Online |
| 19 | 1 IDLER SPRING | 036384 | 036384 | HT036384-Online |
| 20 | 1 SPRING CHAIN | 364315 | 059931 | HT364315-Online |
| 21 | 2 BELT DEFLECTOR | 335893 | 335893 | 335893-Online |
Steering and Brake Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 STEERING BAR GRIP | 781260 | N/A | 781260-Online |
| 2 | 2 STEERING BAR | 360487 | 360487 | 360487-Online |
| 3 | 2 CENTERING DAMPER | 600221 | 600221 | HT600221-Online |
| 783696 | CENTERING DAMPER | 783696 | 2 | HT783696-Online |
| 4 | 10 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 5 | 6 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 6 | 4 CS .375-16 X 1.75 HX G5 ZNYC | 705178 | 705178 | HT705178-Online |
| 7 | 4 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 8 | 20 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 9 | 4 DAMPER BALL STUD | 781922 | 781922 | 781922-Online |
| 10 | 8 IGUS® BUSHING | 797779 | 797779 | HT797779-Online |
| 11 | 12 NT .312-24 HX ZNYC | 041152 | 041152 | HT041152-Online |
| 12 | 2 STEERING CONTROL ARM | 325464 | 325464 | HT325464-Online |
| 13 | 8 IGUS® BUSHING | 768259 | 768259 | HT768259-Online |
| 14 | 2 FW .516 X .875 X .09 ZNYC | 718288 | 718288 | 718288-Online |
| 15 | 2 E CLIP .80X.396X.042 | 793059 | 793059 | 793059-Online |
| 16 | 2 PUMP ROD ADJUSTER ASSEMBLY | 793646 | 793646 | HT793646-Online |
| 17 | 2 STEERING LINK ROD | 794396 | 794396 | HT794396-Online |
| 18 | 2 STEERING DRIVE ARM | 793612 | 793612 | HT793612-Online |
| 19 | 2 STEERING ARM | 797753 | 797753 | HT797753-Online |
| 20 | 2 CS .312-18 X 1.250 HX G5 | 079186 | 079186 | 079186-Online |
| 21 | 2 CS .312-18 X 1.25 HX G5 ZNYC | 079186 | 079186 | 079186-Online |
| 22 | 2 FW .281 X .625 X .051/.080 HD ZNYC | 768515 | 768515 | HT768515-Online |
| 23 | 2 STEERING BLOCK | 797761 | 797761 | 797761-Online |
| 24 | 2 NT .50-13 HX LK NY ZNYC | 781567 | 781567 | HT781567-Online |
| 25 | 2 SNAP MOUNT PLUNGER SWITCH | 795625 | 795625 | 795625-Online |
| 26 | 2 BALL JOINT LINK | 796615 | 796615 | HT796615-Online |
| 27 | 2 TOWLINK ROD | 793174 | 793174 | HT793174-Online |
| 28 | 2 CP .062D X 1.00 LG HML ZN | 048553 | 048553 | 048553-Online |
| 29 | 4 NT .250-20 HX NL ZNYC | 068551 | 068551 | HT068551-Online |
| 30 | 2 BRAKE ACTUATOR ROD | 797050 | 797050 | HT797050-Online |
| 31 | 2 INLINE BALL JOINT | 795229 | 795229 | HT795229-Online |
| 32 | 1 L. H. BRAKE PIVOT (SHOWN) | 352112 | 352112 | 352112-Online |
| 33 | 1 R. H. BRAKE PIVOT (NOT SHOWN) | 352054 | 352054 | 352054-Online |
| 34 | 2 NT .250-20 HX GR.5 ZNYC | 024927 | 024927 | HT024927-Online |
| 35 | 2 PUSH BUTTON SWITCH, (DELTA) | 781211 | 781211 | HT781211-Online |
| 36 | 4 CS 10-24 X .500 HXFLK ZNYC | 060731 | 060731 | 060731-Online |
| 37 | 1 LEFT BRAKE PIVOT ARM (SHOWN) | 315382 | N/A | HT315382-Online |
| 38 | 1 RIGHT BRAKE PIVOT ARM (NOT SHOWN) | 315101 | N/A | HT315101-Online |
| 39 | 2 COMPRESSION SPRING | 794883 | 794883 | 794883-Online |
| 40 | 2 BRAKE ACTUATOR ROD | 793182 | 793182 | 793182-Online |
| 41 | 4 FW .266 X .750 X .06 ZNYC | 089789 | 089789 | 089789-Online |

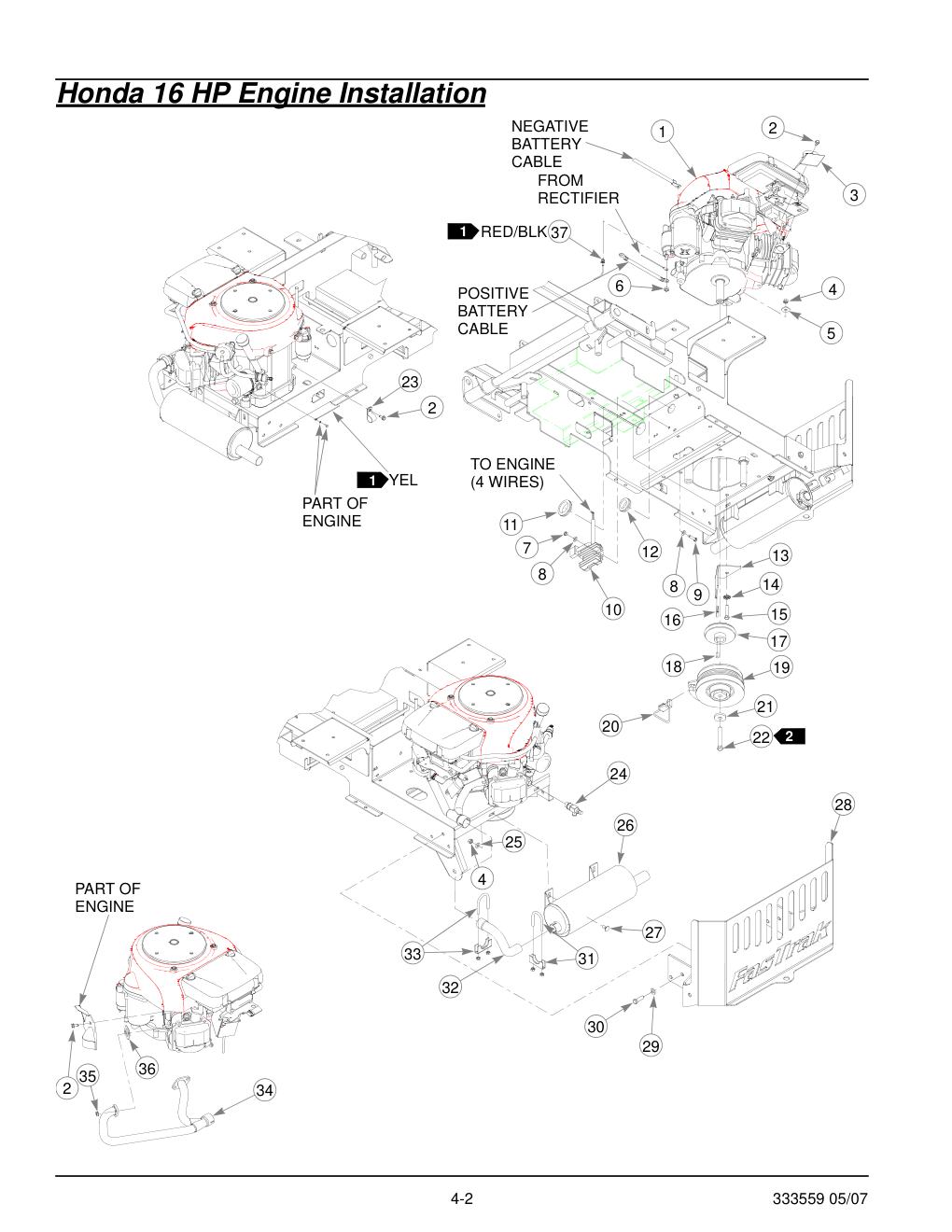

Honda 16 HP Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 HONDA 16HP ENGINE (USED ON 927368 & 927376) | 785394 | 785394 | 785394-Online |
| 2 | 3 | 739144 | 792796 | 739144-Online |
| 3 | 1 16HP EXHAUST HEAT SHIELD | 378273 | 378273 | 378273-Online |
| 4 | 6 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 5 | 4 FW .344 X 1.00 X .12 HRD ZNYC | 712927 | 712927 | HT712927-Online |
| 6 | 1 NT M8-1.25 HX STAINLESS STEEL | 782664 | 782664 | 782664-Online |
| 7 | 2 NT .250-20 HX GR.5 ZNYC | 024927 | 024927 | HT024927-Online |
| 8 | 4 FW .281 X .625 X .051/.080 HD ZNYC | 768515 | 768515 | HT768515-Online |
| 9 | 2 CS .250-20 X 1.00 HX G5 ZNYC | 056077 | 056077 | 056077-Online |
| 10 | 1 HONDA 16 AMP RECTIFIER | 787267 | N/A | 787267-Online |
| 11 | 1 GM 1.50 X 2.12 X 1.75 X .12 | 794644 | 794644 | 794644-Online |
| 12 | 1 GM 1.12 X 1.75 X 1.37 X .12 | 706531 | 706531 | 706531-Online |
| 13 | 1 CLUTCH ANCHOR | 330274 | 330274 | 330274-Online |
| 14 | 4 LW .312 INT-EXT TOOTH ZNYC | 029876 | 029876 | 029876-Online |
| 15 | 4 CS .312-18 X 1.75 HX G5 ZNYC | 050161 | 050161 | 050161-Online |
| 16 | 1 RUBBER BUMPER | 784918 | 784918 | HT784918-Online |
| 17 | 1 ENGINE-HYDRO DRIVE PULLEY | 793760 | 793760 | HT793760-Online |
| 18 | 1 KEY 1/4 SQ. X 0.66 LONG | 712372 | 712372 | HT712372-Online |
| 19 | 1 FASTRAK CLUTCH | 784835 | 784835 | 784835-Online |
| 20 | 1 CLUTCH WIRE HARNESS PIGTAIL | 791251 | N/A | HT791251-Online |
| 21 | 1 FW .454 X 1.50 X.250 | 736417 | 736417 | 736417-Online |
| 22 | 1 CS .437-20 X 3.00 HX G5 ZNYC | 785048 | 785048 | HT785048-Online |
| 23 | 1 SINGLE HOSE CLIP | 043570 | 043570 | 043570-Online |
| 24 | 1 OIL DRAIN VALVE, M16 X 1.5 | 791608 | 791608 | 791608-Online |
| 25 | 2 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 26 | 1 MUFFLER 15,17 KOHLER & 16 HONDA | 793125 | 793125 | 793125-Online |
| 27 | 2 CB .312-18 X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 28 | 1 ENGINE GUARD | 316836 | 316836 | 316836-Online |
| 29 | 6 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 30 | 6 CS .375-16 X 1.25 HX G5 ZNYC | 052860 | 052860 | HT052860-Online |
| 31 | 1 1.125" EXHAUST CLAMP | 794180 | 794180 | HT794180-Online |
| 32 | 1 16 HONDA MID EXHAUST PIPE | 793166 | 793166 | 793166-Online |
| 33 | 1 1.25" EXHAUST CLAMP | 794172 | 794172 | 794172-Online |
| 34 | 1 16 HONDA MANIFOLD | 793141 | 793141 | 793141-Online |
| 35 | 4 NT M6-1.0-10 HX FLG ZN | 005231 | 005231 | 005231-Online |
| 36 | 2 HONDA MUFFLER GASKET | 785543 | N/A | 785543-Online |
| 37 | 1 HONDA WIRE HARNESS | 793083 | 793083 | 793083-Online |
| 38 | 1 OIL DRAIN HOSE (NOT SHOWN) | 104786 | 104786 | 104786-Online |
Kohler 15 & 17 HP Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 KOHLER 15 HP ENGINE SV470S | 792945 | 792945 | 792945-Online |
| 792952 | KOHLER 17 HP ENGINE SV530S | 792952 | 1 | 792952-Online |
| 2 | 1 KOHLER 15 & 17 HP EXHAUST MANIFOLD | 793133 | 793133 | 793133-Online |
| 3 | 2 LW .312 MED SPRING ZNYC | 017004 | N/A | 017004-Online |
| 4 | 2 CS .312-18 X .75 SKTHD BO | 704478 | N/A | 704478-Online |
| 5 | 1 CS M 6-1.0 X 12 10.9 HX | 739144 | 792796 | 739144-Online |
| 6 | 4 NT .250-20 HX GR 5 ZNYC | 024927 | 024927 | HT024927-Online |
| 7 | 6 FW .281 X .625 X .051/.080 HD ZNYC | 768515 | 768515 | HT768515-Online |
| 8 | 1 GM 1.12 X 1.75 X 1.37 X .12 | 706531 | 706531 | 706531-Online |
| 9 | 1 GM 1.50 X 2.12 X 1.75 X .12 | 794644 | 794644 | 794644-Online |
| 10 | 1 RED BATTERY CABLE BOOT | 771428 | 771428 | 771428-Online |
| 11 | 1 NT #10-32 HX ZN | 044255 | 044255 | 044255-Online |
| 12 | 1 STARTER SOLENOID | 030817 | 030817 | HT030817-Online |
| 13 | 1 BATTERY CABLE | 792762 | 792762 | 792762-Online |
| 14 | 2 CS .250-20 X 1.00 HX G5 ZNYC | 056077 | 056077 | 056077-Online |
| 15 | 1 CLUTCH ANCHOR | 330274 | 330274 | 330274-Online |
| 16 | 1 LW .375 INT-EXT TOOTH | 793885 | 793885 | 793885-Online |
| 17 | 4 CS .375-16X1.000 HX G5 | 036244 | 792788 | HT036244-Online |
| 18 | 1 RUBBER BUMPER | 784918 | 784918 | HT784918-Online |
| 19 | 1 ENGINE-HYDRO DRIVE PULLEY | 793760 | 793760 | HT793760-Online |
| 20 | 1 KEY 1/4 SQ. X 0.66 LONG | 712372 | 712372 | HT712372-Online |
| 21 | 1 FASTRAK CLUTCH | 784835 | 784835 | 784835-Online |
| 22 | 1 CLUTCH WIRE HARNESS PIGTAIL | 791251 | N/A | HT791251-Online |
| 23 | 1 FW .454 X 1.50 X.250 | 763417 | 763417 | 763417-Online |
| 24 | 1 CS .437-20 X 3.00 HX G5 ZNYC | 785048 | 785048 | HT785048-Online |
| 25 | 1 ENGINE GUARD | 316836 | N/A | 316836-Online |
| 26 | 6 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 27 | 6 CS .375-16 X 1.25 HX G5 ZNYC | 052860 | 052860 | HT052860-Online |
| 28 | 2 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 29 | 2 CB .312-18 X .750 FUL ZN | 016253 | 016253 | 016253-Online |
| 30 | 1 MUFFLER 15,17 KOHLER & 16 HONDA | 793125 | 793125 | 793125-Online |
| 31 | 1 3/8-18 OIL DRAIN VALVE | 796516 | 796516 | 796516-Online |
| 32 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 33 | 2 1.125" EXHAUST CLAMP | 794180 | 794180 | HT794180-Online |
| 34 | 1 KOHLER 15 & 17 HP MID EXHAUST PIPE | 793158 | 793158 | HT793158-Online |
| 35 | 1 KOHLER WIRE HARNESS | 793117 | 793117 | 793117-Online |
| 601127 | KOHLER WIRE HARNESS | 601127 | 1 | 601127-Online |
| 37 | 1 OIL DRAIN HOSE (NOT SHOWN) | 104786 | 104786 | 104786-Online |
Fuel System Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 3.5" FUEL CAP | 779306 | 779306 | HT779306-Online |
| 2 | 1 36/42 LEFT SIDE FUEL TANK | 792978 | 792978 | HT792978-Online |
| 3 | 1 36/42 RIGHT SIDE FUEL TANK | 792960 | 792960 | HT792960-Online |
| 4 | 6 CLIP | 000323 | 000323 | 000323-Online |
| 5 | 1 3-WAY FUEL VALVE | 745059 | 745059 | HT745059-Online |
| 6 | 10 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 7 | 8 CS .375-16 X .75 HX G5 ZNYC | 055822 | 055822 | HT055822-Online |
| 8 | 2 SMALL, SHORT WIRE TIE | 000331 | 000331 | 000331-Online |
| 9 | 1 FUEL LINE, 21.00" LONG | 015818 | 015818 | HT015818-Online |
| 10 | 1 FUEL LINE, 16.25" LONG (HONDA) | 015818 | 015818 | HT015818-Online |
| 015818 | FUEL LINE, 14.00" LONG (KOHLER) | 015818 | 1 | HT015818-Online |
| 11 | 1 FUEL LINE, 8.5" LONG | 015818 | 015818 | HT015818-Online |
| 12 | 2 BUMPER, .500X 1.00X .312 X.188 | 781880 | 781880 | HT781880-Online |

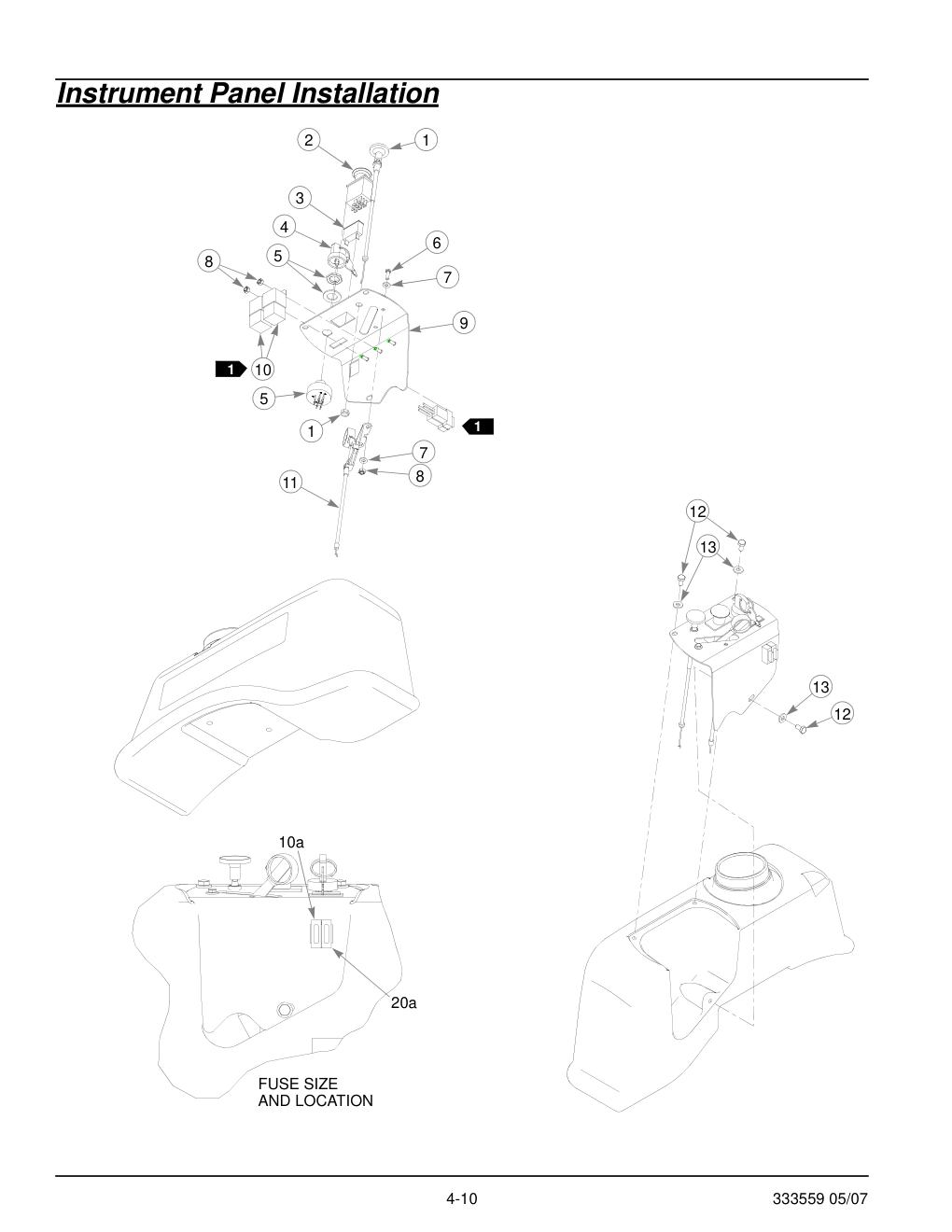

Instrument Panel Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 CHOKE CABLE (KOHLER) | 786657 | 786657 | HT786657-Online |
| 785030 | CHOKE CABLE (HONDA) | 785030 | 1 | HT785030-Online |
| 2 | 1 PTO SWITCH | 776476 | 776476 | HT776476-Online |
| 3 | 1 RED INDICATOR LIGHT | 712257 | 712257 | HT712257-Online |
| 4 | 1 KEY ASSEMBLY | 785808 | 785808 | 785808-Online |
| 5 | 1 KEY SWITCH | 045898 | 045898 | HT045898-Online |
| 6 | 2 MS #10-24 X .625 HX ZN | 714998 | 714998 | 714998-Online |
| 7 | 4 FW .219 X .500 X .048 ZNYC | 704932 | 704932 | HT704932-Online |
| 8 | 4 NT #10-24 HX NL ZN | 059832 | 059832 | 059832-Online |
| 9 | 1 INSTRUMENT PANEL | 321059 | 321059 | 321059-Online |
| 10 | 2 RELAY | 026237 | N/A | 026237-Online |
| 11 | 1 THROTTLE CABLE (HONDA) | 793810 | 793810 | HT793810-Online |
| 778365 | THROTTLE CABLE (KOHLER) | 778365 | 1 | HT778365-Online |
| 12 | 3 CS .250-20X .500 HX G5 ZNYC | 055947 | 055947 | 055947-Online |
| 13 | 3 FW .281 X .625 X .051/.080 HD ZNYC | 768515 | 768515 | HT768515-Online |
Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 CS .500-13 X 1.25 HX G5 ZNYC | 705954 | 705954 | HT705954-Online |
| 2 | 2 FW .510 X 2.15 X .187 SPL ZNYC | 344267 | 344267 | HT344267-Online |
| 3 | 2 FW .531 X 1.375 X .125 ZNYC | 712976 | 712976 | HT712976-Online |
| 4 | 4 BEARING | 784223 | 784223 | HT784223-Online |
| 5 | 2 SPACER | 784603 | 784603 | HT784603-Online |
| 6 | 2 CASTER FORK | 339689 | 339689 | HT339689-Online |
| 7 | 2 NT .50-13 HX LK NY ZNYC | 781567 | 781567 | HT781567-Online |
| 8 | 4 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | 767962 | HT767962-Online |
| 9 | 2 CS .500-13 X 6.50 HX G5 ZNYC | 042630 | 042630 | HT042630-Online |
| 10 | 2 GAGE WHEEL SPACER | 306969 | 306969 | HT306969-Online |
| 11 | 2 TIRE/WHL 11X4-5 RIBBED | 768044 | 768044 | 768044-Online |

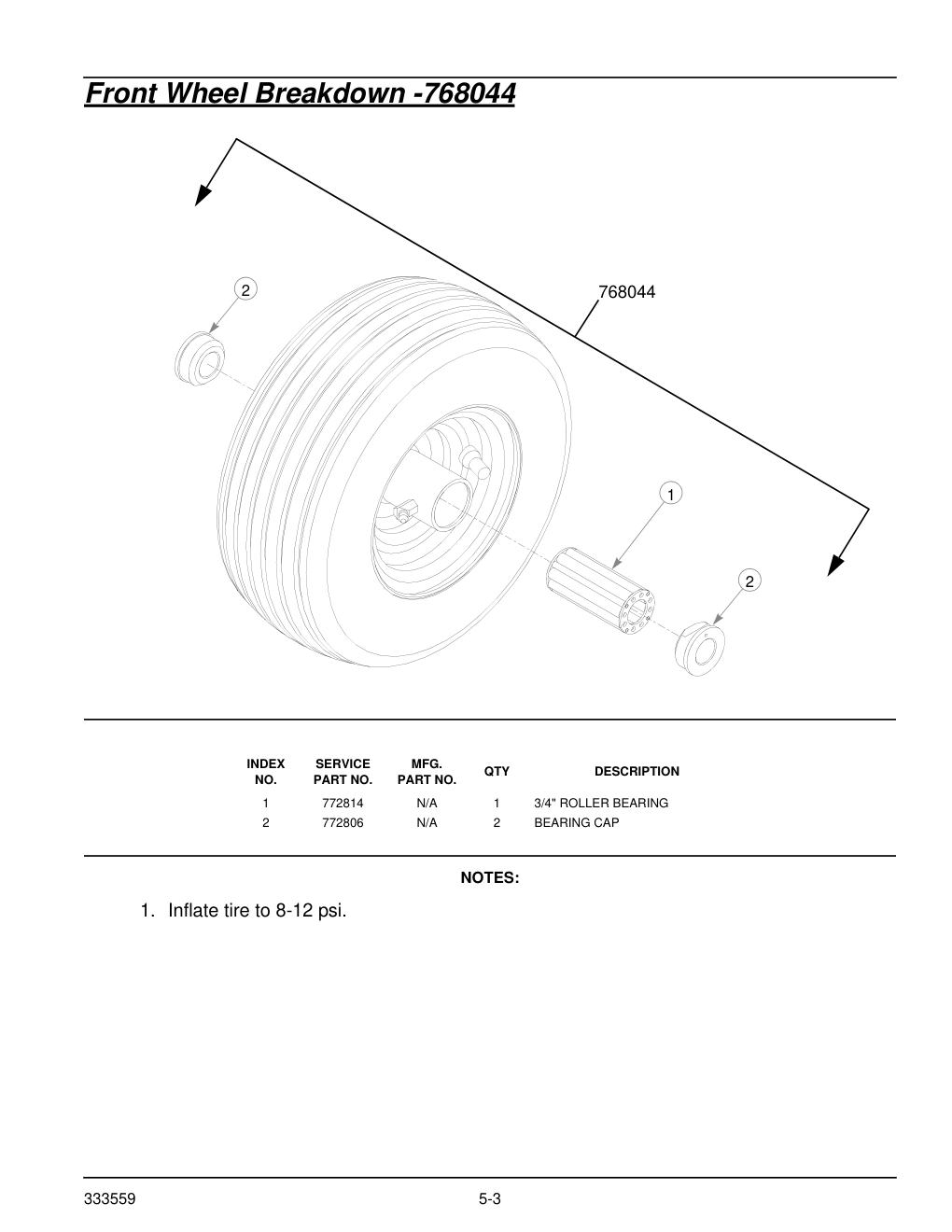

Front Wheel Breakdown -768044
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 3/4" ROLLER BEARING | 772814 | N/A | HT772814-Online |
| 2 | 2 BEARING CAP | 772806 | N/A | HT772806-Online |

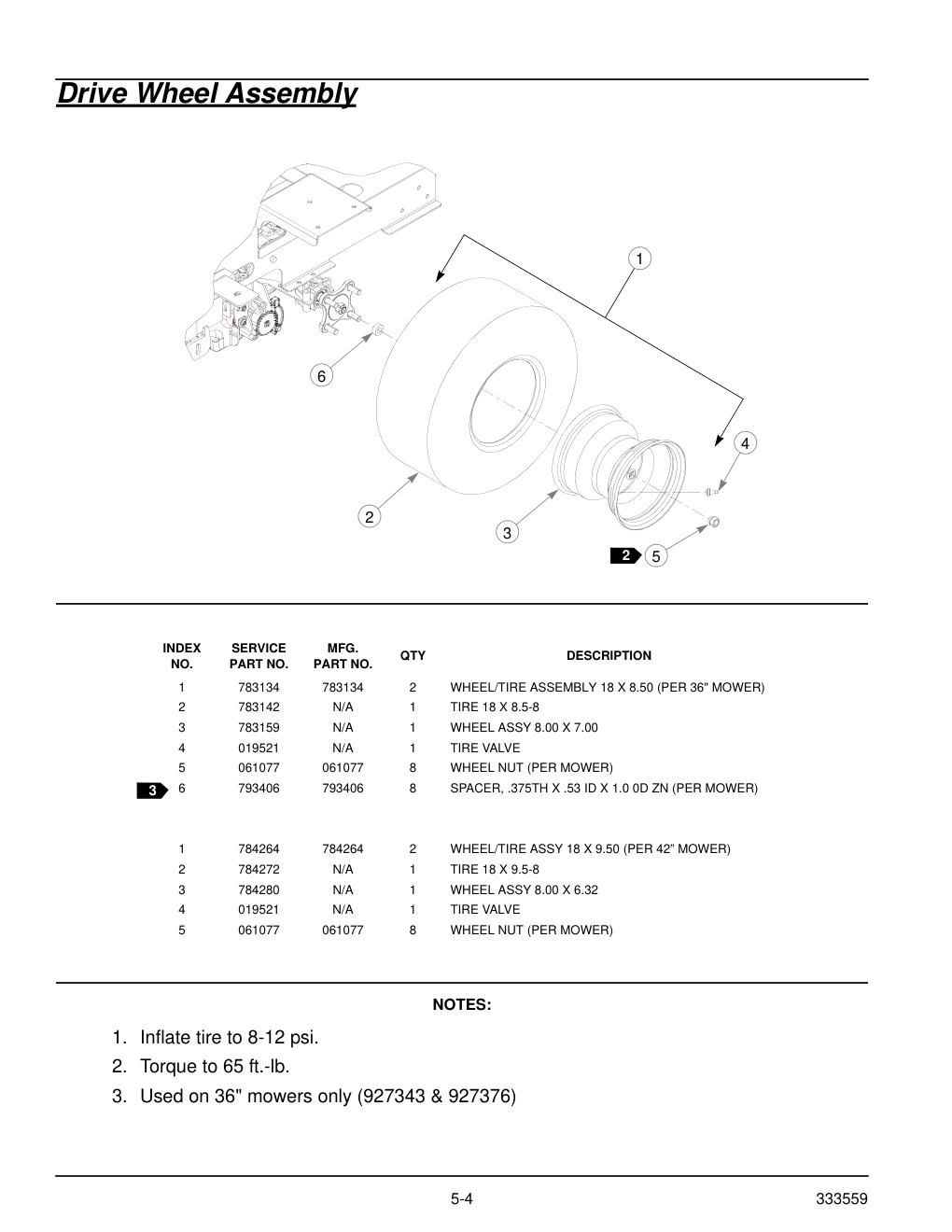

Drive Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 WHEEL/TIRE ASSEMBLY 18 X 8.50 (PER 36" MOWER) | 783134 | 783134 | 783134-Online |
| 2 | 1 TIRE 18 X 8.5-8 | 783142 | N/A | 783142-Online |
| 3 | 1 WHEEL ASSY 8.00 X 7.00 | 783159 | N/A | 783159-Online |
| 4 | 1 TIRE VALVE | 019521 | N/A | HT019521-Online |
| 5 | 8 WHEEL NUT (PER MOWER) | 061077 | 061077 | HT061077-Online |
| 6 | 8 SPACER, .375TH X .53 ID X 1.0 0D ZN (PER MOWER) | 793406 | 793406 | 793406-Online |
| 1 | 2 WHEEL/TIRE ASSY 18 X 9.50 (PER 42” MOWER) | 784264 | 784264 | 784264-Online |
| 2 | 1 TIRE 18 X 9.5-8 | 784272 | N/A | HT784272-Online |
| 3 | 1 WHEEL ASSY 8.00 X 6.32 | 784280 | N/A | 784280-Online |
| 4 | 1 TIRE VALVE | 019521 | N/A | HT019521-Online |
| 5 | 8 WHEEL NUT (PER MOWER) | 061077 | 061077 | HT061077-Online |

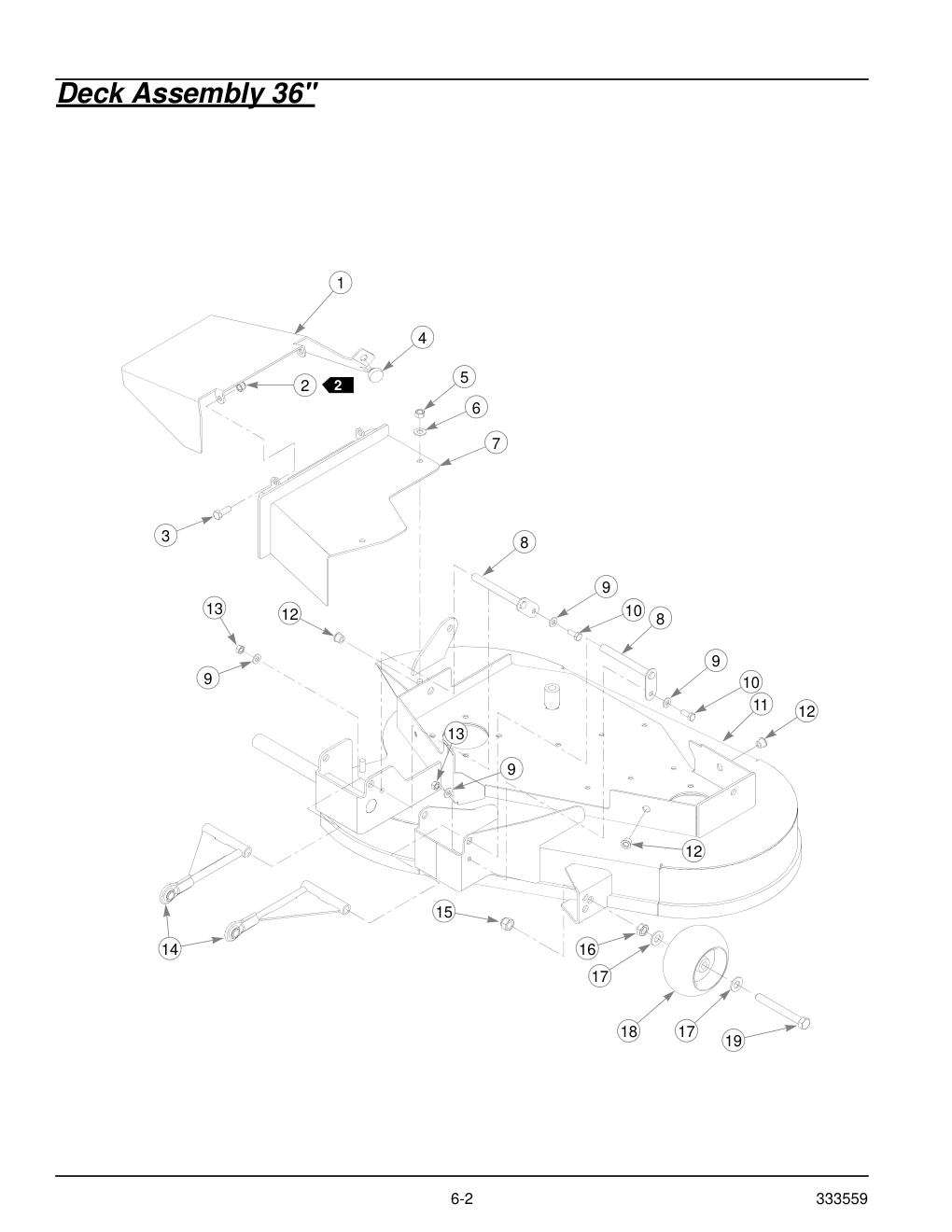

Deck Assembly 36"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DISCHARGE CHUTE | 330399 | 330399 | 330399-Online |
| 2 | 2 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 3 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 036244 | 036244 | HT036244-Online |
| 4 | 1 BUMPER, .500X 1.00X .312 X.188 | 781880 | 781880 | HT781880-Online |
| 5 | 2 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 6 | 2 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 7 | 1 DISCHARGE CHUTE BASE | 352500 | 352500 | HT352500-Online |
| 8 | 2 PULLBAR PIN | 322974 | 322974 | HT322974-Online |
| 9 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 10 | 2 CS .312-18 X .75 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 11 | 1 36" FASTRAK DECK | 546937 | 315572 | 546937-Online |
| 12 | 3 5/16-18 THREAD RIVET NUT | 808485 | 808485 | HT808485-Online |
| 13 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 2 PULLBAR | 330225 | 330225 | HT330225-Online |
| 15 | 1 NT .50-13 HX LK NY | 781567 | 781567 | HT781567-Online |
| 16 | 1 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 17 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 18 | 1 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 19 | 1 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |
| 788166 | ANTI SCALP WHEEL ASSY 1 | 788166 | 1 | HT788166-Online |

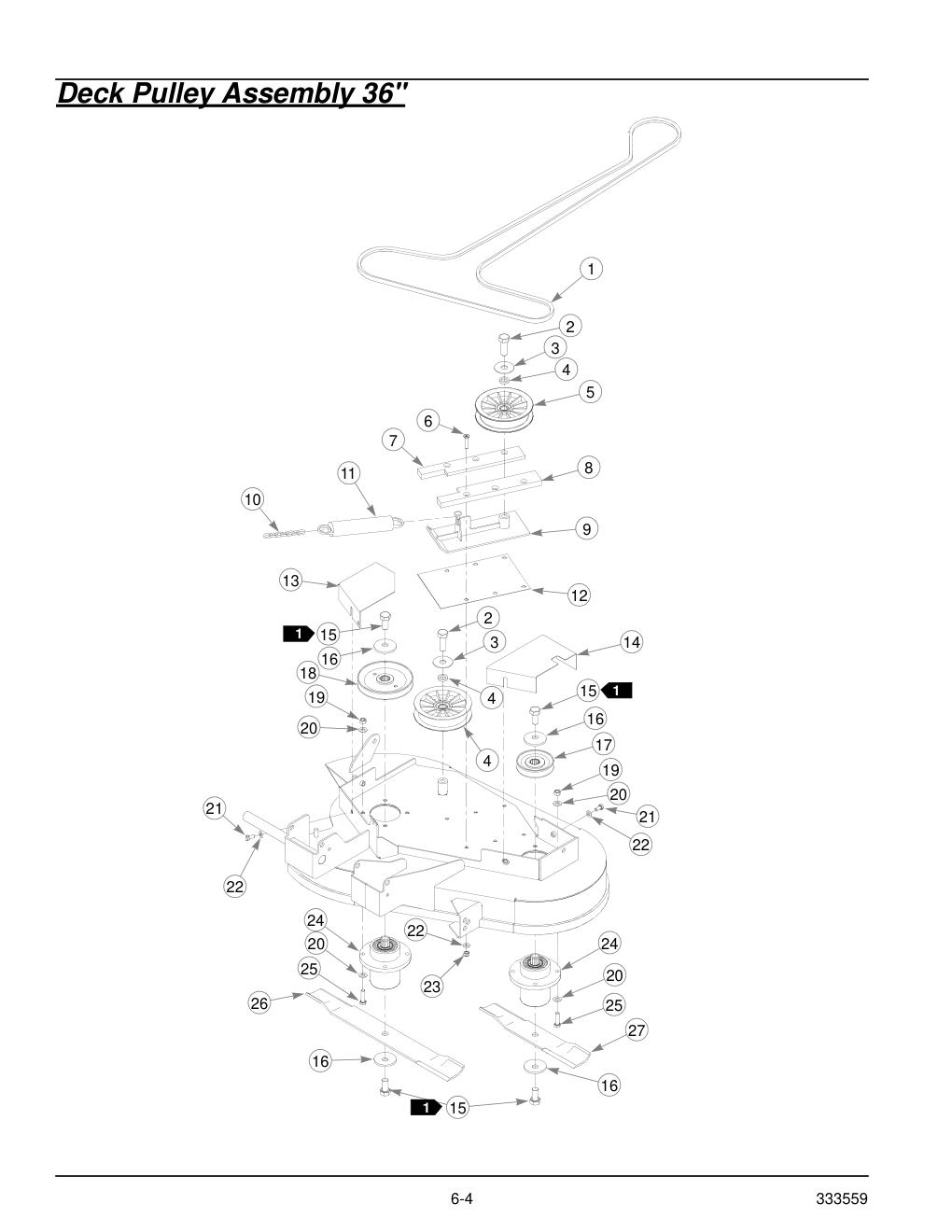

Deck Pulley Assembly 36"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 A-SECTION BELT (FASTRAK 36") | 793828 | 793828 | HT793828-Online |
| 2 | 2 CS .625-11 X 1.75 HX G5 ZNYC | 025007 | 025007 | HT025007-Online |
| 3 | 2 FW .656 X 2.00 X .078 ZNYC | 046821 | 046821 | HT046821-Online |
| 4 | 2 FW .650 X 1.00 X .180 ZNYC G5 | 797449 | 797449 | 797449-Online |
| 5 | 2 IDLER PULLEY, 5.00"OD, 5/8"ID | 784504 | 784504 | HT784504-Online |
| 6 | 6 CS .312-18 X 1.50 FLT SH ZY | 797910 | 797910 | HT797910-Online |
| 7 | 1 RS UHMW IDLER SLIDE | 600189 | 600189 | 600189-Online |
| 8 | 1 LS UHMW IDLER SLIDE | 600171 | 600171 | 600171-Online |
| 9 | 1 DECK IDLER | 321877 | 321877 | HT321877-Online |
| 10 | 1 SPRING CHAIN | 364315 | 059931 | HT364315-Online |
| 11 | 1 IDLER SPRING | 781302 | 781302 | 781302-Online |
| 12 | 1 .03 THICK UHMW | 786335 | 786335 | 786335-Online |
| 13 | 1 RIGHT PULLEY COVER | 321398 | 321398 | HT321398-Online |
| 14 | 1 LEFT PULLEY COVER | 330324 | 330324 | HT330324-Online |
| 15 | 4 CS .625-11 X 1.25 HX G5 ZNYC | 781872 | 781872 | HT781872-Online |
| 16 | 4 CW .631 2.250 X .187 PNT | 782474 | 782474 | HT782474-Online |
| 17 | 1 DECK PULLEY (FASTRAK 36") | 793786 | 793786 | HT793786-Online |
| 18 | 1 DECK PULLEY (FASTRAK 36"/42") | 793778 | 793778 | 793778-Online |
| 19 | 8 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 20 | 16 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 21 | 4 CS .312-18 X .625 HX G5 ZNYC | 064006 | 064006 | 064006-Online |
| 22 | 10 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 23 | 6 NT .312-18 HX NL ZNYC | 058776 | 058776 | HT058776-Online |
| 24 | 2 BLADE SPINDLE ASSEMBLY | 783506 | 783506 | 783506-Online |
| 25 | 8 CS .375-16 X 1.375 HX G5 ZNYC | 005116 | 005116 | HT005116-Online |
| 26 | 1 20.50" 42D X 0.631 CW BLADE | 793794 | 793794 | HT793794-Online |
| 27 | 1 13.75" 42D X 0.631 CW BLADE | 793802 | 793802 | HT793802-Online |
| 28 | 6 CS .312-18 X 1.25 HX G5 | 079186 | N/A | 079186-Online |
| 29 | 6 FW .344 X 1.00 X .12 HRD ZN | 712927 | N/A | HT712927-Online |
| 30 | 2 DECK IDLER UHMW CLAMP | 785832 | N/A | 785832-Online |
| 31 | 2 DECK IDLER UHMW RISER | 787069 | N/A | 787069-Online |
| 32 | 6 FW .440 X 1.000 X .083 ZNYC | 017129 | N/A | 017129-Online |

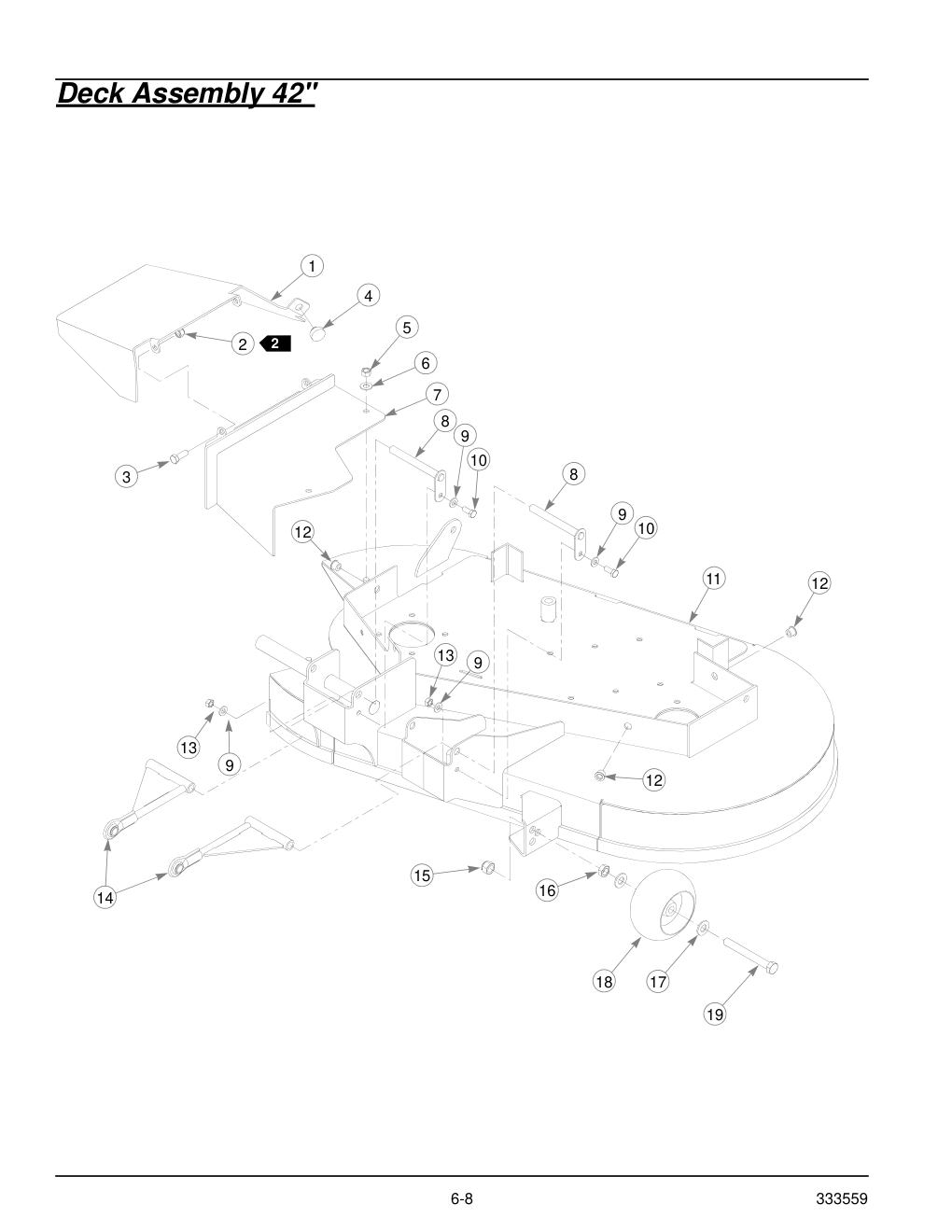

Deck Assembly 42"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DISCHARGE CHUTE | 330399 | 330399 | 330399-Online |
| 2 | 2 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 3 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 036244 | 036244 | HT036244-Online |
| 4 | 1 BUMPER, .500X 1.00X .312 X.188 | 781880 | 781880 | HT781880-Online |
| 5 | 2 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 6 | 2 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 7 | 1 DISCHARGE CHUTE BASE | 352500 | 352500 | HT352500-Online |
| 8 | 2 PULLBAR PIN | 322974 | 322974 | HT322974-Online |
| 9 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 10 | 2 CS .312-18 X .75 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 11 | 1 42" FASTRAK DECK | 546929 | 316919 | 546929-Online |
| 12 | 3 5/16-18 THREAD RIVET NUT | 808485 | 808485 | HT808485-Online |
| 13 | 2 NT .312-18 HX G5 ZNYC | 034272 | 034272 | HT034272-Online |
| 14 | 2 PULLBAR | 330225 | 330225 | HT330225-Online |
| 15 | 1 NT .50-13 HX LK NY | 781567 | 781567 | HT781567-Online |
| 16 | 1 NT .500-13 HX JAM ZNYC | 053199 | N/A | HT053199-Online |
| 17 | 2 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | N/A | HT767962-Online |
| 18 | 1 ANTI-SCALP WHEEL | 031997 | N/A | HT031997-Online |
| 19 | 1 CS .500-13 X 4.25 HX G5 ZNYC | 781708 | N/A | HT781708-Online |
| 788166 | ANTI SCALP WHEEL ASSY 1 | 788166 | 1 | HT788166-Online |
Deck Pulley Assembly 42"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 A-SECTION BELT (FASTRAK 42") | 793893 | 793893 | HT793893-Online |
| 2 | 2 CS .625-11 X 1.75 HX G5 ZNYC | 025007 | 025007 | HT025007-Online |
| 3 | 2 FW .656 X 2.00 X .078 ZNYC | 046821 | 046821 | HT046821-Online |
| 4 | 2 FW .650 X 1.00 X .180 ZNYC G5 | 797449 | 797449 | 797449-Online |
| 5 | 2 IDLER PULLEY, 5.00"OD, 5/8"ID | 784504 | 784504 | HT784504-Online |
| 6 | 6 CS .312-18 X 1.50 FLT SH ZY | 797910 | 797910 | HT797910-Online |
| 7 | 1 RS UHMW IDLER SLIDE | 600189 | 600189 | 600189-Online |
| 8 | 1 LS UHMW IDLER SLIDE | 600171 | 600171 | 600171-Online |
| 9 | 1 DECK IDLER | 321877 | 321877 | HT321877-Online |
| 10 | 1 SPRING CHAIN | 364315 | 364315 | HT364315-Online |
| 11 | 1 IDLER SPRING | 781302 | 059931 | 781302-Online |
| 12 | 1 .03 THICK UHMW | 786335 | 786335 | 786335-Online |
| 13 | 1 RIGHT PULLEY COVER | 321398 | 321398 | HT321398-Online |
| 14 | 1 LEFT PULLEY COVER | 321042 | 321042 | HT321042-Online |
| 15 | 2 CS .625-11 X 1.25 HX G5 ZNYC | 781872 | 781872 | HT781872-Online |
| 16 | 4 CW .631 2.250 X .187 PNT | 782474 | 782474 | HT782474-Online |
| 17 | 2 DECK PULLEY (FASTRAK 36"/42") | 793778 | 793778 | 793778-Online |
| 18 | 8 NT .375-16 HX GRD 5 ZNYC | 054502 | 054502 | HT054502-Online |
| 19 | 16 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 20 | 4 CS .312-18 X .625 HX G5 ZNYC | 064006 | 064006 | 064006-Online |
| 21 | 10 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 22 | 6 NT .312-18 HX NL ZNYC | 058776 | 058776 | HT058776-Online |
| 23 | 2 BLADE SPINDLE ASSEMBLY | 783506 | 783506 | 783506-Online |
| 24 | 8 CS .375-16 X 1.375 HX G5 ZNYC | 005116 | 005116 | HT005116-Online |
| 25 | 2 20.50" 42D X 0.631 CW BLADE | 793794 | 793794 | HT793794-Online |
| 26 | 2 CS .625-11 X 1.25 HX G5 ZNYC | 781872 | 781872 | HT781872-Online |
| 27 | 6 CS .312-18 X 1.25 HX G5 | 079186 | N/A | 079186-Online |
| 28 | 6 FW .344 X 1.00 X .12 HRD ZN | 712927 | N/A | HT712927-Online |
| 29 | 2 DECK IDLER UHMW CLAMP | 785832 | N/A | 785832-Online |
| 30 | 2 DECK IDLER UHMW RISER | 787069 | N/A | 787069-Online |
| 31 | 6 FW .440 X 1.000 X .083 ZNYC | 017129 | N/A | 017129-Online |
Blade Spindle Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 BLADE SPINDLE RETAINING RING | 783548 | N/A | HT783548-Online |
| 2 | 2 BLADE SPINDLE BEARING | 783555 | N/A | 783555-Online |
| 3 | 1 BLADE SPINDLE SPACER | 783530 | N/A | HT783530-Online |
| 4 | 1 BLADE SPINDLE HOUSING | 783514 | N/A | HT783514-Online |
| 5 | 1 BLADE SPINDLE SHAFT | 783522 | N/A | HT783522-Online |
Deck Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 2 NT .500-13 HX GR 8 ZY NL | 781567 | 781567 | HT781567-Online |
| 2 | 4 FW .531 X 1.063 X .090 SAE HD ZN | 767962 | 767962 | HT767962-Online |
| 3 | 2 CS .500-13 X 1.75 HX G5 ZNYC | 017616 | 017616 | HT017616-Online |
| 4 | 5 NT .437-14 HX FLG ZN | 704643 | 704643 | HT704643-Online |
| 5 | 3 CS .437-14 X 1.75 HX G5 ZNYC | 055749 | 055749 | HT055749-Online |
Seat Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 STANDARD MICHIGAN SEAT | 793679 | 793679 | 793679-Online |
| 2 | 3 NT .375-16 HX LK NY | 086660 | 086660 | HT086660-Online |
| 3 | 3 FW .406 X .812 X .060 SAE HD ZN | 767954 | 767954 | HT767954-Online |
| 4 | 1 SEAT PAN | 320275 | 320275 | 320275-Online |
| 5 | 2 CS .375-16 X 1.25 HX G5 ZNYC | 052860 | 052860 | HT052860-Online |
| 6 | 2 COMPRESSION SPRING, 1.25X4.00X.188 | 793851 | 793851 | HT793851-Online |
| 7 | 4 FW .343 X .687 X .051/.080 HD ZNYC | 768523 | 768523 | HT768523-Online |
| 8 | 4 CS .312-18 X .750 HX G5 ZNYC | 034280 | 034280 | HT034280-Online |
| 9 | 2 CS .375-16 X 1.00 HX G5 ZNYC | 036244 | 036244 | HT036244-Online |

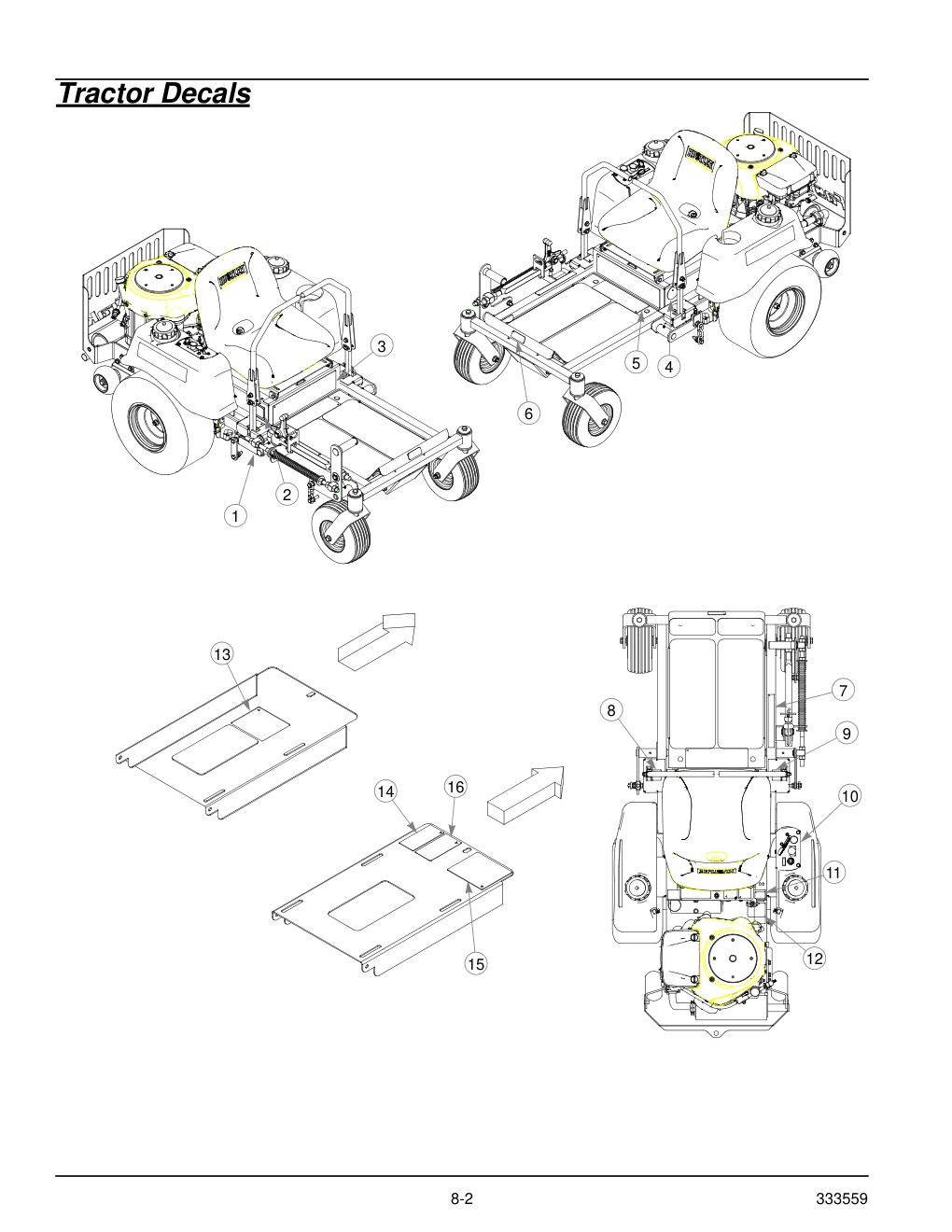

Tractor Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 DEFLECTOR SHIELD DECAL | 794545 | 794545 | 794545-Online |
| 2 | 1 TURF PROD SERIAL NO PLATE | N/A | 083279 | No SKU |
| 3 | 1 FASTRAK DECAL | 784710 | 784710 | 784710-Online |
| 4 | 1 FIRST ZERO TURN DECAL | 782573 | 782573 | 782573-Online |
| 5 | 1 FASTRAK OPERATION DECAL | 793547 | 793547 | 793547-Online |
| 6 | 1 HUSTLER NAME PLATE | 793588 | 793588 | 793588-Online |
| 7 | 1 DECK HEIGHT DECAL | 794305 | 794305 | 794305-Online |
| 8 | 1 FASTRAK LEFT SIDE STEERING DECAL | 785139 | 785139 | 785139-Online |
| 9 | 1 FASTRAK RIGHT SIDE STEERING DECAL | 785220 | 785220 | 785220-Online |
| 10 | 1 INSTRUMENT PANEL DECAL | 793703 | 793703 | 793703-Online |
| 11 | 1 FASTRAK 36/42 FUEL VALVE DECAL | 793554 | 793554 | 793554-Online |
| 12 | 1 STABILIZER DECAL | 771436 | 771436 | 771436-Online |
| 13 | 1 BATTERY DECAL | 727016 | 727016 | 727016-Online |
| 14 | 1 ENGINE COMPARTMENT DECAL | 788968 | 788968 | 788968-Online |
| 15 | 1 SERVICE DECAL | 785147 | 785147 | 785147-Online |
| 16 | 1 PUMP BELT WARNING DECAL | 600899 | 600899 | 600899-Online |

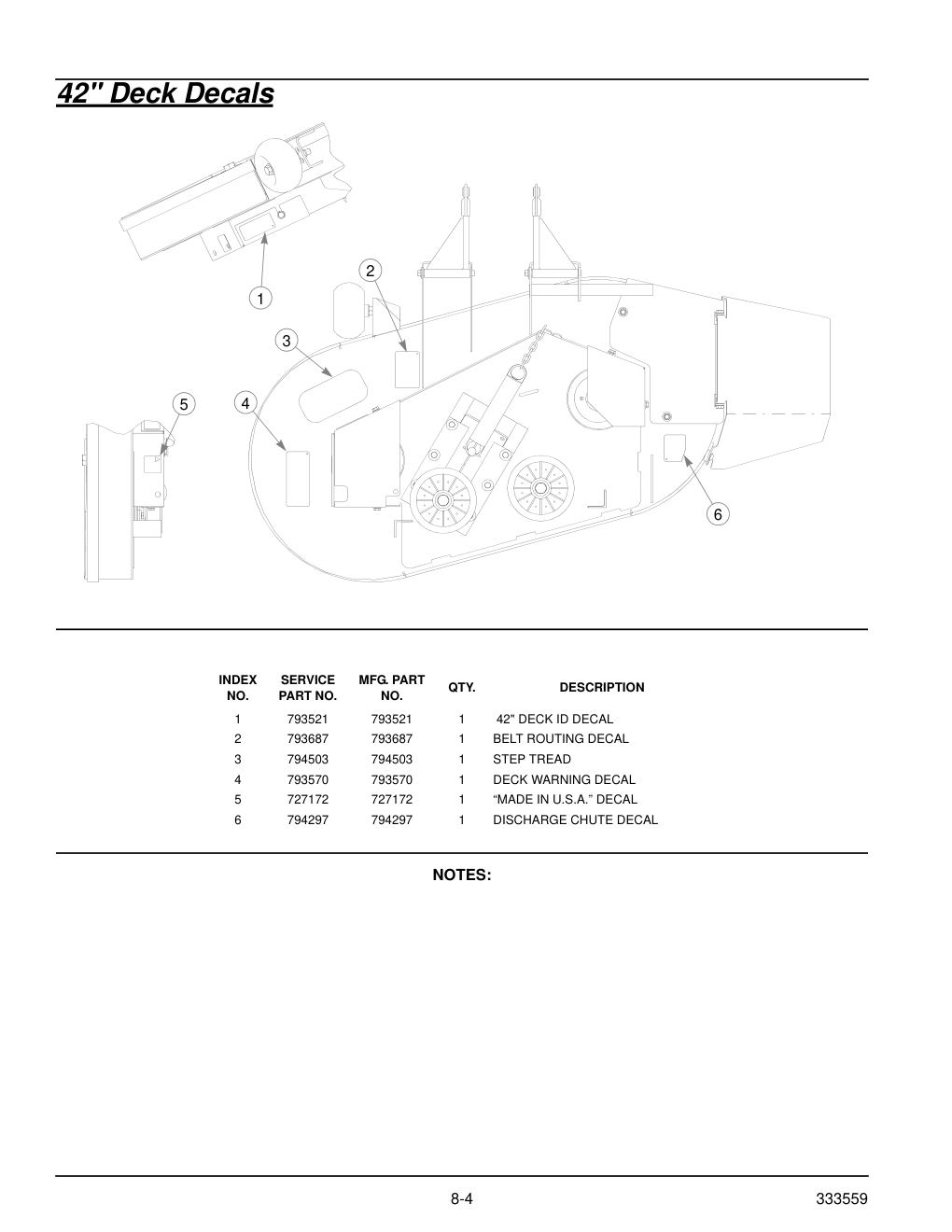

42" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 42" DECK ID DECAL | 793521 | 793521 | 793521-Online |
| 2 | 1 BELT ROUTING DECAL | 793687 | 793687 | 793687-Online |
| 3 | 1 STEP TREAD | 794503 | 794503 | 794503-Online |
| 4 | 1 DECK WARNING DECAL | 793570 | 793570 | 793570-Online |
| 5 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 6 | 1 DISCHARGE CHUTE DECAL | 794297 | 794297 | 794297-Online |
36" Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 1 36" DECK ID DECAL | 793513 | 793513 | 793513-Online |
| 2 | 1 BELT ROUTING DECAL | 793687 | 793687 | 793687-Online |
| 3 | 1 STEP TREAD | 794503 | 794503 | 794503-Online |
| 4 | 1 “MADE IN U.S.A.” DECAL | 727172 | 727172 | 727172-Online |
| 5 | 1 DECK WARNING DECAL | 793570 | 793570 | 793570-Online |
| 6 | 1 DISCHARGE CHUTE DECAL | 794297 | 794297 | 794297-Online |
