Illustrated Parts List
72" Diesel Z Parts Manual - 943249EX - HTHDZV072PER403J-11E
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 943249EXModel: 607407Model: 608935SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameFootrestEngine Cover (Multi-Page)Engine Cover (Multi-Page)Radiator & Air Cleaner SupportHydraulic System (Multi-Page)Pump BreakdownHydraulic Filter and Reservoir AssemblyManifold Assembly BreakdownWheel Motor BreakdownSteeringSteering Cover Assembly (Multi-Page)RS Steering Box AssemblyLS Steering Box AssemblyBrakeWheels & TiresFront Wheel AssemblyDrive Wheel AssemblyEngine, Muffler & Battery (Multi-Page)Engine, Muffler & Battery (Multi-Page)Fuel SystemAir CleanerCooling SystemBelt Drive & ClutchBelt Drive & ClutchInstrument Panel & Wire HarnessInstrument Panel & Wire HarnessBatteryService DeckDeck Pulleys & SpindlesSpindle Assembly Service Parts - 607407Deck Belt, Discharge Chute, Pulley Covers &Deck Lift & Mounting Hardware (Multi-Page)SeatSeat Service Parts - 608935ROPS & FirewallFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE FRAME, 72" HDZ | 551154 | 1 | 551154-Online |
| 2 | RIVET NUT, 1/2-13 THREAD | 600961 | 4 | 600961-Online |
| 3 | DECAL, HYDRAULIC PRESS | 601968 | 1 | 601968-Online |
| 4 | DECAL, ANSI COMPLIANCE | 603363 | 1 | 603363-Online |
| 5 | DECAL, DECK HEIGHT INDI | 781427 | 1 | 781427-Online |
| 6 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 7 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 8 | SERIAL NUMBER / SPEC DECAL | N/A | 1 | No SKU |
| 9 | DECAL, BELT ROUTING | 601596 | 1 | 601596-Online |
| 10 | DECAL, DBA 115 ISO | 607782 | 1 | 607782-Online |
Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLOORPAN, SERVICE | 551139 | 1 | 551139-Online |
| 2 | CS .375-16X1.25 HX G5 ZN | 052860 | 1 | HT052860-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 4 | SPACER, DECK LIFT LINK | 118900 | 1 | HT118900-Online |
| 5 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 6 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
Engine Cover (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOOD, HDZ | 601363 | 1 | 601363-Online |
| 2 | SEAL 3/8x3/4 - 6 FT | 713198P | 1 | 713198P-Online |
| 3 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 4 | FW 0.281SAE | 768515 | 10 | HT768515-Online |
| 5 | HINGE, 3"X3" ZN W/ HOLES | 601364 | 2 | 601364-Online |
| 6 | CB .250-20 X .625 ZN | 601503 | 8 | 601503-Online |
| 7 | GAS SPRING, HDZ HOOD | 601564 | 1 | 601564-Online |
| 8 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 9 | SB .375X0.500SH0.312-18 | 063297 | 1 | 063297-Online |
| 10 | SB .375 X 1.50SH .312-18 | 601379 | 1 | 601379-Online |
| 11 | LIFT SUPPORT W/A | 109745 | 1 | 109745-Online |
| 12 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 13 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 14 | SCREEN, RS W/A HDZ | 109341 | 1 | 109341-Online |
| 15 | LATCH, HEAVY DUTY SWELL | 791384 | 1 | 791384-Online |
| 16 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 17 | LATCH STRIKER W/A | 109722 | 1 | 109722-Online |
| 18 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 19 | FW 0.344X1.00X.12 HD ZN | 712927 | 2 | HT712927-Online |
| 20 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 21 | RADIATOR SCREEN W/A HDZ | 109137 | 1 | 109137-Online |
| 22 | WEATHERSTRIP .12X.75 - 2FT | 033035P | 1 | 033035P-Online |
| 23 | WEATHERSTRIP .12X.75 - 2FT | 033035P | 1 | 033035P-Online |
| 24 | WEATHERSTRIP .12X.75 - 2FT | 033035P | 1 | 033035P-Online |
| 25 | WEATHERSTRIP .12X.75 - 2FT | 033035P | 1 | 033035P-Online |
| 26 | PANEL, FIREWALL ACCESS | 109136 | 1 | 109136-Online |
| 27 | CS .250-20X0.75 HX G5 ZN | 055939 | 4 | 055939-Online |
| 28 | LATCH BRACKET | 124364-1 | 1 | 124364-1-Online |
| 29 | LW .250 INTEXT ZN | 029868 | 2 | 029868-Online |
| 30 | LATCH, SLAM SOUTHCO | 601373 | 1 | 601373-Online |
| 31 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 32 | OVER CNTR CATCH W/LCK H | 758821 | 1 | 758821-Online |
| 33 | COVER, REAR W/A HDZ | 109413 | 1 | 109413-Online |
| 34 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 35 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
Engine Cover (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | FENDER, INNER PANEL | 109559 | 1 | 109559-Online |

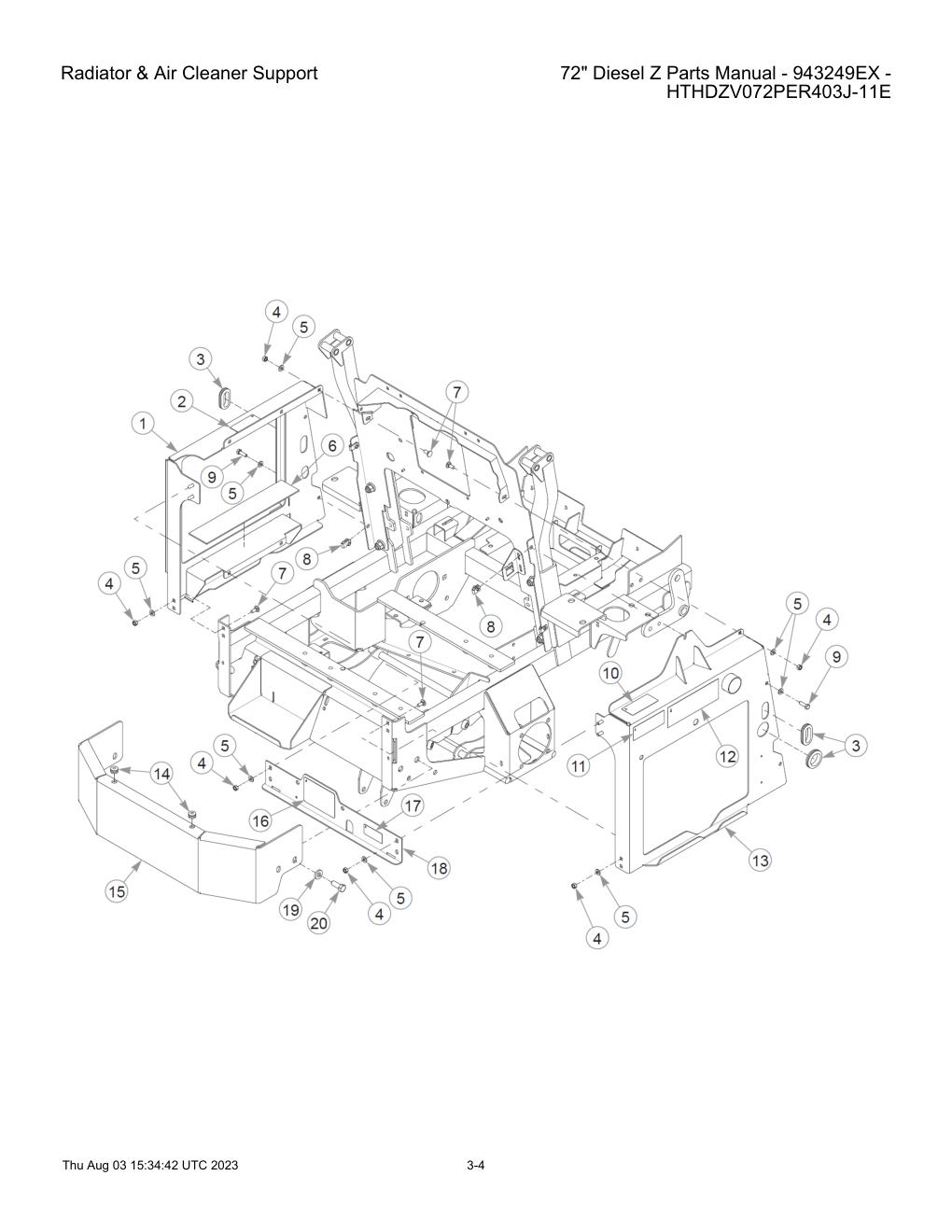

Radiator & Air Cleaner Support
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RADIATOR SUPPORT, | 551141 | 1 | 551141-Online |
| 2 | FAN WARNING DECAL | 763805CE | 1 | 763805CE-Online |
| 3 | GM 1.50 X 2.12 X 1.75 | 794644 | 3 | 794644-Online |
| 4 | NT .312-18HXG5 | 034272 | 10 | HT034272-Online |
| 5 | FW 0.343SAE | 768523 | 14 | HT768523-Online |
| 6 | RADIATOR SUPPORT PAD | 601558 | 1 | 601558-Online |
| 7 | CB .312-18X .750 FUL ZN | 016253 | 6 | 016253-Online |
| 8 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 9 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 10 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 11 | DECAL, SPARK ARRESTOR | 601908 | 1 | 601908-Online |
| 12 | DECAL, 50 STATE DIESEL | 607133 | 1 | 607133-Online |
| 13 | AIR CLEANER MOUNT, | 551142 | 1 | 551142-Online |
| 14 | GM .31X.81X.56X.18 | 031666 | 2 | 031666-Online |
| 15 | GUARD, REAR ENGINE W/A | 109105 | 1 | 109105-Online |
| 16 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 17 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 18 | OVERFLOW BOTTLE MOUNT | 551143 | 1 | 551143-Online |
| 19 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 20 | CS .500-13X1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
Hydraulic System (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | REFER TO "PUMP ASSEMBLY" | N/A | 1 | No SKU |
| 2 | CS .375-16X1.00 HX G5 ZN | 036244 | 6 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 8 | HT767954-Online |
| 4 | REFER TO "RESERVOIR ASSEMBLY" | N/A | 1 | No SKU |
| 5 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 6 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 7 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 10 | HT767962-Online |
| 9 | REFER TO "MANIFOLD ASSEMBLY" | N/A | 1 | No SKU |
| 10 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 11 | NT .500-13UNTG8 | 023317 | 8 | 023317-Online |
| 12 | REFER TO "MOTOR ASSEMBLY" | N/A | 2 | No SKU |
| 13 | CS .312-18 X 2.000 HX G5 | 064345 | 2 | 064345-Online |
| 14 | CB .500-13X 1.500 FULL | 028274 | 2 | 028274-Online |
| 15 | GUSSET, INT | 115816 | 2 | 115816-Online |
| 16 | CS .500-13X2.500 SQ G5 | 602256 | 8 | 602256-Online |
| 17 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 18 | CS .250-20X1.000HXG5 | 056077 | 8 | 056077-Online |
| 19 | FW 0.281SAE | 768515 | 16 | HT768515-Online |
| 20 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 21 | SCREEN, OIL COOLER | 109401 | 1 | 109401-Online |
| 22 | OIL COOLER | 608007 | 1 | 608007-Online |
| 23 | HOSE CLAMP 1" (FS) | 045088 | 2 | 045088-Online |
| 24 | NT .375-16 FLKG5 | 016899 | 4 | HT016899-Online |
| 25 | FAN, ELECTRIC 8" 12VDC | 601357 | 1 | 601357-Online |
| 26 | FOOT, ELECTRIC FAN | 601538 | 4 | 601538-Online |
| 27 | CLIP - HOSE - SINGLE(FS) | 043570 | 2 | 043570-Online |
| 28 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |

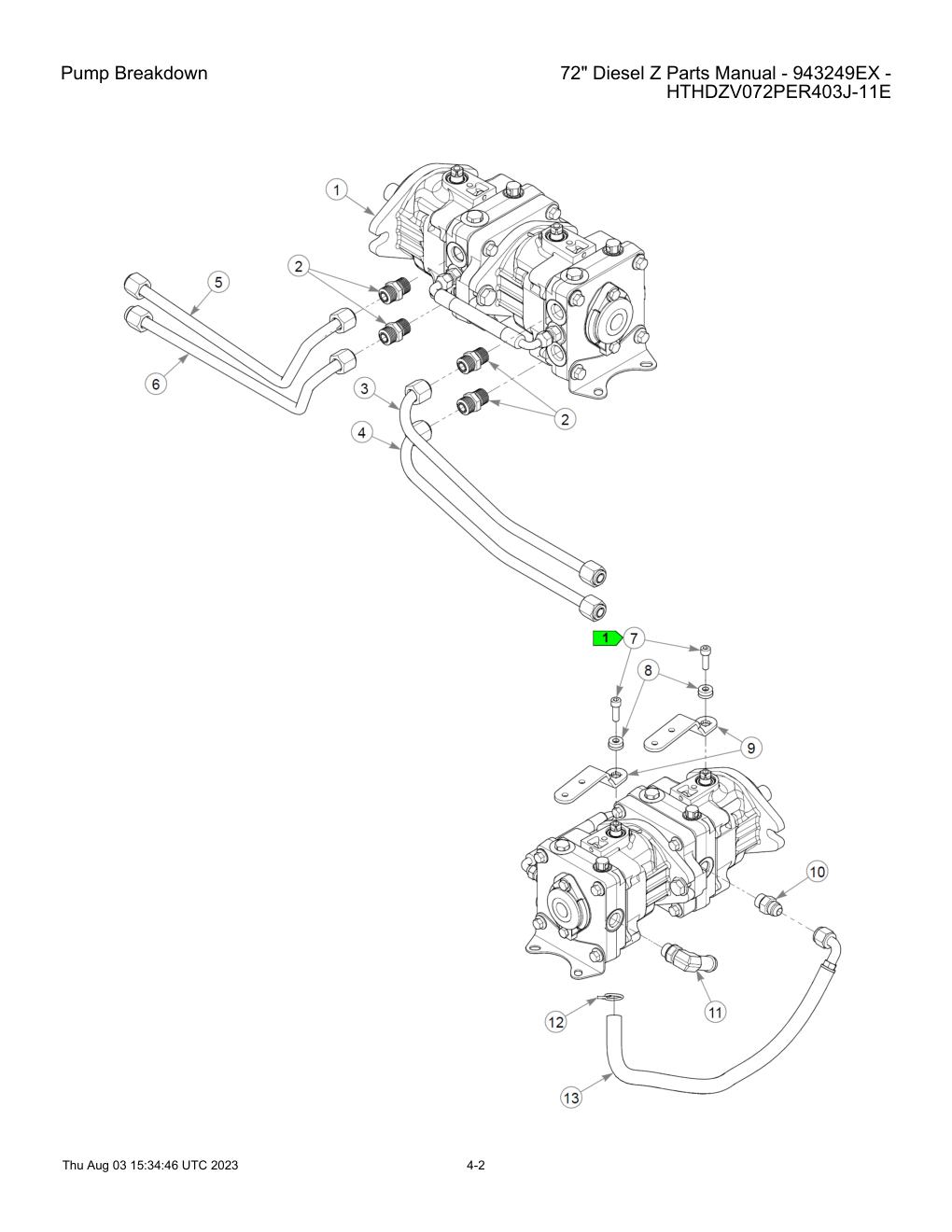

Pump Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP, 21CC TANDEM - HH | 603650 | 1 | 603650-Online |
| 1 | HOSE,LP PUMP TO PUMP | 796060 | 1 | 796060-Online |
| 1 | SEAL KIT, HG TANDEM 21 | 600934 | 1 | 600934-Online |
| 2 | FTG, STR-8MORB/-8MS | 781534 | 4 | 781534-Online |
| 3 | TUBE, TP-TM RH LOOP | 603701 | 1 | 603701-Online |
| 4 | TUBE, BP-BM RH LOOP | 603700 | 1 | 603700-Online |
| 5 | TUBE, TP-TM, LH LOOP | 603699 | 1 | 603699-Online |
| 6 | TUBE, BP-BM LH LOOP | 603698 | 1 | 603698-Online |
| 7 | CS M8-1.25x25 SH BO ZN | 795377 | 2 | 795377-Online |
| 8 | RETAINER-PUMP ARM - HH | 795369 | 2 | 795369-Online |
| 9 | PUMP ARM, HDZ | 109118 | 2 | 109118-Online |
| 10 | FTG,STR-8MORB/-8MJIC | 771337 | 1 | 771337-Online |
| 11 | FTG, -8MORB/-12 BEAD | 601524 | 1 | 601524-Online |
| 12 | SPRING CLAMP, .75" DIA | 601001 | 1 | 601001-Online |
| 13 | HOSE, CASE DRAIN PUMP | 601520 | 1 | 601520-Online |
Hydraulic Filter and Reservoir Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, BREATHER | 032763 | 1 | HT032763-Online |
| 2 | STRAINER | 032771 | 1 | 032771-Online |
| 3 | RESERVOIR W/A HDZ | 549345 | 1 | 549345-Online |
| 4 | DECAL, HOT & HYD OIL | 779280 | 1 | 779280-Online |
| 5 | FTG, -8MORB/HEX PLUG | 781658 | 1 | 781658-Online |
| 6 | SPRING CLAMP, .75" DIA | 601001 | 2 | 601001-Online |
| 7 | HOSE, RETURN MANI BLOCK | 601570 | 1 | 601570-Online |
| 8 | FILTER ELEMENT | 601413X | 1 | 601413X-Online |
| 9 | CLAMP, HOSE (FS) | 700484 | 2 | 700484-Online |
| 10 | HOSE, SUCTION HDZ HYDRO | 601517 | 1 | 601517-Online |
Manifold Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOSE GUARD, BLOCK TO | 601583 | 1 | 601583-Online |
| 2 | HOSE, MANIFOLD BLOCK | 601521 | 1 | 601521-Online |
| 3 | SPRING CLAMP, .75" DIA | 601001 | 4 | 601001-Online |
| 4 | HOSE GUARD, COOLER TO | 601584 | 1 | 601584-Online |
| 5 | HOSE, RETURN COOLER | 601522 | 1 | 601522-Online |
| 6 | VALVE, CARTRIDGE CHECK | 601568 | 1 | 601568-Online |
| 7 | FTG, -8MORB/-8BEAD | 601592 | 3 | 601592-Online |
| 8 | FTG, -8MORB/-8BT STR | 601523 | 1 | 601523-Online |
| 9 | FTG, PLUG -8MORB/HEX | 601569 | 1 | 601569-Online |
| 10 | MANIFOLD, CASE DRAIN | 601476 | 1 | 601476-Online |
| 11 | FTG, 90°-6MORB/-6BT | 787465 | 1 | 787465-Online |
| 12 | FTG, 45°-6MORB/-6BT | 784108 | 1 | 784108-Online |
| 13 | SPRING CLAMP, 5/8" DIA. | 601617 | 2 | 601617-Online |
| 14 | HOSE, CASE DRAIN RIGHT | 603697 | 1 | 603697-Online |
| 15 | FTG, -6MORB/-6MJIC STR | 779132 | 1 | 779132-Online |
| 16 | HOSE, CASE DRAIN LEFT | 603722 | 1 | 603722-Online |
| 17 | FTG, 90-6MORB/-6MJI | 795922 | 1 | HT795922-Online |

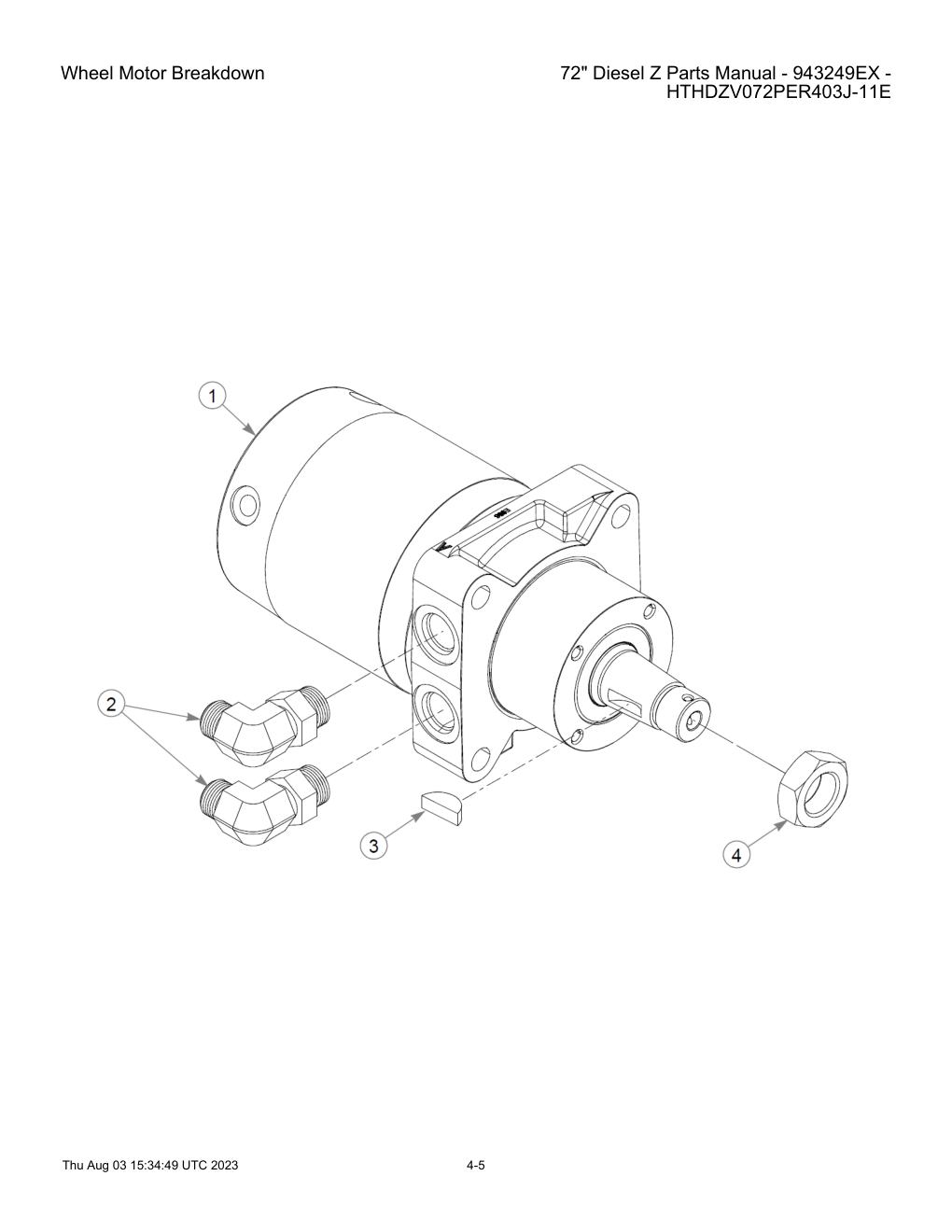

Wheel Motor Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MOTOR, PARKER TG0335 -HH | 603663 | 1 | 603663-Online |
| 2 | FTG, 90°-10MORB/-8MORFS | 781526 | 2 | 781526-Online |
| 3 | ROSS WOODRUFF KEY | 064337 | 1 | HT064337-Online |
| 4 | ROSS NUT | 065516 | 1 | HT065516-Online |
| 5 | ROSS VITON SEAL KIT | 748806 | 1 | HT748806-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE, Z W/A | 109839 | 2 | 109839-Online |
| 1 | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 2 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 10 | HT767954-Online |
| 4 | REFER TO "STEERING COVER ASSEMBLY" | N/A | 1 | No SKU |
| 5 | CS .375-16X0.75 HX G5 ZN | 055822 | 6 | HT055822-Online |
| 6 | NT .375-16 FLKG5 | 016899 | 6 | HT016899-Online |
| 7 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |
| 8 | DAMPER, CENTERING | 795351 | 2 | 795351-Online |
| 9 | BALL STUD | 781922 | 2 | 781922-Online |
| 10 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 11 | LW .312 INTEXT ZN | 029876 | 2 | 029876-Online |
| 12 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |
| 13 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 14 | DECAL, USA, F&D | 608127 | 1 | 608127-Online |
| 15 | DECAL, DIESEL Z | 608102 | 1 | 608102-Online |
Steering Cover Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | REFER TO "LS STEERING BOX ASSEMBLY" | N/A | 1 | No SKU |
| 2 | REFER TO "RS STEERING BOX ASSEMBLY" | N/A | 1 | No SKU |
| 3 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 4 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 5 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
| 7 | FW 0.344X1.00X.12 HD ZN | 712927 | 1 | HT712927-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | STEERING COVER W/A, HDZ | 115080 | 1 | 115080-Online |
| 10 | BUSHING | 608000 | 2 | HT608000-Online |
| 11 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 12 | FW .750X1.50X.16 ZN | 603078 | 2 | 603078-Online |
| 13 | STEER PIVOT TUBE | 108813 | 1 | 108813-Online |
| 14 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 15 | SS .500-13X 2.50 SH ZN | 603055 | 2 | 603055-Online |
| 16 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 17 | POLYURETHANE 2" FS - 1 FT | 722199P | 1 | 722199P-Online |
RS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | 607152 | 1 | 607152-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A, RH | 112898 | 1 | 112898-Online |
| 6 | BUSHING | 608000 | 2 | HT608000-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |
LS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | 607152 | 1 | 607152-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A LH | 112899 | 1 | 112899-Online |
| 6 | BUSHING | 608000 | 2 | HT608000-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HX NL JAM ZN | 603846 | 2 | 603846-Online |
| 2 | FW 0.379X.82X.06 HD ZN | 767954 | 10 | HT767954-Online |
| 3 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 4 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | BELLCRANK W/A, LH | 126346-4 | 1 | 126346-4-Online |
| 7 | BELLCRANK W/A, RH | 126347-4 | 1 | 126347-4-Online |
| 8 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 9 | TURNBUCKLE ASSY | 607952 | 2 | 607952-Online |
| 10 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 11 | CS .375-16X1.625HXG5 | 705160 | 2 | 705160-Online |
| 12 | CS .375-16X4.500HXG5 | 052514 | 2 | 052514-Online |
| 13 | NT .312-18FLKG5 | 016832 | 4 | 016832-Online |
| 14 | BRAKE ASSY, LH | 607894 | 1 | 607894-Online |
| 15 | BRAKE ASSY, RH | 607895 | 1 | 607895-Online |
| 16 | DUST SHIELD | 607896 | 2 | 607896-Online |
| 17 | EXTENSION, BRAKE ARM | 126349-3 | 2 | 126349-3-Online |
| 18 | CB .312-18X 1.000 FUL ZN | 037887 | 4 | HT037887-Online |
| 19 | CS .312-18X1.25HXG8 FL | 607328 | 8 | 607328-Online |
| 20 | DRUM HUB ASSEMBLY | 607893 | 2 | 607893-Online |
Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 24X12.00-12 BLK | 607534 | 2 | 607534-Online |
| 2 | WHEEL NUT | 061077 | 10 | HT061077-Online |
| 3 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 4 | FW .515X1.65X.12 HD ZN | 798603 | 2 | 798603-Online |
| 5 | O-RING, SAE-14 | 601375 | 2 | 601375-Online |
| 6 | DUST CAP, SZ CASTER | 603153 | 2 | 603153-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER, 1.07x1.312x2.79 | 387035 | 2 | HT387035-Online |
| 9 | BEARING DISC, FORK | 603164 | 2 | 603164-Online |
| 10 | REFER TO "FRONT WHEEL ASSEMBLY" | N/A | 2 | No SKU |
| 11 | CS .500-13X4.500HXG5 | 068239 | 2 | HT068239-Online |
| 12 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 13 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 14 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK W/A, STANDARD | 113621 | 1 | 113621-Online |
| 2 | NT .750-10 HX ZN NL GR B | 061101 | 1 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZN | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10X9.50 HX G5 ZN | 041475 | 1 | HT041475-Online |
| 5 | TIR/WHL 13X6.50-6 BLK | 606745 | 1 | 606745-Online |
| 6 | DUST CAP, 0.502 ID | 606779 | 2 | 606779-Online |
| 7 | SEAL | 606780 | 2 | 606780-Online |
| 8 | SPACER, 0.531 | 606778 | 2 | 606778-Online |
| 9 | BEARING, TAPERED ROLLER | 606753 | 2 | 606753-Online |
| 10 | GREASE FITTING, M8X1.0 | 606126 | 1 | 606126-Online |
| 11 | WHL 6X4.50 BLK | 606752 | 1 | 606752-Online |
| 12 | TIR 13X6.50-6 B4R SMTH | 604843 | 1 | 604843-Online |
| 13 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
Drive Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 24X12.00-12 B4R GRMR | 606967 | 1 | 606967-Online |
| 2 | WHL 12X8.50 5X4.5 BLK | 606822 | 1 | 606822-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
Engine, Muffler & Battery (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS M8-1.25X16HXG8.8 | 053678 | 2 | 053678-Online |
| 2 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 3 | CLIP - HOSE - SINGLE(FS) | 043570 | 1 | 043570-Online |
| 5 | CS #10-24X0.750FLKG5 | 063198 | 1 | 063198-Online |
| 6 | PIN WA | 126940-4 | 1 | 126940-4-Online |
| 7 | FW 0.219X.50X.05 ZN | 704932 | 1 | HT704932-Online |
| 8 | NT #10-24 HX NL ZN | 059832 | 1 | 059832-Online |
| 9 | MUFFLER, ISM S773L HDZ | 601361 | 1 | 601361-Online |
| 10 | CS M12-1.25 X 25 ZN | 601428 | 16 | 601428-Online |
| 11 | FW .531 x 1.063 x .175 | 767962 | 20 | HT767962-Online |
| 12 | CS M12-1.75 x 30 G8.8 ZN | 602196 | 4 | 602196-Online |
| 13 | SUPPORT WA - ENGINE | 126308-1 | 1 | 126308-1-Online |
| 14 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 15 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 16 | SUPPORT WA - ENGINE | 126305-1 | 1 | 126305-1-Online |
| 17 | CS .437-14X1.250HXG5 | 773242 | 8 | 773242-Online |
| 18 | FW 0.453X.81X.06 ZN | 704742 | 16 | 704742-Online |
| 19 | ISO MOUNT, HD STABLE | 601958 | 4 | 601958-Online |
| 20 | NT .437-14HXG5 | 041707 | 8 | 041707-Online |
| 21 | SUPPORT - THROTTLE CABLE | 126950-1 | 1 | 126950-1-Online |
| 22 | CS M6-1.00X12HXG10.9 | 739144 | 2 | 739144-Online |
| 23 | NT #10-24 HXFLK ZN | 016774 | 1 | 016774-Online |
| 24 | CONDUIT CLIP | 011841 | 1 | 011841-Online |
| 25 | CS 10-24 X .500 SKTHD Z | 794495 | 1 | 794495-Online |
| 26 | DECAL, CAUTION | 606453 | 1 | 606453-Online |
| 27 | NT M6-1.00FLG | 005231 | 2 | 005231-Online |
| 28 | POS. BATTERY CABLE BOOT | 601319 | 2 | 601319-Online |
| 29 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 30 | CABLE, NEG 12" POST/STUD | 601540 | 1 | 601540-Online |
| 31 | NT M8X1.25 HX GR8.8 ZN | 045336 | 1 | 045336-Online |
| 32 | BATTERY - POSITIVE | 608025 | 1 | 608025-Online |
| 33 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 34 | FW 0.379X.82X.06 HD ZN | 767954 | 1 | HT767954-Online |
| 35 | HOSE CLAMP, 1/4" - 5/8" | 601693 | 4 | 601693-Online |
Engine, Muffler & Battery (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | FUEL LINE, 5/16" - 5 FT | 791400P | 1 | 791400P-Online |
| 37 | FUEL PRIMER BULB, 5/16" | 601378 | 1 | 601378-Online |
| 38 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| 39 | NT .375-16 FLKG5 | 016899 | 1 | HT016899-Online |
| 40 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |
| 41 | VAPOR LINE, 3/16" - 7 FT | 603326P | 1 | 603326P-Online |
| 42 | SLEEVE - ABRASIVE RESIST | 608365 | 1 | 608365-Online |

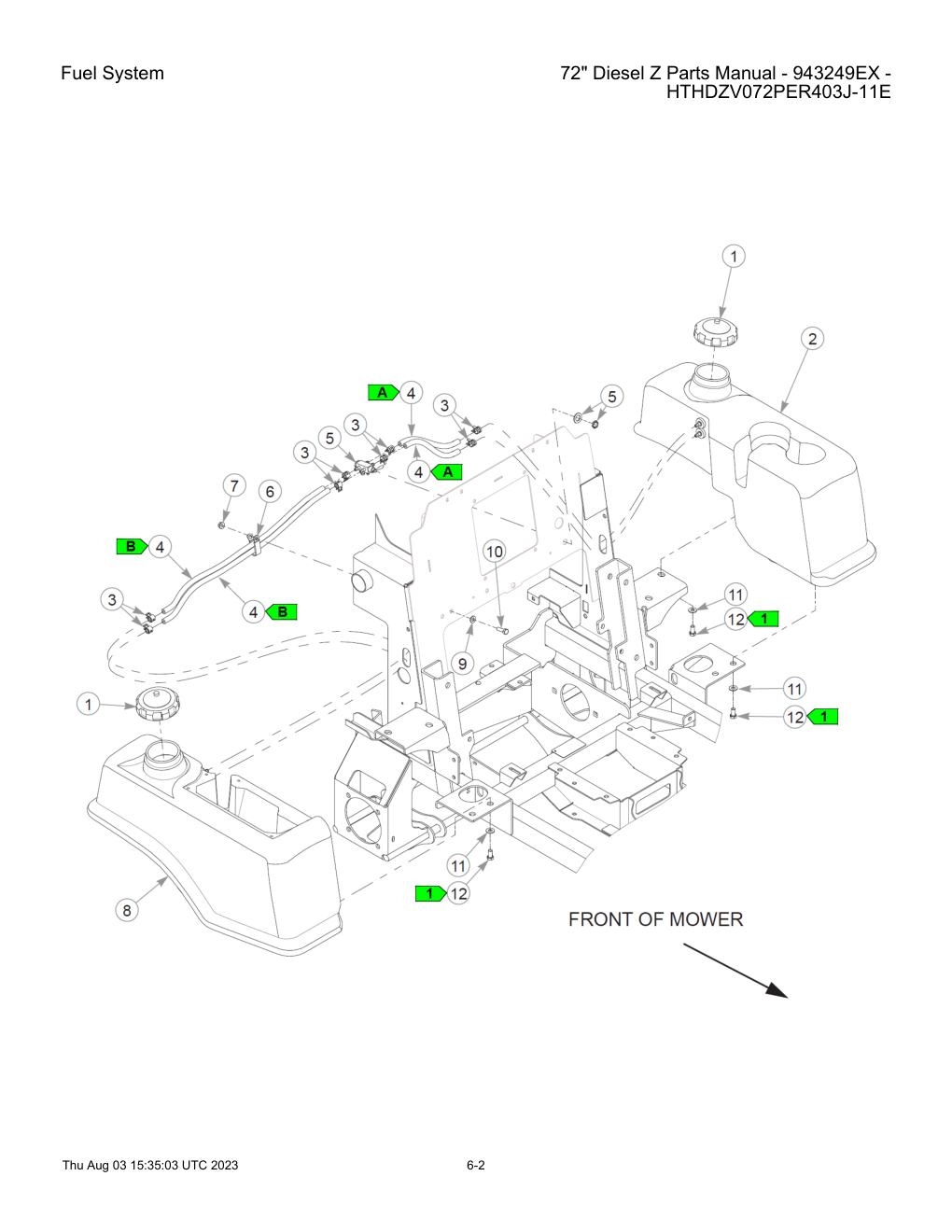

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, 3 1/2" YELLOW FUEL | 798470 | 2 | HT798470-Online |
| 2 | FUEL TANK, FENDER, LH | 603779 | 1 | 603779-Online |
| 3 | CLIP, HOSE CLAMP | 000323 | 8 | 000323-Online |
| 4 | FUEL LINE, 1/4" - 6 FT | 015818P | 1 | 015818P-Online |
| 5 | FUEL VALVE SDZ | 795542 | 1 | 795542-Online |
| 6 | CLAMP, CUSHIONED DOUBLE | 043646 | 1 | 043646-Online |
| 7 | NT .312-18FLKG5 | 016832 | 1 | 016832-Online |
| 8 | FUEL TANK, FENDER, RH | 603778 | 1 | 603778-Online |
| 9 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 10 | CS .312-18X1.000HXG5 | 036236 | 1 | 036236-Online |
| 11 | FW 0.379X.82X.06 HD ZN | 767954 | 8 | HT767954-Online |
| 12 | CS .375-16X0.75 HX G5 ZN | 055822 | 8 | HT055822-Online |
Air Cleaner
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR CLEANER, DONALDSON | 782763 | 1 | HT782763-Online |
| 2 | VALVE, VACUATOR | 763318 | 1 | HT763318-Online |
| 3 | AIR FILTER - MAIN | 785261 | 1 | 785261-Online |
| 4 | AIR FILTER - SAFETY | 785279 | 1 | 785279-Online |
| 5 | BAND, AIR CLEANER MOUNT | 785741 | 1 | 785741-Online |
| 6 | AIR FILTER INDICATOR,25 | 795138 | 1 | 795138-Online |
| 7 | HOSE, INTAKE HDZ | 601360 | 1 | 601360-Online |
| 8 | HOSE CLAMP (FS) | 057661 | 5 | 057661-Online |
| 9 | ENGINE CENTRIFICAL PREC | 775353 | 1 | HT775353-Online |
| 10 | HOSE, FRESH AIR INTK HDZ | 601359 | 1 | 601359-Online |
| 11 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 12 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 13 | CS .312-18X1.250HXG5 | 079186 | 2 | 079186-Online |
Cooling System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 2 | RADIATOR SUPPORT PAD | 601558 | 1 | 601558-Online |
| 3 | RUBBER STRIP - 7 FT | 608040P | 80" | 608040P-Online |
| 4 | RADIATOR SUPPORT PAD | 606946 | 1 | 606946-Online |
| 5 | RADIATOR BRACKET | 124556-1 | 1 | 124556-1-Online |
| 6 | RADIATOR ASSEMBLY | 608327 | 1 | 608327-Online |
| 7 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 8 | SEAL 3/8x3/4 - 6 FT | 713198P | 22" | 713198P-Online |
| 9 | SUPPORT - RADIATOR | 126951-1 | 2 | 126951-1-Online |
| 10 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 11 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 12 | BOTTLE, OVERFLOW RAD | 601358 | 1 | 601358-Online |
| 13 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 14 | HOSE CLAMP, 7/16 SPRING | 041483 | 1 | 041483-Online |
| 15 | HOSE CLAMP | 713040 | 4 | 713040-Online |
| 16 | HOSE, UPPER RADIATOR HDZ | 601353 | 1 | 601353-Online |
| 17 | HOSE, LOWER RADIATOR HDZ | 601354 | 1 | 601354-Online |
Belt Drive & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STUB SHAFT, ISM 773 | 601279 | 1 | 601279-Online |
| 2 | FW 0.406X1.00X.12 HD ZN | 712919 | 3 | HT712919-Online |
| 3 | CS M10-1.50X25 HX ZN | 038836 | 3 | 038836-Online |
| 4 | CLUTCH KIT | 601278K | 1 | 601278K-Online |
| 5 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 6 | CS .437-20X2.250 HXG5P85 | 778217 | 1 | 778217-Online |
| 7 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 8 | CLUTCH ANCHOR WA | 126311-1 | 1 | 126311-1-Online |
| 9 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 10 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 11 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 12 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 13 | FW 0.625X1.00X.13 ZN | 028118 | 7 | HT028118-Online |
| 14 | PULLEY, 6" HB IDLER RD | 796714 | 1 | HT796714-Online |
| 15 | CS .625-11X2.500HXG5 | 025015 | 1 | HT025015-Online |
| 16 | BELT GUIDE, W/A | 113088 | 1 | 113088-Online |
| 17 | SPACER, DECK IDLER | 600296 | 2 | HT600296-Online |
| 18 | PULLEY, IDLER NHI 6.00" | 781385 | 1 | HT781385-Online |
| 19 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 20 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 21 | EB, .375-16X3.00 FULTHD | 601486 | 1 | 601486-Online |
| 22 | TUBE, 1.500 X .12W CLR | 601722 | 1 | 601722-Online |
| 23 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 24 | BELT, 4 RIB "PVL" | 601424 | 1 | 601424-Online |
| 25 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 26 | FW .531 x 1.063 x .175 | 767962 | 1 | HT767962-Online |
| 27 | BUSHING, IDLER PIVOT | 602879 | 1 | 602879-Online |
| 28 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 29 | IDLER ARM, W/A | 115117 | 1 | 115117-Online |
Belt Drive & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 30 | BUSHING, IDLER PIVOT | 602880 | 1 | 602880-Online |
| 31 | NT .625-11 HX G5 ZN | 016972 | 1 | HT016972-Online |
| 32 | PULLEY, 4" FLAT IDLER | 601488 | 1 | 601488-Online |
| 33 | CS .625-11X4.000HXG5 | 047712 | 1 | 047712-Online |
| 34 | PULLEY, 5.625" MICRO V | 601422 | 1 | 601422-Online |
| 35 | SS .312-18 X .312 SH BO | 600122 | 2 | HT600122-Online |
| 36 | KEY, 1/4 X 1.375 LONG | 601713 | 1 | 601713-Online |
| 37 | CS M8-1.25X20FLG10.9 | 720177 | 3 | 720177-Online |
| 38 | PULLEY, 6.0" MICRO V | 601423 | 1 | 601423-Online |
| 39 | FW .510X2.15X.19 ZN | 344267 | 1 | HT344267-Online |
| 40 | CS .500-13X5.000HXG5 | 051151 | 1 | HT051151-Online |
Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | INDICATOR LIGHT, RED(FS) | 712257 | 4 | HT712257-Online |
| 3 | GAUGE, DUAL NEEDLE 12V | 607451 | 1 | 607451-Online |
| 4 | GAUGE - TEMPERATURE | 608270 | 1 | 608270-Online |
| 5 | SVC, INSTR PANEL | 555783 | 1 | 555783-Online |
| 6 | DECAL, INST PANEL HDZ | 606412 | 1 | 606412-Online |
| 7 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 8 | COVER, HDZ FUEL TANK | 109729 | 1 | 109729-Online |
| 9 | CS .250-20X0.50 HX G5 ZN | 055947 | 5 | 055947-Online |
| 10 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 11 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 12 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 13 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 14 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 15 | SUPPORT - THROTTLE LEVER | 126949-1 | 1 | 126949-1-Online |
| 16 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 17 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 18 | THROTTLE CABLE | 607980 | 1 | 607980-Online |
| 19 | CS .250-20X1.25 HX FLTRD | 603968 | 1 | 603968-Online |
| 20 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 21 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 22 | FW 0.406X1.00X.12 HD ZN | 712919 | 1 | HT712919-Online |
| 23 | FW .406X1.000X.06 NYLON | 601507 | 1 | 601507-Online |
| 24 | CS .375-16X1.25 HX G5 ZN | 052860 | 1 | HT052860-Online |
| 25 | THROTTLE ARM | 126948-1 | 1 | 126948-1-Online |
| 26 | GRIP, BLACK .18x.94x4.0 | 603830 | 1 | 603830-Online |
| 27 | NT #10-24 HXFLK ZN | 016774 | 1 | 016774-Online |
| 28 | SB .250Dx.250L 10-24 ZN | 601493 | 1 | 601493-Online |
| 29 | WIRE HARNESS | 607890 | 1 | 607890-Online |
| 30 | ALARM, ULTRA LOUD WARBL | 794347 | 1 | 794347-Online |
| 31 | NT #10-24 HX NL ZN | 059832 | 3 | 059832-Online |
| 32 | CS #10-24X0.750FLKG5 | 063198 | 2 | 063198-Online |
| 33 | CONTROLLER, HDZ S773L | 601368 | 1 | 601368-Online |
| 34 | MODULE COVER, HDZ | 119556 | 1 | 119556-Online |
| 35 | CB 10-24 X .500 ZYNC | 601098 | 1 | 601098-Online |
Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | WIRE TIE, SMALL/SHORT | 000331 | 8 | 000331-Online |
| 37 | WIRE TIE, SMALL/LONG | 000430 | 3 | 000430-Online |
| 38 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BOOT, POSITIVE BATTERY | 601381 | 1 | 601381-Online |
| 2 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 1 | HT767954-Online |
| 4 | POST, POS BAT MARINE | 601380 | 1 | 601380-Online |
| 5 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 6 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 7 | CLAMP, BATTERY HOLDDOWN | 109108 | 1 | 109108-Online |
| 8 | BATTERY CLAMP ROD | 793489 | 2 | 793489-Online |
| 9 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | null | 556619 | 1 | 556619-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |
| 4 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 5 | DECAL, VX4 TECHNOLOGY | 603092 | 1 | 603092-Online |
| 6 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 3 | GUIDE, BELT | 606460 | 1 | 606460-Online |
| 4 | SHIELD, DUST | 608144 | 2 | HT608144-Online |
| 5 | IDLER, 6.0" COMMERCIAL | 602821 | 2 | 602821-Online |
| 6 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 7 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 8 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | IDLER SLIDE, UHMW | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZN | 016972 | 2 | HT016972-Online |
| 12 | DUST SHIELD, IDLER LG | 602963 | 1 | 602963-Online |
| 13 | IDLER, 10.0" COMMERCIAL | 602743 | 1 | 602743-Online |
| 14 | CS .500-13X1.25 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 15 | CW .505 X 1.625 X .140 | 752386 | 3 | HT752386-Online |
| 16 | PULLEY, DRIVE(723486) B | 538850 | 3 | HT538850-Online |
| 17 | FW 1.030X1.50X.13 HD ZN | 045765 | 3 | HT045765-Online |
| 18 | DUST SHIELD | 607409-4 | 3 | 607409-4-Online |
| 19 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 20 | PUSHER W/A, HZ/SZ | 113340 | 1 | 113340-Online |
| 21 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 22 | NT .375-16 FL NY GF | 604515 | 6 | 604515-Online |
| 23 | CB .50-13X4.75 STD ZN | 607288 | 2 | 607288-Online |
| 24 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 25 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 26 | NT .50-13 FL NY | 608880 | 3 | HT608880-Online |
| 27 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 28 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 29 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 31 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 32 | CB .375-16X 1.00 G5 ZN | 025395 | 6 | HT025395-Online |
| 33 | CS .312-18X.625 BH ZN | 603022 | 4 | 603022-Online |
| 34 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 35 | SPINDLE ASSY, DUCTILE | 607407 | 3 | 607407-Online |
Spindle Assembly Service Parts - 607407
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GREASE ZERK | 607477 | 1 | 607477-Online |
| 2 | RELIEF FITTING | 607478 | 1 | 607478-Online |
| 3 | BEARING | 607955 | 2 | HT607955-Online |

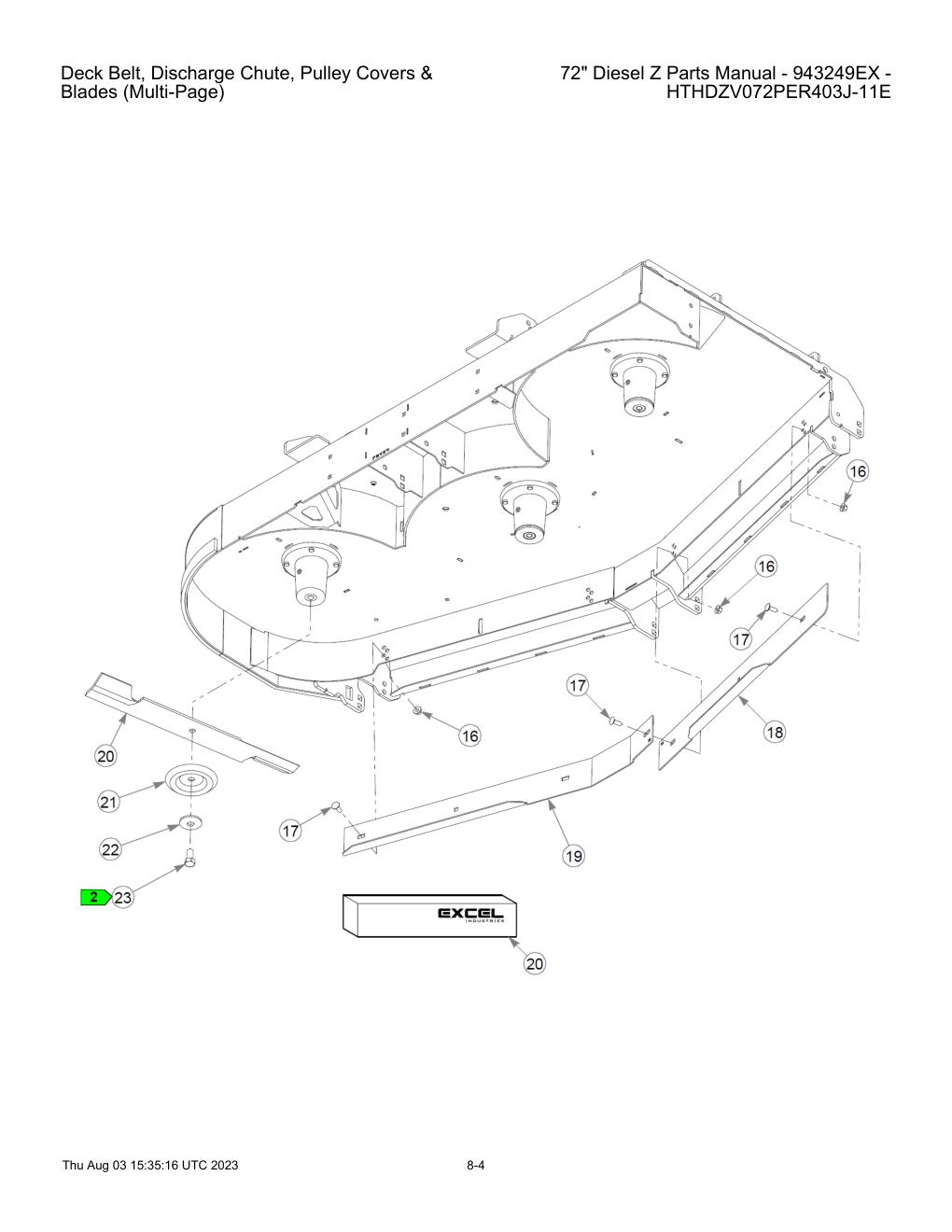

Deck Belt, Discharge Chute, Pulley Covers &
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER, LS 72" VX4 | 128034-6 | 1 | 128034-6-Online |
| 2 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 3 | PULLEY COVER, RS 72" VX4 | 128033-6 | 1 | 128033-6-Online |
| 4 | DECK BELT | 603690 | 1 | 603690-Online |
| 5 | CB 0.312-18 X 0.750 G5 | 608953 | 2 | 608953-Online |
| 6 | STEP TREAD, 72" | 128508-6 | 1 | 128508-6-Online |
| 7 | HP0.080X1.190 | 706549 | 1 | HT706549-Online |
| 8 | CHUTE, DISCHARGE LG | 602891 | 1 | 602891-Online |
| 9 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 10 | PIVOT PIN, DISCHARGE | 608776-4 | 1 | 608776-4-Online |
| 11 | NT 0.312-18 FL NY G5 | 608059 | 2 | HT608059-Online |
| 12 | BACKING PLATE W/A | 113563 | 1 | 113563-Online |
| 13 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 14 | FW 0.344X1.0X0.06 ZN | 079210 | 2 | 079210-Online |
| 15 | CS .312-18X0.875HXG5 | 064014 | 2 | 064014-Online |
| 16 | NT .375-16 FL NY GF | 604515 | 6 | 604515-Online |
| 17 | CB .375-16X 1.00 G5 ZN | 025395 | 6 | HT025395-Online |
| 18 | ADJ BAFFLE RS 72" VX4 | 123964-1 | 1 | 123964-1-Online |
| 19 | ADJ BAFFLE LS 72" VX4 | 123965-1 | 1 | 123965-1-Online |
| 20 | BLADE, F24.50" EHN-F-CW | 602857 | 3 | 602857-Online |
| 20 | 6PK BLADE, F24.50" EHNF | 602857X | 1 | 602857X-Online |
| 21 | SHIELD, BLADE BOLT | 114988 | 3 | HT114988-Online |
| 22 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 23 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |
Deck Lift & Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PIN, DECK HEIGHT W/A | 600437 | 1 | 600437-Online |
| 2 | HANDLE, STOP | 348318 | 1 | HT348318-Online |
| 3 | CE .750X2.25 X1.75 HEAD | 781229 | 1 | 781229-Online |
| 4 | DECK LIFT | 602898 | 1 | 602898-Online |
| 5 | DECK LIFT SPRING S/A | 603184 | 2 | 603184-Online |
| 6 | CS .437-14X1.750HXG5 | 055749 | 7 | HT055749-Online |
| 7 | CHAIN, DECK LIFT | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14FLKG5 | 704643 | 16 | HT704643-Online |
| 9 | CLIP E, 1.00 X.625X .05 | 781294 | 6 | HT781294-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 12 | FW 0.625X1.500X0.105 | 704783 | 1 | 704783-Online |
| 13 | YOKE W/A, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 14 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 15 | CS .312-18X1.500HXG5 | 756270 | 1 | 756270-Online |
| 16 | CS .437-14x1.75 FULTHG5 | 781831 | 1 | HT781831-Online |
| 17 | NT .750-10 HX ZN NL GR B | 061101 | 2 | HT061101-Online |
| 18 | FW .760X1.63X0.08 ZN | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10X3.000HXG5 | 051169 | 2 | 051169-Online |

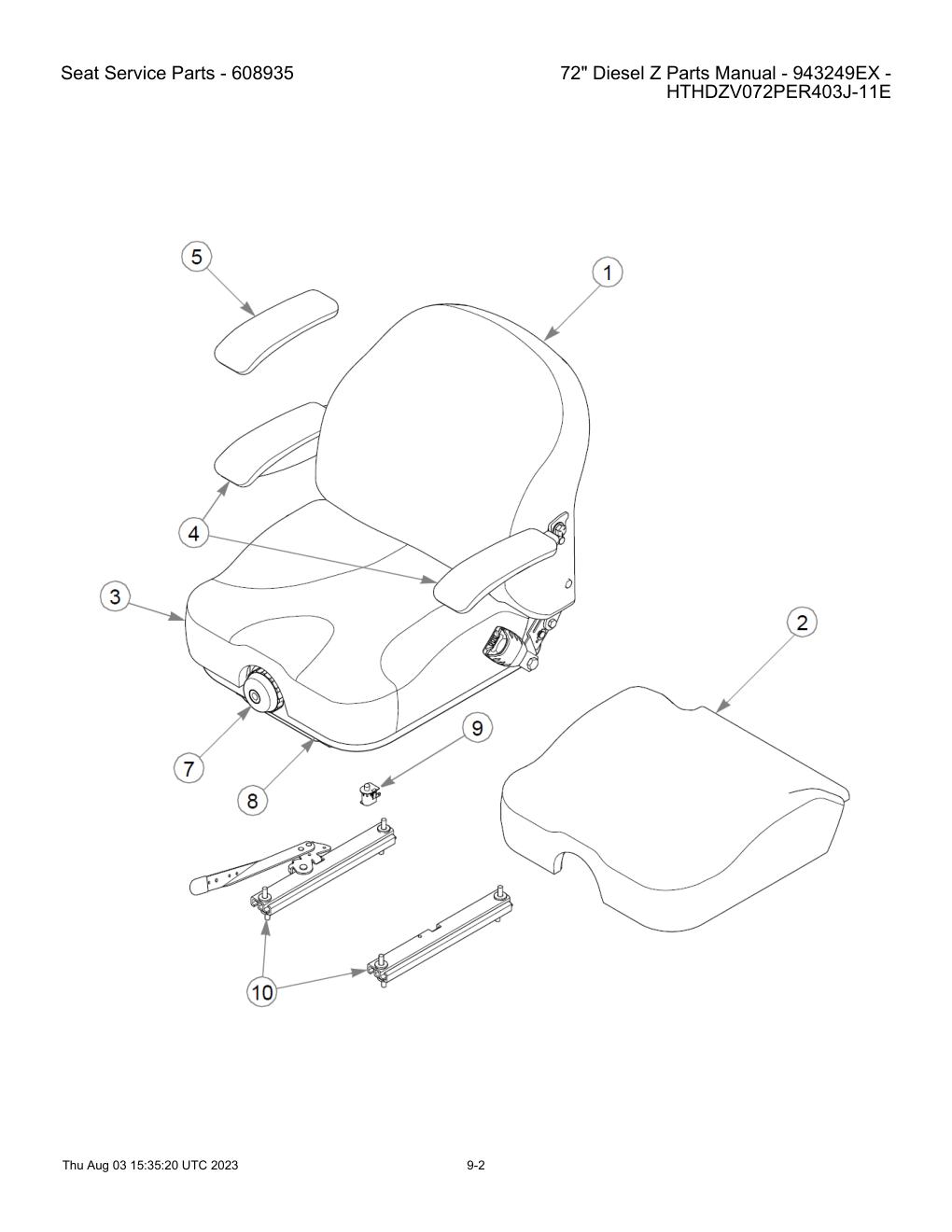

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, I3M SEATS INC | 608935 | 1 | 608935-Online |
| 2 | SEAT PAN, SERVICE | 551136 | 1 | 551136-Online |
| 3 | NT .375-16HXG5 | 054502 | 6 | HT054502-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 5 | DECAL, Z ARMREST WARNING | 785188 | 1 | 785188-Online |
| 6 | VIBRATION MOUNT 70DURO | 601650 | 2 | 601650-Online |
| 7 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 8 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 9 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 10 | WIRE TIE, SMALL/SHORT | 000331 | 5 | 000331-Online |
| 11 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 12 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 13 | SEAT PAN STOP (PLATED) | 350421 | 1 | 350421-Online |
| 14 | CS .375-16X1.00 HX G5 ZN | 036244 | 7 | HT036244-Online |
| 15 | SPRING,TORSION - DIESEL | 795583 | 1 | 795583-Online |
| 16 | SEAT CATCH W/A | 109684 | 1 | 109684-Online |
| 17 | null | 556712 | 1 | 556712-Online |
| 18 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 19 | CN .312-18x.200 MAX THK | 601069 | 6 | HT601069-Online |
| 20 | RH FRAME COVER, SERVICE | 551137 | 1 | 551137-Online |
| 21 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 22 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 23 | CS .312-18X1.000HXG5 | 036236 | 6 | 036236-Online |
| 24 | USB PORT DUAL CHARGE | 608492 | 1 | 608492-Online |
| 25 | HARNESS, USB | 608734 | 1 | 608734-Online |
Seat Service Parts - 608935
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, SEAT BACK COVER | 608936 | 1 | 608936-Online |
| 2 | SVC, SEAT FOAM I3M | 608351 | 1 | 608351-Online |
| 3 | SVC, SEAT CUSHION COVER | 608937 | 1 | 608937-Online |
| 4 | SVC, ARM REST KIT | 607166 | 1 | 607166-Online |
| 5 | SVC, ARM PAD | 606081 | 2 | 606081-Online |
| 6 | SVC, SEAT BELT | 607207 | 1 | 607207-Online |
| 7 | SVC, KNOB KIT | 607206 | 1 | 607206-Online |
| 8 | SVC, BELLOWS | 607205 | 1 | 607205-Online |
| 9 | SVC, OPS | 606082 | 1 | 606082-Online |
| 10 | SVC, TRACK KIT | 607204 | 1 | 607204-Online |
ROPS & Firewall
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, ROPS HDZ | 603473 | 1 | 603473-Online |
| 2 | ROPS STOP | 601472 | 1 | 601472-Online |
| 3 | NT .500-13UNTG8 | 023317 | 2 | 023317-Online |
| 4 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 5 | KNOB, HAND FOR ROPS | 601470 | 2 | 601470-Online |
| 6 | SVC, HDZ FIREWALL | 555901 | 1 | 555901-Online |
| 7 | SEAT PAD, FIREWALL | 601559 | 1 | 601559-Online |
| 8 | DECAL, CHECK ENG OIL | 601377 | 1 | 601377-Online |
| 9 | DECAL, FUEL VALVE HDZ | 601246 | 1 | 601246-Online |
| 10 | LUDWIG SNAP FASTNER A-1 | 010306 | 2 | 010306-Online |
| 11 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 12 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 14 | CS .500-13X3.50 HX G5 ZN | 061812 | 6 | 061812-Online |
| 15 | DECAL, ROP'S | 601635 | 2 | 601635-Online |
