Echo CS-350TES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-350TES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

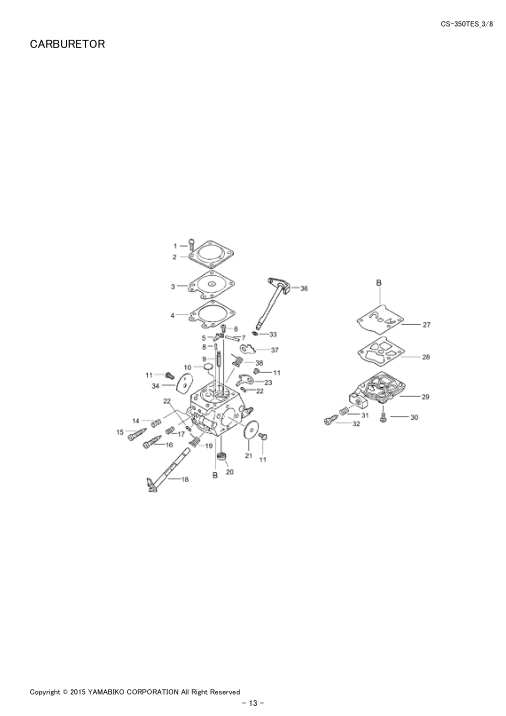

Page 15
Tap or click the page image to enlarge it.

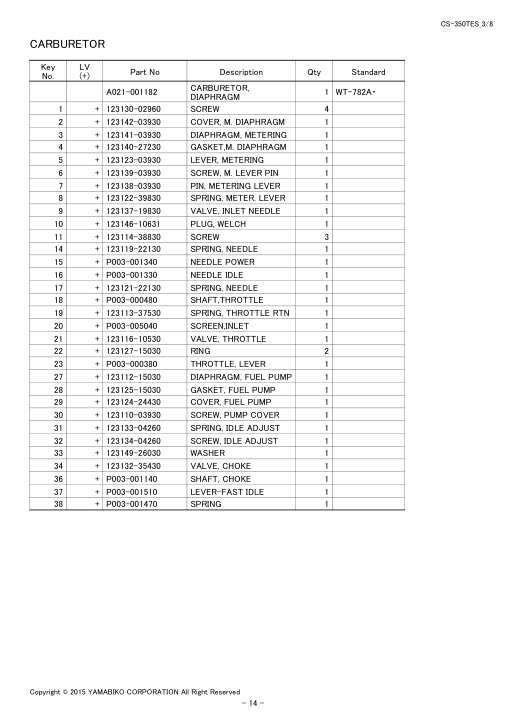

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Set | P021-009250 | P021-009250-Online | 1 | 2 | + 900162-05025 | BOLT, H.S. 5*25 | ||
| 3 | Piston Kit | P021-009230 | P021-009230-Online | 1 | 4 | + A101-000120 | RING,PISTON | ||
| 9 | Crankshaft Asy | P021-010703 | P021-010703-Online | 1 | 10 | + 94035-36201 | BEARING BALL | ||
| 15 | Plate,Sprocket | C305-000080 | C305-000080-Online | GUARD | 1 T0.3 | ||
| 17 | Bolt,Stud 6 | V224-000031 | V224-000031-Online | |||
| 18 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 1 4*10 | ||
| 19 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 2 5*20 | ||
| 20 | Cover,Dust | A127-000050 | A127-000050-Online | |||
| 21 | Screw | 900253-04012 | 900253-04012-Online | 2 4*12 | ||
| 22 | Plug | 163911-30130 | 163911-30130-Online | |||
| 23 | Cover,Engine Kit | P021-008678 | P021-008678-Online | 1 | 24 | + 900106-05030 | BOLT, H.S.H. 5*30 | ||
| 26 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 1 5*20 | ||
| 27 | Spike | C304-000000 | C304-000000-Online | |||
| 28 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 1 5*20 | ||
| 30 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 32 | Collar,16 | V359-000060 | V359-000060-Online | |||
| 34 | Screw | 91420-05012 | 91420-05012-Online | 2 5*12 | ||
| 35 | Pipe | V470-000482 | V470-000482-Online | 1 3*7*65 | ||
| 36 | Catcher, Chain | 433026-35430 | 433026-35430-Online | 1 | CYLINDER, PISTON, CRANKCASE | CS-350TES_3/8 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

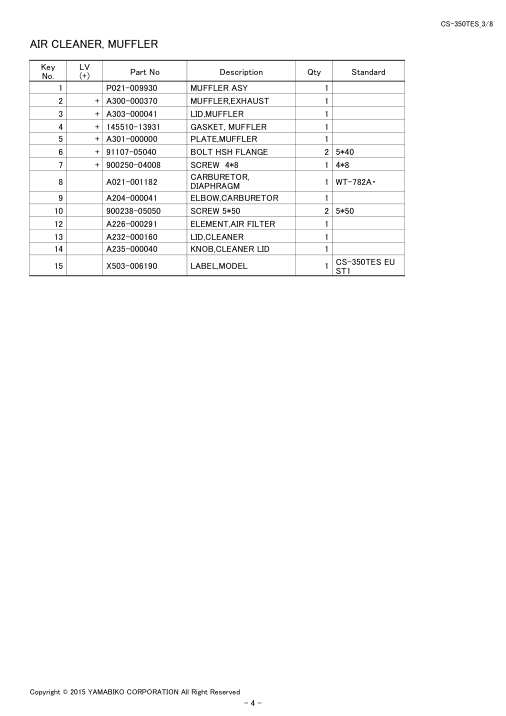

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P021-009930 | P021-009930-Online | 1 | 2 | + A300-000370 | MUFFLER,EXHAUST | ||
| 8 | Carburetor, | A021-001182 | A021-001182-Online | DIAPHRAGM | 1 WT-782A・ | ||
| 9 | Elbow,Carburetor | A204-000041 | A204-000041-Online | |||
| 10 | Screw 5*50 | 900238-05050 | 900238-05050-Online | 2 5*50 | ||
| 12 | Element,Air Filter | A226-000291 | A226-000291-Online | |||
| 13 | Lid,Cleaner | A232-000160 | A232-000160-Online | |||
| 14 | Knob,Cleaner Lid | A235-000040 | A235-000040-Online | |||
| 15 | Label,Model | X503-006190 | X503-006190-Online | 1 CS-350TES EU | ST1 | AIR CLEANER, MUFFLER | CS-350TES_3/8 |

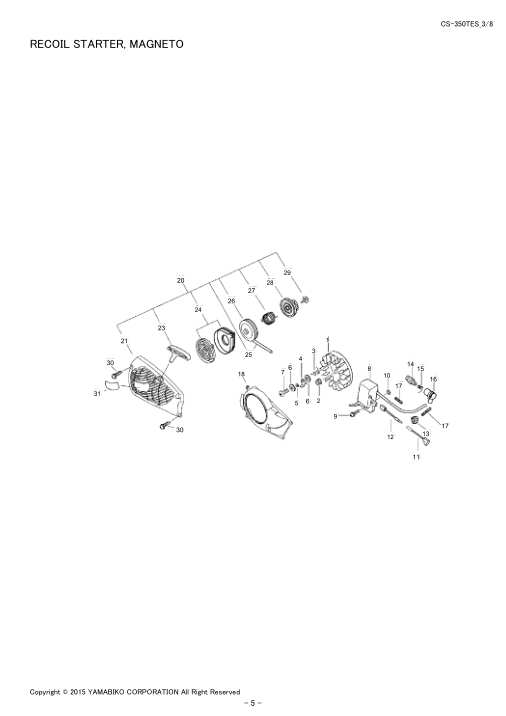

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor,Magneto | A409-000170 | A409-000170-Online | |||
| 2 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 3 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 4 | Pawl | A514-000020 | A514-000020-Online | |||
| 5 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 2 5.2*8*2.1 | ||
| 6 | Washer 5 | 900603-00005 | 900603-00005-Online | 4 5.5*12*0.8 | ||
| 7 | Bolt,5 | V203-000080 | V203-000080-Online | 2 5*14 | ||
| 8 | Coil,Ignition | A411-000150 | A411-000150-Online | |||
| 9 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 2 5*22 | ||
| 10 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 11 | Leard, Ground | 162010-55930 | 162010-55930-Online | 1 235L | ||
| 12 | Lead | V485-000140 | V485-000140-Online | |||
| 13 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 14 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | 1 BPM-7A | ||
| 15 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 16 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 17 | Tube | V475-002390 | V475-002390-Online | |||
| 18 | Cover,Fan | A172-000501 | A172-000501-Online | |||

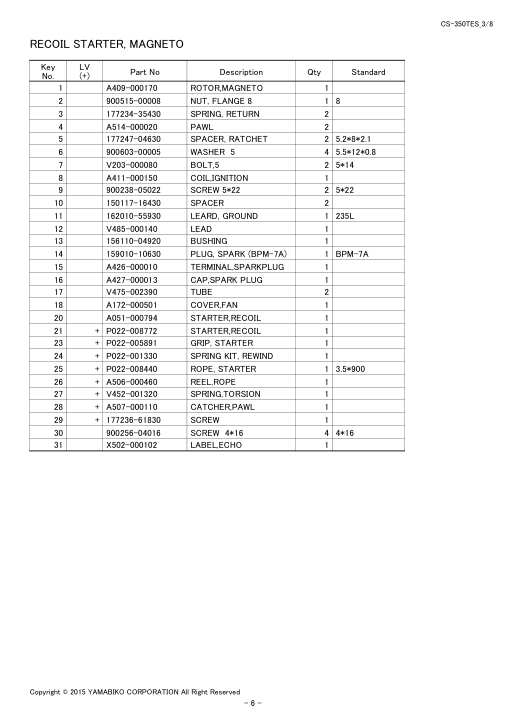

| 20 | Starter,Recoil | A051-000794 | A051-000794-Online | 1 | 21 | + P022-008772 | STARTER,RECOIL | ||
| 30 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 4 4*16 | ||
| 31 | Label,Echo | X502-000102 | X502-000102-Online | 1 | RECOIL STARTER, MAGNETO | CS-350TES_3/8 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

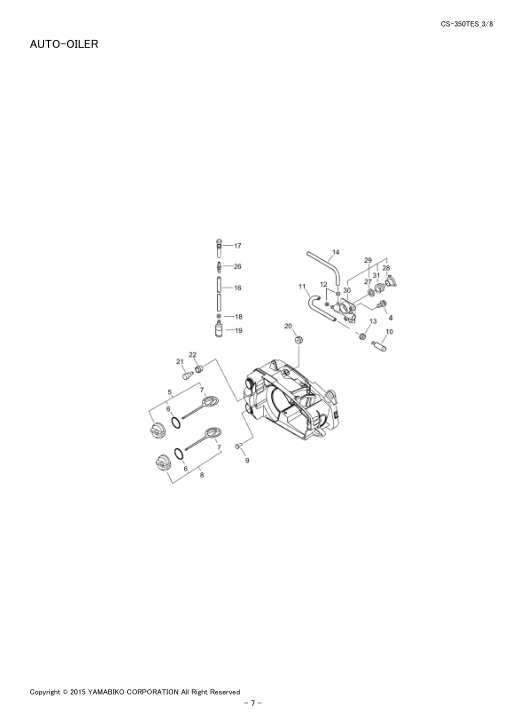

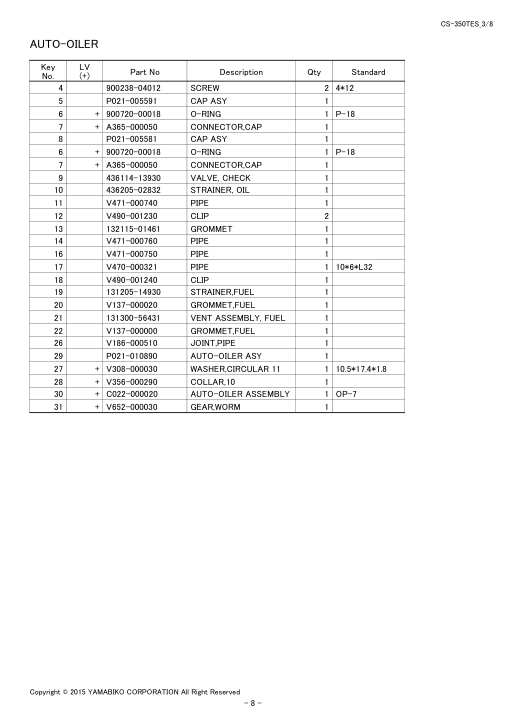

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Screw | 900238-04012 | 900238-04012-Online | 2 4*12 | ||
| 5 | Cap Asy | P021-005591 | P021-005591-Online | 1 | 6 | + 900720-00018 | O-RING | ||
| 8 | Cap Asy | P021-005581 | P021-005581-Online | 1 | 6 | + 900720-00018 | O-RING | ||
| 9 | Valve, Check | 436114-13930 | 436114-13930-Online | |||
| 10 | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 11 | Pipe | V471-000740 | V471-000740-Online | |||
| 12 | Clip | V490-001230 | V490-001230-Online | |||
| 13 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 14 | Pipe | V471-000760 | V471-000760-Online | |||
| 16 | Pipe | V471-000750 | V471-000750-Online | |||
| 17 | Pipe | V470-000321 | V470-000321-Online | 1 10*6*L32 | ||
| 18 | Clip | V490-001240 | V490-001240-Online | |||
| 19 | Strainer,Fuel | 131205-14930 | 131205-14930-Online | |||
| 20 | Grommet,Fuel | V137-000020 | V137-000020-Online | |||
| 21 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 22 | Grommet,Fuel | V137-000000 | V137-000000-Online | |||
| 26 | Joint,Pipe | V186-000510 | V186-000510-Online | |||
| 29 | Auto-Oiler Asy | P021-010890 | P021-010890-Online | 1 | 27 | + V308-000030 | WASHER,CIRCULAR 11 |

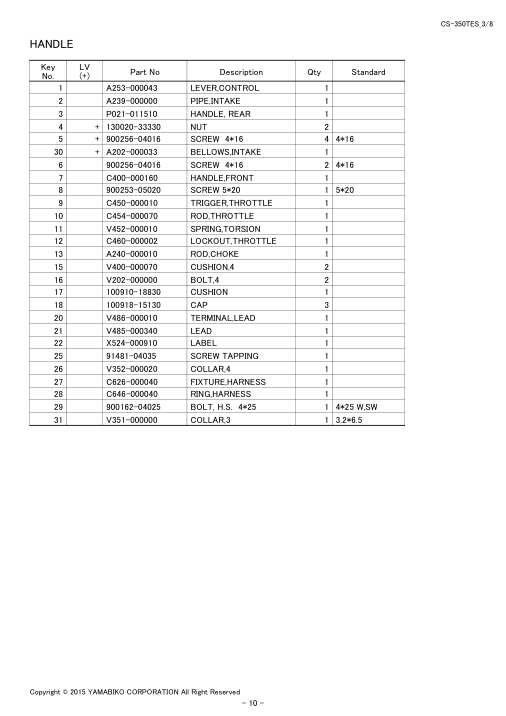

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lever,Control | A253-000043 | A253-000043-Online | |||
| 2 | Pipe,Intake | A239-000000 | A239-000000-Online | |||
| 3 | Handle, Rear | P021-011510 | P021-011510-Online | 1 | 4 | + 130020-33330 | NUT | ||
| 6 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 2 4*16 | ||
| 7 | Handle,Front | C400-000160 | C400-000160-Online | |||
| 8 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 1 5*20 | ||
| 9 | Trigger,Throttle | C450-000010 | C450-000010-Online | |||
| 10 | Rod,Throttle | C454-000070 | C454-000070-Online | |||
| 11 | Spring,Torsion | V452-000010 | V452-000010-Online | |||
| 12 | Lockout,Throttle | C460-000002 | C460-000002-Online | |||
| 13 | Rod,Choke | A240-000010 | A240-000010-Online | |||
| 15 | Cushion,4 | V400-000070 | V400-000070-Online | |||
| 16 | Bolt,4 | V202-000000 | V202-000000-Online | |||
| 17 | Cushion | 100910-18830 | 100910-18830-Online | |||
| 20 | Terminal,Lead | V486-000010 | V486-000010-Online | |||
| 21 | Lead | V485-000340 | V485-000340-Online | |||
| 22 | Label | X524-000910 | X524-000910-Online | |||
| 25 | Screw Tapping | 91481-04035 | 91481-04035-Online | |||
| 26 | Collar,4 | V352-000020 | V352-000020-Online | |||
| 27 | Fixture,Harness | C626-000040 | C626-000040-Online | |||
| 28 | Ring,Harness | C646-000040 | C646-000040-Online | |||
| 29 | Bolt, H.S. 4*25 | 900162-04025 | 900162-04025-Online | 1 4*25 W,SW | ||
| 31 | Collar,3 | V351-000000 | V351-000000-Online | 1 3.2*6.5 | HANDLE | CS-350TES_3/8 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

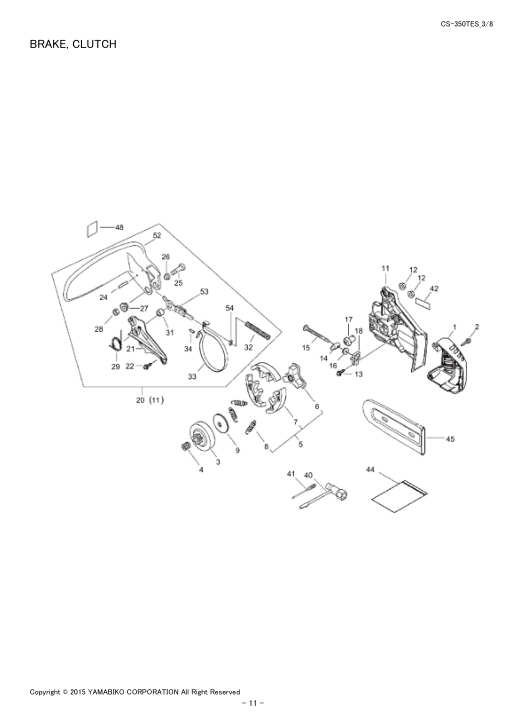

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover,Muffler | A320-000183 | A320-000183-Online | |||
| 2 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 2 4*16 | ||
| 3 | Drum, Clutch | 175005-39133 | 175005-39133-Online | |||
| 4 | Bearing,Needle | V555-000150 | V555-000150-Online | |||
| 5 | Clutch | A056-000070 | A056-000070-Online | 1 | 6 | + A552-000020 | HUB,CLUTCH | ||
| 9 | Plate,Clutch | A551-000010 | A551-000010-Online | |||
| 12 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | 2 6 | ||
| 13 | Screw | 900253-04012 | 900253-04012-Online | 1 4*12 | ||
| 14 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 15 | Bolt,5 | V203-000041 | V203-000041-Online | |||
| 16 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 17 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 18 | Collar,8 | V355-000140 | V355-000140-Online | |||
| 20 | Brake,Asm Chain | C032-000206 | C032-000206-Online | 1 | 11 | + C300-000242 | GUARD,SPROCKET | ||
| 40 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 41 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 42 | Label,Echo | X502-000340 | X502-000340-Online | 1 ECHO(WHITE) | ||
| 44 | Tool,Case | X698-000050 | X698-000050-Online | 1 140*260*0.06 | ||
| 45 | Scabbard,Chain | X490-000510 | X490-000510-Online | |||
| 48 | Label,Caution | X505-002440 | X505-002440-Online | 1 | BRAKE, CLUTCH | CS-350TES_3/8 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1A | Bar,Guide 30 | X122-000072 | X122-000072-Online | 1 30RC50M-3/8 | ECHO | ||
| 2A | Chain,Saw | X222-000140 | X222-000140-Online | 1 91PX-47E | ||
| 1B | Bar,Guide 35 | X123-000132 | X123-000132-Online | 1 35RC50M-3/8 | ECHO | ||
| 2B | Chain,Saw | X223-000130 | X223-000130-Online | 1 91PX-53E | GUIDE BAR, CHAIN | CS-350TES_3/8 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Spacer, Piston Pin | 100014-60930 | 100014-60930-Online | |||
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 2 | Cushion | 100910-18830 | 100910-18830-Online | |||
| 10 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 14 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |||
| 14 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |||
| 14 | Screw | 123114-38830 | 123114-38830-Online | |||
| 14 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |||
| 14 | Spring, Needle | 123119-22130 | 123119-22130-Online | |||
| 14 | Spring, Needle | 123121-22130 | 123121-22130-Online | |||
| 14 | Spring, Meter. Lever | 123122-39830 | 123122-39830-Online | |||
| 14 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 14 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |||
| 14 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 14 | Ring | 123127-15030 | 123127-15030-Online | |||
| 14 | Screw | 123130-02960 | 123130-02960-Online | |||
| 14 | Valve, Choke | 123132-35430 | 123132-35430-Online | |||
| 14 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |||
| 14 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 14 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 14 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 14 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |||
| 14 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |||
| 14 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |||
| 14 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 14 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 14 | Washer | 123149-26030 | 123149-26030-Online | |||
| 10 | Strainer,Fuel | 131205-14930 | 131205-14930-Online | |||
| 8 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 8 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 8 | Gasket, Muffler | 145510-13931 | 145510-13931-Online | |||
| 4 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 6 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 6 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | |||
| 6 | Leard, Ground | 162010-55930 | 162010-55930-Online | |||
| 6 | Plug | 163911-30130 | 163911-30130-Online | |||
| 2 | Drum, Clutch | 175005-39133 | 175005-39133-Online | |||
| 12 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 6 | Screw | 177236-61830 | 177236-61830-Online | |||
| 6 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | |||
| 6 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | 12 | Part No | Part descrition | Page | ||
| 2 | Spacer 8 | 433116-35430 | 433116-35430-Online | |||
| 12 | Spacer | 433167-39130 | 433167-39130-Online | |||
| 12 | Valve, Check | 436114-13930 | 436114-13930-Online | |||
| 8 | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 8 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 12 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 12 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | |||
| 2 | Bolt, H.S.H. 5*30 | 900106-05030 | 900106-05030-Online | |||
| 2 | Bolt, H.S. 4*25 | 900162-04025 | 900162-04025-Online | |||
| 10 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 2 | Screw | 900238-04012 | 900238-04012-Online | |||
| 8 | Screw 5*22 | 900238-05022 | 900238-05022-Online | |||
| 6 | Screw 5*50 | 900238-05050 | 900238-05050-Online | |||
| 4 | Screw 4*8 | 900250-04008 | 900250-04008-Online | |||
| 4 | Screw 4*10 | 900253-04010 | 900253-04010-Online | |||
| 2 | Screw | 900253-04012 | 900253-04012-Online | |||
| 12 | Screw 4*16 | 900253-04016 | 900253-04016-Online | |||
| 12 | Screw 5*20 | 900253-05020 | 900253-05020-Online | |||
| 2 | Screw 5*20 | 900253-05020 | 900253-05020-Online | |||
| 10 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |||
| 6 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |||
| 10 | Roller 3*26 | 900330-30260 | 900330-30260-Online | |||
| 12 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | |||
| 6 | Locknut 5 | 900562-50005 | 900562-50005-Online | |||
| 12 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 6 | O-Ring | 900720-00018 | 900720-00018-Online | |||
| 8 | O-Ring (S-4) | 900724-00004 | 900724-00004-Online | |||
| 2 | Bolt Hsh Flange | 91107-05040 | 91107-05040-Online | |||
| 4 | Screw | 91318-05032 | 91318-05032-Online | |||
| 12 | Screw | 91420-05012 | 91420-05012-Online | |||
| 2 | Screw Tapping | 91481-04035 | 91481-04035-Online | |||
| 10 | Roller | 93050-30098 | 93050-30098-Online | |||
| 12 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Carburetor, | A021-001182 | A021-001182-Online | DIAPHRAGM | ||
| 4 | Carburetor, | A021-001182 | A021-001182-Online | DIAPHRAGM | ||
| 14 | Starter,Recoil | A051-000794 | A051-000794-Online | |||
| 6 | Clutch | A056-000070 | A056-000070-Online | |||
| 12 | Ring,Piston | A101-000120 | A101-000120-Online | |||
| 2 | Cover,Dust | A127-000050 | A127-000050-Online | |||
| 2 | Cover,Fan | A172-000501 | A172-000501-Online | |||
| 6 | Bellows,Intake | A202-000033 | A202-000033-Online | |||
| 10 | Elbow,Carburetor | A204-000041 | A204-000041-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Lid,Cleaner | A232-000160 | A232-000160-Online | |||
| 4 | Knob,Cleaner Lid | A235-000040 | A235-000040-Online | |||
| 4 | Pipe,Intake | A239-000000 | A239-000000-Online | |||
| 10 | Rod,Choke | A240-000010 | A240-000010-Online | |||
| 10 | Lever,Control | A253-000043 | A253-000043-Online | |||
| 10 | Muffler,Exhaust | A300-000370 | A300-000370-Online | |||
| 4 | Plate,Muffler | A301-000000 | A301-000000-Online | |||
| 4 | Lid,Muffler | A303-000041 | A303-000041-Online | |||
| 4 | Cover,Muffler | A320-000183 | A320-000183-Online | |||
| 12 | Connector,Cap | A365-000050 | A365-000050-Online | |||
| 8 | Rotor,Magneto | A409-000170 | A409-000170-Online | |||
| 6 | Coil,Ignition | A411-000150 | A411-000150-Online | |||
| 6 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 6 | Reel,Rope | A506-000460 | A506-000460-Online | |||
| 6 | Catcher,Pawl | A507-000110 | A507-000110-Online | |||
| 6 | Pawl | A514-000020 | A514-000020-Online | |||
| 6 | Plate,Clutch | A551-000010 | A551-000010-Online | |||
| 12 | Hub,Clutch | A552-000020 | A552-000020-Online | |||
| 12 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | |||
| 8 | Brake,Asm Chain | C032-000206 | C032-000206-Online | |||
| 12 | Guard,Sprocket | C300-000242 | C300-000242-Online | |||
| 12 | Spike | C304-000000 | C304-000000-Online | |||
| 2 | Plate,Sprocket | C305-000080 | C305-000080-Online | GUARD | ||
| 2 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 12 | Lever,Brake | C320-000034 | C320-000034-Online | |||
| 12 | Band,Brake | C328-000030 | C328-000030-Online | |||
| 12 | Connector,Brake | C334-000070 | C334-000070-Online | |||
| 12 | Cover,Brake | C345-000084 | C345-000084-Online | |||
| 12 | Handle,Front | C400-000160 | C400-000160-Online | |||
| 10 | Trigger,Throttle | C450-000010 | C450-000010-Online | |||
| 10 | Rod,Throttle | C454-000070 | C454-000070-Online | |||
| 10 | Lockout,Throttle | C460-000002 | C460-000002-Online | |||
| 10 | Fixture,Harness | C626-000040 | C626-000040-Online | |||
| 10 | Ring,Harness | C646-000040 | C646-000040-Online | |||
| 10 | Throttle, Lever | P003-000380 | P003-000380-Online | |||
| 14 | Shaft,Throttle | P003-000480 | P003-000480-Online | |||
| 14 | Shaft, Choke | P003-001140 | P003-001140-Online | |||
| 14 | Needle Idle | P003-001330 | P003-001330-Online | |||
| 14 | Needle Power | P003-001340 | P003-001340-Online | |||
| 14 | Spring | P003-001470 | P003-001470-Online | |||
| 14 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |||
| 14 | Screen,Inlet | P003-005040 | P003-005040-Online | 14 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |

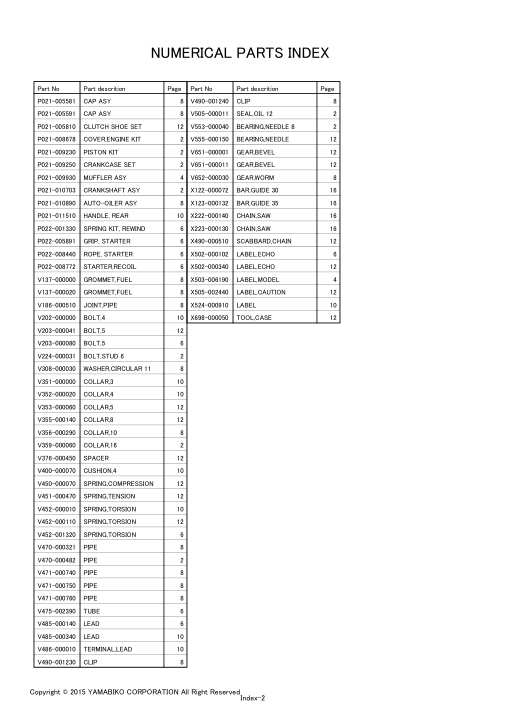

Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 8 | Cap Asy | P021-005591 | P021-005591-Online | |||
| 8 | Clutch Shoe Set | P021-005810 | P021-005810-Online | |||
| 12 | Cover,Engine Kit | P021-008678 | P021-008678-Online | |||
| 2 | Piston Kit | P021-009230 | P021-009230-Online | |||
| 2 | Crankcase Set | P021-009250 | P021-009250-Online | |||
| 2 | Muffler Asy | P021-009930 | P021-009930-Online | |||
| 4 | Crankshaft Asy | P021-010703 | P021-010703-Online | |||
| 2 | Auto-Oiler Asy | P021-010890 | P021-010890-Online | |||
| 8 | Handle, Rear | P021-011510 | P021-011510-Online | |||
| 10 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | |||
| 6 | Grip, Starter | P022-005891 | P022-005891-Online | |||
| 6 | Rope, Starter | P022-008440 | P022-008440-Online | |||
| 6 | Starter,Recoil | P022-008772 | P022-008772-Online | |||
| 6 | Grommet,Fuel | V137-000000 | V137-000000-Online | |||
| 8 | Grommet,Fuel | V137-000020 | V137-000020-Online | |||
| 8 | Joint,Pipe | V186-000510 | V186-000510-Online | |||
| 8 | Bolt,4 | V202-000000 | V202-000000-Online | |||
| 10 | Bolt,5 | V203-000041 | V203-000041-Online | |||
| 12 | Bolt,5 | V203-000080 | V203-000080-Online | |||
| 6 | Bolt,Stud 6 | V224-000031 | V224-000031-Online | |||
| 2 | Washer,Circular 11 | V308-000030 | V308-000030-Online | |||
| 8 | Collar,3 | V351-000000 | V351-000000-Online | |||
| 10 | Collar,4 | V352-000020 | V352-000020-Online | |||
| 10 | Collar,5 | V353-000060 | V353-000060-Online | |||
| 12 | Collar,8 | V355-000140 | V355-000140-Online | |||
| 12 | Collar,10 | V356-000290 | V356-000290-Online | |||
| 8 | Collar,16 | V359-000060 | V359-000060-Online | |||
| 2 | Spacer | V376-000450 | V376-000450-Online | |||
| 12 | Cushion,4 | V400-000070 | V400-000070-Online | |||
| 10 | Spring,Compression | V450-000070 | V450-000070-Online | |||
| 12 | Spring,Tension | V451-000470 | V451-000470-Online | |||
| 12 | Spring,Torsion | V452-000010 | V452-000010-Online | |||
| 10 | Spring,Torsion | V452-000110 | V452-000110-Online | |||
| 12 | Spring,Torsion | V452-001320 | V452-001320-Online | |||
| 6 | Pipe | V470-000321 | V470-000321-Online | |||
| 8 | Pipe | V470-000482 | V470-000482-Online | |||
| 2 | Pipe | V471-000740 | V471-000740-Online | |||
| 8 | Pipe | V471-000750 | V471-000750-Online | |||
| 8 | Pipe | V471-000760 | V471-000760-Online | |||
| 8 | Tube | V475-002390 | V475-002390-Online | |||
| 6 | Lead | V485-000140 | V485-000140-Online | |||
| 6 | Lead | V485-000340 | V485-000340-Online | |||
| 10 | Terminal,Lead | V486-000010 | V486-000010-Online | |||
| 10 | Clip | V490-001230 | V490-001230-Online | 8 | Part No | Part descrition | Page | ||
| 8 | Seal,Oil 12 | V505-000011 | V505-000011-Online | |||
| 2 | Bearing,Needle 8 | V553-000040 | V553-000040-Online | |||
| 2 | Bearing,Needle | V555-000150 | V555-000150-Online | |||
| 12 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 12 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 12 | Gear,Worm | V652-000030 | V652-000030-Online | |||
| 8 | Bar,Guide 30 | X122-000072 | X122-000072-Online | |||
| 16 | Bar,Guide 35 | X123-000132 | X123-000132-Online | |||
| 16 | Chain,Saw | X222-000140 | X222-000140-Online | |||
| 16 | Chain,Saw | X223-000130 | X223-000130-Online | |||
| 16 | Scabbard,Chain | X490-000510 | X490-000510-Online | |||
| 12 | Label,Echo | X502-000102 | X502-000102-Online | |||
| 6 | Label,Echo | X502-000340 | X502-000340-Online | |||
| 12 | Label,Model | X503-006190 | X503-006190-Online | |||
| 4 | Label,Caution | X505-002440 | X505-002440-Online | |||
| 12 | Label | X524-000910 | X524-000910-Online | |||
| 10 | Tool,Case | X698-000050 | X698-000050-Online | 12 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-472_CS-350TES_30RC_30_30000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
