Echo CS-3510L IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-3510L-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

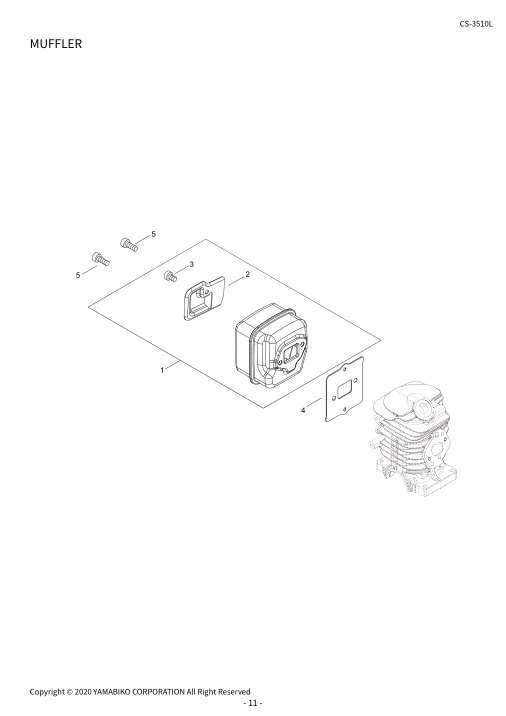

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.

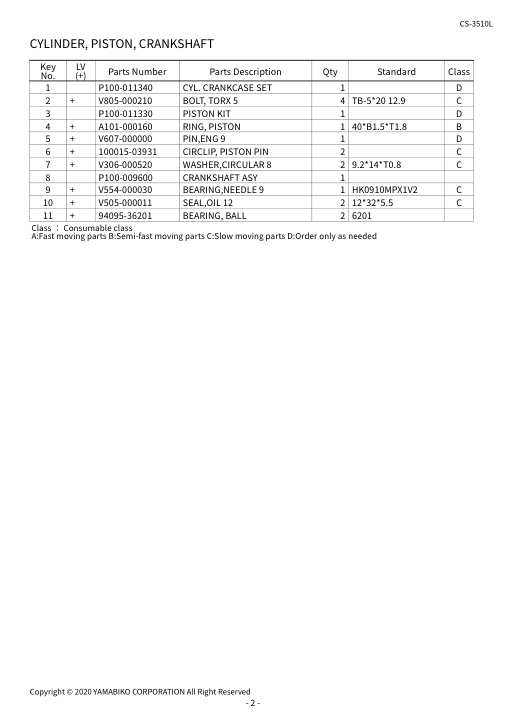

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cyl. Crankcase Set | P100-011340 | P100-011340-Online | |||
| 2 | + | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 4 TB-5*20 12.9 | |
| 3 | Piston Kit | P100-011330 | P100-011330-Online | |||
| 4 | + | Ring, Piston | A101-000160 | A101-000160-Online | 1 40*B1.5*T1.8 | |
| 5 | + | Pin,Eng 9 | V607-000000 | V607-000000-Online | ||
| 6 | + | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | ||
| 7 | + | Washer,Circular 8 | V306-000520 | V306-000520-Online | 2 9.2*14*T0.8 | |
| 8 | Crankshaft Asy | P100-009600 | P100-009600-Online | |||
| 9 | + | Bearing,Needle 9 | V554-000030 | V554-000030-Online | 1 HK0910MPX1V2 | |
| 10 | + | Seal,Oil 12 | V505-000011 | V505-000011-Online | 2 12*32*5.5 | |
| 11 | + | Bearing, Ball | 94095-36201 | 94095-36201-Online | 2 6201 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CYLINDER, PISTON, CRANKSHAFT |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover Engine Asy | P100-011530 | P100-011530-Online | |||
| 2 | + | Pump, Fuel | A035-000040 | A035-000040-Online | 1 188-554-A | |
| 3 | + | Pipe | V471-001281 | V471-001281-Online | 1 2.4*5*105 | |
| 4 | + | Screw, Tapping | 91449-04006 | 91449-04006-Online | 1 4*6 | |
| 5 | + | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 4 TB-5*20 12.9 | |
| 6 | + | Auto-Oiler Assembly | C022-000190 | C022-000190-Online | ||
| 7 | + | Grommet | 132115-01462 | 132115-01462-Online | ||
| 8 | + | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 9 | + | Pipe | V471-001241 | V471-001241-Online | 1 2.4*5*140 | |
| 10 | + | Pipe | V471-001231 | V471-001231-Online | 1 3*5*210 | |
| 11 | + | Strainer, Fuel | A369-000420 | A369-000420-Online | 1 ES-16499 | |
| 12 | + | Clip | V490-001240 | V490-001240-Online | ||
| 13 | + | Pipe | V471-001201 | V471-001201-Online | 1 3*5*70 | |
| 14 | + | Valve,Check | A356-000031 | A356-000031-Online | ||
| 15 | + | Clip | V490-001240 | V490-001240-Online | ||
| 16 | Knob, Choke | A241-000420 | A241-000420-Online | |||
| 17 | Grommet | 178810-03330 | 178810-03330-Online | |||
| 18 | Cylinder Cover Asy | P100-009570 | P100-009570-Online | |||
| 19 | + | Plug, Cover | 130338-32430 | 130338-32430-Online | ||
| 20 | Clip | V490-001730 | V490-001730-Online | |||
| 21 | Catcher, Chain | C310-000110 | C310-000110-Online | |||
| 22 | Bolt,5 | V203-002260 | V203-002260-Online | |||
| 23 | Cap Asy | P100-009040 | P100-009040-Online | |||
| 24 | + | O-Ring | 900720-20029 | 900720-20029-Online | 1 P-29 | |
| 25 | + | Link | 131051-19830 | 131051-19830-Online | 1 60L | |
| 26 | Grommet,Oil | V138-000030 | V138-000030-Online | |||
| 27 | Joint,Pipe | V186-000530 | V186-000530-Online | |||
| 28 | Pipe | 437210-30831 | 437210-30831-Online | 1 3*6*210 | ||
| 29 | Strainer, Oil | P100-001900 | P100-001900-Online | |||
| 30 | Cap Asy | P100-009200 | P100-009200-Online | |||
| 31 | + | Ring,O | V581-000600 | V581-000600-Online | 1 P29 | |
| 32 | + | Link | 131051-19830 | 131051-19830-Online | 1 60L | |
| 33 | Label,Model | X503-016060 | X503-016060-Online | 1 CS-3510L | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001180 | A409-001180-Online | |||
| 2 | Coil, Ignition | A411-001960 | A411-001960-Online | 1 OPPAMA ID#A10105 | ||
| 3 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 4 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 5 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 6 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 7 | Nut, Flange | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 8 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 9 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 10 | Pawl | A514-000020 | A514-000020-Online | |||
| 11 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 12 | Bolt,5 | V203-002250 | V203-002250-Online | |||
| 13 | Lead | V485-003510 | V485-003510-Online | 1 AV0.5F-L:185 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

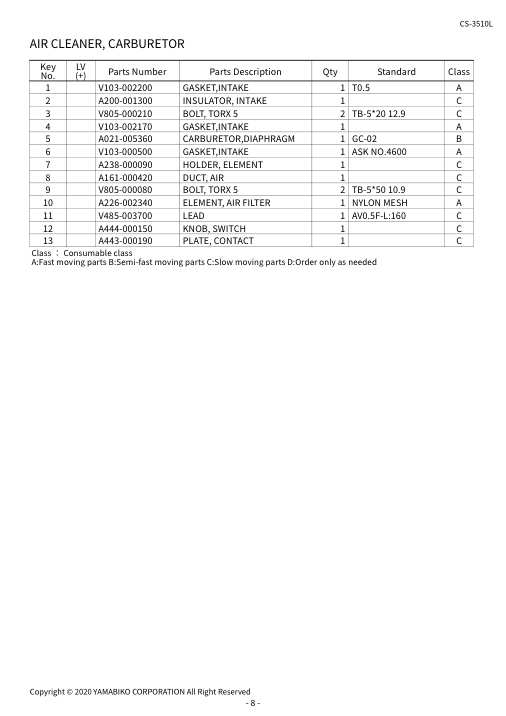

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Gasket,Intake | V103-002200 | V103-002200-Online | 1 T0.5 | ||
| 2 | Insulator, Intake | A200-001300 | A200-001300-Online | |||
| 3 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 4 | Gasket,Intake | V103-002170 | V103-002170-Online | |||
| 5 | Carburetor,Diaphragm | A021-005360 | A021-005360-Online | 1 GC-02 | ||
| 6 | Gasket,Intake | V103-000500 | V103-000500-Online | 1 ASK NO.4600 | ||
| 7 | Holder, Element | A238-000090 | A238-000090-Online | |||
| 8 | Duct, Air | A161-000420 | A161-000420-Online | |||
| 9 | Bolt, Torx 5 | V805-000080 | V805-000080-Online | 2 TB-5*50 10.9 | ||
| 10 | Element, Air Filter | A226-002340 | A226-002340-Online | 1 NYLON MESH | ||
| 11 | Lead | V485-003700 | V485-003700-Online | 1 AV0.5F-L:160 | ||
| 12 | Knob, Switch | A444-000150 | A444-000150-Online | |||
| 13 | Plate, Contact | A443-000190 | A443-000190-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

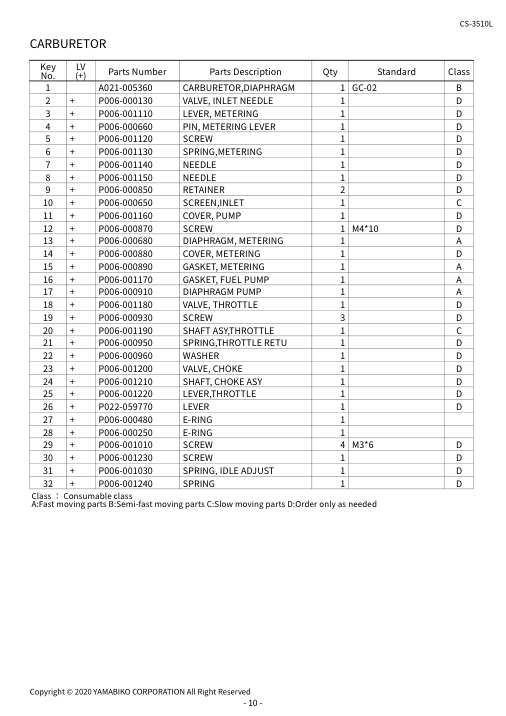

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-005360 | A021-005360-Online | 1 GC-02 | ||
| 2 | + | Valve, Inlet Needle | P006-000130 | P006-000130-Online | ||
| 3 | + | Lever, Metering | P006-001110 | P006-001110-Online | ||
| 4 | + | Pin, Metering Lever | P006-000660 | P006-000660-Online | ||
| 5 | + | Screw | P006-001120 | P006-001120-Online | ||
| 6 | + | Spring,Metering | P006-001130 | P006-001130-Online | ||
| 7 | + | Needle | P006-001140 | P006-001140-Online | ||
| 8 | + | Needle | P006-001150 | P006-001150-Online | ||
| 9 | + | Retainer | P006-000850 | P006-000850-Online | ||
| 10 | + | Screen,Inlet | P006-000650 | P006-000650-Online | ||
| 11 | + | Cover, Pump | P006-001160 | P006-001160-Online | ||
| 12 | + | Screw | P006-000870 | P006-000870-Online | 1 M4*10 | |
| 13 | + | Diaphragm, Metering | P006-000680 | P006-000680-Online | ||
| 14 | + | Cover, Metering | P006-000880 | P006-000880-Online | ||
| 15 | + | Gasket, Metering | P006-000890 | P006-000890-Online | ||
| 16 | + | Gasket, Fuel Pump | P006-001170 | P006-001170-Online | ||
| 17 | + | Diaphragm Pump | P006-000910 | P006-000910-Online | ||
| 18 | + | Valve, Throttle | P006-001180 | P006-001180-Online | ||
| 19 | + | Screw | P006-000930 | P006-000930-Online | ||
| 20 | + | Shaft Asy,Throttle | P006-001190 | P006-001190-Online | ||
| 21 | + | Spring,Throttle Retu | P006-000950 | P006-000950-Online | ||
| 22 | + | Washer | P006-000960 | P006-000960-Online | ||
| 23 | + | Valve, Choke | P006-001200 | P006-001200-Online | ||
| 24 | + | Shaft, Choke Asy | P006-001210 | P006-001210-Online | ||
| 25 | + | Lever,Throttle | P006-001220 | P006-001220-Online | ||
| 26 | + | Lever | P022-059770 | P022-059770-Online | ||
| 27 | + | E-Ring | P006-000480 | P006-000480-Online | ||
| 28 | + | E-Ring | P006-000250 | P006-000250-Online | ||
| 29 | + | Screw | P006-001010 | P006-001010-Online | 4 M3*6 | |
| 30 | + | Screw | P006-001230 | P006-001230-Online | ||
| 31 | + | Spring, Idle Adjust | P006-001030 | P006-001030-Online | ||
| 32 | + | Spring | P006-001240 | P006-001240-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

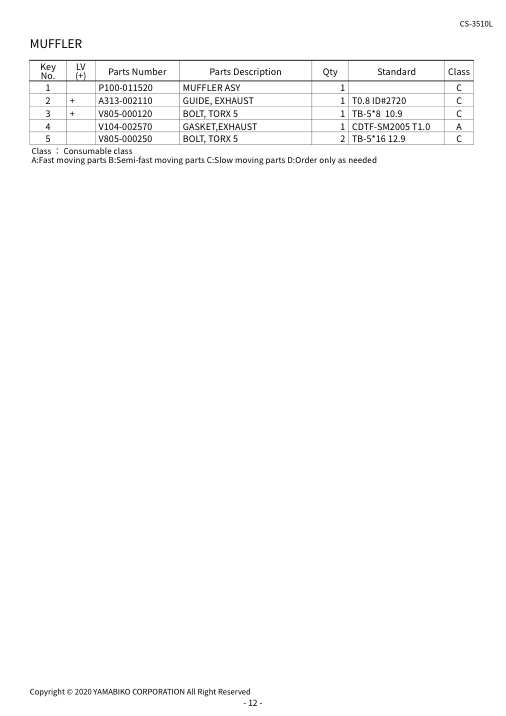

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P100-011520 | P100-011520-Online | |||
| 2 | + | Guide, Exhaust | A313-002110 | A313-002110-Online | 1 T0.8 ID#2720 | |
| 3 | + | Bolt, Torx 5 | V805-000120 | V805-000120-Online | 1 TB-5*8 10.9 | |
| 4 | Gasket,Exhaust | V104-002570 | V104-002570-Online | 1 CDTF-SM2005 T1.0 | ||
| 5 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | 2 TB-5*16 12.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

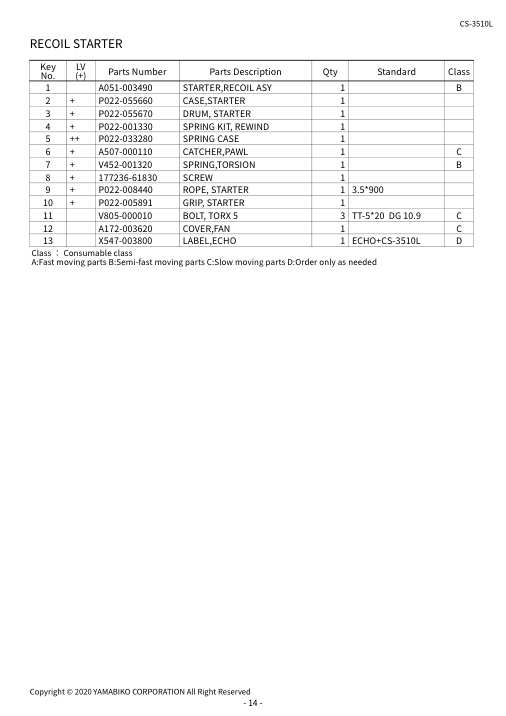

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil Asy | A051-003490 | A051-003490-Online | |||
| 2 | + | Case,Starter | P022-055660 | P022-055660-Online | ||
| 3 | + | Drum, Starter | P022-055670 | P022-055670-Online | ||
| 4 | + | Spring Kit, Rewind | P022-001330 | P022-001330-Online | 1 | 5 | ++ | |
| 5 | Spring Case | P022-033280 | P022-033280-Online | |||
| 6 | + | Catcher,Pawl | A507-000110 | A507-000110-Online | ||
| 7 | + | Spring,Torsion | V452-001320 | V452-001320-Online | ||
| 8 | + | Screw | 177236-61830 | 177236-61830-Online | ||
| 9 | + | Rope, Starter | P022-008440 | P022-008440-Online | 1 3.5*900 | |
| 10 | + | Grip, Starter | P022-005891 | P022-005891-Online | ||
| 11 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 3 TT-5*20 DG 10.9 | ||
| 12 | Cover,Fan | A172-003620 | A172-003620-Online | |||
| 13 | Label,Echo | X547-003800 | X547-003800-Online | 1 ECHO+CS-3510L | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rod, Throttle | C454-000610 | C454-000610-Online | |||
| 2 | Handle, Rear | C410-001500 | C410-001500-Online | |||
| 3 | Lid,Handle | C411-000280 | C411-000280-Online | |||
| 4 | Trigger,Throttle | C450-001080 | C450-001080-Online | |||
| 5 | Spring,Torsion | V452-000850 | V452-000850-Online | |||
| 6 | Lockout,Throttle | C460-000530 | C460-000530-Online | |||
| 7 | Spring,Compression | V450-002370 | V450-002370-Online | |||
| 8 | Bolt, Torx 5 | V805-000390 | V805-000390-Online | 1 TB-5*16 10.9 | ||
| 9 | Spring,Compression | V450-002380 | V450-002380-Online | |||
| 10 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 1 TT-5*16 DG 10.9 | ||
| 11 | Spring,Compression | V450-002390 | V450-002390-Online | |||
| 12 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 2 TT-5*16 DG 10.9 | ||
| 13 | Label,Caution | X505-010150 | X505-010150-Online | 1 CE CAUTION | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Drum, Clutch | 175005-39134 | 175005-39134-Online | 1 3/8A カシメ | ||
| 2 | Bearing,Needle 10 | V555-000170 | V555-000170-Online | 1 8E-KV10*13*12.8 | ||
| 3 | Plate, Clutch | A551-000210 | A551-000210-Online | |||
| 4 | Clutch Asy | A056-000870 | A056-000870-Online | |||
| 5 | + | Hub, Clutch | A552-000500 | A552-000500-Online | ||
| 6 | + | Clutch Shoe Set | P100-009170 | P100-009170-Online | ||
| 7 | + | Spring, Clutch | A566-000350 | A566-000350-Online | ||
| 8 | Guard, Sprocket Asy | P100-009580 | P100-009580-Online | |||
| 9 | + | Guard, Sprocket | C300-001190 | C300-001190-Online | ||
| 10 | + | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 11 | + | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 12 | + | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 13 | + | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 14 | + | Collar,8 | V355-000140 | V355-000140-Online | ||
| 15 | + | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG 10.9 | |
| 16 | + | Cover,Brake | C345-000720 | C345-000720-Online | ||
| 17 | + | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 2 TT-4*12 DG 10.9 | |
| 18 | + | Connector, Brake | C334-000100 | C334-000100-Online | ||
| 19 | + | Spring,Compression | V450-000070 | V450-000070-Online | ||
| 20 | + | Band,Brake | C328-000030 | C328-000030-Online | ||
| 21 | + | Roller | 93050-30098 | 93050-30098-Online | 1 3*9.8 | |
| 23 | Lever, Brake | C320-000590 | C320-000590-Online | |||
| 24 | Bolt,5 | V203-002270 | V203-002270-Online | |||
| 25 | Spring,Torsion | V452-000250 | V452-000250-Online | |||
| 26 | Retaining Ring | 900700-00008 | 900700-00008-Online | 1 CE-8 | ||
| 27 | Gear,Worm | V652-000280 | V652-000280-Online | |||
| 28 | Label,Echo | X502-001250 | X502-001250-Online | 1 ECHO | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

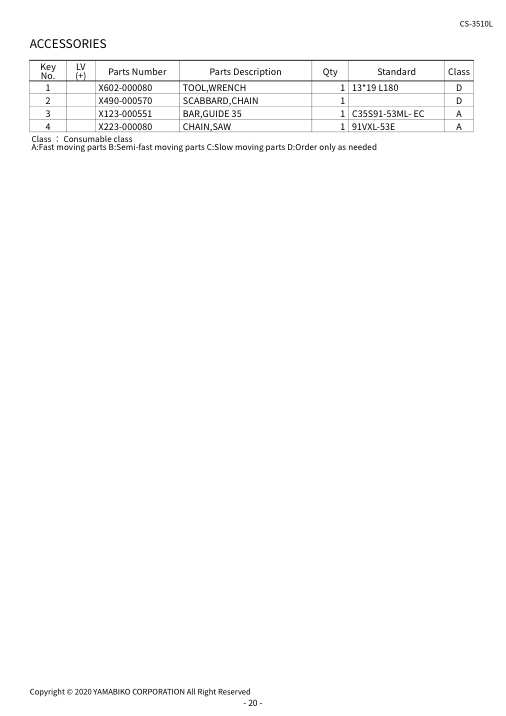

Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 1 13*19 L180 | ||
| 2 | Scabbard,Chain | X490-000570 | X490-000570-Online | |||
| 3 | Bar,Guide 35 | X123-000551 | X123-000551-Online | 1 C35S91-53ML- EC | ||
| 4 | Chain,Saw | X223-000080 | X223-000080-Online | 1 91VXL-53E | A | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Spike | C304-000000 | C304-000000-Online | |||
| 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 1 TT-5*16 DG 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

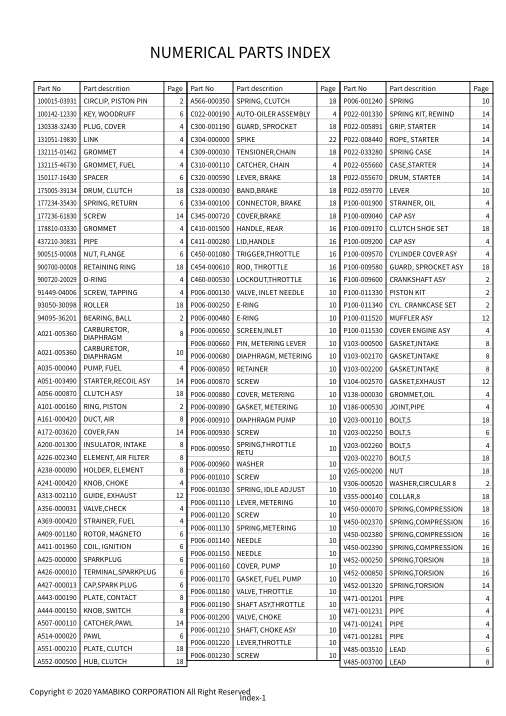

Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 6 | Plug, Cover | 130338-32430 | 130338-32430-Online | |||
| 4 | Link | 131051-19830 | 131051-19830-Online | |||
| 4 | Grommet | 132115-01462 | 132115-01462-Online | |||
| 4 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 4 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 6 | Drum, Clutch | 175005-39134 | 175005-39134-Online | |||
| 18 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 6 | Screw | 177236-61830 | 177236-61830-Online | |||
| 14 | Grommet | 178810-03330 | 178810-03330-Online | |||
| 4 | Pipe | 437210-30831 | 437210-30831-Online | |||
| 4 | Nut, Flange | 900515-00008 | 900515-00008-Online | |||
| 6 | Retaining Ring | 900700-00008 | 900700-00008-Online | |||
| 18 | O-Ring | 900720-20029 | 900720-20029-Online | |||
| 4 | Screw, Tapping | 91449-04006 | 91449-04006-Online | |||
| 4 | Roller | 93050-30098 | 93050-30098-Online | |||
| 18 | Bearing, Ball | 94095-36201 | 94095-36201-Online | |||
| 2 | Carburetor, | A021-005360 | A021-005360-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-005360 | A021-005360-Online | DIAPHRAGM | ||
| 10 | Pump, Fuel | A035-000040 | A035-000040-Online | |||
| 4 | Starter,Recoil Asy | A051-003490 | A051-003490-Online | |||
| 14 | Clutch Asy | A056-000870 | A056-000870-Online | |||
| 18 | Ring, Piston | A101-000160 | A101-000160-Online | |||
| 2 | Duct, Air | A161-000420 | A161-000420-Online | |||
| 8 | Cover,Fan | A172-003620 | A172-003620-Online | |||
| 14 | Insulator, Intake | A200-001300 | A200-001300-Online | |||
| 8 | Element, Air Filter | A226-002340 | A226-002340-Online | |||
| 8 | Holder, Element | A238-000090 | A238-000090-Online | |||
| 8 | Knob, Choke | A241-000420 | A241-000420-Online | |||
| 4 | Guide, Exhaust | A313-002110 | A313-002110-Online | |||
| 12 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 4 | Strainer, Fuel | A369-000420 | A369-000420-Online | |||
| 4 | Rotor, Magneto | A409-001180 | A409-001180-Online | |||
| 6 | Coil, Ignition | A411-001960 | A411-001960-Online | |||
| 6 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 6 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 6 | Plate, Contact | A443-000190 | A443-000190-Online | |||
| 8 | Knob, Switch | A444-000150 | A444-000150-Online | |||
| 8 | Catcher,Pawl | A507-000110 | A507-000110-Online | |||
| 14 | Pawl | A514-000020 | A514-000020-Online | |||
| 6 | Plate, Clutch | A551-000210 | A551-000210-Online | |||
| 18 | Hub, Clutch | A552-000500 | A552-000500-Online | 18 | Part No | Part descrition | Page | ||
| 18 | Auto-Oiler Assembly | C022-000190 | C022-000190-Online | |||
| 4 | Guard, Sprocket | C300-001190 | C300-001190-Online | |||
| 18 | Spike | C304-000000 | C304-000000-Online | |||
| 22 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 18 | Catcher, Chain | C310-000110 | C310-000110-Online | |||
| 4 | Lever, Brake | C320-000590 | C320-000590-Online | |||
| 18 | Band,Brake | C328-000030 | C328-000030-Online | |||
| 18 | Connector, Brake | C334-000100 | C334-000100-Online | |||
| 18 | Cover,Brake | C345-000720 | C345-000720-Online | |||
| 18 | Handle, Rear | C410-001500 | C410-001500-Online | |||
| 16 | Lid,Handle | C411-000280 | C411-000280-Online | |||
| 16 | Trigger,Throttle | C450-001080 | C450-001080-Online | |||
| 16 | Rod, Throttle | C454-000610 | C454-000610-Online | |||
| 16 | Lockout,Throttle | C460-000530 | C460-000530-Online | |||
| 16 | Valve, Inlet Needle | P006-000130 | P006-000130-Online | |||
| 10 | E-Ring | P006-000250 | P006-000250-Online | |||
| 10 | E-Ring | P006-000480 | P006-000480-Online | |||
| 10 | Screen,Inlet | P006-000650 | P006-000650-Online | |||
| 10 | Pin, Metering Lever | P006-000660 | P006-000660-Online | |||
| 10 | Diaphragm, Metering | P006-000680 | P006-000680-Online | |||
| 10 | Retainer | P006-000850 | P006-000850-Online | |||
| 10 | Screw | P006-000870 | P006-000870-Online | |||
| 10 | Cover, Metering | P006-000880 | P006-000880-Online | |||
| 10 | Gasket, Metering | P006-000890 | P006-000890-Online | |||
| 10 | Diaphragm Pump | P006-000910 | P006-000910-Online | |||
| 10 | Screw | P006-000930 | P006-000930-Online | |||
| 10 | Spring,Throttle | P006-000950 | P006-000950-Online | RETU | ||
| 10 | Washer | P006-000960 | P006-000960-Online | |||
| 10 | Screw | P006-001010 | P006-001010-Online | |||
| 10 | Spring, Idle Adjust | P006-001030 | P006-001030-Online | |||
| 10 | Lever, Metering | P006-001110 | P006-001110-Online | |||
| 10 | Screw | P006-001120 | P006-001120-Online | |||
| 10 | Spring,Metering | P006-001130 | P006-001130-Online | |||
| 10 | Needle | P006-001140 | P006-001140-Online | |||
| 10 | Needle | P006-001150 | P006-001150-Online | |||
| 10 | Cover, Pump | P006-001160 | P006-001160-Online | |||
| 10 | Gasket, Fuel Pump | P006-001170 | P006-001170-Online | |||
| 10 | Valve, Throttle | P006-001180 | P006-001180-Online | |||
| 10 | Shaft Asy,Throttle | P006-001190 | P006-001190-Online | |||
| 10 | Valve, Choke | P006-001200 | P006-001200-Online | |||
| 10 | Shaft, Choke Asy | P006-001210 | P006-001210-Online | |||
| 10 | Lever,Throttle | P006-001220 | P006-001220-Online | |||
| 10 | Screw | P006-001230 | P006-001230-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | |||
| 14 | Grip, Starter | P022-005891 | P022-005891-Online | |||
| 14 | Rope, Starter | P022-008440 | P022-008440-Online | |||
| 14 | Spring Case | P022-033280 | P022-033280-Online | |||
| 14 | Case,Starter | P022-055660 | P022-055660-Online | |||
| 14 | Drum, Starter | P022-055670 | P022-055670-Online | |||
| 14 | Lever | P022-059770 | P022-059770-Online | |||
| 10 | Strainer, Oil | P100-001900 | P100-001900-Online | |||
| 4 | Cap Asy | P100-009040 | P100-009040-Online | |||
| 4 | Clutch Shoe Set | P100-009170 | P100-009170-Online | |||
| 18 | Cap Asy | P100-009200 | P100-009200-Online | |||
| 4 | Cylinder Cover Asy | P100-009570 | P100-009570-Online | |||
| 4 | Guard, Sprocket Asy | P100-009580 | P100-009580-Online | |||
| 18 | Crankshaft Asy | P100-009600 | P100-009600-Online | |||
| 2 | Piston Kit | P100-011330 | P100-011330-Online | |||
| 2 | Cyl. Crankcase Set | P100-011340 | P100-011340-Online | |||
| 2 | Muffler Asy | P100-011520 | P100-011520-Online | |||
| 12 | Cover Engine Asy | P100-011530 | P100-011530-Online | |||
| 4 | Gasket,Intake | V103-000500 | V103-000500-Online | |||
| 8 | Gasket,Intake | V103-002170 | V103-002170-Online | |||
| 8 | Gasket,Intake | V103-002200 | V103-002200-Online | |||
| 8 | Gasket,Exhaust | V104-002570 | V104-002570-Online | |||
| 12 | Grommet,Oil | V138-000030 | V138-000030-Online | |||
| 4 | Joint,Pipe | V186-000530 | V186-000530-Online | |||
| 4 | Bolt,5 | V203-000110 | V203-000110-Online | |||
| 18 | Bolt,5 | V203-002250 | V203-002250-Online | |||
| 6 | Bolt,5 | V203-002260 | V203-002260-Online | |||
| 4 | Bolt,5 | V203-002270 | V203-002270-Online | |||
| 18 | Washer,Circular 8 | V306-000520 | V306-000520-Online | |||
| 2 | Collar,8 | V355-000140 | V355-000140-Online | |||
| 18 | Spring,Compression | V450-000070 | V450-000070-Online | |||
| 18 | Spring,Compression | V450-002370 | V450-002370-Online | |||
| 16 | Spring,Compression | V450-002380 | V450-002380-Online | |||
| 16 | Spring,Compression | V450-002390 | V450-002390-Online | |||
| 16 | Spring,Torsion | V452-000250 | V452-000250-Online | |||
| 18 | Spring,Torsion | V452-000850 | V452-000850-Online | |||
| 16 | Spring,Torsion | V452-001320 | V452-001320-Online | |||
| 14 | Pipe | V471-001201 | V471-001201-Online | |||
| 4 | Pipe | V471-001231 | V471-001231-Online | |||
| 4 | Pipe | V471-001241 | V471-001241-Online | |||
| 4 | Pipe | V471-001281 | V471-001281-Online | |||
| 4 | Lead | V485-003510 | V485-003510-Online | |||
| 6 | Lead | V485-003700 | V485-003700-Online | 8 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Clip | V490-001730 | V490-001730-Online | |||
| 4 | Seal,Oil 12 | V505-000011 | V505-000011-Online | |||
| 2 | Bearing,Needle 9 | V554-000030 | V554-000030-Online | |||
| 2 | Bearing,Needle 10 | V555-000170 | V555-000170-Online | |||
| 18 | Ring,O | V581-000600 | V581-000600-Online | |||
| 4 | Pin,Eng 9 | V607-000000 | V607-000000-Online | |||
| 2 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 18 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 18 | Gear,Worm | V652-000280 | V652-000280-Online | |||
| 18 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 18 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 16 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 22 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 14 | Bolt, Torx 5 | V805-000080 | V805-000080-Online | |||
| 8 | Bolt, Torx 5 | V805-000120 | V805-000120-Online | |||
| 12 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 4 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 6 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 8 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | |||
| 12 | Bolt, Torx 5 | V805-000390 | V805-000390-Online | |||
| 16 | Bar,Guide 35 | X123-000551 | X123-000551-Online | |||
| 20 | Chain,Saw | X223-000080 | X223-000080-Online | |||
| 20 | Scabbard,Chain | X490-000570 | X490-000570-Online | |||
| 20 | Label,Echo | X502-001250 | X502-001250-Online | |||
| 18 | Label,Model | X503-016060 | X503-016060-Online | |||
| 4 | Label,Caution | X505-010150 | X505-010150-Online | |||
| 16 | Label,Echo | X547-003800 | X547-003800-Online | |||
| 14 | Tool,Wrench | X602-000080 | X602-000080-Online | 20 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20221018-784-CS-3510L_30_00000001_EN.pdf. Generated 2026-06-25 14:40.
