Echo ES-255ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: ES-255ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.

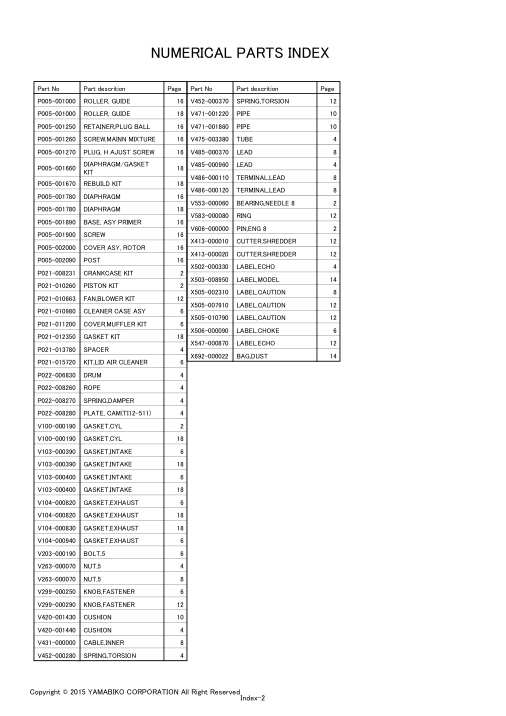

Page 22
Tap or click the page image to enlarge it.

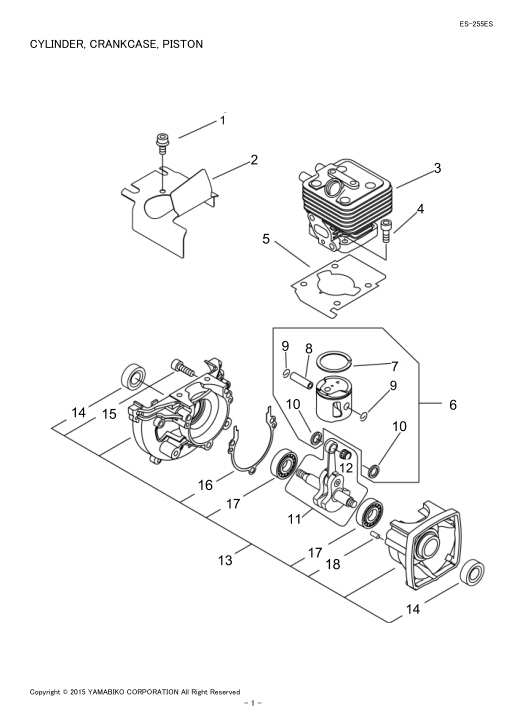

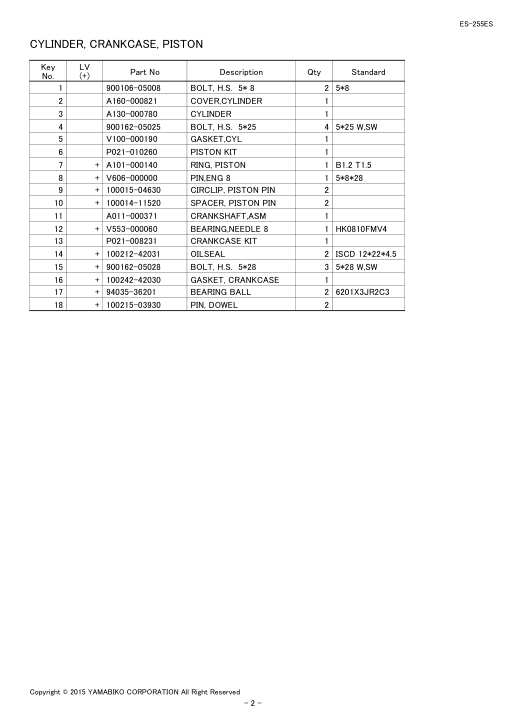

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, H.S. 5* 8 | 900106-05008 | 900106-05008-Online | 2 5*8 | ||
| 2 | Cover,Cylinder | A160-000821 | A160-000821-Online | |||
| 3 | Cylinder | A130-000780 | A130-000780-Online | |||
| 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 4 5*25 W,SW | ||
| 5 | Gasket,Cyl | V100-000190 | V100-000190-Online | |||
| 6 | Piston Kit | P021-010260 | P021-010260-Online | 1 | 7 | + A101-000140 | RING, PISTON | ||
| 11 | Crankshaft,Asm | A011-000371 | A011-000371-Online | 1 | 12 | + V553-000060 | BEARING,NEEDLE 8 | ||
| 13 | Crankcase Kit | P021-008231 | P021-008231-Online | 1 | 14 | + 100212-42031 | OILSEAL |

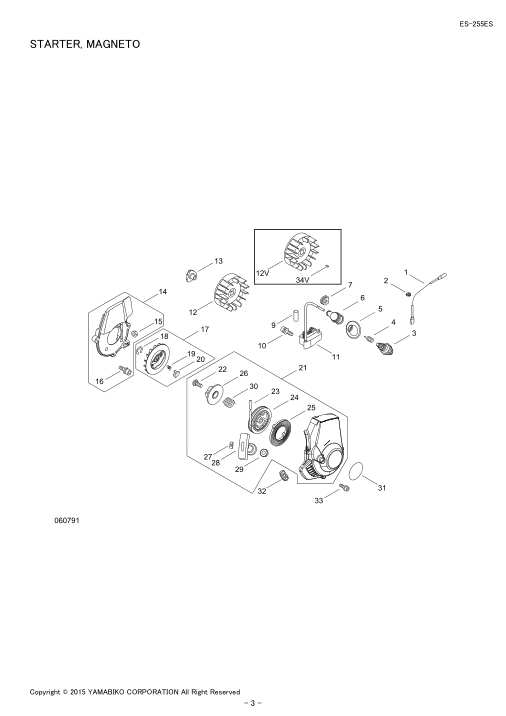

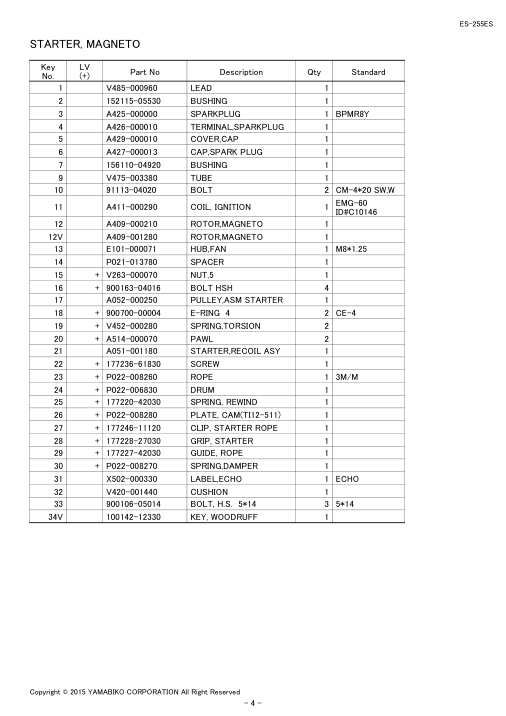

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lead | V485-000960 | V485-000960-Online | |||
| 2 | Bushing | 152115-05530 | 152115-05530-Online | |||
| 3 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 4 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 5 | Cover,Cap | A429-000010 | A429-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 7 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 9 | Tube | V475-003380 | V475-003380-Online | |||
| 10 | Bolt | 91113-04020 | 91113-04020-Online | 2 CM-4*20 SW,W | ||
| 11 | Coil, Ignition | A411-000290 | A411-000290-Online | 1 EMG-60 | ID#C10146 | ||
| 12 | Rotor,Magneto | A409-000210 | A409-000210-Online | |||
| 12V | Rotor,Magneto | A409-001280 | A409-001280-Online | |||
| 13 | Hub,Fan | E101-000071 | E101-000071-Online | 1 M8*1.25 | ||
| 14 | Spacer | P021-013780 | P021-013780-Online | 1 | 15 | + V263-000070 | NUT,5 | ||
| 17 | Pulley,Asm Starter | A052-000250 | A052-000250-Online | 1 | 18 | + 900700-00004 | E-RING 4 | ||
| 21 | Starter,Recoil Asy | A051-001180 | A051-001180-Online | 1 | 22 | + 177236-61830 | SCREW | ||
| 31 | Label,Echo | X502-000330 | X502-000330-Online | 1 ECHO | ||
| 32 | Cushion | V420-001440 | V420-001440-Online | |||
| 33 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | 3 5*14 | ||
| 34V | Key, Woodruff | 100142-12330 | 100142-12330-Online | 1 | STARTER, MAGNETO | ES-255ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

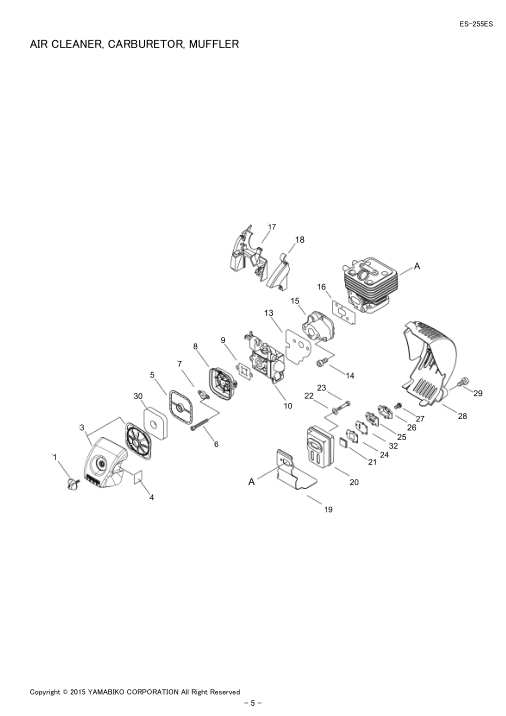

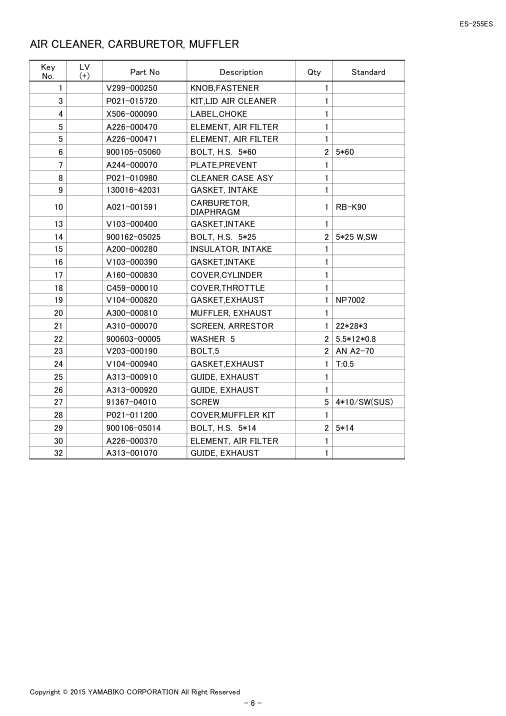

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Knob,Fastener | V299-000250 | V299-000250-Online | |||
| 3 | Kit,Lid Air Cleaner | P021-015720 | P021-015720-Online | |||
| 4 | Label,Choke | X506-000090 | X506-000090-Online | |||
| 5 | Element, Air Filter | A226-000470 | A226-000470-Online | |||
| 5 | Element, Air Filter | A226-000471 | A226-000471-Online | |||
| 6 | Bolt, H.S. 5*60 | 900105-05060 | 900105-05060-Online | 2 5*60 | ||
| 7 | Plate,Prevent | A244-000070 | A244-000070-Online | |||
| 8 | Cleaner Case Asy | P021-010980 | P021-010980-Online | |||
| 9 | Gasket, Intake | 130016-42031 | 130016-42031-Online | |||
| 10 | Carburetor, | A021-001591 | A021-001591-Online | DIAPHRAGM | 1 RB-K90 | ||
| 13 | Gasket,Intake | V103-000400 | V103-000400-Online | |||
| 14 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 2 5*25 W,SW | ||
| 15 | Insulator, Intake | A200-000280 | A200-000280-Online | |||
| 16 | Gasket,Intake | V103-000390 | V103-000390-Online | |||
| 17 | Cover,Cylinder | A160-000830 | A160-000830-Online | |||
| 18 | Cover,Throttle | C459-000010 | C459-000010-Online | |||
| 19 | Gasket,Exhaust | V104-000820 | V104-000820-Online | 1 NP7002 | ||
| 20 | Muffler, Exhaust | A300-000810 | A300-000810-Online | |||
| 21 | Screen, Arrestor | A310-000070 | A310-000070-Online | 1 22*28*3 | ||
| 22 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 23 | Bolt,5 | V203-000190 | V203-000190-Online | 2 AN A2-70 | ||
| 24 | Gasket,Exhaust | V104-000940 | V104-000940-Online | 1 T:0.5 | ||
| 25 | Guide, Exhaust | A313-000910 | A313-000910-Online | |||
| 26 | Guide, Exhaust | A313-000920 | A313-000920-Online | |||
| 27 | Screw | 91367-04010 | 91367-04010-Online | 5 4*10/SW(SUS) | ||
| 28 | Cover,Muffler Kit | P021-011200 | P021-011200-Online | |||
| 29 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | 2 5*14 | ||
| 30 | Element, Air Filter | A226-000370 | A226-000370-Online | |||
| 32 | Guide, Exhaust | A313-001070 | A313-001070-Online | 1 | AIR CLEANER, CARBURETOR, MUFFLER | ES-255ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

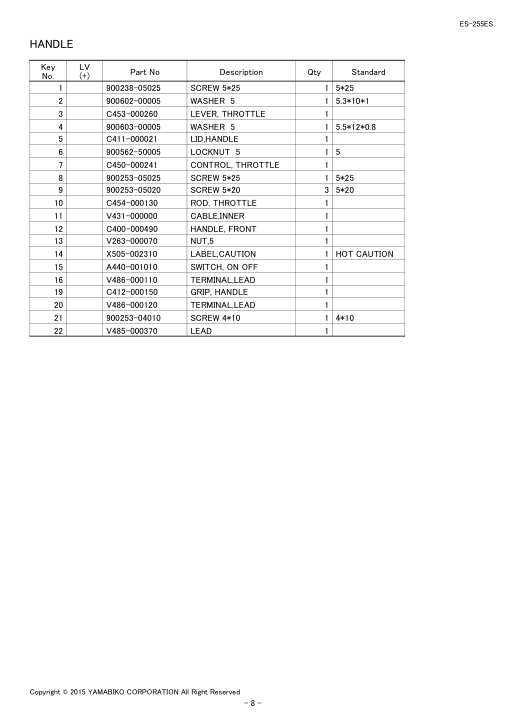

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Screw 5*25 | 900238-05025 | 900238-05025-Online | 1 5*25 | ||
| 2 | Washer 5 | 900602-00005 | 900602-00005-Online | 1 5.3*10*1 | ||
| 3 | Lever, Throttle | C453-000260 | C453-000260-Online | |||
| 4 | Washer 5 | 900603-00005 | 900603-00005-Online | 1 5.5*12*0.8 | ||
| 5 | Lid,Handle | C411-000021 | C411-000021-Online | |||
| 6 | Locknut 5 | 900562-50005 | 900562-50005-Online | 1 5 | ||
| 7 | Control, Throttle | C450-000241 | C450-000241-Online | |||
| 8 | Screw 5*25 | 900253-05025 | 900253-05025-Online | 1 5*25 | ||
| 9 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 3 5*20 | ||
| 10 | Rod, Throttle | C454-000130 | C454-000130-Online | |||
| 11 | Cable,Inner | V431-000000 | V431-000000-Online | |||
| 12 | Handle, Front | C400-000490 | C400-000490-Online | |||
| 13 | Nut,5 | V263-000070 | V263-000070-Online | |||
| 14 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | ||
| 15 | Switch, On Off | A440-001010 | A440-001010-Online | |||
| 16 | Terminal,Lead | V486-000110 | V486-000110-Online | |||
| 19 | Grip, Handle | C412-000150 | C412-000150-Online | |||
| 20 | Terminal,Lead | V486-000120 | V486-000120-Online | |||
| 21 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 1 4*10 | ||
| 22 | Lead | V485-000370 | V485-000370-Online | 1 | HANDLE | ES-255ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

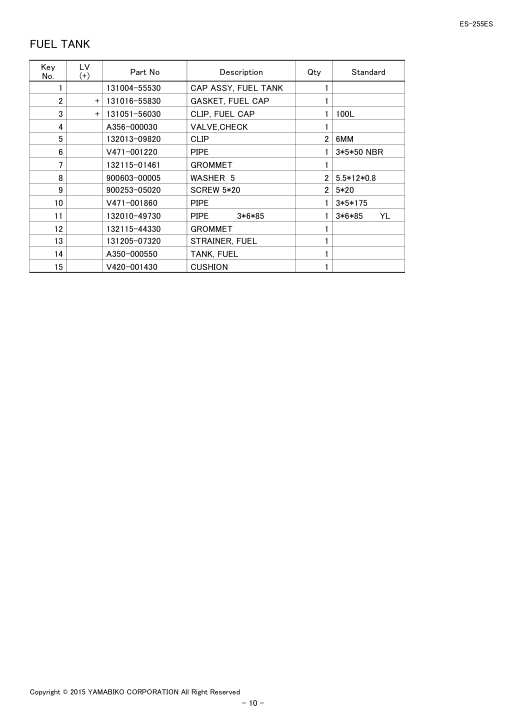

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | 1 | 2 | + 131016-55830 | GASKET, FUEL CAP | ||
| 4 | Valve,Check | A356-000030 | A356-000030-Online | |||
| 5 | Clip | 132013-09820 | 132013-09820-Online | 2 6MM | ||
| 6 | Pipe | V471-001220 | V471-001220-Online | 1 3*5*50 NBR | ||
| 7 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 8 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 9 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 2 5*20 | ||
| 10 | Pipe | V471-001860 | V471-001860-Online | 1 3*5*175 | ||
| 11 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | 1 3*6*85 YL | ||
| 12 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 13 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | |||
| 14 | Tank, Fuel | A350-000550 | A350-000550-Online | |||
| 15 | Cushion | V420-001430 | V420-001430-Online | 1 | FUEL TANK | ES-255ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

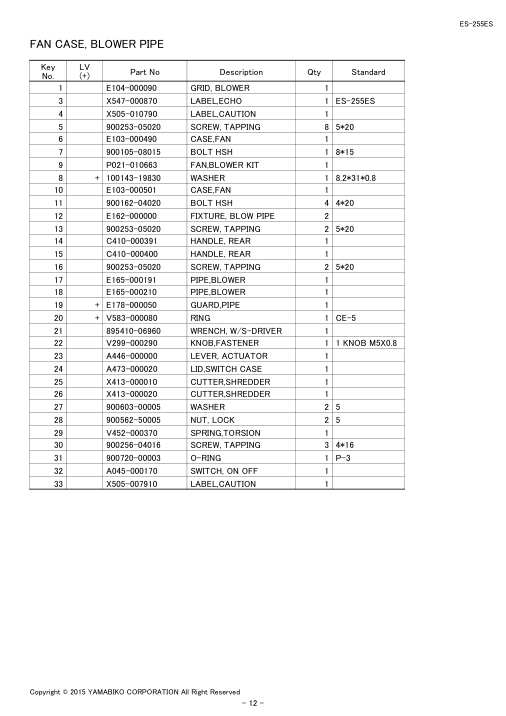

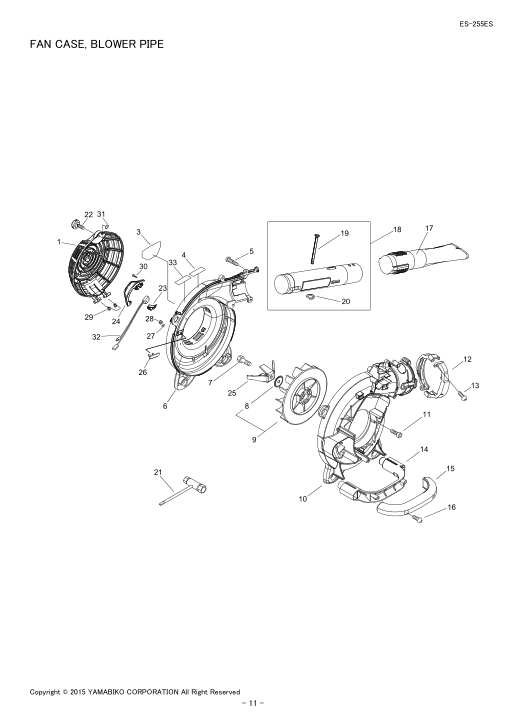

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Grid, Blower | E104-000090 | E104-000090-Online | |||
| 3 | Label,Echo | X547-000870 | X547-000870-Online | 1 ES-255ES | ||
| 4 | Label,Caution | X505-010790 | X505-010790-Online | |||
| 5 | Screw, Tapping | 900253-05020 | 900253-05020-Online | 8 5*20 | ||
| 6 | Case,Fan | E103-000490 | E103-000490-Online | |||
| 7 | Bolt Hsh | 900105-08015 | 900105-08015-Online | 1 8*15 | ||
| 9 | Fan,Blower Kit | P021-010663 | P021-010663-Online | 1 | 8 | + 100143-19830 | WASHER | ||
| 10 | Case,Fan | E103-000501 | E103-000501-Online | |||
| 11 | Bolt Hsh | 900162-04020 | 900162-04020-Online | 4 4*20 | ||
| 12 | Fixture, Blow Pipe | E162-000000 | E162-000000-Online | |||
| 13 | Screw, Tapping | 900253-05020 | 900253-05020-Online | 2 5*20 | ||
| 14 | Handle, Rear | C410-000391 | C410-000391-Online | |||
| 15 | Handle, Rear | C410-000400 | C410-000400-Online | |||
| 16 | Screw, Tapping | 900253-05020 | 900253-05020-Online | 2 5*20 | ||
| 17 | Pipe,Blower | E165-000191 | E165-000191-Online | |||
| 18 | Pipe,Blower | E165-000210 | E165-000210-Online | 1 | 19 | + E178-000050 | GUARD,PIPE | ||
| 21 | Wrench, W/S-Driver | 895410-06960 | 895410-06960-Online | |||
| 22 | Knob,Fastener | V299-000290 | V299-000290-Online | 1 1 KNOB M5X0.8 | ||
| 23 | Lever, Actuator | A446-000000 | A446-000000-Online | |||
| 24 | Lid,Switch Case | A473-000020 | A473-000020-Online | |||
| 25 | Cutter,Shredder | X413-000010 | X413-000010-Online | |||
| 26 | Cutter,Shredder | X413-000020 | X413-000020-Online | |||
| 27 | Washer | 900603-00005 | 900603-00005-Online | 2 5 | ||
| 28 | Nut, Lock | 900562-50005 | 900562-50005-Online | 2 5 | ||
| 29 | Spring,Torsion | V452-000370 | V452-000370-Online | |||
| 30 | Screw, Tapping | 900256-04016 | 900256-04016-Online | 3 4*16 | ||
| 31 | O-Ring | 900720-00003 | 900720-00003-Online | 1 P-3 | ||
| 32 | Switch, On Off | A045-000170 | A045-000170-Online | |||
| 33 | Label,Caution | X505-007910 | X505-007910-Online | 1 | FAN CASE, BLOWER PIPE | ES-255ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

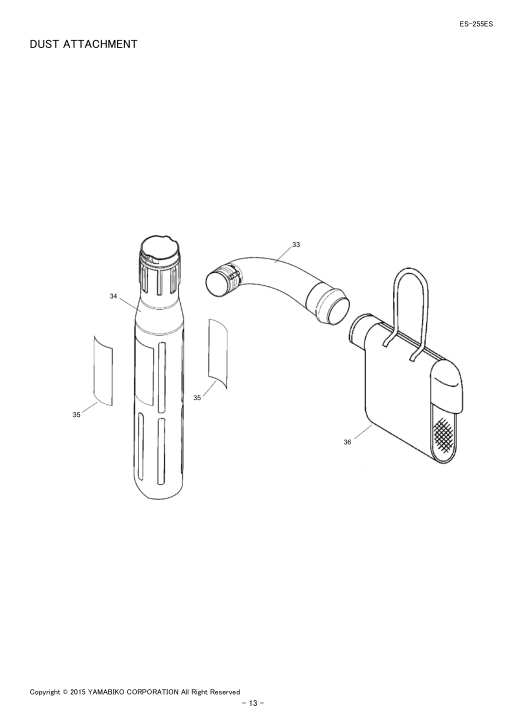

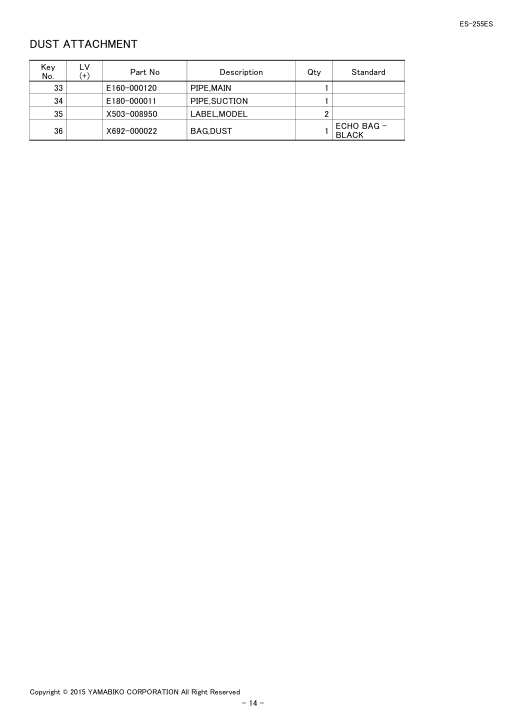

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | Pipe,Main | E160-000120 | E160-000120-Online | |||
| 34 | Pipe,Suction | E180-000011 | E180-000011-Online | |||
| 35 | Label,Model | X503-008950 | X503-008950-Online | |||
| 36 | Bag,Dust | X692-000022 | X692-000022-Online | 1 ECHO BAG - | BLACK | DUST ATTACHMENT | ES-255ES |

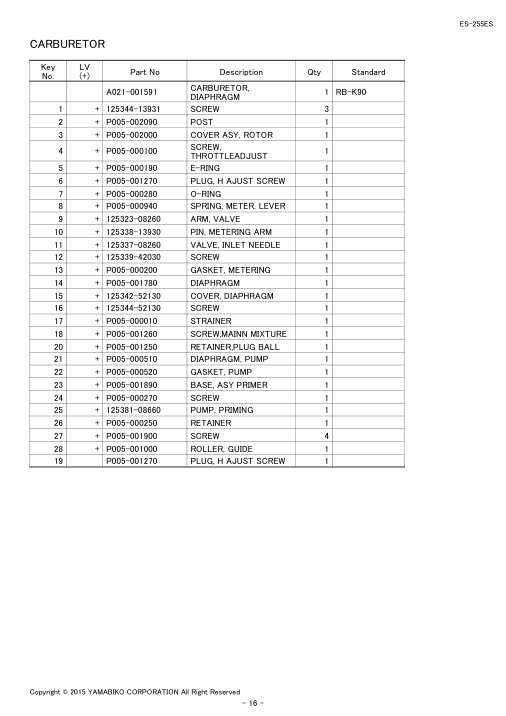

Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online | 1 | CARBURETOR | ES-255ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |||
| 2 | Diaphragm | P005-001780 | P005-001780-Online | |||
| 3 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |||
| 4 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 1 | Rebuild Kit | P005-001670 | P005-001670-Online | |||
| 1 | Roller, Guide | P005-001000 | P005-001000-Online | |||
| 2 | Strainer | P005-000010 | P005-000010-Online | |||
| 3 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |||
| 4 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 5 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 6 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 7 | Gasket, Metering | P005-000200 | P005-000200-Online | |||
| 8 | Diaphragm | P005-001780 | P005-001780-Online | |||
| 9 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |||
| 10 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 1 | Gasket Kit | P021-012350 | P021-012350-Online | |||
| 1 | Gasket,Cyl | V100-000190 | V100-000190-Online | |||
| 2 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |||
| 3 | Gasket,Intake | V103-000390 | V103-000390-Online | |||
| 4 | Gasket,Intake | V103-000400 | V103-000400-Online | |||
| 5 | Gasket, Intake | 130016-42031 | 130016-42031-Online | |||
| 6 | Gasket,Exhaust | V104-000820 | V104-000820-Online | 1 NP7002 | ||
| 7 | Gasket,Exhaust | V104-000830 | V104-000830-Online | 1 | REPAIR KIT | ES-255ES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

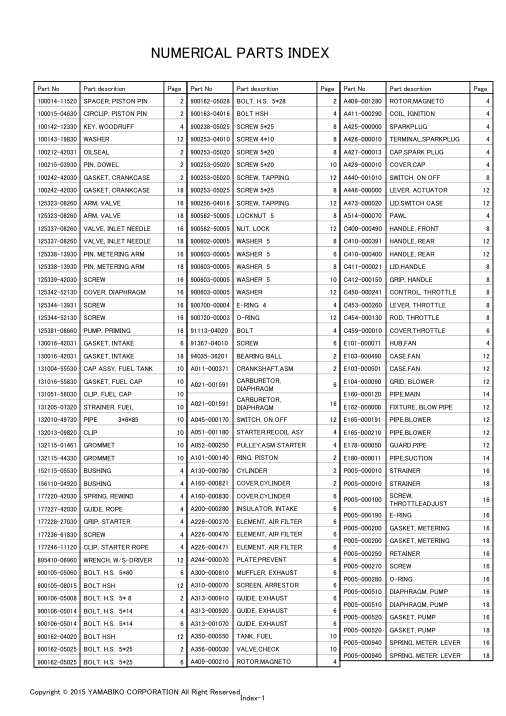

Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 4 | Washer | 100143-19830 | 100143-19830-Online | |||
| 12 | Oilseal | 100212-42031 | 100212-42031-Online | |||
| 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |||
| 2 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |||
| 18 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 16 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 18 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 16 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 18 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 16 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 18 | Screw | 125339-42030 | 125339-42030-Online | |||
| 16 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |||
| 16 | Screw | 125344-13931 | 125344-13931-Online | |||
| 16 | Screw | 125344-52130 | 125344-52130-Online | |||
| 16 | Pump, Priming | 125381-08660 | 125381-08660-Online | |||
| 16 | Gasket, Intake | 130016-42031 | 130016-42031-Online | |||
| 6 | Gasket, Intake | 130016-42031 | 130016-42031-Online | |||
| 18 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 10 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 10 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | |||
| 10 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | |||
| 10 | Clip | 132013-09820 | 132013-09820-Online | |||
| 10 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 10 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 10 | Bushing | 152115-05530 | 152115-05530-Online | |||
| 4 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 4 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |||
| 4 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 4 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 4 | Screw | 177236-61830 | 177236-61830-Online | |||
| 4 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |||
| 4 | Wrench, W/S-Driver | 895410-06960 | 895410-06960-Online | |||
| 12 | Bolt, H.S. 5*60 | 900105-05060 | 900105-05060-Online | |||
| 6 | Bolt Hsh | 900105-08015 | 900105-08015-Online | |||
| 12 | Bolt, H.S. 5* 8 | 900106-05008 | 900106-05008-Online | |||
| 2 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | |||
| 4 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | |||
| 6 | Bolt Hsh | 900162-04020 | 900162-04020-Online | |||
| 12 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |||
| 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 6 | Part No | Part descrition | Page | ||
| 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | |||
| 4 | Screw 5*25 | 900238-05025 | 900238-05025-Online | |||
| 8 | Screw 4*10 | 900253-04010 | 900253-04010-Online | |||
| 8 | Screw 5*20 | 900253-05020 | 900253-05020-Online | |||
| 10 | Screw, Tapping | 900253-05020 | 900253-05020-Online | |||
| 12 | Screw 5*25 | 900253-05025 | 900253-05025-Online | |||
| 8 | Screw, Tapping | 900256-04016 | 900256-04016-Online | |||
| 12 | Locknut 5 | 900562-50005 | 900562-50005-Online | |||
| 8 | Nut, Lock | 900562-50005 | 900562-50005-Online | |||
| 12 | Washer 5 | 900602-00005 | 900602-00005-Online | |||
| 8 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 6 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 10 | Washer | 900603-00005 | 900603-00005-Online | |||
| 12 | E-Ring 4 | 900700-00004 | 900700-00004-Online | |||
| 4 | O-Ring | 900720-00003 | 900720-00003-Online | |||
| 12 | Bolt | 91113-04020 | 91113-04020-Online | |||
| 4 | Screw | 91367-04010 | 91367-04010-Online | |||
| 6 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Crankshaft,Asm | A011-000371 | A011-000371-Online | |||
| 2 | Carburetor, | A021-001591 | A021-001591-Online | DIAPHRAGM | ||
| 6 | Carburetor, | A021-001591 | A021-001591-Online | DIAPHRAGM | ||
| 16 | Switch, On Off | A045-000170 | A045-000170-Online | |||
| 12 | Starter,Recoil Asy | A051-001180 | A051-001180-Online | |||
| 4 | Pulley,Asm Starter | A052-000250 | A052-000250-Online | |||
| 4 | Ring, Piston | A101-000140 | A101-000140-Online | |||
| 2 | Cylinder | A130-000780 | A130-000780-Online | |||
| 2 | Cover,Cylinder | A160-000821 | A160-000821-Online | |||
| 2 | Cover,Cylinder | A160-000830 | A160-000830-Online | |||
| 6 | Insulator, Intake | A200-000280 | A200-000280-Online | |||
| 6 | Element, Air Filter | A226-000370 | A226-000370-Online | |||
| 6 | Element, Air Filter | A226-000470 | A226-000470-Online | |||
| 6 | Element, Air Filter | A226-000471 | A226-000471-Online | |||
| 6 | Plate,Prevent | A244-000070 | A244-000070-Online | |||
| 6 | Muffler, Exhaust | A300-000810 | A300-000810-Online | |||
| 6 | Screen, Arrestor | A310-000070 | A310-000070-Online | |||
| 6 | Guide, Exhaust | A313-000910 | A313-000910-Online | |||
| 6 | Guide, Exhaust | A313-000920 | A313-000920-Online | |||
| 6 | Guide, Exhaust | A313-001070 | A313-001070-Online | |||
| 6 | Tank, Fuel | A350-000550 | A350-000550-Online | |||
| 10 | Valve,Check | A356-000030 | A356-000030-Online | |||
| 10 | Rotor,Magneto | A409-000210 | A409-000210-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Coil, Ignition | A411-000290 | A411-000290-Online | |||
| 4 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 4 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 4 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 4 | Cover,Cap | A429-000010 | A429-000010-Online | |||
| 4 | Switch, On Off | A440-001010 | A440-001010-Online | |||
| 8 | Lever, Actuator | A446-000000 | A446-000000-Online | |||
| 12 | Lid,Switch Case | A473-000020 | A473-000020-Online | |||
| 12 | Pawl | A514-000070 | A514-000070-Online | |||
| 4 | Handle, Front | C400-000490 | C400-000490-Online | |||
| 8 | Handle, Rear | C410-000391 | C410-000391-Online | |||
| 12 | Handle, Rear | C410-000400 | C410-000400-Online | |||
| 12 | Lid,Handle | C411-000021 | C411-000021-Online | |||
| 8 | Grip, Handle | C412-000150 | C412-000150-Online | |||
| 8 | Control, Throttle | C450-000241 | C450-000241-Online | |||
| 8 | Lever, Throttle | C453-000260 | C453-000260-Online | |||
| 8 | Rod, Throttle | C454-000130 | C454-000130-Online | |||
| 8 | Cover,Throttle | C459-000010 | C459-000010-Online | |||
| 6 | Hub,Fan | E101-000071 | E101-000071-Online | |||
| 4 | Case,Fan | E103-000490 | E103-000490-Online | |||
| 12 | Case,Fan | E103-000501 | E103-000501-Online | |||
| 12 | Grid, Blower | E104-000090 | E104-000090-Online | |||
| 12 | Pipe,Main | E160-000120 | E160-000120-Online | |||
| 14 | Fixture, Blow Pipe | E162-000000 | E162-000000-Online | |||
| 12 | Pipe,Blower | E165-000191 | E165-000191-Online | |||
| 12 | Pipe,Blower | E165-000210 | E165-000210-Online | |||
| 12 | Guard,Pipe | E178-000050 | E178-000050-Online | |||
| 12 | Pipe,Suction | E180-000011 | E180-000011-Online | |||
| 14 | Strainer | P005-000010 | P005-000010-Online | |||
| 16 | Strainer | P005-000010 | P005-000010-Online | |||
| 18 | Screw, | P005-000100 | P005-000100-Online | THROTTLEADJUST | ||
| 16 | E-Ring | P005-000190 | P005-000190-Online | |||
| 16 | Gasket, Metering | P005-000200 | P005-000200-Online | |||
| 18 | Retainer | P005-000250 | P005-000250-Online | |||
| 16 | Screw | P005-000270 | P005-000270-Online | |||
| 16 | O-Ring | P005-000280 | P005-000280-Online | |||
| 16 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |||
| 18 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 16 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 18 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |||
| 16 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | 18 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | Roller, Guide | P005-001000 | P005-001000-Online | |||
| 18 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |||
| 16 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |||
| 16 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online | |||
| 16 | Diaphragm/Gasket | P005-001660 | P005-001660-Online | |||
| 18 | Rebuild Kit | P005-001670 | P005-001670-Online | |||
| 18 | Diaphragm | P005-001780 | P005-001780-Online | |||
| 16 | Diaphragm | P005-001780 | P005-001780-Online | |||
| 18 | Base, Asy Primer | P005-001890 | P005-001890-Online | |||
| 16 | Screw | P005-001900 | P005-001900-Online | |||
| 16 | Cover Asy, Rotor | P005-002000 | P005-002000-Online | |||
| 16 | Post | P005-002090 | P005-002090-Online | |||
| 16 | Crankcase Kit | P021-008231 | P021-008231-Online | |||
| 2 | Piston Kit | P021-010260 | P021-010260-Online | |||
| 2 | Fan,Blower Kit | P021-010663 | P021-010663-Online | |||
| 12 | Cleaner Case Asy | P021-010980 | P021-010980-Online | |||
| 6 | Cover,Muffler Kit | P021-011200 | P021-011200-Online | |||
| 6 | Gasket Kit | P021-012350 | P021-012350-Online | |||
| 18 | Spacer | P021-013780 | P021-013780-Online | |||
| 4 | Kit,Lid Air Cleaner | P021-015720 | P021-015720-Online | |||
| 6 | Drum | P022-006830 | P022-006830-Online | |||
| 4 | Rope | P022-008260 | P022-008260-Online | |||
| 4 | Spring,Damper | P022-008270 | P022-008270-Online | |||
| 4 | Plate, Cam(Ti12-511) | P022-008280 | P022-008280-Online | |||
| 4 | Gasket,Cyl | V100-000190 | V100-000190-Online | |||
| 2 | Gasket,Cyl | V100-000190 | V100-000190-Online | |||
| 18 | Gasket,Intake | V103-000390 | V103-000390-Online | |||
| 6 | Gasket,Intake | V103-000390 | V103-000390-Online | |||
| 18 | Gasket,Intake | V103-000400 | V103-000400-Online | |||
| 6 | Gasket,Intake | V103-000400 | V103-000400-Online | |||
| 18 | Gasket,Exhaust | V104-000820 | V104-000820-Online | |||
| 6 | Gasket,Exhaust | V104-000820 | V104-000820-Online | |||
| 18 | Gasket,Exhaust | V104-000830 | V104-000830-Online | |||
| 18 | Gasket,Exhaust | V104-000940 | V104-000940-Online | |||
| 6 | Bolt,5 | V203-000190 | V203-000190-Online | |||
| 6 | Nut,5 | V263-000070 | V263-000070-Online | |||
| 4 | Nut,5 | V263-000070 | V263-000070-Online | |||
| 8 | Knob,Fastener | V299-000250 | V299-000250-Online | |||
| 6 | Knob,Fastener | V299-000290 | V299-000290-Online | |||
| 12 | Cushion | V420-001430 | V420-001430-Online | |||
| 10 | Cushion | V420-001440 | V420-001440-Online | |||
| 4 | Cable,Inner | V431-000000 | V431-000000-Online | |||
| 8 | Spring,Torsion | V452-000280 | V452-000280-Online | 4 | Part No | Part descrition | Page | ||
| 12 | Pipe | V471-001220 | V471-001220-Online | |||
| 10 | Pipe | V471-001860 | V471-001860-Online | |||
| 10 | Tube | V475-003380 | V475-003380-Online | |||
| 4 | Lead | V485-000370 | V485-000370-Online | |||
| 8 | Lead | V485-000960 | V485-000960-Online | |||
| 4 | Terminal,Lead | V486-000110 | V486-000110-Online | |||
| 8 | Terminal,Lead | V486-000120 | V486-000120-Online | |||
| 8 | Bearing,Needle 8 | V553-000060 | V553-000060-Online | |||
| 2 | Ring | V583-000080 | V583-000080-Online | |||
| 12 | Pin,Eng 8 | V606-000000 | V606-000000-Online | |||
| 2 | Cutter,Shredder | X413-000010 | X413-000010-Online | |||
| 12 | Cutter,Shredder | X413-000020 | X413-000020-Online | |||
| 12 | Label,Echo | X502-000330 | X502-000330-Online | |||
| 4 | Label,Model | X503-008950 | X503-008950-Online | |||
| 14 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 8 | Label,Caution | X505-007910 | X505-007910-Online | |||
| 12 | Label,Caution | X505-010790 | X505-010790-Online | |||
| 12 | Label,Choke | X506-000090 | X506-000090-Online | |||
| 6 | Label,Echo | X547-000870 | X547-000870-Online | |||
| 12 | Bag,Dust | X692-000022 | X692-000022-Online | 14 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-735_ES-255ES_37_37017625_24FEB2020.pdf. Generated 2026-06-25 14:39.
