Echo ES-255ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: ES-255ES-Online
Source Pages

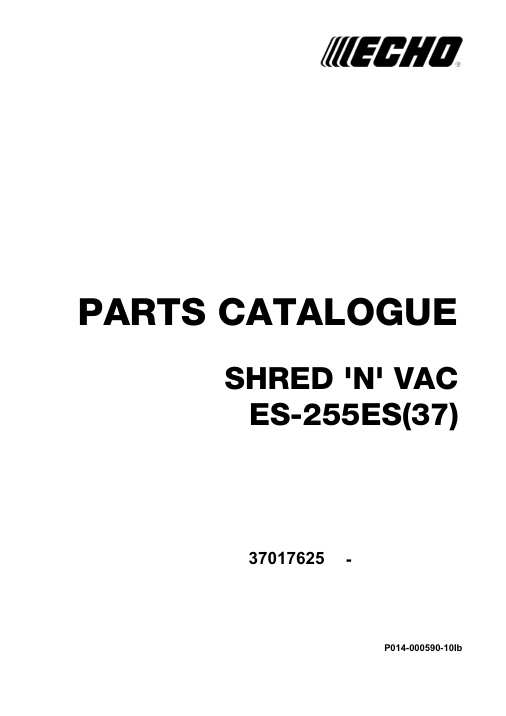

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

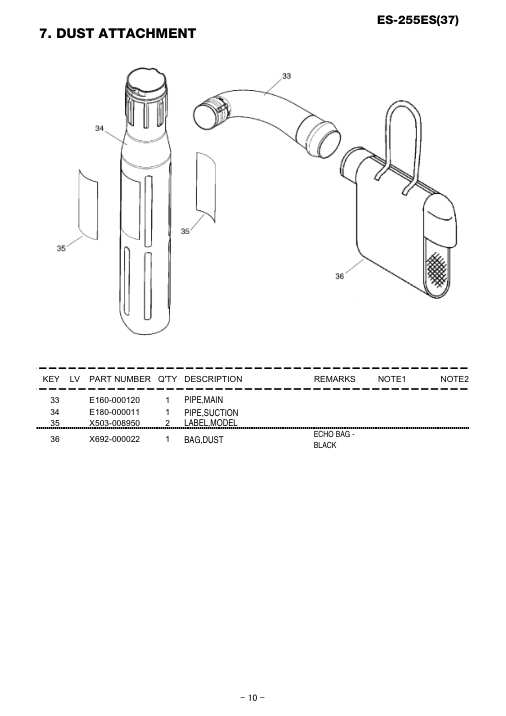

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

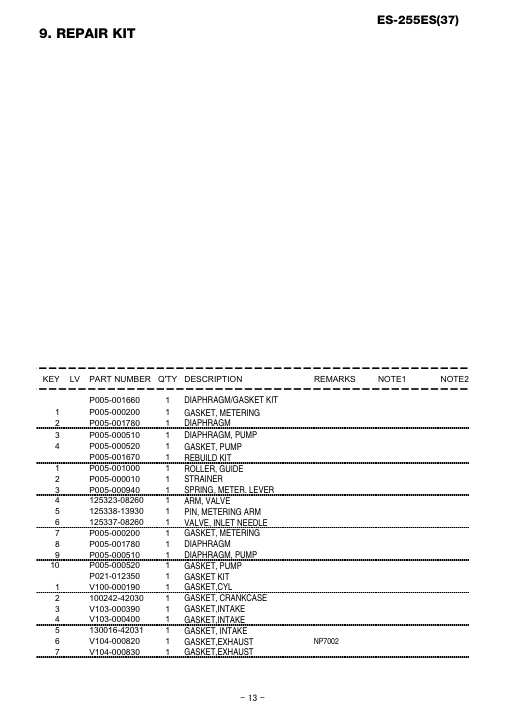

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.

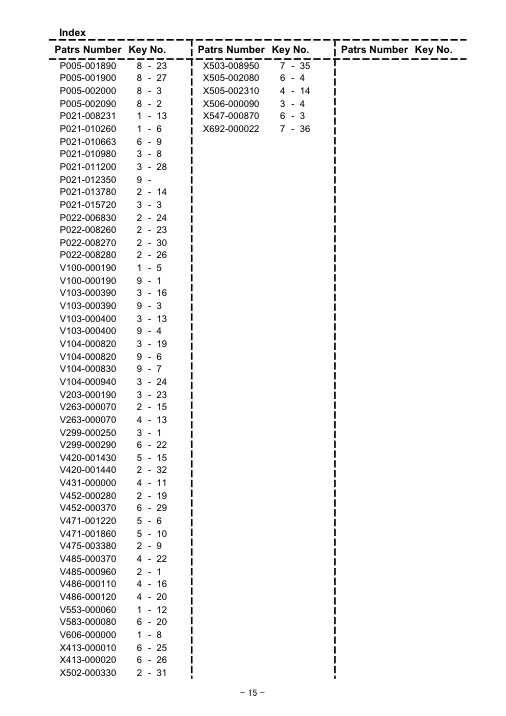

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.

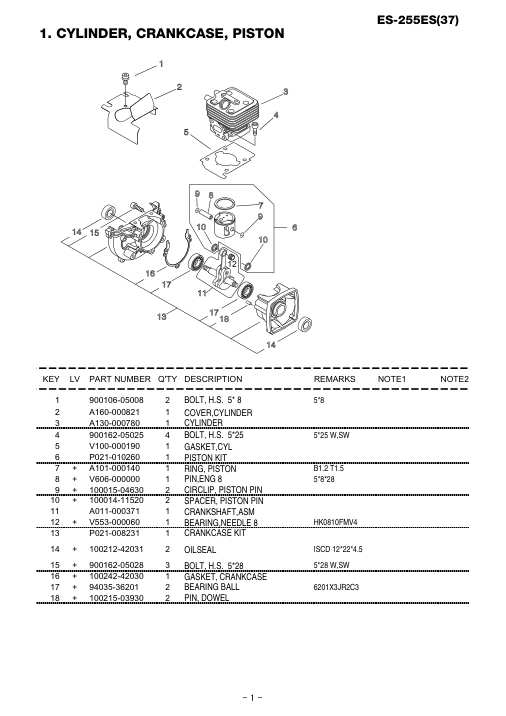

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Bolt, H.S. 5* 8 | 900106-05008 | 900106-05008-Online | 5*8 | |
| 2 | 1 | Cover,Cylinder | A160-000821 | A160-000821-Online | ||
| 3 | 1 | Cylinder | A130-000780 | A130-000780-Online | ||
| 4 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 5 | 1 | Gasket,Cyl | V100-000190 | V100-000190-Online | ||
| 6 | 1 | Piston Kit | P021-010260 | P021-010260-Online | ||
| 7 | + | 1 | Ring, Piston | A101-000140 | A101-000140-Online | B1.2 T1.5 |
| 8 | + | 1 | Pin,Eng 8 | V606-000000 | V606-000000-Online | 5*8*28 |
| 9 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 10 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 11 | 1 | Crankshaft,Asm | A011-000371 | A011-000371-Online | ||
| 12 | + | 1 | Bearing,Needle 8 | V553-000060 | V553-000060-Online | HK0810FMV4 |
| 13 | 1 | Crankcase Kit | P021-008231 | P021-008231-Online | ||
| 14 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 15 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 16 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 17 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 18 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lead | V485-000960 | V485-000960-Online | ||
| 2 | 1 | Bushing | 152115-05530 | 152115-05530-Online | ||
| 3 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 4 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 5 | 1 | Cover,Cap | A429-000010 | A429-000010-Online | ||
| 6 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 7 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 9 | 1 | Tube | V475-003380 | V475-003380-Online | ||
| 10 | 2 | Bolt | 91113-04020 | 91113-04020-Online | CM-4*20 SW,W | |
| 11 | 1 | Coil, Ignition | A411-000290 | A411-000290-Online | EMG-60 | ID#C10146 | |
| 12 | 1 | Rotor,Magneto | A409-000210 | A409-000210-Online | ||
| 13 | 1 | Hub,Fan | E101-000071 | E101-000071-Online | M8*1.25 | |
| 14 | 1 | Spacer | P021-013780 | P021-013780-Online | ||
| 15 | + | 1 | Nut,5 | V263-000070 | V263-000070-Online | |
| 16 | + | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | |
| 17 | 1 | Pulley,Asm Starter | A052-000250 | A052-000250-Online | ||
| 18 | + | 2 | E-Ring 4 | 900700-00004 | 900700-00004-Online | CE-4 |
| 19 | + | 2 | Spring,Torsion | V452-000280 | V452-000280-Online | |
| 20 | + | 2 | Pawl | A514-000070 | A514-000070-Online | |
| 21 | 1 | Starter,Recoil Asy | A051-001180 | A051-001180-Online | ||
| 22 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 23 | + | 1 | Rope | P022-008260 | P022-008260-Online | 3M/M |
| 24 | + | 1 | Drum | P022-006830 | P022-006830-Online | |
| 25 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 26 | + | 1 | Plate, Cam | P022-008280 | P022-008280-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |
| 28 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 29 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 30 | + | 1 | Spring,Damper | P022-008270 | P022-008270-Online | |
| 31 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 32 | 1 | Cushion | V420-001440 | V420-001440-Online | ||
| 33 | 3 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | 5*14 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Knob,Fastener | V299-000250 | V299-000250-Online | ||
| 3 | 1 | Kit,Lid Air Cleaner | P021-015720 | P021-015720-Online | ||
| 4 | 1 | Label,Choke | X506-000090 | X506-000090-Online | ||
| 5 | 1 | Element, Air Filter | A226-000470 | A226-000470-Online | ||
| 5 | 1 | Element, Air Filter | A226-000471 | A226-000471-Online | ||
| 6 | 2 | Bolt, H.S. 5*60 | 900105-05060 | 900105-05060-Online | 5*60 | |
| 7 | 1 | Plate,Prevent | A244-000070 | A244-000070-Online | ||
| 8 | 1 | Cleaner Case Asy | P021-010980 | P021-010980-Online | ||
| 9 | 1 | Gasket, Intake | 130016-42031 | 130016-42031-Online | ||
| 10 | 1 | Carburetor,Diaphragm | A021-001591 | A021-001591-Online | RB-K90 | |
| 13 | 1 | Gasket,Intake | V103-000400 | V103-000400-Online | ||
| 14 | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 15 | 1 | Insulator, Intake | A200-000280 | A200-000280-Online | ||
| 16 | 1 | Gasket,Intake | V103-000390 | V103-000390-Online | ||
| 17 | 1 | Cover,Cylinder | A160-000830 | A160-000830-Online | ||
| 18 | 1 | Cover,Throttle | C459-000010 | C459-000010-Online | ||
| 19 | 1 | Gasket,Exhaust | V104-000820 | V104-000820-Online | NP7002 | |
| 20 | 1 | Muffler, Exhaust | A300-000810 | A300-000810-Online | ||
| 21 | 1 | Screen, Arrestor | A310-000070 | A310-000070-Online | 22*28*3 | |
| 22 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 23 | 2 | Bolt,5 | V203-000190 | V203-000190-Online | AN A2-70 | |
| 24 | 1 | Gasket,Exhaust | V104-000940 | V104-000940-Online | T:0.5 | |
| 25 | 1 | Guide, Exhaust | A313-000910 | A313-000910-Online | ||
| 26 | 1 | Guide, Exhaust | A313-000920 | A313-000920-Online | ||
| 27 | 5 | Screw | 91367-04010 | 91367-04010-Online | 4*10/SW(SUS) | |
| 28 | 1 | Cover,Muffler Kit | P021-011200 | P021-011200-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | 2 | Bolt, H.S. 5*14 | 900106-05014 | 900106-05014-Online | 5*14 | |
| 30 | 1 | Element, Air Filter | A226-000370 | A226-000370-Online | ||
| 32 | 1 | Guide, Exhaust | A313-001070 | A313-001070-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Screw 5*25 | 900238-05025 | 900238-05025-Online | 5*25 | |
| 2 | 1 | Washer 5 | 900602-00005 | 900602-00005-Online | 5.3*10*1 | |
| 3 | 1 | Lever, Throttle | C453-000260 | C453-000260-Online | ||
| 4 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 5 | 1 | Lid,Handle | C411-000021 | C411-000021-Online | ||
| 6 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 7 | 1 | Control, Throttle | C450-000241 | C450-000241-Online | ||
| 8 | 1 | Screw 5*25 | 900253-05025 | 900253-05025-Online | 5*25 | |
| 9 | 3 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 10 | 1 | Rod, Throttle | C454-000130 | C454-000130-Online | ||
| 11 | 1 | Cable,Inner | V431-000000 | V431-000000-Online | ||
| 12 | 1 | Handle, Front | C400-000490 | C400-000490-Online | ||
| 13 | 1 | Nut,5 | V263-000070 | V263-000070-Online | ||
| 14 | 1 | Label,Caution | X505-002310 | X505-002310-Online | HOT CAUTION | |
| 15 | 1 | Switch, On Off | A440-001010 | A440-001010-Online | ||
| 16 | 1 | Terminal,Lead | V486-000110 | V486-000110-Online | ||
| 19 | 1 | Grip, Handle | C412-000150 | C412-000150-Online | ||
| 20 | 1 | Terminal,Lead | V486-000120 | V486-000120-Online | ||
| 21 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 22 | 1 | Lead | V485-000370 | V485-000370-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 2 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 3 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 4 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 5 | 2 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 6 | 1 | Pipe | V471-001220 | V471-001220-Online | 3*5*50 NBR | |
| 7 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 8 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 9 | 2 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 10 | 1 | Pipe | V471-001860 | V471-001860-Online | 3*5*175 | |
| 11 | 1 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | 3*6*85 YL | |
| 12 | 1 | Grommet | 132115-44330 | 132115-44330-Online | ||
| 13 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 14 | 1 | Tank, Fuel | A350-000550 | A350-000550-Online | ||
| 15 | 1 | Cushion | V420-001430 | V420-001430-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grid, Blower | E104-000090 | E104-000090-Online | ||
| 3 | 1 | Label,Echo | X547-000870 | X547-000870-Online | ES-255ES | |
| 4 | 1 | Label,Caution | X505-002080 | X505-002080-Online | ||
| 5 | 8 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 6 | 1 | Case,Fan | E103-000490 | E103-000490-Online | ||
| 7 | 1 | Bolt, H.S. 8*15 | 900105-08015 | 900105-08015-Online | 8*15 | |
| 9 | 1 | Fan,Blower Kit | P021-010663 | P021-010663-Online | ||
| 8 | + | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 |
| 10 | 1 | Case,Fan | E103-000501 | E103-000501-Online | ||
| 11 | 4 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 12 | 2 | Fixture, Blow Pipe | E162-000000 | E162-000000-Online | ||
| 13 | 2 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 14 | 1 | Handle, Rear | C410-000391 | C410-000391-Online | ||
| 15 | 1 | Handle, Rear | C410-000400 | C410-000400-Online | ||
| 16 | 2 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 17 | 1 | Pipe,Blower | E165-000191 | E165-000191-Online | ||
| 18 | 1 | Pipe,Blower | E165-000210 | E165-000210-Online | ||
| 19 | + | 1 | Guard,Pipe | E178-000050 | E178-000050-Online | |
| 20 | + | 1 | Ring | V583-000080 | V583-000080-Online | CE-5 |
| 21 | 1 | Wrench, W/S-Driver | 895410-06960 | 895410-06960-Online | ||
| 22 | 1 | Knob,Fastener | V299-000290 | V299-000290-Online | 1 KNOB M5X0.8 | |
| 23 | 1 | Lever, Actuator | A446-000000 | A446-000000-Online | ||
| 24 | 1 | Lid,Switch Case | A473-000020 | A473-000020-Online | ||
| 25 | 1 | Cutter,Shredder | X413-000010 | X413-000010-Online | ||
| 26 | 1 | Cutter,Shredder | X413-000020 | X413-000020-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 28 | 2 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 29 | 1 | Spring,Torsion | V452-000370 | V452-000370-Online | ||
| 30 | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | ||
| 31 | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 | |
| 32 | 1 | Switch, On Off | A045-000170 | A045-000170-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | 1 | Pipe,Main | E160-000120 | E160-000120-Online | ||
| 34 | 1 | Pipe,Suction | E180-000011 | E180-000011-Online | ||
| 35 | 2 | Label,Model | X503-008950 | X503-008950-Online | ||
| 36 | 1 | Bag,Dust | X692-000022 | X692-000022-Online | ECHO BAG - | BLACK |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 3 | Screw | 125344-13931 | 125344-13931-Online | |
| 2 | + | 1 | Post | P005-002090 | P005-002090-Online | |
| 3 | + | 1 | Cover Asy, Rotor | P005-002000 | P005-002000-Online | |
| 4 | + | 1 | Screw,Throttleadjust | P005-000100 | P005-000100-Online | |
| 5 | + | 1 | E-Ring | P005-000190 | P005-000190-Online | |
| 6 | + | 1 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online | |
| 7 | + | 1 | O-Ring | P005-000280 | P005-000280-Online | |
| 8 | + | 1 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |
| 9 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 10 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 11 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 12 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 13 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 14 | + | 1 | Diaphragm | P005-001780 | P005-001780-Online | |
| 15 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 16 | + | 1 | Screw | 125344-52130 | 125344-52130-Online | |
| 17 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 18 | + | 1 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |
| 19 | 1 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online | ||
| 20 | + | 1 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |
| 21 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 22 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | |
| 23 | + | 1 | Base, Asy Primer | P005-001890 | P005-001890-Online | |
| 24 | + | 1 | Screw | P005-000270 | P005-000270-Online | |
| 25 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Retainer | P005-000250 | P005-000250-Online | |
| 27 | + | 4 | Screw | P005-001900 | P005-001900-Online | |
| 28 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | ||
| 2 | 1 | Diaphragm | P005-001780 | P005-001780-Online | ||
| 3 | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | ||
| 4 | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | ||
| 1 | 1 | Rebuild Kit | P005-001670 | P005-001670-Online | ||
| 1 | 1 | Roller, Guide | P005-001000 | P005-001000-Online | ||
| 2 | 1 | Strainer | P005-000010 | P005-000010-Online | ||
| 3 | 1 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | ||
| 4 | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | ||
| 5 | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | ||
| 6 | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | ||
| 7 | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | ||
| 8 | 1 | Diaphragm | P005-001780 | P005-001780-Online | ||
| 9 | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | ||
| 10 | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | ||
| 1 | 1 | Gasket Kit | P021-012350 | P021-012350-Online | ||
| 1 | 1 | Gasket,Cyl | V100-000190 | V100-000190-Online | ||
| 2 | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | ||
| 3 | 1 | Gasket,Intake | V103-000390 | V103-000390-Online | ||
| 4 | 1 | Gasket,Intake | V103-000400 | V103-000400-Online | ||
| 5 | 1 | Gasket, Intake | 130016-42031 | 130016-42031-Online | ||
| 6 | 1 | Gasket,Exhaust | V104-000820 | V104-000820-Online | NP7002 | |
| 7 | 1 | Gasket,Exhaust | V104-000830 | V104-000830-Online |
Source PDF: 20130718-166_ES-255ES(37)_P014-000590-10Ib_EN.pdf. Generated 2026-06-25 14:37.
