Echo CS-420ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-420ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

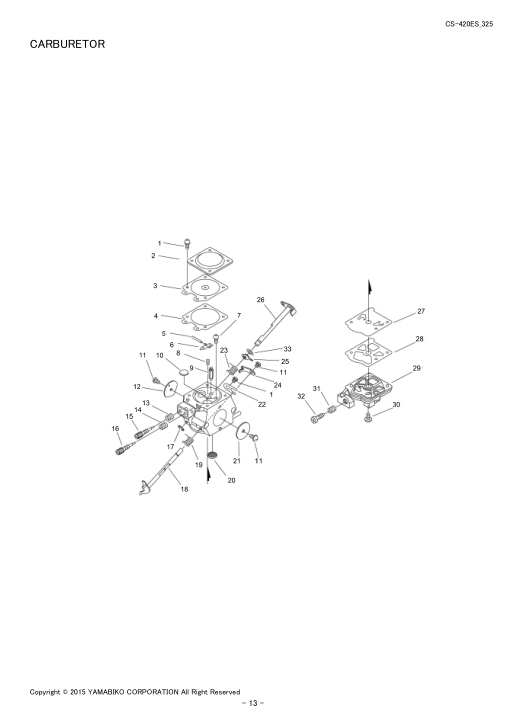

Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.

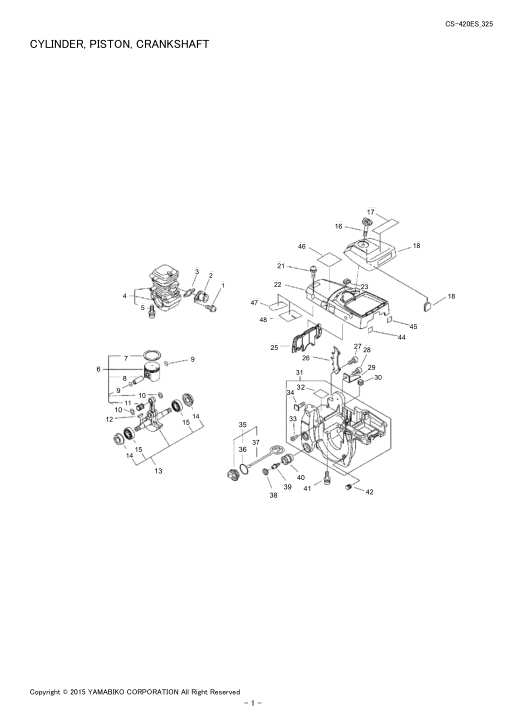

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 2 5*14 | ||
| 2 | Bellows, Intake | A202-000060 | A202-000060-Online | |||
| 3 | Gasket,Intake | V103-000290 | V103-000290-Online | 1 NP4200 T1.0 | ||
| 4 | Crankcase Set | P021-017360 | P021-017360-Online | 1 | 5 | + 900162-05022 | BOLT, H.S. 5*22 | ||
| 6 | Piston Kit | P021-036520 | P021-036520-Online | 1 | 7 | + A101-000160 | RING, PISTON | ||
| 12 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 13 | Crankshaft Asy | P021-012141 | P021-012141-Online | 1 | 14 | + V505-000011 | SEAL,OIL 12 | ||
| 16 | Knob,Cleaner Lid | A235-000020 | A235-000020-Online | |||
| 17 | Label,Model | X503-008450 | X503-008450-Online | 1 CS-420ES | ||
| 18 | Lid,Cleaner | A232-000024 | A232-000024-Online | |||
| 19 | Plug, Cover | 130338-32430 | 130338-32430-Online | |||
| 21 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 3 5*20 | ||
| 22 | Cover,Cylinder | A160-000764 | A160-000764-Online | |||
| 23 | Grommet,Ht Cord | V135-000010 | V135-000010-Online | |||
| 25 | Plate,Insulator | A209-000000 | A209-000000-Online | |||
| 26 | Spiked | C304-000010 | C304-000010-Online | |||
| 27 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 2 5*20 | ||
| 28 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | 1 5*16 | ||
| 29 | Catcher, Chain | C310-000000 | C310-000000-Online | |||
| 30 | Bushing | 150114-04920 | 150114-04920-Online | |||
| 31 | Cover Engine Asy | P021-009857 | P021-009857-Online | 1 | 32 | + V341-000050 | WASHER,SQUARE | ||
| 35 | Cap Asy,Tank | P021-007630 | P021-007630-Online | 1 | 36 | + 900721-00025 | O-RING 25 | ||
| 39 | Screw | 100915-33930 | 100915-33930-Online | |||
| 40 | Cushion | 100910-60030 | 100910-60030-Online | |||
| 41 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 4 5*30 W,SW | ||
| 42 | Cushion | V420-001250 | V420-001250-Online | |||
| 44 | Label, Switch | 890157-39130 | 890157-39130-Online | |||
| 45 | Label | X524-001900 | X524-001900-Online | |||
| 46 | Label,Caution | 890345-39230 | 890345-39230-Online | |||
| 47 | Washer,Square | V341-000070 | V341-000070-Online | |||
| 48 | Washer,Square | V341-000060 | V341-000060-Online | 1 | CYLINDER, PISTON, CRANKSHAFT | CS-420ES_325 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cushion | V420-001420 | V420-001420-Online | |||
| 2 | Insulator | 130007-39932 | 130007-39932-Online | 1 | 3 | + 130020-33330 | ||
| 4 | Gasket,Intake | V103-000280 | V103-000280-Online | 1 NP4200 T1.0 | ||
| 5 | Pipe | V471-001600 | V471-001600-Online | 1 2.4*6*105 | ||
| 6 | Clip | V490-001240 | V490-001240-Online | 1 6MM | ||
| 7 | Carburetor, | A021-001580 | A021-001580-Online | DIAPHRAGM | 1 WT-906 | ||
| 8 | Holder, Element | A238-000080 | A238-000080-Online | |||
| 9 | Cleaner Asm., Air | 130300-39730 | 130300-39730-Online | |||
| 10 | Adapter, Intake | 130301-39935 | 130301-39935-Online | 1 ID #1230 | ||
| 11 | Screw 5*50 | 900238-05050 | 900238-05050-Online | 2 5*50 | ||
| 12 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 1 5*20 | ||
| 13 | Washer 5 | 900600-00005 | 900600-00005-Online | 1 5 | ||
| 14 | Rod, Throttle | C454-000100 | C454-000100-Online | |||
| 15 | Bracket,Switch | A439-000145 | A439-000145-Online | |||
| 16 | Pipe | V471-001280 | V471-001280-Online | 1 2.4*5*105 | ||
| 17 | Pipe | V471-001470 | V471-001470-Online | 1 2.4*5*200 | ||
| 18 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 19 | Terminal,Lead | V486-000021 | V486-000021-Online | |||
| 20 | Cushion | 351134-39930 | 351134-39930-Online | |||
| 22 | Switch, Ignition | 163400-38330 | 163400-38330-Online | |||
| 23 | Grommet | 178810-14534 | 178810-14534-Online | |||
| 24 | Knob, Choke | A241-000140 | A241-000140-Online | |||
| 25 | Screw 4*8 | 900220-04008 | 900220-04008-Online | 2 4*8 | ||
| 26 | Guide, Exhaust | A313-001001 | A313-001001-Online | |||
| 28 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | 2 5 | ||
| 29 | Muffler, Exhaust | A300-000801 | A300-000801-Online | |||
| 30 | Gasket,Exhaust | V104-000732 | V104-000732-Online | |||
| 31 | Bolt,5 | V203-000120 | V203-000120-Online | 2 L=60 | ||
| 33 | Holder, Element | A238-000070 | A238-000070-Online | 1 | AIR CLEANER, MUFFLER | CS-420ES_325 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Plug, Spark (Bpm-8Y) | 159010-19830 | 159010-19830-Online | 1 BPM-8Y | ||
| 2 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 3 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 4 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 5 | Clip | V490-000310 | V490-000310-Online | |||
| 6 | Coil, Ignition | A411-000264 | A411-000264-Online | |||
| 7 | Lead | V485-000680 | V485-000680-Online | |||
| 8 | Lead | V485-000620 | V485-000620-Online | 1 L=140 | ||
| 9 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 2 5*20 W,SW | ||
| 10 | Rotor, Magneto | A409-000272 | A409-000272-Online | 1 FW-46 | ||
| 11 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 12 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 13 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 2 5.2*8*2.1 | ||
| 14 | Pawl | A514-000050 | A514-000050-Online | |||
| 15 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 16 | Bolt,5 | V203-000090 | V203-000090-Online | 2 M5*14 | ||
| 17 | Cover,Fan | A172-000573 | A172-000573-Online | |||
| 18 | Starter,Recoil Asy | A051-000982 | A051-000982-Online | 1 | 19 | + 177236-61830 | SCREW | ||
| 25 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 4 5*20 | ||
| 26 | Label,Echo | X502-000780 | X502-000780-Online | 1 | RECOIL STARTER, MAGNETO | CS-420ES_325 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Screw 4*14 | 900253-04014 | 900253-04014-Online | 1 4*14 | ||
| 2 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | |||
| 3 | Lockout, Throttle | C460-000072 | C460-000072-Online | |||
| 4 | Control, Throttle | C450-000213 | C450-000213-Online | |||
| 5 | Spring,Torsion | V452-000260 | V452-000260-Online | |||
| 6 | Pin, Spring 4*30Sus | 900345-40030 | 900345-40030-Online | 1 4*30SUS | ||
| 8 | Bolt, H.S. 4*20 | 900105-04020 | 900105-04020-Online | 2 4*20 | ||
| 8V | Bolt,4 | V202-000700 | V202-000700-Online | 2 M4*10 L13.5 | ||
| 9 | Supporter, Cushion | 100915-15131 | 100915-15131-Online | |||
| 10 | Cushion,4 | V400-000051 | V400-000051-Online | |||
| 11 | Grip, Handle | 351111-19830 | 351111-19830-Online | |||
| 12 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 13 | Pipe, Fuel | 132010-00760 | 132010-00760-Online | 1 3*5*250L | ||
| 14 | Clip | V490-001240 | V490-001240-Online | 1 6MM | ||
| 15 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | |||
| 16 | Plug | V162-000040 | V162-000040-Online | |||
| 17 | Handle Set, Rear | P021-010595 | P021-010595-Online | 1 | 18 | + 131300-56431 | VENT ASSEMBLY, FUEL | ||
| 22 | Fuel Cap Asy | P021-036960 | P021-036960-Online | 1 | 23 | + A365-000050 | CONNECTOR,CAP | ||
| 25 | Handle,Front | C400-001430 | C400-001430-Online | |||
| 26 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 2 5*20 | ||
| 26V | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 4 5*20 | ||
| 27 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | 2 5*16 | ||
| 28 | Tube | V475-003970 | V475-003970-Online | 1 | HANDLE | CS-420ES_325 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lever, Brake | C320-000113 | C320-000113-Online | |||
| 2 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | 1 5*16 | ||
| 3 | Collar,10 | V356-000300 | V356-000300-Online | |||
| 4 | Spring,Torsion | V452-000250 | V452-000250-Online | |||
| 5 | Spacer 8 | 433116-35430 | 433116-35430-Online | 1 8*12*9 | ||
| 6 | Washer | 177214-03930 | 177214-03930-Online | |||
| 7 | Bolt,4 | V202-000070 | V202-000070-Online | |||
| 8 | Plate,Sprocket | C305-000012 | C305-000012-Online | GUARD | ||
| 9 | Screw | 91325-03005 | 91325-03005-Online | |||
| 10 | Bolt,4 | V202-000060 | V202-000060-Online | 2 4*12 | ||
| 11 | Brake Asy, Chain | C032-000283 | C032-000283-Online | 1 | 12 | + C345-000211 | COVER,BRAKE | ||
| 22 | Drum, Clutch | A556-001270 | A556-001270-Online | |||
| 23 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |||
| 24 | Plate, Clutch | 175019-39430 | 175019-39430-Online | |||
| 25 | Clutch Asy | A056-000180 | A056-000180-Online | 1 | 26 | + V451-000500 | SPRING,TENSION | ||
| 29 | Plate, Guide | 433012-39930 | 433012-39930-Online | |||
| 30 | Bolt,5 | V203-000110 | V203-000110-Online | |||
| 31 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 32 | Collar,8 | V355-000270 | V355-000270-Online | |||
| 33 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 34 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 35 | Label,Echo | X502-000340 | X502-000340-Online | 1 ECHO(WHITE) | ||
| 36 | Nut | V265-000200 | V265-000200-Online | 2 M-8 | ||
| 40 | Sprocket, Rim .325 | 175114-12530 | 175114-12530-Online | 1 | CHAIN BRAKE | CS-420ES_325 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

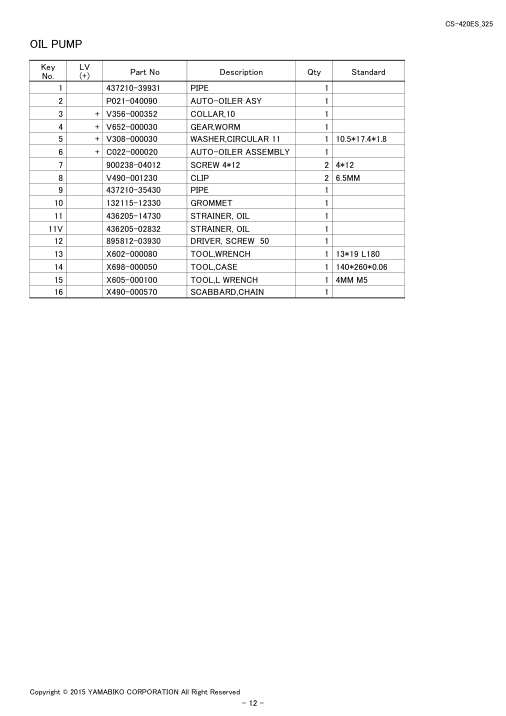

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pipe | 437210-39931 | 437210-39931-Online | |||
| 2 | Auto-Oiler Asy | P021-040090 | P021-040090-Online | 1 | 3 | + V356-000352 | COLLAR,10 | ||
| 7 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 2 4*12 | ||
| 8 | Clip | V490-001230 | V490-001230-Online | 2 6.5MM | ||
| 9 | Pipe | 437210-35430 | 437210-35430-Online | |||
| 10 | Grommet | 132115-12330 | 132115-12330-Online | |||
| 11 | Strainer, Oil | 436205-14730 | 436205-14730-Online | |||
| 11V | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 12 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 13 | Tool,Wrench | X602-000080 | X602-000080-Online | 1 13*19 L180 | ||
| 14 | Tool,Case | X698-000050 | X698-000050-Online | 1 140*260*0.06 | ||
| 15 | Tool,L Wrench | X605-000100 | X605-000100-Online | 1 4MM M5 | ||
| 16 | Scabbard,Chain | X490-000570 | X490-000570-Online | 1 | OIL PUMP | CS-420ES_325 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1A | Bar, Guide 38Rd58325 | 430521-37333 | 430521-37333-Online | 1 38RD58-325 | ||
| 2A | Chain, Saw | 431721-30231 | 431721-30231-Online | 1 21BPX-64E | ||
| 1B | Bar, Guide 43Rd58325 | 430527-37333 | 430527-37333-Online | 1 43RD58-325 | ||
| 2B | Chain, Saw | 431717-30231 | 431717-30231-Online | 1 21BPX-72E | GUIDE BAR, CHAIN | CS-420ES_325 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |

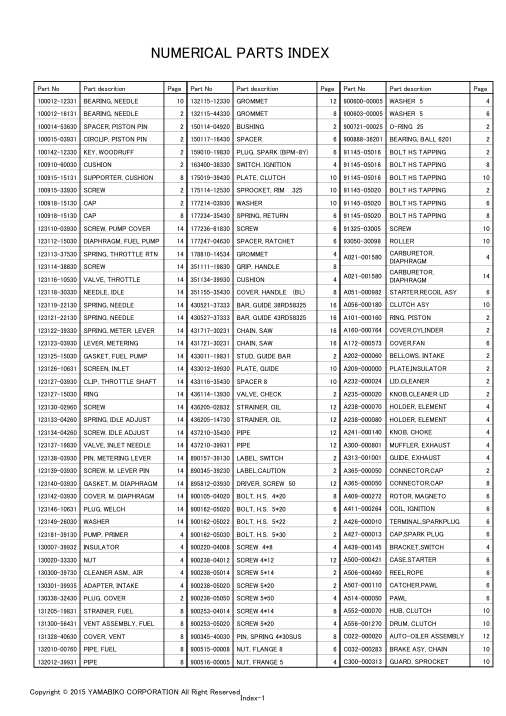

Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | Bearing, Needle | 100012-16131 | 100012-16131-Online | |||
| 2 | Spacer, Piston Pin | 100014-53630 | 100014-53630-Online | |||
| 2 | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 2 | Cushion | 100910-60030 | 100910-60030-Online | |||
| 2 | Supporter, Cushion | 100915-15131 | 100915-15131-Online | |||
| 8 | Screw | 100915-33930 | 100915-33930-Online | |||
| 8 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 14 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |||
| 14 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |||
| 14 | Screw | 123114-38830 | 123114-38830-Online | |||
| 14 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |||
| 14 | Needle, Idle | 123118-30330 | 123118-30330-Online | |||
| 14 | Spring, Needle | 123119-22130 | 123119-22130-Online | |||
| 14 | Spring, Needle | 123121-22130 | 123121-22130-Online | |||
| 14 | Spring, Meter. Lever | 123122-39330 | 123122-39330-Online | |||
| 14 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 14 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 14 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 14 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |||
| 14 | Ring | 123127-15030 | 123127-15030-Online | |||
| 14 | Screw | 123130-02960 | 123130-02960-Online | |||
| 14 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |||
| 14 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 14 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 14 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 14 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |||
| 14 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |||
| 14 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 14 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 14 | Washer | 123149-26030 | 123149-26030-Online | |||
| 14 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 4 | Insulator | 130007-39932 | 130007-39932-Online | |||
| 4 | Cleaner Asm., Air | 130300-39730 | 130300-39730-Online | |||
| 4 | Adapter, Intake | 130301-39935 | 130301-39935-Online | |||
| 4 | Plug, Cover | 130338-32430 | 130338-32430-Online | |||
| 2 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | |||
| 8 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 8 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 8 | Pipe, Fuel | 132010-00760 | 132010-00760-Online | |||
| 8 | Pipe | 132012-39931 | 132012-39931-Online | 8 | Part No | Part descrition | Page | ||
| 12 | Grommet | 132115-44330 | 132115-44330-Online | |||
| 8 | Bushing | 150114-04920 | 150114-04920-Online | |||
| 2 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 6 | Plug, Spark (Bpm-8Y) | 159010-19830 | 159010-19830-Online | |||
| 6 | Switch, Ignition | 163400-38330 | 163400-38330-Online | |||
| 4 | Plate, Clutch | 175019-39430 | 175019-39430-Online | |||
| 10 | Sprocket, Rim .325 | 175114-12530 | 175114-12530-Online | |||
| 10 | Washer | 177214-03930 | 177214-03930-Online | |||
| 10 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 6 | Screw | 177236-61830 | 177236-61830-Online | |||
| 6 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | |||
| 6 | Grommet | 178810-14534 | 178810-14534-Online | |||
| 4 | Grip, Handle | 351111-19830 | 351111-19830-Online | |||
| 8 | Cushion | 351134-39930 | 351134-39930-Online | |||
| 4 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | |||
| 8 | Bar, Guide 38Rd58325 | 430521-37333 | 430521-37333-Online | |||
| 16 | Bar, Guide 43Rd58325 | 430527-37333 | 430527-37333-Online | |||
| 16 | Chain, Saw | 431717-30231 | 431717-30231-Online | |||
| 16 | Chain, Saw | 431721-30231 | 431721-30231-Online | |||
| 16 | Stud, Guide Bar | 433011-19831 | 433011-19831-Online | |||
| 2 | Plate, Guide | 433012-39930 | 433012-39930-Online | |||
| 10 | Spacer 8 | 433116-35430 | 433116-35430-Online | |||
| 10 | Valve, Check | 436114-13930 | 436114-13930-Online | |||
| 2 | Strainer, Oil | 436205-02832 | 436205-02832-Online | |||
| 12 | Strainer, Oil | 436205-14730 | 436205-14730-Online | |||
| 12 | Pipe | 437210-35430 | 437210-35430-Online | |||
| 12 | Pipe | 437210-39931 | 437210-39931-Online | |||
| 12 | Label, Switch | 890157-39130 | 890157-39130-Online | |||
| 2 | Label,Caution | 890345-39230 | 890345-39230-Online | |||
| 2 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 12 | Bolt, H.S. 4*20 | 900105-04020 | 900105-04020-Online | |||
| 8 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 6 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | |||
| 2 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | |||
| 2 | Screw 4*8 | 900220-04008 | 900220-04008-Online | |||
| 4 | Screw 4*12 | 900238-04012 | 900238-04012-Online | |||
| 12 | Screw 5*14 | 900238-05014 | 900238-05014-Online | |||
| 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | |||
| 2 | Screw 5*50 | 900238-05050 | 900238-05050-Online | |||
| 4 | Screw 4*14 | 900253-04014 | 900253-04014-Online | |||
| 8 | Screw 5*20 | 900253-05020 | 900253-05020-Online | |||
| 4 | Pin, Spring 4*30Sus | 900345-40030 | 900345-40030-Online | |||
| 8 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | |||
| 6 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 6 | O-Ring 25 | 900721-00025 | 900721-00025-Online | |||
| 2 | Bearing, Ball 6201 | 900888-36201 | 900888-36201-Online | |||
| 2 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | |||
| 8 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | |||
| 10 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | |||
| 2 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | |||
| 6 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | |||
| 8 | Screw | 91325-03005 | 91325-03005-Online | |||
| 10 | Roller | 93050-30098 | 93050-30098-Online | |||
| 10 | Carburetor, | A021-001580 | A021-001580-Online | DIAPHRAGM | ||
| 4 | Carburetor, | A021-001580 | A021-001580-Online | DIAPHRAGM | ||
| 14 | Starter,Recoil Asy | A051-000982 | A051-000982-Online | |||
| 6 | Clutch Asy | A056-000180 | A056-000180-Online | |||
| 10 | Ring, Piston | A101-000160 | A101-000160-Online | |||
| 2 | Cover,Cylinder | A160-000764 | A160-000764-Online | |||
| 2 | Cover,Fan | A172-000573 | A172-000573-Online | |||
| 6 | Bellows, Intake | A202-000060 | A202-000060-Online | |||
| 2 | Plate,Insulator | A209-000000 | A209-000000-Online | |||
| 2 | Lid,Cleaner | A232-000024 | A232-000024-Online | |||
| 2 | Knob,Cleaner Lid | A235-000020 | A235-000020-Online | |||
| 2 | Holder, Element | A238-000070 | A238-000070-Online | |||
| 4 | Holder, Element | A238-000080 | A238-000080-Online | |||
| 4 | Knob, Choke | A241-000140 | A241-000140-Online | |||
| 4 | Muffler, Exhaust | A300-000801 | A300-000801-Online | |||
| 4 | Guide, Exhaust | A313-001001 | A313-001001-Online | |||
| 4 | Connector,Cap | A365-000050 | A365-000050-Online | |||
| 2 | Connector,Cap | A365-000050 | A365-000050-Online | |||
| 8 | Rotor, Magneto | A409-000272 | A409-000272-Online | |||
| 6 | Coil, Ignition | A411-000264 | A411-000264-Online | |||
| 6 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 6 | Bracket,Switch | A439-000145 | A439-000145-Online | |||
| 4 | Case,Starter | A500-000421 | A500-000421-Online | |||
| 6 | Reel,Rope | A506-000460 | A506-000460-Online | |||
| 6 | Catcher,Pawl | A507-000110 | A507-000110-Online | |||
| 6 | Pawl | A514-000050 | A514-000050-Online | |||
| 6 | Hub, Clutch | A552-000070 | A552-000070-Online | |||
| 10 | Drum, Clutch | A556-001270 | A556-001270-Online | |||
| 10 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | |||
| 12 | Brake Asy, Chain | C032-000283 | C032-000283-Online | |||
| 10 | Guard, Sprocket | C300-000313 | C300-000313-Online | 10 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Plate,Sprocket | C305-000012 | C305-000012-Online | GUARD | ||
| 10 | Tensioner,Chain | C309-000030 | C309-000030-Online | |||
| 10 | Catcher, Chain | C310-000000 | C310-000000-Online | |||
| 2 | Lever, Brake | C320-000113 | C320-000113-Online | |||
| 10 | Band, Brake | C328-000080 | C328-000080-Online | |||
| 10 | Connector, Brake | C334-000090 | C334-000090-Online | |||
| 10 | Cover,Brake | C345-000211 | C345-000211-Online | |||
| 10 | Handle,Front | C400-001430 | C400-001430-Online | |||
| 8 | Control, Throttle | C450-000213 | C450-000213-Online | |||
| 8 | Rod, Throttle | C454-000100 | C454-000100-Online | |||
| 4 | Lockout, Throttle | C460-000072 | C460-000072-Online | |||
| 8 | Spring | P003-000140 | P003-000140-Online | |||
| 14 | Choke, Shaft | P003-000150 | P003-000150-Online | |||
| 14 | Needle Power | P003-001340 | P003-001340-Online | |||
| 14 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |||
| 14 | Lever, Throttle | P003-001780 | P003-001780-Online | |||
| 14 | Valve, Choke | P003-001790 | P003-001790-Online | |||
| 14 | Shaft Asy,Throttle | P003-001810 | P003-001810-Online | |||
| 14 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |||
| 14 | Cover, Fuel Pump | P003-003930 | P003-003930-Online | |||
| 14 | Clutch Shoe Set | P021-007050 | P021-007050-Online | |||
| 10 | Cap Asy,Tank | P021-007630 | P021-007630-Online | |||
| 2 | Cover Engine Asy | P021-009857 | P021-009857-Online | |||
| 2 | Handle Set, Rear | P021-010595 | P021-010595-Online | |||
| 8 | Crankshaft Asy | P021-012141 | P021-012141-Online | |||
| 2 | Crankcase Set | P021-017360 | P021-017360-Online | |||
| 2 | Piston Kit | P021-036520 | P021-036520-Online | |||
| 2 | Fuel Cap Asy | P021-036960 | P021-036960-Online | |||
| 8 | Auto-Oiler Asy | P021-040090 | P021-040090-Online | |||
| 12 | Grip, Starter | P022-005891 | P022-005891-Online | |||
| 6 | Rope, Starter | P022-008440 | P022-008440-Online | |||
| 6 | Spring Kit, Rewind | P022-010440 | P022-010440-Online | |||
| 6 | Gasket,Intake | V103-000280 | V103-000280-Online | |||
| 4 | Gasket,Intake | V103-000290 | V103-000290-Online | |||
| 2 | Gasket,Exhaust | V104-000732 | V104-000732-Online | |||
| 4 | Grommet,Ht Cord | V135-000010 | V135-000010-Online | |||
| 2 | Plug | V162-000040 | V162-000040-Online | |||
| 8 | Bolt,4 | V202-000060 | V202-000060-Online | |||
| 10 | Bolt,4 | V202-000070 | V202-000070-Online | |||
| 10 | Bolt,4 | V202-000700 | V202-000700-Online | |||
| 8 | Bolt,5 | V203-000090 | V203-000090-Online | |||
| 6 | Bolt,5 | V203-000110 | V203-000110-Online | |||
| 10 | Bolt,5 | V203-000120 | V203-000120-Online | 4 | Part No | Part descrition | Page | ||
| 10 | Washer,Circular 11 | V308-000030 | V308-000030-Online | |||
| 12 | Washer,Square | V341-000050 | V341-000050-Online | |||
| 2 | Washer,Square | V341-000060 | V341-000060-Online | |||
| 2 | Washer,Square | V341-000070 | V341-000070-Online | |||
| 2 | Collar,8 | V355-000270 | V355-000270-Online | |||
| 10 | Collar,10 | V356-000300 | V356-000300-Online | |||
| 10 | Collar,10 | V356-000352 | V356-000352-Online | |||
| 12 | Spacer | V376-000450 | V376-000450-Online | |||
| 10 | Cushion,4 | V400-000051 | V400-000051-Online | |||
| 8 | Cushion | V420-001250 | V420-001250-Online | |||
| 2 | Cushion | V420-001420 | V420-001420-Online | |||
| 4 | Spring,Compression | V450-000070 | V450-000070-Online | |||
| 10 | Spring,Tension | V451-000500 | V451-000500-Online | |||
| 10 | Spring,Torsion | V452-000250 | V452-000250-Online | |||
| 10 | Spring,Torsion | V452-000260 | V452-000260-Online | |||
| 8 | Spring,Torsion | V452-001320 | V452-001320-Online | |||
| 6 | Pipe | V471-001280 | V471-001280-Online | |||
| 4 | Pipe | V471-001470 | V471-001470-Online | |||
| 4 | Pipe | V471-001600 | V471-001600-Online | |||
| 4 | Tube | V475-003970 | V475-003970-Online | |||
| 8 | Lead | V485-000620 | V485-000620-Online | |||
| 6 | Lead | V485-000680 | V485-000680-Online | |||
| 6 | Terminal,Lead | V486-000021 | V486-000021-Online | |||
| 4 | Clip | V490-000310 | V490-000310-Online | |||
| 6 | Clip | V490-001230 | V490-001230-Online | |||
| 8 | Clip | V490-001230 | V490-001230-Online | |||
| 12 | Clip | V490-001240 | V490-001240-Online | |||
| 4 | Clip | V490-001240 | V490-001240-Online | |||
| 8 | Seal,Oil 12 | V505-000011 | V505-000011-Online | |||
| 2 | Ring,O | V581-000610 | V581-000610-Online | |||
| 8 | Pin,Eng 9 | V607-000000 | V607-000000-Online | |||
| 2 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 10 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 10 | Gear,Worm | V652-000030 | V652-000030-Online | |||
| 12 | Scabbard,Chain | X490-000570 | X490-000570-Online | |||
| 12 | Label,Echo | X502-000340 | X502-000340-Online | |||
| 10 | Label,Echo | X502-000780 | X502-000780-Online | |||
| 6 | Label,Model | X503-008450 | X503-008450-Online | |||
| 2 | Label | X524-001900 | X524-001900-Online | |||
| 2 | Tool,Wrench | X602-000080 | X602-000080-Online | |||
| 12 | Tool,L Wrench | X605-000100 | X605-000100-Online | |||
| 12 | Tool,Case | X698-000050 | X698-000050-Online | 12 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-942_CS-420ES_325_20_20000001_24FEB2020.pdf. Generated 2026-06-25 14:40.
