Echo CS-4400 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-4400-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.

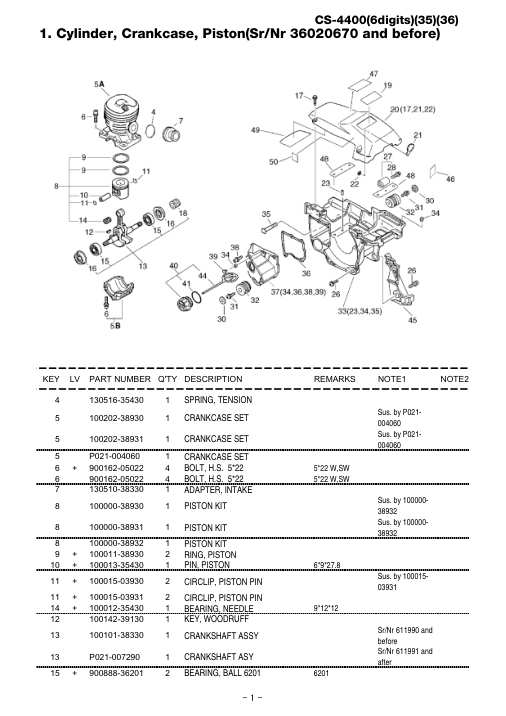

Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.

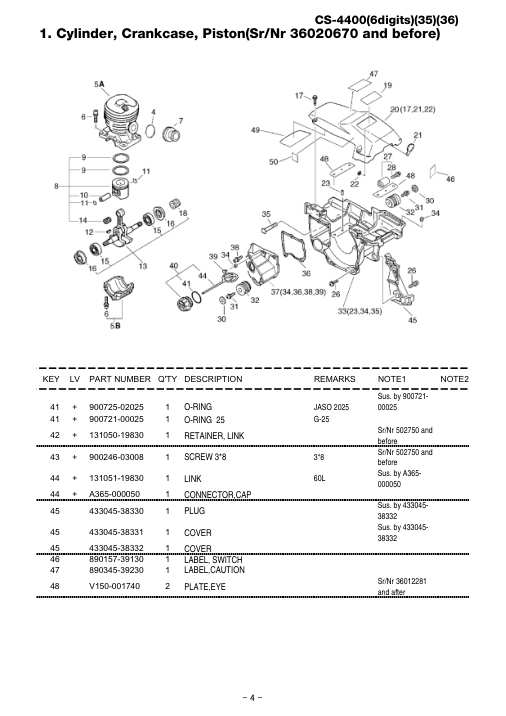

Page 5
Tap or click the page image to enlarge it.

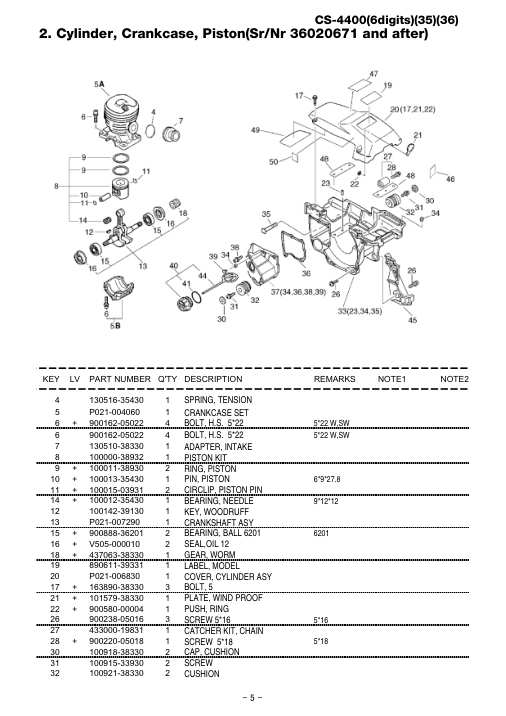

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

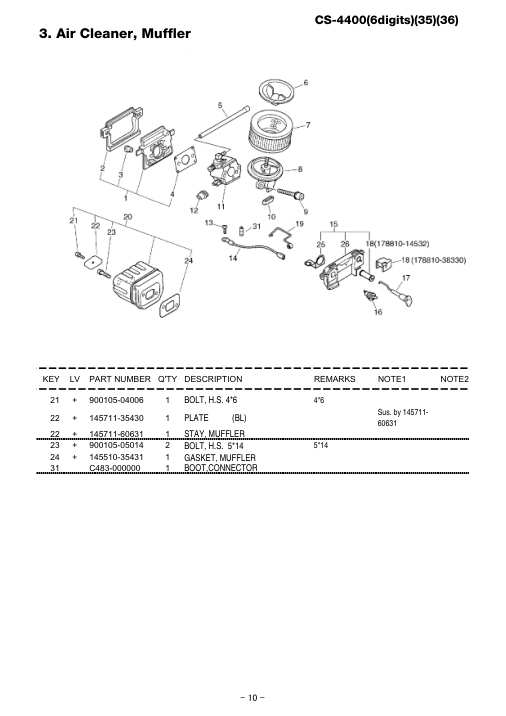

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

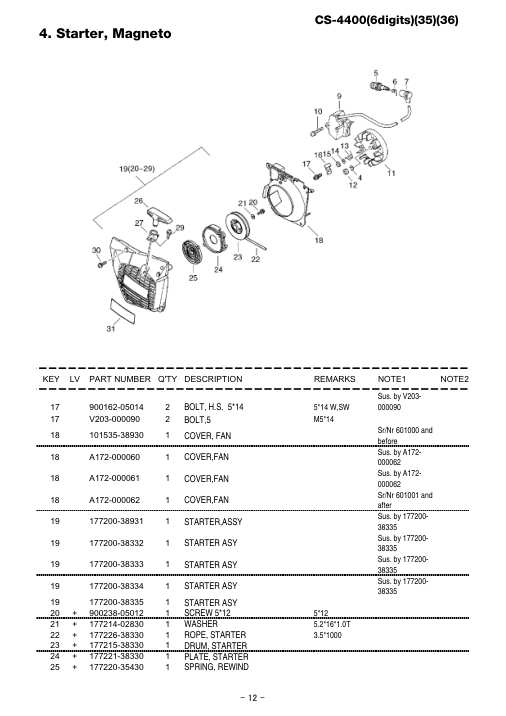

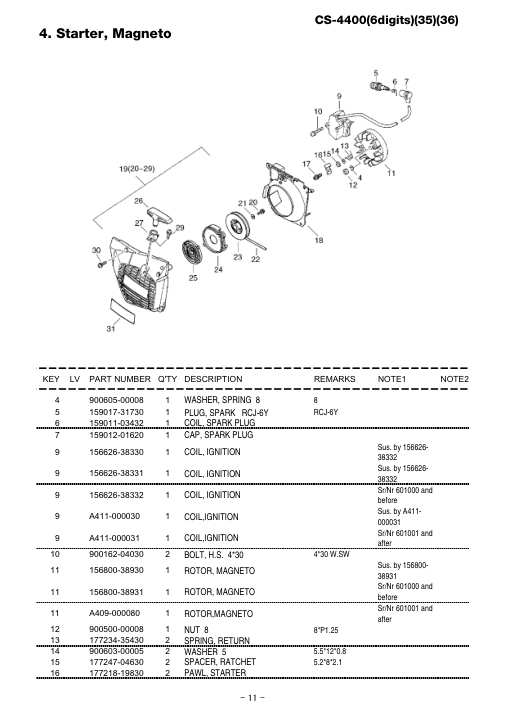

Page 13
Tap or click the page image to enlarge it.

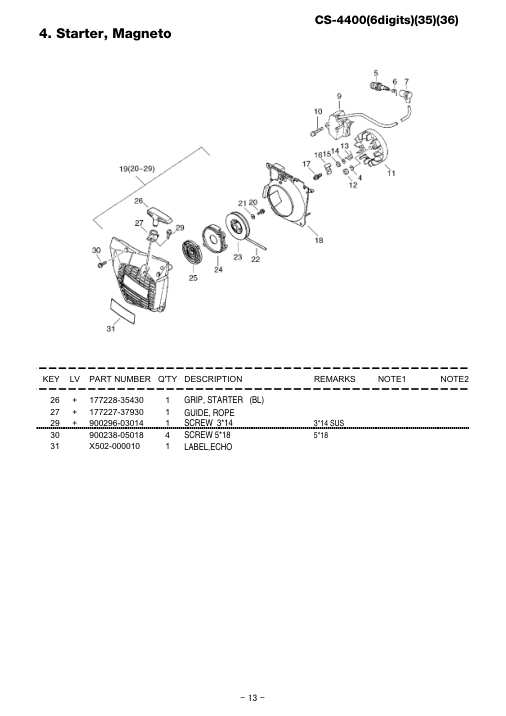

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.

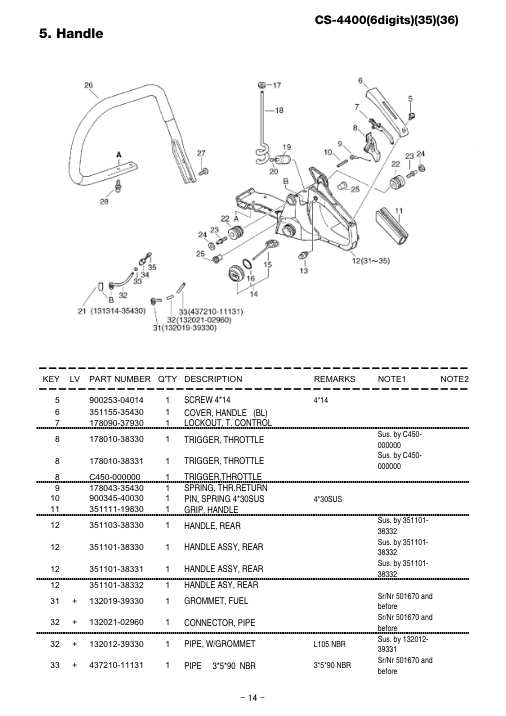

Page 16
Tap or click the page image to enlarge it.

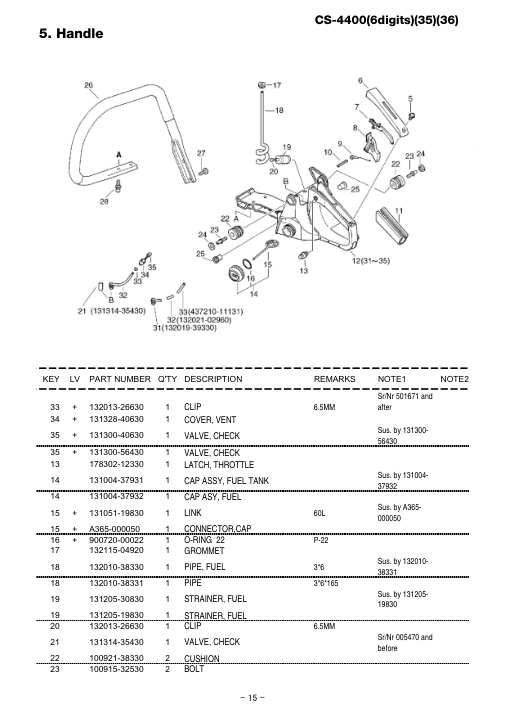

Page 17
Tap or click the page image to enlarge it.

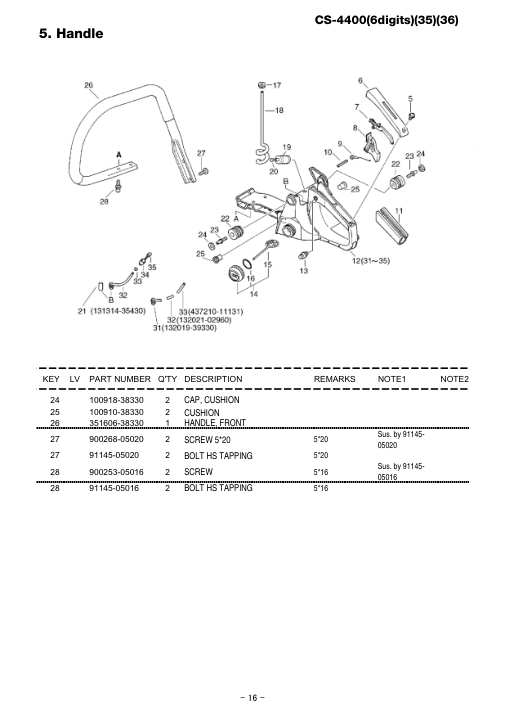

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

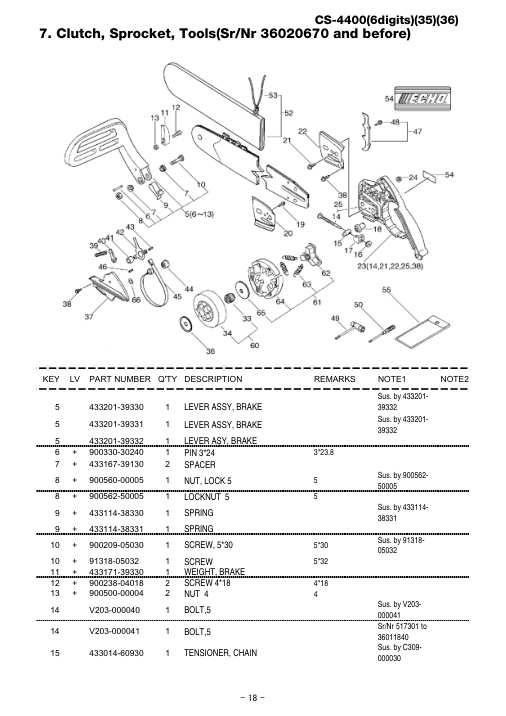

Page 20
Tap or click the page image to enlarge it.

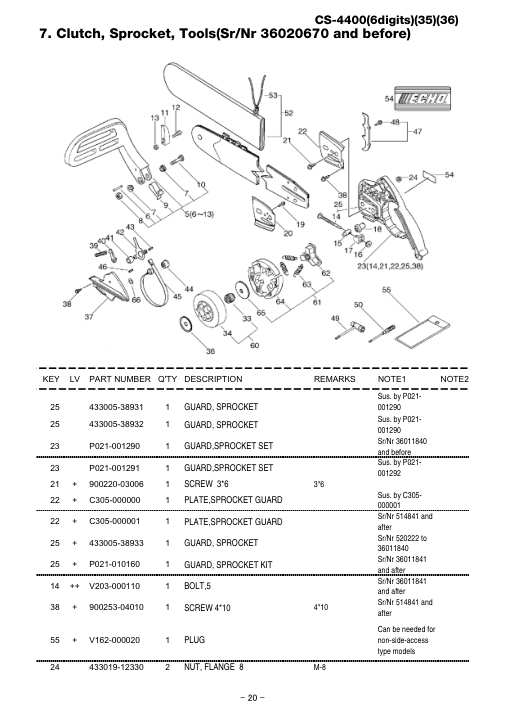

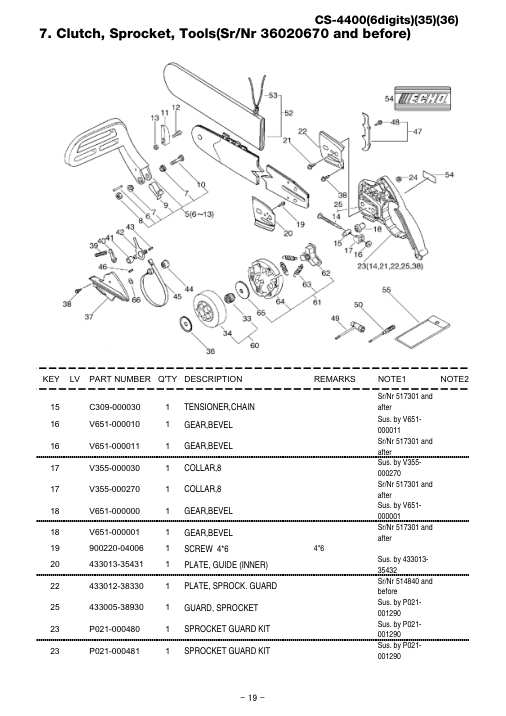

Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

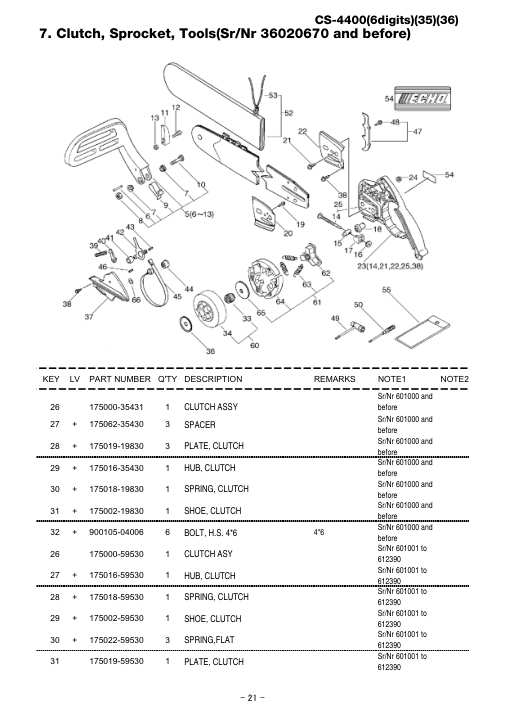

Page 23
Tap or click the page image to enlarge it.

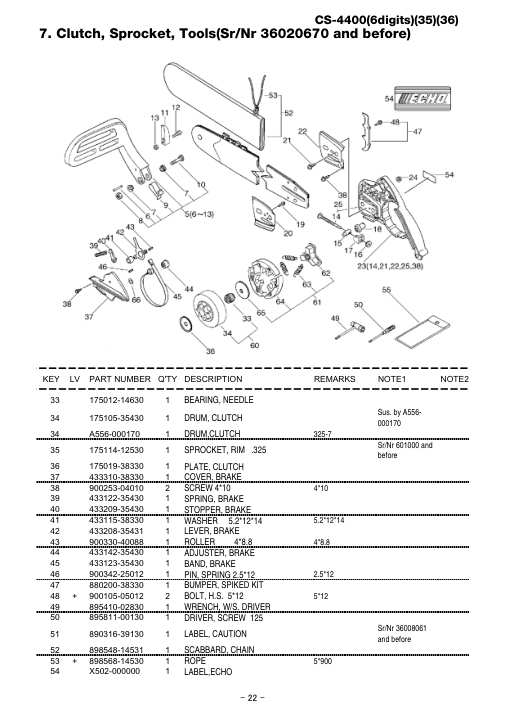

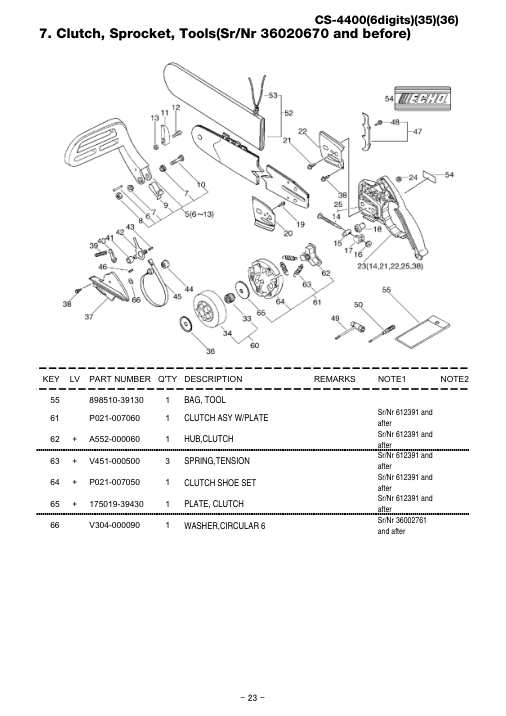

Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.

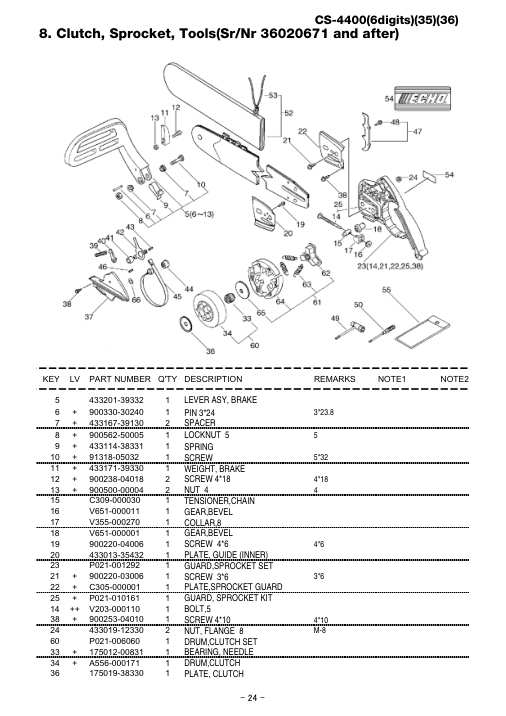

Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.

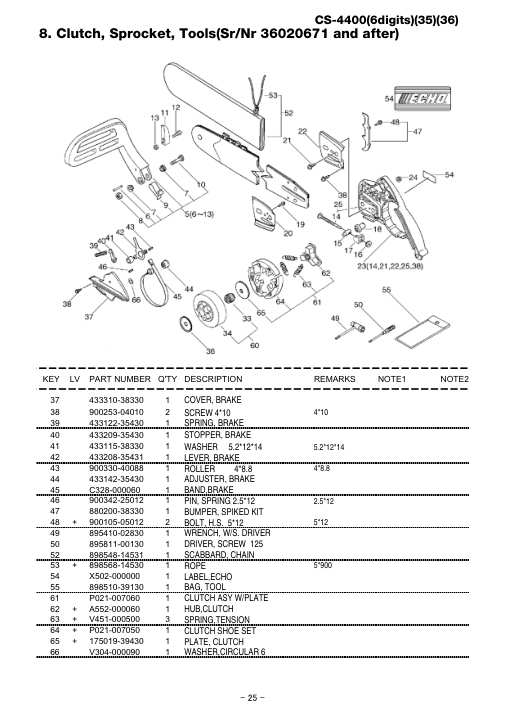

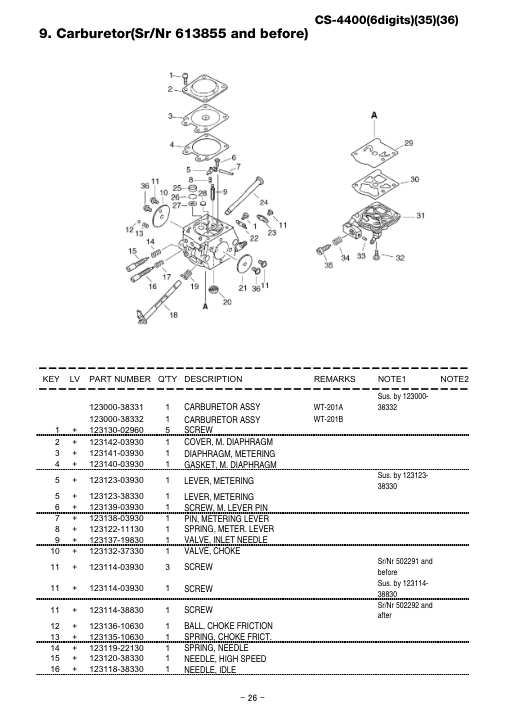

Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.

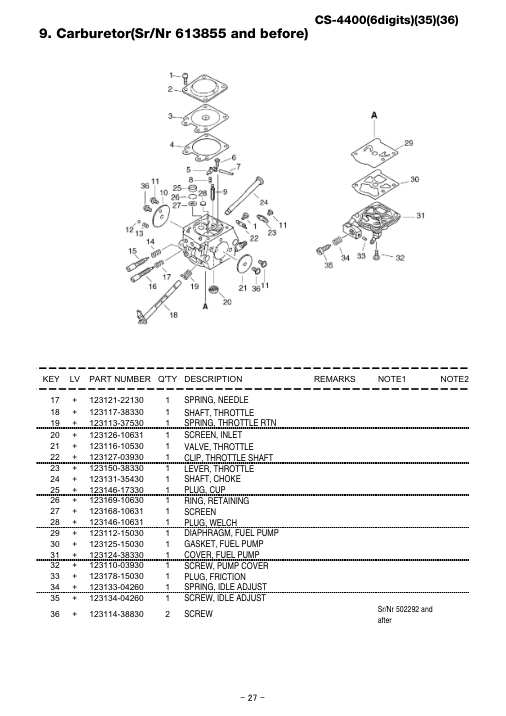

Page 30
Tap or click the page image to enlarge it.

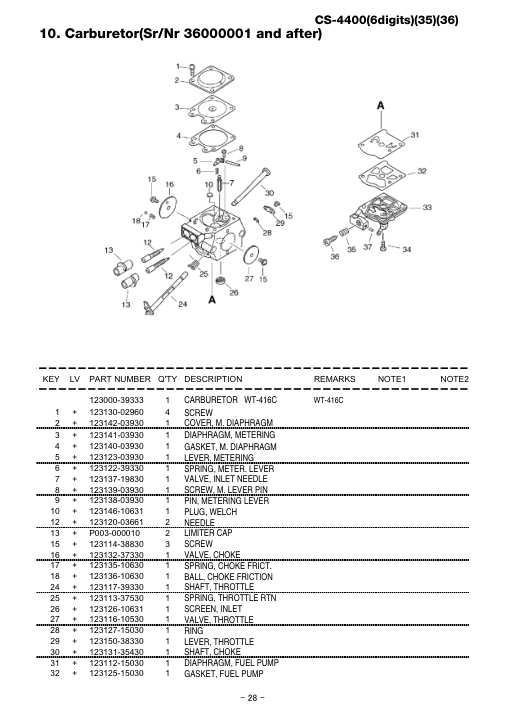

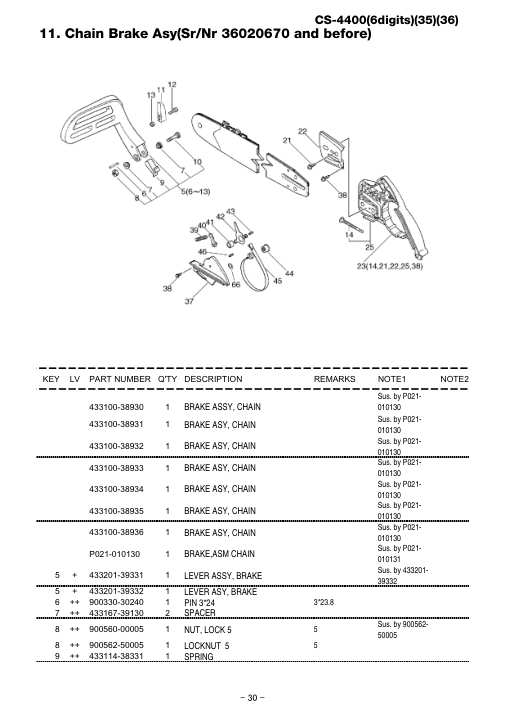

Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.

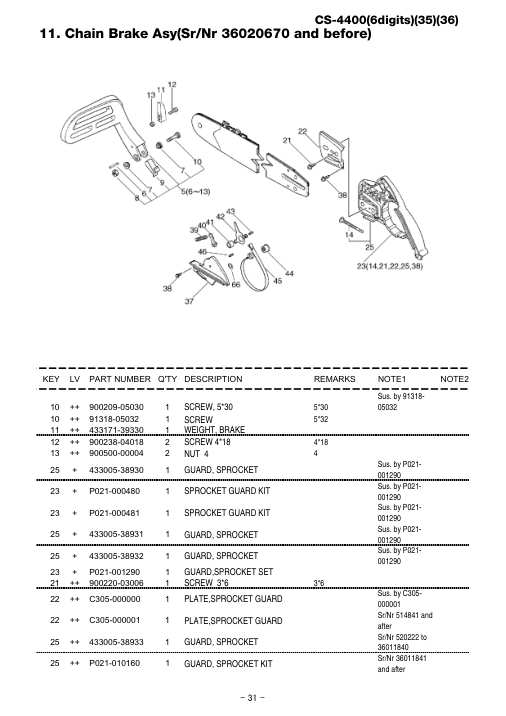

Page 34
Tap or click the page image to enlarge it.

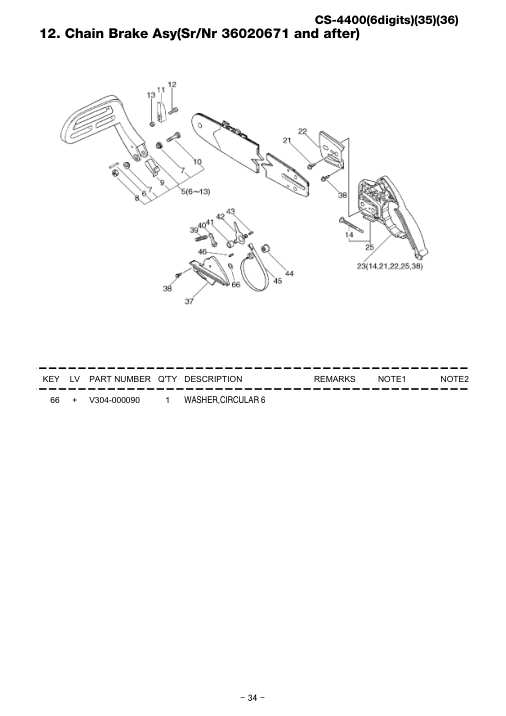

Page 35
Tap or click the page image to enlarge it.
Page 36
Tap or click the page image to enlarge it.
Page 37
Tap or click the page image to enlarge it.

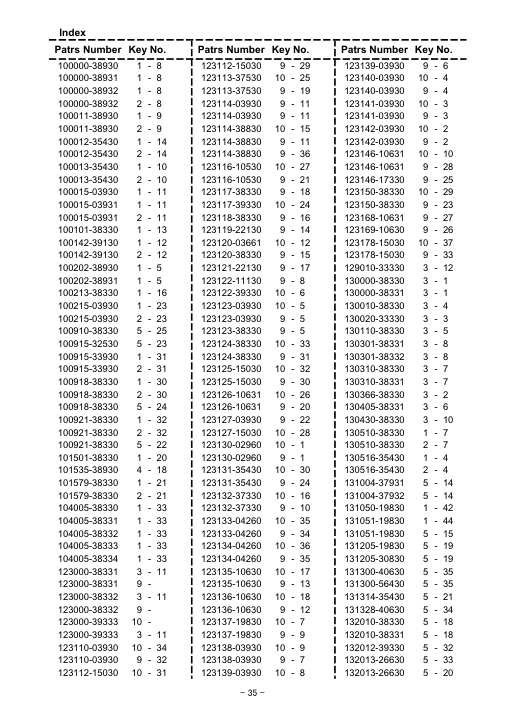

Page 38
Tap or click the page image to enlarge it.

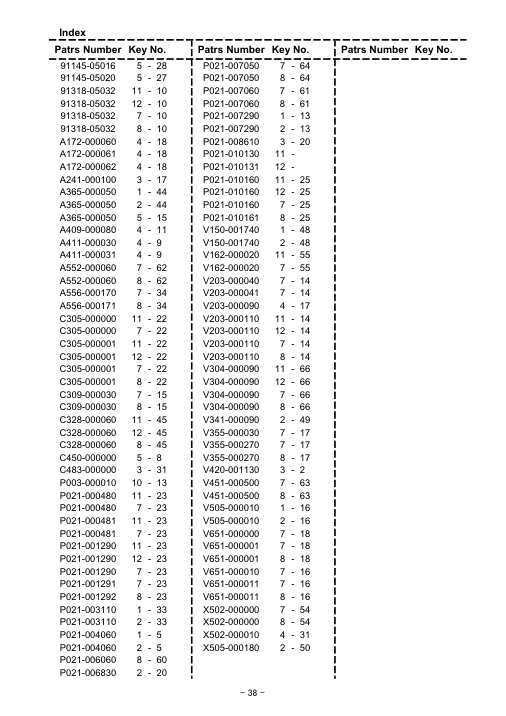

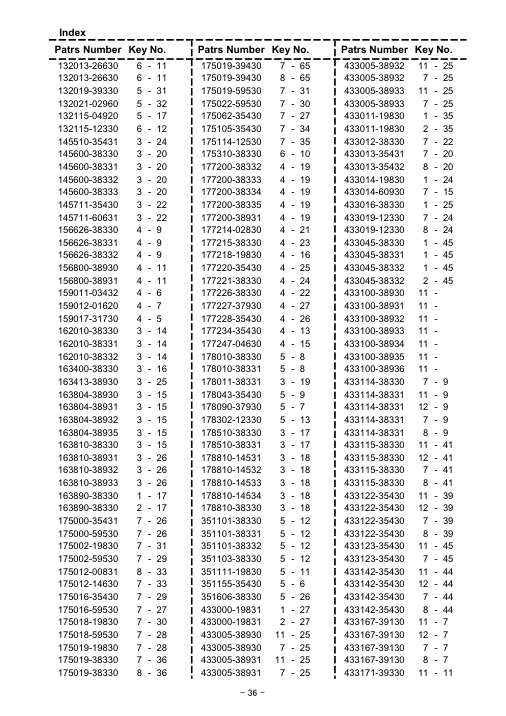

Page 39
Tap or click the page image to enlarge it.

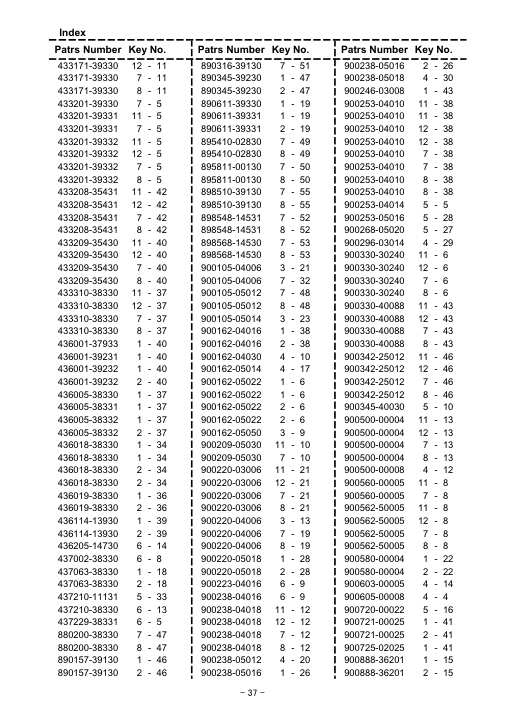

Page 40
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Spring, Tension | 130516-35430 | 130516-35430-Online | ||
| 5 | 1 | Crankcase Set | 100202-38930 | 100202-38930-Online | Sus. by P021- | 004060 | |
| 5 | 1 | Crankcase Set | 100202-38931 | 100202-38931-Online | Sus. by P021- | 004060 | |
| 5 | 1 | Crankcase Set | P021-004060 | P021-004060-Online | ||
| 6 | + | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW |
| 7 | 1 | Adapter, Intake | 130510-38330 | 130510-38330-Online | ||
| 8 | 1 | Piston Kit | 100000-38930 | 100000-38930-Online | Sus. by 100000- | 38932 | |
| 8 | 1 | Piston Kit | 100000-38931 | 100000-38931-Online | Sus. by 100000- | 38932 | |
| 8 | 1 | Piston Kit | 100000-38932 | 100000-38932-Online | ||
| 9 | + | 2 | Ring, Piston | 100011-38930 | 100011-38930-Online | |
| 10 | + | 1 | Pin, Piston | 100013-35430 | 100013-35430-Online | 6*9*27.8 |
| 11 | + | 2 | Circlip, Piston Pin | 100015-03930 | 100015-03930-Online | Sus. by 100015- | 03931 |
| 11 | + | 2 | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | |
| 14 | + | 1 | Bearing, Needle | 100012-35430 | 100012-35430-Online | 9*12*12 |
| 12 | 1 | Key, Woodruff | 100142-39130 | 100142-39130-Online | ||
| 13 | 1 | Crankshaft Assy | 100101-38330 | 100101-38330-Online | Sr/Nr 611990 and | before | |
| 13 | 1 | Crankshaft Asy | P021-007290 | P021-007290-Online | Sr/Nr 611991 and | after | |
| 15 | + | 2 | Bearing, Ball 6201 | 900888-36201 | 900888-36201-Online |

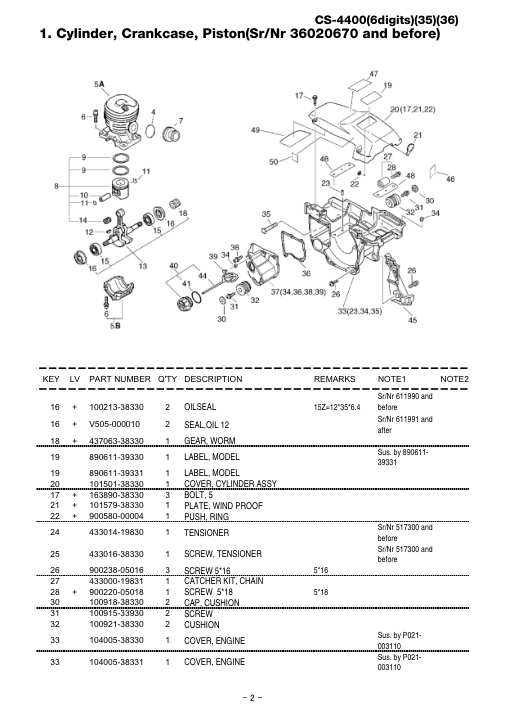

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | + | 2 | Oilseal | 100213-38330 | 100213-38330-Online | 15Z=12*35*6.4 | Sr/Nr 611990 and | before |
| 16 | + | 2 | Seal,Oil 12 | V505-000010 | V505-000010-Online | Sr/Nr 611991 and | after |
| 18 | + | 1 | Gear, Worm | 437063-38330 | 437063-38330-Online | |
| 19 | 1 | Label, Model | 890611-39330 | 890611-39330-Online | Sus. by 890611- | 39331 | |
| 19 | 1 | Label, Model | 890611-39331 | 890611-39331-Online | ||
| 20 | 1 | Cover, Cylinder Assy | 101501-38330 | 101501-38330-Online | ||
| 17 | + | 3 | Bolt, 5 | 163890-38330 | 163890-38330-Online | |
| 21 | + | 1 | Plate, Wind Proof | 101579-38330 | 101579-38330-Online | |
| 22 | + | 1 | Push, Ring | 900580-00004 | 900580-00004-Online | |
| 24 | 1 | Tensioner | 433014-19830 | 433014-19830-Online | Sr/Nr 517300 and | before | |
| 25 | 1 | Screw, Tensioner | 433016-38330 | 433016-38330-Online | Sr/Nr 517300 and | before | |
| 26 | 3 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 27 | 1 | Catcher Kit, Chain | 433000-19831 | 433000-19831-Online | ||
| 28 | + | 1 | Screw 5*18 | 900220-05018 | 900220-05018-Online | 5*18 |
| 30 | 2 | Cap, Cushion | 100918-38330 | 100918-38330-Online | ||
| 31 | 2 | Screw | 100915-33930 | 100915-33930-Online | ||
| 32 | 2 | Cushion | 100921-38330 | 100921-38330-Online | ||
| 33 | 1 | Cover, Engine | 104005-38330 | 104005-38330-Online | Sus. by P021- | 003110 | |
| 33 | 1 | Cover, Engine | 104005-38331 | 104005-38331-Online | Sus. by P021- | 003110 |

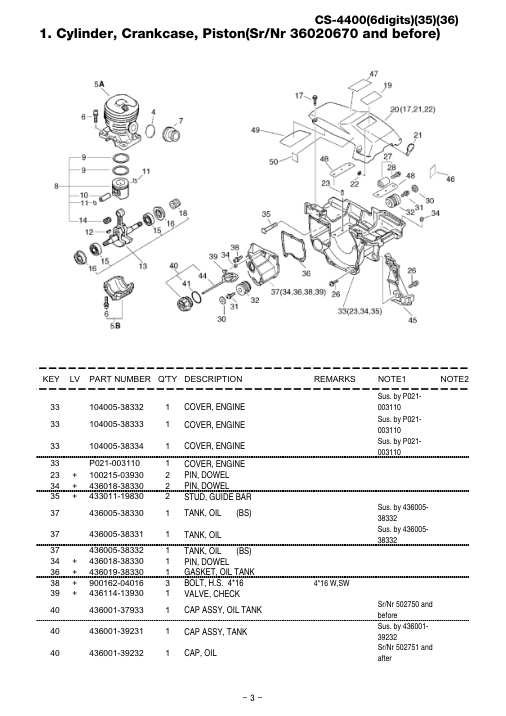

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | 1 | Cover, Engine | 104005-38332 | 104005-38332-Online | Sus. by P021- | 003110 | |
| 33 | 1 | Cover, Engine | 104005-38333 | 104005-38333-Online | Sus. by P021- | 003110 | |
| 33 | 1 | Cover, Engine | 104005-38334 | 104005-38334-Online | Sus. by P021- | 003110 | |
| 33 | 1 | Cover, Engine | P021-003110 | P021-003110-Online | ||
| 23 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 34 | + | 2 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 35 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 37 | 1 | Tank, Oil (Bs) | 436005-38330 | 436005-38330-Online | Sus. by 436005- | 38332 | |
| 37 | 1 | Tank, Oil | 436005-38331 | 436005-38331-Online | Sus. by 436005- | 38332 | |
| 37 | 1 | Tank, Oil (Bs) | 436005-38332 | 436005-38332-Online | ||
| 34 | + | 1 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 36 | + | 1 | Gasket, Oil Tank | 436019-38330 | 436019-38330-Online | |
| 38 | + | 3 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW |
| 39 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 40 | 1 | Cap Assy, Oil Tank | 436001-37933 | 436001-37933-Online | Sr/Nr 502750 and | before | |
| 40 | 1 | Cap Assy, Tank | 436001-39231 | 436001-39231-Online | Sus. by 436001- | 39232 | |
| 40 | 1 | Cap, Oil | 436001-39232 | 436001-39232-Online | Sr/Nr 502751 and | after |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 41 | + | 1 | O-Ring | 900725-02025 | 900725-02025-Online | JASO 2025 | Sus. by 900721- | 00025 |
| 41 | + | 1 | O-Ring 25 | 900721-00025 | 900721-00025-Online | G-25 |
| 42 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | Sr/Nr 502750 and | before |
| 43 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 | Sr/Nr 502750 and | before |
| 44 | + | 1 | Link | 131051-19830 | 131051-19830-Online | 60L | Sus. by A365- | 000050 |
| 44 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 45 | 1 | Plug | 433045-38330 | 433045-38330-Online | Sus. by 433045- | 38332 | |
| 45 | 1 | Cover | 433045-38331 | 433045-38331-Online | Sus. by 433045- | 38332 | |
| 45 | 1 | Cover | 433045-38332 | 433045-38332-Online | ||
| 46 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 47 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 48 | 2 | Plate,Eye | V150-001740 | V150-001740-Online | Sr/Nr 36012281 | and after |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Spring, Tension | 130516-35430 | 130516-35430-Online | ||
| 5 | 1 | Crankcase Set | P021-004060 | P021-004060-Online | ||
| 6 | + | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW |
| 7 | 1 | Adapter, Intake | 130510-38330 | 130510-38330-Online | ||
| 8 | 1 | Piston Kit | 100000-38932 | 100000-38932-Online | ||
| 9 | + | 2 | Ring, Piston | 100011-38930 | 100011-38930-Online | |
| 10 | + | 1 | Pin, Piston | 100013-35430 | 100013-35430-Online | 6*9*27.8 |
| 11 | + | 2 | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | |
| 14 | + | 1 | Bearing, Needle | 100012-35430 | 100012-35430-Online | 9*12*12 |
| 12 | 1 | Key, Woodruff | 100142-39130 | 100142-39130-Online | ||
| 13 | 1 | Crankshaft Asy | P021-007290 | P021-007290-Online | ||
| 15 | + | 2 | Bearing, Ball 6201 | 900888-36201 | 900888-36201-Online | |
| 16 | + | 2 | Seal,Oil 12 | V505-000010 | V505-000010-Online | |
| 18 | + | 1 | Gear, Worm | 437063-38330 | 437063-38330-Online | |
| 19 | 1 | Label, Model | 890611-39331 | 890611-39331-Online | ||
| 20 | 1 | Cover, Cylinder Asy | P021-006830 | P021-006830-Online | ||
| 17 | + | 3 | Bolt, 5 | 163890-38330 | 163890-38330-Online | |
| 21 | + | 1 | Plate, Wind Proof | 101579-38330 | 101579-38330-Online | |
| 22 | + | 1 | Push, Ring | 900580-00004 | 900580-00004-Online | |
| 26 | 3 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 27 | 1 | Catcher Kit, Chain | 433000-19831 | 433000-19831-Online | ||
| 28 | + | 1 | Screw 5*18 | 900220-05018 | 900220-05018-Online | 5*18 |
| 30 | 2 | Cap, Cushion | 100918-38330 | 100918-38330-Online | ||
| 31 | 2 | Screw | 100915-33930 | 100915-33930-Online | ||
| 32 | 2 | Cushion | 100921-38330 | 100921-38330-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | 1 | Cover, Engine | P021-003110 | P021-003110-Online | ||
| 23 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 34 | + | 2 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 35 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 37 | 1 | Tank, Oil (Bs) | 436005-38332 | 436005-38332-Online | ||
| 34 | + | 1 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 36 | + | 1 | Gasket, Oil Tank | 436019-38330 | 436019-38330-Online | |
| 38 | + | 3 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW |
| 39 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 40 | 1 | Cap, Oil | 436001-39232 | 436001-39232-Online | ||
| 41 | + | 1 | O-Ring 25 | 900721-00025 | 900721-00025-Online | G-25 |
| 44 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 45 | 1 | Cover | 433045-38332 | 433045-38332-Online | ||
| 46 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 47 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 48 | 2 | Plate,Eye | V150-001740 | V150-001740-Online | ||
| 49 | 1 | Washer,Square | V341-000090 | V341-000090-Online | ||
| 50 | 1 | Label,Caution | X505-000180 | X505-000180-Online |

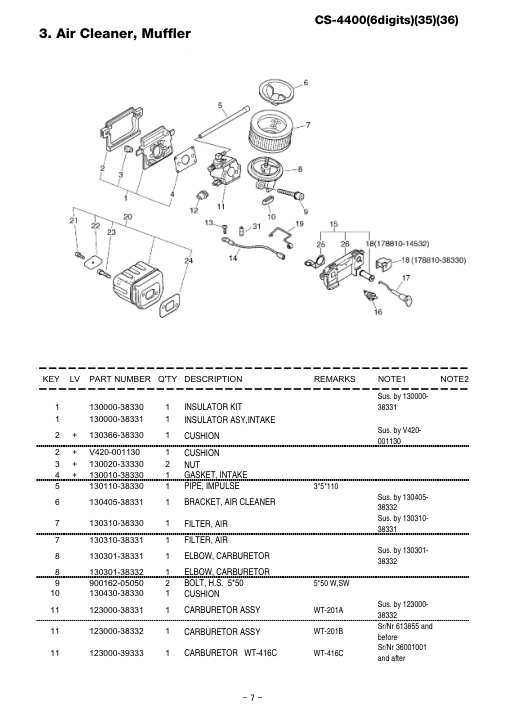

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Insulator Kit | 130000-38330 | 130000-38330-Online | Sus. by 130000- | 38331 | |
| 1 | 1 | Insulator Asy,Intake | 130000-38331 | 130000-38331-Online | ||
| 2 | + | 1 | Cushion | 130366-38330 | 130366-38330-Online | Sus. by V420- | 001130 |
| 2 | + | 1 | Cushion | V420-001130 | V420-001130-Online | |
| 3 | + | 2 | Part | 130020-33330 | 130020-33330-Online | |
| 4 | + | 1 | Gasket, Intake | 130010-38330 | 130010-38330-Online | |
| 5 | 1 | Pipe, Impulse | 130110-38330 | 130110-38330-Online | 3*5*110 | |
| 6 | 1 | Bracket, Air Cleaner | 130405-38331 | 130405-38331-Online | Sus. by 130405- | 38332 | |
| 7 | 1 | Filter, Air | 130310-38330 | 130310-38330-Online | Sus. by 130310- | 38331 | |
| 7 | 1 | Filter, Air | 130310-38331 | 130310-38331-Online | ||
| 8 | 1 | Elbow, Carburetor | 130301-38331 | 130301-38331-Online | Sus. by 130301- | 38332 | |
| 8 | 1 | Elbow, Carburetor | 130301-38332 | 130301-38332-Online | ||
| 9 | 2 | Bolt, H.S. 5*50 | 900162-05050 | 900162-05050-Online | 5*50 W,SW | |
| 10 | 1 | Cushion | 130430-38330 | 130430-38330-Online | ||
| 11 | 1 | Carburetor Assy | 123000-38331 | 123000-38331-Online | WT-201A | Sus. by 123000- | 38332 | |
| 11 | 1 | Carburetor Assy | 123000-38332 | 123000-38332-Online | WT-201B | Sr/Nr 613855 and | before | |
| 11 | 1 | Carburetor Wt-416C | 123000-39333 | 123000-39333-Online | WT-416C | Sr/Nr 36001001 | and after |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | 1 | Grommet | 129010-33330 | 129010-33330-Online | Sr/Nr 613855 and | before | |
| 13 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 14 | 1 | Lead, Ground | 162010-38330 | 162010-38330-Online | Sus. by 162010- | 38332 | |
| 14 | 1 | Lead, Ground | 162010-38331 | 162010-38331-Online | Sus. by 162010- | 38332 | |
| 14 | 1 | Lead, Ground | 162010-38332 | 162010-38332-Online | ||
| 15 | 1 | Bracket, Switch | 163810-38330 | 163810-38330-Online | Sus. by 163804- | 38935 | |
| 15 | 1 | Bracket, Switch | 163804-38930 | 163804-38930-Online | Sus. by 163804- | 38935 | |
| 15 | 1 | Bracket, Switch | 163804-38931 | 163804-38931-Online | Sus. by 163804- | 38935 | |
| 15 | 1 | Bracket, Switch | 163804-38932 | 163804-38932-Online | Sus. by 163804- | 38935 | |
| 15 | 1 | Bracket, Switch | 163804-38935 | 163804-38935-Online | ||
| 18 | + | 1 | Grommet, Choke | 178810-14531 | 178810-14531-Online | Sus. by 178810- | 14534 |
| 18 | + | 1 | Grommet | 178810-14532 | 178810-14532-Online | Sus. by 178810- | 14534 |
| 18 | + | 1 | Grommet | 178810-14533 | 178810-14533-Online | Sus. by 178810- | 14534 |
| 18 | + | 1 | Grommet | 178810-14534 | 178810-14534-Online | Sr/Nr 504117 and | after |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Plate, Switch | 163413-38930 | 163413-38930-Online | Sr/Nr 504117 and | after |
| 26 | + | 1 | Bracket, Switch | 163810-38931 | 163810-38931-Online | Sus. by 163810- | 38933 |
| 26 | + | 1 | Bracket, Switch | 163810-38932 | 163810-38932-Online | Sus. by 163810- | 38933 |
| 26 | + | 1 | Bracket, Switch | 163810-38933 | 163810-38933-Online | Sr/Nr 504117 and | after |
| 16 | 1 | Switch, Ignition | 163400-38330 | 163400-38330-Online | ||
| 17 | 1 | Rod, Choke | 178510-38330 | 178510-38330-Online | Sus. by A241- | 000100 | |
| 17 | 1 | Rod, Choke | 178510-38331 | 178510-38331-Online | Sus. by A241- | 000100 | |
| 17 | 1 | Knob, Choke | A241-000100 | A241-000100-Online | ||
| 18 | 1 | Grommet, Choke | 178810-38330 | 178810-38330-Online | Sr/Nr 504116 and | before | |
| 19 | 1 | Rod, Throttle | 178011-38331 | 178011-38331-Online | ||
| 20 | 1 | Muffler Assy | 145600-38330 | 145600-38330-Online | Sus. by P021- | 008610 | |
| 20 | 1 | Muffler Asy | 145600-38331 | 145600-38331-Online | Sus. by P021- | 008610 | |
| 20 | 1 | Muffler Asy | 145600-38332 | 145600-38332-Online | Sus. by P021- | 008610 | |
| 20 | 1 | Muffler Asy | 145600-38333 | 145600-38333-Online | Sus. by P021- | 008610 | |
| 20 | 1 | Muffler Asy | P021-008610 | P021-008610-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | + | 1 | Bolt, H.S. 4*6 | 900105-04006 | 900105-04006-Online | 4*6 |
| 22 | + | 1 | Plate (Bl) | 145711-35430 | 145711-35430-Online | Sus. by 145711- | 60631 |
| 22 | + | 1 | Stay, Muffler | 145711-60631 | 145711-60631-Online | |
| 23 | + | 2 | Bolt, H.S. 5*14 | 900105-05014 | 900105-05014-Online | 5*14 |
| 24 | + | 1 | Gasket, Muffler | 145510-35431 | 145510-35431-Online | |
| 31 | 1 | Boot,Connector | C483-000000 | C483-000000-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Washer, Spring 8 | 900605-00008 | 900605-00008-Online | ||
| 5 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 6 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 7 | 1 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | ||
| 9 | 1 | Coil, Ignition | 156626-38330 | 156626-38330-Online | Sus. by 156626- | 38332 | |
| 9 | 1 | Coil, Ignition | 156626-38331 | 156626-38331-Online | Sus. by 156626- | 38332 | |
| 9 | 1 | Coil, Ignition | 156626-38332 | 156626-38332-Online | Sr/Nr 601000 and | before | |
| 9 | 1 | Coil,Ignition | A411-000030 | A411-000030-Online | Sus. by A411- | 000031 | |
| 9 | 1 | Coil,Ignition | A411-000031 | A411-000031-Online | Sr/Nr 601001 and | after | |
| 10 | 2 | Bolt, H.S. 4*30 | 900162-04030 | 900162-04030-Online | 4*30 W.SW | |
| 11 | 1 | Rotor, Magneto | 156800-38930 | 156800-38930-Online | Sus. by 156800- | 38931 | |
| 11 | 1 | Rotor, Magneto | 156800-38931 | 156800-38931-Online | Sr/Nr 601000 and | before | |
| 11 | 1 | Rotor,Magneto | A409-000080 | A409-000080-Online | Sr/Nr 601001 and | after | |
| 12 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 13 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 14 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 15 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 16 | 2 | Pawl, Starter | 177218-19830 | 177218-19830-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 17 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Sus. by V203- | 000090 | |
| 17 | 2 | Bolt,5 | V203-000090 | V203-000090-Online | M5*14 | |
| 18 | 1 | Cover, Fan | 101535-38930 | 101535-38930-Online | Sr/Nr 601000 and | before | |
| 18 | 1 | Cover,Fan | A172-000060 | A172-000060-Online | Sus. by A172- | 000062 | |
| 18 | 1 | Cover,Fan | A172-000061 | A172-000061-Online | Sus. by A172- | 000062 | |
| 18 | 1 | Cover,Fan | A172-000062 | A172-000062-Online | Sr/Nr 601001 and | after | |
| 19 | 1 | Starter,Assy | 177200-38931 | 177200-38931-Online | Sus. by 177200- | 38335 | |
| 19 | 1 | Starter Asy | 177200-38332 | 177200-38332-Online | Sus. by 177200- | 38335 | |
| 19 | 1 | Starter Asy | 177200-38333 | 177200-38333-Online | Sus. by 177200- | 38335 | |
| 19 | 1 | Starter Asy | 177200-38334 | 177200-38334-Online | Sus. by 177200- | 38335 | |
| 19 | 1 | Starter Asy | 177200-38335 | 177200-38335-Online | ||
| 20 | + | 1 | Screw 5*12 | 900238-05012 | 900238-05012-Online | 5*12 |
| 21 | + | 1 | Washer | 177214-02830 | 177214-02830-Online | 5.2*16*1.0T |
| 22 | + | 1 | Rope, Starter | 177226-38330 | 177226-38330-Online | 3.5*1000 |
| 23 | + | 1 | Drum, Starter | 177215-38330 | 177215-38330-Online | |
| 24 | + | 1 | Plate, Starter | 177221-38330 | 177221-38330-Online | |
| 25 | + | 1 | Spring, Rewind | 177220-35430 | 177220-35430-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Grip, Starter (Bl) | 177228-35430 | 177228-35430-Online | |
| 27 | + | 1 | Guide, Rope | 177227-37930 | 177227-37930-Online | |
| 29 | + | 1 | Screw 3*14 | 900296-03014 | 900296-03014-Online | 3*14 SUS |
| 30 | 4 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 | |
| 31 | 1 | Label,Echo | X502-000010 | X502-000010-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Screw 4*14 | 900253-04014 | 900253-04014-Online | 4*14 | |
| 6 | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | ||
| 7 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 8 | 1 | Trigger, Throttle | 178010-38330 | 178010-38330-Online | Sus. by C450- | 000000 | |
| 8 | 1 | Trigger, Throttle | 178010-38331 | 178010-38331-Online | Sus. by C450- | 000000 | |
| 8 | 1 | Trigger,Throttle | C450-000000 | C450-000000-Online | ||
| 9 | 1 | Spring, Thr.Return | 178043-35430 | 178043-35430-Online | ||
| 10 | 1 | Pin, Spring 4*30Sus | 900345-40030 | 900345-40030-Online | 4*30SUS | |
| 11 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 12 | 1 | Handle, Rear | 351103-38330 | 351103-38330-Online | Sus. by 351101- | 38332 | |
| 12 | 1 | Handle Assy, Rear | 351101-38330 | 351101-38330-Online | Sus. by 351101- | 38332 | |
| 12 | 1 | Handle Assy, Rear | 351101-38331 | 351101-38331-Online | Sus. by 351101- | 38332 | |
| 12 | 1 | Handle Asy, Rear | 351101-38332 | 351101-38332-Online | ||
| 31 | + | 1 | Grommet, Fuel | 132019-39330 | 132019-39330-Online | Sr/Nr 501670 and | before |
| 32 | + | 1 | Connector, Pipe | 132021-02960 | 132021-02960-Online | Sr/Nr 501670 and | before |
| 32 | + | 1 | Pipe, W/Grommet | 132012-39330 | 132012-39330-Online | L105 NBR | Sus. by 132012- | 39331 |
| 33 | + | 1 | Pipe 3*5*90 Nbr | 437210-11131 | 437210-11131-Online | 3*5*90 NBR | Sr/Nr 501670 and | before |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | Sr/Nr 501671 and | after |
| 34 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 35 | + | 1 | Valve, Check | 131300-40630 | 131300-40630-Online | Sus. by 131300- | 56430 |
| 35 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 13 | 1 | Latch, Throttle | 178302-12330 | 178302-12330-Online | ||
| 14 | 1 | Cap Assy, Fuel Tank | 131004-37931 | 131004-37931-Online | Sus. by 131004- | 37932 | |
| 14 | 1 | Cap Asy, Fuel | 131004-37932 | 131004-37932-Online | ||
| 15 | + | 1 | Link | 131051-19830 | 131051-19830-Online | 60L | Sus. by A365- | 000050 |
| 15 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 16 | + | 1 | O-Ring 22 | 900720-00022 | 900720-00022-Online | P-22 |
| 17 | 1 | Grommet | 132115-04920 | 132115-04920-Online | ||
| 18 | 1 | Pipe, Fuel | 132010-38330 | 132010-38330-Online | 3*6 | Sus. by 132010- | 38331 | |
| 18 | 1 | Pipe | 132010-38331 | 132010-38331-Online | 3*6*165 | |
| 19 | 1 | Strainer, Fuel | 131205-30830 | 131205-30830-Online | Sus. by 131205- | 19830 | |
| 19 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 20 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 21 | 1 | Valve, Check | 131314-35430 | 131314-35430-Online | Sr/Nr 005470 and | before | |
| 22 | 2 | Cushion | 100921-38330 | 100921-38330-Online | ||
| 23 | 2 | Bolt | 100915-32530 | 100915-32530-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 2 | Cap, Cushion | 100918-38330 | 100918-38330-Online | ||
| 25 | 2 | Cushion | 100910-38330 | 100910-38330-Online | ||
| 26 | 1 | Handle, Front | 351606-38330 | 351606-38330-Online | ||
| 27 | 2 | Screw 5*20 | 900268-05020 | 900268-05020-Online | 5*20 | Sus. by 91145- | 05020 | |
| 27 | 2 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 5*20 | |
| 28 | 2 | Screw | 900253-05016 | 900253-05016-Online | 5*16 | Sus. by 91145- | 05016 | |
| 28 | 2 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | 5*16 |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Pipe | 437229-38331 | 437229-38331-Online | ||
| 8 | 1 | Auto-Oiler Assy | 437002-38330 | 437002-38330-Online | ||
| 9 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | Sus. by 900223- | 04016 | |
| 9 | 2 | Screw | 900223-04016 | 900223-04016-Online | 4*16 | |
| 10 | 1 | Plate, Seal | 175310-38330 | 175310-38330-Online | ||
| 11 | 2 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | Sus. by 132013- | 26630 Q'TY:1 | |
| 11 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 12 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 13 | 1 | Pipe, Oil | 437210-38330 | 437210-38330-Online | ||
| 14 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Lever Assy, Brake | 433201-39330 | 433201-39330-Online | Sus. by 433201- | 39332 | |
| 5 | 1 | Lever Assy, Brake | 433201-39331 | 433201-39331-Online | Sus. by 433201- | 39332 | |
| 5 | 1 | Lever Asy, Brake | 433201-39332 | 433201-39332-Online | ||
| 6 | + | 1 | Pin 3*24 | 900330-30240 | 900330-30240-Online | 3*23.8 |
| 7 | + | 2 | Spacer | 433167-39130 | 433167-39130-Online | |
| 8 | + | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 |
| 8 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 9 | + | 1 | Spring | 433114-38330 | 433114-38330-Online | Sus. by 433114- | 38331 |
| 9 | + | 1 | Spring | 433114-38331 | 433114-38331-Online | |
| 10 | + | 1 | Screw, 5*30 | 900209-05030 | 900209-05030-Online | 5*30 | Sus. by 91318- | 05032 |
| 10 | + | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 |
| 11 | + | 1 | Weight, Brake | 433171-39330 | 433171-39330-Online | |
| 12 | + | 2 | Screw 4*18 | 900238-04018 | 900238-04018-Online | 4*18 |
| 13 | + | 2 | Nut 4 | 900500-00004 | 900500-00004-Online | |
| 14 | 1 | Bolt,5 | V203-000040 | V203-000040-Online | Sus. by V203- | 000041 | |
| 14 | 1 | Bolt,5 | V203-000041 | V203-000041-Online | Sr/Nr 517301 to | |
| 15 | Part | 36011840 | 36011840-Online | |||
| 15 | 1 | Tensioner, Chain | 433014-60930 | 433014-60930-Online | Sus. by C309- | 000030 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | Sr/Nr 517301 and | after | |
| 16 | 1 | Gear,Bevel | V651-000010 | V651-000010-Online | Sus. by V651- | 000011 | |
| 16 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | Sr/Nr 517301 and | after | |
| 17 | 1 | Collar,8 | V355-000030 | V355-000030-Online | Sus. by V355- | 000270 | |
| 17 | 1 | Collar,8 | V355-000270 | V355-000270-Online | Sr/Nr 517301 and | after | |
| 18 | 1 | Gear,Bevel | V651-000000 | V651-000000-Online | Sus. by V651- | 000001 | |
| 18 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | Sr/Nr 517301 and | after | |
| 19 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 20 | 1 | Plate, Guide (Inner) | 433013-35431 | 433013-35431-Online | Sus. by 433013- | 35432 | |
| 22 | 1 | Plate, Sprock. Guard | 433012-38330 | 433012-38330-Online | Sr/Nr 514840 and | before | |
| 25 | 1 | Guard, Sprocket | 433005-38930 | 433005-38930-Online | Sus. by P021- | 001290 | |
| 23 | 1 | Sprocket Guard Kit | P021-000480 | P021-000480-Online | Sus. by P021- | 001290 | |
| 23 | 1 | Sprocket Guard Kit | P021-000481 | P021-000481-Online | Sus. by P021- | 001290 |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Guard, Sprocket | 433005-38931 | 433005-38931-Online | Sus. by P021- | 001290 | |
| 25 | 1 | Guard, Sprocket | 433005-38932 | 433005-38932-Online | Sus. by P021- | 001290 | |
| 23 | 1 | Guard,Sprocket Set | P021-001290 | P021-001290-Online | Sr/Nr 36011840 | and before | |
| 23 | 1 | Guard,Sprocket Set | P021-001291 | P021-001291-Online | Sus. by P021- | 001292 | |
| 21 | + | 1 | Screw 3*6 | 900220-03006 | 900220-03006-Online | 3*6 |
| 22 | + | 1 | Plate,Sprocket Guard | C305-000000 | C305-000000-Online | Sus. by C305- | 000001 |
| 22 | + | 1 | Plate,Sprocket Guard | C305-000001 | C305-000001-Online | Sr/Nr 514841 and | after |
| 25 | + | 1 | Guard, Sprocket | 433005-38933 | 433005-38933-Online | Sr/Nr 520222 to |
| 25 | Part | 36011840 | 36011840-Online | |||
| 25 | + | 1 | Guard, Sprocket Kit | P021-010160 | P021-010160-Online | Sr/Nr 36011841 | and after | 14 | ++ |
| 14 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | Sr/Nr 36011841 | and after | |
| 38 | + | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | Sr/Nr 514841 and | after |
| 55 | + | 1 | Plug | V162-000020 | V162-000020-Online | Can be needed for | non-side-access | type models |
| 24 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 1 | Clutch Assy | 175000-35431 | 175000-35431-Online | Sr/Nr 601000 and | before | |
| 27 | + | 3 | Spacer | 175062-35430 | 175062-35430-Online | Sr/Nr 601000 and | before |
| 28 | + | 3 | Plate, Clutch | 175019-19830 | 175019-19830-Online | Sr/Nr 601000 and | before |
| 29 | + | 1 | Hub, Clutch | 175016-35430 | 175016-35430-Online | Sr/Nr 601000 and | before |
| 30 | + | 1 | Spring, Clutch | 175018-19830 | 175018-19830-Online | Sr/Nr 601000 and | before |
| 31 | + | 1 | Shoe, Clutch | 175002-19830 | 175002-19830-Online | Sr/Nr 601000 and | before |
| 32 | + | 6 | Bolt, H.S. 4*6 | 900105-04006 | 900105-04006-Online | 4*6 | Sr/Nr 601000 and | before |
| 26 | 1 | Clutch Asy | 175000-59530 | 175000-59530-Online | Sr/Nr 601001 to | 612390 | |
| 27 | + | 1 | Hub, Clutch | 175016-59530 | 175016-59530-Online | Sr/Nr 601001 to | 612390 |
| 28 | + | 1 | Spring, Clutch | 175018-59530 | 175018-59530-Online | Sr/Nr 601001 to | 612390 |
| 29 | + | 1 | Shoe, Clutch | 175002-59530 | 175002-59530-Online | Sr/Nr 601001 to | 612390 |
| 30 | + | 3 | Spring,Flat | 175022-59530 | 175022-59530-Online | Sr/Nr 601001 to | 612390 |
| 31 | 1 | Plate, Clutch | 175019-59530 | 175019-59530-Online | Sr/Nr 601001 to | 612390 |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | 1 | Bearing, Needle | 175012-14630 | 175012-14630-Online | ||
| 34 | 1 | Drum, Clutch | 175105-35430 | 175105-35430-Online | Sus. by A556- | 000170 | |
| 34 | 1 | Drum,Clutch | A556-000170 | A556-000170-Online | 325-7 | |
| 35 | 1 | Sprocket, Rim .325 | 175114-12530 | 175114-12530-Online | Sr/Nr 601000 and | before | |
| 36 | 1 | Plate, Clutch | 175019-38330 | 175019-38330-Online | ||
| 37 | 1 | Cover, Brake | 433310-38330 | 433310-38330-Online | ||
| 38 | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 39 | 1 | Spring, Brake | 433122-35430 | 433122-35430-Online | ||
| 40 | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | ||
| 41 | 1 | Washer 5.2*12*14 | 433115-38330 | 433115-38330-Online | 5.2*12*14 | |
| 42 | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | ||
| 43 | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 | |
| 44 | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | ||
| 45 | 1 | Band, Brake | 433123-35430 | 433123-35430-Online | ||
| 46 | 1 | Pin, Spring 2.5*12 | 900342-25012 | 900342-25012-Online | 2.5*12 | |
| 47 | 1 | Bumper, Spiked Kit | 880200-38330 | 880200-38330-Online | ||
| 48 | + | 2 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
| 49 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 50 | 1 | Driver, Screw 125 | 895811-00130 | 895811-00130-Online | ||
| 51 | 1 | Label, Caution | 890316-39130 | 890316-39130-Online | Sr/Nr 36008061 | and before | |
| 52 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 53 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
| 54 | 1 | Label,Echo | X502-000000 | X502-000000-Online |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 55 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 61 | 1 | Clutch Asy W/Plate | P021-007060 | P021-007060-Online | Sr/Nr 612391 and | after | |
| 62 | + | 1 | Hub,Clutch | A552-000060 | A552-000060-Online | Sr/Nr 612391 and | after |
| 63 | + | 3 | Spring,Tension | V451-000500 | V451-000500-Online | Sr/Nr 612391 and | after |
| 64 | + | 1 | Clutch Shoe Set | P021-007050 | P021-007050-Online | Sr/Nr 612391 and | after |
| 65 | + | 1 | Plate, Clutch | 175019-39430 | 175019-39430-Online | Sr/Nr 612391 and | after |
| 66 | 1 | Washer,Circular 6 | V304-000090 | V304-000090-Online | Sr/Nr 36002761 | and after |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Lever Asy, Brake | 433201-39332 | 433201-39332-Online | ||
| 6 | + | 1 | Pin 3*24 | 900330-30240 | 900330-30240-Online | 3*23.8 |
| 7 | + | 2 | Spacer | 433167-39130 | 433167-39130-Online | |
| 8 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 9 | + | 1 | Spring | 433114-38331 | 433114-38331-Online | |
| 10 | + | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 |
| 11 | + | 1 | Weight, Brake | 433171-39330 | 433171-39330-Online | |
| 12 | + | 2 | Screw 4*18 | 900238-04018 | 900238-04018-Online | 4*18 |
| 13 | + | 2 | Nut 4 | 900500-00004 | 900500-00004-Online | |
| 15 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 16 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 17 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 18 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 19 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 20 | 1 | Plate, Guide (Inner) | 433013-35432 | 433013-35432-Online | ||
| 23 | 1 | Guard,Sprocket Set | P021-001292 | P021-001292-Online | ||
| 21 | + | 1 | Screw 3*6 | 900220-03006 | 900220-03006-Online | 3*6 |
| 22 | + | 1 | Plate,Sprocket Guard | C305-000001 | C305-000001-Online | |
| 25 | + | 1 | Guard, Sprocket Kit | P021-010161 | P021-010161-Online | 14 | ++ |
| 14 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 38 | + | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 |
| 24 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 60 | 1 | Drum,Clutch Set | P021-006060 | P021-006060-Online | ||
| 33 | + | 1 | Bearing, Needle | 175012-00831 | 175012-00831-Online | |
| 34 | + | 1 | Drum,Clutch | A556-000171 | A556-000171-Online | |
| 36 | 1 | Plate, Clutch | 175019-38330 | 175019-38330-Online |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 37 | 1 | Cover, Brake | 433310-38330 | 433310-38330-Online | ||
| 38 | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 39 | 1 | Spring, Brake | 433122-35430 | 433122-35430-Online | ||
| 40 | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | ||
| 41 | 1 | Washer 5.2*12*14 | 433115-38330 | 433115-38330-Online | 5.2*12*14 | |
| 42 | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | ||
| 43 | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 | |
| 44 | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | ||
| 45 | 1 | Band,Brake | C328-000060 | C328-000060-Online | ||
| 46 | 1 | Pin, Spring 2.5*12 | 900342-25012 | 900342-25012-Online | 2.5*12 | |
| 47 | 1 | Bumper, Spiked Kit | 880200-38330 | 880200-38330-Online | ||
| 48 | + | 2 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
| 49 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 50 | 1 | Driver, Screw 125 | 895811-00130 | 895811-00130-Online | ||
| 52 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 53 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
| 54 | 1 | Label,Echo | X502-000000 | X502-000000-Online | ||
| 55 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 61 | 1 | Clutch Asy W/Plate | P021-007060 | P021-007060-Online | ||
| 62 | + | 1 | Hub,Clutch | A552-000060 | A552-000060-Online | |
| 63 | + | 3 | Spring,Tension | V451-000500 | V451-000500-Online | |
| 64 | + | 1 | Clutch Shoe Set | P021-007050 | P021-007050-Online | |
| 65 | + | 1 | Plate, Clutch | 175019-39430 | 175019-39430-Online | |
| 66 | 1 | Washer,Circular 6 | V304-000090 | V304-000090-Online |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 5 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 5 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | Sus. by 123123- | 38330 |
| 5 | + | 1 | Lever, Metering | 123123-38330 | 123123-38330-Online | |
| 6 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 7 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 8 | + | 1 | Spring, Meter. Lever | 123122-11130 | 123122-11130-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 10 | + | 1 | Valve, Choke | 123132-37330 | 123132-37330-Online | |
| 11 | + | 3 | Screw | 123114-03930 | 123114-03930-Online | Sr/Nr 502291 and | before |
| 11 | + | 1 | Screw | 123114-03930 | 123114-03930-Online | Sus. by 123114- | 38830 |
| 11 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | Sr/Nr 502292 and | after |
| 12 | + | 1 | Ball, Choke Friction | 123136-10630 | 123136-10630-Online | |
| 13 | + | 1 | Spring, Choke Frict. | 123135-10630 | 123135-10630-Online | |
| 14 | + | 1 | Spring, Needle | 123119-22130 | 123119-22130-Online | |
| 15 | + | 1 | Needle, High Speed | 123120-38330 | 123120-38330-Online | |
| 16 | + | 1 | Needle, Idle | 123118-38330 | 123118-38330-Online |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 17 | + | 1 | Spring, Needle | 123121-22130 | 123121-22130-Online | |
| 18 | + | 1 | Shaft, Throttle | 123117-38330 | 123117-38330-Online | |
| 19 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 20 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 21 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 22 | + | 1 | Clip, Throttle Shaft | 123127-03930 | 123127-03930-Online | |
| 23 | + | 1 | Lever, Throttle | 123150-38330 | 123150-38330-Online | |
| 24 | + | 1 | Shaft, Choke | 123131-35430 | 123131-35430-Online | |
| 25 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 26 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 27 | + | 1 | Screen | 123168-10631 | 123168-10631-Online | |
| 28 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 29 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 30 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 31 | + | 1 | Cover, Fuel Pump | 123124-38330 | 123124-38330-Online | |
| 32 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 33 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 34 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 35 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 36 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | Sr/Nr 502292 and | after |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 2 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 3 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 4 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 5 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 6 | + | 1 | Spring, Meter. Lever | 123122-39330 | 123122-39330-Online | |
| 7 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 8 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 9 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 10 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 12 | + | 2 | Needle | 123120-03661 | 123120-03661-Online | |
| 13 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online | |
| 15 | + | 3 | Screw | 123114-38830 | 123114-38830-Online | |
| 16 | + | 1 | Valve, Choke | 123132-37330 | 123132-37330-Online | |
| 17 | + | 1 | Spring, Choke Frict. | 123135-10630 | 123135-10630-Online | |
| 18 | + | 1 | Ball, Choke Friction | 123136-10630 | 123136-10630-Online | |
| 24 | + | 1 | Shaft, Throttle | 123117-39330 | 123117-39330-Online | |
| 25 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 26 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 27 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 28 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 29 | + | 1 | Lever, Throttle | 123150-38330 | 123150-38330-Online | |
| 30 | + | 1 | Shaft, Choke | 123131-35430 | 123131-35430-Online | |
| 31 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 32 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 1 | Cover, Fuel Pump | 123124-38330 | 123124-38330-Online | |
| 34 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 35 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 36 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 37 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | + | 1 | Lever Assy, Brake | 433201-39331 | 433201-39331-Online | Sus. by 433201- | 39332 |
| 5 | + | 1 | Lever Asy, Brake | 433201-39332 | 433201-39332-Online | 6 | ++ |
| 6 | 1 | Pin 3*24 | 900330-30240 | 900330-30240-Online | 3*23.8 | 7 | ++ | |
| 7 | 2 | Spacer | 433167-39130 | 433167-39130-Online | 8 | ++ | |
| 8 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 | 8 | |
| 8 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | 5 | 9 | ++ | |
| 9 | 1 | Spring | 433114-38331 | 433114-38331-Online |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | 1 | Screw, 5*30 | 900209-05030 | 900209-05030-Online | 5*30 | Sus. by 91318- | 05032 | 10 | |
| 10 | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 | 11 | ++ | |
| 11 | 1 | Weight, Brake | 433171-39330 | 433171-39330-Online | 12 | ++ | |
| 12 | 2 | Screw 4*18 | 900238-04018 | 900238-04018-Online | 4*18 | 13 | ++ | |
| 13 | 2 | Nut 4 | 900500-00004 | 900500-00004-Online | ||
| 25 | + | 1 | Guard, Sprocket | 433005-38930 | 433005-38930-Online | Sus. by P021- | 001290 |
| 23 | + | 1 | Sprocket Guard Kit | P021-000480 | P021-000480-Online | Sus. by P021- | 001290 |
| 23 | + | 1 | Sprocket Guard Kit | P021-000481 | P021-000481-Online | Sus. by P021- | 001290 |
| 25 | + | 1 | Guard, Sprocket | 433005-38931 | 433005-38931-Online | Sus. by P021- | 001290 |
| 25 | + | 1 | Guard, Sprocket | 433005-38932 | 433005-38932-Online | Sus. by P021- | 001290 |
| 23 | + | 1 | Guard,Sprocket Set | P021-001290 | P021-001290-Online | 21 | ++ |
| 21 | 1 | Screw 3*6 | 900220-03006 | 900220-03006-Online | 3*6 | 22 | ++ | |
| 22 | 1 | Plate,Sprocket Guard | C305-000000 | C305-000000-Online | Sus. by C305- | 000001 | 22 | ++ | |
| 22 | 1 | Plate,Sprocket Guard | C305-000001 | C305-000001-Online | Sr/Nr 514841 and | after | 25 | ++ | |
| 25 | 1 | Guard, Sprocket | 433005-38933 | 433005-38933-Online | Sr/Nr 520222 to | |
| 25 | ++ | 36011840 | 36011840-Online | |||
| 25 | 1 | Guard, Sprocket Kit | P021-010160 | P021-010160-Online | Sr/Nr 36011841 | and after |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | Sr/Nr 36011841 | and after | 38 | ++ | |
| 38 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | Sr/Nr 514841 and | after | 55 | |
| 55 | 1 | Plug | V162-000020 | V162-000020-Online | Can be needed for | non-side-access | type models | |
| 37 | + | 1 | Cover, Brake | 433310-38330 | 433310-38330-Online | |
| 38 | + | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 |
| 39 | + | 1 | Spring, Brake | 433122-35430 | 433122-35430-Online | |
| 40 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 41 | + | 1 | Washer 5.2*12*14 | 433115-38330 | 433115-38330-Online | 5.2*12*14 |
| 42 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 43 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 44 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | |
| 45 | + | 1 | Band, Brake | 433123-35430 | 433123-35430-Online | Sus. by C328- | 000060 |
| 45 | + | 1 | Band,Brake | C328-000060 | C328-000060-Online | |
| 46 | + | 1 | Pin, Spring 2.5*12 | 900342-25012 | 900342-25012-Online | 2.5*12 |
| 66 | + | 1 | Washer,Circular 6 | V304-000090 | V304-000090-Online | Sr/Nr 36002761 | and after |
Page 34 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | + | 1 | Lever Asy, Brake | 433201-39332 | 433201-39332-Online | 6 | ++ |
| 6 | 1 | Pin 3*24 | 900330-30240 | 900330-30240-Online | 3*23.8 | 7 | ++ | |
| 7 | 2 | Spacer | 433167-39130 | 433167-39130-Online | 8 | ++ | |
| 8 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | 5 | 9 | ++ | |
| 9 | 1 | Spring | 433114-38331 | 433114-38331-Online | 10 | ++ | |
| 10 | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 | 11 | ++ | |
| 11 | 1 | Weight, Brake | 433171-39330 | 433171-39330-Online | 12 | ++ | |
| 12 | 2 | Screw 4*18 | 900238-04018 | 900238-04018-Online | 4*18 | 13 | ++ | |
| 13 | 2 | Nut 4 | 900500-00004 | 900500-00004-Online | ||
| 23 | + | 1 | Guard,Sprocket Set | P021-001290 | P021-001290-Online | 21 | ++ |
| 21 | 1 | Screw 3*6 | 900220-03006 | 900220-03006-Online | 3*6 | 22 | ++ | |
| 22 | 1 | Plate,Sprocket Guard | C305-000001 | C305-000001-Online | 25 | ++ | |
| 25 | 1 | Guard, Sprocket Kit | P021-010160 | P021-010160-Online | 14 | +++ | |
| 14 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | 38 | ++ | |
| 38 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 37 | + | 1 | Cover, Brake | 433310-38330 | 433310-38330-Online | |
| 38 | + | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 |
| 39 | + | 1 | Spring, Brake | 433122-35430 | 433122-35430-Online | |
| 40 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 41 | + | 1 | Washer 5.2*12*14 | 433115-38330 | 433115-38330-Online | 5.2*12*14 |
| 42 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 43 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 44 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | |
| 45 | + | 1 | Band,Brake | C328-000060 | C328-000060-Online | |
| 46 | + | 1 | Pin, Spring 2.5*12 | 900342-25012 | 900342-25012-Online | 2.5*12 |
Page 35 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 66 | + | 1 | Washer,Circular 6 | V304-000090 | V304-000090-Online |
Source PDF: 20130718-389_CS-4400(6digits)(35)(36)_CS-4400(6digits)(35)(36)_EN.pdf. Generated 2026-06-25 14:38.
