Echo CS-360TES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-360TES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.

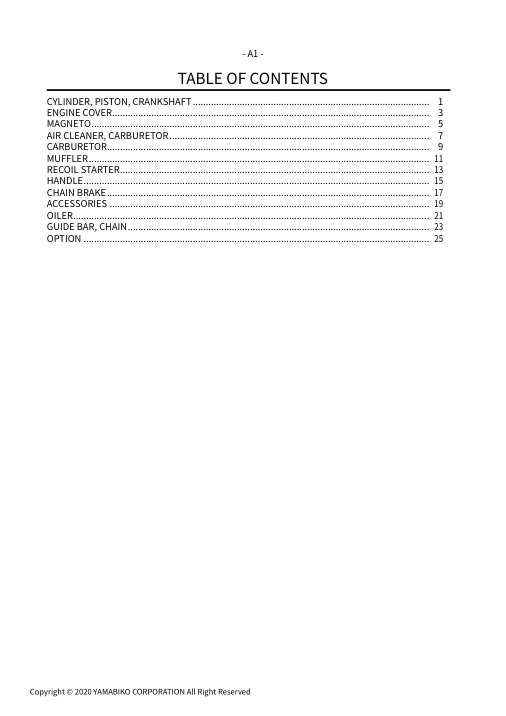

Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.

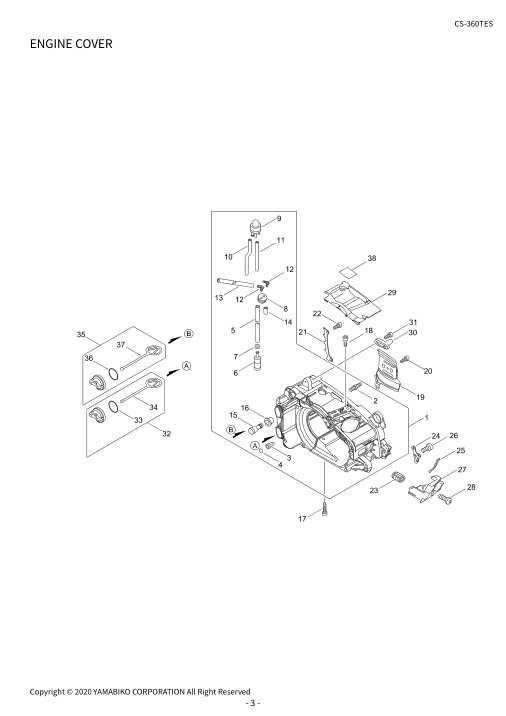

Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

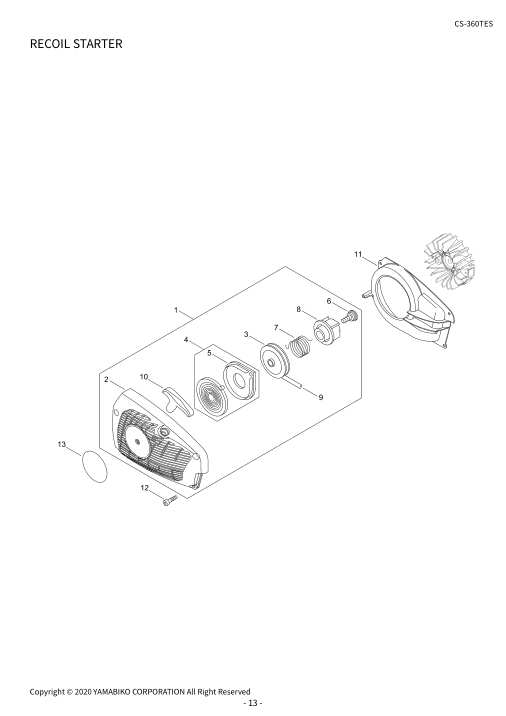

Page 15
Tap or click the page image to enlarge it.

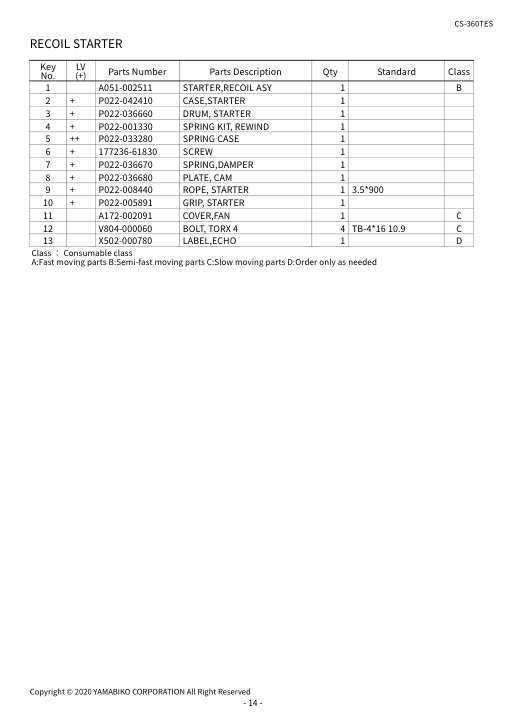

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.

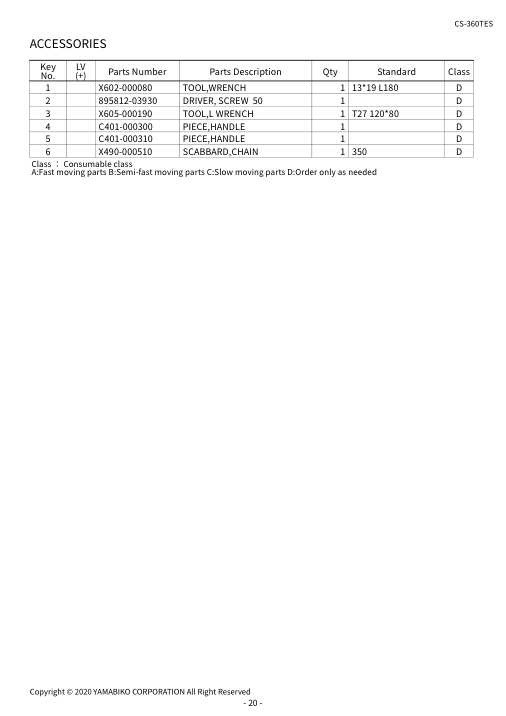

Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.

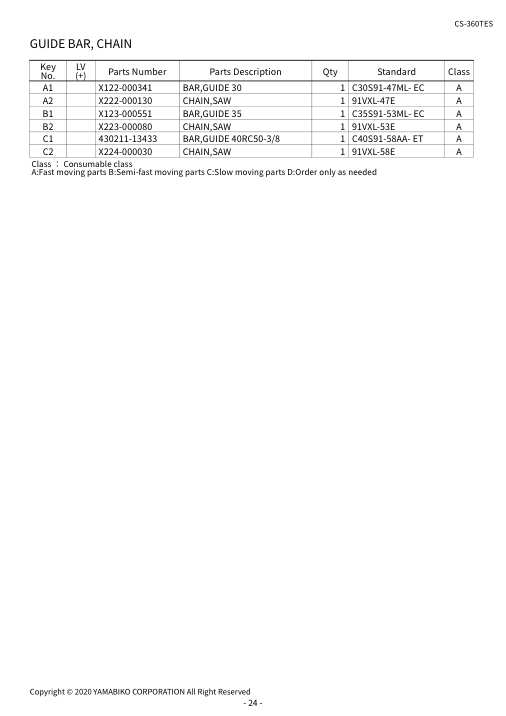

Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.

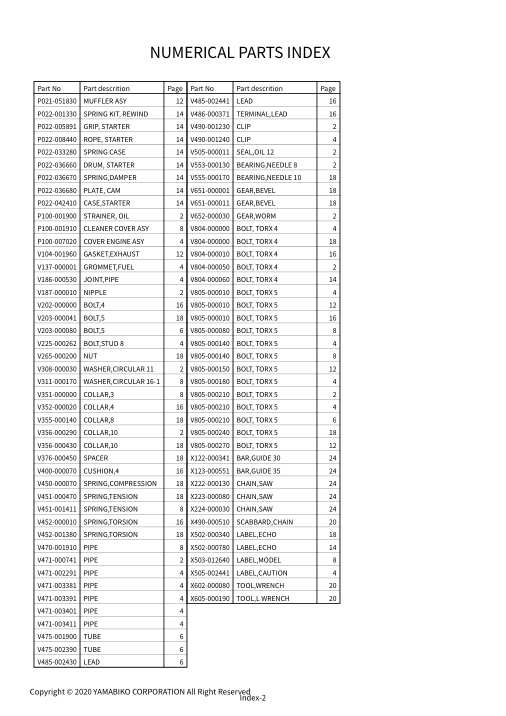

Page 30
Tap or click the page image to enlarge it.

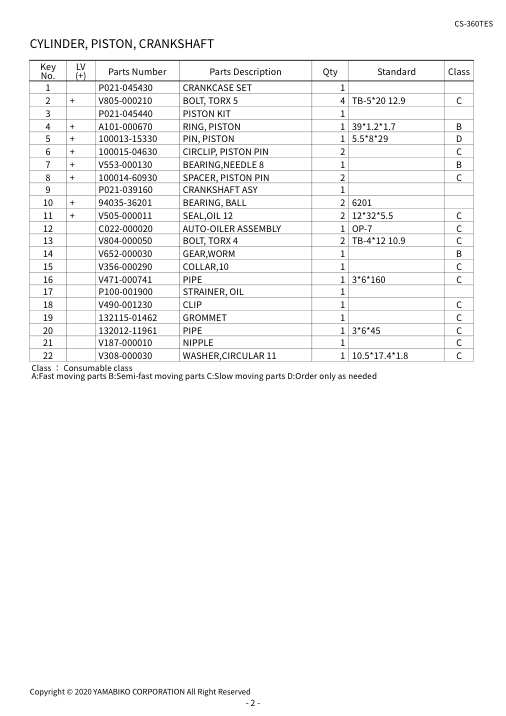

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Set | P021-045430 | P021-045430-Online | |||
| 2 | + | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 4 TB-5*20 12.9 | |
| 3 | Piston Kit | P021-045440 | P021-045440-Online | |||
| 4 | + | Ring, Piston | A101-000670 | A101-000670-Online | 1 39*1.2*1.7 | |
| 5 | + | Pin, Piston | 100013-15330 | 100013-15330-Online | 1 5.5*8*29 | |
| 6 | + | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | ||
| 7 | + | Bearing,Needle 8 | V553-000130 | V553-000130-Online | ||
| 8 | + | Spacer, Piston Pin | 100014-60930 | 100014-60930-Online | ||
| 9 | Crankshaft Asy | P021-039160 | P021-039160-Online | |||
| 10 | + | Bearing, Ball | 94035-36201 | 94035-36201-Online | 2 6201 | |
| 11 | + | Seal,Oil 12 | V505-000011 | V505-000011-Online | 2 12*32*5.5 | |
| 12 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | 1 OP-7 | ||
| 13 | Bolt, Torx 4 | V804-000050 | V804-000050-Online | 2 TB-4*12 10.9 | ||
| 14 | Gear,Worm | V652-000030 | V652-000030-Online | |||
| 15 | Collar,10 | V356-000290 | V356-000290-Online | |||
| 16 | Pipe | V471-000741 | V471-000741-Online | 1 3*6*160 | ||
| 17 | Strainer, Oil | P100-001900 | P100-001900-Online | |||
| 18 | Clip | V490-001230 | V490-001230-Online | |||
| 19 | Grommet | 132115-01462 | 132115-01462-Online | |||
| 20 | Pipe | 132012-11961 | 132012-11961-Online | 1 3*6*45 | ||
| 21 | Nipple | V187-000010 | V187-000010-Online | |||
| 22 | Washer,Circular 11 | V308-000030 | V308-000030-Online | 1 10.5*17.4*1.8 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

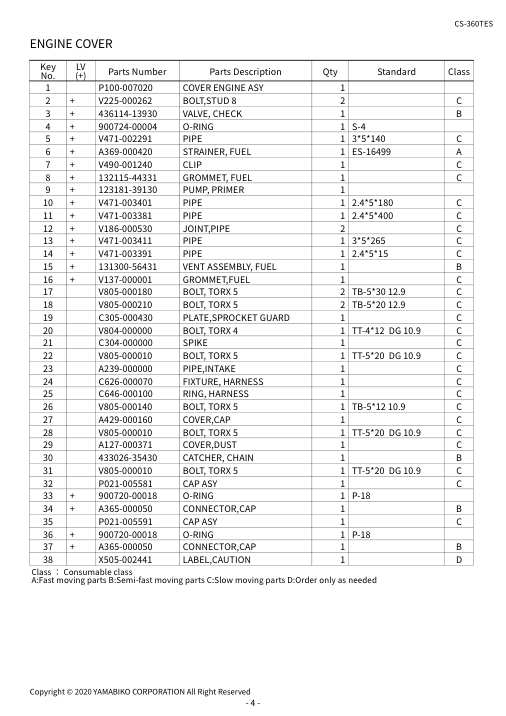

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cover Engine Asy | P100-007020 | P100-007020-Online | |||
| 2 | + | Bolt,Stud 8 | V225-000262 | V225-000262-Online | ||
| 3 | + | Valve, Check | 436114-13930 | 436114-13930-Online | ||
| 4 | + | O-Ring | 900724-00004 | 900724-00004-Online | 1 S-4 | |
| 5 | + | Pipe | V471-002291 | V471-002291-Online | 1 3*5*140 | |
| 6 | + | Strainer, Fuel | A369-000420 | A369-000420-Online | 1 ES-16499 | |
| 7 | + | Clip | V490-001240 | V490-001240-Online | ||
| 8 | + | Grommet, Fuel | 132115-44331 | 132115-44331-Online | ||
| 9 | + | Pump, Primer | 123181-39130 | 123181-39130-Online | ||
| 10 | + | Pipe | V471-003401 | V471-003401-Online | 1 2.4*5*180 | |
| 11 | + | Pipe | V471-003381 | V471-003381-Online | 1 2.4*5*400 | |
| 12 | + | Joint,Pipe | V186-000530 | V186-000530-Online | ||
| 13 | + | Pipe | V471-003411 | V471-003411-Online | 1 3*5*265 | |
| 14 | + | Pipe | V471-003391 | V471-003391-Online | 1 2.4*5*15 | |
| 15 | + | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | ||
| 16 | + | Grommet,Fuel | V137-000001 | V137-000001-Online | ||
| 17 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | 2 TB-5*30 12.9 | ||
| 18 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 19 | Plate,Sprocket Guard | C305-000430 | C305-000430-Online | |||
| 20 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG 10.9 | ||
| 21 | Spike | C304-000000 | C304-000000-Online | |||
| 22 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 1 TT-5*20 DG 10.9 | ||
| 23 | Pipe,Intake | A239-000000 | A239-000000-Online | |||
| 24 | Fixture, Harness | C626-000070 | C626-000070-Online | |||
| 25 | Ring, Harness | C646-000100 | C646-000100-Online | |||
| 26 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | 1 TB-5*12 10.9 | ||
| 27 | Cover,Cap | A429-000160 | A429-000160-Online | |||
| 28 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 1 TT-5*20 DG 10.9 | ||
| 29 | Cover,Dust | A127-000371 | A127-000371-Online | |||
| 30 | Catcher, Chain | 433026-35430 | 433026-35430-Online | |||
| 31 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 1 TT-5*20 DG 10.9 | ||
| 32 | Cap Asy | P021-005581 | P021-005581-Online | |||
| 33 | + | O-Ring | 900720-00018 | 900720-00018-Online | 1 P-18 | |
| 34 | + | Connector,Cap | A365-000050 | A365-000050-Online | ||
| 35 | Cap Asy | P021-005591 | P021-005591-Online | |||
| 36 | + | O-Ring | 900720-00018 | 900720-00018-Online | 1 P-18 | |
| 37 | + | Connector,Cap | A365-000050 | A365-000050-Online | ||
| 38 | Label,Caution | X505-002441 | X505-002441-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

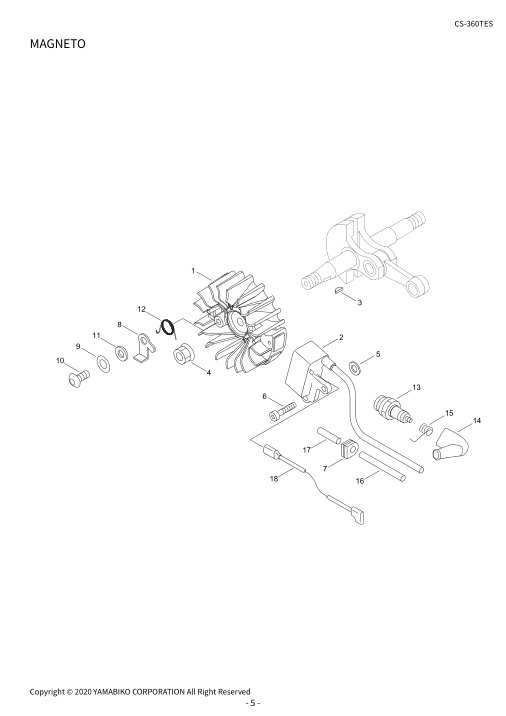

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001240 | A409-001240-Online | |||
| 2 | Coil, Ignition | A411-001501 | A411-001501-Online | 1 OPPAMA ID#A10051 | ||
| 3 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 4 | Nut, Flange | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 5 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 6 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 7 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 8 | Pawl | A514-000270 | A514-000270-Online | |||
| 9 | Washer | 900603-00005 | 900603-00005-Online | 2 5 | ||
| 10 | Bolt,5 | V203-000080 | V203-000080-Online | 2 5*14 | ||
| 11 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 2 5.2*8*2.1 | ||
| 12 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 13 | Plug, Spark (Bpm-8Y) | 159010-19830 | 159010-19830-Online | 1 BPM-8Y(ｲﾂﾀｲｶﾞﾀ) | ||
| 14 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 15 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 16 | Tube | V475-002390 | V475-002390-Online | |||
| 17 | Tube | V475-001900 | V475-001900-Online | 1 7*8.6*30 | ||
| 18 | Lead | V485-002430 | V485-002430-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

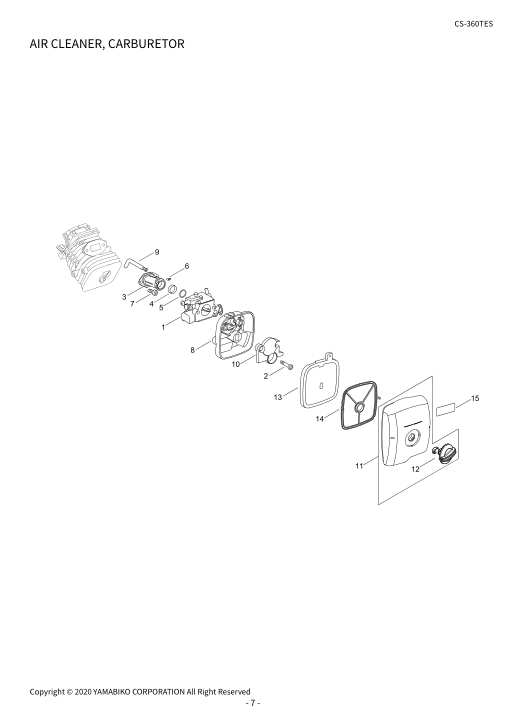

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-004650 | A021-004650-Online | |||
| 2 | Bolt, Torx 5 | V805-000080 | V805-000080-Online | 2 TB-5*50 10.9 | ||
| 3 | Bellows, Intake | A202-000231 | A202-000231-Online | |||
| 4 | Spring,Tension | V451-001411 | V451-001411-Online | |||
| 5 | Washer,Circular 16-1 | V311-000170 | V311-000170-Online | 1 T1.2 | ||
| 6 | Collar,3 | V351-000000 | V351-000000-Online | 1 3.2*6.5 | ||
| 7 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | 2 TB-5*12 10.9 | ||
| 8 | Case,Cleaner | A225-000611 | A225-000611-Online | |||
| 9 | Pipe | V470-001910 | V470-001910-Online | |||
| 10 | Plate, Prevent | A244-000280 | A244-000280-Online | |||
| 11 | Cleaner Cover Asy | P100-001910 | P100-001910-Online | |||
| 12 | + | Knob,Cleaner Lid | A235-000400 | A235-000400-Online | ||
| 13 | Element, Air Filter | A226-002100 | A226-002100-Online | |||
| 14 | Seal,Cleaner | A228-000030 | A228-000030-Online | |||
| 15 | Label,Model | X503-012640 | X503-012640-Online | 1 CS-360TES EU | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

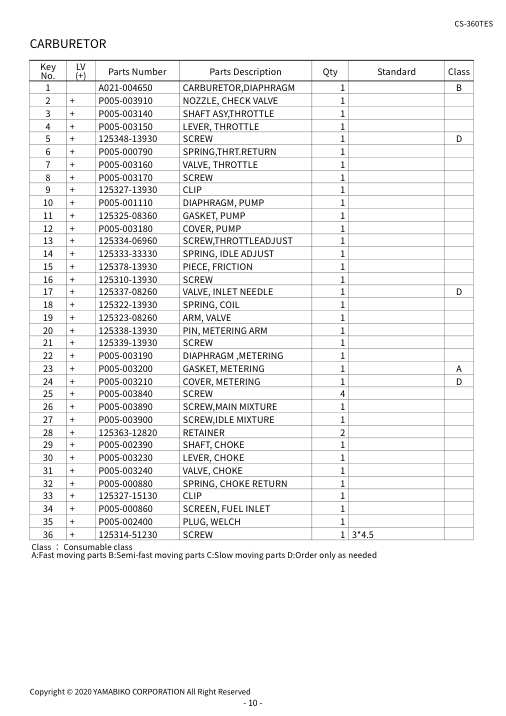

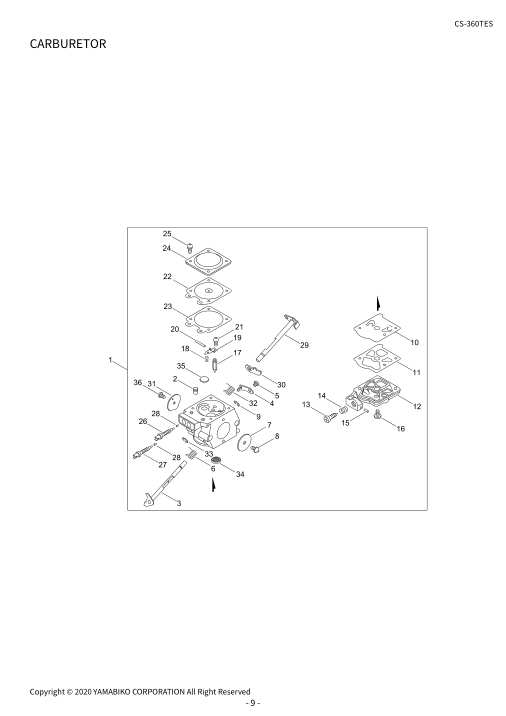

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-004650 | A021-004650-Online | |||
| 2 | + | Nozzle, Check Valve | P005-003910 | P005-003910-Online | ||
| 3 | + | Shaft Asy,Throttle | P005-003140 | P005-003140-Online | ||
| 4 | + | Lever, Throttle | P005-003150 | P005-003150-Online | ||
| 5 | + | Screw | 125348-13930 | 125348-13930-Online | ||
| 6 | + | Spring,Thrt.Return | P005-000790 | P005-000790-Online | ||
| 7 | + | Valve, Throttle | P005-003160 | P005-003160-Online | ||
| 8 | + | Screw | P005-003170 | P005-003170-Online | ||
| 9 | + | Clip | 125327-13930 | 125327-13930-Online | ||
| 10 | + | Diaphragm, Pump | P005-001110 | P005-001110-Online | ||
| 11 | + | Gasket, Pump | 125325-08360 | 125325-08360-Online | ||
| 12 | + | Cover, Pump | P005-003180 | P005-003180-Online | ||
| 13 | + | Screw,Throttleadjust | 125334-06960 | 125334-06960-Online | ||
| 14 | + | Spring, Idle Adjust | 125333-33330 | 125333-33330-Online | ||
| 15 | + | Piece, Friction | 125378-13930 | 125378-13930-Online | ||
| 16 | + | Screw | 125310-13930 | 125310-13930-Online | ||
| 17 | + | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | ||
| 18 | + | Spring, Coil | 125322-13930 | 125322-13930-Online | ||
| 19 | + | Arm, Valve | 125323-08260 | 125323-08260-Online | ||
| 20 | + | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | ||
| 21 | + | Screw | 125339-13930 | 125339-13930-Online | ||
| 22 | + | Diaphragm ,Metering | P005-003190 | P005-003190-Online | ||
| 23 | + | Gasket, Metering | P005-003200 | P005-003200-Online | ||
| 24 | + | Cover, Metering | P005-003210 | P005-003210-Online | ||
| 25 | + | Screw | P005-003840 | P005-003840-Online | ||
| 26 | + | Screw,Main Mixture | P005-003890 | P005-003890-Online | ||
| 27 | + | Screw,Idle Mixture | P005-003900 | P005-003900-Online | ||
| 28 | + | Retainer | 125363-12820 | 125363-12820-Online | ||
| 29 | + | Shaft, Choke | P005-002390 | P005-002390-Online | ||
| 30 | + | Lever, Choke | P005-003230 | P005-003230-Online | ||
| 31 | + | Valve, Choke | P005-003240 | P005-003240-Online | ||
| 32 | + | Spring, Choke Return | P005-000880 | P005-000880-Online | ||
| 33 | + | Clip | 125327-15130 | 125327-15130-Online | ||
| 34 | + | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | ||
| 35 | + | Plug, Welch | P005-002400 | P005-002400-Online | ||
| 36 | + | Screw | 125314-51230 | 125314-51230-Online | 1 3*4.5 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CARBURETOR |

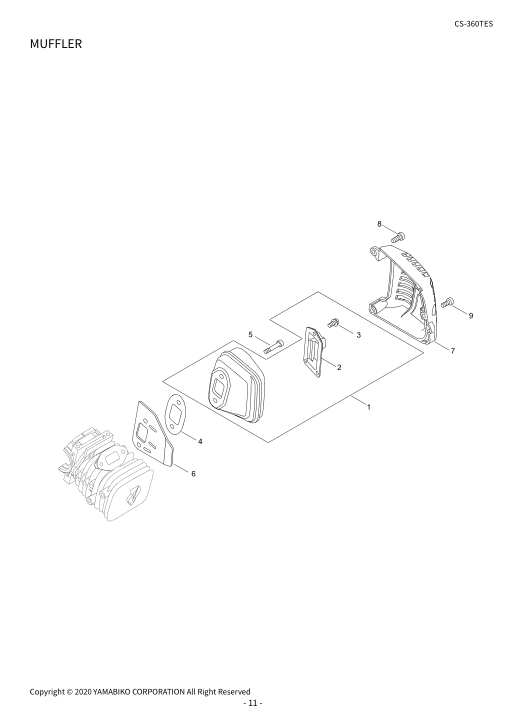

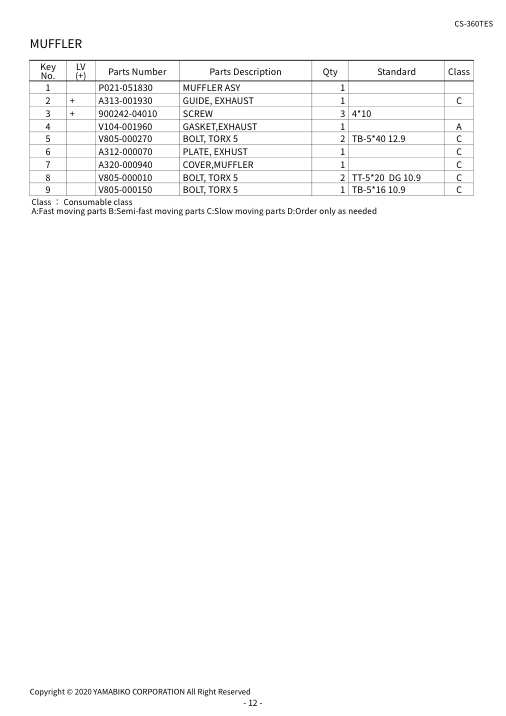

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P021-051830 | P021-051830-Online | |||
| 2 | + | Guide, Exhaust | A313-001930 | A313-001930-Online | ||
| 3 | + | Screw | 900242-04010 | 900242-04010-Online | 3 4*10 | |
| 4 | Gasket,Exhaust | V104-001960 | V104-001960-Online | |||
| 5 | Bolt, Torx 5 | V805-000270 | V805-000270-Online | 2 TB-5*40 12.9 | ||
| 6 | Plate, Exhust | A312-000070 | A312-000070-Online | |||
| 7 | Cover,Muffler | A320-000940 | A320-000940-Online | |||
| 8 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 2 TT-5*20 DG 10.9 | ||
| 9 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 1 TB-5*16 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil Asy | A051-002511 | A051-002511-Online | |||
| 2 | + | Case,Starter | P022-042410 | P022-042410-Online | ||
| 3 | + | Drum, Starter | P022-036660 | P022-036660-Online | ||
| 4 | + | Spring Kit, Rewind | P022-001330 | P022-001330-Online | 1 | 5 | ++ | |
| 5 | Spring Case | P022-033280 | P022-033280-Online | |||
| 6 | + | Screw | 177236-61830 | 177236-61830-Online | ||
| 7 | + | Spring,Damper | P022-036670 | P022-036670-Online | ||
| 8 | + | Plate, Cam | P022-036680 | P022-036680-Online | ||
| 9 | + | Rope, Starter | P022-008440 | P022-008440-Online | 1 3.5*900 | |
| 10 | + | Grip, Starter | P022-005891 | P022-005891-Online | ||
| 11 | Cover,Fan | A172-002091 | A172-002091-Online | |||
| 12 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 4 TB-4*16 10.9 | ||
| 13 | Label,Echo | X502-000780 | X502-000780-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

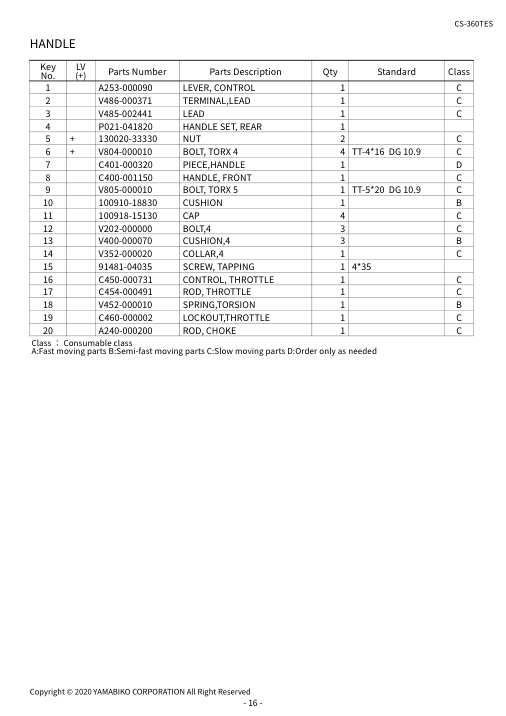

Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lever, Control | A253-000090 | A253-000090-Online | |||
| 2 | Terminal,Lead | V486-000371 | V486-000371-Online | |||
| 3 | Lead | V485-002441 | V485-002441-Online | |||
| 4 | Handle Set, Rear | P021-041820 | P021-041820-Online | |||
| 6 | + | Bolt, Torx 4 | V804-000010 | V804-000010-Online | 4 TT-4*16 DG 10.9 | |
| 7 | Piece,Handle | C401-000320 | C401-000320-Online | |||
| 8 | Handle, Front | C400-001150 | C400-001150-Online | |||
| 9 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 1 TT-5*20 DG 10.9 | ||
| 10 | Cushion | 100910-18830 | 100910-18830-Online | |||
| 12 | Bolt,4 | V202-000000 | V202-000000-Online | |||
| 13 | Cushion,4 | V400-000070 | V400-000070-Online | |||
| 14 | Collar,4 | V352-000020 | V352-000020-Online | |||
| 15 | Screw, Tapping | 91481-04035 | 91481-04035-Online | 1 4*35 | ||
| 16 | Control, Throttle | C450-000731 | C450-000731-Online | |||
| 17 | Rod, Throttle | C454-000491 | C454-000491-Online | |||
| 18 | Spring,Torsion | V452-000010 | V452-000010-Online | |||
| 19 | Lockout,Throttle | C460-000002 | C460-000002-Online | |||
| 20 | Rod, Choke | A240-000200 | A240-000200-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Drum, Clutch | 175005-39133 | 175005-39133-Online | 1 3/8 6T | ||
| 2 | Bearing,Needle 10 | V555-000170 | V555-000170-Online | 1 8E-KV10*13*12.8 | ||
| 3 | Plate,Clutch | A551-000010 | A551-000010-Online | |||
| 4 | Clutch | A056-000071 | A056-000071-Online | |||
| 5 | + | Hub,Clutch | A552-000020 | A552-000020-Online | ||
| 6 | + | Clutch Shoe Set | P021-005811 | P021-005811-Online | ||
| 7 | + | Spring,Tension | V451-000470 | V451-000470-Online | ||
| 8 | Guard, Sprocket Asy | P021-048810 | P021-048810-Online | |||
| 9 | + | Guard, Sprocket | C300-000952 | C300-000952-Online | ||
| 10 | + | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 11 | + | Bolt,5 | V203-000041 | V203-000041-Online | ||
| 12 | + | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 13 | + | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 14 | + | Collar,8 | V355-000140 | V355-000140-Online | ||
| 15 | + | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG 10.9 | |
| 16 | + | Cover,Brake | C345-000520 | C345-000520-Online | ||
| 17 | + | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 3 TT-4*12 DG 10.9 | |
| 18 | + | Connector, Brake | C334-000290 | C334-000290-Online | ||
| 19 | + | Spring,Compression | V450-000070 | V450-000070-Online | ||
| 20 | + | Spacer | V376-000450 | V376-000450-Online | ||
| 21 | + | Band, Brake | C328-000310 | C328-000310-Online | ||
| 22 | + | Roller | 93050-30098 | 93050-30098-Online | 1 3*9.8 | |
| 23 | + | Spacer 8 | 433116-35430 | 433116-35430-Online | 1 8*12*9 | |
| 25 | Lever, Brake | C320-000501 | C320-000501-Online | |||
| 26 | Bolt, Torx 5 | V805-000240 | V805-000240-Online | 1 TT-5*12 DG 10.9 | ||
| 27 | Collar,10 | V356-000430 | V356-000430-Online | |||
| 28 | Spring,Torsion | V452-001380 | V452-001380-Online | |||
| 29 | Label,Echo | X502-000340 | X502-000340-Online | 1 ECHO(WHITE) | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 1 13*19 L180 | ||
| 2 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 3 | Tool,L Wrench | X605-000190 | X605-000190-Online | 1 T27 120*80 | ||
| 4 | Piece,Handle | C401-000300 | C401-000300-Online | |||
| 5 | Piece,Handle | C401-000310 | C401-000310-Online | |||
| 6 | Scabbard,Chain | X490-000510 | X490-000510-Online | 1 350 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

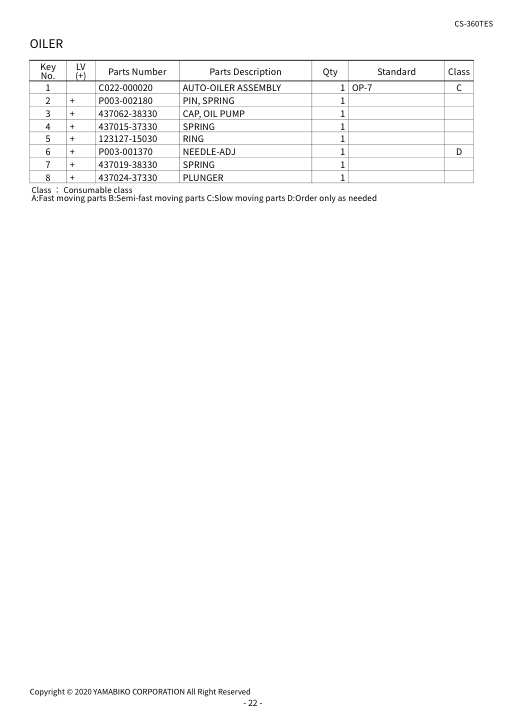

Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | 1 OP-7 | ||
| 2 | + | Pin, Spring | P003-002180 | P003-002180-Online | ||
| 3 | + | Cap, Oil Pump | 437062-38330 | 437062-38330-Online | ||
| 4 | + | Spring | 437015-37330 | 437015-37330-Online | ||
| 5 | + | Ring | 123127-15030 | 123127-15030-Online | ||
| 6 | + | Needle-Adj | P003-001370 | P003-001370-Online | ||
| 7 | + | Spring | 437019-38330 | 437019-38330-Online | ||
| 8 | + | Plunger | 437024-37330 | 437024-37330-Online | 1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | OILER |

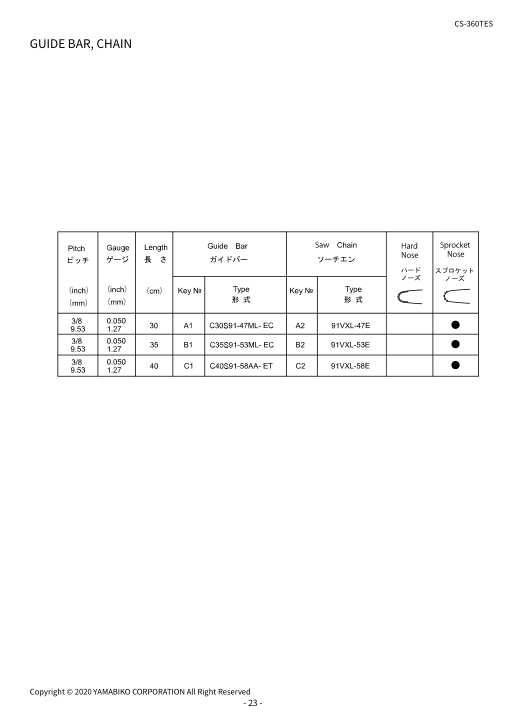

Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| A | Chain,Saw | X222-000130 | X222-000130-Online | 1 91VXL-47E | A | B1 | ||
| A | Bar,Guide 35 | X123-000551 | X123-000551-Online | 1 C35S91-53ML- EC | A | B2 | ||
| A | Chain,Saw | X223-000080 | X223-000080-Online | 1 91VXL-53E | A | C1 | ||
| A | Bar,Guide 40Rc50-3/8 | 430211-13433 | 430211-13433-Online | 1 C40S91-58AA- ET | A | C2 | ||
| A | Chain,Saw | X224-000030 | X224-000030-Online | 1 91VXL-58E | A | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Element, Air Filter | A226-002100 | A226-002100-Online | |||
| 2 | Element, Air Filter | A226-001820 | A226-001820-Online | 1 | A | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Spacer, Piston Pin | 100014-60930 | 100014-60930-Online | |||
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 6 | Cushion | 100910-18830 | 100910-18830-Online | |||
| 16 | Ring | 123127-15030 | 123127-15030-Online | |||
| 22 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 4 | Screw | 125310-13930 | 125310-13930-Online | |||
| 10 | Screw | 125314-51230 | 125314-51230-Online | |||
| 10 | Spring, Coil | 125322-13930 | 125322-13930-Online | |||
| 10 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 10 | Gasket, Pump | 125325-08360 | 125325-08360-Online | |||
| 10 | Clip | 125327-13930 | 125327-13930-Online | |||
| 10 | Clip | 125327-15130 | 125327-15130-Online | |||
| 10 | Spring, Idle Adjust | 125333-33330 | 125333-33330-Online | |||
| 10 | Screw, | 125334-06960 | 125334-06960-Online | THROTTLEADJUST | ||
| 10 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 10 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 10 | Screw | 125339-13930 | 125339-13930-Online | |||
| 10 | Screw | 125348-13930 | 125348-13930-Online | |||
| 10 | Retainer | 125363-12820 | 125363-12820-Online | |||
| 10 | Piece, Friction | 125378-13930 | 125378-13930-Online | |||
| 16 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 4 | Pipe | 132012-11961 | 132012-11961-Online | |||
| 2 | Grommet | 132115-01462 | 132115-01462-Online | |||
| 2 | Grommet, Fuel | 132115-44331 | 132115-44331-Online | |||
| 4 | Spacer | 150117-16430 | 150117-16430-Online | |||
| 6 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 6 | Plug, Spark (Bpm-8Y) | 159010-19830 | 159010-19830-Online | |||
| 6 | Drum, Clutch | 175005-39133 | 175005-39133-Online | |||
| 18 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 6 | Screw | 177236-61830 | 177236-61830-Online | |||
| 14 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | |||
| 6 | Bar,Guide 40Rc50-3/8 | 430211-13433 | 430211-13433-Online | |||
| 24 | Catcher, Chain | 433026-35430 | 433026-35430-Online | |||
| 4 | Spacer 8 | 433116-35430 | 433116-35430-Online | |||
| 18 | Valve, Check | 436114-13930 | 436114-13930-Online | |||
| 4 | Spring | 437015-37330 | 437015-37330-Online | |||
| 22 | Spring | 437019-38330 | 437019-38330-Online | |||
| 22 | Plunger | 437024-37330 | 437024-37330-Online | |||
| 22 | Cap, Oil Pump | 437062-38330 | 437062-38330-Online | |||
| 22 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | 20 | Part No | Part descrition | Page | ||
| 12 | Nut, Flange | 900515-00008 | 900515-00008-Online | |||
| 6 | Washer | 900603-00005 | 900603-00005-Online | |||
| 6 | O-Ring | 900720-00018 | 900720-00018-Online | |||
| 4 | O-Ring | 900724-00004 | 900724-00004-Online | |||
| 4 | Screw, Tapping | 91481-04035 | 91481-04035-Online | |||
| 16 | Roller | 93050-30098 | 93050-30098-Online | |||
| 18 | Bearing, Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Carburetor, | A021-004650 | A021-004650-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-004650 | A021-004650-Online | DIAPHRAGM | ||
| 10 | Starter,Recoil Asy | A051-002511 | A051-002511-Online | |||
| 14 | Clutch | A056-000071 | A056-000071-Online | |||
| 18 | Ring, Piston | A101-000670 | A101-000670-Online | |||
| 2 | Cover,Dust | A127-000371 | A127-000371-Online | |||
| 4 | Cover,Fan | A172-002091 | A172-002091-Online | |||
| 14 | Bellows, Intake | A202-000231 | A202-000231-Online | |||
| 8 | Case,Cleaner | A225-000611 | A225-000611-Online | |||
| 8 | Element, Air Filter | A226-001820 | A226-001820-Online | |||
| 26 | Element, Air Filter | A226-002100 | A226-002100-Online | |||
| 8 | Element, Air Filter | A226-002100 | A226-002100-Online | |||
| 26 | Seal,Cleaner | A228-000030 | A228-000030-Online | |||
| 8 | Knob,Cleaner Lid | A235-000400 | A235-000400-Online | |||
| 8 | Pipe,Intake | A239-000000 | A239-000000-Online | |||
| 4 | Rod, Choke | A240-000200 | A240-000200-Online | |||
| 16 | Plate, Prevent | A244-000280 | A244-000280-Online | |||
| 8 | Lever, Control | A253-000090 | A253-000090-Online | |||
| 16 | Plate, Exhust | A312-000070 | A312-000070-Online | |||
| 12 | Guide, Exhaust | A313-001930 | A313-001930-Online | |||
| 12 | Cover,Muffler | A320-000940 | A320-000940-Online | |||
| 12 | Connector,Cap | A365-000050 | A365-000050-Online | |||
| 4 | Strainer, Fuel | A369-000420 | A369-000420-Online | |||
| 4 | Rotor, Magneto | A409-001240 | A409-001240-Online | |||
| 6 | Coil, Ignition | A411-001501 | A411-001501-Online | |||
| 6 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 6 | Cover,Cap | A429-000160 | A429-000160-Online | |||
| 4 | Pawl | A514-000270 | A514-000270-Online | |||
| 6 | Plate,Clutch | A551-000010 | A551-000010-Online | |||
| 18 | Hub,Clutch | A552-000020 | A552-000020-Online | |||
| 18 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | |||
| 2 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | |||
| 22 | Guard, Sprocket | C300-000952 | C300-000952-Online | |||
| 18 | Spike | C304-000000 | C304-000000-Online | |||
| 4 | Plate,Sprocket | C305-000430 | C305-000430-Online | GUARD | 4 | Part No | Part descrition | ||
| 18 | Lever, Brake | C320-000501 | C320-000501-Online | |||
| 18 | Band, Brake | C328-000310 | C328-000310-Online | |||
| 18 | Connector, Brake | C334-000290 | C334-000290-Online | |||
| 18 | Cover,Brake | C345-000520 | C345-000520-Online | |||
| 18 | Handle, Front | C400-001150 | C400-001150-Online | |||
| 16 | Piece,Handle | C401-000300 | C401-000300-Online | |||
| 20 | Piece,Handle | C401-000310 | C401-000310-Online | |||
| 20 | Piece,Handle | C401-000320 | C401-000320-Online | |||
| 16 | Control, Throttle | C450-000731 | C450-000731-Online | |||
| 16 | Rod, Throttle | C454-000491 | C454-000491-Online | |||
| 16 | Lockout,Throttle | C460-000002 | C460-000002-Online | |||
| 16 | Fixture, Harness | C626-000070 | C626-000070-Online | |||
| 4 | Ring, Harness | C646-000100 | C646-000100-Online | |||
| 4 | Needle-Adj | P003-001370 | P003-001370-Online | |||
| 22 | Pin, Spring | P003-002180 | P003-002180-Online | |||
| 22 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |||
| 10 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |||
| 10 | Spring, Choke | P005-000880 | P005-000880-Online | RETURN | ||
| 10 | Diaphragm, Pump | P005-001110 | P005-001110-Online | |||
| 10 | Shaft, Choke | P005-002390 | P005-002390-Online | |||
| 10 | Plug, Welch | P005-002400 | P005-002400-Online | |||
| 10 | Shaft Asy,Throttle | P005-003140 | P005-003140-Online | |||
| 10 | Lever, Throttle | P005-003150 | P005-003150-Online | |||
| 10 | Valve, Throttle | P005-003160 | P005-003160-Online | |||
| 10 | Screw | P005-003170 | P005-003170-Online | |||
| 10 | Cover, Pump | P005-003180 | P005-003180-Online | |||
| 10 | Diaphragm ,Metering | P005-003190 | P005-003190-Online | |||
| 10 | Gasket, Metering | P005-003200 | P005-003200-Online | |||
| 10 | Cover, Metering | P005-003210 | P005-003210-Online | |||
| 10 | Lever, Choke | P005-003230 | P005-003230-Online | |||
| 10 | Valve, Choke | P005-003240 | P005-003240-Online | |||
| 10 | Screw | P005-003840 | P005-003840-Online | |||
| 10 | Screw,Main Mixture | P005-003890 | P005-003890-Online | |||
| 10 | Screw,Idle Mixture | P005-003900 | P005-003900-Online | |||
| 10 | Nozzle, Check Valve | P005-003910 | P005-003910-Online | |||
| 10 | Cap Asy | P021-005581 | P021-005581-Online | |||
| 4 | Cap Asy | P021-005591 | P021-005591-Online | |||
| 4 | Clutch Shoe Set | P021-005811 | P021-005811-Online | |||
| 18 | Crankshaft Asy | P021-039160 | P021-039160-Online | |||
| 2 | Handle Set, Rear | P021-041820 | P021-041820-Online | |||
| 16 | Crankcase Set | P021-045430 | P021-045430-Online | |||
| 2 | Piston Kit | P021-045440 | P021-045440-Online | |||
| 2 | Guard, Sprocket Asy | P021-048810 | P021-048810-Online | 18 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | |||
| 14 | Grip, Starter | P022-005891 | P022-005891-Online | |||
| 14 | Rope, Starter | P022-008440 | P022-008440-Online | |||
| 14 | Spring Case | P022-033280 | P022-033280-Online | |||
| 14 | Drum, Starter | P022-036660 | P022-036660-Online | |||
| 14 | Spring,Damper | P022-036670 | P022-036670-Online | |||
| 14 | Plate, Cam | P022-036680 | P022-036680-Online | |||
| 14 | Case,Starter | P022-042410 | P022-042410-Online | |||
| 14 | Strainer, Oil | P100-001900 | P100-001900-Online | |||
| 2 | Cleaner Cover Asy | P100-001910 | P100-001910-Online | |||
| 8 | Cover Engine Asy | P100-007020 | P100-007020-Online | |||
| 4 | Gasket,Exhaust | V104-001960 | V104-001960-Online | |||
| 12 | Grommet,Fuel | V137-000001 | V137-000001-Online | |||
| 4 | Joint,Pipe | V186-000530 | V186-000530-Online | |||
| 4 | Nipple | V187-000010 | V187-000010-Online | |||
| 2 | Bolt,4 | V202-000000 | V202-000000-Online | |||
| 16 | Bolt,5 | V203-000041 | V203-000041-Online | |||
| 18 | Bolt,5 | V203-000080 | V203-000080-Online | |||
| 6 | Bolt,Stud 8 | V225-000262 | V225-000262-Online | |||
| 18 | Washer,Circular 11 | V308-000030 | V308-000030-Online | |||
| 2 | Washer,Circular 16-1 | V311-000170 | V311-000170-Online | |||
| 8 | Collar,3 | V351-000000 | V351-000000-Online | |||
| 8 | Collar,4 | V352-000020 | V352-000020-Online | |||
| 16 | Collar,8 | V355-000140 | V355-000140-Online | |||
| 18 | Collar,10 | V356-000290 | V356-000290-Online | |||
| 2 | Collar,10 | V356-000430 | V356-000430-Online | |||
| 18 | Spacer | V376-000450 | V376-000450-Online | |||
| 18 | Cushion,4 | V400-000070 | V400-000070-Online | |||
| 16 | Spring,Compression | V450-000070 | V450-000070-Online | |||
| 18 | Spring,Tension | V451-000470 | V451-000470-Online | |||
| 18 | Spring,Tension | V451-001411 | V451-001411-Online | |||
| 8 | Spring,Torsion | V452-000010 | V452-000010-Online | |||
| 16 | Spring,Torsion | V452-001380 | V452-001380-Online | |||
| 18 | Pipe | V470-001910 | V470-001910-Online | |||
| 8 | Pipe | V471-000741 | V471-000741-Online | |||
| 2 | Pipe | V471-002291 | V471-002291-Online | |||
| 4 | Pipe | V471-003381 | V471-003381-Online | |||
| 4 | Pipe | V471-003391 | V471-003391-Online | |||
| 4 | Pipe | V471-003401 | V471-003401-Online | |||
| 4 | Pipe | V471-003411 | V471-003411-Online | |||
| 4 | Tube | V475-001900 | V475-001900-Online | |||
| 6 | Tube | V475-002390 | V475-002390-Online | |||
| 6 | Lead | V485-002430 | V485-002430-Online | 6 | Part No | Part descrition | Page | ||
| 16 | Terminal,Lead | V486-000371 | V486-000371-Online | |||
| 16 | Clip | V490-001230 | V490-001230-Online | |||
| 2 | Clip | V490-001240 | V490-001240-Online | |||
| 4 | Seal,Oil 12 | V505-000011 | V505-000011-Online | |||
| 2 | Bearing,Needle 8 | V553-000130 | V553-000130-Online | |||
| 2 | Bearing,Needle 10 | V555-000170 | V555-000170-Online | |||
| 18 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 18 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 18 | Gear,Worm | V652-000030 | V652-000030-Online | |||
| 2 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 4 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 18 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | |||
| 16 | Bolt, Torx 4 | V804-000050 | V804-000050-Online | |||
| 2 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 14 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 4 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 12 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 16 | Bolt, Torx 5 | V805-000080 | V805-000080-Online | |||
| 8 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | |||
| 4 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | |||
| 8 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 12 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | |||
| 4 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 6 | Bolt, Torx 5 | V805-000240 | V805-000240-Online | |||
| 18 | Bolt, Torx 5 | V805-000270 | V805-000270-Online | |||
| 12 | Bar,Guide 30 | X122-000341 | X122-000341-Online | |||
| 24 | Bar,Guide 35 | X123-000551 | X123-000551-Online | |||
| 24 | Chain,Saw | X222-000130 | X222-000130-Online | |||
| 24 | Chain,Saw | X223-000080 | X223-000080-Online | |||
| 24 | Chain,Saw | X224-000030 | X224-000030-Online | |||
| 24 | Scabbard,Chain | X490-000510 | X490-000510-Online | |||
| 20 | Label,Echo | X502-000340 | X502-000340-Online | |||
| 18 | Label,Echo | X502-000780 | X502-000780-Online | |||
| 14 | Label,Model | X503-012640 | X503-012640-Online | |||
| 8 | Label,Caution | X505-002441 | X505-002441-Online | |||
| 4 | Tool,Wrench | X602-000080 | X602-000080-Online | |||
| 20 | Tool,L Wrench | X605-000190 | X605-000190-Online | 20 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20211027-10_CS-360TES_20_20000001_EN.pdf. Generated 2026-06-25 14:40.
