Echo CS-360TES IPL / Parts List

Echo CS-360TES IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: CS-360TES-Online

Source Pages

Page 1

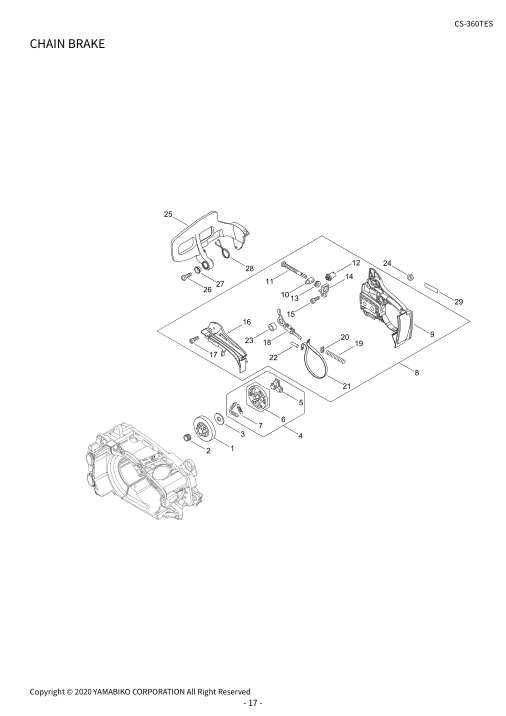

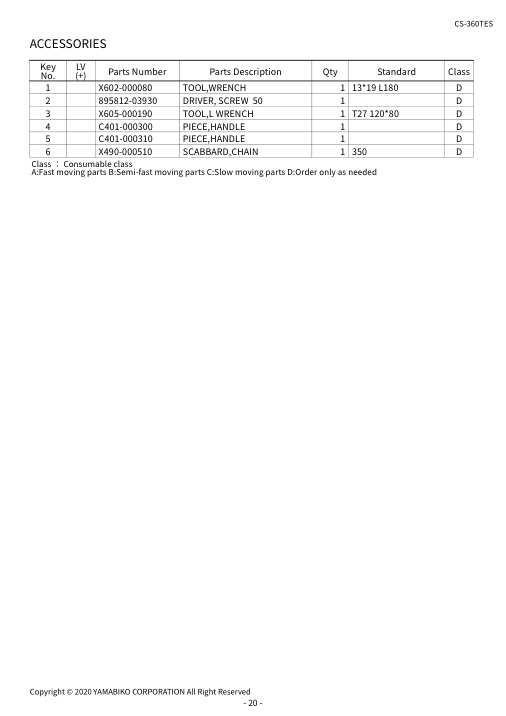

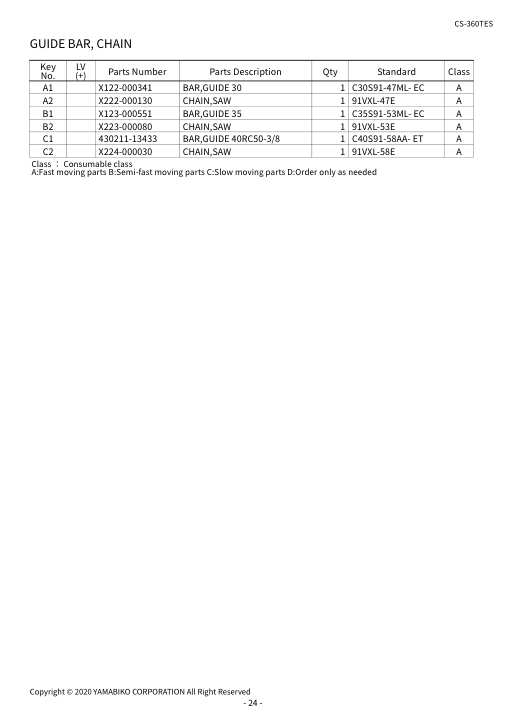

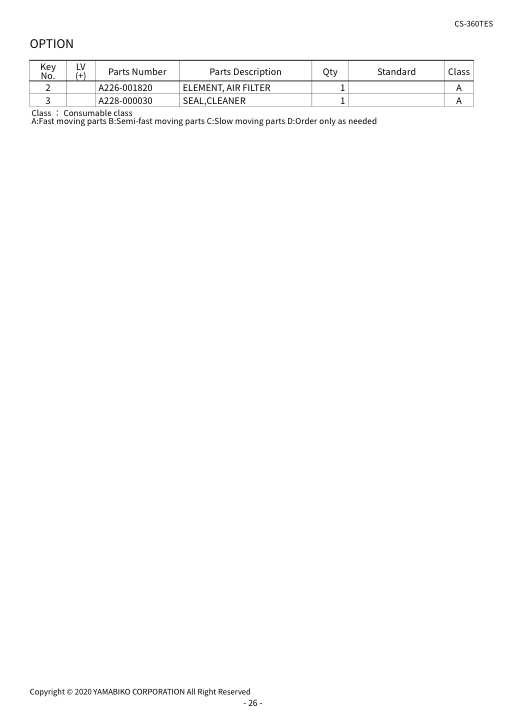

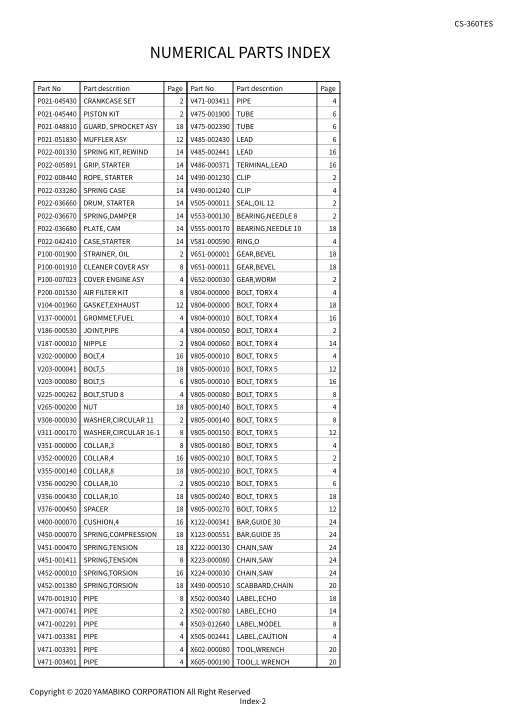

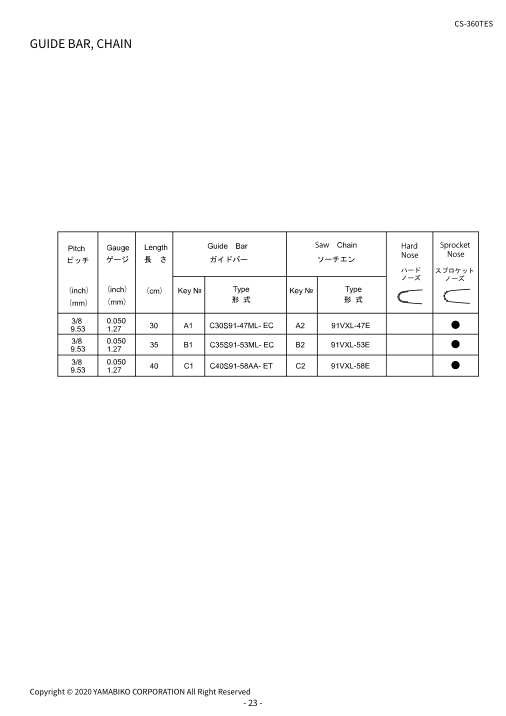

Echo CS-360TES IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo CS-360TES IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo CS-360TES IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo CS-360TES IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo CS-360TES IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo CS-360TES IPL / Parts List source page 6

Tap or click the page image to enlarge it.

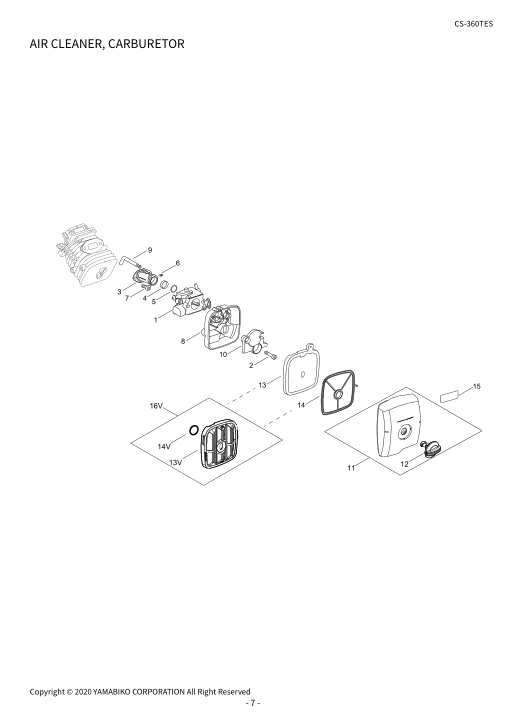

Page 7

Echo CS-360TES IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo CS-360TES IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo CS-360TES IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo CS-360TES IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo CS-360TES IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo CS-360TES IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo CS-360TES IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo CS-360TES IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo CS-360TES IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo CS-360TES IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo CS-360TES IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 18

Echo CS-360TES IPL / Parts List source page 18

Tap or click the page image to enlarge it.

Page 19

Echo CS-360TES IPL / Parts List source page 19

Tap or click the page image to enlarge it.

Page 20

Echo CS-360TES IPL / Parts List source page 20

Tap or click the page image to enlarge it.

Page 21

Echo CS-360TES IPL / Parts List source page 21

Tap or click the page image to enlarge it.

Page 22

Echo CS-360TES IPL / Parts List source page 22

Tap or click the page image to enlarge it.

Page 23

Echo CS-360TES IPL / Parts List source page 23

Tap or click the page image to enlarge it.

Page 24

Echo CS-360TES IPL / Parts List source page 24

Tap or click the page image to enlarge it.

Page 25

Echo CS-360TES IPL / Parts List source page 25

Tap or click the page image to enlarge it.

Page 26

Echo CS-360TES IPL / Parts List source page 26

Tap or click the page image to enlarge it.

Page 27

Echo CS-360TES IPL / Parts List source page 27

Tap or click the page image to enlarge it.

Page 28

Echo CS-360TES IPL / Parts List source page 28

Tap or click the page image to enlarge it.

Page 29

Echo CS-360TES IPL / Parts List source page 29

Tap or click the page image to enlarge it.

Page 30

Echo CS-360TES IPL / Parts List source page 30

Tap or click the page image to enlarge it.

Page 31

Echo CS-360TES IPL / Parts List source page 31

Tap or click the page image to enlarge it.

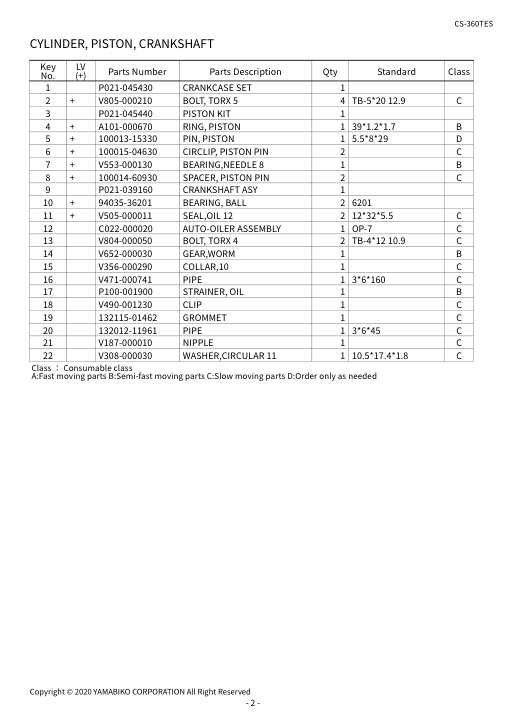

Page 5 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Crankcase Set	P021-045430	P021-045430-Online
2	+		Bolt, Torx 5	V805-000210	V805-000210-Online	4 TB-5*20 12.9
3			Piston Kit	P021-045440	P021-045440-Online
4	+		Ring, Piston	A101-000670	A101-000670-Online	1 391.21.7
5	+		Pin, Piston	100013-15330	100013-15330-Online	1 5.5829
6	+		Circlip, Piston Pin	100015-04630	100015-04630-Online
7	+		Bearing,Needle 8	V553-000130	V553-000130-Online
8	+		Spacer, Piston Pin	100014-60930	100014-60930-Online
9			Crankshaft Asy	P021-039160	P021-039160-Online
10	+		Bearing, Ball	94035-36201	94035-36201-Online	2 6201
11	+		Seal,Oil 12	V505-000011	V505-000011-Online	2 12325.5
12			Auto-Oiler Assembly	C022-000020	C022-000020-Online	1 OP-7
13			Bolt, Torx 4	V804-000050	V804-000050-Online	2 TB-4*12 10.9
14			Gear,Worm	V652-000030	V652-000030-Online
15			Collar,10	V356-000290	V356-000290-Online
16			Pipe	V471-000741	V471-000741-Online	1 36160
17			Strainer, Oil	P100-001900	P100-001900-Online
18			Clip	V490-001230	V490-001230-Online
19			Grommet	132115-01462	132115-01462-Online
20			Pipe	132012-11961	132012-11961-Online	1 3645
21			Nipple	V187-000010	V187-000010-Online
22			Washer,Circular 11	V308-000030	V308-000030-Online	1 10.517.41.8 \| C \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

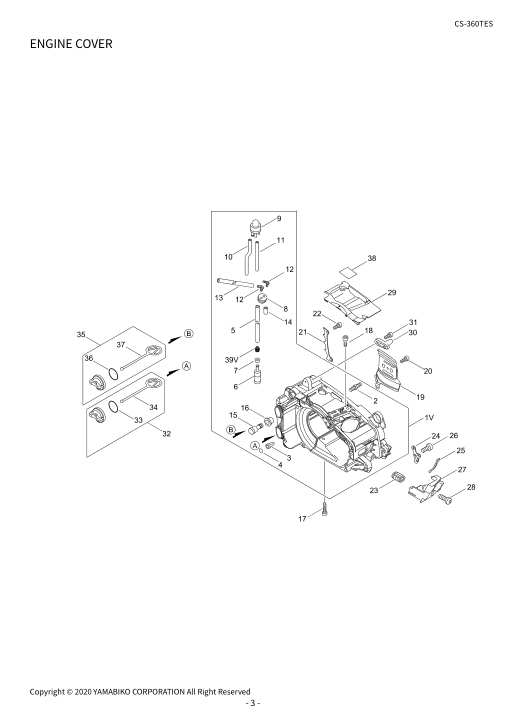

Page 7 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1V			Cover Engine Asy	P100-007023	P100-007023-Online
2	+		Bolt,Stud 8	V225-000262	V225-000262-Online
3	+		Valve, Check	436114-13930	436114-13930-Online
4	+		O-Ring	900724-00004	900724-00004-Online	1 S-4
5	+		Pipe	V471-002291	V471-002291-Online	1 35140
6	+		Strainer, Fuel	A369-000420	A369-000420-Online	1 ES-16499
7	+		Clip	V490-001240	V490-001240-Online
8	+		Grommet, Fuel	132115-44331	132115-44331-Online
9	+		Pump, Primer	123181-39130	123181-39130-Online
10	+		Pipe	V471-003401	V471-003401-Online	1 2.45180
11	+		Pipe	V471-003381	V471-003381-Online	1 2.45400
12	+		Joint,Pipe	V186-000530	V186-000530-Online
13	+		Pipe	V471-003411	V471-003411-Online	1 35265
14	+		Pipe	V471-003391	V471-003391-Online	1 2.4515
15	+		Vent Assembly, Fuel	131300-56431	131300-56431-Online
16	+		Grommet,Fuel	V137-000001	V137-000001-Online
39V	+		Boot	A413-000190	A413-000190-Online
17			Bolt, Torx 5	V805-000180	V805-000180-Online	2 TB-5*30 12.9
18			Bolt, Torx 5	V805-000210	V805-000210-Online	2 TB-5*20 12.9
19			Plate,Sprocket Guard	C305-000430	C305-000430-Online
20			Bolt, Torx 4	V804-000000	V804-000000-Online	1 TT-4*12 DG 10.9
21			Spike	C304-000000	C304-000000-Online
22			Bolt, Torx 5	V805-000010	V805-000010-Online	1 TT-5*20 DG 10.9
23			Pipe,Intake	A239-000000	A239-000000-Online
24			Fixture, Harness	C626-000070	C626-000070-Online
25			Ring, Harness	C646-000100	C646-000100-Online
26			Bolt, Torx 5	V805-000140	V805-000140-Online	1 TB-5*12 10.9
27			Cover,Cap	A429-000160	A429-000160-Online
28			Bolt, Torx 5	V805-000010	V805-000010-Online	1 TT-5*20 DG 10.9
29			Cover,Dust	A127-000371	A127-000371-Online
30			Catcher, Chain	433026-35430	433026-35430-Online
31			Bolt, Torx 5	V805-000010	V805-000010-Online	1 TT-5*20 DG 10.9
32			Cap Asy	P021-005581	P021-005581-Online	1 BLACK
33	+		O-Ring	900720-00018	900720-00018-Online	1 P-18
34	+		Connector,Cap	A365-000050	A365-000050-Online
35			Fuel Cap Asy	P021-038080	P021-038080-Online
36	+		Ring,O	V581-000590	V581-000590-Online	1 P18
37	+		Connector,Cap	A365-000050	A365-000050-Online
38			Label,Caution	X505-002441	X505-002441-Online	1 \| D \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

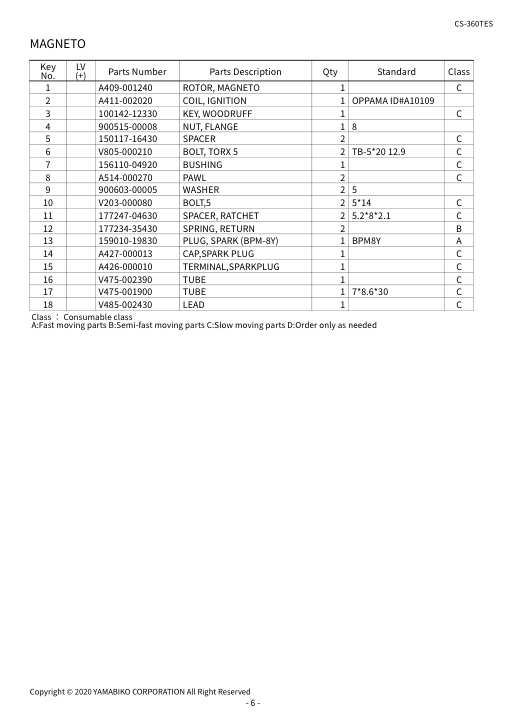

Page 9 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Rotor, Magneto	A409-001240	A409-001240-Online
2			Coil, Ignition	A411-002020	A411-002020-Online	1 OPPAMA ID#A10109
3			Key, Woodruff	100142-12330	100142-12330-Online
4			Nut, Flange	900515-00008	900515-00008-Online	1 8
5			Spacer	150117-16430	150117-16430-Online
6			Bolt, Torx 5	V805-000210	V805-000210-Online	2 TB-5*20 12.9
7			Bushing	156110-04920	156110-04920-Online
8			Pawl	A514-000270	A514-000270-Online
9			Washer	900603-00005	900603-00005-Online	2 5
10			Bolt,5	V203-000080	V203-000080-Online	2 5*14
11			Spacer, Ratchet	177247-04630	177247-04630-Online	2 5.282.1
12			Spring, Return	177234-35430	177234-35430-Online
13			Plug, Spark (Bpm-8Y)	159010-19830	159010-19830-Online	1 BPM8Y
14			Cap,Spark Plug	A427-000013	A427-000013-Online
15			Terminal,Sparkplug	A426-000010	A426-000010-Online
16			Tube	V475-002390	V475-002390-Online
17			Tube	V475-001900	V475-001900-Online	1 78.630
18			Lead	V485-002430	V485-002430-Online	1 \| C \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

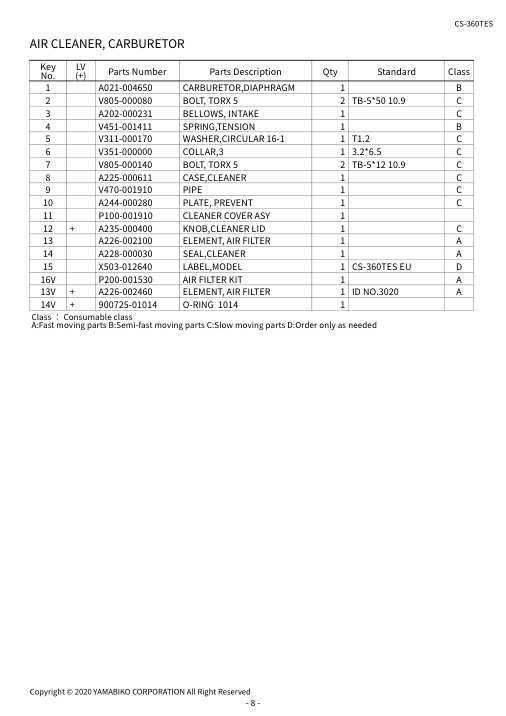

Page 11 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Carburetor,Diaphragm	A021-004650	A021-004650-Online
2			Bolt, Torx 5	V805-000080	V805-000080-Online	2 TB-5*50 10.9
3			Bellows, Intake	A202-000231	A202-000231-Online
4			Spring,Tension	V451-001411	V451-001411-Online
5			Washer,Circular 16-1	V311-000170	V311-000170-Online	1 T1.2
6			Collar,3	V351-000000	V351-000000-Online	1 3.2*6.5
7			Bolt, Torx 5	V805-000140	V805-000140-Online	2 TB-5*12 10.9
8			Case,Cleaner	A225-000611	A225-000611-Online
9			Pipe	V470-001910	V470-001910-Online
10			Plate, Prevent	A244-000280	A244-000280-Online
11			Cleaner Cover Asy	P100-001910	P100-001910-Online
12	+		Knob,Cleaner Lid	A235-000400	A235-000400-Online
13			Element, Air Filter	A226-002100	A226-002100-Online
14			Seal,Cleaner	A228-000030	A228-000030-Online
15			Label,Model	X503-012640	X503-012640-Online	1 CS-360TES EU
16V			Air Filter Kit	P200-001530	P200-001530-Online
13V	+		Element, Air Filter	A226-002460	A226-002460-Online	1 ID NO.3020
14V	+		O-Ring 1014	900725-01014	900725-01014-Online	1 \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed \| AIR CLEANER, CARBURETOR

Page 13 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Carburetor,Diaphragm	A021-004650	A021-004650-Online
2	+		Nozzle, Check Valve	P005-003910	P005-003910-Online
3	+		Shaft Asy,Throttle	P005-003140	P005-003140-Online
4	+		Lever, Throttle	P005-003150	P005-003150-Online
5	+		Screw	125348-13930	125348-13930-Online
6	+		Spring,Thrt.Return	P005-000790	P005-000790-Online
7	+		Valve, Throttle	P005-003160	P005-003160-Online
8	+		Screw	P005-003170	P005-003170-Online
9	+		Clip	125327-13930	125327-13930-Online
10	+		Diaphragm, Pump	P005-001110	P005-001110-Online
11	+		Gasket, Pump	125325-08360	125325-08360-Online
12	+		Cover, Pump	P005-003180	P005-003180-Online
13	+		Screw,Throttleadjust	125334-06960	125334-06960-Online
14	+		Spring, Idle Adjust	125333-33330	125333-33330-Online
15	+		Piece, Friction	125378-13930	125378-13930-Online
16	+		Screw	125310-13930	125310-13930-Online
17	+		Valve, Inlet Needle	125337-08260	125337-08260-Online
18	+		Spring, Coil	125322-13930	125322-13930-Online
19	+		Arm, Valve	125323-08260	125323-08260-Online
20	+		Pin, Metering Arm	125338-13930	125338-13930-Online
21	+		Screw	125339-13930	125339-13930-Online
22	+		Diaphragm ,Metering	P005-003190	P005-003190-Online
23	+		Gasket, Metering	P005-003200	P005-003200-Online
24	+		Cover, Metering	P005-003210	P005-003210-Online
25	+		Screw	P005-003840	P005-003840-Online
26	+		Screw,Main Mixture	P005-003890	P005-003890-Online
27	+		Screw,Idle Mixture	P005-003900	P005-003900-Online
28	+		Retainer	125363-12820	125363-12820-Online
29	+		Shaft, Choke	P005-002390	P005-002390-Online
30	+		Lever, Choke	P005-003230	P005-003230-Online
31	+		Valve, Choke	P005-003240	P005-003240-Online
32	+		Spring, Choke Return	P005-000880	P005-000880-Online
33	+		Clip	125327-15130	125327-15130-Online
34	+		Screen, Fuel Inlet	P005-000860	P005-000860-Online
35	+		Plug, Welch	P005-002400	P005-002400-Online
36	+		Screw	125314-51230	125314-51230-Online	1 3*4.5 \| D \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 15 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Muffler Asy	P021-051830	P021-051830-Online
2	+		Guide, Exhaust	A313-001930	A313-001930-Online
3	+		Screw	900242-04010	900242-04010-Online	3 4*10
4			Gasket,Exhaust	V104-001960	V104-001960-Online
5			Bolt, Torx 5	V805-000270	V805-000270-Online	2 TB-5*40 12.9
6			Plate, Exhust	A312-000070	A312-000070-Online
7			Cover,Muffler	A320-000940	A320-000940-Online
8			Bolt, Torx 5	V805-000010	V805-000010-Online	2 TT-5*20 DG 10.9
9			Bolt, Torx 5	V805-000150	V805-000150-Online	1 TB-5*16 10.9 \| C \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 17 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Starter,Recoil Asy	A051-002511	A051-002511-Online
2	+		Case,Starter	P022-042410	P022-042410-Online
3	+		Drum, Starter	P022-036660	P022-036660-Online
4	+		Spring Kit, Rewind	P022-001330	P022-001330-Online	1 \| B \| 5 \| ++
5			Spring Case	P022-033280	P022-033280-Online
6	+		Screw	177236-61830	177236-61830-Online
7	+		Spring,Damper	P022-036670	P022-036670-Online
8	+		Plate, Cam	P022-036680	P022-036680-Online
9	+		Rope, Starter	P022-008440	P022-008440-Online	1 3.5*900
10	+		Grip, Starter	P022-005891	P022-005891-Online
11			Cover,Fan	A172-002091	A172-002091-Online
12			Bolt, Torx 4	V804-000060	V804-000060-Online	4 TB-4*16 10.9
13			Label,Echo	X502-000780	X502-000780-Online	1 \| D \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 19 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks

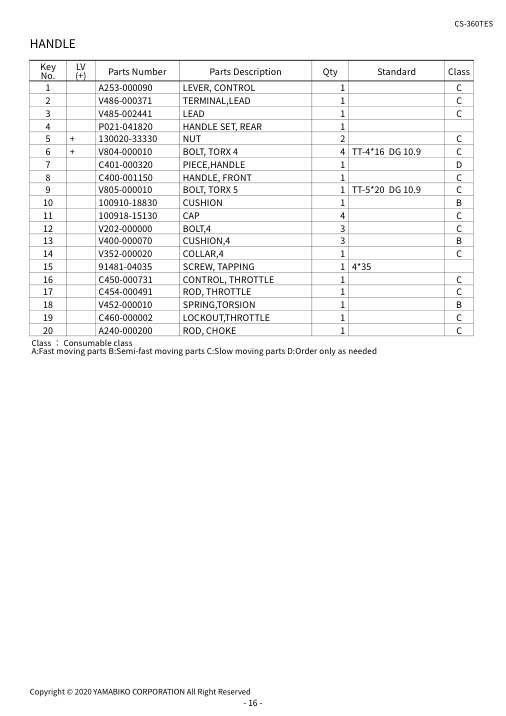

1			Lever, Control	A253-000090	A253-000090-Online
2			Terminal,Lead	V486-000371	V486-000371-Online
3			Lead	V485-002441	V485-002441-Online
4			Handle Set, Rear	P021-041820	P021-041820-Online
6	+		Bolt, Torx 4	V804-000010	V804-000010-Online	4 TT-4*16 DG 10.9
7			Piece,Handle	C401-000320	C401-000320-Online
8			Handle, Front	C400-001150	C400-001150-Online
9			Bolt, Torx 5	V805-000010	V805-000010-Online	1 TT-5*20 DG 10.9
10			Cushion	100910-18830	100910-18830-Online
12			Bolt,4	V202-000000	V202-000000-Online
13			Cushion,4	V400-000070	V400-000070-Online
14			Collar,4	V352-000020	V352-000020-Online
15			Screw, Tapping	91481-04035	91481-04035-Online	1 4*35
16			Control, Throttle	C450-000731	C450-000731-Online
17			Rod, Throttle	C454-000491	C454-000491-Online
18			Spring,Torsion	V452-000010	V452-000010-Online
19			Lockout,Throttle	C460-000002	C460-000002-Online
20			Rod, Choke	A240-000200	A240-000200-Online	1 \| C \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 21 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Drum, Clutch	175005-39133	175005-39133-Online	1 3/8 6T
2			Bearing,Needle 10	V555-000170	V555-000170-Online	1 8E-KV101312.8
3			Plate,Clutch	A551-000010	A551-000010-Online
4			Clutch	A056-000071	A056-000071-Online
5	+		Hub,Clutch	A552-000020	A552-000020-Online
6	+		Clutch Shoe Set	P021-005811	P021-005811-Online
7	+		Spring,Tension	V451-000470	V451-000470-Online
8			Guard, Sprocket Asy	P021-048810	P021-048810-Online
9	+		Guard, Sprocket	C300-000952	C300-000952-Online
10	+		Tensioner,Chain	C309-000030	C309-000030-Online
11	+		Bolt,5	V203-000041	V203-000041-Online
12	+		Gear,Bevel	V651-000001	V651-000001-Online
13	+		Gear,Bevel	V651-000011	V651-000011-Online
14	+		Collar,8	V355-000140	V355-000140-Online
15	+		Bolt, Torx 4	V804-000000	V804-000000-Online	1 TT-4*12 DG 10.9
16	+		Cover,Brake	C345-000520	C345-000520-Online
17	+		Bolt, Torx 4	V804-000000	V804-000000-Online	3 TT-4*12 DG 10.9
18	+		Connector, Brake	C334-000290	C334-000290-Online
19	+		Spring,Compression	V450-000070	V450-000070-Online
20	+		Spacer	V376-000450	V376-000450-Online
21	+		Band, Brake	C328-000310	C328-000310-Online
22	+		Roller	93050-30098	93050-30098-Online	1 3*9.8
23	+		Spacer 8	433116-35430	433116-35430-Online	1 8129
25			Lever, Brake	C320-000501	C320-000501-Online
26			Bolt, Torx 5	V805-000240	V805-000240-Online	1 TT-5*12 DG 10.9
27			Collar,10	V356-000430	V356-000430-Online
28			Spring,Torsion	V452-001380	V452-001380-Online
29			Label,Echo	X502-000340	X502-000340-Online	1 ECHO(WHITE) \| D \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 23 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1			Tool,Wrench	X602-000080	X602-000080-Online	1 13*19 L180
2			Driver, Screw 50	895812-03930	895812-03930-Online
3			Tool,L Wrench	X605-000190	X605-000190-Online	1 T27 120*80
4			Piece,Handle	C401-000300	C401-000300-Online
5			Piece,Handle	C401-000310	C401-000310-Online
6			Scabbard,Chain	X490-000510	X490-000510-Online	1 350 \| D \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 25 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks

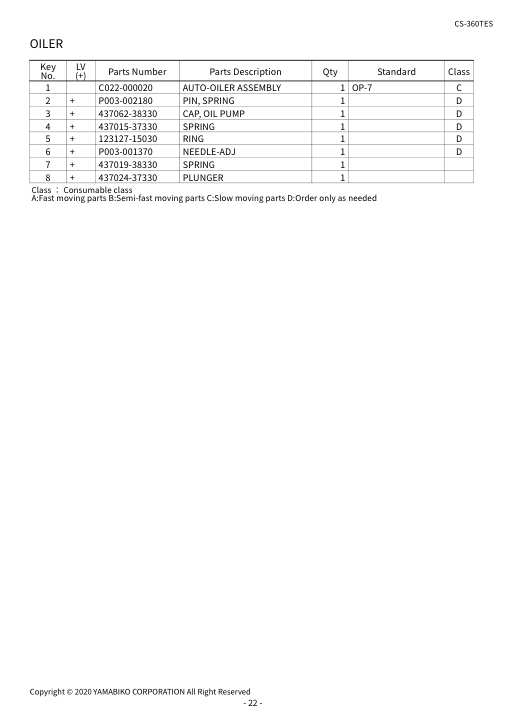

1			Auto-Oiler Assembly	C022-000020	C022-000020-Online	1 OP-7
2	+		Pin, Spring	P003-002180	P003-002180-Online
3	+		Cap, Oil Pump	437062-38330	437062-38330-Online
4	+		Spring	437015-37330	437015-37330-Online
5	+		Ring	123127-15030	123127-15030-Online
6	+		Needle-Adj	P003-001370	P003-001370-Online
7	+		Spring	437019-38330	437019-38330-Online
8	+		Plunger	437024-37330	437024-37330-Online	1 \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed \| OILER

Page 27 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
A			Chain,Saw	X222-000130	X222-000130-Online	1 91VXL-47E \| A \| B1
A			Bar,Guide 35	X123-000551	X123-000551-Online	1 C35S91-53ML- EC \| A \| B2
A			Chain,Saw	X223-000080	X223-000080-Online	1 91VXL-53E \| A \| C1
A			Bar,Guide 40Rc50-3/8	430211-13433	430211-13433-Online	1 C40S91-58AA- ET \| A \| C2
A			Chain,Saw	X224-000030	X224-000030-Online	1 91VXL-58E \| A \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 29 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
2			Element, Air Filter	A226-001820	A226-001820-Online
3			Seal,Cleaner	A228-000030	A228-000030-Online	1 \| A \| Class : Consumable class \| A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 30 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
2			Spacer, Piston Pin	100014-60930	100014-60930-Online
2			Circlip, Piston Pin	100015-04630	100015-04630-Online
2			Key, Woodruff	100142-12330	100142-12330-Online
6			Cushion	100910-18830	100910-18830-Online
16			Ring	123127-15030	123127-15030-Online
22			Pump, Primer	123181-39130	123181-39130-Online
4			Screw	125310-13930	125310-13930-Online
10			Screw	125314-51230	125314-51230-Online
10			Spring, Coil	125322-13930	125322-13930-Online
10			Arm, Valve	125323-08260	125323-08260-Online
10			Gasket, Pump	125325-08360	125325-08360-Online
10			Clip	125327-13930	125327-13930-Online
10			Clip	125327-15130	125327-15130-Online
10			Spring, Idle Adjust	125333-33330	125333-33330-Online
10			Screw,	125334-06960	125334-06960-Online	THROTTLEADJUST
10			Valve, Inlet Needle	125337-08260	125337-08260-Online
10			Pin, Metering Arm	125338-13930	125338-13930-Online
10			Screw	125339-13930	125339-13930-Online
10			Screw	125348-13930	125348-13930-Online
10			Retainer	125363-12820	125363-12820-Online
10			Piece, Friction	125378-13930	125378-13930-Online
16			Vent Assembly, Fuel	131300-56431	131300-56431-Online
4			Pipe	132012-11961	132012-11961-Online
2			Grommet	132115-01462	132115-01462-Online
2			Grommet, Fuel	132115-44331	132115-44331-Online
4			Spacer	150117-16430	150117-16430-Online
6			Bushing	156110-04920	156110-04920-Online
6			Plug, Spark (Bpm-8Y)	159010-19830	159010-19830-Online
6			Drum, Clutch	175005-39133	175005-39133-Online
18			Spring, Return	177234-35430	177234-35430-Online
6			Screw	177236-61830	177236-61830-Online
14			Spacer, Ratchet	177247-04630	177247-04630-Online
6			Bar,Guide 40Rc50-3/8	430211-13433	430211-13433-Online
24			Catcher, Chain	433026-35430	433026-35430-Online
4			Spacer 8	433116-35430	433116-35430-Online
18			Valve, Check	436114-13930	436114-13930-Online
4			Spring	437015-37330	437015-37330-Online
22			Spring	437019-38330	437019-38330-Online
22			Plunger	437024-37330	437024-37330-Online
22			Cap, Oil Pump	437062-38330	437062-38330-Online
22			Driver, Screw 50	895812-03930	895812-03930-Online	20 \| Part No \| Part descrition \| Page
12			Nut, Flange	900515-00008	900515-00008-Online
6			Washer	900603-00005	900603-00005-Online
6			O-Ring	900720-00018	900720-00018-Online
4			O-Ring	900724-00004	900724-00004-Online
4			O-Ring 1014	900725-01014	900725-01014-Online
8			Screw, Tapping	91481-04035	91481-04035-Online
16			Roller	93050-30098	93050-30098-Online
18			Bearing, Ball	94035-36201	94035-36201-Online
2			Carburetor,	A021-004650	A021-004650-Online	DIAPHRAGM
8			Carburetor,	A021-004650	A021-004650-Online	DIAPHRAGM
10			Starter,Recoil Asy	A051-002511	A051-002511-Online
14			Clutch	A056-000071	A056-000071-Online
18			Ring, Piston	A101-000670	A101-000670-Online
2			Cover,Dust	A127-000371	A127-000371-Online
4			Cover,Fan	A172-002091	A172-002091-Online
14			Bellows, Intake	A202-000231	A202-000231-Online
8			Case,Cleaner	A225-000611	A225-000611-Online
8			Element, Air Filter	A226-001820	A226-001820-Online
26			Element, Air Filter	A226-002100	A226-002100-Online
8			Element, Air Filter	A226-002460	A226-002460-Online
8			Seal,Cleaner	A228-000030	A228-000030-Online
26			Knob,Cleaner Lid	A235-000400	A235-000400-Online
8			Pipe,Intake	A239-000000	A239-000000-Online
4			Rod, Choke	A240-000200	A240-000200-Online
16			Plate, Prevent	A244-000280	A244-000280-Online
8			Lever, Control	A253-000090	A253-000090-Online
16			Plate, Exhust	A312-000070	A312-000070-Online
12			Guide, Exhaust	A313-001930	A313-001930-Online
12			Cover,Muffler	A320-000940	A320-000940-Online
12			Connector,Cap	A365-000050	A365-000050-Online
4			Strainer, Fuel	A369-000420	A369-000420-Online
4			Rotor, Magneto	A409-001240	A409-001240-Online
6			Coil, Ignition	A411-002020	A411-002020-Online
6			Boot	A413-000190	A413-000190-Online
4			Terminal,Sparkplug	A426-000010	A426-000010-Online
6			Cap,Spark Plug	A427-000013	A427-000013-Online
6			Cover,Cap	A429-000160	A429-000160-Online
4			Pawl	A514-000270	A514-000270-Online
6			Plate,Clutch	A551-000010	A551-000010-Online
18			Hub,Clutch	A552-000020	A552-000020-Online
18			Auto-Oiler Assembly	C022-000020	C022-000020-Online
2			Auto-Oiler Assembly	C022-000020	C022-000020-Online	22 \| Part No \| Part descrition \| Page
18			Spike	C304-000000	C304-000000-Online
4			Plate,Sprocket	C305-000430	C305-000430-Online	GUARD
4			Tensioner,Chain	C309-000030	C309-000030-Online
18			Lever, Brake	C320-000501	C320-000501-Online
18			Band, Brake	C328-000310	C328-000310-Online
18			Connector, Brake	C334-000290	C334-000290-Online
18			Cover,Brake	C345-000520	C345-000520-Online
18			Handle, Front	C400-001150	C400-001150-Online
16			Piece,Handle	C401-000300	C401-000300-Online
20			Piece,Handle	C401-000310	C401-000310-Online
20			Piece,Handle	C401-000320	C401-000320-Online
16			Control, Throttle	C450-000731	C450-000731-Online
16			Rod, Throttle	C454-000491	C454-000491-Online
16			Lockout,Throttle	C460-000002	C460-000002-Online
16			Fixture, Harness	C626-000070	C626-000070-Online
4			Ring, Harness	C646-000100	C646-000100-Online
4			Needle-Adj	P003-001370	P003-001370-Online
22			Pin, Spring	P003-002180	P003-002180-Online
22			Spring,Thrt.Return	P005-000790	P005-000790-Online
10			Screen, Fuel Inlet	P005-000860	P005-000860-Online
10			Spring, Choke	P005-000880	P005-000880-Online	RETURN
10			Diaphragm, Pump	P005-001110	P005-001110-Online
10			Shaft, Choke	P005-002390	P005-002390-Online
10			Plug, Welch	P005-002400	P005-002400-Online
10			Shaft Asy,Throttle	P005-003140	P005-003140-Online
10			Lever, Throttle	P005-003150	P005-003150-Online
10			Valve, Throttle	P005-003160	P005-003160-Online
10			Screw	P005-003170	P005-003170-Online
10			Cover, Pump	P005-003180	P005-003180-Online
10			Diaphragm ,Metering	P005-003190	P005-003190-Online
10			Gasket, Metering	P005-003200	P005-003200-Online
10			Cover, Metering	P005-003210	P005-003210-Online
10			Lever, Choke	P005-003230	P005-003230-Online
10			Valve, Choke	P005-003240	P005-003240-Online
10			Screw	P005-003840	P005-003840-Online
10			Screw,Main Mixture	P005-003890	P005-003890-Online
10			Screw,Idle Mixture	P005-003900	P005-003900-Online
10			Nozzle, Check Valve	P005-003910	P005-003910-Online
10			Cap Asy	P021-005581	P021-005581-Online
4			Clutch Shoe Set	P021-005811	P021-005811-Online
18			Fuel Cap Asy	P021-038080	P021-038080-Online
4			Crankshaft Asy	P021-039160	P021-039160-Online
2			Handle Set, Rear	P021-041820	P021-041820-Online	16 \| CS-360TES \| Copyright © 2020 YAMABIKO CORPORATION All Right Reserved \| Index-1

Page 31 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
2			Piston Kit	P021-045440	P021-045440-Online
2			Guard, Sprocket Asy	P021-048810	P021-048810-Online
18			Muffler Asy	P021-051830	P021-051830-Online
12			Spring Kit, Rewind	P022-001330	P022-001330-Online
14			Grip, Starter	P022-005891	P022-005891-Online
14			Rope, Starter	P022-008440	P022-008440-Online
14			Spring Case	P022-033280	P022-033280-Online
14			Drum, Starter	P022-036660	P022-036660-Online
14			Spring,Damper	P022-036670	P022-036670-Online
14			Plate, Cam	P022-036680	P022-036680-Online
14			Case,Starter	P022-042410	P022-042410-Online
14			Strainer, Oil	P100-001900	P100-001900-Online
2			Cleaner Cover Asy	P100-001910	P100-001910-Online
8			Cover Engine Asy	P100-007023	P100-007023-Online
4			Air Filter Kit	P200-001530	P200-001530-Online
8			Gasket,Exhaust	V104-001960	V104-001960-Online
12			Grommet,Fuel	V137-000001	V137-000001-Online
4			Joint,Pipe	V186-000530	V186-000530-Online
4			Nipple	V187-000010	V187-000010-Online
2			Bolt,4	V202-000000	V202-000000-Online
16			Bolt,5	V203-000041	V203-000041-Online
18			Bolt,5	V203-000080	V203-000080-Online
6			Bolt,Stud 8	V225-000262	V225-000262-Online
18			Washer,Circular 11	V308-000030	V308-000030-Online
2			Washer,Circular 16-1	V311-000170	V311-000170-Online
8			Collar,3	V351-000000	V351-000000-Online
8			Collar,4	V352-000020	V352-000020-Online
16			Collar,8	V355-000140	V355-000140-Online
18			Collar,10	V356-000290	V356-000290-Online
2			Collar,10	V356-000430	V356-000430-Online
18			Spacer	V376-000450	V376-000450-Online
18			Cushion,4	V400-000070	V400-000070-Online
16			Spring,Compression	V450-000070	V450-000070-Online
18			Spring,Tension	V451-000470	V451-000470-Online
18			Spring,Tension	V451-001411	V451-001411-Online
8			Spring,Torsion	V452-000010	V452-000010-Online
16			Spring,Torsion	V452-001380	V452-001380-Online
18			Pipe	V470-001910	V470-001910-Online
8			Pipe	V471-000741	V471-000741-Online
2			Pipe	V471-002291	V471-002291-Online
4			Pipe	V471-003381	V471-003381-Online
4			Pipe	V471-003391	V471-003391-Online
4			Pipe	V471-003401	V471-003401-Online	4 \| Part No \| Part descrition \| Page
4			Tube	V475-001900	V475-001900-Online
6			Tube	V475-002390	V475-002390-Online
6			Lead	V485-002430	V485-002430-Online
6			Lead	V485-002441	V485-002441-Online
16			Terminal,Lead	V486-000371	V486-000371-Online
16			Clip	V490-001230	V490-001230-Online
2			Clip	V490-001240	V490-001240-Online
4			Seal,Oil 12	V505-000011	V505-000011-Online
2			Bearing,Needle 8	V553-000130	V553-000130-Online
2			Bearing,Needle 10	V555-000170	V555-000170-Online
18			Ring,O	V581-000590	V581-000590-Online
4			Gear,Bevel	V651-000001	V651-000001-Online
18			Gear,Bevel	V651-000011	V651-000011-Online
18			Gear,Worm	V652-000030	V652-000030-Online
2			Bolt, Torx 4	V804-000000	V804-000000-Online
4			Bolt, Torx 4	V804-000000	V804-000000-Online
18			Bolt, Torx 4	V804-000010	V804-000010-Online
16			Bolt, Torx 4	V804-000050	V804-000050-Online
2			Bolt, Torx 4	V804-000060	V804-000060-Online
14			Bolt, Torx 5	V805-000010	V805-000010-Online
4			Bolt, Torx 5	V805-000010	V805-000010-Online
12			Bolt, Torx 5	V805-000010	V805-000010-Online
16			Bolt, Torx 5	V805-000080	V805-000080-Online
8			Bolt, Torx 5	V805-000140	V805-000140-Online
4			Bolt, Torx 5	V805-000140	V805-000140-Online
8			Bolt, Torx 5	V805-000150	V805-000150-Online
12			Bolt, Torx 5	V805-000180	V805-000180-Online
4			Bolt, Torx 5	V805-000210	V805-000210-Online
2			Bolt, Torx 5	V805-000210	V805-000210-Online
6			Bolt, Torx 5	V805-000240	V805-000240-Online
18			Bolt, Torx 5	V805-000270	V805-000270-Online
12			Bar,Guide 30	X122-000341	X122-000341-Online
24			Bar,Guide 35	X123-000551	X123-000551-Online
24			Chain,Saw	X222-000130	X222-000130-Online
24			Chain,Saw	X223-000080	X223-000080-Online
24			Chain,Saw	X224-000030	X224-000030-Online
24			Scabbard,Chain	X490-000510	X490-000510-Online
20			Label,Echo	X502-000340	X502-000340-Online
18			Label,Echo	X502-000780	X502-000780-Online
14			Label,Model	X503-012640	X503-012640-Online
8			Label,Caution	X505-002441	X505-002441-Online
4			Tool,Wrench	X602-000080	X602-000080-Online
20			Tool,L Wrench	X605-000190	X605-000190-Online	20 \| CS-360TES \| Copyright © 2020 YAMABIKO CORPORATION All Right Reserved \| Index-2

Source PDF: 20230626-557-CS-360TES_20_20000001_EN-new2023.pdf. Generated 2026-06-25 14:41.

\n

\n
