Echo HC-2020R IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HC-2020R-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft,Asy | A011-001550 | A011-001550-Online | |||
| 2 | Cylinder | A130-001960 | A130-001960-Online | |||
| 3 | Gasket,Cyl | V100-000720 | V100-000720-Online | |||
| 4 | Piston Kit | P021-007772 | P021-007772-Online | |||
| 5 | + | Ring,Piston | A101-000090 | A101-000090-Online | ||
| 6 | + | Pin, Piston | 100013-11520 | 100013-11520-Online | ||
| 7 | + | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | ||
| 8 | + | Bearing, Needle | 100113-05930 | 100113-05930-Online | 1 8*12*8 | |
| 9 | + | Spacer, Piston Pin | 100014-08960 | 100014-08960-Online | ||
| 10 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 11 | Cover,Cylinder | A160-003580 | A160-003580-Online | 1 HC-2020 | ||
| 12 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 1 TB-5*16 10.9 | ||
| 13 | Nut, Square | 900565-00005 | 900565-00005-Online | 1 5 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CYLINDER, PISTON, CRANKSHAFT |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Set | P100-006080 | P100-006080-Online | |||
| 2 | + | Bearing, Ball | 900810-36000 | 900810-36000-Online | 2 6000 | |
| 3 | + | Oilseal | 100212-61830 | 100212-61830-Online | 2 ISCD 10*20*5 | |
| 4 | + | Gasket,Crankcase | V102-000240 | V102-000240-Online | ||
| 5 | + | Bolt, Torx 5 | V805-000220 | V805-000220-Online | 3 TB-5*25 12.9 | |
| 6 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | 1 TB-4*10 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001360 | A409-001360-Online | 1 ID R10011 | ||
| 2 | Coil, Ignition | A411-001810 | A411-001810-Online | 1 L200+10 | ||
| 3 | Nut L, Flange | 92105-06000 | 92105-06000-Online | 1 6 | ||
| 4 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 5 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 2 TB-4*16 10.9 | ||
| 6 | Pawl | A514-000260 | A514-000260-Online | |||
| 7 | Washer | 131911-03460 | 131911-03460-Online | |||
| 8 | Spacer | 178070-10860 | 178070-10860-Online | |||
| 9 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 2 TB-5*16 10.9 | ||
| 10 | Spring,Torsion | V452-001370 | V452-001370-Online | |||
| 11 | Lead | V485-001220 | V485-001220-Online | 1 L:85 | ||
| 12 | Grommet,Ht Cord | V135-000150 | V135-000150-Online | |||
| 13 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 14 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 15 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

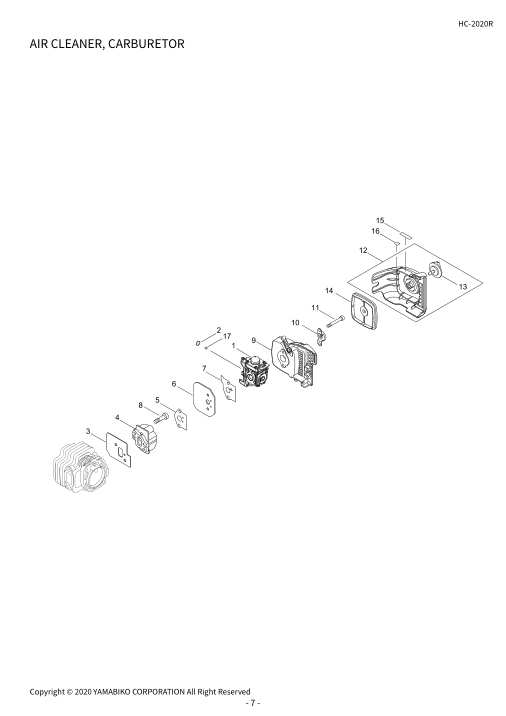

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-004900 | A021-004900-Online | 1 ID:YZ0008 | ||
| 2 | Clip | V490-001100 | V490-001100-Online | |||
| 3 | Gasket,Intake | V103-002030 | V103-002030-Online | 1 T1.0 | ||
| 4 | Insulator, Intake | A200-001200 | A200-001200-Online | |||
| 5 | Gasket,Intake | V103-002020 | V103-002020-Online | |||
| 6 | Plate, Insulator | A209-000610 | A209-000610-Online | |||
| 7 | Gasket,Intake | V103-001740 | V103-001740-Online | |||
| 8 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 2 TB-5*25 10.9 | ||
| 9 | Case,Cleaner | P021-049871 | P021-049871-Online | |||
| 10 | Plate,Prevent | A244-000070 | A244-000070-Online | |||
| 11 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | 2 TB-5*65 10.9 | ||
| 12 | Cleaner Cover Asy | P021-049130 | P021-049130-Online | |||
| 13 | + | Knob,Fastener | V299-000610 | V299-000610-Online | ||
| 14 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 15 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 16 | Label | X524-001901 | X524-001901-Online | |||
| 17 | Cap,Limiter | A259-000010 | A259-000010-Online | 1 | B | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-004900 | A021-004900-Online | 1 ID:YZ0008 | ||
| 2 | + | Strainer | P005-000010 | P005-000010-Online | ||
| 3 | + | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | ||
| 4 | + | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | ||
| 5 | + | Spring, Meter. Lever | P005-000940 | P005-000940-Online | ||
| 6 | + | Arm, Valve | 125323-08260 | 125323-08260-Online | ||
| 7 | + | Screw | 125339-42030 | 125339-42030-Online | ||
| 8 | + | Cover Asy, Rotor | P005-002050 | P005-002050-Online | ||
| 9 | + | Screw,Throttleadjust | P005-000100 | P005-000100-Online | ||
| 10 | + | Screw | 125344-13931 | 125344-13931-Online | ||
| 11 | + | Post | P005-002200 | P005-002200-Online | ||
| 12 | + | E-Ring | P005-000190 | P005-000190-Online | ||
| 13 | + | Diaphragm ,Metering | P005-003760 | P005-003760-Online | ||
| 14 | + | Gasket, Metering | P005-000200 | P005-000200-Online | ||
| 15 | + | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | ||
| 16 | + | Screw | 125344-52130 | 125344-52130-Online | ||
| 17 | + | Diaphragm, Pump | P005-000510 | P005-000510-Online | ||
| 18 | + | Gasket, Pump | P005-000520 | P005-000520-Online | ||
| 19 | + | Base, Asy Primer | P005-004240 | P005-004240-Online | ||
| 20 | + | Pump, Primer | P005-003110 | P005-003110-Online | ||
| 21 | + | Retainer | P005-000250 | P005-000250-Online | ||
| 22 | + | Screw | P005-001900 | P005-001900-Online | ||
| 23 | + | Screw | P005-000270 | P005-000270-Online | ||
| 24 | + | Ring,O | P005-004260 | P005-004260-Online | ||
| 25 | + | Roller, Guide | P005-001000 | P005-001000-Online | ||
| 26 | + | Retainer,Plug Ball | P005-001250 | P005-001250-Online | ||
| 27 | + | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | ||
| 28 | + | Plug, Ajust Screw | P005-001270 | P005-001270-Online | 1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CARBURETOR |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank, Fuel | A350-002520 | A350-002520-Online | |||
| 2 | Cushion | V420-004490 | V420-004490-Online | |||
| 3 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | 2 TB-5*20 10.9 | ||
| 4 | Washer | 900603-00005 | 900603-00005-Online | 2 5 | ||
| 5 | Fuel Cap Asy | P100-006051 | P100-006051-Online | |||
| 6 | + | Gasket,Fuel Cap | V107-000190 | V107-000190-Online | 1 37.9*Ｔ2.2 | |
| 7 | + | Connector,Cap | A365-000050 | A365-000050-Online | ||
| 8 | Grommet, Fuel | 132115-44331 | 132115-44331-Online | |||
| 9 | Grommet,Fuel | V137-000150 | V137-000150-Online | |||
| 10 | Valve, Check | 131314-35430 | 131314-35430-Online | |||
| 11 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 12 | Strainer, Fuel | A369-000480 | A369-000480-Online | 1 125-959 | ||
| 13 | Clip | V490-001240 | V490-001240-Online | |||
| 14 | Pipe | V471-005540 | V471-005540-Online | 1 3*5*210 | ||
| 15 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 1 3*6*90 YL | ||
| 16 | Label,Operation | X532-005650 | X532-005650-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P100-009110 | P100-009110-Online | |||
| 2 | + | Guide, Exhaust | A313-002120 | A313-002120-Online | 1 ID#2920 | |
| 3 | + | Gasket,Exhaust | V104-002530 | V104-002530-Online | 1 T:1.5 | |
| 4 | + | Screen, Muffler | 145862-40630 | 145862-40630-Online | ||
| 5 | + | Bolt, Torx 4 | V804-000030 | V804-000030-Online | 3 TB-4*8 10.9 | |
| 6 | Gasket,Exhaust | V104-002190 | V104-002190-Online | |||
| 7 | Bolt, Torx 5 | V805-000190 | V805-000190-Online | 2 TB-5*55 12.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil Asy | A051-003390 | A051-003390-Online | |||
| 2 | + | Case, Starter | P022-051640 | P022-051640-Online | 1 | 3 | ++ | |
| 3 | Guide, Rope | P022-045770 | P022-045770-Online | 1 | 4 | ++ | ||
| 5 | + | Drum, Starter | P022-051650 | P022-051650-Online | ||
| 6 | + | Spring, Spiral | P022-019680 | P022-019680-Online | ||
| 7 | + | Screw | 177236-44330 | 177236-44330-Online | ||
| 8 | + | Rope, Starter | P022-039290 | P022-039290-Online | ||
| 9 | + | Grip, Starter | P022-051660 | P022-051660-Online | ||
| 10 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 4 TB-4*16 10.9 | ||
| 11 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 2 TT-5*16 DG 10.9 | ||
| 12 | Label,Echo | X502-001200 | X502-001200-Online | 1 EHCO+HC-2020R | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case,Gear Asy | P100-006070 | P100-006070-Online | |||
| 2 | + | Nipple, Grease | 880110-54230 | 880110-54230-Online | ||
| 3 | Lid,Gearcase | C539-000190 | C539-000190-Online | 1 T1.6 | ||
| 4 | Gasket,Gear Case | V110-000230 | V110-000230-Online | 1 T0.3 | ||
| 5 | Bolt, Torx 4 | V804-000050 | V804-000050-Online | 4 TB-4*12 10.9 | ||
| 6 | Gear,Spur | V650-000740 | V650-000740-Online | |||
| 7 | Drum, Clutch | A556-001840 | A556-001840-Online | 1 50 T1.4 | ||
| 8 | Bearing, Ball | 900800-06002 | 900800-06002-Online | 1 6002 | ||
| 9 | Bearing, Ball | 900802-06002 | 900802-06002-Online | 1 6002LLU(DDU) | ||
| 10 | Retaining Ring, External | 900701-00014 | 900701-00014-Online | 1 CS-14 | ||
| 11 | Retaining Ring, Internal | 900702-00032 | 900702-00032-Online | 1 CR-32 | ||
| 12 | Seal | V541-000750 | V541-000750-Online | |||
| 13 | Bolt, Torx 6 | V806-000130 | V806-000130-Online | 3 TB-6*16 ALL 10.9 | ||
| 14 | Clutch Asy | A056-000790 | A056-000790-Online | 1 | B | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cutter Set | P100-008710 | P100-008710-Online | |||
| 2 | + | Cutter | X412-000850 | X412-000850-Online | ||
| 3 | + | Support,Cutter | X425-001150 | X425-001150-Online | ||
| 4 | + | Bolt, Torx 5 | V805-000370 | V805-000370-Online | 1 TB-5*35 ALL 12.9 | |
| 5 | + | Bolt | V204-000570 | V204-000570-Online | ||
| 6 | + | Washer | 699118-04560 | 699118-04560-Online | ||
| 7 | + | Screw | 900212-05030 | 900212-05030-Online | 1 5*30 | |
| 8 | + | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 3 TB-5*20 12.9 | |
| 9 | + | Plate,Eye | V150-004720 | V150-004720-Online | 1 T:1.2 | |
| 10 | + | Collar | V353-000250 | V353-000250-Online | 4 9*7.45*5.3 | |
| 12 | Blunt | X431-000200 | X431-000200-Online | |||
| 13 | Nut, Flange | 92108-05000 | 92108-05000-Online | 1 5 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CUTTING BLADE |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle, Front | C400-000533 | C400-000533-Online | |||
| 2 | Washer | 351611-05360 | 351611-05360-Online | |||
| 3 | Nut, Flange | 92108-05000 | 92108-05000-Online | 2 5 | ||
| 4 | Handle, Rear | 351010-13361 | 351010-13361-Online | |||
| 5 | Handle | 351210-13361 | 351210-13361-Online | |||
| 6 | Lockout, Throttle | 178012-13360 | 178012-13360-Online | |||
| 7 | Trigger, Throttle | 178010-13361 | 178010-13361-Online | |||
| 8 | Spring, Torsion | 178013-13660 | 178013-13660-Online | |||
| 9 | Stopper, Handle | 351648-13360 | 351648-13360-Online | |||
| 10 | Spring,Torsion | 178043-13660 | 178043-13660-Online | |||
| 11 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | 5 TT-4*16 DG 10.9 | ||
| 12 | Switch, On Off | A440-003460 | A440-003460-Online | |||
| 13 | Cable,Bowden | V430-004680 | V430-004680-Online | |||
| 14 | Nut, Flange | 900515-00006 | 900515-00006-Online | 1 6 | ||
| 15 | Nut | 900502-00006 | 900502-00006-Online | 1 6 | ||
| 16 | Tube | V475-007040 | V475-007040-Online | 1 7*210 | ||
| 17 | Latch Asy | P100-007520 | P100-007520-Online | |||
| 18 | Bracket, Handle | 351312-13361 | 351312-13361-Online | |||
| 19 | Washer,Circuar | 689025-13361 | 689025-13361-Online | |||
| 20 | Washer | 178129-13361 | 178129-13361-Online | |||
| 21 | Bracket, Handle | 351313-13361 | 351313-13361-Online | |||
| 22 | Bolt, Torx 5 | V805-000050 | V805-000050-Online | 2 TB-5*30 10.9 | ||
| 24 | Spring | 178043-13360 | 178043-13360-Online | |||
| 25 | Bolt, Torx 5 | V805-000280 | V805-000280-Online | 2 TB-5*45 10.9 | ||
| 26 | Nut, Flange | 92108-05000 | 92108-05000-Online | 2 5 | ||
| 27 | Label,Caution | X505-002030 | X505-002030-Online | 1 37*35 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 2 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 3 | Scabbard,Blade | X495-000630 | X495-000630-Online | 1 L585 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Spacer, Piston Pin | 100014-08960 | 100014-08960-Online | |||
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Bearing, Needle | 100113-05930 | 100113-05930-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 6 | Oilseal | 100212-61830 | 100212-61830-Online | |||
| 4 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 10 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 10 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 10 | Screw | 125339-42030 | 125339-42030-Online | |||
| 10 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |||
| 10 | Screw | 125344-13931 | 125344-13931-Online | |||
| 10 | Screw | 125344-52130 | 125344-52130-Online | |||
| 10 | Valve, Check | 131314-35430 | 131314-35430-Online | |||
| 12 | Washer | 131911-03460 | 131911-03460-Online | |||
| 6 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | |||
| 12 | Grommet, Fuel | 132115-44331 | 132115-44331-Online | |||
| 12 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 14 | Screw | 177236-44330 | 177236-44330-Online | |||
| 16 | Trigger, Throttle | 178010-13361 | 178010-13361-Online | |||
| 22 | Lockout, Throttle | 178012-13360 | 178012-13360-Online | |||
| 22 | Spring, Torsion | 178013-13660 | 178013-13660-Online | |||
| 22 | Spring | 178043-13360 | 178043-13360-Online | |||
| 22 | Spring,Torsion | 178043-13660 | 178043-13660-Online | |||
| 22 | Spacer | 178070-10860 | 178070-10860-Online | |||
| 6 | Washer | 178129-13361 | 178129-13361-Online | |||
| 22 | Handle, Rear | 351010-13361 | 351010-13361-Online | |||
| 22 | Handle | 351210-13361 | 351210-13361-Online | |||
| 22 | Bracket, Handle | 351312-13361 | 351312-13361-Online | |||
| 22 | Bracket, Handle | 351313-13361 | 351313-13361-Online | |||
| 22 | Washer | 351611-05360 | 351611-05360-Online | |||
| 22 | Stopper, Handle | 351648-13360 | 351648-13360-Online | |||
| 22 | Washer,Circuar | 689025-13361 | 689025-13361-Online | |||
| 22 | Washer | 699118-04560 | 699118-04560-Online | |||
| 20 | Nipple, Grease | 880110-54230 | 880110-54230-Online | |||
| 18 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 8 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 24 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 24 | Screw | 900212-05030 | 900212-05030-Online | |||
| 22 | Nut, Flange | 900515-00006 | 900515-00006-Online | |||
| 22 | Nut, Square | 900565-00005 | 900565-00005-Online | |||
| 2 | Washer | 900603-00005 | 900603-00005-Online | 12 | Part No | Part descrition | Page | ||
| 18 | Retaining Ring, | 900702-00032 | 900702-00032-Online | INTERNAL | ||
| 18 | Bearing, Ball | 900800-06002 | 900800-06002-Online | |||
| 18 | Bearing, Ball | 900802-06002 | 900802-06002-Online | |||
| 18 | Bearing, Ball | 900810-36000 | 900810-36000-Online | |||
| 4 | Nut L, Flange | 92105-06000 | 92105-06000-Online | |||
| 6 | Nut, Flange | 92108-05000 | 92108-05000-Online | |||
| 20 | Nut, Flange | 92108-05000 | 92108-05000-Online | |||
| 22 | Crankshaft,Asy | A011-001550 | A011-001550-Online | |||
| 2 | Carburetor, | A021-004900 | A021-004900-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-004900 | A021-004900-Online | DIAPHRAGM | ||
| 10 | Starter,Recoil Asy | A051-003390 | A051-003390-Online | |||
| 16 | Clutch Asy | A056-000790 | A056-000790-Online | |||
| 18 | Ring,Piston | A101-000090 | A101-000090-Online | |||
| 2 | Cylinder | A130-001960 | A130-001960-Online | |||
| 2 | Cover,Cylinder | A160-003580 | A160-003580-Online | |||
| 2 | Insulator, Intake | A200-001200 | A200-001200-Online | |||
| 8 | Plate, Insulator | A209-000610 | A209-000610-Online | |||
| 8 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 8 | Plate,Prevent | A244-000070 | A244-000070-Online | |||
| 8 | Cap,Limiter | A259-000010 | A259-000010-Online | |||
| 8 | Guide, Exhaust | A313-002120 | A313-002120-Online | |||
| 14 | Tank, Fuel | A350-002520 | A350-002520-Online | |||
| 12 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 12 | Connector,Cap | A365-000050 | A365-000050-Online | |||
| 12 | Strainer, Fuel | A369-000480 | A369-000480-Online | |||
| 12 | Rotor, Magneto | A409-001360 | A409-001360-Online | |||
| 6 | Coil, Ignition | A411-001810 | A411-001810-Online | |||
| 6 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 6 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 6 | Switch, On Off | A440-003460 | A440-003460-Online | |||
| 22 | Pawl | A514-000260 | A514-000260-Online | |||
| 6 | Drum, Clutch | A556-001840 | A556-001840-Online | |||
| 18 | Handle, Front | C400-000533 | C400-000533-Online | |||
| 22 | Lid,Gearcase | C539-000190 | C539-000190-Online | |||
| 18 | Strainer | P005-000010 | P005-000010-Online | |||
| 10 | Screw, | P005-000100 | P005-000100-Online | THROTTLEADJUST | ||
| 10 | E-Ring | P005-000190 | P005-000190-Online | |||
| 10 | Gasket, Metering | P005-000200 | P005-000200-Online | |||
| 10 | Retainer | P005-000250 | P005-000250-Online | |||
| 10 | Screw | P005-000270 | P005-000270-Online | |||
| 10 | Diaphragm, Pump | P005-000510 | P005-000510-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |||
| 10 | Roller, Guide | P005-001000 | P005-001000-Online | |||
| 10 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |||
| 10 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |||
| 10 | Plug, Ajust Screw | P005-001270 | P005-001270-Online | |||
| 10 | Screw | P005-001900 | P005-001900-Online | |||
| 10 | Cover Asy, Rotor | P005-002050 | P005-002050-Online | |||
| 10 | Post | P005-002200 | P005-002200-Online | |||
| 10 | Pump, Primer | P005-003110 | P005-003110-Online | |||
| 10 | Diaphragm ,Metering | P005-003760 | P005-003760-Online | |||
| 10 | Base, Asy Primer | P005-004240 | P005-004240-Online | |||
| 10 | Ring,O | P005-004260 | P005-004260-Online | |||
| 10 | Piston Kit | P021-007772 | P021-007772-Online | |||
| 2 | Cleaner Cover Asy | P021-049130 | P021-049130-Online | |||
| 8 | Case,Cleaner | P021-049871 | P021-049871-Online | |||
| 8 | Spring, Spiral | P022-019680 | P022-019680-Online | |||
| 16 | Rope, Starter | P022-039290 | P022-039290-Online | |||
| 16 | Guide, Rope | P022-045770 | P022-045770-Online | |||
| 16 | Case, Starter | P022-051640 | P022-051640-Online | |||
| 16 | Drum, Starter | P022-051650 | P022-051650-Online | |||
| 16 | Grip, Starter | P022-051660 | P022-051660-Online | |||
| 16 | Fuel Cap Asy | P100-006051 | P100-006051-Online | |||
| 12 | Case,Gear Asy | P100-006070 | P100-006070-Online | |||
| 18 | Crankcase Set | P100-006080 | P100-006080-Online | |||
| 4 | Latch Asy | P100-007520 | P100-007520-Online | |||
| 22 | Cutter Set | P100-008710 | P100-008710-Online | |||
| 20 | Muffler Asy | P100-009110 | P100-009110-Online | |||
| 14 | Gasket,Cyl | V100-000720 | V100-000720-Online | |||
| 2 | Gasket,Crankcase | V102-000240 | V102-000240-Online | |||
| 4 | Gasket,Intake | V103-001740 | V103-001740-Online | |||
| 8 | Gasket,Intake | V103-002020 | V103-002020-Online | |||
| 8 | Gasket,Intake | V103-002030 | V103-002030-Online | |||
| 8 | Gasket,Exhaust | V104-002190 | V104-002190-Online | |||
| 14 | Gasket,Exhaust | V104-002530 | V104-002530-Online | |||
| 14 | Gasket,Fuel Cap | V107-000190 | V107-000190-Online | |||
| 12 | Gasket,Gear Case | V110-000230 | V110-000230-Online | |||
| 18 | Grommet,Ht Cord | V135-000150 | V135-000150-Online | |||
| 6 | Grommet,Fuel | V137-000150 | V137-000150-Online | |||
| 12 | Plate,Eye | V150-004720 | V150-004720-Online | |||
| 20 | Bolt | V204-000570 | V204-000570-Online | |||
| 20 | Knob,Fastener | V299-000610 | V299-000610-Online | |||
| 8 | Collar | V353-000250 | V353-000250-Online | |||
| 20 | Cushion | V420-004490 | V420-004490-Online | 12 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | Spring,Torsion | V452-001370 | V452-001370-Online | |||
| 6 | Pipe | V471-005540 | V471-005540-Online | |||
| 12 | Tube | V475-007040 | V475-007040-Online | |||
| 22 | Lead | V485-001220 | V485-001220-Online | |||
| 6 | Clip | V490-001100 | V490-001100-Online | |||
| 8 | Clip | V490-001240 | V490-001240-Online | |||
| 12 | Seal | V541-000750 | V541-000750-Online | |||
| 18 | Gear,Spur | V650-000740 | V650-000740-Online | |||
| 18 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | |||
| 22 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | |||
| 14 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | |||
| 4 | Bolt, Torx 4 | V804-000050 | V804-000050-Online | |||
| 18 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 6 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 16 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 16 | Bolt, Torx 5 | V805-000050 | V805-000050-Online | |||
| 22 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | |||
| 8 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 2 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 6 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | |||
| 12 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | |||
| 8 | Bolt, Torx 5 | V805-000190 | V805-000190-Online | |||
| 14 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 20 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 4 | Bolt, Torx 5 | V805-000280 | V805-000280-Online | |||
| 22 | Bolt, Torx 5 | V805-000370 | V805-000370-Online | |||
| 20 | Bolt, Torx 6 | V806-000130 | V806-000130-Online | |||
| 18 | Cutter | X412-000850 | X412-000850-Online | |||
| 20 | Support,Cutter | X425-001150 | X425-001150-Online | |||
| 20 | Blunt | X431-000200 | X431-000200-Online | |||
| 20 | Scabbard,Blade | X495-000630 | X495-000630-Online | |||
| 24 | Label,Echo | X502-001200 | X502-001200-Online | |||
| 16 | Label,Caution | X505-002030 | X505-002030-Online | |||
| 22 | Label | X524-001901 | X524-001901-Online | |||
| 8 | Label,Operation | X532-005650 | X532-005650-Online | 12 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20221018-569-HC-2020R_38_38000001_EN.pdf. Generated 2026-06-25 14:40.
