Echo HC-155ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HC-155ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

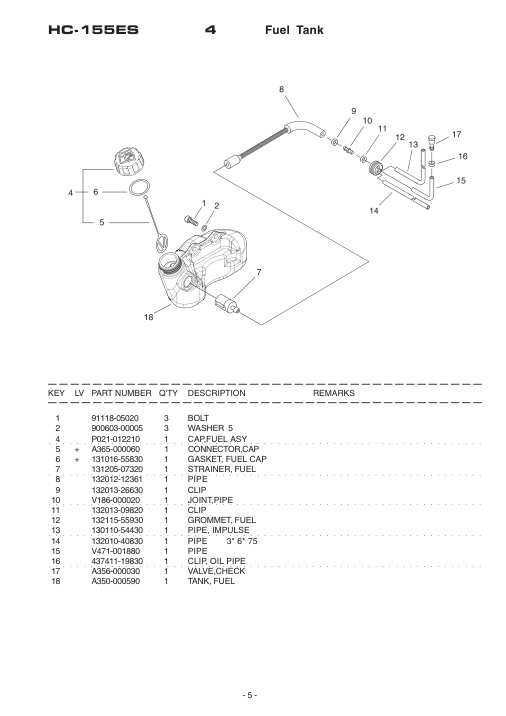

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Crankcase Kit | 100204-52133 | 100204-52133-Online | ||
| 2 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | |
| 3 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | |
| 4 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | |
| 5 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 6 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 7 | 1 | Crankshaft,Asm | A011-000223 | A011-000223-Online | ||
| 8 | 1 | Piston Kit | P021-007772 | P021-007772-Online | ||
| 9 | + | 2 | Spacer, Piston Pin | 100014-08960 | 100014-08960-Online | |
| 10 | + | 1 | Bearing, Needle | 100113-05930 | 100113-05930-Online | |
| 11 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 12 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 13 | + | 1 | Ring,Piston | A101-000090 | A101-000090-Online | |
| 14 | 1 | Gasket,Cyl | V100-000160 | V100-000160-Online | ||
| 15 | 1 | Cylinder | A130-000550 | A130-000550-Online | ||
| 16 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | ||
| 17 | 1 | Cover,Cylinder | A160-000880 | A160-000880-Online | ||
| 18 | 1 | Bolt, Flange | 91121-05016 | 91121-05016-Online | ||
| 19 | 1 | Cover,Dust | A127-000170 | A127-000170-Online | ||
| 21 | 1 | Bolt | 91118-05016 | 91118-05016-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ||
| 2 | 4 | Bolt,4 | V202-000090 | V202-000090-Online | ||
| 3 | 1 | Bolt,4 | V202-000030 | V202-000030-Online | ||
| 4 | 1 | Starter,Recoil Asy | A051-001110 | A051-001110-Online | ||
| 5 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 6 | + | 1 | Drum | P022-006830 | P022-006830-Online | |
| 7 | + | 1 | Spring,Torsion | V452-000150 | V452-000150-Online | |
| 8 | + | 1 | Catcher,Pawl | A507-000030 | A507-000030-Online | |
| 9 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 10 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 11 | + | 1 | Rope | P022-008260 | P022-008260-Online | |
| 12 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 13 | + | 1 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |
| 16 | 1 | Label,Model | X503-010860 | X503-010860-Online | ||
| 17 | 1 | Pulley,Asm Starter | A052-000210 | A052-000210-Online | ||
| 18 | + | 2 | Pawl, Starter | P022-020030 | P022-020030-Online | |
| 19 | + | 2 | Spring, Return | P022-007980 | P022-007980-Online | |
| 20 | 1 | Washer 8 | 900600-00008 | 900600-00008-Online | ||
| 21 | 1 | Nut 3N 8 (L-H) | 900512-00008 | 900512-00008-Online | ||
| 22 | 1 | Rotor,Magneto | A409-000210 | A409-000210-Online | ||
| 23 | 1 | Tube | V475-001610 | V475-001610-Online | ||
| 24 | 2 | Bolt | 91113-04020 | 91113-04020-Online | ||
| 25 | 1 | Coil,Ignition | A411-000130 | A411-000130-Online | ||
| 26 | 1 | Lead | V485-000870 | V485-000870-Online | HC-155ES | 2 | Starter, Magneto |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 1 | Sparkplug | A425-000000 | A425-000000-Online | ||
| 28 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 29 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 30 | 1 | Washer | 610350-12360 | 610350-12360-Online | ||
| 31 | 1 | Clutch Asy | A056-000190 | A056-000190-Online | ||
| 32 | + | 2 | Spring, Clutch | A566-000000 | A566-000000-Online | |
| 33 | + | 2 | Shoe, Clutch | 175017-44331 | 175017-44331-Online | |
| 34 | + | 1 | Hub, Clutch | A552-000080 | A552-000080-Online | |
| 35 | 1 | Case,Clutch | A570-000160 | A570-000160-Online | ||
| 36 | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | HC-155ES | 2 | Starter, Magneto |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | ||
| 2 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 3 | 1 | Muffler | 145806-42030 | 145806-42030-Online | ||
| 4 | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | ||
| 5 | 1 | Guide, Exhaust | A313-001710 | A313-001710-Online | ||
| 6 | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | ||
| 9 | 1 | Gasket,Exhaust | V104-000850 | V104-000850-Online | ||
| 10 | 1 | Cover,Muffler | A320-000430 | A320-000430-Online | ||
| 12 | 2 | Bolt, Flange | 91121-05016 | 91121-05016-Online | ||
| 13 | 1 | Gasket,Intake | V103-000180 | V103-000180-Online | ||
| 14 | 1 | Insulator, Intake | A200-000300 | A200-000300-Online | ||
| 15 | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | ||
| 16 | 1 | Gasket,Intake | V103-000410 | V103-000410-Online | ||
| 17 | 1 | Carburetor,Diaphragm | A021-001610 | A021-001610-Online | ||
| 21 | 1 | Cleaner Case Asy | P021-012870 | P021-012870-Online | ||
| 22 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 23 | 2 | Screw 5*65 | 900242-05065 | 900242-05065-Online | ||
| 24 | 1 | Element,Air Filter | A226-001410 | A226-001410-Online | ||
| 25 | 1 | Lid,Cleaner | A232-000400 | A232-000400-Online | ||
| 26 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online | ||
| 27 | 1 | Knob,Fastener | V299-000250 | V299-000250-Online | HC-155ES | 3 | Air Cleaner. Muffler |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 3 | Bolt | 91118-05020 | 91118-05020-Online | ||
| 2 | 3 | Washer 5 | 900603-00005 | 900603-00005-Online | ||
| 4 | 1 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | ||
| 5 | + | 1 | Connector,Cap | A365-000060 | A365-000060-Online | |
| 6 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 7 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 8 | 1 | Pipe | 132012-12361 | 132012-12361-Online | ||
| 9 | 1 | Clip | 132013-26630 | 132013-26630-Online | ||
| 10 | 1 | Joint,Pipe | V186-000020 | V186-000020-Online | ||
| 11 | 1 | Clip | 132013-09820 | 132013-09820-Online | ||
| 12 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 13 | 1 | Pipe, Impulse | 130110-54430 | 130110-54430-Online | ||
| 14 | 1 | Pipe 3* 6* 75 | 132010-40830 | 132010-40830-Online | ||
| 15 | 1 | Pipe | V471-001880 | V471-001880-Online | ||
| 16 | 1 | Clip, Oil Pipe | 437411-19830 | 437411-19830-Online | ||
| 17 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 18 | 1 | Tank, Fuel | A350-000590 | A350-000590-Online | HC-155ES | 4 | Fuel Tank |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Screw 5*45 | 900220-05045 | 900220-05045-Online | ||
| 2 | 4 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 3 | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 4 | 1 | Tube | V475-004150 | V475-004150-Online | ||
| 5 | 1 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | ||
| 6 | 1 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | ||
| 7 | 1 | Cable,Bowden | V430-002200 | V430-002200-Online | ||
| 8 | 1 | Lid,Handle | C411-000030 | C411-000030-Online | ||
| 9 | 1 | Lead | V485-001030 | V485-001030-Online | ||
| 10 | 1 | Switch, Ignition | 163400-03460 | 163400-03460-Online | ||
| 11 | 1 | Lead | V485-002310 | V485-002310-Online | ||
| 12 | 1 | Lockout, Throttle | C460-000120 | C460-000120-Online | ||
| 13 | 1 | Control, Throttle | C450-000330 | C450-000330-Online | ||
| 14 | 1 | Spring,Torsion | V452-000390 | V452-000390-Online | ||
| 15 | 1 | Handle,Rear | C410-000920 | C410-000920-Online | ||
| 22 | 1 | Label,Caution | X505-002030 | X505-002030-Online | ||
| 23 | 1 | Clip | V490-001100 | V490-001100-Online | HC-155ES | 5 | Handle |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 3 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | ||
| 2 | 6 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | ||
| 3 | 1 | Lid, Gearcase | 610411-05361 | 610411-05361-Online | ||
| 4 | 1 | Gasket, Gear Housing | 610414-05360 | 610414-05360-Online | ||
| 5 | 1 | Seal | 610425-04560 | 610425-04560-Online | ||
| 6 | 1 | Bolt, H.S. 5*40 | 900162-05040 | 900162-05040-Online | ||
| 7 | 6 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | ||
| 8 | 7 | Washer | 177214-21860 | 177214-21860-Online | ||
| 9 | 7 | Collar,5 | V353-000250 | V353-000250-Online | ||
| 10 | 7 | Nut, Flange | 92108-05000 | 92108-05000-Online | ||
| 11 | 1 | Blunt | X431-000050 | X431-000050-Online | ||
| 12 | 2 | Rod, Connecting | C532-000120 | C532-000120-Online | ||
| 13 | 2 | Cutter | X411-000760 | X411-000760-Online | ||
| 14 | 1 | Gear | 610312-04560 | 610312-04560-Online | ||
| 15 | 1 | Washer | 610350-04560 | 610350-04560-Online | ||
| 16 | 1 | Screw (5*30*P0.8) | 900212-05030 | 900212-05030-Online | ||
| 17 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 18 | 1 | Washer | 351611-05360 | 351611-05360-Online | ||
| 19 | 1 | Handle, Front | C400-000531 | C400-000531-Online | ||
| 20 | 2 | Screw 6*25 | 900212-06025 | 900212-06025-Online | ||
| 21 | 2 | Nut 6 | 900500-00006 | 900500-00006-Online | ||
| 22 | 1 | Holder, Frame | 610440-04560 | 610440-04560-Online | ||
| 23 | 1 | Support,Cutter | X425-000490 | X425-000490-Online | ||
| 24 | 1 | Circlip 14 | 900701-00014 | 900701-00014-Online | HC-155ES | 6 | Gear case, Cutter |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Drum, Clutch | 175005-04560 | 175005-04560-Online | ||
| 26 | 1 | Circlip 35 | 900702-00035 | 900702-00035-Online | ||
| 27 | 1 | Bearing, Ball 6202 | 900813-36202 | 900813-36202-Online | ||
| 28 | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | ||
| 29 | 1 | Case, Gear | 610410-05361 | 610410-05361-Online | ||
| 30 | 1 | Nipple, Grease | 880110-10860 | 880110-10860-Online | ||
| 31 | 1 | Scabbard,Blade | X495-000181 | X495-000181-Online | ||
| 32 | 1 | Tool,Case | X698-000050 | X698-000050-Online | ||
| 33 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | ||
| 34 | 1 | Protector | E278-000210 | E278-000210-Online | HC-155ES | 6 | Gear case, Cutter |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 3 | Screw | 125344-13931 | 125344-13931-Online | |
| 2 | + | 1 | Post | P005-001240 | P005-001240-Online | |
| 3 | + | 1 | Cover Asy, Rotor | P005-002050 | P005-002050-Online | |
| 4 | + | 1 | Screw,Throttleadjust | P005-000100 | P005-000100-Online | |
| 5 | + | 1 | E-Ring | P005-000190 | P005-000190-Online | |
| 7 | + | 1 | O-Ring | P005-000280 | P005-000280-Online | |
| 8 | + | 1 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |
| 9 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 10 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 11 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 12 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 13 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 14 | + | 1 | Diaphragm | P005-001780 | P005-001780-Online | |
| 15 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 16 | + | 3 | Screw | 125344-52130 | 125344-52130-Online | |
| 17 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 18 | + | 1 | Needle,High Speed | P005-002060 | P005-002060-Online | |
| 19 | + | 1 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |
| 20 | + | 1 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online | |
| 21 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 22 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | |
| 23 | + | 1 | Base, Asy Primer | P005-001890 | P005-001890-Online | |
| 24 | + | 1 | Screw | P005-000270 | P005-000270-Online | HC-155ES | 7 | Carburettor |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Pump, Priming | 125381-46730 | 125381-46730-Online | |
| 26 | + | 1 | Retainer | P005-000250 | P005-000250-Online | |
| 27 | + | 4 | Screw | P005-001900 | P005-001900-Online | |
| 28 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| - | 2 - 4 | A051-001110 | A051-001110-Online | |||
| 2 - 17 | A052-000210 | A052-000210-Online | 2 - 31 | 1 - 13 | 1 - 19 | 1 - 15 |
Source PDF: 20170504-648_HC-155ES_20110304100844[1].pdf. Generated 2026-06-25 14:39.
