Echo HC-1501 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HC-1501-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.

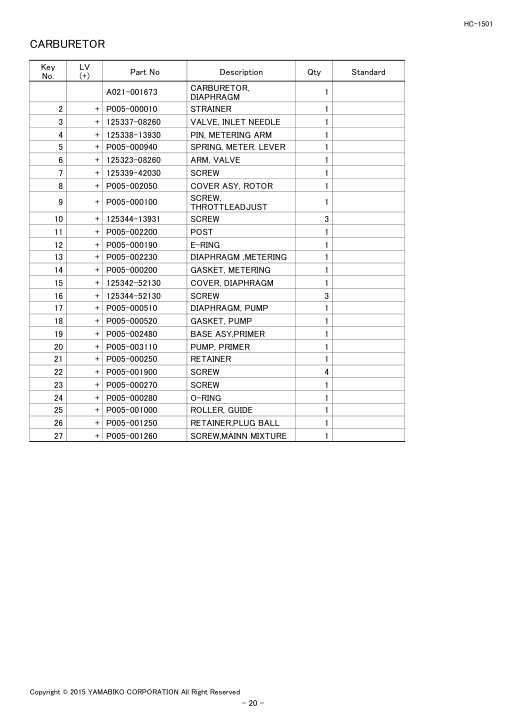

Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case Asy, Gear | P021-045620 | P021-045620-Online | 1 | 2 | + 880110-10860 | NIPPLE, GREASE | ||
| 3 | Lid, Gearcase | 610411-05361 | 610411-05361-Online | |||
| 4 | Gasket, Gear Housing | 610414-05360 | 610414-05360-Online | |||
| 5 | Drum, Clutch | A556-001620 | A556-001620-Online | 1 50 T:1.4 | ||
| 6 | Gear | 610312-04560 | 610312-04560-Online | |||
| 7 | Bearing, Ball 6202 | 900812-06202 | 900812-06202-Online | 1 6202DDU(LLU) | ||
| 8 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 1 6202/C3 | ||
| 10 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | 6 TB-4*10 10.9 | ||
| 11 | Bolt, Torx 6 | V806-000130 | V806-000130-Online | |||
| 12 | Washer | 610350-04560 | 610350-04560-Online | |||
| 13 | Circlip 14 | 900701-00014 | 900701-00014-Online | 1 CS-14 | ||
| 14 | Circlip 35 | 900702-00035 | 900702-00035-Online | 1 CRｰ35 | ||
| 15 | Seal | 610425-04560 | 610425-04560-Online | |||
| 17 | Rod, Connecting | C532-000121 | C532-000121-Online | |||
| 18 | Cutter | X412-000630 | X412-000630-Online | |||
| 19 | Cutter Support Asy | P021-045630 | P021-045630-Online | |||
| 20 | Holder, Frame | 610440-04560 | 610440-04560-Online | |||
| 21 | Bolt | 699115-05360 | 699115-05360-Online | |||
| 22 | Bolt | V204-000570 | V204-000570-Online | |||
| 24 | Washer | V304-000240 | V304-000240-Online | |||
| 25 | Screw (5*30*P0.8) | 900212-05030 | 900212-05030-Online | 1 +SF5*30 | ||
| 26 | Screw 6*25 | 900212-06025 | 900212-06025-Online | 2 +SF6*25 | ||
| 27 | Nut 6 | 900500-00006 | 900500-00006-Online | 2 6 | GEAR CASE, CUTTER | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft,Asm | A011-000313 | A011-000313-Online | |||
| 2 | Cylinder | A130-000550 | A130-000550-Online | |||
| 3 | Gasket,Cyl | V100-000160 | V100-000160-Online | |||
| 4 | Piston Kit | P021-007772 | P021-007772-Online | 1 | 5 | + A101-000090 | RING,PISTON | ||
| 10 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 2 5*22 W,SW | ||
| 11 | Crankcase Kit | 100204-11521 | 100204-11521-Online | 1 | 13 | + 94035-36201 | BEARING BALL | ||
| 20 | Cover,Cylinder | A160-002590 | A160-002590-Online | |||
| 21 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | 2 TT-4*16 DG | 10.9 | ||
| 22 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 1 TB-5*16 10.9 | CYLINDER, CRANKCASE, PISTON | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor,Magneto | A409-000150 | A409-000150-Online | |||
| 2 | Coil,Ignition | A411-000210 | A411-000210-Online | |||
| 3 | Tube | V475-007510 | V475-007510-Online | |||
| 4 | Lead | V485-000870 | V485-000870-Online | 1 L=190,#187, | CA104 | ||
| 5 | Bolt, Torx 4 | V804-000070 | V804-000070-Online | 2 TB-4*20 12.9 | ||
| 6 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 7 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 8 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 10 | Clutch Asy | A056-000740 | A056-000740-Online | 1 | 11 | + A566-000000 | SPRING, CLUTCH | ||
| 15 | Case,Clutch | A570-000310 | A570-000310-Online | |||
| 16 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 4 TB-4*16 10.9 | MAGNETO, CLUTCH | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-001673 | A021-001673-Online | DIAPHRAGM | ||
| 2 | Clip | V490-001100 | V490-001100-Online | |||
| 3 | Gasket,Intake | V103-001580 | V103-001580-Online | |||
| 4 | Insulator, Intake | A200-000300 | A200-000300-Online | |||
| 5 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 2 TB-5*25 10.9 | ||
| 6 | Gasket,Intake | V103-001590 | V103-001590-Online | |||
| 7 | Case, Air Cleaner | P021-004480 | P021-004480-Online | |||
| 8 | Plate, Prevent | 129011-52730 | 129011-52730-Online | |||
| 9 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | 2 TB-5*65 10.9 | ||
| 10 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 11 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | |||
| 12 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 1 5*20 | ||
| 15 | Label, Choke | 890332-52730 | 890332-52730-Online | 1 | AIR CLEANER, CARBURETOR | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank,Fuel | A350-000041 | A350-000041-Online | |||
| 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 2 TT-5*16 DG | 10.9 | ||
| 3 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 4 | Cushion, Fuel Tank | 131920-61830 | 131920-61830-Online | |||
| 5 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | 1 | 6 | + 131016-55830 | GASKET, FUEL CAP | ||
| 8 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 11 | Pipe | V470-000580 | V470-000580-Online | 1 3*5*195 | ||
| 13 | Pipe | V471-001200 | V471-001200-Online | 1 3*5*70 NBR | ||
| 14 | Pipe 3* 6* 75 | 132010-40830 | 132010-40830-Online | 1 3*6*75 YL | ||
| 15 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 16 | Clip | V490-001240 | V490-001240-Online | 1 6MM | ||
| 17 | Strainer, Fuel | 131205-07321 | 131205-07321-Online | |||
| 18 | Clip | V490-001240 | V490-001240-Online | 1 6MM | FUEL TANK | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P021-045640 | P021-045640-Online | 1 | 2 | + A300-000521 | MUFFLER,EXHAUST | ||
| 7 | Gasket,Exhaust | V104-001990 | V104-001990-Online | |||
| 8 | Plate,Eye | V150-000371 | V150-000371-Online | |||
| 9 | Bolt, Torx 5 | V805-000190 | V805-000190-Online | 2 TB-5*55 12.9 | MUFFLER | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil Asy | A051-002590 | A051-002590-Online | 1 | 2 | + 177215-44430 | DRUM, STARTER | ||
| 10 | Pulley,Asm Starter | A052-000160 | A052-000160-Online | 1 | 11 | + 177218-44330 | PAWL, STARTER | ||
| 15 | Washer, Spring 8 | 900605-00008 | 900605-00008-Online | 1 8 | ||
| 16 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | 4 TB-4*16 10.9 | ||
| 17 | Label,Echo | X502-000890 | X502-000890-Online | |||
| 18 | Label,Model | X543-004270 | X543-004270-Online | |||
| 19 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | RECOIL STARTER | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle, Front | C400-000532 | C400-000532-Online | 1 HC155 | ||
| 2 | Washer | 351611-05360 | 351611-05360-Online | |||
| 3 | Nut, Flange | 92108-05000 | 92108-05000-Online | |||
| 5 | Handle, Rear | C410-000430 | C410-000430-Online | |||
| 6 | Lid,Handle | C411-000030 | C411-000030-Online | |||
| 7 | Trigger,Throttle | C450-000750 | C450-000750-Online | |||
| 8 | Spring,Torsion | V452-000392 | V452-000392-Online | 1 11.5 ID | ||
| 9 | Lockout, Throttle | C460-000120 | C460-000120-Online | |||
| 10 | Cable,Bowden | V430-004670 | V430-004670-Online | |||
| 11 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | 1 6 | ||
| 12 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 1 3N6 | ||
| 15 | Switch, Ignition | 163400-03460 | 163400-03460-Online | |||
| 16 | Lead | V485-002540 | V485-002540-Online | |||
| 17 | Lead | V485-002550 | V485-002550-Online | |||
| 18 | Tube | V475-001280 | V475-001280-Online | 1 7*140 ｺﾙｹﾞｰﾄ | ||
| 20 | Bolt, Torx 5 | V805-000280 | V805-000280-Online | 2 TB-5*45 10.9 | ||
| 21 | Nut, Flange | 92108-05000 | 92108-05000-Online | |||
| 27 | Label,Caution | X505-002030 | X505-002030-Online | 1 37*35 | HANDLE | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 2 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 3 | Tool,Case | X698-000050 | X698-000050-Online | 1 140*260*0.06 | ||
| 4 | Scabbard,Blade | X495-000540 | X495-000540-Online | 1 L585 | ACCESSORIES | HC-1501 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | Spacer, Piston Pin | 100014-08960 | 100014-08960-Online | |||
| 4 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 4 | Bearing, Needle | 100113-05930 | 100113-05930-Online | |||
| 4 | Crankcase Kit | 100204-11521 | 100204-11521-Online | |||
| 4 | Oilseal | 100212-42031 | 100212-42031-Online | |||
| 4 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |||
| 4 | Arm, Valve | 125323-08260 | 125323-08260-Online | |||
| 20 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |||
| 20 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |||
| 20 | Screw | 125339-42030 | 125339-42030-Online | |||
| 20 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |||
| 20 | Screw | 125344-13931 | 125344-13931-Online | |||
| 20 | Screw | 125344-52130 | 125344-52130-Online | |||
| 20 | Plate, Prevent | 129011-52730 | 129011-52730-Online | |||
| 8 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | |||
| 8 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Strainer, Fuel | 131205-07321 | 131205-07321-Online | |||
| 10 | Cushion, Fuel Tank | 131920-61830 | 131920-61830-Online | |||
| 10 | Pipe 3* 6* 75 | 132010-40830 | 132010-40830-Online | |||
| 10 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 10 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 12 | Switch, Ignition | 163400-03460 | 163400-03460-Online | |||
| 16 | Shoe, Clutch | 175017-44331 | 175017-44331-Online | |||
| 6 | Drum, Starter | 177215-44430 | 177215-44430-Online | |||
| 14 | Pawl, Starter | 177218-44330 | 177218-44330-Online | |||
| 14 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |||
| 14 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |||
| 14 | Screw | 177236-44330 | 177236-44330-Online | |||
| 14 | Bolt, Wing | 210417-52730 | 210417-52730-Online | |||
| 8 | Washer | 351611-05360 | 351611-05360-Online | |||
| 2 | Gear | 610312-04560 | 610312-04560-Online | |||
| 2 | Washer | 610350-04560 | 610350-04560-Online | |||
| 2 | Lid, Gearcase | 610411-05361 | 610411-05361-Online | |||
| 2 | Gasket, Gear Housing | 610414-05360 | 610414-05360-Online | |||
| 2 | Seal | 610425-04560 | 610425-04560-Online | |||
| 2 | Holder, Frame | 610440-04560 | 610440-04560-Online | |||
| 2 | Bolt | 699115-05360 | 699115-05360-Online | |||
| 2 | Nipple, Grease | 880110-10860 | 880110-10860-Online | |||
| 2 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 8 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 18 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | |||
| 18 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | |||
| 4 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 4 | Part No | Part descrition | Page | ||
| 2 | Screw 6*25 | 900212-06025 | 900212-06025-Online | |||
| 2 | Nut 6 | 900500-00006 | 900500-00006-Online | |||
| 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 16 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | |||
| 16 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 10 | Washer, Spring 8 | 900605-00008 | 900605-00008-Online | |||
| 14 | Circlip 14 | 900701-00014 | 900701-00014-Online | |||
| 2 | Circlip 35 | 900702-00035 | 900702-00035-Online | |||
| 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 2 | Bearing, Ball 6202 | 900812-06202 | 900812-06202-Online | |||
| 2 | Nut, Flange | 92108-05000 | 92108-05000-Online | |||
| 16 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 4 | Crankshaft,Asm | A011-000313 | A011-000313-Online | |||
| 4 | Carburetor, | A021-001673 | A021-001673-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-001673 | A021-001673-Online | DIAPHRAGM | ||
| 20 | Starter,Recoil Asy | A051-002590 | A051-002590-Online | |||
| 14 | Pulley,Asm Starter | A052-000160 | A052-000160-Online | |||
| 14 | Clutch Asy | A056-000740 | A056-000740-Online | |||
| 6 | Ring,Piston | A101-000090 | A101-000090-Online | |||
| 4 | Cylinder | A130-000550 | A130-000550-Online | |||
| 4 | Cover,Cylinder | A160-002590 | A160-002590-Online | |||
| 4 | Insulator, Intake | A200-000300 | A200-000300-Online | |||
| 8 | Element,Air Filter | A226-001410 | A226-001410-Online | |||
| 8 | Muffler,Exhaust | A300-000521 | A300-000521-Online | |||
| 12 | Guide,Exh | A313-000700 | A313-000700-Online | |||
| 12 | Tank,Fuel | A350-000041 | A350-000041-Online | |||
| 10 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 10 | Connector,Cap | A365-000060 | A365-000060-Online | |||
| 10 | Rotor,Magneto | A409-000150 | A409-000150-Online | |||
| 6 | Coil,Ignition | A411-000210 | A411-000210-Online | |||
| 6 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 6 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 6 | Hub, Clutch | A552-000380 | A552-000380-Online | |||
| 6 | Drum, Clutch | A556-001620 | A556-001620-Online | |||
| 2 | Spring, Clutch | A566-000000 | A566-000000-Online | |||
| 6 | Case,Clutch | A570-000310 | A570-000310-Online | |||
| 6 | Handle, Front | C400-000532 | C400-000532-Online | |||
| 16 | Handle, Rear | C410-000430 | C410-000430-Online | |||
| 16 | Lid,Handle | C411-000030 | C411-000030-Online | |||
| 16 | Trigger,Throttle | C450-000750 | C450-000750-Online | |||
| 16 | Lockout, Throttle | C460-000120 | C460-000120-Online | |||
| 16 | Rod, Connecting | C532-000121 | C532-000121-Online | 2 | Part No | Part descrition | Page | ||
| 20 | Screw, | P005-000100 | P005-000100-Online | THROTTLEADJUST | ||
| 20 | E-Ring | P005-000190 | P005-000190-Online | |||
| 20 | Gasket, Metering | P005-000200 | P005-000200-Online | |||
| 20 | Retainer | P005-000250 | P005-000250-Online | |||
| 20 | Screw | P005-000270 | P005-000270-Online | |||
| 20 | O-Ring | P005-000280 | P005-000280-Online | |||
| 20 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |||
| 20 | Gasket, Pump | P005-000520 | P005-000520-Online | |||
| 20 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |||
| 20 | Roller, Guide | P005-001000 | P005-001000-Online | |||
| 20 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |||
| 20 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |||
| 20 | Screw | P005-001900 | P005-001900-Online | |||
| 20 | Cover Asy, Rotor | P005-002050 | P005-002050-Online | |||
| 20 | Post | P005-002200 | P005-002200-Online | |||
| 20 | Diaphragm ,Metering | P005-002230 | P005-002230-Online | |||
| 20 | Base Asy,Primer | P005-002480 | P005-002480-Online | |||
| 20 | Pump, Primer | P005-003110 | P005-003110-Online | |||
| 20 | Case, Air Cleaner | P021-004480 | P021-004480-Online | |||
| 8 | Piston Kit | P021-007772 | P021-007772-Online | |||
| 4 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | |||
| 10 | Case Asy, Gear | P021-045620 | P021-045620-Online | |||
| 2 | Cutter Support Asy | P021-045630 | P021-045630-Online | |||
| 2 | Muffler Asy | P021-045640 | P021-045640-Online | |||
| 12 | Rope | P022-006231 | P022-006231-Online | |||
| 14 | Grip, Starter | P022-023170 | P022-023170-Online | |||
| 14 | Gasket,Cyl | V100-000160 | V100-000160-Online | |||
| 4 | Gasket,Intake | V103-001580 | V103-001580-Online | |||
| 8 | Gasket,Intake | V103-001590 | V103-001590-Online | |||
| 8 | Gasket,Exhaust | V104-000072 | V104-000072-Online | |||
| 12 | Gasket,Exhaust | V104-001990 | V104-001990-Online | |||
| 12 | Plate,Eye | V150-000371 | V150-000371-Online | |||
| 12 | Bolt | V204-000570 | V204-000570-Online | |||
| 2 | Washer | V304-000240 | V304-000240-Online | |||
| 2 | Cable,Bowden | V430-004670 | V430-004670-Online | |||
| 16 | Spring,Torsion | V452-000392 | V452-000392-Online | |||
| 16 | Pipe | V470-000580 | V470-000580-Online | |||
| 10 | Pipe | V471-001200 | V471-001200-Online | |||
| 10 | Tube | V475-001280 | V475-001280-Online | |||
| 16 | Tube | V475-007510 | V475-007510-Online | |||
| 6 | Lead | V485-000870 | V485-000870-Online | |||
| 6 | Lead | V485-002540 | V485-002540-Online | |||
| 16 | Lead | V485-002550 | V485-002550-Online | 16 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 8 | Clip | V490-001240 | V490-001240-Online | |||
| 10 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | |||
| 4 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | |||
| 12 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | |||
| 2 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 6 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | |||
| 14 | Bolt, Torx 4 | V804-000070 | V804-000070-Online | |||
| 6 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 10 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | |||
| 8 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 4 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | |||
| 8 | Bolt, Torx 5 | V805-000190 | V805-000190-Online | |||
| 12 | Bolt, Torx 5 | V805-000280 | V805-000280-Online | |||
| 16 | Bolt, Torx 6 | V806-000130 | V806-000130-Online | |||
| 2 | Cutter | X412-000630 | X412-000630-Online | |||
| 2 | Scabbard,Blade | X495-000540 | X495-000540-Online | |||
| 18 | Label,Echo | X502-000890 | X502-000890-Online | |||
| 14 | Label,Caution | X505-002030 | X505-002030-Online | |||
| 16 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 14 | Label,Model | X543-004270 | X543-004270-Online | |||
| 14 | Tool,Case | X698-000050 | X698-000050-Online | 18 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-911_HC-1501_37_37001001_24FEB2020.pdf. Generated 2026-06-25 14:40.
