Echo HC-1500 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HC-1500-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.

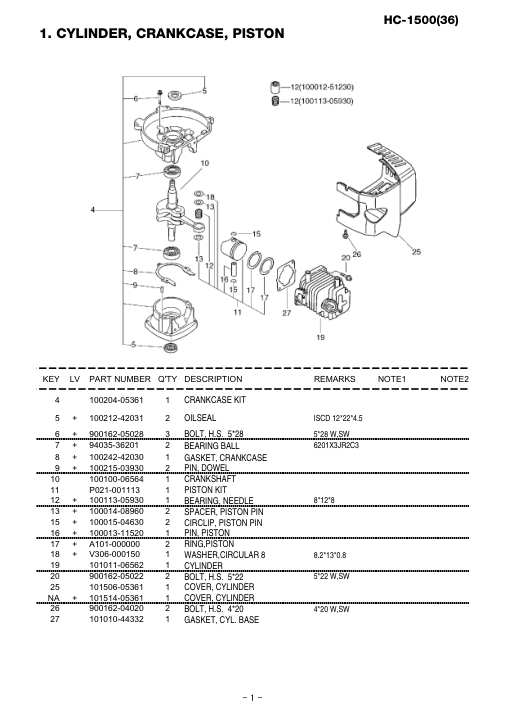

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Crankcase Kit | 100204-05361 | 100204-05361-Online | ||
| 5 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 6 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 7 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 8 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 9 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 10 | 1 | Crankshaft | 100100-06564 | 100100-06564-Online | ||
| 11 | 1 | Piston Kit | P021-001113 | P021-001113-Online | ||
| 12 | + | 1 | Bearing, Needle | 100113-05930 | 100113-05930-Online | 8*12*8 |
| 13 | + | 2 | Spacer, Piston Pin | 100014-08960 | 100014-08960-Online | |
| 15 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 16 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 17 | + | 2 | Ring,Piston | A101-000000 | A101-000000-Online | |
| 18 | + | 1 | Washer,Circular 8 | V306-000150 | V306-000150-Online | 8.2*13*0.8 |
| 19 | 1 | Cylinder | 101011-06562 | 101011-06562-Online | ||
| 20 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 25 | 1 | Cover, Cylinder | 101506-05361 | 101506-05361-Online | ||
| NA | + | 1 | Cover, Cylinder | 101514-05361 | 101514-05361-Online | |
| 26 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 27 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 4 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW | |
| 6 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 7 | 1 | Starter Assembly | 177200-05363 | 177200-05363-Online | ||
| 9 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 10 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 12 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 13 | + | 1 | Rope, Starter | 177226-05530 | 177226-05530-Online | 3*890 |
| 14 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 15 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 17 | 1 | Washer, Spring 8 | 900605-00008 | 900605-00008-Online | ||
| 18 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 19 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 20 | + | 1 | Spring, Return | 177234-42030 | 177234-42030-Online | |
| 23 | 1 | Rotor, Magneto | 156801-05360 | 156801-05360-Online | ||
| 24 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 25 | 1 | Coil,Ignition | A411-000080 | A411-000080-Online | ||
| 26 | 1 | Lead | 162021-52830 | 162021-52830-Online | ||
| 27 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 28 | 1 | Plug, Spark (Rcj-8Y) | 159017-12330 | 159017-12330-Online | RCJ-8Y | |
| 29 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 30 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 31 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 32 | 1 | Label,Model | X543-000920 | X543-000920-Online | HC-1500 | |
| 33 | 1 | Tube | V475-001900 | V475-001900-Online | 7*8.6*30 | |
| 40 | 1 | Washer, Clutch | 175014-05360 | 175014-05360-Online | 8.2*19*3.2 | |
| 41 | 1 | Plate, Clutch | 175019-04920 | 175019-04920-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 42 | 1 | Clutch Assy | 175000-06560 | 175000-06560-Online | ||
| 43 | + | 2 | Spring, Clutch | 175018-05960 | 175018-05960-Online | |
| 44 | + | 2 | Shoe, Clutch | 175009-05131 | 175009-05131-Online | |
| 45 | + | 1 | Hub, Clutch | 175016-04920 | 175016-04920-Online | |
| 47 | 1 | Housing, Clutch | 175055-05360 | 175055-05360-Online | ||
| 48 | 2 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 6 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 7 | 1 | Insulator, Intake | 130017-42031 | 130017-42031-Online | ||
| 8 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 9 | 1 | Gasket, Intake | 130016-42031 | 130016-42031-Online | ||
| 10 | 1 | Carburetor | 125200-05964 | 125200-05964-Online | C1U-K51 | |
| 14 | 1 | Case,Cleaner Asy | P021-010350 | P021-010350-Online | ||
| 17 | + | 2 | Screw 5*65 | 900242-05065 | 900242-05065-Online | 5*65 |
| 16 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 18 | 1 | Element,Air Filter | A226-001410 | A226-001410-Online | ||
| 18 | 1 | Filter, Air | 130310-54130 | 130310-54130-Online | ||
| 19 | 1 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | ||
| 20 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 | |
| 21 | 1 | Label, Metering | 890121-05360 | 890121-05360-Online | ||
| 29 | 1 | Cover, Muffler | 145871-05360 | 145871-05360-Online | ||
| 28 | 1 | Cover, Muffler | 145871-05360 | 145871-05360-Online | ||
| 30 | + | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |
| 32 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 33 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 34 | + | 1 | Guide,Exh | A313-000010 | A313-000010-Online | ID#4000 |
| 35 | + | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 36 | 2 | Bolt, H.S. 5*50 | 900105-05050 | 900105-05050-Online | 5*50 | |
| 37 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Tank,Fuel | A350-000272 | A350-000272-Online | ||
| 6 | 2 | Screw 5*16 | 900239-05016 | 900239-05016-Online | 5*16 | |
| 9 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 11 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 12 | 1 | Pipe | V470-000580 | V470-000580-Online | 3*5*195 | |
| 13 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 14 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 15 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 16 | 1 | Pipe 3* 6*110 | 132010-06460 | 132010-06460-Online | 3*6*110 YL | |
| 17 | 1 | Cap Assy, Fuel | 131004-08960 | 131004-08960-Online | ||
| 18 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 19 | + | 1 | Connector, Cap | 131051-52430 | 131051-52430-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | 1 | Washer | 351611-05360 | 351611-05360-Online | ||
| 7 | 1 | Handle, Front | 351610-05360 | 351610-05360-Online | ||
| 10 | 1 | Handle Set, Rear | 351100-06560 | 351100-06560-Online | ||
| 11 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 12 | 3 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 13 | 1 | Lead, Ground | 162010-05360 | 162010-05360-Online | ||
| 14 | 1 | Lead, Ground | 162014-05360 | 162014-05360-Online | ||
| 15 | 1 | Switch, Ignition | 163400-03460 | 163400-03460-Online | ||
| 16 | 1 | Wire, Throttle | 178001-05360 | 178001-05360-Online | ||
| 17 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 18 | 1 | Control, Throttle | 178010-06560 | 178010-06560-Online | ||
| 19 | 2 | Screw 5*50 | 900242-05050 | 900242-05050-Online | 5*50 | |
| 20 | 5 | Screw 4*16 | 900255-04016 | 900255-04016-Online | 4*16 | |
| 22 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 23 | 1 | Lockout, T. Control | 178090-06560 | 178090-06560-Online | ||
| 24 | 1 | Spring, Thr. Return | 178043-15130 | 178043-15130-Online | ||
| 25 | 2 | Washer 6 | 900600-00006 | 900600-00006-Online | ||
| 26 | 1 | Label,Echo | X502-000430 | X502-000430-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | + | 1 | Drum, Clutch | 175005-04560 | 175005-04560-Online | |
| 6 | + | 1 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 |
| 7 | + | 1 | Bearing, Ball 6202 | 900813-36202 | 900813-36202-Online | 6202Z/C3 |
| 8 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 9 | + | 1 | Circlip 14 | 900701-00014 | 900701-00014-Online | CS-14 |
| 15 | + | 1 | Case, Gear | 610407-05361 | 610407-05361-Online | 16 | ++ |
| 16 | 1 | Nipple, Grease | 880110-10860 | 880110-10860-Online | ||
| 17 | + | 4 | Part | 433022-06460 | 433022-06460-Online | |
| 18 | + | 1 | Bar, Frame | 699110-06960 | 699110-06960-Online | |
| 19 | + | 2 | Cutter | X411-000280 | X411-000280-Online | |
| 20 | + | 4 | Washer | 699118-04560 | 699118-04560-Online | |
| 21 | + | 3 | Bolt 6 | 699115-04660 | 699115-04660-Online | 6*18L |
| 22 | + | 1 | Bolt | 699115-05360 | 699115-05360-Online | |
| 23 | + | 6 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW |
| 24 | + | 1 | Lid, Gearcase | 610411-05361 | 610411-05361-Online | |
| 25 | + | 1 | Gasket, Gear Housing | 610414-05360 | 610414-05360-Online | |
| 26 | + | 1 | Seal | 610425-04560 | 610425-04560-Online | |
| 27 | + | 2 | Rod, Connecting | C532-000120 | C532-000120-Online | |
| 28 | + | 1 | Gear | 610312-04560 | 610312-04560-Online | |
| 29 | + | 1 | Washer | 610350-04560 | 610350-04560-Online | |
| 30 | + | 1 | Holder, Frame | 610440-04560 | 610440-04560-Online | |
| 31 | + | 2 | Screw 6*25 | 900212-06025 | 900212-06025-Online | +SF6*25 |
| 32 | + | 1 | Screw (5*30*P0.8) | 900212-05030 | 900212-05030-Online | +SF5*30 |
| 33 | + | 1 | Blunt | 699125-06560 | 699125-06560-Online | |
| 34 | + | 2 | Nut 6 | 900500-00006 | 900500-00006-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | + | 3 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
| 40 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | ||
| 41 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | ||
| 42 | 1 | Scabbard,Blade | X495-000051 | X495-000051-Online | ||
| 43 | 1 | Bag, Tool | 898510-07130 | 898510-07130-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 2 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 3 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 4 | + | 1 | Gasket, Diaphragm | 125340-51030 | 125340-51030-Online | |
| 5 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 6 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 7 | + | 1 | Lever, Metering | 125323-42030 | 125323-42030-Online | |
| 8 | + | 1 | Spring, Coil | 125322-42030 | 125322-42030-Online | |
| 9 | + | 1 | Valve,Inlet Needle | 125337-06960 | 125337-06960-Online | |
| 10 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 11 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | |
| 12 | + | 1 | Valve, Throttle | 125316-49030 | 125316-49030-Online | |
| 13 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 15 | + | 1 | Screw, Idle Needle | 125318-13120 | 125318-13120-Online | |
| 16 | + | 1 | Needle, High Speed | 125320-13310 | 125320-13310-Online | |
| 17 | + | 1 | Spring, Thrt. Return | 125313-42030 | 125313-42030-Online | |
| 18 | + | 1 | Shaft, Throttle | 125317-13310 | 125317-13310-Online | |
| 19 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 20 | + | 1 | Swivel | 125372-42030 | 125372-42030-Online | |
| 21 | + | 1 | Strainer | 125326-42030 | 125326-42030-Online | |
| 22 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | |
| 23 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online | |
| 24 | + | 1 | Base,Asy Primer | P005-000590 | P005-000590-Online | |
| 26 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 27 | + | 1 | Ring | 125363-11610 | 125363-11610-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 2 | Screw | 125310-11610 | 125310-11610-Online | |
| 29 | + | 1 | Screw,Throttleadjust | 125334-06960 | 125334-06960-Online | |
| 30 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 31 | + | 1 | Nozzle, Check Valve | 125376-13120 | 125376-13120-Online | |
| 34 | + | 1 | Cap,Limiter | A259-000030 | A259-000030-Online | |
| 35 | + | 1 | Plug, Welch | 125345-13310 | 125345-13310-Online | |
| 36 | + | 1 | Pump Kit, Acc | P005-002020 | P005-002020-Online | |
| 38 | + | 1 | Limiter, Mixture | 125329-09860 | 125329-09860-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 2 | + | 1 | Gasket, Diaphragm | 125340-51030 | 125340-51030-Online | |
| 3 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | |
| 4 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 2 | + | 1 | Gasket, Diaphragm | 125340-51030 | 125340-51030-Online | |
| 3 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 4 | + | 1 | Lever, Metering | 125323-42030 | 125323-42030-Online | |
| 5 | + | 1 | Spring, Coil | 125322-42030 | 125322-42030-Online | |
| 6 | + | 1 | Valve,Inlet Needle | 125337-06960 | 125337-06960-Online | |
| 7 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | |
| 8 | + | 1 | Strainer | 125326-42030 | 125326-42030-Online | |
| 9 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | |
| 10 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online |
Source PDF: 20130718-306_HC-1500(36)_P014-000130-10Hb_EN.pdf. Generated 2026-06-25 14:38.
