Echo GT-22GES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: GT-22GES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.

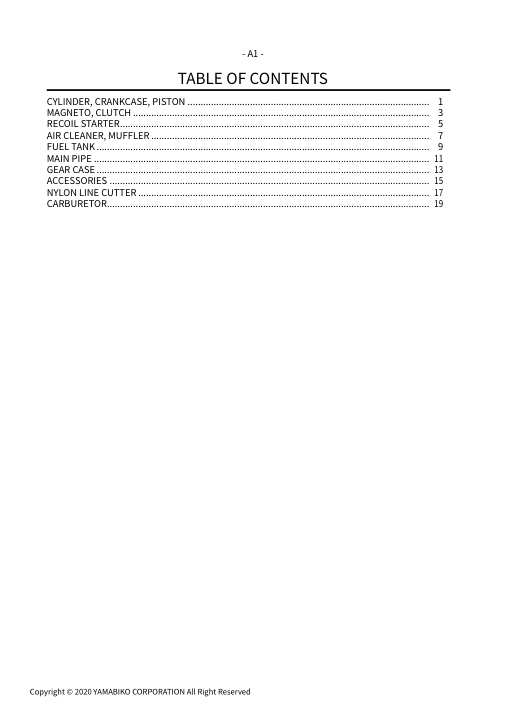

Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.

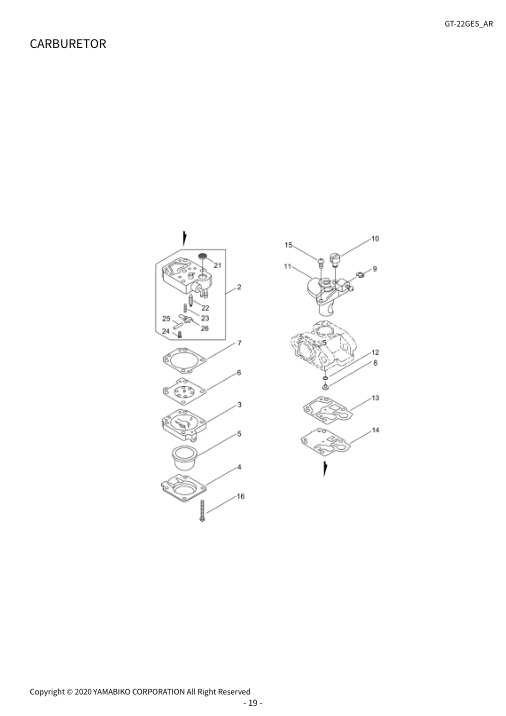

Page 22
Tap or click the page image to enlarge it.

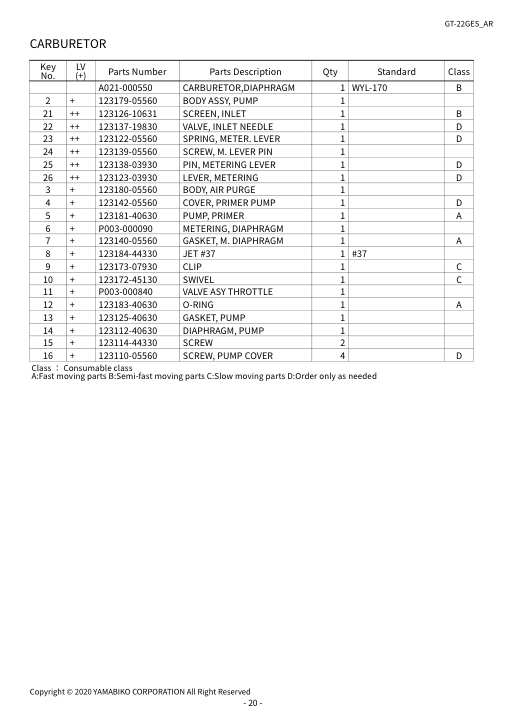

Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.

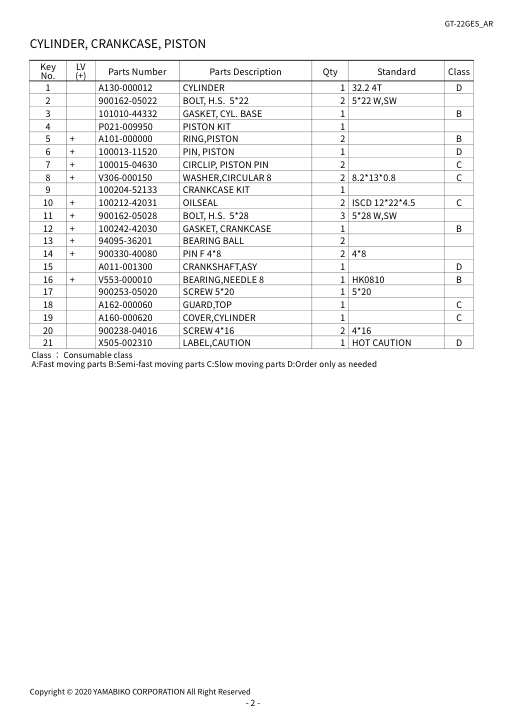

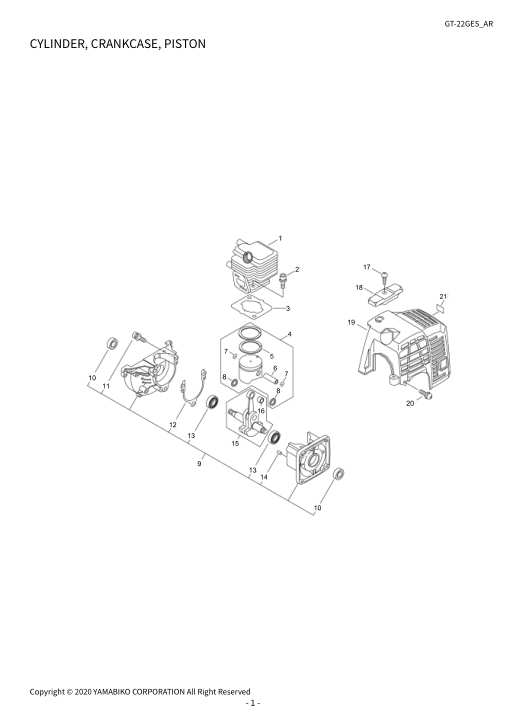

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cylinder | A130-000012 | A130-000012-Online | 1 32.2 4T | ||
| 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 2 5*22 W,SW | ||
| 3 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | |||
| 4 | Piston Kit | P021-009950 | P021-009950-Online | |||
| 5 | + | Ring,Piston | A101-000000 | A101-000000-Online | ||
| 6 | + | Pin, Piston | 100013-11520 | 100013-11520-Online | ||
| 7 | + | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | ||
| 8 | + | Washer,Circular 8 | V306-000150 | V306-000150-Online | 2 8.2*13*0.8 | |
| 9 | Crankcase Kit | 100204-52133 | 100204-52133-Online | |||
| 10 | + | Oilseal | 100212-42031 | 100212-42031-Online | 2 ISCD 12*22*4.5 | |
| 11 | + | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 3 5*28 W,SW | |
| 12 | + | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | ||
| 13 | + | Bearing Ball | 94095-36201 | 94095-36201-Online | ||
| 14 | + | Pin F 4*8 | 900330-40080 | 900330-40080-Online | 2 4*8 | |
| 15 | Crankshaft,Asy | A011-001300 | A011-001300-Online | |||
| 16 | + | Bearing,Needle 8 | V553-000010 | V553-000010-Online | 1 HK0810 | |
| 17 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 1 5*20 | ||
| 18 | Guard,Top | A162-000060 | A162-000060-Online | |||
| 19 | Cover,Cylinder | A160-000620 | A160-000620-Online | |||
| 20 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 2 4*16 | ||
| 21 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

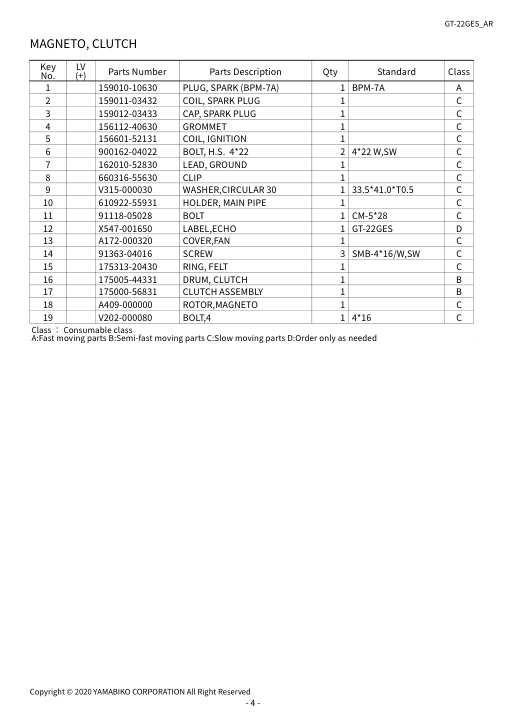

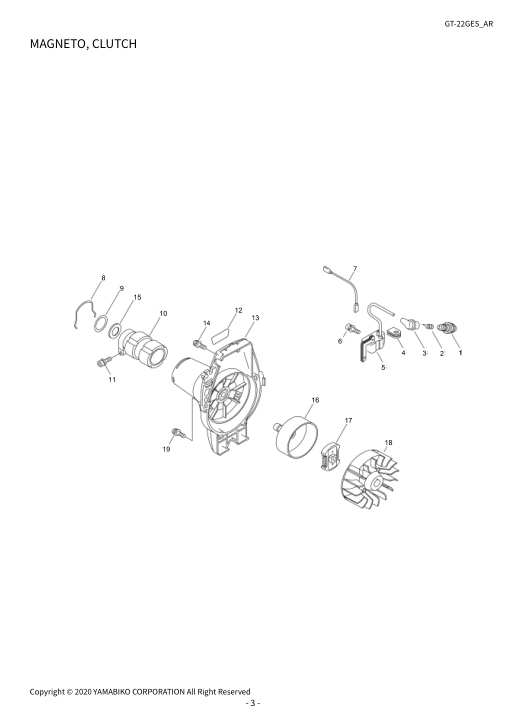

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | 1 BPM-7A | ||
| 2 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 3 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 4 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 5 | Coil, Ignition | 156601-52131 | 156601-52131-Online | |||
| 6 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 2 4*22 W,SW | ||
| 7 | Lead, Ground | 162010-52830 | 162010-52830-Online | |||
| 8 | Clip | 660316-55630 | 660316-55630-Online | |||
| 9 | Washer,Circular 30 | V315-000030 | V315-000030-Online | 1 33.5*41.0*T0.5 | ||
| 10 | Holder, Main Pipe | 610922-55931 | 610922-55931-Online | |||
| 11 | Bolt | 91118-05028 | 91118-05028-Online | 1 CM-5*28 | ||
| 12 | Label,Echo | X547-001650 | X547-001650-Online | 1 GT-22GES | ||
| 13 | Cover,Fan | A172-000320 | A172-000320-Online | |||
| 14 | Screw | 91363-04016 | 91363-04016-Online | 3 SMB-4*16/W,SW | ||
| 15 | Ring, Felt | 175313-20430 | 175313-20430-Online | |||
| 16 | Drum, Clutch | 175005-44331 | 175005-44331-Online | |||
| 17 | Clutch Assembly | 175000-56831 | 175000-56831-Online | |||
| 18 | Rotor,Magneto | A409-000000 | A409-000000-Online | |||
| 19 | Bolt,4 | V202-000080 | V202-000080-Online | 1 4*16 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

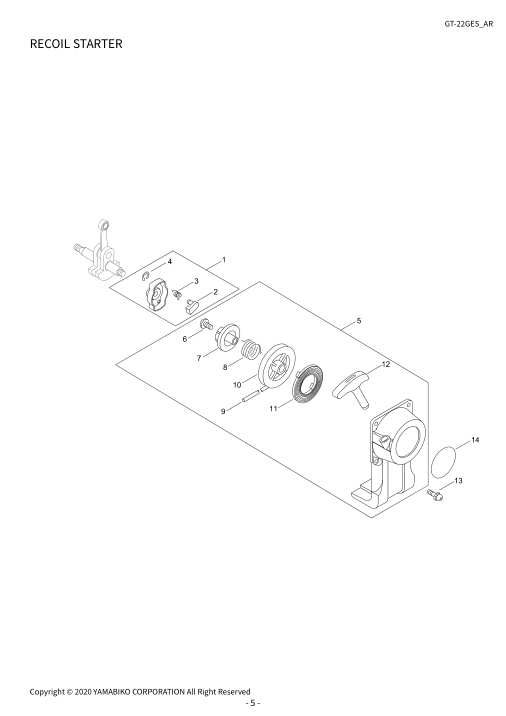

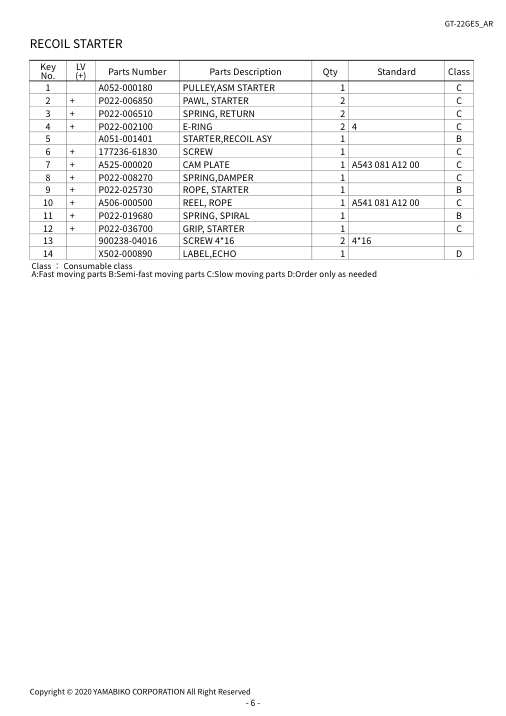

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | |||
| 2 | + | Pawl, Starter | P022-006850 | P022-006850-Online | ||
| 3 | + | Spring, Return | P022-006510 | P022-006510-Online | ||
| 4 | + | E-Ring | P022-002100 | P022-002100-Online | 2 4 | |
| 5 | Starter,Recoil Asy | A051-001401 | A051-001401-Online | |||
| 6 | + | Screw | 177236-61830 | 177236-61830-Online | ||
| 7 | + | Cam Plate | A525-000020 | A525-000020-Online | 1 A543 081 A12 00 | |
| 8 | + | Spring,Damper | P022-008270 | P022-008270-Online | ||
| 9 | + | Rope, Starter | P022-025730 | P022-025730-Online | ||
| 10 | + | Reel, Rope | A506-000500 | A506-000500-Online | 1 A541 081 A12 00 | |
| 11 | + | Spring, Spiral | P022-019680 | P022-019680-Online | ||
| 12 | + | Grip, Starter | P022-036700 | P022-036700-Online | ||
| 13 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 2 4*16 | ||
| 14 | Label,Echo | X502-000890 | X502-000890-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

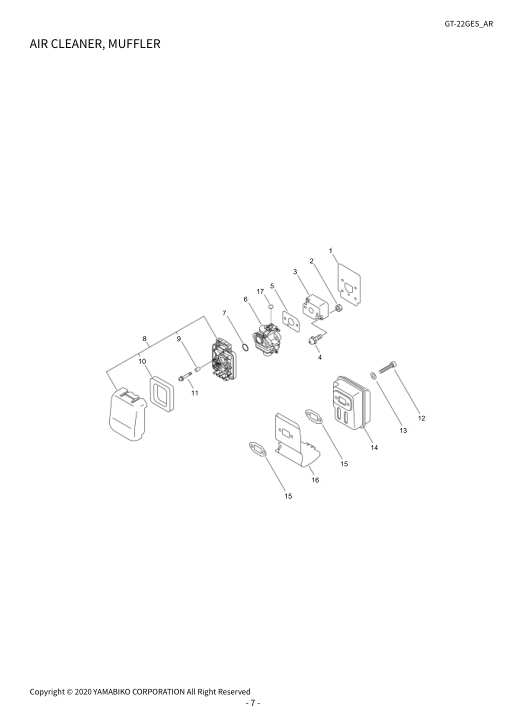

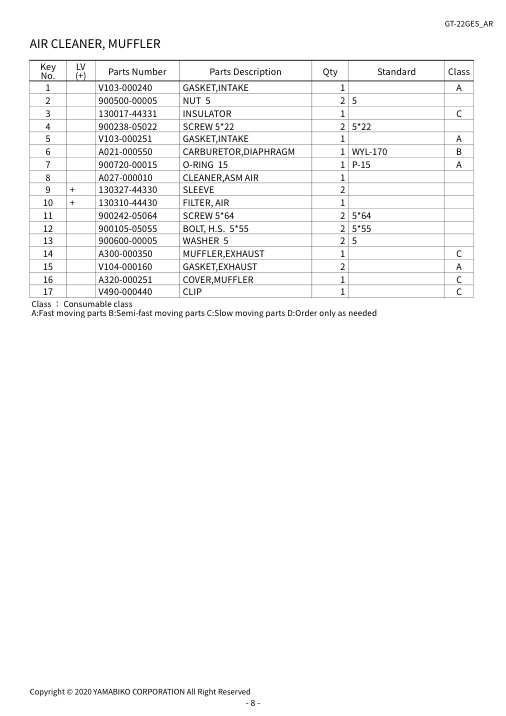

Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Gasket,Intake | V103-000240 | V103-000240-Online | |||
| 2 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 3 | Insulator | 130017-44331 | 130017-44331-Online | |||
| 4 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 2 5*22 | ||
| 5 | Gasket,Intake | V103-000251 | V103-000251-Online | |||
| 6 | Carburetor,Diaphragm | A021-000550 | A021-000550-Online | 1 WYL-170 | ||
| 7 | O-Ring 15 | 900720-00015 | 900720-00015-Online | 1 P-15 | ||
| 8 | Cleaner,Asm Air | A027-000010 | A027-000010-Online | |||
| 9 | + | Sleeve | 130327-44330 | 130327-44330-Online | ||
| 10 | + | Filter, Air | 130310-44430 | 130310-44430-Online | ||
| 11 | Screw 5*64 | 900242-05064 | 900242-05064-Online | 2 5*64 | ||
| 12 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 2 5*55 | ||
| 13 | Washer 5 | 900600-00005 | 900600-00005-Online | 2 5 | ||
| 14 | Muffler,Exhaust | A300-000350 | A300-000350-Online | |||
| 15 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |||
| 16 | Cover,Muffler | A320-000251 | A320-000251-Online | |||
| 17 | Clip | V490-000440 | V490-000440-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

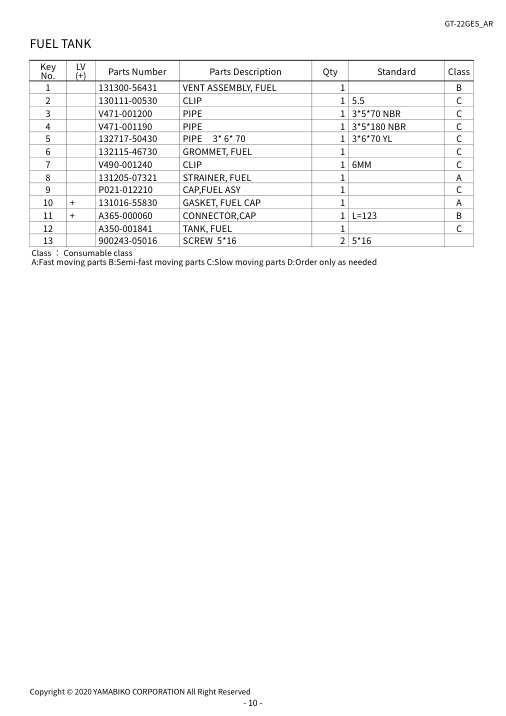

Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 2 | Clip | 130111-00530 | 130111-00530-Online | 1 5.5 | ||
| 3 | Pipe | V471-001200 | V471-001200-Online | 1 3*5*70 NBR | ||
| 4 | Pipe | V471-001190 | V471-001190-Online | 1 3*5*180 NBR | ||
| 5 | Pipe 3* 6* 70 | 132717-50430 | 132717-50430-Online | 1 3*6*70 YL | ||
| 6 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 7 | Clip | V490-001240 | V490-001240-Online | 1 6MM | ||
| 8 | Strainer, Fuel | 131205-07321 | 131205-07321-Online | |||
| 9 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | |||
| 10 | + | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | ||
| 11 | + | Connector,Cap | A365-000060 | A365-000060-Online | 1 L=123 | |
| 12 | Tank, Fuel | A350-001841 | A350-001841-Online | |||
| 13 | Screw 5*16 | 900243-05016 | 900243-05016-Online | 2 5*16 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | FUEL TANK |

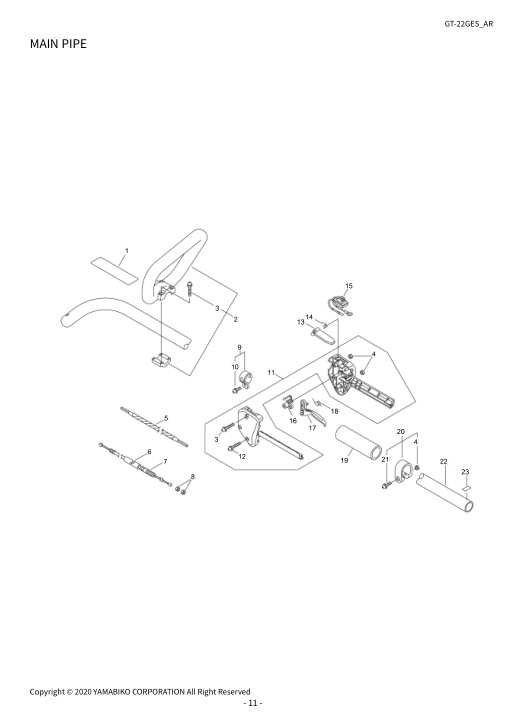

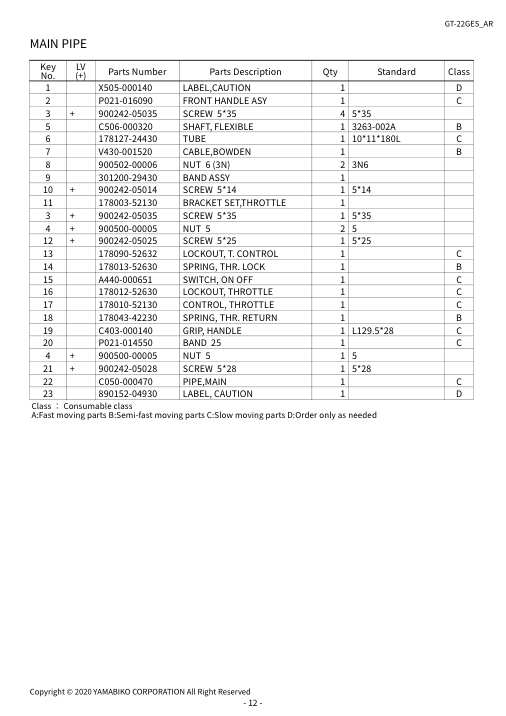

Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Label,Caution | X505-000140 | X505-000140-Online | |||
| 2 | Front Handle Asy | P021-016090 | P021-016090-Online | |||
| 3 | + | Screw 5*35 | 900242-05035 | 900242-05035-Online | 4 5*35 | |
| 5 | Shaft, Flexible | C506-000320 | C506-000320-Online | 1 3263-002A | ||
| 6 | Tube | 178127-24430 | 178127-24430-Online | 1 10*11*180L | ||
| 7 | Cable,Bowden | V430-001520 | V430-001520-Online | |||
| 8 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 9 | Band Assy | 301200-29430 | 301200-29430-Online | |||
| 10 | + | Screw 5*14 | 900242-05014 | 900242-05014-Online | 1 5*14 | |
| 11 | Bracket Set,Throttle | 178003-52130 | 178003-52130-Online | |||
| 4 | + | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | |
| 12 | + | Screw 5*25 | 900242-05025 | 900242-05025-Online | 1 5*25 | |
| 13 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | |||
| 14 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | |||
| 15 | Switch, On Off | A440-000651 | A440-000651-Online | |||
| 16 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | |||
| 17 | Control, Throttle | 178010-52130 | 178010-52130-Online | |||
| 18 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | |||
| 19 | Grip, Handle | C403-000140 | C403-000140-Online | 1 L129.5*28 | ||
| 20 | Band 25 | P021-014550 | P021-014550-Online | |||
| 21 | + | Screw 5*28 | 900242-05028 | 900242-05028-Online | 1 5*28 | |
| 22 | Pipe,Main | C050-000470 | C050-000470-Online | |||
| 23 | Label, Caution | 890152-04930 | 890152-04930-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

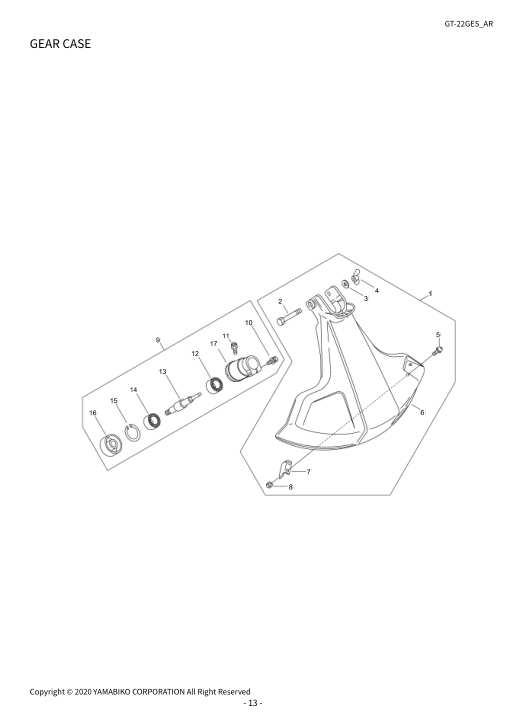

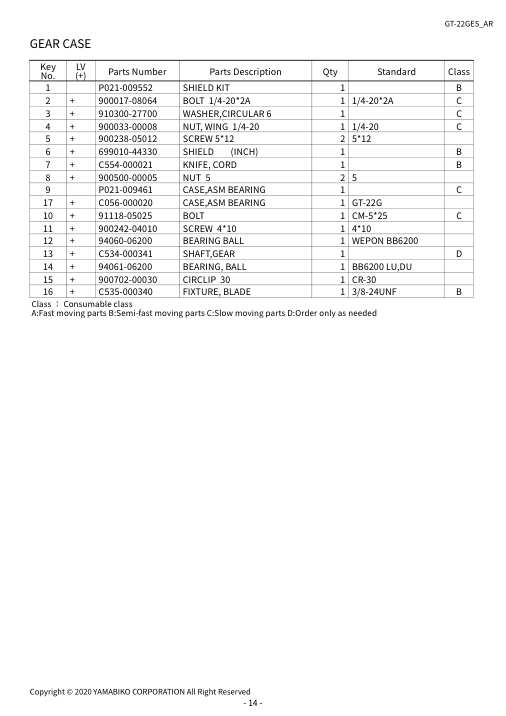

Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Shield Kit | P021-009552 | P021-009552-Online | |||
| 2 | + | Bolt 1/4-20*2A | 900017-08064 | 900017-08064-Online | 1 1/4-20*2A | |
| 3 | + | Washer,Circular 6 | 910300-27700 | 910300-27700-Online | ||
| 4 | + | Nut, Wing 1/4-20 | 900033-00008 | 900033-00008-Online | 1 1/4-20 | |
| 5 | + | Screw 5*12 | 900238-05012 | 900238-05012-Online | 2 5*12 | |
| 6 | + | Shield (Inch) | 699010-44330 | 699010-44330-Online | ||
| 7 | + | Knife, Cord | C554-000021 | C554-000021-Online | ||
| 8 | + | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | |
| 9 | Case,Asm Bearing | P021-009461 | P021-009461-Online | |||
| 17 | + | Case,Asm Bearing | C056-000020 | C056-000020-Online | 1 GT-22G | |
| 10 | + | Bolt | 91118-05025 | 91118-05025-Online | 1 CM-5*25 | |
| 11 | + | Screw 4*10 | 900242-04010 | 900242-04010-Online | 1 4*10 | |
| 12 | + | Bearing Ball | 94060-06200 | 94060-06200-Online | 1 WEPON BB6200 | |
| 13 | + | Shaft,Gear | C534-000341 | C534-000341-Online | ||
| 14 | + | Bearing, Ball | 94061-06200 | 94061-06200-Online | 1 BB6200 LU,DU | |
| 15 | + | Circlip 30 | 900702-00030 | 900702-00030-Online | 1 CR-30 | |
| 16 | + | Fixture, Blade | C535-000340 | C535-000340-Online | 1 3/8-24UNF | B | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

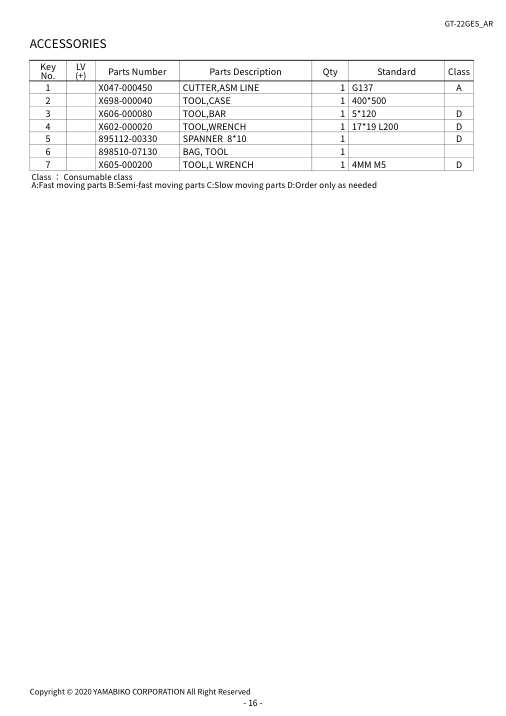

Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cutter,Asm Line | X047-000450 | X047-000450-Online | 1 G137 | ||
| 2 | Tool,Case | X698-000040 | X698-000040-Online | 1 400*500 | ||
| 3 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 4 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | ||
| 5 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 6 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 7 | Tool,L Wrench | X605-000200 | X605-000200-Online | 1 4MM M5 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

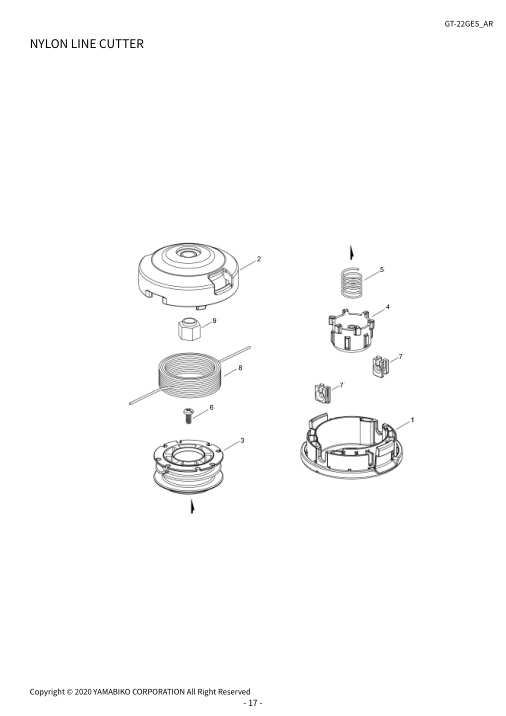

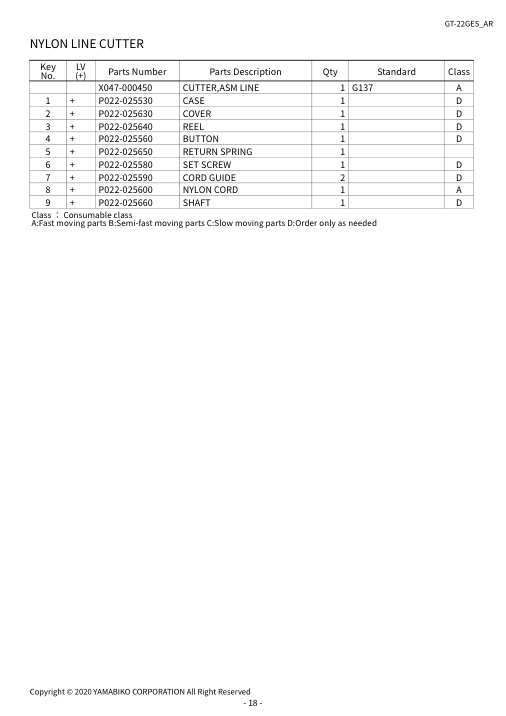

Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | Case | P022-025530 | P022-025530-Online | ||
| 2 | + | Cover | P022-025630 | P022-025630-Online | ||
| 3 | + | Reel | P022-025640 | P022-025640-Online | ||
| 4 | + | Button | P022-025560 | P022-025560-Online | ||
| 5 | + | Return Spring | P022-025650 | P022-025650-Online | ||
| 6 | + | Set Screw | P022-025580 | P022-025580-Online | ||
| 7 | + | Cord Guide | P022-025590 | P022-025590-Online | ||
| 8 | + | Nylon Cord | P022-025600 | P022-025600-Online | ||
| 9 | + | Shaft | P022-025660 | P022-025660-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | Body Assy, Pump | 123179-05560 | 123179-05560-Online | 1 | 21 | ++ | |
| 21 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 1 | B | 22 | ++ | ||
| 22 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 1 | D | 23 | ++ | ||
| 23 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 1 | D | 24 | ++ | ||
| 24 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | 1 | 25 | ++ | ||
| 25 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 1 | D | 26 | ++ | ||
| 26 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 3 | + | Body, Air Purge | 123180-05560 | 123180-05560-Online | ||
| 4 | + | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | ||
| 5 | + | Pump, Primer | 123181-40630 | 123181-40630-Online | ||
| 6 | + | Metering, Diaphragm | P003-000090 | P003-000090-Online | ||
| 7 | + | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | ||
| 8 | + | Jet #37 | 123184-44330 | 123184-44330-Online | 1 #37 | |
| 9 | + | Clip | 123173-07930 | 123173-07930-Online | ||
| 10 | + | Swivel | 123172-45130 | 123172-45130-Online | ||
| 11 | + | Valve Asy Throttle | P003-000840 | P003-000840-Online | ||
| 12 | + | O-Ring | 123183-40630 | 123183-40630-Online | ||
| 13 | + | Gasket, Pump | 123125-40630 | 123125-40630-Online | ||
| 14 | + | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | ||
| 15 | + | Screw | 123114-44330 | 123114-44330-Online | ||
| 16 | + | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | 4 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

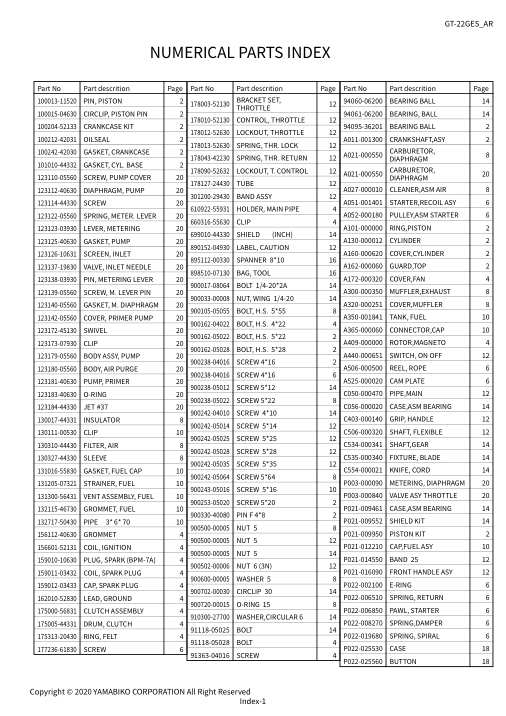

Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Crankcase Kit | 100204-52133 | 100204-52133-Online | |||
| 2 | Oilseal | 100212-42031 | 100212-42031-Online | |||
| 2 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |||
| 2 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | |||
| 2 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | |||
| 20 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |||
| 20 | Screw | 123114-44330 | 123114-44330-Online | |||
| 20 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | |||
| 20 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 20 | Gasket, Pump | 123125-40630 | 123125-40630-Online | |||
| 20 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 20 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 20 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 20 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | |||
| 20 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |||
| 20 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |||
| 20 | Swivel | 123172-45130 | 123172-45130-Online | |||
| 20 | Clip | 123173-07930 | 123173-07930-Online | |||
| 20 | Body Assy, Pump | 123179-05560 | 123179-05560-Online | |||
| 20 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |||
| 20 | Pump, Primer | 123181-40630 | 123181-40630-Online | |||
| 20 | O-Ring | 123183-40630 | 123183-40630-Online | |||
| 20 | Jet #37 | 123184-44330 | 123184-44330-Online | |||
| 20 | Insulator | 130017-44331 | 130017-44331-Online | |||
| 8 | Clip | 130111-00530 | 130111-00530-Online | |||
| 10 | Filter, Air | 130310-44430 | 130310-44430-Online | |||
| 8 | Sleeve | 130327-44330 | 130327-44330-Online | |||
| 8 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Strainer, Fuel | 131205-07321 | 131205-07321-Online | |||
| 10 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 10 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 10 | Pipe 3* 6* 70 | 132717-50430 | 132717-50430-Online | |||
| 10 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 4 | Coil, Ignition | 156601-52131 | 156601-52131-Online | |||
| 4 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | |||
| 4 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 4 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 4 | Lead, Ground | 162010-52830 | 162010-52830-Online | |||
| 4 | Clutch Assembly | 175000-56831 | 175000-56831-Online | |||
| 4 | Drum, Clutch | 175005-44331 | 175005-44331-Online | |||
| 4 | Ring, Felt | 175313-20430 | 175313-20430-Online | |||
| 4 | Screw | 177236-61830 | 177236-61830-Online | 6 | Part No | Part descrition | Page | ||
| 12 | Control, Throttle | 178010-52130 | 178010-52130-Online | |||
| 12 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | |||
| 12 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | |||
| 12 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | |||
| 12 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | |||
| 12 | Tube | 178127-24430 | 178127-24430-Online | |||
| 12 | Band Assy | 301200-29430 | 301200-29430-Online | |||
| 12 | Holder, Main Pipe | 610922-55931 | 610922-55931-Online | |||
| 4 | Clip | 660316-55630 | 660316-55630-Online | |||
| 4 | Shield (Inch) | 699010-44330 | 699010-44330-Online | |||
| 14 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 12 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | |||
| 16 | Bag, Tool | 898510-07130 | 898510-07130-Online | |||
| 16 | Bolt 1/4-20*2A | 900017-08064 | 900017-08064-Online | |||
| 14 | Nut, Wing 1/4-20 | 900033-00008 | 900033-00008-Online | |||
| 14 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | |||
| 8 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | |||
| 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | |||
| 2 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | |||
| 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | |||
| 6 | Screw 5*12 | 900238-05012 | 900238-05012-Online | |||
| 14 | Screw 5*22 | 900238-05022 | 900238-05022-Online | |||
| 8 | Screw 4*10 | 900242-04010 | 900242-04010-Online | |||
| 14 | Screw 5*14 | 900242-05014 | 900242-05014-Online | |||
| 12 | Screw 5*25 | 900242-05025 | 900242-05025-Online | |||
| 12 | Screw 5*28 | 900242-05028 | 900242-05028-Online | |||
| 12 | Screw 5*35 | 900242-05035 | 900242-05035-Online | |||
| 12 | Screw 5*64 | 900242-05064 | 900242-05064-Online | |||
| 8 | Screw 5*16 | 900243-05016 | 900243-05016-Online | |||
| 10 | Screw 5*20 | 900253-05020 | 900253-05020-Online | |||
| 2 | Pin F 4*8 | 900330-40080 | 900330-40080-Online | |||
| 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 8 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 12 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 14 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 12 | Washer 5 | 900600-00005 | 900600-00005-Online | |||
| 8 | Circlip 30 | 900702-00030 | 900702-00030-Online | |||
| 14 | O-Ring 15 | 900720-00015 | 900720-00015-Online | |||
| 8 | Washer,Circular 6 | 910300-27700 | 910300-27700-Online | |||
| 14 | Bolt | 91118-05025 | 91118-05025-Online | |||
| 14 | Bolt | 91118-05028 | 91118-05028-Online | |||
| 4 | Screw | 91363-04016 | 91363-04016-Online | 4 | Part No | Part descrition | Page | ||
| 14 | Bearing, Ball | 94061-06200 | 94061-06200-Online | |||
| 14 | Bearing Ball | 94095-36201 | 94095-36201-Online | |||
| 2 | Crankshaft,Asy | A011-001300 | A011-001300-Online | |||
| 2 | Carburetor, | A021-000550 | A021-000550-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-000550 | A021-000550-Online | DIAPHRAGM | ||
| 20 | Cleaner,Asm Air | A027-000010 | A027-000010-Online | |||
| 8 | Starter,Recoil Asy | A051-001401 | A051-001401-Online | |||
| 6 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | |||
| 6 | Ring,Piston | A101-000000 | A101-000000-Online | |||
| 2 | Cylinder | A130-000012 | A130-000012-Online | |||
| 2 | Cover,Cylinder | A160-000620 | A160-000620-Online | |||
| 2 | Guard,Top | A162-000060 | A162-000060-Online | |||
| 2 | Cover,Fan | A172-000320 | A172-000320-Online | |||
| 4 | Muffler,Exhaust | A300-000350 | A300-000350-Online | |||
| 8 | Cover,Muffler | A320-000251 | A320-000251-Online | |||
| 8 | Tank, Fuel | A350-001841 | A350-001841-Online | |||
| 10 | Connector,Cap | A365-000060 | A365-000060-Online | |||
| 10 | Rotor,Magneto | A409-000000 | A409-000000-Online | |||
| 4 | Switch, On Off | A440-000651 | A440-000651-Online | |||
| 12 | Reel, Rope | A506-000500 | A506-000500-Online | |||
| 6 | Cam Plate | A525-000020 | A525-000020-Online | |||
| 6 | Pipe,Main | C050-000470 | C050-000470-Online | |||
| 12 | Case,Asm Bearing | C056-000020 | C056-000020-Online | |||
| 14 | Grip, Handle | C403-000140 | C403-000140-Online | |||
| 12 | Shaft, Flexible | C506-000320 | C506-000320-Online | |||
| 12 | Shaft,Gear | C534-000341 | C534-000341-Online | |||
| 14 | Fixture, Blade | C535-000340 | C535-000340-Online | |||
| 14 | Knife, Cord | C554-000021 | C554-000021-Online | |||
| 14 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |||
| 20 | Valve Asy Throttle | P003-000840 | P003-000840-Online | |||
| 20 | Case,Asm Bearing | P021-009461 | P021-009461-Online | |||
| 14 | Shield Kit | P021-009552 | P021-009552-Online | |||
| 14 | Piston Kit | P021-009950 | P021-009950-Online | |||
| 2 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | |||
| 10 | Band 25 | P021-014550 | P021-014550-Online | |||
| 12 | Front Handle Asy | P021-016090 | P021-016090-Online | |||
| 12 | E-Ring | P022-002100 | P022-002100-Online | |||
| 6 | Spring, Return | P022-006510 | P022-006510-Online | |||
| 6 | Pawl, Starter | P022-006850 | P022-006850-Online | |||
| 6 | Spring,Damper | P022-008270 | P022-008270-Online | |||
| 6 | Spring, Spiral | P022-019680 | P022-019680-Online | |||
| 6 | Case | P022-025530 | P022-025530-Online | |||
| 18 | Button | P022-025560 | P022-025560-Online | 18 | GT-22GES_AR | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |

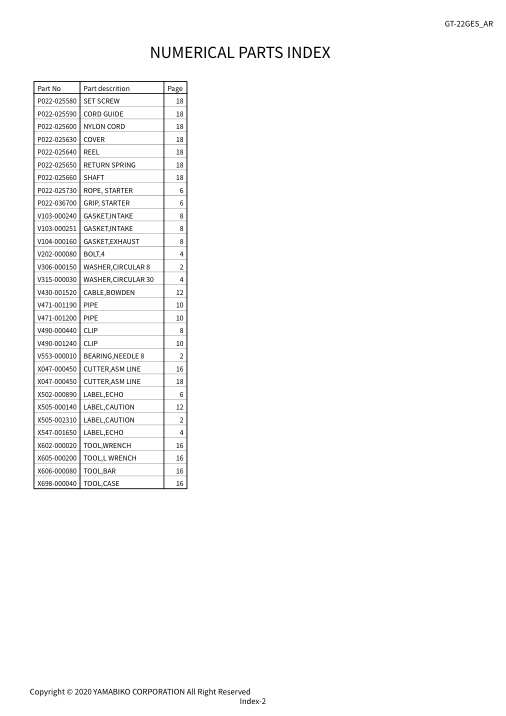

Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | Cord Guide | P022-025590 | P022-025590-Online | |||
| 18 | Nylon Cord | P022-025600 | P022-025600-Online | |||
| 18 | Cover | P022-025630 | P022-025630-Online | |||
| 18 | Reel | P022-025640 | P022-025640-Online | |||
| 18 | Return Spring | P022-025650 | P022-025650-Online | |||
| 18 | Shaft | P022-025660 | P022-025660-Online | |||
| 18 | Rope, Starter | P022-025730 | P022-025730-Online | |||
| 6 | Grip, Starter | P022-036700 | P022-036700-Online | |||
| 6 | Gasket,Intake | V103-000240 | V103-000240-Online | |||
| 8 | Gasket,Intake | V103-000251 | V103-000251-Online | |||
| 8 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |||
| 8 | Bolt,4 | V202-000080 | V202-000080-Online | |||
| 4 | Washer,Circular 8 | V306-000150 | V306-000150-Online | |||
| 2 | Washer,Circular 30 | V315-000030 | V315-000030-Online | |||
| 4 | Cable,Bowden | V430-001520 | V430-001520-Online | |||
| 12 | Pipe | V471-001190 | V471-001190-Online | |||
| 10 | Pipe | V471-001200 | V471-001200-Online | |||
| 10 | Clip | V490-000440 | V490-000440-Online | |||
| 8 | Clip | V490-001240 | V490-001240-Online | |||
| 10 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | |||
| 2 | Cutter,Asm Line | X047-000450 | X047-000450-Online | |||
| 16 | Cutter,Asm Line | X047-000450 | X047-000450-Online | |||
| 18 | Label,Echo | X502-000890 | X502-000890-Online | |||
| 6 | Label,Caution | X505-000140 | X505-000140-Online | |||
| 12 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 2 | Label,Echo | X547-001650 | X547-001650-Online | |||
| 4 | Tool,Wrench | X602-000020 | X602-000020-Online | |||
| 16 | Tool,L Wrench | X605-000200 | X605-000200-Online | |||
| 16 | Tool,Bar | X606-000080 | X606-000080-Online | |||
| 16 | Tool,Case | X698-000040 | X698-000040-Online | 16 | GT-22GES_AR | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20230210-790-GT-22GES_SPEC_26_26000001_EN-(1).pdf. Generated 2026-06-25 14:41.
