Echo GT-22GES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: GT-22GES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.

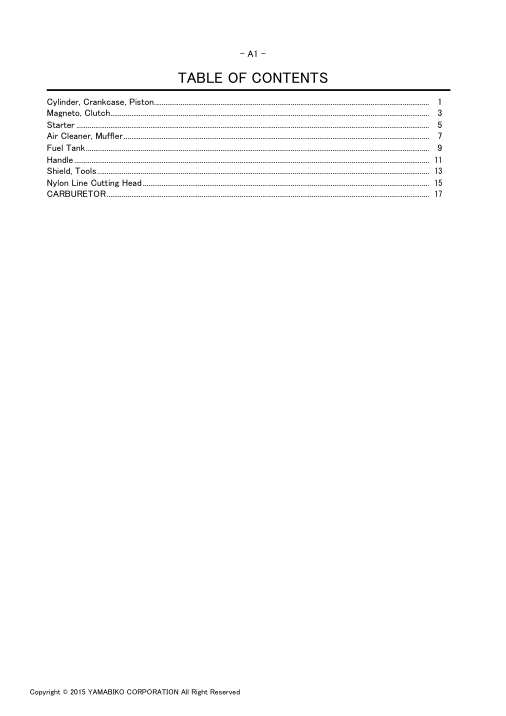

Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

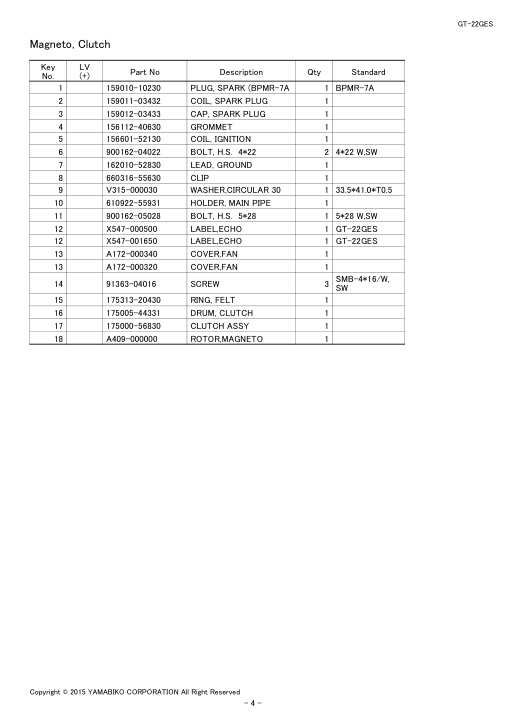

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

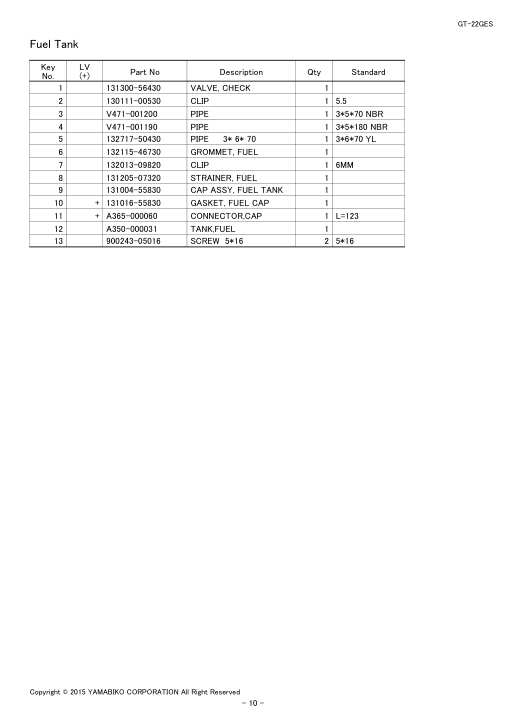

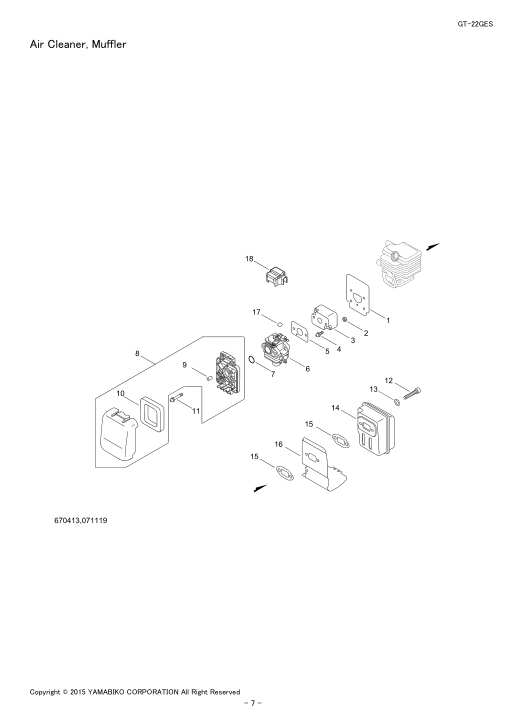

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

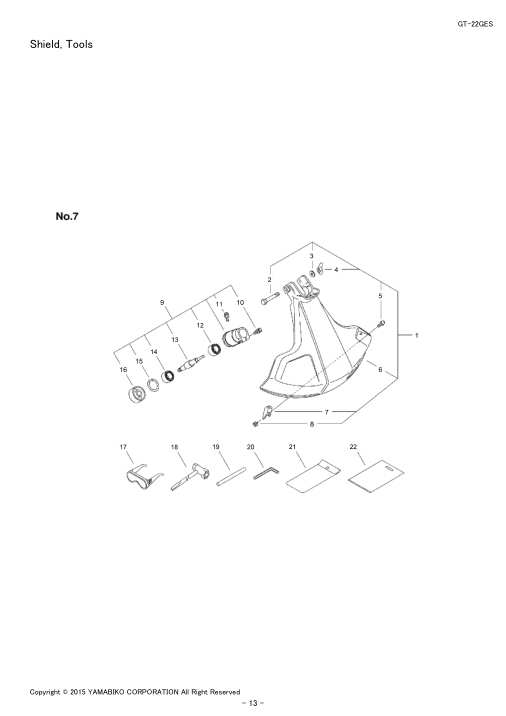

Page 15
Tap or click the page image to enlarge it.

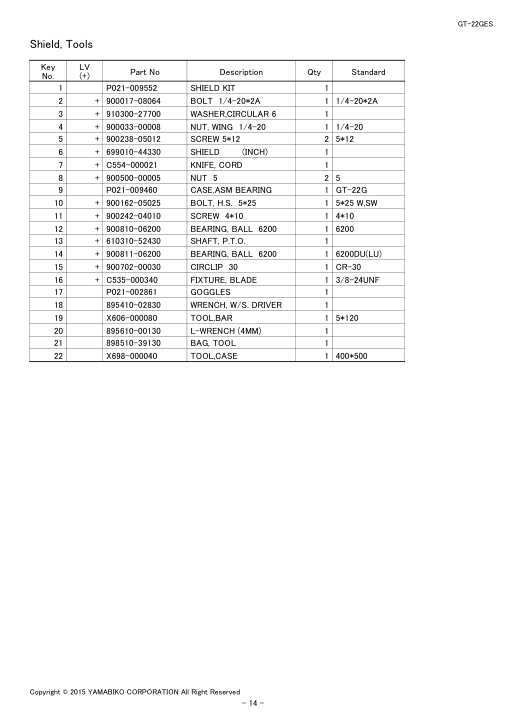

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.

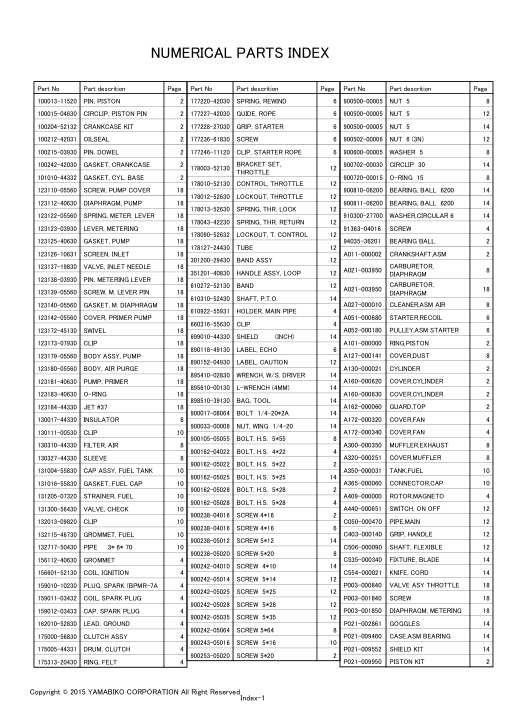

Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cylinder | A130-000021 | A130-000021-Online | |||
| 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 2 5*22 W,SW | ||
| 3 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | |||
| 4 | Piston Kit | P021-009950 | P021-009950-Online | 1 | 5 | + A101-000000 | RING,PISTON | ||
| 9 | Crankcase Kit | 100204-52132 | 100204-52132-Online | 1 | 10 | + 100212-42031 | OILSEAL | ||
| 15 | Crankshaft,Asm | A011-000002 | A011-000002-Online | 1 | 16 | + V553-000010 | BEARING,NEEDLE 8 | ||
| 17 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 1 5*20 | ||
| 18 | Guard,Top | A162-000060 | A162-000060-Online | |||
| 19 | Cover,Cylinder | A160-000630 | A160-000630-Online | |||
| 19 | Cover,Cylinder | A160-000620 | A160-000620-Online | |||
| 20 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 2 4*16 | Cylinder, Crankcase, Piston | GT-22GES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | 1 | 2 | + P022-002100 | E-RING | ||
| 5 | Starter,Recoil | A051-000680 | A051-000680-Online | 1 | 6 | + 177236-61830 | SCREW | ||
| 15 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 2 4*16 | ||
| 16 | Label, Echo | 890118-49130 | 890118-49130-Online | 1 | Starter | GT-22GES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Gasket,Intake | V103-000240 | V103-000240-Online | |||
| 2 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 3 | Insulator | 130017-44330 | 130017-44330-Online | |||
| 4 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 2 5*20 | ||
| 5 | Gasket,Intake | V103-000250 | V103-000250-Online | |||
| 6 | Carburetor, | A021-003950 | A021-003950-Online | DIAPHRAGM | 1 WALBRO WYL | ||
| 7 | O-Ring 15 | 900720-00015 | 900720-00015-Online | 1 P-15 | ||
| 8 | Cleaner,Asm Air | A027-000010 | A027-000010-Online | 1 | 9 | + 130327-44330 | SLEEVE | ||
| 11 | Screw 5*64 | 900242-05064 | 900242-05064-Online | 2 5*64 | ||
| 12 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 2 5*55 | ||
| 13 | Washer 5 | 900600-00005 | 900600-00005-Online | 2 5 | ||
| 14 | Muffler,Exhaust | A300-000350 | A300-000350-Online | |||
| 15 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |||
| 16 | Cover,Muffler | A320-000251 | A320-000251-Online | |||
| 17 | Clip | V490-000440 | V490-000440-Online | |||
| 18 | Cover,Dust | A127-000141 | A127-000141-Online | 1 | Air Cleaner, Muffler | GT-22GES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 2 | Clip | 130111-00530 | 130111-00530-Online | 1 5.5 | ||
| 3 | Pipe | V471-001200 | V471-001200-Online | 1 3*5*70 NBR | ||
| 4 | Pipe | V471-001190 | V471-001190-Online | 1 3*5*180 NBR | ||
| 5 | Pipe 3* 6* 70 | 132717-50430 | 132717-50430-Online | 1 3*6*70 YL | ||
| 6 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 7 | Clip | 132013-09820 | 132013-09820-Online | 1 6MM | ||
| 8 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | |||
| 9 | Cap Assy, Fuel Tank | 131004-55830 | 131004-55830-Online | 1 | 10 | + 131016-55830 | GASKET, FUEL CAP | ||
| 12 | Tank,Fuel | A350-000031 | A350-000031-Online | |||
| 13 | Screw 5*16 | 900243-05016 | 900243-05016-Online | 2 5*16 | Fuel Tank | GT-22GES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Label,Caution | X505-000140 | X505-000140-Online | |||
| 2 | Handle Assy, Loop | 351201-40830 | 351201-40830-Online | 1 | 3 | + 900242-05035 | SCREW 5*35 | ||
| 5 | Shaft, Flexible | C506-000090 | C506-000090-Online | 1 L:1330 | 3251-096A | ||
| 6 | Tube | 178127-24430 | 178127-24430-Online | 1 10*11*180L | ||
| 7 | Cable,Bowden | V430-001520 | V430-001520-Online | |||
| 8 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 9 | Band Assy | 301200-29430 | 301200-29430-Online | 1 | 10 | + 900242-05014 | SCREW 5*14 | ||
| 11 | Bracket Set, | 178003-52130 | 178003-52130-Online | THROTTLE | 1 | 3 | + 900242-05035 | ||
| 13 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | |||
| 14 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | |||
| 15 | Switch, On Off | A440-000651 | A440-000651-Online | |||
| 16 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | |||
| 17 | Control, Throttle | 178010-52130 | 178010-52130-Online | |||
| 18 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | |||
| 19 | Grip, Handle | C403-000140 | C403-000140-Online | 1 L129.5*28 | ||
| 20 | Band | 610272-52130 | 610272-52130-Online | 1 | 4 | + 900500-00005 | NUT 5 | ||
| 22 | Pipe,Main | C050-000470 | C050-000470-Online | |||
| 23 | Label, Caution | 890152-04930 | 890152-04930-Online | 1 | Handle | GT-22GES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Shield Kit | P021-009552 | P021-009552-Online | 1 | 2 | + 900017-08064 | BOLT 1/4-20*2A | ||
| 9 | Case,Asm Bearing | P021-009460 | P021-009460-Online | 1 GT-22G | 10 | + 900162-05025 | BOLT, H.S. 5*25 | ||
| 17 | Goggles | P021-002861 | P021-002861-Online | |||
| 18 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | |||
| 19 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 20 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 21 | Bag, Tool | 898510-39130 | 898510-39130-Online | |||
| 22 | Tool,Case | X698-000040 | X698-000040-Online | 1 400*500 | Shield, Tools | GT-22GES | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cutter,Asm Line | X047-000380 | X047-000380-Online | 1 B4-R | 2 | + P022-000670 | TOP PLATE |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-003950 | A021-003950-Online | DIAPHRAGM | 1 WALBRO WYL | 2 | + 123179-05560 |
Page 21 - Parts
Page 22 - Parts
Source PDF: 20200226-19_GT-22GES_24_24000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
