Echo GT-22GES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: GT-22GES-Online
Source Pages

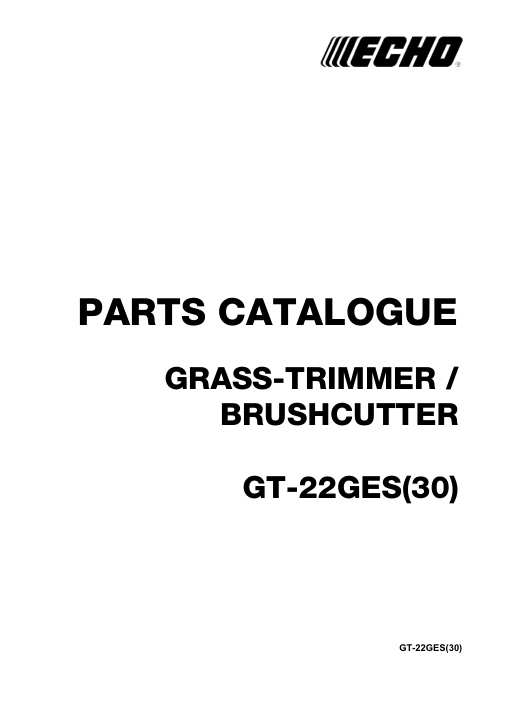

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

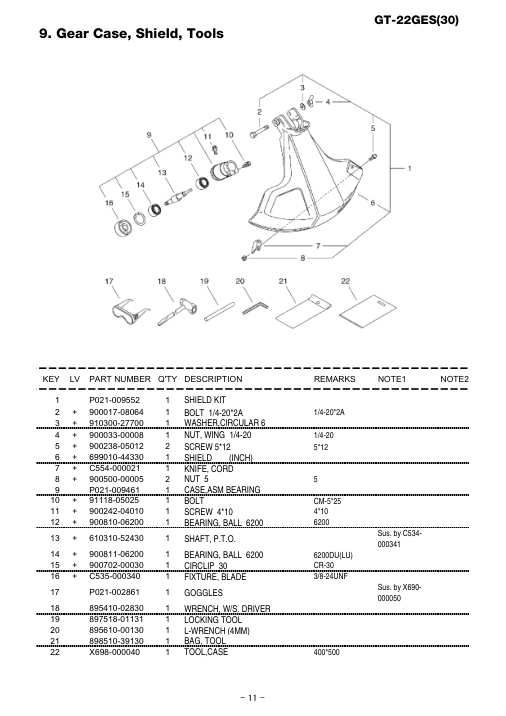

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

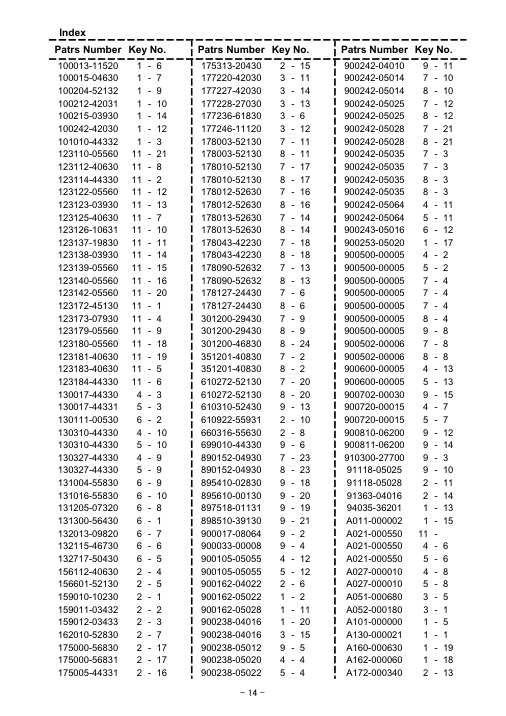

Page 15
Tap or click the page image to enlarge it.

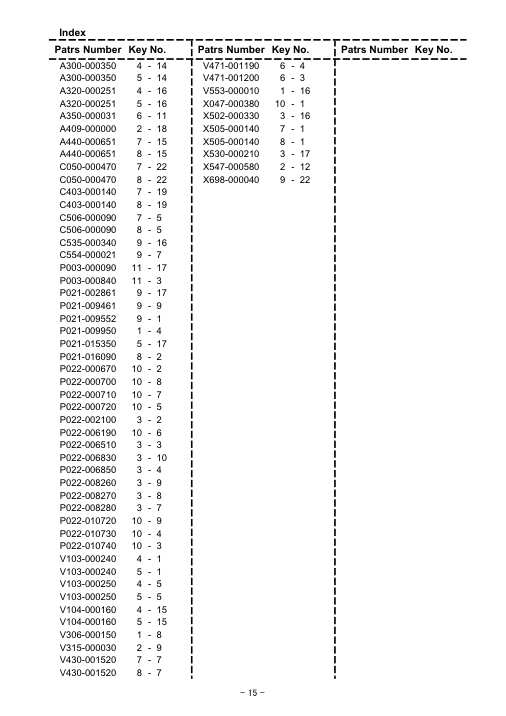

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder | A130-000021 | A130-000021-Online | ||
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Piston Kit | P021-009950 | P021-009950-Online | ||
| 5 | + | 2 | Ring,Piston | A101-000000 | A101-000000-Online | |
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 8 | + | 2 | Washer,Circular 8 | V306-000150 | V306-000150-Online | 8.2*13*0.8 |
| 9 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 10 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 11 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 12 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 13 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 14 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 15 | 1 | Crankshaft,Asm | A011-000002 | A011-000002-Online | ||
| 16 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 17 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 18 | 1 | Guard,Top | A162-000060 | A162-000060-Online | ||
| 19 | 1 | Cover,Cylinder | A160-000630 | A160-000630-Online | ||
| 20 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 |

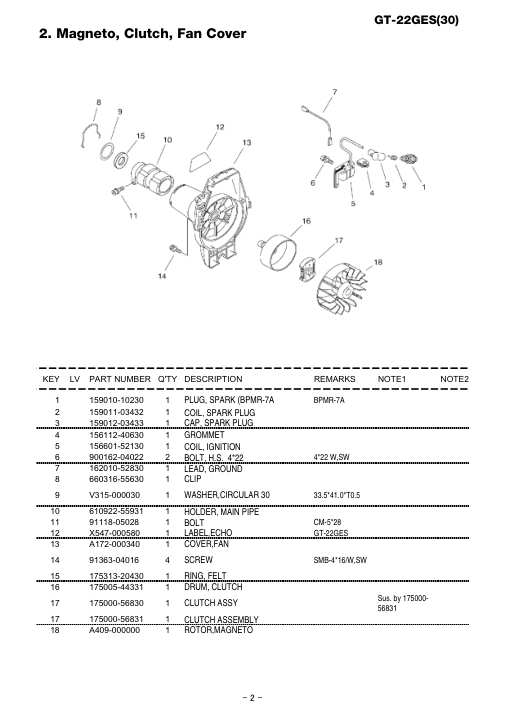

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 2 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 3 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 4 | 1 | Grommet | 156112-40630 | 156112-40630-Online | ||
| 5 | 1 | Coil, Ignition | 156601-52130 | 156601-52130-Online | ||
| 6 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 7 | 1 | Lead, Ground | 162010-52830 | 162010-52830-Online | ||
| 8 | 1 | Clip | 660316-55630 | 660316-55630-Online | ||
| 9 | 1 | Washer,Circular 30 | V315-000030 | V315-000030-Online | 33.5*41.0*T0.5 | |
| 10 | 1 | Holder, Main Pipe | 610922-55931 | 610922-55931-Online | ||
| 11 | 1 | Bolt | 91118-05028 | 91118-05028-Online | CM-5*28 | |
| 12 | 1 | Label,Echo | X547-000580 | X547-000580-Online | GT-22GES | |
| 13 | 1 | Cover,Fan | A172-000340 | A172-000340-Online | ||
| 14 | 4 | Screw | 91363-04016 | 91363-04016-Online | SMB-4*16/W,SW | |
| 15 | 1 | Ring, Felt | 175313-20430 | 175313-20430-Online | ||
| 16 | 1 | Drum, Clutch | 175005-44331 | 175005-44331-Online | ||
| 17 | 1 | Clutch Assy | 175000-56830 | 175000-56830-Online | Sus. by 175000- | 56831 | |
| 17 | 1 | Clutch Assembly | 175000-56831 | 175000-56831-Online | ||
| 18 | 1 | Rotor,Magneto | A409-000000 | A409-000000-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | ||
| 2 | + | 2 | E-Ring | P022-002100 | P022-002100-Online | |
| 3 | + | 2 | Spring, Return | P022-006510 | P022-006510-Online | |
| 4 | + | 2 | Pawl, Starter | P022-006850 | P022-006850-Online | |
| 5 | 1 | Starter,Recoil | A051-000680 | A051-000680-Online | ||
| 6 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 7 | + | 1 | Plate, Cam | P022-008280 | P022-008280-Online | |
| 8 | + | 1 | Spring,Damper | P022-008270 | P022-008270-Online | |
| 9 | + | 1 | Rope | P022-008260 | P022-008260-Online | 3M/M |
| 10 | + | 1 | Drum | P022-006830 | P022-006830-Online | |
| 11 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 12 | + | 1 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |
| 13 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 14 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 15 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | |
| 16 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 17 | 1 | Label,Eye Catcher | X530-000210 | X530-000210-Online | Disuse |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket,Intake | V103-000240 | V103-000240-Online | ||
| 2 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 3 | 1 | Insulator | 130017-44330 | 130017-44330-Online | Sr/Nr 30029540 | and before | |
| 4 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | Sr/Nr 30029540 | and before | |
| 5 | 1 | Gasket,Intake | V103-000250 | V103-000250-Online | ||
| 6 | 1 | Carburetor,Diaphragm | A021-000550 | A021-000550-Online | WYL-170 | |
| 7 | 1 | O-Ring 15 | 900720-00015 | 900720-00015-Online | P-15 | |
| 8 | 1 | Cleaner,Asm Air | A027-000010 | A027-000010-Online | ||
| 9 | + | 2 | Sleeve | 130327-44330 | 130327-44330-Online | |
| 10 | + | 1 | Filter, Air | 130310-44330 | 130310-44330-Online | |
| 11 | 2 | Screw 5*64 | 900242-05064 | 900242-05064-Online | 5*64 | |
| 12 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 13 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 14 | 1 | Muffler,Exhaust | A300-000350 | A300-000350-Online | ||
| 15 | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | ||
| 16 | 1 | Cover,Muffler | A320-000251 | A320-000251-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket,Intake | V103-000240 | V103-000240-Online | ||
| 2 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 5 | 1 | Gasket,Intake | V103-000250 | V103-000250-Online | ||
| 6 | 1 | Carburetor,Diaphragm | A021-000550 | A021-000550-Online | WYL-170 | |
| 7 | 1 | O-Ring 15 | 900720-00015 | 900720-00015-Online | P-15 | |
| 8 | 1 | Cleaner,Asm Air | A027-000010 | A027-000010-Online | ||
| 9 | + | 2 | Sleeve | 130327-44330 | 130327-44330-Online | |
| 10 | + | 1 | Filter, Air | 130310-44330 | 130310-44330-Online | |
| 11 | 2 | Screw 5*64 | 900242-05064 | 900242-05064-Online | 5*64 | |
| 12 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 13 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 14 | 1 | Muffler,Exhaust | A300-000350 | A300-000350-Online | ||
| 15 | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | ||
| 16 | 1 | Cover,Muffler | A320-000251 | A320-000251-Online | ||
| 17 | 1 | Insulator Kit | P021-015350 | P021-015350-Online | Sr/Nr 30029541 | and after | |
| 3 | + | 1 | Insulator | 130017-44331 | 130017-44331-Online | |
| 4 | + | 2 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 |

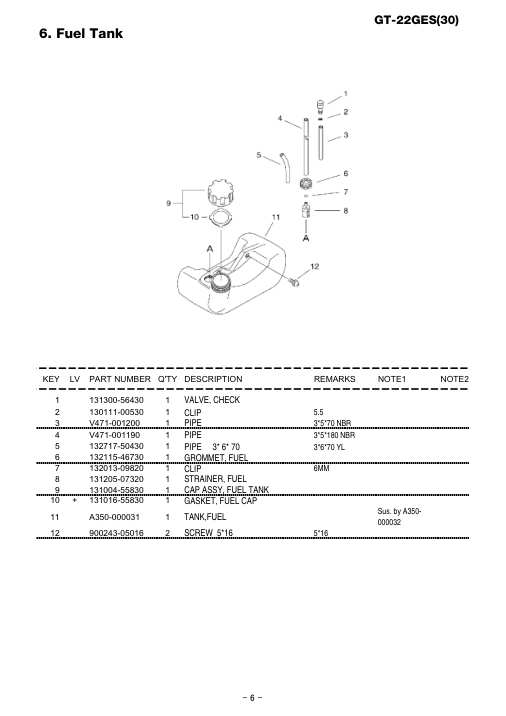

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 2 | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 | |
| 3 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 4 | 1 | Pipe | V471-001190 | V471-001190-Online | 3*5*180 NBR | |
| 5 | 1 | Pipe 3* 6* 70 | 132717-50430 | 132717-50430-Online | 3*6*70 YL | |
| 6 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 7 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 8 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 9 | 1 | Cap Assy, Fuel Tank | 131004-55830 | 131004-55830-Online | ||
| 10 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 11 | 1 | Tank,Fuel | A350-000031 | A350-000031-Online | Sus. by A350- | 000032 | |
| 12 | 2 | Screw 5*16 | 900243-05016 | 900243-05016-Online | 5*16 |

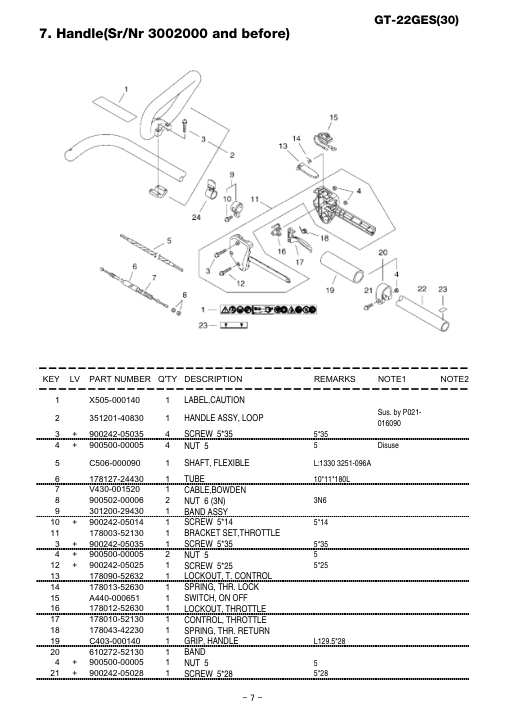

Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | ||
| 2 | 1 | Handle Assy, Loop | 351201-40830 | 351201-40830-Online | Sus. by P021- | 016090 | |
| 3 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 4 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | 5 | Disuse |
| 5 | 1 | Shaft, Flexible | C506-000090 | C506-000090-Online | L:1330 3251-096A | |
| 6 | 1 | Tube | 178127-24430 | 178127-24430-Online | 10*11*180L | |
| 7 | 1 | Cable,Bowden | V430-001520 | V430-001520-Online | ||
| 8 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 9 | 1 | Band Assy | 301200-29430 | 301200-29430-Online | ||
| 10 | + | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 11 | 1 | Bracket Set,Throttle | 178003-52130 | 178003-52130-Online | ||
| 3 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 4 | + | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 12 | + | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 13 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 14 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 15 | 1 | Switch, On Off | A440-000651 | A440-000651-Online | ||
| 16 | 1 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | ||
| 17 | 1 | Control, Throttle | 178010-52130 | 178010-52130-Online | ||
| 18 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 19 | 1 | Grip, Handle | C403-000140 | C403-000140-Online | L129.5*28 | |
| 20 | 1 | Band | 610272-52130 | 610272-52130-Online | ||
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 21 | + | 1 | Screw 5*28 | 900242-05028 | 900242-05028-Online | 5*28 |

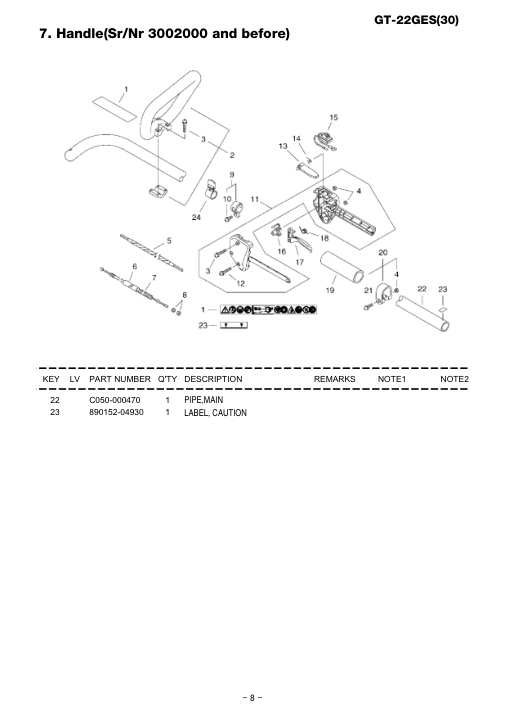

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | 1 | Pipe,Main | C050-000470 | C050-000470-Online | ||
| 23 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |

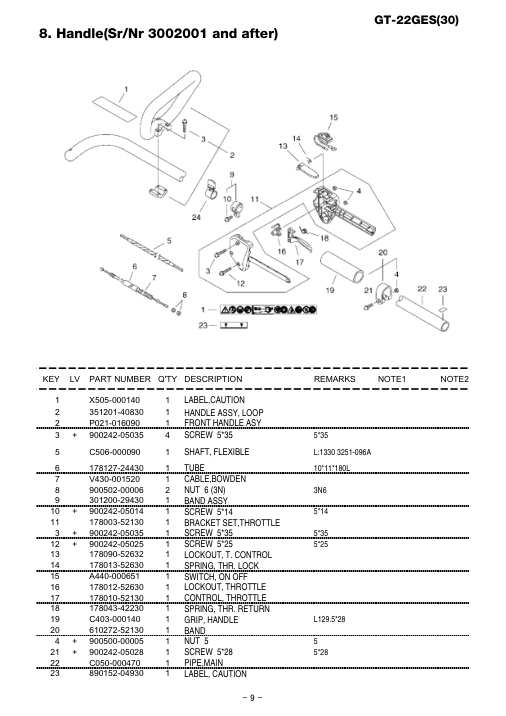

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | ||
| 2 | 1 | Handle Assy, Loop | 351201-40830 | 351201-40830-Online | ||
| 2 | 1 | Front Handle Asy | P021-016090 | P021-016090-Online | ||
| 3 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 5 | 1 | Shaft, Flexible | C506-000090 | C506-000090-Online | L:1330 3251-096A | |
| 6 | 1 | Tube | 178127-24430 | 178127-24430-Online | 10*11*180L | |
| 7 | 1 | Cable,Bowden | V430-001520 | V430-001520-Online | ||
| 8 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 9 | 1 | Band Assy | 301200-29430 | 301200-29430-Online | ||
| 10 | + | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 11 | 1 | Bracket Set,Throttle | 178003-52130 | 178003-52130-Online | ||
| 3 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 12 | + | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 13 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 14 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 15 | 1 | Switch, On Off | A440-000651 | A440-000651-Online | ||
| 16 | 1 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | ||
| 17 | 1 | Control, Throttle | 178010-52130 | 178010-52130-Online | ||
| 18 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 19 | 1 | Grip, Handle | C403-000140 | C403-000140-Online | L129.5*28 | |
| 20 | 1 | Band | 610272-52130 | 610272-52130-Online | ||
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 21 | + | 1 | Screw 5*28 | 900242-05028 | 900242-05028-Online | 5*28 |
| 22 | 1 | Pipe,Main | C050-000470 | C050-000470-Online | ||
| 23 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Hook, Lifting | 301200-46830 | 301200-46830-Online | Sr/Nr 3002001 and | after |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Shield Kit | P021-009552 | P021-009552-Online | ||
| 2 | + | 1 | Bolt 1/4-20*2A | 900017-08064 | 900017-08064-Online | 1/4-20*2A |
| 3 | + | 1 | Washer,Circular 6 | 910300-27700 | 910300-27700-Online | |
| 4 | + | 1 | Nut, Wing 1/4-20 | 900033-00008 | 900033-00008-Online | 1/4-20 |
| 5 | + | 2 | Screw 5*12 | 900238-05012 | 900238-05012-Online | 5*12 |
| 6 | + | 1 | Shield (Inch) | 699010-44330 | 699010-44330-Online | |
| 7 | + | 1 | Knife, Cord | C554-000021 | C554-000021-Online | |
| 8 | + | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 9 | 1 | Case,Asm Bearing | P021-009461 | P021-009461-Online | ||
| 10 | + | 1 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 |
| 11 | + | 1 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 12 | + | 1 | Bearing, Ball 6200 | 900810-06200 | 900810-06200-Online | |
| 13 | + | 1 | Shaft, P.T.O. | 610310-52430 | 610310-52430-Online | Sus. by C534- | 000341 |
| 14 | + | 1 | Bearing, Ball 6200 | 900811-06200 | 900811-06200-Online | 6200DU(LU) |
| 15 | + | 1 | Circlip 30 | 900702-00030 | 900702-00030-Online | CR-30 |
| 16 | + | 1 | Fixture, Blade | C535-000340 | C535-000340-Online | 3/8-24UNF |
| 17 | 1 | Goggles | P021-002861 | P021-002861-Online | Sus. by X690- | 000050 | |
| 18 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 19 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 20 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 21 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 22 | 1 | Tool,Case | X698-000040 | X698-000040-Online | 400*500 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cutter,Asm Line | X047-000380 | X047-000380-Online | B4-R | |
| 2 | + | 1 | Top Plate | P022-000670 | P022-000670-Online | T4 |
| 3 | + | 1 | Housing | P022-010740 | P022-010740-Online | |
| 4 | + | 1 | Part | P022-010730 | P022-010730-Online | |
| 5 | + | 1 | Spring | P022-000720 | P022-000720-Online | T4 |
| 6 | + | 1 | Nylon Code | P022-006190 | P022-006190-Online | 3.0*2M |
| 7 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 |
| 8 | + | 1 | Bobbin | P022-000700 | P022-000700-Online | T4 |
| 9 | + | 1 | Cover | P022-010720 | P022-010720-Online |

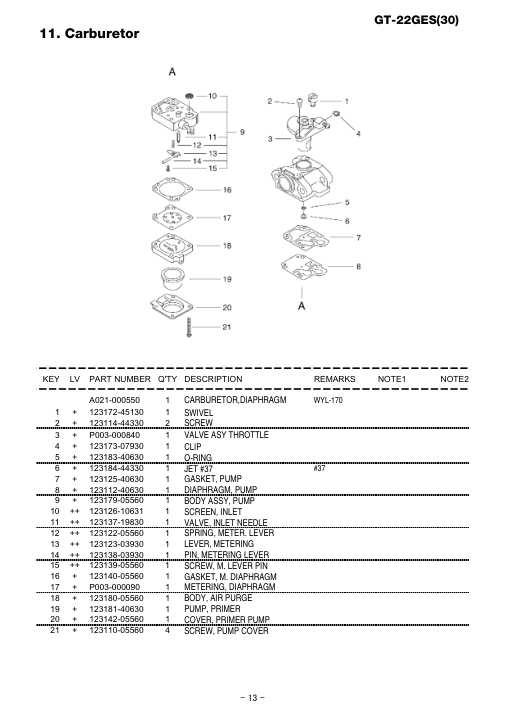

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 2 | + | 2 | Screw | 123114-44330 | 123114-44330-Online | |
| 3 | + | 1 | Valve Asy Throttle | P003-000840 | P003-000840-Online | |
| 4 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 5 | + | 1 | O-Ring | 123183-40630 | 123183-40630-Online | |
| 6 | + | 1 | Jet #37 | 123184-44330 | 123184-44330-Online | #37 |
| 7 | + | 1 | Gasket, Pump | 123125-40630 | 123125-40630-Online | |
| 8 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 9 | + | 1 | Body Assy, Pump | 123179-05560 | 123179-05560-Online | 10 | ++ |
| 10 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 11 | ++ | |
| 11 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 12 | ++ | |
| 12 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 13 | ++ | |
| 13 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 14 | ++ | |
| 14 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 15 | ++ | |
| 15 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 16 | + | 1 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |
| 17 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 18 | + | 1 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |
| 19 | + | 1 | Pump, Primer | 123181-40630 | 123181-40630-Online | |
| 20 | + | 1 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |
| 21 | + | 4 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online |
Source PDF: 20130718-877_GT-22GES(30)_GT-22GES(30)_EN.pdf. Generated 2026-06-25 14:39.
