Echo HCA-2500-R IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HCA-2500-R-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.

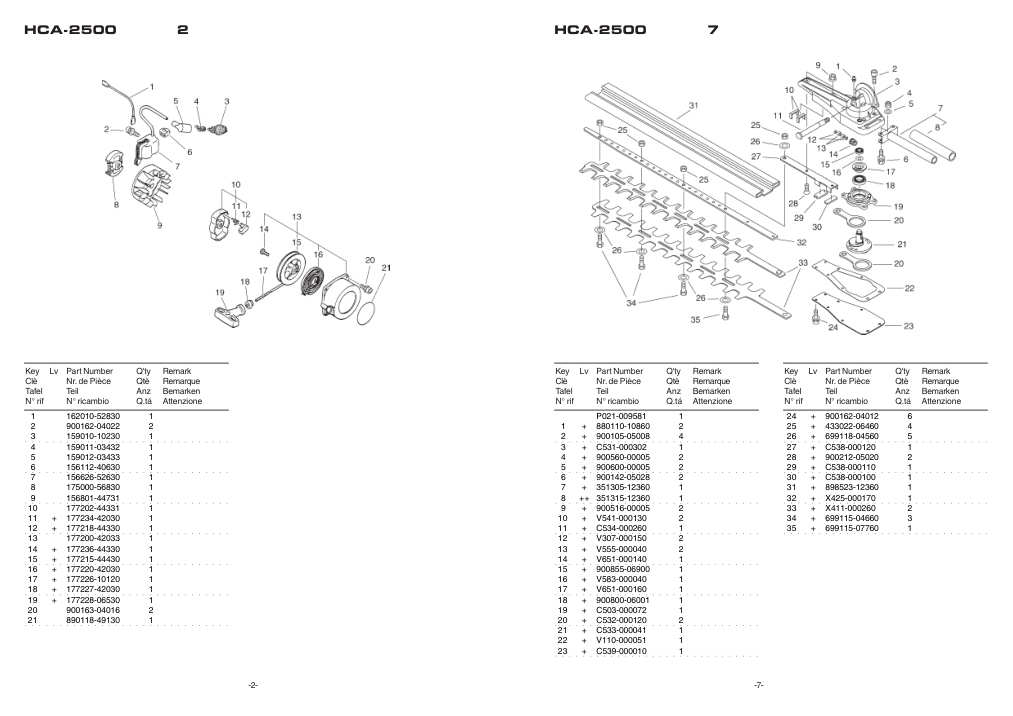

Page 2
Tap or click the page image to enlarge it.

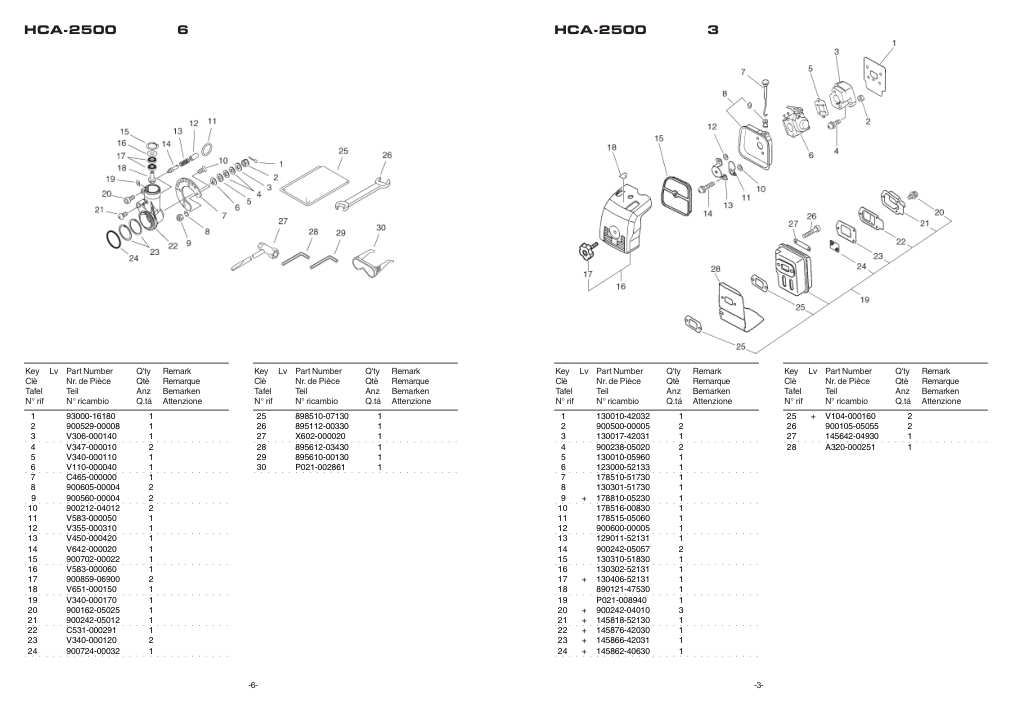

Page 3
Tap or click the page image to enlarge it.

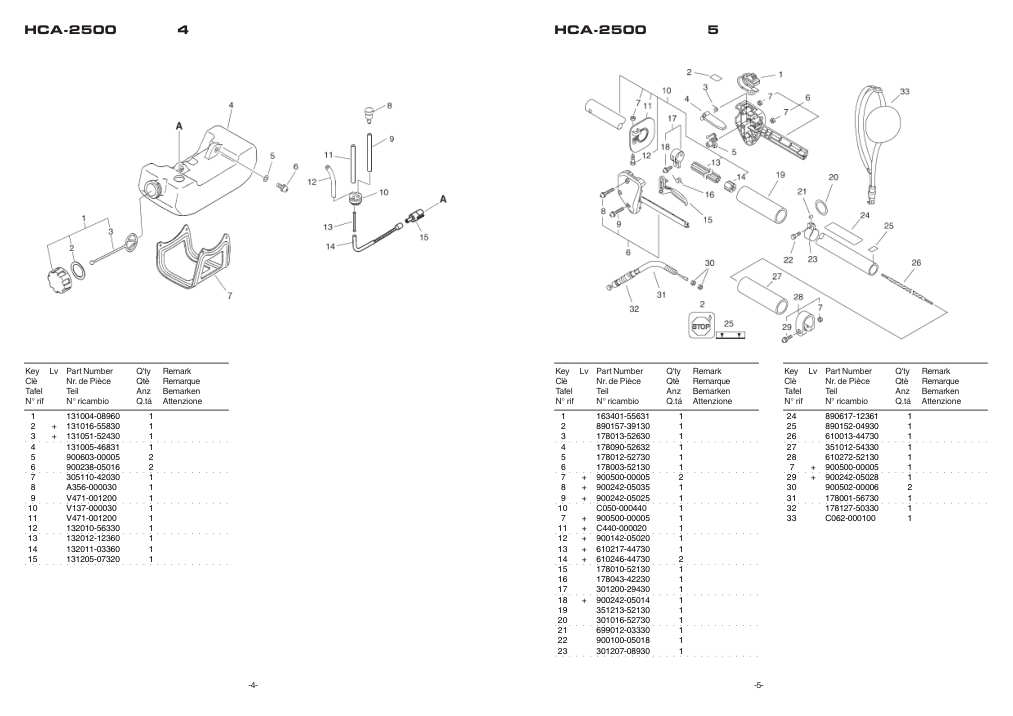

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 1 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Part | 101011-08961 | 101011-08961-Online | ||
| 2 | 2 | Part | 900162-05022 | 900162-05022-Online | ||
| 3 | 1 | Part | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Part | 100000-09563 | 100000-09563-Online | ||
| 5 | + | 2 | Part | 100011-09560 | 100011-09560-Online | |
| 6 | + | 1 | Part | 100013-11520 | 100013-11520-Online | |
| 7 | + | 2 | Part | 100015-04630 | 100015-04630-Online | |
| 8 | + | 2 | Part | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Part | A011-000101 | A011-000101-Online | ||
| 10 | + | 1 | Part | V553-000010 | V553-000010-Online | |
| 11 | 1 | Part | 100204-52132 | 100204-52132-Online | ||
| 12 | + | 2 | Part | 100212-42031 | 100212-42031-Online | |
| 13 | + | 2 | Part | 100215-03930 | 100215-03930-Online | |
| 14 | + | 2 | Part | 94035-36201 | 94035-36201-Online | |
| 15 | + | 1 | Part | 100242-42030 | 100242-42030-Online | |
| 16 | + | 3 | Part | 900162-05028 | 900162-05028-Online | |
| 17 | 1 | Part | 900238-05016 | 900238-05016-Online | ||
| 18 | 1 | Part | 159912-54130 | 159912-54130-Online | ||
| 19 | 1 | Part | 101514-48930 | 101514-48930-Online | ||
| 20 | 2 | Part | 900163-04016 | 900163-04016-Online | ||
| 21 | 1 | Part | 175005-48931 | 175005-48931-Online | ||
| 22 | 1 | Part | 900702-00028 | 900702-00028-Online | ||
| 23 | 2 | Part | 900807-96001 | 900807-96001-Online | ||
| 24 | 1 | ○ | 900701-00012 | 900701-00012-Online | ○ | ○ | ○ | ○ | |
| 25 | 1 | Part | 101503-52131 | 101503-52131-Online | ||
| 26 | 4 | Part | 900163-04016 | 900163-04016-Online | ||
| 27 | 1 | Part | X503-006300 | X503-006300-Online | ||
| 28 | 1 | Part | 610910-55230 | 610910-55230-Online | ||
| 29 | 1 | Part | 610903-55230 | 610903-55230-Online | ||
| 30 | + | 1 | Part | 610923-55230 | 610923-55230-Online | |
| 31 | + | 1 | Part | 610922-27432 | 610922-27432-Online | |
| 32 | + | 2 | ○ | 900142-05025 | 900142-05025-Online | ○ | ○ | ○ | ○ |
| 1 | + | 2 | Part | 123110-43130 | 123110-43130-Online | |
| 2 | + | 1 | Part | 123142-09560 | 123142-09560-Online | |
| 3 | + | 1 | Part | 123181-09560 | 123181-09560-Online | |
| 4 | + | 1 | Part | 123171-35630 | 123171-35630-Online | |
| 5 | + | 1 | Part | 123124-43230 | 123124-43230-Online | |
| 6 | + | 1 | Part | 123133-04260 | 123133-04260-Online | |
| 7 | + | 1 | Part | 123134-04260 | 123134-04260-Online | |
| 8 | + | 1 | Part | 123125-09560 | 123125-09560-Online | |
| 9 | + | 1 | Part | 123112-09560 | 123112-09560-Online | |
| 10 | + | 1 | Part | 123126-10631 | 123126-10631-Online | |
| 11 | + | 1 | Part | 123117-52130 | 123117-52130-Online | |
| 12 | + | 1 | Part | 123113-52130 | 123113-52130-Online | |
| 13 | + | 1 | Part | 123127-15030 | 123127-15030-Online | |
| 14 | + | 1 | Part | 123114-38830 | 123114-38830-Online | |
| 15 | + | 1 | Part | 123116-53130 | 123116-53130-Online | |
| 16 | + | 1 | Part | 123137-19830 | 123137-19830-Online | |
| 17 | + | 1 | Part | 123139-03930 | 123139-03930-Online | |
| 18 | + | 1 | Part | 123138-03930 | 123138-03930-Online | |
| 19 | + | 1 | Part | 123146-10631 | 123146-10631-Online | |
| 20 | + | 1 | Part | 123122-39330 | 123122-39330-Online | |
| 21 | + | 1 | Part | 123123-03930 | 123123-03930-Online | |
| 22 | + | 2 | Part | 123120-52131 | 123120-52131-Online | |
| 23 | + | 1 | ○ | 123140-03930 | 123140-03930-Online | ○ | ○ | ○ | ○ |
| 24 | + | 1 | Part | 123141-03930 | 123141-03930-Online | |
| 25 | + | 1 | Part | 123142-03930 | 123142-03930-Online | |
| 26 | + | 4 | Part | 123130-02960 | 123130-02960-Online | |
| 27 | + | 1 | Part | 123173-07930 | 123173-07930-Online | |
| 28 | + | 1 | Part | 123149-26030 | 123149-26030-Online | |
| 29 | + | 1 | ○ | 123172-26030 | 123172-26030-Online | ○ | ○ | ○ | ○ |
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Part | P021-009581 | P021-009581-Online | ||
| 1 | + | 2 | Part | 880110-10860 | 880110-10860-Online | |
| 2 | + | 4 | Part | 900105-05008 | 900105-05008-Online | |
| 3 | + | 1 | Part | C531-000302 | C531-000302-Online | |
| 4 | + | 2 | Part | 900560-00005 | 900560-00005-Online | |
| 5 | + | 2 | Part | 900600-00005 | 900600-00005-Online | |
| 6 | + | 2 | Part | 900142-05028 | 900142-05028-Online | |
| 7 | + | 1 | 8 | 351305-12360 | 351305-12360-Online | ++ |
| 8 | 1 | Part | 351315-12360 | 351315-12360-Online | ||
| 9 | + | 2 | Part | 900516-00005 | 900516-00005-Online | |
| 10 | + | 2 | Part | V541-000130 | V541-000130-Online | |
| 11 | + | 1 | Part | C534-000260 | C534-000260-Online | |
| 12 | + | 2 | Part | V307-000150 | V307-000150-Online | |
| 13 | + | 2 | Part | V555-000040 | V555-000040-Online | |
| 14 | + | 1 | Part | V651-000140 | V651-000140-Online | |
| 15 | + | 1 | Part | 900855-06900 | 900855-06900-Online | |
| 16 | + | 1 | Part | V583-000040 | V583-000040-Online | |
| 17 | + | 1 | Part | V651-000160 | V651-000160-Online | |
| 18 | + | 1 | Part | 900800-06001 | 900800-06001-Online | |
| 19 | + | 1 | Part | C503-000072 | C503-000072-Online | |
| 20 | + | 2 | Part | C532-000120 | C532-000120-Online | |
| 21 | + | 1 | Part | C533-000041 | C533-000041-Online | |
| 22 | + | 1 | Part | V110-000051 | V110-000051-Online | |
| 23 | + | 1 | ○ | C539-000010 | C539-000010-Online | ○ | ○ | ○ | ○ |
| 24 | + | 6 | Part | 900162-04012 | 900162-04012-Online | |
| 25 | + | 4 | Part | 433022-06460 | 433022-06460-Online | |
| 26 | + | 5 | Part | 699118-04560 | 699118-04560-Online | |
| 27 | + | 1 | Part | C538-000120 | C538-000120-Online | |
| 28 | + | 2 | Part | 900212-05020 | 900212-05020-Online | |
| 29 | + | 1 | Part | C538-000110 | C538-000110-Online | |
| 30 | + | 1 | Part | C538-000100 | C538-000100-Online | |
| 31 | + | 1 | Part | 898523-12360 | 898523-12360-Online | |
| 32 | + | 1 | Part | X425-000170 | X425-000170-Online | |
| 33 | + | 2 | Part | X411-000260 | X411-000260-Online | |
| 34 | + | 3 | Part | 699115-04660 | 699115-04660-Online | |
| 35 | + | 1 | ○ | 699115-07760 | 699115-07760-Online | ○ | ○ | ○ | ○ |
| 1 | 1 | Part | 162010-52830 | 162010-52830-Online | ||
| 2 | 2 | Part | 900162-04022 | 900162-04022-Online | ||
| 3 | 1 | Part | 159010-10230 | 159010-10230-Online | ||
| 4 | 1 | Part | 159011-03432 | 159011-03432-Online | ||
| 5 | 1 | Part | 159012-03433 | 159012-03433-Online | ||
| 6 | 1 | Part | 156112-40630 | 156112-40630-Online | ||
| 7 | 1 | Part | 156626-52630 | 156626-52630-Online | ||
| 8 | 1 | Part | 175000-56830 | 175000-56830-Online | ||
| 9 | 1 | Part | 156801-44731 | 156801-44731-Online | ||
| 10 | 1 | Part | 177202-44331 | 177202-44331-Online | ||
| 11 | + | 1 | Part | 177234-42030 | 177234-42030-Online | |
| 12 | + | 1 | Part | 177218-44330 | 177218-44330-Online | |
| 13 | 1 | Part | 177200-42033 | 177200-42033-Online | ||
| 14 | + | 1 | Part | 177236-44330 | 177236-44330-Online | |
| 15 | + | 1 | Part | 177215-44430 | 177215-44430-Online | |
| 16 | + | 1 | Part | 177220-42030 | 177220-42030-Online | |
| 17 | + | 1 | Part | 177226-10120 | 177226-10120-Online | |
| 18 | + | 1 | Part | 177227-42030 | 177227-42030-Online | |
| 19 | + | 1 | Part | 177228-06530 | 177228-06530-Online | |
| 20 | 2 | Part | 900163-04016 | 900163-04016-Online | ||
| 21 | 1 | ○ | 890118-49130 | 890118-49130-Online | ○ | ○ | ○ | ○ |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Part | 130010-42032 | 130010-42032-Online | ||
| 2 | 2 | Part | 900500-00005 | 900500-00005-Online | ||
| 3 | 1 | Part | 130017-42031 | 130017-42031-Online | ||
| 4 | 2 | Part | 900238-05020 | 900238-05020-Online | ||
| 5 | 1 | Part | 130010-05960 | 130010-05960-Online | ||
| 6 | 1 | Part | 123000-52133 | 123000-52133-Online | ||
| 7 | 1 | Part | 178510-51730 | 178510-51730-Online | ||
| 8 | 1 | Part | 130301-51730 | 130301-51730-Online | ||
| 9 | + | 1 | Part | 178810-05230 | 178810-05230-Online | |
| 10 | 1 | Part | 178516-00830 | 178516-00830-Online | ||
| 11 | 1 | Part | 178515-05060 | 178515-05060-Online | ||
| 12 | 1 | Part | 900600-00005 | 900600-00005-Online | ||
| 13 | 1 | Part | 129011-52131 | 129011-52131-Online | ||
| 14 | 2 | Part | 900242-05057 | 900242-05057-Online | ||
| 15 | 1 | Part | 130310-51830 | 130310-51830-Online | ||
| 16 | 1 | Part | 130302-52131 | 130302-52131-Online | ||
| 17 | + | 1 | Part | 130406-52131 | 130406-52131-Online | |
| 18 | 1 | Part | 890121-47530 | 890121-47530-Online | ||
| 19 | 1 | Part | P021-008940 | P021-008940-Online | ||
| 20 | + | 3 | Part | 900242-04010 | 900242-04010-Online | |
| 21 | + | 1 | Part | 145818-52130 | 145818-52130-Online | |
| 22 | + | 1 | Part | 145876-42030 | 145876-42030-Online | |
| 23 | + | 1 | Part | 145866-42031 | 145866-42031-Online | |
| 24 | + | 1 | ○ | 145862-40630 | 145862-40630-Online | ○ | ○ | ○ | ○ |
| 25 | + | 2 | Part | V104-000160 | V104-000160-Online | |
| 26 | 2 | Part | 900105-05055 | 900105-05055-Online | ||
| 27 | 1 | Part | 145642-04930 | 145642-04930-Online | ||
| 28 | 1 | ○ | A320-000251 | A320-000251-Online | ○ | ○ | ○ | ○ | |
| 1 | 1 | Part | 93000-16180 | 93000-16180-Online | ||
| 2 | 1 | Part | 900529-00008 | 900529-00008-Online | ||
| 3 | 1 | Part | V306-000140 | V306-000140-Online | ||
| 4 | 2 | Part | V347-000010 | V347-000010-Online | ||
| 5 | 1 | Part | V340-000110 | V340-000110-Online | ||
| 6 | 1 | Part | V110-000040 | V110-000040-Online | ||
| 7 | 1 | Part | C465-000000 | C465-000000-Online | ||
| 8 | 2 | Part | 900605-00004 | 900605-00004-Online | ||
| 9 | 2 | Part | 900560-00004 | 900560-00004-Online | ||
| 10 | 2 | Part | 900212-04012 | 900212-04012-Online | ||
| 11 | 1 | Part | V583-000050 | V583-000050-Online | ||
| 12 | 1 | Part | V355-000310 | V355-000310-Online | ||
| 13 | 1 | Part | V450-000420 | V450-000420-Online | ||
| 14 | 1 | Part | V642-000020 | V642-000020-Online | ||
| 15 | 1 | Part | 900702-00022 | 900702-00022-Online | ||
| 16 | 1 | Part | V583-000060 | V583-000060-Online | ||
| 17 | 2 | Part | 900859-06900 | 900859-06900-Online | ||
| 18 | 1 | Part | V651-000150 | V651-000150-Online | ||
| 19 | 1 | Part | V340-000170 | V340-000170-Online | ||
| 20 | 1 | Part | 900162-05025 | 900162-05025-Online | ||
| 21 | 1 | Part | 900242-05012 | 900242-05012-Online | ||
| 22 | 1 | Part | C531-000291 | C531-000291-Online | ||
| 23 | 2 | Part | V340-000120 | V340-000120-Online | ||
| 24 | 1 | ○ | 900724-00032 | 900724-00032-Online | ○ | ○ | ○ | ○ | |
| 25 | 1 | Part | 898510-07130 | 898510-07130-Online | ||
| 26 | 1 | Part | 895112-00330 | 895112-00330-Online | ||
| 27 | 1 | Part | X602-000020 | X602-000020-Online | ||
| 28 | 1 | Part | 895612-03430 | 895612-03430-Online | ||
| 29 | 1 | Part | 895610-00130 | 895610-00130-Online | ||
| 30 | 1 | ○ | P021-002861 | P021-002861-Online | ○ | ○ | ○ | ○ |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Part | 163401-55631 | 163401-55631-Online | ||
| 2 | 1 | Part | 890157-39130 | 890157-39130-Online | ||
| 3 | 1 | Part | 178013-52630 | 178013-52630-Online | ||
| 4 | 1 | Part | 178090-52632 | 178090-52632-Online | ||
| 5 | 1 | Part | 178012-52730 | 178012-52730-Online | ||
| 6 | 1 | Part | 178003-52130 | 178003-52130-Online | ||
| 7 | + | 2 | Part | 900500-00005 | 900500-00005-Online | |
| 8 | + | 1 | Part | 900242-05035 | 900242-05035-Online | |
| 9 | + | 1 | Part | 900242-05025 | 900242-05025-Online | |
| 10 | 1 | Part | C050-000440 | C050-000440-Online | ||
| 7 | + | 1 | Part | 900500-00005 | 900500-00005-Online | |
| 11 | + | 1 | Part | C440-000020 | C440-000020-Online | |
| 12 | + | 1 | Part | 900142-05020 | 900142-05020-Online | |
| 13 | + | 1 | Part | 610217-44730 | 610217-44730-Online | |
| 14 | + | 2 | Part | 610246-44730 | 610246-44730-Online | |
| 15 | 1 | Part | 178010-52130 | 178010-52130-Online | ||
| 16 | 1 | Part | 178043-42230 | 178043-42230-Online | ||
| 17 | 1 | Part | 301200-29430 | 301200-29430-Online | ||
| 18 | + | 1 | Part | 900242-05014 | 900242-05014-Online | |
| 19 | 1 | Part | 351213-52130 | 351213-52130-Online | ||
| 20 | 1 | Part | 301016-52730 | 301016-52730-Online | ||
| 21 | 1 | Part | 699012-03330 | 699012-03330-Online | ||
| 22 | 1 | Part | 900100-05018 | 900100-05018-Online | ||
| 23 | 1 | ○ | 301207-08930 | 301207-08930-Online | ○ | ○ | ○ | ○ | |
| 24 | 1 | Part | 890617-12361 | 890617-12361-Online | ||
| 25 | 1 | Part | 890152-04930 | 890152-04930-Online | ||
| 26 | 1 | Part | 610013-44730 | 610013-44730-Online | ||
| 27 | 1 | Part | 351012-54330 | 351012-54330-Online | ||
| 28 | 1 | Part | 610272-52130 | 610272-52130-Online | ||
| 29 | + | 1 | Part | 900242-05028 | 900242-05028-Online | |
| 30 | 2 | Part | 900502-00006 | 900502-00006-Online | ||
| 31 | 1 | Part | 178001-56730 | 178001-56730-Online | ||
| 32 | 1 | Part | 178127-50330 | 178127-50330-Online | ||
| 33 | 1 | ○ | C062-000100 | C062-000100-Online | ○ | ○ | ○ | ○ | |
| 1 | 1 | Part | 131004-08960 | 131004-08960-Online | ||
| 2 | + | 1 | Part | 131016-55830 | 131016-55830-Online | |
| 3 | + | 1 | Part | 131051-52430 | 131051-52430-Online | |
| 4 | 1 | Part | 131005-46831 | 131005-46831-Online | ||
| 5 | 2 | Part | 900603-00005 | 900603-00005-Online | ||
| 6 | 2 | Part | 900238-05016 | 900238-05016-Online | ||
| 7 | 1 | Part | 305110-42030 | 305110-42030-Online | ||
| 8 | 1 | Part | A356-000030 | A356-000030-Online | ||
| 9 | 1 | Part | V471-001200 | V471-001200-Online | ||
| 10 | 1 | Part | V137-000030 | V137-000030-Online | ||
| 11 | 1 | Part | V471-001200 | V471-001200-Online | ||
| 12 | 1 | Part | 132010-56330 | 132010-56330-Online | ||
| 13 | 1 | Part | 132012-12360 | 132012-12360-Online | ||
| 14 | 1 | Part | 132011-03360 | 132011-03360-Online | ||
| 15 | 1 | ○ | 131205-07320 | 131205-07320-Online | ○ | ○ | ○ | ○ |
Source PDF: 20111007-512_HCA-2500(EUST1A)(0505)-R.pdf. Generated 2026-06-25 14:37.
