Echo HCA-2500 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HCA-2500-Online

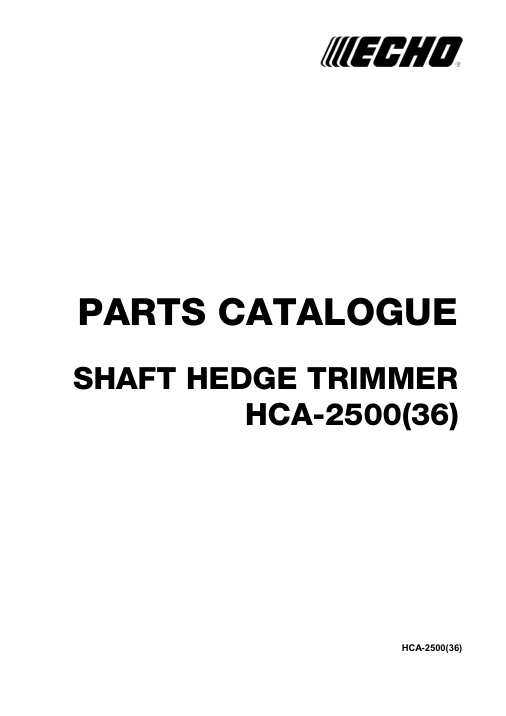

Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.

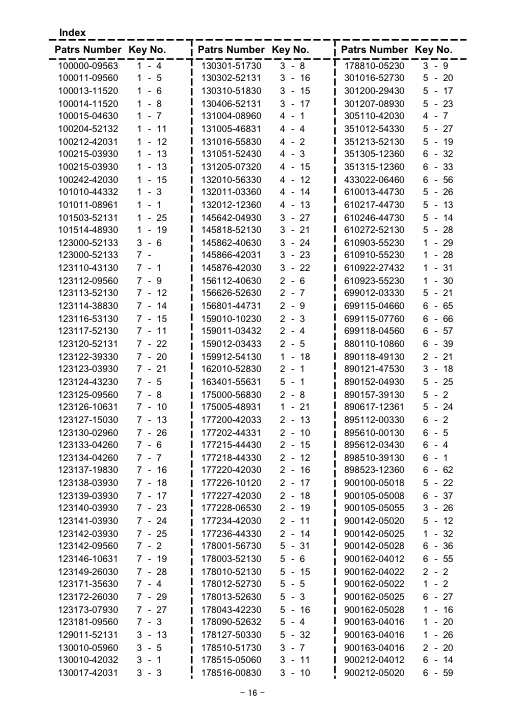

Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

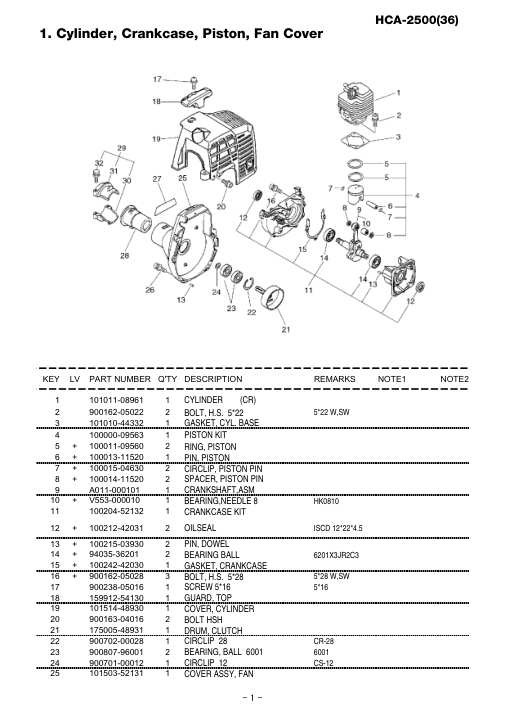

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder (Cr) | 101011-08961 | 101011-08961-Online | ||
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Piston Kit | 100000-09563 | 100000-09563-Online | ||
| 5 | + | 2 | Ring, Piston | 100011-09560 | 100011-09560-Online | |
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 8 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online | ||
| 10 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 11 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 12 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 13 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 14 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 15 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 16 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 17 | 1 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 18 | 1 | Guard, Top | 159912-54130 | 159912-54130-Online | ||
| 19 | 1 | Cover, Cylinder | 101514-48930 | 101514-48930-Online | ||
| 20 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 21 | 1 | Drum, Clutch | 175005-48931 | 175005-48931-Online | ||
| 22 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 | |
| 23 | 2 | Bearing, Ball 6001 | 900807-96001 | 900807-96001-Online | ||
| 24 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 25 | 1 | Cover Assy, Fan | 101503-52131 | 101503-52131-Online |

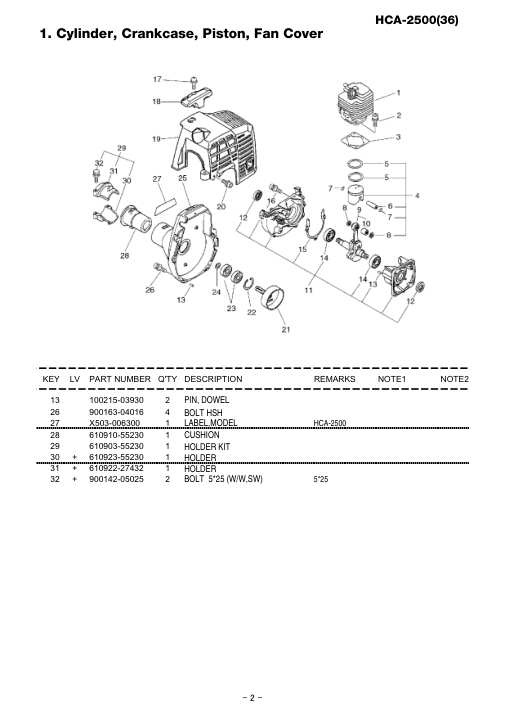

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | ||
| 26 | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 27 | 1 | Label,Model | X503-006300 | X503-006300-Online | HCA-2500 | |
| 28 | 1 | Cushion | 610910-55230 | 610910-55230-Online | ||
| 29 | 1 | Holder Kit | 610903-55230 | 610903-55230-Online | ||
| 30 | + | 1 | Holder | 610923-55230 | 610923-55230-Online | |
| 31 | + | 1 | Holder | 610922-27432 | 610922-27432-Online | |
| 32 | + | 2 | Bolt 5*25 (W/W,Sw) | 900142-05025 | 900142-05025-Online | 5*25 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lead, Ground | 162010-52830 | 162010-52830-Online | ||
| 2 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 3 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 4 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 5 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 6 | 1 | Grommet | 156112-40630 | 156112-40630-Online | ||
| 7 | 1 | Coil, Ignition | 156626-52630 | 156626-52630-Online | ||
| 8 | 1 | Clutch Assy | 175000-56830 | 175000-56830-Online | Sus. by 175000- | 56831 | |
| 9 | 1 | Flywheel | 156801-44731 | 156801-44731-Online | ||
| 10 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 11 | + | 1 | Spring, Return | 177234-42030 | 177234-42030-Online | |
| 12 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 13 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 14 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 15 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 16 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 17 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 18 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 19 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 20 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 21 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online |

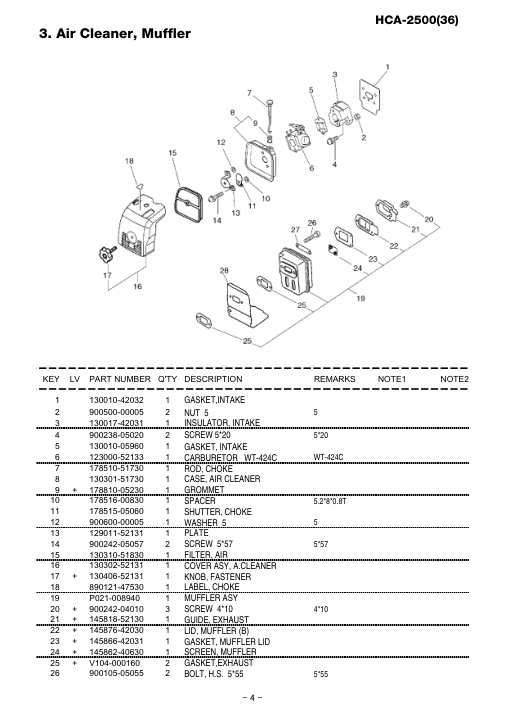

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 2 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 3 | 1 | Insulator, Intake | 130017-42031 | 130017-42031-Online | ||
| 4 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 5 | 1 | Gasket, Intake | 130010-05960 | 130010-05960-Online | ||
| 6 | 1 | Carburetor Wt-424C | 123000-52133 | 123000-52133-Online | WT-424C | |
| 7 | 1 | Rod, Choke | 178510-51730 | 178510-51730-Online | ||
| 8 | 1 | Case, Air Cleaner | 130301-51730 | 130301-51730-Online | ||
| 9 | + | 1 | Grommet | 178810-05230 | 178810-05230-Online | |
| 10 | 1 | Spacer | 178516-00830 | 178516-00830-Online | 5.2*8*0.8T | |
| 11 | 1 | Shutter, Choke | 178515-05060 | 178515-05060-Online | ||
| 12 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 13 | 1 | Plate | 129011-52131 | 129011-52131-Online | ||
| 14 | 2 | Screw 5*57 | 900242-05057 | 900242-05057-Online | 5*57 | |
| 15 | 1 | Filter, Air | 130310-51830 | 130310-51830-Online | ||
| 16 | 1 | Cover Asy, A.Cleaner | 130302-52131 | 130302-52131-Online | ||
| 17 | + | 1 | Knob, Fastener | 130406-52131 | 130406-52131-Online | |
| 18 | 1 | Label, Choke | 890121-47530 | 890121-47530-Online | ||
| 19 | 1 | Muffler Asy | P021-008940 | P021-008940-Online | ||
| 20 | + | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 21 | + | 1 | Guide, Exhaust | 145818-52130 | 145818-52130-Online | |
| 22 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 23 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 24 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 25 | + | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |
| 26 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 1 | Washer | 145642-04930 | 145642-04930-Online | ||
| 28 | 1 | Cover,Muffler | A320-000251 | A320-000251-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap Assy, Fuel | 131004-08960 | 131004-08960-Online | ||
| 2 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 3 | + | 1 | Connector, Cap | 131051-52430 | 131051-52430-Online | |
| 4 | 1 | Tank, Fuel | 131005-46831 | 131005-46831-Online | ||
| 5 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 6 | 2 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 7 | 1 | Stand (Bl) | 305110-42030 | 305110-42030-Online | ||
| 8 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 9 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 10 | 1 | Grommet,Fuel | V137-000030 | V137-000030-Online | ||
| 11 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 12 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 13 | 1 | Pipe, Fuel | 132012-12360 | 132012-12360-Online | Sus. by 132012- | 12361 | |
| 14 | 1 | Connector, Fuel Pipe | 132011-03360 | 132011-03360-Online | ||
| 15 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Switch, Ignition | 163401-55631 | 163401-55631-Online | ||
| 2 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 3 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 4 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 5 | 1 | Lockout, Throttle | 178012-52730 | 178012-52730-Online | ||
| 6 | 1 | Bracket Set,Throttle | 178003-52130 | 178003-52130-Online | ||
| 7 | + | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 8 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 9 | + | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 10 | 1 | Pipe,Main | C050-000440 | C050-000440-Online | ||
| 7 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 11 | + | 1 | Guard,Hand | C440-000020 | C440-000020-Online | |
| 12 | + | 1 | Bolt 5*20 (W/W,Sw) | 900142-05020 | 900142-05020-Online | 5*20 |
| 13 | + | 1 | Liner, Flexible | 610217-44730 | 610217-44730-Online | |
| 14 | + | 2 | Stopper | 610246-44730 | 610246-44730-Online | |
| 15 | 1 | Control, Throttle | 178010-52130 | 178010-52130-Online | ||
| 16 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 17 | 1 | Band Assy | 301200-29430 | 301200-29430-Online | ||
| 18 | + | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 19 | 1 | Grip | 351213-52130 | 351213-52130-Online | ||
| 20 | 1 | Ring,Harness | 301016-52730 | 301016-52730-Online | ||
| 21 | 1 | Spacer | 699012-03330 | 699012-03330-Online | ||
| 22 | 1 | Bolt 5*18 | 900100-05018 | 900100-05018-Online | 5*18 | |
| 23 | 1 | Hook | 301207-08930 | 301207-08930-Online | ||
| 24 | 1 | Label, Caution | 890617-12361 | 890617-12361-Online | ||
| 25 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 1 | Shaft, Flexible | 610013-44730 | 610013-44730-Online | ||
| 27 | 1 | Grip | 351012-54330 | 351012-54330-Online | ||
| 28 | 1 | Band | 610272-52130 | 610272-52130-Online | ||
| 7 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 29 | + | 1 | Screw 5*28 | 900242-05028 | 900242-05028-Online | 5*28 |
| 30 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 31 | 1 | Cable, Throttle | 178001-56730 | 178001-56730-Online | ||
| 32 | 1 | Tube | 178127-50330 | 178127-50330-Online | 10*11*140 | |
| 33 | 1 | Harness,Shoulder | C062-000100 | C062-000100-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 2 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | ||
| 3 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 4 | 1 | L-Wrench (3Mm) | 895612-03430 | 895612-03430-Online | ||
| 5 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 6 | 1 | Goggles | P021-002861 | P021-002861-Online | ||
| 7 | 1 | Case Asy, Gear | P021-010460 | P021-010460-Online | Sus. by P021- | 010464 | |
| 7 | 1 | Case Asy, Gear | P021-010461 | P021-010461-Online | 90092 | Sus. by P021- | 010464 | |
| 7 | 1 | Case Asy, Gear | P021-010462 | P021-010462-Online | 90092 | Sus. by P021- | 010464 | |
| 7 | 1 | Case Asy, Gear | P021-010463 | P021-010463-Online | 90092 | Sus. by P021- | 010464 | |
| 7 | 1 | Case Asy, Gear | P021-010464 | P021-010464-Online | ||
| 8 | + | 1 | Pin Split | 93000-16180 | 93000-16180-Online | P-1.6*18 |
| 9 | + | 1 | Nut, Slott 8 | 900529-00008 | 900529-00008-Online | |
| 10 | + | 1 | Washer,Circular 8 | V306-000140 | V306-000140-Online | |
| 11 | + | 2 | Washer,Conical | V347-000010 | V347-000010-Online | |
| 12 | + | 1 | Washer | V340-000110 | V340-000110-Online | |
| 13 | + | 1 | Gasket,Gear Case | V110-000040 | V110-000040-Online | CIRCULAR 17MM |
| 14 | + | 2 | Screw 4*12 | 900212-04012 | 900212-04012-Online | +SF4*12 |
| 15 | + | 1 | Resetter,Latch | C465-000000 | C465-000000-Online | HCA 180DG SPAN Sus. by C465- | 000010 |
| 15 | + | 1 | Resetter, Latch | C465-000010 | C465-000010-Online |

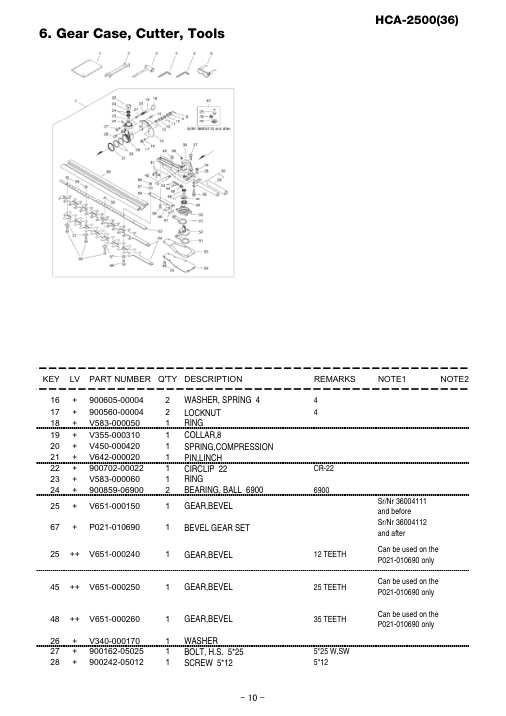

Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | + | 2 | Washer, Spring 4 | 900605-00004 | 900605-00004-Online | |
| 17 | + | 2 | Locknut | 900560-00004 | 900560-00004-Online | |
| 18 | + | 1 | Ring | V583-000050 | V583-000050-Online | |
| 19 | + | 1 | Collar,8 | V355-000310 | V355-000310-Online | |
| 20 | + | 1 | Spring,Compression | V450-000420 | V450-000420-Online | |
| 21 | + | 1 | Pin,Linch | V642-000020 | V642-000020-Online | |
| 22 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | CR-22 |
| 23 | + | 1 | Ring | V583-000060 | V583-000060-Online | |
| 24 | + | 2 | Bearing, Ball 6900 | 900859-06900 | 900859-06900-Online | |
| 25 | + | 1 | Gear,Bevel | V651-000150 | V651-000150-Online | Sr/Nr 36004111 | and before |
| 67 | + | 1 | Bevel Gear Set | P021-010690 | P021-010690-Online | Sr/Nr 36004112 | and after | 25 | ++ |
| 25 | 1 | Gear,Bevel | V651-000240 | V651-000240-Online | 12 TEETH | Can be used on the | P021-010690 only | 45 | |
| 45 | 1 | Gear,Bevel | V651-000250 | V651-000250-Online | 25 TEETH | Can be used on the | P021-010690 only | 48 | |
| 48 | 1 | Gear,Bevel | V651-000260 | V651-000260-Online | 35 TEETH | Can be used on the | P021-010690 only | |
| 26 | + | 1 | Washer | V340-000170 | V340-000170-Online | |
| 27 | + | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 28 | + | 1 | Screw 5*12 | 900242-05012 | 900242-05012-Online | 5*12 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Case,Gear | C531-000291 | C531-000291-Online | SHAFT SIDE | Sus. by C531- | 000292 |
| 29 | + | 1 | Case,Gear | C531-000292 | C531-000292-Online | |
| 30 | + | 2 | Washer | V340-000120 | V340-000120-Online | |
| 31 | + | 1 | O-Ring | 900724-00032 | 900724-00032-Online | S-32 |
| 32 | + | 1 | Handle | 351305-12360 | 351305-12360-Online | 33 | ++ |
| 33 | 1 | Grip, Handle | 351315-12360 | 351315-12360-Online | 19*135 | |
| 34 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 35 | + | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | |
| 36 | + | 2 | Bolt 5*28 (W/W,Sw) | 900142-05028 | 900142-05028-Online | 5*28 |
| 37 | + | 4 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | 5*8 |
| 38 | + | 1 | Case,Gear | C531-000301 | C531-000301-Online | DRIVEN SIDE | Sus. by C531- | 000302 |
| 38 | + | 1 | Case,Gear | C531-000302 | C531-000302-Online | DRIVEN SIDE |
| 39 | + | 2 | Nipple, Grease | 880110-10860 | 880110-10860-Online | |
| 40 | + | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |
| 41 | + | 2 | Seal | V541-000130 | V541-000130-Online | |
| 42 | + | 1 | Shaft,Gear | C534-000260 | C534-000260-Online | |
| 43 | + | 2 | Washer,Circular 10 | V307-000150 | V307-000150-Online | 10.2*15.5*T=1 |
| 44 | + | 2 | Bearing,Needle 10 | V555-000040 | V555-000040-Online | |
| 45 | + | 1 | Gear,Bevel | V651-000140 | V651-000140-Online | Sr/Nr 36004111 | and before |
| 46 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 47 | + | 1 | Ring | V583-000040 | V583-000040-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 48 | + | 1 | Gear,Bevel | V651-000160 | V651-000160-Online | Sr/Nr 36004111 | and before |
| 49 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 50 | + | 1 | Holder,Bearing | C503-000071 | C503-000071-Online | 28 BEARING SEAT Sus. by C503- | 000072 |
| 50 | + | 1 | Holder,Bearing | C503-000072 | C503-000072-Online | 28 BEARING SEAT |
| 51 | + | 2 | Rod, Connecting | C532-000120 | C532-000120-Online | Sus. by C532- | 000140 |
| 51 | + | 2 | Rod, Connecting | C532-000140 | C532-000140-Online | YAMASAKI |
| 52 | + | 1 | Cam | C533-000040 | C533-000040-Online | Sus. by C533- | 000041 |
| 52 | + | 1 | Part | C533-000041 | C533-000041-Online | |
| 53 | + | 1 | Gasket,Gear Case | V110-000050 | V110-000050-Online | Sus. by V110- | 000051 |
| 53 | + | 1 | Gasket,Gear Case | V110-000051 | V110-000051-Online | HCA GEARCASE |
| 54 | + | 1 | Lid,Gearcase | C539-000010 | C539-000010-Online | HCA-260 G.C. |
| 55 | + | 6 | Bolt, H.S. 4*12 | 900162-04012 | 900162-04012-Online | 4*12 W,SW | Sus. by 900162- | 04014 |
| 56 | + | 4 | Part | 433022-06460 | 433022-06460-Online | |
| 57 | + | 5 | Washer | 699118-04560 | 699118-04560-Online | |
| 58 | + | 1 | Guide,Cutter | C538-000120 | C538-000120-Online | |
| 59 | + | 2 | Screw 5*20 | 900212-05020 | 900212-05020-Online | +SF5*20 |
| 60 | + | 1 | Guide,Cutter | C538-000110 | C538-000110-Online | |
| 61 | + | 1 | Guide,Cutter | C538-000100 | C538-000100-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 62 | + | 1 | Scabbard, Blade | 898523-12360 | 898523-12360-Online | Sus. by X495- | 000060 |
| 62 | + | 1 | Scabbard,Blade | X495-000060 | X495-000060-Online | 19.5 |
| 63 | + | 1 | Support,Cutter | X425-000170 | X425-000170-Online | Sus. by X425- | 000220 |
| 63 | + | 1 | Support,Cutter | X425-000220 | X425-000220-Online | T=3.0 |
| 64 | + | 2 | Cutter | X411-000260 | X411-000260-Online | Sus. by X411- | 000350 |
| 64 | + | 2 | Cutter | X411-000350 | X411-000350-Online | L= 570 |
| 65 | + | 3 | Bolt 6 | 699115-04660 | 699115-04660-Online | 6*18L |
| 66 | + | 1 | Bolt, Cutter | 699115-07760 | 699115-07760-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 123110-43130 | 123110-43130-Online | |
| 2 | + | 1 | Cover, Primer Pump | 123142-09560 | 123142-09560-Online | |
| 3 | + | 1 | Pump, Primer | 123181-09560 | 123181-09560-Online | |
| 4 | + | 1 | Valve, Check | 123171-35630 | 123171-35630-Online | |
| 5 | + | 1 | Cover, Fuel Pump | 123124-43230 | 123124-43230-Online | |
| 6 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 7 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 8 | + | 1 | Gasket, Fuel Pump | 123125-09560 | 123125-09560-Online | |
| 9 | + | 1 | Diaphragm, Fuel Pump | 123112-09560 | 123112-09560-Online | |
| 10 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 11 | + | 1 | Shaft, Throttle | 123117-52130 | 123117-52130-Online | |
| 12 | + | 1 | Spring, The.Rtn | 123113-52130 | 123113-52130-Online | |
| 13 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 14 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 15 | + | 1 | Valve, Throttle | 123116-53130 | 123116-53130-Online | |
| 16 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 17 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 18 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 19 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 20 | + | 1 | Spring, Meter. Lever | 123122-39330 | 123122-39330-Online | |
| 21 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 22 | + | 2 | Needle, High Speed | 123120-52131 | 123120-52131-Online | |
| 23 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 24 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 25 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 27 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 28 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 29 | + | 1 | Swivel | 123172-26030 | 123172-26030-Online |
Source PDF: 20130718-307_HCA-2500(36)_HCA-2500(36)_EN.pdf. Generated 2026-06-25 14:38.
