Echo SRM-2455 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-2455-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

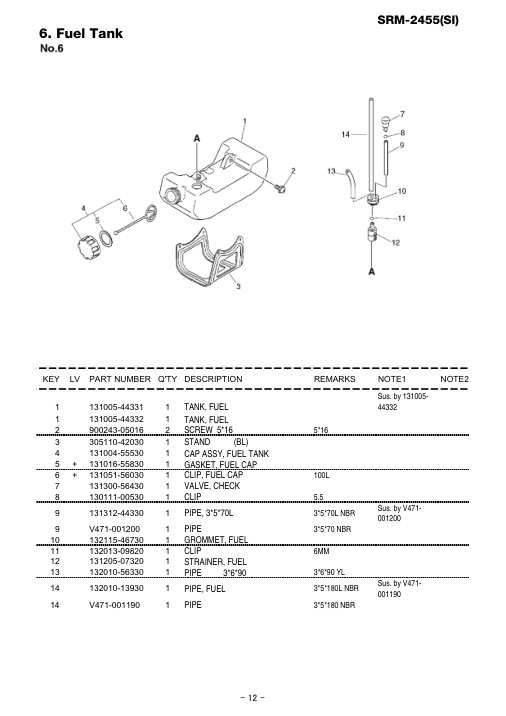

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.
Page 35
Tap or click the page image to enlarge it.
Page 36
Tap or click the page image to enlarge it.
Page 37
Tap or click the page image to enlarge it.
Page 38
Tap or click the page image to enlarge it.
Page 39
Tap or click the page image to enlarge it.
Page 40
Tap or click the page image to enlarge it.
Page 41
Tap or click the page image to enlarge it.
Page 42
Tap or click the page image to enlarge it.
Page 43
Tap or click the page image to enlarge it.
Page 44
Tap or click the page image to enlarge it.
Page 45
Tap or click the page image to enlarge it.
Page 46
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder (Cr) | 101011-08960 | 101011-08960-Online | Sus. by 101003- | 08960 | |
| 30 | 1 | Cylinder Piston Kit | 101003-08960 | 101003-08960-Online | Sr/Nr 005601 and | before/SRM-2455 | |
| 1 | + | 1 | Cylinder (Cr) | 101011-08961 | 101011-08961-Online | Sr/Nr 005602 and | after/SRM-2455 |
| 5 | + | 2 | Ring, Piston | 100011-09560 | 100011-09560-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Piston Kit | 100000-09562 | 100000-09562-Online | Sus. by 100000- | 09563 | |
| 4 | 1 | Piston Kit | 100000-09563 | 100000-09563-Online | ||
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 8 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Crankshaft Assy | 100100-44732 | 100100-44732-Online | Sus. by A011- | 000101 | |
| 9 | 1 | Crankshaft,Asm | A011-000100 | A011-000100-Online | Sus. by A011- | 000101 | |
| 9 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | + | 1 | Bearing, Needle | 100012-51230 | 100012-51230-Online | 8*12*10 | Sus. by V553- | 000010 |
| 10 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 11 | 1 | Crankcase Kit | 100204-52130 | 100204-52130-Online | Sus. by 100204- | 52131 | |
| 11 | 1 | Crankcase Kit | 100204-52131 | 100204-52131-Online | ||
| 12 | + | 2 | Oilseal | 100212-42030 | 100212-42030-Online | ISCD12*22*4.5 | Sus. by 100212- | 42031 |
| 12 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 13 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 14 | + | 2 | Bearing, Ball 6201 | 900810-36201 | 900810-36201-Online | 6201/C3 | Sus. by 94035- | 36201 |
| 14 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 15 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 16 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 17 | 1 | Cover, Fan (Bs) | 101511-44730 | 101511-44730-Online | ||
| 19 | 1 | Cover, Cylinder | 101514-44731 | 101514-44731-Online | Sus. by 101514- | 42031 | |
| 19 | 1 | Cover, Cylinder | 101514-42031 | 101514-42031-Online | ||
| 20 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 21 | 1 | Label, Model | 890611-52130 | 890611-52130-Online | SRM-2455 | |
| 21 | 1 | Label,Model | X543-000130 | X543-000130-Online | SRM-2455SI | SRM-2455SI | |
| 22 | 6 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | |
| 23 | 1 | Holder Kit | 610903-27432 | 610903-27432-Online | ||
| 24 | + | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 4 | Holder | 610922-27432 | 610922-27432-Online | |
| 26 | + | 1 | Holder | 610923-27432 | 610923-27432-Online | |
| 27 | 1 | Cushion | 610910-27832 | 610910-27832-Online | ||
| 28 | 4 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 29 | 1 | Case, Clutch (Bs) | 610223-44730 | 610223-44730-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 3 | 2 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) | |
| 4 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 | |
| 5 | 1 | Drum, Clutch | 175005-47630 | 175005-47630-Online | ||
| 6 | 1 | Clutch Assy | 175000-52130 | 175000-52130-Online | Sr/Nr 005801 and | before/SRM-2455 | |
| 6 | 1 | Clutch Assy | 175000-56830 | 175000-56830-Online | Sr/Nr 005802 to | 010161/SRM-2455 | |
| 6 | 1 | Clutch Asy | 175000-52732 | 175000-52732-Online | Sus. by 175000- | 52733 | |
| 6 | 1 | Clutch Asy | 175000-52733 | 175000-52733-Online | Sr/Nr 010162 and | after/SRM-2455 | |
| 15 | + | 2 | Spring, Clutch | 175018-52131 | 175018-52131-Online | |
| 7 | 1 | Flywheel | 156801-44731 | 156801-44731-Online | Sus. by 156801- | 44731 | |
| 7 | 1 | Rotor, Magneto | 156801-12360 | 156801-12360-Online | Sus. by 156801- | 44731 | |
| 8 | 1 | Coil, Ignition | 156601-52130 | 156601-52130-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 10 | 1 | Lead | 162021-52130 | 162021-52130-Online | 210L | Sus. by 162010- | 52830 | |
| 10 | 1 | Lead, Ground | 162010-52830 | 162010-52830-Online | ||
| 11 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 12 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 13 | 1 | Plug, Spark (Rcj-7Y) | 159017-10230 | 159017-10230-Online | RCJ-7Y | Sus. by 159010- | 10230 | |
| 13 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 14 | 1 | Bushing | 150112-42030 | 150112-42030-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 1 | Pawl Assy, Starter | 177202-44330 | 177202-44330-Online | Sus. by 177202- | 44331 | |
| 21 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | SRM-2455 | |
| 22 | + | 1 | Spring, Return | 177234-42030 | 177234-42030-Online | SRM-2455 |
| 23 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK | SRM-2455 |
| 24 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | SRM-2455 | |
| 25 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | SRM-2455 |
| 26 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | SRM-2455 |
| 27 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 | SRM-2455 |
| 28 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | SRM-2455 |
| 29 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | SRM-2455 |
| 30 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | SRM-2455 |
| 35 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | SRM-2455 | |
| 36 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online | SRM-2455 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 3 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | SRM-2455SI | |
| 16 | 1 | Label,Caution | X505-000620 | X505-000620-Online | SRM-2455SI | |
| 18 | 1 | Label,Echo | X502-000031 | X502-000031-Online | Sus. by X502- | 000032 | |
| 18 | 1 | Label,Echo | X502-000032 | X502-000032-Online | SRM-2455SI | |
| 19 | 1 | Starter,Recoil | A051-000350 | A051-000350-Online | SRM-2455SI Sus. | by 900238-04016 | |
| 19 | 1 | Starter,Recoil | A051-000351 | A051-000351-Online | SRM-2455SI | |
| 20 | + | 1 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | SRM-2455SI |
| 21 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | SRM-2455SI |
| 22 | + | 2 | Spring, Return | P022-004610 | P022-004610-Online | SRM-2455SI |
| 23 | + | 2 | Pawl, Starter | P022-004620 | P022-004620-Online | SRM-2455SI |
| 24 | + | 1 | Spring, Spiral | P022-004680 | P022-004680-Online | SRM-2455SI |
| 25 | + | 1 | Rope,Starter | P022-004600 | P022-004600-Online | 3.0*920 | SRM-2455SI |
| 26 | + | 1 | Reel,Rope | P022-004690 | P022-004690-Online | SRM-2455SI |
| 27 | + | 1 | Spring, Return | P022-004660 | P022-004660-Online | SRM-2455SI |
| 28 | + | 1 | Pawl, Starter | P022-004670 | P022-004670-Online | SRM-2455SI |
| 29 | + | 1 | Complete,Spring | P022-004700 | P022-004700-Online | SRM-2455SI |
| 30 | + | 1 | Plate,Cam | P022-004640 | P022-004640-Online | SRM-2455SI |
| 31 | + | 1 | Screw | P022-004630 | P022-004630-Online | SRM-2455SI |
| 33 | 2 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW | Sus. by 900238- | 04016 | |
| 33 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | SRM-2455SI | |
| 35 | 1 | Spacer | V376-000360 | V376-000360-Online | Sus. by V376- | 000361 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | 1 | Spacer | V376-000361 | V376-000361-Online | SRM-2455SI | |
| 40 | 1 | Pulley,Asm Starter | A052-000130 | A052-000130-Online | SRM-2455SI | |
| 41 | + | 2 | Pawl,Starter | P022-004740 | P022-004740-Online | SRM-2455SI |
| 42 | + | 2 | Spring, Return | 177234-42030 | 177234-42030-Online | SRM-2455SI |
| 43 | + | 2 | E-Ring | P022-002100 | P022-002100-Online | 4 | SRM-2455SI |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 2 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 3 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 4 | 1 | Insulator, Intake | 130017-42031 | 130017-42031-Online | ||
| 5 | 1 | Gasket, Intake | 130016-42031 | 130016-42031-Online | ||
| 6 | 1 | Carburetor Assy | 125200-52430 | 125200-52430-Online | C1U-K53 | Sus. by 125200- | 52433 | |
| 6 | 1 | Carburetor | 125200-52431 | 125200-52431-Online | C1U-K53 | Sus. by 125200- | 52433 | |
| 6 | 1 | Carburetor | 125200-52432 | 125200-52432-Online | C1U-K53A | |
| 6 | 1 | Carburetor | 125200-52433 | 125200-52433-Online | C1U-K53B | |
| 7 | 1 | Rod, Choke | 178510-48830 | 178510-48830-Online | ||
| 8 | 1 | Case, Air Cleaner | 130301-04560 | 130301-04560-Online | ||
| 9 | + | 1 | Grommet | 178810-05230 | 178810-05230-Online | |
| 10 | 1 | Shutter, Choke | 178515-04560 | 178515-04560-Online | ||
| 11 | 1 | Spacer | 178516-00830 | 178516-00830-Online | 5.2*8*0.8T | |
| 12 | 1 | Bracket, Air Cleaner | 130410-44730 | 130410-44730-Online | ||
| 13 | 2 | Screw 5*57 | 900242-05057 | 900242-05057-Online | 5*57 | |
| 14 | 1 | Filter, Air | 130310-04560 | 130310-04560-Online | ||
| 15 | 1 | Cover Assy, Air Cln. | 130302-50630 | 130302-50630-Online | ||
| 16 | + | 1 | O-Ring (P-4) | 900720-00004 | 900720-00004-Online | P-4 |
| 17 | + | 1 | Screw | 130415-40630 | 130415-40630-Online | |
| 18 | 2 | Plug | 130336-52130 | 130336-52130-Online | ||
| 19 | 1 | Label, Choke | 890121-47530 | 890121-47530-Online | ||
| 21 | 1 | Muffler Assy | 145803-52130 | 145803-52130-Online | Sus. by P021- | 008360 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 1 | Muffler Asy | 145803-52131 | 145803-52131-Online | Sus. by P021- | 008360 | |
| 21 | 1 | Muffler Asy | P021-008360 | P021-008360-Online | ||
| 22 | + | 2 | Gasket, Muffler | 145510-42031 | 145510-42031-Online | Sus. by V104- | 000160 |
| 22 | + | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |
| 23 | + | 1 | Catalyst | 145820-52130 | 145820-52130-Online | Can be used on the | 145803-52130,-1 | only |
| 24 | + | 1 | Screen, Muffler | 145862-52130 | 145862-52130-Online | Can be used on the | 145803-52130,-1 | only |
| 25 | + | 5 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 | Can be used on the | 145803-52130,-1 | only |
| 25 | + | 3 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 | Can be used on the | P021-008360 only |
| 26 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 27 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 28 | + | 1 | Holder, Screen | 145863-42030 | 145863-42030-Online | |
| 29 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 30 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | 1 | Cover, Muffler | 145631-42030 | 145631-42030-Online | Sus. by A320- | 000251 | |
| 31 | 1 | Cover,Muffler | A320-000250 | A320-000250-Online | Sus. by A320- | 000251 | |
| 31 | 1 | Cover,Muffler | A320-000251 | A320-000251-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Tank, Fuel | 131005-44331 | 131005-44331-Online | Sus. by 131005- | 44332 | |
| 1 | 1 | Tank, Fuel | 131005-44332 | 131005-44332-Online | ||
| 2 | 2 | Screw 5*16 | 900243-05016 | 900243-05016-Online | 5*16 | |
| 3 | 1 | Stand (Bl) | 305110-42030 | 305110-42030-Online | ||
| 4 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 5 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 6 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 7 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 8 | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 | |
| 9 | 1 | Pipe, 3*5*70L | 131312-44330 | 131312-44330-Online | 3*5*70L NBR | Sus. by V471- | 001200 | |
| 9 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 10 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 11 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 12 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 13 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 14 | 1 | Pipe, Fuel | 132010-13930 | 132010-13930-Online | 3*5*180L NBR | Sus. by V471- | 001190 | |
| 14 | 1 | Pipe | V471-001190 | V471-001190-Online | 3*5*180 NBR |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Shield Assy | 699000-52930 | 699000-52930-Online | Sus. by 699000- | 52931 | |
| 25 | 1 | Shield Asy | 699000-52931 | 699000-52931-Online | Sr/Nr 038471 and | before/SRM-2455 | |
| 26 | + | 1 | Plate, Shield | 699013-52130 | 699013-52130-Online | Sr/Nr 038471 and | before/SRM-2455 |
| 27 | + | 4 | Bolt, H.S. 5*18 | 900162-05018 | 900162-05018-Online | 5*18 W,SW | Sr/Nr 038471 and | before/SRM-2455 |
| 28 | + | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Sr/Nr 038471 and | before/SRM-2455 |
| 29 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 30 | + | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | |
| 31 | + | 1 | Knife, Cord | 699016-52130 | 699016-52130-Online | Sus. by 699016- | 54530 |
| 31 | + | 1 | Knife | 699016-54530 | 699016-54530-Online | Sr/Nr 038471 and | before/SRM-2455 |
| 32 | + | 4 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | Sr/Nr 038471 and | before/SRM-2455 |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 6 | Nut 5 | 900500-00005 | 900500-00005-Online | 5 | Sr/Nr 038471 and | before/SRM-2455 |
| 34 | + | 1 | Shield, Blade | 699010-52930 | 699010-52930-Online | Sus. by 699010- | 52931 |
| 34 | + | 1 | Shield,Blade | 699010-52931 | 699010-52931-Online | Sr/Nr 038471 and | before/SRM-2455 |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 2 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | ||
| 3 | 1 | Wrench, W/S. Driver | 895410-08030 | 895410-08030-Online | Sus. by X602- | 000020 | |
| 3 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 4 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 5 | 1 | Goggle | 899580-40930 | 899580-40930-Online | Sus. by X690- | 000030 | |
| 5 | 1 | Safety Glasses | 899580-68730 | 899580-68730-Online | Sus. by X690- | 000030 | |
| 5 | 1 | Goggle | X690-000030 | X690-000030-Online | ||
| 6 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 10 | 1 | Shield,Blade(W/Knife | P021-002620 | P021-002620-Online | Sr/Nr 038472 and | after/SRM-2455 | |
| 11 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | Sr/Nr 038472 and | after/SRM-2455 |
| 12 | + | 1 | Knife,Cord | C554-000000 | C554-000000-Online | Sr/Nr 038472 and | after/SRM-2455 |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 | Sr/Nr 038472 and | after/SRM-2455 |
| 16 | 1 | Nut | 900565-00005 | 900565-00005-Online | 5 | Sr/Nr 038472 and | after/SRM-2455 | |
| 17 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | Sr/Nr 038472 and | after/SRM-2455 | |
| 20 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | Sr/Nr 038472 and | after/SRM-2455 | |
| 21 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | Sr/Nr 038472 and | after/SRM-2455 | |
| 22 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 23 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Assy, F-Handle | 351102-47530 | 351102-47530-Online | Sr/Nr 038471 and | before/SRM-2455 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002610 | P021-002610-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002611 | P021-002611-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | ||
| 2 | + | 4 | Screw 3*25 | 900246-03025 | 900246-03025-Online | 3*25 | Sr/Nr 038471 and | before/SRM-2455 |
| 2 | + | 3 | Screw 4*16 | 900246-04016 | 900246-04016-Online | 4*16 | Sus. by 900253- | 04016 |
| 2 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | Sr/Nr 038472 and | after/SRM-2455 |
| 3 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Lockout, Throttle | 178012-05960 | 178012-05960-Online | Sr/Nr 038471 and | before/SRM-2455 | |
| 5 | 1 | Lockout,Throttle | C460-000010 | C460-000010-Online | Sr/Nr 038472 and | after/SRM-2455 |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Lockout,Throttle | C460-000010 | C460-000010-Online | Sus. by C460- | 000011 | |
| 5 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | SRM-2455SI | |
| 6 | 1 | Spring, Thr. Lock | 178013-35631 | 178013-35631-Online | Sr/Nr 038471 and | before/SRM-2455 | |
| 6 | 1 | Spring,Torsion | V452-000050 | V452-000050-Online | Sr/Nr 038472 to | 047137/SRM-2455 | |
| 6 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | Sr/Nr 047138 and | after/SRM-2455 | |
| 7 | 1 | Control, Throttle | 178010-05960 | 178010-05960-Online | Sr/Nr 038471 and | before/SRM-2455 | |
| 7 | 1 | Trigger,Throttle | C450-000020 | C450-000020-Online | Sr/Nr 038472 and | after/SRM-2455 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 7 | 1 | Trigger,Throttle | C450-000021 | C450-000021-Online | Sus. by C450- | 000022 | |
| 7 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | ||
| 8 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | Sr/Nr 038472 and | after/SRM-2455 | |
| 9 | 1 | Switch, Ignition | 163401-49230 | 163401-49230-Online | ||
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 11 | 1 | Wire, Throttle | 178001-47530 | 178001-47530-Online | Sr/Nr 038471 and | before/SRM-2455 | |
| 11 | 1 | Cable,Bowden | V430-000410 | V430-000410-Online | Sr/Nr 038472 and | after/SRM-2455 | |
| 12 | 1 | Tube | 178127-47530 | 178127-47530-Online | 7*10*760 | |
| 13 | 1 | Clip | 159112-09960 | 159112-09960-Online | Sus. by 159112- | 09961 | |
| 13 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 14 | 2 | Clip | 224924-52130 | 224924-52130-Online | 25MM | |
| 15 | 1 | Hook Ass'Y | 301200-21330 | 301200-21330-Online | ||
| 16 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 17 | + | 1 | Hook | 301205-21330 | 301205-21330-Online | 18 | ++ |
| 18 | 1 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | 1 | Bracket Assy, Handle | 351301-52130 | 351301-52130-Online | Sr/Nr 040731and | before/SRM-2455 | |
| 19 | 1 | Bracket Asy, Handle | P021-002750 | P021-002750-Online | Sus. by P021- | 002751 | |
| 19 | 1 | Bracket Asy, Handle | P021-002751 | P021-002751-Online | Sr/Nr 040732 and | after/SRM-2455 | |
| 20 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 21 | + | 3 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW |
| 22 | + | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | Sr/Nr 040731and | before/SRM-2455 |
| 23 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 24 | + | 1 | Bolt | 351421-52130 | 351421-52130-Online | Sr/Nr 040731and | before/SRM-2455 |
| 24 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | Sr/Nr 040732 and | after/SRM-2455 |
| 33 | + | 1 | Fixture,Handle | C423-000041 | C423-000041-Online | SRM-2455SI |
| 25 | 1 | Handle, Front | 351214-52130 | 351214-52130-Online | Sus. by C400- | 000000 | |
| 25 | 1 | Handle,Front | C400-000000 | C400-000000-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 1 | Grip, Handle | 351311-02330 | 351311-02330-Online | Sr/Nr 038471 and | before/SRM-2455 | |
| 26 | 1 | Grip,Handle | C403-000030 | C403-000030-Online | Sus. by C403- | 000031 | |
| 26 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | Sr/Nr 038472 and | after/SRM-2455 | |
| 27 | 1 | Label, Caution | 890617-46830 | 890617-46830-Online | Sus. by 890617- | 43130 | |
| 27 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 28 | 1 | Housing Ass'Y D,Sft. | 610206-28230 | 610206-28230-Online | ||
| 29 | 1 | Shaft, Drive | 610018-27830 | 610018-27830-Online | ||
| 30 | 1 | Harness, Shoulder | 301001-56830 | 301001-56830-Online | Sus. by C062- | 000190 | |
| 30 | 1 | Harness Asy,Shoulder | 301001-56831 | 301001-56831-Online | Sus. by C062- | 000181 | |
| 30 | 1 | Harness,Shoulder | C062-000180 | C062-000180-Online | ECHO | Sus. by C062- | 000181 | |
| 30 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | ||
| 31 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | Sr/Nr 038471 and | before/SRM-2455 |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | Sr/Nr 047138 and | after/SRM-2455 |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Housing Assy, Gear | 610400-56830 | 610400-56830-Online | Sus. by 610400- | 56832 | |
| 1 | 1 | Case Asy, Gear | 610400-56831 | 610400-56831-Online | Sus. by 610400- | 56832 | |
| 1 | 1 | Case Asy, Gear | 610400-56832 | 610400-56832-Online | ||
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 6 | + | 1 | Plate, Adapter (U) | 610313-52930 | 610313-52930-Online | Sus. by C535- | 000001 |
| 6 | + | 1 | Fixture,Blade | C535-000000 | C535-000000-Online | Sus. by C535- | 000001 |
| 6 | + | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | 11 | ++ |
| 11 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 14 | ++ | |
| 14 | 1 | Fixture,Blade | C535-000010 | C535-000010-Online | Sus. by C535- | 000011 | 14 | ++ | |
| 14 | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | ||
| 7 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 8 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 9 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 10 | + | 1 | Shaft, P.T.O. | 610310-56830 | 610310-56830-Online | |
| 12 | + | 1 | Gear Set | 610300-40830 | 610300-40830-Online | |
| 13 | + | 1 | Bearing, Ball 626 | 900810-00626 | 900810-00626-Online |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | + | 1 | Spring, Torsion | 610473-52130 | 610473-52130-Online | Can be used on the | 610313-52930 only |
| 15 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | Can be used on the | C535- | 000000,000001 |
| 16 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
| 17 | + | 1 | Bolt 8* 6 | 610434-50030 | 610434-50030-Online | Sus. by 610434- | 50031 |
| 17 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 18 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
| 19 | + | 1 | Bolt, H.S. 6*25 | 900162-06025 | 900162-06025-Online | 6*25 W,SW |
| 20 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 21 | + | 1 | Bearing, Ball 6900Z | 900858-06900 | 900858-06900-Online | |
| 22 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | CR-22 |
| 23 | + | 1 | Circlip 10 | 900706-00010 | 900706-00010-Online | WR-10 |
| 30 | 1 | Saw,Bush Cutter | X405-000010 | X405-000010-Online | 3*230*25.4*T2.0 | Sus. by X405- | 000011 | |
| 30 | 1 | Saw,Bush Cutter | X405-000011 | X405-000011-Online | 3*230*25.4*T2.0 | |
| 33 | 1 | Scabbard,Blade | 898523-47130 | 898523-47130-Online | Sus. by P021- | 007470 | |
| 33 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online | ||
| 31 | 1 | Blade,8-Cutter 9In | 696001-44730 | 696001-44730-Online | Sus. by 696001- | 44731 |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | 1 | Blade, 8-Cutter 9In | 696001-44731 | 696001-44731-Online | 230*8T*1.4 PD25 | OPTION | |
| 32 | 1 | Saw,Circular 9*80T | 695001-44730 | 695001-44730-Online | Sus. by 695001- | 44731 | |
| 32 | 1 | Saw, Circular 9*80T | 695001-44731 | 695001-44731-Online | 230*80P*1.4 PD25 OPTION | |
| 35 | 1 | Cap Assy, Free | 699200-56830 | 699200-56830-Online | OPTION | |
| 36 | + | 1 | Plate, Adapter (U) | 610313-56830 | 610313-56830-Online | OPTION |
| 37 | + | 1 | Holder, Bearing | 699226-05430 | 699226-05430-Online | OPTION |
| 38 | + | 1 | Bearing, Ball 6202 | 900814-06202 | 900814-06202-Online | 6202ZZ | OPTION |
| 39 | + | 1 | Nut | 699227-04630 | 699227-04630-Online | OPTION |
| 40 | + | 1 | Plate, Cover | 699228-08930 | 699228-08930-Online | OPTION |
| 41 | + | 4 | Bolt 5*12 | 900141-05012 | 900141-05012-Online | 5*12 | OPTION |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label, Caution | 890177-46730 | 890177-46730-Online | Sus. by 890617- | 43130 | |
| 1 | 1 | Label,Caution | 890617-63630 | 890617-63630-Online | Sus. by 890617- | 43130 | |
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | Sus. by 890617- | 43130 | |
| 1 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 2 | 1 | Handle Assy, Loop | 351201-54130 | 351201-54130-Online | ||
| 3 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 4 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Coller | 610281-54130 | 610281-54130-Online | ||
| 6 | + | 2 | Screw 4*25 | 900253-04025 | 900253-04025-Online | 4*25 |
| 7 | 1 | Tube 7*10*130 | 178127-54530 | 178127-54530-Online | 7*10*130 | |
| 8 | 1 | Wire, Throttle | 178001-51030 | 178001-51030-Online | ||
| 9 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 10 | 1 | Shaft, Drive | 610018-27830 | 610018-27830-Online | ||
| 11 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | Sr/Nr 047131 and | before/SRM-2455 | |
| 12 | 1 | Hook | 301207-08930 | 301207-08930-Online | ||
| 13 | 1 | Bolt 5*18 | 900100-05018 | 900100-05018-Online | 5*18 | |
| 14 | 1 | Spacer | 699012-03330 | 699012-03330-Online | ||
| 15 | 1 | Band Assy | 301200-29430 | 301200-29430-Online |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | + | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
| 17 | 1 | Bracket Set,Throttle | 178003-52130 | 178003-52130-Online | Sr/Nr 047131 and | before/SRM-2455 | |
| 17 | 1 | Bracket Set,Throttle | P021-005850 | P021-005850-Online | Sr/Nr 047132 and | after/SRM-2455 | |
| 18 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 19 | + | 1 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 24 | + | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 20 | 1 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | Sr/Nr 047131 and | before/SRM-2455 | |
| 20 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | Sr/Nr 047132 and | after/SRM-2455 |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | Sr/Nr 35005713 | and after/SRM- | 2455SI | |
| 21 | 1 | Control, Throttle | 178010-52130 | 178010-52130-Online | Sr/Nr 047131 and | before/SRM-2455 | |
| 21 | 1 | Trigger,Throttle | C450-000110 | C450-000110-Online | Sr/Nr 047132 and | after/SRM-2455 | |
| 22 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 23 | 1 | Switch, Ignition | 163400-49230 | 163400-49230-Online | ||
| 25 | 1 | Lockout, T. Control | 178090-52630 | 178090-52630-Online | Sus. by 178090- | 52632 | |
| 25 | 1 | Lockout, T. Control | 178090-52631 | 178090-52631-Online | Sus. by 178090- | 52632 | |
| 25 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 26 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 27 | 1 | Grip | 351213-52130 | 351213-52130-Online | Sus. by C403- | 000140 | |
| 27 | 1 | Grip, Handle | C403-000140 | C403-000140-Online | L129.5*28 |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | 1 | Band | 610272-52130 | 610272-52130-Online | ||
| 24 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 29 | + | 1 | Screw 5*28 | 900242-05028 | 900242-05028-Online | 5*28 |
| 30 | 1 | Housing Ass'Y D,Sft. | 610206-28230 | 610206-28230-Online | ||
| 31 | 1 | Harness Assy | 301000-55230 | 301000-55230-Online | Sus. by 301000- | 55231 | |
| 31 | 1 | Harness Asy,Shoulder | 301000-55231 | 301000-55231-Online | ||
| 32 | + | 1 | Link | 301305-24330 | 301305-24330-Online | |
| 34 | 1 | Latch,Throttle | C461-000010 | C461-000010-Online | Sr/Nr 047132 and | after/SRM-2455 | |
| 35 | 1 | Spring,Torsion | V452-000120 | V452-000120-Online | Sr/Nr 047132 and | after/SRM-2455 |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 | |
| 4 | 1 | Plate, Adapter (U) | 610313-52930 | 610313-52930-Online | Sus. by C535- | 000001 | |
| 4 | 1 | Fixture,Blade | C535-000000 | C535-000000-Online | Sus. by C535- | 000001 | |
| 4 | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | ||
| 5 | + | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | |
| 6 | + | 1 | Fixture,Blade | C535-000010 | C535-000010-Online | Sus. by C535- | 000011 |
| 6 | + | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | |
| 7 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 8 | 1 | Washer | 610444-56830 | 610444-56830-Online | ||
| 9 | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) | |
| 10 | 1 | Shaft, P.T.O. | 610310-56830 | 610310-56830-Online | ||
| 12 | 1 | Gear Set | 610300-40830 | 610300-40830-Online | ||
| 13 | 1 | Bearing, Ball 626 | 900810-00626 | 900810-00626-Online | ||
| 15 | 1 | Spring, Torsion | 610473-52130 | 610473-52130-Online | Can be used on the | 610313-52930 only | |
| 15 | 1 | Spring | 610473-52131 | 610473-52131-Online | Can be used on the | C535-000000 only | |
| 16 | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T | |
| 17 | 1 | Bolt 8* 6 | 610434-50030 | 610434-50030-Online | Sus. by 610434- | 50031 | |
| 17 | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 | |
| 19 | 1 | Bolt, H.S. 6*25 | 900162-06025 | 900162-06025-Online | 6*25 W,SW | |
| 20 | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | ||
| 21 | 1 | Bearing, Ball 6900Z | 900858-06900 | 900858-06900-Online | ||
| 22 | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | CR-22 | |
| 23 | 1 | Circlip 10 | 900706-00010 | 900706-00010-Online | WR-10 | |
| 40 | 1 | Label, Caution | 890617-46730 | 890617-46730-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 41 | 1 | Drum, Reel | 696210-56930 | 696210-56930-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 42 | 1 | Reel, Cord | 696214-06830 | 696214-06830-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 43 | 2 | Eyelet | 696212-06032 | 696212-06032-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 44 | 2 | Cord, Nylon(2.4*2.5) | 696215-22830 | 696215-22830-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 46 | 1 | Spring | 696216-06030 | 696216-06030-Online | Sr/Nr 034941 and | before/SRM-2455 |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 47 | 1 | Cover, Drum (Bl) | 696206-28232 | 696206-28232-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 48 | 1 | Nut (Bl) | 696219-28231 | 696219-28231-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 49 | 1 | Stopper, Nut | 696220-06030 | 696220-06030-Online | Sr/Nr 034941 and | before/SRM-2455 | |
| 50 | 1 | Screw 6*10 | 900220-06010 | 900220-06010-Online | 6*10 | Sr/Nr 034941 and | before/SRM-2455 | |
| 40 | 1 | Cutter,Asm Line | X047-000050 | X047-000050-Online | DS-3/10 | Sus. by X047- | 000260 | |
| 40 | 1 | Cutter,Asm Line | X047-000150 | X047-000150-Online | F4/10 M10L | Sus. by X047- | 000260 | |
| 40 | 1 | Cutter,Asm Line | X047-000151 | X047-000151-Online | F4/10 M10L | Sus. by X047- | 000260 | |
| 40 | 1 | Cutter,Asm Line | X047-000260 | X047-000260-Online | F4/10 M10L | Sr/Nr 034942 and | after/SRM-2455 | |
| 41 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | Sr/Nr 034942 and | after/SRM-2455 |
Page 34 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 42 | + | 1 | Drum,Reel | X470-000020 | X470-000020-Online | Sus. by P022- | 003310 |
| 42 | + | 1 | Housing | P022-002890 | P022-002890-Online | Sus. by P022- | 003310 |
| 42 | + | 1 | Housing | P022-003310 | P022-003310-Online | Sr/Nr 034942 and | after/SRM-2455 |
| 43 | + | 1 | Nut | P022-001220 | P022-001220-Online | Sr/Nr 034942 and | after/SRM-2455 |
| 44 | + | 1 | Spring | P022-001250 | P022-001250-Online | DS-3/10 | Sr/Nr 034942 and | after/SRM-2455 |
| 45 | + | 1 | Nylon Code | P022-001230 | P022-001230-Online | Sus. by P022- | 006190 |
| 45 | + | 1 | Nylon Code | P022-006190 | P022-006190-Online | 3.0*2M | Sr/Nr 034942 and | after/SRM-2455 |
| 46 | + | 1 | Bobbin | P022-001260 | P022-001260-Online | DS-3/10 | Sr/Nr 034942 and | after/SRM-2455 |
Page 35 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 47 | + | 1 | Cover | P022-001240 | P022-001240-Online | DS-3/10 | Sus. by P022- | 003330 |
| 47 | + | 1 | Cover | P022-002860 | P022-002860-Online | Sus. by P022- | 003330 |
| 47 | + | 1 | Cover | P022-003330 | P022-003330-Online | Sr/Nr 034942 and | after/SRM-2455 |
| 48 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 | Sr/Nr 034942 and | after/SRM-2455 |
Page 36 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 2 | + | 1 | Cover, Diaphragm | 125342-13210 | 125342-13210-Online | Can be used on the | 125200-52430,-1,-2 | only |
| 2 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | Can be used on the | 125200-52433 only |
| 3 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 4 | + | 1 | Gasket, Diaphragm | 125340-51030 | 125340-51030-Online | |
| 5 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 6 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 7 | + | 1 | Lever, Metering | 125323-42030 | 125323-42030-Online | |
| 8 | + | 1 | Spring, Coil | 125322-42030 | 125322-42030-Online | Can be used on the | 125200-52430,-1,-2 | only |
Page 37 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 8 | + | 1 | Spring, Coil | 125322-11520 | 125322-11520-Online | Can be used on the | 125200-52433 only |
| 9 | + | 1 | Valve,Inlet Needle | 125337-06960 | 125337-06960-Online | |
| 10 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 11 | + | 1 | Nozzle, Chack Valve | 125376-49030 | 125376-49030-Online | Sus. by P005- | 001050 |
| 11 | + | 1 | Nozzle, Check Valve | P005-001050 | P005-001050-Online | |
| 12 | + | 1 | Strainer | 125326-42030 | 125326-42030-Online | |
| 13 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | |
| 14 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online | |
| 15 | + | 1 | Base, Primer | 125383-13310 | 125383-13310-Online | Sus. by P005- | 000590 |
| 15 | + | 1 | Base,Asy Primer | P005-000590 | P005-000590-Online | |
| 16 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 17 | + | 1 | Ring | 125363-11610 | 125363-11610-Online | |
| 18 | + | 2 | Screw | 125310-11610 | 125310-11610-Online | |
| 19 | + | 1 | Screw, Idle Adjust | 125334-13930 | 125334-13930-Online | Sr/Nr 018261 and | before/SRM-2455 |
| 19 | + | 1 | Screw,Throttleadjust | 125334-06960 | 125334-06960-Online | Sr/Nr 018262 and | after/SRM-2455 |
Page 38 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | + | 1 | Piece, Friction | 125378-13930 | 125378-13930-Online | Sr/Nr 018261 and | before/SRM-2455 |
| 20 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | Sr/Nr 018262 and | after/SRM-2455 |
| 21 | + | 1 | Spring, Thrt. Return | 125313-42030 | 125313-42030-Online | |
| 22 | + | 1 | Shaft, Throttle | 125317-49030 | 125317-49030-Online | Sus. by P005- | 000390 |
| 22 | + | 1 | Shaft, Throttle | P005-000390 | P005-000390-Online | |
| 23 | + | 1 | Swivel | 125372-42030 | 125372-42030-Online | |
| 24 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 25 | + | 1 | Needle, High Speed | 125320-52430 | 125320-52430-Online | Can be used on the | 125200-52430,-1,-2 | only |
| 25 | + | 1 | Screw,Mainn Mixture | P005-001710 | P005-001710-Online | Can be used on the | 125200-52433 only |
| 26 | + | 1 | Needle, Idle | 125318-52430 | 125318-52430-Online | Can be used on the | 125200-52430,-1,-2 | only |
Page 39 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Screw, Idle Mixture | P005-001720 | P005-001720-Online | Can be used on the | 125200-52433 only |
| 27 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 28 | + | 1 | Valve, Throttle | 125316-49030 | 125316-49030-Online | |
| 29 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online |
Page 40 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rebuild Kit | 125300-13310 | 125300-13310-Online | Can be used on the | 125200-52430,-1,-2 | only | 1 |
Source PDF: 20130718-149_SRM-2455(SI)_SRM-2455(SI)_EN.pdf. Generated 2026-06-25 14:37.
