Echo SRM-250 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-250-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

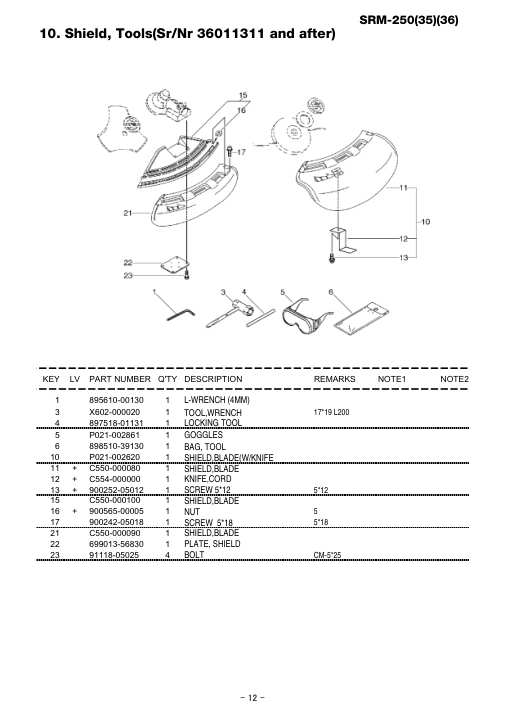

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.
Page 33
Tap or click the page image to enlarge it.
Page 34
Tap or click the page image to enlarge it.
Page 35
Tap or click the page image to enlarge it.
Page 36
Tap or click the page image to enlarge it.
Page 37
Tap or click the page image to enlarge it.
Page 38
Tap or click the page image to enlarge it.
Page 39
Tap or click the page image to enlarge it.
Page 40
Tap or click the page image to enlarge it.
Page 41
Tap or click the page image to enlarge it.
Page 42
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder (Cr) | 101011-08961 | 101011-08961-Online | ||
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Piston Kit | 100000-09563 | 100000-09563-Online | ||
| 5 | + | 2 | Ring, Piston | 100011-09560 | 100011-09560-Online | |
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 8 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online | ||
| 10 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 11 | 1 | Crankcase Kit | 100204-52131 | 100204-52131-Online | ||
| 12 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 13 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 14 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 15 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 16 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 19 | 1 | Cover, Cylinder | 101514-42031 | 101514-42031-Online | ||
| 20 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 21 | 1 | Label,Model | X543-000370 | X543-000370-Online | SRM-250 | Sus. by X547- | 001190 | |
| 22 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder (Cr) | 101011-08961 | 101011-08961-Online | ||
| 2 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 3 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 4 | 1 | Piston Kit | 100000-09563 | 100000-09563-Online | ||
| 5 | + | 2 | Ring, Piston | 100011-09560 | 100011-09560-Online | |
| 6 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 7 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 8 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 9 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online | ||
| 10 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 11 | 1 | Crankcase Kit | 100204-52131 | 100204-52131-Online | ||
| 12 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 13 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 14 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 15 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 16 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 19 | 1 | Cover, Cylinder | 101514-42031 | 101514-42031-Online | ||
| 20 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 21 | 1 | Label,Model | X543-000370 | X543-000370-Online | SRM-250 | Sus. by X547- | 001190 | |
| 22 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Circlip 42 | 900702-00042 | 900702-00042-Online | CR-42 | |
| 2 | 1 | Holder, Main Pipe | 610922-55931 | 610922-55931-Online | Sus. by A575- | 000110 | |
| 2 | 1 | Fixture,Main Pipe | A575-000110 | A575-000110-Online | ||
| 3 | 1 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW | Sus. by 91118- | 05028 | |
| 4 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 6 | 4 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | |
| 7 | 1 | Cover,Fan | A172-000400 | A172-000400-Online | ||
| 8 | 1 | Bearing, Ball 6201 | 900814-06201 | 900814-06201-Online | 6201ZZ | |
| 9 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 10 | 1 | Drum,Clutch | A556-000260 | A556-000260-Online | ||
| 13 | 1 | Clutch Asy | 175000-52733 | 175000-52733-Online | Sus. by 175000- | 52734 | |
| 14 | + | 2 | Spring, Clutch | 175018-52131 | 175018-52131-Online | |
| 15 | 1 | Rotor,Magneto | A409-000000 | A409-000000-Online | ||
| 18 | 1 | Lead, Ground | 162010-52830 | 162010-52830-Online | Sus. by V485- | 000580 | |
| 18 | 1 | Lead | V485-000580 | V485-000580-Online | L=165 | |
| 19 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 20 | 1 | Coil, Ignition | 156601-52130 | 156601-52130-Online | ||
| 21 | 1 | Bushing | 150112-42030 | 150112-42030-Online | ||
| 22 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 23 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 24 | 1 | Plug, Spark (Rcj-7Y) | 159017-10230 | 159017-10230-Online | RCJ-7Y | Sus. by 159010- | 10230 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Circlip 42 | 900702-00042 | 900702-00042-Online | CR-42 | |
| 2 | 1 | Fixture,Main Pipe | A575-000110 | A575-000110-Online | ||
| 3 | 1 | Bolt | 91118-05028 | 91118-05028-Online | CM-5*28 | |
| 4 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 6 | 4 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | |
| 7 | 1 | Cover,Fan | A172-000400 | A172-000400-Online | ||
| 8 | 1 | Bearing, Ball 6201 | 900814-06201 | 900814-06201-Online | 6201ZZ | |
| 9 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 10 | 1 | Drum,Clutch | A556-000260 | A556-000260-Online | ||
| 13 | 1 | Clutch Asy | 175000-52733 | 175000-52733-Online | Sus. by 175000- | 52734 | |
| 13 | 1 | Clutch Asy | 175000-52734 | 175000-52734-Online | ||
| 14 | + | 2 | Spring, Clutch | 175018-52131 | 175018-52131-Online | |
| 15 | 1 | Rotor,Magneto | A409-000000 | A409-000000-Online | ||
| 18 | 1 | Lead | V485-000580 | V485-000580-Online | L=165 | |
| 19 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 20 | 1 | Coil, Ignition | 156601-52130 | 156601-52130-Online | ||
| 21 | 1 | Bushing | 150112-42030 | 150112-42030-Online | ||
| 22 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 23 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 24 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 2 | + | 1 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |
| 3 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 5 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 6 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 7 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 8 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 9 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 10 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 11 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 15 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | |
| 16 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online | Sus. by X502- | 000330 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 2 | + | 1 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |
| 3 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 5 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 6 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 7 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 8 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 9 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 10 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 11 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 15 | 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 4*16 | |
| 16 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online | Sus. by X502- | 000330 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 2 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 3 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 4 | 1 | Insulator, Intake | 130017-42031 | 130017-42031-Online | ||
| 5 | 1 | Gasket, Intake | 130016-42031 | 130016-42031-Online | ||
| 6 | 1 | Carburetor | 125200-52432 | 125200-52432-Online | C1U-K53A | Sus. by 125200- | 52433 | |
| 6 | 1 | Carburetor | 125200-52433 | 125200-52433-Online | C1U-K53B | |
| 7 | 1 | Rod, Choke | 178510-48830 | 178510-48830-Online | ||
| 8 | 1 | Case, Air Cleaner | 130301-04560 | 130301-04560-Online | ||
| 9 | + | 1 | Grommet | 178810-05230 | 178810-05230-Online | |
| 10 | 1 | Shutter, Choke | 178515-04560 | 178515-04560-Online | ||
| 11 | 1 | Spacer | 178516-00830 | 178516-00830-Online | 5.2*8*0.8T | |
| 12 | 1 | Bracket, Air Cleaner | 130410-44730 | 130410-44730-Online | ||
| 13 | 2 | Screw 5*57 | 900242-05057 | 900242-05057-Online | 5*57 | |
| 14 | 1 | Filter, Air | 130310-04560 | 130310-04560-Online | ||
| 15 | 1 | Cover Assy, Air Cln. | 130302-50630 | 130302-50630-Online | ||
| 16 | + | 1 | O-Ring (P-4) | 900720-00004 | 900720-00004-Online | P-4 |
| 17 | + | 1 | Screw | 130415-40630 | 130415-40630-Online | |
| 18 | 2 | Plug | 130336-52130 | 130336-52130-Online | ||
| 19 | 1 | Label, Choke | 890121-47530 | 890121-47530-Online | ||
| 21 | 1 | Muffler Asy | 145803-52131 | 145803-52131-Online | Sus. by P021- | 008360 | |
| 21 | 1 | Muffler Asy | P021-008360 | P021-008360-Online | ||
| 22 | + | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | + | 1 | Catalyst | 145820-52130 | 145820-52130-Online | Sr/Nr 35007042 | and before |
| 24 | + | 1 | Screen, Muffler | 145862-52130 | 145862-52130-Online | Sus. by 145862- | 40630 |
| 24 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 25 | + | 5 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 | Can be used on |
| 25 | + | 3 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 | Can be used on |
| 26 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 27 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 28 | + | 1 | Holder, Screen | 145863-42030 | 145863-42030-Online | |
| 29 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 30 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 31 | 1 | Cover, Muffler | 145631-42030 | 145631-42030-Online | Sus. by A320- | 000251 | |
| 31 | 1 | Cover,Muffler | A320-000250 | A320-000250-Online | Sus. by A320- | 000251 | |
| 31 | 1 | Cover,Muffler | A320-000251 | A320-000251-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Tank, Fuel | 131005-44332 | 131005-44332-Online | ||
| 2 | 2 | Screw 5*16 | 900243-05016 | 900243-05016-Online | 5*16 | |
| 3 | 1 | Stand (Bl) | 305110-42030 | 305110-42030-Online | ||
| 4 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 5 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 6 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 7 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 8 | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 | |
| 9 | 1 | Pipe, 3*5*70L | 131312-44330 | 131312-44330-Online | 3*5*70L NBR | Sus. by V471- | 001200 | |
| 9 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 10 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 11 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 12 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 13 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 14 | 1 | Pipe, Fuel | 132010-13930 | 132010-13930-Online | 3*5*180L NBR | Sus. by V471- | 001190 | |
| 14 | 1 | Pipe | V471-001190 | V471-001190-Online | 3*5*180 NBR |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 3 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 4 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 5 | 1 | Safety Glasses | 899580-68730 | 899580-68730-Online | Sus. by P021- | 002861 | |
| 5 | 1 | Goggle | X690-000030 | X690-000030-Online | Sus. by P021- | 002861 | |
| 5 | 1 | Goggles | P021-002861 | P021-002861-Online | ||
| 6 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 10 | 1 | Shield,Blade(W/Knife | P021-002620 | P021-002620-Online | ||
| 11 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 12 | + | 1 | Knife,Cord | C554-000000 | C554-000000-Online | |
| 13 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 |
| 15 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 16 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 17 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 21 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 22 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 23 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | Sus. by 91118- | 05025 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 3 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 4 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 5 | 1 | Goggles | P021-002861 | P021-002861-Online | ||
| 6 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 10 | 1 | Shield,Blade(W/Knife | P021-002620 | P021-002620-Online | ||
| 11 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 12 | + | 1 | Knife,Cord | C554-000000 | C554-000000-Online | |
| 13 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 |
| 15 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 16 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 17 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 21 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 22 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 23 | 4 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Asy,F-Handle | P021-002611 | P021-002611-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | Sr/Nr 36011310 to | |
| 2 | Part | 36012996 | 36012996-Online | |||
| 2 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | Sr/Nr 36011310 to |
| 3 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 | Sr/Nr 36011310 to |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | Sr/Nr 36011310 to | |
| 6 | Part | 36012996 | 36012996-Online | |||
| 6 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | Sr/Nr 36011310 to | |
| 7 | Part | 36012996 | 36012996-Online | |||
| 7 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | Sr/Nr 36011310 to | |
| 8 | Part | 36012996 | 36012996-Online | |||
| 8 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | Sr/Nr 36011310 to |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 1 | Switch, Ignition | 163401-49230 | 163401-49230-Online | Sr/Nr 36011310 to | |
| 9 | Part | 36012996 | 36012996-Online | |||
| 9 | 1 | Switch,On Off | A440-000580 | A440-000580-Online | ||
| 10 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | Sr/Nr 36011310 to | |
| 13 | Part | 36012996 | 36012996-Online | |||
| 13 | 1 | Clip | 159112-09960 | 159112-09960-Online | Sus. by 159112- | 09961 | |
| 13 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 14 | 1 | Tube | 178127-47530 | 178127-47530-Online | 7*10*760 | Sus. by V475- | 003400 | |
| 14 | 1 | Tube | V475-003400 | V475-003400-Online | 7*720 | Sr/Nr 36011310 to | |
| 15 | 1 | Cable,Bowden | V430-000410 | V430-000410-Online | Sr/Nr 36011310 to | |
| 16 | Part | 36012996 | 36012996-Online | |||
| 16 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 19 | 1 | Bracket Asy, Handle | P021-002751 | P021-002751-Online | Sus. by P012- | 012820 | |
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 22 | + | 1 | Fixture,Handle | C423-000041 | C423-000041-Online | |
| 23 | + | 3 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW | Sus. by 91118- | 05030 |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 30 | 1 | Grip,Handle | C403-000030 | C403-000030-Online | Sus. by C403- | 000031 | |
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-000320 | C050-000320-Online | ||
| 33 | 1 | Handle,Front | C400-000210 | C400-000210-Online | U㺨㺻㺢㺼㺷 19 | Sus. by C400- | 000211 | |
| 33 | 1 | Handle,Front | C400-000211 | C400-000211-Online | ||
| 34 | 1 | Shaft,Drive | C504-000050 | C504-000050-Online | 7*1540 | |
| 37 | 1 | Hook Ass'Y | 301200-21330 | 301200-21330-Online | Sus. by P021- | 013000 | |
| 38 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 39 | + | 1 | Hook | 301205-21330 | 301205-21330-Online | |
| 40 | 1 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 | Sus. by 91119- | 05012 | |
| 41 | 2 | Clip | 224924-52130 | 224924-52130-Online | 25MM | |
| 42 | 1 | Harness Asy,Shoulder | 301001-56831 | 301001-56831-Online | Sus. by C062- | 000181 | |
| 42 | 1 | Harness,Shoulder | C062-000180 | C062-000180-Online | ECHO | Sus. by C062- | 000181 | |
| 42 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | Sus. by C062- | 000182 | |
| 43 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | ||
| 2 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 |
| 3 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | ||
| 6 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | ||
| 7 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | ||
| 8 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | ||
| 9 | 1 | Switch,On Off | A440-000580 | A440-000580-Online | ||
| 10 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | ||
| 13 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 14 | 1 | Tube | V475-003400 | V475-003400-Online | 7*720 | |
| 15 | 1 | Cable,Bowden | V430-000410 | V430-000410-Online | ||
| 16 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 19 | 1 | Fixture,Asy Handle | P021-012820 | P021-012820-Online | SRM-2655SI | |
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 22 | + | 1 | Fixture,Handle | C423-000041 | C423-000041-Online | |
| 23 | + | 3 | Bolt | 91118-05030 | 91118-05030-Online | |
| 24 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-000320 | C050-000320-Online | ||
| 33 | 1 | Handle,Front | C400-000211 | C400-000211-Online | ||
| 34 | 1 | Shaft,Drive | C504-000050 | C504-000050-Online | 7*1540 | |
| 37 | 1 | Ring, Harness Assy | P021-013000 | P021-013000-Online | SRM-2655SI |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 39 | + | 1 | Hook Ass'Y | 301200-21330 | 301200-21330-Online | 38 | ++ |
| 38 | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | ||
| 40 | + | 1 | Bolt | 91119-05012 | 91119-05012-Online | CB-5*12 |
| 41 | 2 | Clip | 224924-52130 | 224924-52130-Online | 25MM | |
| 42 | 1 | Harness,Shoulder | C062-000181 | C062-000181-Online | Sus. by C062- | 000182 | |
| 42 | 1 | Harness,Shoulder | C062-000182 | C062-000182-Online | ||
| 43 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 44 | 1 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | Sr/Nr 36013035 | and after | |
| 45 | + | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 4*16 | Sr/Nr 36013035 | and after |
| 46 | + | 1 | Bolt | 91119-05030 | 91119-05030-Online | Sr/Nr 36013035 | and after |
| 47 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | 5 | Sr/Nr 36013035 | and after |
| 48 | 1 | Lockout, Throttle | C460-000110 | C460-000110-Online | Sr/Nr 36013035 | and after | |
| 51 | 1 | Spring,Torsion | V452-000360 | V452-000360-Online | Sr/Nr 36013035 | and after | |
| 50 | 1 | Control, Throttle | C450-000270 | C450-000270-Online | Sr/Nr 36013035 | and after | |
| 49 | 1 | Spring,Torsion | V452-000350 | V452-000350-Online | Sr/Nr 36013035 | and after | |
| 53 | 1 | Switch,On Off | P021-015260 | P021-015260-Online | Sr/Nr 36013035 | and after | |
| 52 | 1 | Knob, Latch | C463-000020 | C463-000020-Online | Sr/Nr 36013035 | and after | |
| 13 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 55 | 1 | Cable,Bowden | V430-002060 | V430-002060-Online | ||
| 16 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 19 | 1 | Fixture,Asy Handle | P021-012820 | P021-012820-Online | SRM-2655SI | |
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | + | 1 | Fixture,Handle | C423-000041 | C423-000041-Online | |
| 23 | + | 3 | Bolt | 91118-05030 | 91118-05030-Online | |
| 24 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-000320 | C050-000320-Online | ||
| 33 | 1 | Handle,Front | C400-000211 | C400-000211-Online | ||
| 34 | 1 | Shaft,Drive | C504-000050 | C504-000050-Online | 7*1540 | |
| 37 | 1 | Ring, Harness Assy | P021-013000 | P021-013000-Online | SRM-2655SI | |
| 39 | + | 1 | Hook Ass'Y | 301200-21330 | 301200-21330-Online | 38 | ++ |
| 38 | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | ||
| 40 | + | 1 | Bolt | 91119-05012 | 91119-05012-Online | CB-5*12 |
| 41 | 2 | Clip | 224924-52130 | 224924-52130-Online | 25MM | |
| 42 | 1 | Harness,Shoulder | C062-000182 | C062-000182-Online | ||
| 43 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | X505-000140 | X505-000140-Online | Sus. by 890617- | 43130 | |
| 1 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 2 | 1 | Handle Asy, Loop | P021-005940 | P021-005940-Online | ||
| 3 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 4 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Coller | 610281-54130 | 610281-54130-Online | ||
| 6 | + | 2 | Screw 4*25 | 900253-04025 | 900253-04025-Online | 4*25 |
| 7 | 1 | Shaft,Drive | C504-000050 | C504-000050-Online | 7*1540 | |
| 8 | 1 | Tube 7*10*130 | 178127-54530 | 178127-54530-Online | 7*10*130 | Sus. by V475- | 004030 | |
| 9 | 1 | Cable,Bowden | V430-000920 | V430-000920-Online | ||
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 12 | 1 | Bolt 5*18 | 900100-05018 | 900100-05018-Online | 5*18 | |
| 13 | 1 | Hook | 301207-08930 | 301207-08930-Online | ||
| 14 | 1 | Spacer | 699012-03330 | 699012-03330-Online | ||
| 15 | 2 | Cushion | V420-000960 | V420-000960-Online | ||
| 16 | 2 | Fixture,Asy Handle | P021-005950 | P021-005950-Online | Sus. by P021- | 012630 | |
| 17 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | Sus. by 91118- | 05025 |
| 18 | 1 | Switch, Ignition | 163400-49230 | 163400-49230-Online | Sus. by A440- | 000320 | |
| 20 | 1 | Harness Assy | 301000-55230 | 301000-55230-Online | Sus. by 301000- | 55231 | |
| 20 | 1 | Harness Asy,Shoulder | 301000-55231 | 301000-55231-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | + | 1 | Link | 301305-24330 | 301305-24330-Online | |
| 22 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 23 | 1 | Lockout, T. Control | 178090-52631 | 178090-52631-Online | Sus. by 178090- | 52632 | |
| 23 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 25 | 1 | Bracket Set,Throttle | P021-005960 | P021-005960-Online | ||
| 26 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 27 | + | 3 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 28 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 29 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 30 | 1 | Trigger,Throttle | C450-000110 | C450-000110-Online | ||
| 31 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | ||
| 32 | 1 | Spring,Torsion | V452-000120 | V452-000120-Online | ||
| 33 | 1 | Latch,Throttle | C461-000010 | C461-000010-Online | ||
| 35 | 1 | Pipe,Main | C050-000320 | C050-000320-Online | ||
| 36 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 2 | 1 | Handle Asy, Loop | P021-005940 | P021-005940-Online | ||
| 3 | + | 4 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 4 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Coller | 610281-54130 | 610281-54130-Online | ||
| 6 | + | 2 | Screw 4*25 | 900253-04025 | 900253-04025-Online | 4*25 |
| 7 | 1 | Shaft,Drive | C504-000050 | C504-000050-Online | 7*1540 | |
| 8 | 1 | Tube 7*10*130 | 178127-54530 | 178127-54530-Online | 7*10*130 | Sus. by V475- | 004030 | |
| 8 | 1 | Tube | V475-004030 | V475-004030-Online | 7*180 | |
| 9 | 1 | Cable,Bowden | V430-000920 | V430-000920-Online | ||
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 12 | 1 | Bolt 5*18 | 900100-05018 | 900100-05018-Online | 5*18 | |
| 13 | 1 | Hook | 301207-08930 | 301207-08930-Online | ||
| 14 | 1 | Spacer | 699012-03330 | 699012-03330-Online | ||
| 15 | 2 | Cushion | V420-000960 | V420-000960-Online | ||
| 16 | 2 | Bracket Asm., Handle | P021-012630 | P021-012630-Online | ||
| 17 | + | 4 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 |
| 18 | 1 | Switch, Ignition | 163400-49230 | 163400-49230-Online | Sus. by A440- | 000320 | |
| 18 | 1 | Switch,On Off | A440-000320 | A440-000320-Online | Sus. by A440- | 001040 | |
| 18 | 1 | Switch, On Off | A440-001040 | A440-001040-Online | ||
| 20 | 1 | Harness Asy,Shoulder | 301000-55231 | 301000-55231-Online | ||
| 21 | + | 1 | Link | 301305-24330 | 301305-24330-Online | |
| 22 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 23 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 25 | 1 | Bracket Set,Throttle | P021-005960 | P021-005960-Online | ||
| 26 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 27 | + | 3 | Screw 5*25 | 900242-05025 | 900242-05025-Online | 5*25 |
| 28 | + | 1 | Screw 5*35 | 900242-05035 | 900242-05035-Online | 5*35 |
| 29 | 1 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 30 | 1 | Trigger,Throttle | C450-000110 | C450-000110-Online | ||
| 31 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | ||
| 32 | 1 | Spring,Torsion | V452-000120 | V452-000120-Online | ||
| 33 | 1 | Latch,Throttle | C461-000010 | C461-000010-Online | ||
| 35 | 1 | Pipe,Main | C050-000320 | C050-000320-Online | ||
| 36 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online | ||
| 37 | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case Asy, Gear | 610400-52131 | 610400-52131-Online | Sus. by 610400- | 52132 | |
| 1 | 1 | Case Asy, Gear | 610400-52132 | 610400-52132-Online | Sus. by P021- | 012600 | |
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 7 | + | 1 | Fixture,Blade | C535-000000 | C535-000000-Online | Sus. by C535- | 000001 |
| 7 | + | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | 8 | ++ |
| 8 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 9 | ++ | |
| 9 | 1 | Fixture,Blade | C535-000010 | C535-000010-Online | Sus. by C535- | 000011 | 9 | ++ | |
| 9 | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | ||
| 10 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 12 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 13 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 14 | + | 1 | Shaft, P.T.O. | 610310-56830 | 610310-56830-Online | |
| 15 | + | 1 | Gear Set | 610300-25531 | 610300-25531-Online | |
| 16 | + | 1 | Bearing, Ball 626 | 900810-00626 | 900810-00626-Online | |
| 20 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | |
| 21 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
| 22 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 23 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 1 | Bolt, H.S. 6*25 | 900162-06025 | 900162-06025-Online | 6*25 W,SW | Sus. by 91118- | 06025 |
| 25 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 26 | + | 1 | Bearing, Ball 6900Z | 900858-06900 | 900858-06900-Online | |
| 27 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | CR-22 |
| 28 | + | 1 | Circlip 10 | 900706-00010 | 900706-00010-Online | WR-10 |
| 30 | 1 | Saw,Bush Cutter | X405-000010 | X405-000010-Online | 3*230*25.4*T2.0 | Sus. by X405- | 000011 | |
| 30 | 1 | Saw,Bush Cutter | X405-000011 | X405-000011-Online | 3*230*25.4*T2.0 | |
| 31 | 1 | Scabbard,Blade | 898523-47130 | 898523-47130-Online | Sus. by P021- | 007470 | |
| 31 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online | ||
| 40 | 1 | Cutter,Asm Line | X047-000260 | X047-000260-Online | F4/10 M10L | |
| 41 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | |
| 42 | + | 1 | Housing | P022-003310 | P022-003310-Online | |
| 43 | + | 1 | Part | P022-001220 | P022-001220-Online | |
| 44 | + | 1 | Spring | P022-001250 | P022-001250-Online | DS-3/10 |
| 45 | + | 1 | Nylon Code | P022-006190 | P022-006190-Online | 3.0*2M |
| 46 | + | 1 | Bobbin | P022-001260 | P022-001260-Online | DS-3/10 |
| 47 | + | 1 | Cover | P022-003330 | P022-003330-Online | |
| 48 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 |
| 50 | 1 | Cap Assy, Free | 699200-56830 | 699200-56830-Online | OPTION | |
| 51 | + | 1 | Plate, Adapter (U) | 610313-56830 | 610313-56830-Online | OPTION |
| 52 | + | 1 | Holder, Bearing | 699226-05430 | 699226-05430-Online | OPTION |
| 53 | + | 1 | Bearing, Ball 6202 | 900814-06202 | 900814-06202-Online | 6202ZZ | OPTION |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 54 | + | 1 | Nut | 699227-04630 | 699227-04630-Online | OPTION |
| 55 | + | 1 | Plate, Cover | 699228-08930 | 699228-08930-Online | OPTION |
| 56 | + | 4 | Bolt 5*12 | 900141-05012 | 900141-05012-Online | 5*12 | OPTION |
| 57 | 1 | Blade,8-Cutter 9In | 696001-44730 | 696001-44730-Online | Sus. by 696001- | 44731 | |
| 57 | 1 | Blade, 8-Cutter 9In | 696001-44731 | 696001-44731-Online | 230*8T*1.4 PD25 | OPTION | |
| 58 | 1 | Saw,Circular 9*80T | 695001-44730 | 695001-44730-Online | Sus. by 695001- | 44731 | |
| 58 | 1 | Saw, Circular 9*80T | 695001-44731 | 695001-44731-Online | 230*80P*1.4 PD25 OPTION |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | P021-012600 | P021-012600-Online | ||
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 7 | + | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | 8 | ++ |
| 8 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 9 | ++ | |
| 9 | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | ||
| 10 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 12 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 13 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 14 | + | 1 | Shaft, P.T.O. | 610310-56830 | 610310-56830-Online | |
| 15 | + | 1 | Gear Set | 610300-25531 | 610300-25531-Online | |
| 16 | + | 1 | Bearing, Ball 626 | 900810-00626 | 900810-00626-Online | |
| 20 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | |
| 21 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
| 22 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 23 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
| 24 | + | 1 | Bolt | 91118-06025 | 91118-06025-Online | |
| 25 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 26 | + | 1 | Bearing, Ball 6900Z | 900858-06900 | 900858-06900-Online | |
| 27 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | CR-22 |
| 28 | + | 1 | Circlip 10 | 900706-00010 | 900706-00010-Online | WR-10 |
| 30 | 1 | Saw,Bush Cutter | X405-000011 | X405-000011-Online | 3*230*25.4*T2.0 | |
| 31 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 40 | 1 | Cutter,Asm Line | X047-000260 | X047-000260-Online | F4/10 M10L | |
| 41 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | |
| 42 | + | 1 | Housing | P022-003310 | P022-003310-Online | |
| 43 | + | 1 | Part | P022-001220 | P022-001220-Online | |
| 44 | + | 1 | Spring | P022-001250 | P022-001250-Online | DS-3/10 |
| 45 | + | 1 | Nylon Code | P022-006190 | P022-006190-Online | 3.0*2M |
| 46 | + | 1 | Bobbin | P022-001260 | P022-001260-Online | DS-3/10 |
| 47 | + | 1 | Cover | P022-003330 | P022-003330-Online | |
| 48 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | T4 |
| 50 | 1 | Cap Assy, Free | 699200-56830 | 699200-56830-Online | ||
| 51 | + | 1 | Plate, Adapter (U) | 610313-56830 | 610313-56830-Online | |
| 52 | + | 1 | Holder, Bearing | 699226-05430 | 699226-05430-Online | |
| 53 | + | 1 | Bearing, Ball 6202 | 900814-06202 | 900814-06202-Online | 6202ZZ |
| 54 | + | 1 | Part | 699227-04630 | 699227-04630-Online | |
| 55 | + | 1 | Plate, Cover | 699228-08930 | 699228-08930-Online | |
| 56 | + | 4 | Bolt 5*12 | 900141-05012 | 900141-05012-Online | 5*12 |
| 57 | 1 | Blade, 8-Cutter 9In | 696001-44731 | 696001-44731-Online | 230*8T*1.4 PD25 | |
| 58 | 1 | Saw, Circular 9*80T | 695001-44731 | 695001-44731-Online | 230*80P*1.4 PD25 |
Page 35 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 2 | + | 1 | Cover, Diaphragm | 125342-13210 | 125342-13210-Online | Sus. by 125342- | 52130 |
| 2 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 3 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 4 | + | 1 | Gasket, Diaphragm | 125340-51030 | 125340-51030-Online | |
| 5 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 6 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 7 | + | 1 | Lever, Metering | 125323-42030 | 125323-42030-Online | |
| 8 | + | 1 | Spring, Coil | 125322-42030 | 125322-42030-Online | Sus. by 125322- | 11520 |
| 8 | + | 1 | Spring, Coil | 125322-11520 | 125322-11520-Online | |
| 9 | + | 1 | Valve,Inlet Needle | 125337-06960 | 125337-06960-Online | |
| 10 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 11 | + | 1 | Nozzle, Check Valve | P005-001050 | P005-001050-Online | |
| 12 | + | 1 | Strainer | 125326-42030 | 125326-42030-Online | |
| 13 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | |
| 14 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online | |
| 15 | + | 1 | Base,Asy Primer | P005-000590 | P005-000590-Online | |
| 16 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 17 | + | 1 | Ring | 125363-11610 | 125363-11610-Online | |
| 18 | + | 2 | Screw | 125310-11610 | 125310-11610-Online | |
| 19 | + | 1 | Screw,Throttleadjust | 125334-06960 | 125334-06960-Online |
Page 36 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 21 | + | 1 | Spring, Thrt. Return | 125313-42030 | 125313-42030-Online | |
| 22 | + | 1 | Shaft, Throttle | P005-000390 | P005-000390-Online | |
| 23 | + | 1 | Swivel | 125372-42030 | 125372-42030-Online | |
| 24 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 25 | + | 1 | Needle, High Speed | 125320-52430 | 125320-52430-Online | Sr/Nr 35007042 | and before |
| 25 | + | 1 | Screw,Mainn Mixture | P005-001710 | P005-001710-Online | Sr/Nr 36000001 | and after |
| 26 | + | 1 | Needle, Idle | 125318-52430 | 125318-52430-Online | Sr/Nr 35007042 | and before |
| 26 | + | 1 | Screw, Idle Mixture | P005-001720 | P005-001720-Online | Sr/Nr 36000001 | and after |
| 27 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 28 | + | 1 | Valve, Throttle | 125316-49030 | 125316-49030-Online | |
| 29 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | |
| 34 | 1 | Cap,Limiter | A259-000030 | A259-000030-Online | Sr/Nr 36000001and | after | |
| 35 | 1 | Limiter, Mixture | 125329-09860 | 125329-09860-Online | Sr/Nr 36000001and | after |
Page 37 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rebuild Kit | 125300-13310 | 125300-13310-Online | Sus. by P005- | 001810 | 1 | REBUILD KIT |
Source PDF: 20130718-688_SRM-250(35)(36)_SRM-250(35)(36)_EN.pdf. Generated 2026-06-25 14:38.
