Echo CLS-5800 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CLS-5800-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.

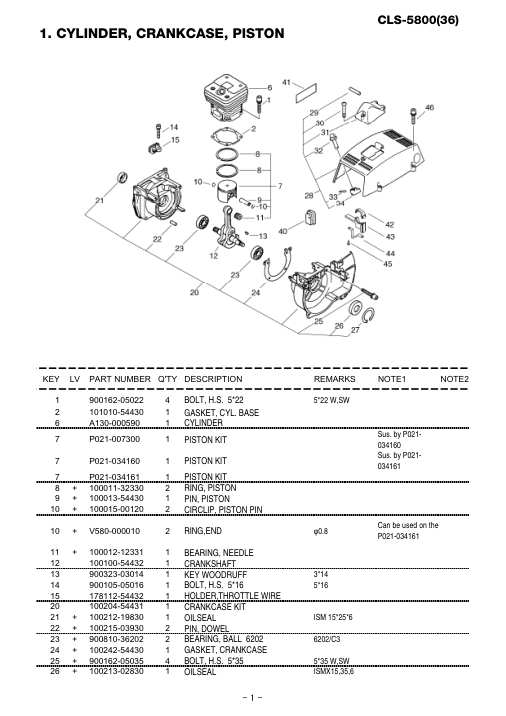

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 2 | 1 | Gasket, Cyl. Base | 101010-54430 | 101010-54430-Online | ||
| 6 | 1 | Cylinder | A130-000590 | A130-000590-Online | ||
| 7 | 1 | Piston Kit | P021-007300 | P021-007300-Online | Sus. by P021- | 034160 | |
| 7 | 1 | Piston Kit | P021-034160 | P021-034160-Online | Sus. by P021- | 034161 | |
| 7 | 1 | Piston Kit | P021-034161 | P021-034161-Online | ||
| 8 | + | 2 | Ring, Piston | 100011-32330 | 100011-32330-Online | |
| 9 | + | 1 | Pin, Piston | 100013-54430 | 100013-54430-Online | |
| 10 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |
| 10 | + | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 | Can be used on the |
| 11 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 12 | 1 | Crankshaft | 100100-54432 | 100100-54432-Online | ||
| 13 | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | |
| 14 | 1 | Bolt, H.S. 5*16 | 900105-05016 | 900105-05016-Online | 5*16 | |
| 15 | 1 | Holder,Throttle Wire | 178112-54432 | 178112-54432-Online | ||
| 20 | 1 | Crankcase Kit | 100204-54431 | 100204-54431-Online | ||
| 21 | + | 1 | Oilseal | 100212-19830 | 100212-19830-Online | ISM 15*25*6 |
| 22 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 23 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 24 | + | 1 | Gasket, Crankcase | 100242-54430 | 100242-54430-Online | |
| 25 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 26 | + | 1 | Oilseal | 100213-02830 | 100213-02830-Online | ISMX15,35,6 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 |
| 28 | 1 | Cover, Cylinder | P021-007442 | P021-007442-Online | ||
| 29 | + | 1 | Pin 4*29.8 | 900330-40298 | 900330-40298-Online | 4*29.8 |
| 30 | + | 1 | Bolt, 5 | 163890-38330 | 163890-38330-Online | |
| 31 | + | 1 | Cover, Plug Cap | 159015-54430 | 159015-54430-Online | |
| 32 | + | 1 | Rod, Choke | 178510-54430 | 178510-54430-Online | |
| 33 | + | 1 | Pin, Spring 2*10 | 900342-20010 | 900342-20010-Online | 2*10 |
| 34 | + | 1 | End, Lever | 178522-54430 | 178522-54430-Online | |
| 40 | 1 | Grommet | 178215-54431 | 178215-54431-Online | ||
| 41 | 1 | Label,Echo | X547-001120 | X547-001120-Online | ECHO+CLS-5800 | |
| 42 | 1 | Seal | V541-000110 | V541-000110-Online | ||
| 43 | 1 | Seal | V541-000120 | V541-000120-Online | ||
| 44 | 1 | Plate,Angle | V152-001420 | V152-001420-Online | ||
| 45 | 2 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | |
| 46 | 4 | Bolt | 91118-05022 | 91118-05022-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Label,Echo | X502-000640 | X502-000640-Online | 79.5*29.5 | |
| 4 | 4 | Bolt | 91118-05022 | 91118-05022-Online | ||
| 5 | 1 | Starter Assembly | 177200-54432 | 177200-54432-Online | ||
| 7 | + | 1 | Spring, Rewind | 177220-00220 | 177220-00220-Online | |
| 8 | + | 1 | Drum, Starter | 177215-06230 | 177215-06230-Online | |
| 9 | + | 1 | Rope, Starter | 177226-06230 | 177226-06230-Online | |
| 10 | + | 1 | Guide, Rope | 177227-05530 | 177227-05530-Online | |
| 11 | + | 1 | Spring, Return | 177234-54430 | 177234-54430-Online | |
| 12 | + | 1 | Pawl, Starter | 177218-54430 | 177218-54430-Online | |
| 13 | + | 1 | Grip, Starter | 177228-11120 | 177228-11120-Online | |
| 14 | + | 1 | Spring, Friction | 177233-54430 | 177233-54430-Online | |
| 15 | + | 1 | Plate, Friction | 177211-06230 | 177211-06230-Online | |
| 16 | + | 1 | Bolt 6*12 | 900100-06012 | 900100-06012-Online | 6*12 |
| 18 | 1 | Cover, Fan | 101511-54431 | 101511-54431-Online | ||
| 19 | 1 | Lead | V485-000160 | V485-000160-Online | L;640 | |
| 22 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 23 | 1 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | ||
| 24 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 25 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 26 | 1 | Rotor,Magneto | A409-000221 | A409-000221-Online | ID#9483 | |
| 27 | 1 | Part | 900517-00010 | 900517-00010-Online | ||
| 28 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 29 | 1 | Tube | 150623-16130 | 150623-16130-Online | ||
| 30 | 1 | Clutch Assy | 175000-54431 | 175000-54431-Online | ||
| 31 | + | 1 | Hub, Clutch | 175016-54430 | 175016-54430-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | + | 4 | Washer, Clutch | 175014-11231 | 175014-11231-Online | |
| 33 | + | 1 | Shoe, Clutch | 175009-54430 | 175009-54430-Online | 36 | ++ |
| 36 | 2 | Metal | 175030-54430 | 175030-54430-Online | ||
| 34 | + | 1 | Spring, Clutch | 175018-54430 | 175018-54430-Online | |
| 35 | + | 2 | Shaft, Clutch | 175046-54430 | 175046-54430-Online | |
| 39 | 1 | Coil,Ignition | A411-000191 | A411-000191-Online | ID#C9478 | |
| 40 | 1 | Coil,Exciter | A410-000000 | A410-000000-Online | ||
| 41 | 1 | Lead, Ground | 162010-04561 | 162010-04561-Online | ||
| 42 | 1 | Lead | V485-000510 | V485-000510-Online | ||
| 43 | 1 | Tube | V475-003570 | V475-003570-Online | 6*7*90 | |
| 44 | 1 | Tube | 178016-47430 | 178016-47430-Online | 6*7*20 BL |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Gasket, Intake | 130010-54430 | 130010-54430-Online | ||
| 3 | 1 | Insulator | 130007-54430 | 130007-54430-Online | ||
| 4 | 1 | Seal | 130012-54430 | 130012-54430-Online | ||
| 5 | 1 | Gasket, Intake | 130016-54430 | 130016-54430-Online | ||
| 6 | 1 | Carburetor,Diaphragm | A021-000951 | A021-000951-Online | C3M-K80 | |
| 7 | 1 | Case, Cleaner | 130314-54430 | 130314-54430-Online | ||
| 8 | 1 | Bracket, Air Cleaner | 130420-54430 | 130420-54430-Online | ||
| 9 | 1 | Filter, Air | 130310-54430 | 130310-54430-Online | ||
| 10 | 1 | Cover Asy, A.Cleaner | 130302-54431 | 130302-54431-Online | ||
| 11 | + | 1 | Screw | 130415-40630 | 130415-40630-Online | |
| 12 | + | 1 | O-Ring (P-4) | 900720-00004 | 900720-00004-Online | P-4 |
| 13 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 14 | 2 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW | |
| 15 | 1 | Pipe, Impulse | 130110-54430 | 130110-54430-Online | 3*6*105 NBR |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover, Muffler | 145906-54431 | 145906-54431-Online | ||
| 2 | 1 | Muffler, Exhaust | P021-008640 | P021-008640-Online | ||
| 3 | 1 | Insulator, Muffler | 145910-54430 | 145910-54430-Online | ||
| 4 | 1 | Gasket, Muffler | 145510-54430 | 145510-54430-Online | ||
| 4 | 1 | Gasket, Muffler | 145510-54431 | 145510-54431-Online | ||
| 5 | 3 | Bolt | 91118-05018 | 91118-05018-Online | ||
| 6 | 1 | Bolt, H.S. 5*16 | 900105-05016 | 900105-05016-Online | 5*16 | |
| 7 | 2 | Bolt, H.S. 5*10 | 900105-05010 | 900105-05010-Online | 5*10 | |
| 8 | 2 | Bolt, H.S. 5*75 | 900162-05075 | 900162-05075-Online | 5*75 W,SW | |
| 10 | 1 | Cap Asy, Fuel | 131004-16432 | 131004-16432-Online | ||
| 11 | + | 1 | O-Ring 32 | 900720-00032 | 900720-00032-Online | |
| 12 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 13 | + | 1 | Chain, Ball | 131023-14730 | 131023-14730-Online | |
| 14 | + | 1 | Spring, Closs | 131042-14730 | 131042-14730-Online | |
| 15 | 1 | Tank, Fuel | 131005-54430 | 131005-54430-Online | ||
| 16 | 4 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 17 | 2 | Washer | 130031-10230 | 130031-10230-Online | ||
| 20 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 21 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 22 | 1 | Pipe, Fuel | 132010-02960 | 132010-02960-Online | 3*6*30 | |
| 23 | 1 | Grommet | 132115-44330 | 132115-44330-Online | ||
| 24 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | Sus. by A369- | 000000 | |
| 24 | 1 | Strainer, Fuel | A369-000000 | A369-000000-Online | ||
| 1 | 25 | Part | 125-528 | 125-528-Online | ||
| 25 | 1 | Pipe | 132010-54430 | 132010-54430-Online | 3*6*140 NBR | |
| 26 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 6 | Bolt | 91119-05016 | 91119-05016-Online | 10.9 SILVER |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Shaft, Drive | 610011-47530 | 610011-47530-Online | ||
| 6 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 8 | 1 | Pipe, Main | C050-000600 | C050-000600-Online | 35*1400 | |
| 11 | 1 | Hook | P021-012710 | P021-012710-Online | ||
| 12 | + | 1 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 |
| 14 | 1 | Pipe W/Cable Guide | 610603-54530 | 610603-54530-Online | ||
| 20 | 1 | Bolt | 91118-05035 | 91118-05035-Online | ||
| 21 | 1 | Flange, D.S. Housing | 610223-54430 | 610223-54430-Online | ||
| 22 | 2 | Bolt | 91118-05030 | 91118-05030-Online | ||
| 23 | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 | |
| 24 | 2 | Bearing, Ball 6202 | 900819-06202 | 900819-06202-Online | 6202VV(LLB) | |
| 25 | 1 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 | |
| 26 | 1 | Drum, Clutch | 175005-54430 | 175005-54430-Online | ||
| 27 | 1 | Stand | 305110-54430 | 305110-54430-Online | ||
| 28 | 2 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 | |
| 29 | 4 | Bolt | 91118-05025 | 91118-05025-Online | ||
| 30 | 2 | Cushion | 100905-51530 | 100905-51530-Online | ||
| 31 | 1 | Holder | 610922-54430 | 610922-54430-Online | ||
| 32 | 2 | Bolt | 91118-05014 | 91118-05014-Online | ||
| 35 | 1 | Harness, Shoulder | 301000-51530 | 301000-51530-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | ||
| 3 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | ||
| 5 | 1 | Grip Asy,F-Handle | P021-013570 | P021-013570-Online | ||
| 6 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 |
| 7 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 |
| 8 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 9 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | ||
| 10 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | ||
| 11 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | ||
| 12 | 1 | Switch, Ignition | 163401-54530 | 163401-54530-Online | ||
| 14 | 1 | Cable,Bowden | V430-002030 | V430-002030-Online | ||
| 15 | 1 | Tube 7*10*130 | 178127-54530 | 178127-54530-Online | 7*10*130 | |
| 16 | 1 | Bracket Asy, Handle | P021-012730 | P021-012730-Online | ||
| 17 | + | 4 | Bolt | 91118-05025 | 91118-05025-Online | |
| 18 | 1 | Handle, Rear | 351210-47530 | 351210-47530-Online | ||
| 19 | 1 | Bracket, Handle Asy | P021-012690 | P021-012690-Online | ||
| 20 | + | 6 | Bolt | 91118-05035 | 91118-05035-Online | |
| 21 | + | 2 | Bolt | 91118-05014 | 91118-05014-Online | |
| 22 | 2 | Cushion | 100905-51530 | 100905-51530-Online | ||
| 23 | 1 | Handle, Front | 351110-47530 | 351110-47530-Online | ||
| 24 | 1 | Grip, Handle | 351213-47531 | 351213-47531-Online | ||
| 25 | 1 | Tube | V475-002930 | V475-002930-Online | 7*450 | |
| 26 | 2 | Band | V495-000000 | V495-000000-Online | CV-200 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | 1 | Shield Asy | P021-012720 | P021-012720-Online | ||
| 7 | + | 4 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 |
| 9 | 1 | Case,Gear | P021-012680 | P021-012680-Online | ||
| 10 | + | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 |
| 11 | + | 2 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 |
| 12 | + | 2 | Bearing, Ball 6202 | 900810-06202 | 900810-06202-Online | |
| 13 | + | 1 | Gear Set | 610300-47530 | 610300-47530-Online | |
| 14 | + | 2 | Bolt | 91118-05035 | 91118-05035-Online | |
| 15 | + | 1 | Bolt | 91119-05012 | 91119-05012-Online | |
| 16 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 17 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 18 | + | 1 | Shaft, P.T.O. | 610310-51530 | 610310-51530-Online | |
| 19 | + | 1 | Bearing, Ball 6202Z | 900813-06202 | 900813-06202-Online | |
| 20 | + | 1 | Spacer, Oilseal | 610334-06230 | 610334-06230-Online | |
| 21 | + | 1 | Oilseal Is 20 35 7 | 610413-47530 | 610413-47530-Online | |
| 22 | + | 1 | Fixture,Blade | C535-000050 | C535-000050-Online | |
| 23 | + | 1 | Fixture,Blade | C535-000060 | C535-000060-Online | |
| 24 | + | 1 | Plate, Cup | 610352-47530 | 610352-47530-Online | |
| 25 | + | 1 | Nut, Lock | 610320-47530 | 610320-47530-Online | |
| 40 | 1 | Saw, Circular | 695010-51530 | 695010-51530-Online | ||
| 41 | 1 | Cover Set, Cutter | 898503-08031 | 898503-08031-Online | 8INC (ORANGE) | |
| 41 | 1 | Cover Set, Cutter | P021-016360 | P021-016360-Online | ||
| 42 | 1 | Tool,Bar | X606-000080 | X606-000080-Online | 5*120 | |
| 43 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 44 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 45 | 1 | Goggles | P021-002861 | P021-002861-Online | ||
| 45 | 1 | Goggle | X690-000050 | X690-000050-Online | GOGGLE + NOTE | |
| 46 | 1 | Band | 178121-43230 | 178121-43230-Online | CV-150 BL | |
| 47 | 1 | Bag, Tool | 898510-07130 | 898510-07130-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Screw | 125310-13930 | 125310-13930-Online | |
| 2 | + | 1 | Cover, Pump | 125324-54430 | 125324-54430-Online | |
| 3 | + | 1 | Gasket, Pump | P005-001430 | P005-001430-Online | |
| 4 | + | 1 | Diaphragm, Pump | P005-001420 | P005-001420-Online | |
| 5 | + | 1 | Valve, Throttle | 125316-54430 | 125316-54430-Online | |
| 6 | + | 2 | Screw | 125314-51230 | 125314-51230-Online | 3*4.5 |
| 7 | + | 1 | Spring, Thrt. Return | 125313-54430 | 125313-54430-Online | |
| 8 | + | 1 | Shaft Asy,Throttle | P005-001610 | P005-001610-Online | |
| 9 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 10 | + | 1 | Swivel | P005-001860 | P005-001860-Online | |
| 11 | + | 1 | Shaft, Choke | P005-001490 | P005-001490-Online | |
| 12 | + | 1 | Screw,Throttleadjust | P005-001480 | P005-001480-Online | |
| 13 | + | 2 | Washer | 125353-20560 | 125353-20560-Online | |
| 14 | + | 1 | Screw, Idle Mixture | P005-001460 | P005-001460-Online | |
| 15 | + | 1 | Screw,Mainn Mixture | P005-001450 | P005-001450-Online | |
| 16 | + | 1 | Spring, Coil | 125322-11520 | 125322-11520-Online | |
| 17 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 18 | + | 1 | Screw | 125339-13930 | 125339-13930-Online | |
| 19 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 20 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 21 | + | 1 | Ball, Steel | 125336-33330 | 125336-33330-Online | |
| 22 | + | 1 | Springt, Friction | 125335-33330 | 125335-33330-Online | |
| 23 | + | 1 | Valve, Choke | 125332-33330 | 125332-33330-Online | |
| 26 | + | 1 | Strainer | 125326-08360 | 125326-08360-Online | |
| 27 | + | 1 | Diaphragm | 125341-54430 | 125341-54430-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 1 | Cover, Diaphragm | P005-001850 | P005-001850-Online | |
| 29 | + | 4 | Screw | 125344-52130 | 125344-52130-Online | |
| 30 | + | 1 | Gasket, Metering | P005-001440 | P005-001440-Online | |
| 31 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 32 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | |
| 33 | + | 1 | Nozzle, Check Valve | P005-001470 | P005-001470-Online | |
| 34 | + | 1 | Piece, Friction | 125378-13930 | 125378-13930-Online | |
| 35 | + | 1 | Retainer, Limit Cap | P005-001510 | P005-001510-Online | |
| 36 | + | 1 | Screw, Boot Adjust | P005-001500 | P005-001500-Online | |
| 37 | + | 1 | Spring, Choke Return | P005-001560 | P005-001560-Online | |
| 39 | + | 1 | Spring,Adjust Screw | 125333-08560 | 125333-08560-Online | |
| 40 | + | 1 | Limiter, Temper | P005-001530 | P005-001530-Online | |
| 41 | + | 1 | Limiter, Temper | P005-001520 | P005-001520-Online | |
| 42 | + | 1 | Washer | P005-001870 | P005-001870-Online |
Source PDF: 20130718-17_CLS-5800(36)_P014-000830Ib_EN.pdf. Generated 2026-06-25 14:37.
