Echo CLS-5000-5010 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CLS-5000-5010-Online

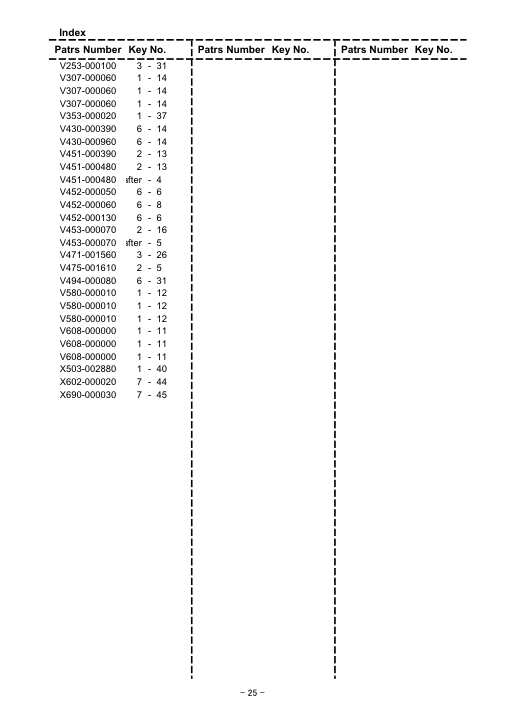

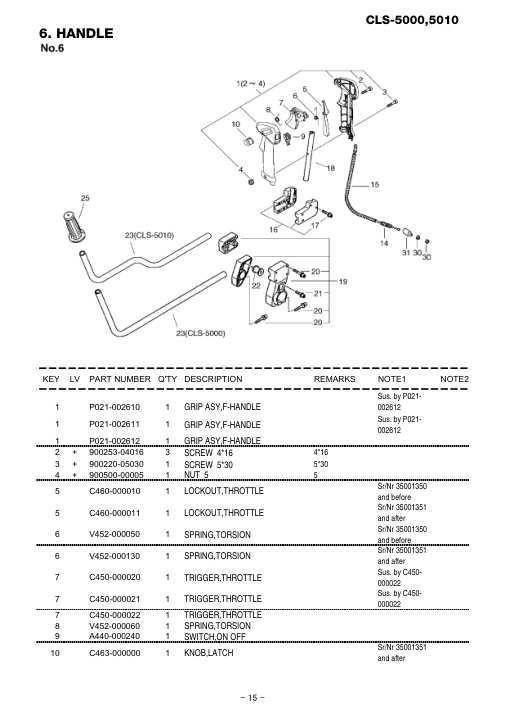

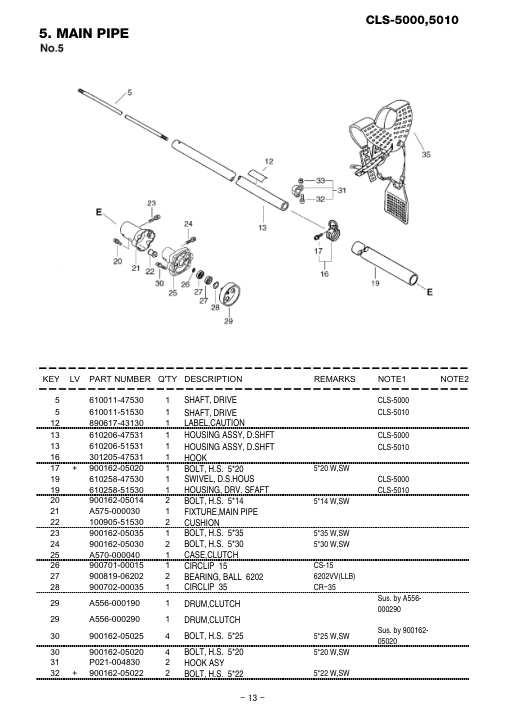

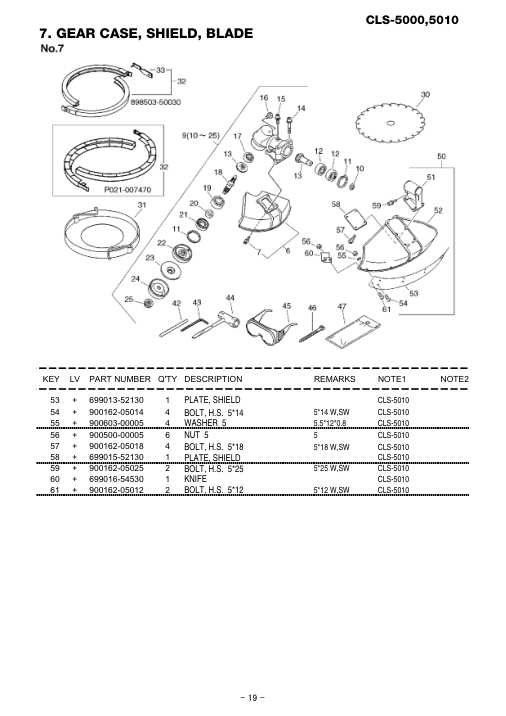

Source Pages

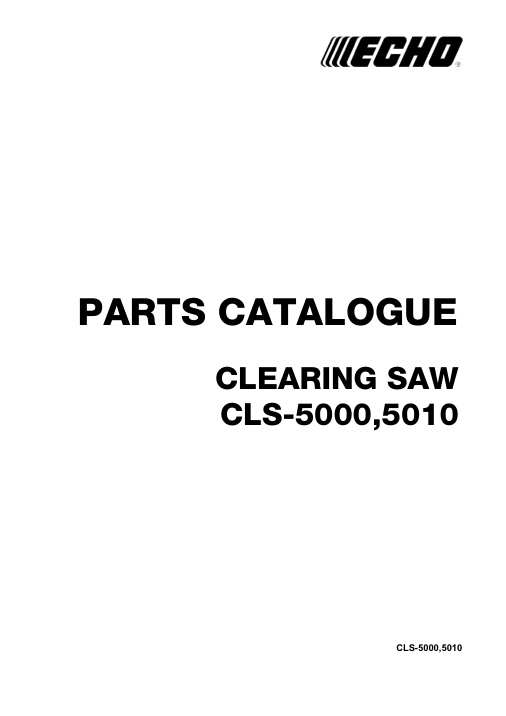

Page 1
Tap or click the page image to enlarge it.

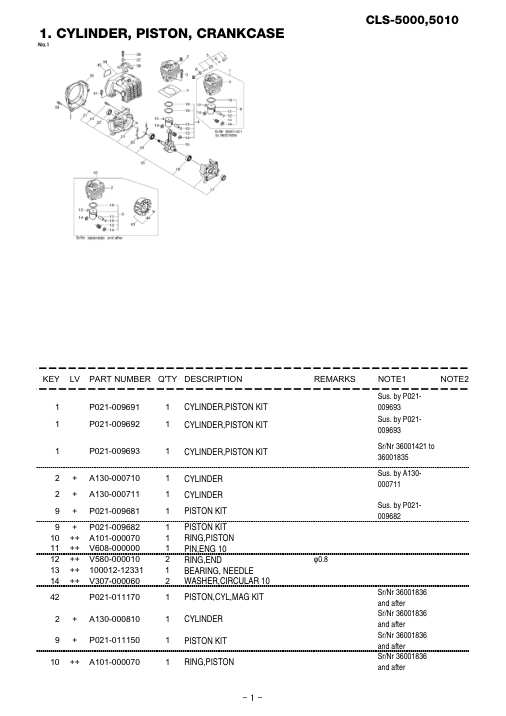

Page 2
Tap or click the page image to enlarge it.

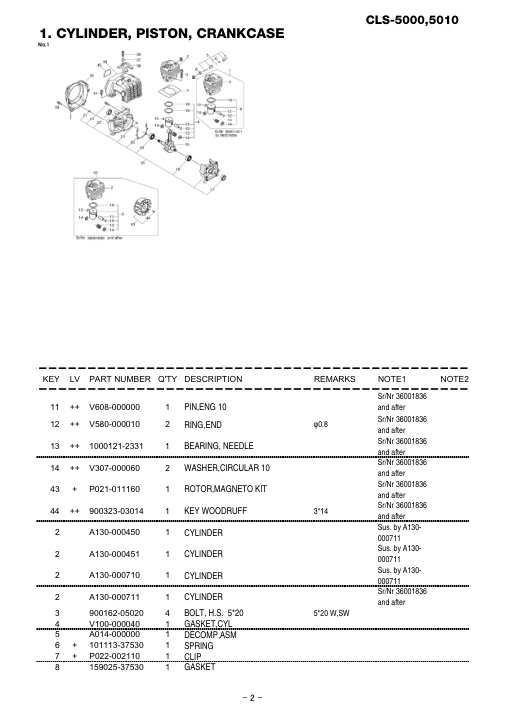

Page 3
Tap or click the page image to enlarge it.

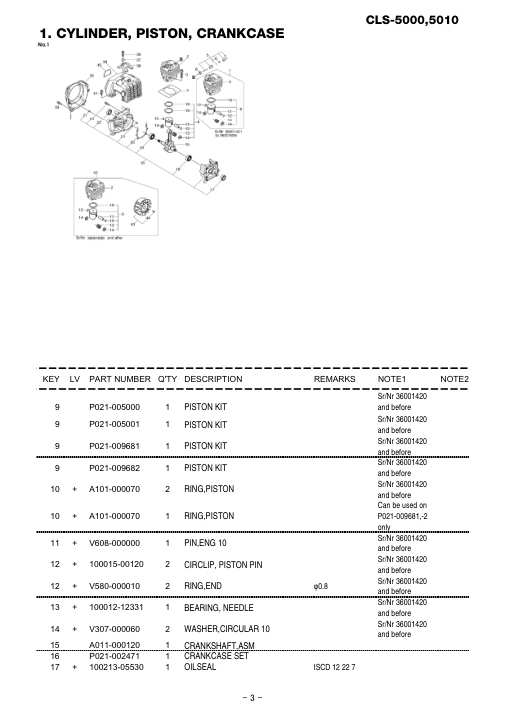

Page 4
Tap or click the page image to enlarge it.

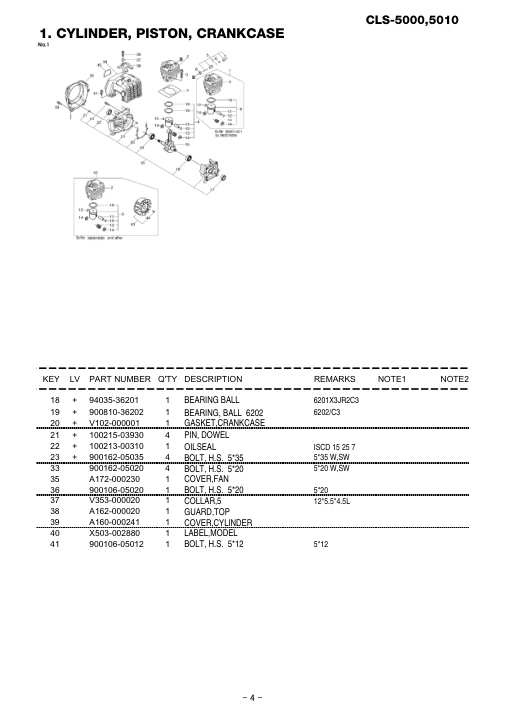

Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.

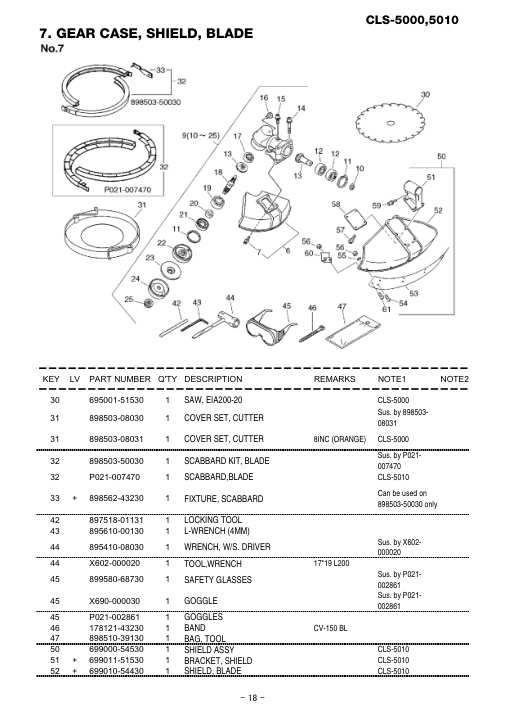

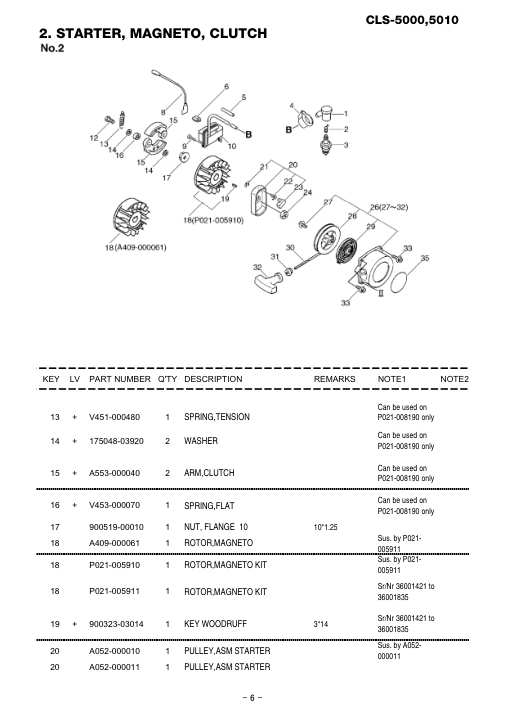

Page 7
Tap or click the page image to enlarge it.

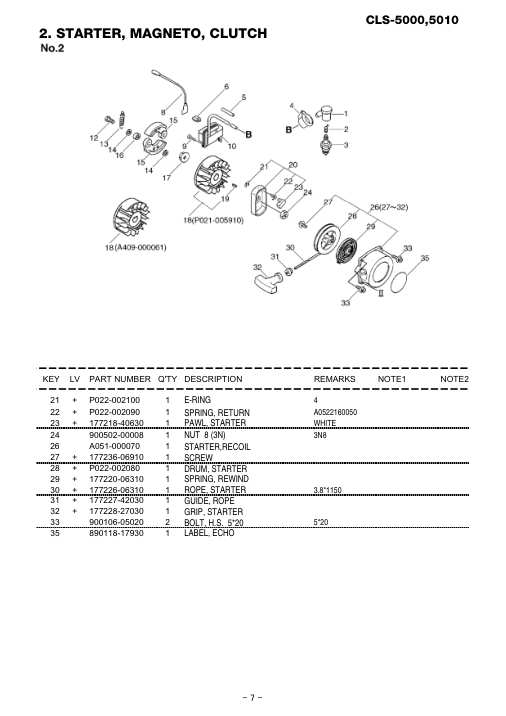

Page 8
Tap or click the page image to enlarge it.

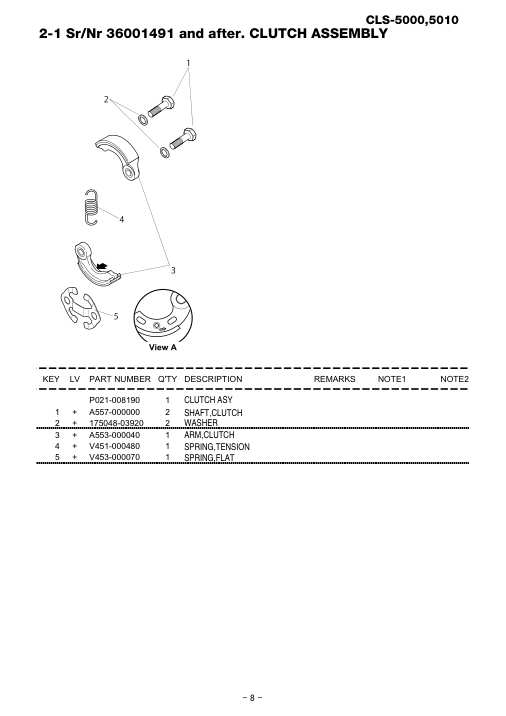

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

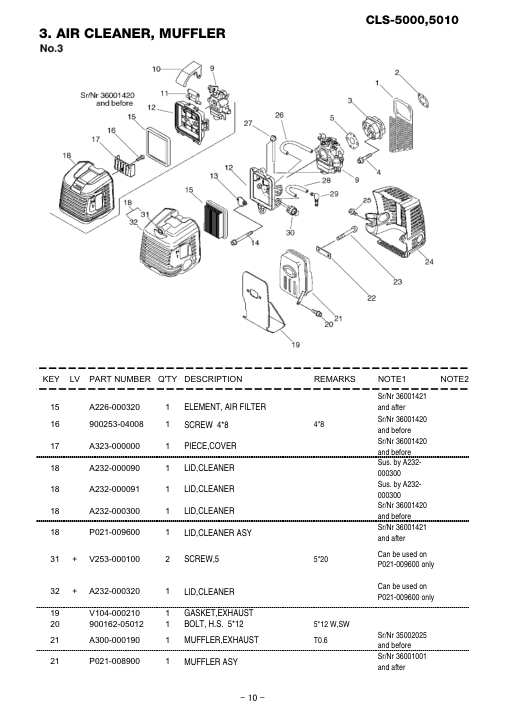

Page 11
Tap or click the page image to enlarge it.

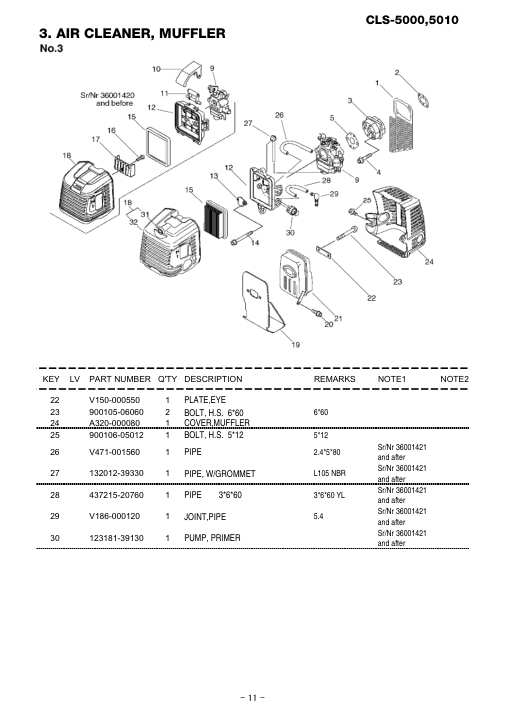

Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.

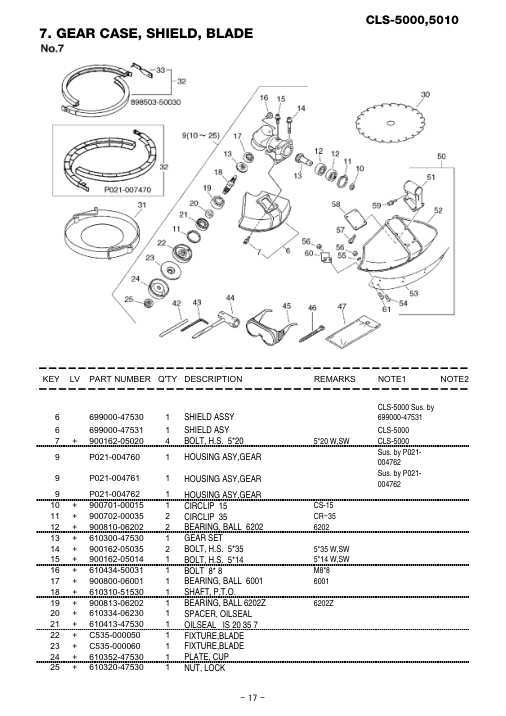

Page 21
Tap or click the page image to enlarge it.

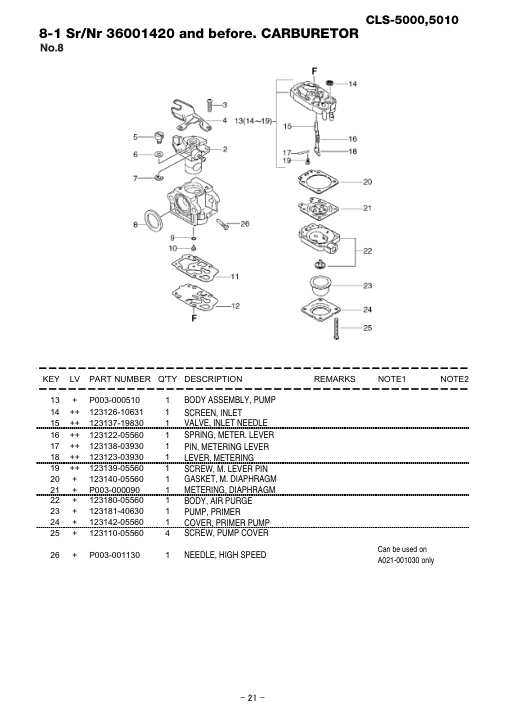

Page 22
Tap or click the page image to enlarge it.

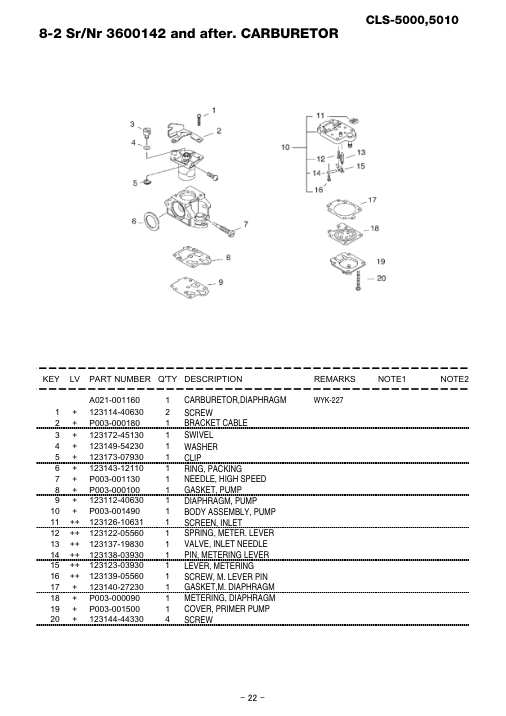

Page 23
Tap or click the page image to enlarge it.

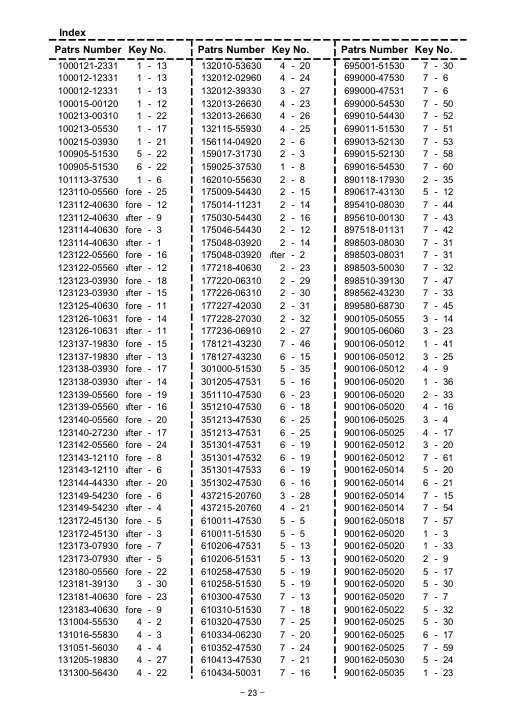

Page 24
Tap or click the page image to enlarge it.

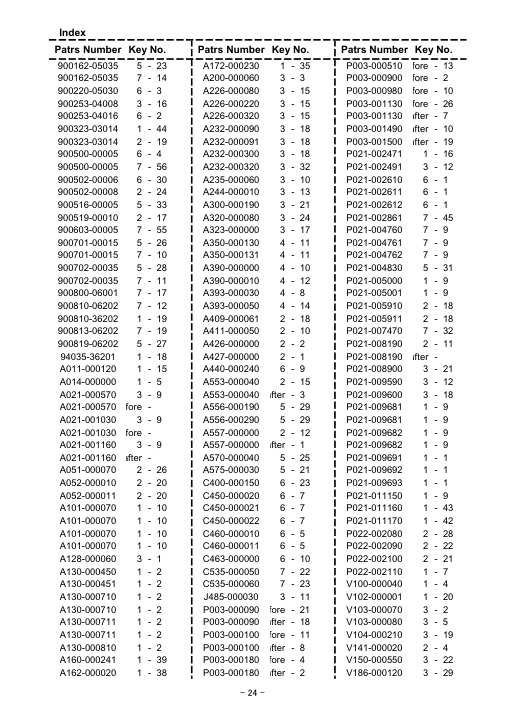

Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylinder,Piston Kit | P021-009691 | P021-009691-Online | Sus. by P021- | 009693 | |
| 1 | 1 | Cylinder,Piston Kit | P021-009692 | P021-009692-Online | Sus. by P021- | 009693 | |
| 1 | 1 | Cylinder,Piston Kit | P021-009693 | P021-009693-Online | Sr/Nr 36001421 to | |
| 2 | Part | 36001835 | 36001835-Online | |||
| 2 | + | 1 | Cylinder | A130-000710 | A130-000710-Online | Sus. by A130- | 000711 |
| 2 | + | 1 | Cylinder | A130-000711 | A130-000711-Online | |
| 9 | + | 1 | Piston Kit | P021-009681 | P021-009681-Online | Sus. by P021- | 009682 |
| 9 | + | 1 | Piston Kit | P021-009682 | P021-009682-Online | 10 | ++ |
| 10 | 1 | Ring,Piston | A101-000070 | A101-000070-Online | 11 | ++ | |
| 11 | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | 12 | ++ | |
| 12 | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 | 13 | ++ | |
| 13 | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | 14 | ++ | |
| 14 | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | ||
| 42 | 1 | Piston,Cyl,Mag Kit | P021-011170 | P021-011170-Online | Sr/Nr 36001836 | and after | |
| 2 | + | 1 | Cylinder | A130-000810 | A130-000810-Online | Sr/Nr 36001836 | and after |
| 9 | + | 1 | Piston Kit | P021-011150 | P021-011150-Online | Sr/Nr 36001836 | and after | 10 | ++ |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 11 | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | Sr/Nr 36001836 | and after | 12 | ++ | |
| 12 | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 | Sr/Nr 36001836 | and after | 13 | |
| 14 | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | Sr/Nr 36001836 | and after | |
| 43 | + | 1 | Rotor,Magneto Kit | P021-011160 | P021-011160-Online | Sr/Nr 36001836 | and after | 44 | ++ |
| 44 | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | Sr/Nr 36001836 | and after | |
| 2 | 1 | Cylinder | A130-000450 | A130-000450-Online | Sus. by A130- | 000711 | |
| 2 | 1 | Cylinder | A130-000451 | A130-000451-Online | Sus. by A130- | 000711 | |
| 2 | 1 | Cylinder | A130-000710 | A130-000710-Online | Sus. by A130- | 000711 | |
| 2 | 1 | Cylinder | A130-000711 | A130-000711-Online | Sr/Nr 36001836 | and after | |
| 3 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 4 | 1 | Gasket,Cyl | V100-000040 | V100-000040-Online | ||
| 5 | 1 | Decomp,Asm | A014-000000 | A014-000000-Online | ||
| 6 | + | 1 | Spring | 101113-37530 | 101113-37530-Online | |
| 7 | + | 1 | Clip | P022-002110 | P022-002110-Online | |
| 8 | 1 | Gasket | 159025-37530 | 159025-37530-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 1 | Piston Kit | P021-005000 | P021-005000-Online | Sr/Nr 36001420 | and before | |
| 9 | 1 | Piston Kit | P021-005001 | P021-005001-Online | Sr/Nr 36001420 | and before | |
| 9 | 1 | Piston Kit | P021-009681 | P021-009681-Online | Sr/Nr 36001420 | and before | |
| 9 | 1 | Piston Kit | P021-009682 | P021-009682-Online | Sr/Nr 36001420 | and before | |
| 10 | + | 2 | Ring,Piston | A101-000070 | A101-000070-Online | Sr/Nr 36001420 | and before |
| 10 | + | 1 | Ring,Piston | A101-000070 | A101-000070-Online | Can be used on | P021-009681,-2 | only |
| 11 | + | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | Sr/Nr 36001420 | and before |
| 12 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | Sr/Nr 36001420 | and before |
| 12 | + | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 | Sr/Nr 36001420 | and before |
| 13 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | Sr/Nr 36001420 | and before |
| 14 | + | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | Sr/Nr 36001420 | and before |
| 15 | 1 | Crankshaft,Asm | A011-000120 | A011-000120-Online | ||
| 16 | 1 | Crankcase Set | P021-002471 | P021-002471-Online | ||
| 17 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 19 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 1 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |
| 21 | + | 4 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | + | 1 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 23 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 33 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 35 | 1 | Cover,Fan | A172-000230 | A172-000230-Online | ||
| 36 | 1 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 37 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 38 | 1 | Guard,Top | A162-000020 | A162-000020-Online | ||
| 39 | 1 | Cover,Cylinder | A160-000241 | A160-000241-Online | ||
| 40 | 1 | Label,Model | X503-002880 | X503-002880-Online | ||
| 41 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | ||
| 3 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 4 | 1 | Grommet,Plug | V141-000020 | V141-000020-Online | ||
| 5 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 6 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 8 | 1 | Lead, Ground | 162010-55630 | 162010-55630-Online | ||
| 9 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 10 | 1 | Coil,Ignition | A411-000050 | A411-000050-Online | ||
| 12 | 2 | Shaft, Clutch | 175046-54430 | 175046-54430-Online | Sr/Nr 36001490 | and before | |
| 13 | 1 | Spring,Tension | V451-000390 | V451-000390-Online | Sr/Nr 36001490 | and before | |
| 14 | 4 | Washer, Clutch | 175014-11231 | 175014-11231-Online | Sr/Nr 36001490 | and before | |
| 15 | 2 | Shoe, Clutch | 175009-54430 | 175009-54430-Online | Sr/Nr 36001490 | and before | |
| 16 | 2 | Metal | 175030-54430 | 175030-54430-Online | Sr/Nr 36001490 | and before | |
| 11 | 1 | Clutch Asy | P021-008190 | P021-008190-Online | Sr/Nr 36001491 | and after | |
| 12 | + | 2 | Shaft,Clutch | A557-000000 | A557-000000-Online | Can be used on | P021-008190 only |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | + | 1 | Spring,Tension | V451-000480 | V451-000480-Online | Can be used on | P021-008190 only |
| 14 | + | 2 | Washer | 175048-03920 | 175048-03920-Online | Can be used on | P021-008190 only |
| 15 | + | 2 | Arm,Clutch | A553-000040 | A553-000040-Online | Can be used on | P021-008190 only |
| 16 | + | 1 | Spring,Flat | V453-000070 | V453-000070-Online | Can be used on | P021-008190 only |
| 17 | 1 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 10*1.25 | |
| 18 | 1 | Rotor,Magneto | A409-000061 | A409-000061-Online | Sus. by P021- | 005911 | |
| 18 | 1 | Rotor,Magneto Kit | P021-005910 | P021-005910-Online | Sus. by P021- | 005911 | |
| 18 | 1 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | Sr/Nr 36001421 to | |
| 19 | Part | 36001835 | 36001835-Online | |||
| 19 | + | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | Sr/Nr 36001421 to |
| 20 | 1 | Pulley,Asm Starter | A052-000010 | A052-000010-Online | Sus. by A052- | 000011 | |
| 20 | 1 | Pulley,Asm Starter | A052-000011 | A052-000011-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | + | 1 | E-Ring | P022-002100 | P022-002100-Online | |
| 22 | + | 1 | Spring, Return | P022-002090 | P022-002090-Online | |
| 1 | 23 | Part | A0522160050 | A0522160050-Online | ||
| 23 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 24 | 1 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 3N8 | |
| 26 | 1 | Starter,Recoil | A051-000070 | A051-000070-Online | ||
| 27 | + | 1 | Screw | 177236-06910 | 177236-06910-Online | |
| 28 | + | 1 | Drum, Starter | P022-002080 | P022-002080-Online | |
| 29 | + | 1 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |
| 30 | + | 1 | Rope, Starter | 177226-06310 | 177226-06310-Online | 3.8*1150 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 33 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 35 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Shaft,Clutch | A557-000000 | A557-000000-Online | |
| 2 | + | 2 | Washer | 175048-03920 | 175048-03920-Online | |
| 3 | + | 1 | Arm,Clutch | A553-000040 | A553-000040-Online | |
| 4 | + | 1 | Spring,Tension | V451-000480 | V451-000480-Online | |
| 5 | + | 1 | Spring,Flat | V453-000070 | V453-000070-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plate,Dust | A128-000060 | A128-000060-Online | Sr/Nr 36001001 | and after | |
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000060 | A200-000060-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket,Intake | V103-000080 | V103-000080-Online | ||
| 9 | 1 | Carburetor,Diaphragm | A021-000570 | A021-000570-Online | WYK-172 | Sus. by A021- | 001030 | |
| 9 | 1 | Carburetor,Diaphragm | A021-001030 | A021-001030-Online | WYK-216 | Sr/Nr 36001420 | and before | |
| 9 | 1 | Carburetor,Diaphragm | A021-001160 | A021-001160-Online | WYK-227 | Sr/Nr 36001421 | and after | |
| 10 | 1 | Knob,Cleaner Lid | A235-000060 | A235-000060-Online | Sr/Nr 36001420 | and before | |
| 11 | 1 | Hinge | J485-000030 | J485-000030-Online | Sr/Nr 36001420 | and before | |
| 12 | 1 | Case, Air Cleaner | P021-002491 | P021-002491-Online | Sr/Nr 36001420 | and before | |
| 12 | 1 | Case, Air Cleaner | P021-009590 | P021-009590-Online | Sr/Nr 36001421 | and after | |
| 13 | 1 | Plate,Prevent | A244-000010 | A244-000010-Online | ||
| 14 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 15 | 1 | Element,Air Filter | A226-000080 | A226-000080-Online | Sus. by A226- | 000220 | |
| 15 | 1 | Element,Air Filter | A226-000220 | A226-000220-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 1 | Element, Air Filter | A226-000320 | A226-000320-Online | Sr/Nr 36001421 | and after | |
| 16 | 1 | Screw 4*8 | 900253-04008 | 900253-04008-Online | 4*8 | Sr/Nr 36001420 | and before | |
| 17 | 1 | Piece,Cover | A323-000000 | A323-000000-Online | Sr/Nr 36001420 | and before | |
| 18 | 1 | Lid,Cleaner | A232-000090 | A232-000090-Online | Sus. by A232- | 000300 | |
| 18 | 1 | Lid,Cleaner | A232-000091 | A232-000091-Online | Sus. by A232- | 000300 | |
| 18 | 1 | Lid,Cleaner | A232-000300 | A232-000300-Online | Sr/Nr 36001420 | and before | |
| 18 | 1 | Lid,Cleaner Asy | P021-009600 | P021-009600-Online | Sr/Nr 36001421 | and after | |
| 31 | + | 2 | Screw,5 | V253-000100 | V253-000100-Online | 5*20 | Can be used on | P021-009600 only |
| 32 | + | 1 | Lid,Cleaner | A232-000320 | A232-000320-Online | Can be used on | P021-009600 only |
| 19 | 1 | Gasket,Exhaust | V104-000210 | V104-000210-Online | ||
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | |
| 21 | 1 | Muffler,Exhaust | A300-000190 | A300-000190-Online | T0.6 | Sr/Nr 35002025 | and before | |
| 21 | 1 | Muffler Asy | P021-008900 | P021-008900-Online | Sr/Nr 36001001 | and after |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online | ||
| 23 | 2 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 6*60 | |
| 24 | 1 | Cover,Muffler | A320-000080 | A320-000080-Online | ||
| 25 | 1 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 26 | 1 | Pipe | V471-001560 | V471-001560-Online | 2.4*5*80 | Sr/Nr 36001421 | and after | |
| 27 | 1 | Pipe, W/Grommet | 132012-39330 | 132012-39330-Online | L105 NBR | Sr/Nr 36001421 | and after | |
| 28 | 1 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 3*6*60 YL | Sr/Nr 36001421 | and after | |
| 29 | 1 | Joint,Pipe | V186-000120 | V186-000120-Online | 5.4 | Sr/Nr 36001421 | and after | |
| 30 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | Sr/Nr 36001421 | and after |

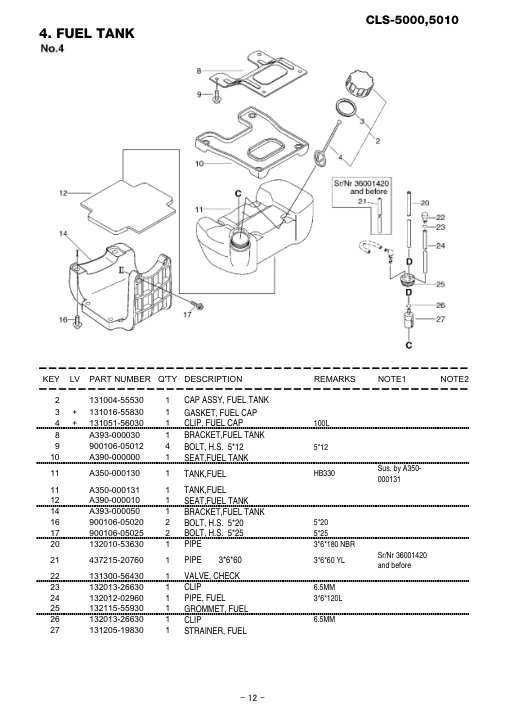

Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 8 | 1 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | ||
| 9 | 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 10 | 1 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | ||
| 11 | 1 | Tank,Fuel | A350-000130 | A350-000130-Online | HB330 | Sus. by A350- | 000131 | |
| 11 | 1 | Tank,Fuel | A350-000131 | A350-000131-Online | ||
| 12 | 1 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | ||
| 14 | 1 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | ||
| 16 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 17 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 20 | 1 | Pipe | 132010-53630 | 132010-53630-Online | 3*6*180 NBR | |
| 21 | 1 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 3*6*60 YL | Sr/Nr 36001420 | and before | |
| 22 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 23 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 24 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 25 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 26 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 27 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Shaft, Drive | 610011-47530 | 610011-47530-Online | CLS-5000 | |
| 5 | 1 | Shaft, Drive | 610011-51530 | 610011-51530-Online | CLS-5010 | |
| 12 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 13 | 1 | Housing Assy, D.Shft | 610206-47531 | 610206-47531-Online | CLS-5000 | |
| 13 | 1 | Housing Assy, D.Shft | 610206-51531 | 610206-51531-Online | CLS-5010 | |
| 16 | 1 | Hook | 301205-47531 | 301205-47531-Online | ||
| 17 | + | 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW |
| 19 | 1 | Swivel, D.S.Hous | 610258-47530 | 610258-47530-Online | CLS-5000 | |
| 19 | 1 | Housing, Drv. Sfaft | 610258-51530 | 610258-51530-Online | CLS-5010 | |
| 20 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 21 | 1 | Fixture,Main Pipe | A575-000030 | A575-000030-Online | ||
| 22 | 2 | Cushion | 100905-51530 | 100905-51530-Online | ||
| 23 | 1 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | |
| 24 | 2 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW | |
| 25 | 1 | Case,Clutch | A570-000040 | A570-000040-Online | ||
| 26 | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 | |
| 27 | 2 | Bearing, Ball 6202 | 900819-06202 | 900819-06202-Online | 6202VV(LLB) | |
| 28 | 1 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 | |
| 29 | 1 | Drum,Clutch | A556-000190 | A556-000190-Online | Sus. by A556- | 000290 | |
| 29 | 1 | Drum,Clutch | A556-000290 | A556-000290-Online | ||
| 30 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | Sus. by 900162- | 05020 | |
| 30 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 31 | 2 | Hook Asy | P021-004830 | P021-004830-Online | ||
| 32 | + | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW |

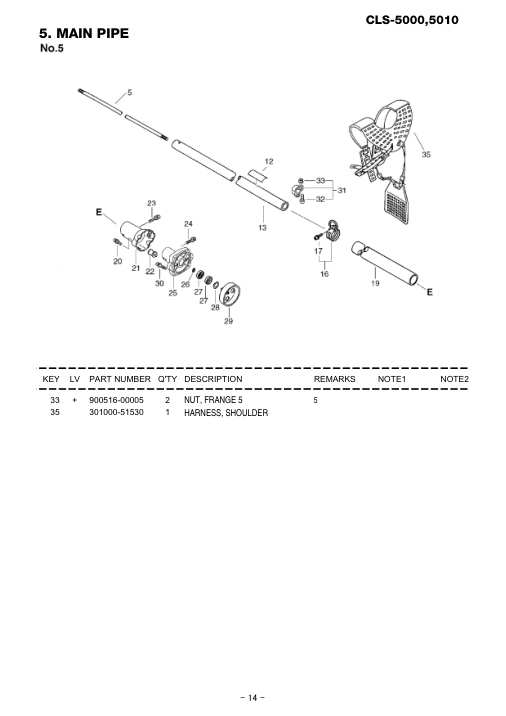

Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |
| 35 | 1 | Harness, Shoulder | 301000-51530 | 301000-51530-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Asy,F-Handle | P021-002610 | P021-002610-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002611 | P021-002611-Online | Sus. by P021- | 002612 | |
| 1 | 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | ||
| 2 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 |
| 3 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Lockout,Throttle | C460-000010 | C460-000010-Online | Sr/Nr 35001350 | and before | |
| 5 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | Sr/Nr 35001351 | and after | |
| 6 | 1 | Spring,Torsion | V452-000050 | V452-000050-Online | Sr/Nr 35001350 | and before | |
| 6 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | Sr/Nr 35001351 | and after | |
| 7 | 1 | Trigger,Throttle | C450-000020 | C450-000020-Online | Sus. by C450- | 000022 | |
| 7 | 1 | Trigger,Throttle | C450-000021 | C450-000021-Online | Sus. by C450- | 000022 | |
| 7 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | ||
| 8 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | ||
| 9 | 1 | Switch,On Off | A440-000240 | A440-000240-Online | ||
| 10 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | Sr/Nr 35001351 | and after |

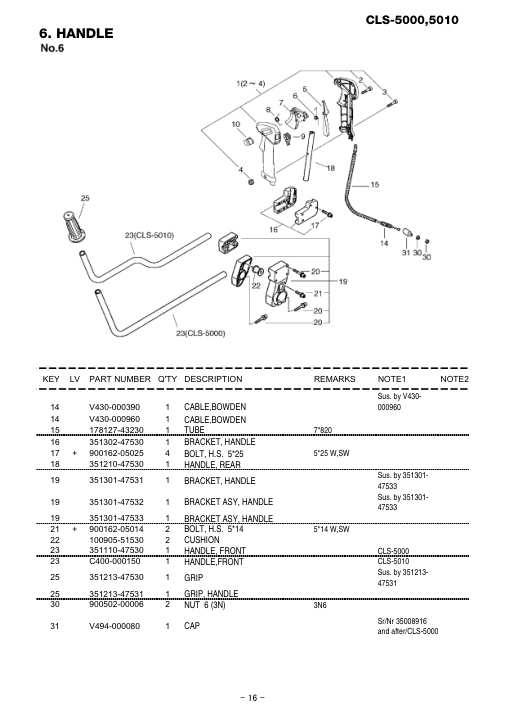

Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | 1 | Cable,Bowden | V430-000390 | V430-000390-Online | Sus. by V430- | 000960 | |
| 14 | 1 | Cable,Bowden | V430-000960 | V430-000960-Online | ||
| 15 | 1 | Tube | 178127-43230 | 178127-43230-Online | 7*820 | |
| 16 | 1 | Bracket, Handle | 351302-47530 | 351302-47530-Online | ||
| 17 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 18 | 1 | Handle, Rear | 351210-47530 | 351210-47530-Online | ||
| 19 | 1 | Bracket, Handle | 351301-47531 | 351301-47531-Online | Sus. by 351301- | 47533 | |
| 19 | 1 | Bracket Asy, Handle | 351301-47532 | 351301-47532-Online | Sus. by 351301- | 47533 | |
| 19 | 1 | Bracket Asy, Handle | 351301-47533 | 351301-47533-Online | ||
| 21 | + | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 22 | 2 | Cushion | 100905-51530 | 100905-51530-Online | ||
| 23 | 1 | Handle, Front | 351110-47530 | 351110-47530-Online | CLS-5000 | |
| 23 | 1 | Handle,Front | C400-000150 | C400-000150-Online | CLS-5010 | |
| 25 | 1 | Grip | 351213-47530 | 351213-47530-Online | Sus. by 351213- | 47531 | |
| 25 | 1 | Grip, Handle | 351213-47531 | 351213-47531-Online | ||
| 30 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 31 | 1 | Cap | V494-000080 | V494-000080-Online | Sr/Nr 35008916 | and after/CLS-5000 |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | 1 | Shield Assy | 699000-47530 | 699000-47530-Online | CLS-5000 Sus. by | |
| 6 | Part | 699000-47531 | 699000-47531-Online | |||
| 6 | 1 | Shield Asy | 699000-47531 | 699000-47531-Online | CLS-5000 | |
| 7 | + | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | CLS-5000 |
| 9 | 1 | Housing Asy,Gear | P021-004760 | P021-004760-Online | Sus. by P021- | 004762 | |
| 9 | 1 | Housing Asy,Gear | P021-004761 | P021-004761-Online | Sus. by P021- | 004762 | |
| 9 | 1 | Housing Asy,Gear | P021-004762 | P021-004762-Online | ||
| 10 | + | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 |
| 11 | + | 2 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 |
| 12 | + | 2 | Bearing, Ball 6202 | 900810-06202 | 900810-06202-Online | |
| 13 | + | 1 | Gear Set | 610300-47530 | 610300-47530-Online | |
| 14 | + | 2 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 15 | + | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 16 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 17 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 18 | + | 1 | Shaft, P.T.O. | 610310-51530 | 610310-51530-Online | |
| 19 | + | 1 | Bearing, Ball 6202Z | 900813-06202 | 900813-06202-Online | |
| 20 | + | 1 | Spacer, Oilseal | 610334-06230 | 610334-06230-Online | |
| 21 | + | 1 | Oilseal Is 20 35 7 | 610413-47530 | 610413-47530-Online | |
| 22 | + | 1 | Fixture,Blade | C535-000050 | C535-000050-Online | |
| 23 | + | 1 | Fixture,Blade | C535-000060 | C535-000060-Online | |
| 24 | + | 1 | Plate, Cup | 610352-47530 | 610352-47530-Online | |
| 25 | + | 1 | Nut, Lock | 610320-47530 | 610320-47530-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 30 | 1 | Saw, Eia200-20 | 695001-51530 | 695001-51530-Online | CLS-5000 | |
| 31 | 1 | Cover Set, Cutter | 898503-08030 | 898503-08030-Online | Sus. by 898503- | 08031 | |
| 31 | 1 | Cover Set, Cutter | 898503-08031 | 898503-08031-Online | 8INC (ORANGE) | CLS-5000 | |
| 32 | 1 | Scabbard Kit, Blade | 898503-50030 | 898503-50030-Online | Sus. by P021- | 007470 | |
| 32 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online | CLS-5010 | |
| 33 | + | 1 | Fixture, Scabbard | 898562-43230 | 898562-43230-Online | Can be used on | 898503-50030 only |
| 42 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 43 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 44 | 1 | Wrench, W/S. Driver | 895410-08030 | 895410-08030-Online | Sus. by X602- | 000020 | |
| 44 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 45 | 1 | Safety Glasses | 899580-68730 | 899580-68730-Online | Sus. by P021- | 002861 | |
| 45 | 1 | Goggle | X690-000030 | X690-000030-Online | Sus. by P021- | 002861 | |
| 45 | 1 | Goggles | P021-002861 | P021-002861-Online | ||
| 46 | 1 | Band | 178121-43230 | 178121-43230-Online | CV-150 BL | |
| 47 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 50 | 1 | Shield Assy | 699000-54530 | 699000-54530-Online | CLS-5010 | |
| 51 | + | 1 | Bracket, Shield | 699011-51530 | 699011-51530-Online | CLS-5010 |
| 52 | + | 1 | Shield, Blade | 699010-54430 | 699010-54430-Online | CLS-5010 |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 53 | + | 1 | Plate, Shield | 699013-52130 | 699013-52130-Online | CLS-5010 |
| 54 | + | 4 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | CLS-5010 |
| 55 | + | 4 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | CLS-5010 |
| 56 | + | 6 | Nut 5 | 900500-00005 | 900500-00005-Online | 5 | CLS-5010 |
| 57 | + | 4 | Bolt, H.S. 5*18 | 900162-05018 | 900162-05018-Online | 5*18 W,SW | CLS-5010 |
| 58 | + | 1 | Plate, Shield | 699015-52130 | 699015-52130-Online | CLS-5010 |
| 59 | + | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | CLS-5010 |
| 60 | + | 1 | Knife | 699016-54530 | 699016-54530-Online | CLS-5010 |
| 61 | + | 2 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | CLS-5010 |

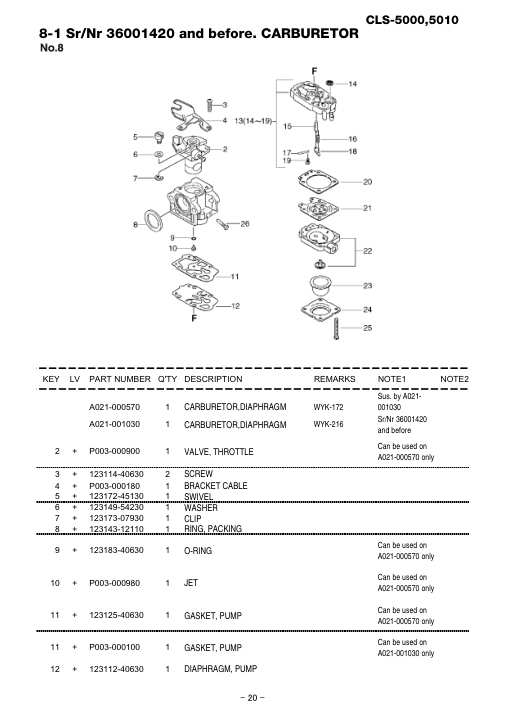

Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Valve, Throttle | P003-000900 | P003-000900-Online | Can be used on | A021-000570 only |
| 3 | + | 2 | Screw | 123114-40630 | 123114-40630-Online | |
| 4 | + | 1 | Bracket Cable | P003-000180 | P003-000180-Online | |
| 5 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 6 | + | 1 | Washer | 123149-54230 | 123149-54230-Online | |
| 7 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 8 | + | 1 | Ring, Packing | 123143-12110 | 123143-12110-Online | |
| 9 | + | 1 | O-Ring | 123183-40630 | 123183-40630-Online | Can be used on | A021-000570 only |
| 10 | + | 1 | Jet | P003-000980 | P003-000980-Online | Can be used on | A021-000570 only |
| 11 | + | 1 | Gasket, Pump | 123125-40630 | 123125-40630-Online | Can be used on | A021-000570 only |
| 11 | + | 1 | Gasket, Pump | P003-000100 | P003-000100-Online | Can be used on | A021-001030 only |
| 12 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 13 | + | 1 | Body Assembly, Pump | P003-000510 | P003-000510-Online | 14 | ++ |
| 14 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 15 | ++ | |
| 15 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 16 | ++ | |
| 16 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 17 | ++ | |
| 17 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 18 | ++ | |
| 18 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 19 | ++ | |
| 19 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 20 | + | 1 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |
| 21 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 22 | + | 1 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |
| 23 | + | 1 | Pump, Primer | 123181-40630 | 123181-40630-Online | |
| 24 | + | 1 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |
| 25 | + | 4 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | |
| 26 | + | 1 | Needle, High Speed | P003-001130 | P003-001130-Online | Can be used on | A021-001030 only |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 123114-40630 | 123114-40630-Online | |
| 2 | + | 1 | Bracket Cable | P003-000180 | P003-000180-Online | |
| 3 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 4 | + | 1 | Washer | 123149-54230 | 123149-54230-Online | |
| 5 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 6 | + | 1 | Ring, Packing | 123143-12110 | 123143-12110-Online | |
| 7 | + | 1 | Needle, High Speed | P003-001130 | P003-001130-Online | |
| 8 | + | 1 | Gasket, Pump | P003-000100 | P003-000100-Online | |
| 9 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 10 | + | 1 | Body Assembly, Pump | P003-001490 | P003-001490-Online | 11 | ++ |
| 11 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 12 | ++ | |
| 12 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 13 | ++ | |
| 13 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 14 | ++ | |
| 14 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 15 | ++ | |
| 15 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 16 | ++ | |
| 16 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 17 | + | 1 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |
| 18 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 19 | + | 1 | Cover, Primer Pump | P003-001500 | P003-001500-Online | |
| 20 | + | 4 | Screw | 123144-44330 | 123144-44330-Online |
Source PDF: 20130718-697_CLS-5000,5010_CLS-5000,5010_EN.pdf. Generated 2026-06-25 14:38.
