Echo PB-6000 IPL / Parts List

Echo PB-6000 IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: PB-6000-Online

Source Pages

Page 1

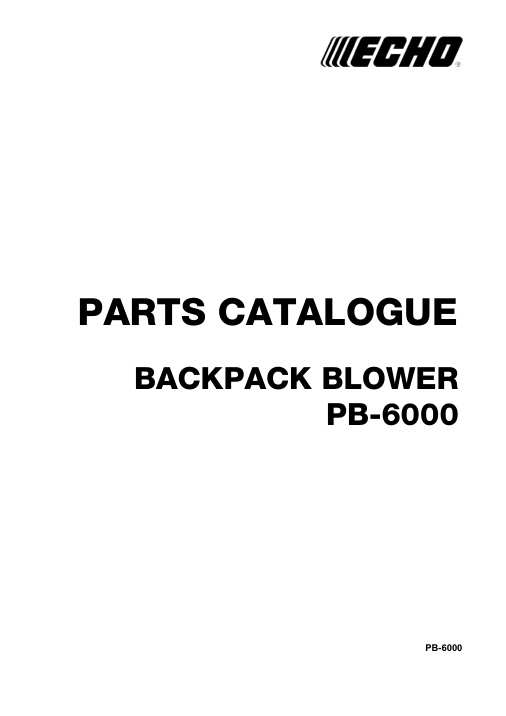

Echo PB-6000 IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

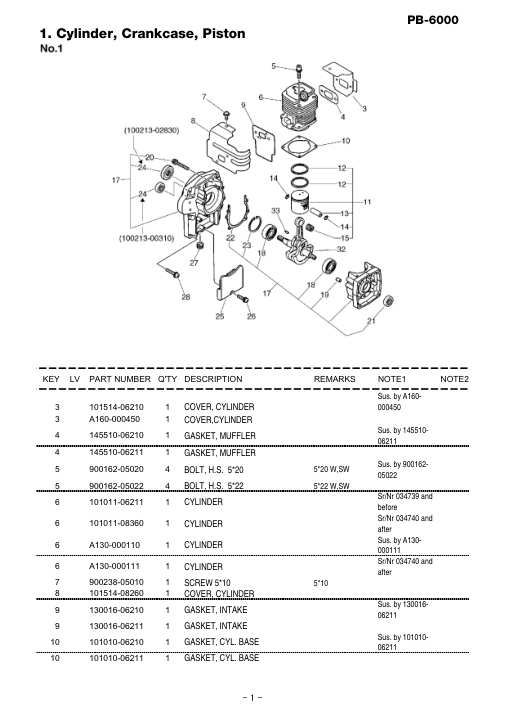

Echo PB-6000 IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

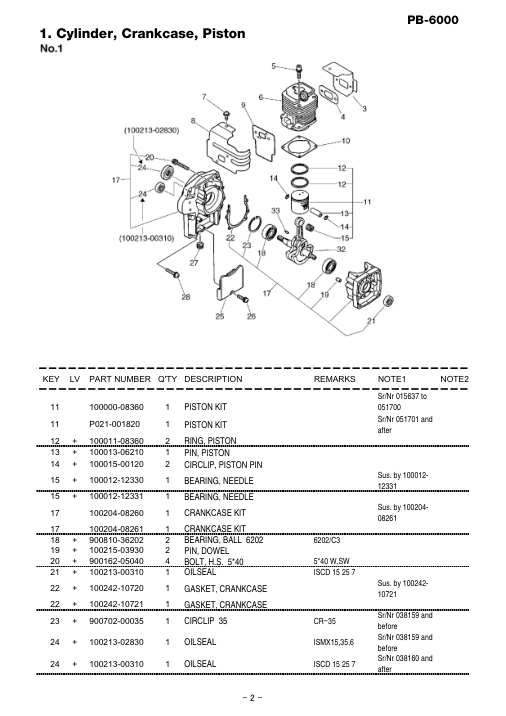

Echo PB-6000 IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

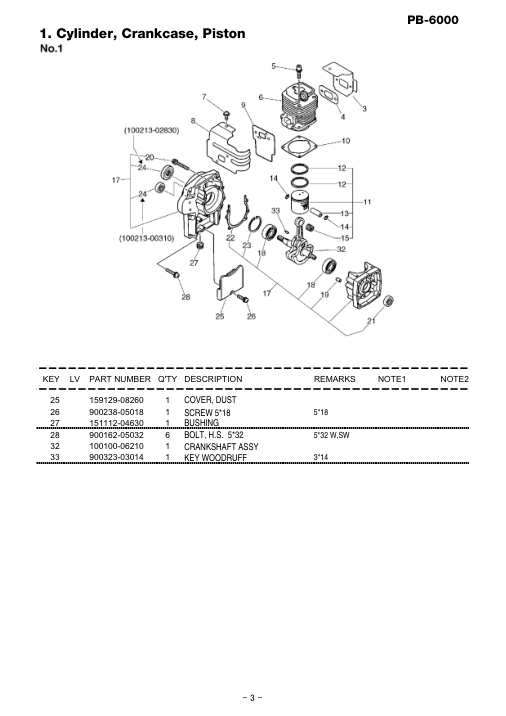

Echo PB-6000 IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo PB-6000 IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

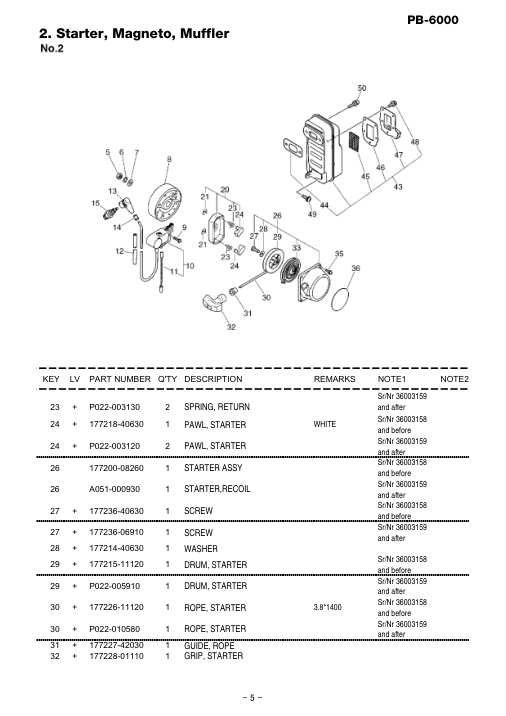

Echo PB-6000 IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo PB-6000 IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

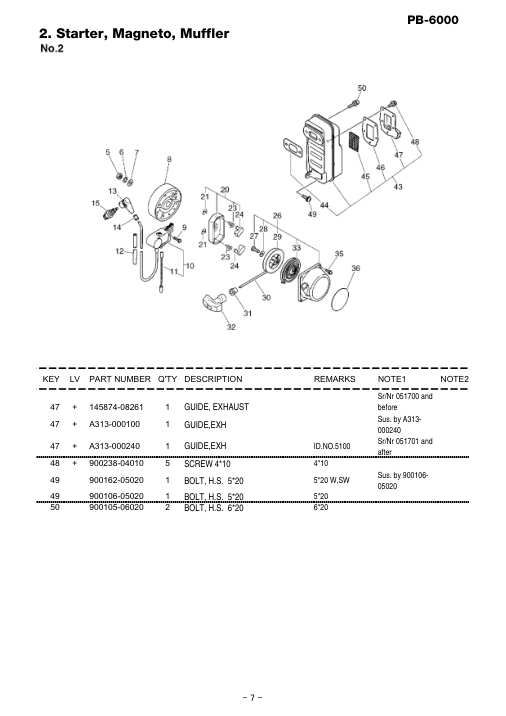

Echo PB-6000 IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

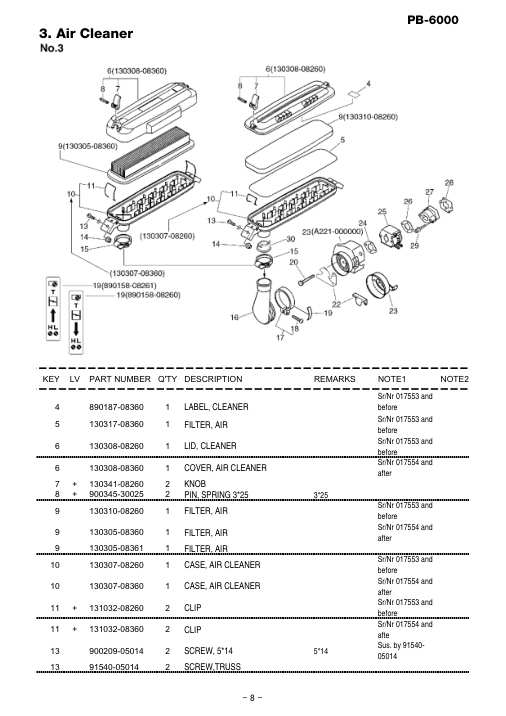

Echo PB-6000 IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

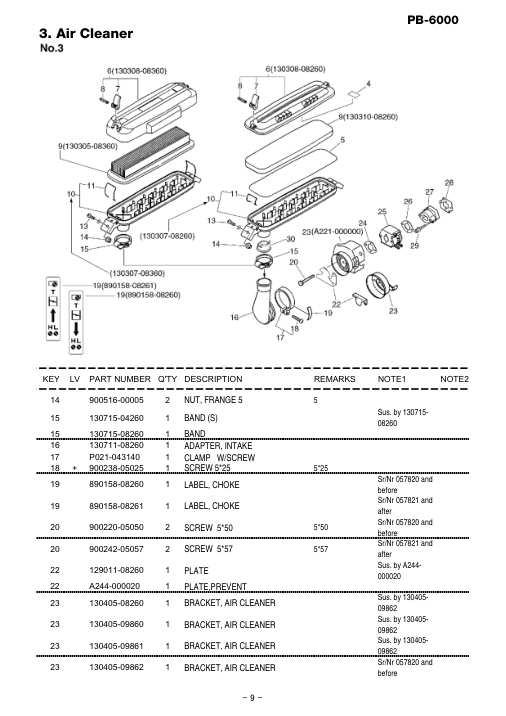

Echo PB-6000 IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo PB-6000 IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

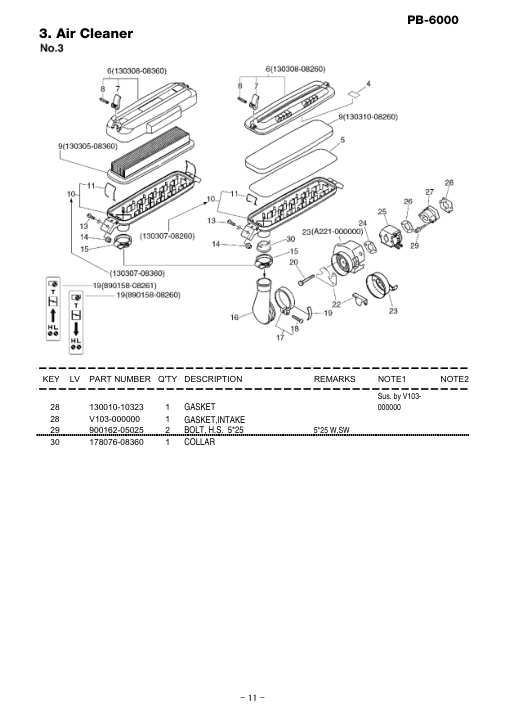

Echo PB-6000 IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

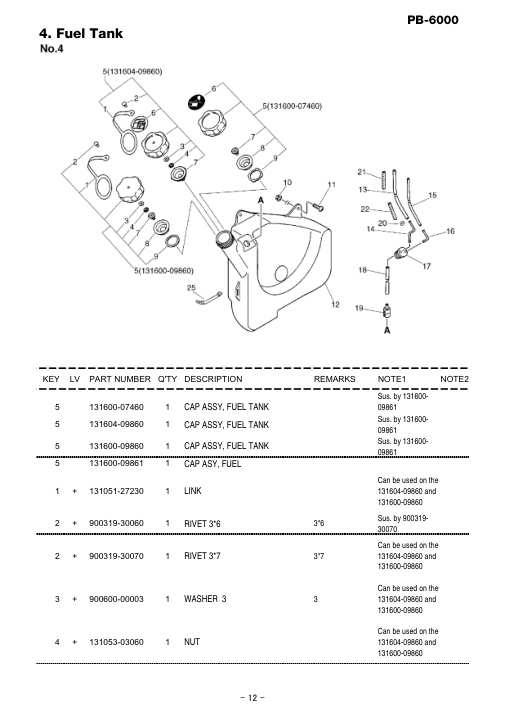

Echo PB-6000 IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo PB-6000 IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

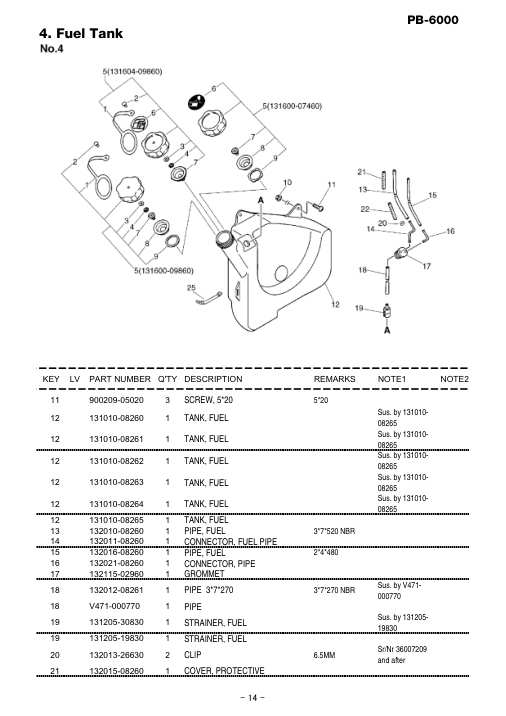

Echo PB-6000 IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

Echo PB-6000 IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo PB-6000 IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 18

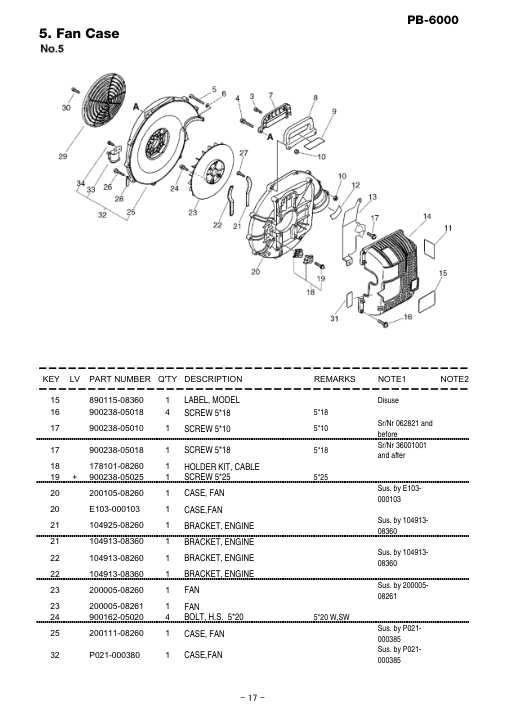

Echo PB-6000 IPL / Parts List source page 18

Tap or click the page image to enlarge it.

Page 19

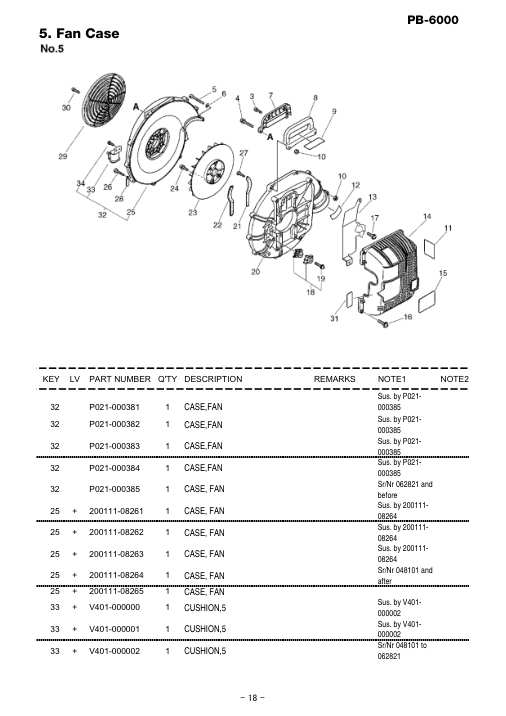

Echo PB-6000 IPL / Parts List source page 19

Tap or click the page image to enlarge it.

Page 20

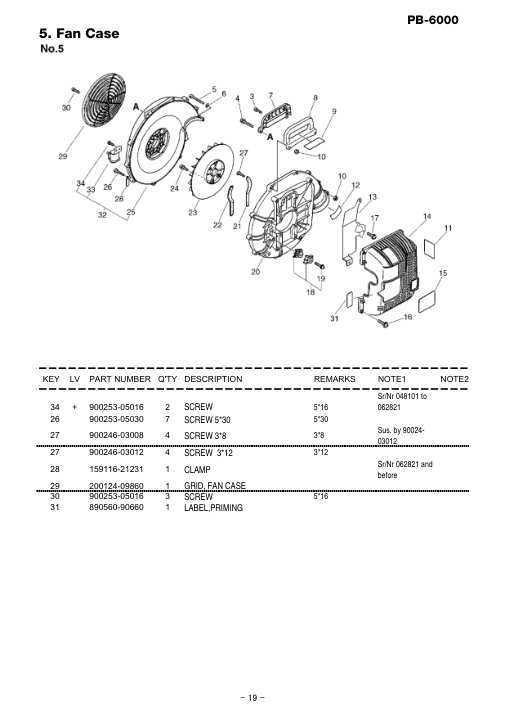

Echo PB-6000 IPL / Parts List source page 20

Tap or click the page image to enlarge it.

Page 21

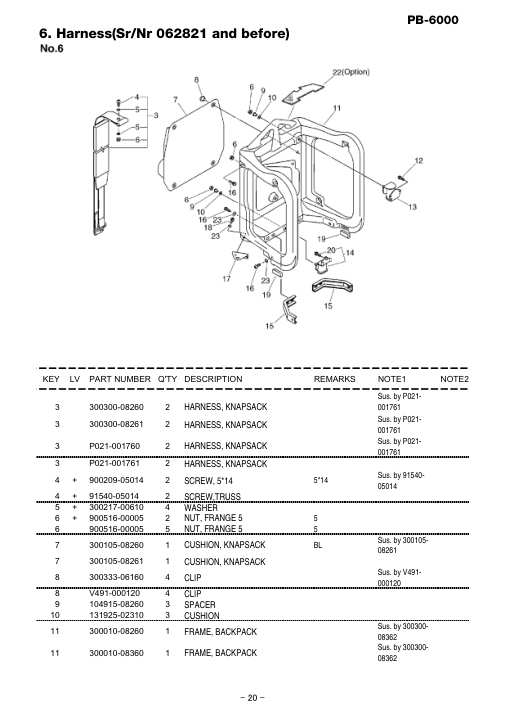

Echo PB-6000 IPL / Parts List source page 21

Tap or click the page image to enlarge it.

Page 22

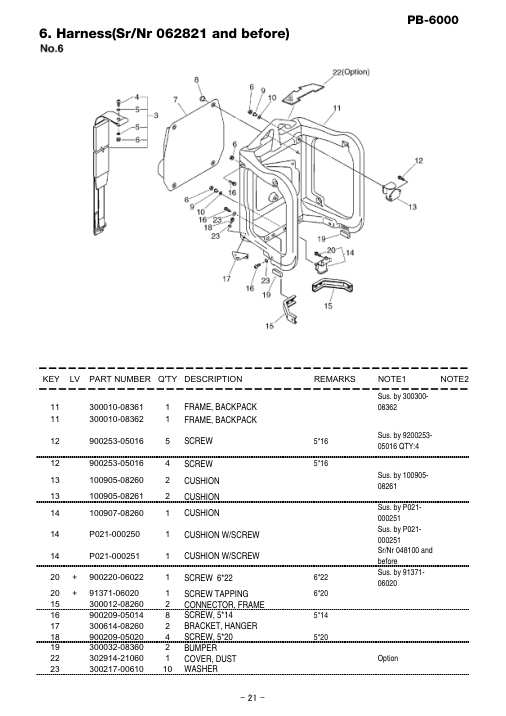

Echo PB-6000 IPL / Parts List source page 22

Tap or click the page image to enlarge it.

Page 23

Echo PB-6000 IPL / Parts List source page 23

Tap or click the page image to enlarge it.

Page 24

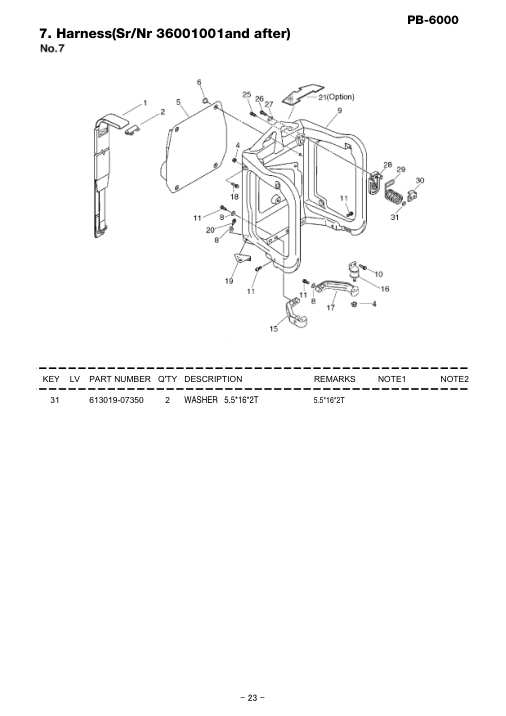

Echo PB-6000 IPL / Parts List source page 24

Tap or click the page image to enlarge it.

Page 25

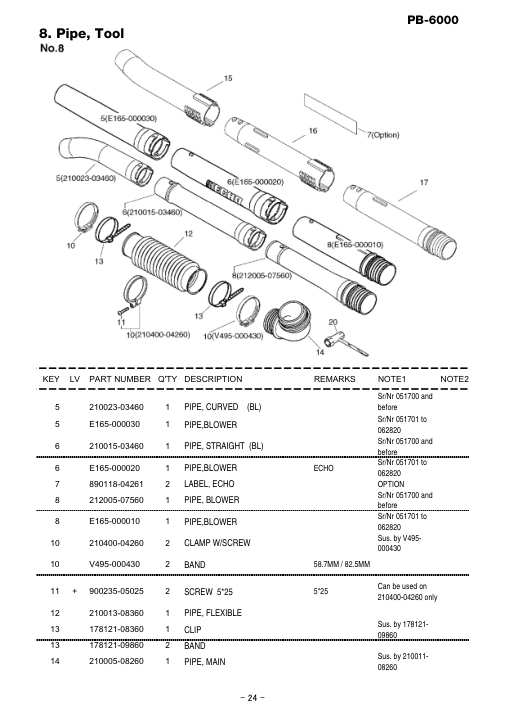

Echo PB-6000 IPL / Parts List source page 25

Tap or click the page image to enlarge it.

Page 26

Echo PB-6000 IPL / Parts List source page 26

Tap or click the page image to enlarge it.

Page 27

Echo PB-6000 IPL / Parts List source page 27

Tap or click the page image to enlarge it.

Page 28

Echo PB-6000 IPL / Parts List source page 28

Tap or click the page image to enlarge it.

Page 29

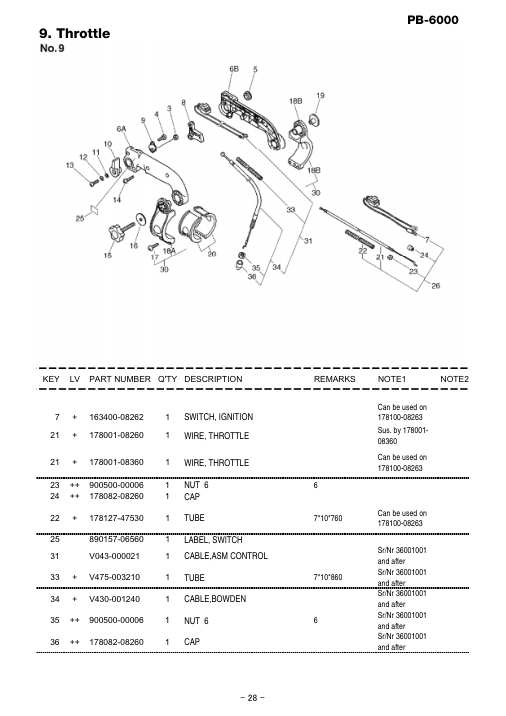

Echo PB-6000 IPL / Parts List source page 29

Tap or click the page image to enlarge it.

Page 30

Echo PB-6000 IPL / Parts List source page 30

Tap or click the page image to enlarge it.

Page 31

Echo PB-6000 IPL / Parts List source page 31

Tap or click the page image to enlarge it.

Page 32

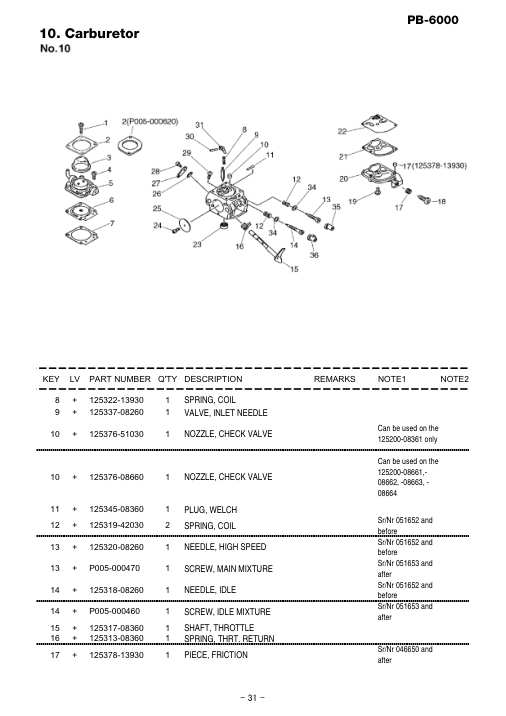

Echo PB-6000 IPL / Parts List source page 32

Tap or click the page image to enlarge it.

Page 33

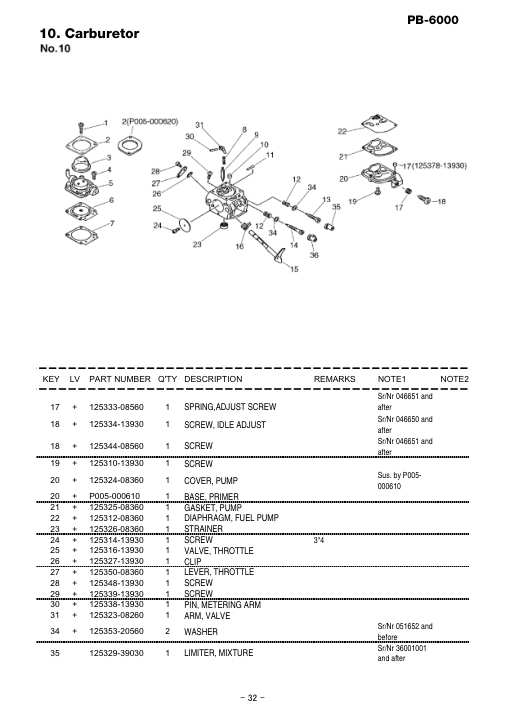

Echo PB-6000 IPL / Parts List source page 33

Tap or click the page image to enlarge it.

Page 34

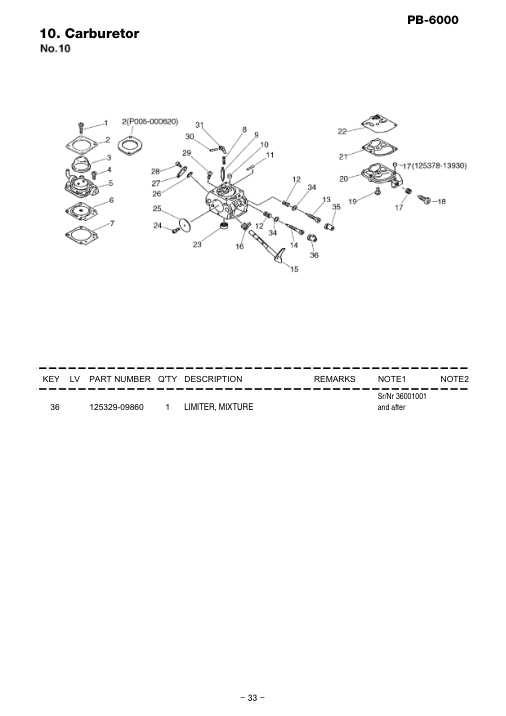

Echo PB-6000 IPL / Parts List source page 34

Tap or click the page image to enlarge it.

Page 35

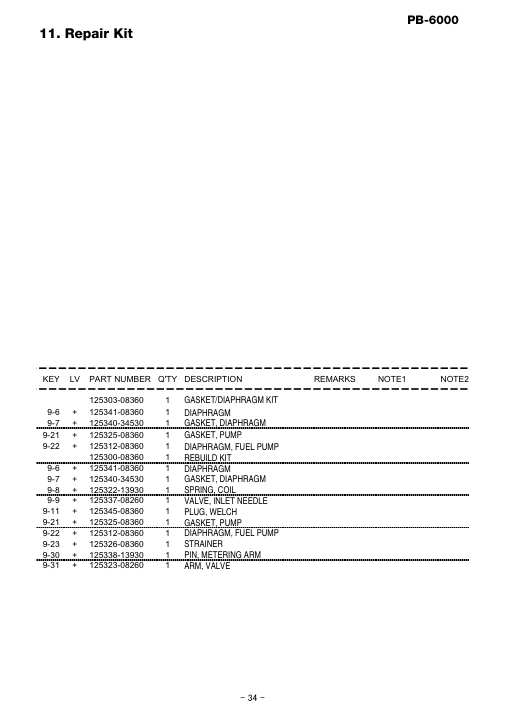

Echo PB-6000 IPL / Parts List source page 35

Tap or click the page image to enlarge it.

Page 36

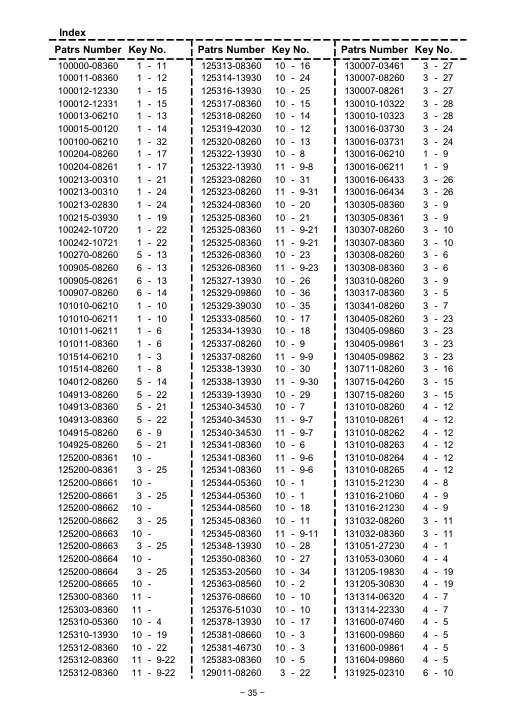

Echo PB-6000 IPL / Parts List source page 36

Tap or click the page image to enlarge it.

Page 37

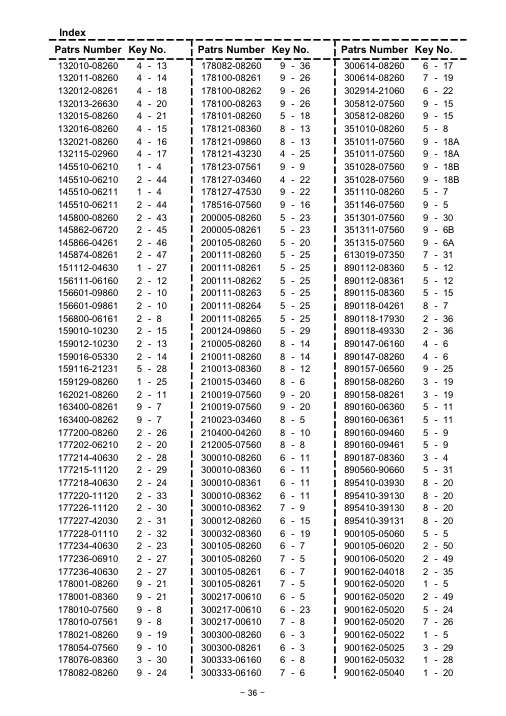

Echo PB-6000 IPL / Parts List source page 37

Tap or click the page image to enlarge it.

Page 38

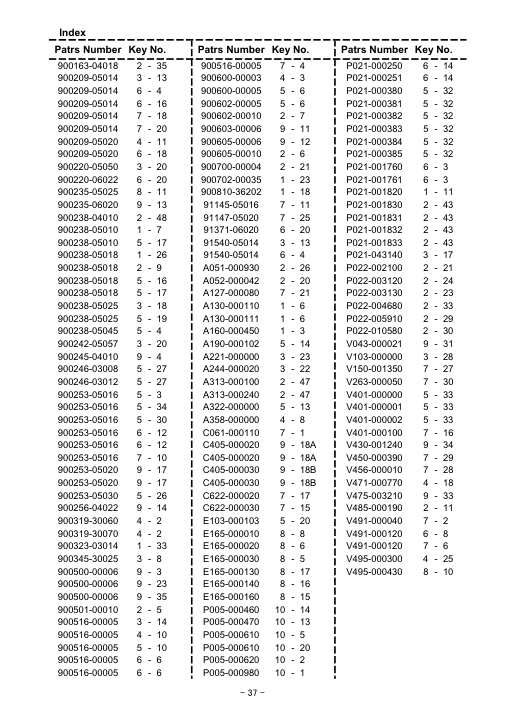

Echo PB-6000 IPL / Parts List source page 38

Tap or click the page image to enlarge it.

Page 39

Echo PB-6000 IPL / Parts List source page 39

Tap or click the page image to enlarge it.

Page 2 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
3		1	Cover, Cylinder	101514-06210	101514-06210-Online	Sus. by A160- \| 000450
3		1	Cover,Cylinder	A160-000450	A160-000450-Online
4		1	Gasket, Muffler	145510-06210	145510-06210-Online	Sus. by 145510- \| 06211
4		1	Gasket, Muffler	145510-06211	145510-06211-Online
5		4	Bolt, H.S. 5*20	900162-05020	900162-05020-Online	5*20 W,SW \| Sus. by 900162- \| 05022
5		4	Bolt, H.S. 5*22	900162-05022	900162-05022-Online	5*22 W,SW
6		1	Cylinder	101011-06211	101011-06211-Online	Sr/Nr 034739 and \| before
6		1	Cylinder	101011-08360	101011-08360-Online	Sr/Nr 034740 and \| after
6		1	Cylinder	A130-000110	A130-000110-Online	Sus. by A130- \| 000111
6		1	Cylinder	A130-000111	A130-000111-Online	Sr/Nr 034740 and \| after
7		1	Screw 5*10	900238-05010	900238-05010-Online	5*10
8		1	Cover, Cylinder	101514-08260	101514-08260-Online
9		1	Gasket, Intake	130016-06210	130016-06210-Online	Sus. by 130016- \| 06211
9		1	Gasket, Intake	130016-06211	130016-06211-Online
10		1	Gasket, Cyl. Base	101010-06210	101010-06210-Online	Sus. by 101010- \| 06211
10		1	Gasket, Cyl. Base	101010-06211	101010-06211-Online

Page 3 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
11		1	Piston Kit	100000-08360	100000-08360-Online	Sr/Nr 015637 to \| 051700
11		1	Piston Kit	P021-001820	P021-001820-Online	Sr/Nr 051701 and \| after
12	+	2	Ring, Piston	100011-08360	100011-08360-Online
13	+	1	Pin, Piston	100013-06210	100013-06210-Online
14	+	2	Circlip, Piston Pin	100015-00120	100015-00120-Online
15	+	1	Bearing, Needle	100012-12330	100012-12330-Online	Sus. by 100012- \| 12331
15	+	1	Bearing, Needle	100012-12331	100012-12331-Online
17		1	Crankcase Kit	100204-08260	100204-08260-Online	Sus. by 100204- \| 08261
17		1	Crankcase Kit	100204-08261	100204-08261-Online
18	+	2	Bearing, Ball 6202	900810-36202	900810-36202-Online	6202/C3
19	+	2	Pin, Dowel	100215-03930	100215-03930-Online
20	+	4	Bolt, H.S. 5*40	900162-05040	900162-05040-Online	5*40 W,SW
21	+	1	Oilseal	100213-00310	100213-00310-Online	ISCD 15 25 7
22	+	1	Gasket, Crankcase	100242-10720	100242-10720-Online	Sus. by 100242- \| 10721
22	+	1	Gasket, Crankcase	100242-10721	100242-10721-Online
23	+	1	Circlip 35	900702-00035	900702-00035-Online	CR㺎35 \| Sr/Nr 038159 and \| before
24	+	1	Oilseal	100213-02830	100213-02830-Online	ISMX15,35,6 \| Sr/Nr 038159 and \| before
24	+	1	Oilseal	100213-00310	100213-00310-Online	ISCD 15 25 7 \| Sr/Nr 038160 and \| after

Page 4 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
25		1	Cover, Dust	159129-08260	159129-08260-Online
26		1	Screw 5*18	900238-05018	900238-05018-Online	5*18
27		1	Bushing	151112-04630	151112-04630-Online
28		6	Bolt, H.S. 5*32	900162-05032	900162-05032-Online	5*32 W,SW
32		1	Crankshaft Assy	100100-06210	100100-06210-Online
33		1	Key Woodruff	900323-03014	900323-03014-Online	3*14

Page 5 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Nut 10*1.25	900501-00010	900501-00010-Online	10*P1.25
6		1	Washer, Spring 10	900605-00010	900605-00010-Online
7		1	Washer 10(10.5212)	900602-00010	900602-00010-Online	10.5212
8		1	Rotor, Magneto	156800-06161	156800-06161-Online
9		2	Screw 5*18	900238-05018	900238-05018-Online	5*18
10		1	C.D. Ignition Module	156601-09860	156601-09860-Online	Sus. by 156601- \| 09861
10		1	C.D.I. Module W/Lead	156601-09861	156601-09861-Online
11	+	1	Lead	162021-08260	162021-08260-Online	180L \| Sus. by 162021- \| 08260
11		1	Lead	V485-000190	V485-000190-Online
12		1	Tube 6.38380	156111-06160	156111-06160-Online	6.38380
13		1	Cap, Spark Plug	159012-10230	159012-10230-Online
14		1	Adapter, Plug Cap	159016-05330	159016-05330-Online
15		1	Plug, Spark (Bpmr-7A	159010-10230	159010-10230-Online	BPMR-7A
20		1	Pawl Assy, Starter	177202-06210	177202-06210-Online	Sr/Nr 36003158 \| and before
20		1	Pulley,Asm Starter	A052-000042	A052-000042-Online	Sr/Nr 36003159 \| and after
21	+	1	E-Ring 4	900700-00004	900700-00004-Online	CE-4 \| Sr/Nr 36003158 \| and before
21	+	2	E-Ring	P022-002100	P022-002100-Online	4 \| Sr/Nr 36003159 \| and after
23	+	1	Spring, Return	177234-40630	177234-40630-Online	Sr/Nr 36003158 \| and before

Page 6 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
23	+	2	Spring, Return	P022-003130	P022-003130-Online	Sr/Nr 36003159 \| and after
24	+	1	Pawl, Starter	177218-40630	177218-40630-Online	WHITE \| Sr/Nr 36003158 \| and before
24	+	2	Pawl, Starter	P022-003120	P022-003120-Online	Sr/Nr 36003159 \| and after
26		1	Starter Assy	177200-08260	177200-08260-Online	Sr/Nr 36003158 \| and before
26		1	Starter,Recoil	A051-000930	A051-000930-Online	Sr/Nr 36003159 \| and after
27	+	1	Screw	177236-40630	177236-40630-Online	Sr/Nr 36003158 \| and before
27	+	1	Screw	177236-06910	177236-06910-Online	Sr/Nr 36003159 \| and after
28	+	1	Washer	177214-40630	177214-40630-Online
29	+	1	Drum, Starter	177215-11120	177215-11120-Online	Sr/Nr 36003158 \| and before
29	+	1	Drum, Starter	P022-005910	P022-005910-Online	Sr/Nr 36003159 \| and after
30	+	1	Rope, Starter	177226-11120	177226-11120-Online	3.8*1400 \| Sr/Nr 36003158 \| and before
30	+	1	Rope, Starter	P022-010580	P022-010580-Online	Sr/Nr 36003159 \| and after
31	+	1	Guide, Rope	177227-42030	177227-42030-Online
32	+	1	Grip, Starter	177228-01110	177228-01110-Online

Page 7 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
33	+	1	Rewind Spring	177220-11120	177220-11120-Online	Sr/Nr 36003158 \| and before
33	+	1	Spring, Spiral	P022-004680	P022-004680-Online	Sr/Nr 36003159 \| and after
35		4	Bolt, H.S. 4*18	900162-04018	900162-04018-Online	4*18 W,SW \| Sus. by 900163- \| 04018
35		4	Bolt Hsh	900163-04018	900163-04018-Online
36		1	Label, Echo	890118-49330	890118-49330-Online	Sr/Nr 36003158 \| and before
36		1	Label, Echo	890118-17930	890118-17930-Online	Sr/Nr 36003159 \| and after
43		1	Muffler Assy	145800-08260	145800-08260-Online	Sr/Nr 051700 and \| before
43		1	Muffler Asy	P021-001830	P021-001830-Online	Sus. by P021- \| 001833
43		1	Muffler Asy	P021-001831	P021-001831-Online	Sus. by P021- \| 001833
43		1	Muffler Asy	P021-001832	P021-001832-Online	Sus. by P021- \| 001833
43		1	Muffler Asy	P021-001833	P021-001833-Online	Sr/Nr 051701 and \| after
44	+	2	Gasket, Muffler	145510-06210	145510-06210-Online	Sus. by 145510- \| 06211
44	+	2	Gasket, Muffler	145510-06211	145510-06211-Online
45	+	1	Screen, Muffler	145862-06720	145862-06720-Online
46	+	1	Gasket	145866-04261	145866-04261-Online

Page 8 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
47	+	1	Guide, Exhaust	145874-08261	145874-08261-Online	Sr/Nr 051700 and \| before
47	+	1	Guide,Exh	A313-000100	A313-000100-Online	Sus. by A313- \| 000240
47	+	1	Guide,Exh	A313-000240	A313-000240-Online	ID.NO.5100 \| Sr/Nr 051701 and \| after
48	+	5	Screw 4*10	900238-04010	900238-04010-Online	4*10
49		1	Bolt, H.S. 5*20	900162-05020	900162-05020-Online	5*20 W,SW \| Sus. by 900106- \| 05020
49		1	Bolt, H.S. 5*20	900106-05020	900106-05020-Online	5*20
50		2	Bolt, H.S. 6*20	900105-06020	900105-06020-Online	6*20

Page 9 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
4		1	Label, Cleaner	890187-08360	890187-08360-Online	Sr/Nr 017553 and \| before
5		1	Filter, Air	130317-08360	130317-08360-Online	Sr/Nr 017553 and \| before
6		1	Lid, Cleaner	130308-08260	130308-08260-Online	Sr/Nr 017553 and \| before
6		1	Cover, Air Cleaner	130308-08360	130308-08360-Online	Sr/Nr 017554 and \| after
7	+	2	Knob	130341-08260	130341-08260-Online
8	+	2	Pin, Spring 3*25	900345-30025	900345-30025-Online	3*25
9		1	Filter, Air	130310-08260	130310-08260-Online	Sr/Nr 017553 and \| before
9		1	Filter, Air	130305-08360	130305-08360-Online	Sr/Nr 017554 and \| after
9		1	Filter, Air	130305-08361	130305-08361-Online
10		1	Case, Air Cleaner	130307-08260	130307-08260-Online	Sr/Nr 017553 and \| before
10		1	Case, Air Cleaner	130307-08360	130307-08360-Online	Sr/Nr 017554 and \| after
11	+	2	Clip	131032-08260	131032-08260-Online	Sr/Nr 017553 and \| before
11	+	2	Clip	131032-08360	131032-08360-Online	Sr/Nr 017554 and \| afte
13		2	Screw, 5*14	900209-05014	900209-05014-Online	5*14 \| Sus. by 91540- \| 05014
13		2	Screw,Truss	91540-05014	91540-05014-Online

Page 10 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
14		2	Nut, Frange 5	900516-00005	900516-00005-Online
15		1	Band (S)	130715-04260	130715-04260-Online	Sus. by 130715- \| 08260
15		1	Band	130715-08260	130715-08260-Online
16		1	Adapter, Intake	130711-08260	130711-08260-Online
17		1	Clamp W/Screw	P021-043140	P021-043140-Online
18	+	1	Screw 5*25	900238-05025	900238-05025-Online	5*25
19		1	Label, Choke	890158-08260	890158-08260-Online	Sr/Nr 057820 and \| before
19		1	Label, Choke	890158-08261	890158-08261-Online	Sr/Nr 057821 and \| after
20		2	Screw 5*50	900220-05050	900220-05050-Online	5*50 \| Sr/Nr 057820 and \| before
20		2	Screw 5*57	900242-05057	900242-05057-Online	5*57 \| Sr/Nr 057821 and \| after
22		1	Plate	129011-08260	129011-08260-Online	Sus. by A244- \| 000020
22		1	Plate,Prevent	A244-000020	A244-000020-Online
23		1	Bracket, Air Cleaner	130405-08260	130405-08260-Online	Sus. by 130405- \| 09862
23		1	Bracket, Air Cleaner	130405-09860	130405-09860-Online	Sus. by 130405- \| 09862
23		1	Bracket, Air Cleaner	130405-09861	130405-09861-Online	Sus. by 130405- \| 09862
23		1	Bracket, Air Cleaner	130405-09862	130405-09862-Online	Sr/Nr 057820 and \| before

Page 11 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
23		1	Fixture,Cleaner	A221-000000	A221-000000-Online	Sr/Nr 057821 and \| after
24		1	Gasket, Carburetor	130016-03730	130016-03730-Online	Sus. by 130016- \| 03731
24		1	Gasket, Carburetor	130016-03731	130016-03731-Online
25		1	Carburetor Assy	125200-08361	125200-08361-Online	C1M-K25A \| Sus. by 125200- \| 08664
25		1	Carburetor Assy	125200-08661	125200-08661-Online	C1M㺎K49A \| Sus. by 125200- \| 08664
25		1	Carburetor	125200-08662	125200-08662-Online	C1M-K49A \| Sus. by 125200- \| 08664
25		1	Carburetor	125200-08663	125200-08663-Online	C1M-K49B \| Sus. by 125200- \| 08664
25		1	Carburetor	125200-08664	125200-08664-Online
26		1	Gasket	130016-06433	130016-06433-Online	Sus. by 130016- \| 06434
26		1	Gasket	130016-06434	130016-06434-Online
27		1	Insulator	130007-03461	130007-03461-Online	Sr/Nr 028639 and \| before
27		1	Insulator	130007-08260	130007-08260-Online	Sus. by 130007- \| 08261
27		1	Insulator	130007-08261	130007-08261-Online	Sr/Nr 028640 and \| after
28		1	Gasket	130010-10322	130010-10322-Online	Sus. by V103- \| 000000

Page 12 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
28		1	Gasket	130010-10323	130010-10323-Online	Sus. by V103- \| 000000
28		1	Gasket,Intake	V103-000000	V103-000000-Online
29		2	Bolt, H.S. 5*25	900162-05025	900162-05025-Online	5*25 W,SW
30		1	Collar	178076-08360	178076-08360-Online

Page 13 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Cap Assy, Fuel Tank	131600-07460	131600-07460-Online	Sus. by 131600- \| 09861
5		1	Cap Assy, Fuel Tank	131604-09860	131604-09860-Online	Sus. by 131600- \| 09861
5		1	Cap Assy, Fuel Tank	131600-09860	131600-09860-Online	Sus. by 131600- \| 09861
5		1	Cap Asy, Fuel	131600-09861	131600-09861-Online
1	+	1	Link	131051-27230	131051-27230-Online	Can be used on the \| 131604-09860 and
2	+	1	Rivet 3*6	900319-30060	900319-30060-Online	3*6 \| Sus. by 900319- \| 30070
2	+	1	Rivet 3*7	900319-30070	900319-30070-Online	3*7 \| Can be used on the \| 131604-09860 and
3	+	1	Washer 3	900600-00003	900600-00003-Online	3 \| Can be used on the \| 131604-09860 and
		4	Part	131600-09860	131600-09860-Online
4	+	1	Nut	131053-03060	131053-03060-Online	Can be used on the \| 131604-09860 and

Page 14 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
6	+	1	Label, Fuel Mix	890147-06160	890147-06160-Online	Can be used on the \| 131600-07460 only
6	+	1	Label, Fuel Mix	890147-08260	890147-08260-Online	Can be used on the \| 131604-09860 only
7	+	1	Seal, Breather	131314-22330	131314-22330-Online	Can be used on the \| 131604-09860 only
7	+	1	Valve, Check	131314-06320	131314-06320-Online	Can be used on the \| 131600-07460 and
8	+	1	Holder, Check	131015-21230	131015-21230-Online	Sus. by A358- \| 000000
8	+	1	Holder,Check Valve	A358-000000	A358-000000-Online	Can be used on the \| 131600-07460 and
9	+	1	Gasket, Fuel Cap	131016-21230	131016-21230-Online	Can be used on the \| 131600-07460 only
9	+	1	Gasket, Fuel Cap	131016-21060	131016-21060-Online	Can be used on the \| 131600-09860 only
10		3	Nut, Frange 5	900516-00005	900516-00005-Online

Page 15 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
11		3	Screw, 5*20	900209-05020	900209-05020-Online	5*20
12		1	Tank, Fuel	131010-08260	131010-08260-Online	Sus. by 131010- \| 08265
12		1	Tank, Fuel	131010-08261	131010-08261-Online	Sus. by 131010- \| 08265
12		1	Tank, Fuel	131010-08262	131010-08262-Online	Sus. by 131010- \| 08265
12		1	Tank, Fuel	131010-08263	131010-08263-Online	Sus. by 131010- \| 08265
12		1	Tank, Fuel	131010-08264	131010-08264-Online	Sus. by 131010- \| 08265
12		1	Tank, Fuel	131010-08265	131010-08265-Online
13		1	Pipe, Fuel	132010-08260	132010-08260-Online	37520 NBR
14		1	Connector, Fuel Pipe	132011-08260	132011-08260-Online
15		1	Pipe, Fuel	132016-08260	132016-08260-Online	24480
16		1	Connector, Pipe	132021-08260	132021-08260-Online
17		1	Grommet	132115-02960	132115-02960-Online
18		1	Pipe 37270	132012-08261	132012-08261-Online	37270 NBR \| Sus. by V471- \| 000770
18		1	Pipe	V471-000770	V471-000770-Online
19		1	Strainer, Fuel	131205-30830	131205-30830-Online	Sus. by 131205- \| 19830
19		1	Strainer, Fuel	131205-19830	131205-19830-Online
20		2	Clip	132013-26630	132013-26630-Online	6.5MM \| Sr/Nr 36007209 \| and after
21		1	Cover, Protective	132015-08260	132015-08260-Online

Page 16 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
22		1	Tube	178127-03460	178127-03460-Online
25		1	Band	V495-000300	V495-000300-Online	CV-150 \| Sus. by 178121- \| 43230
25		1	Band	178121-43230	178121-43230-Online	CV-150 BL \| Can be used on the \| 131010-08261,- \| 08262 only

Page 17 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
3		2	Screw	900253-05016	900253-05016-Online	5*16
4		2	Screw 5*45	900238-05045	900238-05045-Online	5*45
5		2	Bolt, H.S. 5*60	900105-05060	900105-05060-Online	5*60
6		2	Washer 5	900602-00005	900602-00005-Online	5.3101 \| Sus. by 900600- \| 00005
6		2	Washer 5	900600-00005	900600-00005-Online
7		1	Handle	351110-08260	351110-08260-Online
8		1	Handle	351010-08260	351010-08260-Online
9		1	Label, Caution	890160-09460	890160-09460-Online	Sus. by 890160- \| 09461
9		1	Label, Caution	890160-09461	890160-09461-Online
10		4	Nut, Frange 5	900516-00005	900516-00005-Online
11		1	Label, Caution	890160-06360	890160-06360-Online	Sus. by 890160- \| 06361
11		1	Label, Caution	890160-06361	890160-06361-Online
12		1	Label, Model	890112-08360	890112-08360-Online	Sus. by 890112- \| 08361
12		1	Label, Model	890112-08361	890112-08361-Online
13		1	Insulator	100270-08260	100270-08260-Online	Sr/Nr 062821 and \| before
13		1	Insulator,Muffler	A322-000000	A322-000000-Online	Sr/Nr 36001001 \| and after
14		1	Cover, Engine	104012-08260	104012-08260-Online	Sr/Nr 062821 and \| before
14		1	Cover,Engine	A190-000102	A190-000102-Online	Sr/Nr 36001001 \| and after

Page 18 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
15		1	Label, Model	890115-08360	890115-08360-Online	Disuse
16		4	Screw 5*18	900238-05018	900238-05018-Online	5*18
17		1	Screw 5*10	900238-05010	900238-05010-Online	5*10 \| Sr/Nr 062821 and \| before
17		1	Screw 5*18	900238-05018	900238-05018-Online	5*18 \| Sr/Nr 36001001 \| and after
18		1	Holder Kit, Cable	178101-08260	178101-08260-Online
19	+	1	Screw 5*25	900238-05025	900238-05025-Online	5*25
20		1	Case, Fan	200105-08260	200105-08260-Online	Sus. by E103- \| 000103
20		1	Case,Fan	E103-000103	E103-000103-Online
21		1	Bracket, Engine	104925-08260	104925-08260-Online	Sus. by 104913- \| 08360
21		1	Bracket, Engine	104913-08360	104913-08360-Online
22		1	Bracket, Engine	104913-08260	104913-08260-Online	Sus. by 104913- \| 08360
22		1	Bracket, Engine	104913-08360	104913-08360-Online
23		1	Fan	200005-08260	200005-08260-Online	Sus. by 200005- \| 08261
23		1	Part	200005-08261	200005-08261-Online
24		4	Bolt, H.S. 5*20	900162-05020	900162-05020-Online	5*20 W,SW
25		1	Case, Fan	200111-08260	200111-08260-Online	Sus. by P021- \| 000385
32		1	Case,Fan	P021-000380	P021-000380-Online	Sus. by P021- \| 000385

Page 19 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
32		1	Case,Fan	P021-000381	P021-000381-Online	Sus. by P021- \| 000385
32		1	Case,Fan	P021-000382	P021-000382-Online	Sus. by P021- \| 000385
32		1	Case,Fan	P021-000383	P021-000383-Online	Sus. by P021- \| 000385
32		1	Case,Fan	P021-000384	P021-000384-Online	Sus. by P021- \| 000385
32		1	Case, Fan	P021-000385	P021-000385-Online	Sr/Nr 062821 and \| before
25	+	1	Case, Fan	200111-08261	200111-08261-Online	Sus. by 200111- \| 08264
25	+	1	Case, Fan	200111-08262	200111-08262-Online	Sus. by 200111- \| 08264
25	+	1	Case, Fan	200111-08263	200111-08263-Online	Sus. by 200111- \| 08264
25	+	1	Case, Fan	200111-08264	200111-08264-Online	Sr/Nr 048101 and \| after
25	+	1	Case, Fan	200111-08265	200111-08265-Online
33	+	1	Cushion,5	V401-000000	V401-000000-Online	Sus. by V401- \| 000002
33	+	1	Cushion,5	V401-000001	V401-000001-Online	Sus. by V401- \| 000002
33	+	1	Cushion,5	V401-000002	V401-000002-Online	Sr/Nr 048101 to \| 062821

Page 20 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
34	+	2	Screw	900253-05016	900253-05016-Online	5*16 \| Sr/Nr 048101 to \| 062821
26		7	Screw 5*30	900253-05030	900253-05030-Online	5*30
27		4	Screw 3*8	900246-03008	900246-03008-Online	3*8 \| Sus. by 90024- \| 03012
27		4	Screw 3*12	900246-03012	900246-03012-Online	3*12
28		1	Clamp	159116-21231	159116-21231-Online	Sr/Nr 062821 and \| before
29		1	Grid, Fan Case	200124-09860	200124-09860-Online
30		3	Screw	900253-05016	900253-05016-Online	5*16
31		1	Label,Priming	890560-90660	890560-90660-Online

Page 21 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
3		2	Harness, Knapsack	300300-08260	300300-08260-Online	Sus. by P021- \| 001761
3		2	Harness, Knapsack	300300-08261	300300-08261-Online	Sus. by P021- \| 001761
3		2	Harness, Knapsack	P021-001760	P021-001760-Online	Sus. by P021- \| 001761
3		2	Harness, Knapsack	P021-001761	P021-001761-Online
4	+	2	Screw, 5*14	900209-05014	900209-05014-Online	5*14 \| Sus. by 91540- \| 05014
4	+	2	Screw,Truss	91540-05014	91540-05014-Online
5	+	4	Washer	300217-00610	300217-00610-Online
6	+	2	Nut, Frange 5	900516-00005	900516-00005-Online
6		5	Nut, Frange 5	900516-00005	900516-00005-Online
7		1	Cushion, Knapsack	300105-08260	300105-08260-Online	BL \| Sus. by 300105- \| 08261
7		1	Cushion, Knapsack	300105-08261	300105-08261-Online
8		4	Clip	300333-06160	300333-06160-Online	Sus. by V491- \| 000120
8		4	Clip	V491-000120	V491-000120-Online
9		3	Spacer	104915-08260	104915-08260-Online
10		3	Cushion	131925-02310	131925-02310-Online
11		1	Frame, Backpack	300010-08260	300010-08260-Online	Sus. by 300300- \| 08362
11		1	Frame, Backpack	300010-08360	300010-08360-Online	Sus. by 300300- \| 08362

Page 22 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
11		1	Frame, Backpack	300010-08361	300010-08361-Online	Sus. by 300300- \| 08362
11		1	Frame, Backpack	300010-08362	300010-08362-Online
12		5	Screw	900253-05016	900253-05016-Online	5*16 \| Sus. by 9200253- \| 05016 QTY:4
12		4	Screw	900253-05016	900253-05016-Online	5*16
13		2	Cushion	100905-08260	100905-08260-Online	Sus. by 100905- \| 08261
13		2	Cushion	100905-08261	100905-08261-Online
14		1	Cushion	100907-08260	100907-08260-Online	Sus. by P021- \| 000251
14		1	Cushion W/Screw	P021-000250	P021-000250-Online	Sus. by P021- \| 000251
14		1	Cushion W/Screw	P021-000251	P021-000251-Online	Sr/Nr 048100 and \| before
20	+	1	Screw 6*22	900220-06022	900220-06022-Online	6*22 \| Sus. by 91371- \| 06020
20	+	1	Screw Tapping	91371-06020	91371-06020-Online	6*20
15		2	Connector, Frame	300012-08260	300012-08260-Online
16		8	Screw, 5*14	900209-05014	900209-05014-Online	5*14
17		2	Bracket, Hanger	300614-08260	300614-08260-Online
18		4	Screw, 5*20	900209-05020	900209-05020-Online	5*20
19		2	Bumper	300032-08360	300032-08360-Online
22		1	Cover, Dust	302914-21060	302914-21060-Online	Option
23		10	Washer	300217-00610	300217-00610-Online

Page 23 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		2	Harness,Asm Backpack	C061-000110	C061-000110-Online
2		2	Clip	V491-000040	V491-000040-Online
4		4	Nut, Frange 5	900516-00005	900516-00005-Online
5		1	Cushion, Knapsack	300105-08260	300105-08260-Online	BL \| Sus. by 300105- \| 08261
5		1	Cushion, Knapsack	300105-08261	300105-08261-Online
6		4	Clip	300333-06160	300333-06160-Online	Sus. by V491- \| 000120
6		4	Clip	V491-000120	V491-000120-Online
8		10	Washer	300217-00610	300217-00610-Online
9		1	Frame, Backpack	300010-08362	300010-08362-Online
10		2	Screw	900253-05016	900253-05016-Online	5*16
11		6	Bolt Hs Tapping	91145-05016	91145-05016-Online	5*16
15		1	Connector,Frame	C622-000030	C622-000030-Online	(L)
16		2	Cushion,5	V401-000100	V401-000100-Online
17		1	Connector,Frame	C622-000020	C622-000020-Online	(R)
18		2	Screw, 5*14	900209-05014	900209-05014-Online	5*14
19		1	Bracket, Hanger	300614-08260	300614-08260-Online
20		4	Screw, 5*14	900209-05014	900209-05014-Online	5*14
21		1	Cover,Dust	A127-000080	A127-000080-Online	Option
25		2	Bolt Hs Fl Tapp	91147-05020	91147-05020-Online
26		4	Bolt, H.S. 5*20	900162-05020	900162-05020-Online	5*20 W,SW
27		2	Plate,Eye	V150-001350	V150-001350-Online
28		2	Holder,Spring	V456-000010	V456-000010-Online
29		2	Spring,Compression	V450-000390	V450-000390-Online
30		2	Nut,5	V263-000050	V263-000050-Online

Page 24 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
31		2	Washer 5.5162T	613019-07350	613019-07350-Online	5.5162T

Page 25 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
5		1	Pipe, Curved (Bl)	210023-03460	210023-03460-Online	Sr/Nr 051700 and \| before
5		1	Pipe,Blower	E165-000030	E165-000030-Online	Sr/Nr 051701 to \| 062820
6		1	Pipe, Straight (Bl)	210015-03460	210015-03460-Online	Sr/Nr 051700 and \| before
6		1	Pipe,Blower	E165-000020	E165-000020-Online	ECHO \| Sr/Nr 051701 to \| 062820
7		2	Label, Echo	890118-04261	890118-04261-Online	OPTION
8		1	Pipe, Blower	212005-07560	212005-07560-Online	Sr/Nr 051700 and \| before
8		1	Pipe,Blower	E165-000010	E165-000010-Online	Sr/Nr 051701 to \| 062820
10		2	Clamp W/Screw	210400-04260	210400-04260-Online	Sus. by V495- \| 000430
10		2	Band	V495-000430	V495-000430-Online	58.7MM / 82.5MM
11	+	2	Screw 5*25	900235-05025	900235-05025-Online	5*25 \| Can be used on \| 210400-04260 only
12		1	Pipe, Flexible	210013-08360	210013-08360-Online
13		1	Clip	178121-08360	178121-08360-Online	Sus. by 178121- \| 09860
13		2	Band	178121-09860	178121-09860-Online
14		1	Pipe, Main	210005-08260	210005-08260-Online	Sus. by 210011- \| 08260

Page 26 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
14		1	Elbow, Blowing	210011-08260	210011-08260-Online
15		1	Pipe,Blower	E165-000160	E165-000160-Online	418MM*65/79MM \| Sr/Nr 062821 and \| after
16		1	Pipe,Blower	E165-000140	E165-000140-Online	418MM*73/79MM \| Sr/Nr 062821 and \| after
17		1	Pipe,Blower	E165-000130	E165-000130-Online	362MM*73/84MM \| Sr/Nr 062821 and \| after
20		1	Wrench, W/S. Driver	895410-03930	895410-03930-Online	Sus. by 895410- \| 39130
20		1	Wrench, W/S-Driver	895410-39130	895410-39130-Online	Sus. by 895410- \| 39130
20		1	Wrench, W/S-Driver	895410-39131	895410-39131-Online

Page 27 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
3		1	Nut 6	900500-00006	900500-00006-Online
4		1	Screw 4*10	900245-04010	900245-04010-Online	4*10
5		1	Plug	351146-07560	351146-07560-Online
6A		1	Handle, Front	351315-07560	351315-07560-Online
6B		1	Handle, Front	351311-07560	351311-07560-Online
8		1	Control, Throttle	178010-07560	178010-07560-Online	Sus. by 178010- \| 07561
8		1	Control, Throttle	178010-07561	178010-07561-Online
9		1	Bracket, Throttle	178123-07561	178123-07561-Online
10		1	Contrtol, Throttle	178054-07560	178054-07560-Online
11		1	Washer 6	900603-00006	900603-00006-Online	6.5131
12		1	Washer, Spring 6	900605-00006	900605-00006-Online
13		1	Screw 6*20	900235-06020	900235-06020-Online	6*20
14		4	Screw 4*22	900256-04022	900256-04022-Online	4*22
15		1	Knob, Fastener	305812-07560	305812-07560-Online	Sus. by 305812- \| 08260
15		1	Knob, Fastener	305812-08260	305812-08260-Online
16		1	Washer 6	178516-07560	178516-07560-Online
17		1	Screw 5*20	900253-05020	900253-05020-Online	5*20
18A		1	Bracket, Handle	351011-07560	351011-07560-Online	Sr/Nr 051700 and \| before
18A		1	Bracket,Handle	C405-000020	C405-000020-Online	Sus. by 351011- \| 07560
18B		1	Bracket, Handle	351028-07560	351028-07560-Online	Sr/Nr 051700 and \| before

Page 28 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
18B		1	Bracket,Handle	C405-000030	C405-000030-Online	Sus. by 351028- \| 07560
30		1	Bracket Assy, Handle	351301-07560	351301-07560-Online	Sr/Nr 062821 and \| before
17	+	1	Screw 5*20	900253-05020	900253-05020-Online	5*20
18A	+	1	Bracket, Handle	351011-07560	351011-07560-Online	Sr/Nr 062820 and \| before
18A		1	Bracket,Handle	C405-000020	C405-000020-Online	Sr/Nr 062821 and \| after
18B	+	1	Bracket, Handle	351028-07560	351028-07560-Online	Sr/Nr 062820 and \| before
19		1	Nut, Throttle Rod	178021-08260	178021-08260-Online
20		2	Collar	210019-07560	210019-07560-Online	Sr/Nr 051700 and \| before
26		1	Control, Thr. W/Wire	178100-08261	178100-08261-Online	Sus. by V043- \| 000021
26		1	Cable Asy, Control	178100-08262	178100-08262-Online	Sus. by V043- \| 000021
26		1	Cable Asy, Throttle	178100-08263	178100-08263-Online	Sus. by V043- \| 000021
7	+	1	Switch, Ignition	163400-08261	163400-08261-Online	Sus. by 163400- \| 08262

Page 29 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
7	+	1	Switch, Ignition	163400-08262	163400-08262-Online	Can be used on
		21	Part	178100-08263	178100-08263-Online
21	+	1	Wire, Throttle	178001-08260	178001-08260-Online	Sus. by 178001- \| 08360
21	+	1	Wire, Throttle	178001-08360	178001-08360-Online	Can be used on
		23	++	178100-08263	178100-08263-Online
23		1	Nut 6	900500-00006	900500-00006-Online	6 \| 24 \| ++
24		1	Part	178082-08260	178082-08260-Online
22	+	1	Tube	178127-47530	178127-47530-Online	710760 \| Can be used on
25		1	Label, Switch	890157-06560	890157-06560-Online
31		1	Cable,Asm Control	V043-000021	V043-000021-Online	Sr/Nr 36001001 \| and after
33	+	1	Tube	V475-003210	V475-003210-Online	710860 \| Sr/Nr 36001001 \| and after
34	+	1	Cable,Bowden	V430-001240	V430-001240-Online	Sr/Nr 36001001 \| and after \| 35 \| ++
35		1	Nut 6	900500-00006	900500-00006-Online	6 \| Sr/Nr 36001001 \| and after \| 36
36		1	Cap	178082-08260	178082-08260-Online	Sr/Nr 36001001 \| and after

Page 30 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1	+	2	Screw	125344-05360	125344-05360-Online	Can be used on the \| 125200-08560, - \| 08561, -08562, - \| 08563
1	+	4	Screw	125344-05360	125344-05360-Online	Can be used on the \| 125200-08564, - \| 08565
1	+	4	Screw	P005-000980	P005-000980-Online	Can be used on the \| 125200-08564, - \| 08565

Page 31 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
2	+	1	Ring	125363-08560	125363-08560-Online	Can be used on the \| 125200-08560, - \| 08561, -08562, - \| 08563
2	+	1	Retainer	P005-000620	P005-000620-Online	Can be used on the \| 125200-08564 only
3	+	1	Pump, Priming	125381-46730	125381-46730-Online	Sus. by 125381- \| 08660
3	+	1	Pump, Priming	125381-08660	125381-08660-Online
4	+	2	Screw	125310-05360	125310-05360-Online	Can be used on the \| 125200-08560, - \| 08561, -08562, - \| 08563
5	+	1	Base, Primer	125383-08360	125383-08360-Online	Can be used on the \| 125200-08560, - \| 08561, -08562, - \| 08563
5	+	1	Base, Primer	P005-000610	P005-000610-Online	Can be used on the \| 125200-08564 only
6	+	1	Diaphragm	125341-08360	125341-08360-Online
7	+	1	Gasket, Diaphragm	125340-34530	125340-34530-Online

Page 32 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
8	+	1	Spring, Coil	125322-13930	125322-13930-Online
9	+	1	Valve, Inlet Needle	125337-08260	125337-08260-Online
10	+	1	Nozzle, Check Valve	125376-51030	125376-51030-Online	Can be used on the \| 125200-08361 only
10	+	1	Nozzle, Check Valve	125376-08660	125376-08660-Online	Can be used on the \| 125200-08661,- \| 08662, -08663, - \| 08664
11	+	1	Plug, Welch	125345-08360	125345-08360-Online
12	+	2	Spring, Coil	125319-42030	125319-42030-Online	Sr/Nr 051652 and \| before
13	+	1	Needle, High Speed	125320-08260	125320-08260-Online	Sr/Nr 051652 and \| before
13	+	1	Screw, Main Mixture	P005-000470	P005-000470-Online	Sr/Nr 051653 and \| after
14	+	1	Needle, Idle	125318-08260	125318-08260-Online	Sr/Nr 051652 and \| before
14	+	1	Screw, Idle Mixture	P005-000460	P005-000460-Online	Sr/Nr 051653 and \| after
15	+	1	Shaft, Throttle	125317-08360	125317-08360-Online
16	+	1	Spring, Thrt. Return	125313-08360	125313-08360-Online
17	+	1	Piece, Friction	125378-13930	125378-13930-Online	Sr/Nr 046650 and \| after

Page 33 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
17	+	1	Spring,Adjust Screw	125333-08560	125333-08560-Online	Sr/Nr 046651 and \| after
18	+	1	Screw, Idle Adjust	125334-13930	125334-13930-Online	Sr/Nr 046650 and \| after
18	+	1	Screw	125344-08560	125344-08560-Online	Sr/Nr 046651 and \| after
19	+	1	Screw	125310-13930	125310-13930-Online
20	+	1	Cover, Pump	125324-08360	125324-08360-Online	Sus. by P005- \| 000610
20	+	1	Base, Primer	P005-000610	P005-000610-Online
21	+	1	Gasket, Pump	125325-08360	125325-08360-Online
22	+	1	Diaphragm, Fuel Pump	125312-08360	125312-08360-Online
23	+	1	Strainer	125326-08360	125326-08360-Online
24	+	1	Screw	125314-13930	125314-13930-Online	3*4
25	+	1	Valve, Throttle	125316-13930	125316-13930-Online
26	+	1	Clip	125327-13930	125327-13930-Online
27	+	1	Lever, Throttle	125350-08360	125350-08360-Online
28	+	1	Screw	125348-13930	125348-13930-Online
29	+	1	Screw	125339-13930	125339-13930-Online
30	+	1	Pin, Metering Arm	125338-13930	125338-13930-Online
31	+	1	Arm, Valve	125323-08260	125323-08260-Online
34	+	2	Washer	125353-20560	125353-20560-Online	Sr/Nr 051652 and \| before
35		1	Limiter, Mixture	125329-39030	125329-39030-Online	Sr/Nr 36001001 \| and after

Page 34 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
36		1	Limiter, Mixture	125329-09860	125329-09860-Online	Sr/Nr 36001001 \| and after

Page 35 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Rebuild Kit	125300-08360	125300-08360-Online	9-6 \| + \| 1 \| DIAPHRAGM

Source PDF: 20130718-222_PB-6000_PB-6000_EN.pdf. Generated 2026-06-25 14:37.

\n

\n
