Echo PB-620 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: PB-620-Online
Source Pages

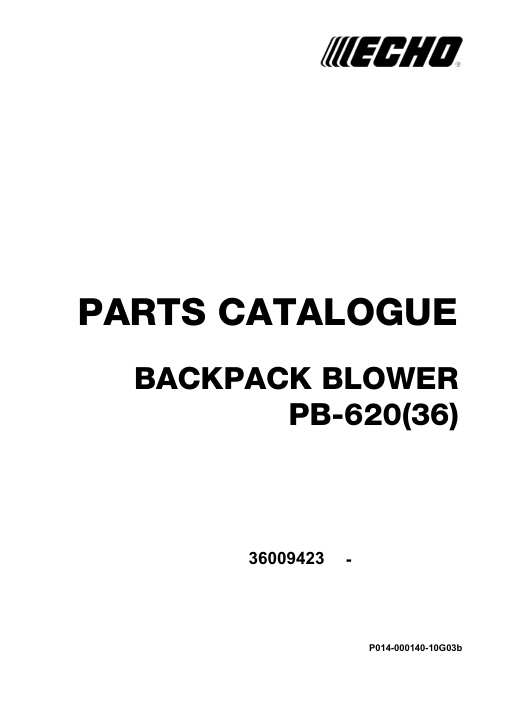

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

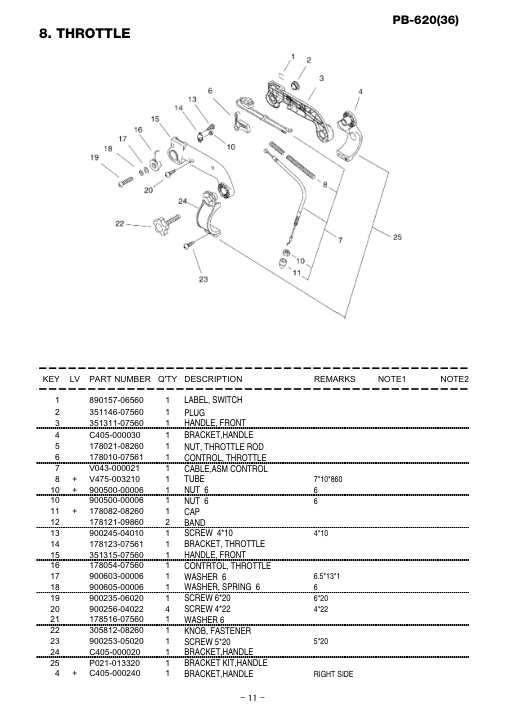

Page 4
Tap or click the page image to enlarge it.

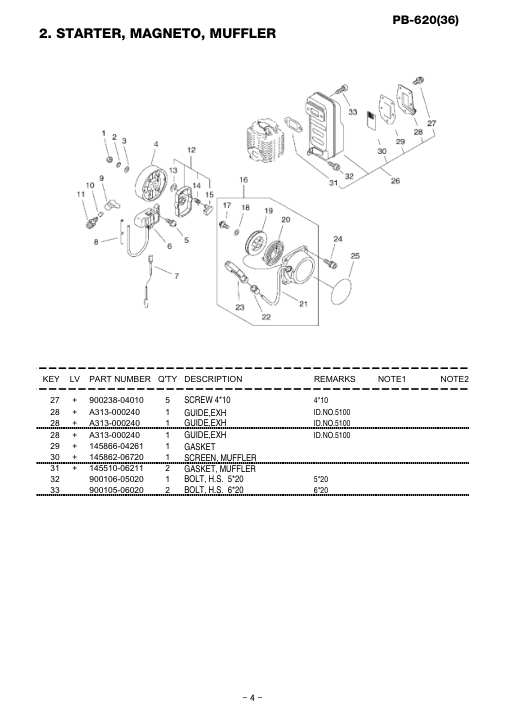

Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

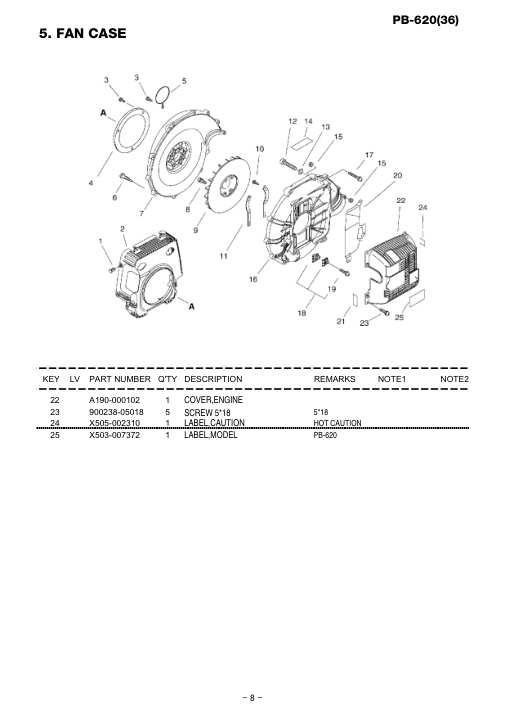

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

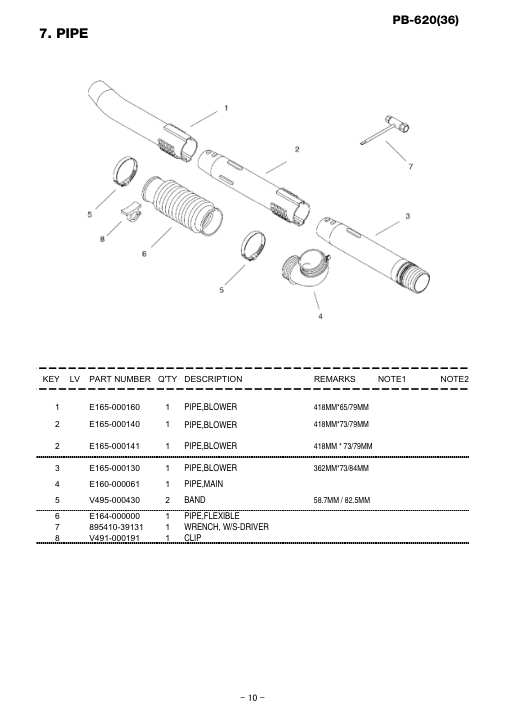

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

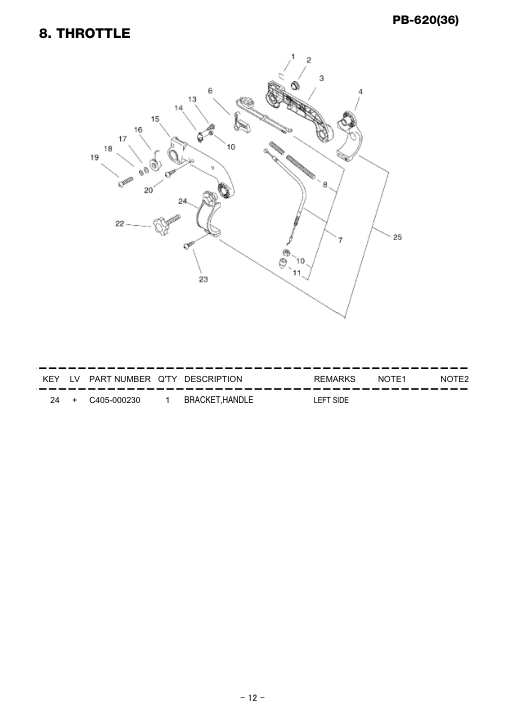

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

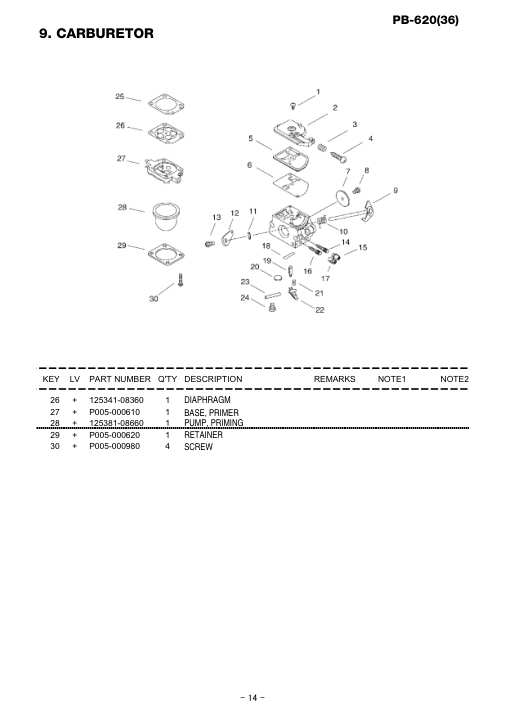

Page 15
Tap or click the page image to enlarge it.

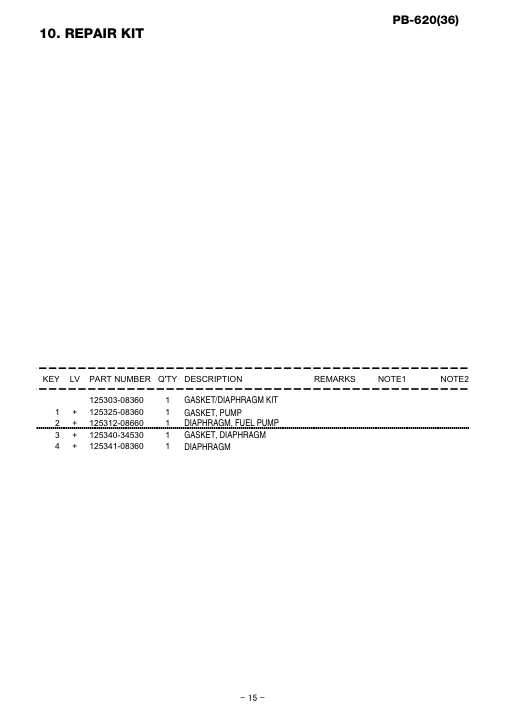

Page 16
Tap or click the page image to enlarge it.

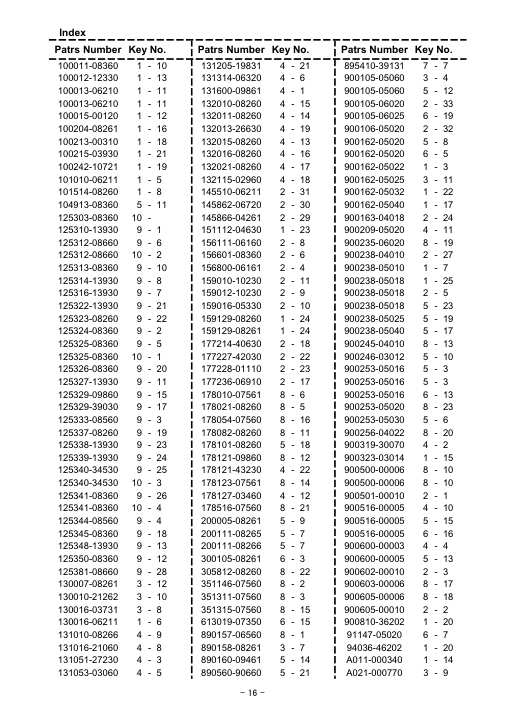

Page 17
Tap or click the page image to enlarge it.

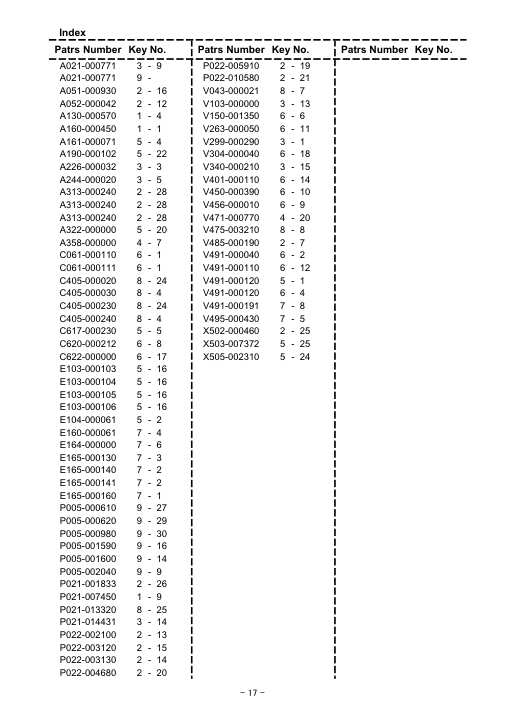

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover,Cylinder | A160-000450 | A160-000450-Online | ||
| 3 | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 4 | 1 | Cylinder | A130-000570 | A130-000570-Online | ||
| 5 | 1 | Gasket, Cyl. Base | 101010-06211 | 101010-06211-Online | ||
| 6 | 1 | Gasket, Intake | 130016-06211 | 130016-06211-Online | ||
| 7 | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 | |
| 8 | 1 | Cover, Cylinder | 101514-08260 | 101514-08260-Online | ||
| 9 | 1 | Piston Kit | P021-007450 | P021-007450-Online | ||
| 10 | + | 2 | Ring, Piston | 100011-08360 | 100011-08360-Online | |
| 11 | + | 1 | Pin, Piston | 100013-06210 | 100013-06210-Online | |
| 12 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |
| 13 | + | 1 | Bearing, Needle | 100012-12330 | 100012-12330-Online | |
| 14 | 1 | Crankshaft,Asm | A011-000340 | A011-000340-Online | ||
| 15 | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | |
| 16 | 1 | Crankcase Kit | 100204-08261 | 100204-08261-Online | ||
| 17 | + | 4 | Bolt, H.S. 5*40 | 900162-05040 | 900162-05040-Online | 5*40 W,SW |
| 18 | + | 2 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 19 | + | 1 | Gasket, Crankcase | 100242-10721 | 100242-10721-Online | |
| 20 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 2 | Bearing Ball | 94036-46202 | 94036-46202-Online | |
| 21 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | 6 | Bolt, H.S. 5*32 | 900162-05032 | 900162-05032-Online | 5*32 W,SW | |
| 23 | 1 | Bushing | 151112-04630 | 151112-04630-Online | ||
| 24 | 1 | Cover, Dust | 159129-08260 | 159129-08260-Online | ||
| 24 | 1 | Cover, Dust | 159129-08261 | 159129-08261-Online |
