Echo PPT-2400 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: PPT-2400-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

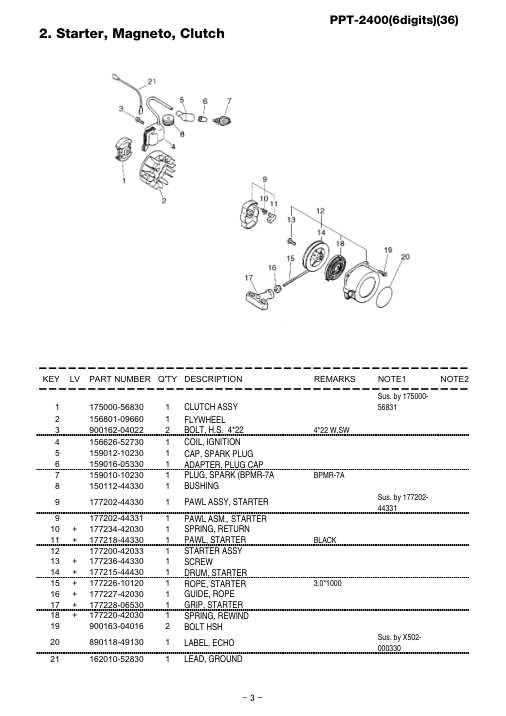

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

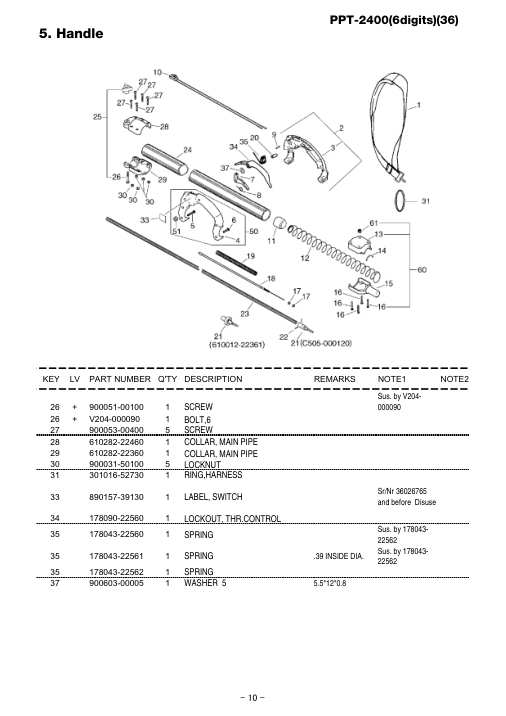

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

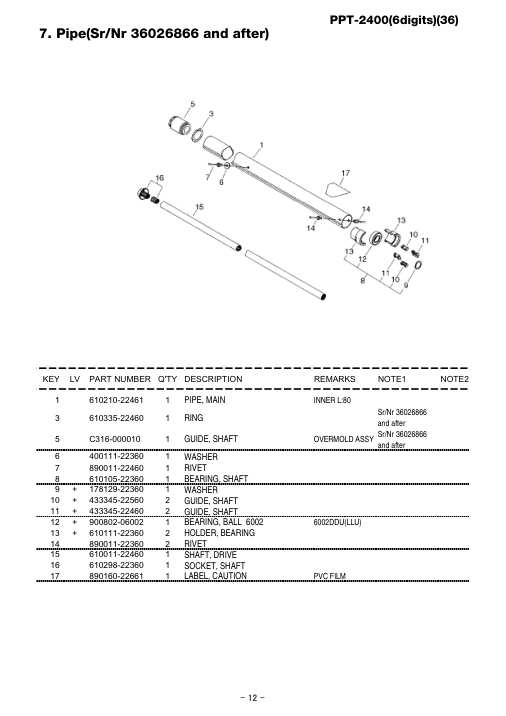

Page 13
Tap or click the page image to enlarge it.

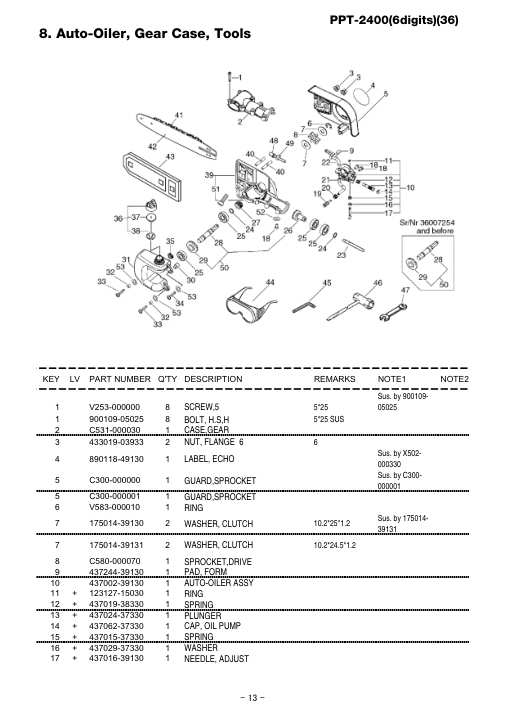

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Crankshaft,Asm | A011-000100 | A011-000100-Online | Sus. by A011- | 000101 | |
| 3 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online | ||
| 4 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 5 | 1 | Cylinder (Cr) | 101011-08961 | 101011-08961-Online | ||
| 6 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 7 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 8 | 1 | Piston Kit | 100000-09563 | 100000-09563-Online | ||
| 9 | + | 2 | Ring, Piston | 100011-09560 | 100011-09560-Online | |
| 10 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 11 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 12 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 13 | 1 | Crankcase Kit | 100204-52130 | 100204-52130-Online | Sus. by 100204- | 52132 | |
| 13 | 1 | Crankcase Kit | 100204-52131 | 100204-52131-Online | Sus. by 100204- | 52132 | |
| 13 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 14 | + | 2 | Oilseal | 100212-42030 | 100212-42030-Online | ISCD12*22*4.5 | Sus. by 100212- | 42031 |
| 14 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 15 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 16 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 18 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 19 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 20 | 1 | Cover, Fan (Bs) | 101511-44630 | 101511-44630-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 1 | Bolt 5*25 | 900151-05025 | 900151-05025-Online | 5*25 S45C | Sus. by 900162- | 05025 | |
| 21 | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 22 | 1 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | 5 | Disuse | |
| 23 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | 5 | Disuse | |
| 24 | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 26 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 27 | 1 | Label, Model | 890034-24661 | 890034-24661-Online | ||
| 28 | 1 | Cover, Cylinder | 101514-44531 | 101514-44531-Online | ||
| 29 | 1 | Screw | 900253-05016 | 900253-05016-Online | 5*16 | |
| 30 | 1 | Guard, Top | 159912-44530 | 159912-44530-Online | ||
| 31 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 32 | 1 | Stopper | 175053-04920 | 175053-04920-Online | ||
| 33 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 34 | 1 | Bearing, Ball 6201 | 900814-06201 | 900814-06201-Online | 6201ZZ | |
| 35 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 36 | 1 | Drum, Clutch | 175005-42030 | 175005-42030-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Clutch Assy | 175000-56830 | 175000-56830-Online | Sus. by 175000- | 56831 | |
| 2 | 1 | Flywheel | 156801-09660 | 156801-09660-Online | ||
| 3 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 4 | 1 | Coil, Ignition | 156626-52730 | 156626-52730-Online | ||
| 5 | 1 | Cap, Spark Plug | 159012-10230 | 159012-10230-Online | ||
| 6 | 1 | Adapter, Plug Cap | 159016-05330 | 159016-05330-Online | ||
| 7 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 8 | 1 | Bushing | 150112-44330 | 150112-44330-Online | ||
| 9 | 1 | Pawl Assy, Starter | 177202-44330 | 177202-44330-Online | Sus. by 177202- | 44331 | |
| 9 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 10 | + | 1 | Spring, Return | 177234-42030 | 177234-42030-Online | |
| 11 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 12 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 13 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 14 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 15 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 16 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 17 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 18 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 19 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 20 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online | Sus. by X502- | 000330 | |
| 21 | 1 | Lead, Ground | 162010-52830 | 162010-52830-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 7 | 1 | Insulator, Intake | 130017-42031 | 130017-42031-Online | ||
| 6 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 8 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 9 | 1 | Gasket, Intake | 130010-05960 | 130010-05960-Online | ||
| 10 | 1 | Carburetor Wt-424C | 123000-52133 | 123000-52133-Online | WT-424C | |
| 14 | 1 | Case,Air Cleaner | 130307-06761 | 130307-06761-Online | ||
| 16 | 1 | Plate, Prevent | 129011-06360 | 129011-06360-Online | Sus. by 129011- | 06361 | |
| 16 | 1 | Plate, Prevent | 129011-06361 | 129011-06361-Online | ||
| 17 | 2 | Screw 5*65 | 900242-05065 | 900242-05065-Online | 5*65 | |
| 18 | 1 | Filter, Air | 130310-54130 | 130310-54130-Online | ||
| 19 | 1 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | ||
| 20 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 | |
| 21 | 1 | Label, Metering | 890334-52730 | 890334-52730-Online | ||
| 22 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online | ||
| 28 | 1 | Muffler Asy (Sam) | 145800-52631 | 145800-52631-Online | Sus. by 145800- | 52633 | |
| 28 | 1 | Muffler Asy (Sam) | 145800-52632 | 145800-52632-Online | Sus. by 145800- | 52633 | |
| 28 | 1 | Muffler Asy (Sam) | 145800-52633 | 145800-52633-Online | ||
| 29 | + | 1 | Cover, Muffler | 145631-42030 | 145631-42030-Online | Sus. by A320- | 000251 |
| 29 | + | 1 | Cover,Muffler | A320-000250 | A320-000250-Online | Sus. by A320- | 000251 |
| 29 | + | 1 | Cover,Muffler | A320-000251 | A320-000251-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 30 | + | 2 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |
| 31 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 32 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 33 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 34 | + | 1 | Guide, Exhaust | 145818-52130 | 145818-52130-Online | |
| 35 | + | 3 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 |
| 36 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 37 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | Sus. by A356- | 000030 | |
| 5 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 6 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 7 | 1 | Pipe | 131312-39130 | 131312-39130-Online | 3*5*70(+3)NBR | Sus. by V471- | 001200 | |
| 7 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 8 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | Sus. by V137- | 000030 | |
| 8 | 1 | Grommet,Fuel | V137-000030 | V137-000030-Online | ||
| 9 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 10 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 11 | 1 | Pipe, Fuel | 132010-13930 | 132010-13930-Online | 3*5*180L NBR | Sus. by V471- | 001190 | |
| 11 | 1 | Pipe | V471-001190 | V471-001190-Online | 3*5*180 NBR | |
| 12 | 2 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 14 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 15 | 1 | Tank, Fuel | 131005-46830 | 131005-46830-Online | Sus. by 131005- | 46831 | |
| 15 | 1 | Tank, Fuel | 131005-46831 | 131005-46831-Online | ||
| 16 | 1 | Cap Assy, Fuel | 131004-08960 | 131004-08960-Online | ||
| 17 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 18 | + | 1 | Connector, Cap | 131051-52430 | 131051-52430-Online | |
| 19 | 1 | Stand (Bl) | 305110-42030 | 305110-42030-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Harness Asy,Shoulder | 301000-22060 | 301000-22060-Online | ||
| 2 | 1 | Handle Set, Rear | 351100-22360 | 351100-22360-Online | Sus. by 351100- | 22362 | |
| 2 | 1 | Handle Set, Rear | 351100-22361 | 351100-22361-Online | Sus. by 351100- | 22362 | |
| 2 | 1 | Handle Set, Rear | 351100-22362 | 351100-22362-Online | ||
| 3 | + | 1 | Handle, Rear | 351110-22562 | 351110-22562-Online | |
| 4 | + | 1 | Handle, Rear | 351101-22561 | 351101-22561-Online | Sus. by P021- | 003531 |
| 5 | + | 4 | Screw | 900053-00400 | 900053-00400-Online | Can be used on | 351100-22360 only |
| 6 | + | 2 | Screw | 900053-00300 | 900053-00300-Online | Can be used on | 351100-22360 only |
| 50 | + | 1 | Handle Asy | P021-003530 | P021-003530-Online | Sus. by P021- | 003531 |
| 50 | + | 1 | Handle Asy | P021-003531 | P021-003531-Online | Sus. by P021- | 003532 | 4 | ++ |
| 4 | 1 | Handle,Rear | C410-000090 | C410-000090-Online | PP THROT | LOCKOUT | Sus. by C410- | 000091 | |
| 5 | 6 | Screw | 900053-00400 | 900053-00400-Online | Can be used on the | P021-003530 only |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 2 | Screw | 900053-00400 | 900053-00400-Online | Can be used on the | P021-003531 only | 6 | ++ | |
| 6 | 4 | Screw, Pan Head | 900053-00500 | 900053-00500-Online | Can be used on the | P021-003531 only | 51 | ++ | |
| 51 | 6 | Locknut | 900031-50100 | 900031-50100-Online | ||
| 7 | 1 | Trigger, Throttle | 178010-22560 | 178010-22560-Online | ||
| 8 | 1 | Spring | 178043-22360 | 178043-22360-Online | ||
| 9 | 1 | Pin, Straight | 889960-22660 | 889960-22660-Online | ||
| 10 | 1 | Switch, Ignition | 163401-55630 | 163401-55630-Online | Sus. by 163401- | 55631 | |
| 10 | 1 | Switch, Ignition | 163401-55631 | 163401-55631-Online | ||
| 11 | 1 | Guide, Shaft | 433345-22660 | 433345-22660-Online | ||
| 12 | 1 | Spring | 104940-22560 | 104940-22560-Online | ||
| 13 | 1 | Cap, Pipe | 610810-22360 | 610810-22360-Online | Sus. by P021- | 003540 | |
| 60 | 1 | Cap, Main Pipe Asy | P021-003540 | P021-003540-Online | ||
| 13 | + | 1 | Cap,Main Pipe | C525-000000 | C525-000000-Online | |
| 16 | + | 4 | Screw, Pan Head | 900053-00500 | 900053-00500-Online | Can be used on the |
| 61 | Part | P021-003540 | P021-003540-Online | |||
| 61 | + | 4 | Locknut | 900031-50100 | 900031-50100-Online | |
| 14 | 1 | Cushion | 104910-22460 | 104910-22460-Online | ||
| 15 | 1 | Connector, Pipe | 610248-22361 | 610248-22361-Online | Sus. by C510- | 000050 |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | 1 | Connector, Pipe | 610248-22362 | 610248-22362-Online | Sus. by C510- | 000050 | |
| 15 | 1 | Connector, Pipe | 610248-22360 | 610248-22360-Online | Sus. by C510- | 000050 | |
| 15 | 1 | Coupling,Main Pipe | C510-000050 | C510-000050-Online | ||
| 16 | 4 | Screw | 900053-00400 | 900053-00400-Online | Can be used on the | |
| 17 | Part | 610810-22360 | 610810-22360-Online | |||
| 17 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 18 | 1 | Wire, Throttle | 178001-51030 | 178001-51030-Online | ||
| 19 | 1 | Tube | 178016-22360 | 178016-22360-Online | ||
| 20 | 1 | Collar | 610850-22560 | 610850-22560-Online | ||
| 21 | 1 | Connector,Shaft | C505-000120 | C505-000120-Online | 250 CORE ASS'Y | Sus. by 610012- | 22361 | |
| 21 | 1 | Connector, Shaft | 610012-22361 | 610012-22361-Online | ||
| 22 | 2 | Pin, Spiral | 880050-22360 | 880050-22360-Online | Sus. by V645- | 000000 | |
| 22 | 2 | Pin,Straight 3> | V620-000000 | V620-000000-Online | 2.5 * 20MM | Sus. by V645- | 000000 | |
| 22 | 2 | Pin,Spiral | V645-000000 | V645-000000-Online | .098㺼 X .687㺼 | |
| 23 | 1 | Shaft, Drive | 610011-22060 | 610011-22060-Online | Sus. by 610011- | 22061 | |
| 23 | 1 | Shaft, Drive | 610011-22061 | 610011-22061-Online | ||
| 24 | 1 | Pipe, Main | 610222-24660 | 610222-24660-Online | ||
| 25 | 1 | Thumb | 130406-22360 | 130406-22360-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Screw | 900051-00100 | 900051-00100-Online | Sus. by V204- | 000090 |
| 26 | + | 1 | Bolt,6 | V204-000090 | V204-000090-Online | |
| 27 | 5 | Screw | 900053-00400 | 900053-00400-Online | ||
| 28 | 1 | Collar, Main Pipe | 610282-22460 | 610282-22460-Online | ||
| 29 | 1 | Collar, Main Pipe | 610282-22360 | 610282-22360-Online | ||
| 30 | 5 | Locknut | 900031-50100 | 900031-50100-Online | ||
| 31 | 1 | Ring,Harness | 301016-52730 | 301016-52730-Online | ||
| 33 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | Sr/Nr 36026765 | and before Disuse | |
| 34 | 1 | Lockout, Thr.Control | 178090-22560 | 178090-22560-Online | ||
| 35 | 1 | Spring | 178043-22560 | 178043-22560-Online | Sus. by 178043- | 22562 | |
| 35 | 1 | Spring | 178043-22561 | 178043-22561-Online | .39 INSIDE DIA. | Sus. by 178043- | 22562 | |
| 35 | 1 | Spring | 178043-22562 | 178043-22562-Online | ||
| 37 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Main | 610210-22461 | 610210-22461-Online | INNER L:80 | |
| 3 | 2 | Ring | 610335-22460 | 610335-22460-Online | Sr/Nr 36026865 | and before Qty 2- | >1 | |
| 4 | 1 | Pad, Foam | 104293-22360 | 104293-22360-Online | Sr/Nr 36026865 | and before Disuse | |
| 5 | 1 | Guide, Shaft | 433345-22361 | 433345-22361-Online | Sr/Nr 36026865 | and before Sus. by | |
| 6 | 1 | Washer | 400111-22360 | 400111-22360-Online | ||
| 7 | 1 | Rivet | 890011-22460 | 890011-22460-Online | ||
| 8 | 1 | Bearing, Shaft | 610105-22360 | 610105-22360-Online | ||
| 9 | + | 1 | Washer | 178129-22360 | 178129-22360-Online | |
| 10 | + | 2 | Guide, Shaft | 433345-22460 | 433345-22460-Online | |
| 11 | + | 2 | Guide, Shaft | 433345-22560 | 433345-22560-Online | |
| 12 | + | 1 | Bearing, Ball 6002 | 900802-06002 | 900802-06002-Online | 6002DDU(LLU) |
| 13 | + | 2 | Holder, Bearing | 610111-22360 | 610111-22360-Online | |
| 14 | 2 | Rivet | 890011-22360 | 890011-22360-Online | ||
| 15 | 1 | Shaft, Drive | 610011-22460 | 610011-22460-Online | ||
| 16 | 1 | Socket, Shaft | 610298-22360 | 610298-22360-Online | ||
| 17 | 1 | Label, Caution | 890160-22660 | 890160-22660-Online | Sus. by 890160- | 22661 |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Main | 610210-22461 | 610210-22461-Online | INNER L:80 | |
| 3 | 1 | Ring | 610335-22460 | 610335-22460-Online | Sr/Nr 36026866 | and after | |
| 5 | 1 | Guide, Shaft | C316-000010 | C316-000010-Online | OVERMOLD ASSY Sr/Nr 36026866 | and after | |
| 6 | 1 | Washer | 400111-22360 | 400111-22360-Online | ||
| 7 | 1 | Rivet | 890011-22460 | 890011-22460-Online | ||
| 8 | 1 | Bearing, Shaft | 610105-22360 | 610105-22360-Online | ||
| 9 | + | 1 | Washer | 178129-22360 | 178129-22360-Online | |
| 10 | + | 2 | Guide, Shaft | 433345-22560 | 433345-22560-Online | |
| 11 | + | 2 | Guide, Shaft | 433345-22460 | 433345-22460-Online | |
| 12 | + | 1 | Bearing, Ball 6002 | 900802-06002 | 900802-06002-Online | 6002DDU(LLU) |
| 13 | + | 2 | Holder, Bearing | 610111-22360 | 610111-22360-Online | |
| 14 | 2 | Rivet | 890011-22360 | 890011-22360-Online | ||
| 15 | 1 | Shaft, Drive | 610011-22460 | 610011-22460-Online | ||
| 16 | 1 | Socket, Shaft | 610298-22360 | 610298-22360-Online | ||
| 17 | 1 | Label, Caution | 890160-22661 | 890160-22661-Online | PVC FILM |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 8 | Screw,5 | V253-000000 | V253-000000-Online | 5*25 | Sus. by 900109- | 05025 | |
| 1 | 8 | Bolt, H.S,H | 900109-05025 | 900109-05025-Online | 5*25 SUS | |
| 2 | 1 | Case,Gear | C531-000030 | C531-000030-Online | ||
| 3 | 2 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | ||
| 4 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online | Sus. by X502- | 000330 | |
| 5 | 1 | Guard,Sprocket | C300-000000 | C300-000000-Online | Sus. by C300- | 000001 | |
| 5 | 1 | Guard,Sprocket | C300-000001 | C300-000001-Online | ||
| 6 | 1 | Ring | V583-000010 | V583-000010-Online | ||
| 7 | 2 | Washer, Clutch | 175014-39130 | 175014-39130-Online | 10.2*25*1.2 | Sus. by 175014- | 39131 | |
| 7 | 2 | Washer, Clutch | 175014-39131 | 175014-39131-Online | 10.2*24.5*1.2 | |
| 8 | 1 | Sprocket,Drive | C580-000070 | C580-000070-Online | ||
| 9 | 1 | Pad, Form | 437244-39130 | 437244-39130-Online | ||
| 10 | 1 | Auto-Oiler Assy | 437002-39130 | 437002-39130-Online | ||
| 11 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 12 | + | 1 | Spring | 437019-38330 | 437019-38330-Online | |
| 13 | + | 1 | Plunger | 437024-37330 | 437024-37330-Online | |
| 14 | + | 1 | Cap, Oil Pump | 437062-37330 | 437062-37330-Online | |
| 15 | + | 1 | Spring | 437015-37330 | 437015-37330-Online | |
| 16 | + | 1 | Washer | 437029-37330 | 437029-37330-Online | |
| 17 | + | 1 | Needle, Adjust | 437016-39130 | 437016-39130-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | 3 | Screw,5 | V253-000010 | V253-000010-Online | 5*10 | Sus. by 900109- | 05010 | |
| 18 | 3 | Bolt, H.S, | 900109-05010 | 900109-05010-Online | 5*10 | |
| 19 | 1 | Strainer, Oil | 436205-02832 | 436205-02832-Online | ||
| 20 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 21 | 1 | Pipe, Impulse | 130110-12330 | 130110-12330-Online | 3*6*70L | |
| 22 | 1 | Pipe | V470-000180 | V470-000180-Online | ||
| 23 | 1 | Connector, Shaft | 610025-22360 | 610025-22360-Online | Sus. by 610025- | 22361 | |
| 23 | 1 | Connector, Shaft | 610025-22361 | 610025-22361-Online | ||
| 24 | 2 | Circlip 12 | 900706-00012 | 900706-00012-Online | WR-12 | |
| 25 | 4 | Bearing Ball | 94042-06001 | 94042-06001-Online | 6001LLU | |
| 26 | 1 | Gear,Bevel | V651-000041 | V651-000041-Online | Sus. by V651- | 000042 | |
| 26 | 1 | Gear,Bevel | V651-000042 | V651-000042-Online | Sr/Nr 36007254 | and before | |
| 27 | 1 | Gear, Worm | 437063-38330 | 437063-38330-Online | ||
| 28 | 1 | Shaft,Gear | C534-000020 | C534-000020-Online | Sus. by P021- | 005391 | |
| 29 | 1 | Gear | 610311-22061 | 610311-22061-Online | Sus. by P021- | 005391 | |
| 50 | 1 | Gear Set | P021-005390 | P021-005390-Online | Sus. by P021- | 005391 | |
| 50 | 1 | Gear Set | P021-005391 | P021-005391-Online | Sr/Nr 36007254 | and before |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 50 | 1 | Gear, Shaft Kit | P021-009710 | P021-009710-Online | Sr/Nr 36007255 | and after | |
| 26 | + | 1 | Gear,Bevel | V651-000210 | V651-000210-Online | MG 0600.2259 | Can be used on the | P021-009710 only |
| 28 | + | 1 | Shaft,Gear | C534-000180 | C534-000180-Online | Can be used on the | P021-005391 only |
| 29 | + | 1 | Gear,Bevel | V651-000100 | V651-000100-Online | Sus. by V651- | 000111 |
| 29 | + | 1 | Gear,Bevel | V651-000110 | V651-000110-Online | Sus. by V651- | 000111 |
| 29 | + | 1 | Gear,Bevel | V651-000111 | V651-000111-Online | Can be used on the | P021-005391 only |
| 29 | + | 1 | Gear,Bevel | V651-000200 | V651-000200-Online | MG 0600.2259 | Can be used on the | P021-009710 only |
| 30 | 1 | Collar,6 | V354-000010 | V354-000010-Online | ||
| 31 | 1 | Tank,Oil | C200-000000 | C200-000000-Online | ||
| 32 | 2 | Collar | 131045-28230 | 131045-28230-Online | ||
| 33 | 2 | Screw,5 | V253-000030 | V253-000030-Online | 5*16 | Sus. by 91109- | 05016 | |
| 33 | 2 | Bolt | 91109-05016 | 91109-05016-Online | CB 5*16 | |
| 34 | 1 | Screw,5 | V253-000020 | V253-000020-Online | 5*28 | Sus. by 900109- | 05025 |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | 1 | Bolt, H.S,H | 900109-05025 | 900109-05025-Online | 5*25 SUS | |
| 35 | 1 | Valve, Check | 131314-06320 | 131314-06320-Online | ||
| 36 | 1 | Cap Assy, Oil | P021-000950 | P021-000950-Online | ||
| 37 | + | 1 | Gasket, Circular | 436012-37830 | 436012-37830-Online | |
| 38 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 39 | 1 | Case,Gear | C531-000040 | C531-000040-Online | Sr/Nr 36007474 | and before | |
| 39 | 1 | Case,Gear | C051-000120 | C051-000120-Online | PPT GC | ASSEMBLY | Sr/Nr 36007475 | and after | |
| 51 | + | 1 | Bolt, H.S, | 900109-05010 | 900109-05010-Online | 5*10 | Can be used on the | C051-000120 only |
| 40 | 2 | Bolt,Stud 6 | V224-000000 | V224-000000-Online | ||
| 41 | 1 | Chain, Saw | 431611-22360 | 431611-22360-Online | 90SG-44 | |
| 42 | 1 | Bar, Guide30Rc43-3/8 | 430411-22360 | 430411-22360-Online | 30RC-43-3/8 | Sr/Nr 005939 and | before | |
| 42 | 1 | Bar,Guide 30 | X102-000020 | X102-000020-Online | Sr/Nr 005940 and | after Sus. by X102- | 000060 | |
| 43 | 1 | Scabbard, Guide Bar | 898513-22360 | 898513-22360-Online | Sus. by X490- | 000050 | |
| 43 | 1 | Scabbard,Chain | X490-000050 | X490-000050-Online | 12㺼 BAR | |
| 44 | 1 | Safety Glasses | 899580-68730 | 899580-68730-Online | Sus. by P021- | 002861 |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 44 | 1 | Goggle | X690-000030 | X690-000030-Online | Sus. by P021- | 002861 | |
| 44 | 1 | Goggles | P021-002861 | P021-002861-Online | Sus. by X690- | 000050 | |
| 45 | 1 | L-Wrench (3Mm) | 895612-03430 | 895612-03430-Online | Sr/Nr 36008259 | and before | |
| 45 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | Sr/Nr 36008260 | and after | |
| 46 | 1 | Wrench, W/S-Driver | 895410-39130 | 895410-39130-Online | Sus. by 895410- | 39131 | |
| 46 | 1 | Wrench, W/S-Driver | 895410-39131 | 895410-39131-Online | ||
| 47 | 1 | Spanner 8*10 | 895112-00330 | 895112-00330-Online | Disuse | |
| 48 | 1 | Bolt | 433016-39131 | 433016-39131-Online | ||
| 49 | 1 | Tensioner | 433014-03931 | 433014-03931-Online | ||
| 52 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | 5 | Sr/Nr 36006088 | and after | |
| 53 | 3 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | Sr/Nr 36006088 | and after |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 123110-43130 | 123110-43130-Online | |
| 2 | + | 1 | Cover, Primer Pump | 123142-09560 | 123142-09560-Online | |
| 3 | + | 1 | Pump, Primer | 123181-09560 | 123181-09560-Online | |
| 4 | + | 1 | Valve, Check | 123171-35630 | 123171-35630-Online | |
| 5 | + | 1 | Cover, Fuel Pump | 123124-43230 | 123124-43230-Online | |
| 6 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 7 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 8 | + | 1 | Gasket, Fuel Pump | 123125-09560 | 123125-09560-Online | |
| 9 | + | 1 | Diaphragm, Fuel Pump | 123112-09560 | 123112-09560-Online | |
| 10 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 11 | + | 1 | Shaft, Throttle | 123117-52130 | 123117-52130-Online | |
| 12 | + | 1 | Spring, The.Rtn | 123113-52130 | 123113-52130-Online | |
| 13 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 15 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 16 | + | 1 | Valve, Throttle | 123116-53130 | 123116-53130-Online | |
| 17 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 18 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 19 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 20 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 21 | + | 1 | Spring, Meter. Lever | 123122-39330 | 123122-39330-Online | |
| 22 | + | 2 | Needle, High Speed | 123120-52131 | 123120-52131-Online | |
| 26 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 30 | + | 1 | Gasket, M. Diaphragm | 123140-03930 | 123140-03930-Online | |
| 31 | + | 1 | Diaphragm, Metering | 123141-03930 | 123141-03930-Online | |
| 32 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 34 | + | 1 | Swivel | 123172-26030 | 123172-26030-Online | |
| 35 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 36 | + | 1 | Clip | 123173-07930 | 123173-07930-Online |
Source PDF: 20130718-376_PPT-2400(6digits)(36)_PPT-2400(6digits)(36)_EN.pdf. Generated 2026-06-25 14:38.
