Echo PPT-2100 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: PPT-2100-Online
Source Pages

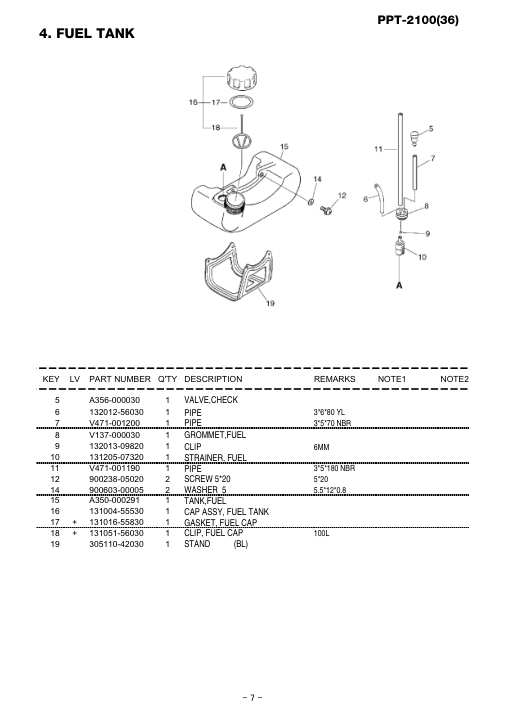

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.

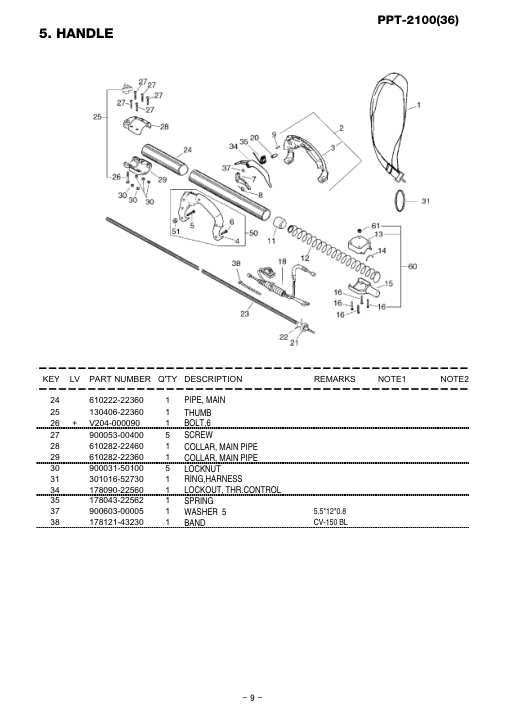

Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

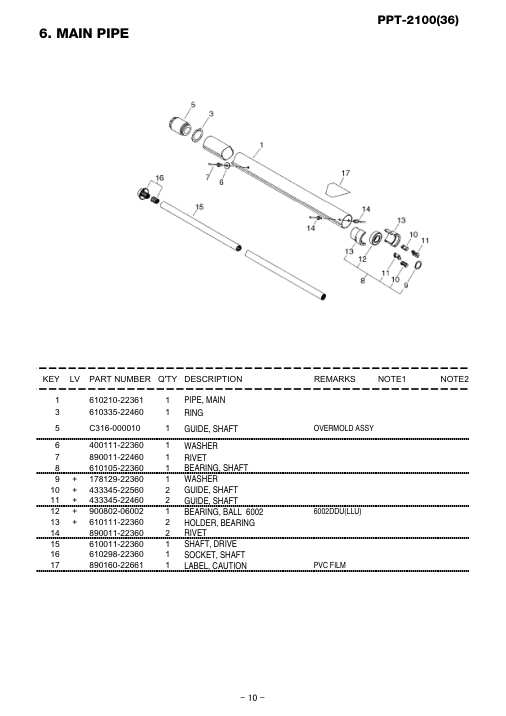

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

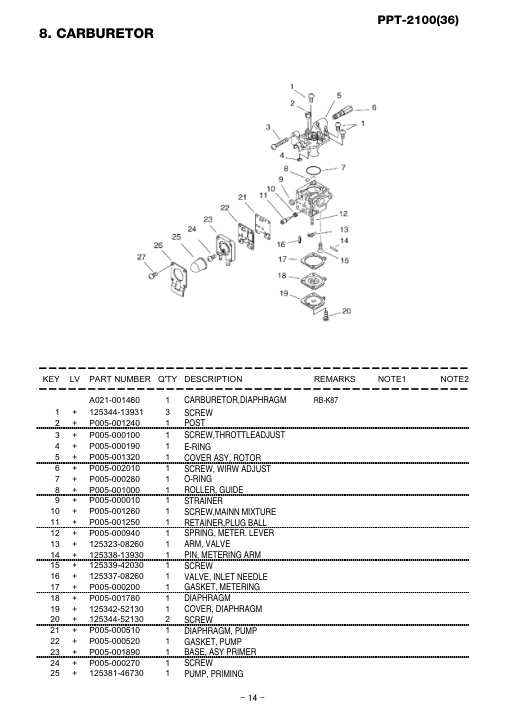

Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.

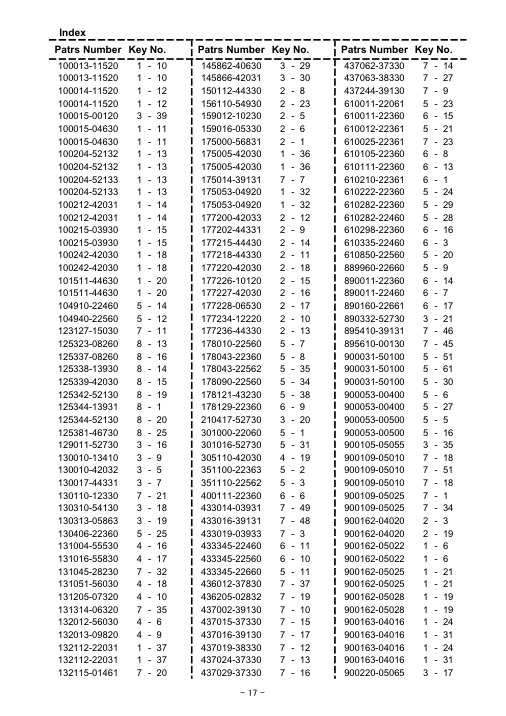

Page 18
Tap or click the page image to enlarge it.

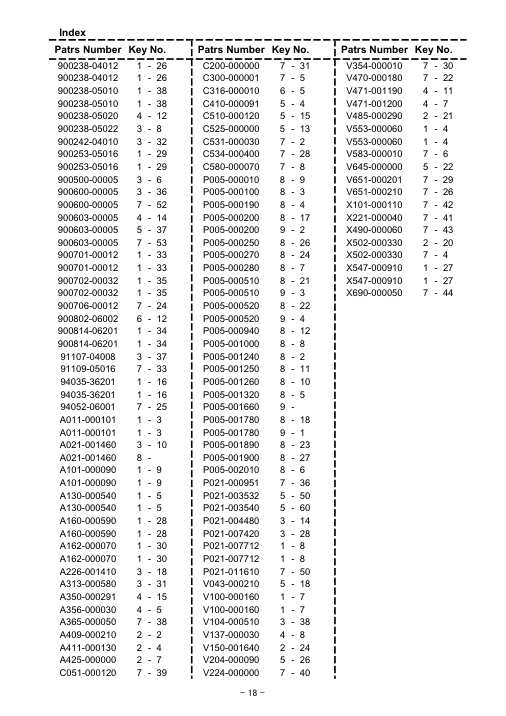

Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.

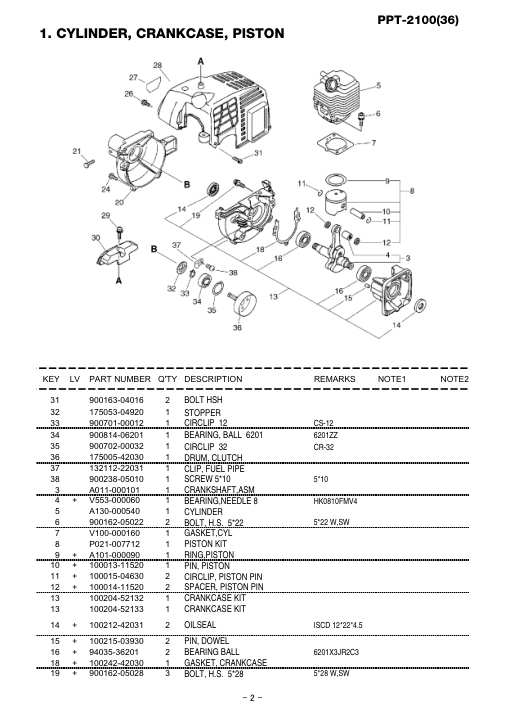

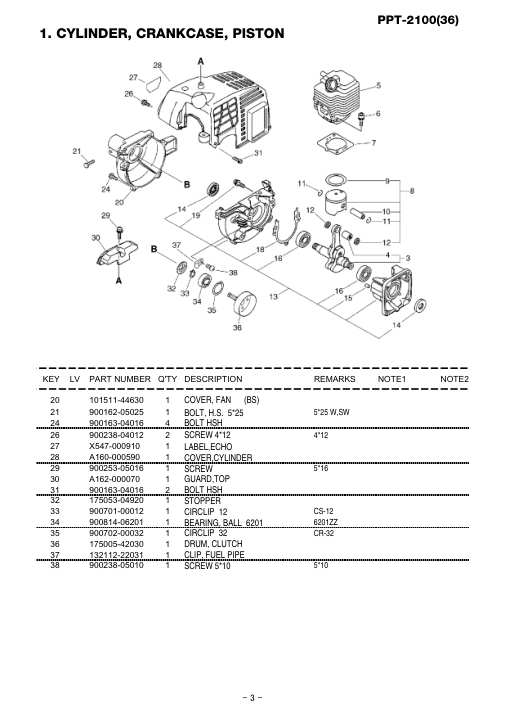

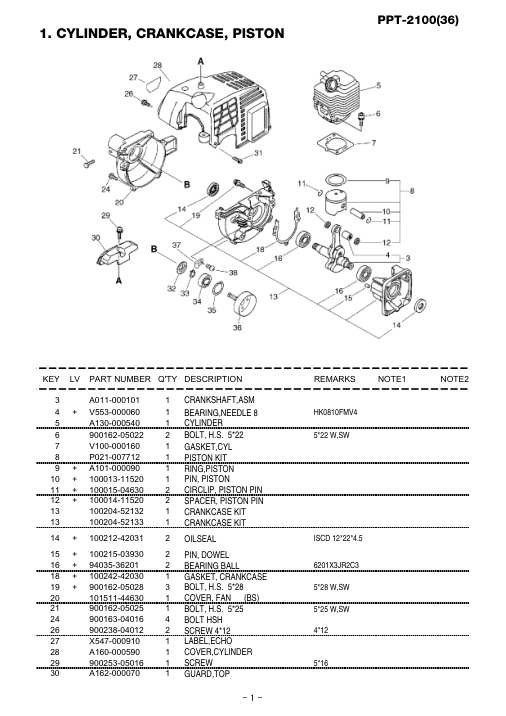

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online | ||
| 4 | + | 1 | Bearing,Needle 8 | V553-000060 | V553-000060-Online | HK0810FMV4 |
| 5 | 1 | Cylinder | A130-000540 | A130-000540-Online | ||
| 6 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 7 | 1 | Gasket,Cyl | V100-000160 | V100-000160-Online | ||
| 8 | 1 | Piston Kit | P021-007712 | P021-007712-Online | ||
| 9 | + | 1 | Ring,Piston | A101-000090 | A101-000090-Online | |
| 10 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 11 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 12 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 13 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 13 | 1 | Crankcase Kit | 100204-52133 | 100204-52133-Online | ||
| 14 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 15 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 16 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 18 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 19 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 20 | 1 | Cover, Fan (Bs) | 101511-44630 | 101511-44630-Online | ||
| 21 | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 24 | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 26 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 27 | 1 | Label,Echo | X547-000910 | X547-000910-Online | ||
| 28 | 1 | Cover,Cylinder | A160-000590 | A160-000590-Online | ||
| 29 | 1 | Screw | 900253-05016 | 900253-05016-Online | 5*16 | |
| 30 | 1 | Guard,Top | A162-000070 | A162-000070-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 32 | 1 | Stopper | 175053-04920 | 175053-04920-Online | ||
| 33 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 34 | 1 | Bearing, Ball 6201 | 900814-06201 | 900814-06201-Online | 6201ZZ | |
| 35 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 36 | 1 | Drum, Clutch | 175005-42030 | 175005-42030-Online | ||
| 37 | 1 | Clip, Fuel Pipe | 132112-22031 | 132112-22031-Online | ||
| 38 | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 | |
| 3 | 1 | Crankshaft,Asm | A011-000101 | A011-000101-Online | ||
| 4 | + | 1 | Bearing,Needle 8 | V553-000060 | V553-000060-Online | HK0810FMV4 |
| 5 | 1 | Cylinder | A130-000540 | A130-000540-Online | ||
| 6 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 7 | 1 | Gasket,Cyl | V100-000160 | V100-000160-Online | ||
| 8 | 1 | Piston Kit | P021-007712 | P021-007712-Online | ||
| 9 | + | 1 | Ring,Piston | A101-000090 | A101-000090-Online | |
| 10 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 11 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 12 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 13 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 13 | 1 | Crankcase Kit | 100204-52133 | 100204-52133-Online | ||
| 14 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 15 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 16 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 18 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 19 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Cover, Fan (Bs) | 101511-44630 | 101511-44630-Online | ||
| 21 | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 24 | 4 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 26 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 27 | 1 | Label,Echo | X547-000910 | X547-000910-Online | ||
| 28 | 1 | Cover,Cylinder | A160-000590 | A160-000590-Online | ||
| 29 | 1 | Screw | 900253-05016 | 900253-05016-Online | 5*16 | |
| 30 | 1 | Guard,Top | A162-000070 | A162-000070-Online | ||
| 31 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 32 | 1 | Stopper | 175053-04920 | 175053-04920-Online | ||
| 33 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 34 | 1 | Bearing, Ball 6201 | 900814-06201 | 900814-06201-Online | 6201ZZ | |
| 35 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 | |
| 36 | 1 | Drum, Clutch | 175005-42030 | 175005-42030-Online | ||
| 37 | 1 | Clip, Fuel Pipe | 132112-22031 | 132112-22031-Online | ||
| 38 | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 |

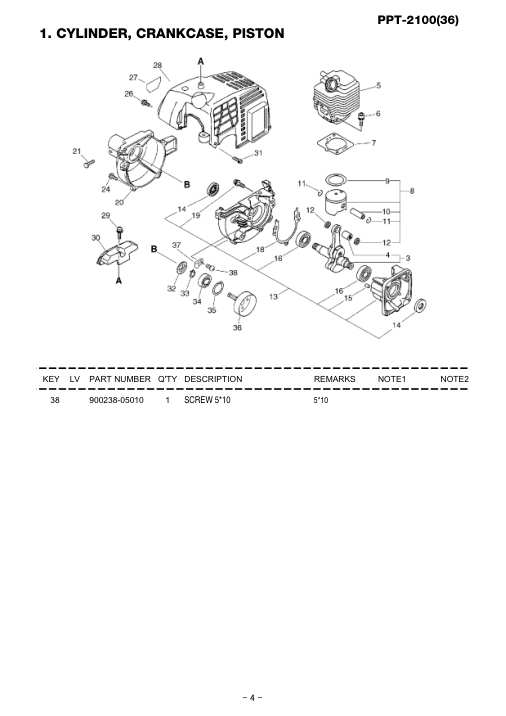

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 38 | 1 | Screw 5*10 | 900238-05010 | 900238-05010-Online | 5*10 |

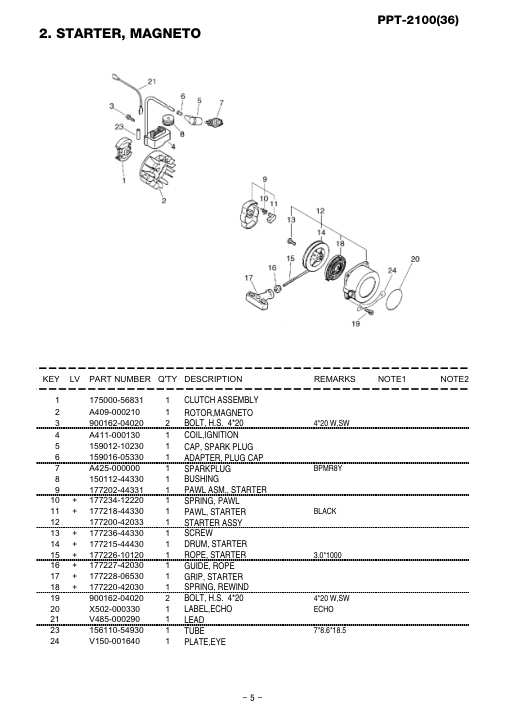

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Clutch Assembly | 175000-56831 | 175000-56831-Online | ||
| 2 | 1 | Rotor,Magneto | A409-000210 | A409-000210-Online | ||
| 3 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 4 | 1 | Coil,Ignition | A411-000130 | A411-000130-Online | ||
| 5 | 1 | Cap, Spark Plug | 159012-10230 | 159012-10230-Online | ||
| 6 | 1 | Adapter, Plug Cap | 159016-05330 | 159016-05330-Online | ||
| 7 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 8 | 1 | Bushing | 150112-44330 | 150112-44330-Online | ||
| 9 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 10 | + | 1 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |
| 11 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |
| 12 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 13 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 14 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 15 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 16 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 17 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 18 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 19 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 20 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 21 | 1 | Lead | V485-000290 | V485-000290-Online | ||
| 23 | 1 | Tube | 156110-54930 | 156110-54930-Online | 7*8.6*18.5 | |
| 24 | 1 | Plate,Eye | V150-001640 | V150-001640-Online |

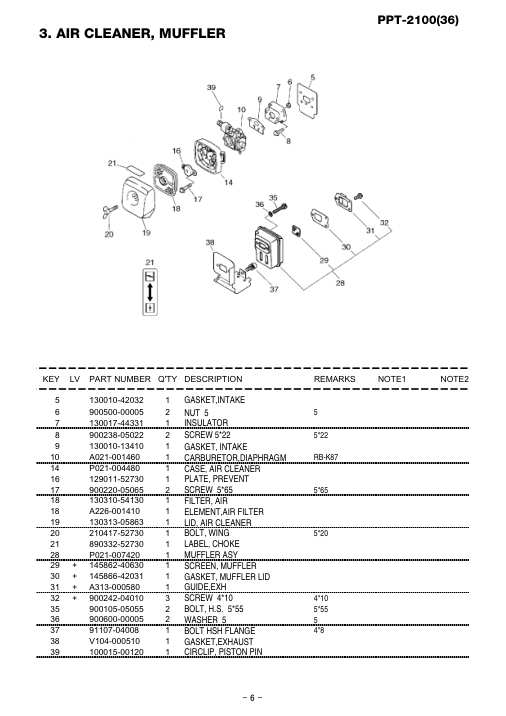

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 6 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 7 | 1 | Insulator | 130017-44331 | 130017-44331-Online | ||
| 8 | 2 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 | |
| 9 | 1 | Gasket, Intake | 130010-13410 | 130010-13410-Online | ||
| 10 | 1 | Carburetor,Diaphragm | A021-001460 | A021-001460-Online | RB-K87 | |
| 14 | 1 | Case, Air Cleaner | P021-004480 | P021-004480-Online | ||
| 16 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 17 | 2 | Screw 5*65 | 900220-05065 | 900220-05065-Online | 5*65 | |
| 18 | 1 | Filter, Air | 130310-54130 | 130310-54130-Online | ||
| 18 | 1 | Element,Air Filter | A226-001410 | A226-001410-Online | ||
| 19 | 1 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | ||
| 20 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 | |
| 21 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online | ||
| 28 | 1 | Muffler Asy | P021-007420 | P021-007420-Online | ||
| 29 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 30 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 31 | + | 1 | Guide,Exh | A313-000580 | A313-000580-Online | |
| 32 | + | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 35 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 36 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 37 | 1 | Bolt Hsh Flange | 91107-04008 | 91107-04008-Online | 4*8 | |
| 38 | 1 | Gasket,Exhaust | V104-000510 | V104-000510-Online | ||
| 39 | 1 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 6 | 1 | Pipe | 132012-56030 | 132012-56030-Online | 3*6*80 YL | |
| 7 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 8 | 1 | Grommet,Fuel | V137-000030 | V137-000030-Online | ||
| 9 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 10 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 11 | 1 | Pipe | V471-001190 | V471-001190-Online | 3*5*180 NBR | |
| 12 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 14 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 15 | 1 | Tank,Fuel | A350-000291 | A350-000291-Online | ||
| 16 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 17 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 18 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 19 | 1 | Stand (Bl) | 305110-42030 | 305110-42030-Online |

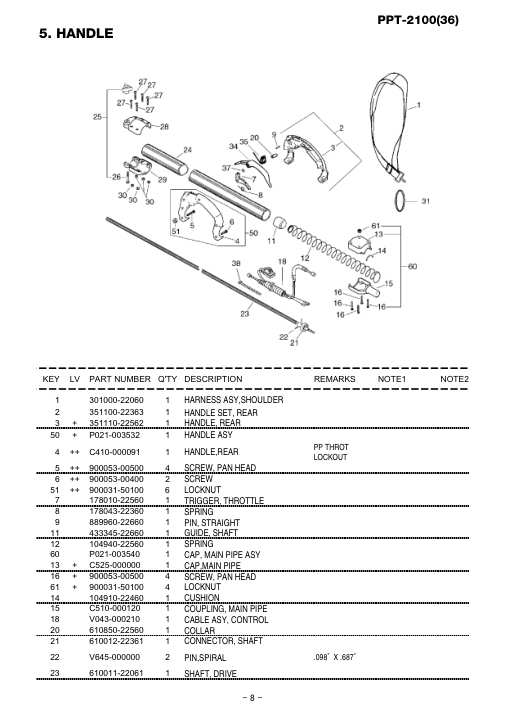

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Harness Asy,Shoulder | 301000-22060 | 301000-22060-Online | ||
| 2 | 1 | Handle Set, Rear | 351100-22363 | 351100-22363-Online | ||
| 3 | + | 1 | Handle, Rear | 351110-22562 | 351110-22562-Online | |
| 50 | + | 1 | Handle Asy | P021-003532 | P021-003532-Online | 4 | ++ |
| 4 | 1 | Handle,Rear | C410-000091 | C410-000091-Online | PP THROT | LOCKOUT | 5 | ++ | |
| 5 | 4 | Screw, Pan Head | 900053-00500 | 900053-00500-Online | 6 | ++ | |
| 6 | 2 | Screw | 900053-00400 | 900053-00400-Online | 51 | ++ | |
| 51 | 6 | Locknut | 900031-50100 | 900031-50100-Online | ||
| 7 | 1 | Trigger, Throttle | 178010-22560 | 178010-22560-Online | ||
| 8 | 1 | Spring | 178043-22360 | 178043-22360-Online | ||
| 9 | 1 | Pin, Straight | 889960-22660 | 889960-22660-Online | ||
| 11 | 1 | Guide, Shaft | 433345-22660 | 433345-22660-Online | ||
| 12 | 1 | Spring | 104940-22560 | 104940-22560-Online | ||
| 60 | 1 | Cap, Main Pipe Asy | P021-003540 | P021-003540-Online | ||
| 13 | + | 1 | Cap,Main Pipe | C525-000000 | C525-000000-Online | |
| 16 | + | 4 | Screw, Pan Head | 900053-00500 | 900053-00500-Online | |
| 61 | + | 4 | Locknut | 900031-50100 | 900031-50100-Online | |
| 14 | 1 | Cushion | 104910-22460 | 104910-22460-Online | ||
| 15 | 1 | Coupling, Main Pipe | C510-000120 | C510-000120-Online | ||
| 18 | 1 | Cable Asy, Control | V043-000210 | V043-000210-Online | ||
| 20 | 1 | Collar | 610850-22560 | 610850-22560-Online | ||
| 21 | 1 | Connector, Shaft | 610012-22361 | 610012-22361-Online | ||
| 22 | 2 | Pin,Spiral | V645-000000 | V645-000000-Online | .098㺼 X .687㺼 | |
| 23 | 1 | Shaft, Drive | 610011-22061 | 610011-22061-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Pipe, Main | 610222-22360 | 610222-22360-Online | ||
| 25 | 1 | Thumb | 130406-22360 | 130406-22360-Online | ||
| 26 | + | 1 | Bolt,6 | V204-000090 | V204-000090-Online | |
| 27 | 5 | Screw | 900053-00400 | 900053-00400-Online | ||
| 28 | 1 | Collar, Main Pipe | 610282-22460 | 610282-22460-Online | ||
| 29 | 1 | Collar, Main Pipe | 610282-22360 | 610282-22360-Online | ||
| 30 | 5 | Locknut | 900031-50100 | 900031-50100-Online | ||
| 31 | 1 | Ring,Harness | 301016-52730 | 301016-52730-Online | ||
| 34 | 1 | Lockout, Thr.Control | 178090-22560 | 178090-22560-Online | ||
| 35 | 1 | Spring | 178043-22562 | 178043-22562-Online | ||
| 37 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 38 | 1 | Band | 178121-43230 | 178121-43230-Online | CV-150 BL |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Main | 610210-22361 | 610210-22361-Online | ||
| 3 | 1 | Ring | 610335-22460 | 610335-22460-Online | ||
| 5 | 1 | Guide, Shaft | C316-000010 | C316-000010-Online | OVERMOLD ASSY | |
| 6 | 1 | Washer | 400111-22360 | 400111-22360-Online | ||
| 7 | 1 | Rivet | 890011-22460 | 890011-22460-Online | ||
| 8 | 1 | Bearing, Shaft | 610105-22360 | 610105-22360-Online | ||
| 9 | + | 1 | Washer | 178129-22360 | 178129-22360-Online | |
| 10 | + | 2 | Guide, Shaft | 433345-22560 | 433345-22560-Online | |
| 11 | + | 2 | Guide, Shaft | 433345-22460 | 433345-22460-Online | |
| 12 | + | 1 | Bearing, Ball 6002 | 900802-06002 | 900802-06002-Online | 6002DDU(LLU) |
| 13 | + | 2 | Holder, Bearing | 610111-22360 | 610111-22360-Online | |
| 14 | 2 | Rivet | 890011-22360 | 890011-22360-Online | ||
| 15 | 1 | Shaft, Drive | 610011-22360 | 610011-22360-Online | ||
| 16 | 1 | Socket, Shaft | 610298-22360 | 610298-22360-Online | ||
| 17 | 1 | Label, Caution | 890160-22661 | 890160-22661-Online | PVC FILM |

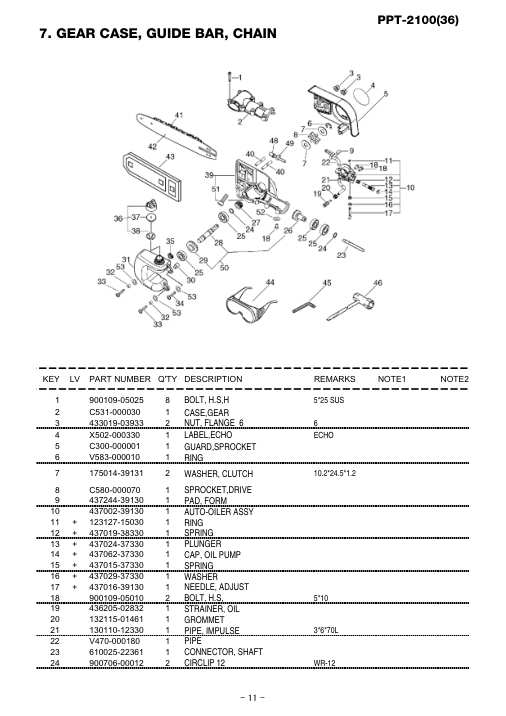

Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 8 | Bolt, H.S,H | 900109-05025 | 900109-05025-Online | 5*25 SUS | |
| 2 | 1 | Case,Gear | C531-000030 | C531-000030-Online | ||
| 3 | 2 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | ||
| 4 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 5 | 1 | Guard,Sprocket | C300-000001 | C300-000001-Online | ||
| 6 | 1 | Ring | V583-000010 | V583-000010-Online | ||
| 7 | 2 | Washer, Clutch | 175014-39131 | 175014-39131-Online | 10.2*24.5*1.2 | |
| 8 | 1 | Sprocket,Drive | C580-000070 | C580-000070-Online | ||
| 9 | 1 | Pad, Form | 437244-39130 | 437244-39130-Online | ||
| 10 | 1 | Auto-Oiler Assy | 437002-39130 | 437002-39130-Online | ||
| 11 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 12 | + | 1 | Spring | 437019-38330 | 437019-38330-Online | |
| 13 | + | 1 | Plunger | 437024-37330 | 437024-37330-Online | |
| 14 | + | 1 | Cap, Oil Pump | 437062-37330 | 437062-37330-Online | |
| 15 | + | 1 | Spring | 437015-37330 | 437015-37330-Online | |
| 16 | + | 1 | Washer | 437029-37330 | 437029-37330-Online | |
| 17 | + | 1 | Needle, Adjust | 437016-39130 | 437016-39130-Online | |
| 18 | 2 | Bolt, H.S, | 900109-05010 | 900109-05010-Online | 5*10 | |
| 19 | 1 | Strainer, Oil | 436205-02832 | 436205-02832-Online | ||
| 20 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 21 | 1 | Pipe, Impulse | 130110-12330 | 130110-12330-Online | 3*6*70L | |
| 22 | 1 | Pipe | V470-000180 | V470-000180-Online | ||
| 23 | 1 | Connector, Shaft | 610025-22361 | 610025-22361-Online | ||
| 24 | 2 | Circlip 12 | 900706-00012 | 900706-00012-Online | WR-12 |

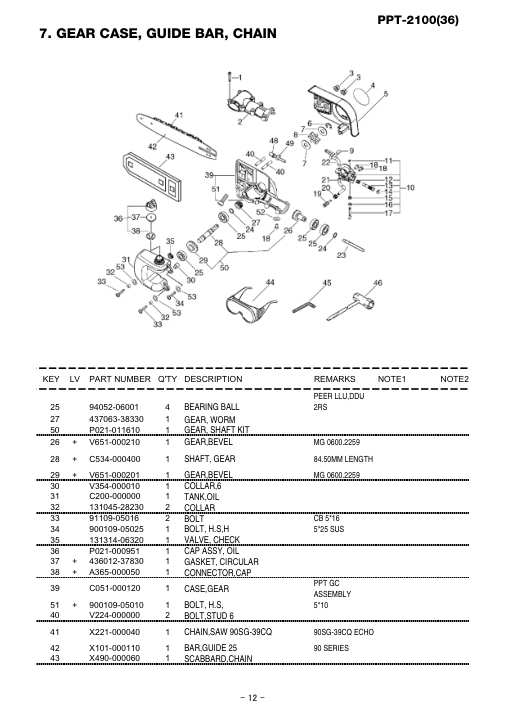

Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 4 | Bearing Ball | 94052-06001 | 94052-06001-Online | PEER LLU,DDU | 2RS | |
| 27 | 1 | Gear, Worm | 437063-38330 | 437063-38330-Online | ||
| 50 | 1 | Gear, Shaft Kit | P021-011610 | P021-011610-Online | ||
| 26 | + | 1 | Gear,Bevel | V651-000210 | V651-000210-Online | MG 0600.2259 |
| 28 | + | 1 | Shaft, Gear | C534-000400 | C534-000400-Online | 84.50MM LENGTH |
| 29 | + | 1 | Gear,Bevel | V651-000201 | V651-000201-Online | MG 0600.2259 |
| 30 | 1 | Collar,6 | V354-000010 | V354-000010-Online | ||
| 31 | 1 | Tank,Oil | C200-000000 | C200-000000-Online | ||
| 32 | 2 | Collar | 131045-28230 | 131045-28230-Online | ||
| 33 | 2 | Bolt | 91109-05016 | 91109-05016-Online | CB 5*16 | |
| 34 | 1 | Bolt, H.S,H | 900109-05025 | 900109-05025-Online | 5*25 SUS | |
| 35 | 1 | Valve, Check | 131314-06320 | 131314-06320-Online | ||
| 36 | 1 | Cap Assy, Oil | P021-000951 | P021-000951-Online | ||
| 37 | + | 1 | Gasket, Circular | 436012-37830 | 436012-37830-Online | |
| 38 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 39 | 1 | Case,Gear | C051-000120 | C051-000120-Online | PPT GC | ASSEMBLY | |
| 51 | + | 1 | Bolt, H.S, | 900109-05010 | 900109-05010-Online | 5*10 |
| 40 | 2 | Bolt,Stud 6 | V224-000000 | V224-000000-Online | ||
| 41 | 1 | Chain,Saw 90Sg-39Cq | X221-000040 | X221-000040-Online | 90SG-39CQ ECHO | |
| 42 | 1 | Bar,Guide 25 | X101-000110 | X101-000110-Online | 90 SERIES | |
| 43 | 1 | Scabbard,Chain | X490-000060 | X490-000060-Online |

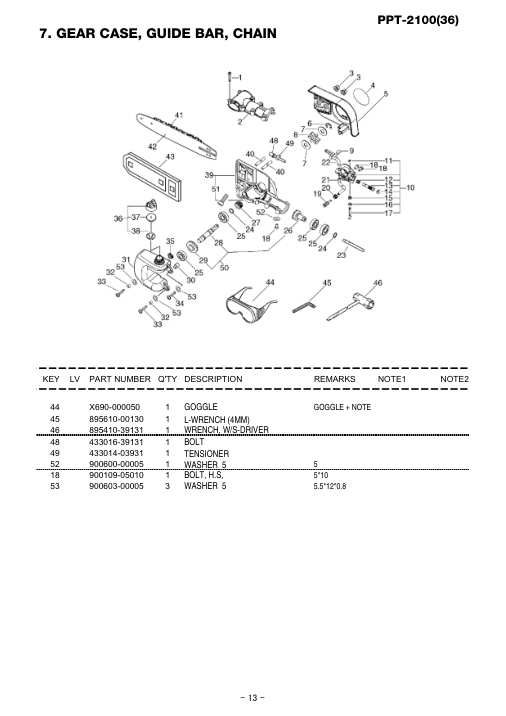

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 44 | 1 | Goggle | X690-000050 | X690-000050-Online | GOGGLE + NOTE | |
| 45 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 46 | 1 | Wrench, W/S-Driver | 895410-39131 | 895410-39131-Online | ||
| 48 | 1 | Bolt | 433016-39131 | 433016-39131-Online | ||
| 49 | 1 | Tensioner | 433014-03931 | 433014-03931-Online | ||
| 52 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 18 | 1 | Bolt, H.S, | 900109-05010 | 900109-05010-Online | 5*10 | |
| 53 | 3 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 3 | Screw | 125344-13931 | 125344-13931-Online | |
| 2 | + | 1 | Post | P005-001240 | P005-001240-Online | |
| 3 | + | 1 | Screw,Throttleadjust | P005-000100 | P005-000100-Online | |
| 4 | + | 1 | E-Ring | P005-000190 | P005-000190-Online | |
| 5 | + | 1 | Cover Asy, Rotor | P005-001320 | P005-001320-Online | |
| 6 | + | 1 | Screw, Wirw Adjust | P005-002010 | P005-002010-Online | |
| 7 | + | 1 | O-Ring | P005-000280 | P005-000280-Online | |
| 8 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online | |
| 9 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 10 | + | 1 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |
| 11 | + | 1 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |
| 12 | + | 1 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |
| 13 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 14 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 15 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 16 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 17 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 18 | + | 1 | Diaphragm | P005-001780 | P005-001780-Online | |
| 19 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 20 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 21 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 22 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | |
| 23 | + | 1 | Base, Asy Primer | P005-001890 | P005-001890-Online | |
| 24 | + | 1 | Screw | P005-000270 | P005-000270-Online | |
| 25 | + | 1 | Pump, Priming | 125381-46730 | 125381-46730-Online |

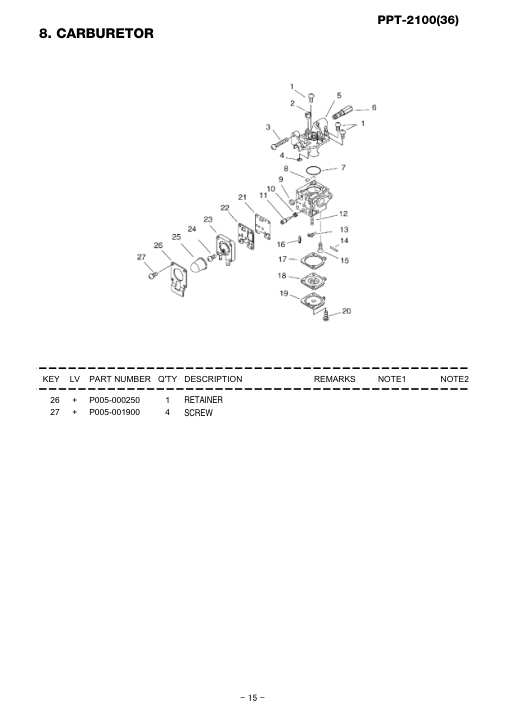

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Retainer | P005-000250 | P005-000250-Online | |
| 27 | + | 4 | Screw | P005-001900 | P005-001900-Online |

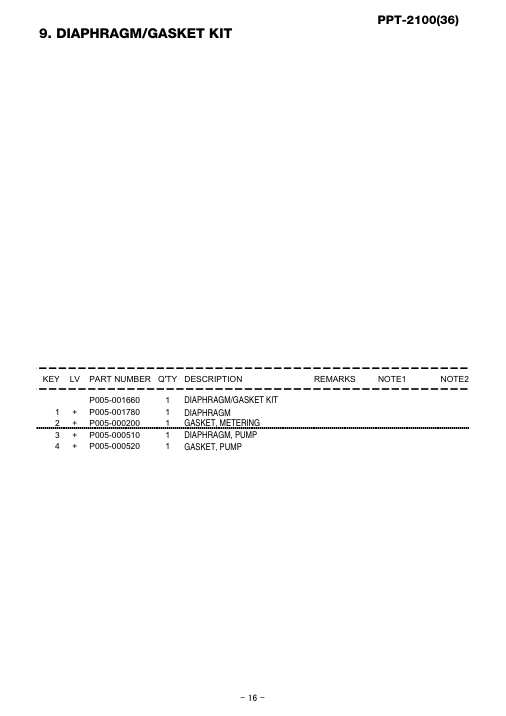

Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Diaphragm | P005-001780 | P005-001780-Online | |
| 2 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 3 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 4 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online |
Source PDF: 20130718-556_PPT-2100(36)_P014-000240-10Ib_EN.pdf. Generated 2026-06-25 14:38.
