Echo CS-6701(South IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: Ech-CS-6701(South@online
Source Pages

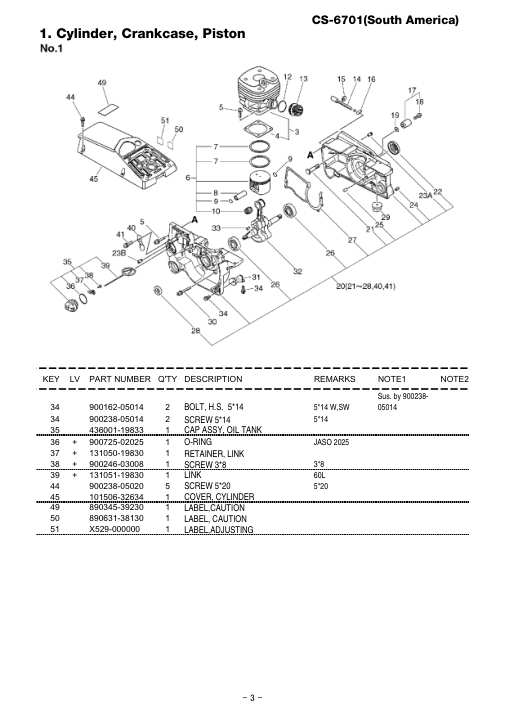

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

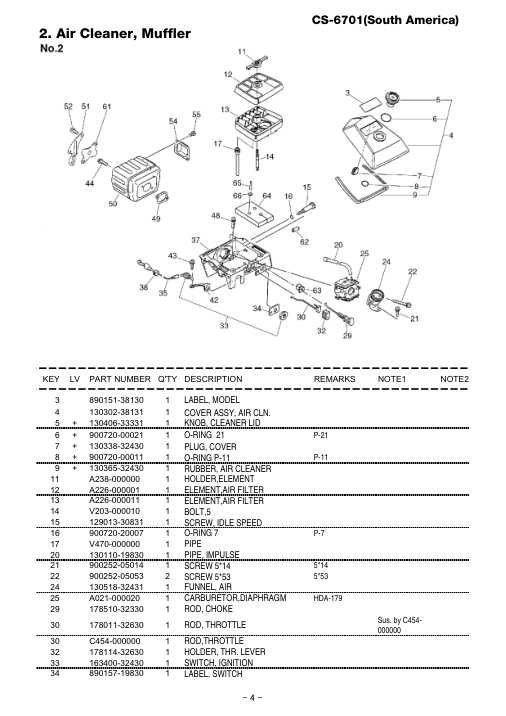

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

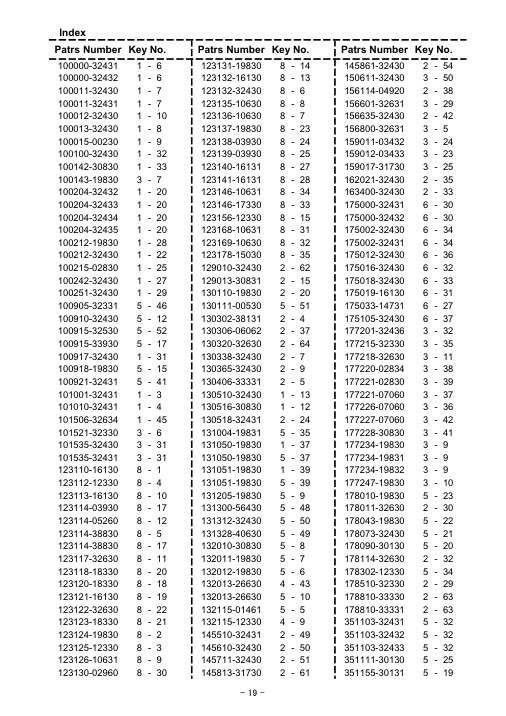

Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Cylinder Assy | 101001-32431 | 101001-32431-Online | ||
| 4 | + | 1 | Gasket, Cyl. Base | 101010-32431 | 101010-32431-Online | |
| 5 | 6 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 6 | 1 | Piston Kit | 100000-32431 | 100000-32431-Online | Sus. by 100000- | 32432 | |
| 6 | 1 | Piston Kit | 100000-32432 | 100000-32432-Online | ||
| 7 | + | 2 | Ring, Piston | 100011-32430 | 100011-32430-Online | Sus. by 100011- | 32431 |
| 7 | + | 2 | Ring, Piston | 100011-32431 | 100011-32431-Online | |
| 8 | + | 1 | Pin, Piston | 100013-32430 | 100013-32430-Online | 8*12*33.8 |
| 9 | + | 2 | Circlip, Piston Pin | 100015-00230 | 100015-00230-Online | |
| 10 | + | 1 | Bearing, Needle | 100012-32430 | 100012-32430-Online | |
| 12 | 1 | Band | 130516-30830 | 130516-30830-Online | ||
| 13 | 1 | Adapter, Intake | 130510-32430 | 130510-32430-Online | ||
| 14 | 1 | Screw, Tensioner | 433016-11031 | 433016-11031-Online | ||
| 15 | 1 | Clip | 433028-11030 | 433028-11030-Online | ||
| 16 | 1 | Tensioner | 433014-02830 | 433014-02830-Online | ||
| 17 | 1 | Catcher Kit, Chain | 433000-19831 | 433000-19831-Online | ||
| 18 | + | 1 | Screw 5*18 | 900220-05018 | 900220-05018-Online | 5*18 |
| 19 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 20 | 1 | Crankcase Kit | 100204-32432 | 100204-32432-Online | Sus. by 100204- | 32435 | |
| 20 | 1 | Crankcase Kit | 100204-32433 | 100204-32433-Online | Sus. by 100204- | 32435 | |
| 20 | 1 | Crankcase Kit | 100204-32434 | 100204-32434-Online | Sus. by 100204- | 32435 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Crankcase Kit | 100204-32435 | 100204-32435-Online | ||
| 21 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 22 | + | 1 | Oilseal (L) | 100212-32430 | 100212-32430-Online | 25Z-15*39.9*7 |
| 23A | + | 1 | Valve, Check | 436114-37830 | 436114-37830-Online | Can be used on the | 100204-32432 only |
| 23B | + | 1 | Valve, Check | 436114-37830 | 436114-37830-Online | Can be used on the | 100204-32433 only |
| 24 | + | 1 | Pin, Spring 5*10Sus | 900345-50010 | 900345-50010-Online | 5*10SUS |
| 25 | + | 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 26 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 27 | + | 1 | Gasket, Crankcase | 100242-32430 | 100242-32430-Online | |
| 28 | + | 1 | Oilseal | 100212-19830 | 100212-19830-Online | ISM 15*25*6 |
| 40 | + | 1 | Plate,Eye | V150-000570 | V150-000570-Online | Can be used on the | 100204-32433 only |
| 41 | + | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 | Can be used on the | 100204-32433 only |
| 29 | 1 | Cushion (A) | 100251-32430 | 100251-32430-Online | ||
| 30 | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | |
| 31 | 1 | Cushion (B) | 100917-32430 | 100917-32430-Online | ||
| 32 | 1 | Crankshaft Assy | 100100-32430 | 100100-32430-Online | ||
| 33 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Sus. by 900238- | 05014 | |
| 34 | 2 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | |
| 35 | 1 | Cap Assy, Oil Tank | 436001-19833 | 436001-19833-Online | ||
| 36 | + | 1 | O-Ring | 900725-02025 | 900725-02025-Online | JASO 2025 |
| 37 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 38 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 39 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 44 | 5 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 45 | 1 | Cover, Cylinder | 101506-32634 | 101506-32634-Online | ||
| 49 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 50 | 1 | Label, Caution | 890631-38130 | 890631-38130-Online | ||
| 51 | 1 | Label,Adjusting | X529-000000 | X529-000000-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Label, Model | 890151-38130 | 890151-38130-Online | ||
| 4 | 1 | Cover Assy, Air Cln. | 130302-38131 | 130302-38131-Online | ||
| 5 | + | 1 | Knob, Cleaner Lid | 130406-33331 | 130406-33331-Online | |
| 6 | + | 1 | O-Ring 21 | 900720-00021 | 900720-00021-Online | P-21 |
| 7 | + | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online | |
| 8 | + | 1 | O-Ring P-11 | 900720-00011 | 900720-00011-Online | P-11 |
| 9 | + | 1 | Rubber, Air Cleaner | 130365-32430 | 130365-32430-Online | |
| 11 | 1 | Holder,Element | A238-000000 | A238-000000-Online | ||
| 12 | 1 | Element,Air Filter | A226-000001 | A226-000001-Online | ||
| 13 | 1 | Element,Air Filter | A226-000011 | A226-000011-Online | ||
| 14 | 1 | Bolt,5 | V203-000010 | V203-000010-Online | ||
| 15 | 1 | Screw, Idle Speed | 129013-30831 | 129013-30831-Online | ||
| 16 | 1 | O-Ring 7 | 900720-20007 | 900720-20007-Online | P-7 | |
| 17 | 1 | Pipe | V470-000000 | V470-000000-Online | ||
| 20 | 1 | Pipe, Impulse | 130110-19830 | 130110-19830-Online | ||
| 21 | 1 | Screw 5*14 | 900252-05014 | 900252-05014-Online | 5*14 | |
| 22 | 2 | Screw 5*53 | 900252-05053 | 900252-05053-Online | 5*53 | |
| 24 | 1 | Funnel, Air | 130518-32431 | 130518-32431-Online | ||
| 25 | 1 | Carburetor,Diaphragm | A021-000020 | A021-000020-Online | HDA-179 | |
| 29 | 1 | Rod, Choke | 178510-32330 | 178510-32330-Online | ||
| 30 | 1 | Rod, Throttle | 178011-32630 | 178011-32630-Online | Sus. by C454- | 000000 | |
| 30 | 1 | Rod,Throttle | C454-000000 | C454-000000-Online | ||
| 32 | 1 | Holder, Thr. Lever | 178114-32630 | 178114-32630-Online | ||
| 33 | 1 | Switch, Ignition | 163400-32430 | 163400-32430-Online | ||
| 34 | 1 | Label, Switch | 890157-19830 | 890157-19830-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | 1 | Lead | 162021-32430 | 162021-32430-Online | ||
| 37 | 1 | Case, Carburetor Bs | 130306-06062 | 130306-06062-Online | ||
| 38 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 42 | 1 | Plate, Ground | 156635-32430 | 156635-32430-Online | ||
| 43 | 1 | Screw 4*10 | 900252-04010 | 900252-04010-Online | 4*10 | |
| 44 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 48 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 49 | 1 | Gasket, Muffler | 145510-32431 | 145510-32431-Online | ||
| 50 | 1 | Muffler | 145610-32430 | 145610-32430-Online | ||
| 51 | 1 | Bracket, Muffler | 145711-32430 | 145711-32430-Online | ||
| 52 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 54 | 1 | Lid, Muffler | 145861-32430 | 145861-32430-Online | ||
| 55 | 2 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW | |
| 61 | 1 | Cover, Muffler | 145813-31730 | 145813-31730-Online | ||
| 62 | 1 | Grommet | 129010-32430 | 129010-32430-Online | ||
| 63 | 1 | Grommet, Choke | 178810-33330 | 178810-33330-Online | Sus. by 178810- | 33331 | |
| 63 | 1 | Grommet, Choke | 178810-33331 | 178810-33331-Online | ||
| 64 | 1 | Seal, Carb. Case | 130320-32630 | 130320-32630-Online | ||
| 65 | 1 | Pin, Split 3*18 | 900300-30018 | 900300-30018-Online | 3*18 | |
| 66 | 1 | Washer | 433162-19930 | 433162-19930-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Rotor, Magneto | 156800-32631 | 156800-32631-Online | ||
| 6 | 1 | Fan, Cooling | 101521-32330 | 101521-32330-Online | ||
| 7 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 8 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 9 | 2 | Spring, Return | 177234-19830 | 177234-19830-Online | Sus. by 177234- | 19832 | |
| 9 | 2 | Spring, Return | 177234-19831 | 177234-19831-Online | Sus. by 177234- | 19832 | |
| 9 | 2 | Spring, Return | 177234-19832 | 177234-19832-Online | ||
| 10 | 2 | Spacer, Ratchet | 177247-19830 | 177247-19830-Online | ||
| 11 | 2 | Pawl, Starter | 177218-32630 | 177218-32630-Online | ||
| 12 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 13 | 4 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 14 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 18 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW | |
| 23 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 24 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 25 | 1 | Plug, Spark Rcj-6Y | 159017-31730 | 159017-31730-Online | RCJ-6Y | |
| 27 | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 | |
| 29 | 1 | Coil, Ignition | 156601-32631 | 156601-32631-Online | ||
| 31 | 1 | Cover, Fan | 101535-32430 | 101535-32430-Online | Sus. by 101535- | 32431 | |
| 31 | 1 | Cover, Fan | 101535-32431 | 101535-32431-Online | ||
| 32 | 1 | Starter Assy | 177201-32436 | 177201-32436-Online | ||
| 33 | + | 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | Sus. by 900162- | 05014 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 34 | + | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 |
| 35 | + | 1 | Drum, Starter | 177215-32330 | 177215-32330-Online | |
| 36 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 37 | + | 1 | Plate, Starter | 177221-07060 | 177221-07060-Online | |
| 38 | + | 1 | Spring, Rewind | 177220-02834 | 177220-02834-Online | |
| 39 | + | 1 | Plate, Starter | 177221-02830 | 177221-02830-Online | |
| 41 | + | 1 | Grip, Starter | 177228-30830 | 177228-30830-Online | |
| 42 | + | 1 | Guide, Rope | 177227-07060 | 177227-07060-Online | |
| 45 | 1 | Label, Echo | 890112-38130 | 890112-38130-Online | Sus. by 890118- | 17930 | |
| 45 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | ||
| 50 | 1 | Tube | 150611-32430 | 150611-32430-Online | 7*8.6*90 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Washer, Circular 12 | 437066-30130 | 437066-30130-Online | ||
| 5 | 1 | Worm (P) | 437063-19930 | 437063-19930-Online | ||
| 9 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 10 | 1 | Pipe, Oil (Inner) | 437210-32430 | 437210-32430-Online | Sus. by 437210- | 38330 | |
| 10 | 1 | Pipe, Oil | 437210-38330 | 437210-38330-Online | ||
| 11 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 12 | 1 | Knob | 437039-19831 | 437039-19831-Online | ||
| 13 | 1 | Spring | 437015-19830 | 437015-19830-Online | ||
| 14 | 1 | E-Ring 3 | 900700-00003 | 900700-00003-Online | CE-3 | |
| 15 | 2 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 | |
| 16 | 3 | Bolt, H.S. 4*12 | 900162-04012 | 900162-04012-Online | 4*12 W,SW | |
| 17 | 1 | Cover, Oil Pump | 437605-32430 | 437605-32430-Online | ||
| 18 | 1 | Pipe, Oil | 437210-15130 | 437210-15130-Online | 3*6*200L | |
| 19 | 1 | Oil Pump Assy | 437100-19831 | 437100-19831-Online | Sus. by 437100- | 19832 | |
| 19 | 1 | Oiler Asy, Manual | 437100-19832 | 437100-19832-Online | ||
| 20 | + | 1 | Body, Oil Pump | 437110-19831 | 437110-19831-Online | |
| 21 | + | 1 | Nipple | 437118-19830 | 437118-19830-Online | |
| 22 | + | 2 | O-Ring | 437122-03430 | 437122-03430-Online | |
| 23 | + | 2 | Valve, Ball | 437012-00330 | 437012-00330-Online | |
| 24 | + | 2 | Spring, Valve | 437013-00330 | 437013-00330-Online | Sus. by V450- | 000290 |
| 24 | + | 2 | Spring,Compression | V450-000290 | V450-000290-Online | |
| 25 | + | 1 | Piston, Manual | 437112-19831 | 437112-19831-Online | |
| 26 | + | 1 | O-Ring 7 | 900720-00007 | 900720-00007-Online | P-7 |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Spring | 437111-19830 | 437111-19830-Online | |
| 28 | + | 1 | Pin, Spring 2*16Sus | 900345-20016 | 900345-20016-Online | 2*16SUS |
| 29 | + | 1 | Adapter, Oil Pump | 437121-10130 | 437121-10130-Online | |
| 30 | 1 | Screw 5*20 | 900252-05020 | 900252-05020-Online | 5*20 | |
| 31 | 1 | Barcket, Oil Pump | 437413-19830 | 437413-19830-Online | ||
| 33 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 37 | 1 | Pipe, Outlet | 437216-32630 | 437216-32630-Online | ||
| 38 | 1 | Connector, Oil Pipe | 437232-32630 | 437232-32630-Online | ||
| 39 | 1 | Connector, Oil Pipe | 437212-32630 | 437212-32630-Online | ||
| 41 | 1 | Connector, Oil Pipe | 437212-32430 | 437212-32430-Online | ||
| 42 | 1 | Pipe | 437211-32430 | 437211-32430-Online | ||
| 43 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 49 | 1 | Auto-Oiler Assy | 437002-37530 | 437002-37530-Online | ||
| 50 | + | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 |
| 51 | + | 1 | Pin, Control | 437009-35430 | 437009-35430-Online | 52 | ++ |
| 52 | 1 | Clip | 437065-19830 | 437065-19830-Online | 53 | ++ | |
| 53 | 1 | O-Ring | 437030-19830 | 437030-19830-Online | ||
| 54 | + | 1 | Cap, Plunger | 437062-19830 | 437062-19830-Online | |
| 55 | + | 1 | Plunger Kit | 437006-32330 | 437006-32330-Online | 56 | ++ |
| 56 | 1 | V-Ring | 437020-32430 | 437020-32430-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 6 | 1 | Pipe 3*6*100 | 132012-19830 | 132012-19830-Online | 3*6*100 | Sus. by 437217- | 20760 | |
| 6 | 1 | Pipe 3* 6*100 | 437217-20760 | 437217-20760-Online | 3*6*100 NBR | |
| 7 | 1 | Connector, Fuel Pipe | 132011-19830 | 132011-19830-Online | ||
| 8 | 1 | Pipe | 132010-30830 | 132010-30830-Online | ||
| 9 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 10 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 12 | 3 | Cushion (A) | 100910-32430 | 100910-32430-Online | ||
| 14 | 4 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 15 | 3 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 17 | 1 | Screw | 100915-33930 | 100915-33930-Online | ||
| 18 | 1 | Screw 4*14 | 900238-04014 | 900238-04014-Online | 4*14 | |
| 19 | 1 | Cover, Handle | 351155-30131 | 351155-30131-Online | Can be used on the | 351103-32431 only | |
| 20 | 1 | Lockout, T. Control | 178090-30130 | 178090-30130-Online | ||
| 21 | 1 | Cushion, Throttle | 178073-32430 | 178073-32430-Online | ||
| 22 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 23 | 1 | Control, Throttle | 178010-19830 | 178010-19830-Online | ||
| 24 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 25 | 1 | Grip, Handle | 351111-30130 | 351111-30130-Online | ||
| 32 | 1 | Handle,W/Fuel Tankbs | 351103-32431 | 351103-32431-Online | Sus. by 351103- | 32433 | |
| 32 | 1 | Handle, Rear | 351103-32432 | 351103-32432-Online | Sus. by 351103- | 32433 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | 1 | Handle, Rear | 351103-32433 | 351103-32433-Online | ||
| 19 | + | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | Can be used on the | 351103-32432 only |
| 48 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 49 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 50 | + | 1 | Pipe, Vent | 131312-32430 | 131312-32430-Online | |
| 51 | + | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 |
| 34 | 1 | Latch, Throttle | 178302-12330 | 178302-12330-Online | ||
| 35 | 1 | Cap Assy, Fuel Tank | 131004-19831 | 131004-19831-Online | ||
| 36 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 37 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 38 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 39 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 41 | 1 | Cushion(C) | 100921-32431 | 100921-32431-Online | ||
| 42 | 1 | Bracket, F. Hndl. | 351614-38130 | 351614-38130-Online | ||
| 43 | 1 | Handle, Front | 351606-38130 | 351606-38130-Online | ||
| 44 | 1 | Supporter,F.Hndl Kit | 351603-38130 | 351603-38130-Online | ||
| 46 | + | 1 | Cushion (R) | 100905-32331 | 100905-32331-Online | |
| 45 | 6 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 47 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 52 | 3 | Bolt | 100915-32530 | 100915-32530-Online |

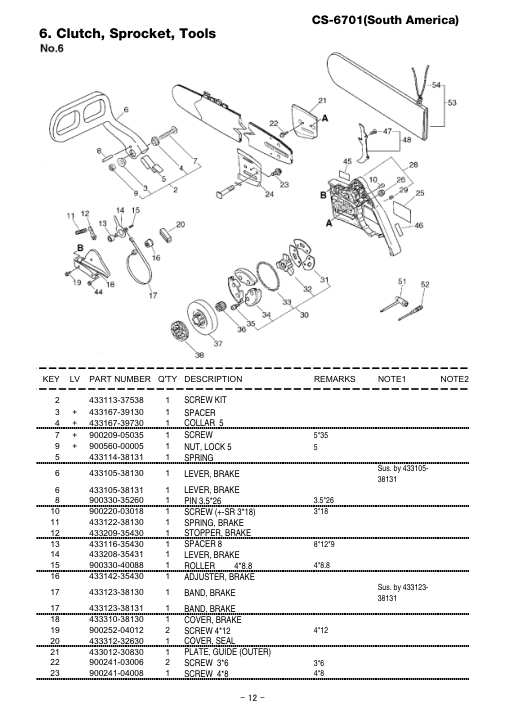

Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Screw Kit | 433113-37538 | 433113-37538-Online | ||
| 3 | + | 1 | Spacer | 433167-39130 | 433167-39130-Online | |
| 4 | + | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | |
| 7 | + | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 |
| 9 | + | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 5 | 1 | Spring | 433114-38131 | 433114-38131-Online | ||
| 6 | 1 | Lever, Brake | 433105-38130 | 433105-38130-Online | Sus. by 433105- | 38131 | |
| 6 | 1 | Lever, Brake | 433105-38131 | 433105-38131-Online | ||
| 8 | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 | |
| 10 | 1 | Screw (+-Sr 3*18) | 900220-03018 | 900220-03018-Online | 3*18 | |
| 11 | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | ||
| 12 | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | ||
| 13 | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 | |
| 14 | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | ||
| 15 | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 | |
| 16 | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | ||
| 17 | 1 | Band, Brake | 433123-38130 | 433123-38130-Online | Sus. by 433123- | 38131 | |
| 17 | 1 | Band, Brake | 433123-38131 | 433123-38131-Online | ||
| 18 | 1 | Cover, Brake | 433310-38130 | 433310-38130-Online | ||
| 19 | 2 | Screw 4*12 | 900252-04012 | 900252-04012-Online | 4*12 | |
| 20 | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | ||
| 21 | 1 | Plate, Guide (Outer) | 433012-30830 | 433012-30830-Online | ||
| 22 | 2 | Screw 3*6 | 900241-03006 | 900241-03006-Online | 3*6 | |
| 23 | 1 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 |

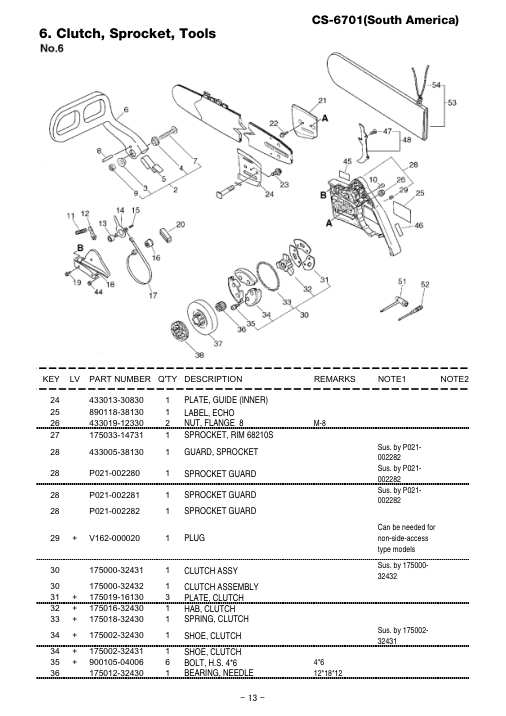

Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Plate, Guide (Inner) | 433013-30830 | 433013-30830-Online | ||
| 25 | 1 | Label, Echo | 890118-38130 | 890118-38130-Online | ||
| 26 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 27 | 1 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | ||
| 28 | 1 | Guard, Sprocket | 433005-38130 | 433005-38130-Online | Sus. by P021- | 002282 | |
| 28 | 1 | Sprocket Guard | P021-002280 | P021-002280-Online | Sus. by P021- | 002282 | |
| 28 | 1 | Sprocket Guard | P021-002281 | P021-002281-Online | Sus. by P021- | 002282 | |
| 28 | 1 | Sprocket Guard | P021-002282 | P021-002282-Online | ||
| 29 | + | 1 | Plug | V162-000020 | V162-000020-Online | Can be needed for | non-side-access | type models |
| 30 | 1 | Clutch Assy | 175000-32431 | 175000-32431-Online | Sus. by 175000- | 32432 | |
| 30 | 1 | Clutch Assembly | 175000-32432 | 175000-32432-Online | ||
| 31 | + | 3 | Plate, Clutch | 175019-16130 | 175019-16130-Online | |
| 32 | + | 1 | Hab, Clutch | 175016-32430 | 175016-32430-Online | |
| 33 | + | 1 | Spring, Clutch | 175018-32430 | 175018-32430-Online | |
| 34 | + | 1 | Shoe, Clutch | 175002-32430 | 175002-32430-Online | Sus. by 175002- | 32431 |
| 34 | + | 1 | Shoe, Clutch | 175002-32431 | 175002-32431-Online | |
| 35 | + | 6 | Bolt, H.S. 4*6 | 900105-04006 | 900105-04006-Online | 4*6 |
| 36 | 1 | Bearing, Needle | 175012-32430 | 175012-32430-Online | 12*18*12 |

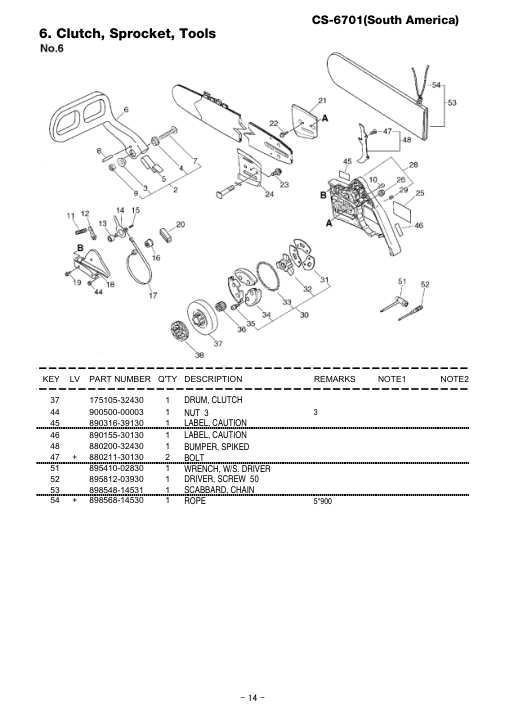

Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 37 | 1 | Drum, Clutch | 175105-32430 | 175105-32430-Online | ||
| 44 | 1 | Nut 3 | 900500-00003 | 900500-00003-Online | ||
| 45 | 1 | Label, Caution | 890316-39130 | 890316-39130-Online | ||
| 46 | 1 | Label, Caution | 890155-30130 | 890155-30130-Online | ||
| 48 | 1 | Bumper, Spiked | 880200-32430 | 880200-32430-Online | ||
| 47 | + | 2 | Bolt | 880211-30130 | 880211-30130-Online | |
| 51 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 52 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 53 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 54 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |

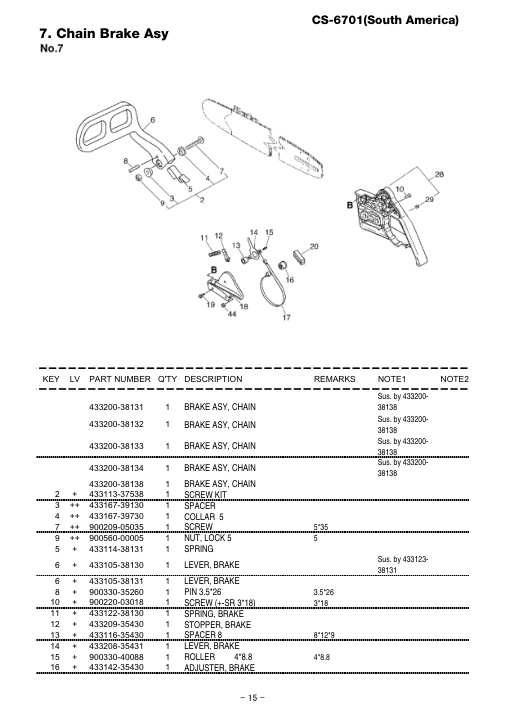

Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screw Kit | 433113-37538 | 433113-37538-Online | 3 | ++ |
| 3 | 1 | Spacer | 433167-39130 | 433167-39130-Online | 4 | ++ | |
| 4 | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | 7 | ++ | |
| 7 | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 | 9 | ++ | |
| 9 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 5 | + | 1 | Spring | 433114-38131 | 433114-38131-Online | |
| 6 | + | 1 | Lever, Brake | 433105-38130 | 433105-38130-Online | Sus. by 433123- | 38131 |
| 6 | + | 1 | Lever, Brake | 433105-38131 | 433105-38131-Online | |
| 8 | + | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 |
| 10 | + | 1 | Screw (+-Sr 3*18) | 900220-03018 | 900220-03018-Online | 3*18 |
| 11 | + | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | |
| 12 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 13 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 14 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 15 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 16 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online |

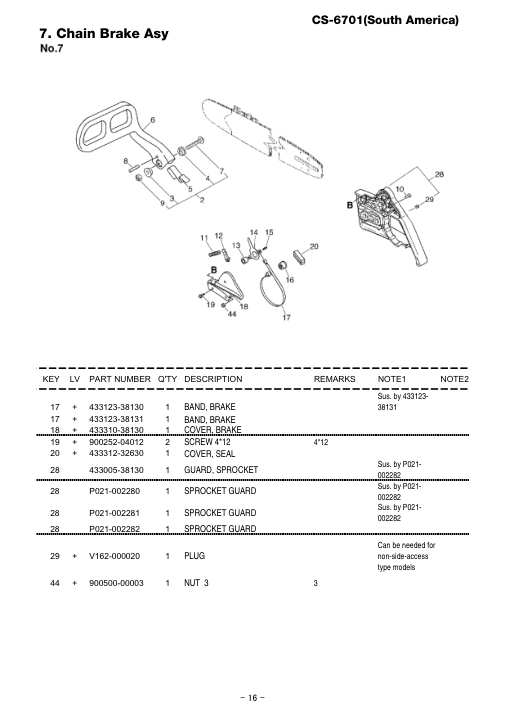

Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 17 | + | 1 | Band, Brake | 433123-38130 | 433123-38130-Online | Sus. by 433123- | 38131 |
| 17 | + | 1 | Band, Brake | 433123-38131 | 433123-38131-Online | |
| 18 | + | 1 | Cover, Brake | 433310-38130 | 433310-38130-Online | |
| 19 | + | 2 | Screw 4*12 | 900252-04012 | 900252-04012-Online | 4*12 |
| 20 | + | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | |
| 28 | 1 | Guard, Sprocket | 433005-38130 | 433005-38130-Online | Sus. by P021- | 002282 | |
| 28 | 1 | Sprocket Guard | P021-002280 | P021-002280-Online | Sus. by P021- | 002282 | |
| 28 | 1 | Sprocket Guard | P021-002281 | P021-002281-Online | Sus. by P021- | 002282 | |
| 28 | 1 | Sprocket Guard | P021-002282 | P021-002282-Online | ||
| 29 | + | 1 | Plug | V162-000020 | V162-000020-Online | Can be needed for | non-side-access | type models |
| 44 | + | 1 | Nut 3 | 900500-00003 | 900500-00003-Online |

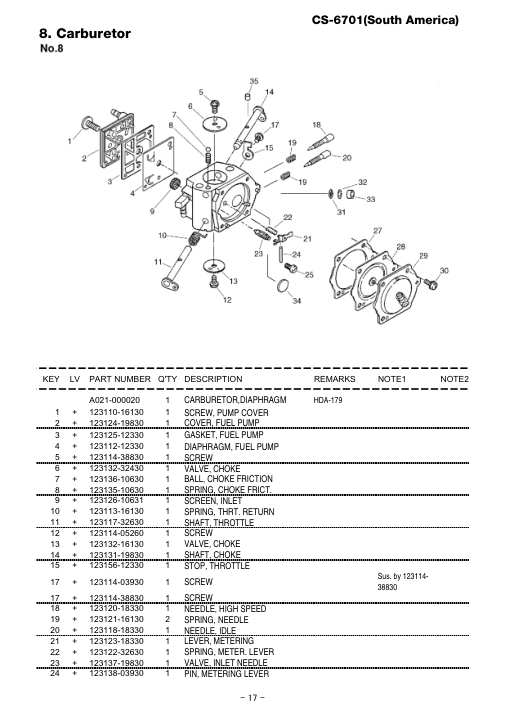

Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |
| 2 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 3 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 4 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 5 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 6 | + | 1 | Valve, Choke | 123132-32430 | 123132-32430-Online | |
| 7 | + | 1 | Ball, Choke Friction | 123136-10630 | 123136-10630-Online | |
| 8 | + | 1 | Spring, Choke Frict. | 123135-10630 | 123135-10630-Online | |
| 9 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 10 | + | 1 | Spring, Thrt. Return | 123113-16130 | 123113-16130-Online | |
| 11 | + | 1 | Shaft, Throttle | 123117-32630 | 123117-32630-Online | |
| 12 | + | 1 | Screw | 123114-05260 | 123114-05260-Online | |
| 13 | + | 1 | Valve, Choke | 123132-16130 | 123132-16130-Online | |
| 14 | + | 1 | Shaft, Choke | 123131-19830 | 123131-19830-Online | |
| 15 | + | 1 | Stop, Throttle | 123156-12330 | 123156-12330-Online | |
| 17 | + | 1 | Screw | 123114-03930 | 123114-03930-Online | Sus. by 123114- | 38830 |
| 17 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 18 | + | 1 | Needle, High Speed | 123120-18330 | 123120-18330-Online | |
| 19 | + | 2 | Spring, Needle | 123121-16130 | 123121-16130-Online | |
| 20 | + | 1 | Needle, Idle | 123118-18330 | 123118-18330-Online | |
| 21 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online | |
| 22 | + | 1 | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | |
| 23 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 24 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 27 | + | 1 | Gasket, M. Diaphragm | 123140-16131 | 123140-16131-Online | |
| 28 | + | 1 | Diaphragm, Metering | 123141-16131 | 123141-16131-Online | |
| 29 | + | 1 | Cover, M. Diaphragm | P003-000000 | P003-000000-Online | |
| 30 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 31 | + | 1 | Screen | 123168-10631 | 123168-10631-Online | |
| 32 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 33 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 34 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 35 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online |
Source PDF: 20130718-445_CS-6701(South_America)_CS-6701(South_America)_EN.pdf. Generated 2026-06-25 14:38.
