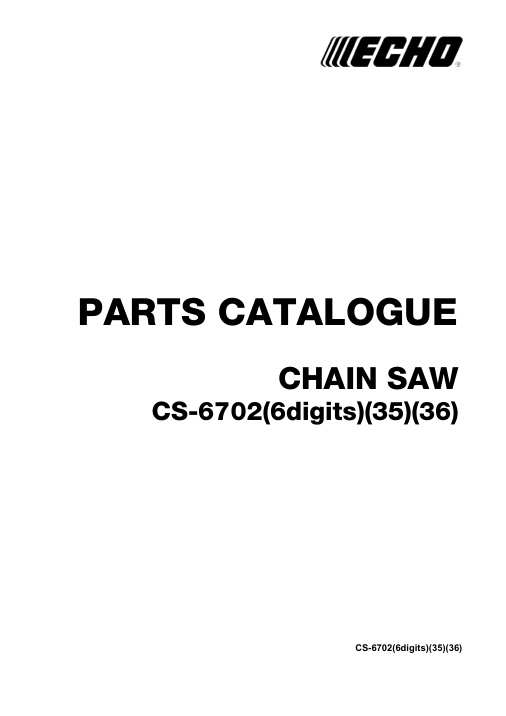

Echo CS-6702 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-6702-Online
Source Pages

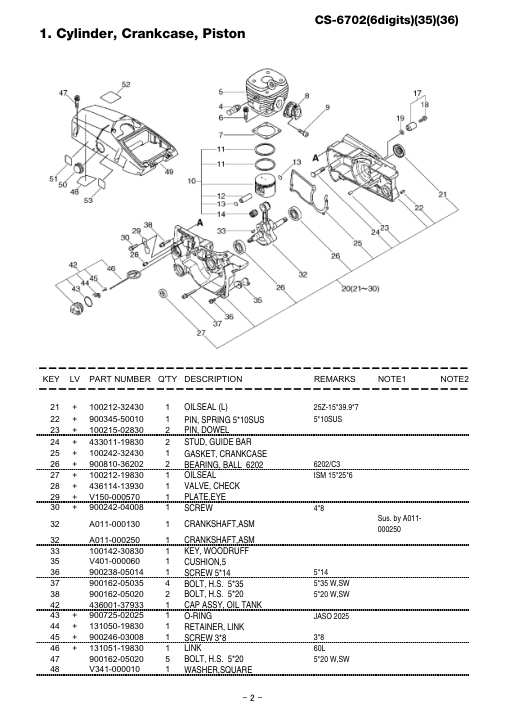

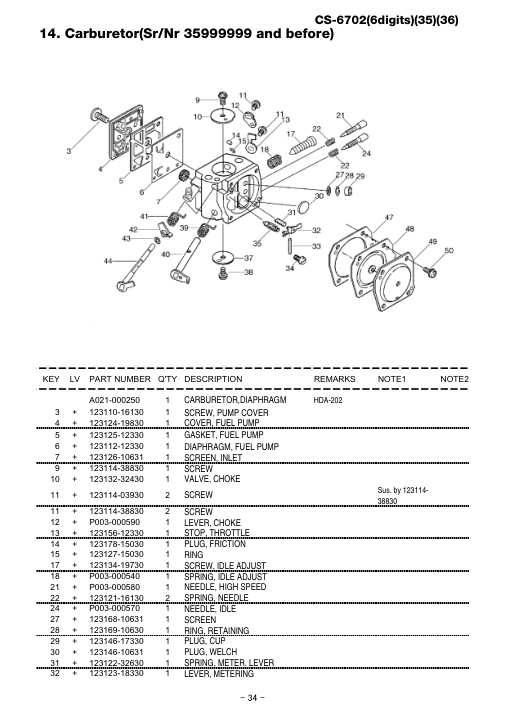

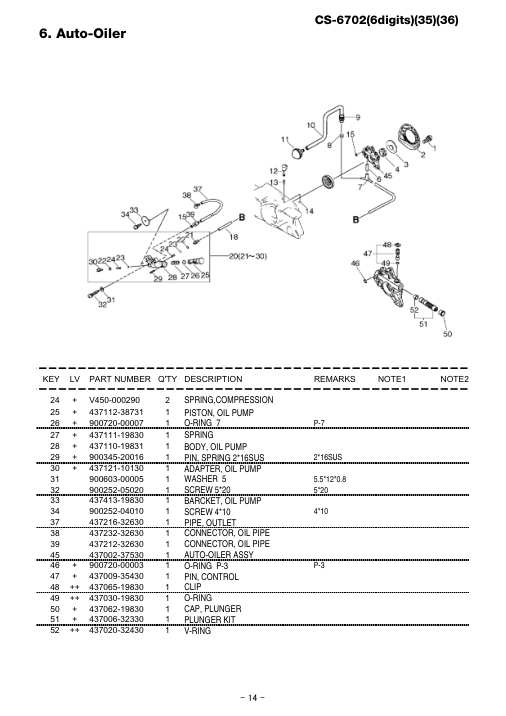

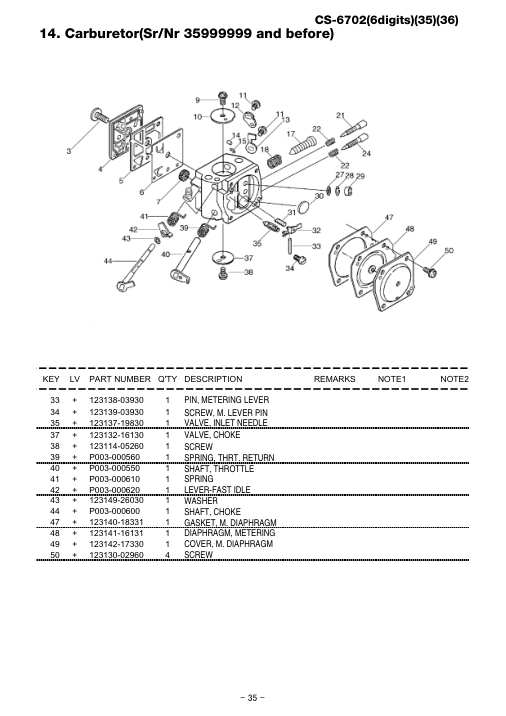

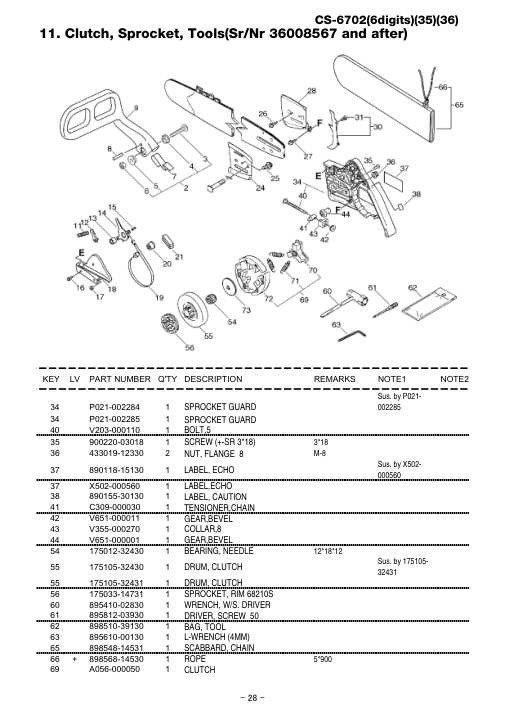

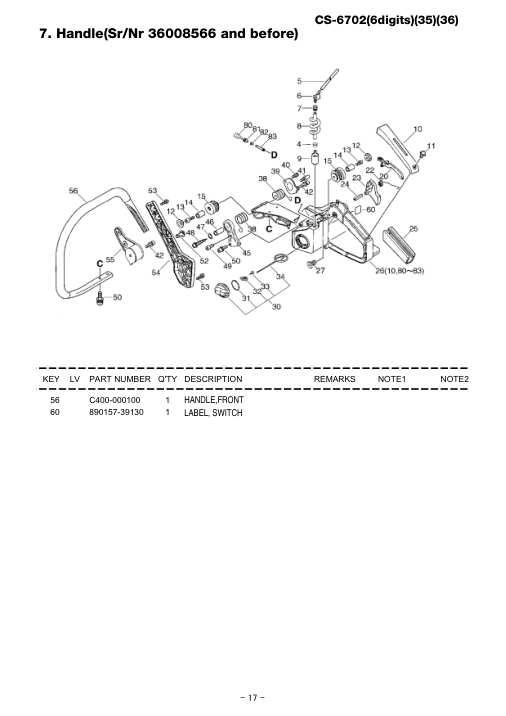

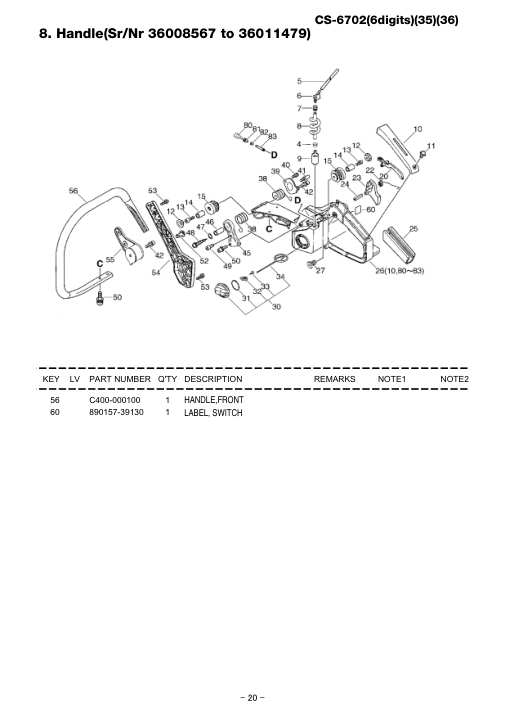

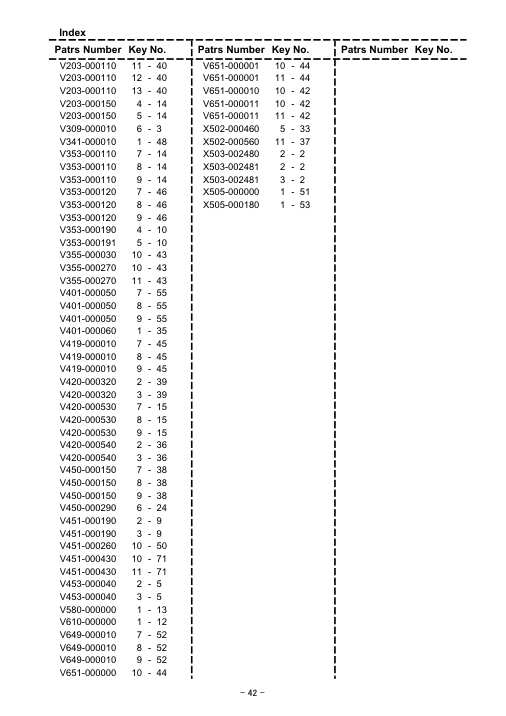

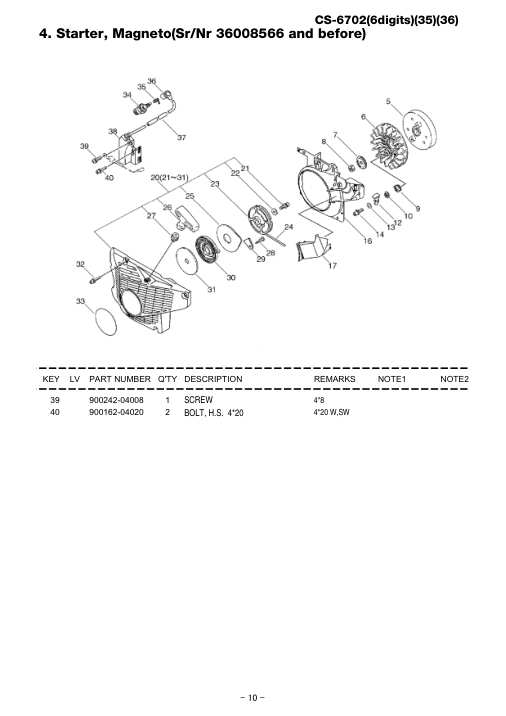

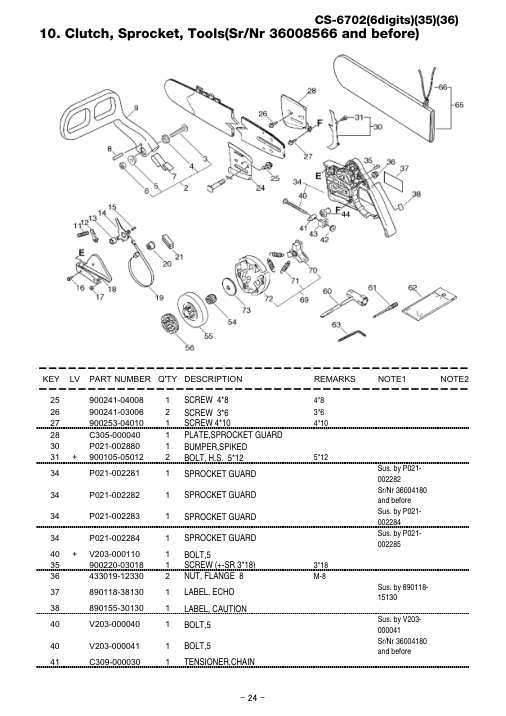

Page 1

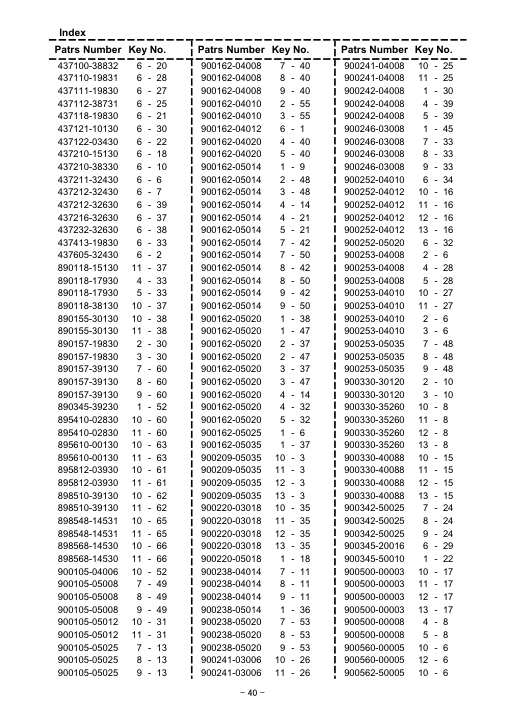

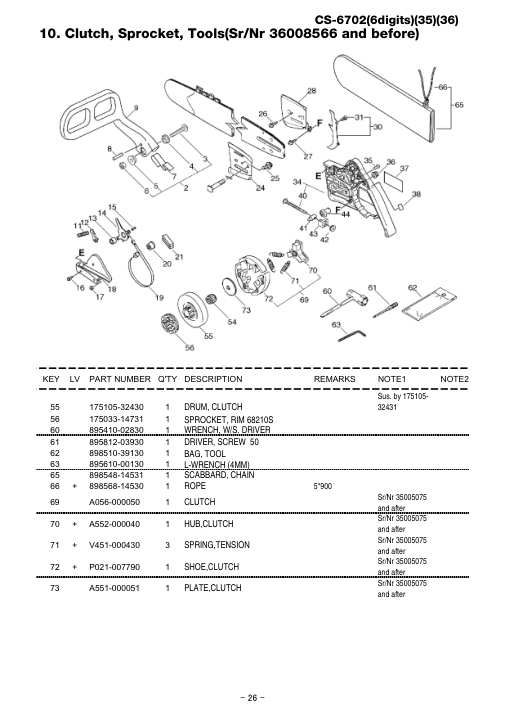

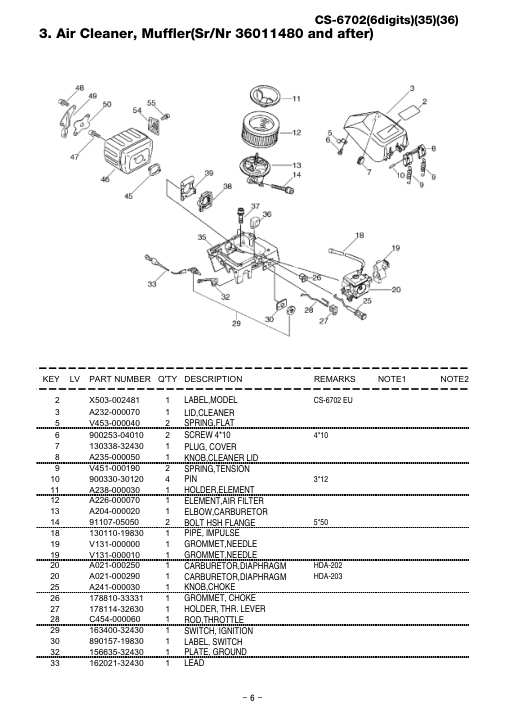

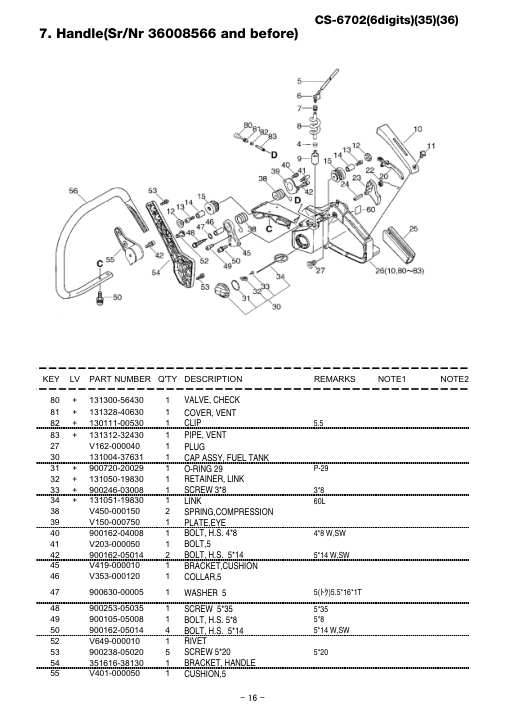

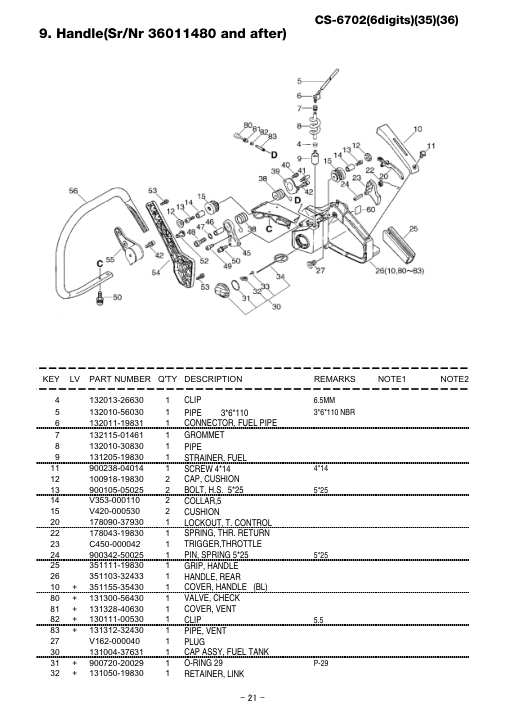

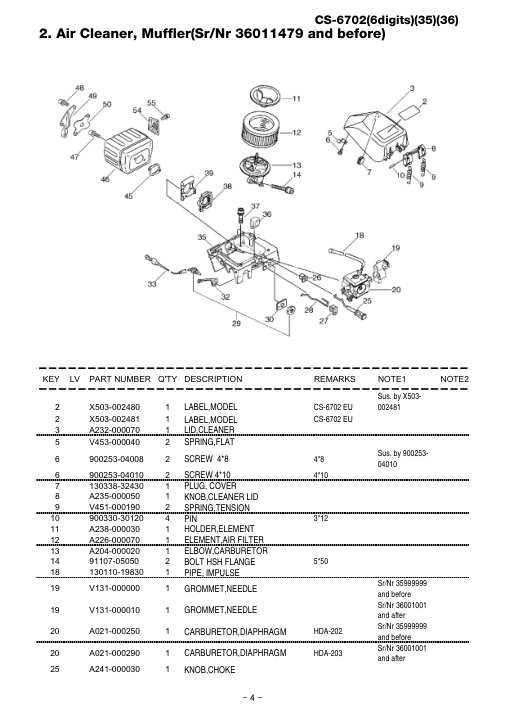

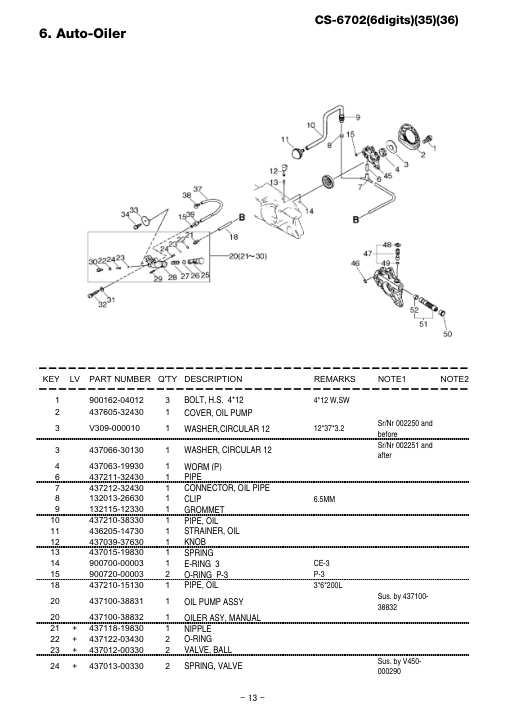

Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.

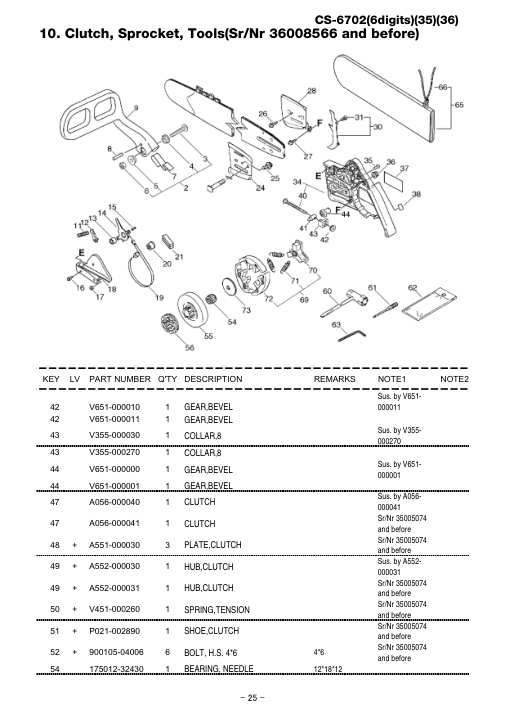

Page 3
Tap or click the page image to enlarge it.

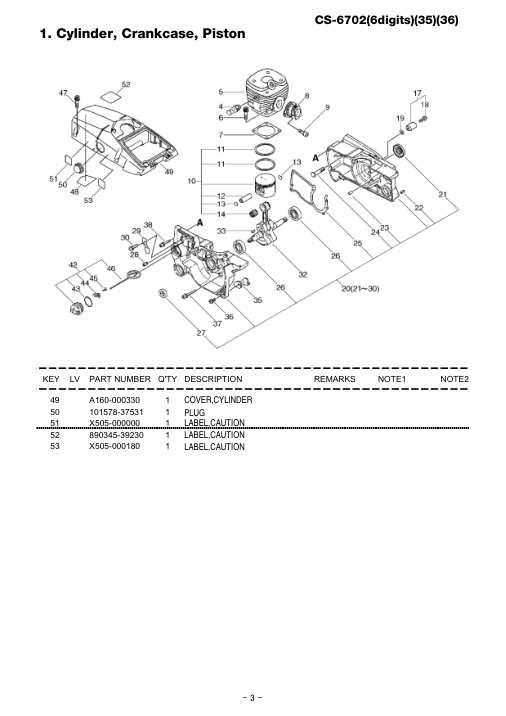

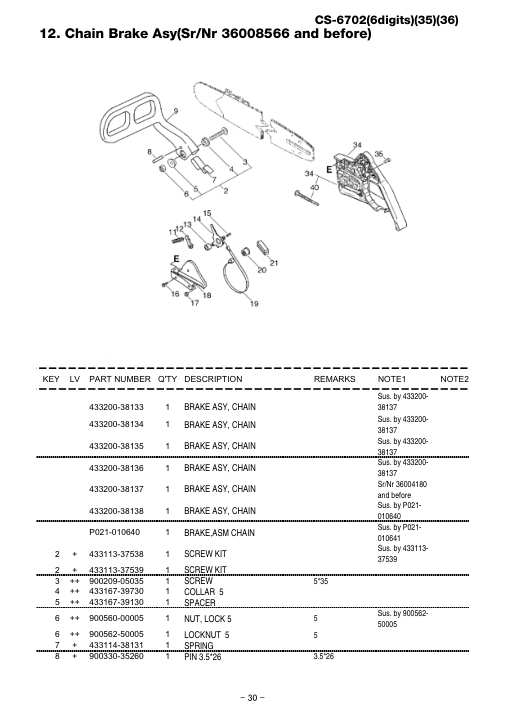

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

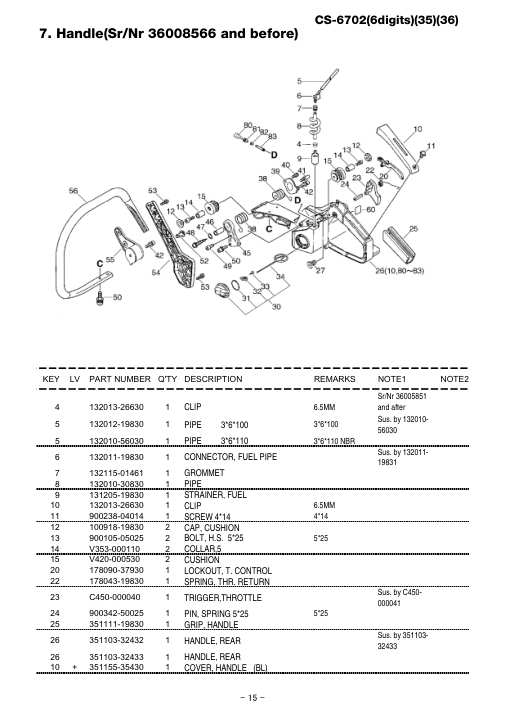

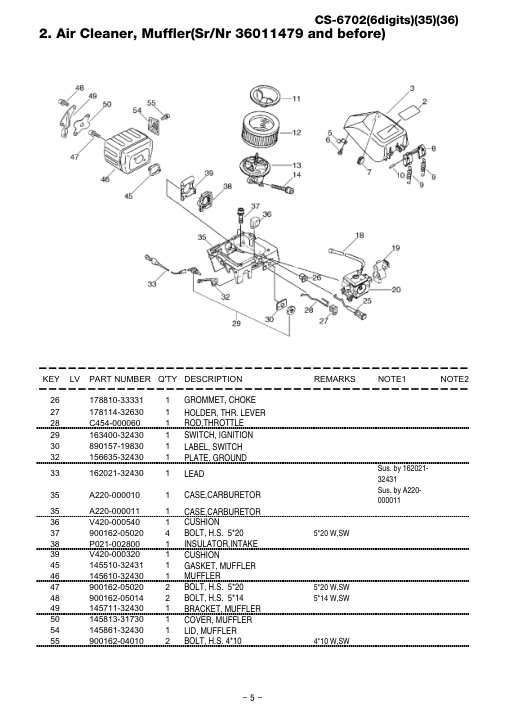

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.

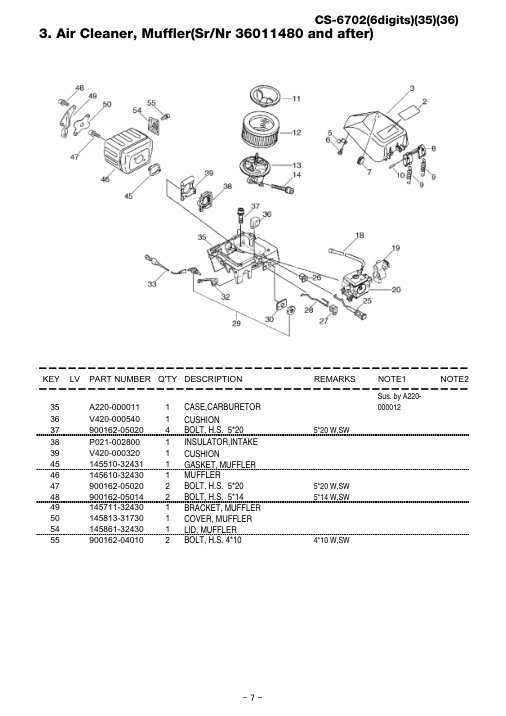

Page 8
Tap or click the page image to enlarge it.

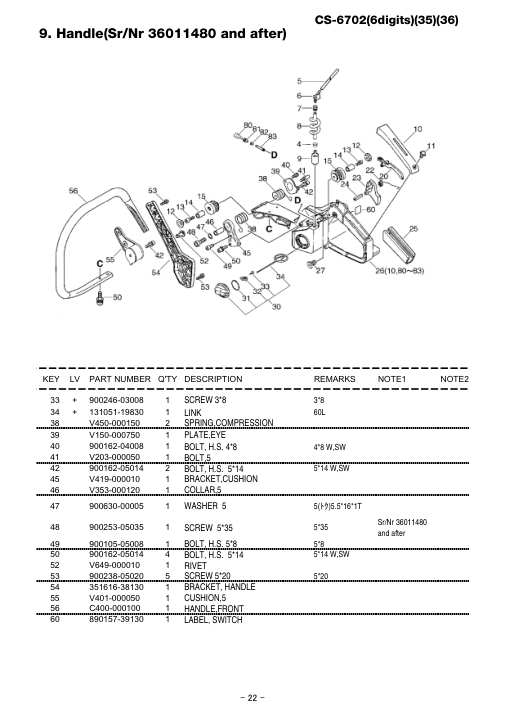

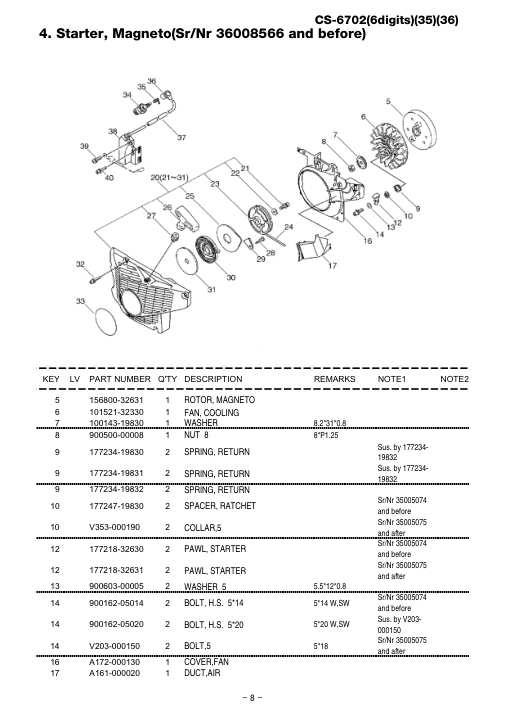

Page 9
Tap or click the page image to enlarge it.

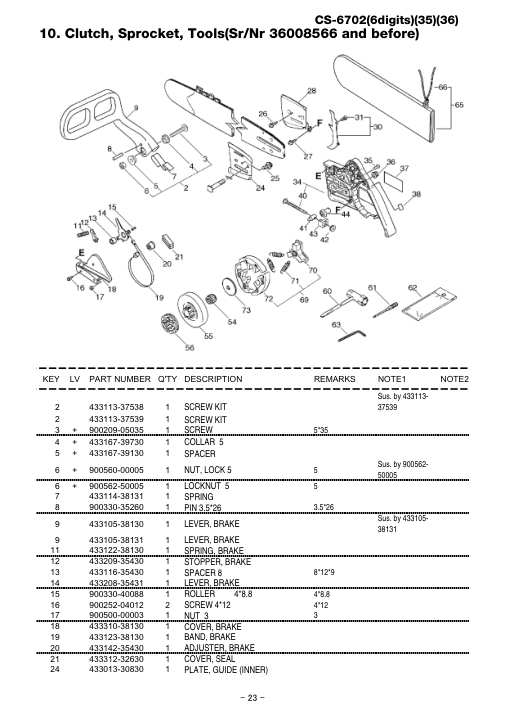

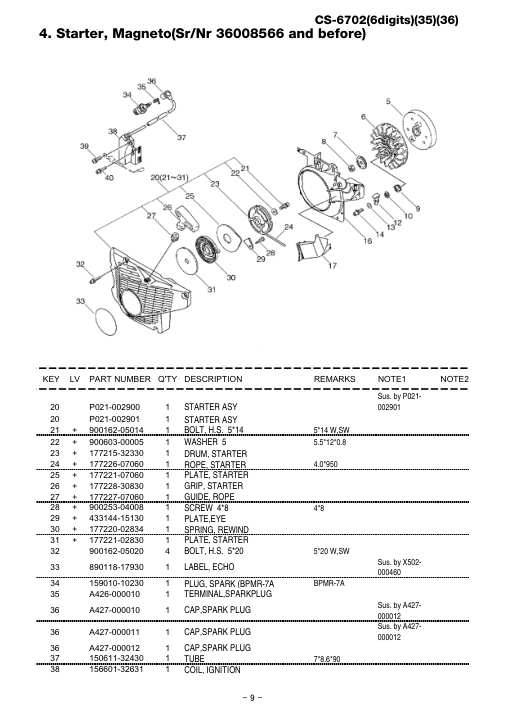

Page 10
Tap or click the page image to enlarge it.

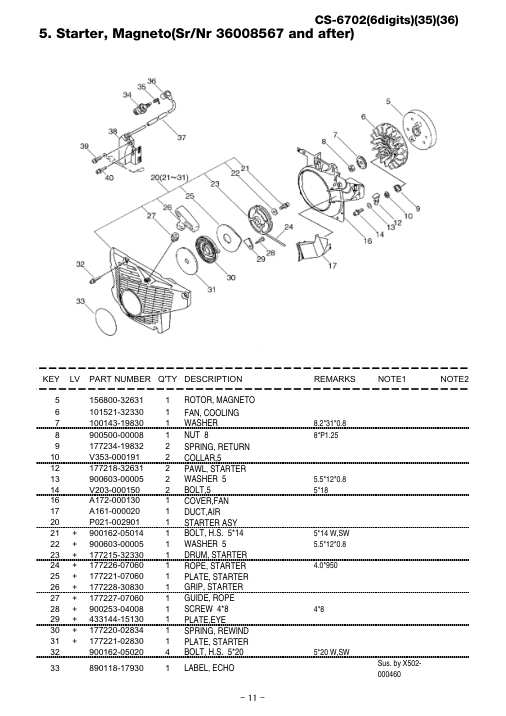

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.

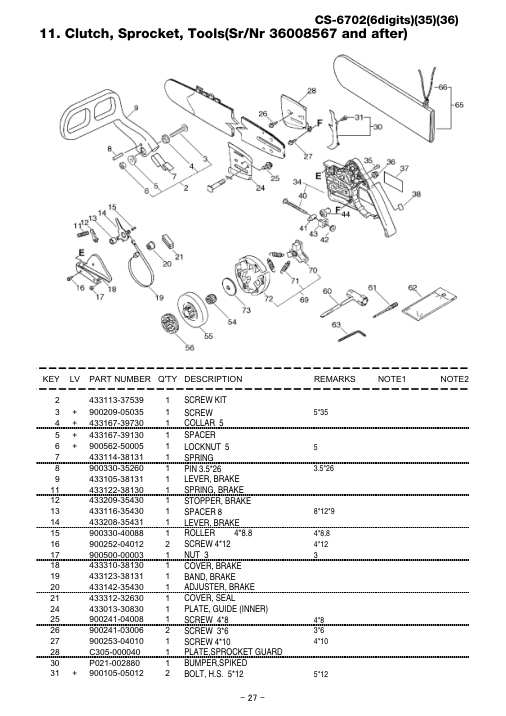

Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 32
Tap or click the page image to enlarge it.

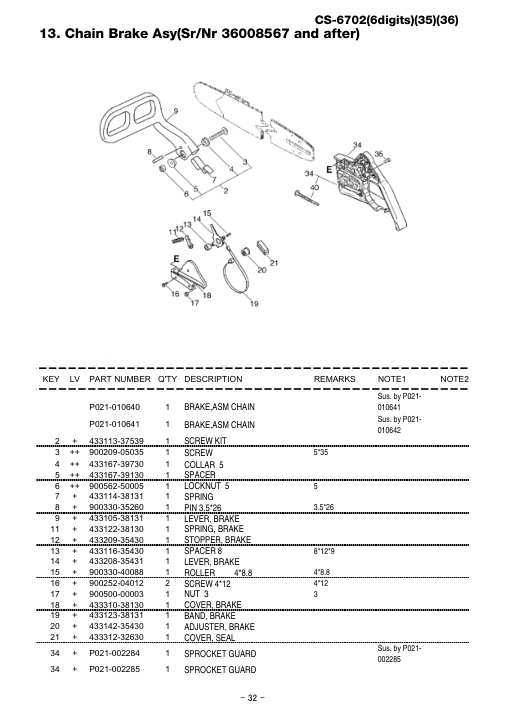

Page 33
Tap or click the page image to enlarge it.

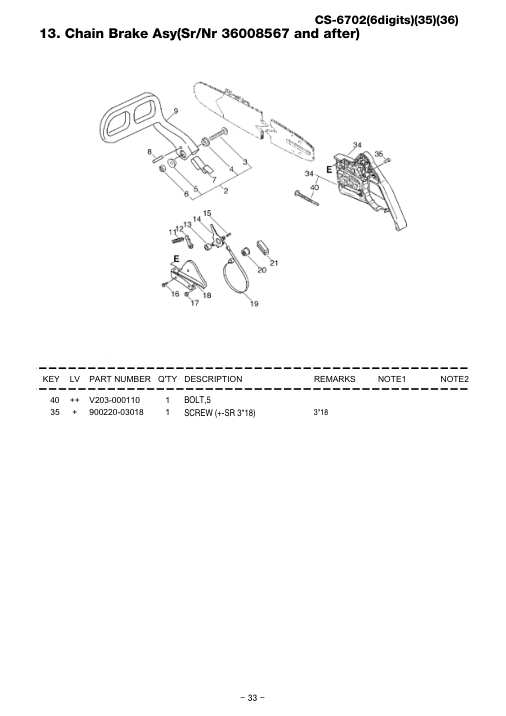

Page 34
Tap or click the page image to enlarge it.
Page 35
Tap or click the page image to enlarge it.

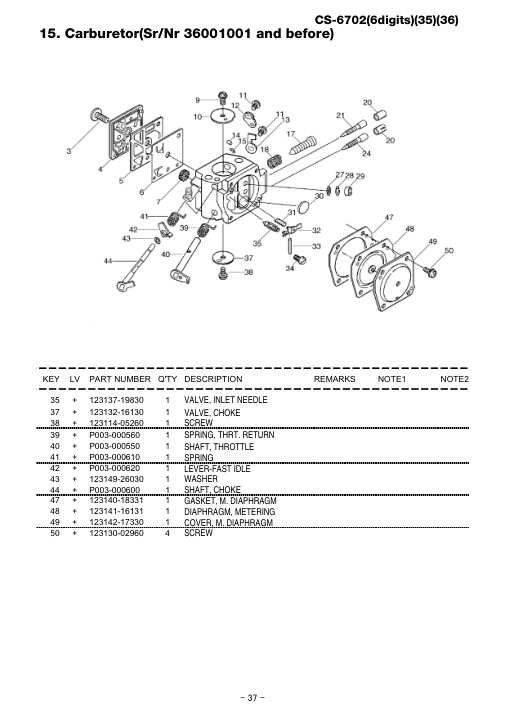

Page 36
Tap or click the page image to enlarge it.
Page 37
Tap or click the page image to enlarge it.
Page 38
Tap or click the page image to enlarge it.
Page 39
Tap or click the page image to enlarge it.
Page 40
Tap or click the page image to enlarge it.
Page 41
Tap or click the page image to enlarge it.
Page 42
Tap or click the page image to enlarge it.
Page 43
Tap or click the page image to enlarge it.

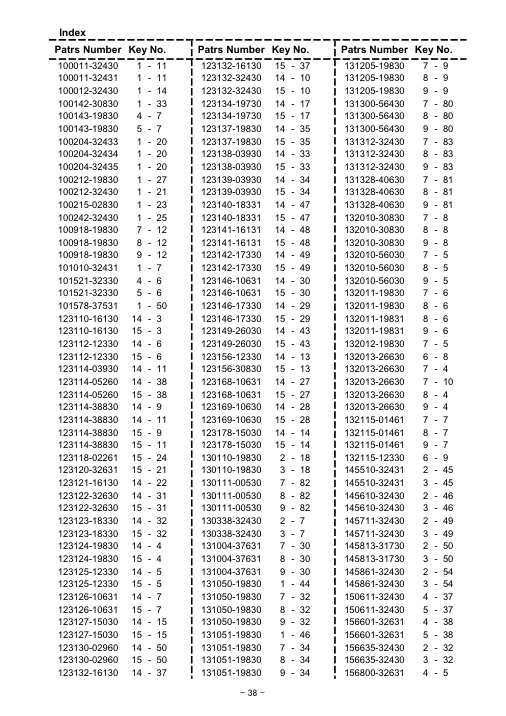

Page 44
Tap or click the page image to enlarge it.

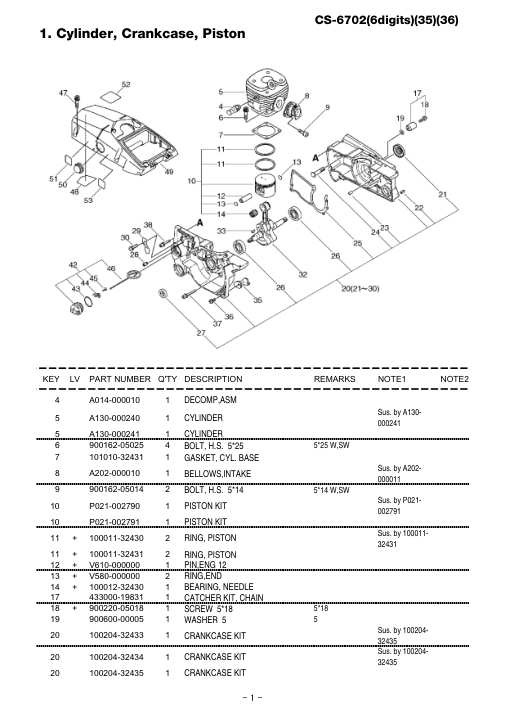

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Decomp,Asm | A014-000010 | A014-000010-Online | ||
| 5 | 1 | Cylinder | A130-000240 | A130-000240-Online | Sus. by A130- | 000241 | |
| 5 | 1 | Cylinder | A130-000241 | A130-000241-Online | ||
| 6 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 7 | 1 | Gasket, Cyl. Base | 101010-32431 | 101010-32431-Online | ||
| 8 | 1 | Bellows,Intake | A202-000010 | A202-000010-Online | Sus. by A202- | 000011 | |
| 9 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 10 | 1 | Piston Kit | P021-002790 | P021-002790-Online | Sus. by P021- | 002791 | |
| 10 | 1 | Piston Kit | P021-002791 | P021-002791-Online | ||
| 11 | + | 2 | Ring, Piston | 100011-32430 | 100011-32430-Online | Sus. by 100011- | 32431 |
| 11 | + | 2 | Ring, Piston | 100011-32431 | 100011-32431-Online | |
| 12 | + | 1 | Pin,Eng 12 | V610-000000 | V610-000000-Online | |
| 13 | + | 2 | Ring,End | V580-000000 | V580-000000-Online | |
| 14 | + | 1 | Bearing, Needle | 100012-32430 | 100012-32430-Online | |
| 17 | 1 | Catcher Kit, Chain | 433000-19831 | 433000-19831-Online | ||
| 18 | + | 1 | Screw 5*18 | 900220-05018 | 900220-05018-Online | 5*18 |
| 19 | 1 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 20 | 1 | Crankcase Kit | 100204-32433 | 100204-32433-Online | Sus. by 100204- | 32435 | |
| 20 | 1 | Crankcase Kit | 100204-32434 | 100204-32434-Online | Sus. by 100204- | 32435 | |
| 20 | 1 | Crankcase Kit | 100204-32435 | 100204-32435-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | + | 1 | Oilseal (L) | 100212-32430 | 100212-32430-Online | 25Z-15*39.9*7 |
| 22 | + | 1 | Pin, Spring 5*10Sus | 900345-50010 | 900345-50010-Online | 5*10SUS |
| 23 | + | 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 24 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 25 | + | 1 | Gasket, Crankcase | 100242-32430 | 100242-32430-Online | |
| 26 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 27 | + | 1 | Oilseal | 100212-19830 | 100212-19830-Online | ISM 15*25*6 |
| 28 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 29 | + | 1 | Plate,Eye | V150-000570 | V150-000570-Online | |
| 30 | + | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 |
| 32 | 1 | Crankshaft,Asm | A011-000130 | A011-000130-Online | Sus. by A011- | 000250 | |
| 32 | 1 | Crankshaft,Asm | A011-000250 | A011-000250-Online | ||
| 33 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 35 | 1 | Cushion,5 | V401-000060 | V401-000060-Online | ||
| 36 | 1 | Screw 5*14 | 900238-05014 | 900238-05014-Online | 5*14 | |
| 37 | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | |
| 38 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 42 | 1 | Cap Assy, Oil Tank | 436001-37933 | 436001-37933-Online | ||
| 43 | + | 1 | O-Ring | 900725-02025 | 900725-02025-Online | JASO 2025 |
| 44 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 45 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 46 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 47 | 5 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 48 | 1 | Washer,Square | V341-000010 | V341-000010-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 49 | 1 | Cover,Cylinder | A160-000330 | A160-000330-Online | ||
| 50 | 1 | Plug | 101578-37531 | 101578-37531-Online | ||
| 51 | 1 | Label,Caution | X505-000000 | X505-000000-Online | ||
| 52 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 53 | 1 | Label,Caution | X505-000180 | X505-000180-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Label,Model | X503-002480 | X503-002480-Online | CS-6702 EU | Sus. by X503- | 002481 | |
| 2 | 1 | Label,Model | X503-002481 | X503-002481-Online | CS-6702 EU | |
| 3 | 1 | Lid,Cleaner | A232-000070 | A232-000070-Online | ||
| 5 | 2 | Spring,Flat | V453-000040 | V453-000040-Online | ||
| 6 | 2 | Screw 4*8 | 900253-04008 | 900253-04008-Online | 4*8 | Sus. by 900253- | 04010 | |
| 6 | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 7 | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online | ||
| 8 | 1 | Knob,Cleaner Lid | A235-000050 | A235-000050-Online | ||
| 9 | 2 | Spring,Tension | V451-000190 | V451-000190-Online | ||
| 10 | 4 | Pin | 900330-30120 | 900330-30120-Online | 3*12 | |
| 11 | 1 | Holder,Element | A238-000030 | A238-000030-Online | ||
| 12 | 1 | Element,Air Filter | A226-000070 | A226-000070-Online | ||
| 13 | 1 | Elbow,Carburetor | A204-000020 | A204-000020-Online | ||
| 14 | 2 | Bolt Hsh Flange | 91107-05050 | 91107-05050-Online | 5*50 | |
| 18 | 1 | Pipe, Impulse | 130110-19830 | 130110-19830-Online | ||
| 19 | 1 | Grommet,Needle | V131-000000 | V131-000000-Online | Sr/Nr 35999999 | and before | |
| 19 | 1 | Grommet,Needle | V131-000010 | V131-000010-Online | Sr/Nr 36001001 | and after | |
| 20 | 1 | Carburetor,Diaphragm | A021-000250 | A021-000250-Online | HDA-202 | Sr/Nr 35999999 | and before | |
| 20 | 1 | Carburetor,Diaphragm | A021-000290 | A021-000290-Online | HDA-203 | Sr/Nr 36001001 | and after | |
| 25 | 1 | Knob,Choke | A241-000030 | A241-000030-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 1 | Grommet, Choke | 178810-33331 | 178810-33331-Online | ||
| 27 | 1 | Holder, Thr. Lever | 178114-32630 | 178114-32630-Online | ||
| 28 | 1 | Rod,Throttle | C454-000060 | C454-000060-Online | ||
| 29 | 1 | Switch, Ignition | 163400-32430 | 163400-32430-Online | ||
| 30 | 1 | Label, Switch | 890157-19830 | 890157-19830-Online | ||
| 32 | 1 | Plate, Ground | 156635-32430 | 156635-32430-Online | ||
| 33 | 1 | Lead | 162021-32430 | 162021-32430-Online | Sus. by 162021- | 32431 | |
| 35 | 1 | Case,Carburetor | A220-000010 | A220-000010-Online | Sus. by A220- | 000011 | |
| 35 | 1 | Case,Carburetor | A220-000011 | A220-000011-Online | ||
| 36 | 1 | Cushion | V420-000540 | V420-000540-Online | ||
| 37 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 38 | 1 | Insulator,Intake | P021-002800 | P021-002800-Online | ||
| 39 | 1 | Cushion | V420-000320 | V420-000320-Online | ||
| 45 | 1 | Gasket, Muffler | 145510-32431 | 145510-32431-Online | ||
| 46 | 1 | Muffler | 145610-32430 | 145610-32430-Online | ||
| 47 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 48 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 49 | 1 | Bracket, Muffler | 145711-32430 | 145711-32430-Online | ||
| 50 | 1 | Cover, Muffler | 145813-31730 | 145813-31730-Online | ||
| 54 | 1 | Lid, Muffler | 145861-32430 | 145861-32430-Online | ||
| 55 | 2 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Label,Model | X503-002481 | X503-002481-Online | CS-6702 EU | |
| 3 | 1 | Lid,Cleaner | A232-000070 | A232-000070-Online | ||
| 5 | 2 | Spring,Flat | V453-000040 | V453-000040-Online | ||
| 6 | 2 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 7 | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online | ||
| 8 | 1 | Knob,Cleaner Lid | A235-000050 | A235-000050-Online | ||
| 9 | 2 | Spring,Tension | V451-000190 | V451-000190-Online | ||
| 10 | 4 | Pin | 900330-30120 | 900330-30120-Online | 3*12 | |
| 11 | 1 | Holder,Element | A238-000030 | A238-000030-Online | ||
| 12 | 1 | Element,Air Filter | A226-000070 | A226-000070-Online | ||
| 13 | 1 | Elbow,Carburetor | A204-000020 | A204-000020-Online | ||
| 14 | 2 | Bolt Hsh Flange | 91107-05050 | 91107-05050-Online | 5*50 | |
| 18 | 1 | Pipe, Impulse | 130110-19830 | 130110-19830-Online | ||
| 19 | 1 | Grommet,Needle | V131-000000 | V131-000000-Online | ||
| 19 | 1 | Grommet,Needle | V131-000010 | V131-000010-Online | ||
| 20 | 1 | Carburetor,Diaphragm | A021-000250 | A021-000250-Online | HDA-202 | |
| 20 | 1 | Carburetor,Diaphragm | A021-000290 | A021-000290-Online | HDA-203 | |
| 25 | 1 | Knob,Choke | A241-000030 | A241-000030-Online | ||
| 26 | 1 | Grommet, Choke | 178810-33331 | 178810-33331-Online | ||
| 27 | 1 | Holder, Thr. Lever | 178114-32630 | 178114-32630-Online | ||
| 28 | 1 | Rod,Throttle | C454-000060 | C454-000060-Online | ||
| 29 | 1 | Switch, Ignition | 163400-32430 | 163400-32430-Online | ||
| 30 | 1 | Label, Switch | 890157-19830 | 890157-19830-Online | ||
| 32 | 1 | Plate, Ground | 156635-32430 | 156635-32430-Online | ||
| 33 | 1 | Lead | 162021-32430 | 162021-32430-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | 1 | Case,Carburetor | A220-000011 | A220-000011-Online | Sus. by A220- | 000012 | |
| 36 | 1 | Cushion | V420-000540 | V420-000540-Online | ||
| 37 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 38 | 1 | Insulator,Intake | P021-002800 | P021-002800-Online | ||
| 39 | 1 | Cushion | V420-000320 | V420-000320-Online | ||
| 45 | 1 | Gasket, Muffler | 145510-32431 | 145510-32431-Online | ||
| 46 | 1 | Muffler | 145610-32430 | 145610-32430-Online | ||
| 47 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 48 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 49 | 1 | Bracket, Muffler | 145711-32430 | 145711-32430-Online | ||
| 50 | 1 | Cover, Muffler | 145813-31730 | 145813-31730-Online | ||
| 54 | 1 | Lid, Muffler | 145861-32430 | 145861-32430-Online | ||
| 55 | 2 | Bolt, H.S. 4*10 | 900162-04010 | 900162-04010-Online | 4*10 W,SW |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Rotor, Magneto | 156800-32631 | 156800-32631-Online | ||
| 6 | 1 | Fan, Cooling | 101521-32330 | 101521-32330-Online | ||
| 7 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 8 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 9 | 2 | Spring, Return | 177234-19830 | 177234-19830-Online | Sus. by 177234- | 19832 | |
| 9 | 2 | Spring, Return | 177234-19831 | 177234-19831-Online | Sus. by 177234- | 19832 | |
| 9 | 2 | Spring, Return | 177234-19832 | 177234-19832-Online | ||
| 10 | 2 | Spacer, Ratchet | 177247-19830 | 177247-19830-Online | Sr/Nr 35005074 | and before | |
| 10 | 2 | Collar,5 | V353-000190 | V353-000190-Online | Sr/Nr 35005075 | and after | |
| 12 | 2 | Pawl, Starter | 177218-32630 | 177218-32630-Online | Sr/Nr 35005074 | and before | |
| 12 | 2 | Pawl, Starter | 177218-32631 | 177218-32631-Online | Sr/Nr 35005075 | and after | |
| 13 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 14 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | Sr/Nr 35005074 | and before | |
| 14 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | Sus. by V203- | 000150 | |
| 14 | 2 | Bolt,5 | V203-000150 | V203-000150-Online | 5*18 | Sr/Nr 35005075 | and after | |
| 16 | 1 | Cover,Fan | A172-000130 | A172-000130-Online | ||
| 17 | 1 | Duct,Air | A161-000020 | A161-000020-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Starter Asy | P021-002900 | P021-002900-Online | Sus. by P021- | 002901 | |
| 20 | 1 | Starter Asy | P021-002901 | P021-002901-Online | ||
| 21 | + | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 22 | + | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 |
| 23 | + | 1 | Drum, Starter | 177215-32330 | 177215-32330-Online | |
| 24 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 25 | + | 1 | Plate, Starter | 177221-07060 | 177221-07060-Online | |
| 26 | + | 1 | Grip, Starter | 177228-30830 | 177228-30830-Online | |
| 27 | + | 1 | Guide, Rope | 177227-07060 | 177227-07060-Online | |
| 28 | + | 1 | Screw 4*8 | 900253-04008 | 900253-04008-Online | 4*8 |
| 29 | + | 1 | Plate,Eye | 433144-15130 | 433144-15130-Online | |
| 30 | + | 1 | Spring, Rewind | 177220-02834 | 177220-02834-Online | |
| 31 | + | 1 | Plate, Starter | 177221-02830 | 177221-02830-Online | |
| 32 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 33 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | Sus. by X502- | 000460 | |
| 34 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 35 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 36 | 1 | Cap,Spark Plug | A427-000010 | A427-000010-Online | Sus. by A427- | 000012 | |
| 36 | 1 | Cap,Spark Plug | A427-000011 | A427-000011-Online | Sus. by A427- | 000012 | |
| 36 | 1 | Cap,Spark Plug | A427-000012 | A427-000012-Online | ||
| 37 | 1 | Tube | 150611-32430 | 150611-32430-Online | 7*8.6*90 | |
| 38 | 1 | Coil, Ignition | 156601-32631 | 156601-32631-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 39 | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 | |
| 40 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Rotor, Magneto | 156800-32631 | 156800-32631-Online | ||
| 6 | 1 | Fan, Cooling | 101521-32330 | 101521-32330-Online | ||
| 7 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 8 | 1 | Nut 8 | 900500-00008 | 900500-00008-Online | 8*P1.25 | |
| 9 | 2 | Spring, Return | 177234-19832 | 177234-19832-Online | ||
| 10 | 2 | Collar,5 | V353-000191 | V353-000191-Online | ||
| 12 | 2 | Pawl, Starter | 177218-32631 | 177218-32631-Online | ||
| 13 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 14 | 2 | Bolt,5 | V203-000150 | V203-000150-Online | 5*18 | |
| 16 | 1 | Cover,Fan | A172-000130 | A172-000130-Online | ||
| 17 | 1 | Duct,Air | A161-000020 | A161-000020-Online | ||
| 20 | 1 | Starter Asy | P021-002901 | P021-002901-Online | ||
| 21 | + | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW |
| 22 | + | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 |
| 23 | + | 1 | Drum, Starter | 177215-32330 | 177215-32330-Online | |
| 24 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 25 | + | 1 | Plate, Starter | 177221-07060 | 177221-07060-Online | |
| 26 | + | 1 | Grip, Starter | 177228-30830 | 177228-30830-Online | |
| 27 | + | 1 | Guide, Rope | 177227-07060 | 177227-07060-Online | |
| 28 | + | 1 | Screw 4*8 | 900253-04008 | 900253-04008-Online | 4*8 |
| 29 | + | 1 | Plate,Eye | 433144-15130 | 433144-15130-Online | |
| 30 | + | 1 | Spring, Rewind | 177220-02834 | 177220-02834-Online | |
| 31 | + | 1 | Plate, Starter | 177221-02830 | 177221-02830-Online | |
| 32 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 33 | 1 | Label, Echo | 890118-17930 | 890118-17930-Online | Sus. by X502- | 000460 |

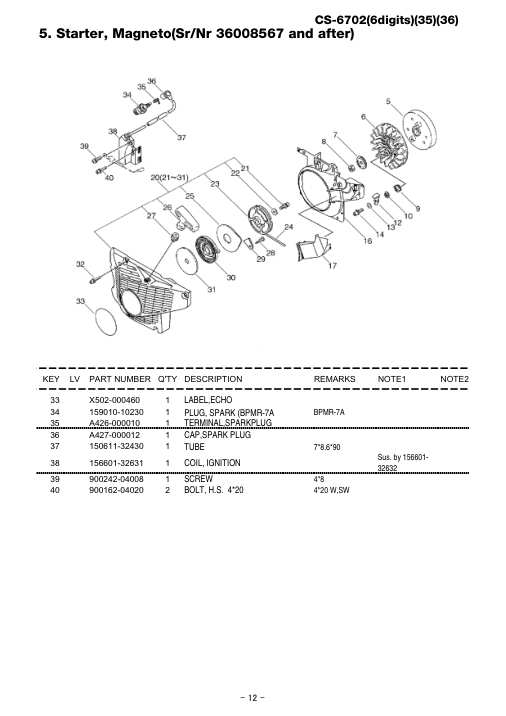

Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | 1 | Label,Echo | X502-000460 | X502-000460-Online | ||
| 34 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 35 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 36 | 1 | Cap,Spark Plug | A427-000012 | A427-000012-Online | ||
| 37 | 1 | Tube | 150611-32430 | 150611-32430-Online | 7*8.6*90 | |
| 38 | 1 | Coil, Ignition | 156601-32631 | 156601-32631-Online | Sus. by 156601- | 32632 | |
| 39 | 1 | Screw | 900242-04008 | 900242-04008-Online | 4*8 | |
| 40 | 2 | Bolt, H.S. 4*20 | 900162-04020 | 900162-04020-Online | 4*20 W,SW |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 3 | Bolt, H.S. 4*12 | 900162-04012 | 900162-04012-Online | 4*12 W,SW | |
| 2 | 1 | Cover, Oil Pump | 437605-32430 | 437605-32430-Online | ||
| 3 | 1 | Washer,Circular 12 | V309-000010 | V309-000010-Online | 12*37*3.2 | Sr/Nr 002250 and | before | |
| 3 | 1 | Washer, Circular 12 | 437066-30130 | 437066-30130-Online | Sr/Nr 002251 and | after | |
| 4 | 1 | Worm (P) | 437063-19930 | 437063-19930-Online | ||
| 6 | 1 | Pipe | 437211-32430 | 437211-32430-Online | ||
| 7 | 1 | Connector, Oil Pipe | 437212-32430 | 437212-32430-Online | ||
| 8 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 9 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 10 | 1 | Pipe, Oil | 437210-38330 | 437210-38330-Online | ||
| 11 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 12 | 1 | Knob | 437039-37630 | 437039-37630-Online | ||
| 13 | 1 | Spring | 437015-19830 | 437015-19830-Online | ||
| 14 | 1 | E-Ring 3 | 900700-00003 | 900700-00003-Online | CE-3 | |
| 15 | 2 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 | |
| 18 | 1 | Pipe, Oil | 437210-15130 | 437210-15130-Online | 3*6*200L | |
| 20 | 1 | Oil Pump Assy | 437100-38831 | 437100-38831-Online | Sus. by 437100- | 38832 | |
| 20 | 1 | Oiler Asy, Manual | 437100-38832 | 437100-38832-Online | ||
| 21 | + | 1 | Nipple | 437118-19830 | 437118-19830-Online | |
| 22 | + | 2 | O-Ring | 437122-03430 | 437122-03430-Online | |
| 23 | + | 2 | Valve, Ball | 437012-00330 | 437012-00330-Online | |
| 24 | + | 2 | Spring, Valve | 437013-00330 | 437013-00330-Online | Sus. by V450- | 000290 |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 2 | Spring,Compression | V450-000290 | V450-000290-Online | |
| 25 | + | 1 | Piston, Oil Pump | 437112-38731 | 437112-38731-Online | |
| 26 | + | 1 | O-Ring 7 | 900720-00007 | 900720-00007-Online | P-7 |
| 27 | + | 1 | Spring | 437111-19830 | 437111-19830-Online | |
| 28 | + | 1 | Body, Oil Pump | 437110-19831 | 437110-19831-Online | |
| 29 | + | 1 | Pin, Spring 2*16Sus | 900345-20016 | 900345-20016-Online | 2*16SUS |
| 30 | + | 1 | Adapter, Oil Pump | 437121-10130 | 437121-10130-Online | |
| 31 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 32 | 1 | Screw 5*20 | 900252-05020 | 900252-05020-Online | 5*20 | |
| 33 | 1 | Barcket, Oil Pump | 437413-19830 | 437413-19830-Online | ||
| 34 | 1 | Screw 4*10 | 900252-04010 | 900252-04010-Online | 4*10 | |
| 37 | 1 | Pipe, Outlet | 437216-32630 | 437216-32630-Online | ||
| 38 | 1 | Connector, Oil Pipe | 437232-32630 | 437232-32630-Online | ||
| 39 | 1 | Connector, Oil Pipe | 437212-32630 | 437212-32630-Online | ||
| 45 | 1 | Auto-Oiler Assy | 437002-37530 | 437002-37530-Online | ||
| 46 | + | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 |
| 47 | + | 1 | Pin, Control | 437009-35430 | 437009-35430-Online | 48 | ++ |
| 48 | 1 | Clip | 437065-19830 | 437065-19830-Online | 49 | ++ | |
| 49 | 1 | O-Ring | 437030-19830 | 437030-19830-Online | ||
| 50 | + | 1 | Cap, Plunger | 437062-19830 | 437062-19830-Online | |
| 51 | + | 1 | Plunger Kit | 437006-32330 | 437006-32330-Online | 52 | ++ |
| 52 | 1 | V-Ring | 437020-32430 | 437020-32430-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | Sr/Nr 36005851 | and after | |
| 5 | 1 | Pipe 3*6*100 | 132012-19830 | 132012-19830-Online | 3*6*100 | Sus. by 132010- | 56030 | |
| 5 | 1 | Pipe 3*6*110 | 132010-56030 | 132010-56030-Online | 3*6*110 NBR | |
| 6 | 1 | Connector, Fuel Pipe | 132011-19830 | 132011-19830-Online | Sus. by 132011- | 19831 | |
| 7 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 8 | 1 | Pipe | 132010-30830 | 132010-30830-Online | ||
| 9 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 10 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 11 | 1 | Screw 4*14 | 900238-04014 | 900238-04014-Online | 4*14 | |
| 12 | 2 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 13 | 2 | Bolt, H.S. 5*25 | 900105-05025 | 900105-05025-Online | 5*25 | |
| 14 | 2 | Collar,5 | V353-000110 | V353-000110-Online | ||
| 15 | 2 | Cushion | V420-000530 | V420-000530-Online | ||
| 20 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 22 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 23 | 1 | Trigger,Throttle | C450-000040 | C450-000040-Online | Sus. by C450- | 000041 | |
| 24 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 25 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 26 | 1 | Handle, Rear | 351103-32432 | 351103-32432-Online | Sus. by 351103- | 32433 | |
| 26 | 1 | Handle, Rear | 351103-32433 | 351103-32433-Online | ||
| 10 | + | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 80 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 81 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 82 | + | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 |
| 83 | + | 1 | Pipe, Vent | 131312-32430 | 131312-32430-Online | |
| 27 | 1 | Plug | V162-000040 | V162-000040-Online | ||
| 30 | 1 | Cap Assy, Fuel Tank | 131004-37631 | 131004-37631-Online | ||
| 31 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 32 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 33 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 34 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 38 | 2 | Spring,Compression | V450-000150 | V450-000150-Online | ||
| 39 | 1 | Plate,Eye | V150-000750 | V150-000750-Online | ||
| 40 | 1 | Bolt, H.S. 4*8 | 900162-04008 | 900162-04008-Online | 4*8 W,SW | |
| 41 | 1 | Bolt,5 | V203-000050 | V203-000050-Online | ||
| 42 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 45 | 1 | Bracket,Cushion | V419-000010 | V419-000010-Online | ||
| 46 | 1 | Collar,5 | V353-000120 | V353-000120-Online | ||
| 47 | 1 | Washer 5 | 900630-00005 | 900630-00005-Online | 5(㺢㺖)5.5*16*1T | |
| 48 | 1 | Screw 5*35 | 900253-05035 | 900253-05035-Online | 5*35 | |
| 49 | 1 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | 5*8 | |
| 50 | 4 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 52 | 1 | Rivet | V649-000010 | V649-000010-Online | ||
| 53 | 5 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 54 | 1 | Bracket, Handle | 351616-38130 | 351616-38130-Online | ||
| 55 | 1 | Cushion,5 | V401-000050 | V401-000050-Online |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 56 | 1 | Handle,Front | C400-000100 | C400-000100-Online | ||
| 60 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 5 | 1 | Pipe 3*6*110 | 132010-56030 | 132010-56030-Online | 3*6*110 NBR | |
| 6 | 1 | Connector, Fuel Pipe | 132011-19830 | 132011-19830-Online | Sus. by 132011- | 19831 | |
| 6 | 1 | Connector, Fuel Pipe | 132011-19831 | 132011-19831-Online | ||
| 7 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 8 | 1 | Pipe | 132010-30830 | 132010-30830-Online | ||
| 9 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 11 | 1 | Screw 4*14 | 900238-04014 | 900238-04014-Online | 4*14 | |
| 12 | 2 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 13 | 2 | Bolt, H.S. 5*25 | 900105-05025 | 900105-05025-Online | 5*25 | |
| 14 | 2 | Collar,5 | V353-000110 | V353-000110-Online | ||
| 15 | 2 | Cushion | V420-000530 | V420-000530-Online | ||
| 20 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 22 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 23 | 1 | Trigger,Throttle | C450-000040 | C450-000040-Online | Sus. by C450- | 000041 | |
| 23 | 1 | Trigger,Throttle | C450-000041 | C450-000041-Online | Sus. by C450- | 000042 | |
| 23 | 1 | Trigger,Throttle | C450-000042 | C450-000042-Online | ||
| 24 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 25 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 26 | 1 | Handle, Rear | 351103-32433 | 351103-32433-Online | ||
| 10 | + | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | |
| 80 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 81 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 82 | + | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 |
| 83 | + | 1 | Pipe, Vent | 131312-32430 | 131312-32430-Online | |
| 27 | 1 | Plug | V162-000040 | V162-000040-Online | ||
| 30 | 1 | Cap Assy, Fuel Tank | 131004-37631 | 131004-37631-Online | ||
| 31 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 32 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 33 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 34 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 38 | 2 | Spring,Compression | V450-000150 | V450-000150-Online | ||
| 39 | 1 | Plate,Eye | V150-000750 | V150-000750-Online | ||
| 40 | 1 | Bolt, H.S. 4*8 | 900162-04008 | 900162-04008-Online | 4*8 W,SW | |
| 41 | 1 | Bolt,5 | V203-000050 | V203-000050-Online | ||
| 42 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 45 | 1 | Bracket,Cushion | V419-000010 | V419-000010-Online | ||
| 46 | 1 | Collar,5 | V353-000120 | V353-000120-Online | ||
| 47 | 1 | Washer 5 | 900630-00005 | 900630-00005-Online | 5(㺢㺖)5.5*16*1T | |
| 48 | 1 | Screw 5*35 | 900253-05035 | 900253-05035-Online | 5*35 | Sr/Nr 36008567 to | |
| 49 | 1 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | 5*8 | |
| 50 | 4 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 52 | 1 | Rivet | V649-000010 | V649-000010-Online | ||
| 53 | 5 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 54 | 1 | Bracket, Handle | 351616-38130 | 351616-38130-Online | ||
| 55 | 1 | Cushion,5 | V401-000050 | V401-000050-Online |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 56 | 1 | Handle,Front | C400-000100 | C400-000100-Online | ||
| 60 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 5 | 1 | Pipe 3*6*110 | 132010-56030 | 132010-56030-Online | 3*6*110 NBR | |
| 6 | 1 | Connector, Fuel Pipe | 132011-19831 | 132011-19831-Online | ||
| 7 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 8 | 1 | Pipe | 132010-30830 | 132010-30830-Online | ||
| 9 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | ||
| 11 | 1 | Screw 4*14 | 900238-04014 | 900238-04014-Online | 4*14 | |
| 12 | 2 | Cap, Cushion | 100918-19830 | 100918-19830-Online | ||
| 13 | 2 | Bolt, H.S. 5*25 | 900105-05025 | 900105-05025-Online | 5*25 | |
| 14 | 2 | Collar,5 | V353-000110 | V353-000110-Online | ||
| 15 | 2 | Cushion | V420-000530 | V420-000530-Online | ||
| 20 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 22 | 1 | Spring, Thr. Return | 178043-19830 | 178043-19830-Online | ||
| 23 | 1 | Trigger,Throttle | C450-000042 | C450-000042-Online | ||
| 24 | 1 | Pin, Spring 5*25 | 900342-50025 | 900342-50025-Online | 5*25 | |
| 25 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 26 | 1 | Handle, Rear | 351103-32433 | 351103-32433-Online | ||
| 10 | + | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | |
| 80 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 81 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 82 | + | 1 | Clip | 130111-00530 | 130111-00530-Online | 5.5 |
| 83 | + | 1 | Pipe, Vent | 131312-32430 | 131312-32430-Online | |
| 27 | 1 | Plug | V162-000040 | V162-000040-Online | ||
| 30 | 1 | Cap Assy, Fuel Tank | 131004-37631 | 131004-37631-Online | ||
| 31 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 32 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 34 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 38 | 2 | Spring,Compression | V450-000150 | V450-000150-Online | ||
| 39 | 1 | Plate,Eye | V150-000750 | V150-000750-Online | ||
| 40 | 1 | Bolt, H.S. 4*8 | 900162-04008 | 900162-04008-Online | 4*8 W,SW | |
| 41 | 1 | Bolt,5 | V203-000050 | V203-000050-Online | ||
| 42 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 45 | 1 | Bracket,Cushion | V419-000010 | V419-000010-Online | ||
| 46 | 1 | Collar,5 | V353-000120 | V353-000120-Online | ||
| 47 | 1 | Washer 5 | 900630-00005 | 900630-00005-Online | 5(㺢㺖)5.5*16*1T | |
| 48 | 1 | Screw 5*35 | 900253-05035 | 900253-05035-Online | 5*35 | Sr/Nr 36011480 | and after | |
| 49 | 1 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | 5*8 | |
| 50 | 4 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 52 | 1 | Rivet | V649-000010 | V649-000010-Online | ||
| 53 | 5 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 54 | 1 | Bracket, Handle | 351616-38130 | 351616-38130-Online | ||
| 55 | 1 | Cushion,5 | V401-000050 | V401-000050-Online | ||
| 56 | 1 | Handle,Front | C400-000100 | C400-000100-Online | ||
| 60 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Screw Kit | 433113-37538 | 433113-37538-Online | Sus. by 433113- | 37539 | |
| 2 | 1 | Screw Kit | 433113-37539 | 433113-37539-Online | ||
| 3 | + | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 |
| 4 | + | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | |
| 5 | + | 1 | Spacer | 433167-39130 | 433167-39130-Online | |
| 6 | + | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 |
| 6 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 7 | 1 | Spring | 433114-38131 | 433114-38131-Online | ||
| 8 | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 | |
| 9 | 1 | Lever, Brake | 433105-38130 | 433105-38130-Online | Sus. by 433105- | 38131 | |
| 9 | 1 | Lever, Brake | 433105-38131 | 433105-38131-Online | ||
| 11 | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | ||
| 12 | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | ||
| 13 | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 | |
| 14 | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | ||
| 15 | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 | |
| 16 | 2 | Screw 4*12 | 900252-04012 | 900252-04012-Online | 4*12 | |
| 17 | 1 | Nut 3 | 900500-00003 | 900500-00003-Online | ||
| 18 | 1 | Cover, Brake | 433310-38130 | 433310-38130-Online | ||
| 19 | 1 | Band, Brake | 433123-38130 | 433123-38130-Online | ||
| 20 | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | ||
| 21 | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | ||
| 24 | 1 | Plate, Guide (Inner) | 433013-30830 | 433013-30830-Online |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 | |
| 26 | 2 | Screw 3*6 | 900241-03006 | 900241-03006-Online | 3*6 | |
| 27 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 28 | 1 | Plate,Sprocket Guard | C305-000040 | C305-000040-Online | ||
| 30 | 1 | Bumper,Spiked | P021-002880 | P021-002880-Online | ||
| 31 | + | 2 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
| 34 | 1 | Sprocket Guard | P021-002281 | P021-002281-Online | Sus. by P021- | 002282 | |
| 34 | 1 | Sprocket Guard | P021-002282 | P021-002282-Online | Sr/Nr 36004180 | and before | |
| 34 | 1 | Sprocket Guard | P021-002283 | P021-002283-Online | Sus. by P021- | 002284 | |
| 34 | 1 | Sprocket Guard | P021-002284 | P021-002284-Online | Sus. by P021- | 002285 | |
| 40 | + | 1 | Bolt,5 | V203-000110 | V203-000110-Online | |
| 35 | 1 | Screw (+-Sr 3*18) | 900220-03018 | 900220-03018-Online | 3*18 | |
| 36 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 37 | 1 | Label, Echo | 890118-38130 | 890118-38130-Online | Sus. by 890118- | 15130 | |
| 38 | 1 | Label, Caution | 890155-30130 | 890155-30130-Online | ||
| 40 | 1 | Bolt,5 | V203-000040 | V203-000040-Online | Sus. by V203- | 000041 | |
| 40 | 1 | Bolt,5 | V203-000041 | V203-000041-Online | Sr/Nr 36004180 | and before | |
| 41 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 42 | 1 | Gear,Bevel | V651-000010 | V651-000010-Online | Sus. by V651- | 000011 | |
| 42 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 43 | 1 | Collar,8 | V355-000030 | V355-000030-Online | Sus. by V355- | 000270 | |
| 43 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 44 | 1 | Gear,Bevel | V651-000000 | V651-000000-Online | Sus. by V651- | 000001 | |
| 44 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 47 | 1 | Clutch | A056-000040 | A056-000040-Online | Sus. by A056- | 000041 | |
| 47 | 1 | Clutch | A056-000041 | A056-000041-Online | Sr/Nr 35005074 | and before | |
| 48 | + | 3 | Plate,Clutch | A551-000030 | A551-000030-Online | Sr/Nr 35005074 | and before |
| 49 | + | 1 | Hub,Clutch | A552-000030 | A552-000030-Online | Sus. by A552- | 000031 |
| 49 | + | 1 | Hub,Clutch | A552-000031 | A552-000031-Online | Sr/Nr 35005074 | and before |
| 50 | + | 1 | Spring,Tension | V451-000260 | V451-000260-Online | Sr/Nr 35005074 | and before |
| 51 | + | 1 | Shoe,Clutch | P021-002890 | P021-002890-Online | Sr/Nr 35005074 | and before |
| 52 | + | 6 | Bolt, H.S. 4*6 | 900105-04006 | 900105-04006-Online | 4*6 | Sr/Nr 35005074 | and before |
| 54 | 1 | Bearing, Needle | 175012-32430 | 175012-32430-Online | 12*18*12 |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 55 | 1 | Drum, Clutch | 175105-32430 | 175105-32430-Online | Sus. by 175105- | 32431 | |
| 56 | 1 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | ||
| 60 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 61 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 62 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 63 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 65 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 66 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
| 69 | 1 | Clutch | A056-000050 | A056-000050-Online | Sr/Nr 35005075 | and after | |
| 70 | + | 1 | Hub,Clutch | A552-000040 | A552-000040-Online | Sr/Nr 35005075 | and after |
| 71 | + | 3 | Spring,Tension | V451-000430 | V451-000430-Online | Sr/Nr 35005075 | and after |
| 72 | + | 1 | Shoe,Clutch | P021-007790 | P021-007790-Online | Sr/Nr 35005075 | and after |
| 73 | 1 | Plate,Clutch | A551-000051 | A551-000051-Online | Sr/Nr 35005075 | and after |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Screw Kit | 433113-37539 | 433113-37539-Online | ||
| 3 | + | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 |
| 4 | + | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | |
| 5 | + | 1 | Spacer | 433167-39130 | 433167-39130-Online | |
| 6 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 7 | 1 | Spring | 433114-38131 | 433114-38131-Online | ||
| 8 | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 | |
| 9 | 1 | Lever, Brake | 433105-38131 | 433105-38131-Online | ||
| 11 | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | ||
| 12 | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | ||
| 13 | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 | |
| 14 | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | ||
| 15 | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 | |
| 16 | 2 | Screw 4*12 | 900252-04012 | 900252-04012-Online | 4*12 | |
| 17 | 1 | Nut 3 | 900500-00003 | 900500-00003-Online | ||
| 18 | 1 | Cover, Brake | 433310-38130 | 433310-38130-Online | ||
| 19 | 1 | Band, Brake | 433123-38131 | 433123-38131-Online | ||
| 20 | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | ||
| 21 | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | ||
| 24 | 1 | Plate, Guide (Inner) | 433013-30830 | 433013-30830-Online | ||
| 25 | 1 | Screw 4*8 | 900241-04008 | 900241-04008-Online | 4*8 | |
| 26 | 2 | Screw 3*6 | 900241-03006 | 900241-03006-Online | 3*6 | |
| 27 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 28 | 1 | Plate,Sprocket Guard | C305-000040 | C305-000040-Online | ||
| 30 | 1 | Bumper,Spiked | P021-002880 | P021-002880-Online | ||
| 31 | + | 2 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 34 | 1 | Sprocket Guard | P021-002284 | P021-002284-Online | Sus. by P021- | 002285 | |
| 34 | 1 | Sprocket Guard | P021-002285 | P021-002285-Online | ||
| 40 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 35 | 1 | Screw (+-Sr 3*18) | 900220-03018 | 900220-03018-Online | 3*18 | |
| 36 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 37 | 1 | Label, Echo | 890118-15130 | 890118-15130-Online | Sus. by X502- | 000560 | |
| 37 | 1 | Label,Echo | X502-000560 | X502-000560-Online | ||
| 38 | 1 | Label, Caution | 890155-30130 | 890155-30130-Online | ||
| 41 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 42 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 43 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 44 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 54 | 1 | Bearing, Needle | 175012-32430 | 175012-32430-Online | 12*18*12 | |
| 55 | 1 | Drum, Clutch | 175105-32430 | 175105-32430-Online | Sus. by 175105- | 32431 | |
| 55 | 1 | Drum, Clutch | 175105-32431 | 175105-32431-Online | ||
| 56 | 1 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | ||
| 60 | 1 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | ||
| 61 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 62 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 63 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 65 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 66 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
| 69 | 1 | Clutch | A056-000050 | A056-000050-Online |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 70 | + | 1 | Hub,Clutch | A552-000040 | A552-000040-Online | |
| 71 | + | 3 | Spring,Tension | V451-000430 | V451-000430-Online | |
| 72 | + | 1 | Shoe,Clutch | P021-007790 | P021-007790-Online | |
| 73 | 1 | Plate,Clutch | A551-000051 | A551-000051-Online |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screw Kit | 433113-37538 | 433113-37538-Online | Sus. by 433113- | 37539 |
| 2 | + | 1 | Screw Kit | 433113-37539 | 433113-37539-Online | 3 | ++ |
| 3 | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 | 4 | ++ | |
| 4 | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | 5 | ++ | |
| 5 | 1 | Spacer | 433167-39130 | 433167-39130-Online | 6 | ++ | |
| 6 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 5 | Sus. by 900562- | 50005 | 6 | |
| 6 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 7 | + | 1 | Spring | 433114-38131 | 433114-38131-Online | |
| 8 | + | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 |
Page 32 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | + | 1 | Lever, Brake | 433105-38130 | 433105-38130-Online | Sus. by 433105- | 38131 |
| 9 | + | 1 | Lever, Brake | 433105-38131 | 433105-38131-Online | |
| 11 | + | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | |
| 12 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 13 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 14 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 15 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 16 | + | 2 | Screw 4*12 | 900252-04012 | 900252-04012-Online | 4*12 |
| 17 | + | 1 | Nut 3 | 900500-00003 | 900500-00003-Online | |
| 18 | + | 1 | Cover, Brake | 433310-38130 | 433310-38130-Online | |
| 19 | + | 1 | Band, Brake | 433123-38130 | 433123-38130-Online | Sus. by 433123- | 38131 |
| 19 | + | 1 | Band, Brake | 433123-38131 | 433123-38131-Online | |
| 20 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | |
| 21 | + | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | |
| 34 | + | 1 | Sprocket Guard | P021-002281 | P021-002281-Online | Sus. by P021- | 002282 |
| 34 | + | 1 | Sprocket Guard | P021-002282 | P021-002282-Online | Sr/Nr 36004180 | and before |
| 34 | + | 1 | Sprocket Guard | P021-002283 | P021-002283-Online | Sus. by P021- | 002284 |
| 34 | + | 1 | Sprocket Guard | P021-002284 | P021-002284-Online | Sus. by P021- | 002285 | 40 | ++ |
| 40 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 35 | + | 1 | Screw (+-Sr 3*18) | 900220-03018 | 900220-03018-Online | 3*18 |
Page 33 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screw Kit | 433113-37539 | 433113-37539-Online | 3 | ++ |
| 3 | 1 | Screw | 900209-05035 | 900209-05035-Online | 5*35 | 4 | ++ | |
| 4 | 1 | Collar 5 | 433167-39730 | 433167-39730-Online | 5 | ++ | |
| 5 | 1 | Spacer | 433167-39130 | 433167-39130-Online | 6 | ++ | |
| 6 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 7 | + | 1 | Spring | 433114-38131 | 433114-38131-Online | |
| 8 | + | 1 | Pin 3.5*26 | 900330-35260 | 900330-35260-Online | 3.5*26 |
| 9 | + | 1 | Lever, Brake | 433105-38131 | 433105-38131-Online | |
| 11 | + | 1 | Spring, Brake | 433122-38130 | 433122-38130-Online | |
| 12 | + | 1 | Stopper, Brake | 433209-35430 | 433209-35430-Online | |
| 13 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 14 | + | 1 | Lever, Brake | 433208-35431 | 433208-35431-Online | |
| 15 | + | 1 | Roller 4*8.8 | 900330-40088 | 900330-40088-Online | 4*8.8 |
| 16 | + | 2 | Screw 4*12 | 900252-04012 | 900252-04012-Online | 4*12 |
| 17 | + | 1 | Nut 3 | 900500-00003 | 900500-00003-Online | |
| 18 | + | 1 | Cover, Brake | 433310-38130 | 433310-38130-Online | |
| 19 | + | 1 | Band, Brake | 433123-38131 | 433123-38131-Online | |
| 20 | + | 1 | Adjuster, Brake | 433142-35430 | 433142-35430-Online | |
| 21 | + | 1 | Cover, Seal | 433312-32630 | 433312-32630-Online | |
| 34 | + | 1 | Sprocket Guard | P021-002284 | P021-002284-Online | Sus. by P021- | 002285 |
| 34 | + | 1 | Sprocket Guard | P021-002285 | P021-002285-Online |
Page 34 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 40 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 35 | + | 1 | Screw (+-Sr 3*18) | 900220-03018 | 900220-03018-Online | 3*18 |
Page 35 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | + | 1 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |
| 4 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 5 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 6 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 7 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 9 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 10 | + | 1 | Valve, Choke | 123132-32430 | 123132-32430-Online | |
| 11 | + | 2 | Screw | 123114-03930 | 123114-03930-Online | Sus. by 123114- | 38830 |
| 11 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 12 | + | 1 | Lever, Choke | P003-000590 | P003-000590-Online | |
| 13 | + | 1 | Stop, Throttle | 123156-12330 | 123156-12330-Online | |
| 14 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 15 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 17 | + | 1 | Screw, Idle Adjust | 123134-19730 | 123134-19730-Online | |
| 18 | + | 1 | Spring, Idle Adjust | P003-000540 | P003-000540-Online | |
| 21 | + | 1 | Needle, High Speed | P003-000580 | P003-000580-Online | |
| 22 | + | 2 | Spring, Needle | 123121-16130 | 123121-16130-Online | |
| 24 | + | 1 | Needle, Idle | P003-000570 | P003-000570-Online | |
| 27 | + | 1 | Screen | 123168-10631 | 123168-10631-Online | |
| 28 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 29 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 30 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 31 | + | 1 | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | |
| 32 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online |
Page 36 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 33 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 34 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 35 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 37 | + | 1 | Valve, Choke | 123132-16130 | 123132-16130-Online | |
| 38 | + | 1 | Screw | 123114-05260 | 123114-05260-Online | |
| 39 | + | 1 | Spring, Thrt. Return | P003-000560 | P003-000560-Online | |
| 40 | + | 1 | Shaft, Throttle | P003-000550 | P003-000550-Online | |
| 41 | + | 1 | Spring | P003-000610 | P003-000610-Online | |
| 42 | + | 1 | Lever-Fast Idle | P003-000620 | P003-000620-Online | |
| 43 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 44 | + | 1 | Shaft, Choke | P003-000600 | P003-000600-Online | |
| 47 | + | 1 | Gasket, M. Diaphragm | 123140-18331 | 123140-18331-Online | |
| 48 | + | 1 | Diaphragm, Metering | 123141-16131 | 123141-16131-Online | |
| 49 | + | 1 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |
| 50 | + | 4 | Screw | 123130-02960 | 123130-02960-Online |
Page 37 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | + | 1 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |
| 4 | + | 1 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |
| 5 | + | 1 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |
| 6 | + | 1 | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | |
| 7 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 9 | + | 1 | Screw | 123114-38830 | 123114-38830-Online | |
| 10 | + | 1 | Valve, Choke | 123132-32430 | 123132-32430-Online | |
| 11 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 12 | + | 1 | Lever, Choke | P003-000590 | P003-000590-Online | |
| 13 | + | 1 | Stop, Throttle | 123156-30830 | 123156-30830-Online | |
| 14 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 15 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 17 | + | 1 | Screw, Idle Adjust | 123134-19730 | 123134-19730-Online | |
| 18 | + | 1 | Spring, Idle Adjust | P003-000540 | P003-000540-Online | |
| 20 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online | |
| 21 | + | 1 | Needle, High Speed | 123120-32631 | 123120-32631-Online | |
| 24 | + | 1 | Needle | 123118-02261 | 123118-02261-Online | |
| 27 | + | 1 | Screen | 123168-10631 | 123168-10631-Online | |
| 28 | + | 1 | Ring, Retaining | 123169-10630 | 123169-10630-Online | |
| 29 | + | 1 | Plug, Cup | 123146-17330 | 123146-17330-Online | |
| 30 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 31 | + | 1 | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | |
| 32 | + | 1 | Lever, Metering | 123123-18330 | 123123-18330-Online | |
| 33 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 34 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online |
Page 38 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 37 | + | 1 | Valve, Choke | 123132-16130 | 123132-16130-Online | |
| 38 | + | 1 | Screw | 123114-05260 | 123114-05260-Online | |
| 39 | + | 1 | Spring, Thrt. Return | P003-000560 | P003-000560-Online | |
| 40 | + | 1 | Shaft, Throttle | P003-000550 | P003-000550-Online | |
| 41 | + | 1 | Spring | P003-000610 | P003-000610-Online | |
| 42 | + | 1 | Lever-Fast Idle | P003-000620 | P003-000620-Online | |
| 43 | + | 1 | Washer | 123149-26030 | 123149-26030-Online | |
| 44 | + | 1 | Shaft, Choke | P003-000600 | P003-000600-Online | |
| 47 | + | 1 | Gasket, M. Diaphragm | 123140-18331 | 123140-18331-Online | |
| 48 | + | 1 | Diaphragm, Metering | 123141-16131 | 123141-16131-Online | |
| 49 | + | 1 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |
| 50 | + | 4 | Screw | 123130-02960 | 123130-02960-Online |
Source PDF: 20130718-811_CS-6702(6digits)(35)(36)_CS-6702(6digits)(35)(36)_EN.pdf. Generated 2026-06-25 14:39.
