Echo CS-550 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-550-Online
Source Pages

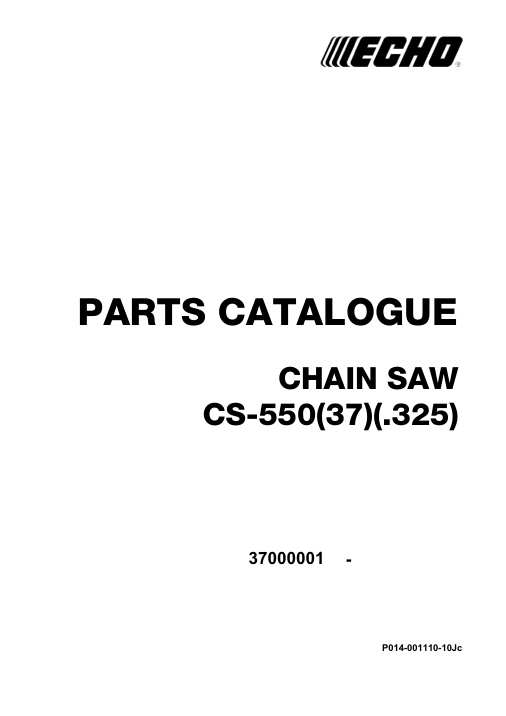

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.

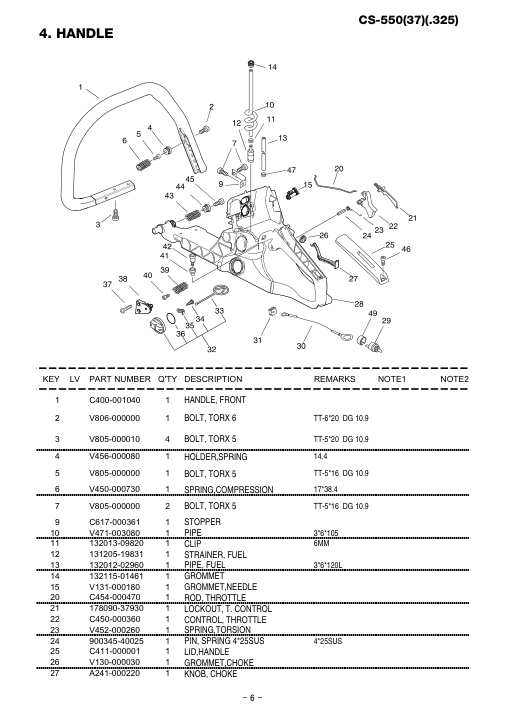

Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

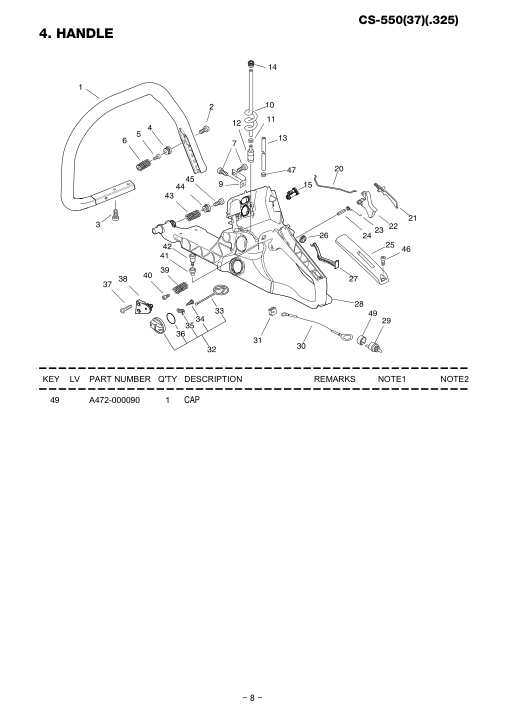

Page 9
Tap or click the page image to enlarge it.

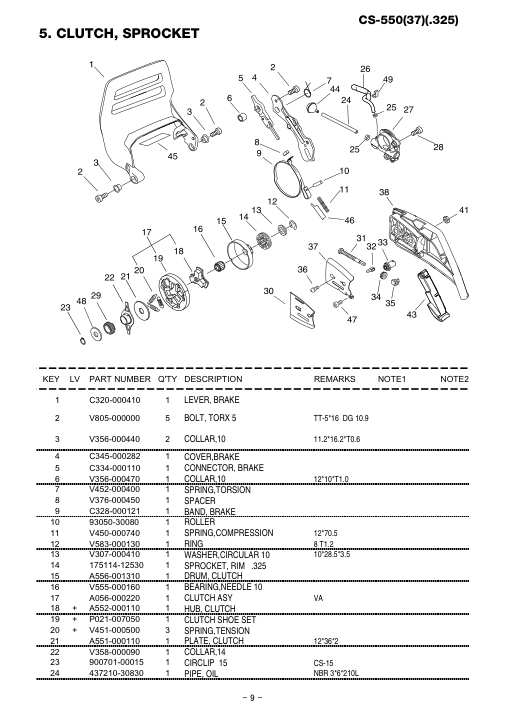

Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.

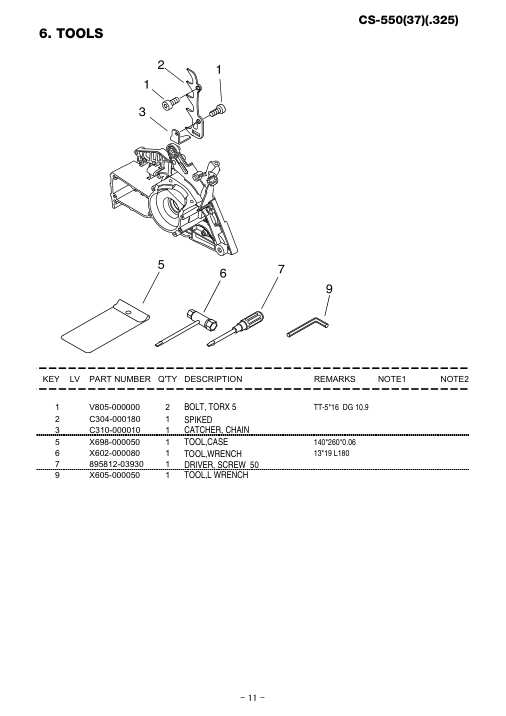

Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

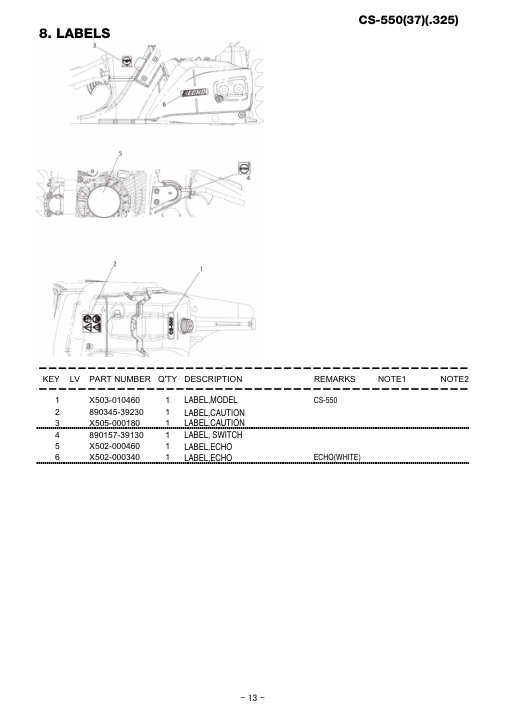

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.

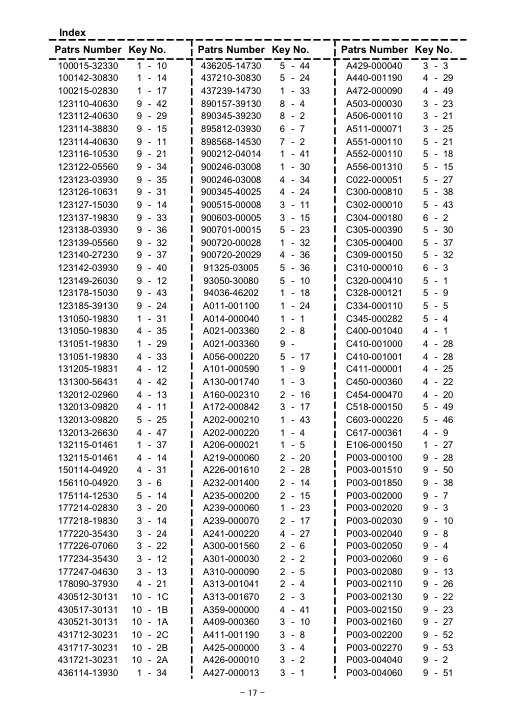

Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Decomp,Asm | A014-000040 | A014-000040-Online | ||
| 2 | 4 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | TB-5*25 12.9 | |
| 3 | 1 | Cylinder | A130-001740 | A130-001740-Online | ||
| 4 | 1 | Bellows, Intake | A202-000220 | A202-000220-Online | ||
| 5 | 1 | Holder, Bellows | A206-000021 | A206-000021-Online | ||
| 6 | 3 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 7 | 1 | Gasket,Cyl | V100-000630 | V100-000630-Online | ||
| 8 | 1 | Piston Kit | P021-036680 | P021-036680-Online | ||
| 9 | + | 1 | Ring, Piston | A101-000590 | A101-000590-Online | 45*1.2*1.9 HK/BF |
| 10 | + | 2 | Circlip, Piston Pin | 100015-32330 | 100015-32330-Online | |
| 11 | + | 1 | Pin,Eng 11 | V609-000000 | V609-000000-Online | |
| 12 | + | 1 | Bearing,Needle 11 | V556-000000 | V556-000000-Online | KBK11*15*15.8X2 |
| 14 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 15 | 1 | Crankcase Kit | P021-036690 | P021-036690-Online | ||
| 16 | + | 2 | Seal,Oil 15 | V508-000010 | V508-000010-Online | ISCD 15*25*7 |
| 17 | + | 2 | Pin, Dowel | 100215-02830 | 100215-02830-Online | |
| 18 | + | 2 | Bearing Ball | 94036-46202 | 94036-46202-Online | |
| 19 | + | 1 | Gasket,Crankcase | V102-000210 | V102-000210-Online | |
| 33 | + | 1 | Nipple | 437239-14730 | 437239-14730-Online | |
| 34 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 38 | + | 2 | Bolt,8 | V205-000400 | V205-000400-Online | 11.5 |
| 20 | 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 4 | Bolt, Torx 5 | V805-000020 | V805-000020-Online | TT-5*35 DG 10.9 | |
| 22 | 2 | Cushion | V420-003800 | V420-003800-Online | ||
| 23 | 1 | Pipe, Intake | A239-000060 | A239-000060-Online | ||
| 24 | 1 | Crankshaft,Asy | A011-001100 | A011-001100-Online | ||
| 25 | 1 | Collar,16 | V359-000060 | V359-000060-Online | ||
| 26 | 1 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 27 | 1 | Guide,Air | E106-000150 | E106-000150-Online | ||
| 28 | 1 | Cap, Oil | P021-016030 | P021-016030-Online | ||
| 29 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 30 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 31 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 32 | + | 1 | O-Ring 28 | 900720-00028 | 900720-00028-Online | P-28 |
| 35 | 1 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | TB-5*25 10.9 | |
| 36 | 1 | Grommet,Plug | V141-000090 | V141-000090-Online | ||
| 37 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 39 | 1 | Fixture,Valve Kit M | P021-036670 | P021-036670-Online | ||
| 40 | 1 | Fixture,Valve Kit D | P021-036660 | P021-036660-Online | ||
| 41 | 2 | Screw 4*14 | 900212-04014 | 900212-04014-Online | +SF4*14 | |
| 42 | 6 | Bolt, Torx 4 | V804-000050 | V804-000050-Online | TB-4*12 10.9 | |
| 43 | 1 | Bellows, Intake | A202-000210 | A202-000210-Online | ||
| 44 | 1 | Spacer | V376-001780 | V376-001780-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 5 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | TB-4*8 10.9 | |
| 2 | 1 | Plate, Muffler | A301-000030 | A301-000030-Online | T0.5 | |
| 3 | 1 | Guide, Exhaust | A313-001670 | A313-001670-Online | ||
| 4 | 1 | Guide, Exhaust | A313-001041 | A313-001041-Online | ||
| 5 | 1 | Screen, Arrestor | A310-000090 | A310-000090-Online | ||
| 6 | 1 | Muffler,Exhaust | A300-001560 | A300-001560-Online | ||
| 7 | 1 | Gasket,Exhaust | V104-001770 | V104-001770-Online | ||
| 8 | 1 | Carburetor,Diaphragm | A021-003360 | A021-003360-Online | WLA-4 | |
| 9 | 1 | Case,Cleaner | P021-036890 | P021-036890-Online | ||
| 20 | + | 1 | Shutter, Air | A219-000060 | A219-000060-Online | |
| 10 | 2 | Bolt, Torx 5 | V805-000030 | V805-000030-Online | TT-5*50 DG 10.9 | |
| 14 | 1 | Lid,Cleaner | A232-001400 | A232-001400-Online | ||
| 15 | 1 | Knob,Cleaner Lid | A235-000200 | A235-000200-Online | ||
| 16 | 1 | Cover,Cylinder | A160-002310 | A160-002310-Online | ||
| 17 | 1 | Pipe, Intake | A239-000070 | A239-000070-Online | ||
| 18 | 1 | Washer,Square | V341-000140 | V341-000140-Online | 75*32*0.15 | |
| 19 | 3 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 21 | 2 | Bolt, Torx 5 | V855-000000 | V855-000000-Online | TB-5*20 | |
| 27 | 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | TB-5*20 12.9 | |
| 28 | 1 | Element, Air Filter | A226-001610 | A226-001610-Online | ||
| 29 | 1 | Grommet,Dust | V142-000070 | V142-000070-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 3 | 1 | Cover,Cap | A429-000040 | A429-000040-Online | ||
| 4 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 5 | 1 | Tube | V475-006660 | V475-006660-Online | 6*7.2*65 | |
| 6 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 7 | 1 | Lead | V485-001091 | V485-001091-Online | AVX0.75F | |
| 8 | 1 | Coil, Ignition | A411-001190 | A411-001190-Online | ||
| 9 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 10 | 1 | Rotor, Magneto | A409-000360 | A409-000360-Online | ||
| 11 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 12 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 13 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 14 | 2 | Pawl, Starter | 177218-19830 | 177218-19830-Online | ||
| 15 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 16 | 2 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | ||
| 17 | 1 | Cover,Fan | A172-000842 | A172-000842-Online | ||
| 18 | 1 | Starter Asy | P021-015163 | P021-015163-Online | ||
| 19 | + | 1 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | TB-5*10 10.9 |
| 20 | + | 1 | Washer | 177214-02830 | 177214-02830-Online | 5.2*16*1.0T |
| 21 | + | 1 | Reel, Rope | A506-000110 | A506-000110-Online | |
| 22 | + | 1 | Rope, Starter | 177226-07060 | 177226-07060-Online | 4.0*950 |
| 23 | + | 1 | Plate, Starter | A503-000030 | A503-000030-Online | |
| 24 | + | 1 | Spring, Rewind | 177220-35430 | 177220-35430-Online | |
| 25 | + | 1 | Grip, Starter | A511-000071 | A511-000071-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | 4 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Handle, Front | C400-001040 | C400-001040-Online | ||
| 2 | 1 | Bolt, Torx 6 | V806-000000 | V806-000000-Online | TT-6*20 DG 10.9 | |
| 3 | 4 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 4 | 1 | Holder,Spring | V456-000080 | V456-000080-Online | 14.4 | |
| 5 | 1 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 6 | 1 | Spring,Compression | V450-000730 | V450-000730-Online | 17*38.4 | |
| 7 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 9 | 1 | Stopper | C617-000361 | C617-000361-Online | ||
| 10 | 1 | Pipe | V471-003080 | V471-003080-Online | 3*6*105 | |
| 11 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 12 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | ||
| 13 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 14 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 15 | 1 | Grommet,Needle | V131-000180 | V131-000180-Online | ||
| 20 | 1 | Rod, Throttle | C454-000470 | C454-000470-Online | ||
| 21 | 1 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | ||
| 22 | 1 | Control, Throttle | C450-000360 | C450-000360-Online | ||
| 23 | 1 | Spring,Torsion | V452-000260 | V452-000260-Online | ||
| 24 | 1 | Pin, Spring 4*25Sus | 900345-40025 | 900345-40025-Online | 4*25SUS | |
| 25 | 1 | Lid,Handle | C411-000001 | C411-000001-Online | ||
| 26 | 1 | Grommet,Choke | V130-000030 | V130-000030-Online | ||
| 27 | 1 | Knob, Choke | A241-000220 | A241-000220-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | 1 | Handle, Rear | C410-001000 | C410-001000-Online | ||
| 28 | 1 | Handle, Rear | C410-001001 | C410-001001-Online | ||
| 29 | 1 | Switch, On Off | A440-001190 | A440-001190-Online | ||
| 30 | 1 | Lead | V485-001101 | V485-001101-Online | L:170/LA105 | |
| 31 | 1 | Bushing | 150114-04920 | 150114-04920-Online | ||
| 32 | 1 | Cap,Fuer Assy | P021-016040 | P021-016040-Online | ||
| 33 | + | 1 | Link | 131051-19830 | 131051-19830-Online | |
| 34 | + | 1 | Screw 3*8 | 900246-03008 | 900246-03008-Online | 3*8 |
| 35 | + | 1 | Retainer, Link | 131050-19830 | 131050-19830-Online | |
| 36 | + | 1 | O-Ring 29 | 900720-20029 | 900720-20029-Online | P-29 |
| 37 | 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 38 | 1 | Holder,Spring | V456-000090 | V456-000090-Online | ||
| 39 | 1 | Spring,Compression | V450-001630 | V450-001630-Online | ||
| 40 | 1 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 41 | 1 | Cover,Vent | A359-000000 | A359-000000-Online | 22.5*D18*D8.5 | |
| 42 | 1 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | ||
| 43 | 1 | Spring,Compression | V450-000770 | V450-000770-Online | 20*40*3.3 | |
| 44 | 1 | Holder,Spring | V456-000101 | V456-000101-Online | ||
| 45 | 1 | Bolt, Torx 6 | V806-000000 | V806-000000-Online | TT-6*20 DG 10.9 | |
| 46 | 1 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 | |
| 47 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 49 | 1 | Part | A472-000090 | A472-000090-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lever, Brake | C320-000410 | C320-000410-Online | ||
| 2 | 5 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 3 | 2 | Collar,10 | V356-000440 | V356-000440-Online | 11.2*16.2*T0.6 | |
| 4 | 1 | Cover,Brake | C345-000282 | C345-000282-Online | ||
| 5 | 1 | Connector, Brake | C334-000110 | C334-000110-Online | ||
| 6 | 1 | Collar,10 | V356-000470 | V356-000470-Online | 12*10*T1.0 | |
| 7 | 1 | Spring,Torsion | V452-000400 | V452-000400-Online | ||
| 8 | 1 | Spacer | V376-000450 | V376-000450-Online | ||
| 9 | 1 | Band, Brake | C328-000121 | C328-000121-Online | ||
| 10 | 1 | Roller | 93050-30080 | 93050-30080-Online | ||
| 11 | 1 | Spring,Compression | V450-000740 | V450-000740-Online | 12*70.5 | |
| 12 | 1 | Ring | V583-000130 | V583-000130-Online | 8 T1.2 | |
| 13 | 1 | Washer,Circular 10 | V307-000410 | V307-000410-Online | 10*28.5*3.5 | |
| 14 | 1 | Sprocket, Rim .325 | 175114-12530 | 175114-12530-Online | ||
| 15 | 1 | Drum, Clutch | A556-001310 | A556-001310-Online | ||
| 16 | 1 | Bearing,Needle 10 | V555-000160 | V555-000160-Online | ||
| 17 | 1 | Clutch Asy | A056-000220 | A056-000220-Online | ||
| 18 | + | 1 | Hub, Clutch | A552-000110 | A552-000110-Online | |
| 19 | + | 1 | Clutch Shoe Set | P021-007050 | P021-007050-Online | |
| 20 | + | 3 | Spring,Tension | V451-000500 | V451-000500-Online | |
| 21 | 1 | Plate, Clutch | A551-000110 | A551-000110-Online | 12*36*2 | |
| 22 | 1 | Collar,14 | V358-000090 | V358-000090-Online | ||
| 23 | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 | |
| 24 | 1 | Pipe, Oil | 437210-30830 | 437210-30830-Online | NBR 3*6*210L |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 2 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 26 | 1 | Pipe | V470-001790 | V470-001790-Online | ||
| 27 | 1 | Auto-Oiler Assembly | C022-000051 | C022-000051-Online | ||
| 28 | 2 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 | |
| 29 | 1 | Gear,Worm | V652-000050 | V652-000050-Online | ||
| 30 | 1 | Plate,Sprocket Guard | C305-000390 | C305-000390-Online | ||
| 31 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 32 | 1 | Tensioner, Chain | C309-000150 | C309-000150-Online | ||
| 33 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 34 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 35 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 36 | 1 | Screw | 91325-03005 | 91325-03005-Online | ||
| 37 | 1 | Plate,Sprocket Guard | C305-000400 | C305-000400-Online | ||
| 38 | 1 | Guard, Sprocket | C300-000810 | C300-000810-Online | ||
| 41 | 2 | Part | V265-000250 | V265-000250-Online | ||
| 43 | 1 | Pad, Guard | C302-000010 | C302-000010-Online | ||
| 44 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 45 | 1 | Washer,Square | V341-000170 | V341-000170-Online | ||
| 46 | 1 | Plate, Side | C603-000220 | C603-000220-Online | T0.3 | |
| 47 | 1 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | TT-4*12 DG 10.9 | |
| 48 | 1 | Washer,Circular 16-1 | V311-000090 | V311-000090-Online | 15.5*22.5*0.5 | |
| 49 | 1 | Bracket,Pipe | C518-000150 | C518-000150-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | TT-5*16 DG 10.9 | |
| 2 | 1 | Spiked | C304-000180 | C304-000180-Online | ||
| 3 | 1 | Catcher, Chain | C310-000010 | C310-000010-Online | ||
| 5 | 1 | Tool,Case | X698-000050 | X698-000050-Online | 140*260*0.06 | |
| 6 | 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 13*19 L180 | |
| 7 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 9 | 1 | Tool,L Wrench | X605-000050 | X605-000050-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Scabbard,Chain | P021-014290 | P021-014290-Online | ||
| 2 | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Model | X503-010460 | X503-010460-Online | CS-550 | |
| 2 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 3 | 1 | Label,Caution | X505-000180 | X505-000180-Online | ||
| 4 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 5 | 1 | Label,Echo | X502-000460 | X502-000460-Online | ||
| 6 | 1 | Label,Echo | X502-000340 | X502-000340-Online | ECHO(WHITE) |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Body Asy,Air Valve | P003-004230 | P003-004230-Online | 2 | ++ |
| 2 | 1 | Cover,Air Valve Body | P003-004040 | P003-004040-Online | 3 | ++ | |
| 3 | 1 | Valve Air | P003-002020 | P003-002020-Online | 4 | ++ | |
| 4 | 1 | Washer | P003-002050 | P003-002050-Online | 6 | ++ | |
| 6 | 1 | Seal Dust | P003-002060 | P003-002060-Online | 7 | ++ | |
| 7 | 1 | Cover Dust | P003-002000 | P003-002000-Online | 8 | ++ | |
| 8 | 1 | Spring Return | P003-002040 | P003-002040-Online | 9 | ++ | |
| 9 | 1 | Link Assembly-Air | P003-004240 | P003-004240-Online | 10 | ++ | |
| 10 | 1 | Screw | P003-002030 | P003-002030-Online | ||
| 11 | + | 4 | Screw | 123114-40630 | 123114-40630-Online | |
| 12 | + | 4 | Washer | 123149-26030 | 123149-26030-Online | |
| 13 | + | 1 | Link Rod | P003-002080 | P003-002080-Online | |
| 14 | + | 3 | Ring | 123127-15030 | 123127-15030-Online | |
| 15 | + | 4 | Screw | 123114-38830 | 123114-38830-Online | |
| 17 | + | 1 | Lever-Outer | P003-004250 | P003-004250-Online | |
| 18 | + | 1 | Shaft Asy,Throttle | P003-004680 | P003-004680-Online | |
| 20 | + | 1 | Shaft Asy,Choke | P003-004270 | P003-004270-Online | |
| 21 | + | 1 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |
| 22 | + | 1 | Screw Idle Speed | P003-002130 | P003-002130-Online | |
| 23 | + | 2 | Spring | P003-002150 | P003-002150-Online | |
| 24 | + | 1 | Piston Assy | 123185-39130 | 123185-39130-Online | |
| 25 | + | 1 | Spring | P003-004290 | P003-004290-Online | |
| 26 | + | 1 | Gasket Passage | P003-002110 | P003-002110-Online | |
| 27 | + | 1 | Plate Passage | P003-002160 | P003-002160-Online | |
| 28 | + | 1 | Gasket, Pump | P003-000100 | P003-000100-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 30 | + | 1 | Body Assembly, Pump | P003-004220 | P003-004220-Online | 31 | ++ |
| 31 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 32 | ++ | |
| 32 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | 33 | ++ | |
| 33 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 34 | ++ | |
| 34 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 35 | ++ | |
| 35 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 36 | ++ | |
| 36 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | ||
| 37 | + | 1 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |
| 38 | + | 1 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |
| 40 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 42 | + | 4 | Screw, Pump Cover | 123110-40630 | 123110-40630-Online | |
| 43 | + | 1 | Plug, Friction | 123178-15030 | 123178-15030-Online | |
| 44 | + | 1 | Spring | P003-004300 | P003-004300-Online | |
| 50 | + | 1 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |
| 51 | + | 1 | Lever, Choke | P003-004060 | P003-004060-Online | |
| 52 | + | 1 | Valve, Choke | P003-002200 | P003-002200-Online | |
| 53 | + | 1 | Needle | P003-002270 | P003-002270-Online | |
| 54 | + | 1 | Needle | P003-004360 | P003-004360-Online | |
| 55 | + | 1 | Spacer | P003-004330 | P003-004330-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1A | 1 | Bar,Guide 38Rv58-325 | 430521-30131 | 430521-30131-Online | 38RV58-325E | |
| 2A | 1 | Chain, Saw | 431721-30231 | 431721-30231-Online | 21BPX-64E | |
| 1B | 1 | Bar,Guide 45Rv58-325 | 430517-30131 | 430517-30131-Online | 45RV58-325E | |
| 2B | 1 | Chain, Saw | 431717-30231 | 431717-30231-Online | 21BPX-72E | |
| 1C | 1 | Bar,Guide 50Rv58-325 | 430512-30131 | 430512-30131-Online | 50RV58-325E | |
| 2C | 1 | Chain, Saw | 431712-30231 | 431712-30231-Online | 21BPX-80E |
Source PDF: 20130718-469_CS-550(37)(.325)_P014-001110-10Jc_EN.pdf. Generated 2026-06-25 14:38.
