Echo CS-600 IPL / Parts List

Echo CS-600 IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: CS-600-Online

Source Pages

Page 1

Echo CS-600 IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo CS-600 IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo CS-600 IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo CS-600 IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

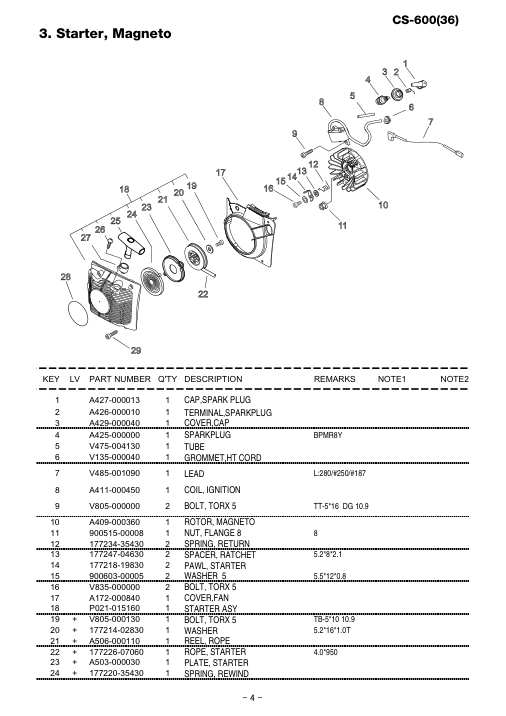

Echo CS-600 IPL / Parts List source page 5

Tap or click the page image to enlarge it.

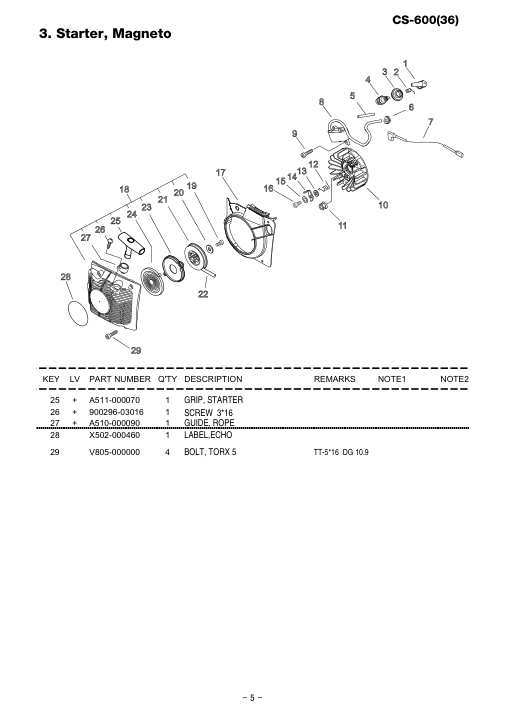

Page 6

Echo CS-600 IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

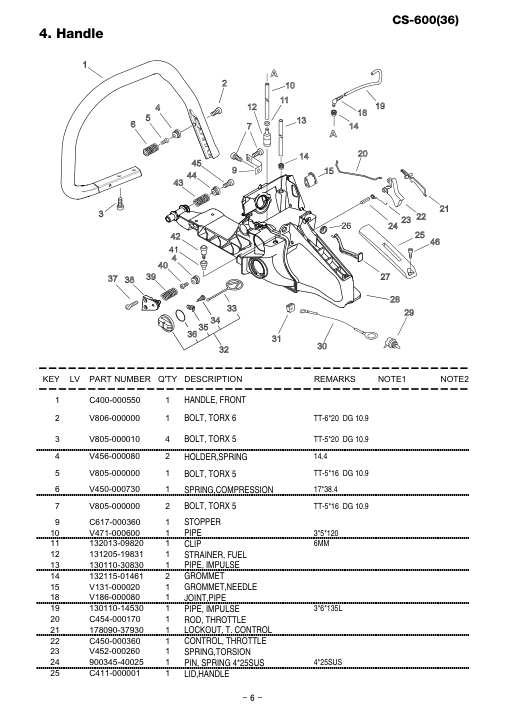

Echo CS-600 IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo CS-600 IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

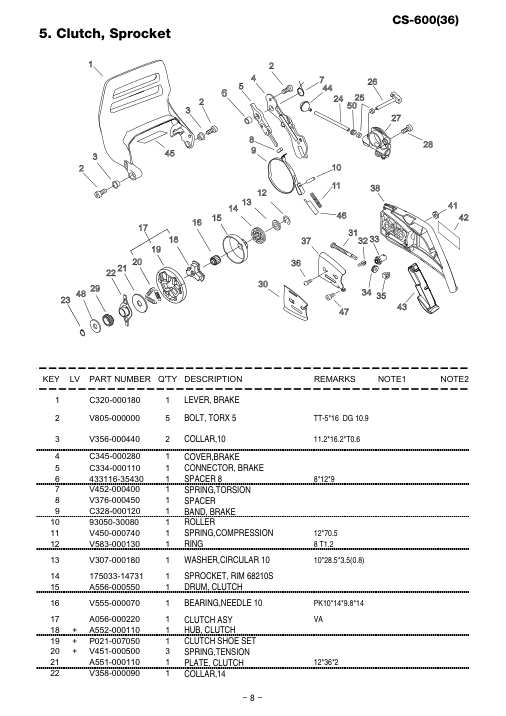

Echo CS-600 IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo CS-600 IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo CS-600 IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

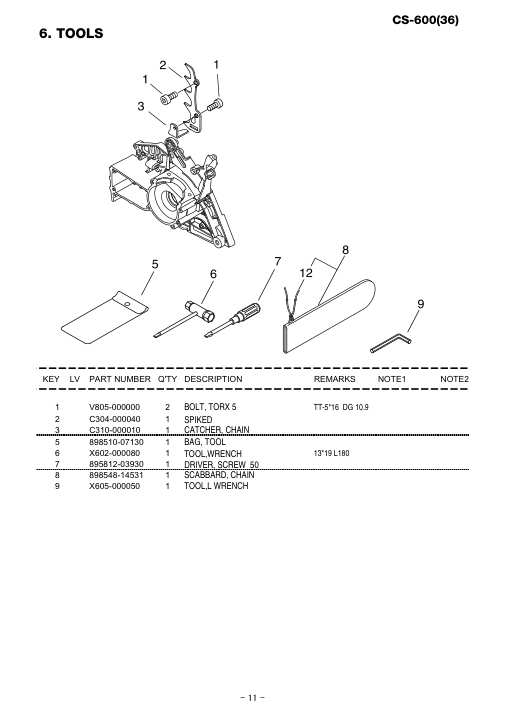

Echo CS-600 IPL / Parts List source page 12

Tap or click the page image to enlarge it.

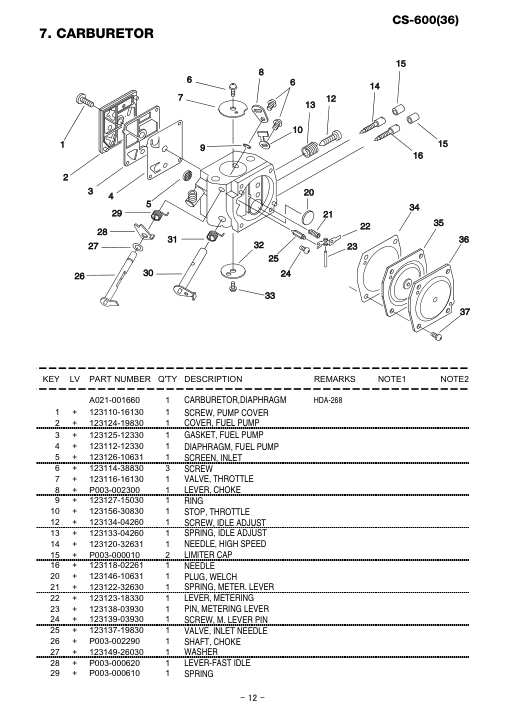

Page 13

Echo CS-600 IPL / Parts List source page 13

Tap or click the page image to enlarge it.

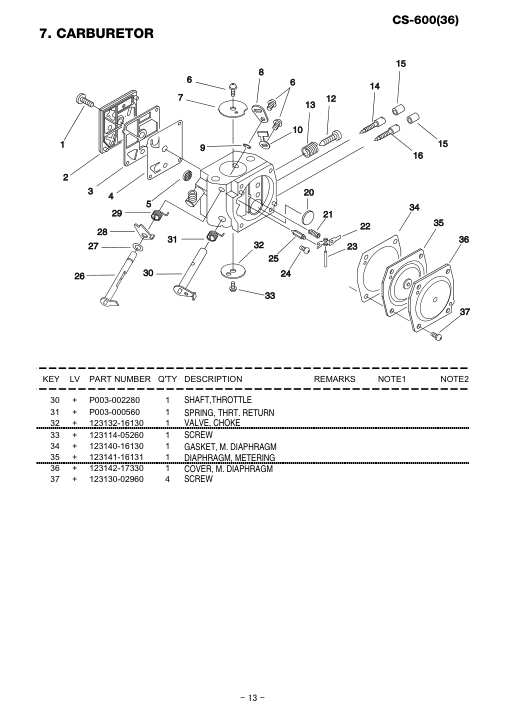

Page 14

Echo CS-600 IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo CS-600 IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

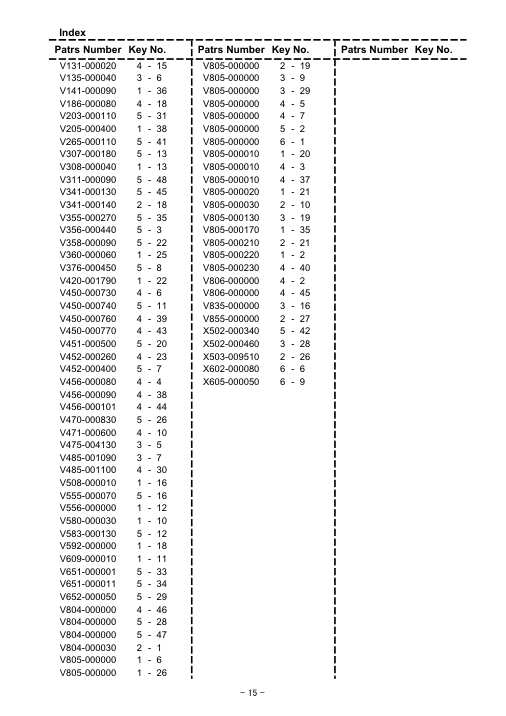

Echo CS-600 IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo CS-600 IPL / Parts List source page 17

Tap or click the page image to enlarge it.

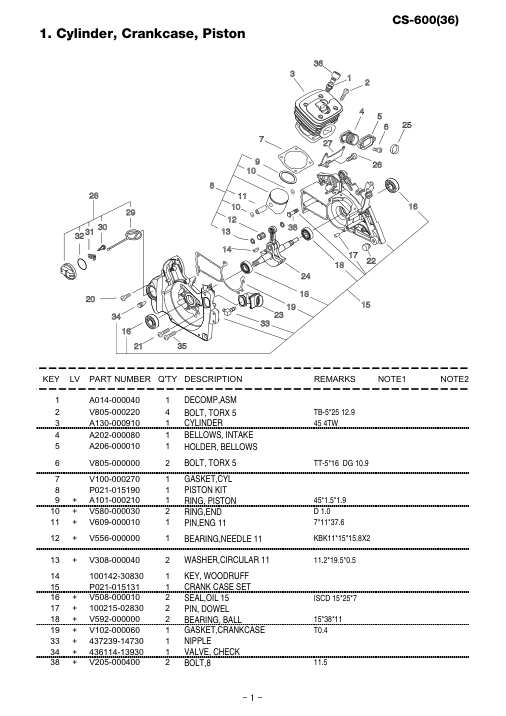

Page 2 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Decomp,Asm	A014-000040	A014-000040-Online
2		4	Bolt, Torx 5	V805-000220	V805-000220-Online	TB-5*25 12.9
3		1	Cylinder	A130-000910	A130-000910-Online	45 4TW
4		1	Bellows, Intake	A202-000080	A202-000080-Online
5		1	Holder, Bellows	A206-000010	A206-000010-Online
6		2	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
7		1	Gasket,Cyl	V100-000270	V100-000270-Online
8		1	Piston Kit	P021-015190	P021-015190-Online
9	+	1	Ring, Piston	A101-000210	A101-000210-Online	451.51.9
10	+	2	Ring,End	V580-000030	V580-000030-Online	D 1.0
11	+	1	Pin,Eng 11	V609-000010	V609-000010-Online	71137.6
12	+	1	Bearing,Needle 11	V556-000000	V556-000000-Online	KBK111515.8X2
13	+	2	Washer,Circular 11	V308-000040	V308-000040-Online	11.219.50.5
14		1	Key, Woodruff	100142-30830	100142-30830-Online
15		1	Crank Case Set	P021-015131	P021-015131-Online
16	+	2	Seal,Oil 15	V508-000010	V508-000010-Online	ISCD 15257
17	+	2	Pin, Dowel	100215-02830	100215-02830-Online
18	+	2	Bearing, Ball	V592-000000	V592-000000-Online	153811
19	+	1	Gasket,Crankcase	V102-000060	V102-000060-Online	T0.4
33	+	1	Nipple	437239-14730	437239-14730-Online
34	+	1	Valve, Check	436114-13930	436114-13930-Online
38	+	2	Bolt,8	V205-000400	V205-000400-Online	11.5

Page 3 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
20		2	Bolt, Torx 5	V805-000010	V805-000010-Online	TT-5*20 DG 10.9
21		4	Bolt, Torx 5	V805-000020	V805-000020-Online	TT-5*35 DG 10.9
22		2	Cushion	V420-001790	V420-001790-Online
23		1	Pipe, Intake	A239-000060	A239-000060-Online
24		1	Crankshaft,Asy	A011-000540	A011-000540-Online
25		1	Collar,18	V360-000060	V360-000060-Online
26		1	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
27		1	Guide,Air	E106-000020	E106-000020-Online
28		1	Cap, Oil	P021-016030	P021-016030-Online
29	+	1	Link	131051-19830	131051-19830-Online
30	+	1	Screw 3*8	900246-03008	900246-03008-Online	3*8
31	+	1	Retainer, Link	131050-19830	131050-19830-Online
32	+	1	O-Ring 28	900720-00028	900720-00028-Online	P-28
35		1	Bolt, Torx 5	V805-000170	V805-000170-Online	TB-5*25 10.9
36		1	Grommet,Plug	V141-000090	V141-000090-Online
37		1	Grommet	132115-01461	132115-01461-Online

Page 4 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		5	Bolt, Torx 4	V804-000030	V804-000030-Online	TB-4*8 10.9
2		1	Plate, Muffler	A301-000030	A301-000030-Online	T0.5
3		1	Guide, Exhaust	A313-001050	A313-001050-Online
4		1	Guide, Exhaust	A313-001040	A313-001040-Online
5		1	Screen, Arrestor	A310-000100	A310-000100-Online
6		1	Muffler, Exhaust	A300-000770	A300-000770-Online
7		1	Gasket,Exhaust	V104-000910	V104-000910-Online	T1.6
8		1	Carburetor,Diaphragm	A021-001660	A021-001660-Online	HDA-268
9		1	Case,Cleaner	P021-016020	P021-016020-Online
20	+	1	Shutter, Air	A219-000000	A219-000000-Online
10		2	Bolt, Torx 5	V805-000030	V805-000030-Online	TT-5*50 DG 10.9
14		1	Lid,Cleaner	A232-000470	A232-000470-Online
15		1	Knob,Cleaner Lid	A235-000190	A235-000190-Online
16		1	Cover,Cylinder	A160-001080	A160-001080-Online
17		1	Pipe, Intake	A239-000070	A239-000070-Online
18		1	Washer,Square	V341-000140	V341-000140-Online	75320.15
19		3	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
21		2	Bolt, Torx 5	V805-000210	V805-000210-Online	TB-5*20 12.9
22		1	Label, Switch	890157-39130	890157-39130-Online
23		1	Label, Caution	890631-38130	890631-38130-Online
24		1	Label,Caution	890345-39230	890345-39230-Online
26		1	Label,Model	X503-009510	X503-009510-Online	CS-600
27		2	Bolt, Torx 5	V855-000000	V855-000000-Online	TB-5*20
28		1	Element,Air Filter	P021-016370	P021-016370-Online

Page 5 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Cap,Spark Plug	A427-000013	A427-000013-Online
2		1	Terminal,Sparkplug	A426-000010	A426-000010-Online
3		1	Cover,Cap	A429-000040	A429-000040-Online
4		1	Sparkplug	A425-000000	A425-000000-Online	BPMR8Y
5		1	Tube	V475-004130	V475-004130-Online
6		1	Grommet,Ht Cord	V135-000040	V135-000040-Online
7		1	Lead	V485-001090	V485-001090-Online	L:280/#250/#187
8		1	Coil, Ignition	A411-000450	A411-000450-Online
9		2	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
10		1	Rotor, Magneto	A409-000360	A409-000360-Online
11		1	Nut, Flange 8	900515-00008	900515-00008-Online
12		2	Spring, Return	177234-35430	177234-35430-Online
13		2	Spacer, Ratchet	177247-04630	177247-04630-Online	5.282.1
14		2	Pawl, Starter	177218-19830	177218-19830-Online
15		2	Washer 5	900603-00005	900603-00005-Online	5.5120.8
16		2	Bolt, Torx 5	V835-000000	V835-000000-Online
17		1	Cover,Fan	A172-000840	A172-000840-Online
18		1	Starter Asy	P021-015160	P021-015160-Online
19	+	1	Bolt, Torx 5	V805-000130	V805-000130-Online	TB-5*10 10.9
20	+	1	Washer	177214-02830	177214-02830-Online	5.2161.0T
21	+	1	Reel, Rope	A506-000110	A506-000110-Online
22	+	1	Rope, Starter	177226-07060	177226-07060-Online	4.0*950
23	+	1	Plate, Starter	A503-000030	A503-000030-Online
24	+	1	Spring, Rewind	177220-35430	177220-35430-Online

Page 6 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
25	+	1	Grip, Starter	A511-000070	A511-000070-Online
26	+	1	Screw 3*16	900296-03016	900296-03016-Online
27	+	1	Guide, Rope	A510-000090	A510-000090-Online
28		1	Label,Echo	X502-000460	X502-000460-Online
29		4	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9

Page 7 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Handle, Front	C400-000550	C400-000550-Online
2		1	Bolt, Torx 6	V806-000000	V806-000000-Online	TT-6*20 DG 10.9
3		4	Bolt, Torx 5	V805-000010	V805-000010-Online	TT-5*20 DG 10.9
4		2	Holder,Spring	V456-000080	V456-000080-Online	14.4
5		1	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
6		1	Spring,Compression	V450-000730	V450-000730-Online	17*38.4
7		2	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
9		1	Stopper	C617-000360	C617-000360-Online
10		1	Pipe	V471-000600	V471-000600-Online	35120
11		1	Clip	132013-09820	132013-09820-Online	6MM
12		1	Strainer, Fuel	131205-19831	131205-19831-Online
13		1	Pipe, Impulse	130110-30830	130110-30830-Online
14		2	Grommet	132115-01461	132115-01461-Online
15		1	Grommet,Needle	V131-000020	V131-000020-Online
18		1	Joint,Pipe	V186-000080	V186-000080-Online
19		1	Pipe, Impulse	130110-14530	130110-14530-Online	36135L
20		1	Rod, Throttle	C454-000170	C454-000170-Online
21		1	Lockout, T. Control	178090-37930	178090-37930-Online
22		1	Control, Throttle	C450-000360	C450-000360-Online
23		1	Spring,Torsion	V452-000260	V452-000260-Online
24		1	Pin, Spring 4*25Sus	900345-40025	900345-40025-Online	4*25SUS
25		1	Lid,Handle	C411-000001	C411-000001-Online

Page 8 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
26		1	Grommet,Choke	V130-000030	V130-000030-Online
27		1	Knob, Choke	A241-000170	A241-000170-Online
28		1	Handle, Rear	C410-000460	C410-000460-Online
29		1	Switch, On Off	A440-001190	A440-001190-Online
30		1	Lead	V485-001100	V485-001100-Online	L:170/LA105
31		1	Bushing	150114-04920	150114-04920-Online
32		1	Cap,Fuer Assy	P021-016040	P021-016040-Online
33	+	1	Link	131051-19830	131051-19830-Online
34	+	1	Screw 3*8	900246-03008	900246-03008-Online	3*8
35	+	1	Retainer, Link	131050-19830	131050-19830-Online
36	+	1	O-Ring 29	900720-20029	900720-20029-Online	P-29
37		2	Bolt, Torx 5	V805-000010	V805-000010-Online	TT-5*20 DG 10.9
38		1	Holder,Spring	V456-000090	V456-000090-Online
39		1	Spring,Compression	V450-000760	V450-000760-Online	1736.72.6
40		1	Bolt, Torx 5	V805-000230	V805-000230-Online	TT-5*25 DG 10.9
41		1	Cover,Vent	A359-000000	A359-000000-Online	22.5D18D8.5
42		1	Valve, Check	131300-56430	131300-56430-Online
43		1	Spring,Compression	V450-000770	V450-000770-Online	20403.3
44		1	Holder,Spring	V456-000101	V456-000101-Online
45		1	Bolt, Torx 6	V806-000000	V806-000000-Online	TT-6*20 DG 10.9
46		1	Bolt, Torx 4	V804-000000	V804-000000-Online	TT-4*12 DG 10.9

Page 9 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		1	Lever, Brake	C320-000180	C320-000180-Online
2		5	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
3		2	Collar,10	V356-000440	V356-000440-Online	11.216.2T0.6
4		1	Cover,Brake	C345-000280	C345-000280-Online
5		1	Connector, Brake	C334-000110	C334-000110-Online
6		1	Spacer 8	433116-35430	433116-35430-Online	8129
7		1	Spring,Torsion	V452-000400	V452-000400-Online
8		1	Spacer	V376-000450	V376-000450-Online
9		1	Band, Brake	C328-000120	C328-000120-Online
10		1	Roller	93050-30080	93050-30080-Online
11		1	Spring,Compression	V450-000740	V450-000740-Online	12*70.5
12		1	Ring	V583-000130	V583-000130-Online	8 T1.2
13		1	Washer,Circular 10	V307-000180	V307-000180-Online	1028.53.5(0.8)
14		1	Sprocket, Rim 68210S	175033-14731	175033-14731-Online
15		1	Drum, Clutch	A556-000550	A556-000550-Online
16		1	Bearing,Needle 10	V555-000070	V555-000070-Online	PK10149.8*14
17		1	Clutch Asy	A056-000220	A056-000220-Online
18	+	1	Hub, Clutch	A552-000110	A552-000110-Online
19	+	1	Clutch Shoe Set	P021-007050	P021-007050-Online
20	+	3	Spring,Tension	V451-000500	V451-000500-Online
21		1	Plate, Clutch	A551-000110	A551-000110-Online	12362
22		1	Collar,14	V358-000090	V358-000090-Online

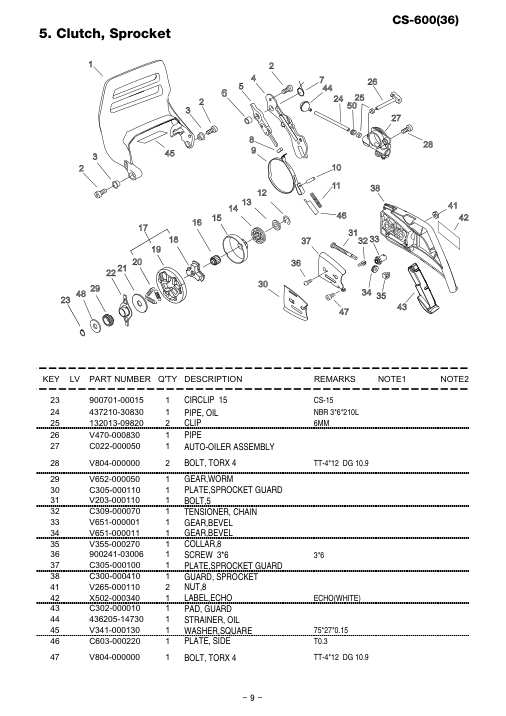

Page 10 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
23		1	Circlip 15	900701-00015	900701-00015-Online	CS-15
24		1	Pipe, Oil	437210-30830	437210-30830-Online	NBR 36210L
25		2	Clip	132013-09820	132013-09820-Online	6MM
26		1	Pipe	V470-000830	V470-000830-Online
27		1	Auto-Oiler Assembly	C022-000050	C022-000050-Online
28		2	Bolt, Torx 4	V804-000000	V804-000000-Online	TT-4*12 DG 10.9
29		1	Gear,Worm	V652-000050	V652-000050-Online
30		1	Plate,Sprocket Guard	C305-000110	C305-000110-Online
31		1	Bolt,5	V203-000110	V203-000110-Online
32		1	Tensioner, Chain	C309-000070	C309-000070-Online
33		1	Gear,Bevel	V651-000001	V651-000001-Online
34		1	Gear,Bevel	V651-000011	V651-000011-Online
35		1	Collar,8	V355-000270	V355-000270-Online
36		1	Screw 3*6	900241-03006	900241-03006-Online	3*6
37		1	Plate,Sprocket Guard	C305-000100	C305-000100-Online
38		1	Guard, Sprocket	C300-000410	C300-000410-Online
41		2	Nut,8	V265-000110	V265-000110-Online
42		1	Label,Echo	X502-000340	X502-000340-Online	ECHO(WHITE)
43		1	Pad, Guard	C302-000010	C302-000010-Online
44		1	Strainer, Oil	436205-14730	436205-14730-Online
45		1	Washer,Square	V341-000130	V341-000130-Online	75270.15
46		1	Plate, Side	C603-000220	C603-000220-Online	T0.3
47		1	Bolt, Torx 4	V804-000000	V804-000000-Online	TT-4*12 DG 10.9

Page 11 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
48		1	Washer,Circular 16-1	V311-000090	V311-000090-Online	15.522.50.5

Page 12 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1		2	Bolt, Torx 5	V805-000000	V805-000000-Online	TT-5*16 DG 10.9
2		1	Spiked	C304-000040	C304-000040-Online
3		1	Catcher, Chain	C310-000010	C310-000010-Online
5		1	Bag, Tool	898510-07130	898510-07130-Online
6		1	Tool,Wrench	X602-000080	X602-000080-Online	13*19 L180
7		1	Driver, Screw 50	895812-03930	895812-03930-Online
8		1	Scabbard, Chain	898548-14531	898548-14531-Online
9		1	Tool,L Wrench	X605-000050	X605-000050-Online

Page 13 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
1	+	1	Screw, Pump Cover	123110-16130	123110-16130-Online
2	+	1	Cover, Fuel Pump	123124-19830	123124-19830-Online
3	+	1	Gasket, Fuel Pump	123125-12330	123125-12330-Online
4	+	1	Diaphragm, Fuel Pump	123112-12330	123112-12330-Online
5	+	1	Screen, Inlet	123126-10631	123126-10631-Online
6	+	3	Screw	123114-38830	123114-38830-Online
7	+	1	Valve, Throttle	123116-16130	123116-16130-Online
8	+	1	Lever, Choke	P003-002300	P003-002300-Online
9	+	1	Ring	123127-15030	123127-15030-Online
10	+	1	Stop, Throttle	123156-30830	123156-30830-Online
12	+	1	Screw, Idle Adjust	123134-04260	123134-04260-Online
13	+	1	Spring, Idle Adjust	123133-04260	123133-04260-Online
14	+	1	Needle, High Speed	123120-32631	123120-32631-Online
15	+	2	Limiter Cap	P003-000010	P003-000010-Online
16	+	1	Needle	123118-02261	123118-02261-Online
20	+	1	Plug, Welch	123146-10631	123146-10631-Online
21	+	1	Spring, Meter. Lever	123122-32630	123122-32630-Online
22	+	1	Lever, Metering	123123-18330	123123-18330-Online
23	+	1	Pin, Metering Lever	123138-03930	123138-03930-Online
24	+	1	Screw, M. Lever Pin	123139-03930	123139-03930-Online
25	+	1	Valve, Inlet Needle	123137-19830	123137-19830-Online
26	+	1	Shaft, Choke	P003-002290	P003-002290-Online
27	+	1	Washer	123149-26030	123149-26030-Online
28	+	1	Lever-Fast Idle	P003-000620	P003-000620-Online
29	+	1	Spring	P003-000610	P003-000610-Online

Page 14 - Parts

Ref	LV	Qty	Description	Part Number	Cutsmart SKU	Remarks
30	+	1	Shaft,Throttle	P003-002280	P003-002280-Online
31	+	1	Spring, Thrt. Return	P003-000560	P003-000560-Online
32	+	1	Valve, Choke	123132-16130	123132-16130-Online
33	+	1	Screw	123114-05260	123114-05260-Online
34	+	1	Gasket, M. Diaphragm	123140-16130	123140-16130-Online
35	+	1	Diaphragm, Metering	123141-16131	123141-16131-Online
36	+	1	Cover, M. Diaphragm	123142-17330	123142-17330-Online
37	+	4	Screw	123130-02960	123130-02960-Online

Source PDF: 20140925-332_CS-600(36)_P014-000020-09Eb_EN.pdf. Generated 2026-06-25 14:39.

\n

\n
